F13664_ANGELA-W-B
Print

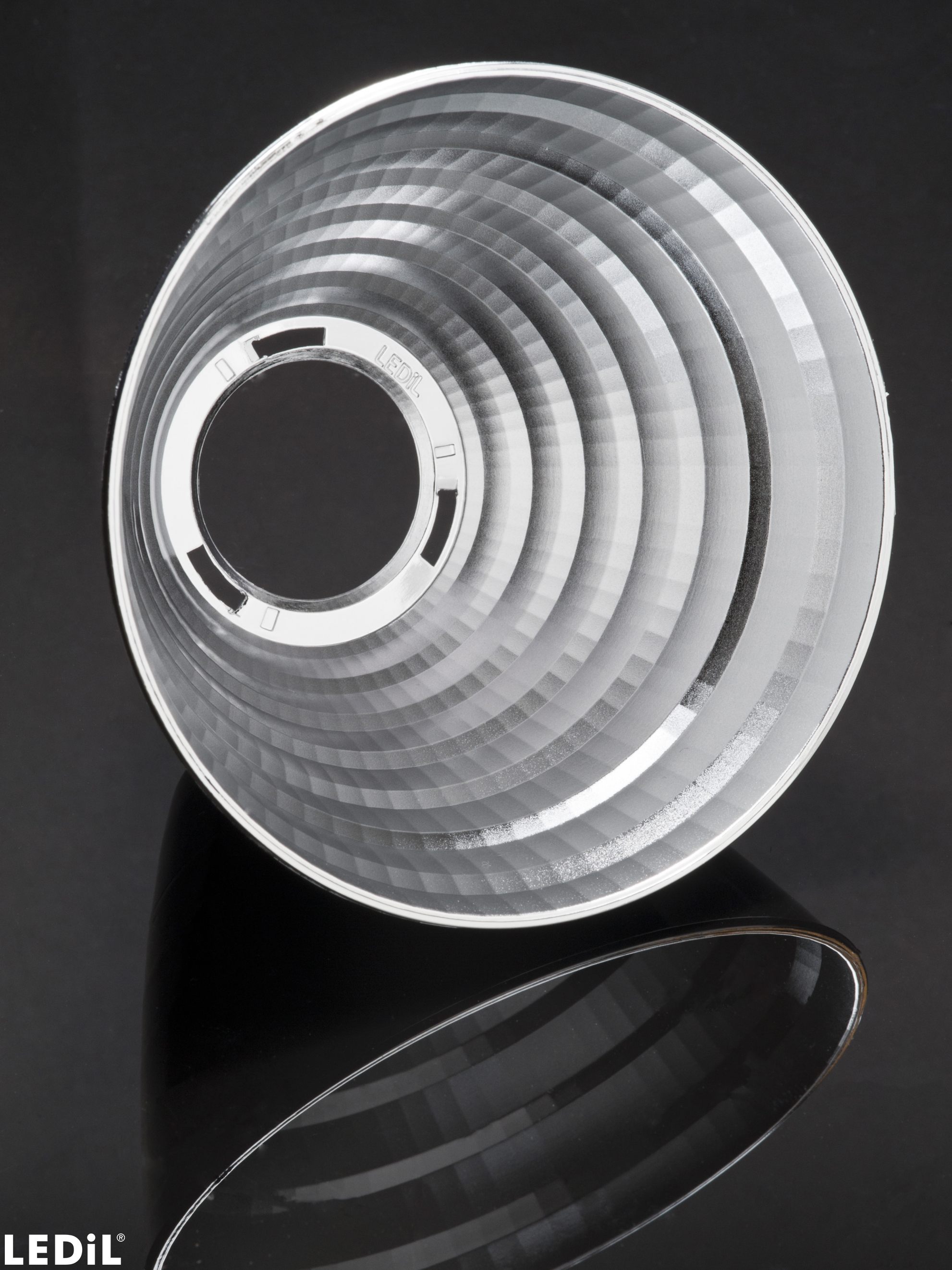

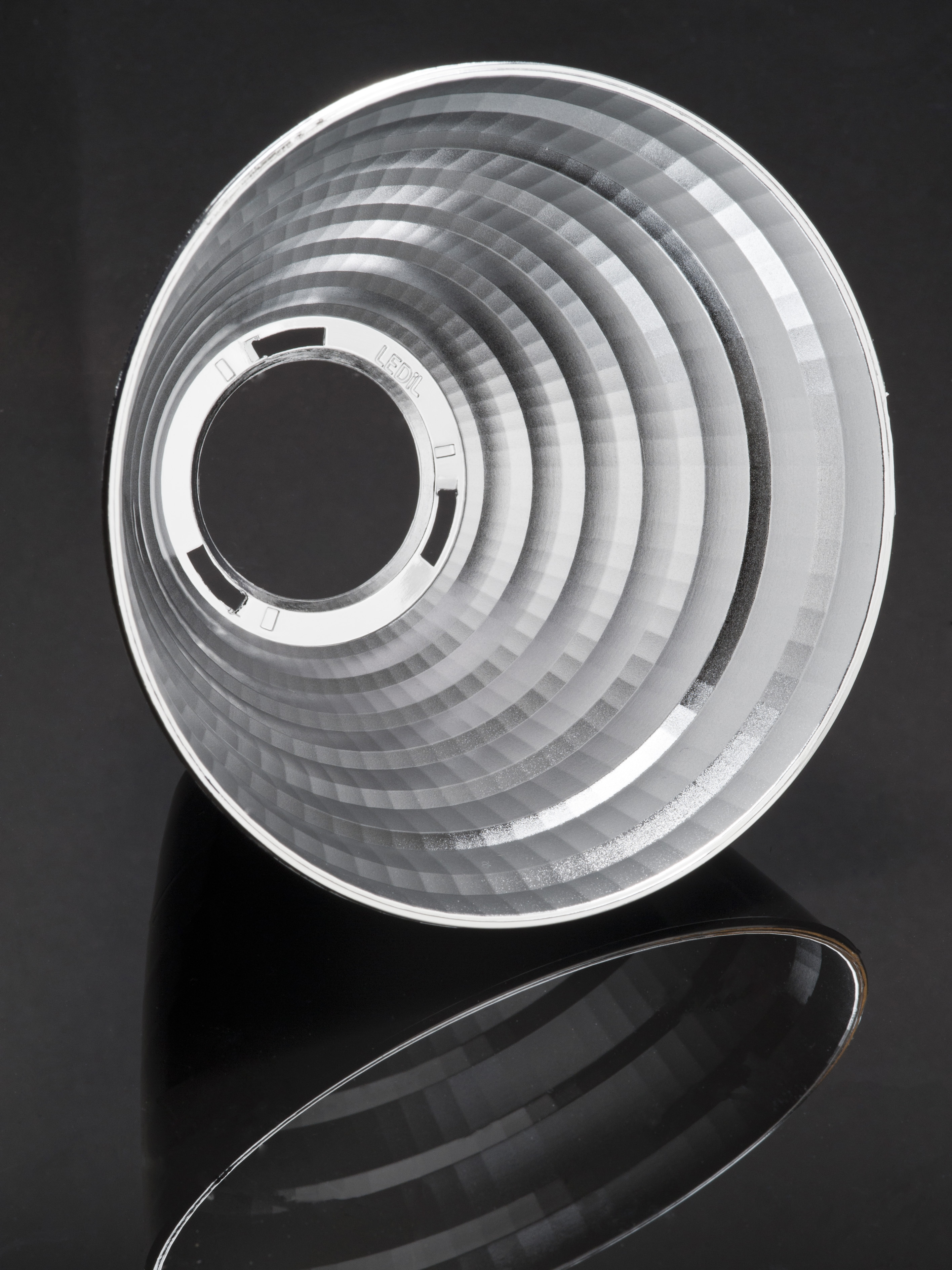

~45° wide beam compatible with BJB and B+W connectors
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

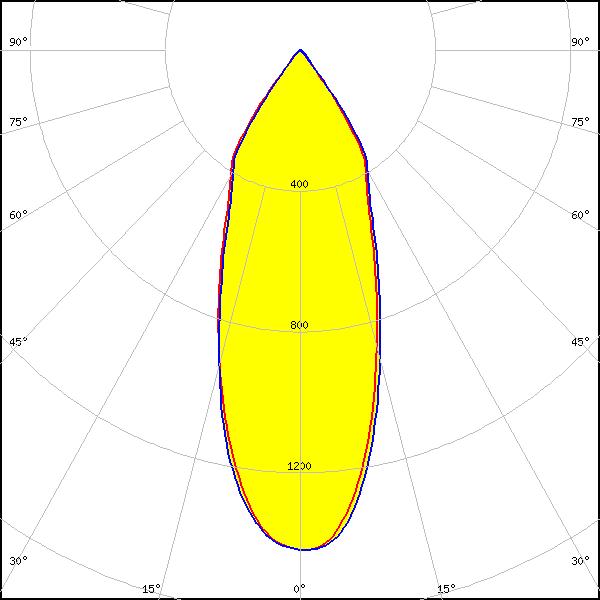

Optical results

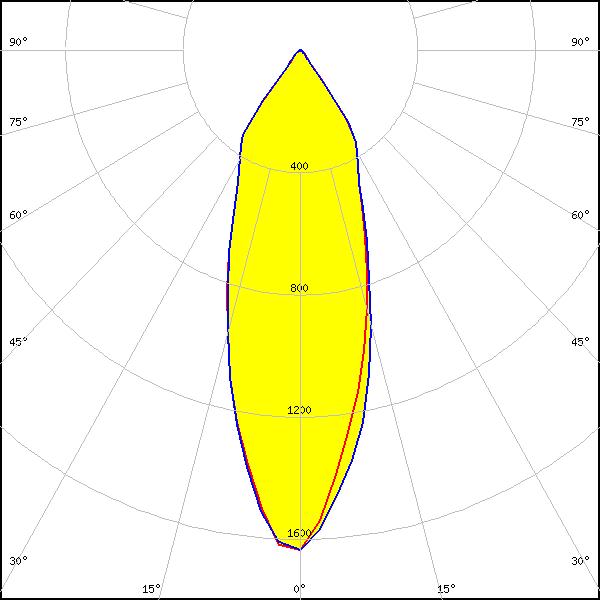

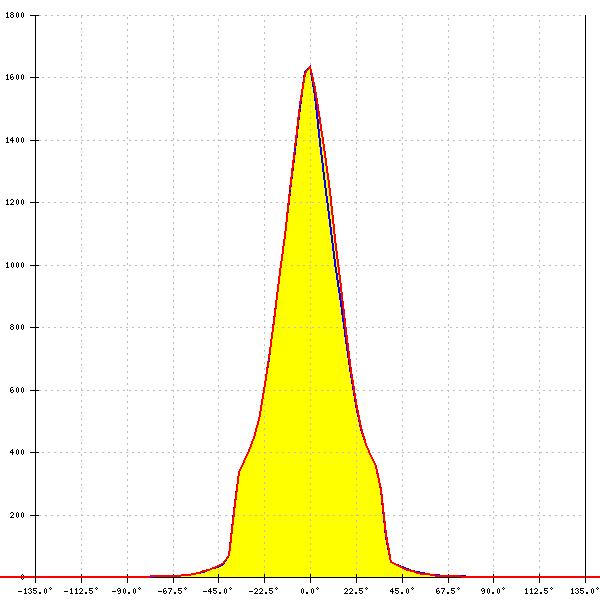

LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
BJB: 47.319.2040
FWHM:
34°
FWTM:
75°
Peak intensity:
1.650 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

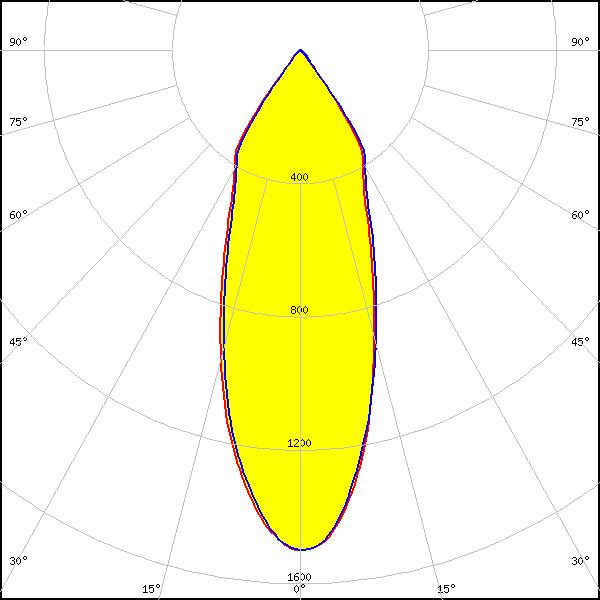

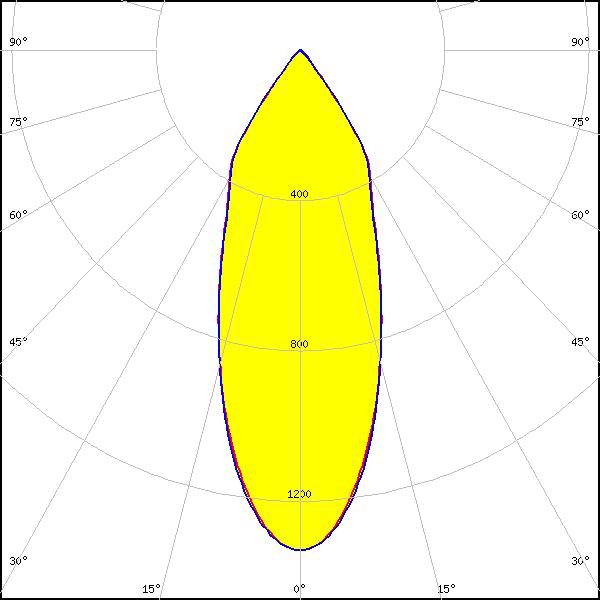

LED:
V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
37°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

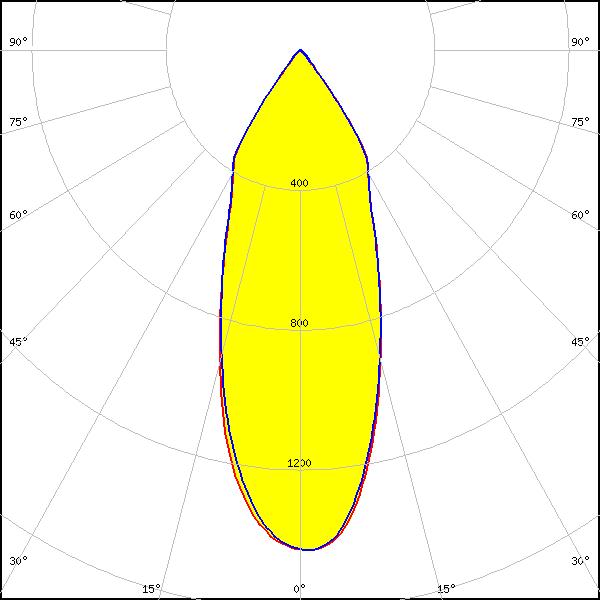

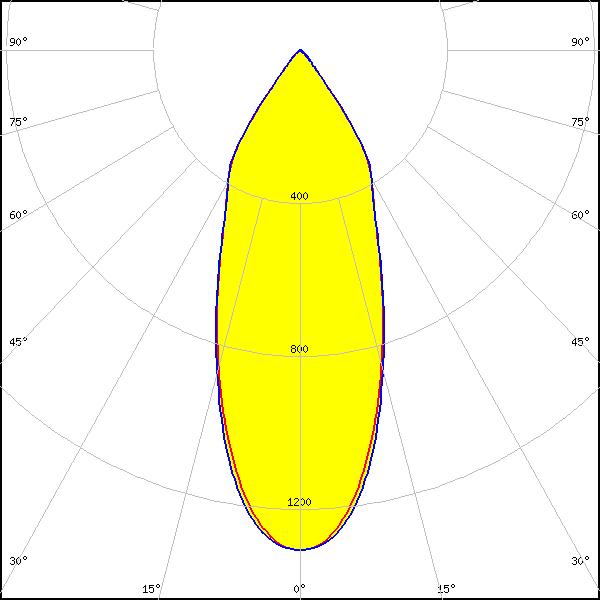

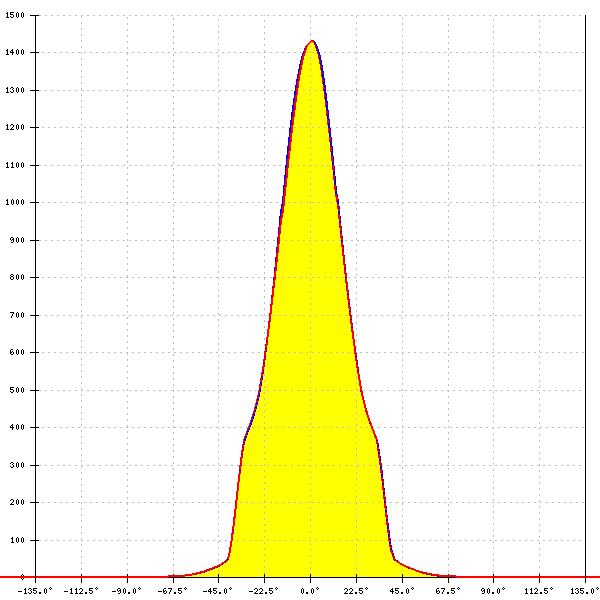

LED:
V18 Gen6
LES size: 18.6 mm
FWHM:
38°
FWTM:
76°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

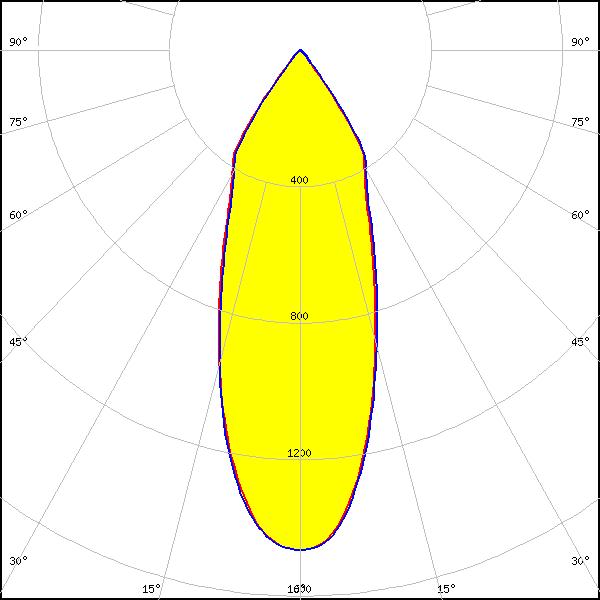

LED:

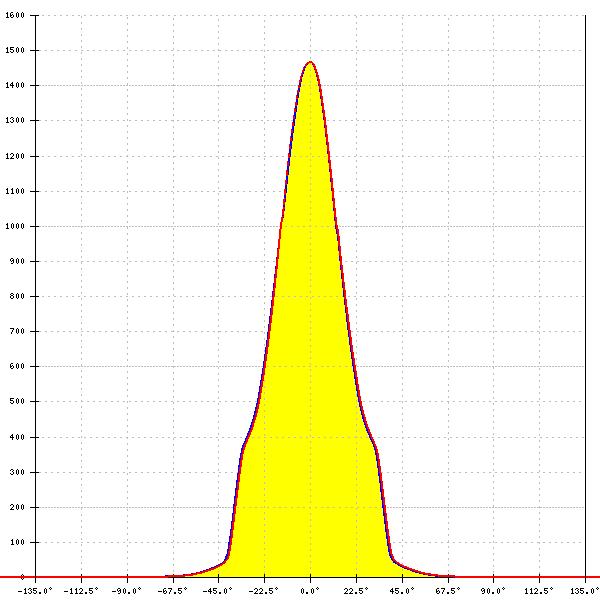

V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
38°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

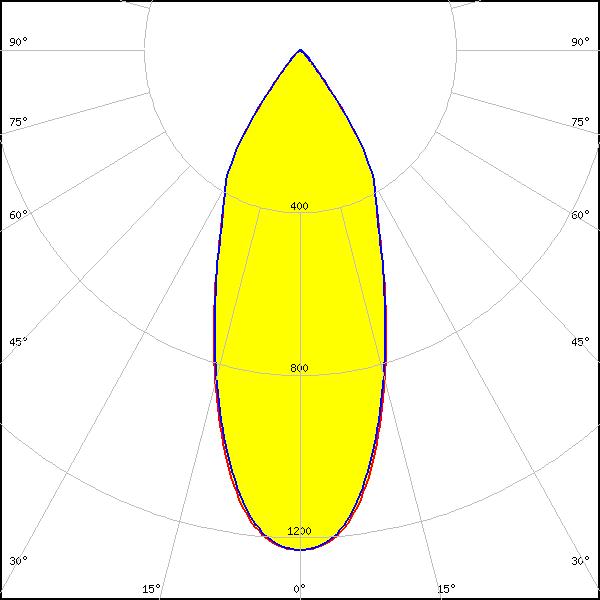

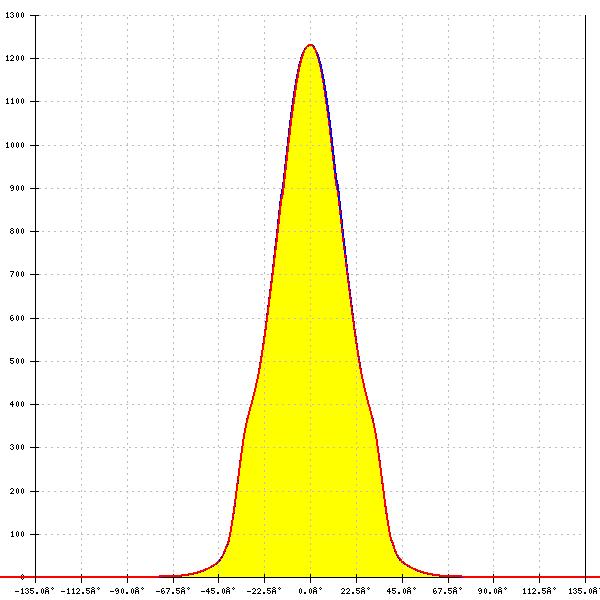

LED:

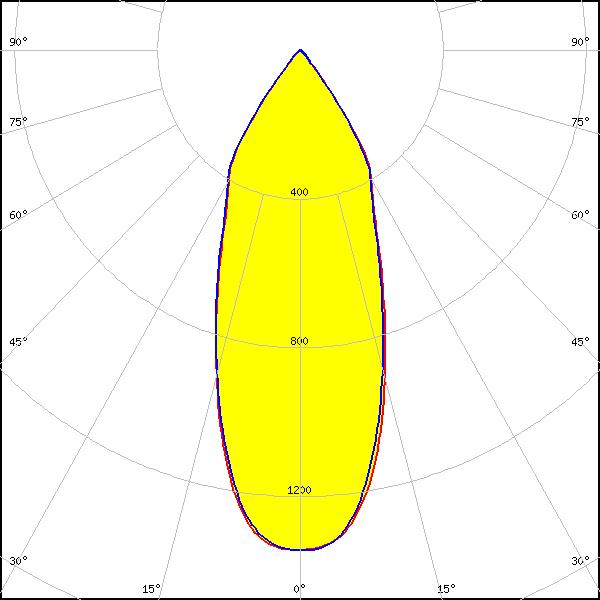

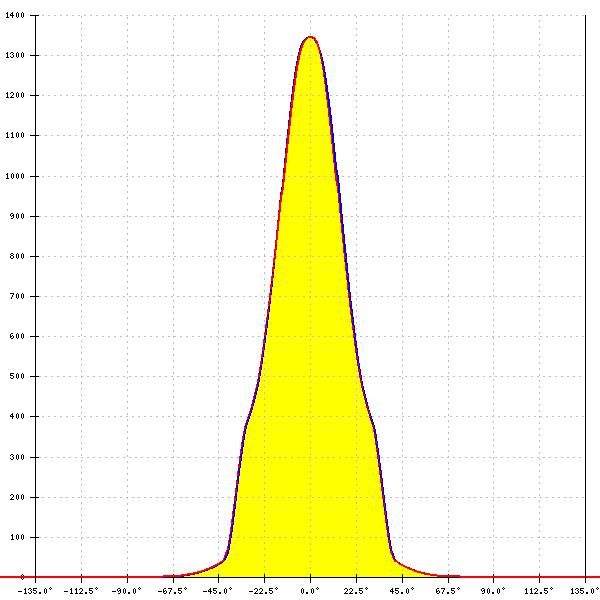

V22 Gen6
LES size: 22.0 mm
FWHM:
40°
FWTM:
76°
Peak intensity:
1.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

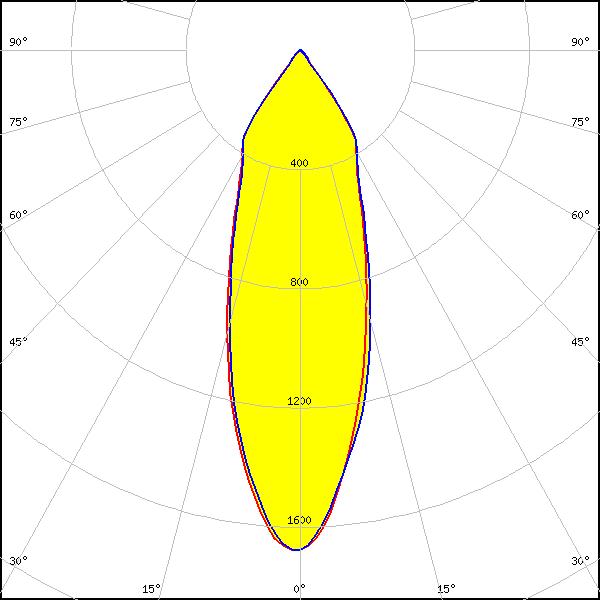

LED:

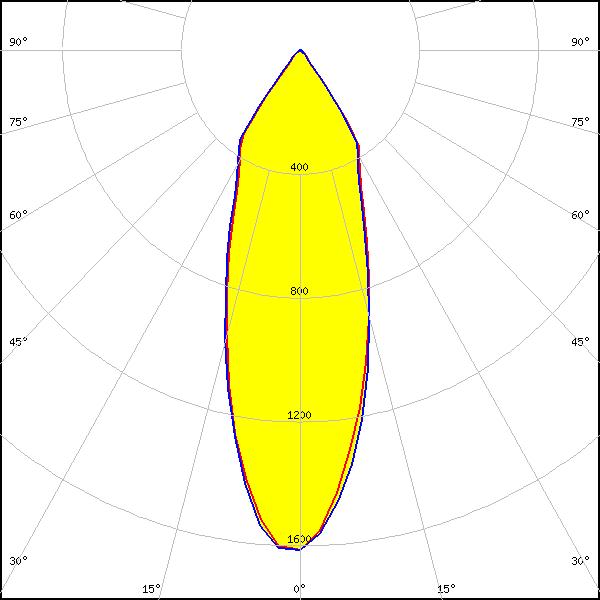

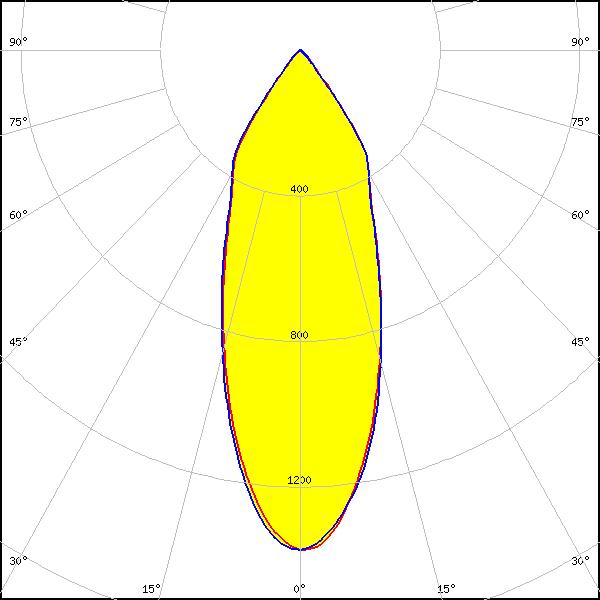

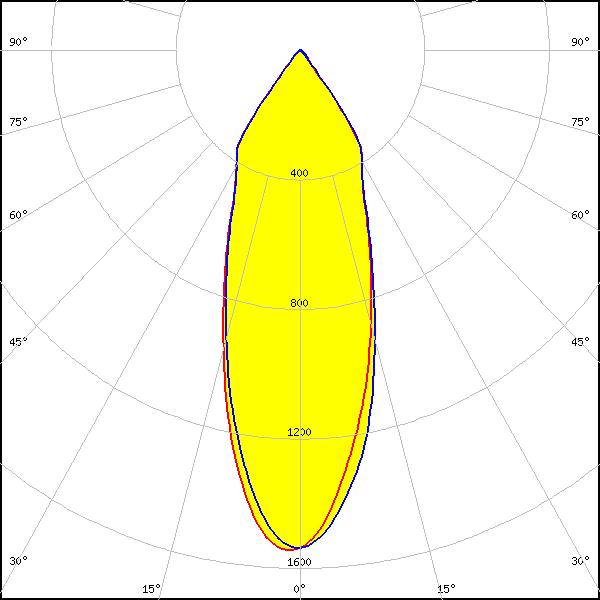

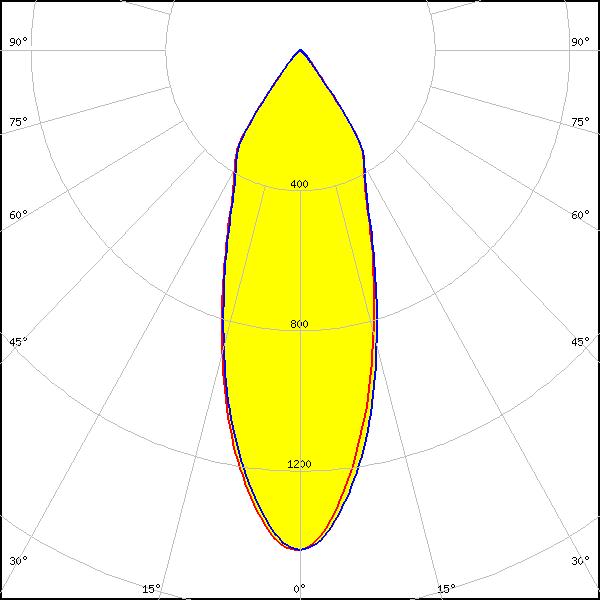

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
40°
FWTM:
70°
Peak intensity:
1.784 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.430 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
34°
FWTM:
75°
Peak intensity:
1.630 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

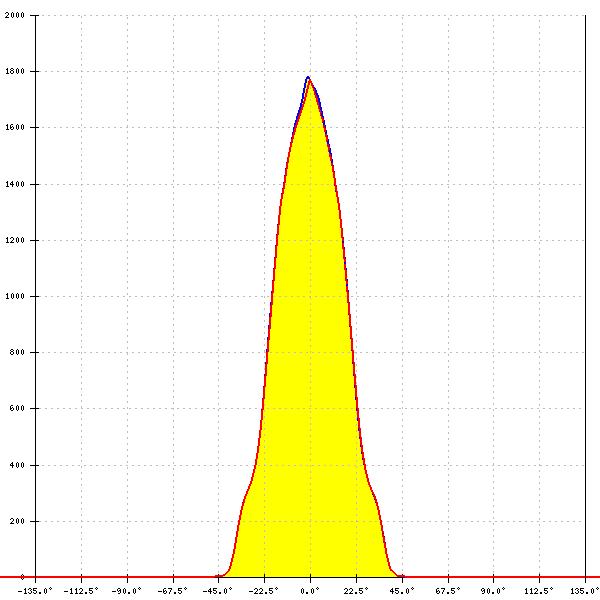

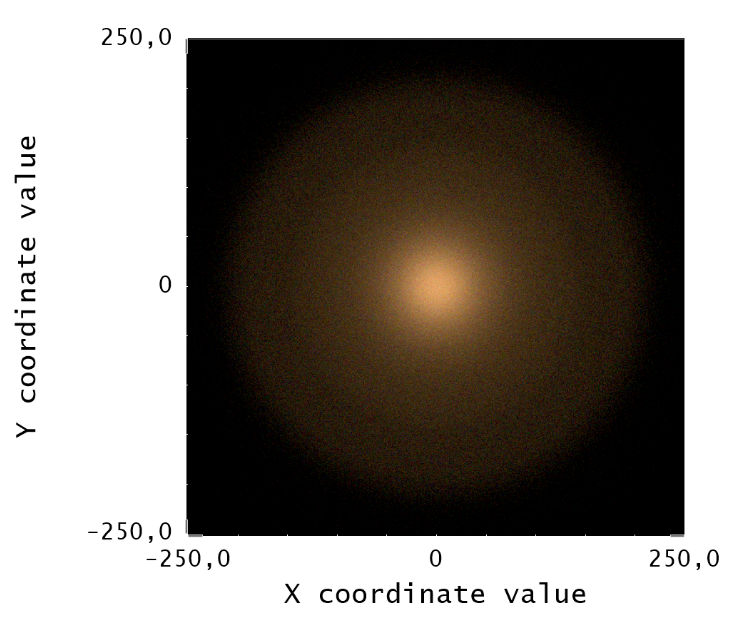

LED:

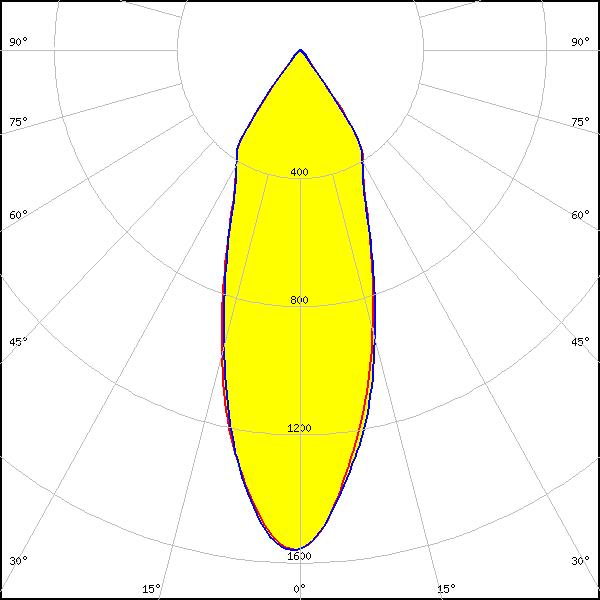

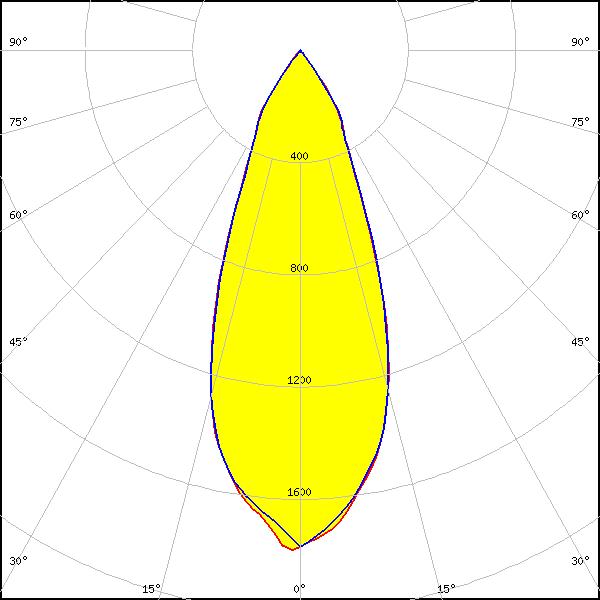

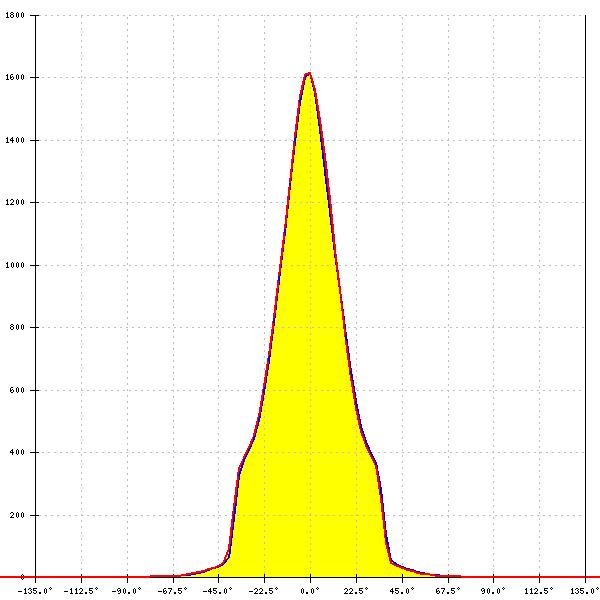

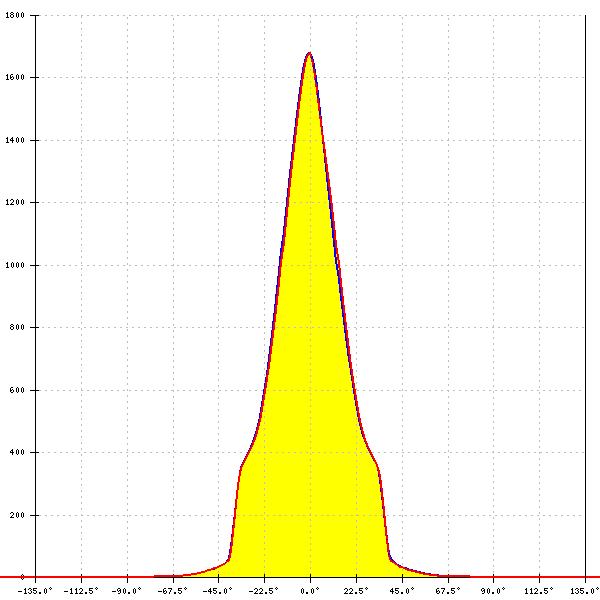

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
33°
FWTM:
75°
Peak intensity:
1.680 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

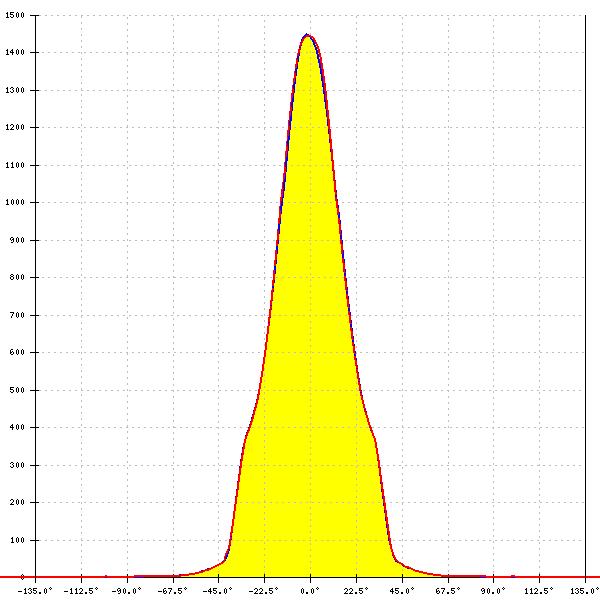

LED:

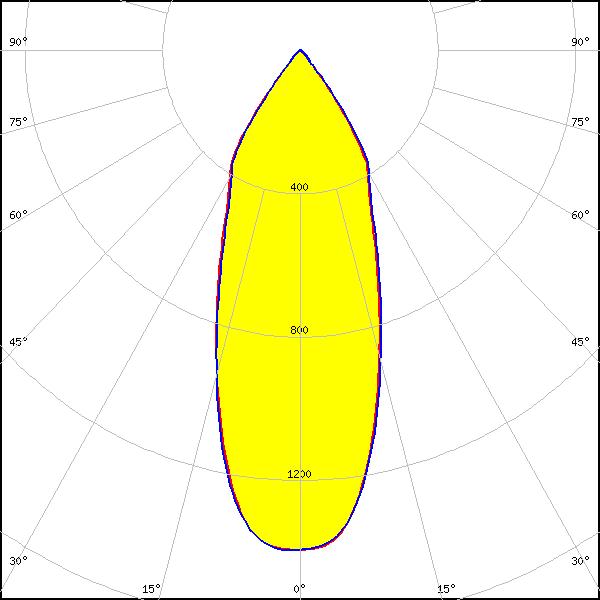

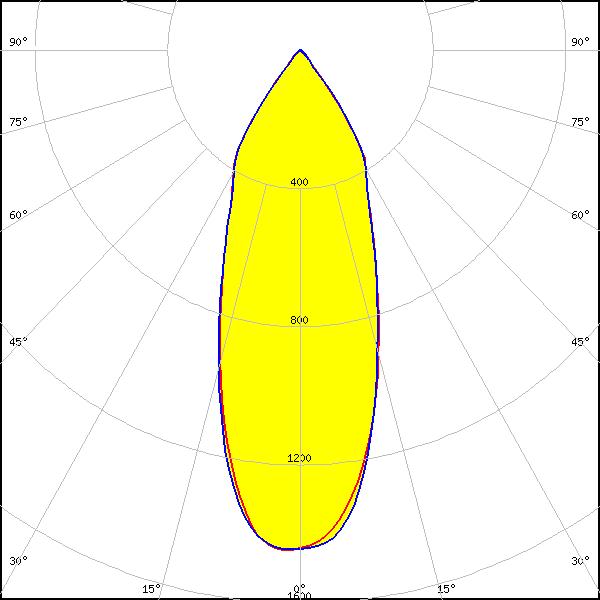

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
41°
FWTM:
78°
Peak intensity:
1.260 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

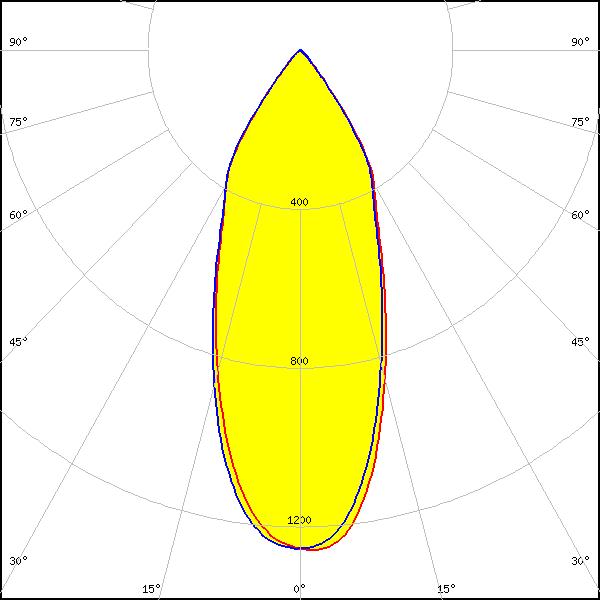

LED:

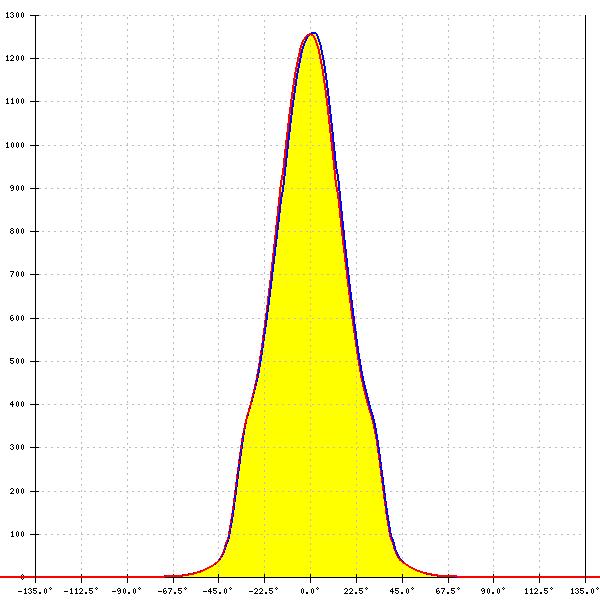

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
39°
FWTM:
77°
Peak intensity:
1.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
38°
FWTM:
76°
Peak intensity:
1.450 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

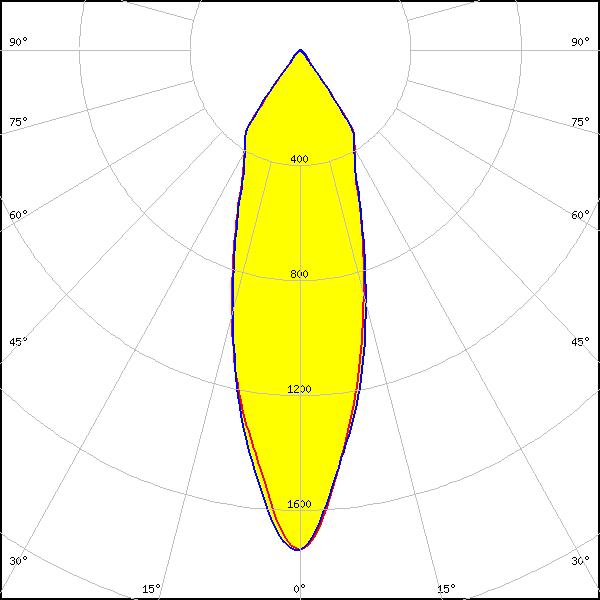

LED:

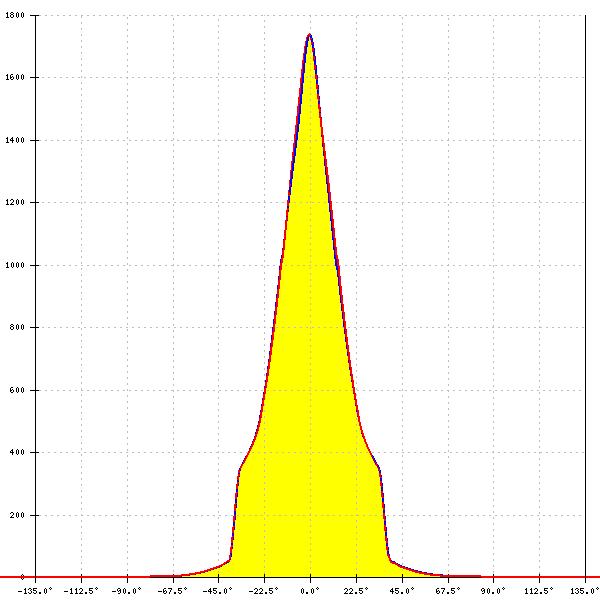

CLU720/721/723
LES size: 11.0 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
32°
FWTM:
74°
Peak intensity:
1.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
BJB: 47.319.2021
FWHM:
32°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

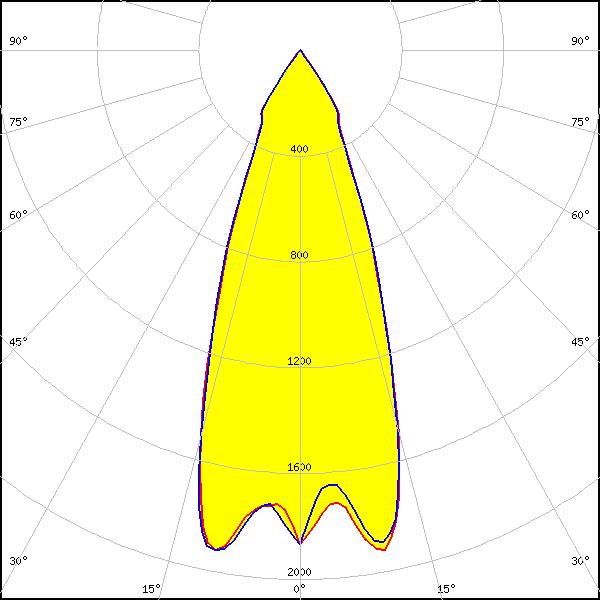

LED:

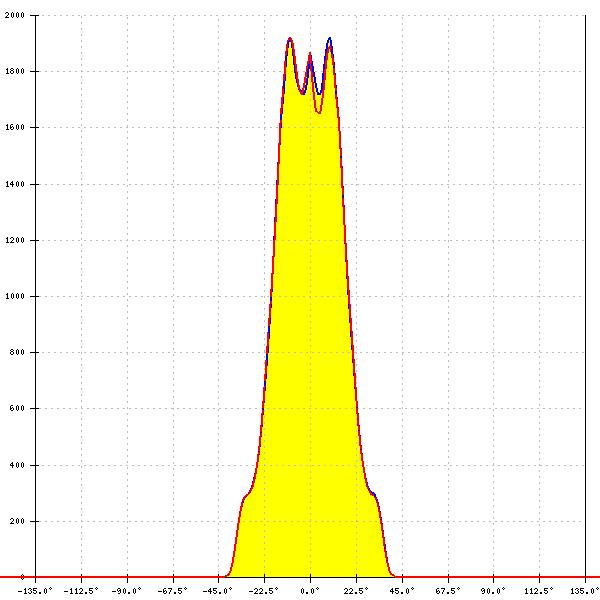

CLU730/731/733
LES size: 13.0 mm
Required components:
BJB: 47.319.2030
FWHM:
35°
FWTM:
69°
Peak intensity:
1.950 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

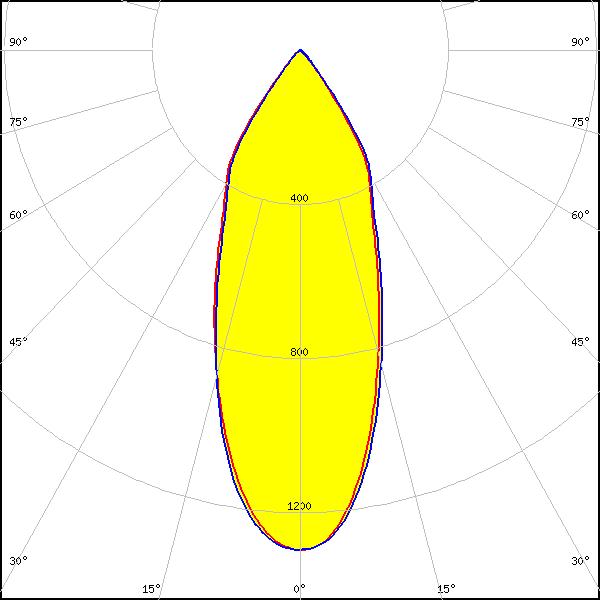

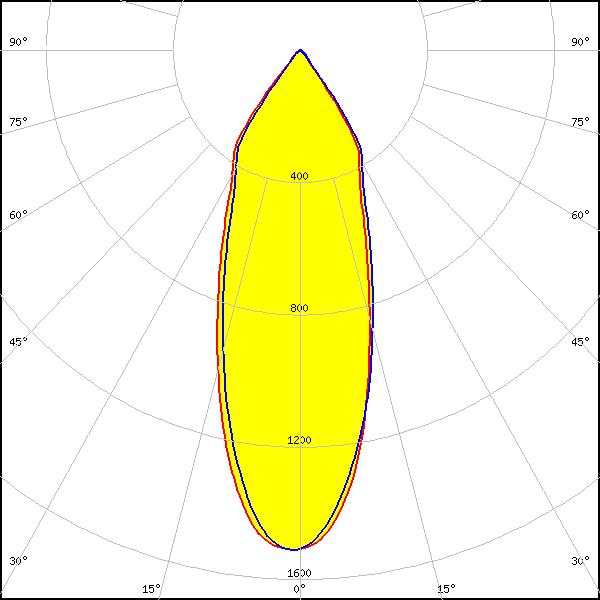

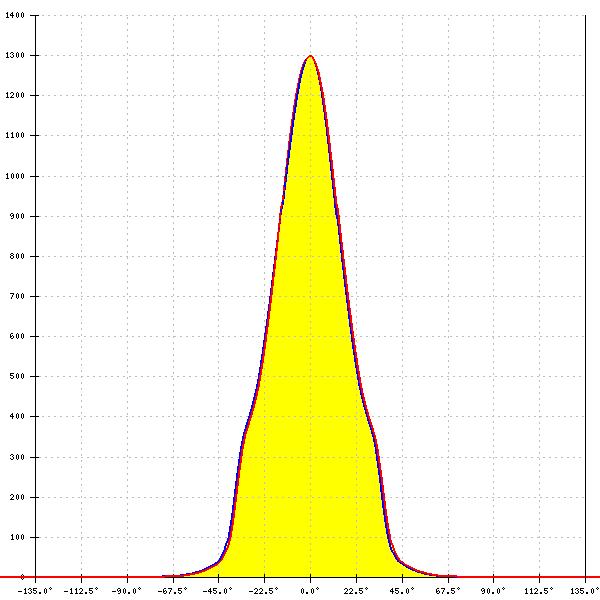

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
40°
FWTM:
77°
Peak intensity:
1.300 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

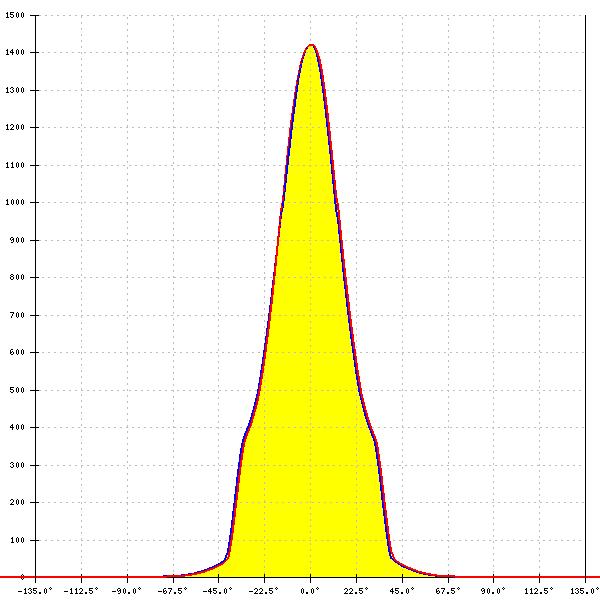

LED:
CXA/B 25xx
LES size: 19.0 mm
FWHM:
38°
FWTM:
76°
Peak intensity:
1.400 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

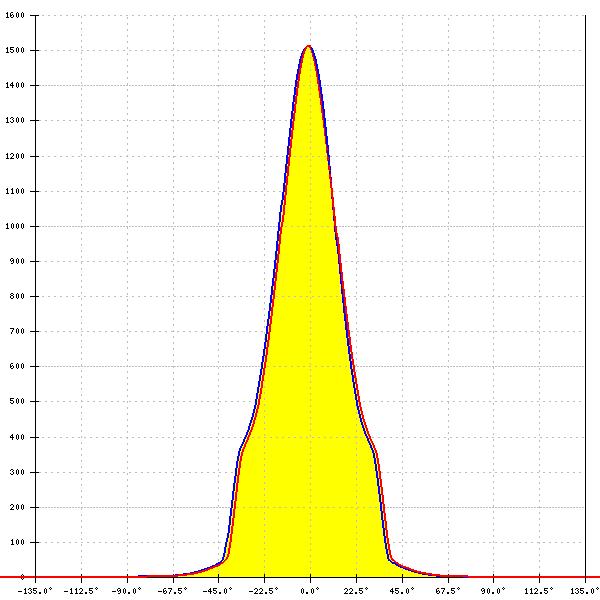

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
37°
FWTM:
76°
Peak intensity:
1.510 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

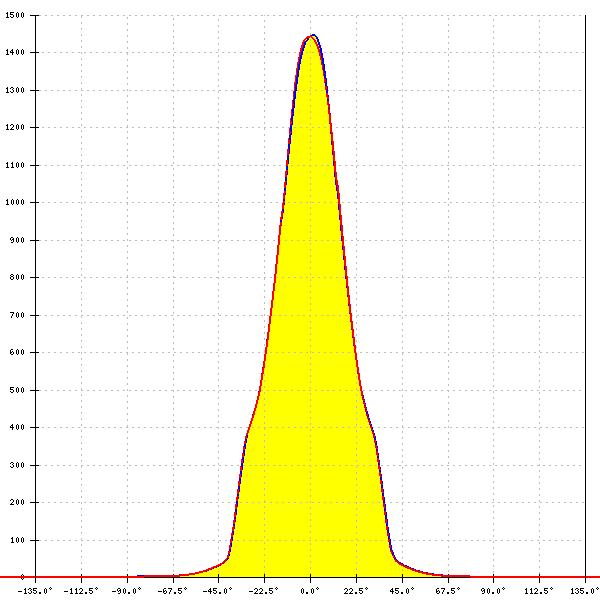

LED:

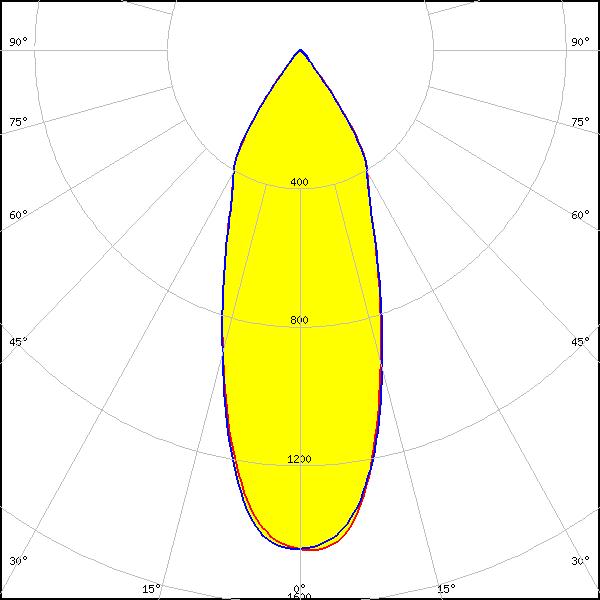

CXA/B 30xx
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM:
38°
FWTM:
75°
Peak intensity:
1.450 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

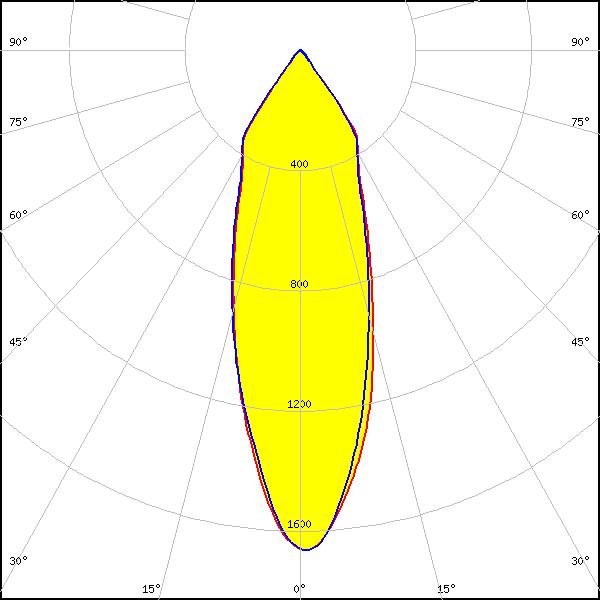

LED:

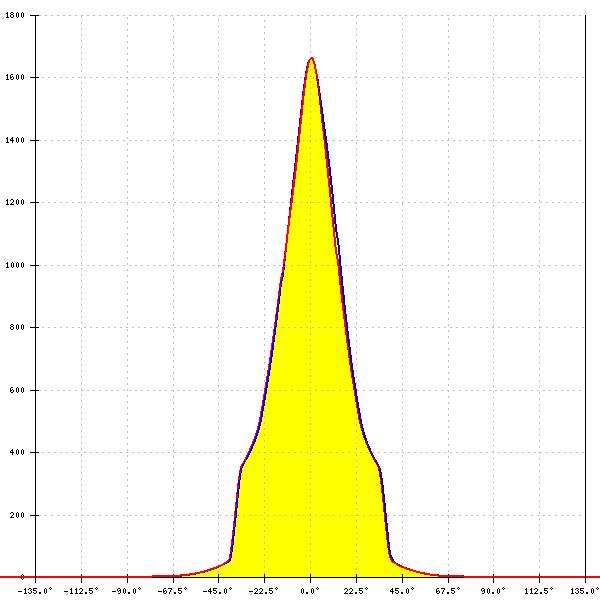

LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
33°
FWTM:
75°
Peak intensity:
1.660 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

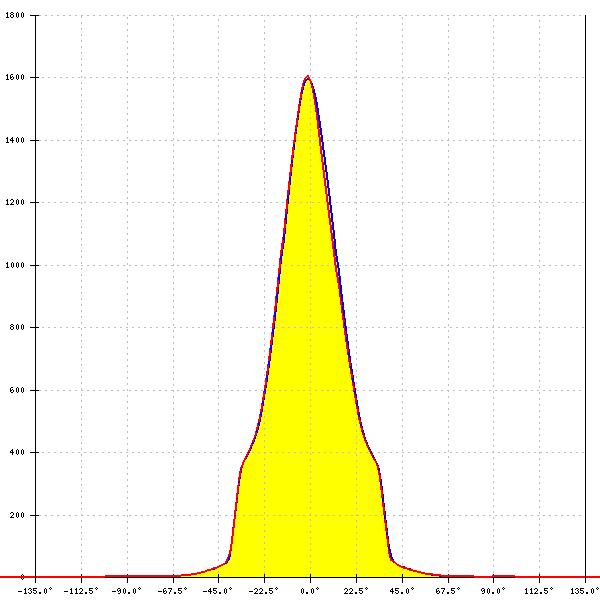

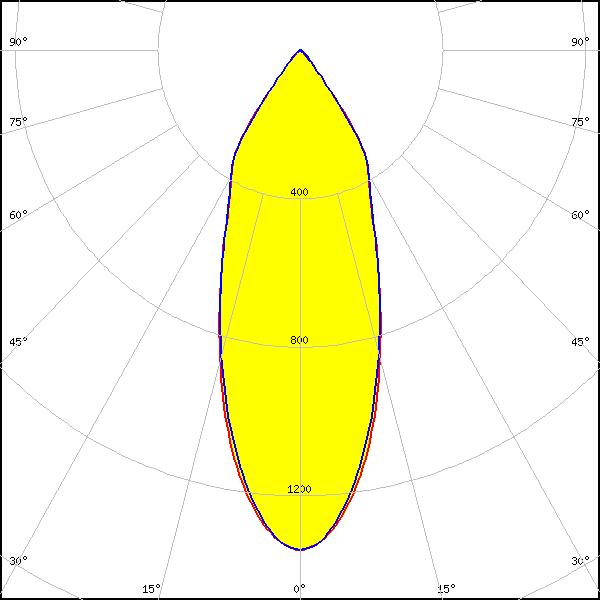

LED:

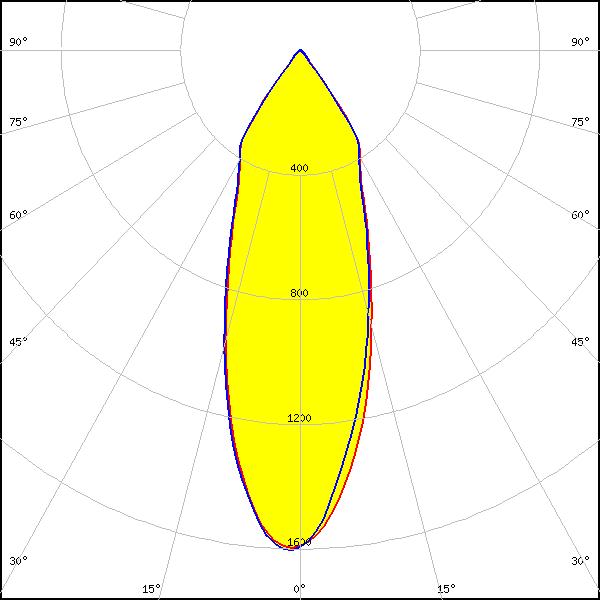

LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
35°
FWTM:
75°
Peak intensity:
1.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

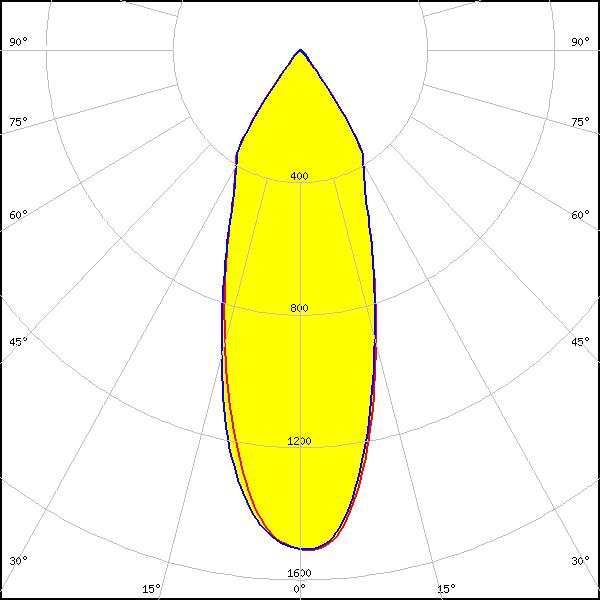

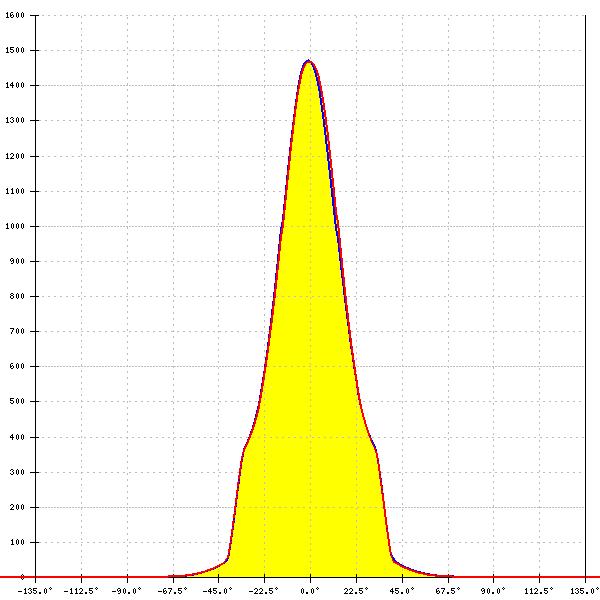

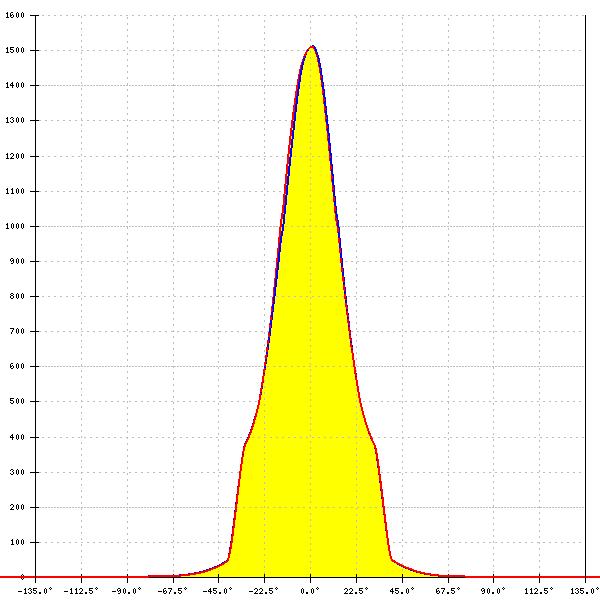

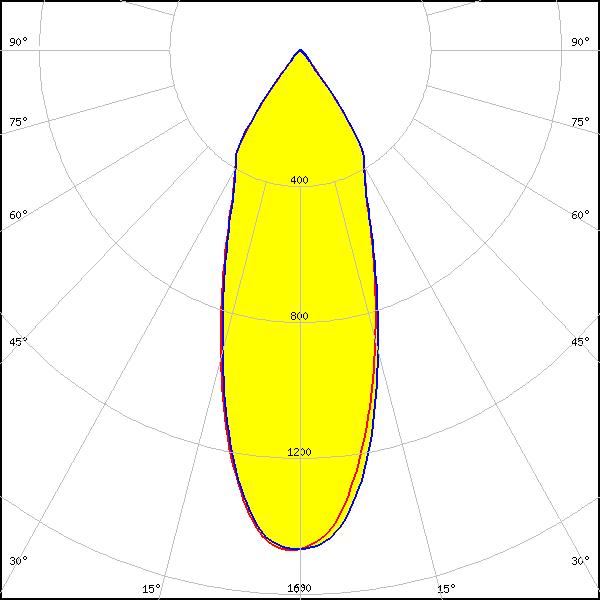

LUXEON CoB 1211
LES size: 18.5 mm
Required components:
BJB: 47.319.2030
FWHM:
37°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
37°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

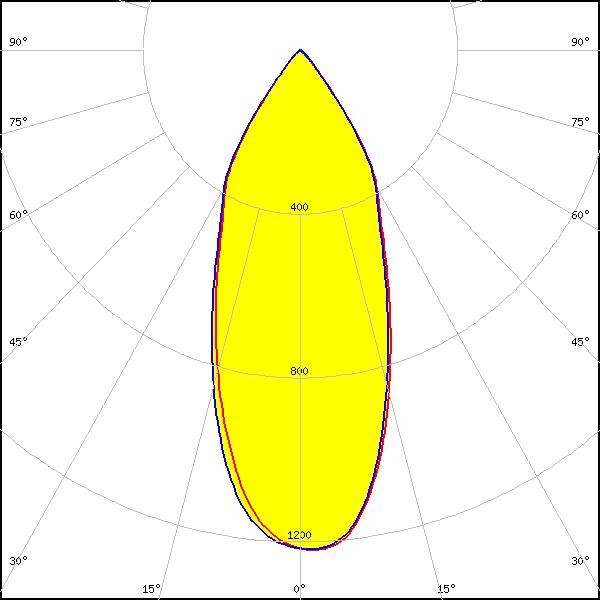

LED:

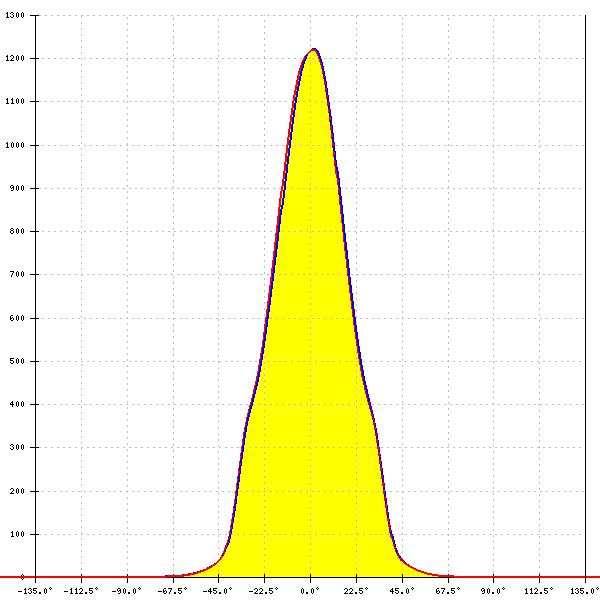

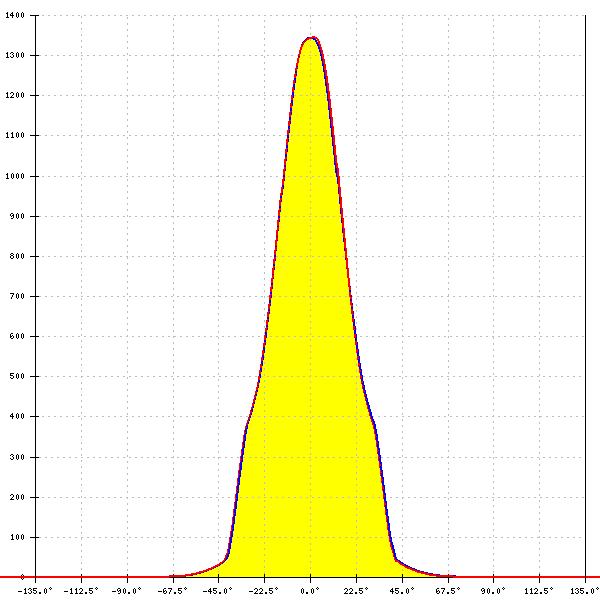

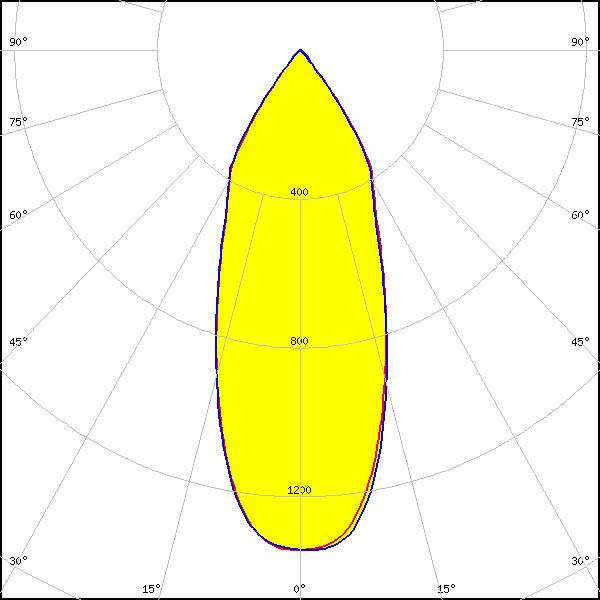

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
42°
FWTM:
78°
Peak intensity:
1.220 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
FWHM:
40°
FWTM:
76°
Peak intensity:
1.359 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

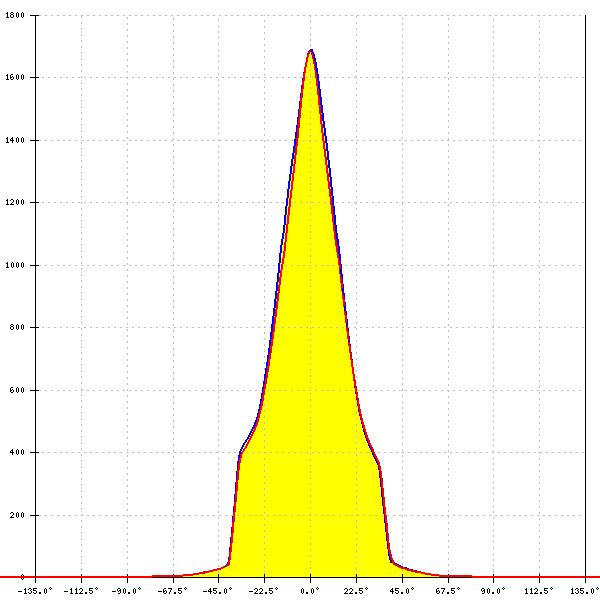

LUXEON K12
LES size: 13.5 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

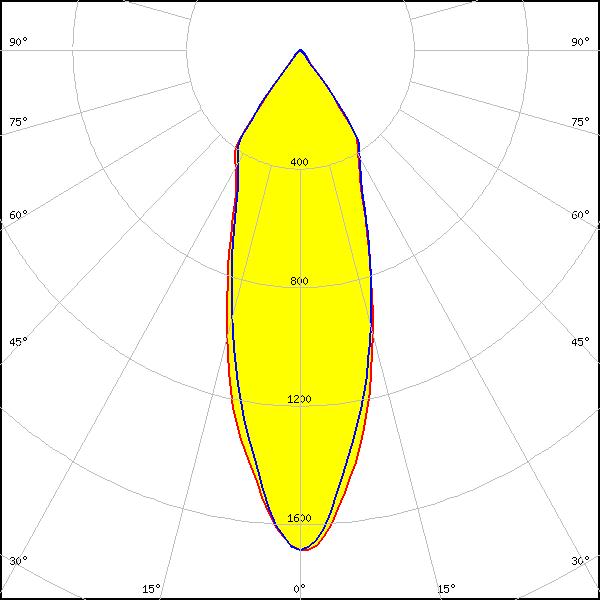

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
BJB: 47.319.2070
FWHM:
35°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

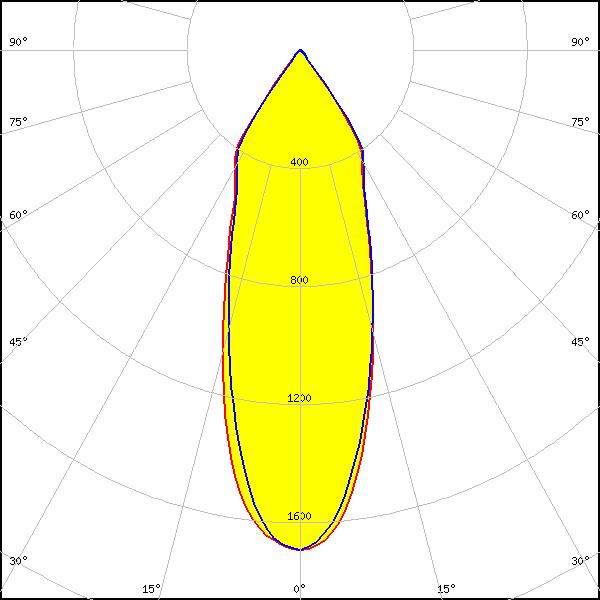

LUXEON K16
LES size: 17.0 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

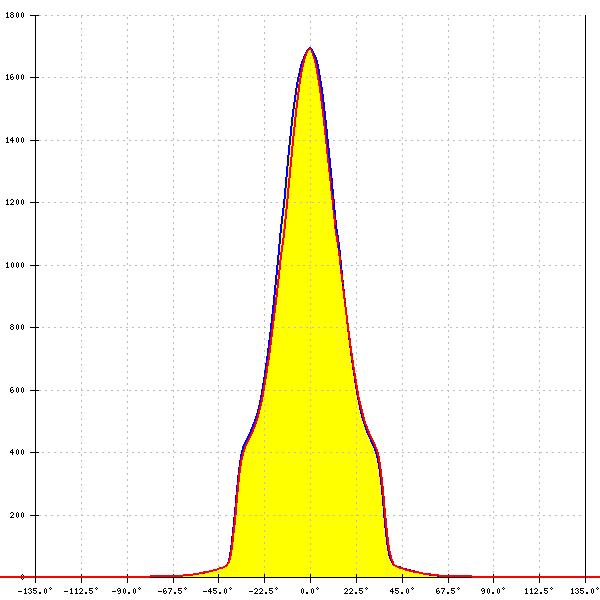

LED:
LUXEON K16
LES size: 17.0 mm
Required components:
BJB: 47.319.2070
FWHM:
36°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S2000
LES size: 10.5 mm
LEDs/each optic:
1
Light colour/type:
White

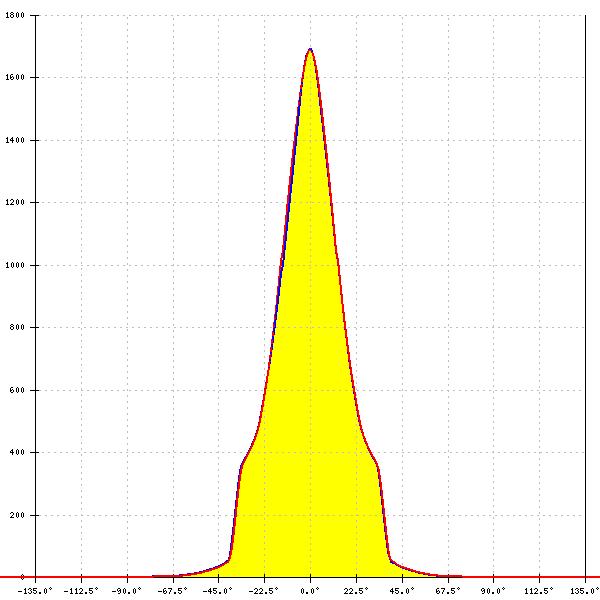

LED:

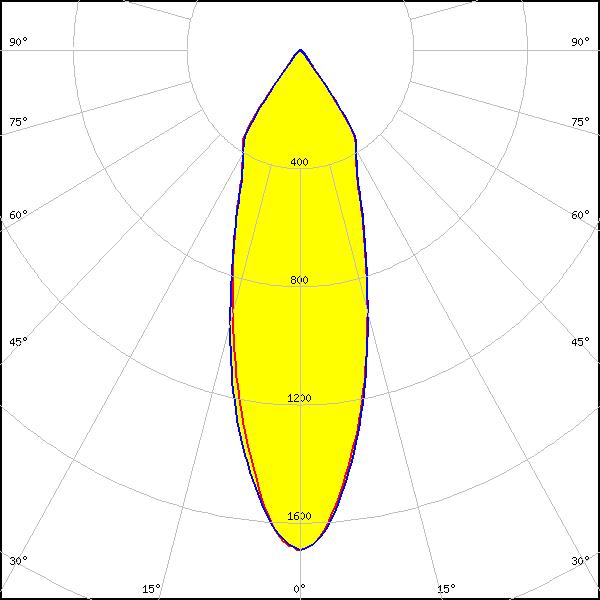

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
33°
FWTM:
74°
Peak intensity:
1.700 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

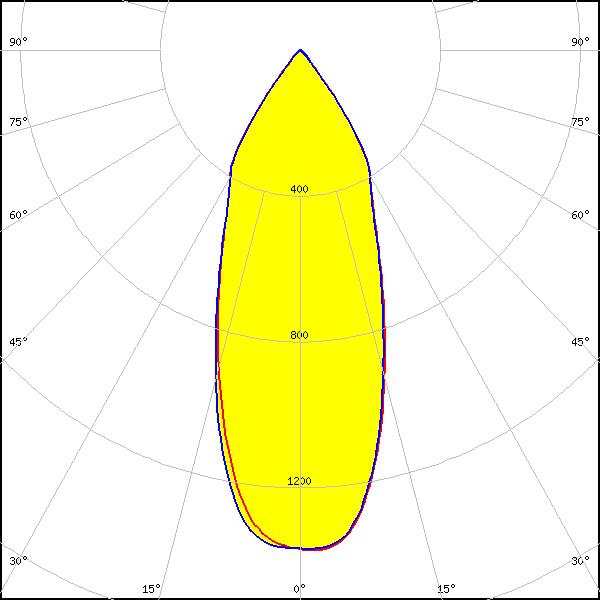

CxM-22 (28x28)
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
40°
FWTM:
77°
Peak intensity:
1.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

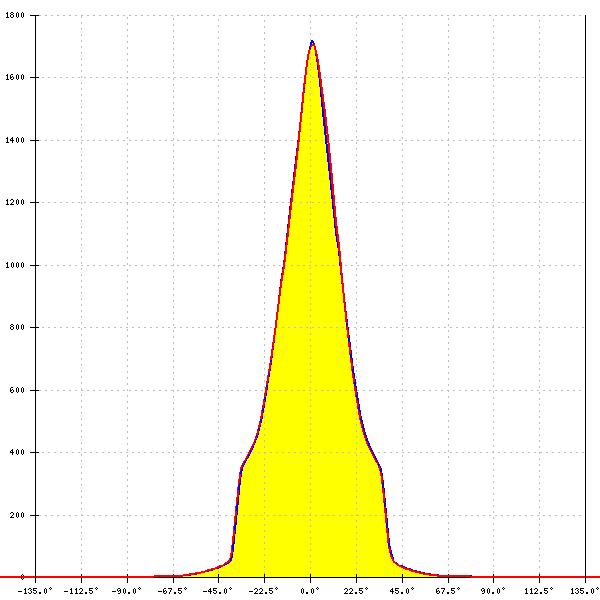

LED:

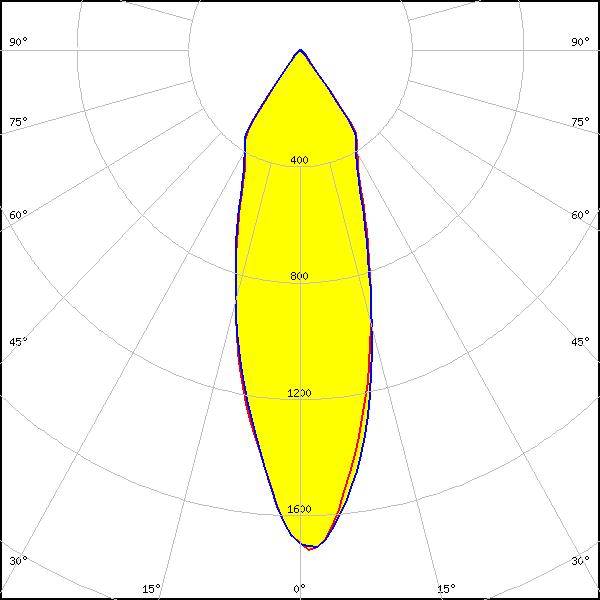

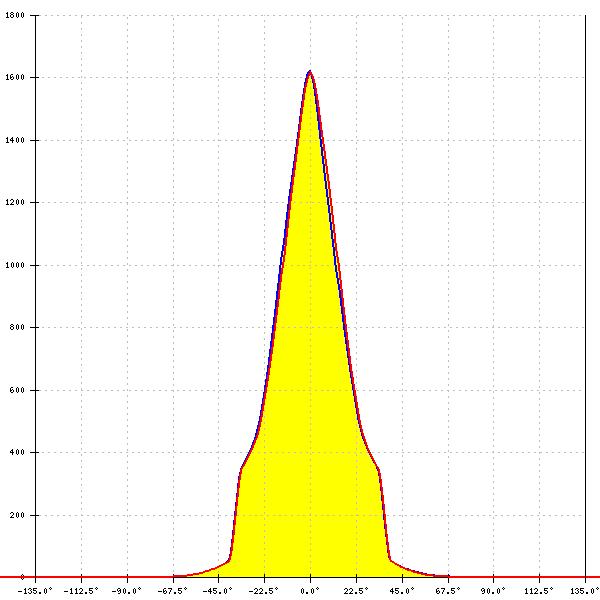

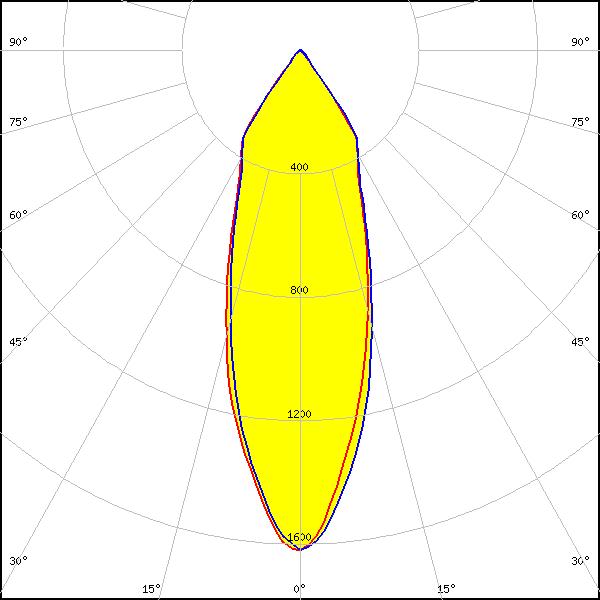

Soleriq S13
LES size: 13.2 mm
Required components:
A.A.G. STUCCHI: 8502-G2
FWHM:
33°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
BJB: 47.319.2021
FWHM:
34°
FWTM:
75°
Peak intensity:
1.620 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

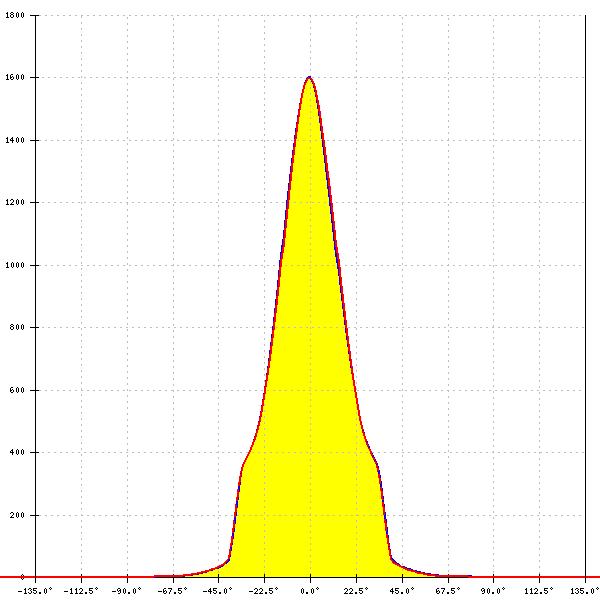

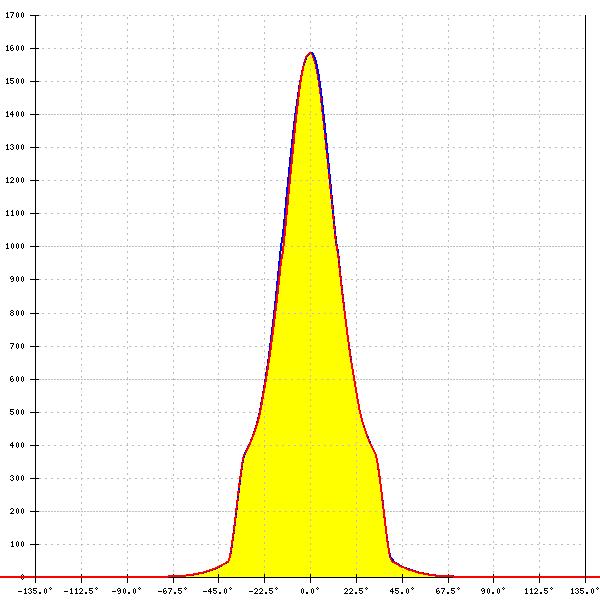

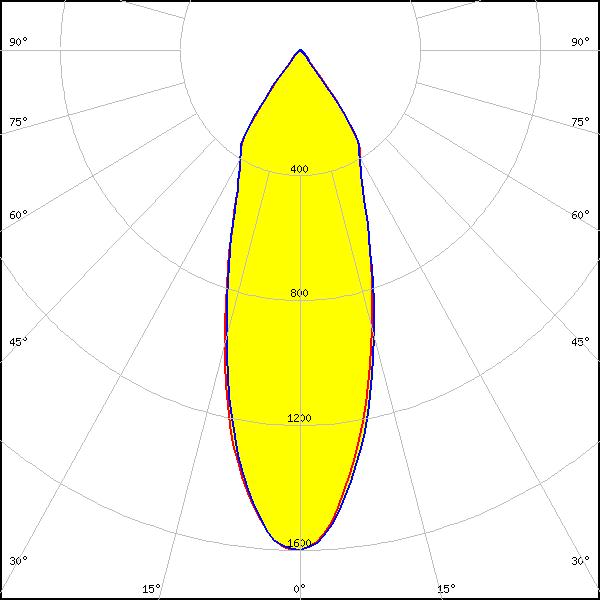

LED:
Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
35°
FWTM:
75°
Peak intensity:
1.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

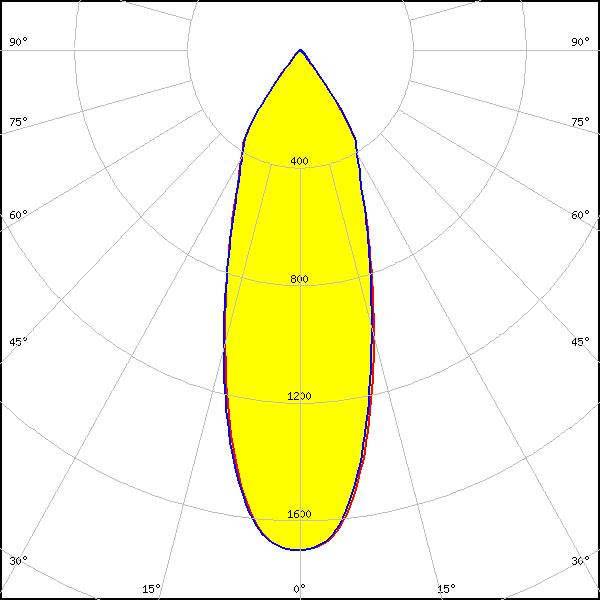

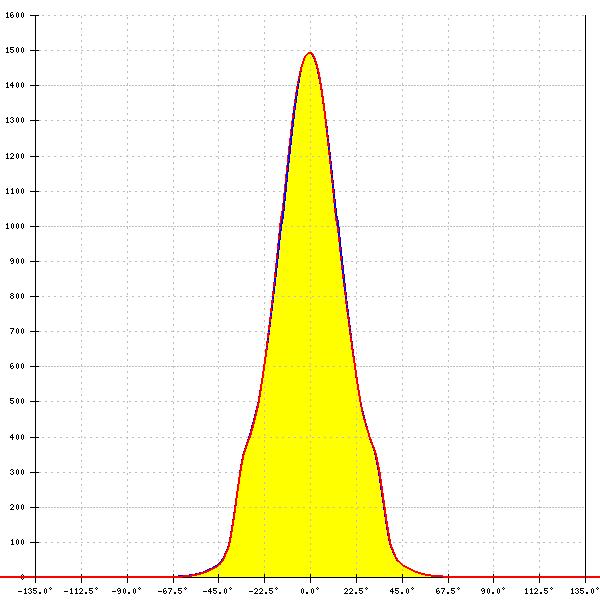

LED:

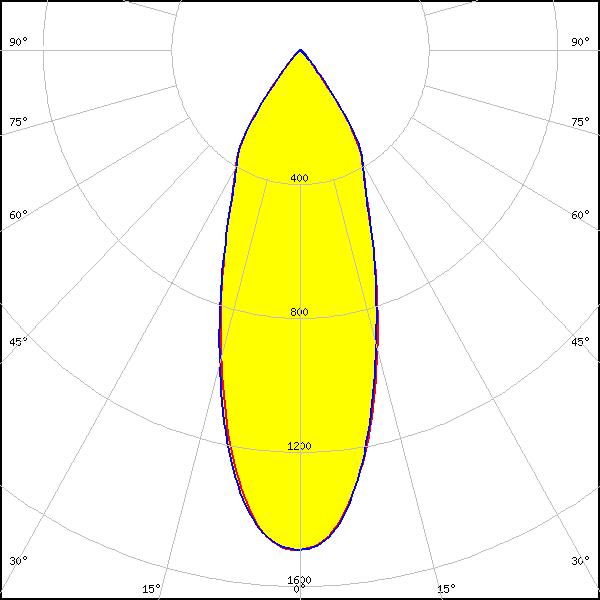

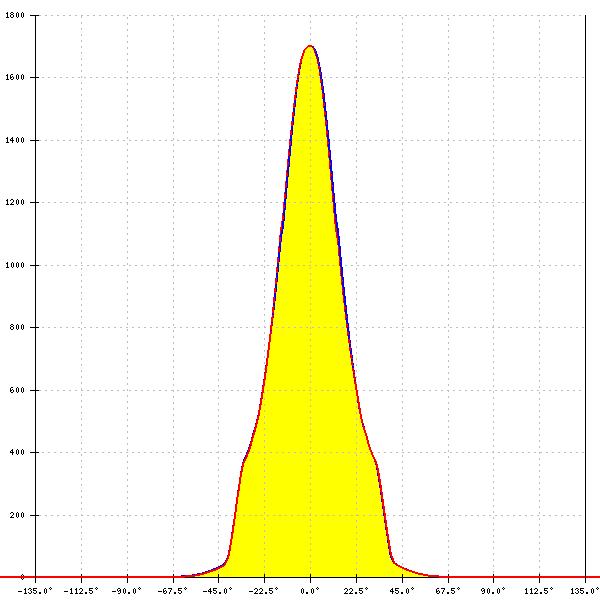

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
BJB: 47.319.2030
FWHM:
35°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
38°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

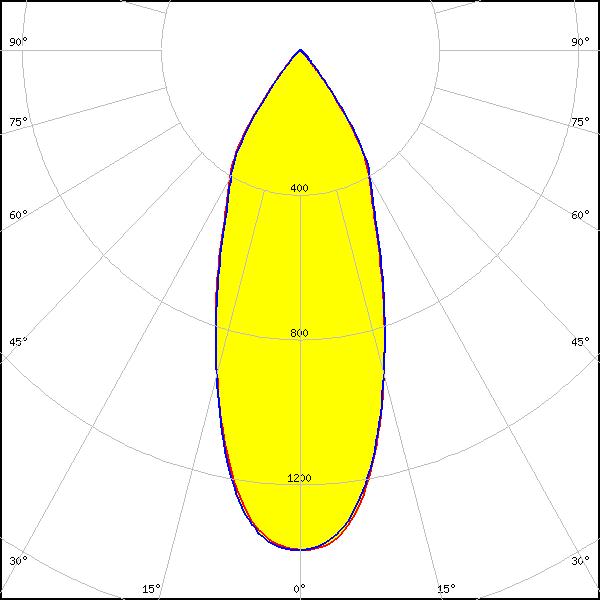

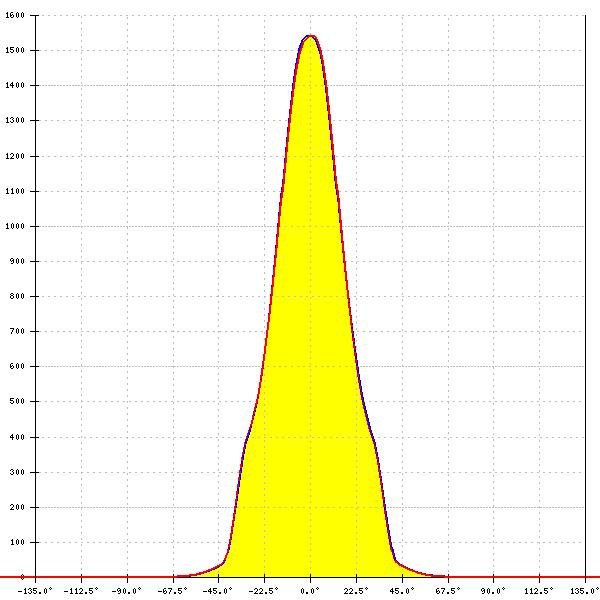

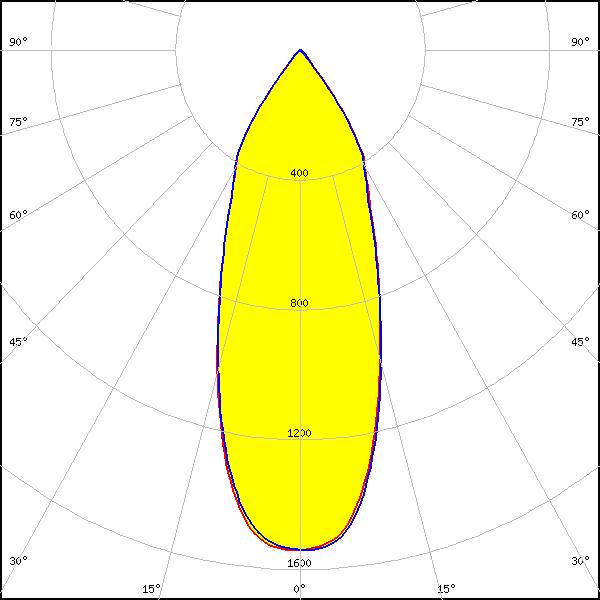

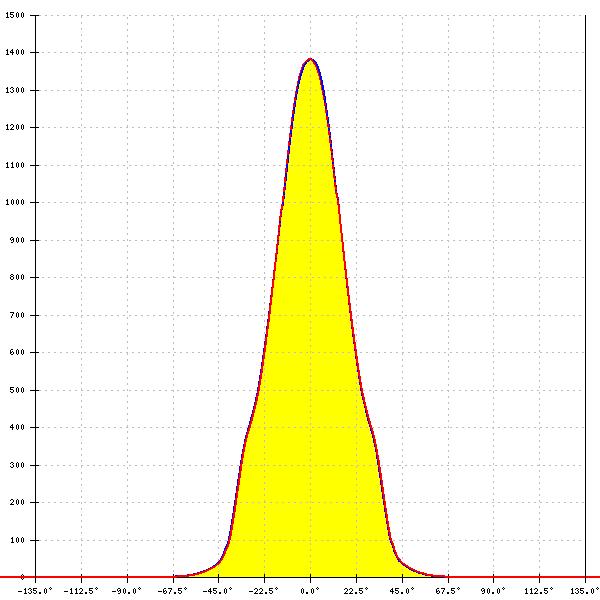

Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
39°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
40°
FWTM:
77°
Peak intensity:
1.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

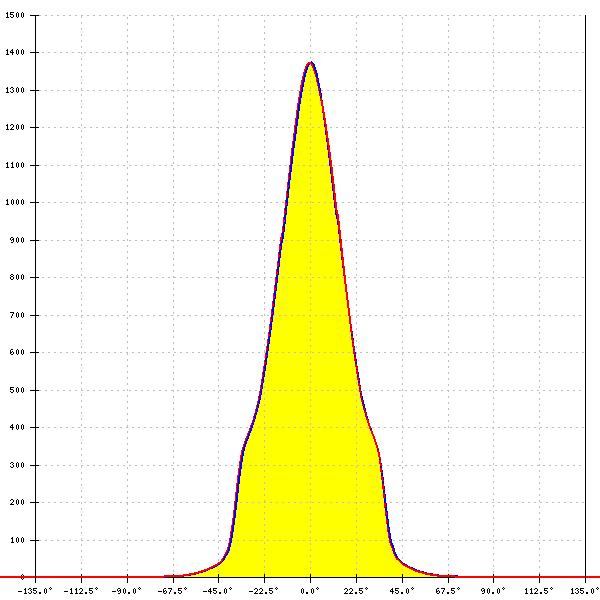

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
38°
FWTM:
77°
Peak intensity:
1.370 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
38°
FWTM:
77°
Peak intensity:
1.370 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
36°
FWTM:
76°
Peak intensity:
1.550 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

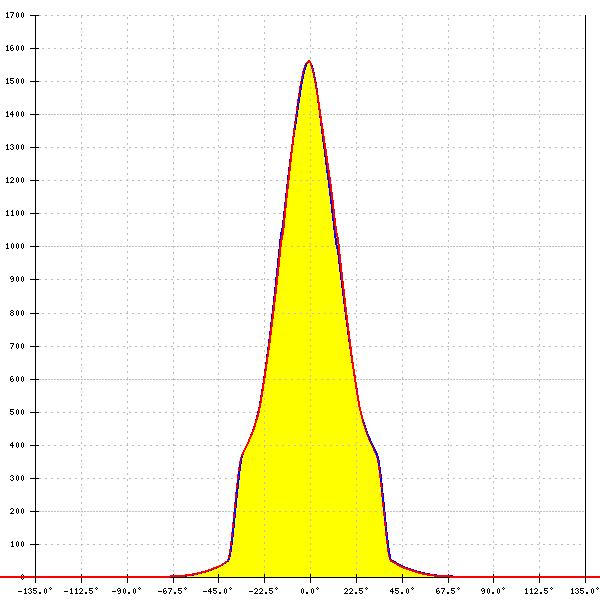

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
36°
FWTM:
76°
Peak intensity:
1.550 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
40°
FWTM:
70°
Peak intensity:
1.720 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

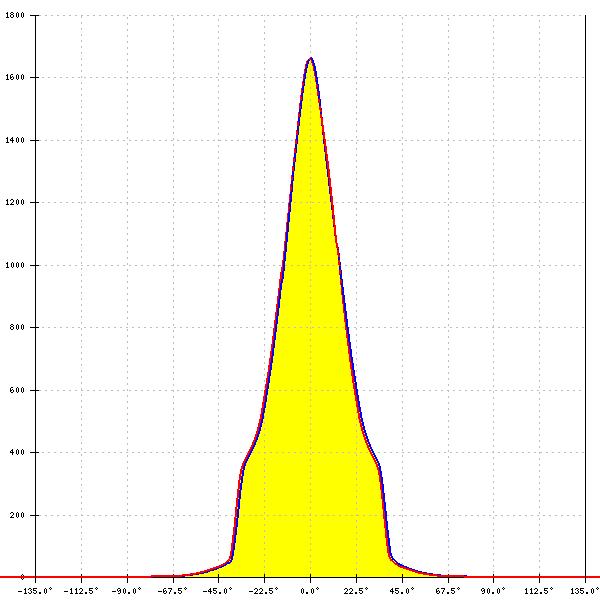

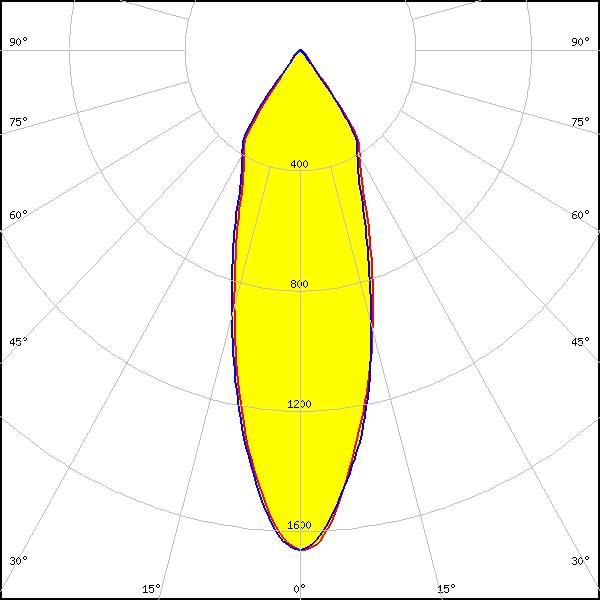

ZC12/18
LES size: 14.6 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
34°
FWTM:
74°
Peak intensity:
1.660 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

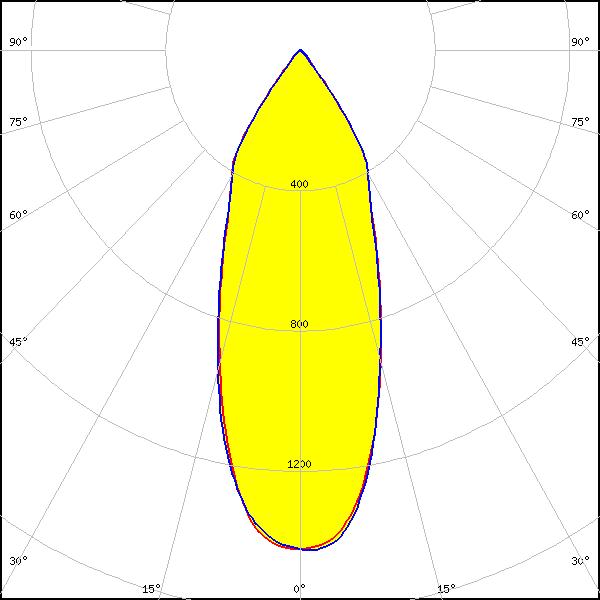

LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM:
42°
FWTM:
78°
Peak intensity:
1.340 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

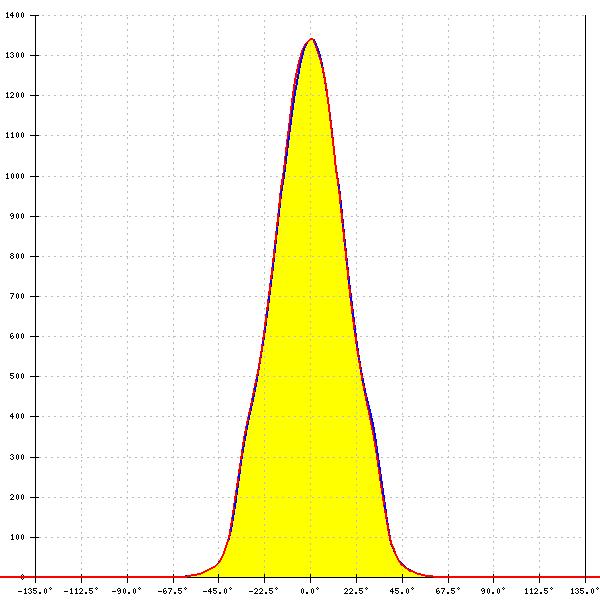

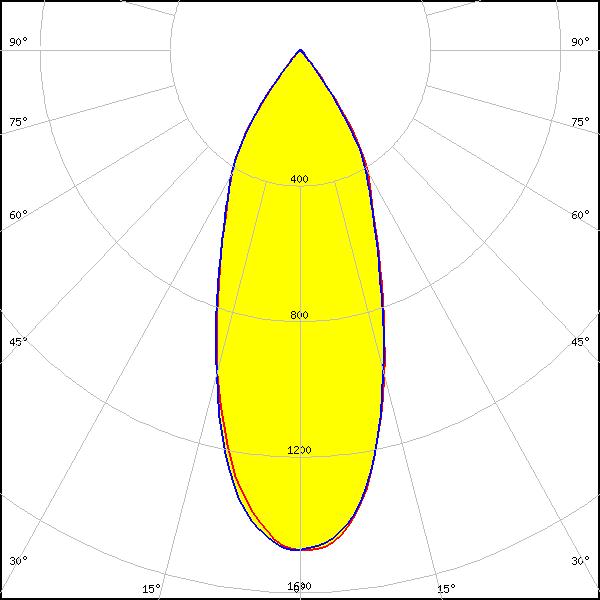

LED:

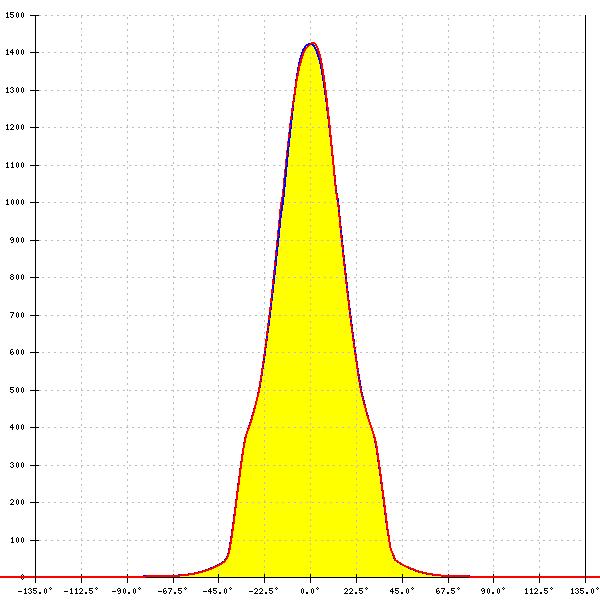

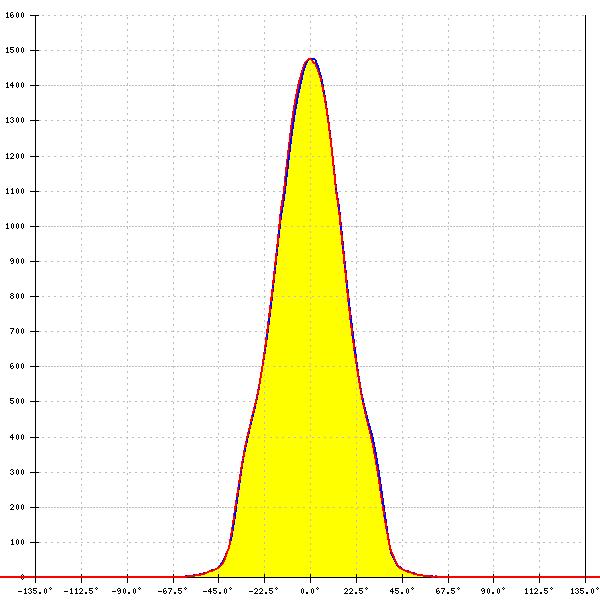

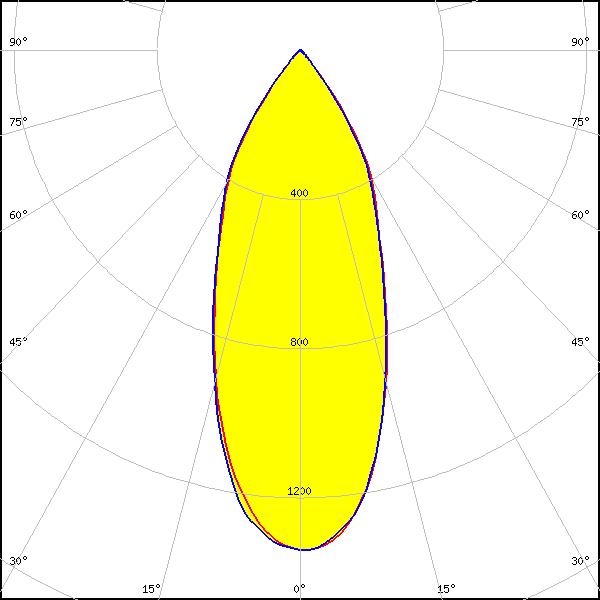

ZC25/40/60
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
40°
FWTM:
76°
Peak intensity:
1.480 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
39°
FWTM:
76°
Peak intensity:
1.430 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

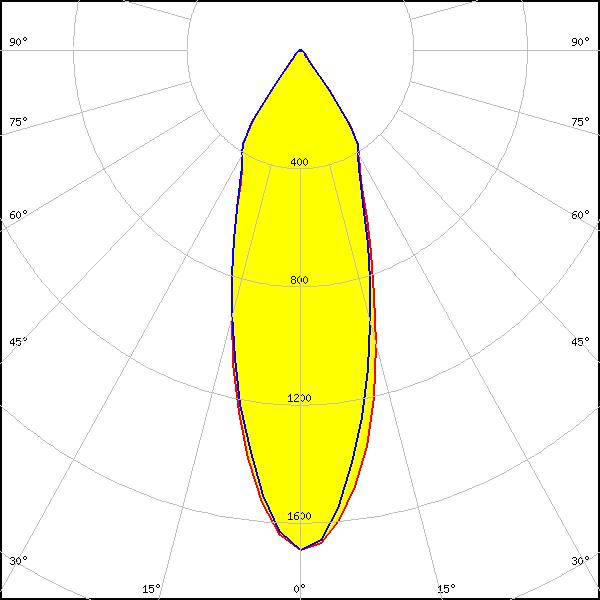

LED:

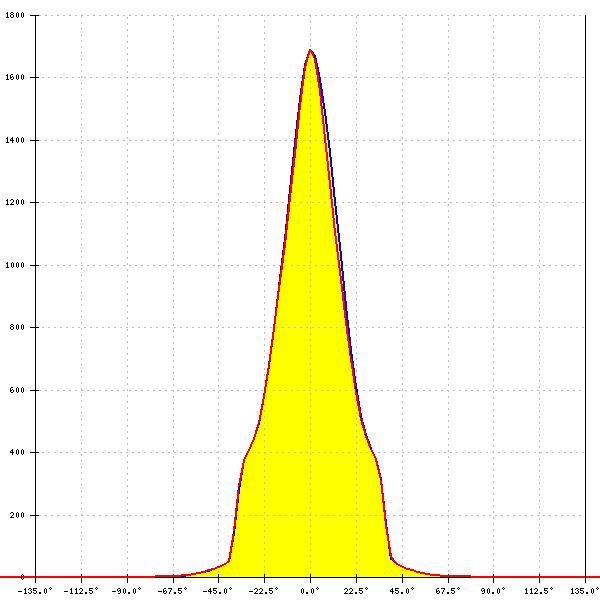

Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White
LED:

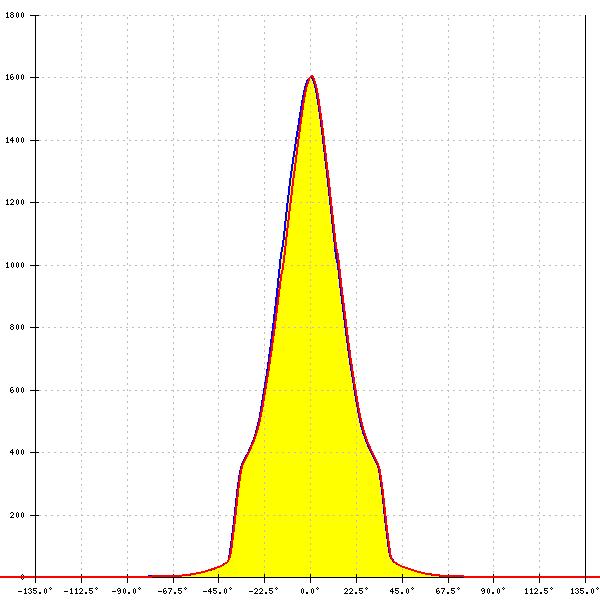

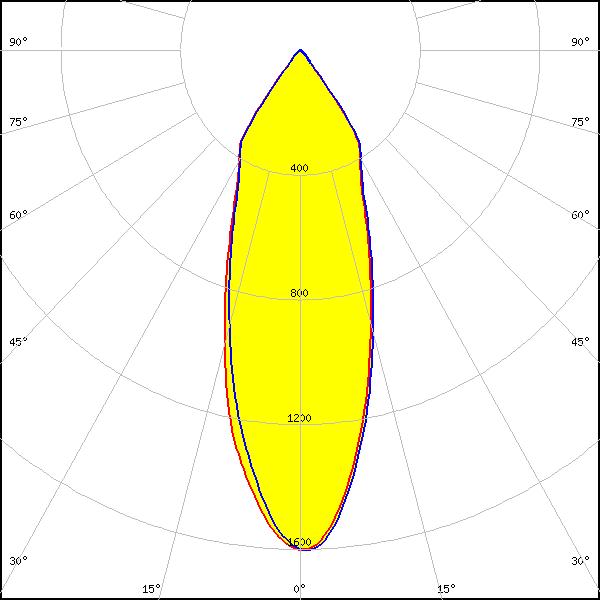

Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
35°
FWTM:
75°
Peak intensity:
1.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
FWHM:
34°
FWTM:
75°
Peak intensity:
1.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

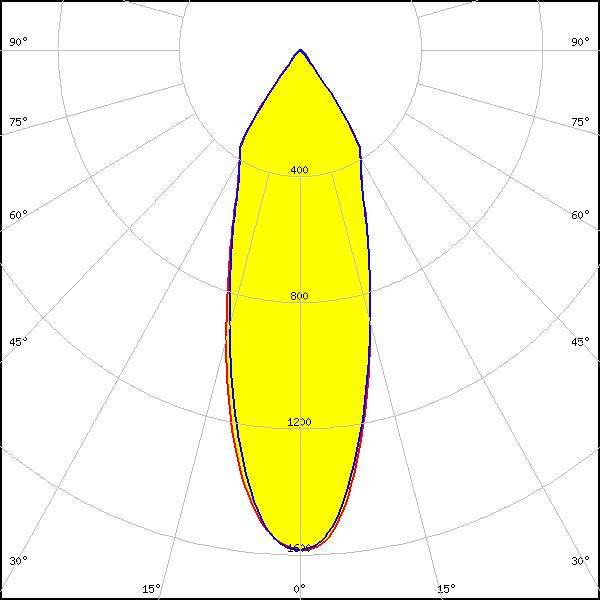

LED:
SLE G7 LES17 H
FWHM:
34°
FWTM:
74°
Peak intensity:
1.600 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

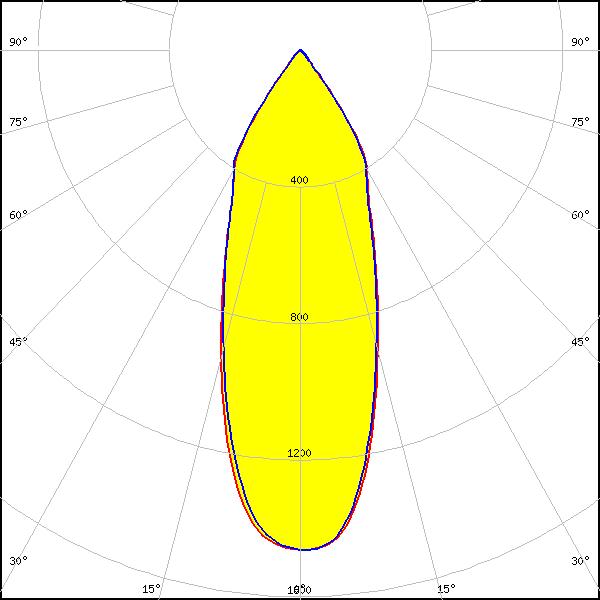

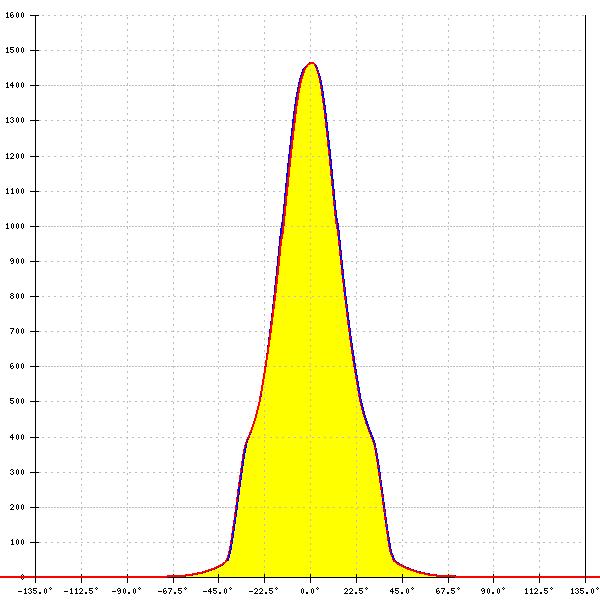

LED:
SLE G7 LES21 H
FWHM:
37°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
36°
FWTM:
75°
Peak intensity:
1.562 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

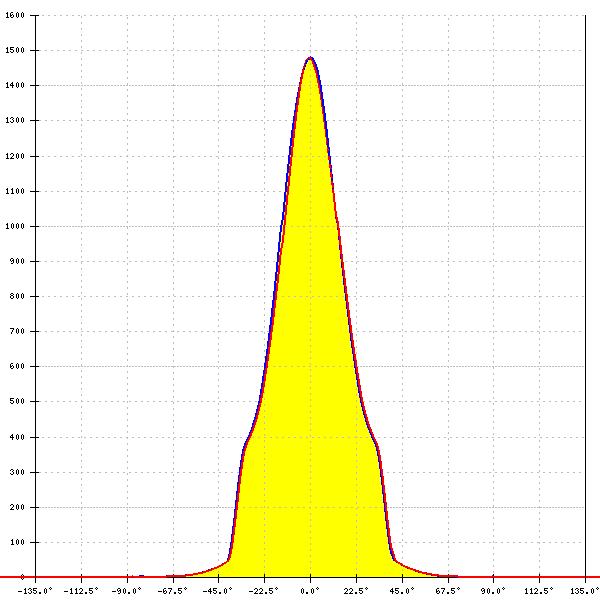

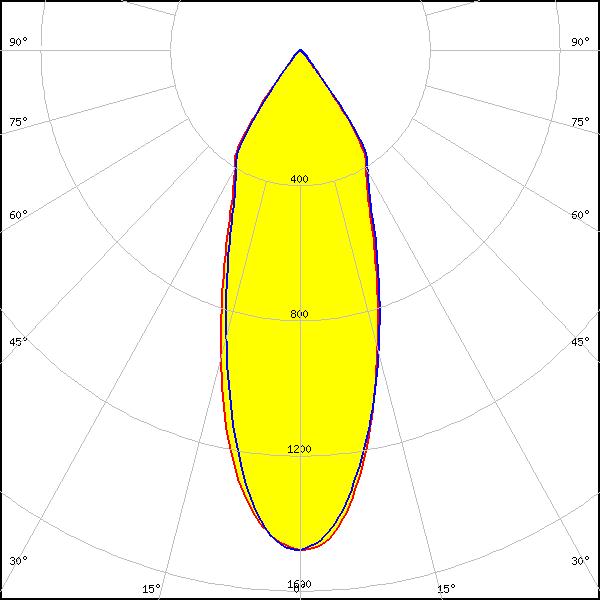

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
