F13663_ANGELA-M-B
Print

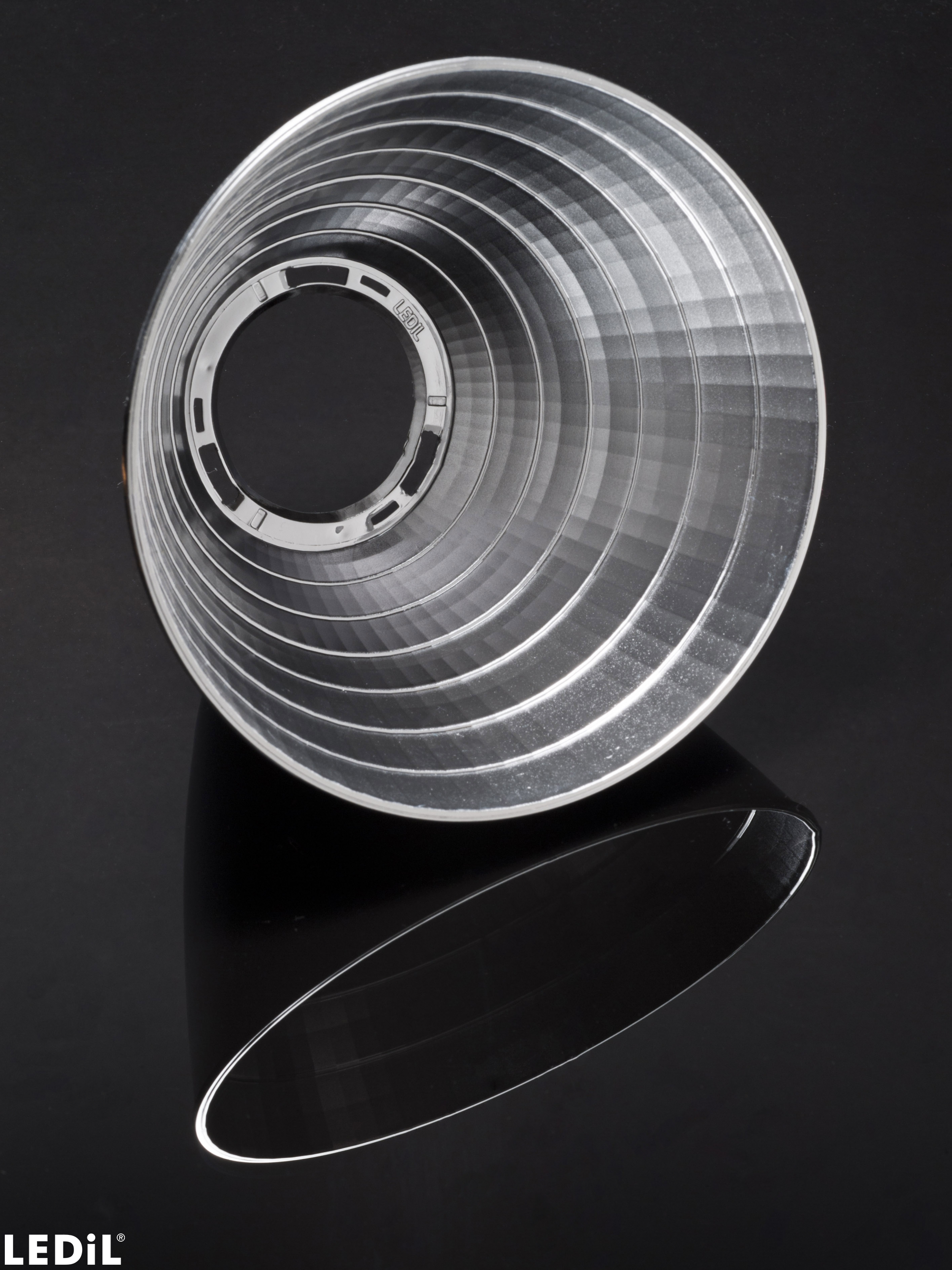

~30° medium beam compatible with BJB and B+W connectors
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

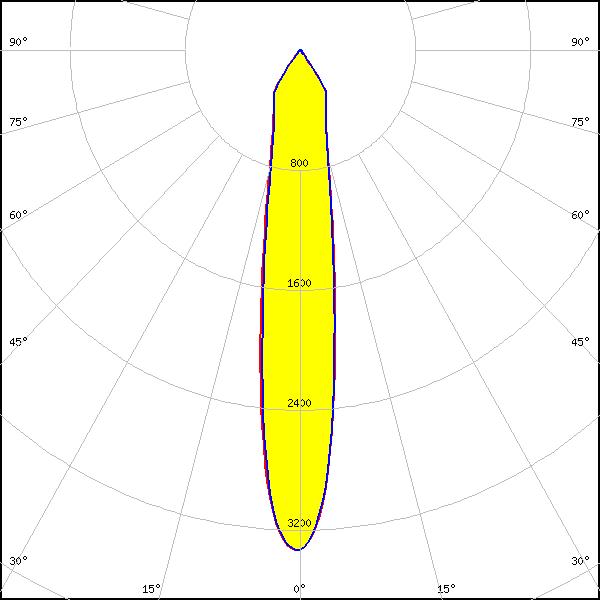

Optical results

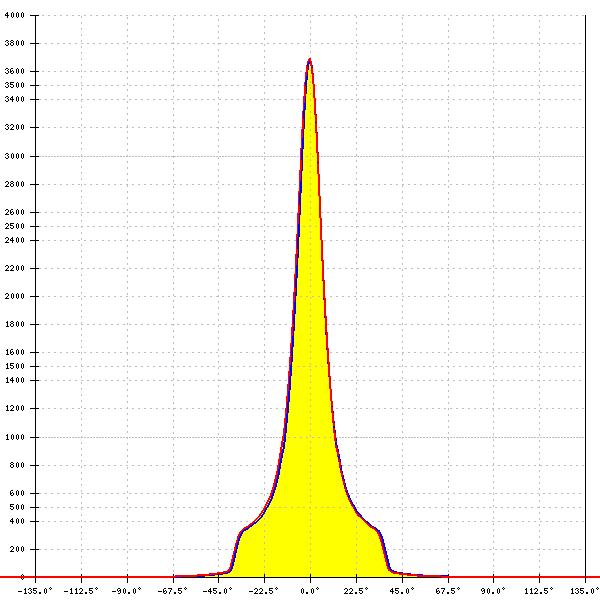

LED:

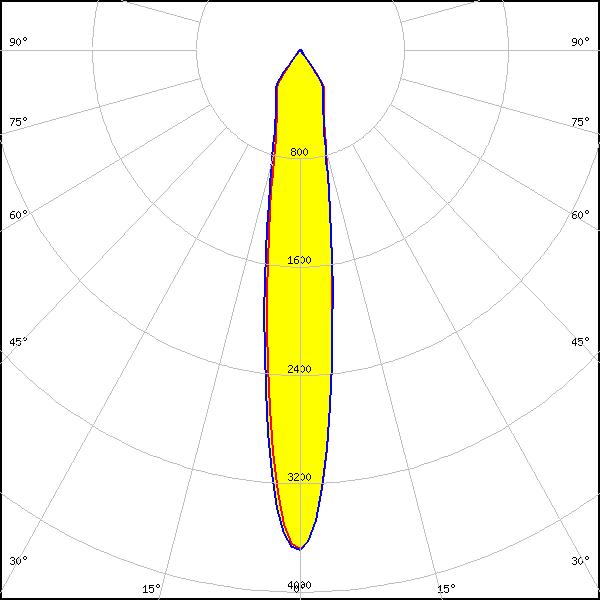

BXRA ES Rectangle
LES size: 19.2 mm
Required components:
BJB: 47.319.2040
FWHM:
16°
FWTM:
58°
Peak intensity:
3.690 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V15 Gen6
LES size: 15.2 mm
Required components:
FWHM:
19°
FWTM:
69°
Peak intensity:
2.700 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

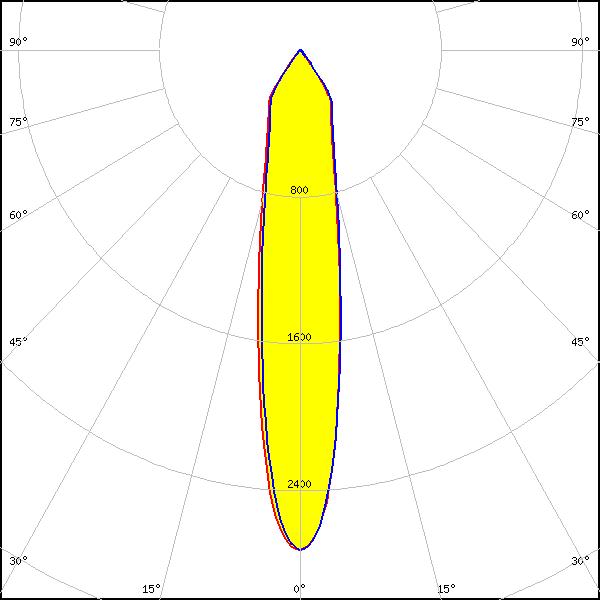

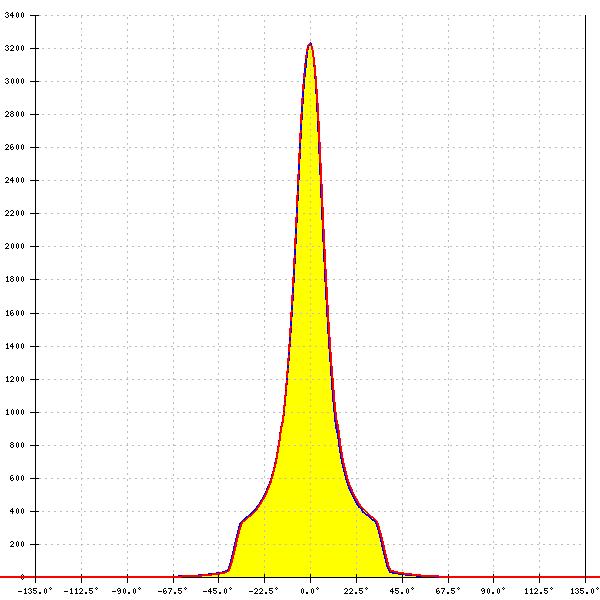

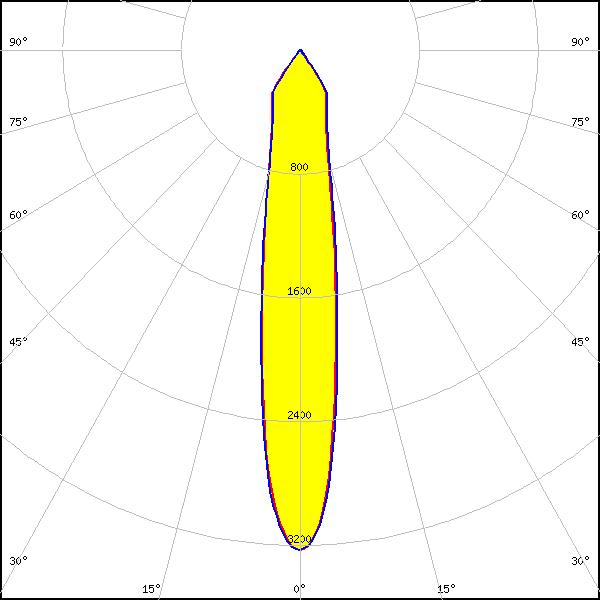

LED:
V15 Gen6
LES size: 15.2 mm
Required components:
BJB: 47.319.2224
FWHM:
18°
FWTM:
67°
Peak intensity:
3.200 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

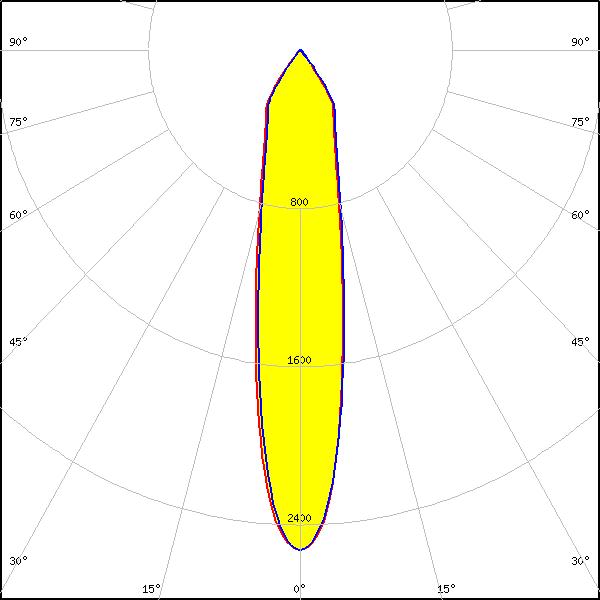

V18 Gen6
LES size: 18.6 mm
Required components:
FWHM:
21°
FWTM:
69°
Peak intensity:
2.500 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

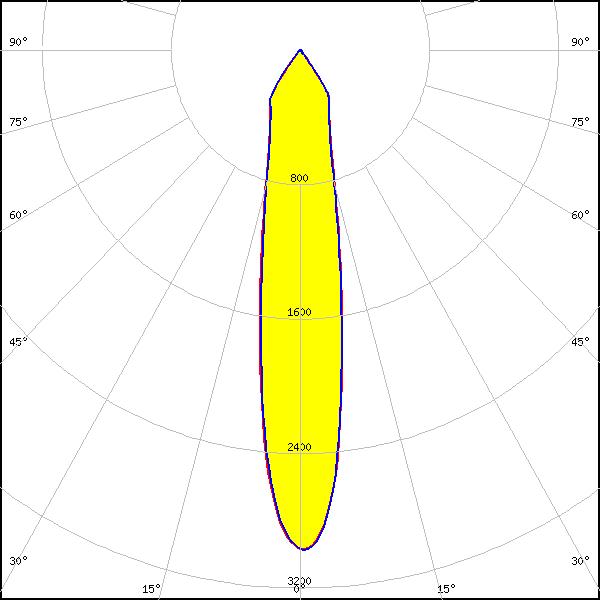

LED:
V18 Gen7
LES size: 19.2 mm
Required components:
BJB: 47.319.2350
FWHM:
19°
FWTM:
68°
Peak intensity:
3.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
LES size: 22.0 mm
Required components:
FWHM:
23°
FWTM:
70°
Peak intensity:
2.200 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

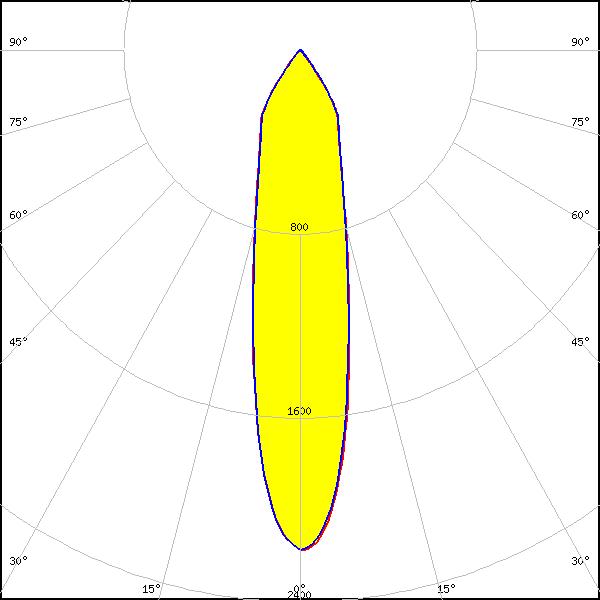

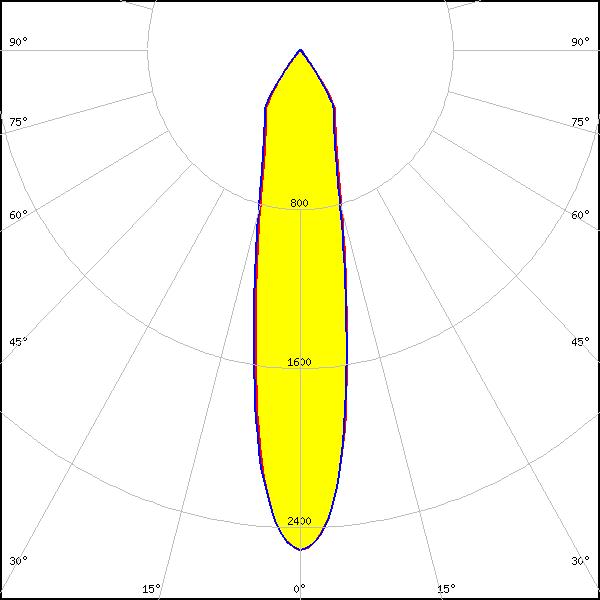

LED:
V22 Gen6
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
22°
FWTM:
69°
Peak intensity:
2.500 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

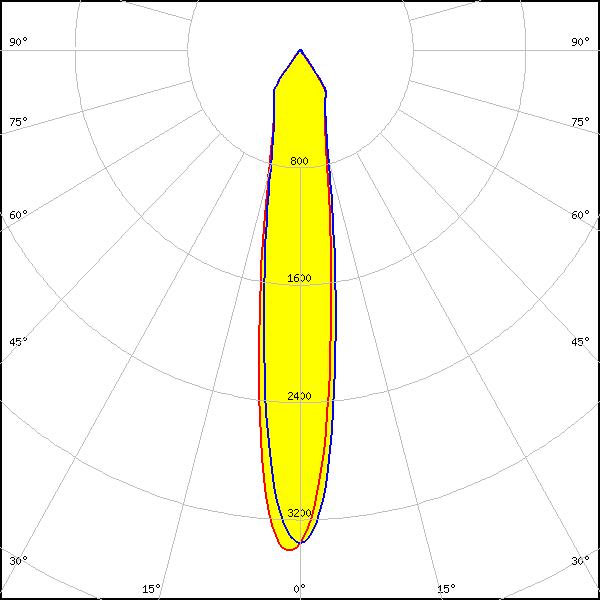

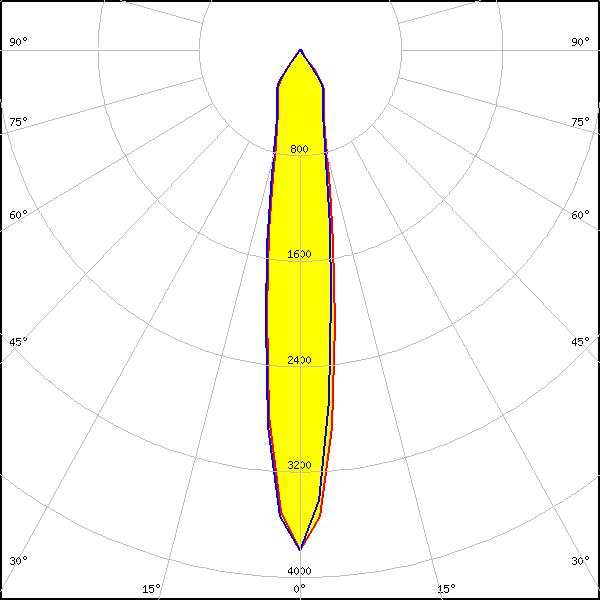

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
18°
FWTM:
67°
Peak intensity:
3.000 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

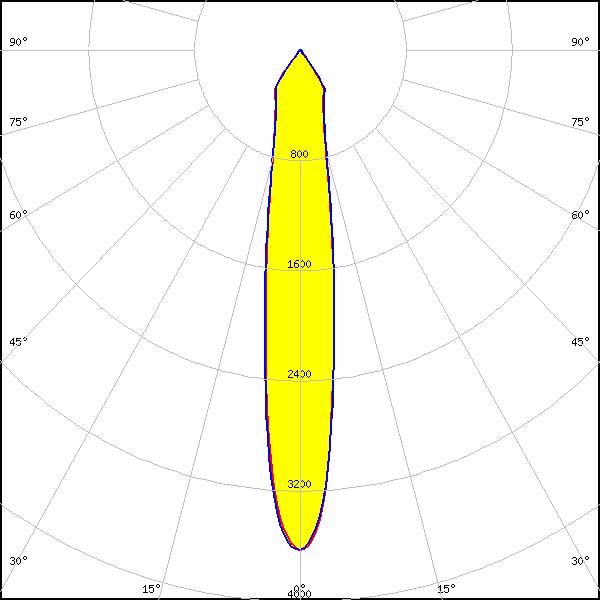

LED:

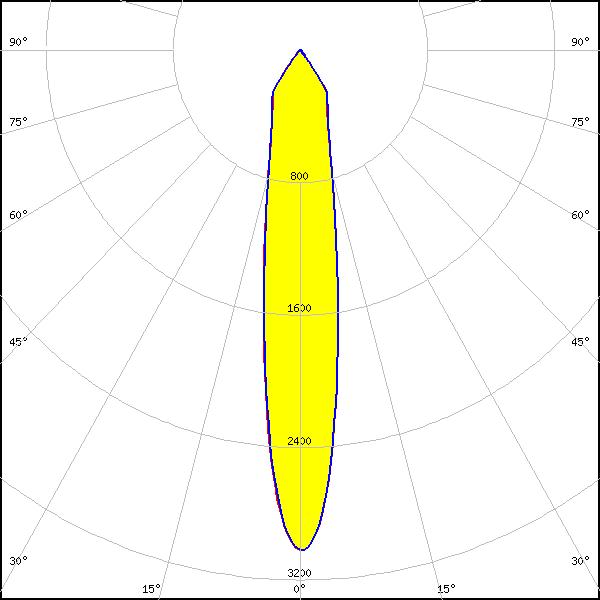

CLL03x/CLU03x
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
16°
FWTM:
61°
Peak intensity:
3.630 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

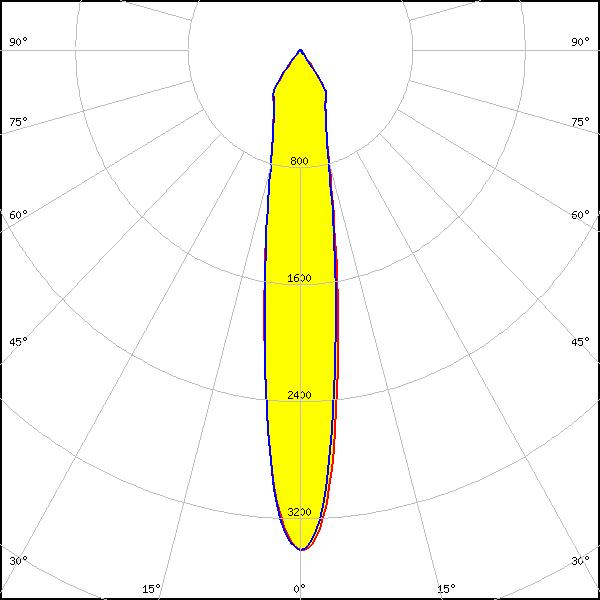

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
16°
FWTM:
57°
Peak intensity:
3.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

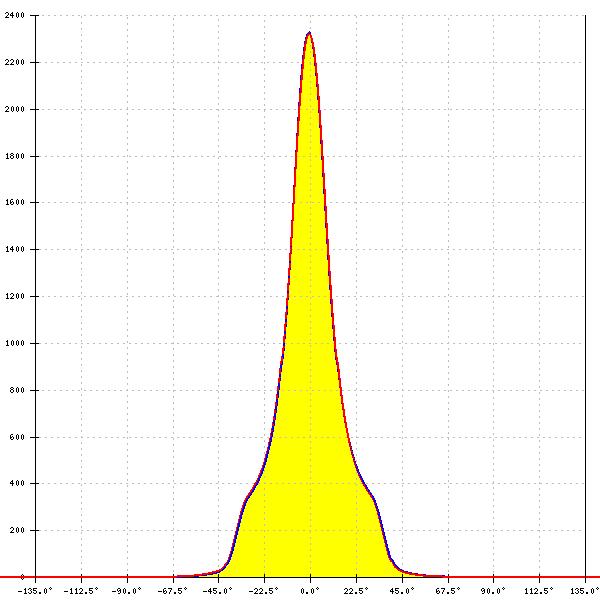

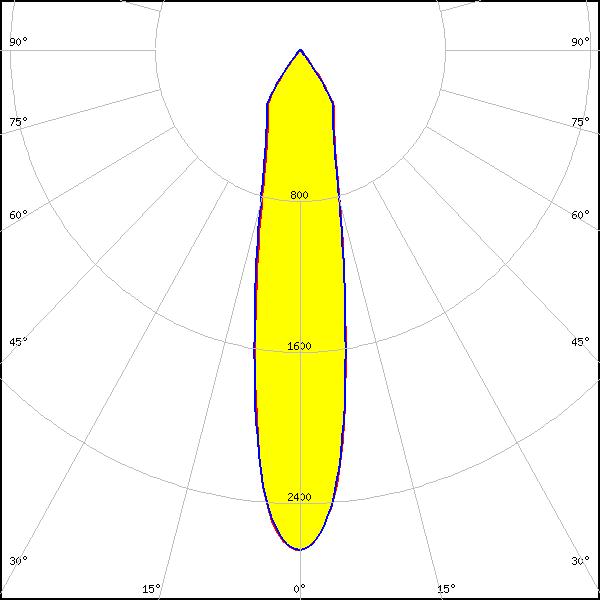

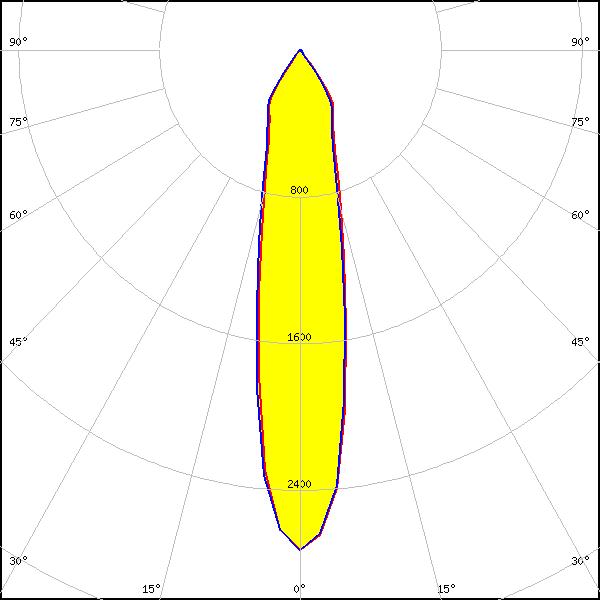

LED:

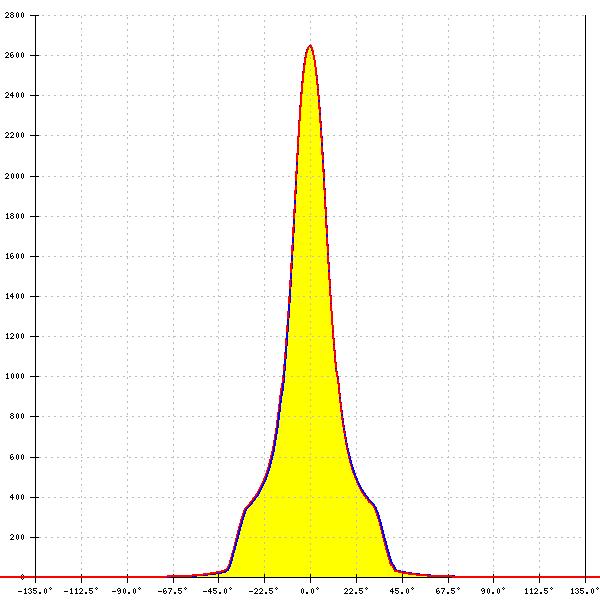

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
22°
FWTM:
70°
Peak intensity:
2.330 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

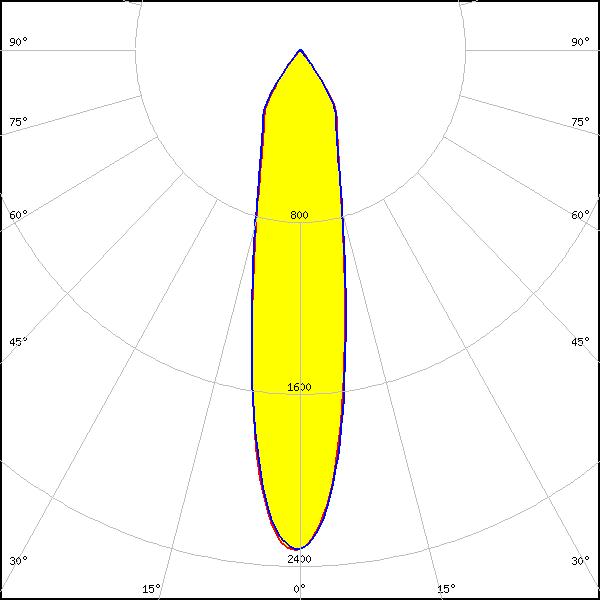

LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
21°
FWTM:
69°
Peak intensity:
2.650 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
21°
FWTM:
62°
Peak intensity:
2.730 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

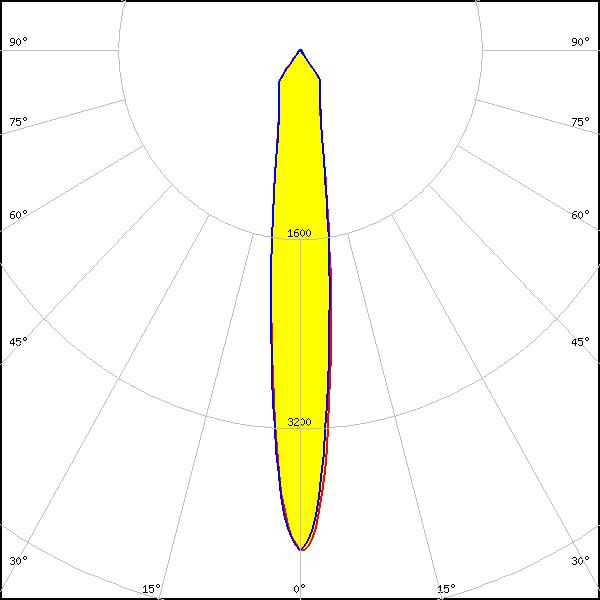

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
14°
FWTM:
53°
Peak intensity:
4.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

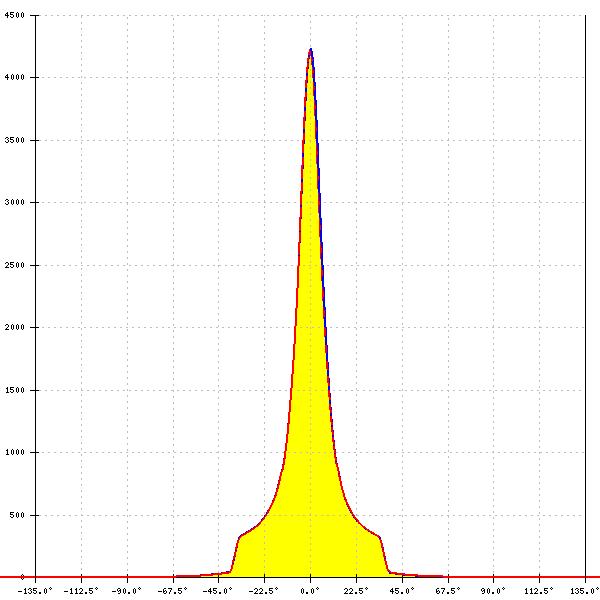

LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
BJB: 47.319.2021
FWHM:
14°
FWTM:
50°
Peak intensity:
4.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

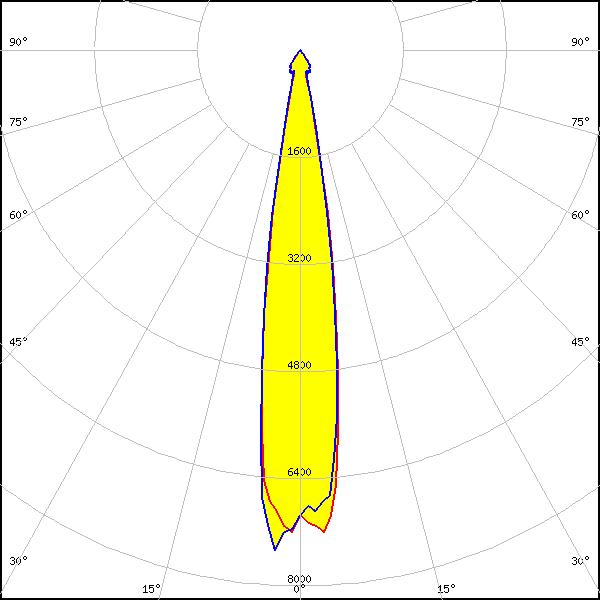

LED:

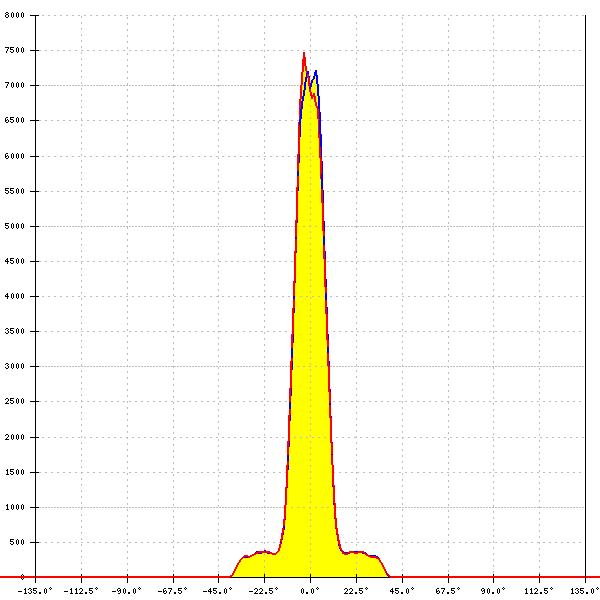

CLU730/731/733
LES size: 13.0 mm
Required components:
BJB: 47.319.2030
FWHM:
16°
FWTM:
26°
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

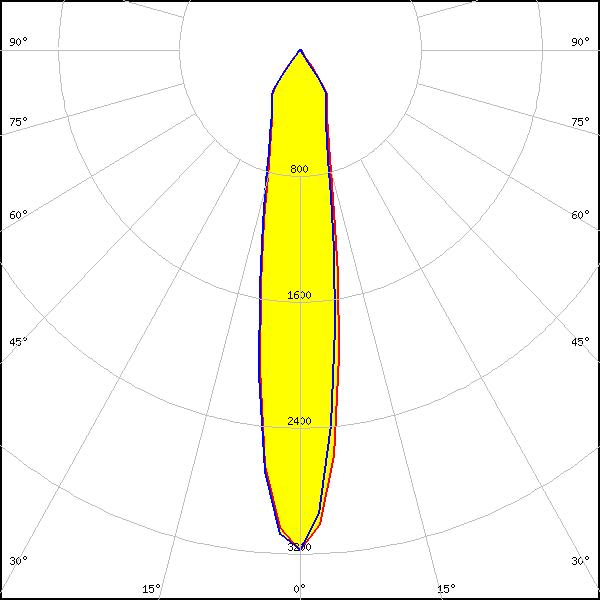

LED:

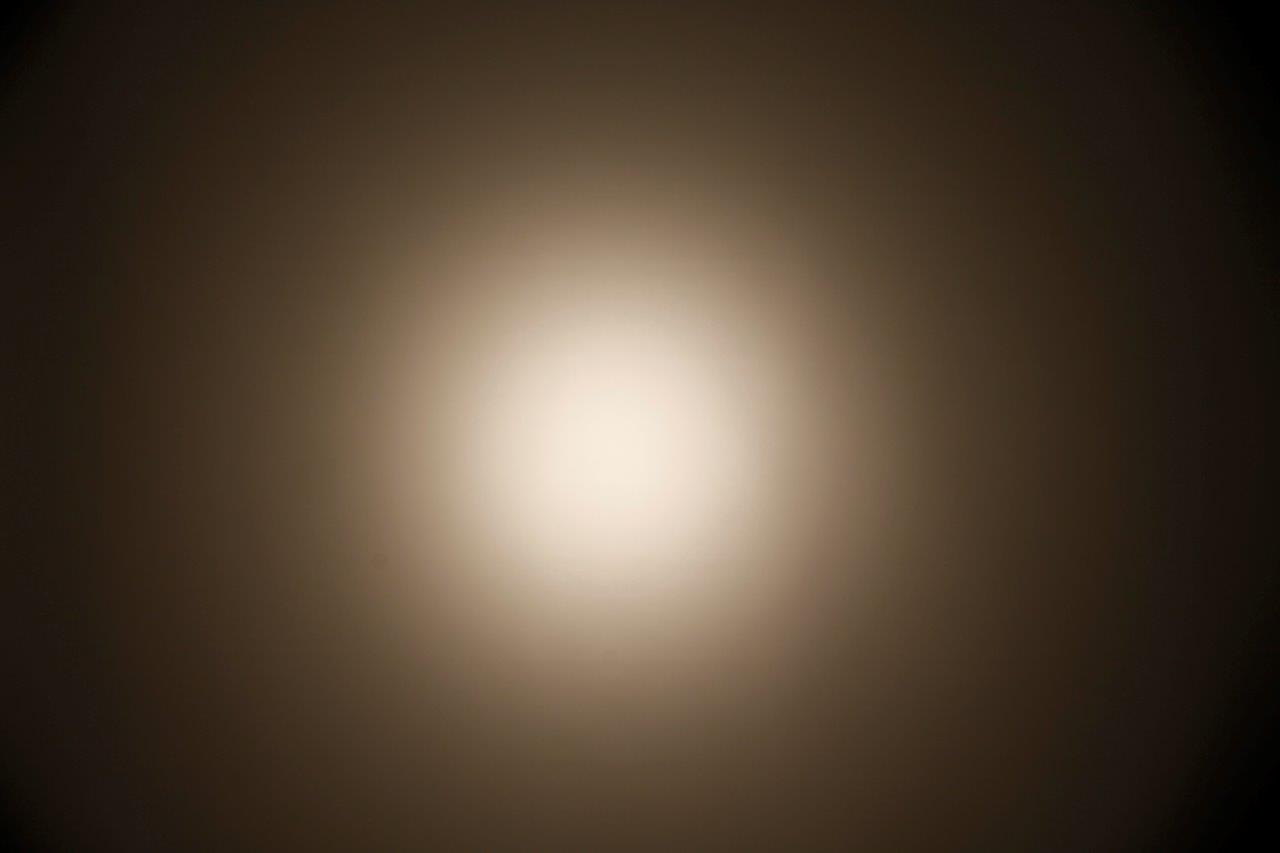

CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
21°
FWTM:
69°
Peak intensity:
2.400 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White

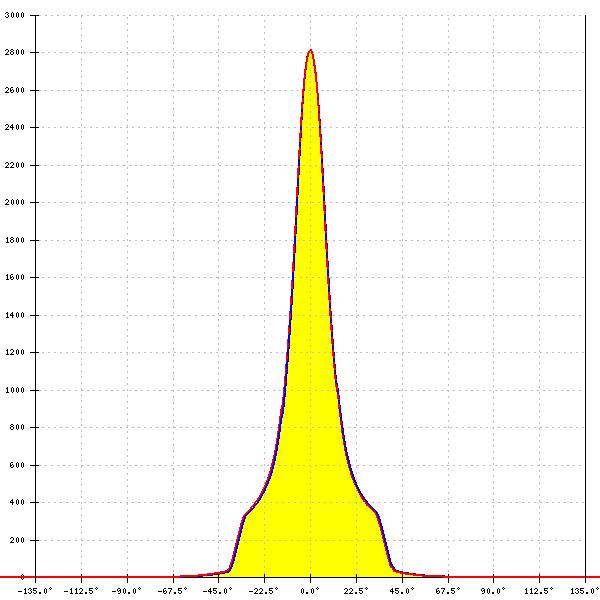

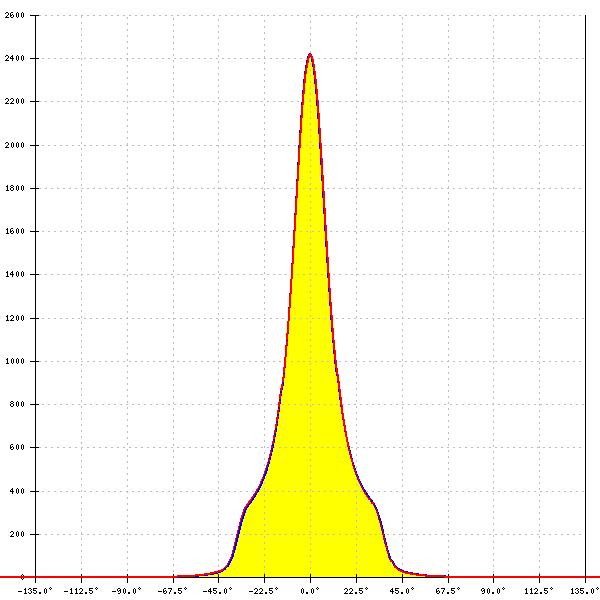

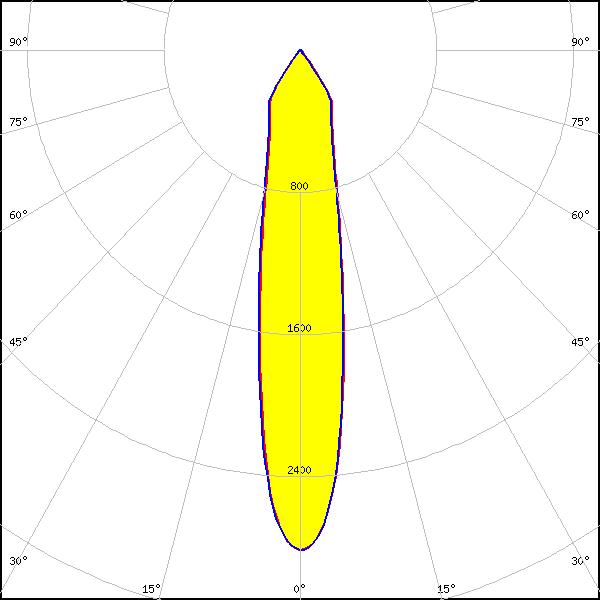

LED:

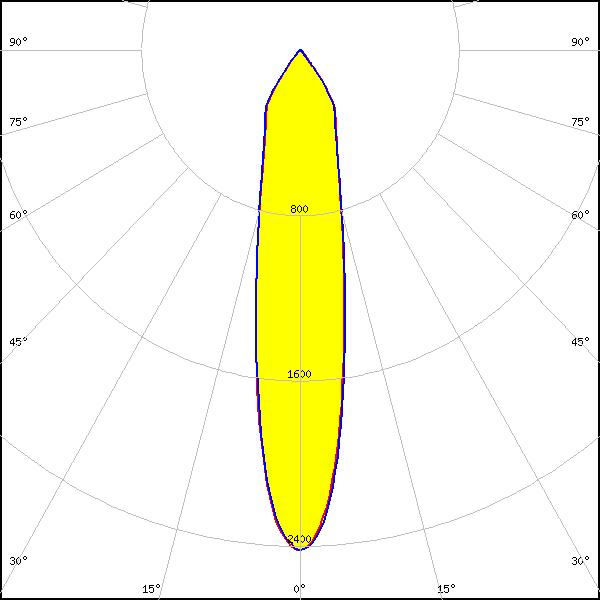

CXA/B 25xx
LES size: 19.0 mm
Required components:
BJB: 47.319.2141
FWHM:
20°
FWTM:
68°
Peak intensity:
2.800 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

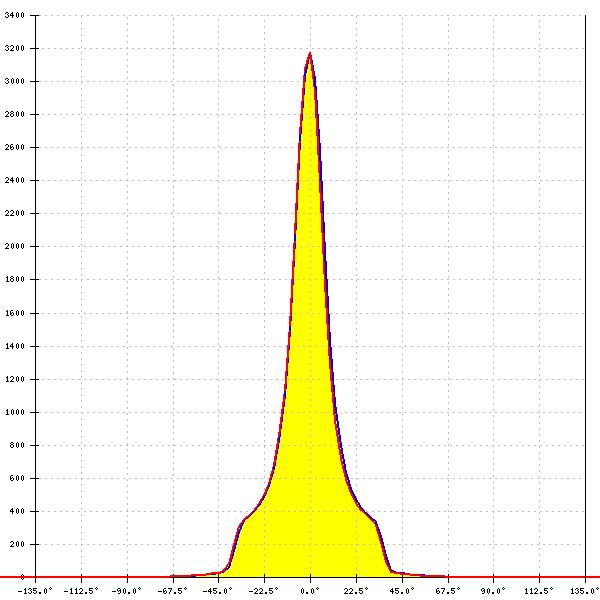

LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
A.A.G. STUCCHI: 8401-G2
FWHM:
18°
FWTM:
67°
Peak intensity:
3.180 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

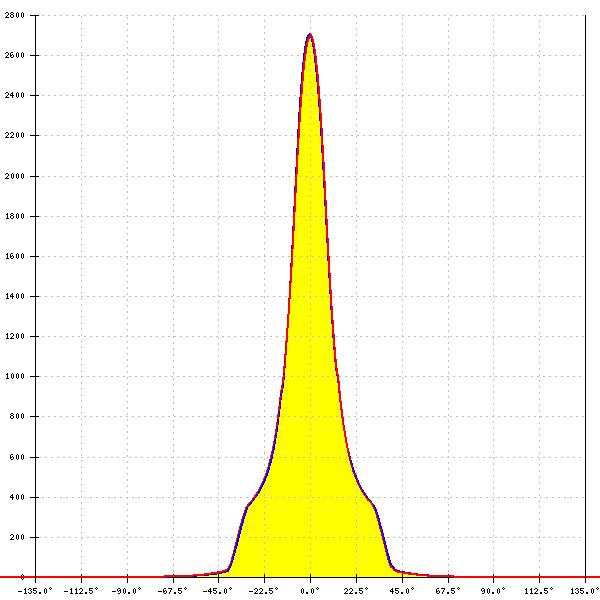

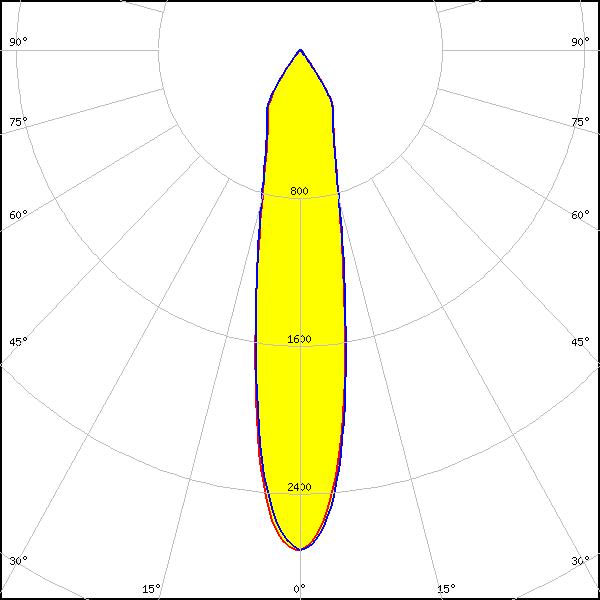

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8404-G2
FWHM:
21°
FWTM:
68°
Peak intensity:
2.700 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

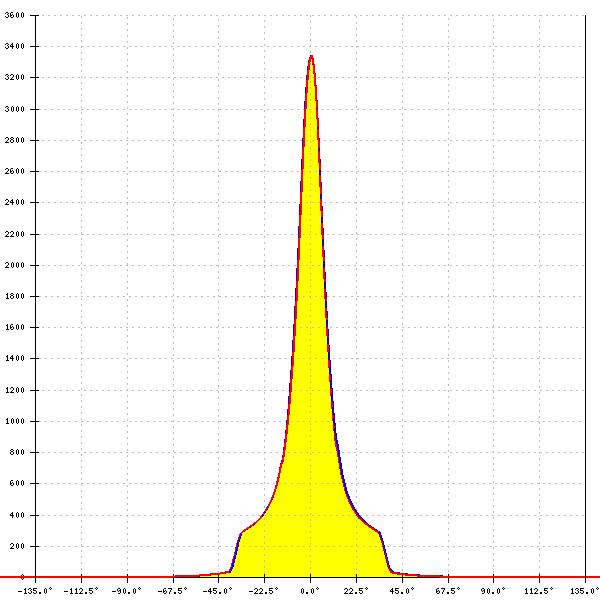

LED:

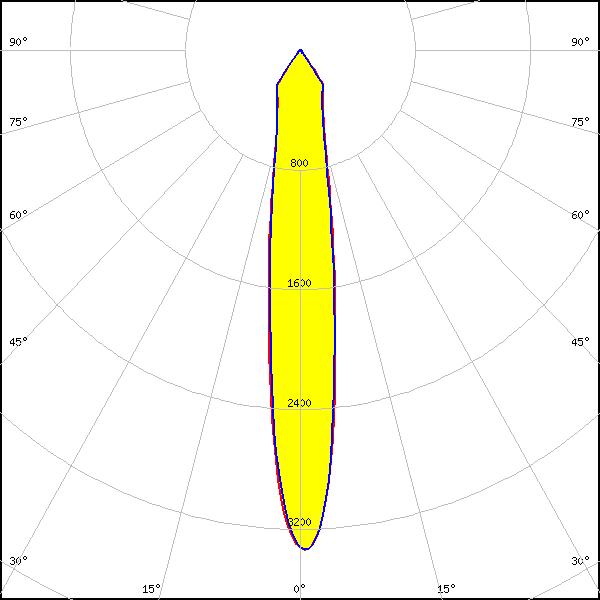

LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
16°
FWTM:
56°
Peak intensity:
3.840 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
19°
FWTM:
69°
Peak intensity:
2.700 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

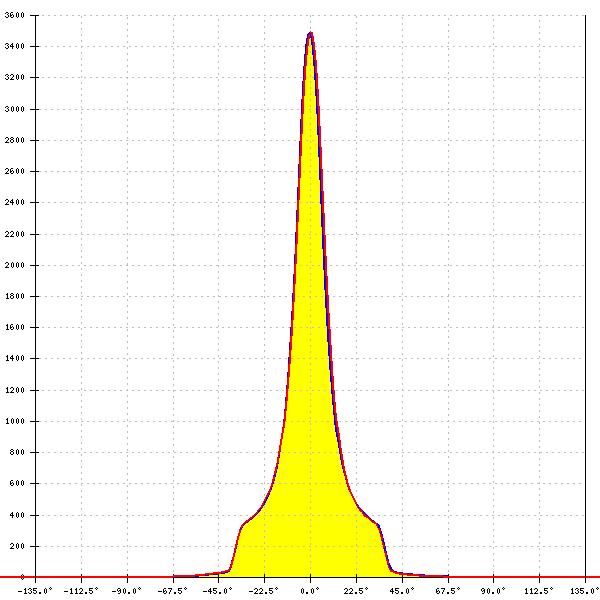

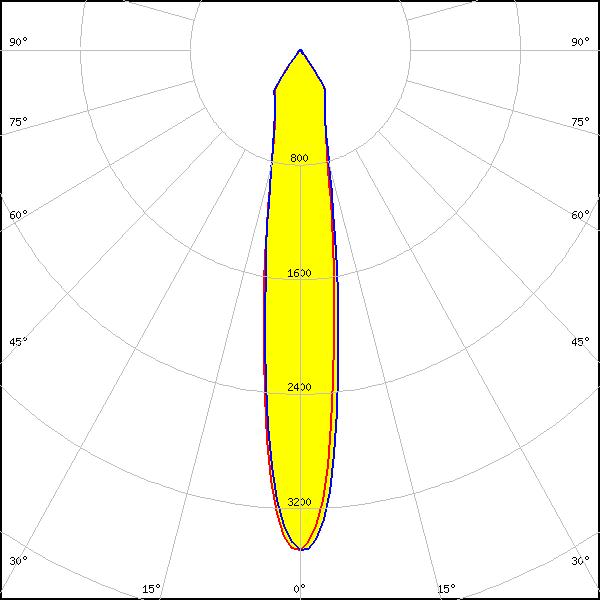

LED:

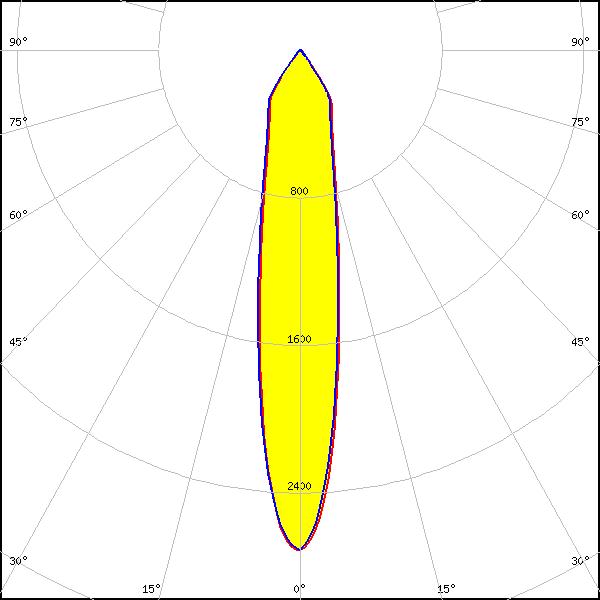

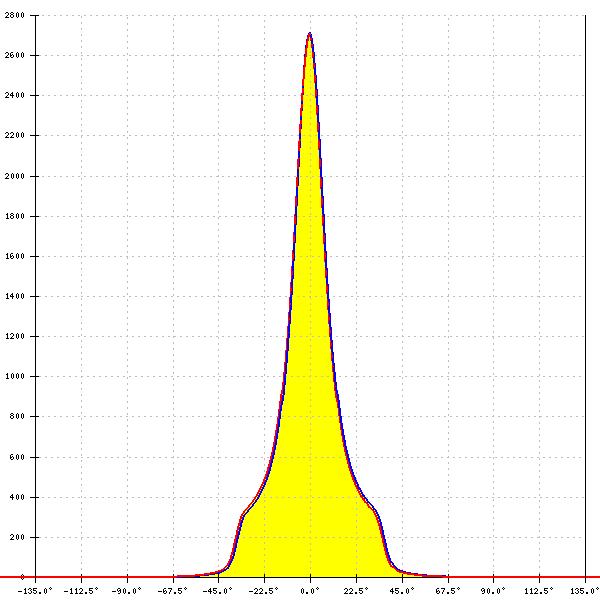

LUXEON CoB 1208
LES size: 15.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
17°
FWTM:
64°
Peak intensity:
3.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

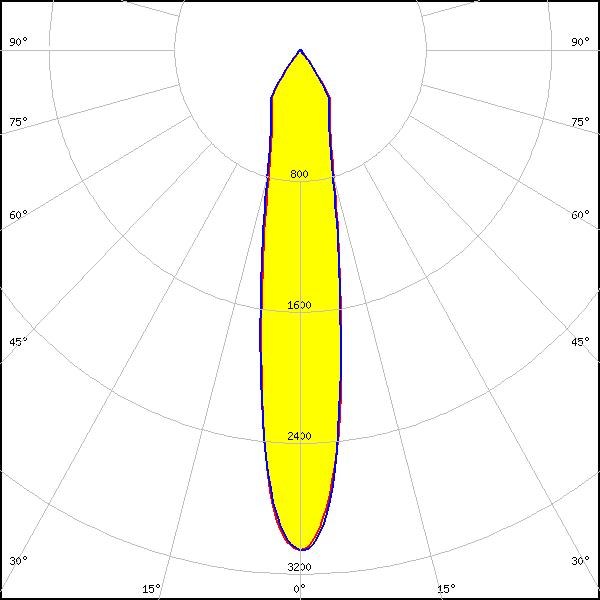

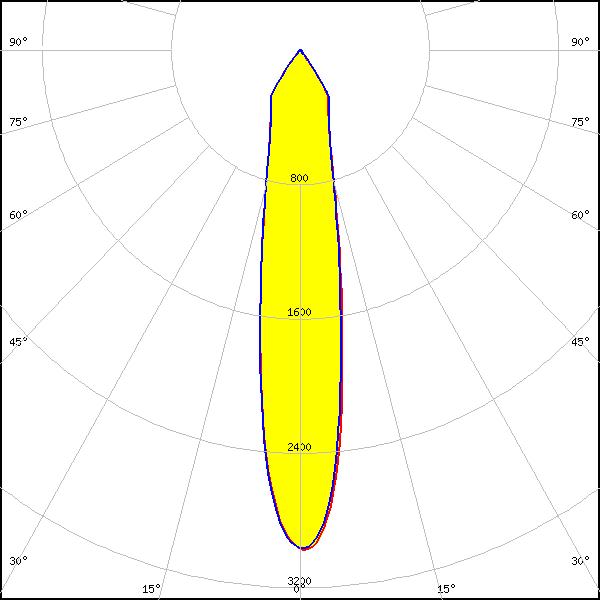

LED:

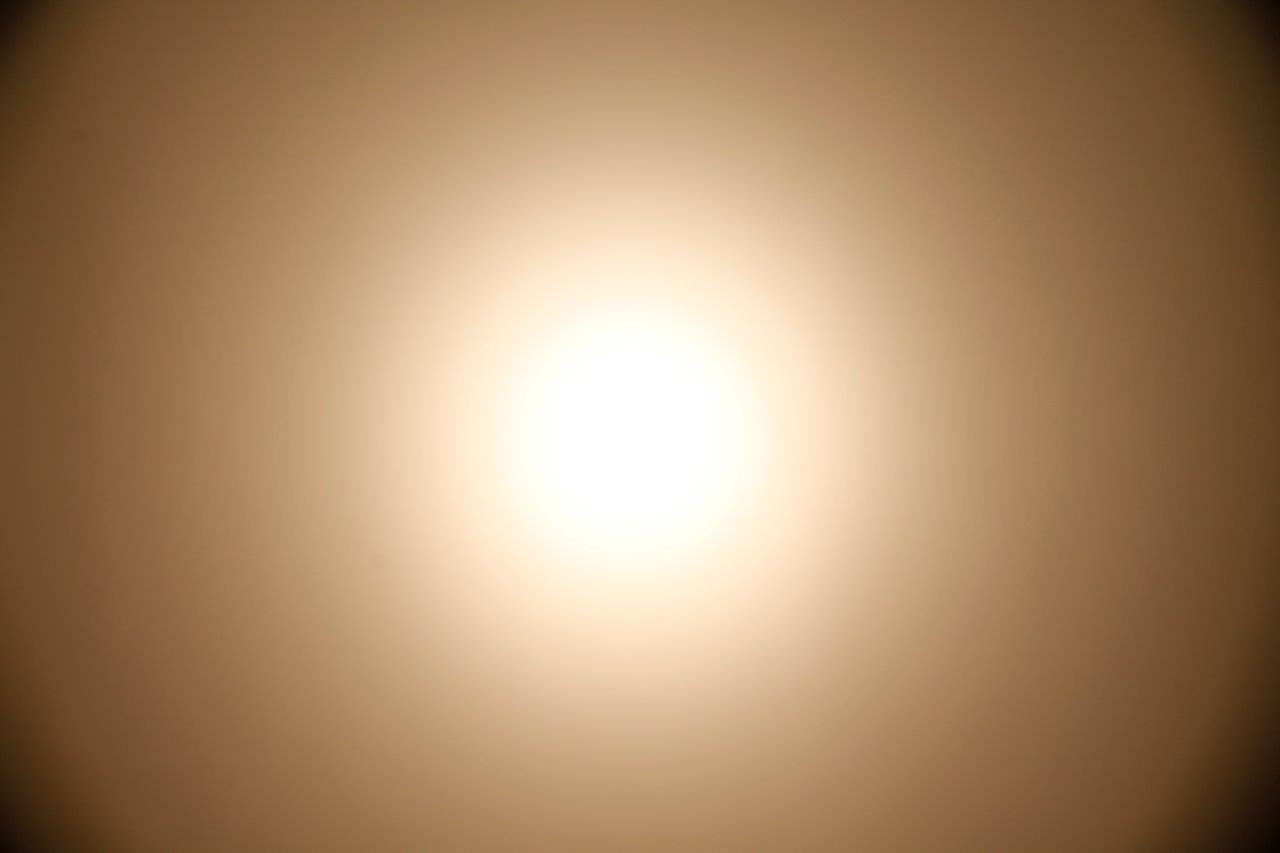

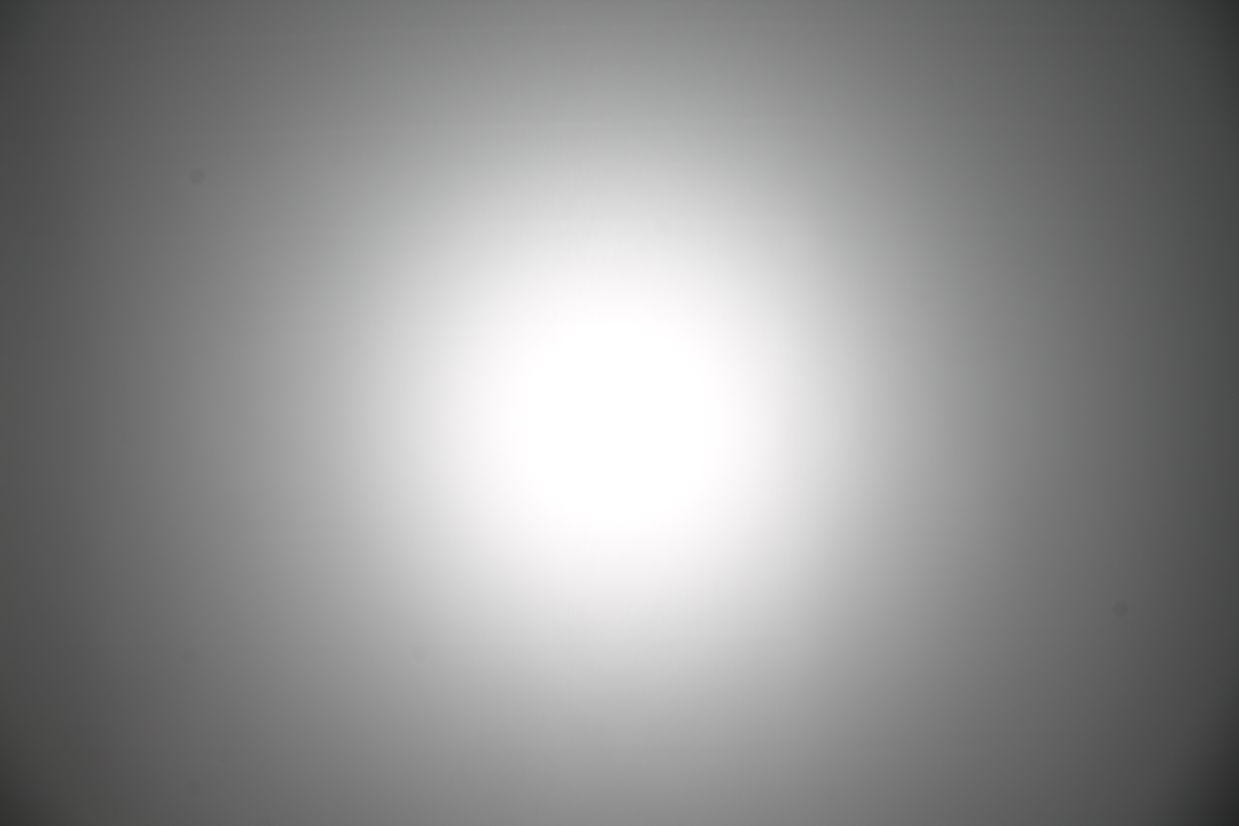

LUXEON CoB 1211
LES size: 18.5 mm
Required components:
BJB: 47.319.2030
FWHM:
19°
FWTM:
67°
Peak intensity:
3.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
19°
FWTM:
67°
Peak intensity:
3.060 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

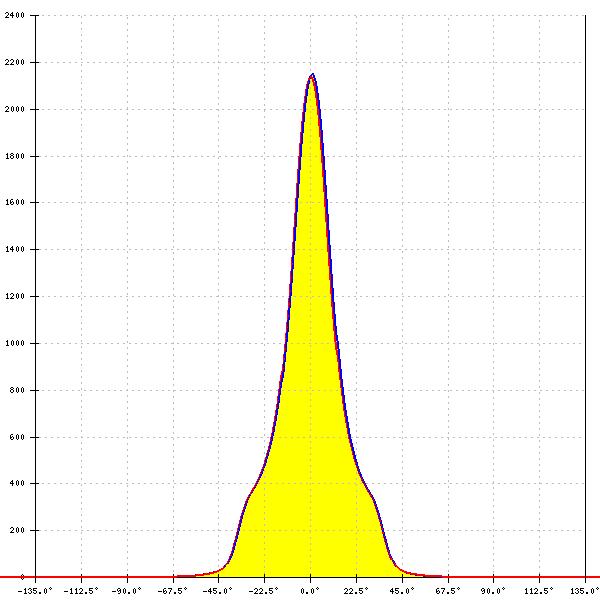

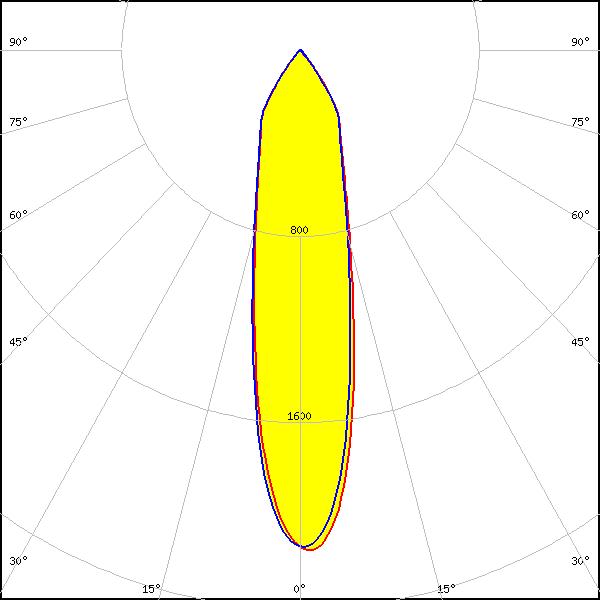

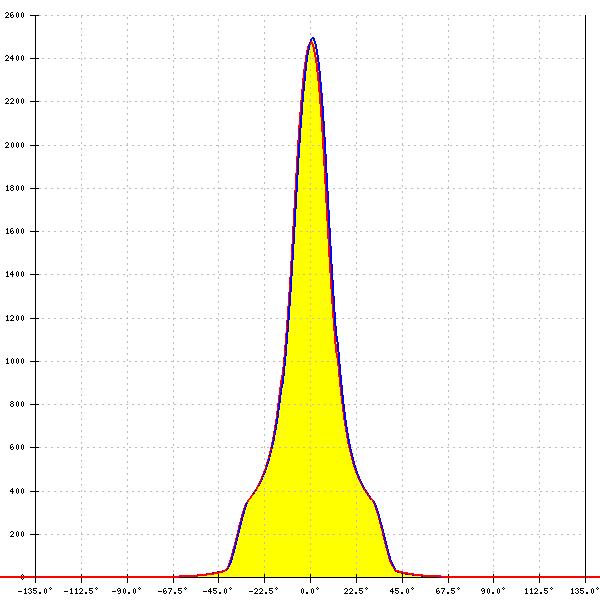

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
24°
FWTM:
70°
Peak intensity:
2.150 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

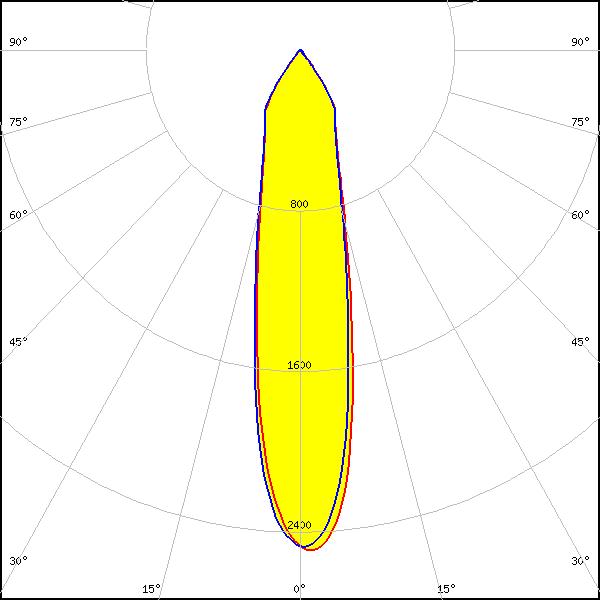

LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
BJB: 47.319.2030
FWHM:
22°
FWTM:
69°
Peak intensity:
2.490 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

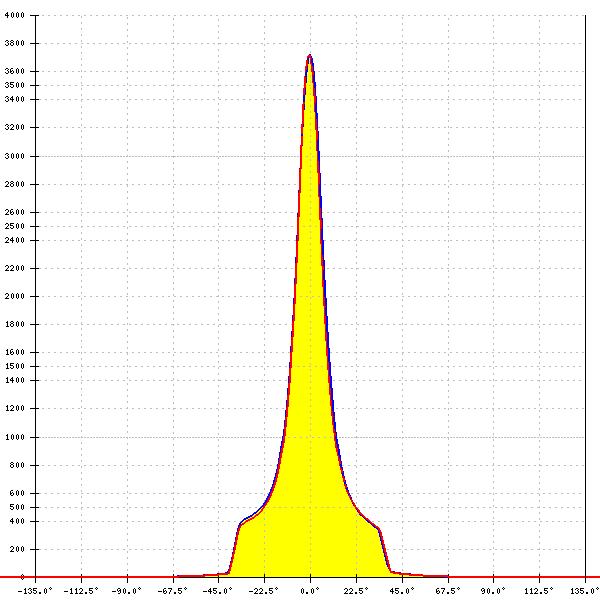

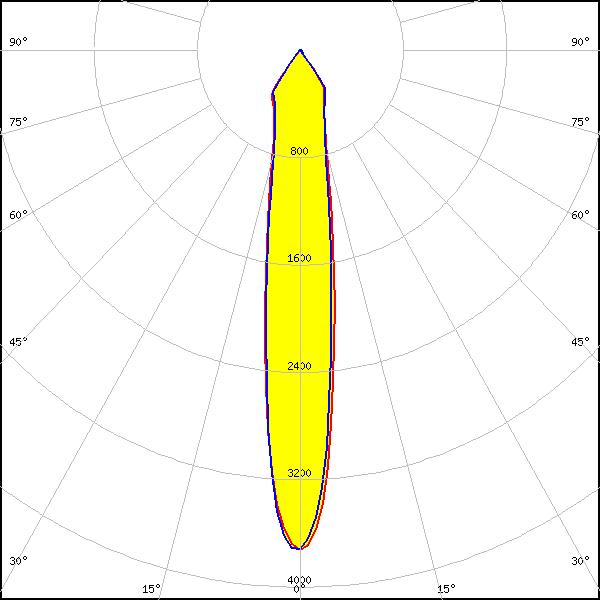

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
BJB: 47.319.2070
FWHM:
17°
FWTM:
65°
Peak intensity:
3.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

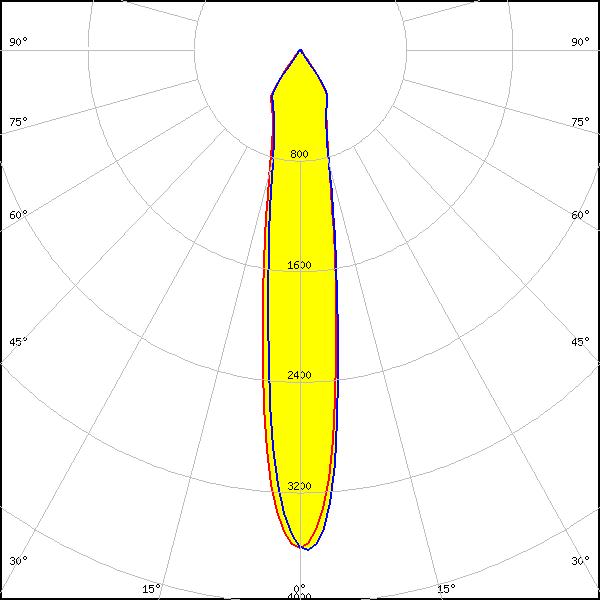

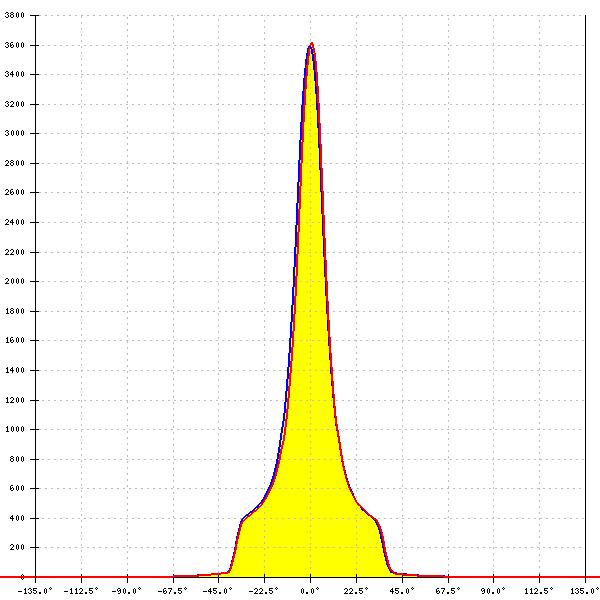

LED:
LUXEON K16
LES size: 17.0 mm
Required components:
BJB: 47.319.2070
FWHM:
17°
FWTM:
67°
Peak intensity:
3.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON S2000
LES size: 10.5 mm
LEDs/each optic:
1
Light colour/type:
White

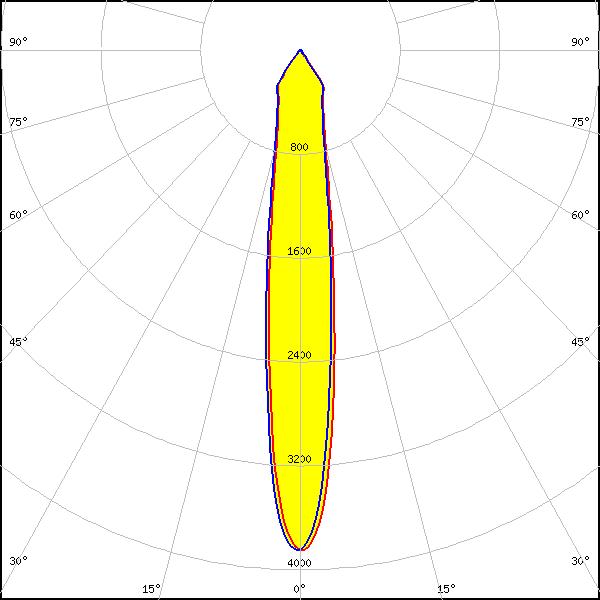

LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
16°
FWTM:
56°
Peak intensity:
3.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

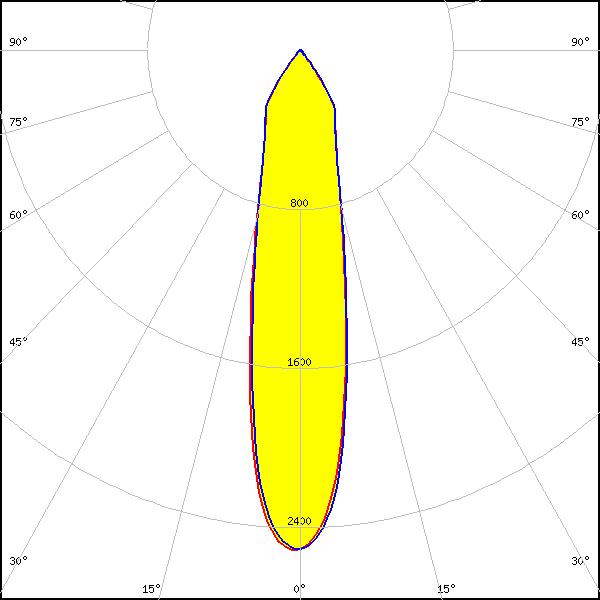

CxM-22 (28x28)
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
22°
FWTM:
69°
Peak intensity:
2.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

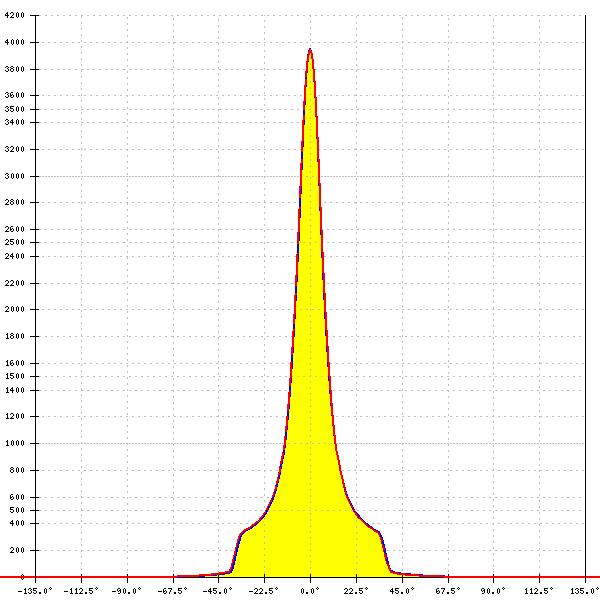

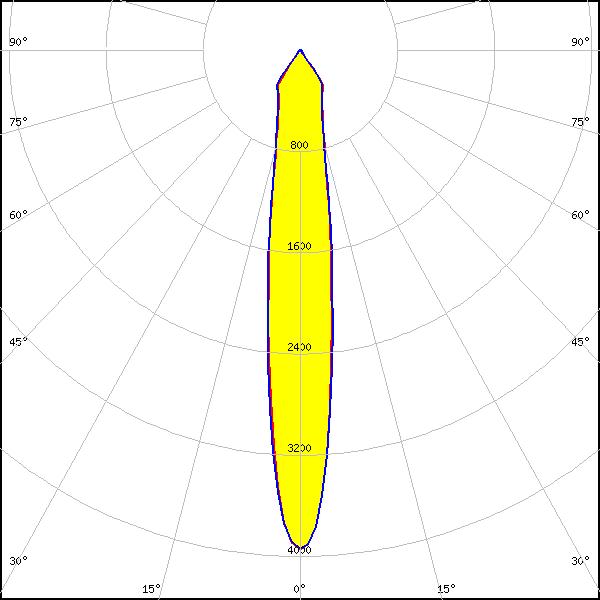

LED:

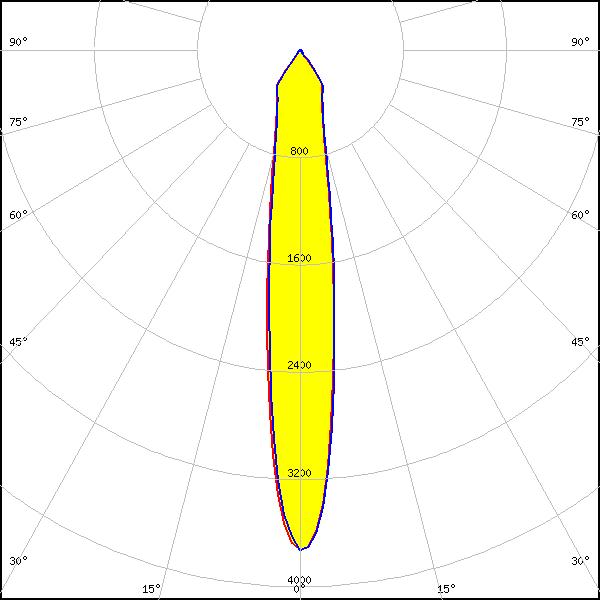

Soleriq S13
LES size: 13.2 mm
Required components:
A.A.G. STUCCHI: 8502-G2
FWHM:
15°
FWTM:
55°
Peak intensity:
4.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13 19x19
LES size: 13.0 mm
Required components:
BJB: 47.319.2021
FWHM:
16°
FWTM:
56°
Peak intensity:
3.730 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

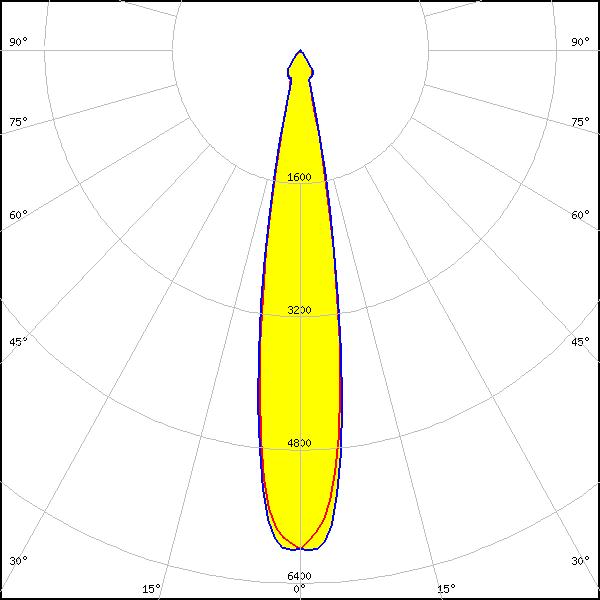

LED:

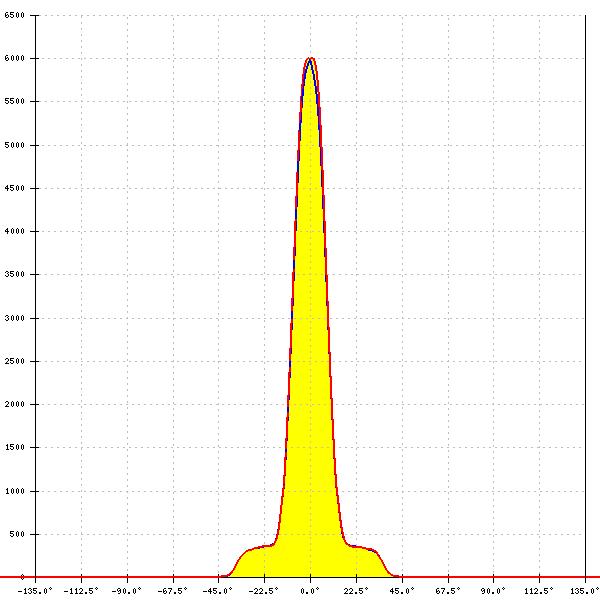

Soleriq S15
LES size: 14.7 mm
Required components:
BJB: 47.319.2021
FWHM:
18°
FWTM:
30°
Peak intensity:
6.012 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

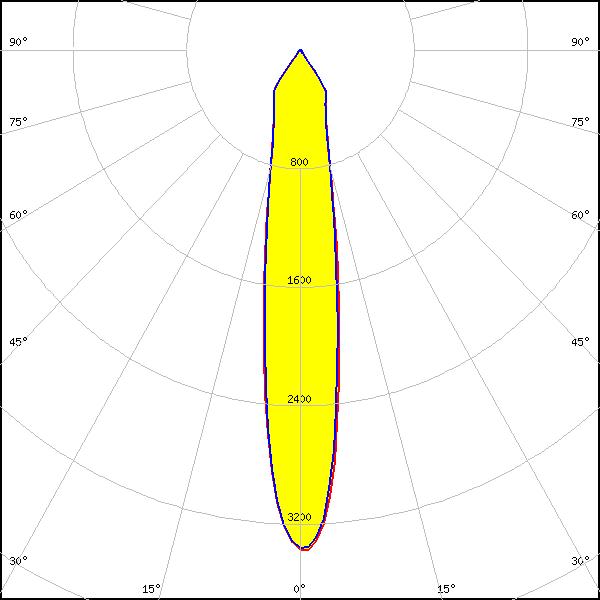

LED:
Soleriq S19
LES size: 17.9 mm
Required components:
A.A.G. STUCCHI: 8503-G2
FWHM:
17°
FWTM:
65°
Peak intensity:
3.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

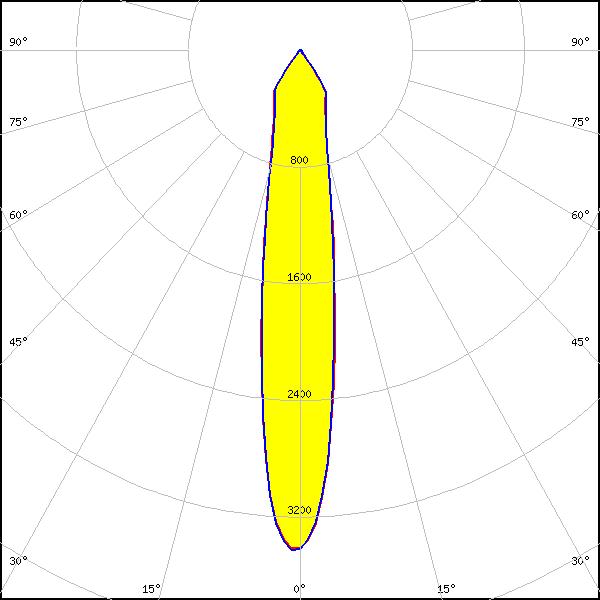

Soleriq S19
LES size: 17.9 mm
Required components:
BJB: 47.319.2170
FWHM:
18°
FWTM:
65°
Peak intensity:
3.380 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

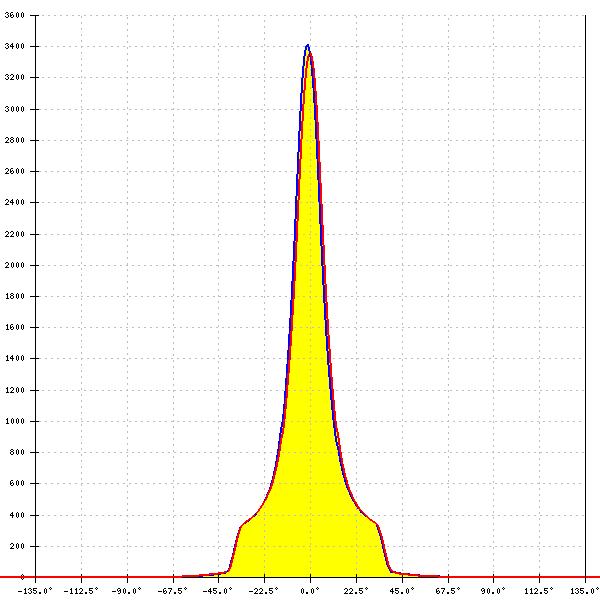

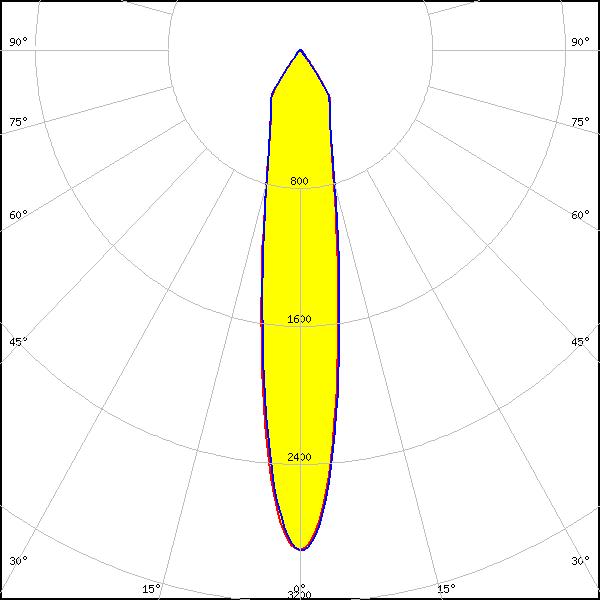

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
18°
FWTM:
68°
Peak intensity:
2.900 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
18°
FWTM:
68°
Peak intensity:
2.900 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
17°
FWTM:
66°
Peak intensity:
3.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

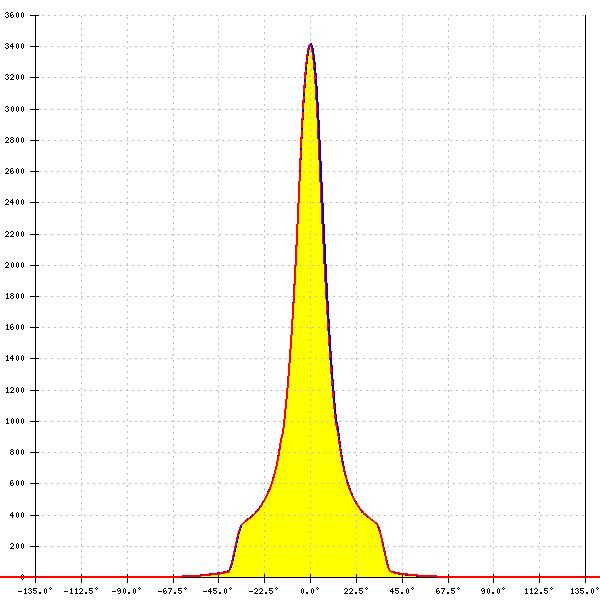

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
17°
FWTM:
66°
Peak intensity:
3.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
BJB: 47.319.2030
FWHM:
23°
FWTM:
45°
Peak intensity:
3.840 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

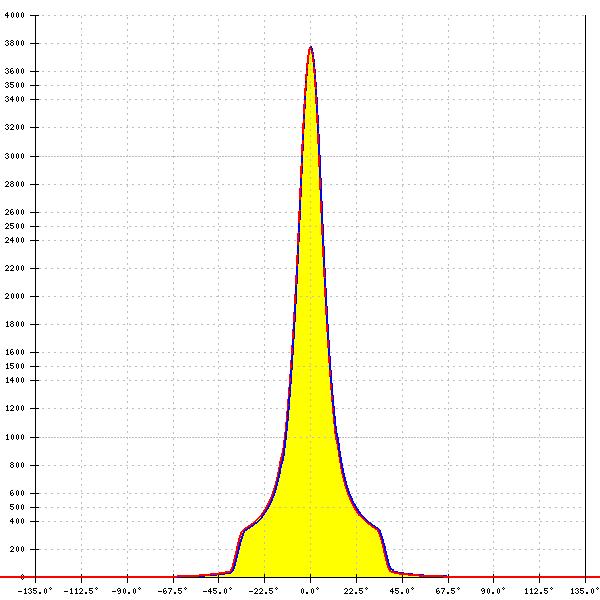

LED:

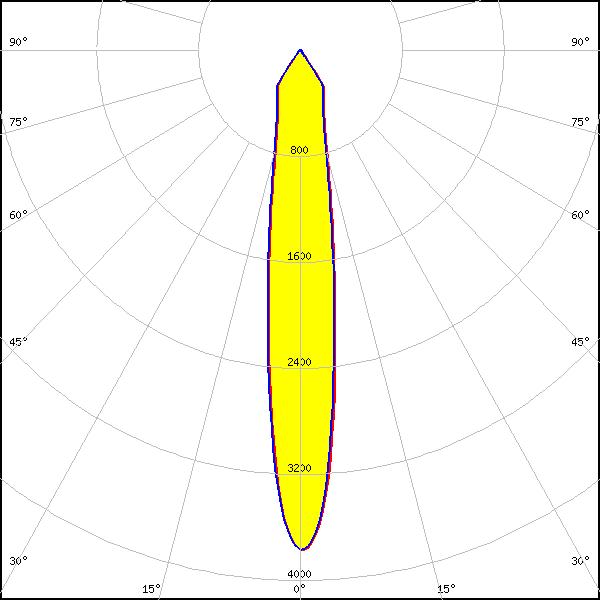

ZC12/18
LES size: 14.6 mm
Required components:
A.A.G. STUCCHI: 8101-G2
FWHM:
16°
FWTM:
57°
Peak intensity:
3.770 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

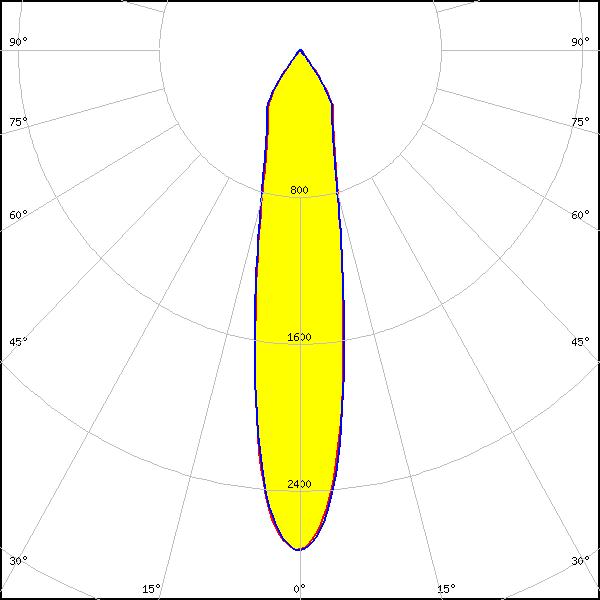

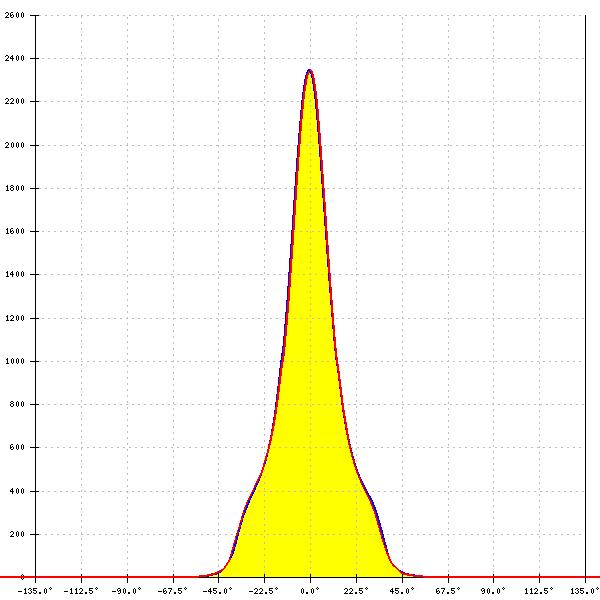

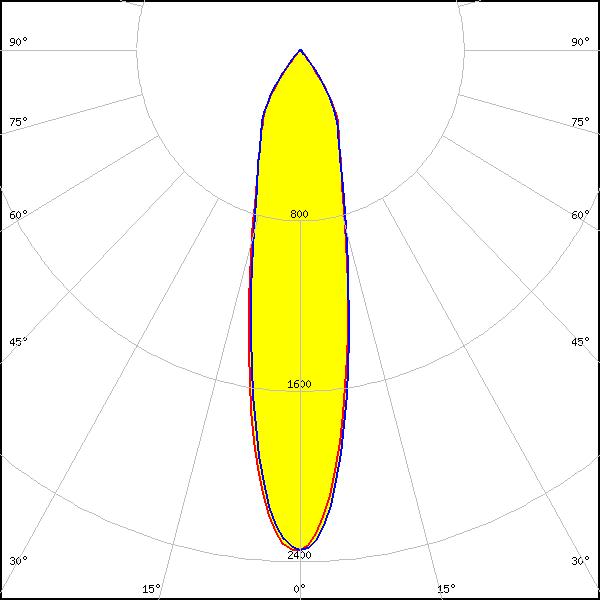

LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM:
24°
FWTM:
69°
Peak intensity:
2.350 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

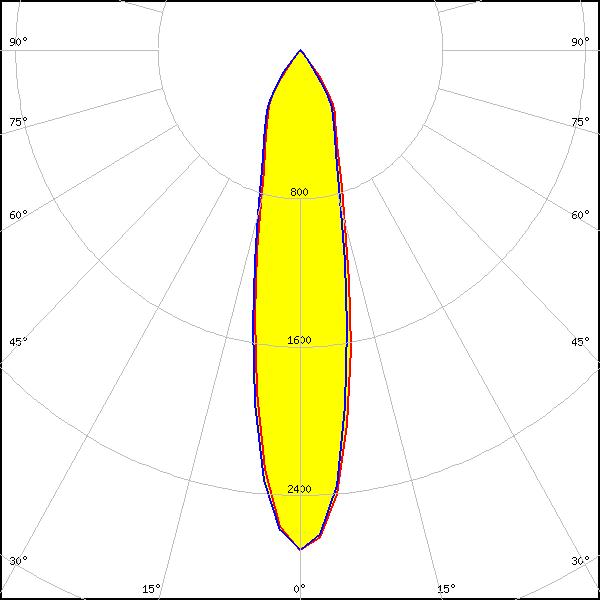

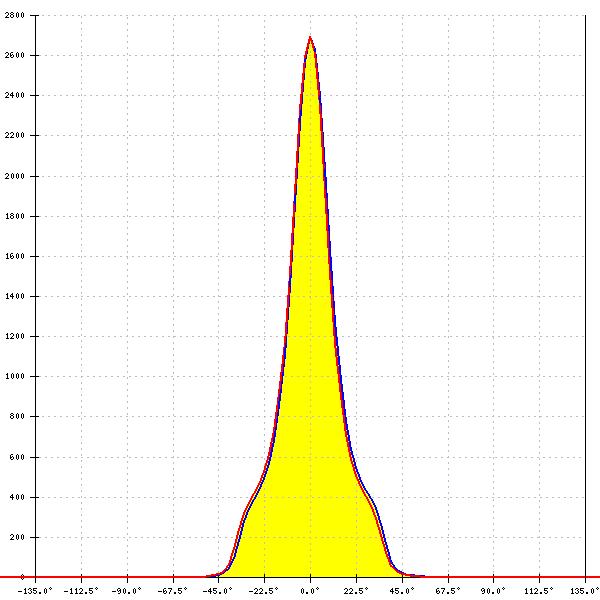

LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
BJB: 47.319.2030
FWHM:
23°
FWTM:
68°
Peak intensity:
2.700 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
A.A.G. STUCCHI: 8102-G2
FWHM:
21°
FWTM:
68°
Peak intensity:
2.720 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:

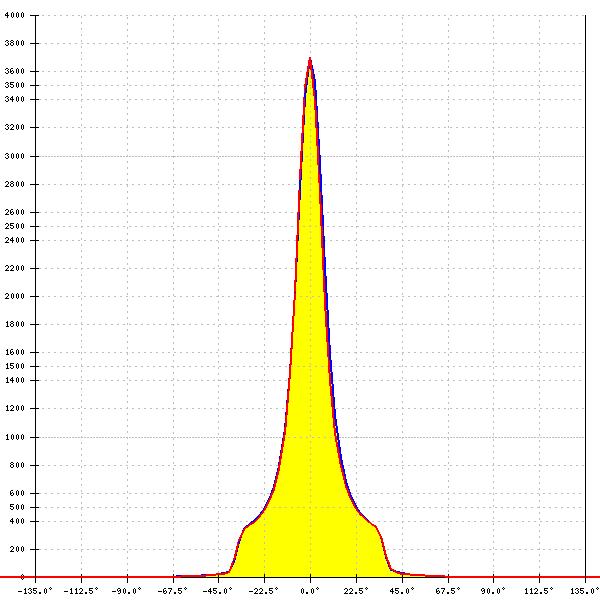

White

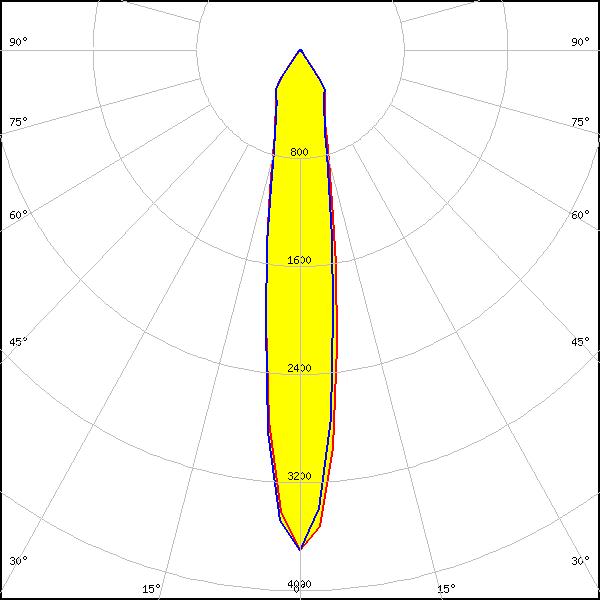

LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
LEDs/each optic:
1
Light colour/type:
White

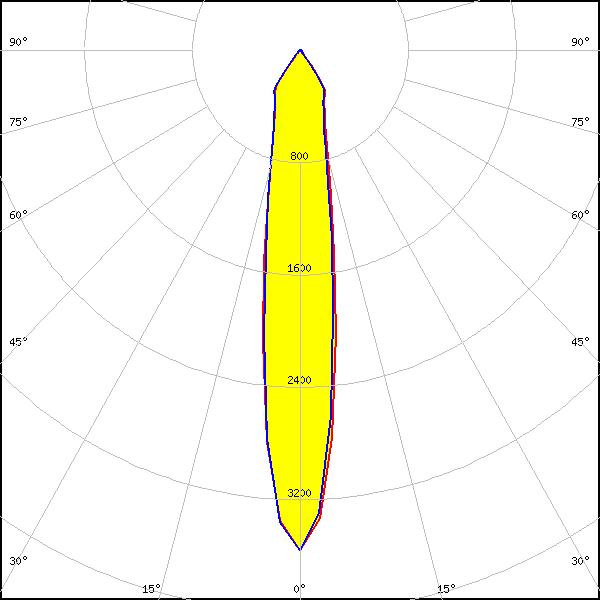

LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
A.A.G. STUCCHI: 8301-G2
FWHM:
17°
FWTM:
63°
Peak intensity:
3.560 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
BJB: 47.319.2011
FWHM:
17°
FWTM:
61°
Peak intensity:
3.700 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES17 H
FWHM:
17°
FWTM:
66°
Peak intensity:
3.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

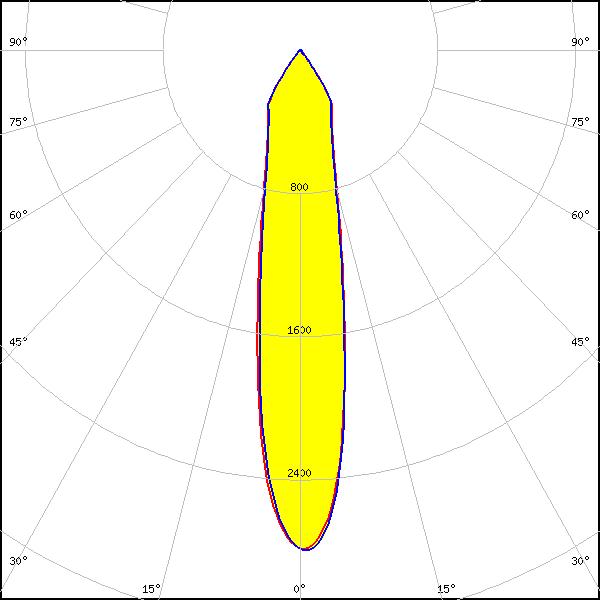

LED:
SLE G7 LES21 H
FWHM:
20°
FWTM:
68°
Peak intensity:
2.800 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM:
17°
FWTM:
66°
Peak intensity:
3.418 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

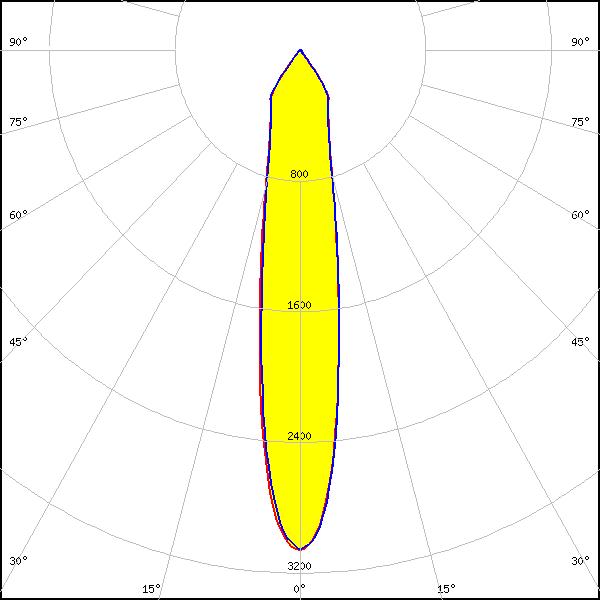

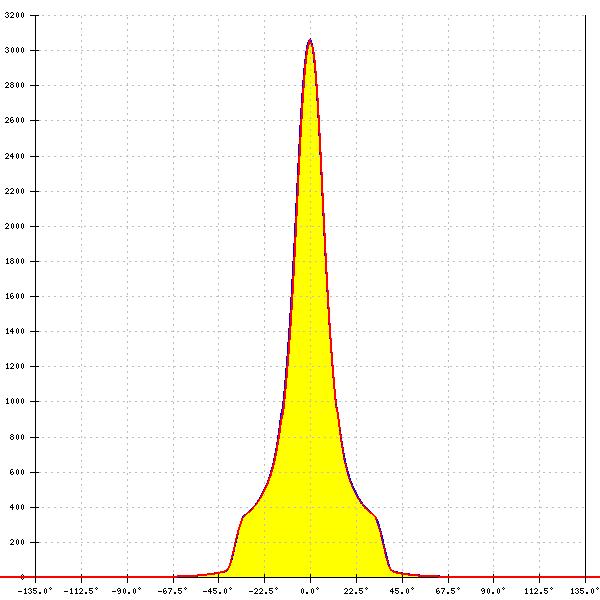

LED:
XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM:
19°
FWTM:
68°
Peak intensity:
3.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
