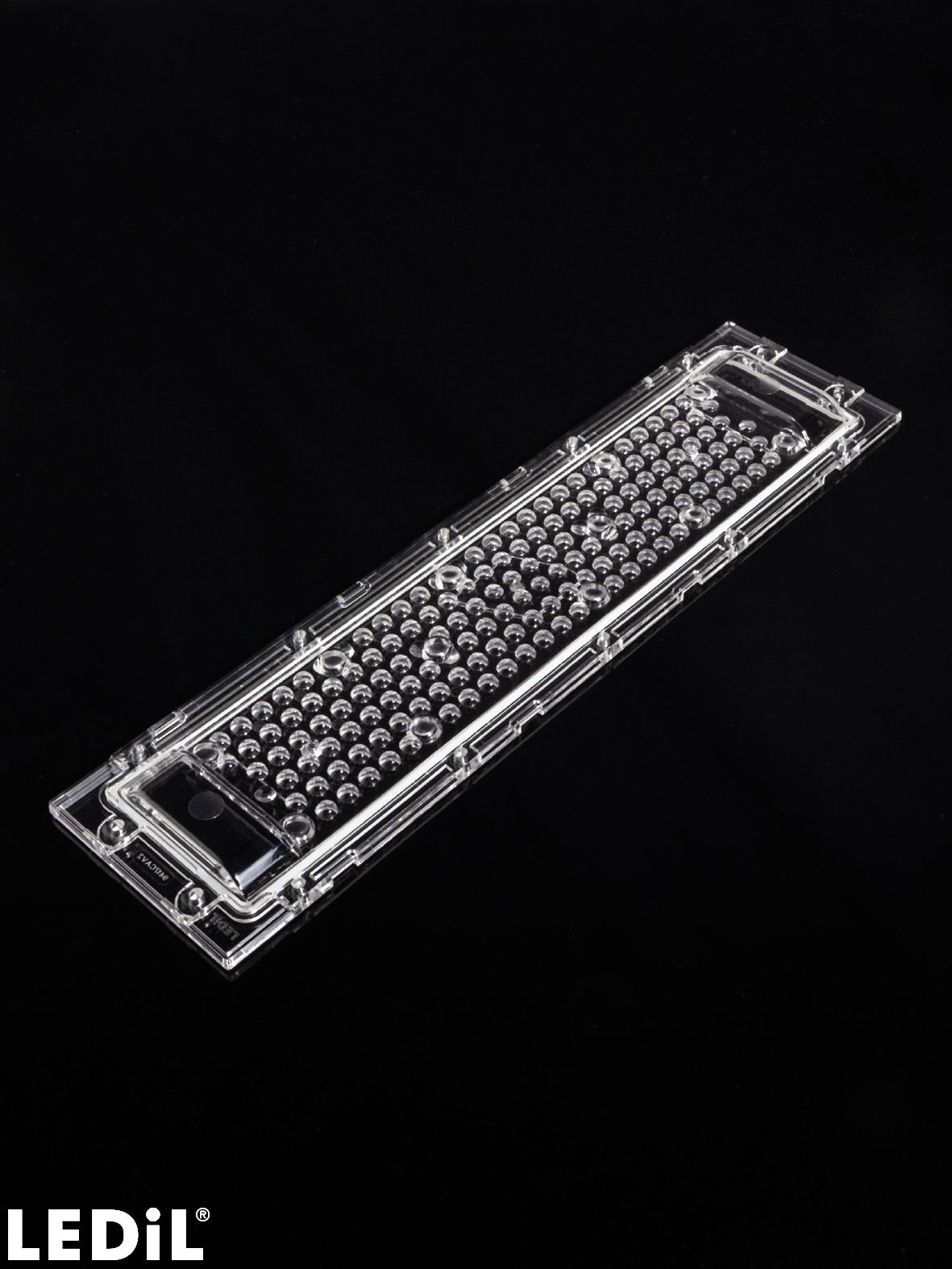

    CS19420_DAHLIA-W

    Print

    ~90° wide beam

    Specification
    • Dimensions:
      321 x  81 mm
    • Height:
      11.00 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      80 pcs
    • Box size:
      343 x 343 x 298 mm
    • Box weight:
      8.6 kg
    • MPQ:
      4 pcs
    • MOQ:
      80 pcs
    • MOQ size:
      343 x 343 x 298 mm
    • MOQ weight:
      8.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS19420_DAHLIA-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Guide for Architectural lighting optics

    Application guide

    LEDiL guide for horticultural lighting optics

    News

    Horticultural lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Horticultural Lighting

    Optical results

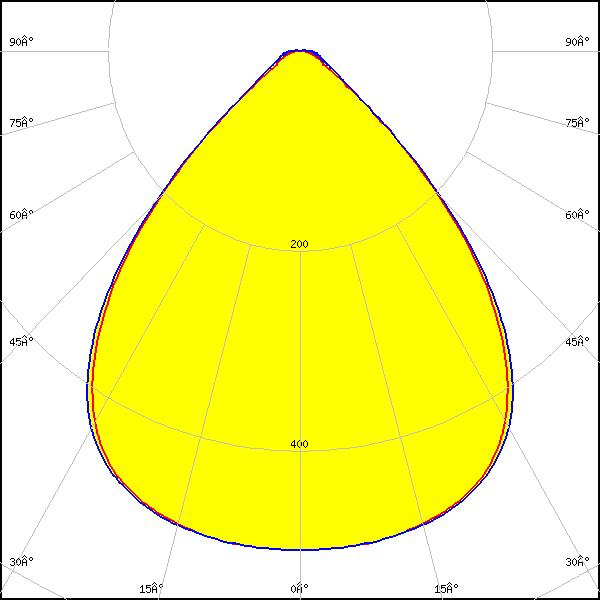

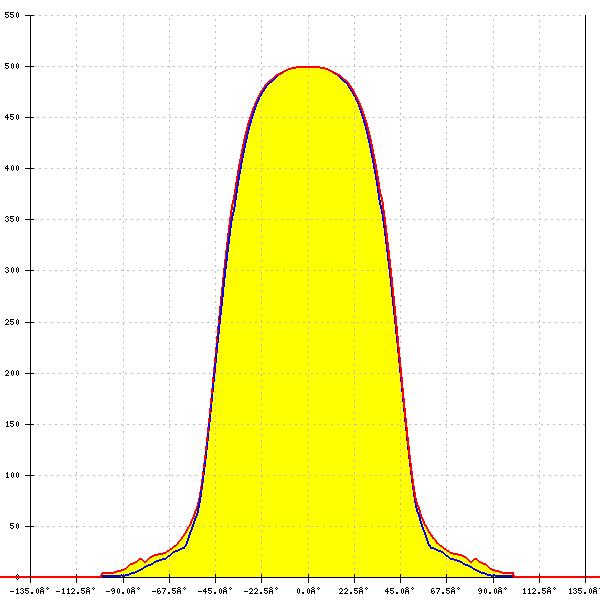

    LED: L0-278053-HW-C2800-K414
    FWHM: 86°
    FWTM: 113°
    Peak intensity: 0.500 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

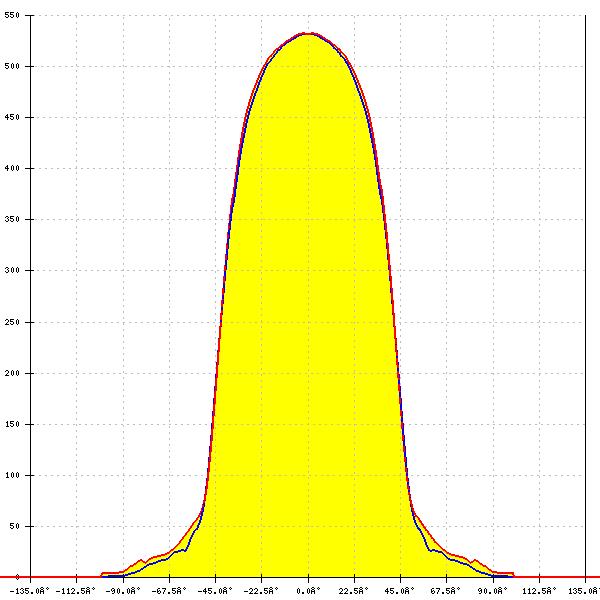

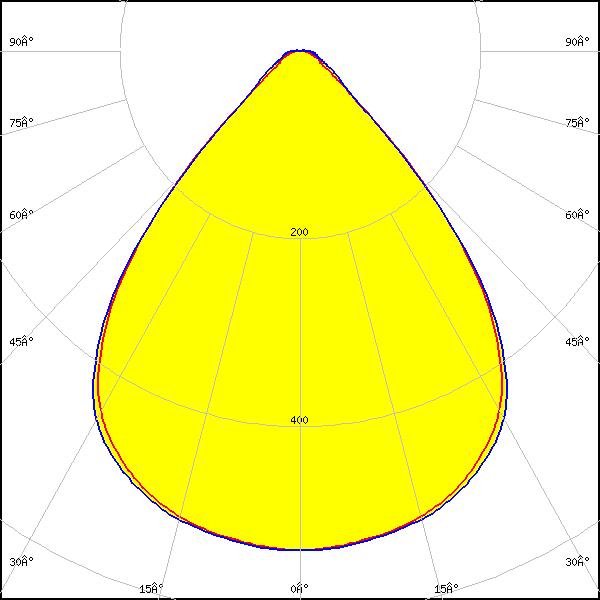

    LED: L0-278053-RGBW-C2000-K409
    FWHM: 83°
    FWTM: 108°
    Peak intensity: 0.532 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: L0-278053-RGBW-C2100-K411
    FWHM: 95°
    FWTM: 139°
    Peak intensity: 0.377 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: RGBW

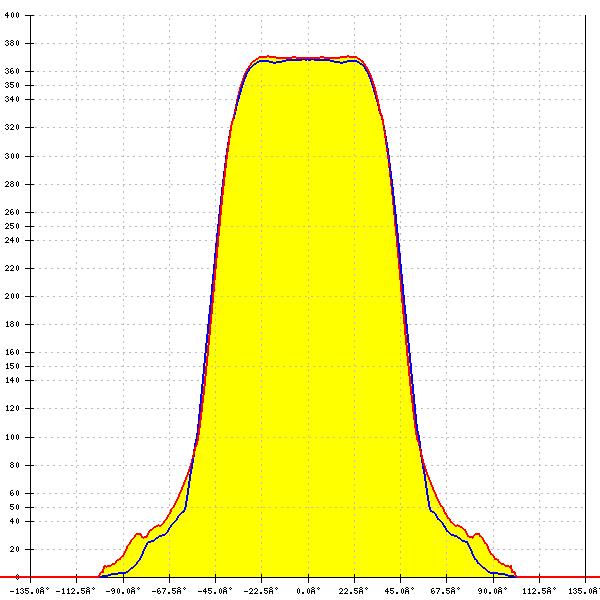

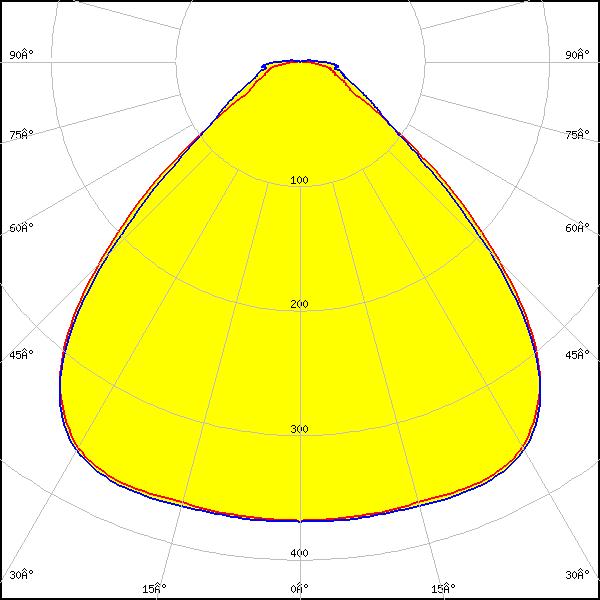

    LED: LUXEON C
    FWHM: 95°
    FWTM: 139°
    Peak intensity: 0.377 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: OSLON Pure 1414
    FWHM: 83°
    FWTM: 108°
    Peak intensity: 0.532 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: OSLON Square GW CSSRM4.HW
    FWHM: 86°
    FWTM: 113°
    Peak intensity: 0.500 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
