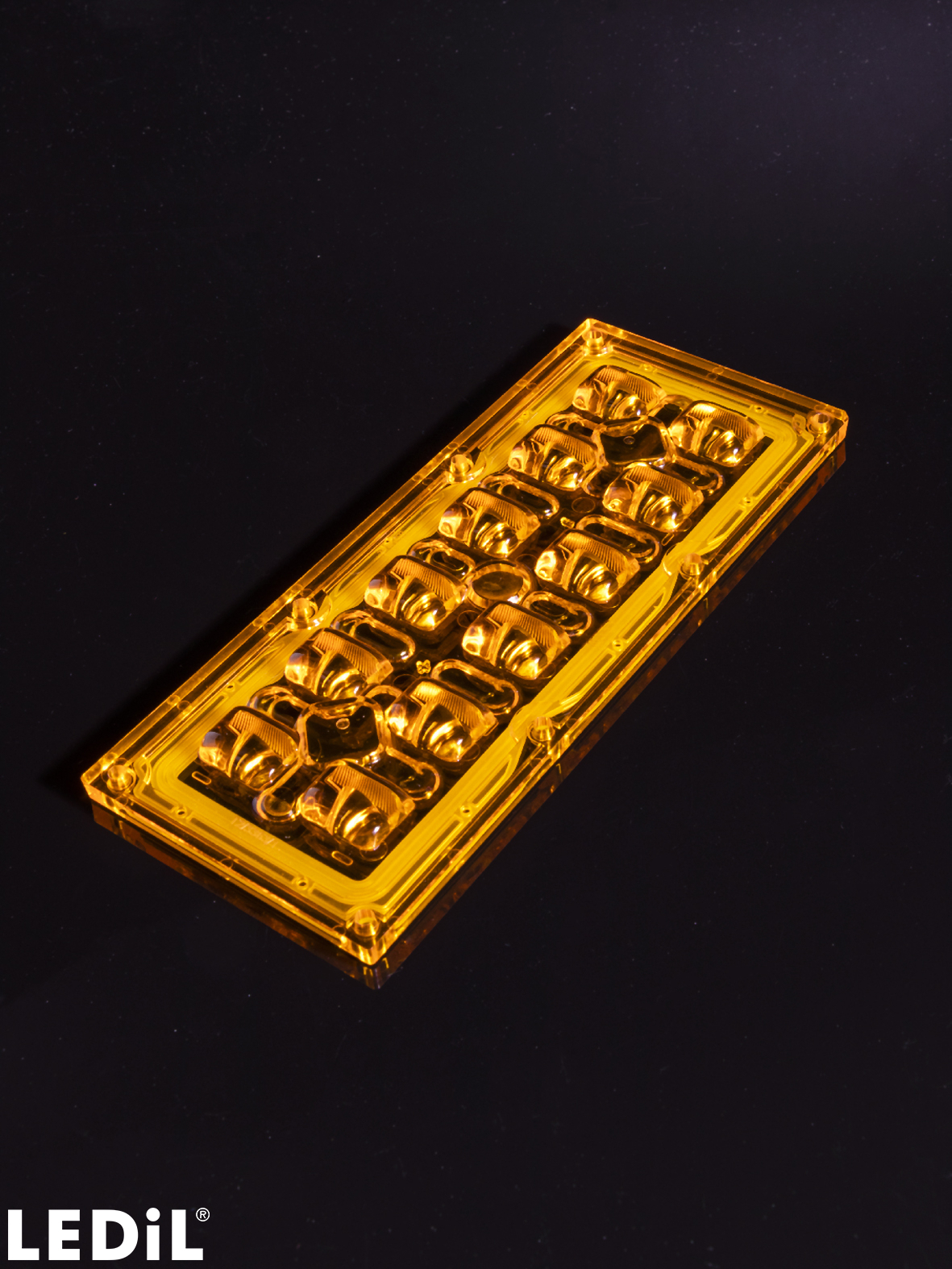

CS19240_AMBER-IP-2X6-T2

Print

IESNA Type II (medium) beam applicable for European P-class standard pedestrian lighting and M-class roads

Specification
  • Dimensions:
    71 x  173 mm
  • Height:
    9.17 mm
  • Fastening:
    screw
  • Colour:
    amber
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    7.6 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CS19240_AMBER-IP-2X6-T2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

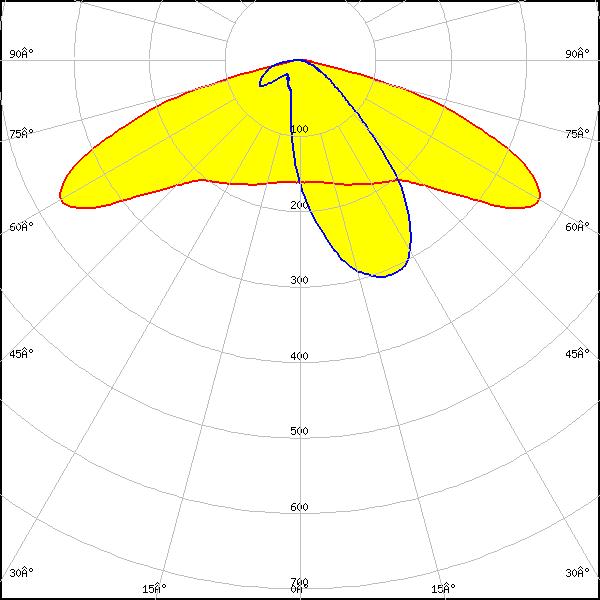

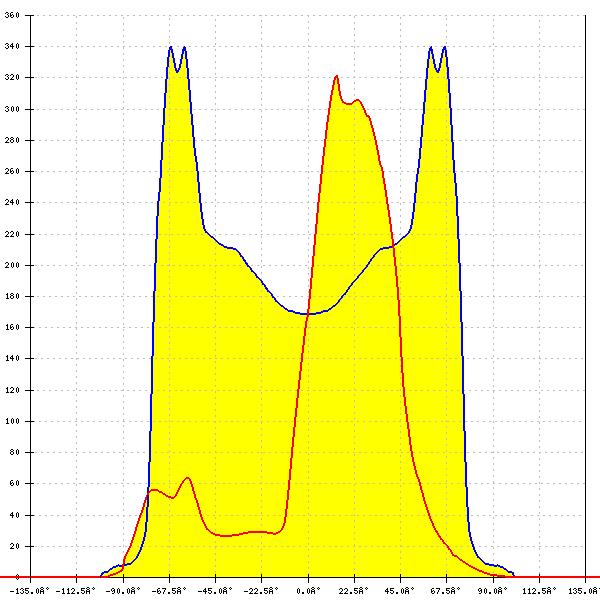

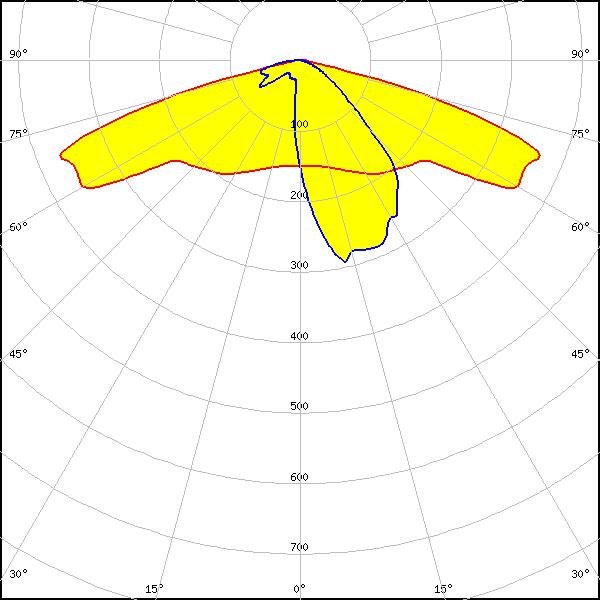

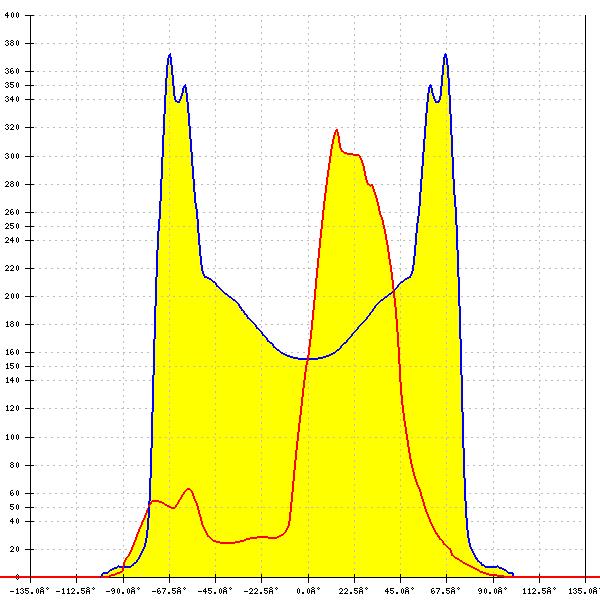

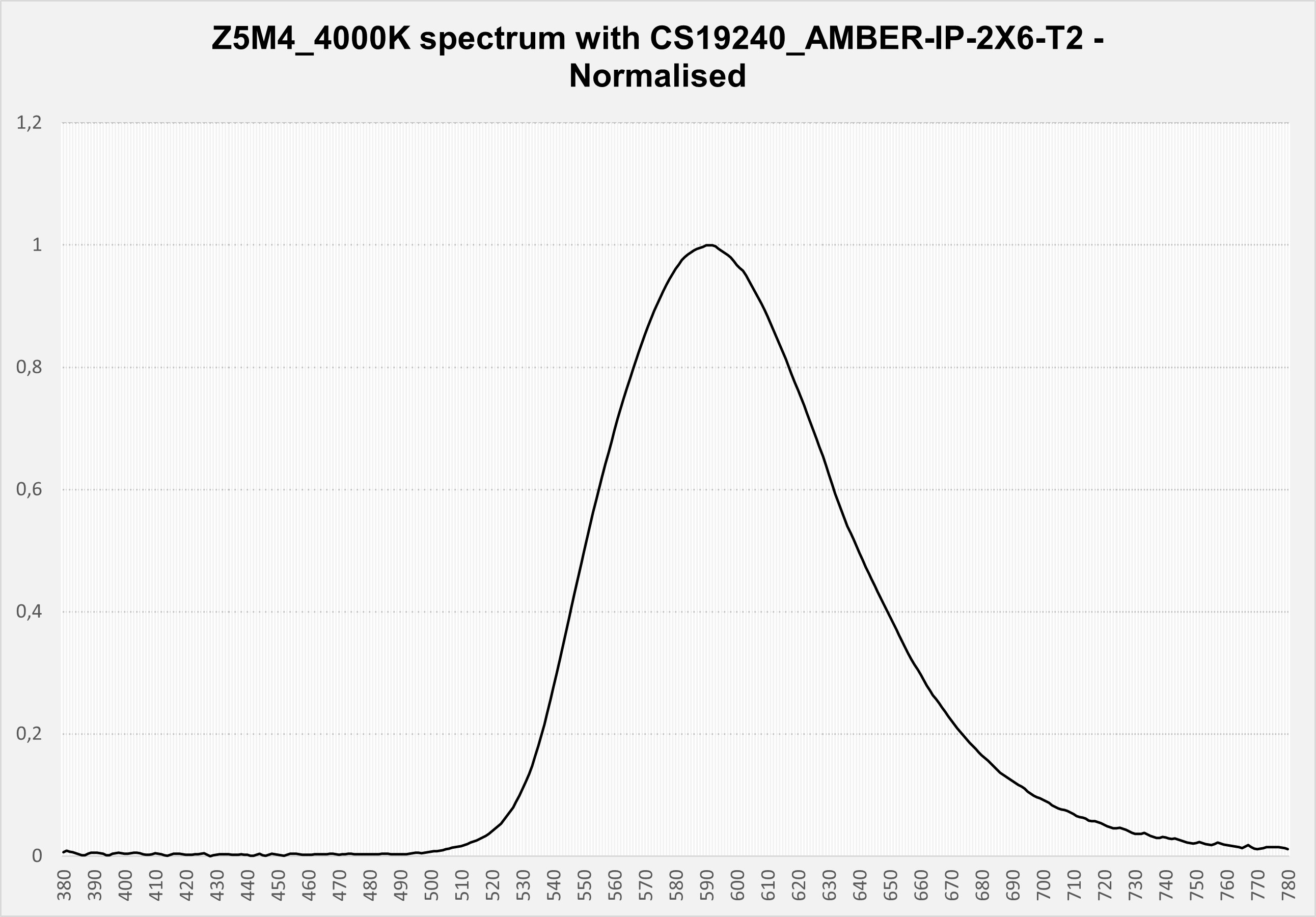

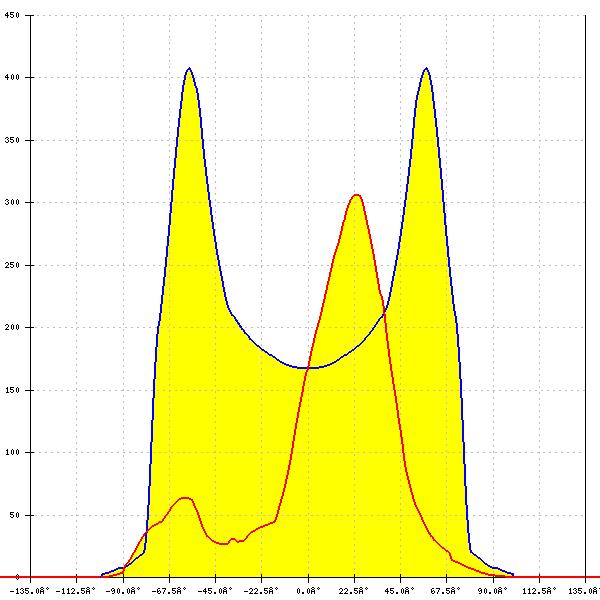

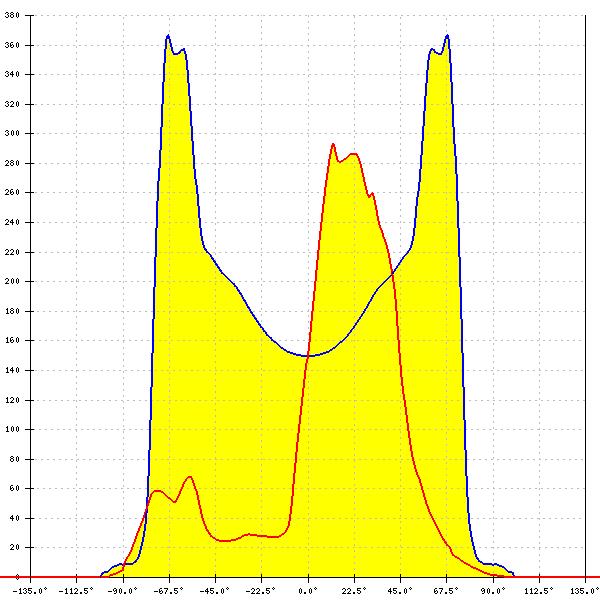

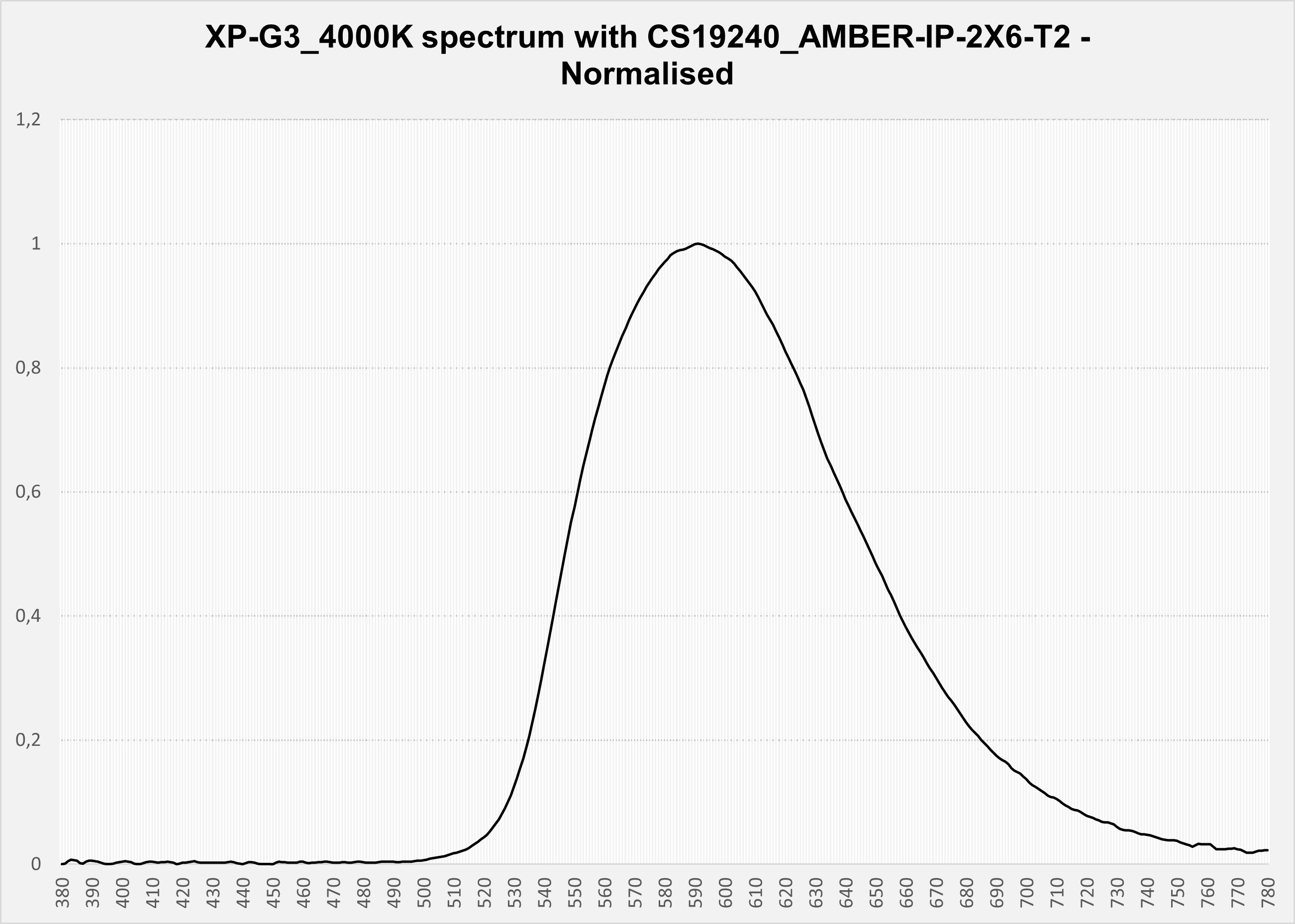

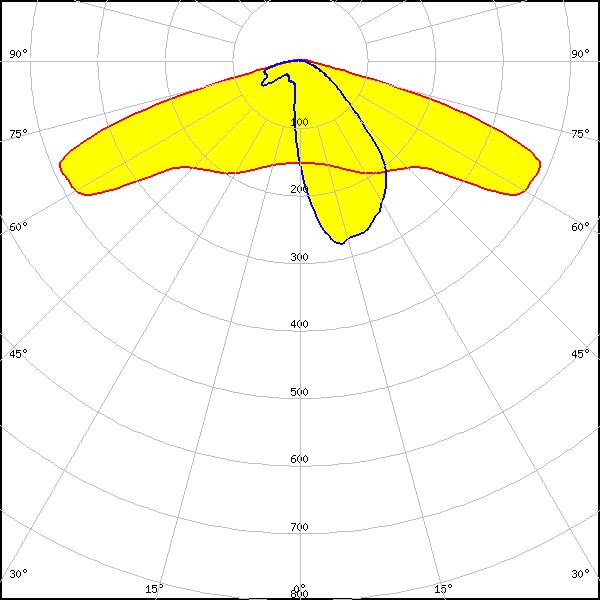

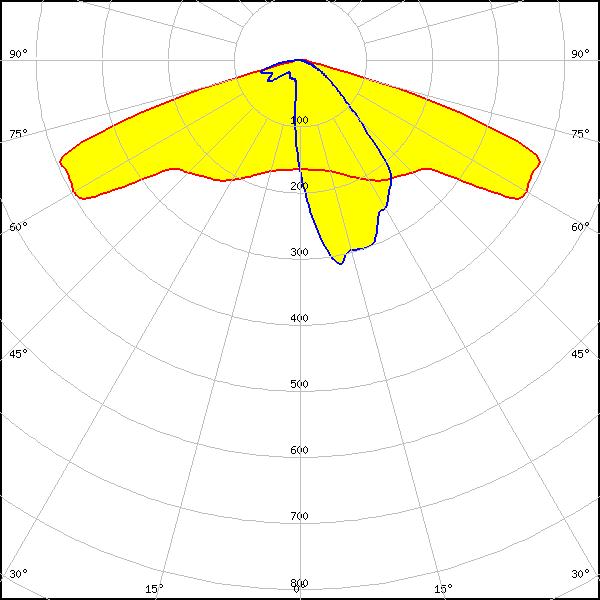

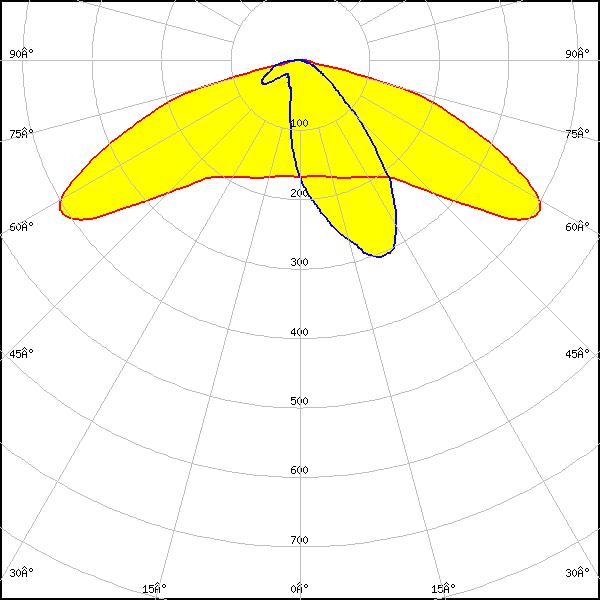

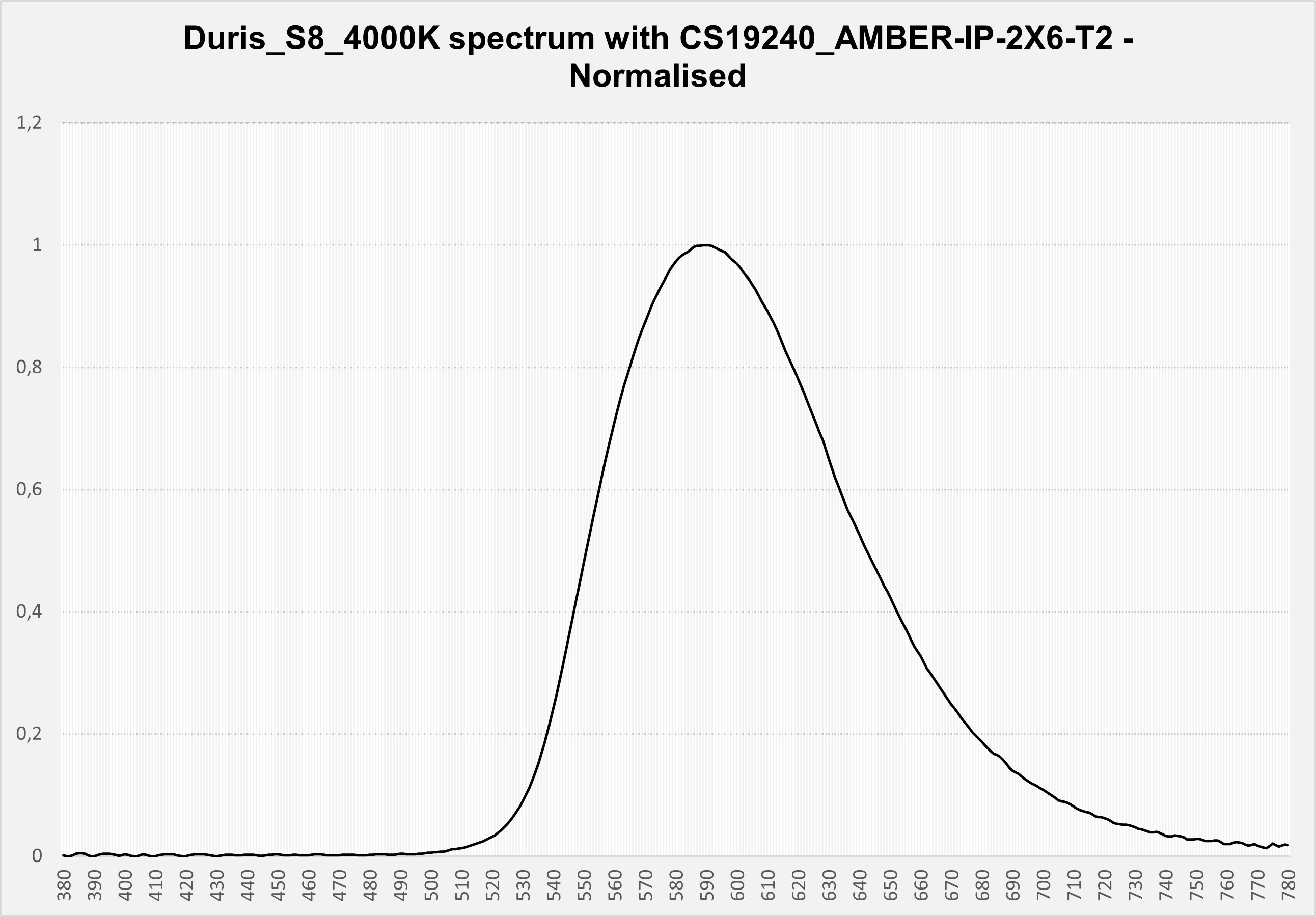

Optical results

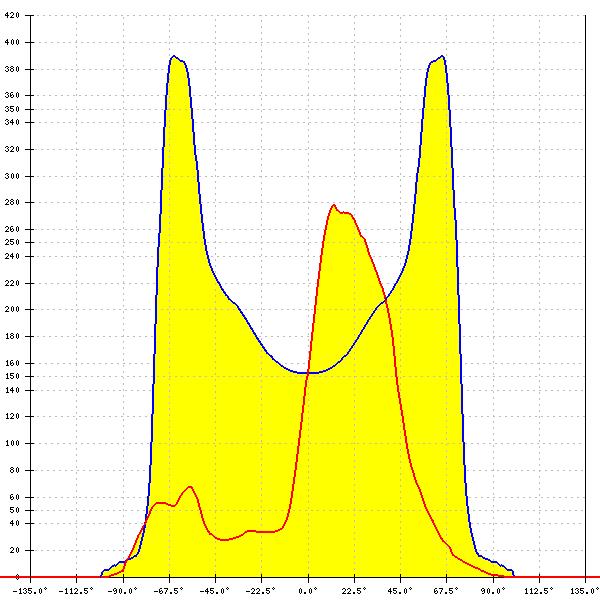

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.688 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

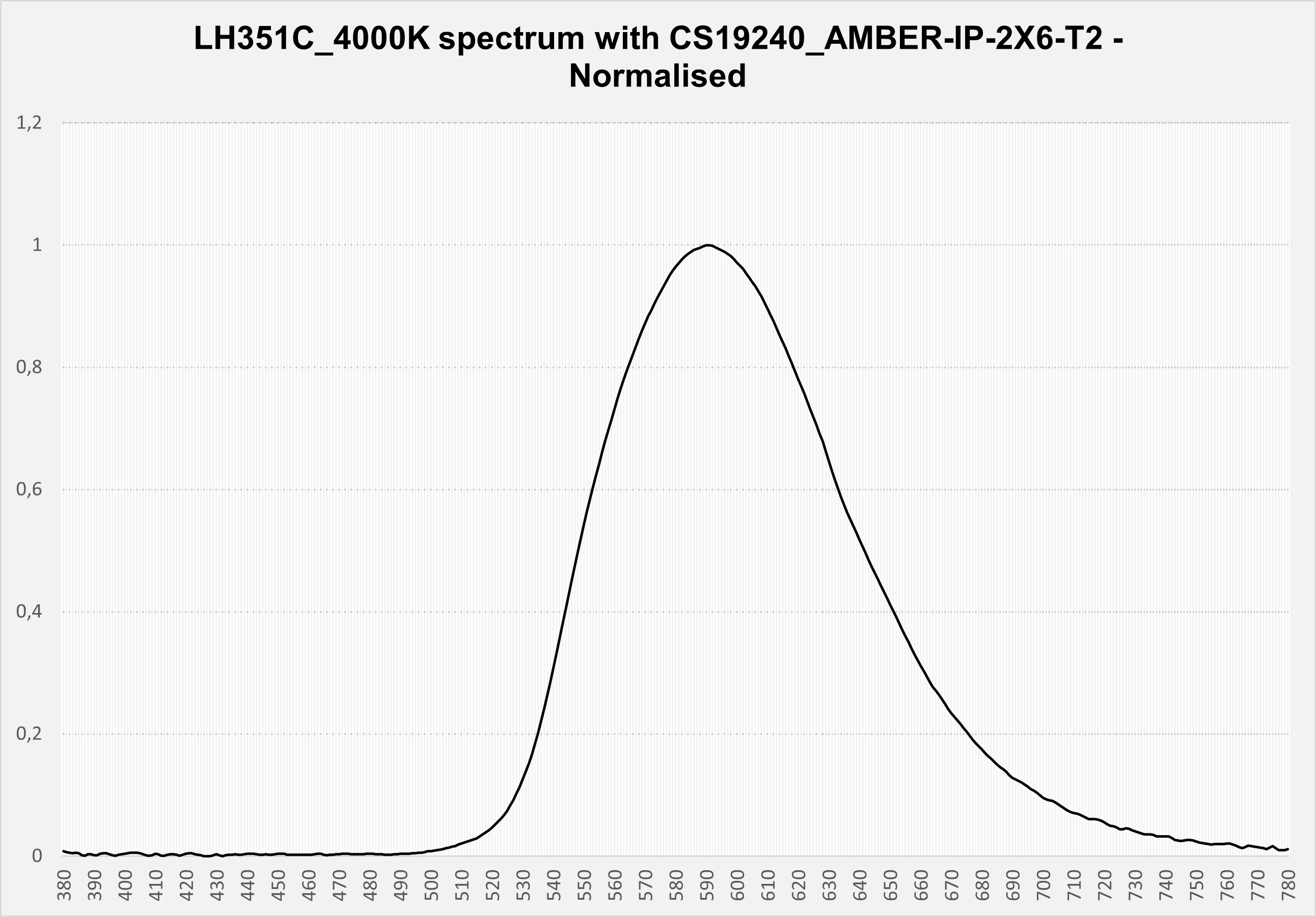

Amount of blue light (380-500 nm): 0.3%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

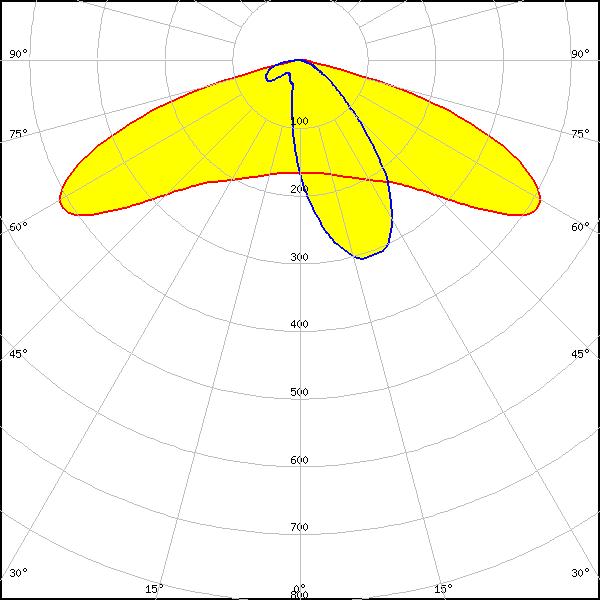

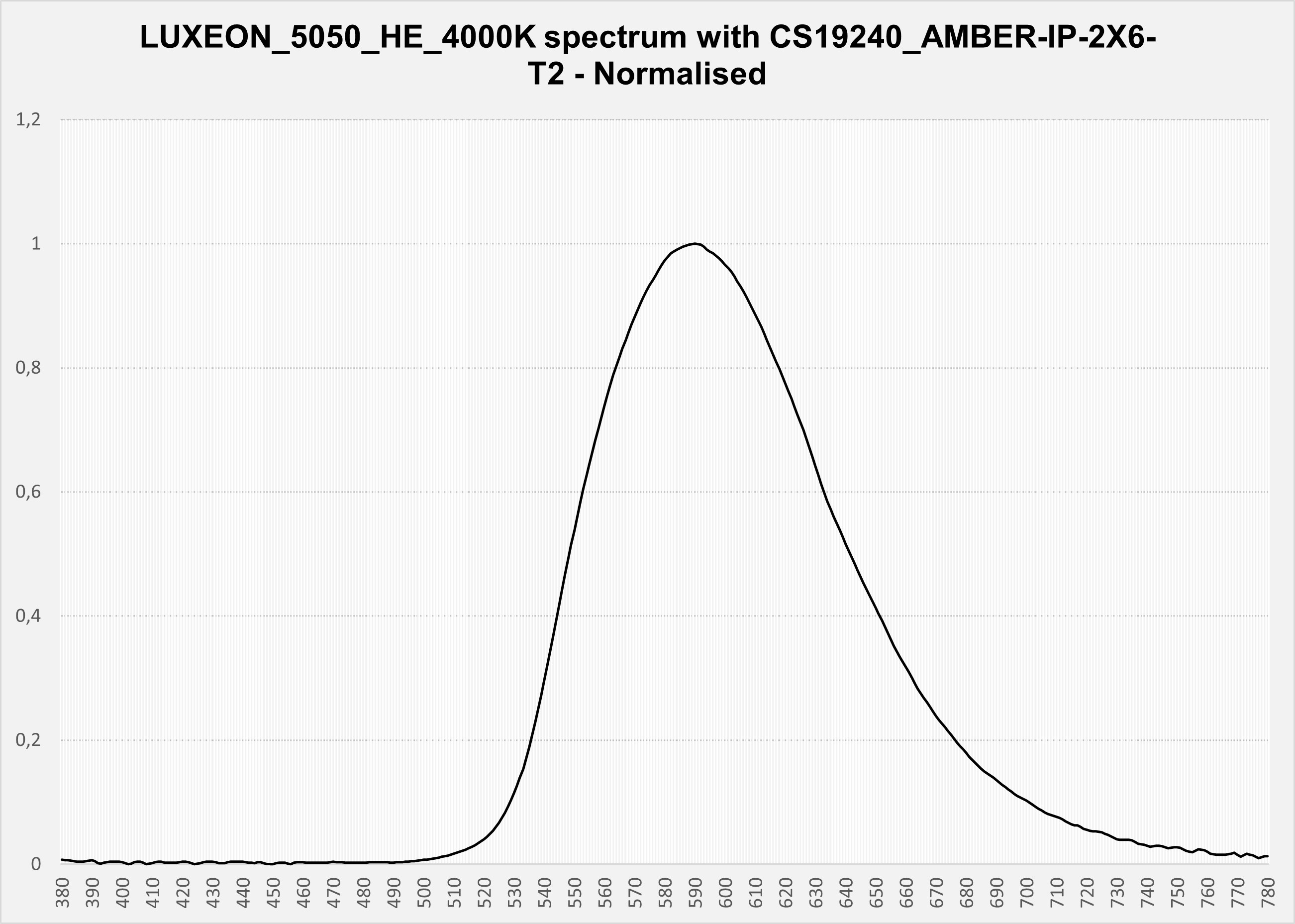

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.578 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

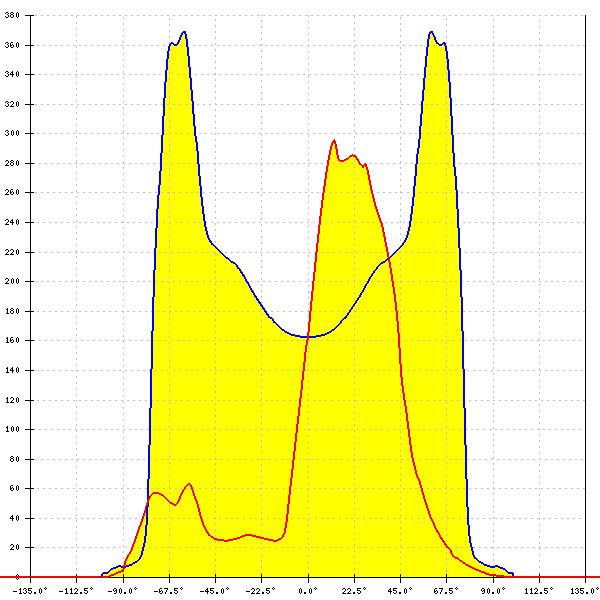

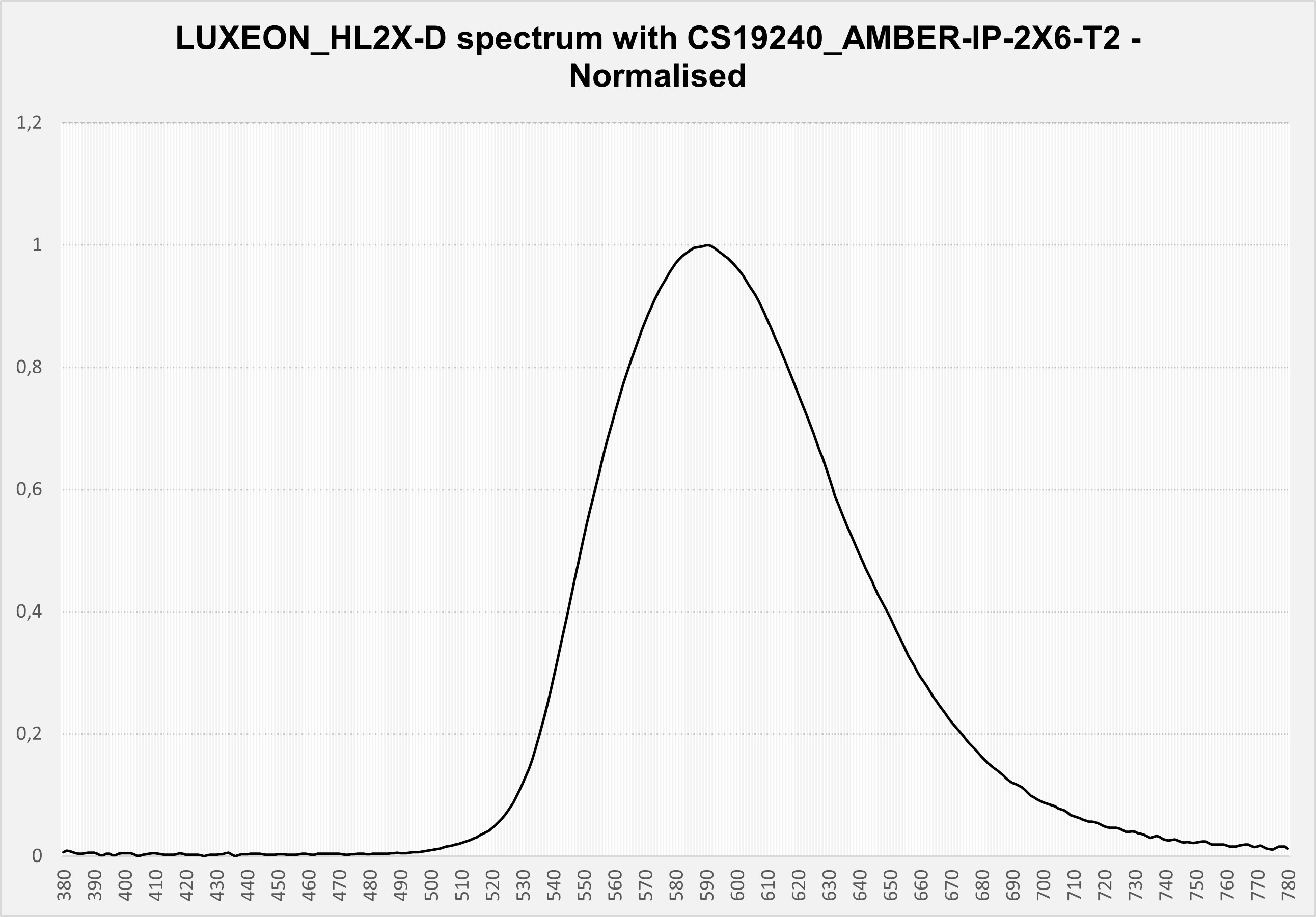

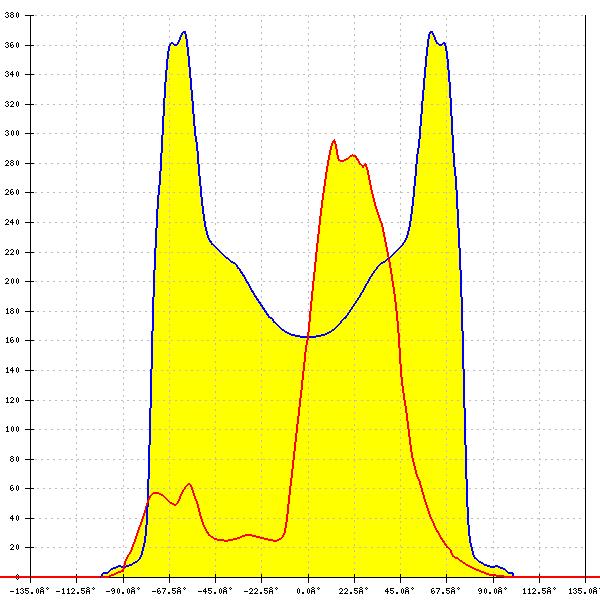

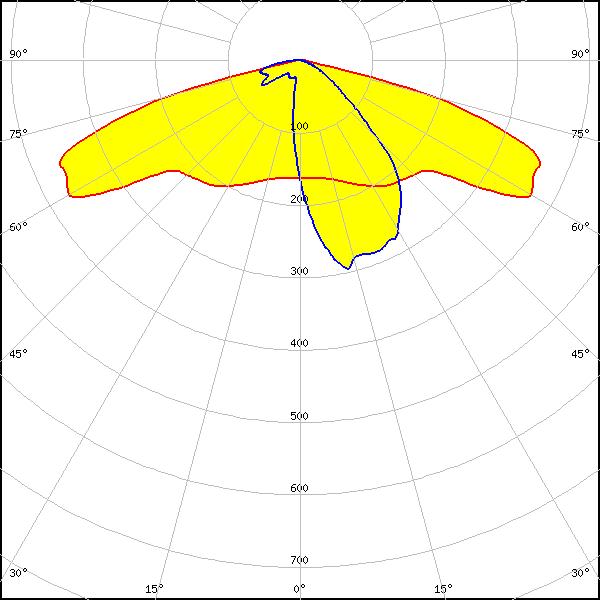

LED: LUXEON HL2X-D
FWHM: asymmetric
Peak intensity: 0.681 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2300 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

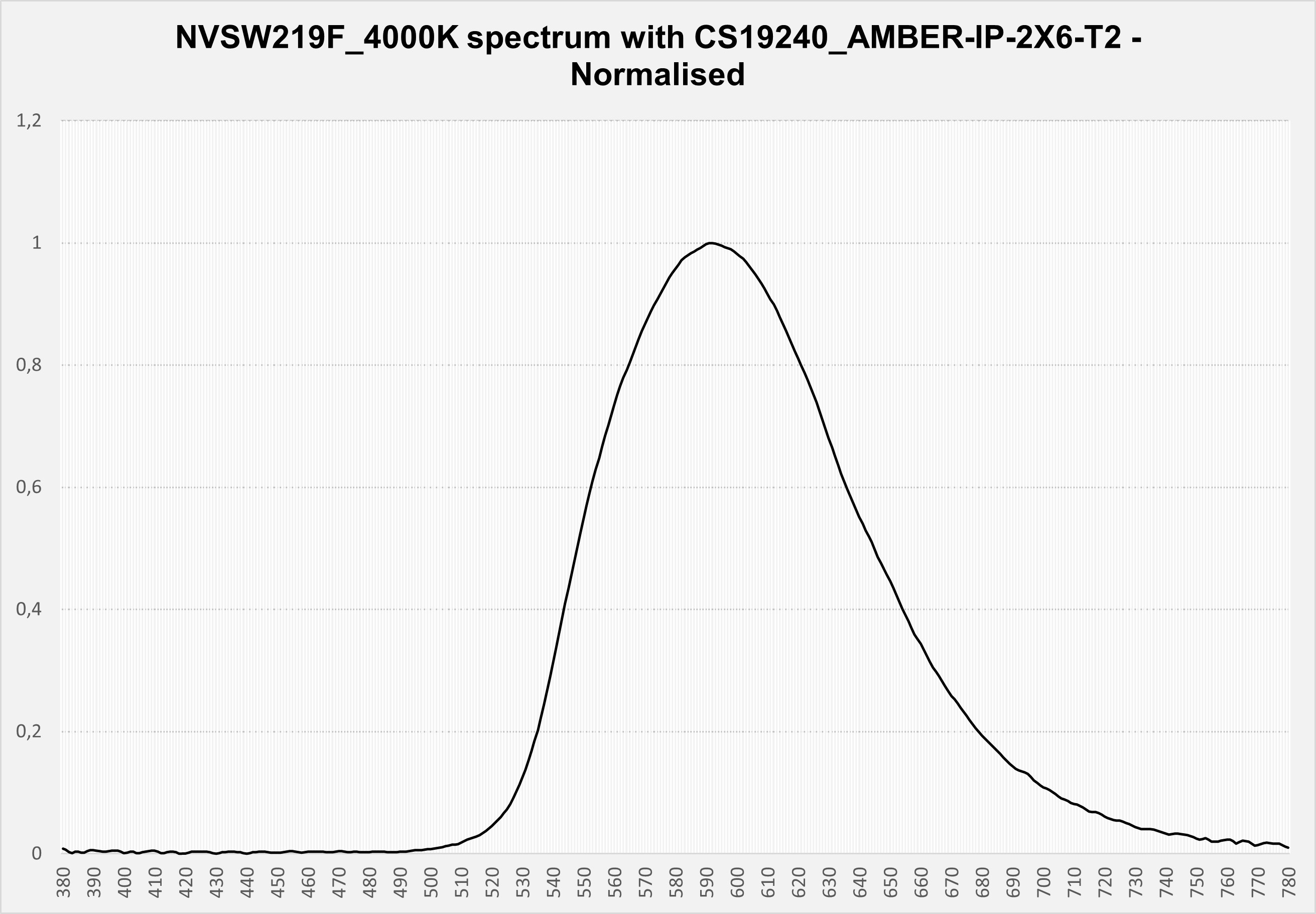

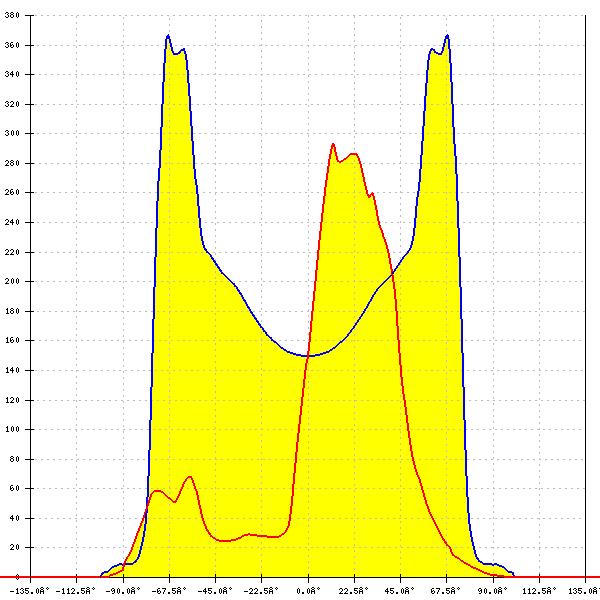

LED: NVSW219F
FWHM: asymmetric
Peak intensity: 0.726 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

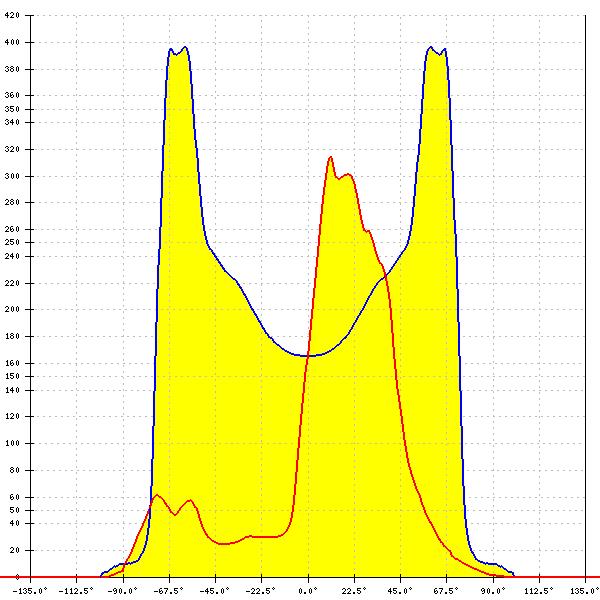

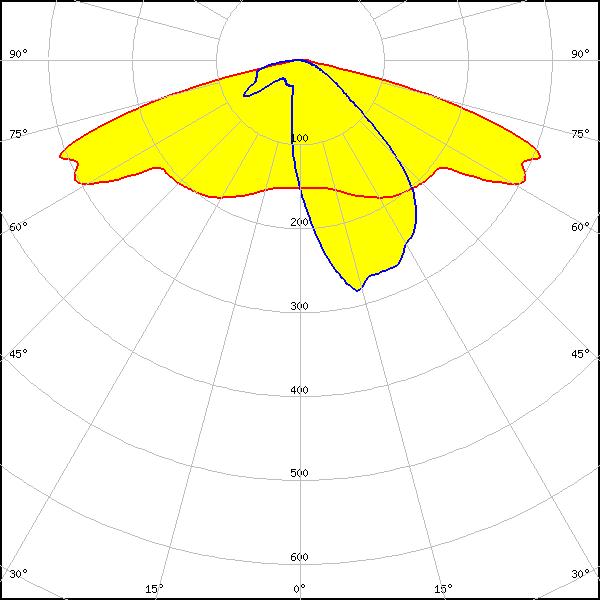

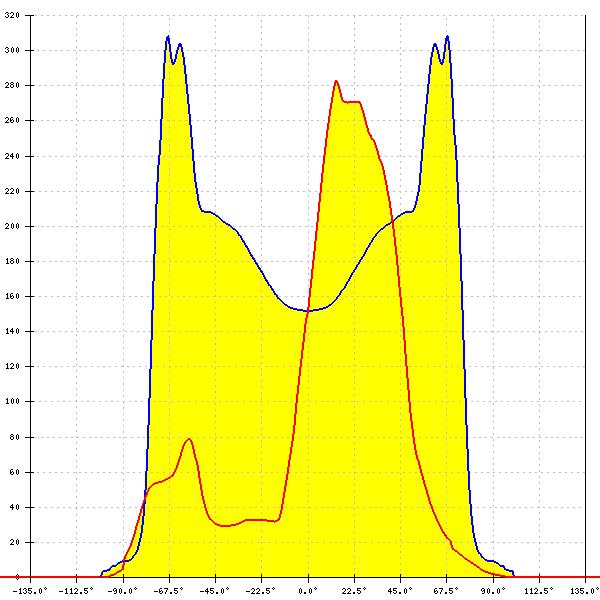

LED: NVSW519A
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

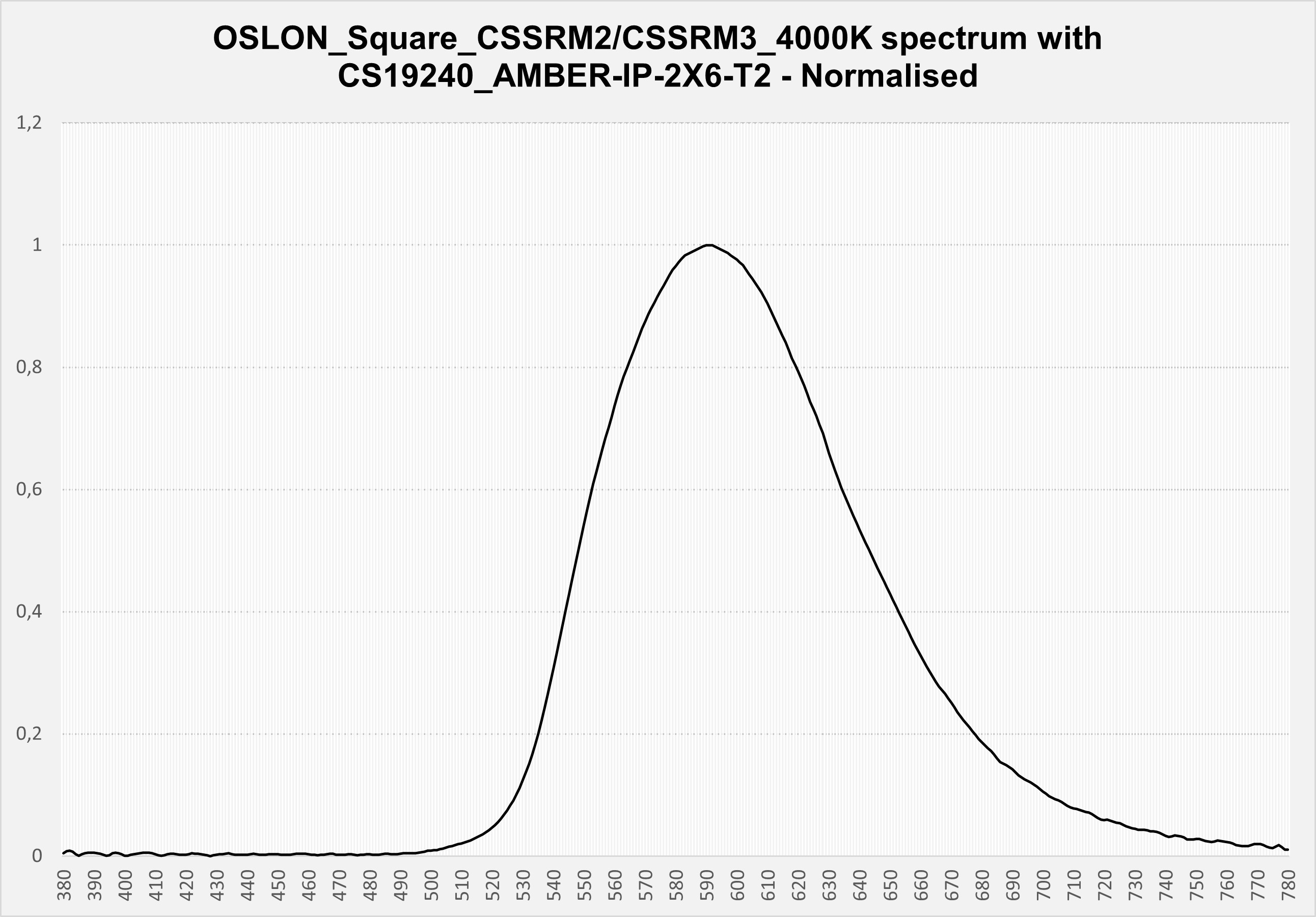

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.779 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

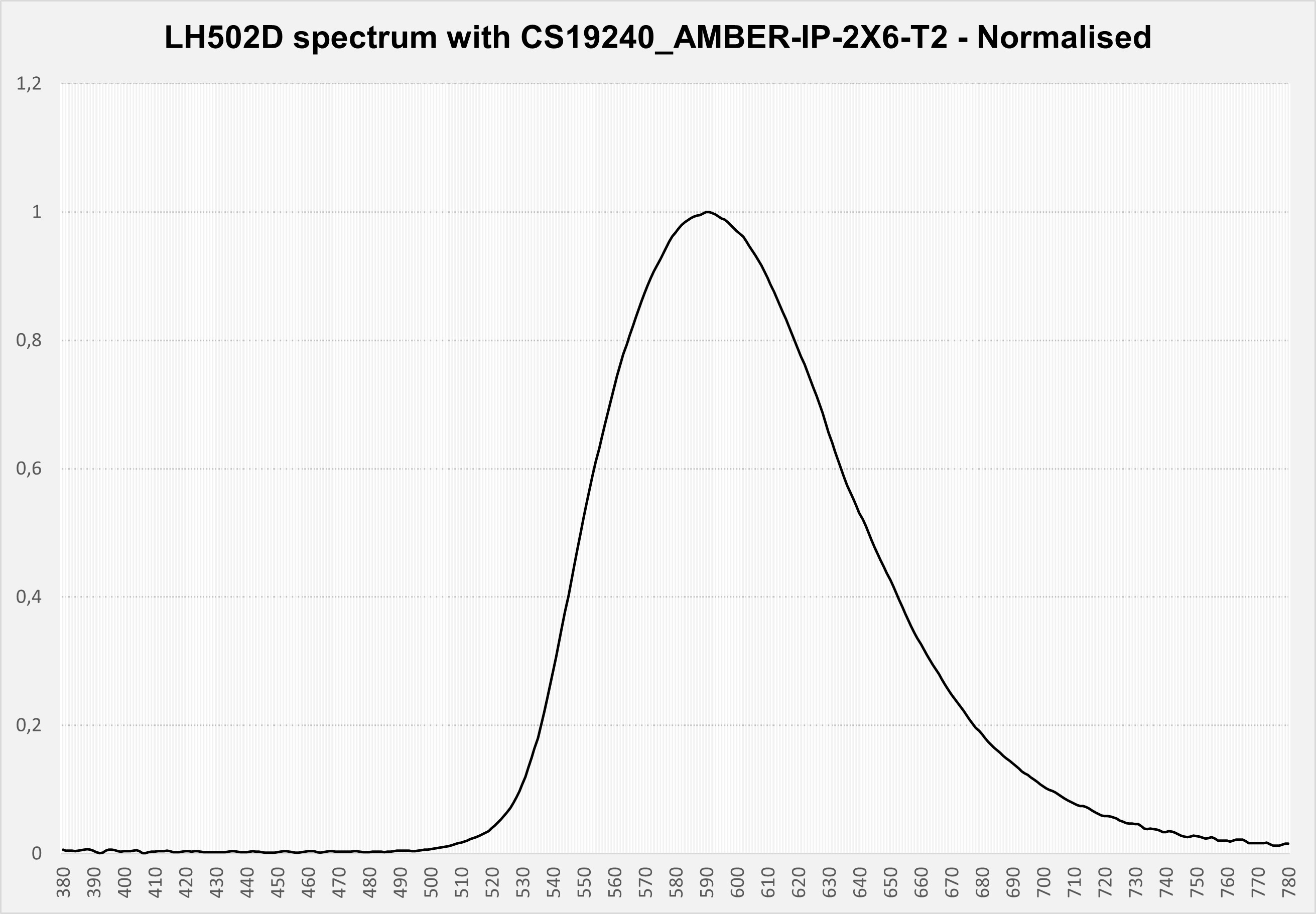

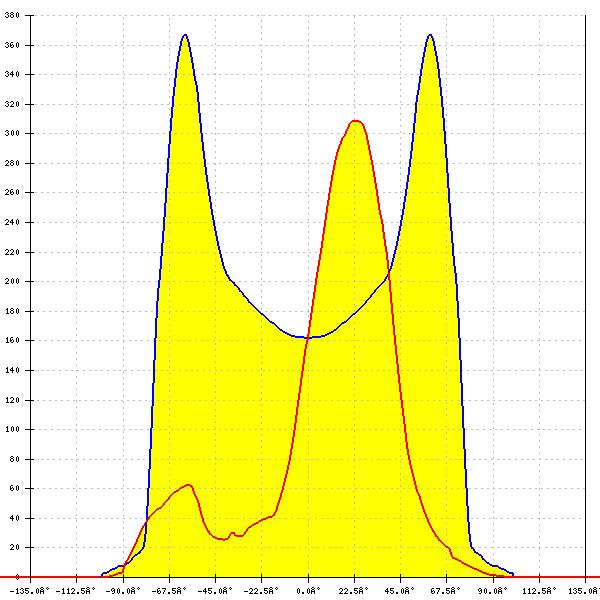

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.568 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3800 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line

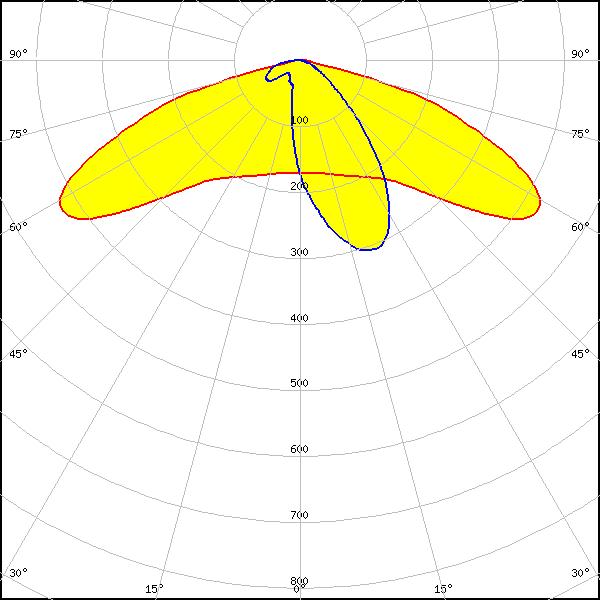

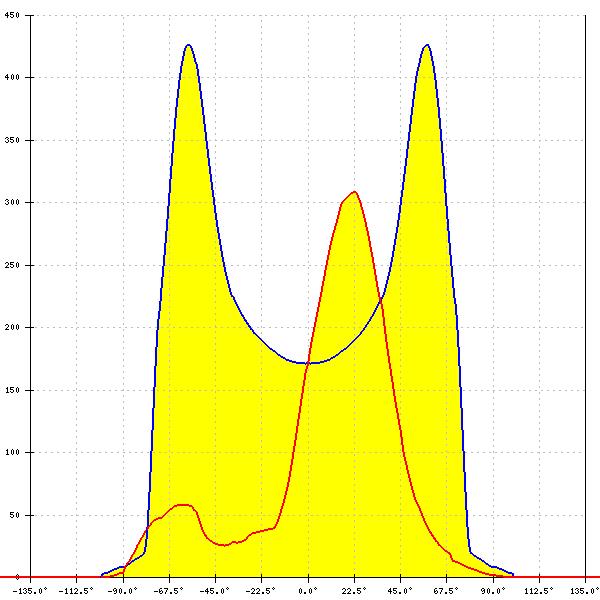

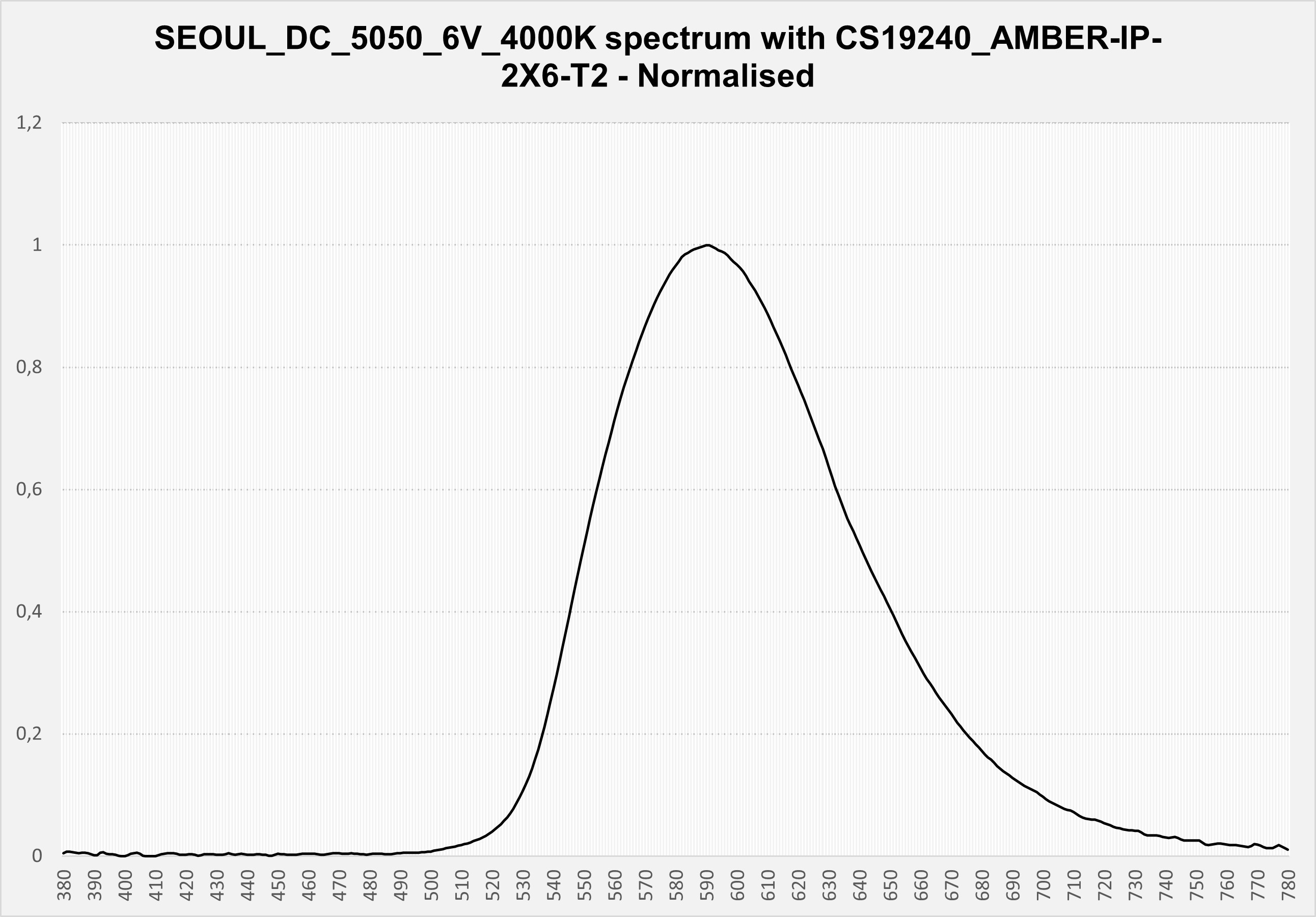

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
Amount of blue light (380-500 nm): 0.4%
CCT (LED/with lens)*: 3900 K/ 2200 K

*the measured CCT with lens doesn’t follow the Black Body Locus line
