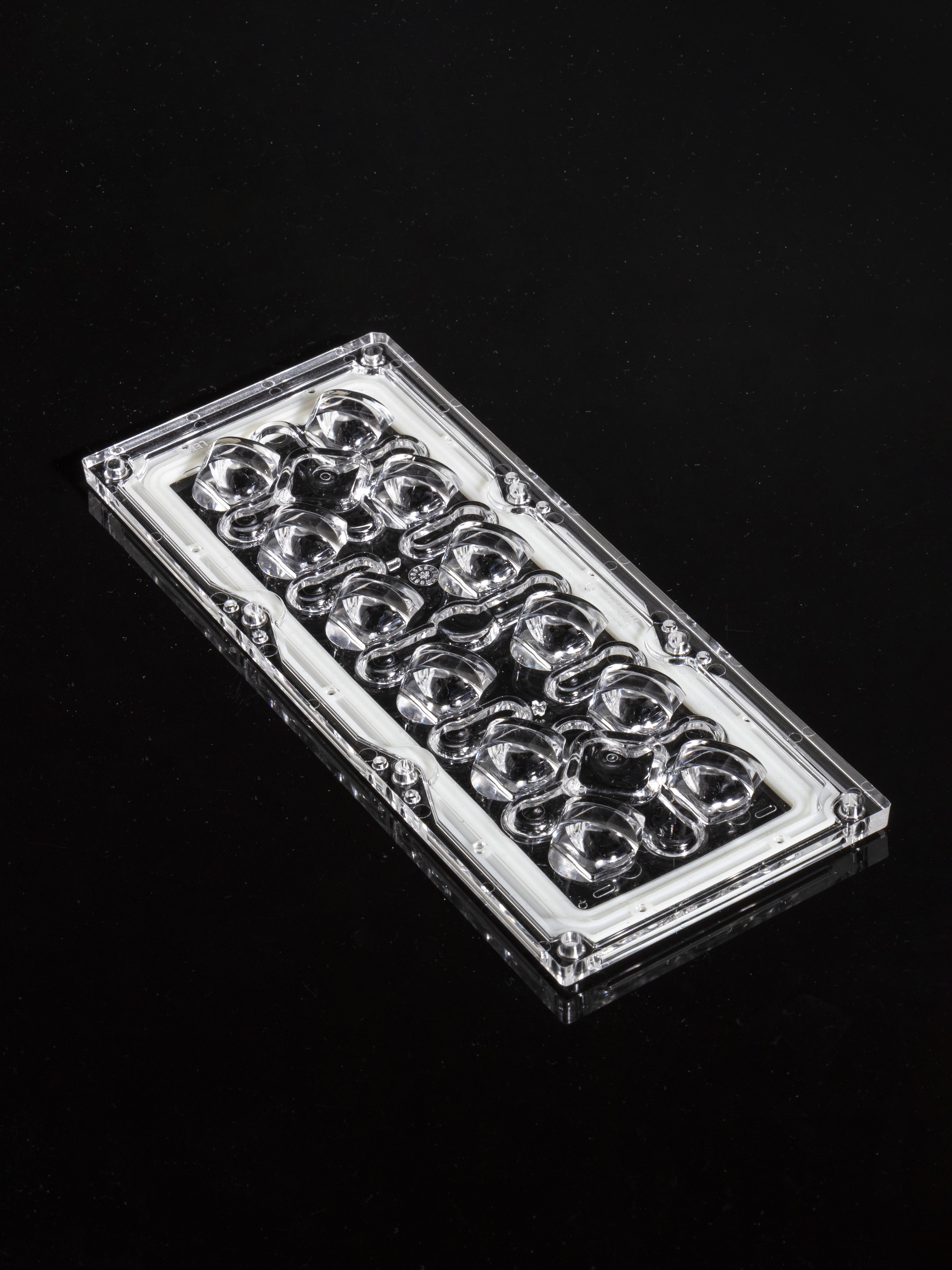

CS18529_STRADA-IP-2X6-PXL

Print

Fully asymmetric beam designed to highlight pedestrian crossings for left side traffic

Specification
  • Dimensions:
    173 x  71 mm
  • Height:
    10.30 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    120 pcs
  • Box size:
    476 x 273 x 247 mm
  • Box weight:
    7.6 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 100 mm
  • MOQ weight:
    2.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS18529_STRADA-IP-2X6-PXL
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

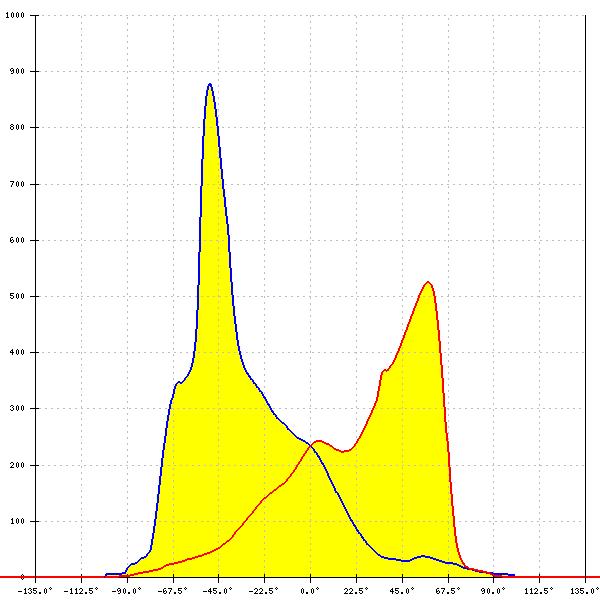

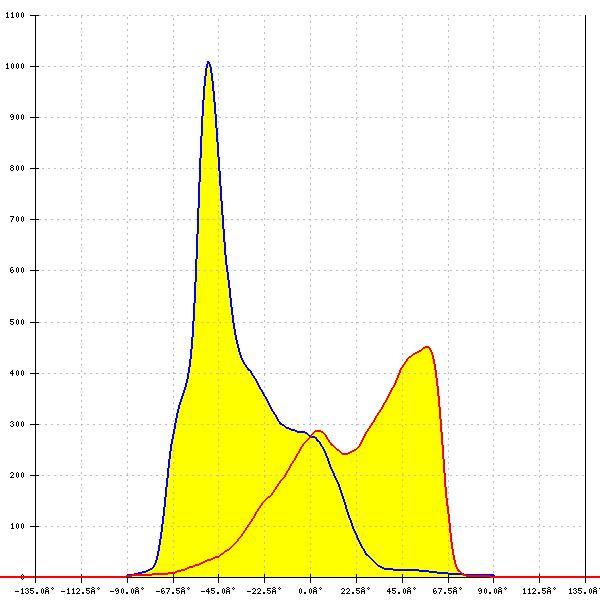

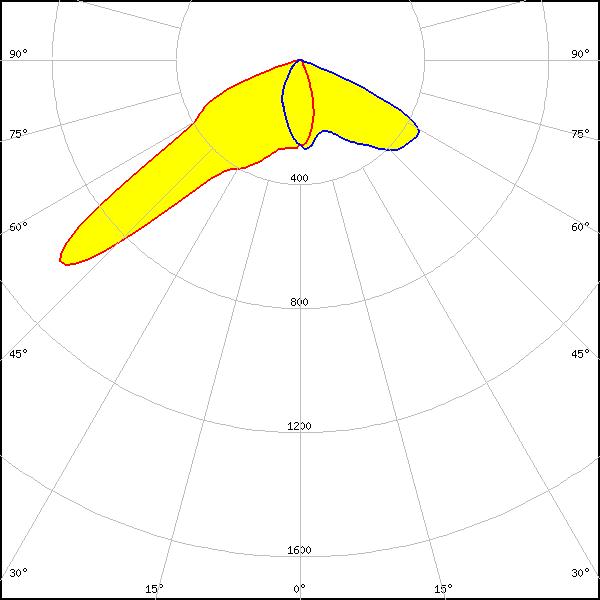

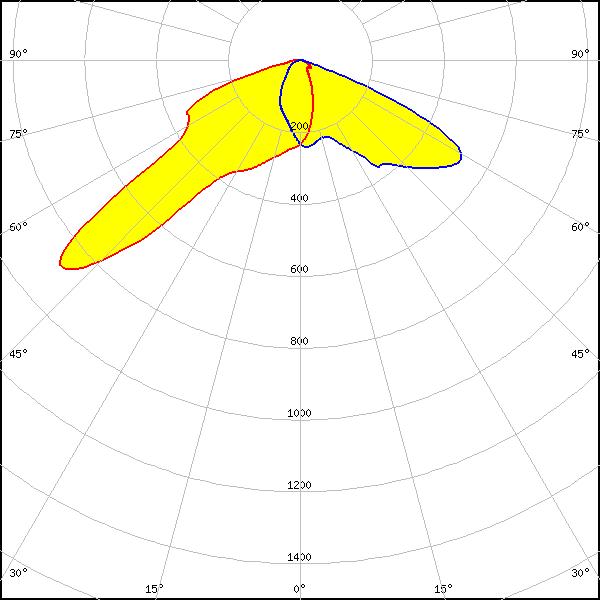

Optical results

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.992 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
