CS18306_HB-IP-24-O-PC
Print

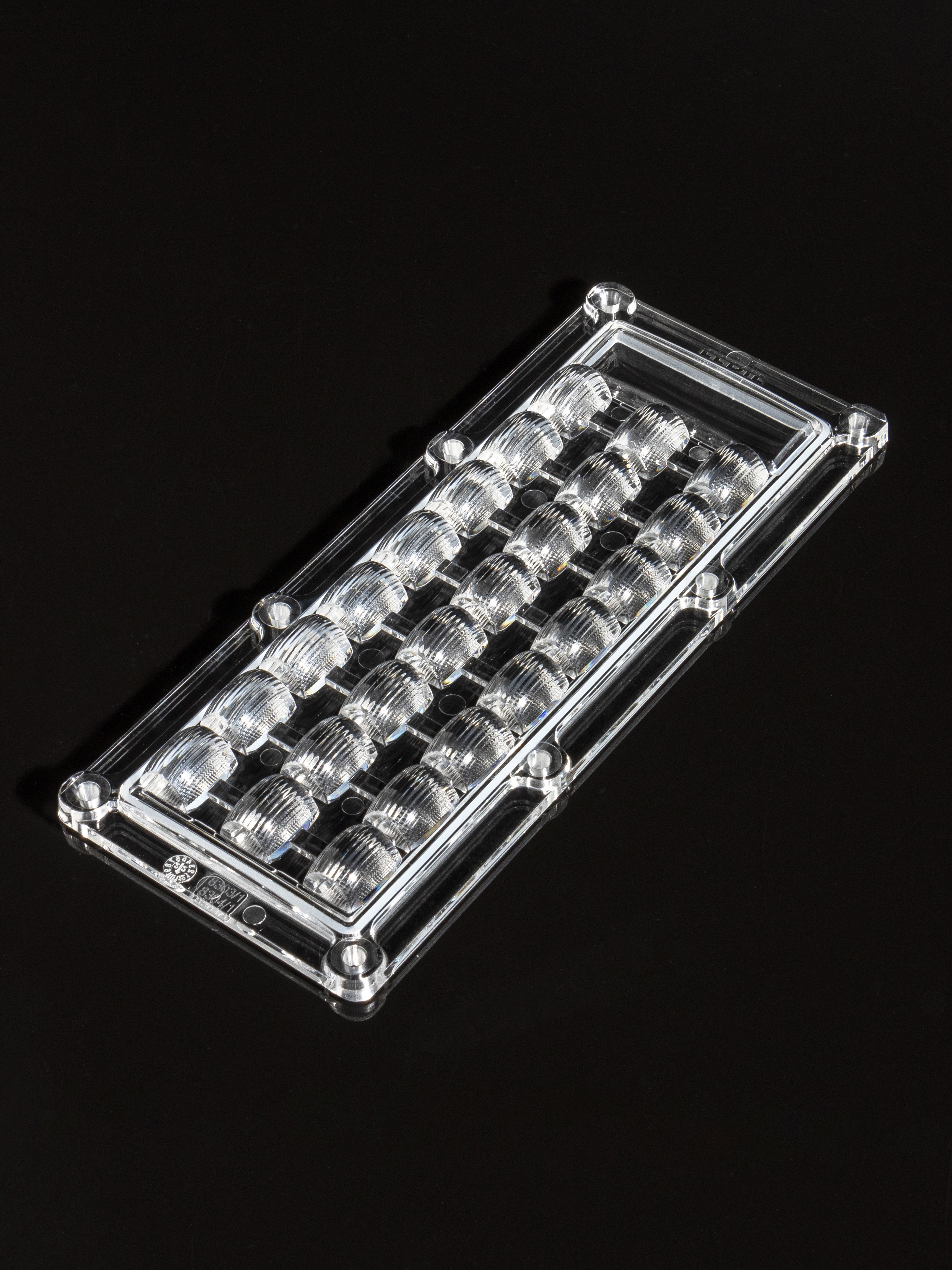

~40° + 75° oval beam for aisle lighting. Variant made from PC.
Materials
- HB-IP-24-O-PC, Multi-lens, PC
- STRADA-IP-24-SEAL, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
LIGHT ENGINE STRADA-IP 24 LEDs 147.4 x 46.2 x 1.5
FWHM:
68° + 35°
FWTM:
82° + 57°
Peak intensity:
1.217 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

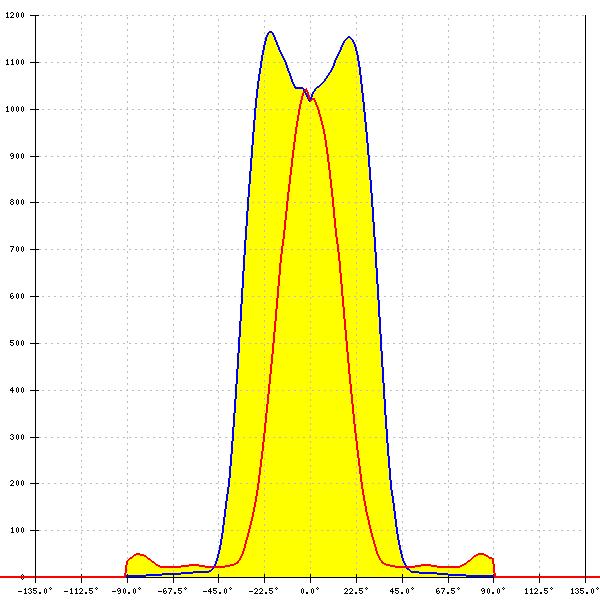

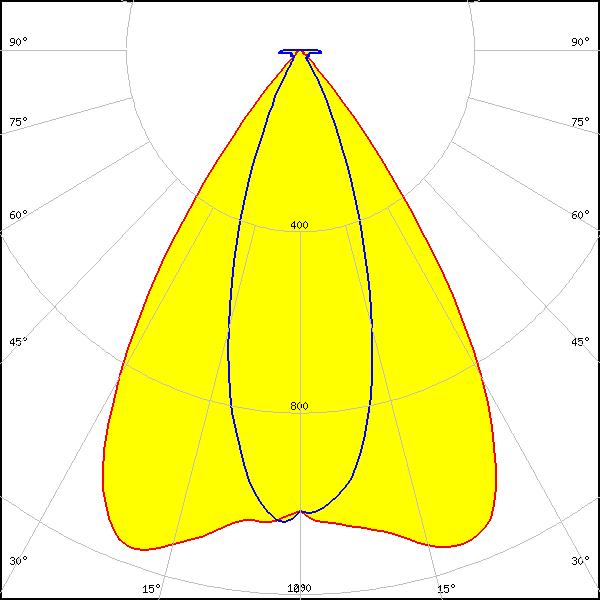

J Series 5050C 6V E Class
FWHM:
68° + 34°
FWTM:
84° + 60°
Peak intensity:
1.164 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

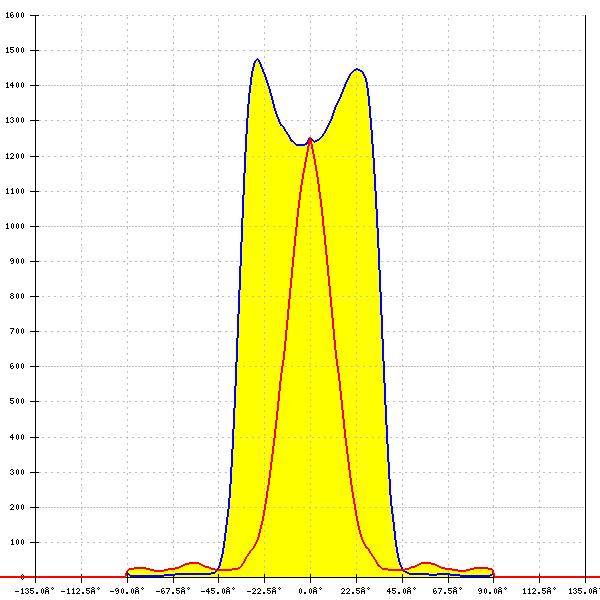

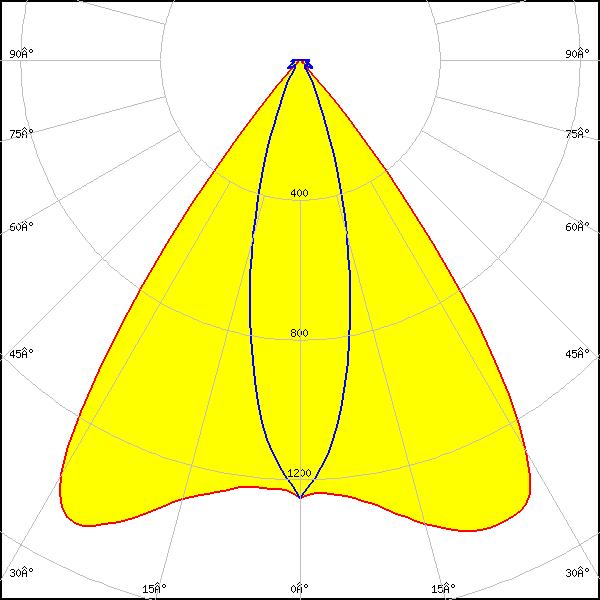

XP-G4 HI
FWHM:
70° + 26°
FWTM:
82° + 50°
Peak intensity:
1.475 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

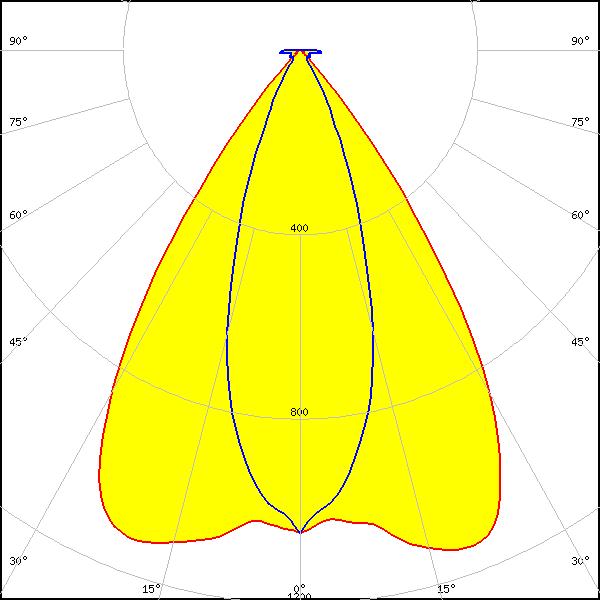

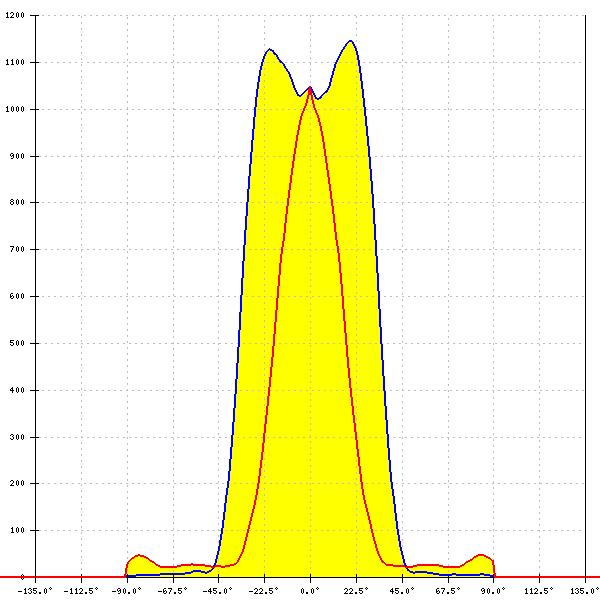

LUXEON 5050 HE
FWHM:
68° + 34°
FWTM:
85° + 60°
Peak intensity:
1.144 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

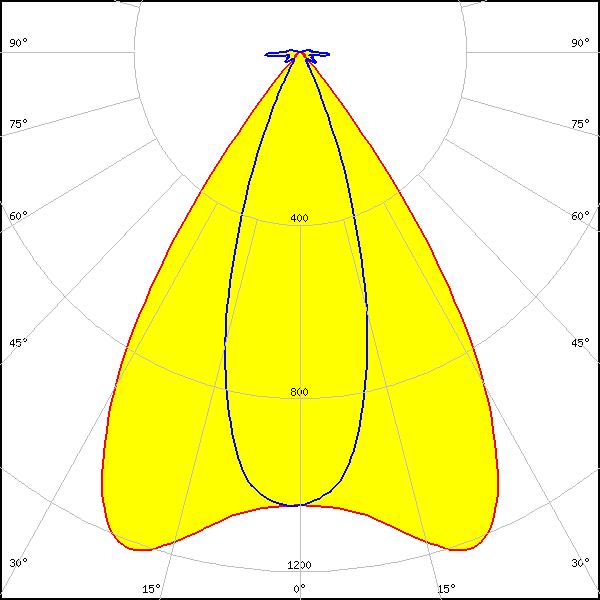

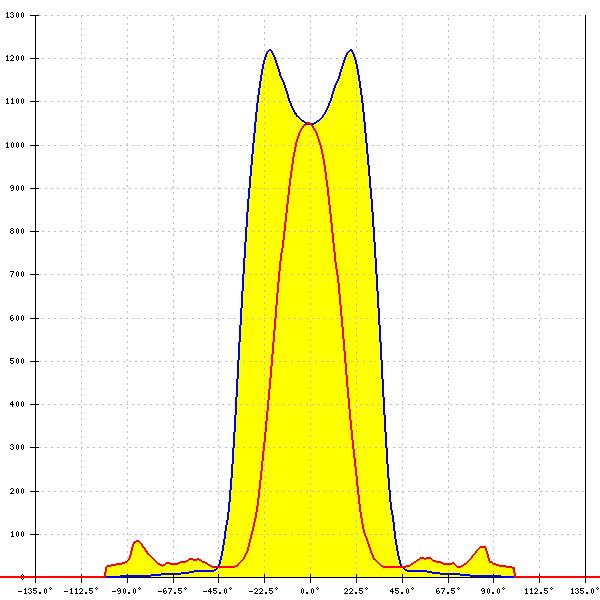

LUXEON 5050 Square LES
FWHM:
68° + 35°
FWTM:
82° + 55°
Peak intensity:
1.223 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

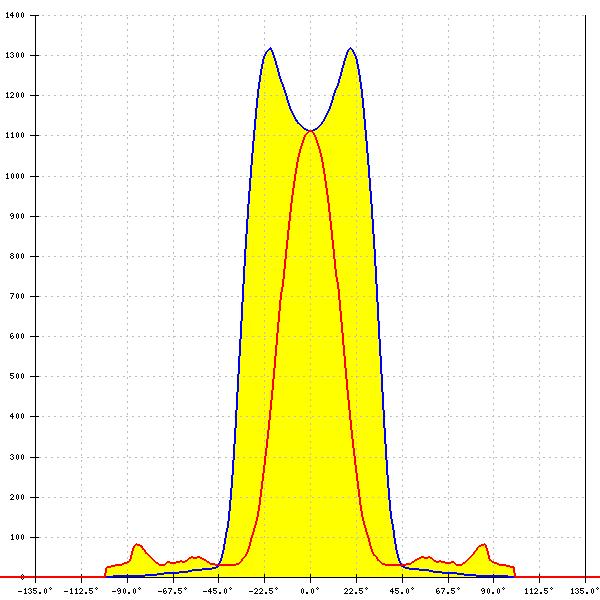

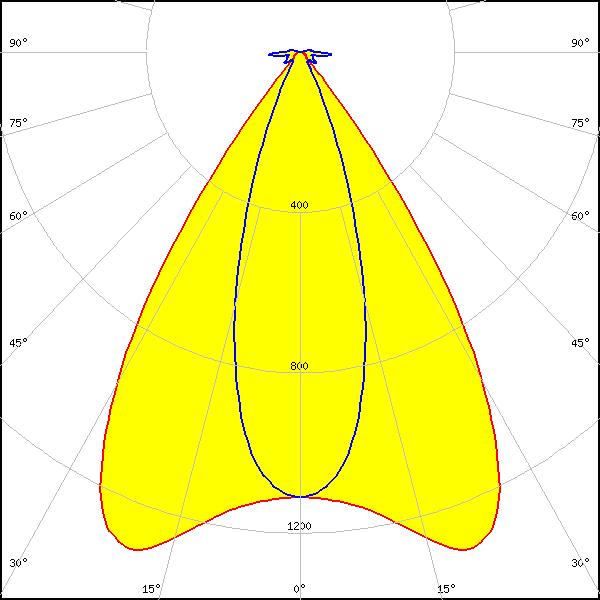

LUXEON XR-5050 HE (L225-xxxx024MLU010)
FWHM:
67° + 33°
FWTM:
81° + 56°
Peak intensity:
1.322 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

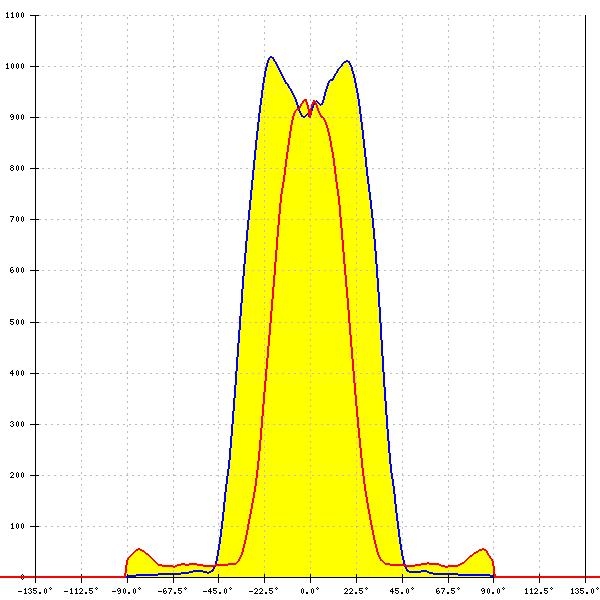

LED:

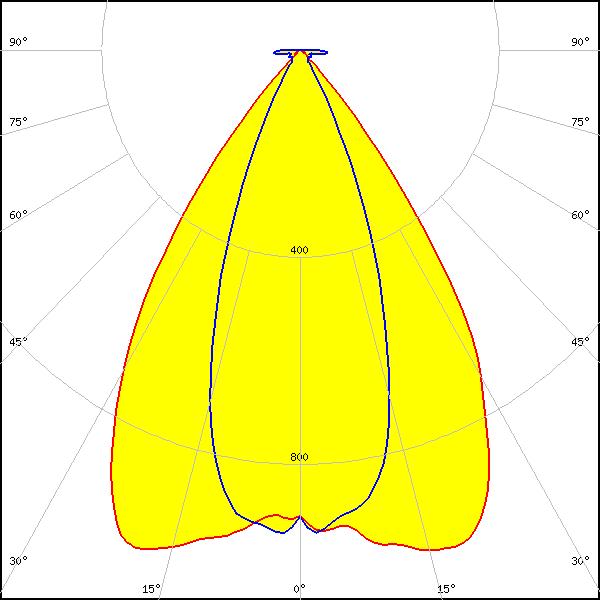

RecLED 147x47mm 5800lm 7x0 5050 STRADA-IP-24 G2
FWHM:
69° + 40°
FWTM:
86° + 62°
Peak intensity:
1.025 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

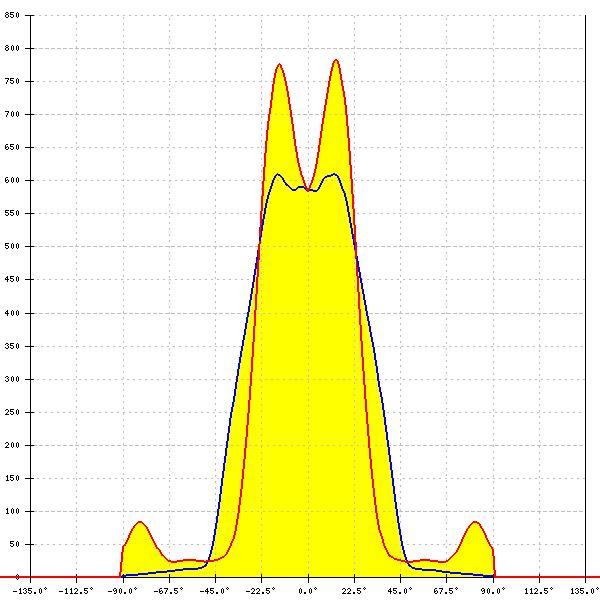

LED:

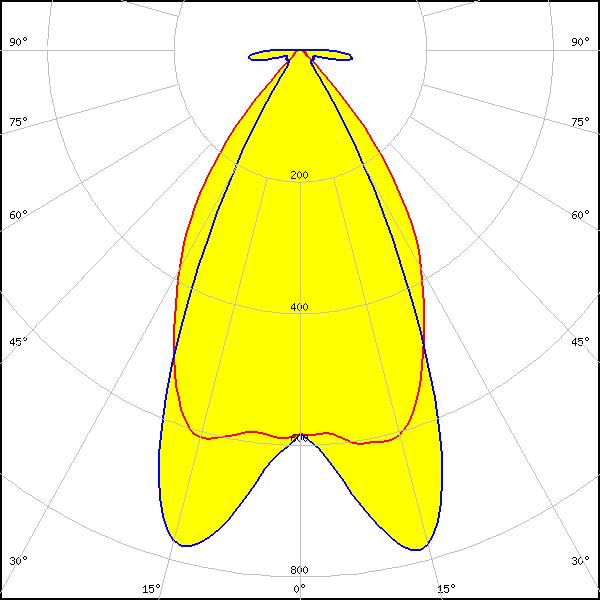

NF2x757G
FWHM:
68° + 52°
FWTM:
90° + 168°
Peak intensity:
0.815 cd/lm
Efficiency:
75 %
LEDs/each optic:
4
Light colour/type:
White
LED:

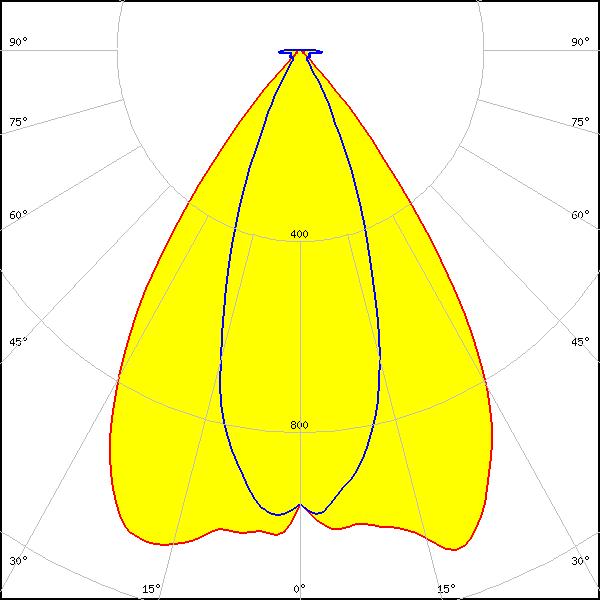

NFMW48xA
FWHM:
70° + 38°
FWTM:
86° + 61°
Peak intensity:
1.101 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

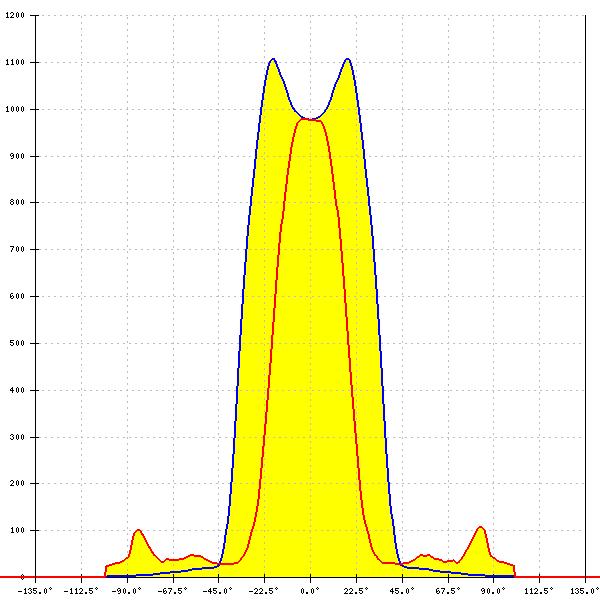

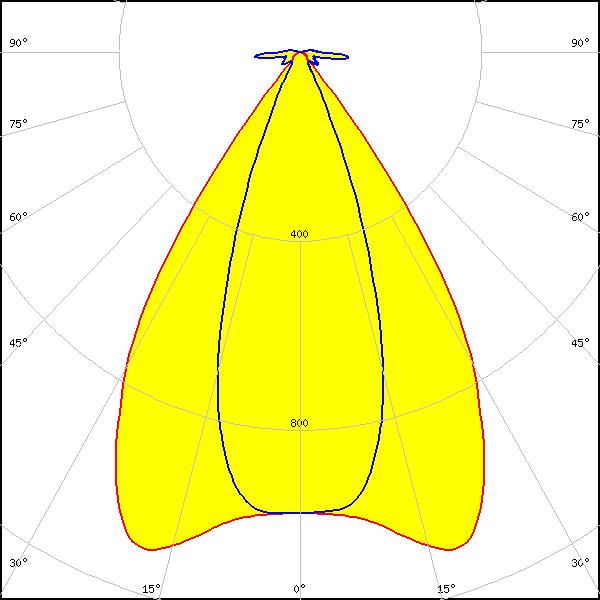

Duris S8
FWHM:
67° + 38°
FWTM:
82° + 172°
Peak intensity:
1.119 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

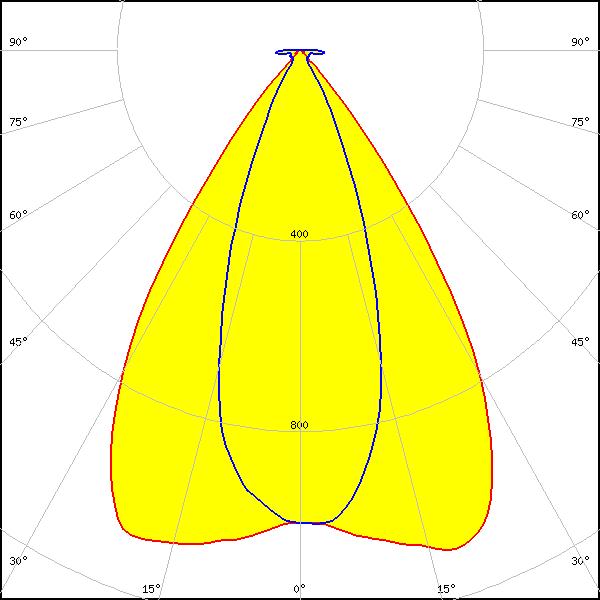

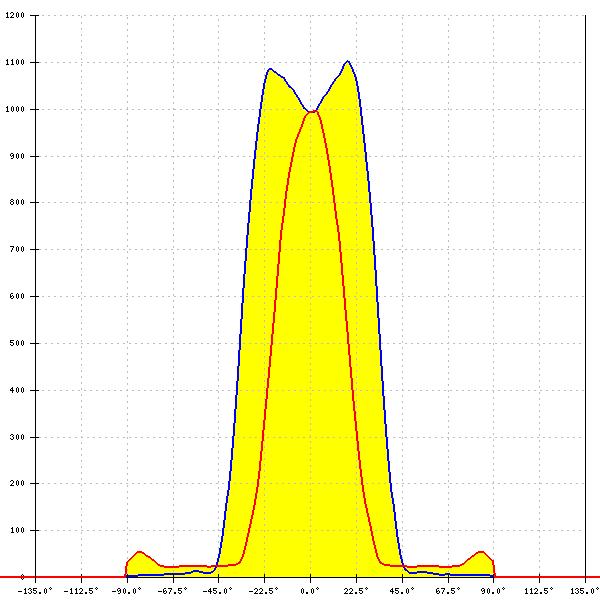

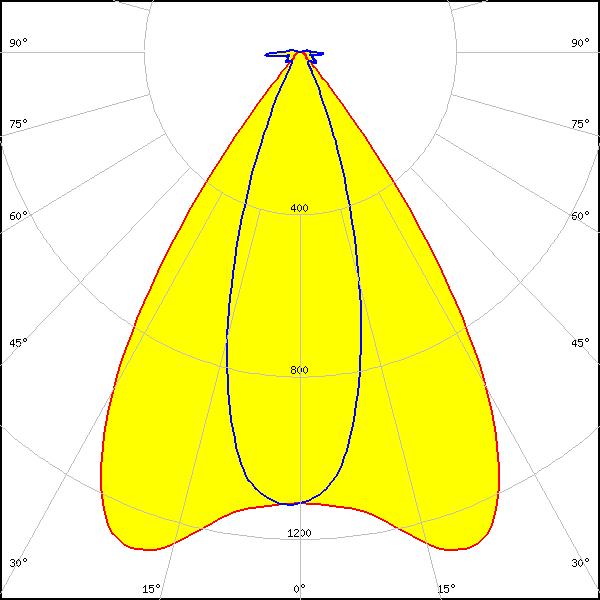

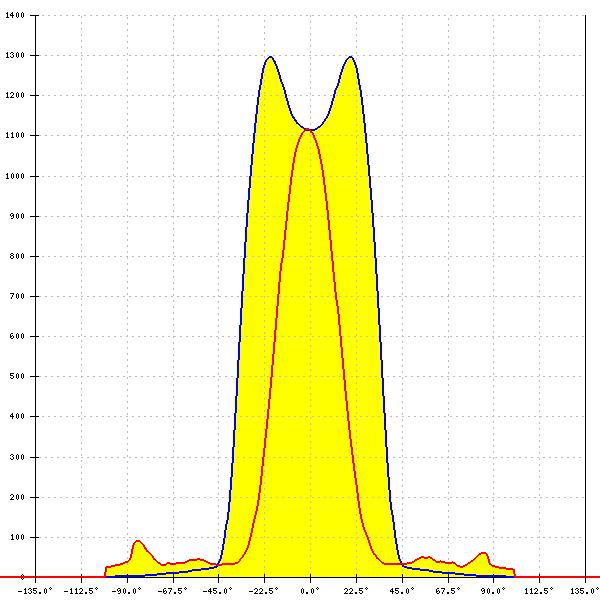

HiLOM RM24 ZP (LH502C)
FWHM:
68° + 38°
FWTM:
84° + 60°
Peak intensity:
1.101 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
HiLOM RM24 ZP (LH502D)
FWHM:
68° + 33°
FWTM:
82° + 56°
Peak intensity:
1.309 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

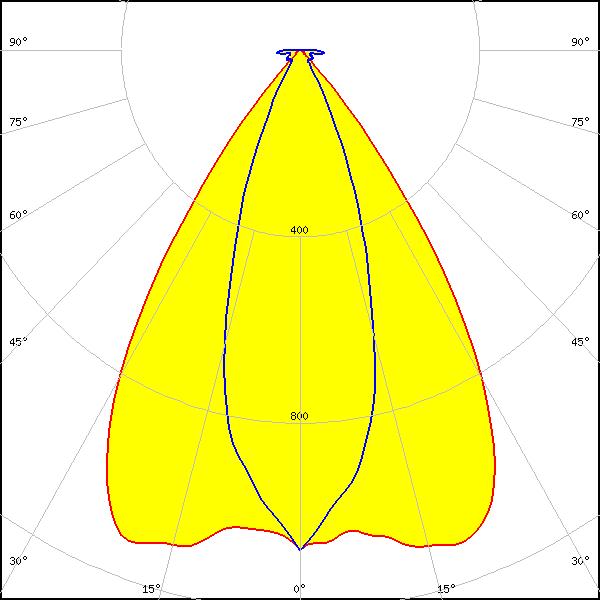

LED:
LH502D
FWHM:
68° + 34°
FWTM:
85° + 60°
Peak intensity:
1.121 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

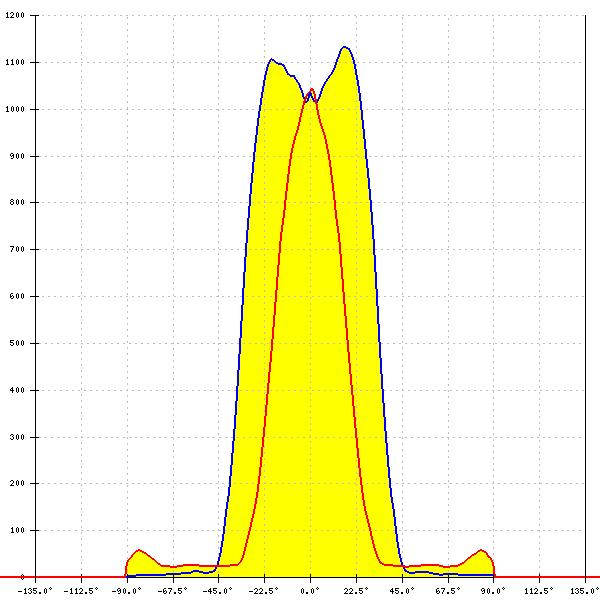

LED:

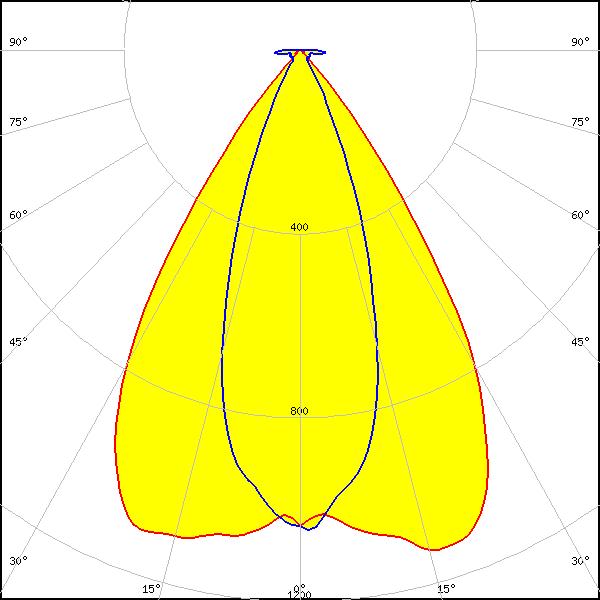

LH508C
FWHM:
66° + 36°
FWTM:
84° + 58°
Peak intensity:
1.132 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
