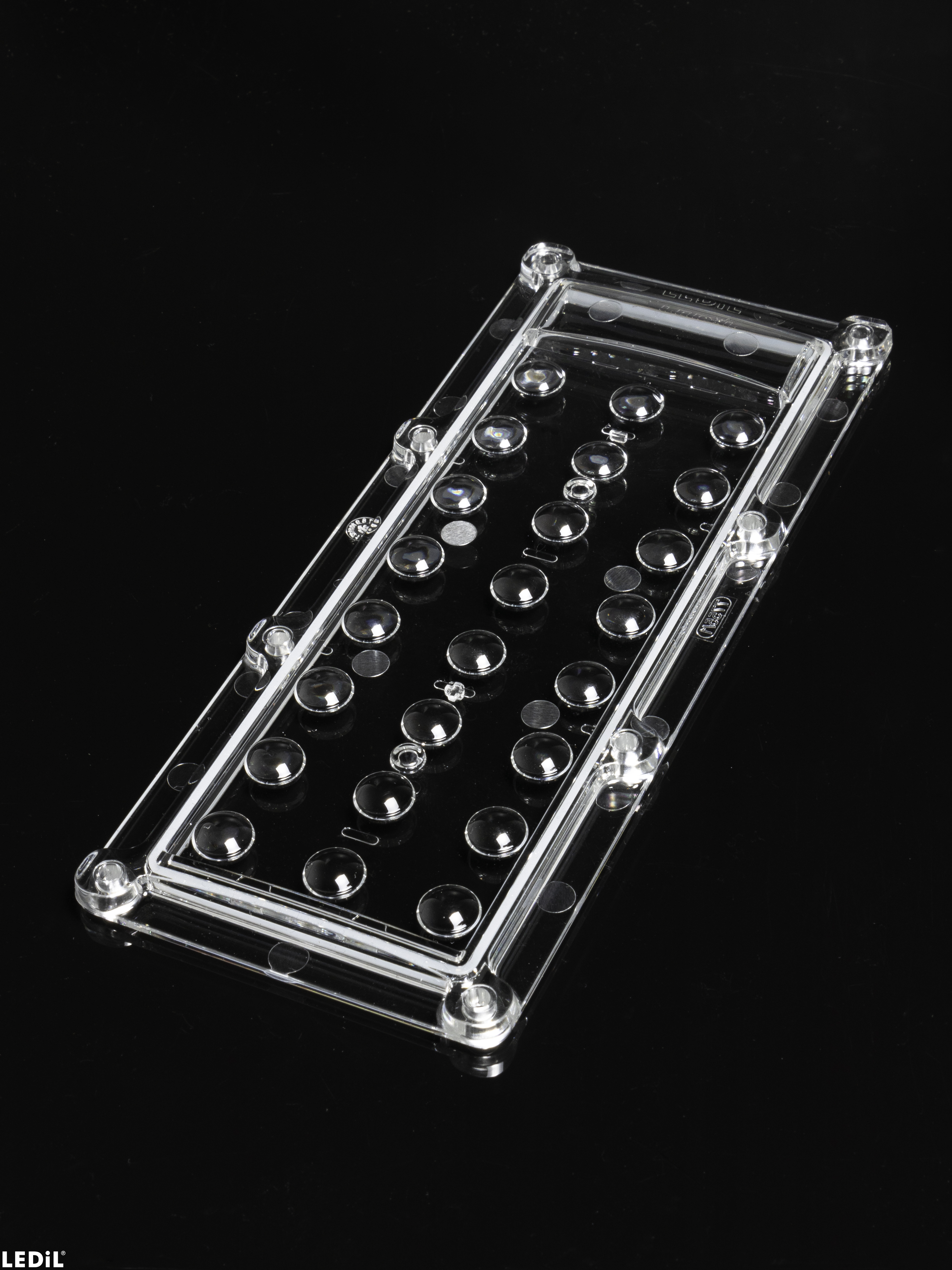

    CS17764_HB-IP-24-WWW-PC

    Print

    ~90° wide beam. Variant made from PC.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      10.00 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • Ingress protection classes:
      IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      5.2 kg
    • MPQ:
      40 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      476 x 273 x 247 mm
    • MOQ weight:
      5.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS17764_HB-IP-24-WWW-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    Application example

    Warehouse lighting with STRADELLA-IP-64 and HB-IP-24

    Catalogue

    LEDiL Latest products catalogue

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    STRADA-IP-24 – Real value for luminaire designers and end-users

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    Boost your luminaire efficiency and output with the new STRADA-IP-24 family

    Application area

    Area and Car Park Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

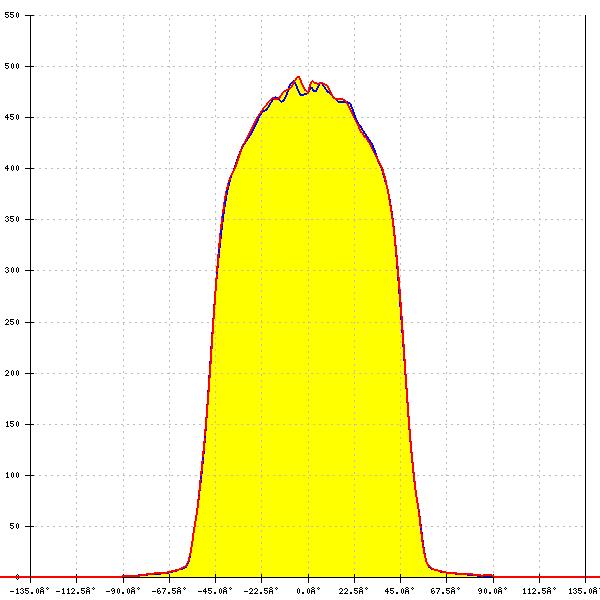

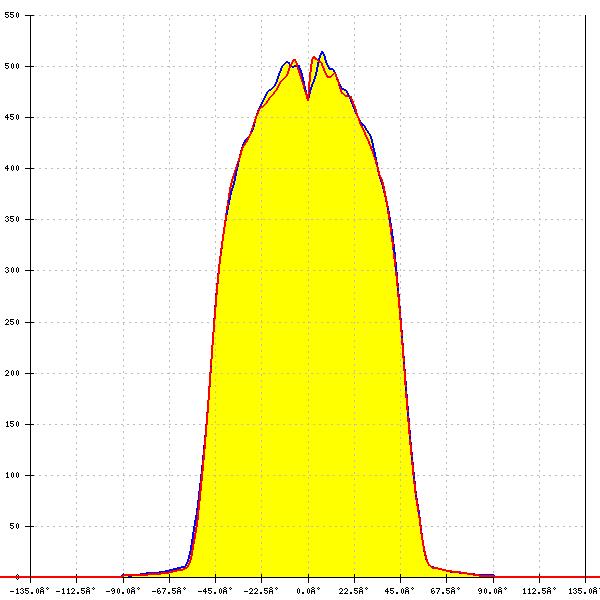

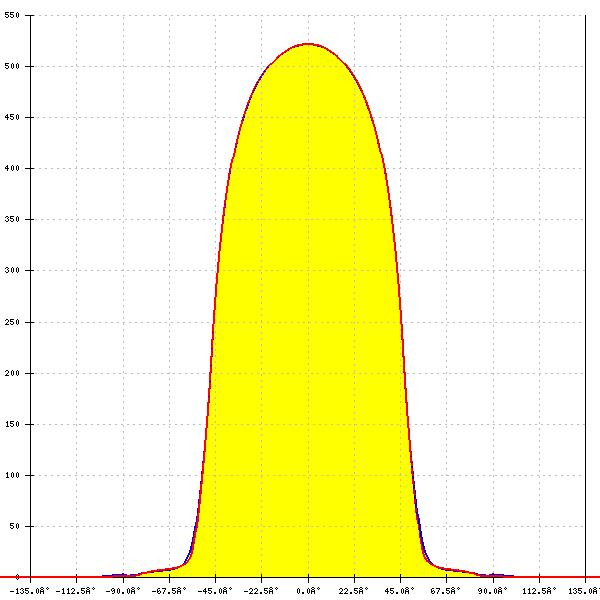

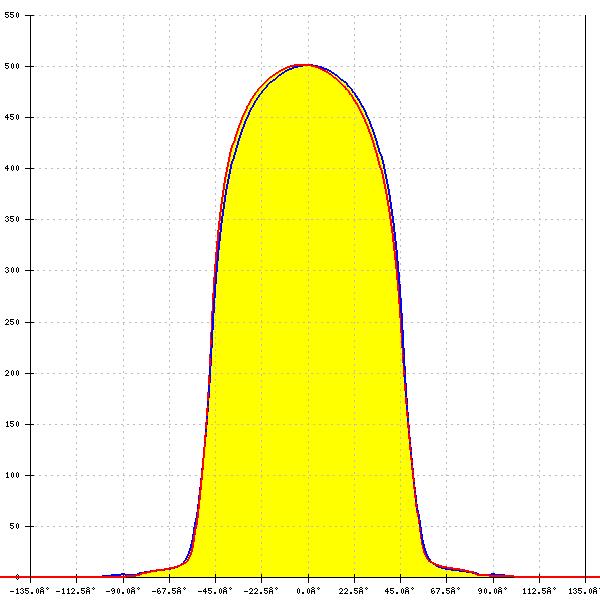

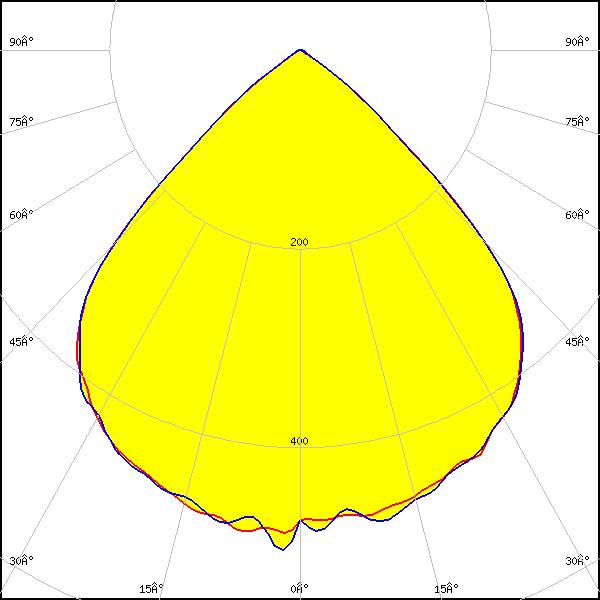

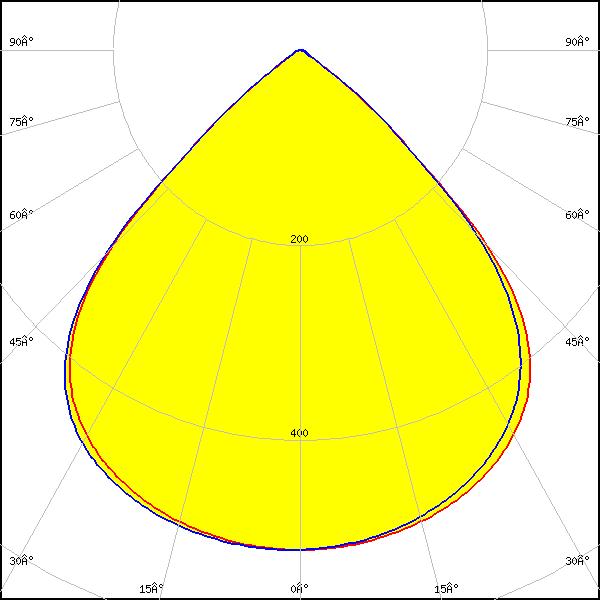

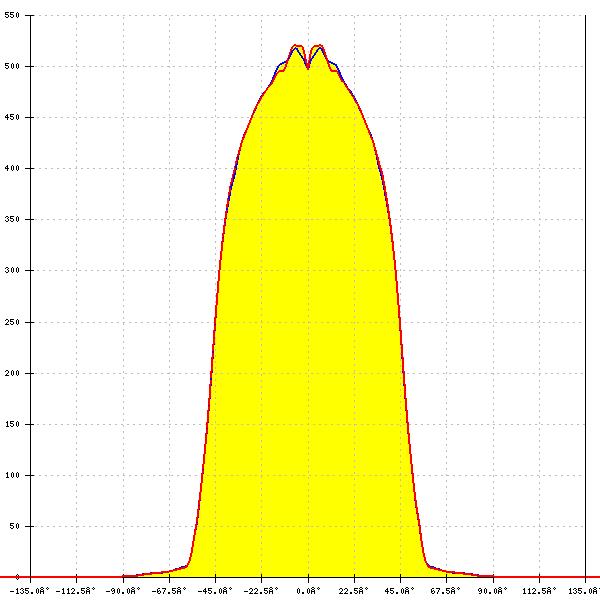

    Optical results

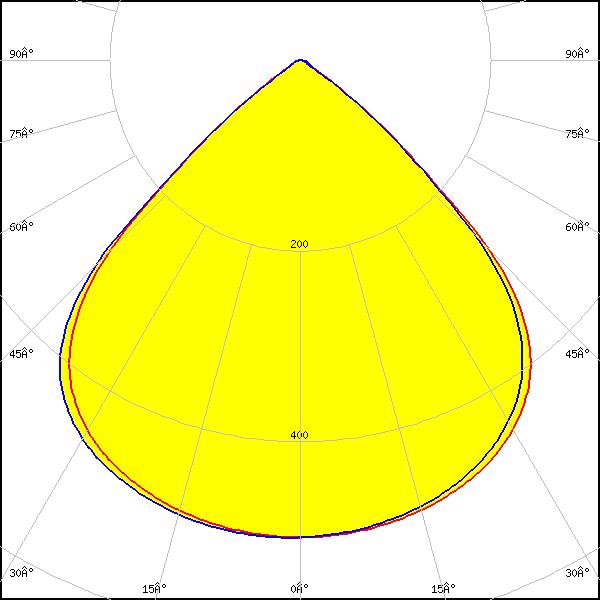

    LED: LIGHT ENGINE STRADA-IP 24 LEDs 147.4 x 46.2 x 1.5
    FWHM: 92°
    FWTM: 109°
    Peak intensity: 0.502 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

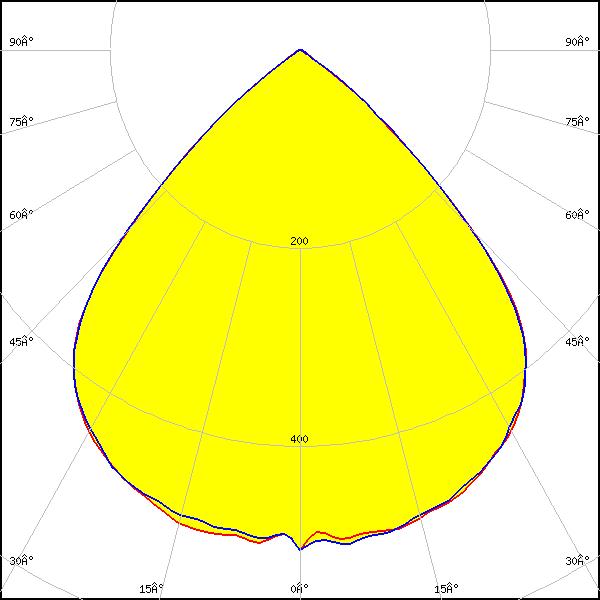

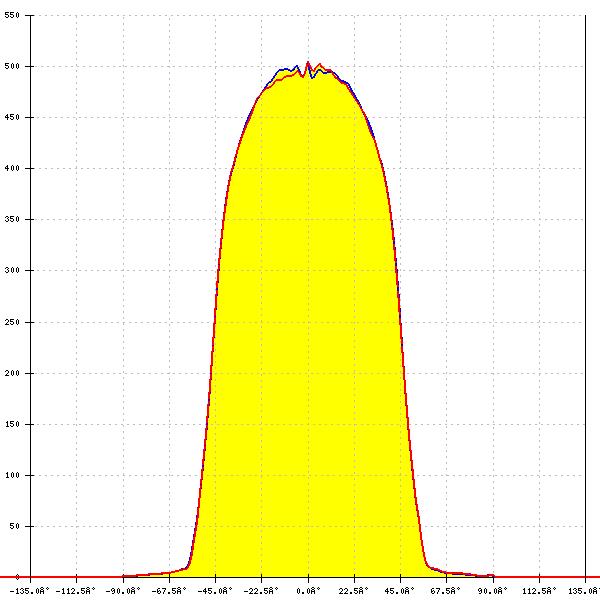

    LED: J Series 5050 Round LES
    FWHM: 90°
    FWTM: 108°
    Peak intensity: 0.509 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

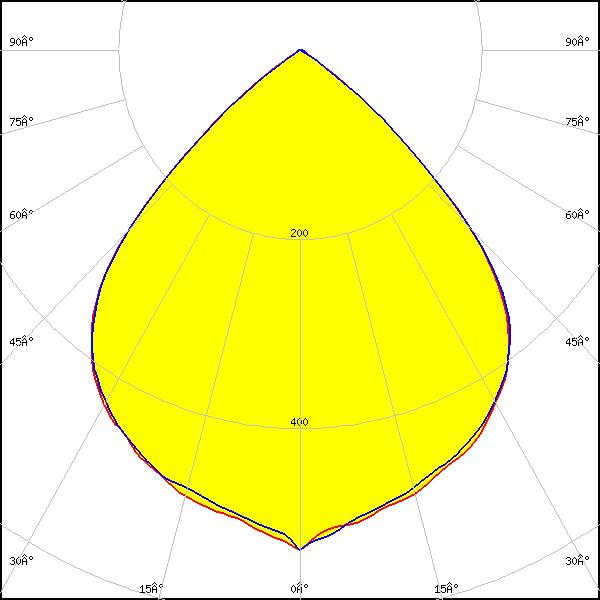

    LED: J Series 5050C 6V E Class
    FWHM: 90°
    FWTM: 110°
    Peak intensity: 0.530 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

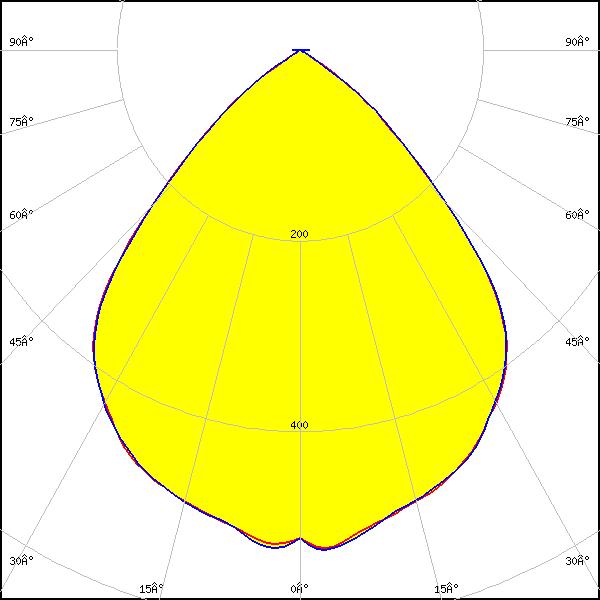

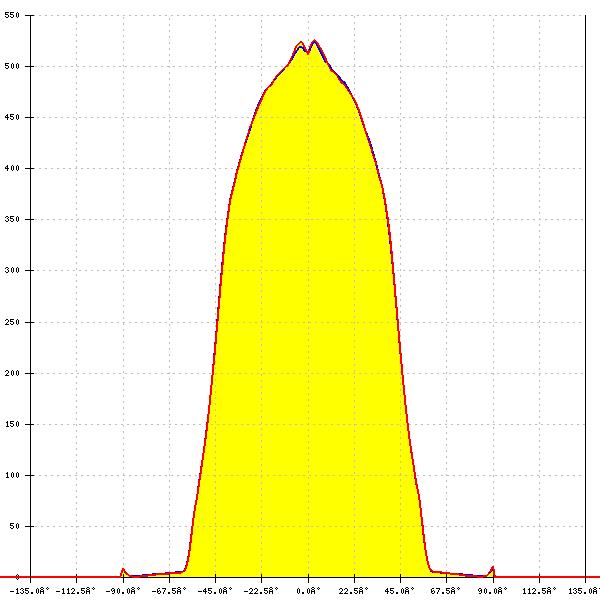

    LED: XP-G4 HI
    FWHM: 86°
    FWTM: 112°
    Peak intensity: 0.527 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

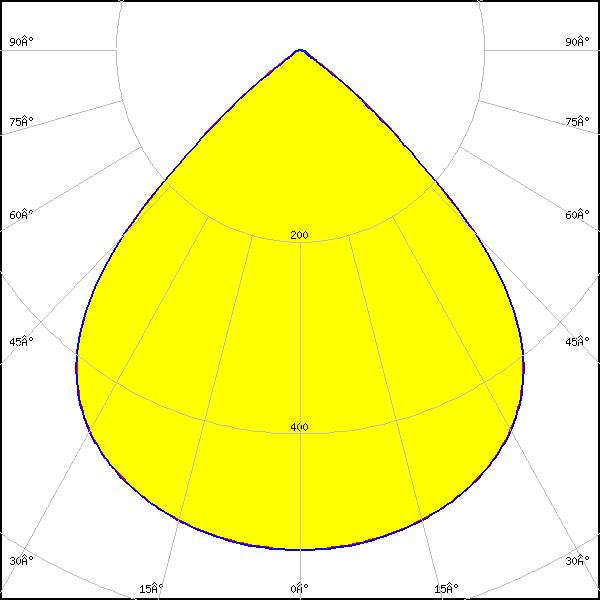

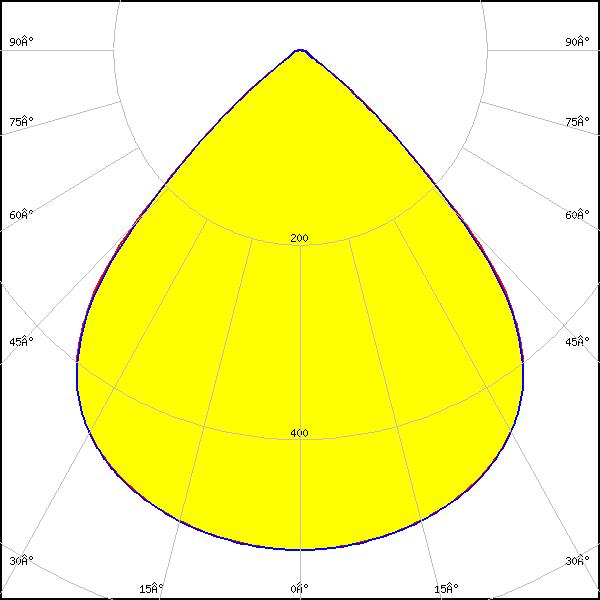

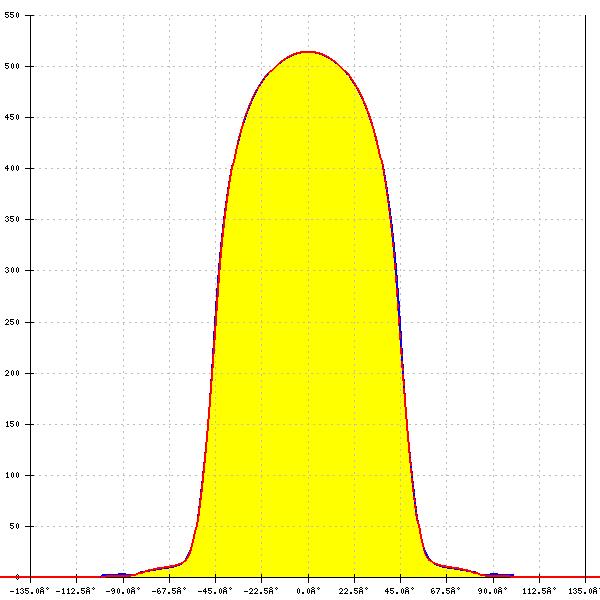

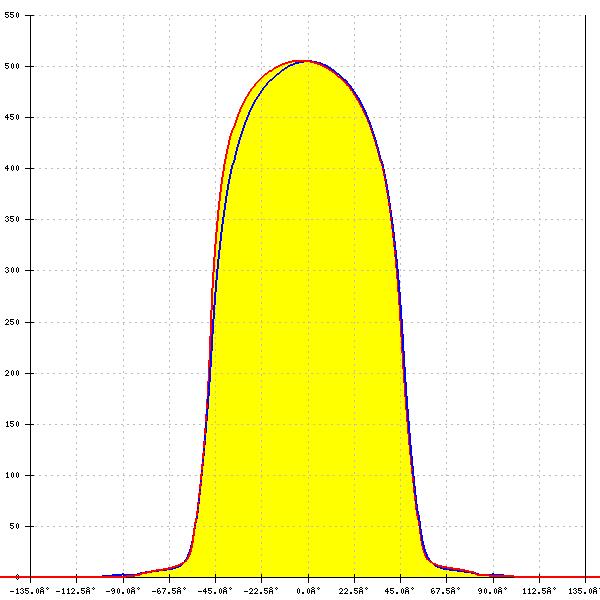

    LED: LUXEON 5050 HE
    FWHM: 91°
    FWTM: 108°
    Peak intensity: 0.522 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: 90°
    FWTM: 108°
    Peak intensity: 0.514 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON XR-5050 HE (L225-xxxx024MLU010)
    FWHM: 92°
    FWTM: 109°
    Peak intensity: 0.519 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

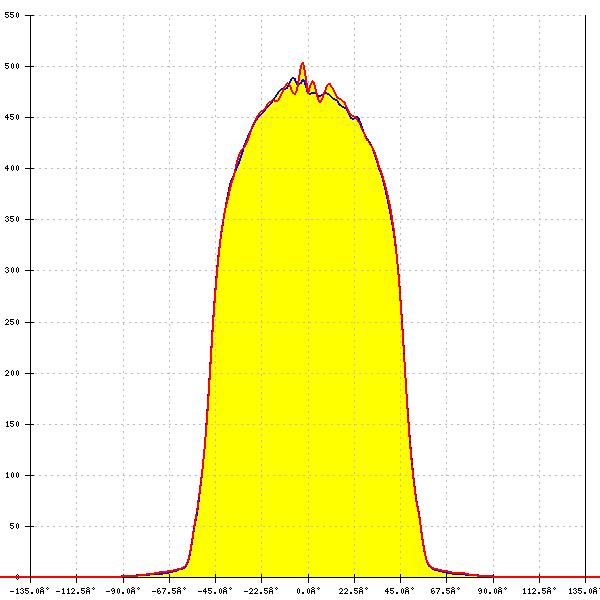

    LED: RecLED 147x47mm 5800lm 7x0 5050 STRADA-IP-24 G2
    FWHM: 92°
    FWTM: 110°
    Peak intensity: 0.504 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

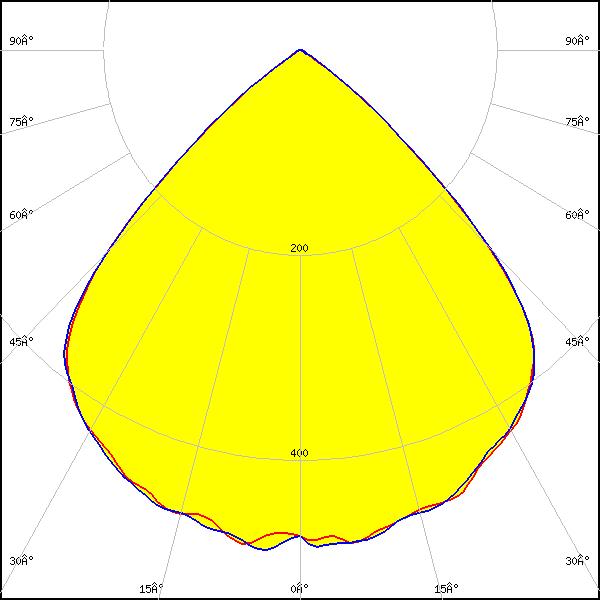

    LED: NFMW48xA
    FWHM: 92°
    FWTM: 110°
    Peak intensity: 0.500 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

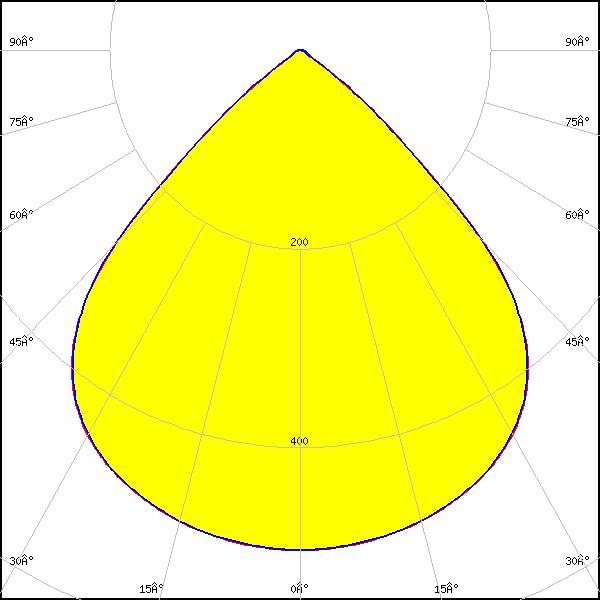

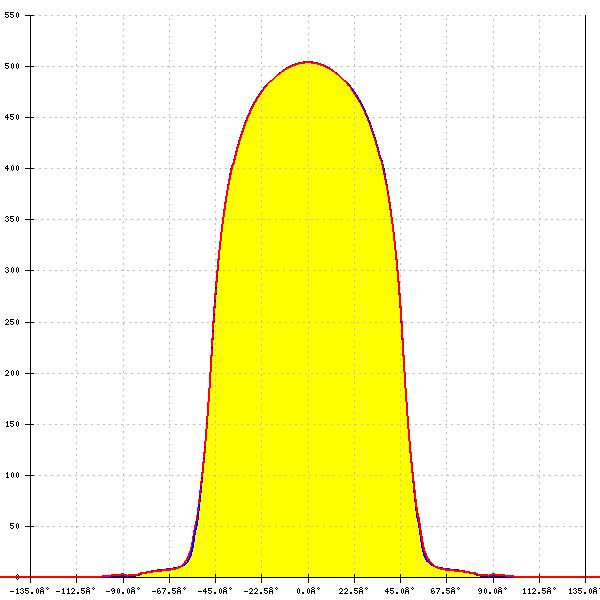

    LED: OSCONIQ S 5050
    FWHM: 91°
    FWTM: 109°
    Peak intensity: 0.504 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

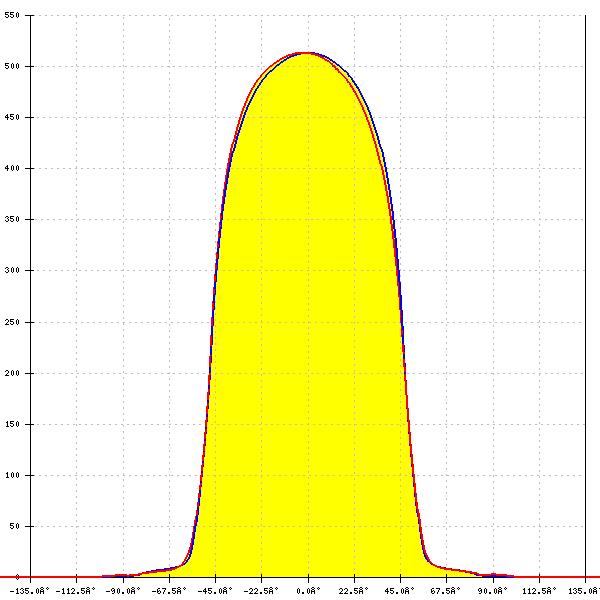

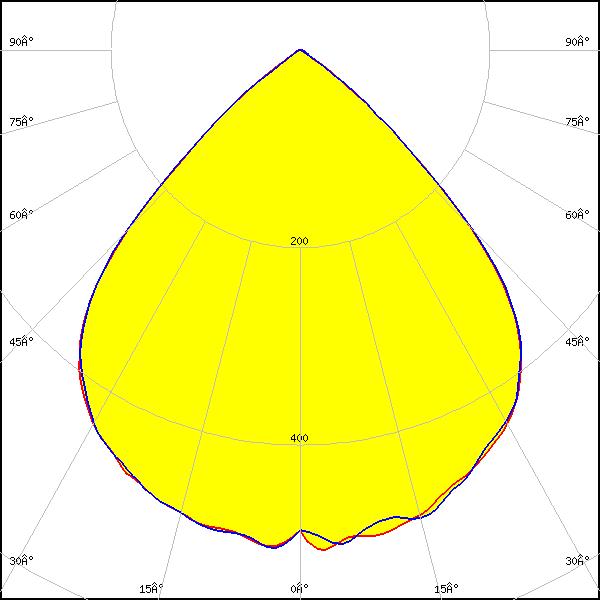

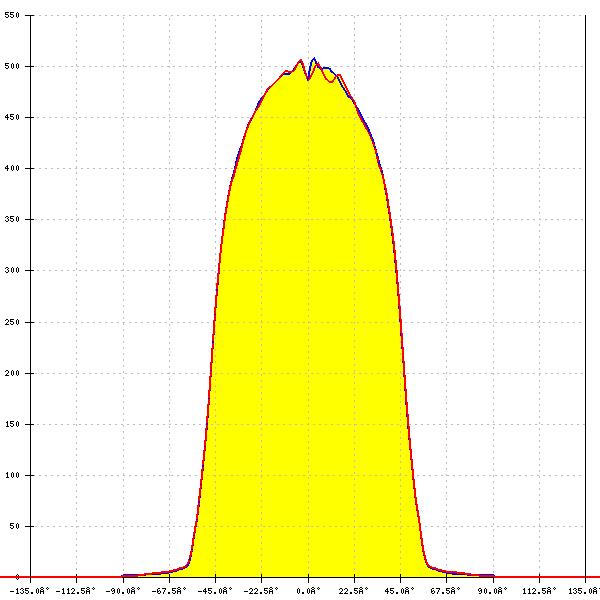

    LED: HiLOM RM24 ZP (LH502C)
    FWHM: 90°
    FWTM: 108°
    Peak intensity: 0.513 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: HiLOM RM24 ZP (LH502D)
    FWHM: 92°
    FWTM: 109°
    Peak intensity: 0.513 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

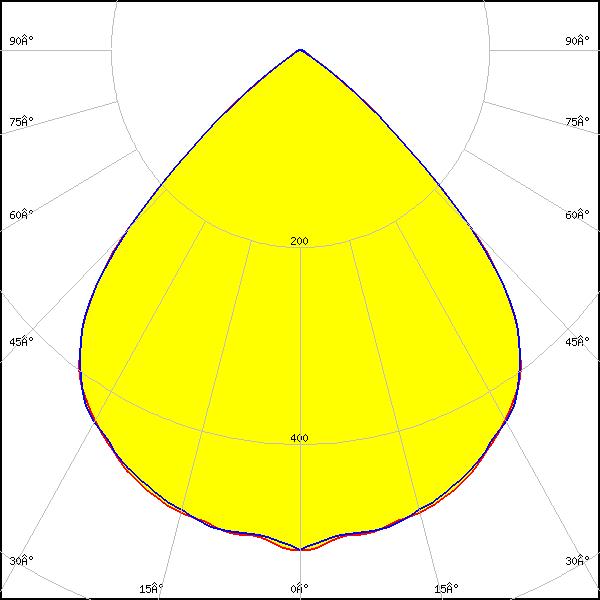

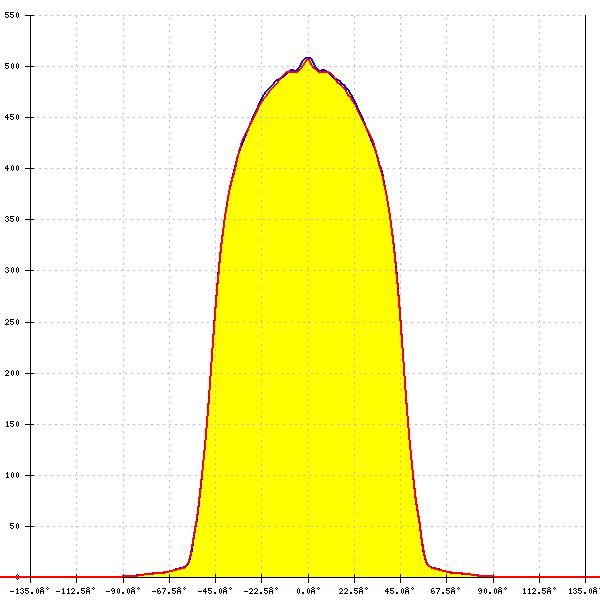

    LED: LH502C
    FWHM: 90°
    FWTM: 108°
    Peak intensity: 0.508 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

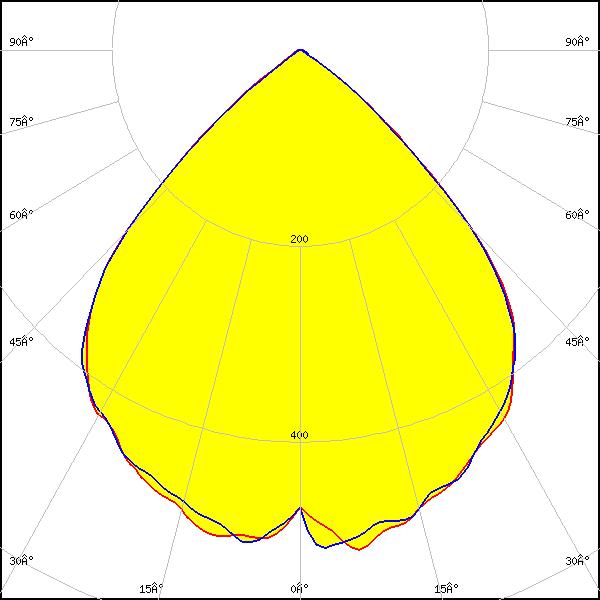

    LED: LH502D
    FWHM: 90°
    FWTM: 110°
    Peak intensity: 0.524 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

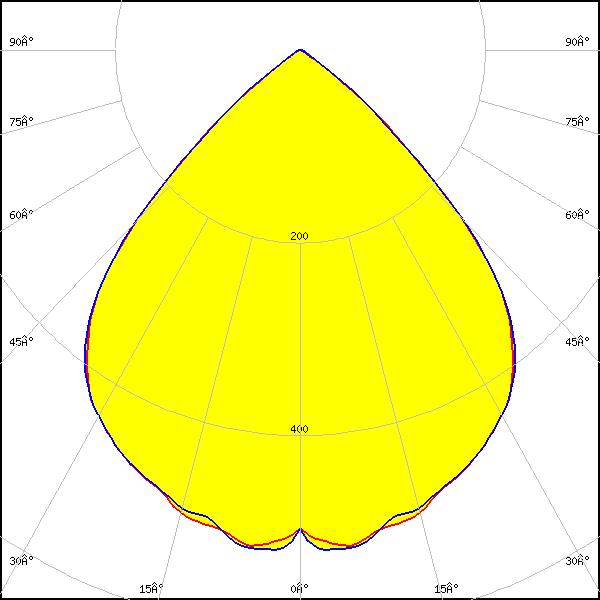

    LED: LH508C
    FWHM: 90°
    FWTM: 108°
    Peak intensity: 0.520 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

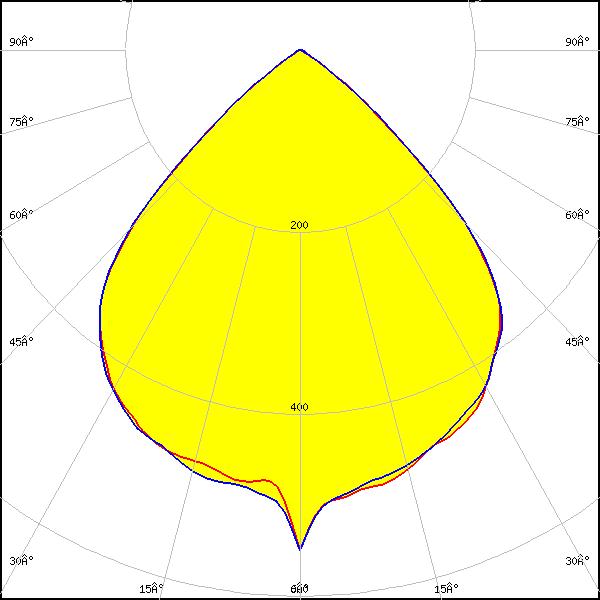

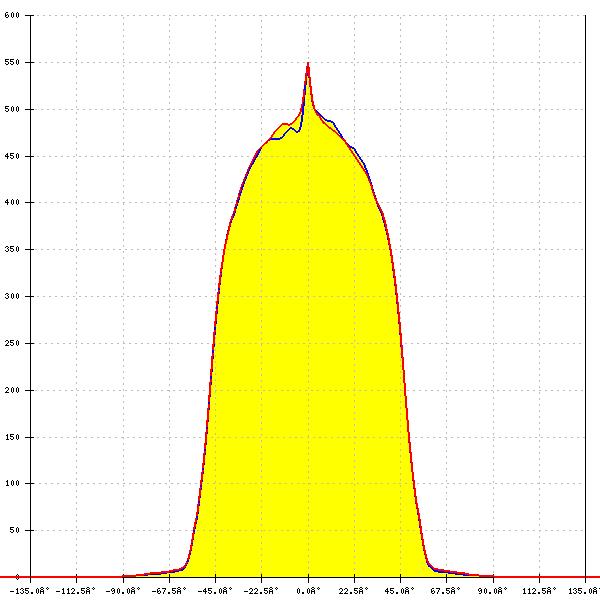

    LED: SEOUL DC 5050 6V
