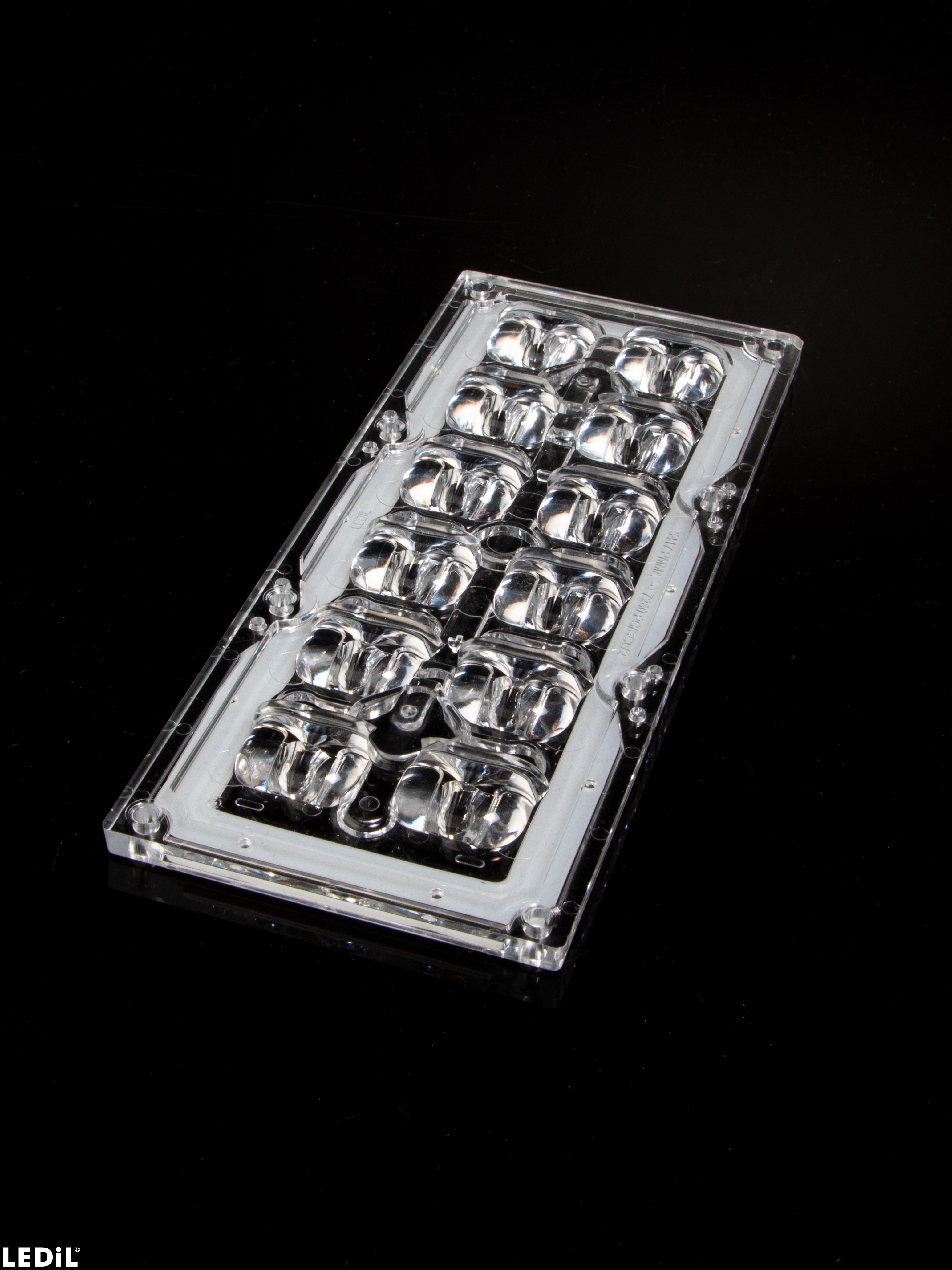

    CS17261_STRADA-IP-2X6-SCL-PC

    Print

    Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian paths and residential roads. EN13201 P-classes. Variant made from PC.

    Specification
    • Dimensions:
      173 x  71 mm
    • Height:
      9.60 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      120 pcs
    • Box size:
      476 x 273 x 247 mm
    • Box weight:
      8.0 kg
    • MPQ:
      40 pcs
    • MOQ:
      40 pcs
    • MOQ size:
      480 x 280 x 100 mm
    • MOQ weight:
      2.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CS17261_STRADA-IP-2X6-SCL-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products 2020-01-24

    News

    New Products 2018-08-20

    Reference product

    The Oaken sustainability in street lighting

    Application area

    Urban lighting with LEDiL optics

    Application guide

    LEDiL guide for street lighting optics

    PCN

    Product change notification NR164 - Material change for STRADA- and HB-IP-2X6 lens gaskets

    Case story

    GM-TRAC LED headlight

    PCN

    Product change notification NR134.a - Change of packaging methods 200417

    Installation guide

    STRADA-IP-2X6 Installation Guide

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

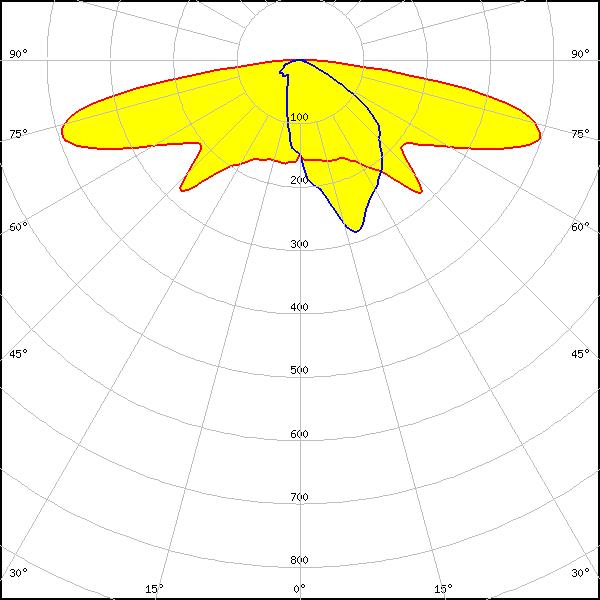

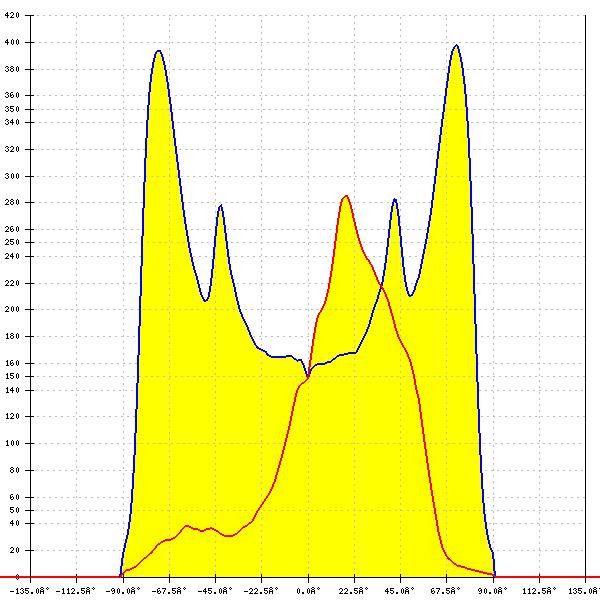

    Optical results

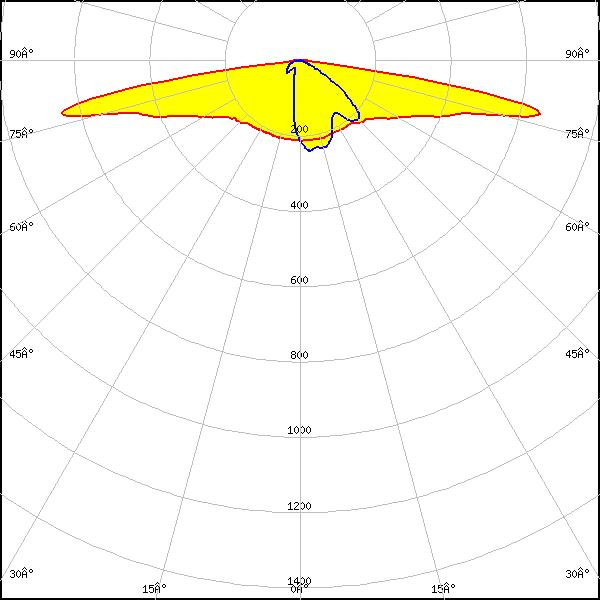

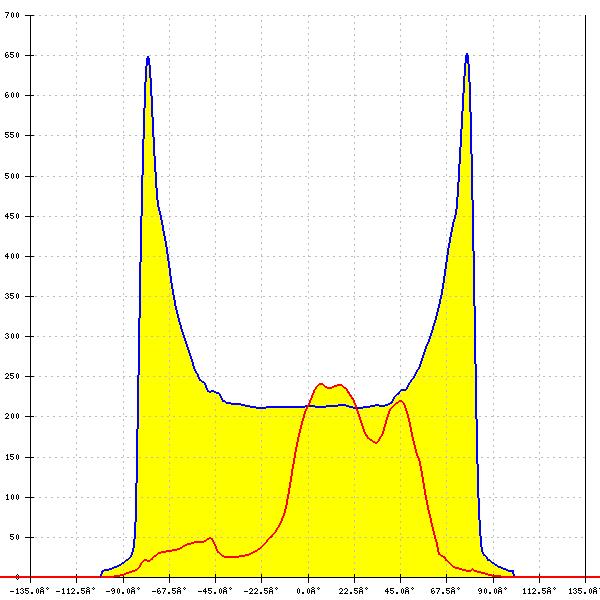

    LED: XP-G2
    FWHM: asymmetric
    Peak intensity: 0.880 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

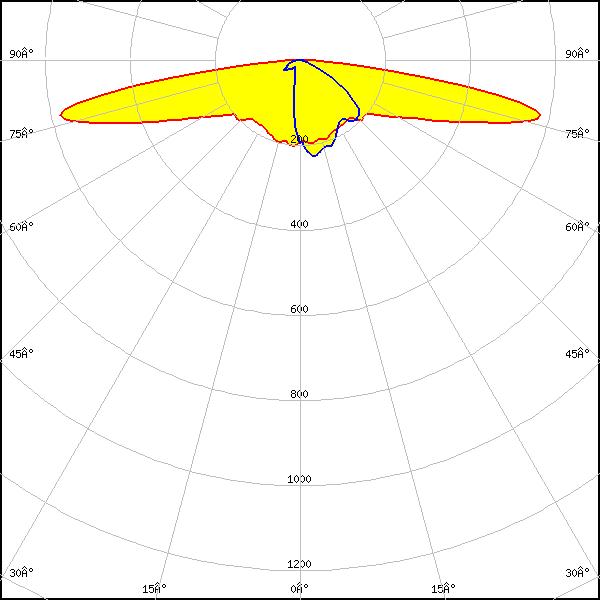

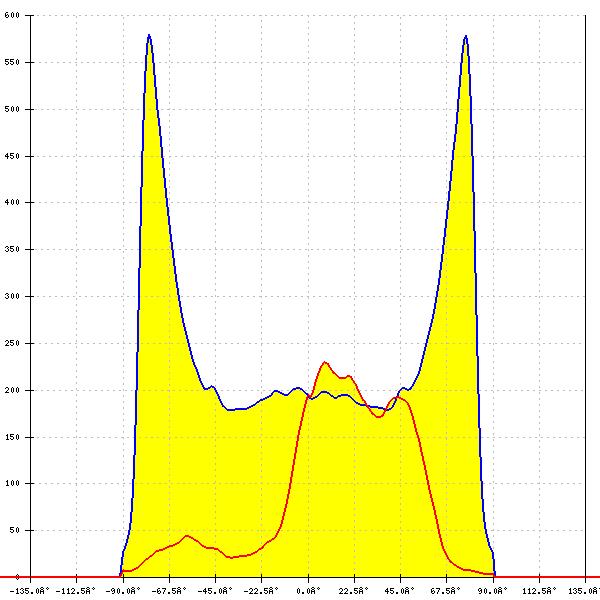

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.706 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

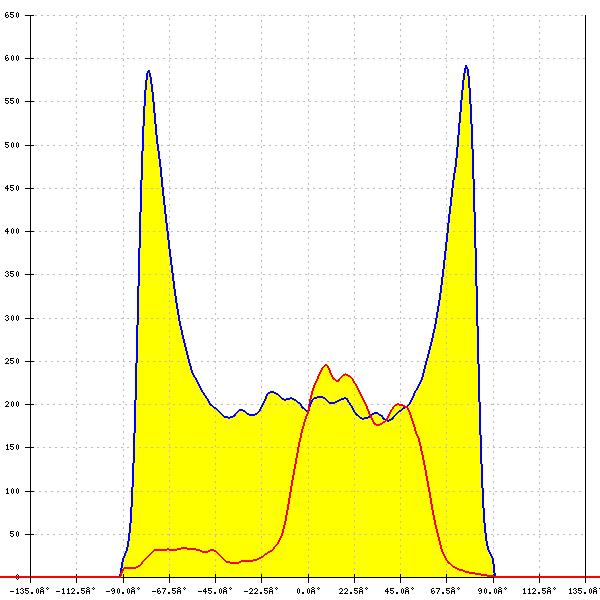

    LED: NVSW219F
    FWHM: asymmetric
    Peak intensity: 0.708 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

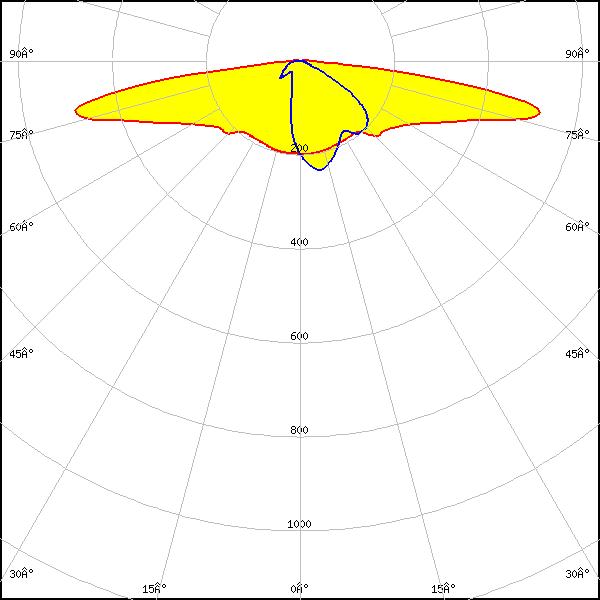

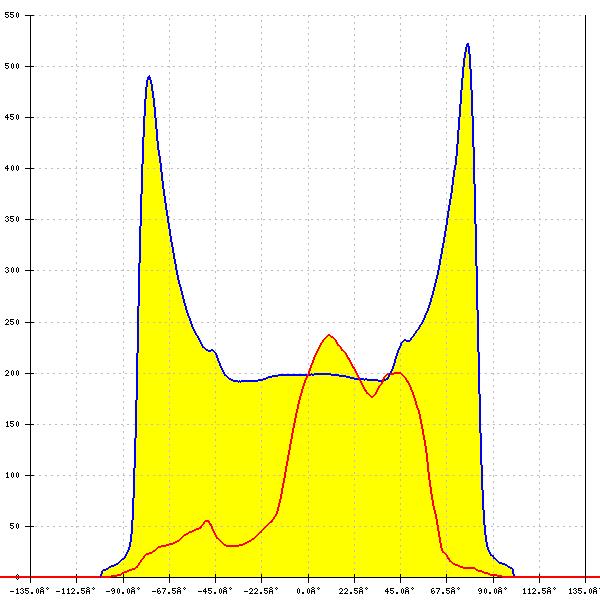

    LED: NVSW519A
    FWHM: asymmetric
    Peak intensity: 0.848 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

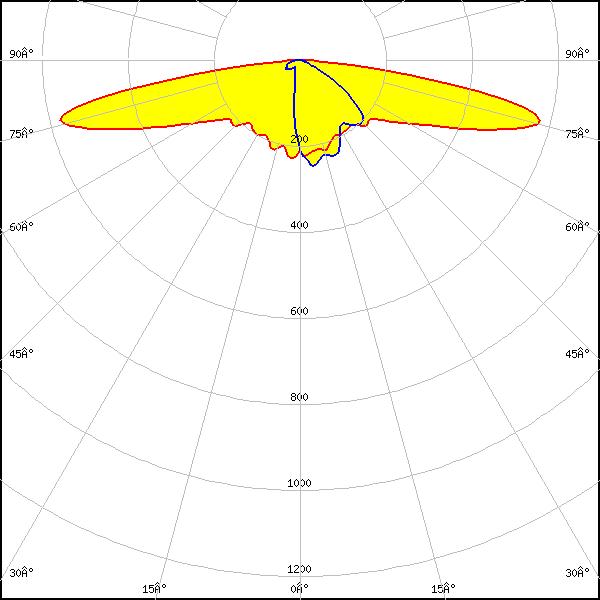

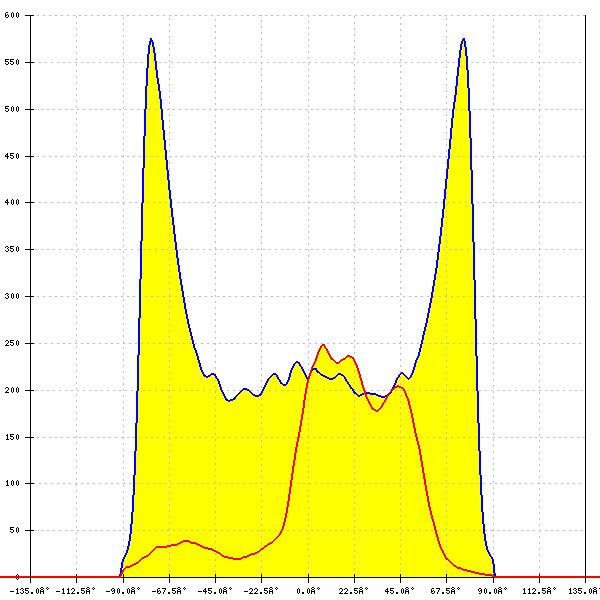

    LED: PrevaLED Brick HP IP 2x6
    FWHM: asymmetric
    Peak intensity: 0.658 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

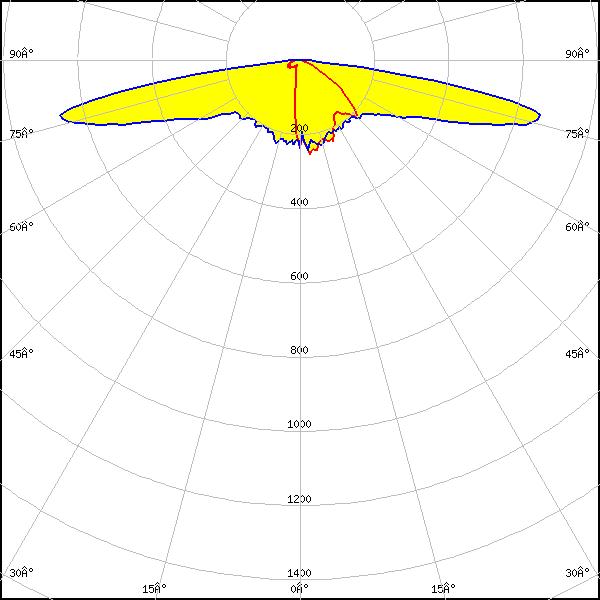

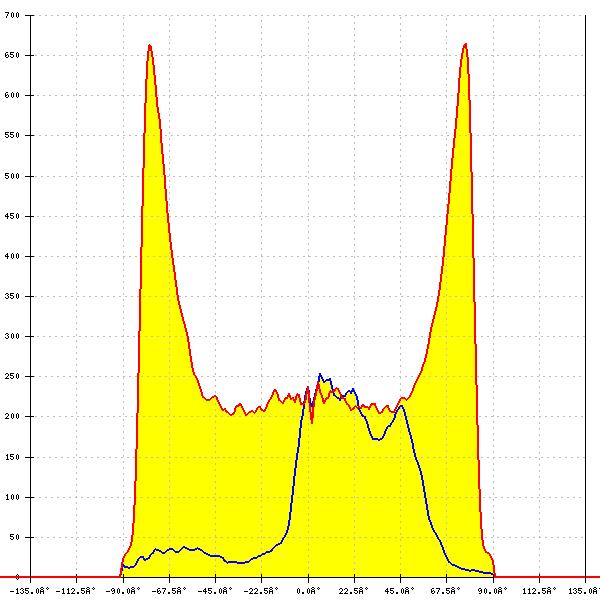

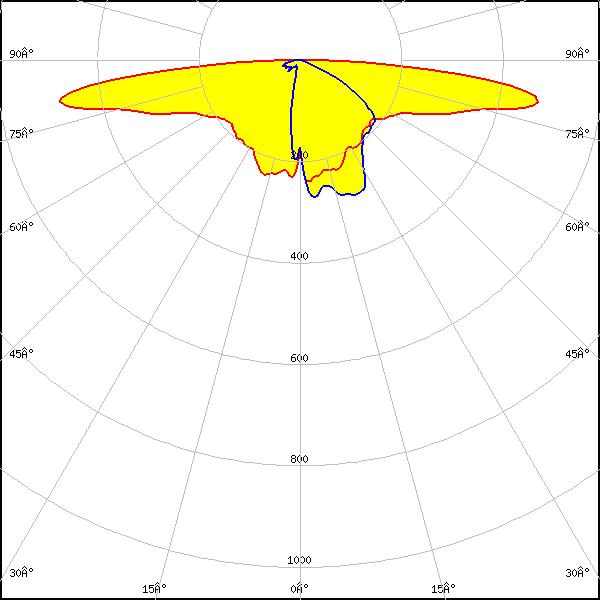

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.593 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

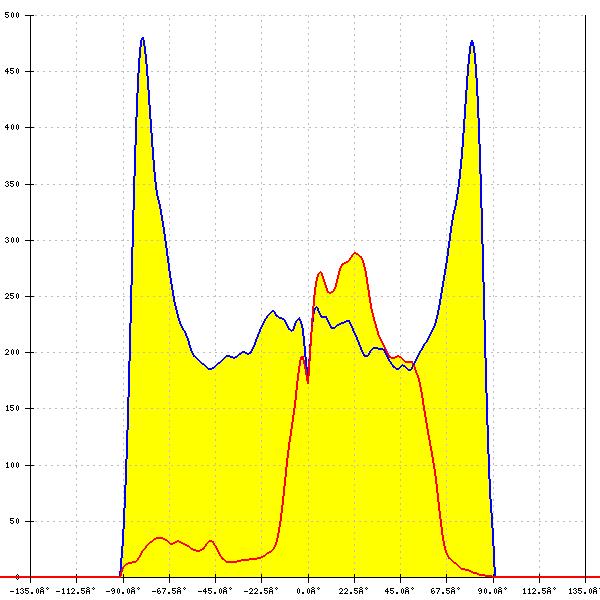

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: asymmetric
    Peak intensity: 0.766 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

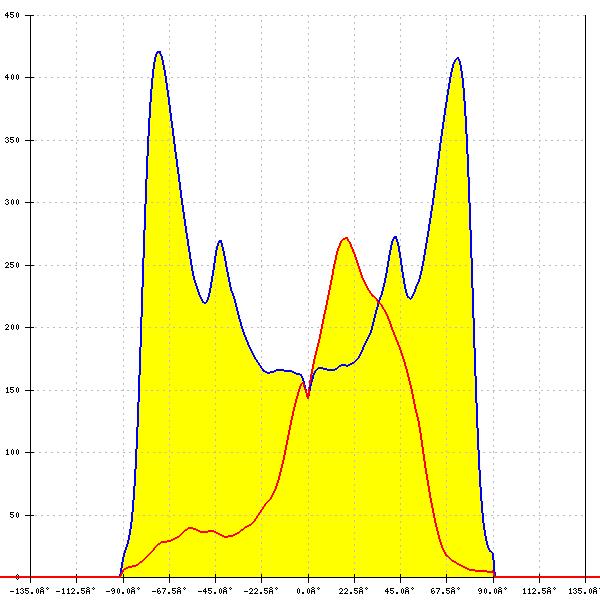

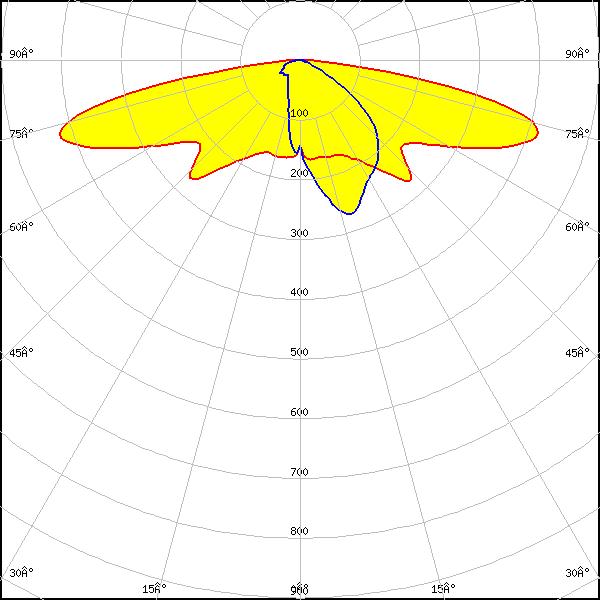

    LED: LH502C
    FWHM: asymmetric
    Peak intensity: 0.545 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

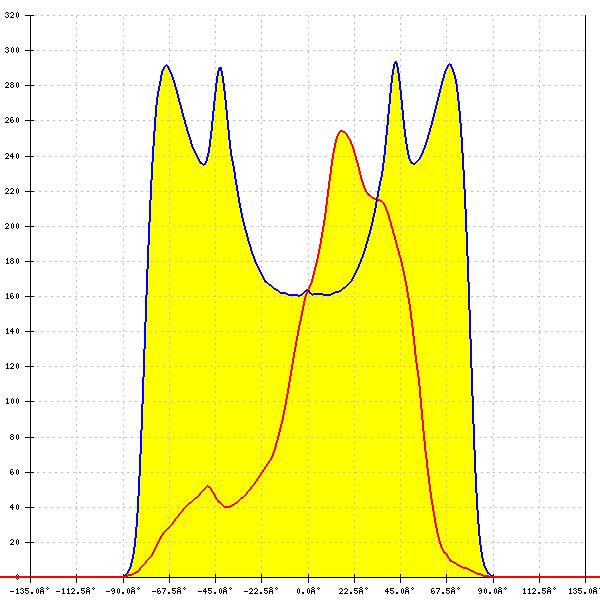

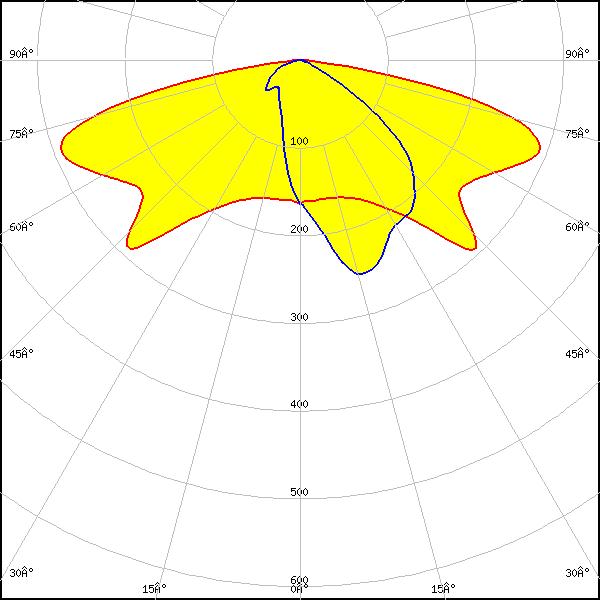

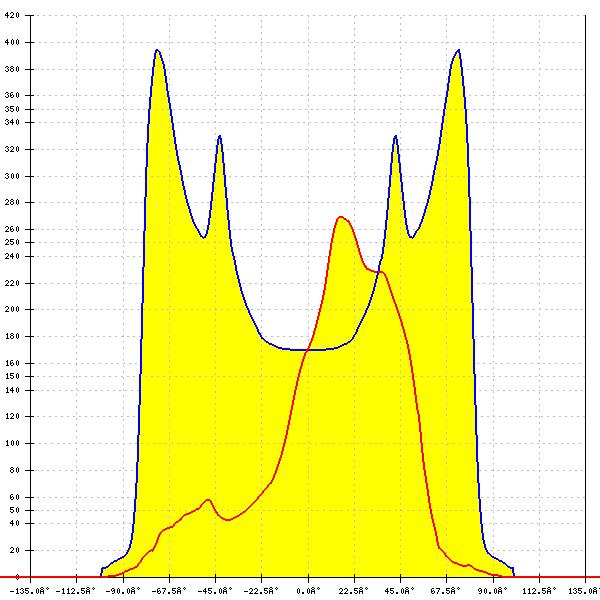

    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.433 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH502D
    FWHM: asymmetric
    Peak intensity: 0.617 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

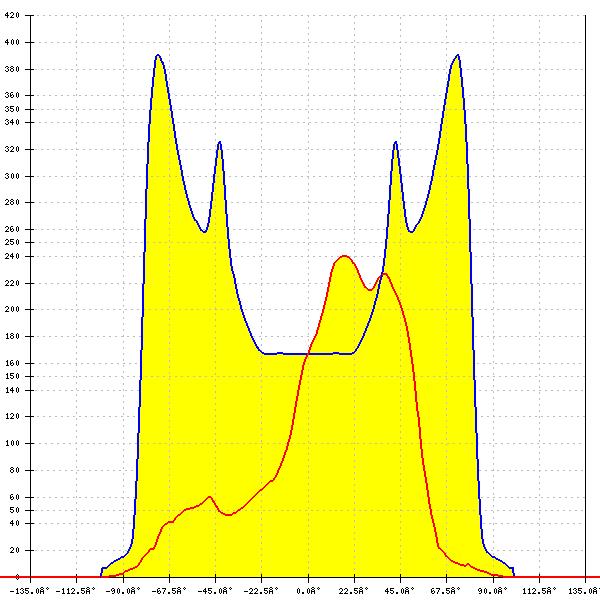

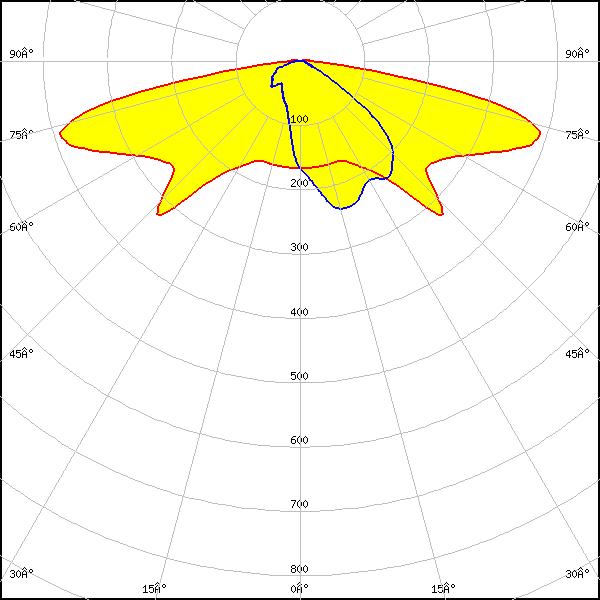

    LED: BALAM-VP-5250-750-36
    FWHM: asymmetric
    Peak intensity: 0.653 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

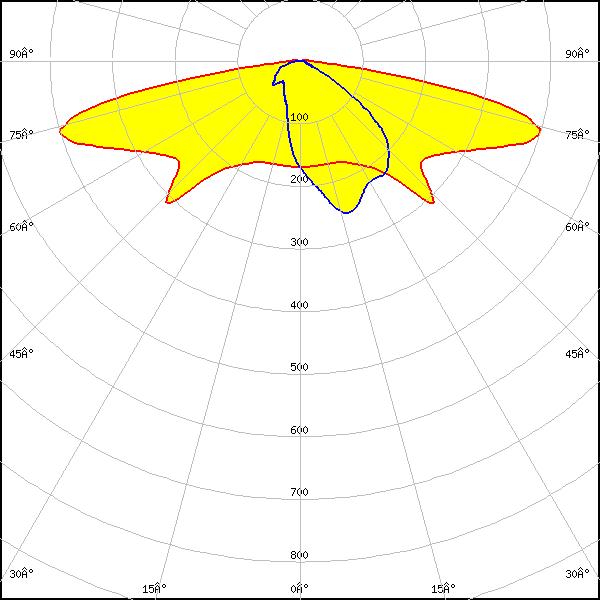

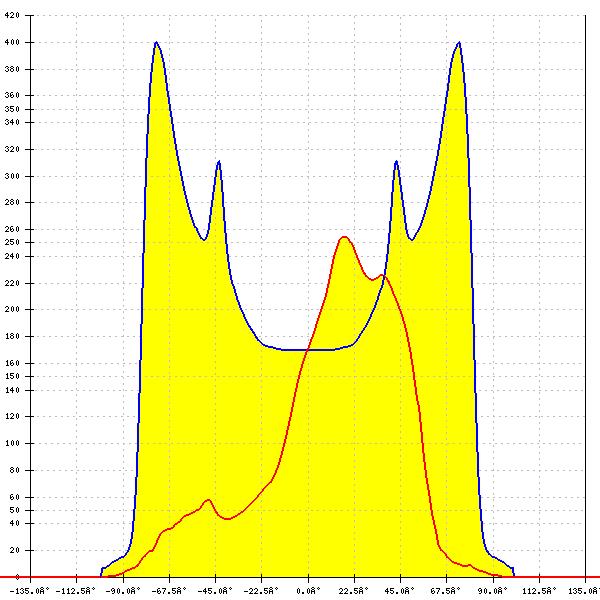

    LED: BALAMEC-VE-5700-740-36
    FWHM: asymmetric
    Peak intensity: 0.645 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

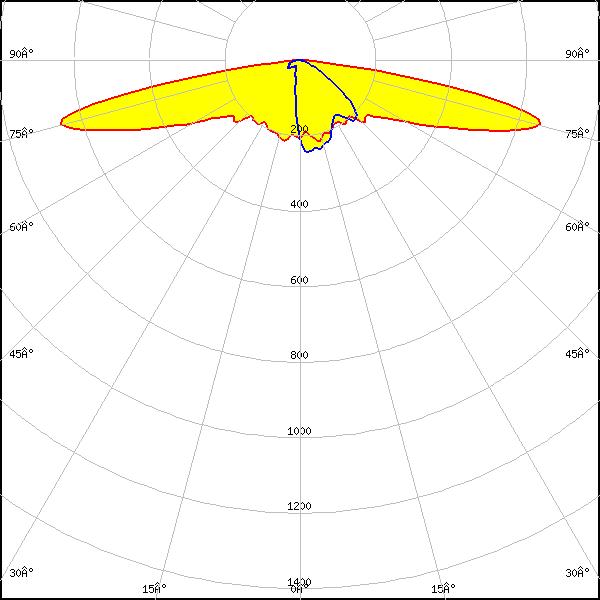

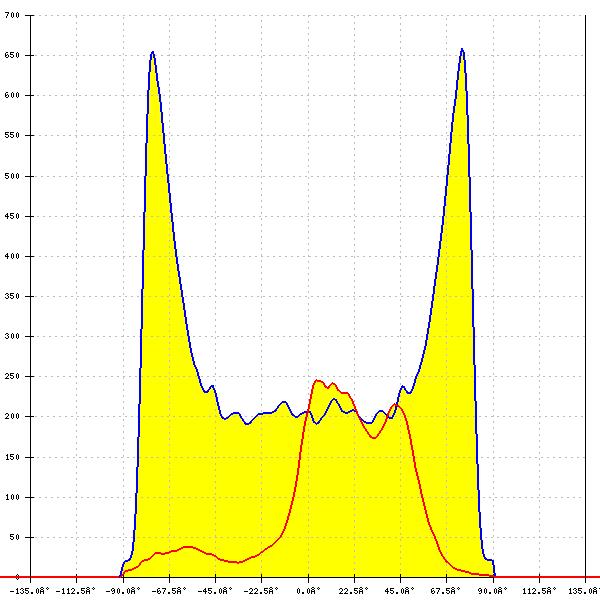

    LED: SEOUL DC 3030C
    FWHM: asymmetric
    Peak intensity: 0.734 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
