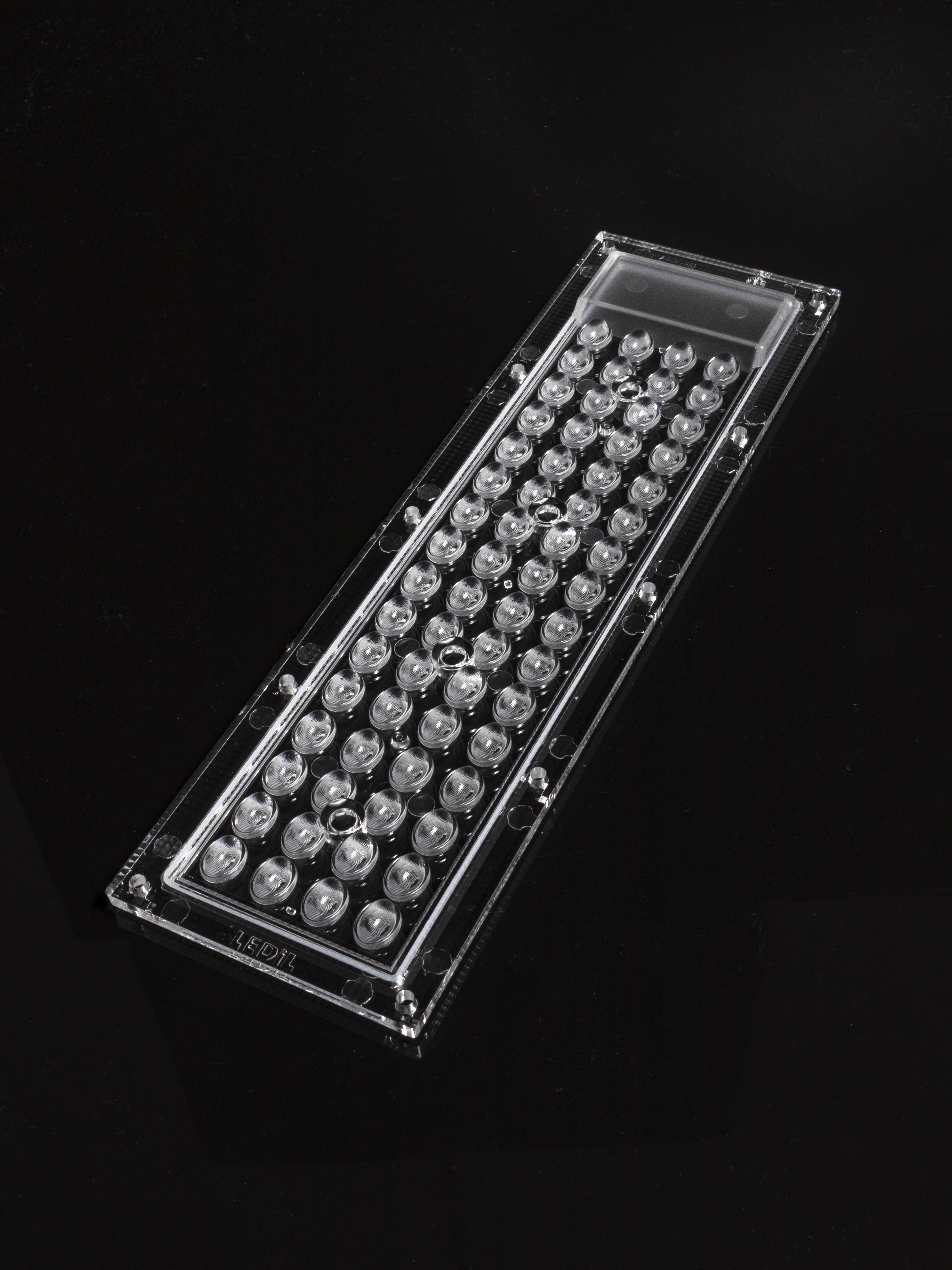

CS17220_STRADELLA-IP-64-HB-O
Print
~30° + 70° oval beam.
Materials
- STRADELLA-IP-64-HB-O, Multi-lens, PMMA
- STRADELLA-IP-64-SEAL, Seal, Silicone
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

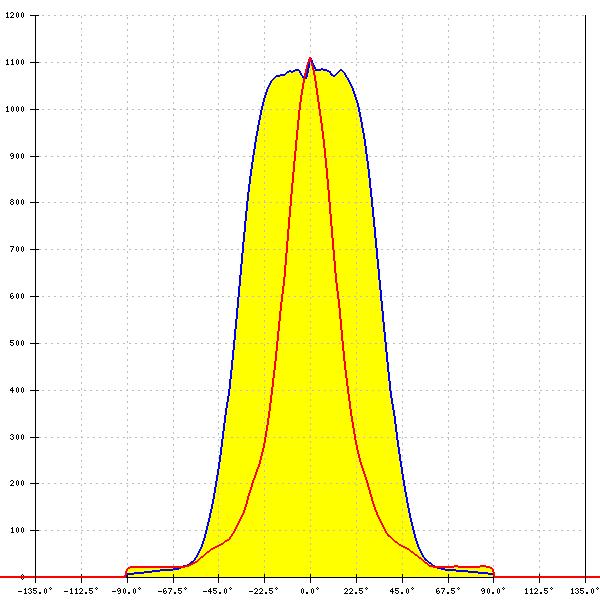

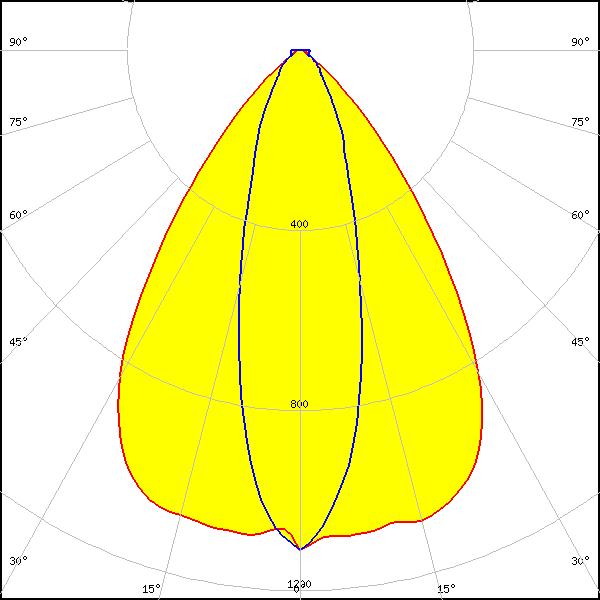

LUXEON 3030 HE Plus
FWHM:
72° + 30°
FWTM:
100° + 72°
Peak intensity:
1.118 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

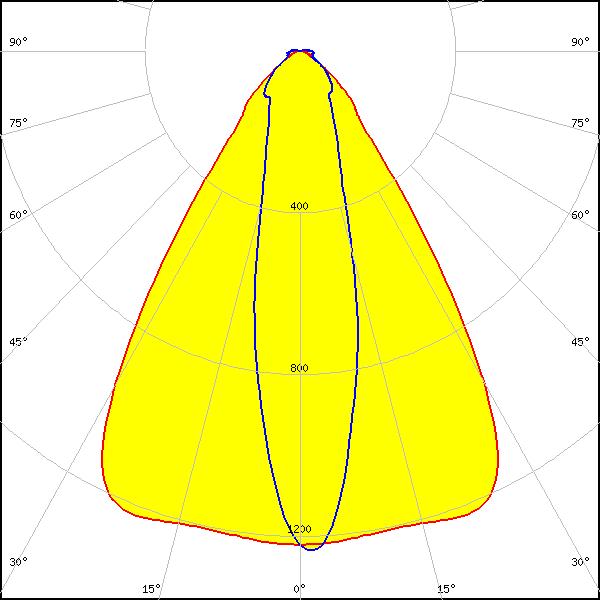

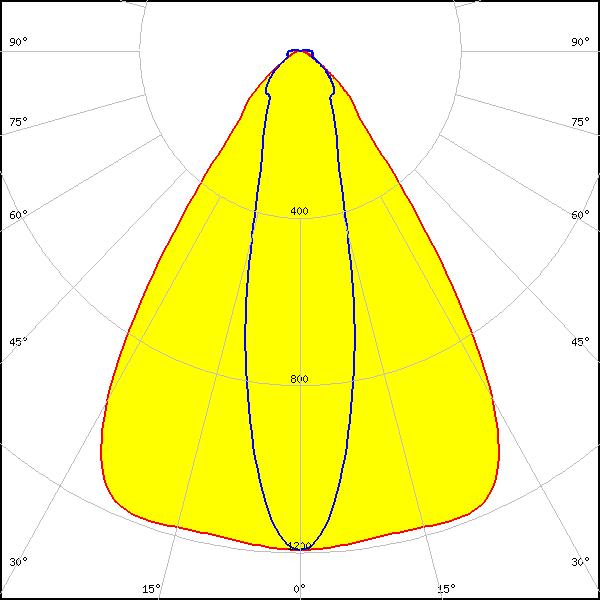

LED:

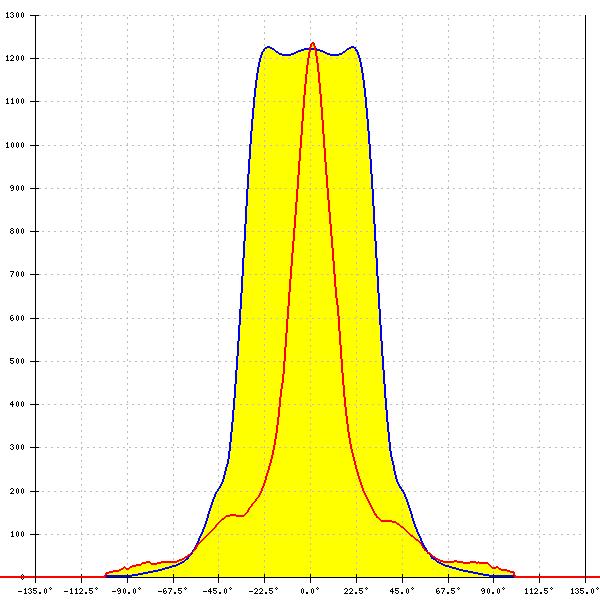

RecLED 223x50mm 4200lm 8x0 4x16 Opt G1
FWHM:
68° + 25°
FWTM:
102° + 88°
Peak intensity:
1.261 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

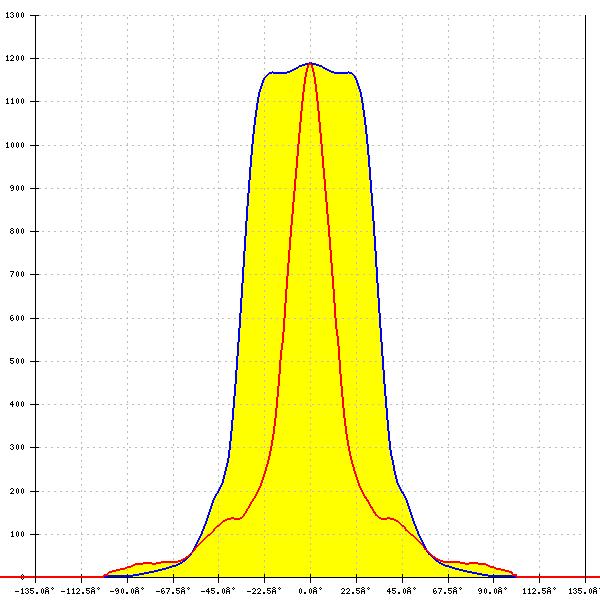

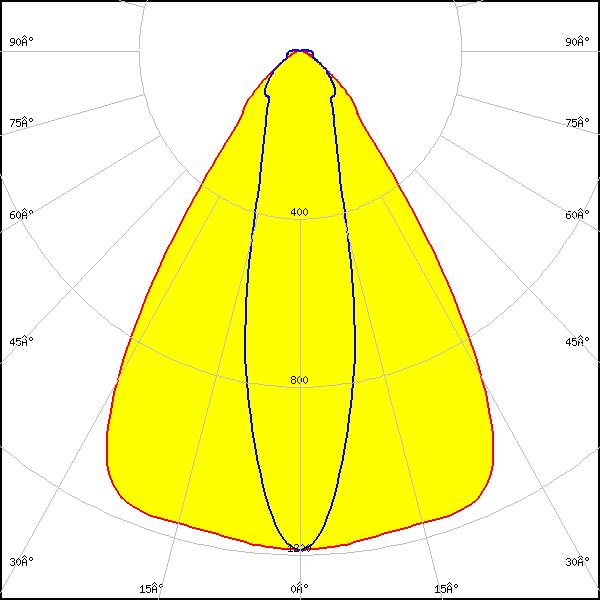

PrevaLED Brick MP 4x16
FWHM:
69° + 26°
FWTM:
103° + 90°
Peak intensity:
1.189 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

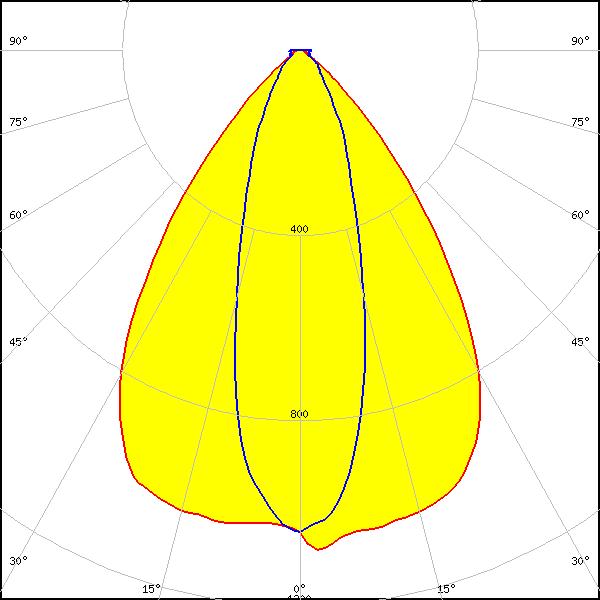

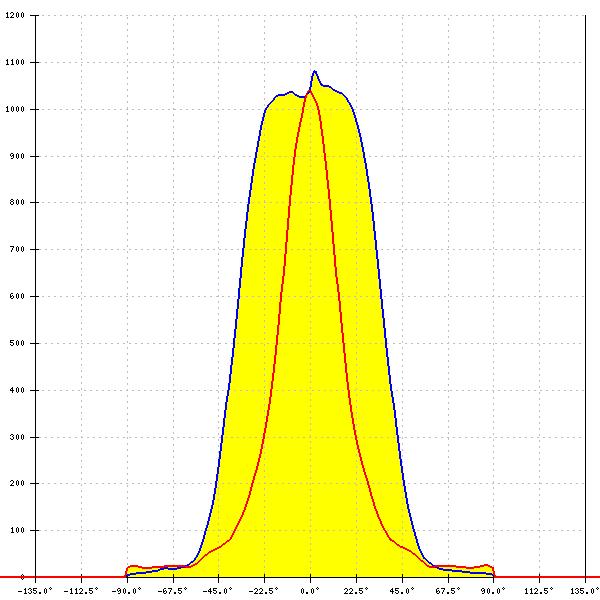

Duris S5 (2 chip)
FWHM:
74° + 32°
FWTM:
101° + 72°
Peak intensity:
1.081 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

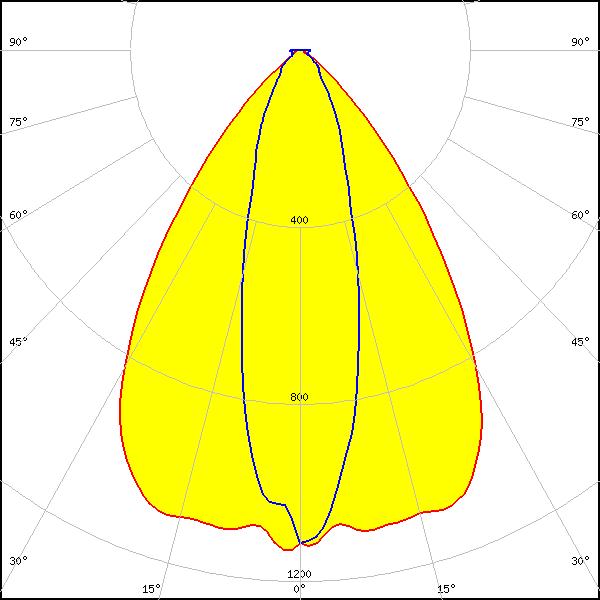

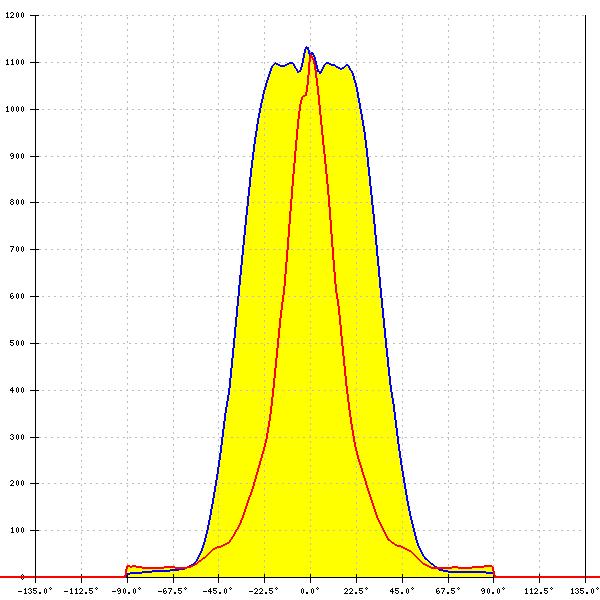

OSCONIQ C 3030
FWHM:
72° + 28°
FWTM:
100° + 70°
Peak intensity:
1.133 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

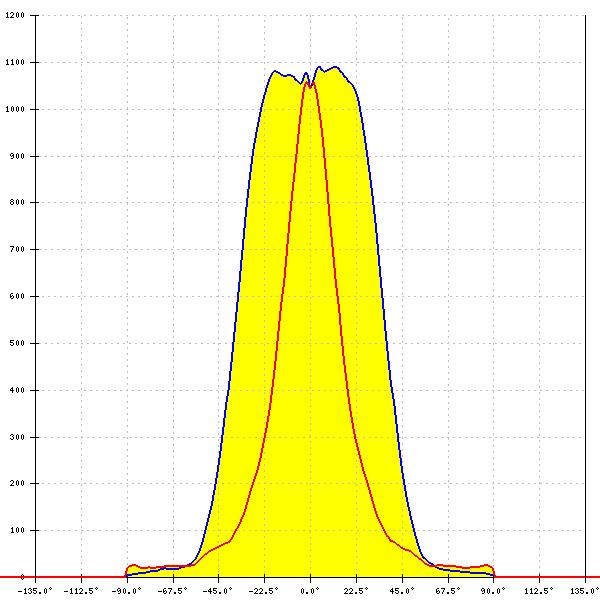

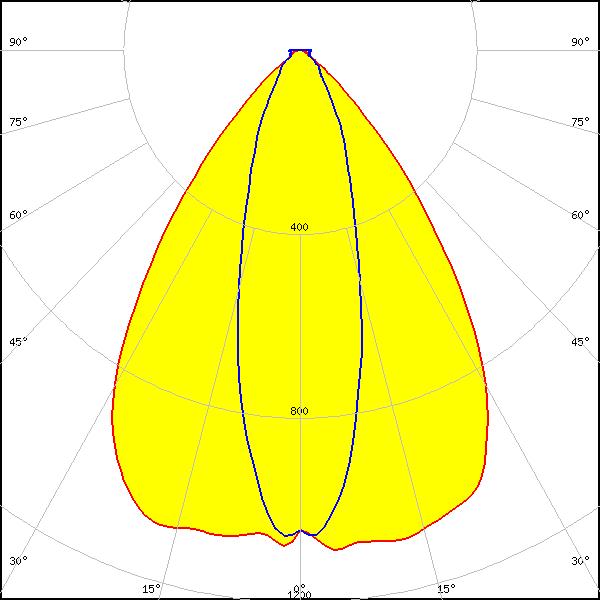

OSCONIQ S 3030 (QSLR31)
FWHM:
74° + 30°
FWTM:
101° + 72°
Peak intensity:
1.093 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

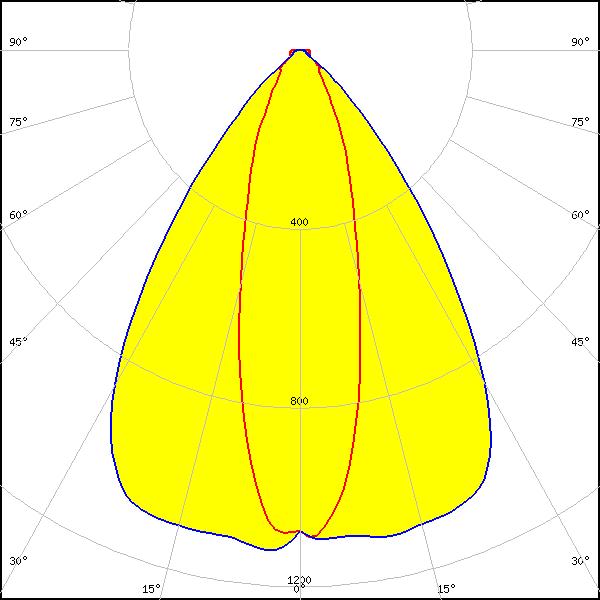

Fortimo FastFlex LED 4x16 DHE G4
FWHM:
30° + 72°
FWTM:
70° + 100°
Peak intensity:
1.122 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

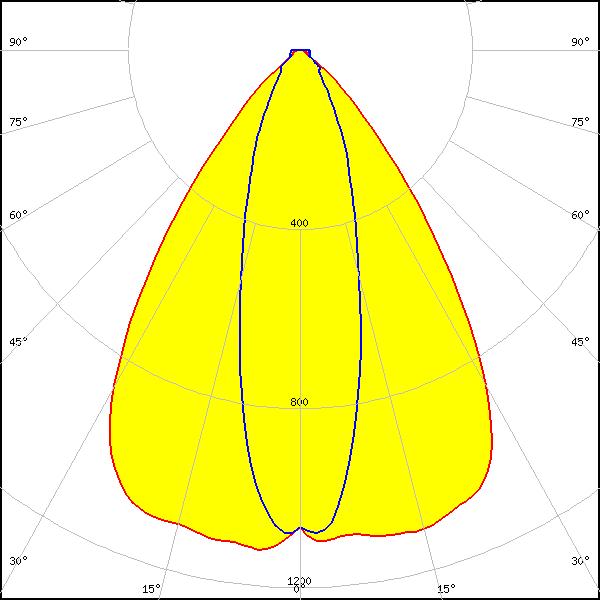

HiLOM RM64 (LM301B)
FWHM:
72° + 30°
FWTM:
100° + 71°
Peak intensity:
1.121 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

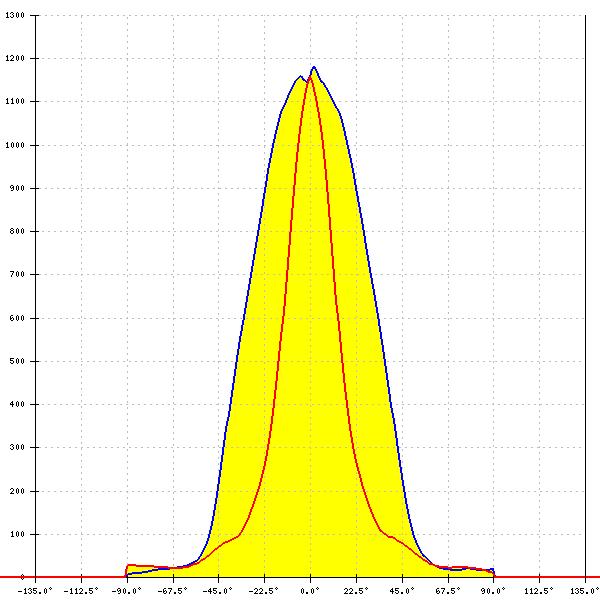

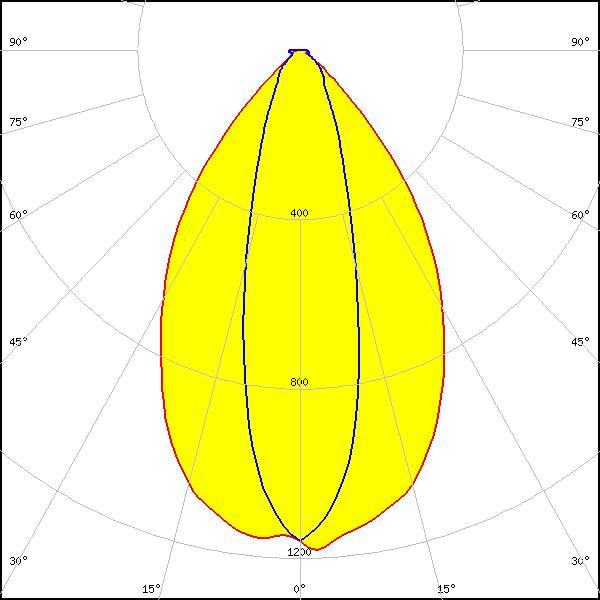

LH181B
FWHM:
67° + 28°
FWTM:
98° + 66°
Peak intensity:
1.184 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
LM301B
FWHM:
72° + 30°
FWTM:
100° + 71°
Peak intensity:
1.121 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

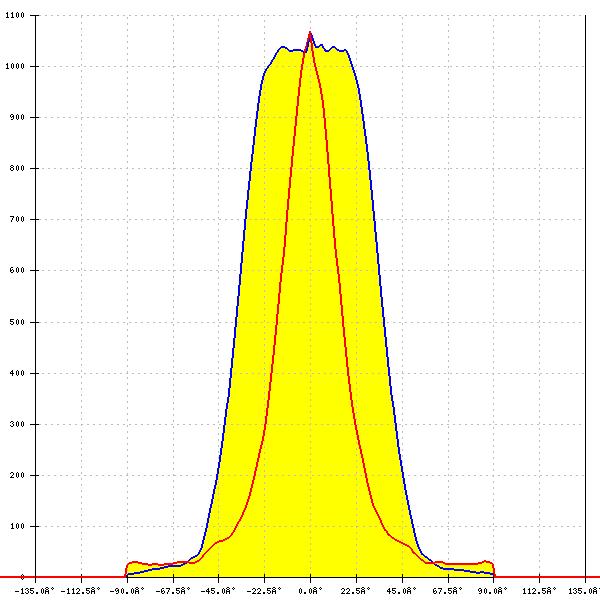

LED:

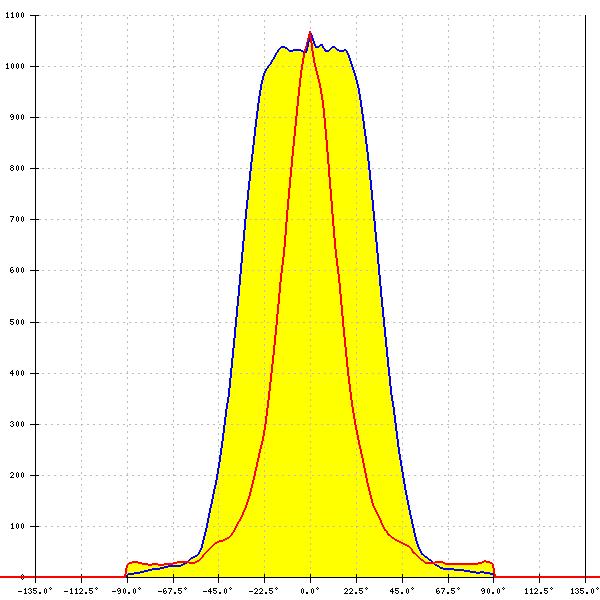

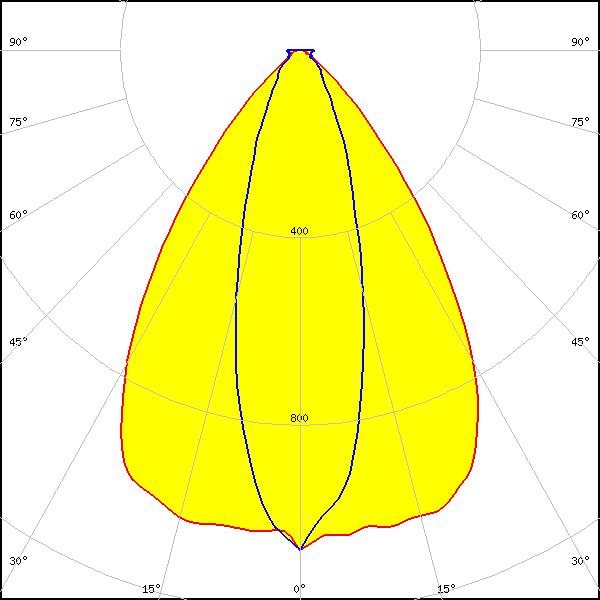

KAAX-VB-2300-840-48
FWHM:
72° + 30°
FWTM:
100° + 70°
Peak intensity:
1.077 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

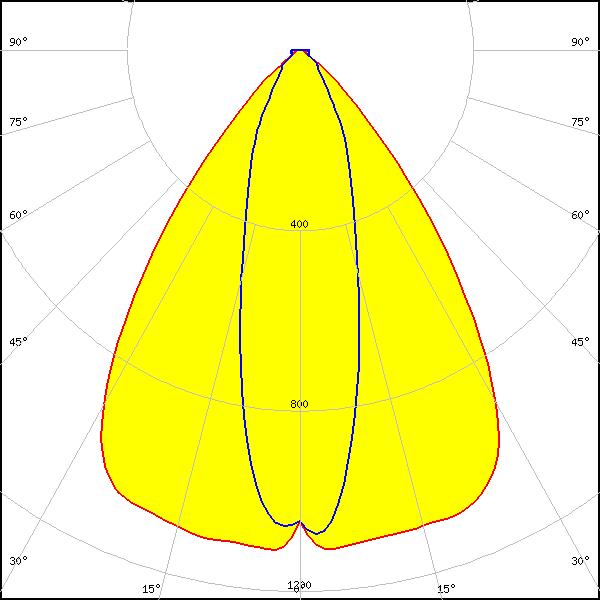

SEOUL 3030
FWHM:
74° + 30°
FWTM:
101° + 72°
Peak intensity:
1.119 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

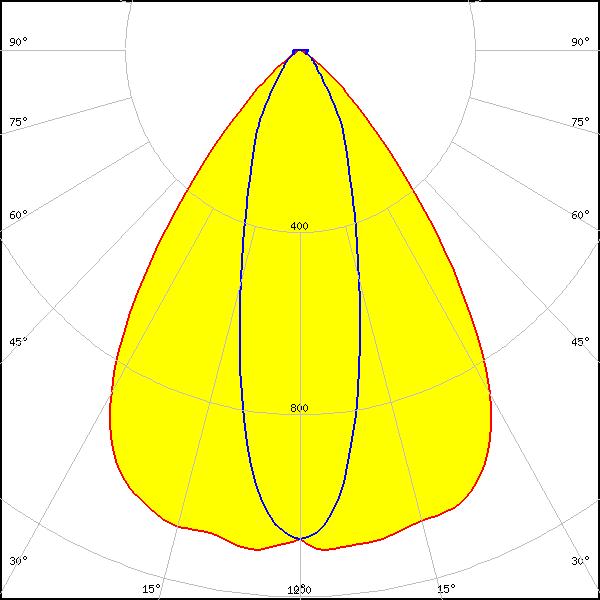

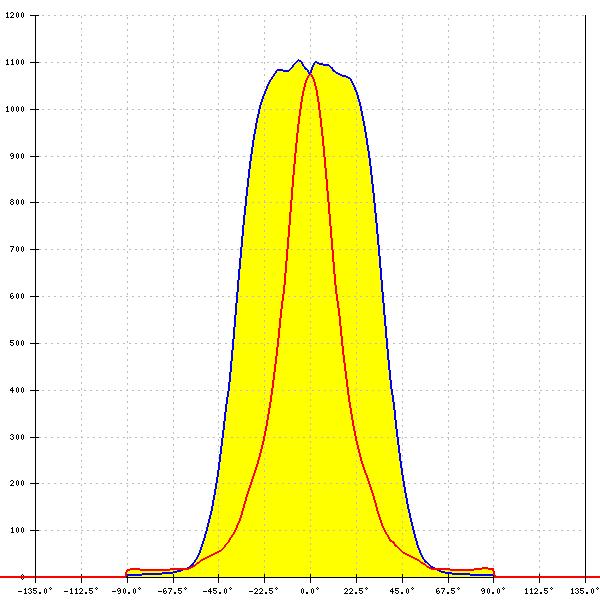

SEOUL DC 3030C
FWHM:
74° + 30°
FWTM:
100° + 72°
Peak intensity:
1.103 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3528
FWHM:
74° + 29°
FWTM:
100° + 70°
Peak intensity:
1.130 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 4x16 4000lm MP ADV2 OTD
FWHM:
72° + 30°
FWTM:
100° + 71°
Peak intensity:
1.121 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
