    CS16981_VICTORIA-IP-W-PC

    Print

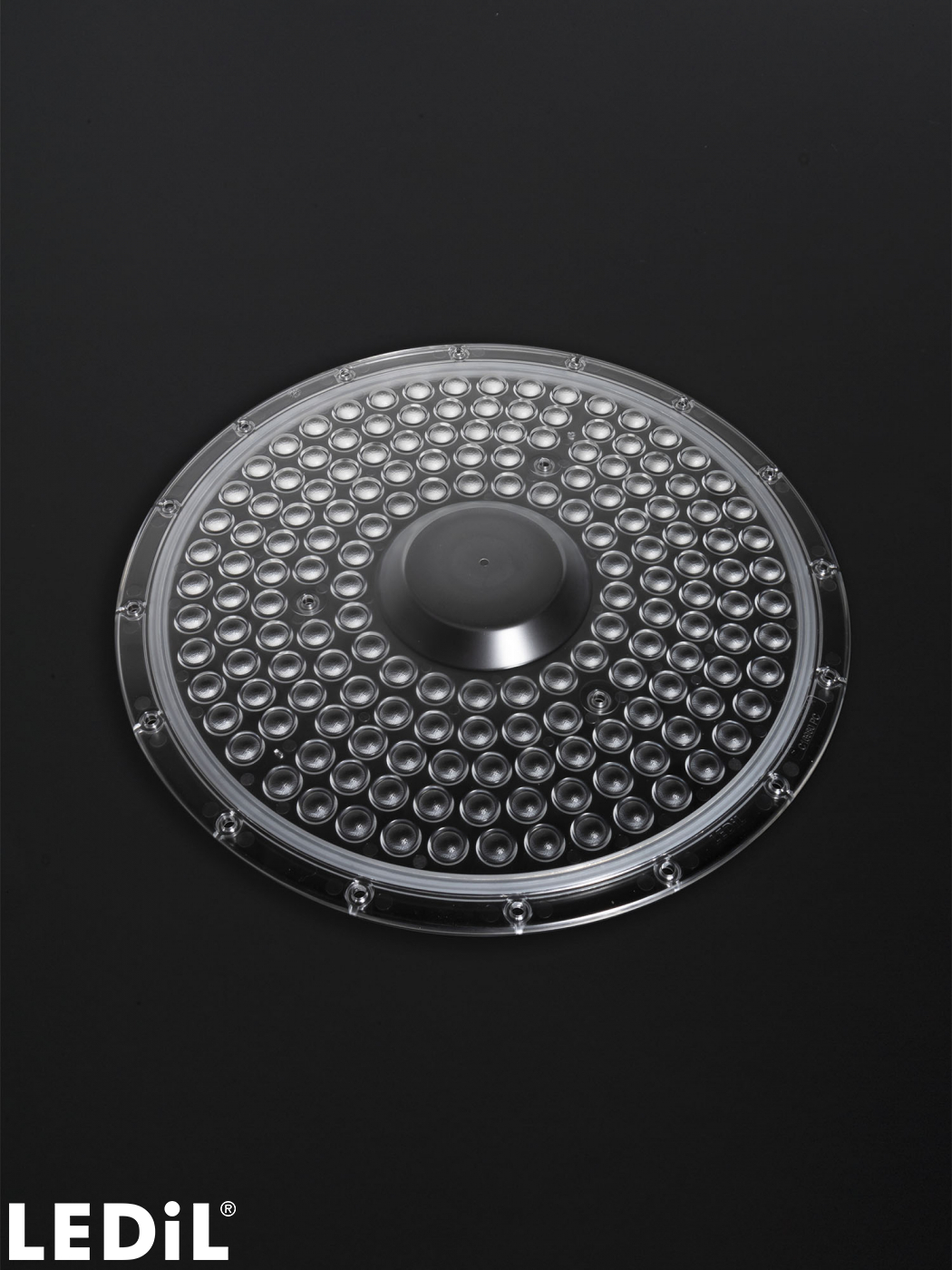

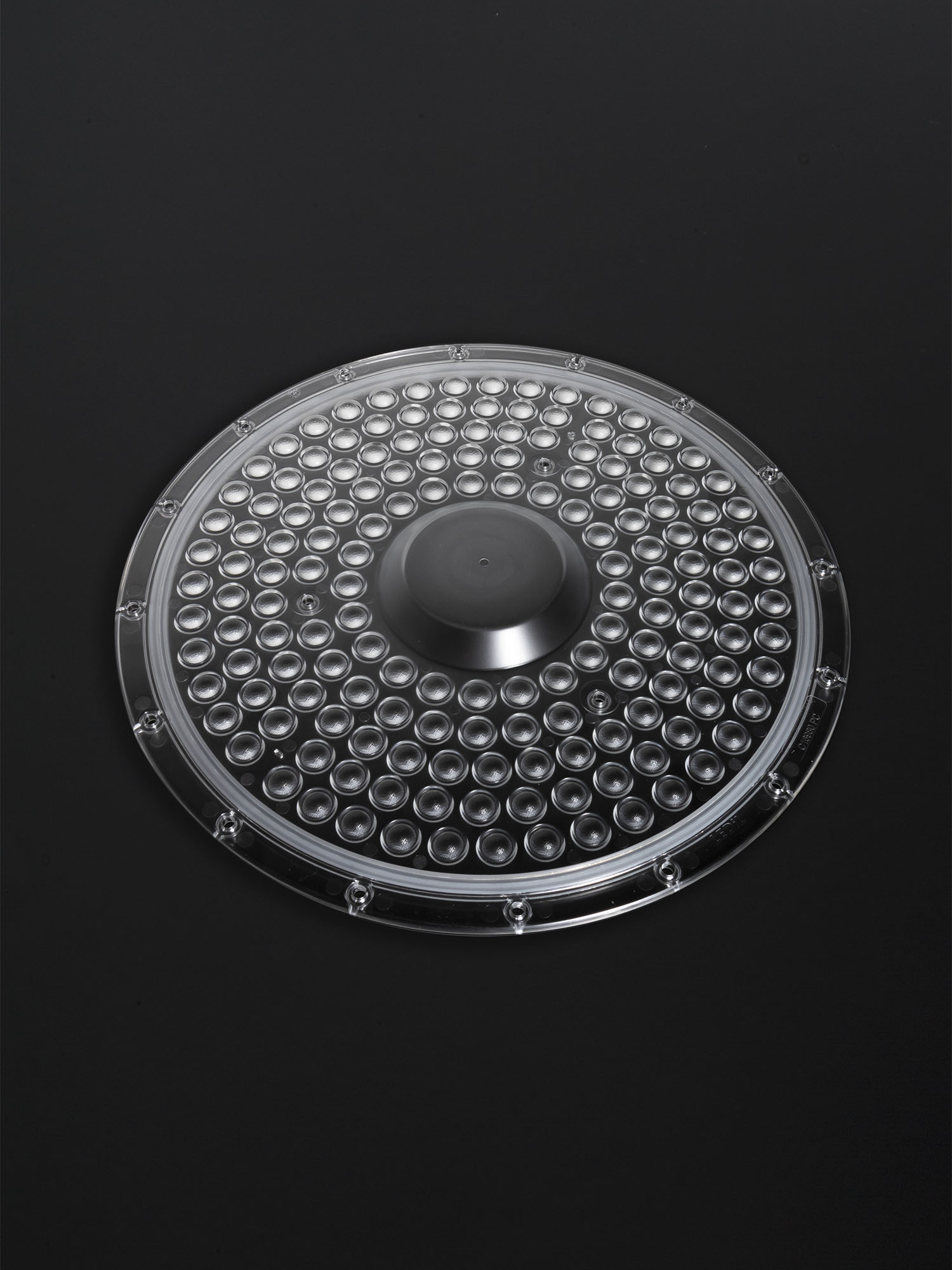

    ~60° wide beam. Ingress protected version made from PC.

    Specification
    • Dimensions:
      300 mm
    • Height:
      18.10 mm
    • Fastening:
      screw
    • Colour:
      clear
    • Ingress protection classes:
      IP65, IP66, IP67
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      34 pcs
    • Box size:
      343 x 343 x 298 mm
    • Box weight:
      10.2 kg
    • MPQ:
      34 pcs
    • MOQ:
      34 pcs
    • MOQ size:
      343 x 343 x 298 mm
    • MOQ weight:
      10.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CS16981_VICTORIA-IP-W-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR183 - Additional gasket material approved for LEDiL products

    News

    New street and high bay beams

    Application example

    Highbay retail lighting with VICTORIA-W

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Luminaire, example

    Highbay luminaire with VICTORIA

    Reference product

    High Bay E+ HB380 V

    News

    NEW PRODUCTS - 2018-09-13

    News

    VICTORIA - LED optic for industrial LED lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Optical results

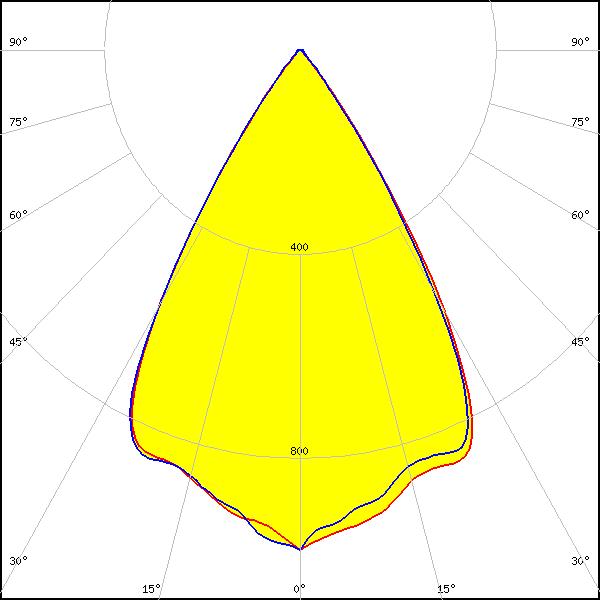

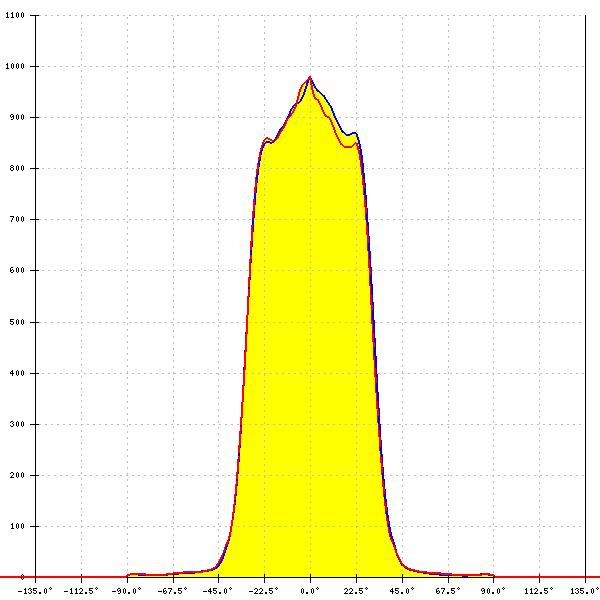

    LED: J Series 2835
    FWHM: 62°
    FWTM: 78°
    Peak intensity: 0.988 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

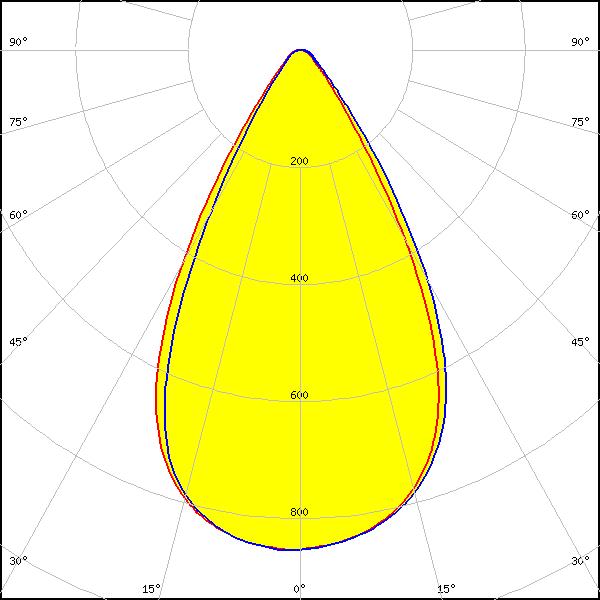

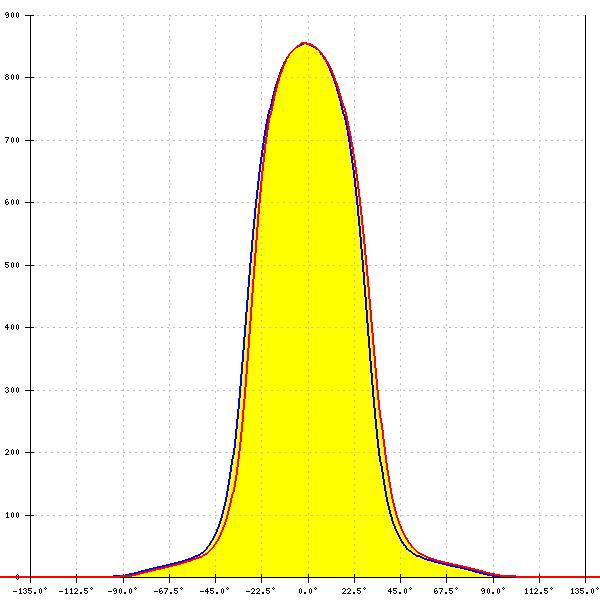

    LED: Victoria-PCB
    FWHM: 59°
    FWTM: 85°
    Peak intensity: 0.855 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 2
    Light colour/type: White

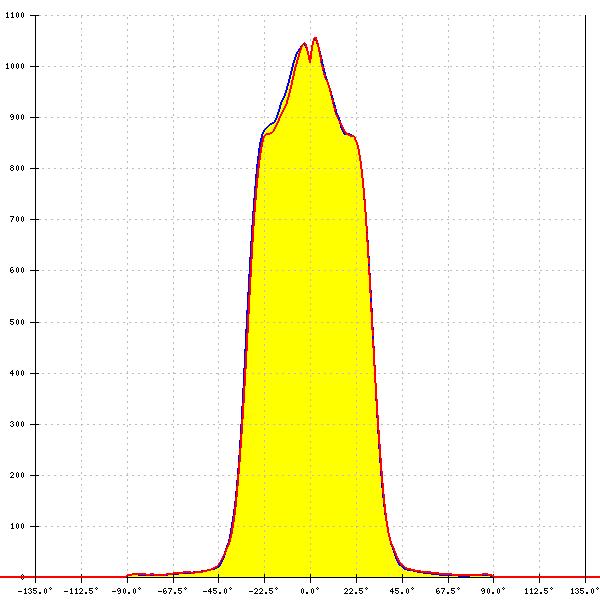

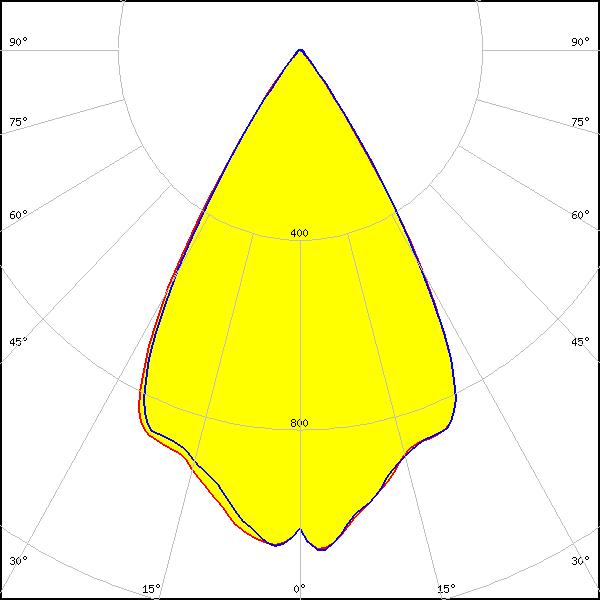

    LED: LUXEON 2835 Line
    FWHM: 61°
    FWTM: 76°
    Peak intensity: 1.077 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

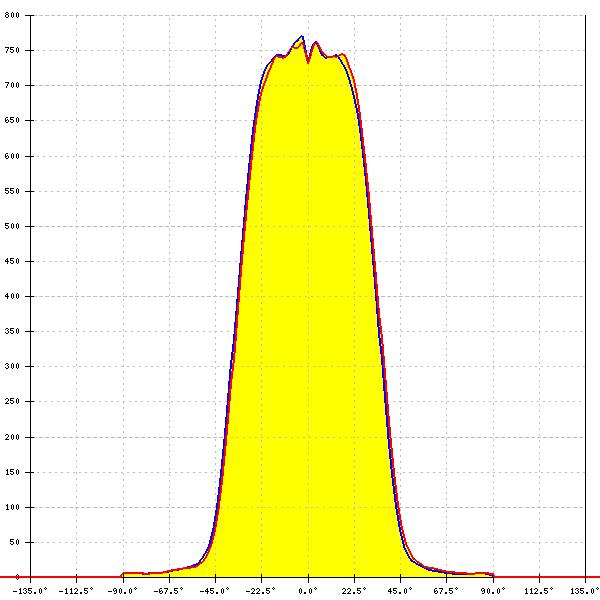

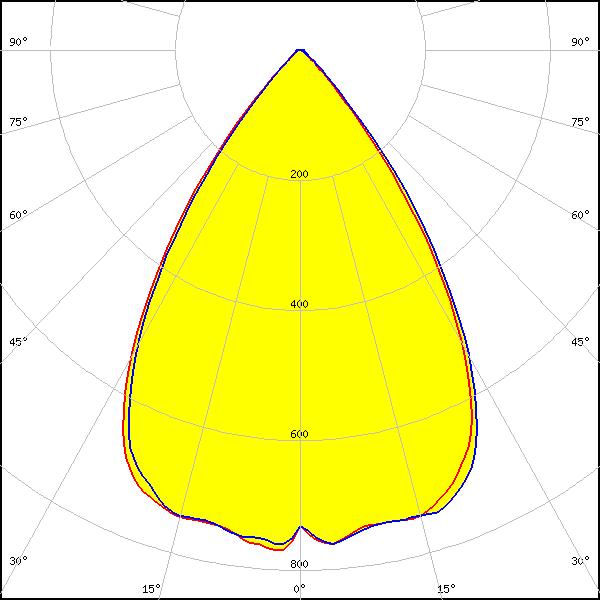

    LED: LUXEON 2835 Line
    FWHM: 69°
    FWTM: 90°
    Peak intensity: 0.777 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: Duris E 2835
    FWHM: 61°
    FWTM: 77°
    Peak intensity: 1.051 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

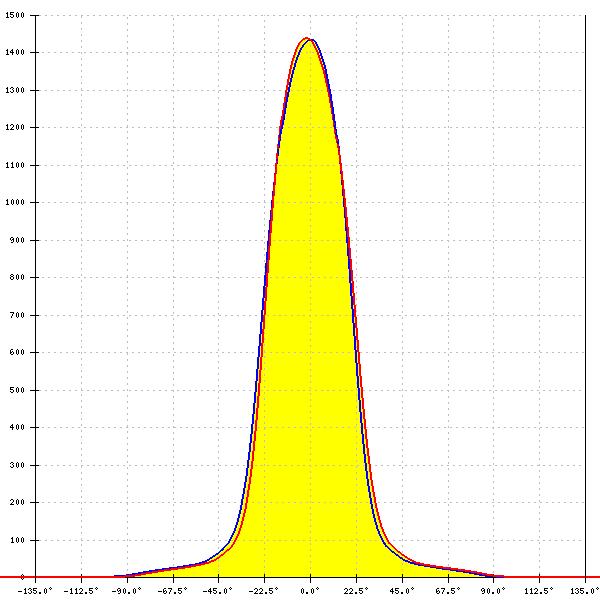

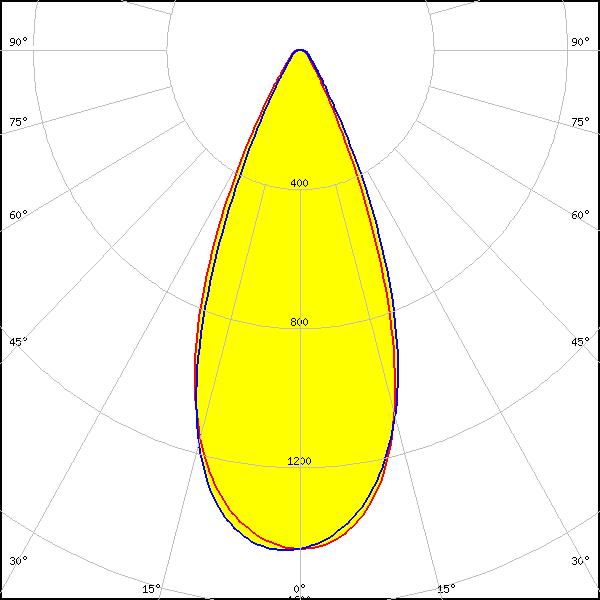

    LED: HiLOM HCF0 (LH181B)
    FWHM: 44°
    FWTM: 68°
    Peak intensity: 1.400 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

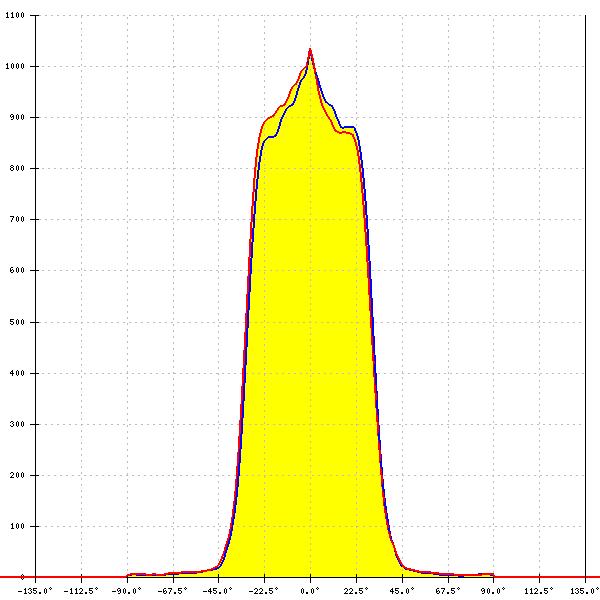

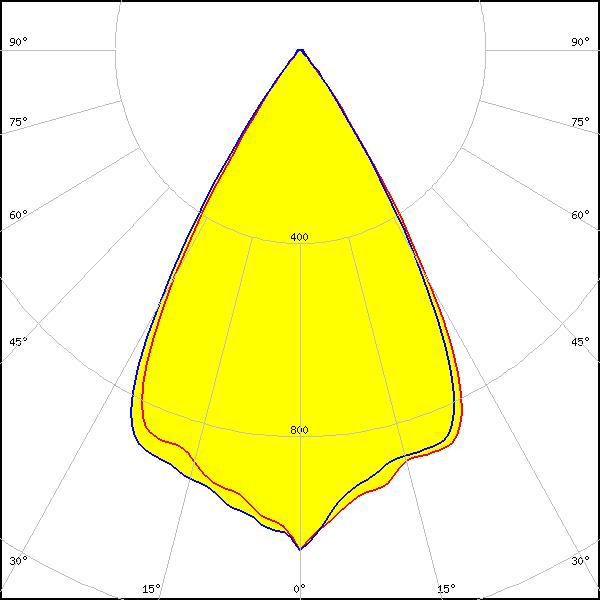

    LED: LM28xB Series
    FWHM: 61°
    FWTM: 77°
    Peak intensity: 1.035 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

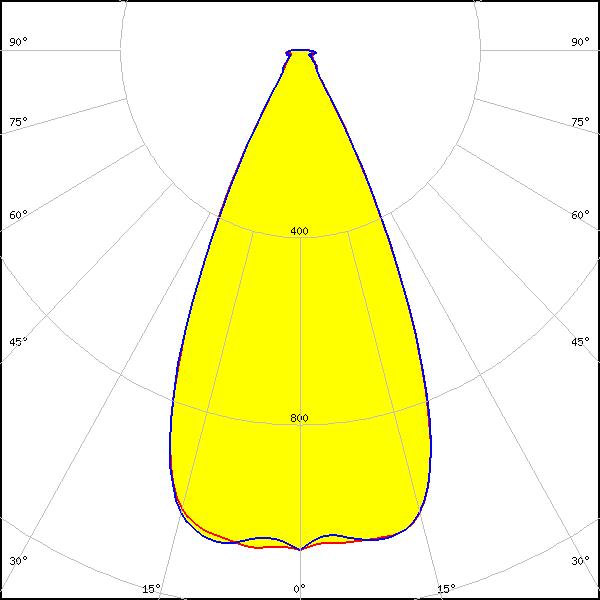

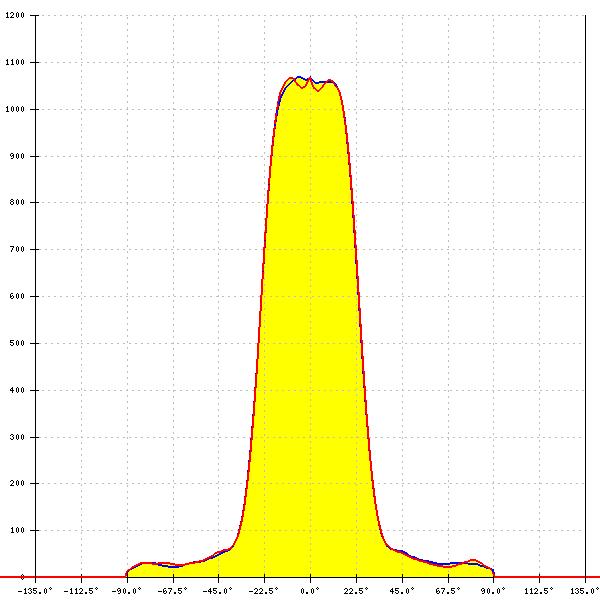

    LED: LM302D
    FWHM: 50°
    FWTM: 68°
    Peak intensity: 1.069 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 2
    Light colour/type: White

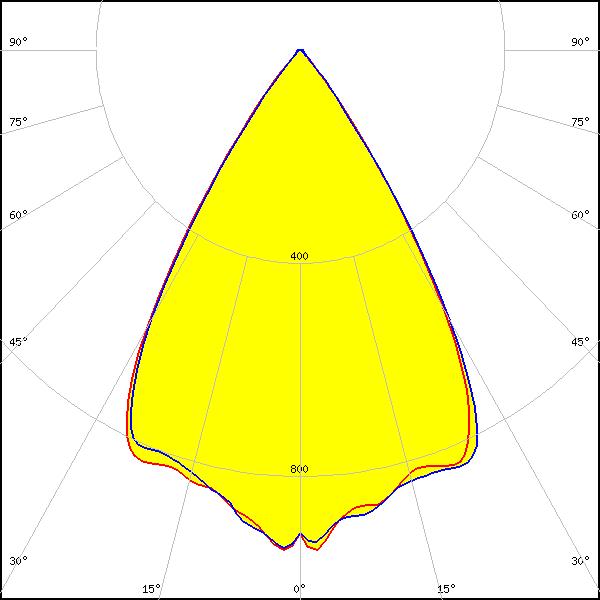

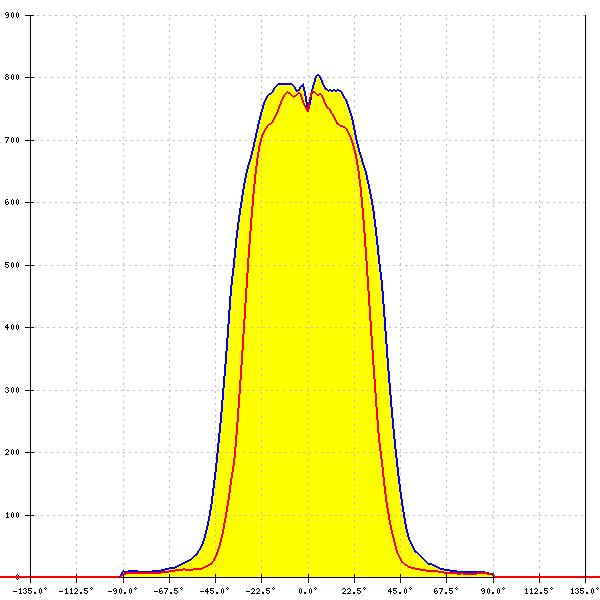

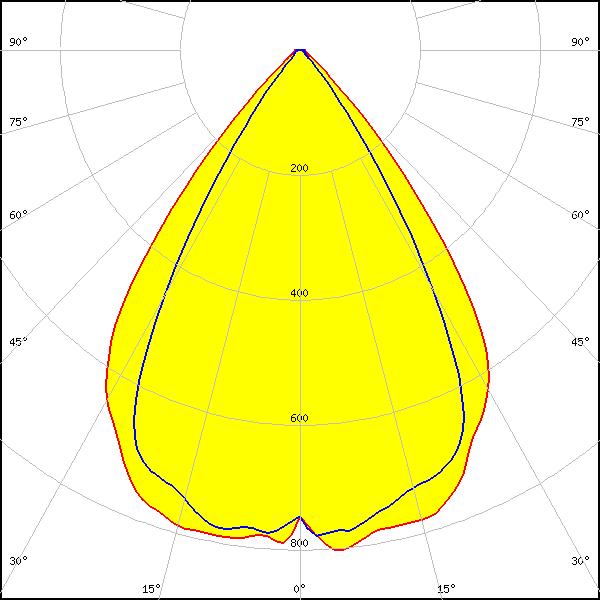

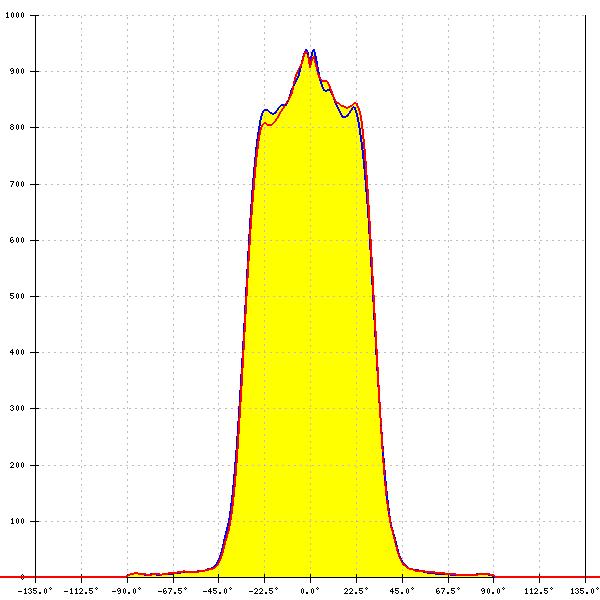

    LED: SEOUL DC 3528
    FWHM: 70°
    FWTM: 90°
    Peak intensity: 0.804 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 2
    Light colour/type: White
    LED: SEOUL DC 3528
    FWHM: 64°
    FWTM: 80°
    Peak intensity: 0.956 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
