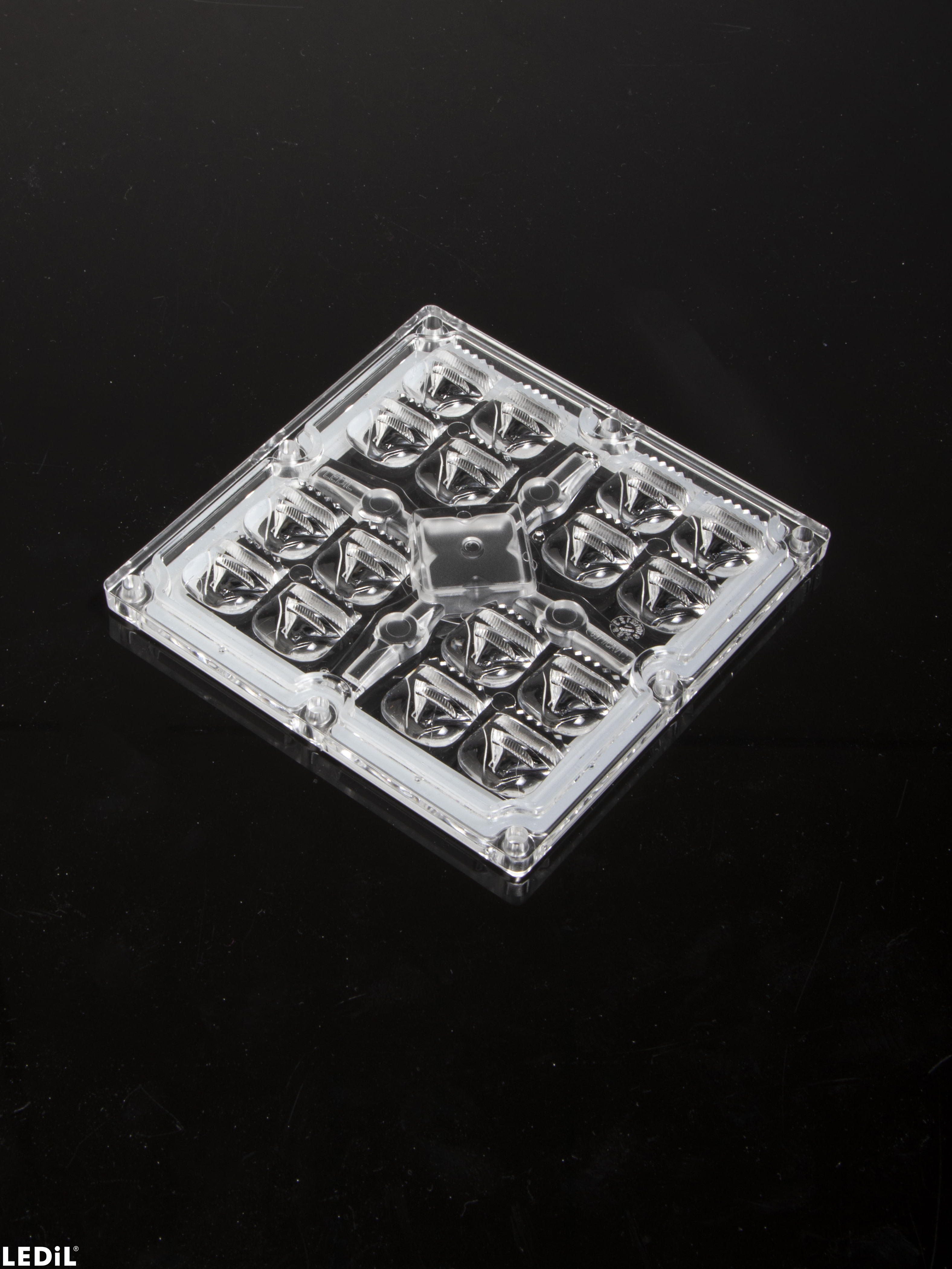

CS16974_STRADA-IP-16MX-T3-M

Print

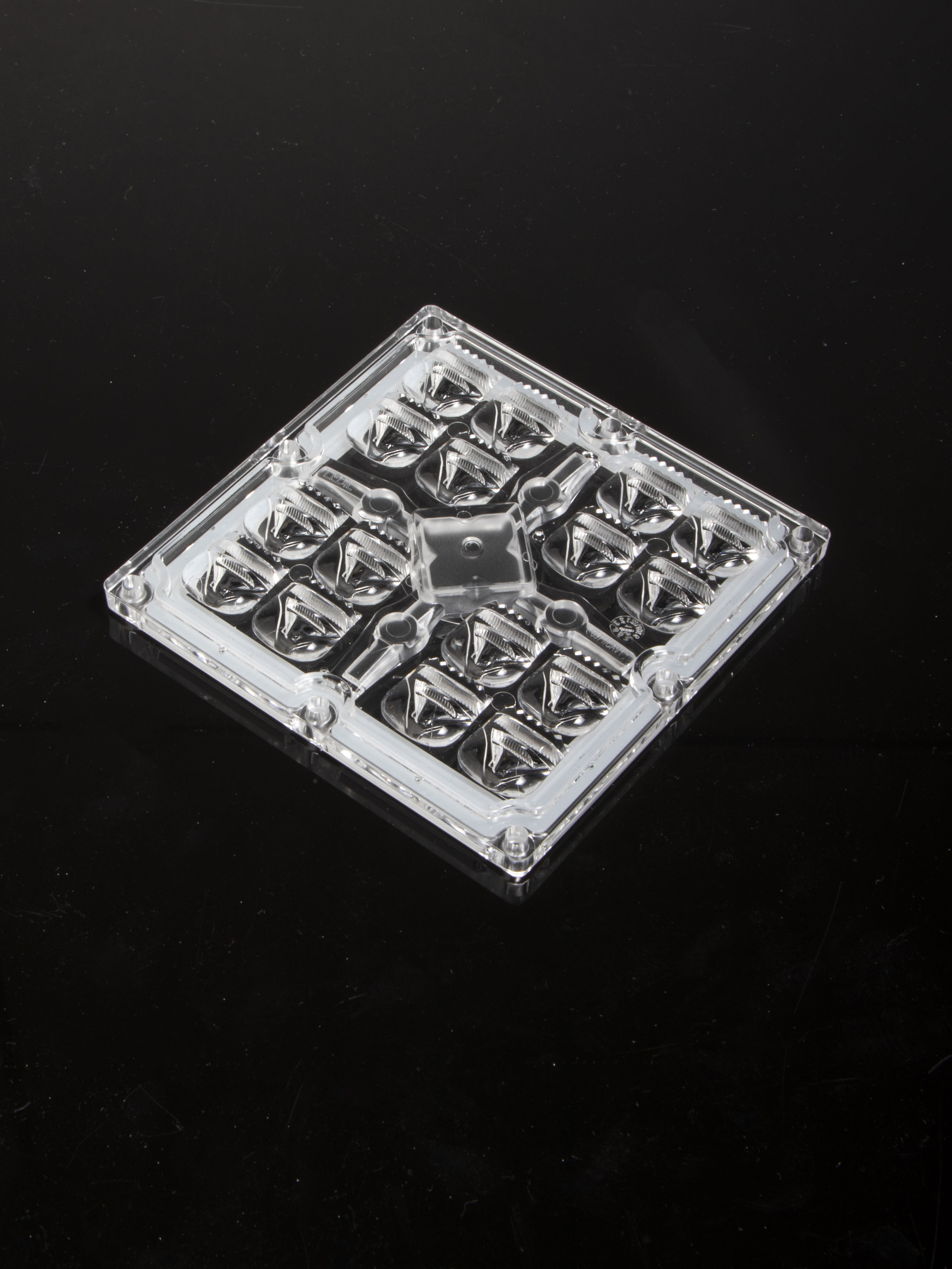

IESNA Type III (medium) beam with excellent backlight control, illuminance uniformity and cutoff.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    8.62 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP66, IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    156 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.3 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ size:
    480 x 280 x 110 mm
  • MOQ weight:
    2.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CS16974_STRADA-IP-16MX-T3-M
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

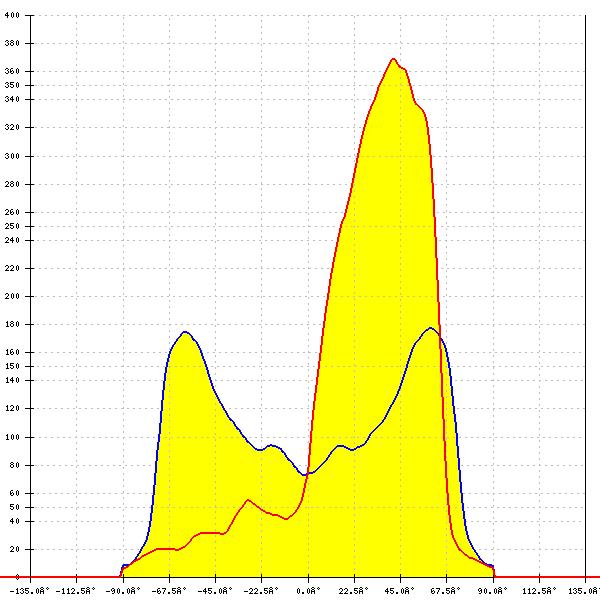

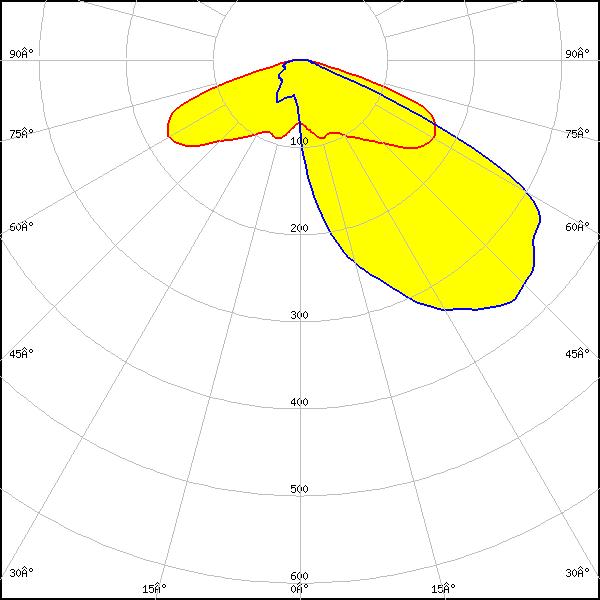

LED: LUXEON HL2Z
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

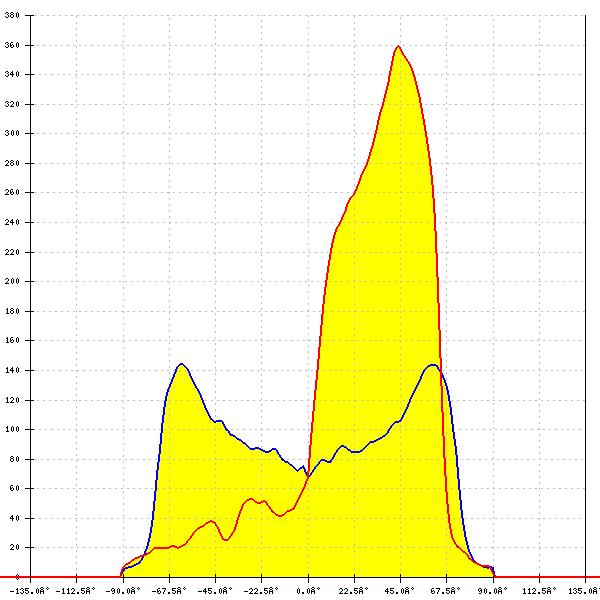

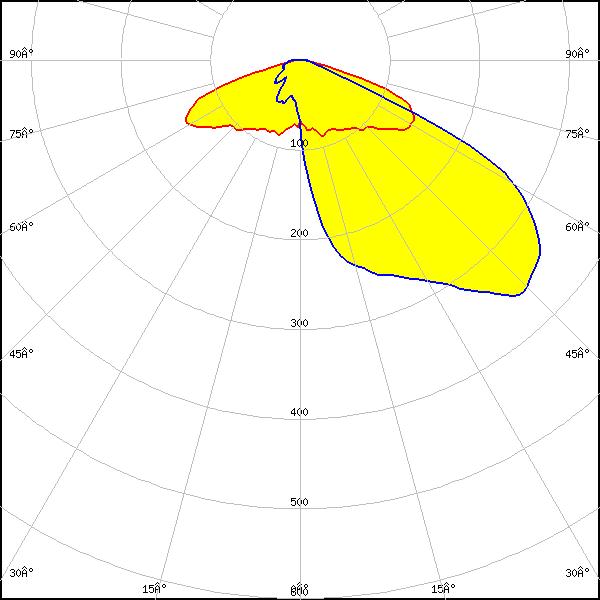

LED: NCSxE17A
FWHM: asymmetric
Peak intensity: 0.629 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

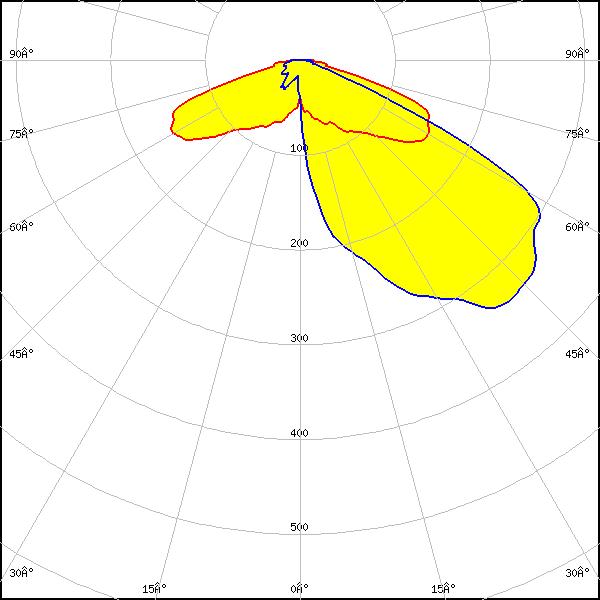

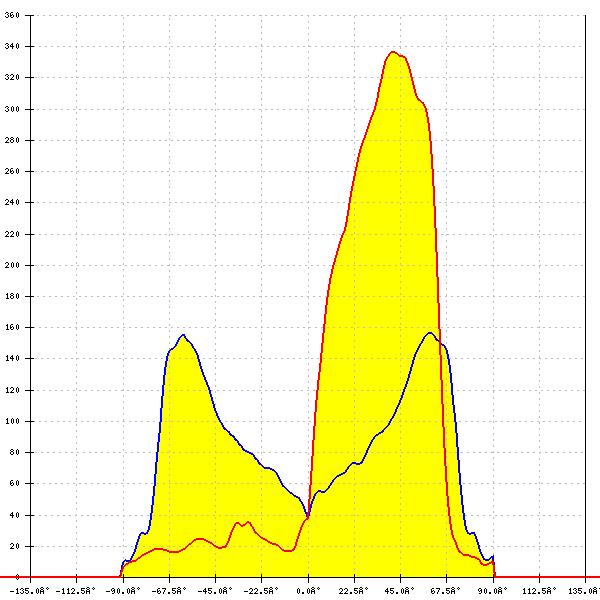

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.649 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.571 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

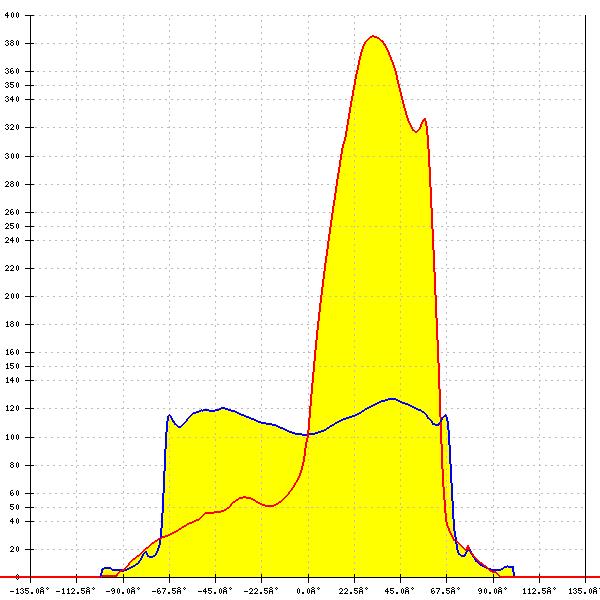

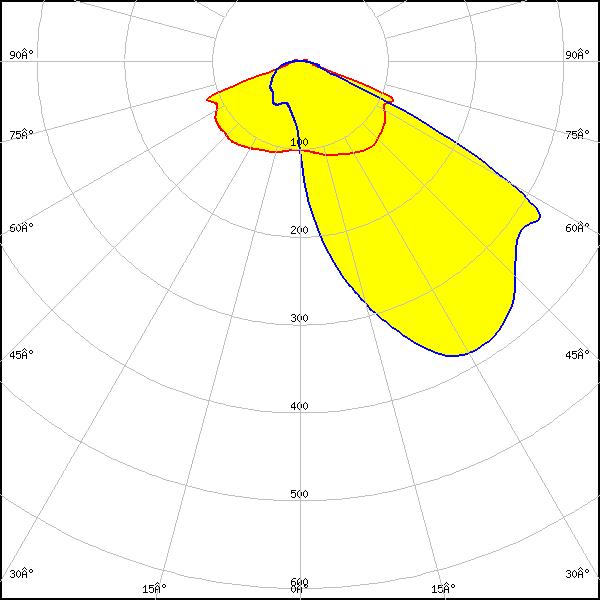

LED: HiLOM SC16 S1 (LH181B)
FWHM: asymmetric
Peak intensity: 0.757 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

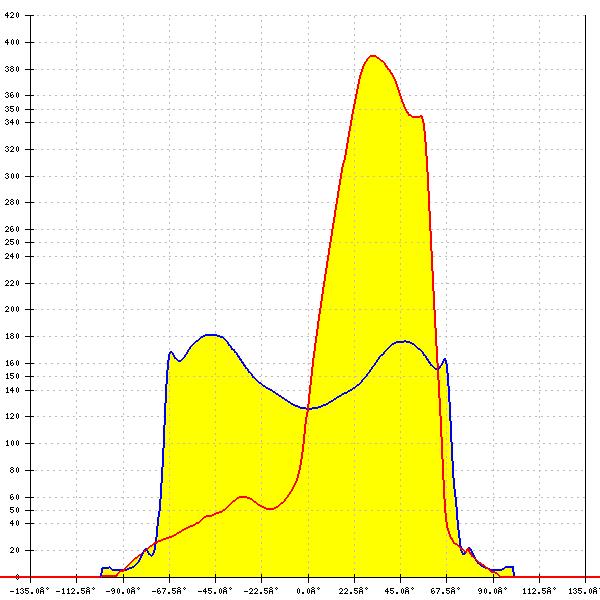

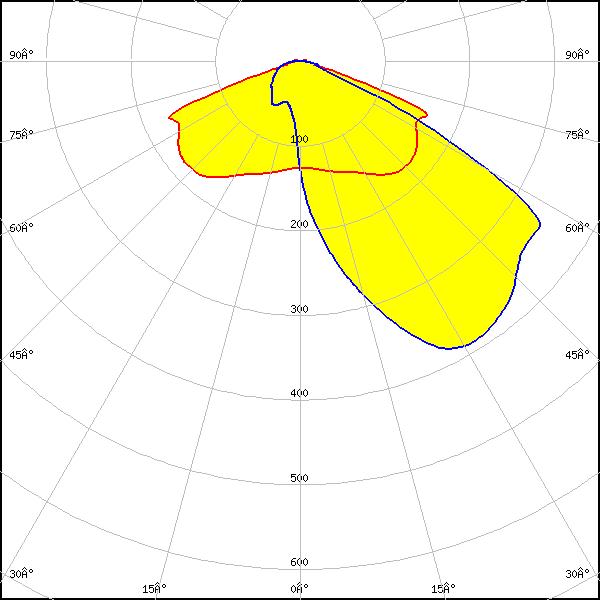

LED: HiLOM SC16 S2 (LH231B)
FWHM: asymmetric
Peak intensity: 0.613 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

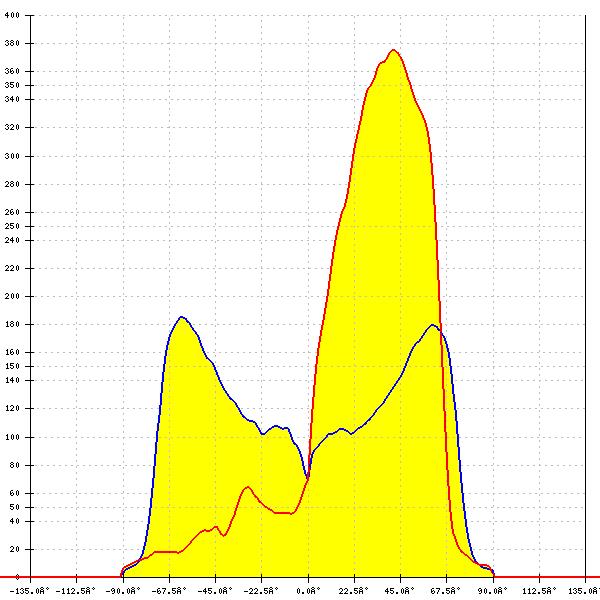

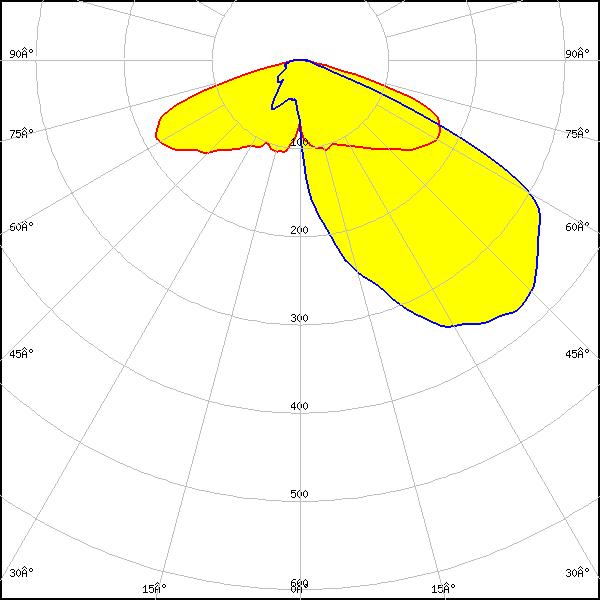

LED: LH181B
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

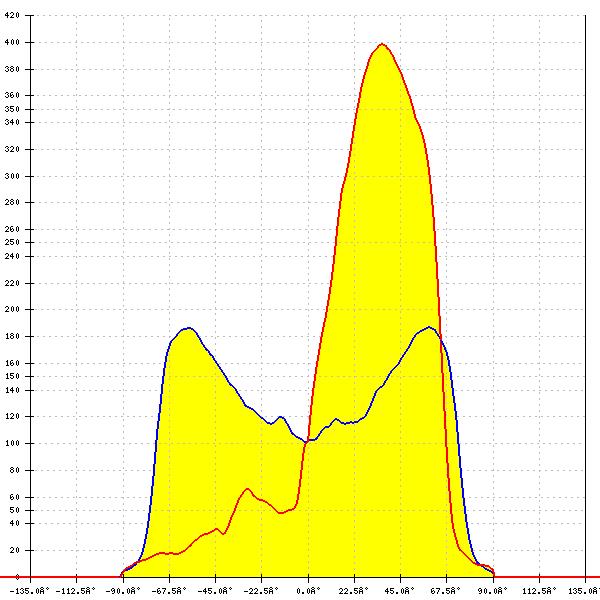

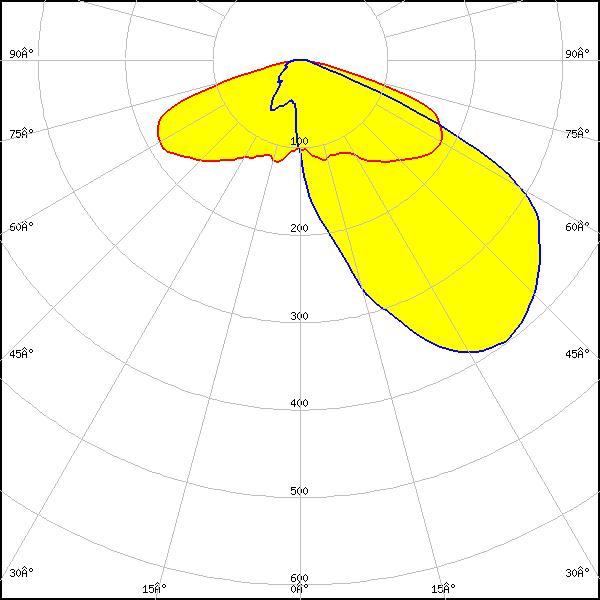

LED: LH231B
FWHM: asymmetric
Peak intensity: 0.475 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

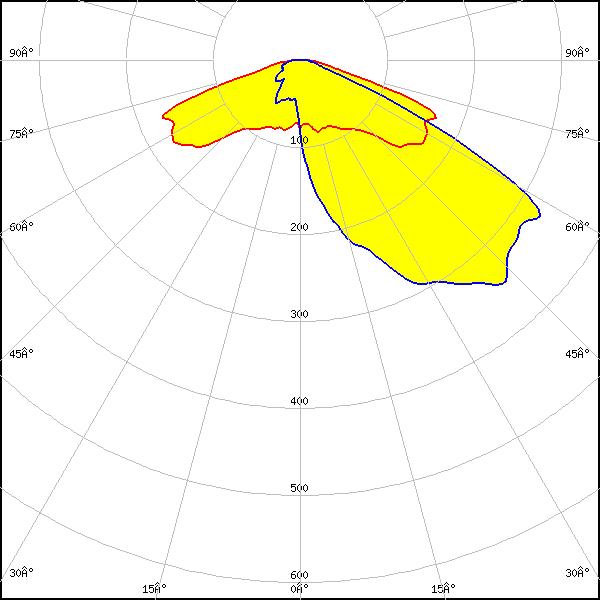

LED: Z8Y19
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

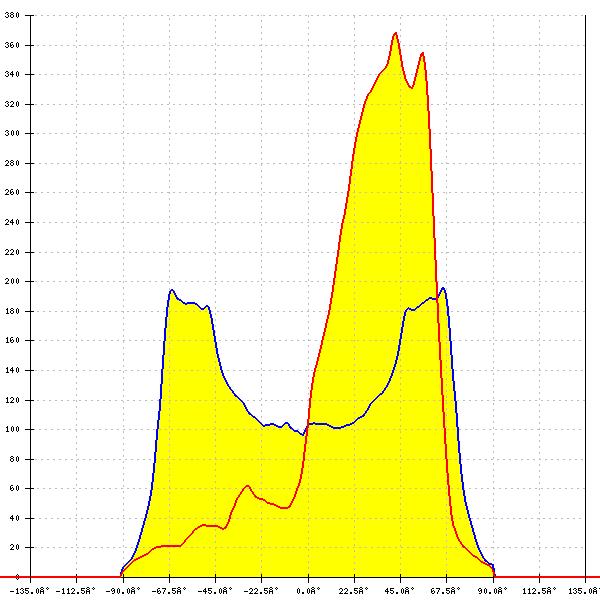

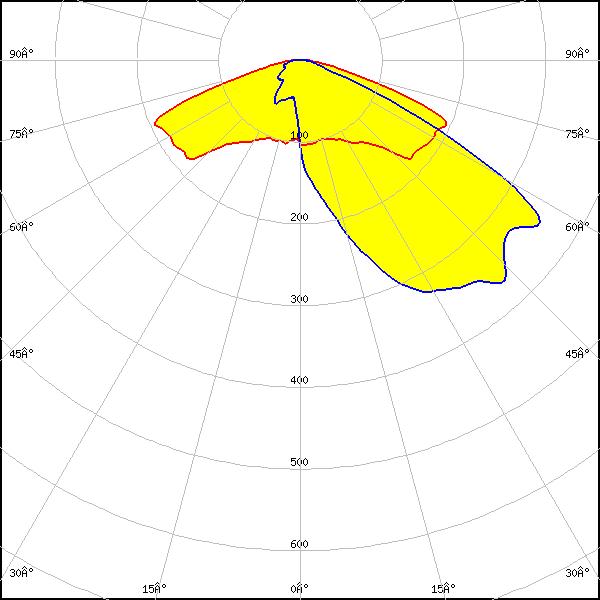

LED: Z8Y22
FWHM: asymmetric
Peak intensity: 0.589 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
