Back to product card

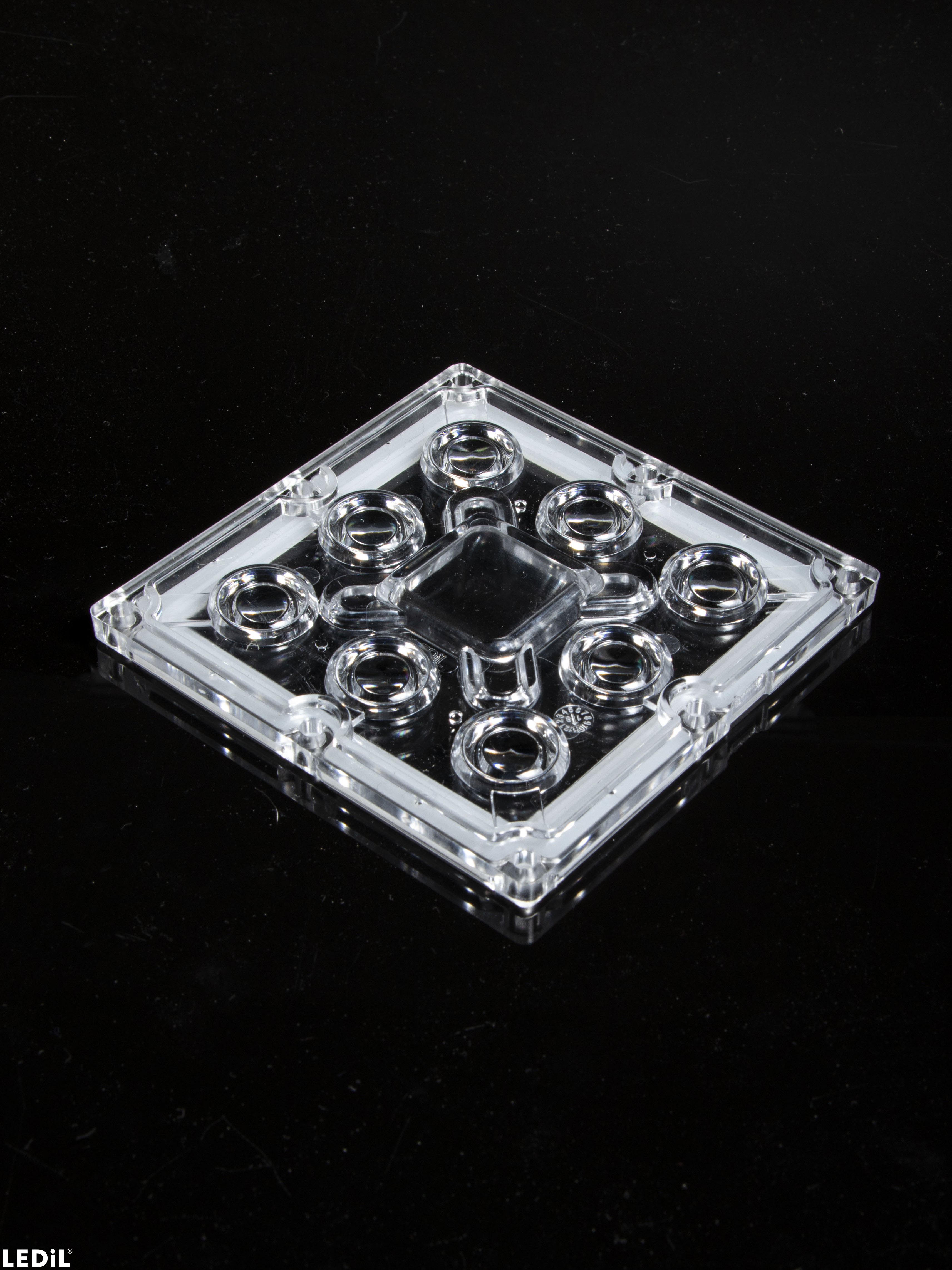

CS16781_HB-IP-8MX-WWW-PC

~90° wide beam

Specification

Dimensions:

90 x 90 mm
Height:

8.72 mm
Colour:

clear
Ingress protection classes:

IP66, IP67
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Materials

HB-IP-8MX-WWW-PC, Multi-lens, PC
STRADA-IP-8MX-SEAL, Seal, Silicone
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

156 pcs
Box size:

480 x 280 x 300 mm
Box weight:

6.4 kg
MPQ:

52 pcs
MOQ:

52 pcs
MOQ size:

480 x 280 x 110 mm
MOQ weight:

2.3 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

Request a 3D mechanical model: CS16781_HB-IP-8MX-WWW-PC

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting>
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CS16781_HB-IP-8MX-WWW-PC

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

PCN

Product change notification NR183 - Additional gasket material approved for LEDiL products

News

New Products - 2019-03-21

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Indoor Architectural Lighting

Application area

Industrial Lighting

Optical results

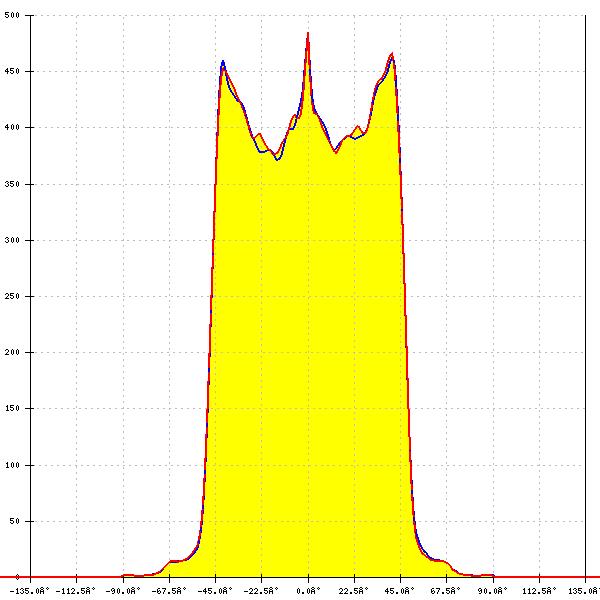

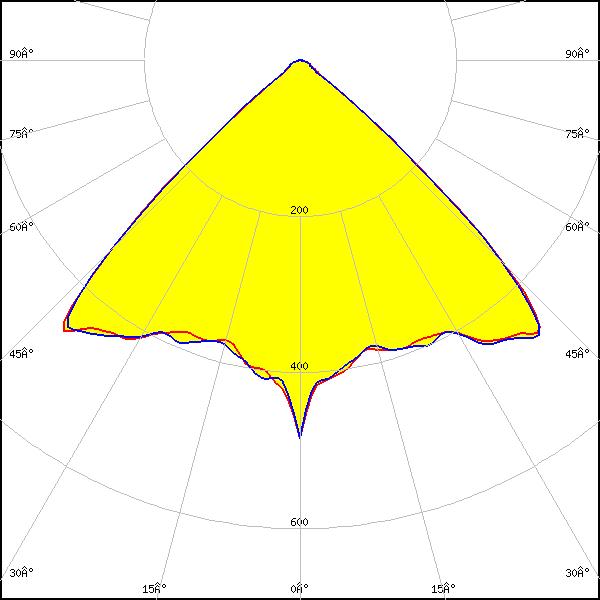

LED: XM-L RGBW (XMLDCL HI)

FWHM: 95°

FWTM: 104°

Peak intensity: 0.485 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: RGBW

Datasheet

Light distribution files

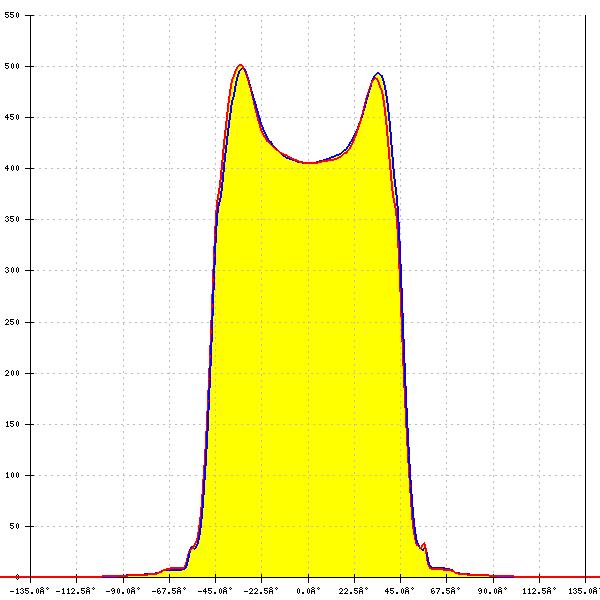

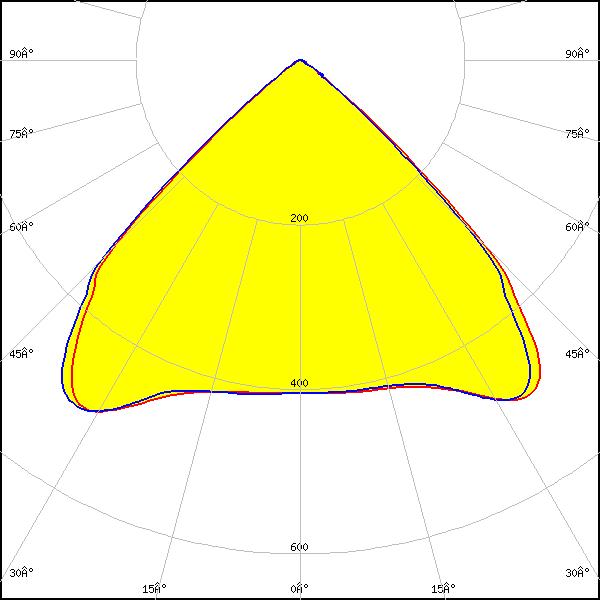

LED: LUXEON 5050 Round LES

FWHM: 92°

FWTM: 103°

Peak intensity: 0.515 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

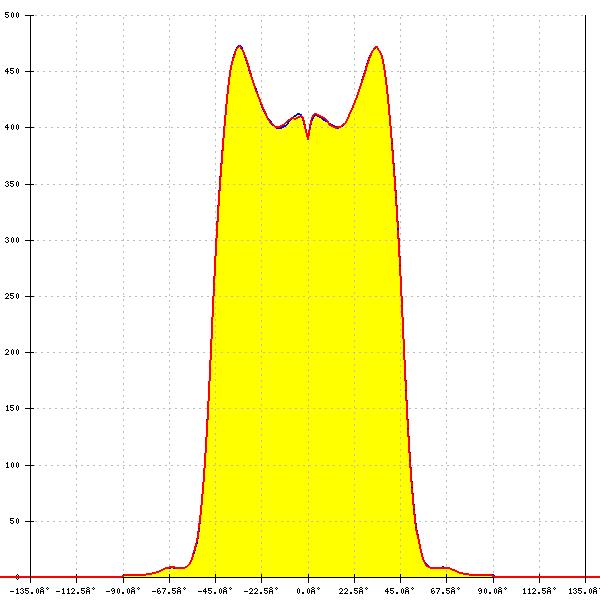

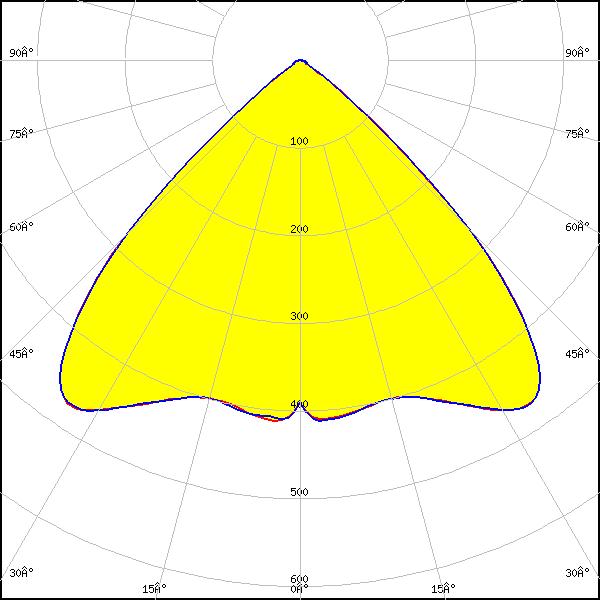

LED: LUXEON 5050 Square LES

FWHM: 92°

FWTM: 106°

Peak intensity: 0.483 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

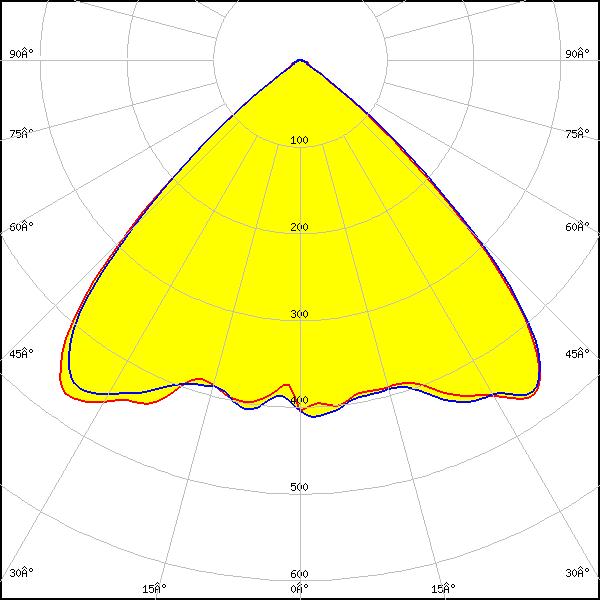

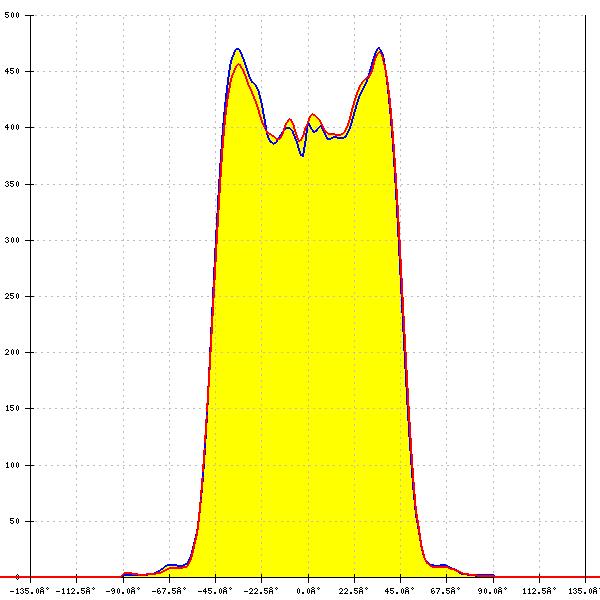

LED: NFMW48xA

FWHM: 93°

FWTM: 107°

Peak intensity: 0.480 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
