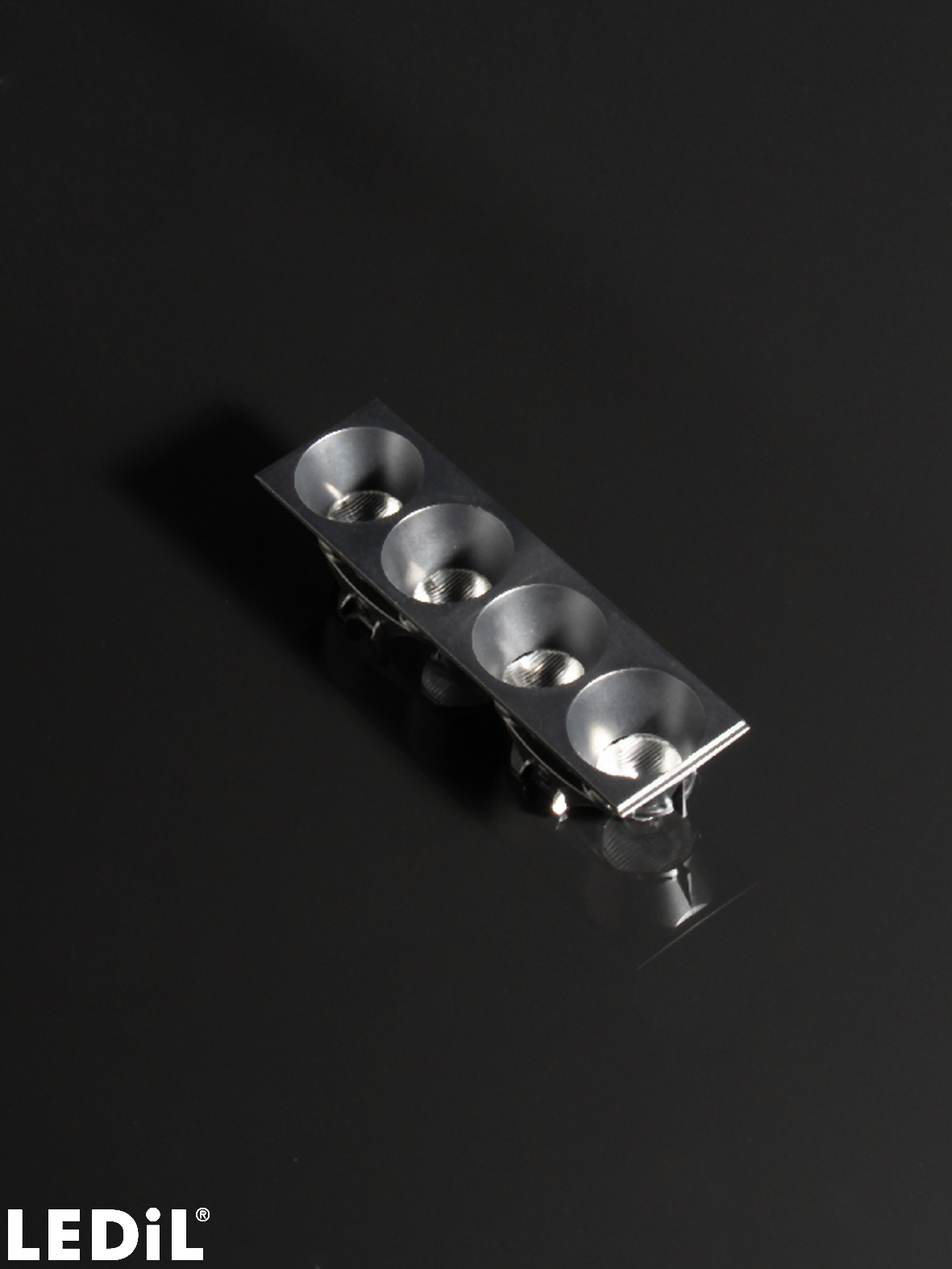

    CP19689_DARCY-4X1-O

    Print

    ~45 + 15° ovat beam

    Specification
    • Dimensions:
      26 x  94 mm
    • Height:
      21.00 mm
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      336 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.1 kg
    • MPQ:
      28 pcs
    • MOQ:
      336 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      5.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CP19689_DARCY-4X1-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    News

    New beams and products - September 2024

    Catalogue

    LEDiL Latest products catalogue

    News

    DARCY – a gem in architectural lighting

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips compatible with LEILA-Y-SC2 lenses

    DARCY-CLIP-A

    Installation clip for fastening DARCY lenses with screws.

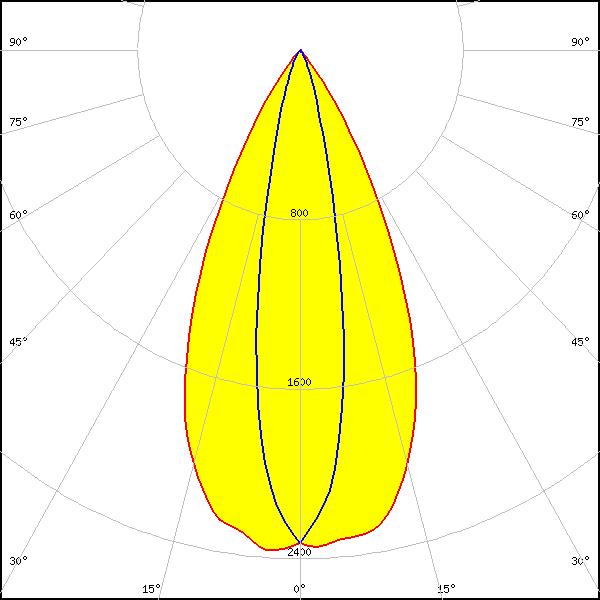

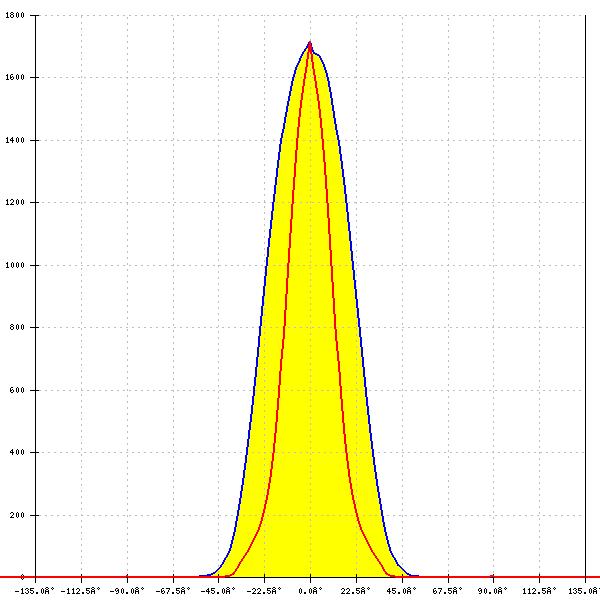

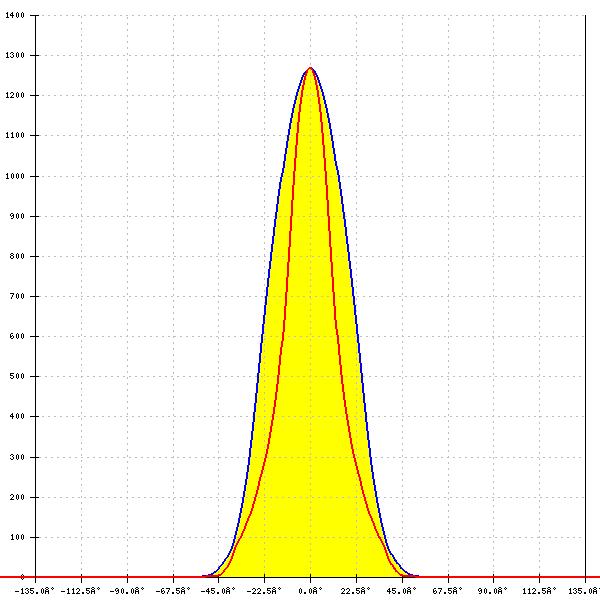

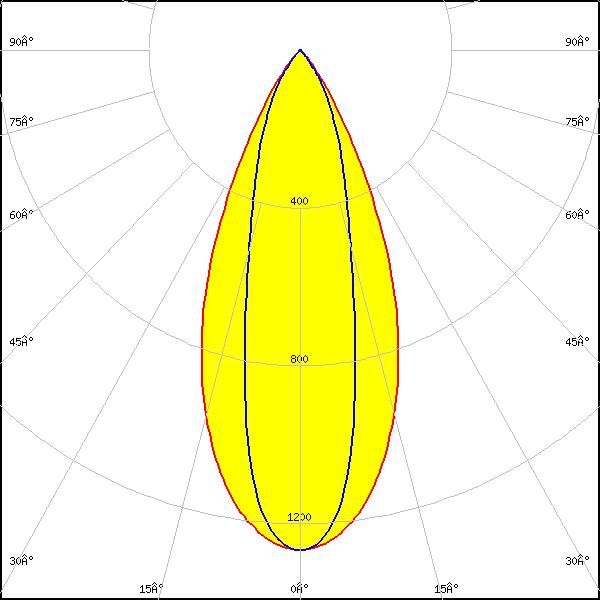

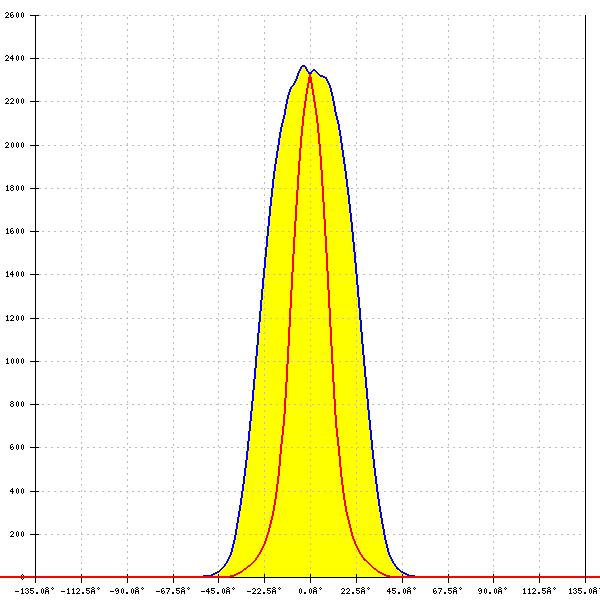

    Optical results

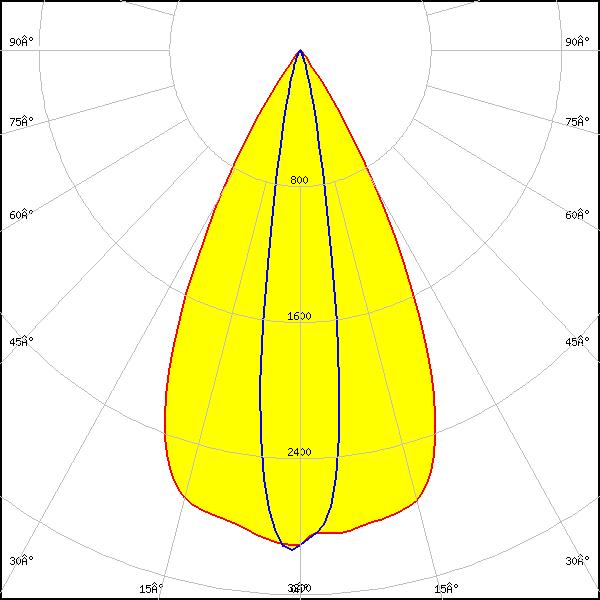

    LED: XP-E2
    FWHM: 54° + 16°
    FWTM: 70° + 30°

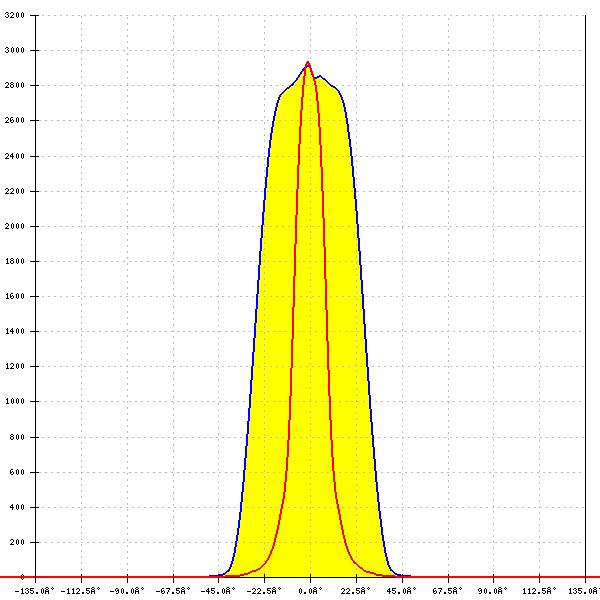

    Peak intensity: 2.940 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

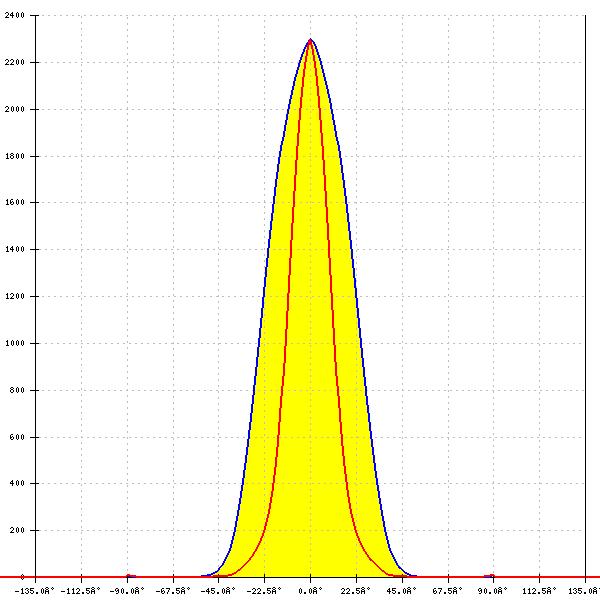

    LED: XP-G3
    FWHM: 46° + 22°
    FWTM: 72° + 42°

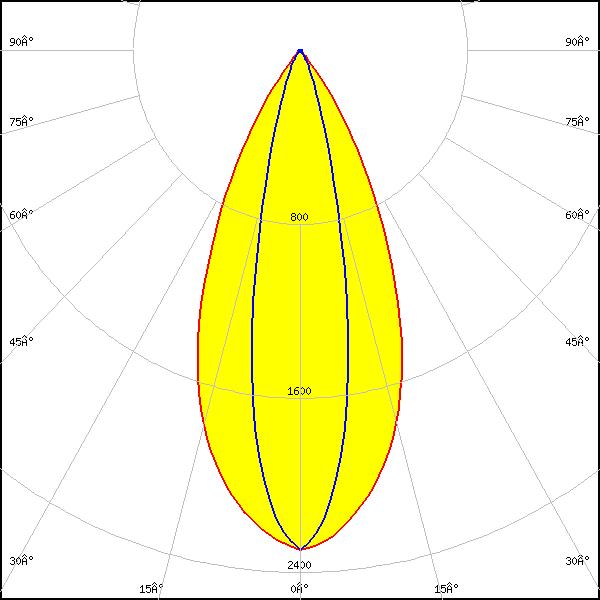

    Peak intensity: 2.299 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

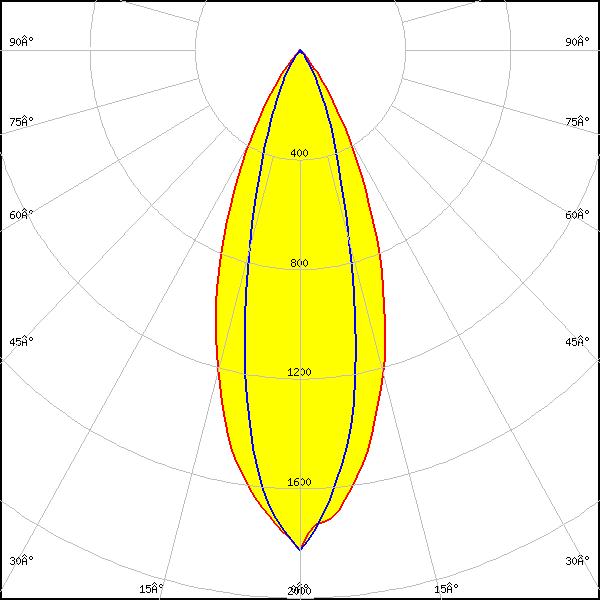

    LED: LUXEON 5050 Square LES
    FWHM: 40° + 26°
    FWTM: 70° + 54°

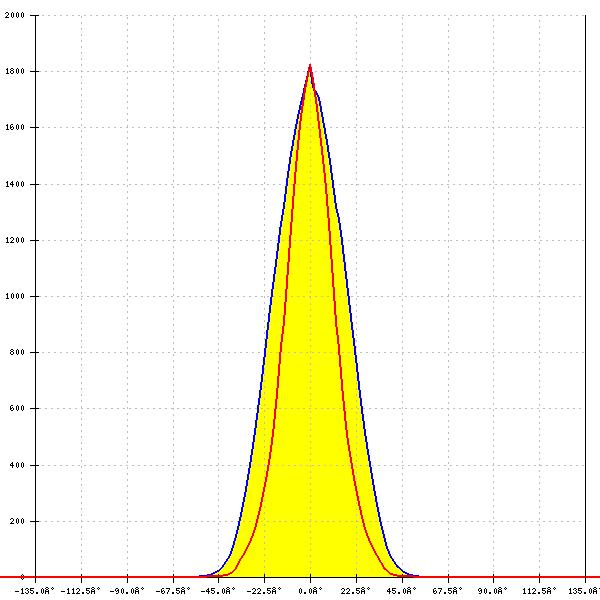

    Peak intensity: 1.826 cd/lm
    Efficiency: 67 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON HL2X
    FWHM: 46° + 22°
    FWTM: 72° + 40°

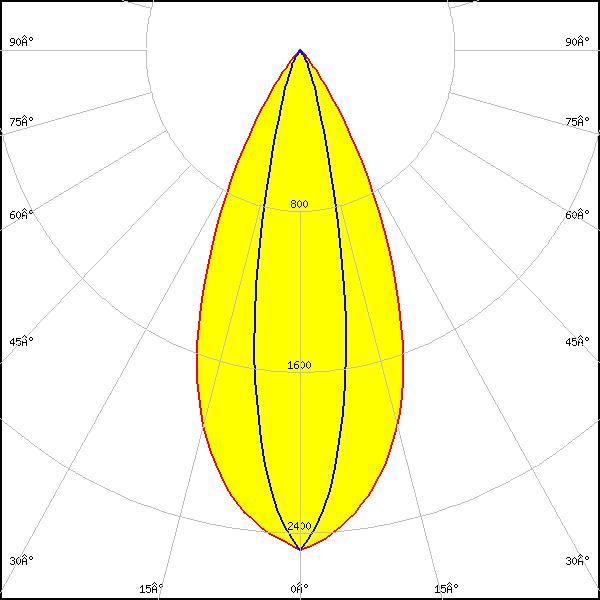

    Peak intensity: 2.486 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 45° + 26°
    FWTM: 72° + 62°
    Peak intensity: 1.278 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White

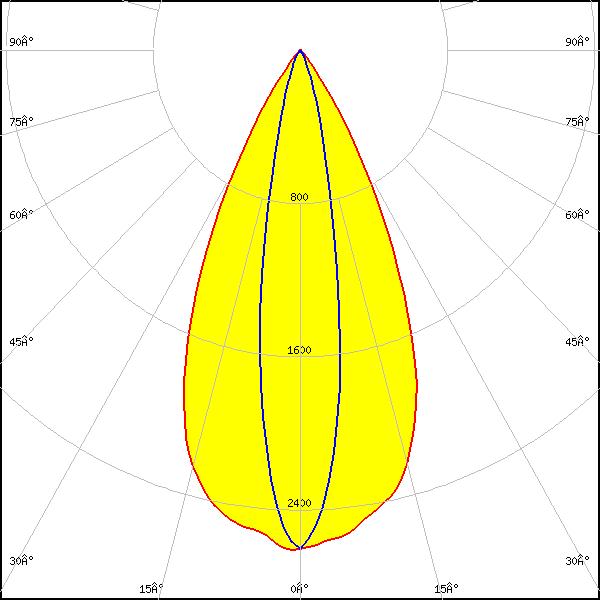

    LED: OSLON Square EC
    FWHM: 50° + 18°
    FWTM: 72° + 38°

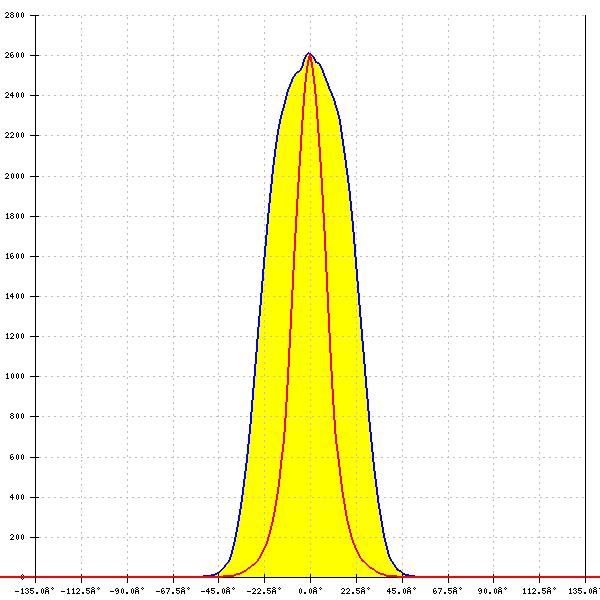

    Peak intensity: 2.614 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White

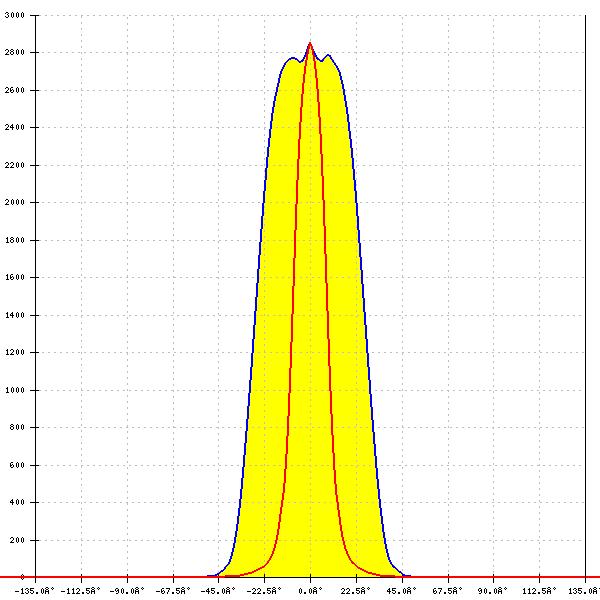

    LED: OSLON SSL 150
    FWHM: 54° + 18°
    FWTM: 72° + 30°
    Peak intensity: 2.903 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351B
    FWHM: 48° + 20°
    FWTM: 72° + 40°

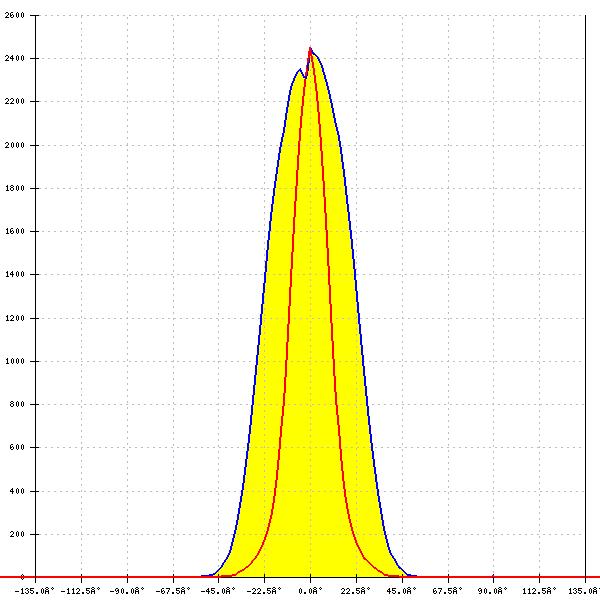

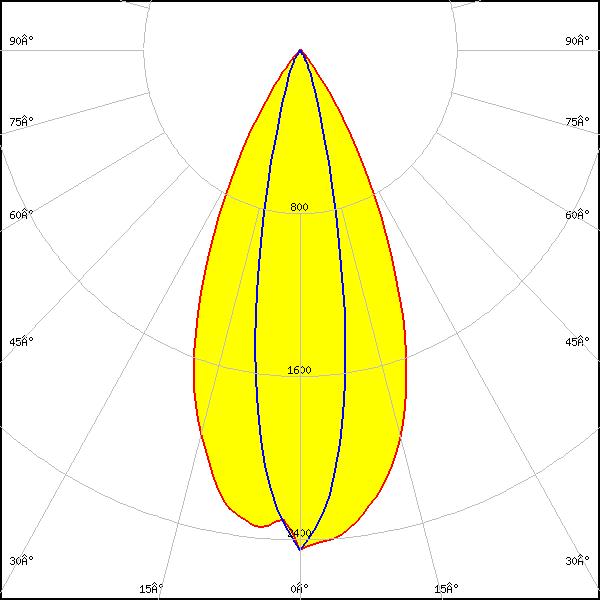

    Peak intensity: 2.452 cd/lm
