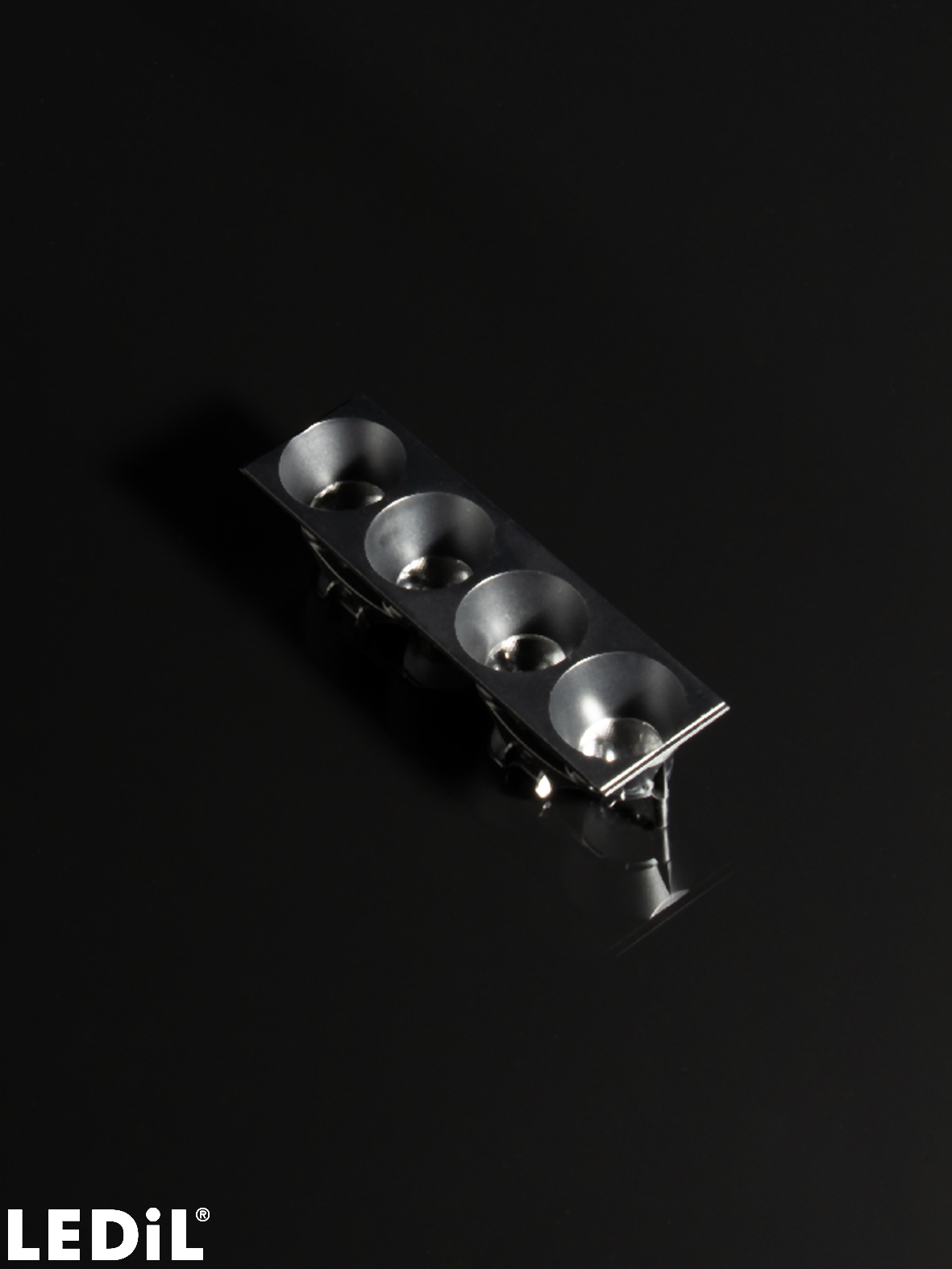

    CP19685_DARCY-4X1-SS

    Print

    ~16° spot beam

    Specification
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      336 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.9 kg
    • MPQ:
      28 pcs
    • MOQ:
      336 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      4.9 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CP19685_DARCY-4X1-SS

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products - September 2024

    Application example

    LEDiL Latest products catalogue

    News

    DARCY – a gem in architectural lighting

    Application guide

    Guide for Architectural lighting optics

    AVAILABLE LEDiL ACCESSORIES

    DARCY-CLIP-A

    Installation clip for fastening DARCY lenses with screws.

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips compatible with LEILA-Y-SC2 lenses

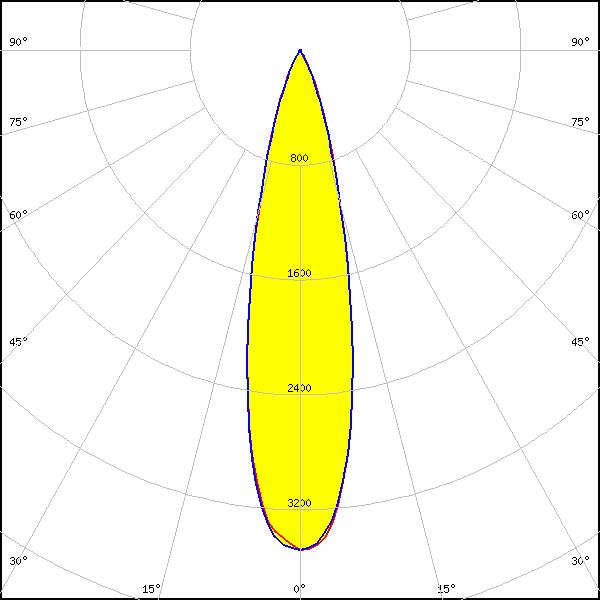

    Optical results

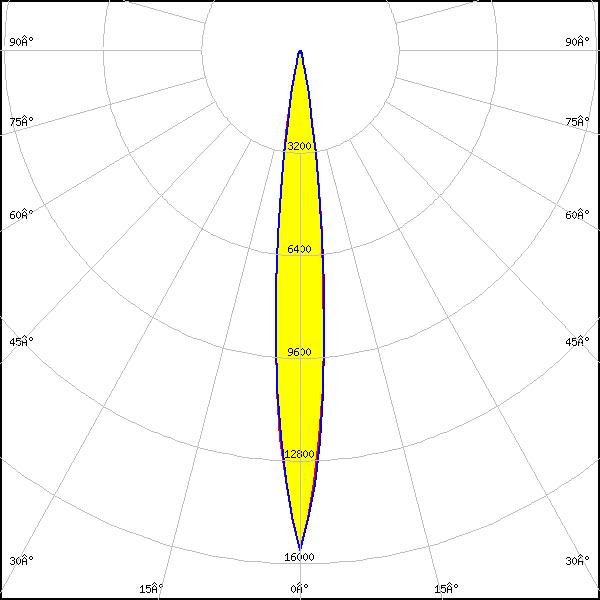

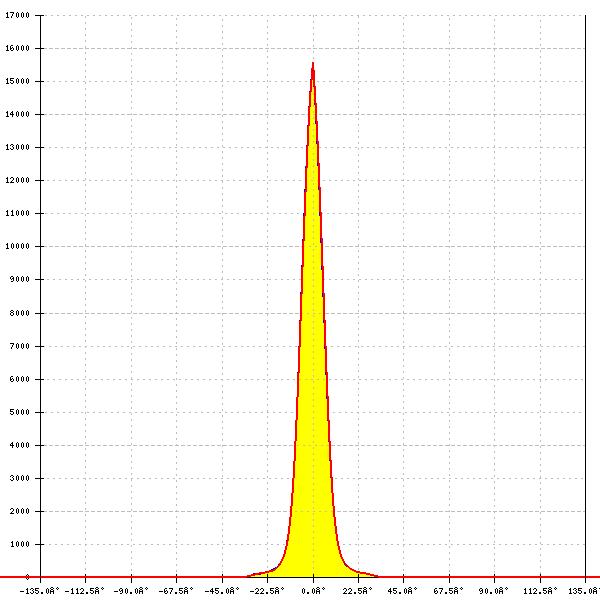

    LED: XP-E2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 15.582 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

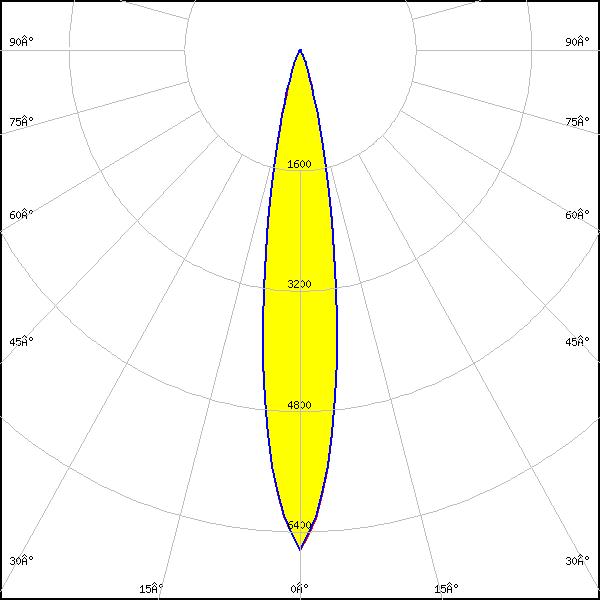

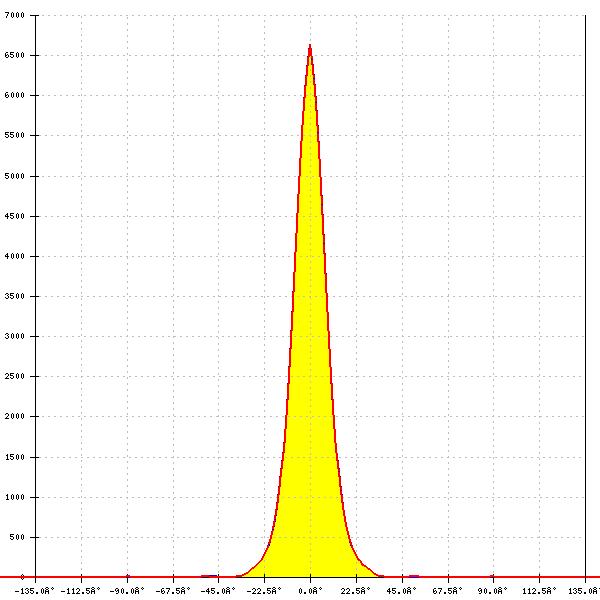

    LED: XP-G3
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 6.644 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

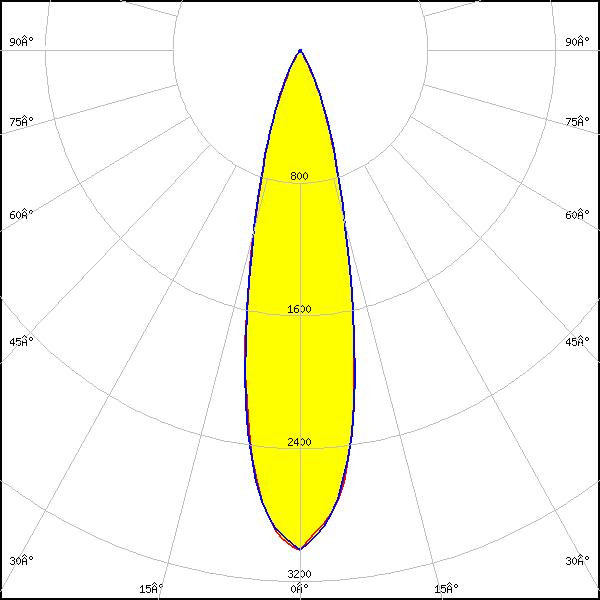

    LED: LUXEON 5050 Square LES
    FWHM: 26°
    FWTM: 50°
    Peak intensity: 3.013 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

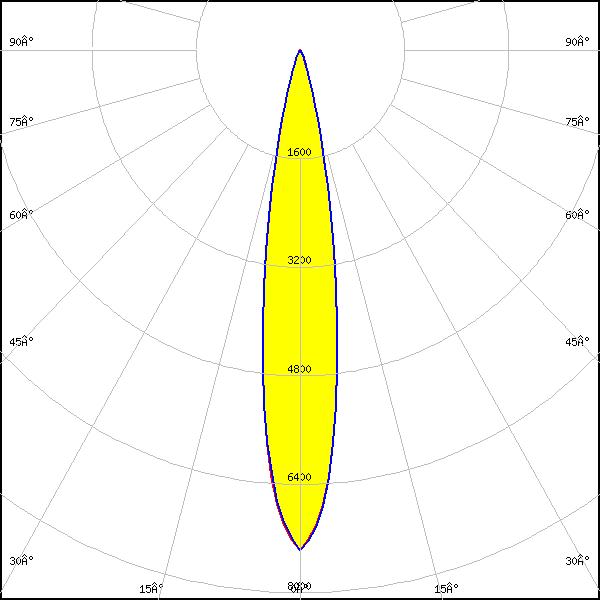

    LED: LUXEON HL2X
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.374 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

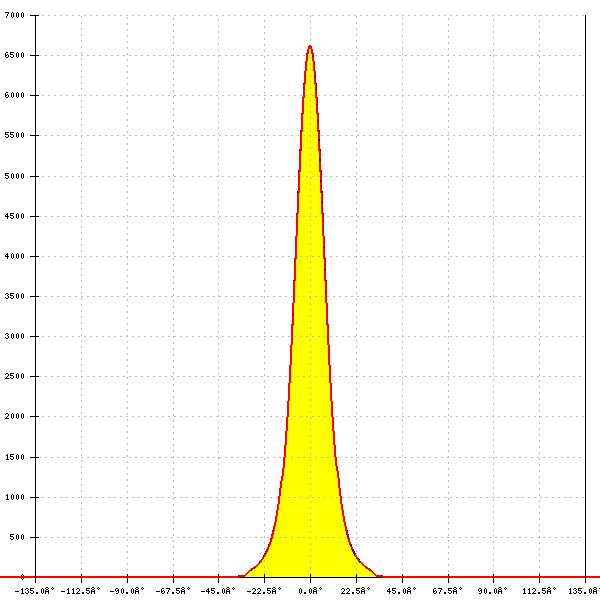

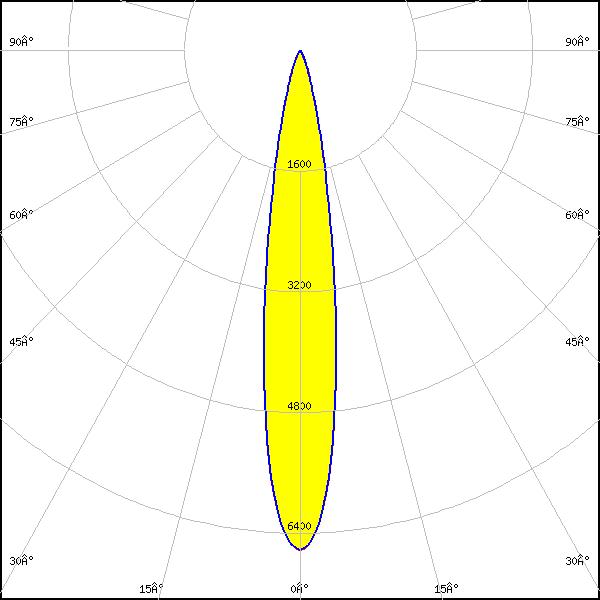

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 17°
    FWTM: 34°
    Peak intensity: 6.630 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

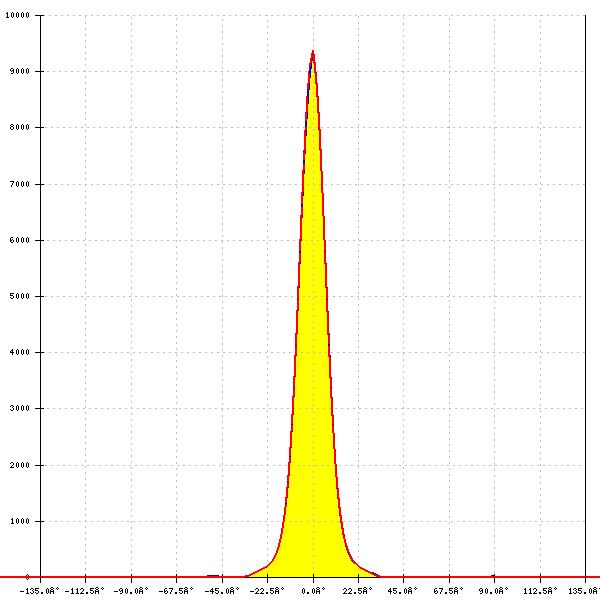

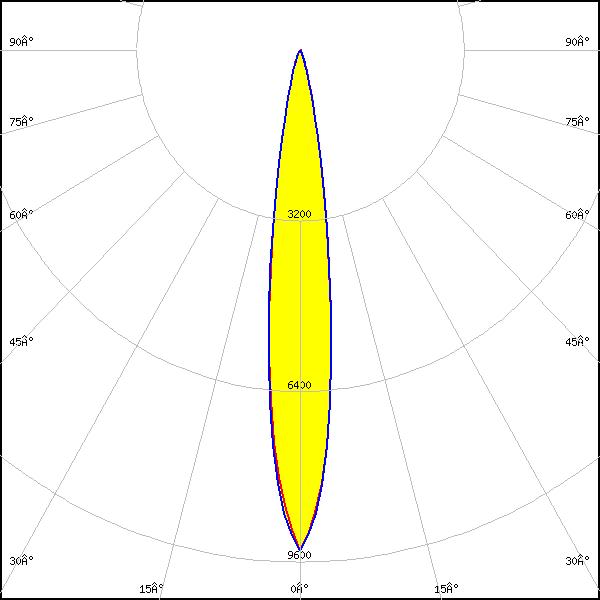

    LED: OSLON Square EC
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 9.384 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

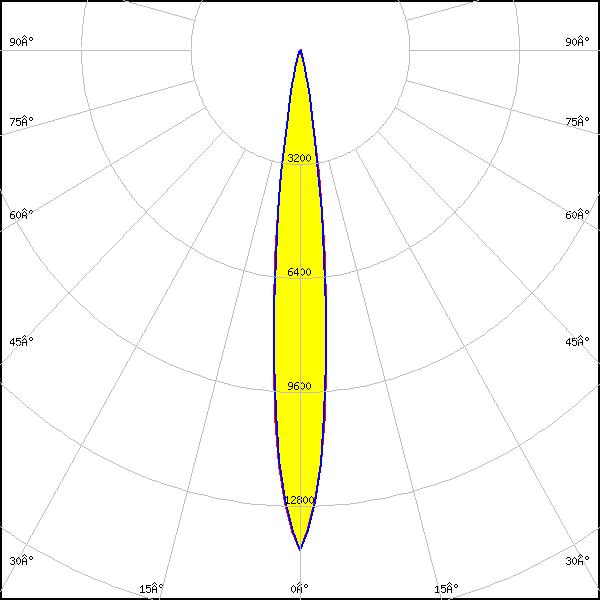

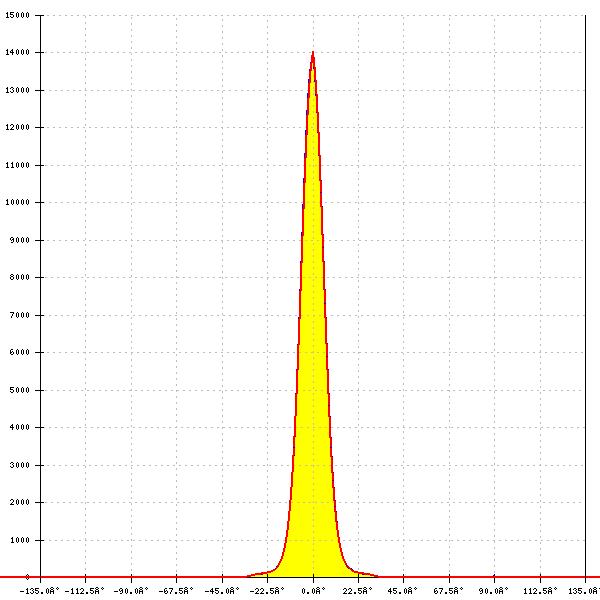

    LED: OSLON SSL 150
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.033 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

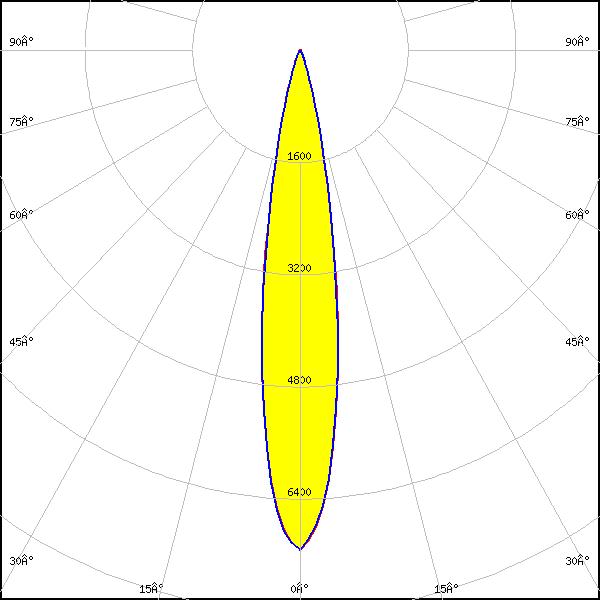

    LED: LH351B
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 7.131 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
