    CP19454_LEILA-Y-SC2-SS-WHT

    Print

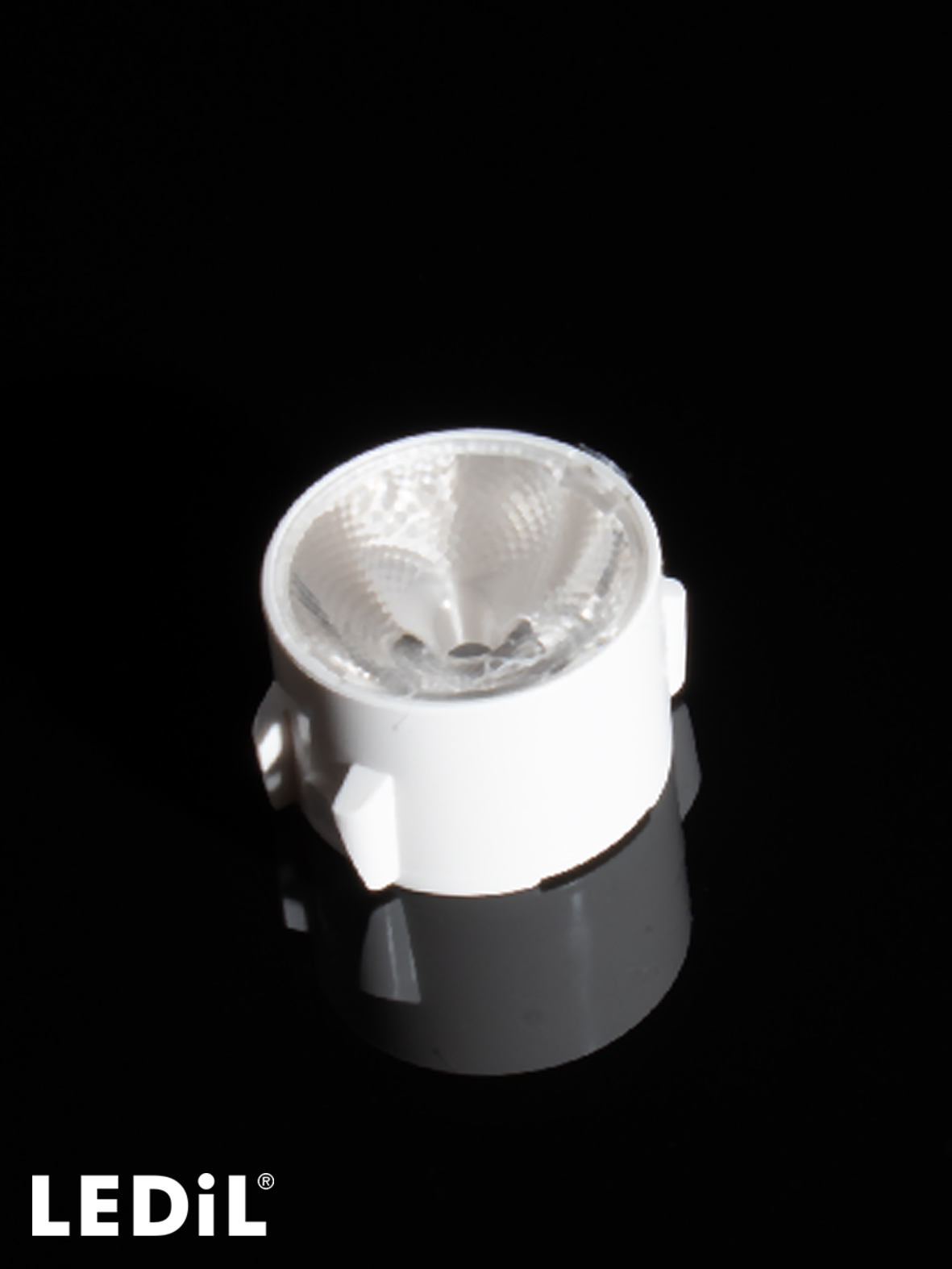

    ~14° smooth spot beam. Assembly with white SC2-holder

    Specification
    • Dimensions:
      22 mm
    • Height:
      14.80 mm
    • Fastening:
      clips
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1632 pcs
    • Box size:
      480 x 280 x 165 mm
    • Box weight:
      6.8 kg
    • MPQ:
      204 pcs
    • MOQ:
      204 pcs
    • MOQ size:
      480 x 280 x 40 mm
    • MOQ weight:
      1.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP19454_LEILA-Y-SC2-SS-WHT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Catalogue

    LEDiL Latest products catalogue

    News

    New products – February 2024

    News

    New solder clip connection for fast and secure lens installation

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Badia di Pomaio resort

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Case story

    The Luneur amusement park

    Case story

    The OZ Mall

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips compatible with LEILA-Y-SC2 lenses

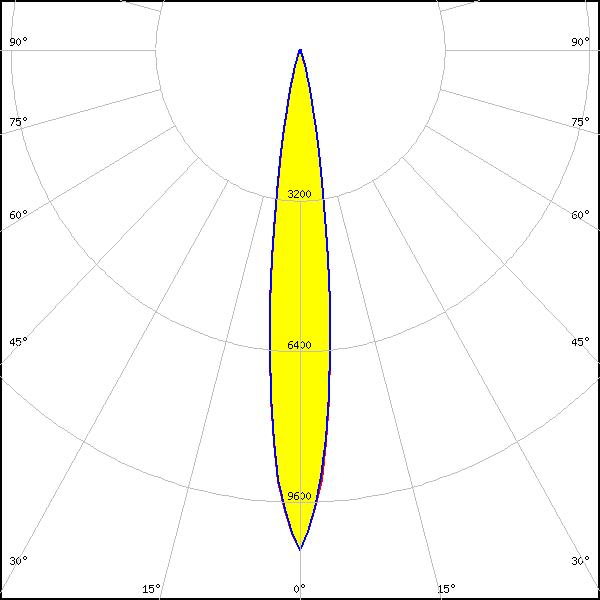

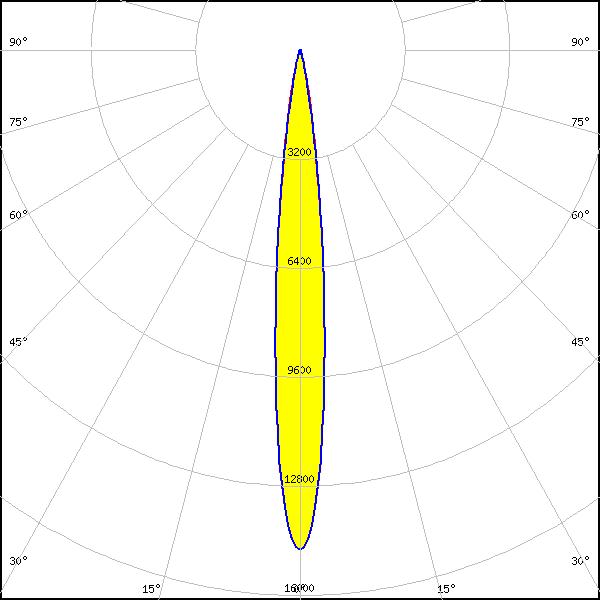

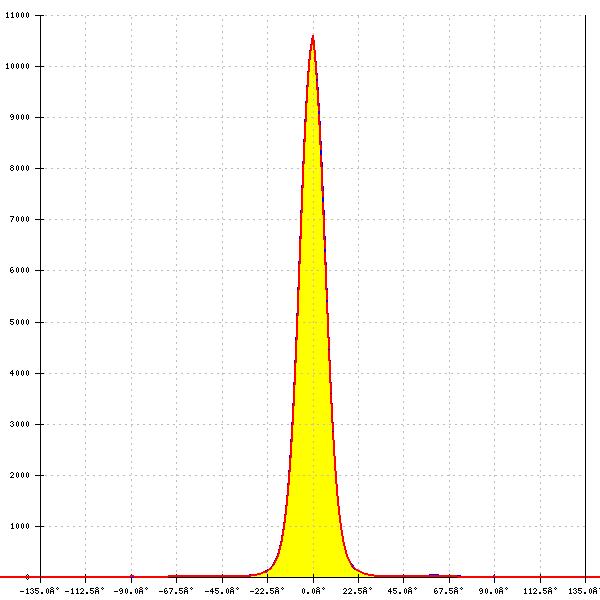

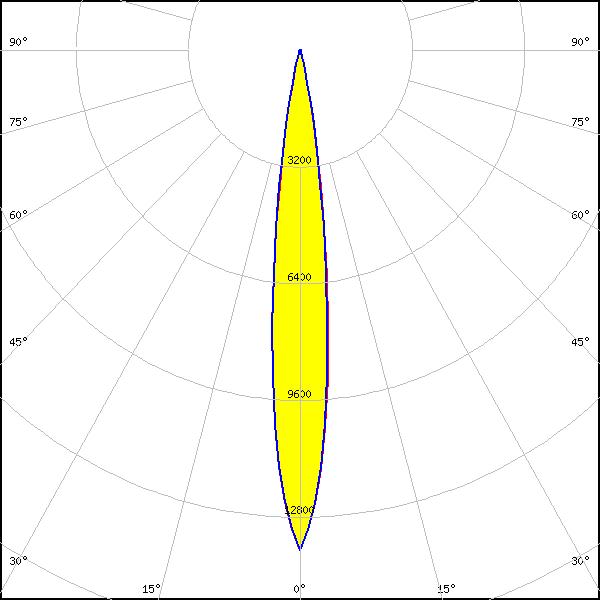

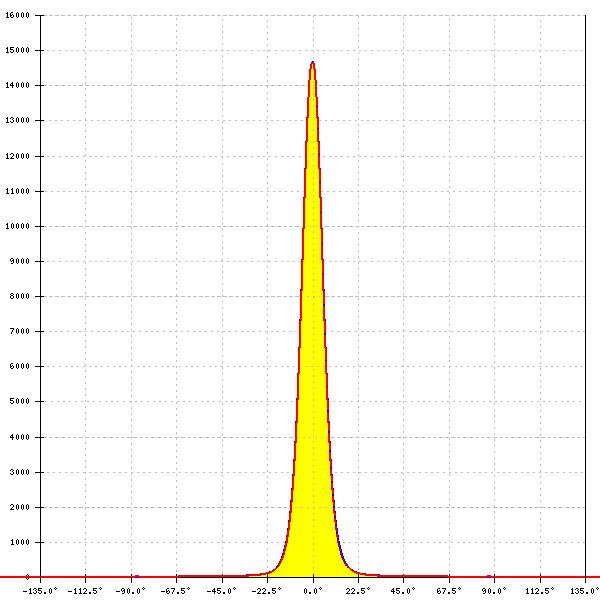

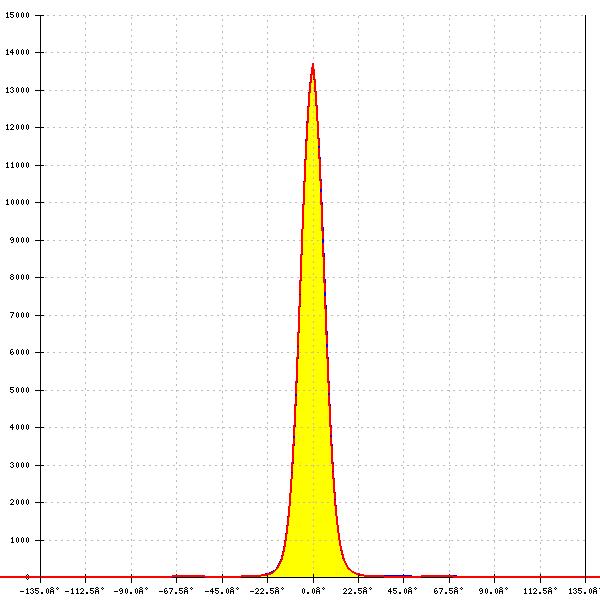

    Optical results

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 14.726 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
