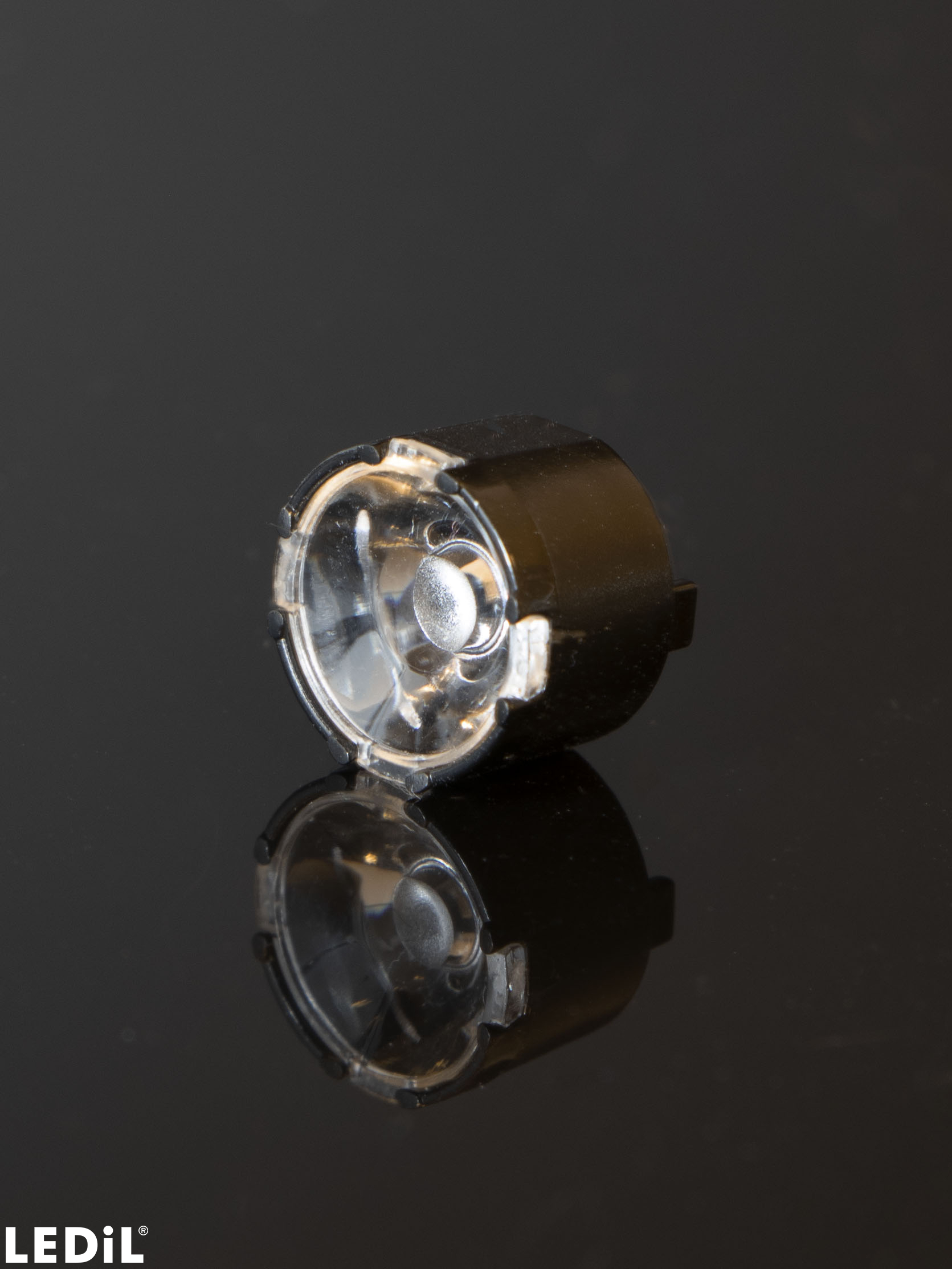

    CP18419_LISA3-S-PIN

    Print

    ~16° spot beam with location pin installation

    Specification
    • Dimensions:
      10 mm
    • Height:
      7.00 mm
    • Fastening:
      glue, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      4000 pcs
    • Box size:
      273 x 183 x 135 mm
    • Box weight:
      2.3 kg
    • MPQ:
      100 pcs
    • MOQ:
      48000 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP18419_LISA3-S-PIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – April 13, 2022

    Article

    Top 3 areas where retailers lose customers due to bad lighting

    News

    New Products - 2019-01-31

    Application guide

    Guide for Architectural lighting optics

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

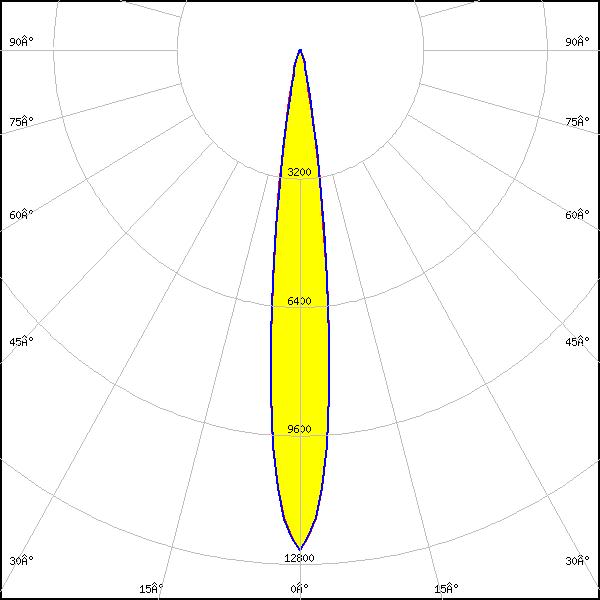

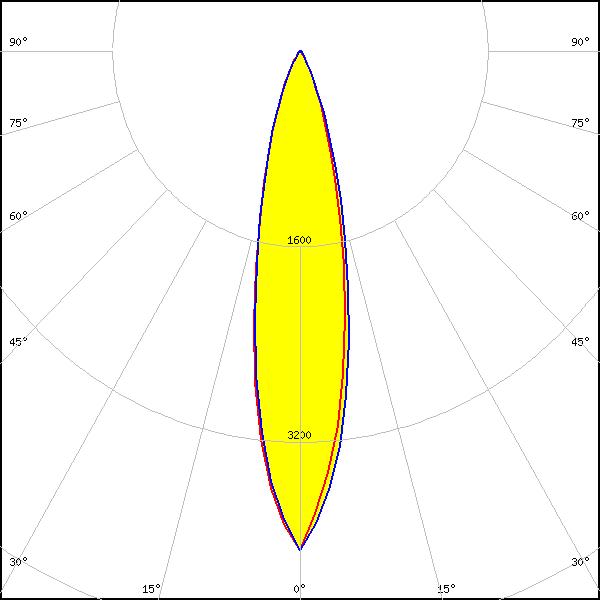

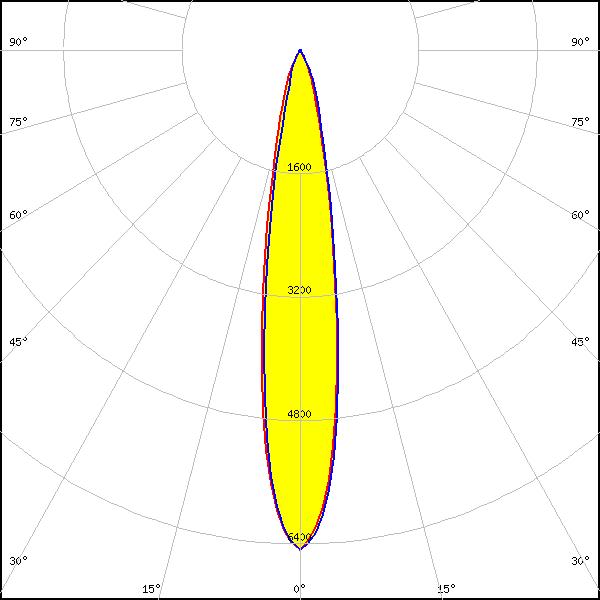

    Optical results

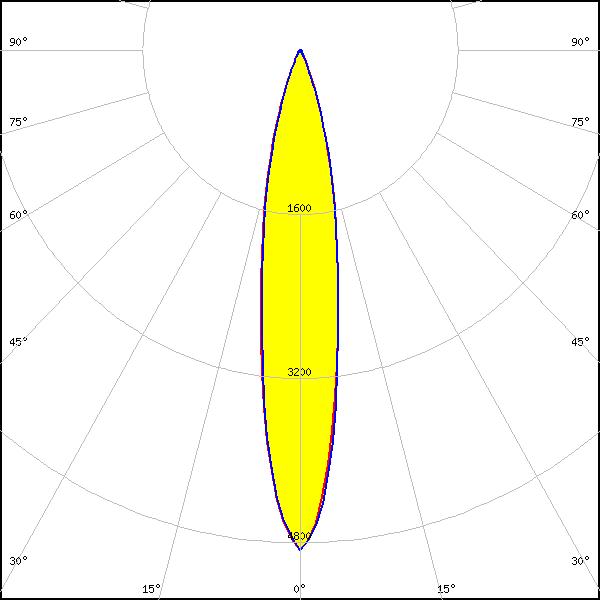

    LED: CSP 2323 (BXCP)
    FWHM: 18°
    FWTM: 41°
    Peak intensity: 4.875 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

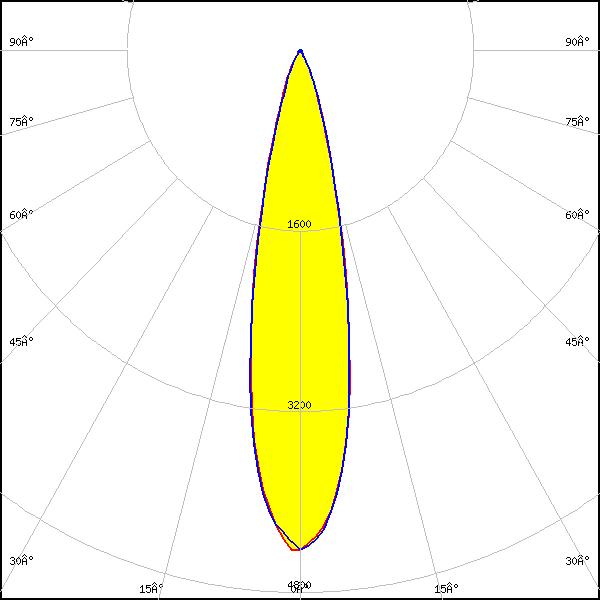

    LED: XP-G4
    FWHM: 22°
    FWTM: 43°
    Peak intensity: 4.511 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

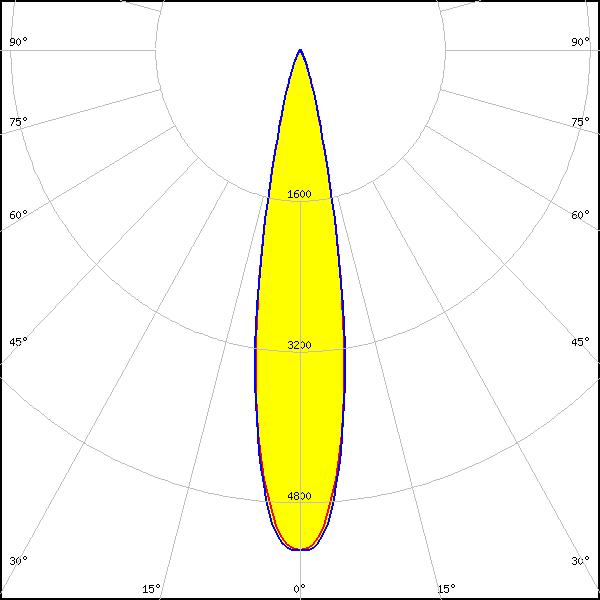

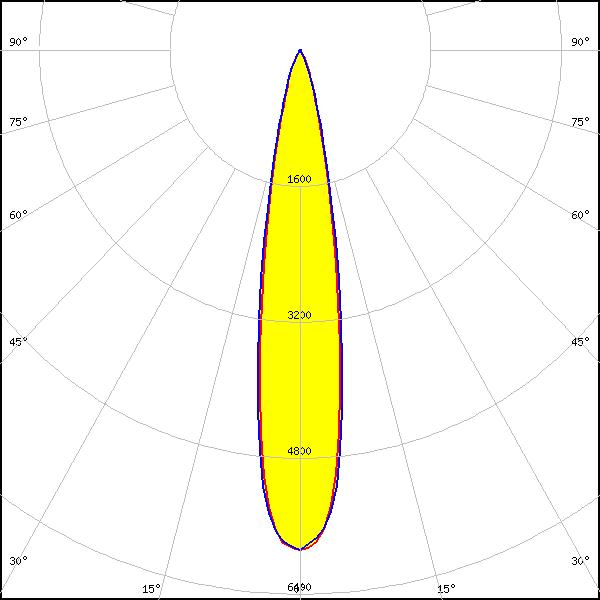

    LED: SST-10-B130
    FWHM: 19°
    FWTM: 37°
    Peak intensity: 5.900 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SST-10-B130
    FWHM: 20°
    FWTM: 36°
    Peak intensity: 5.393 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: Blue

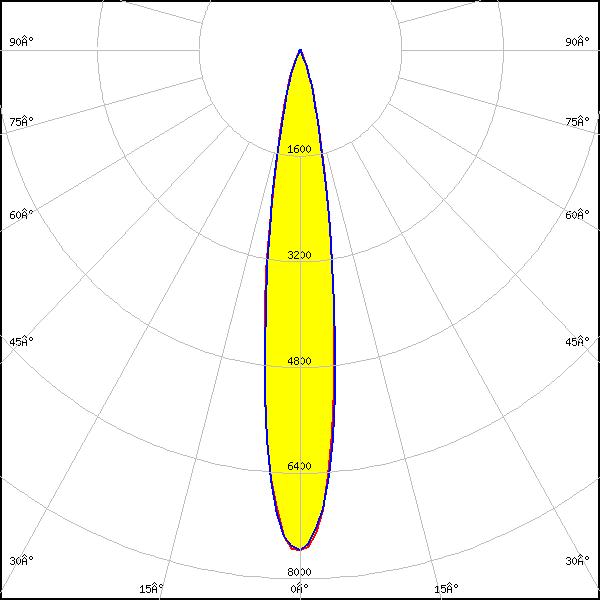

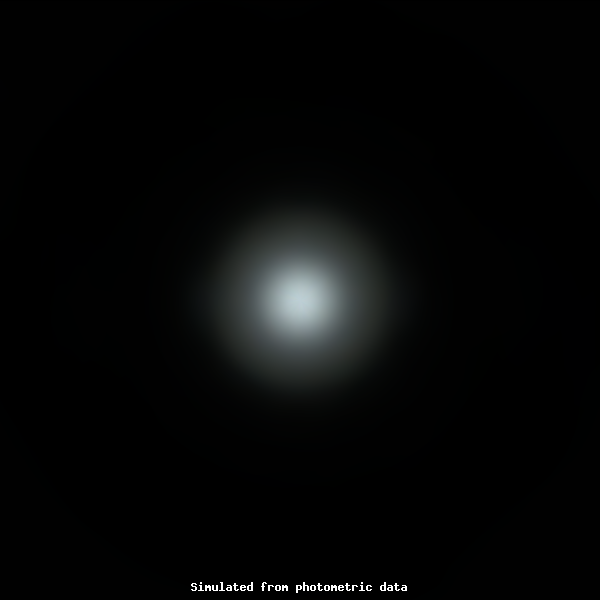

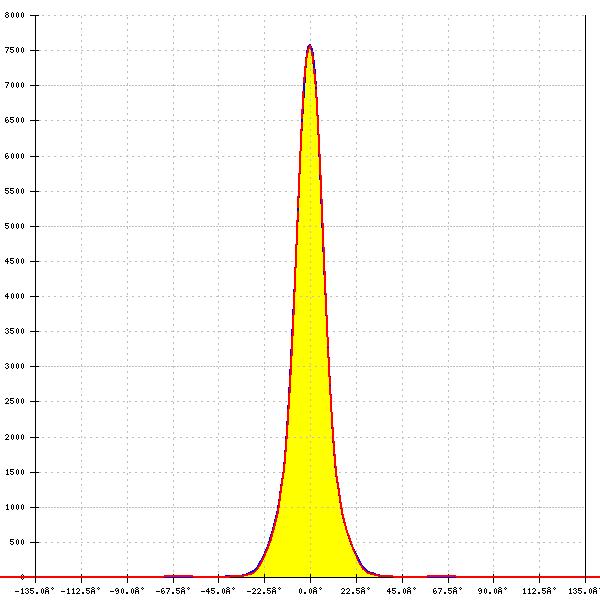

    LED: SST-12 Gen1
    FWHM: 16°
    FWTM: 34°
    Peak intensity: 7.632 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

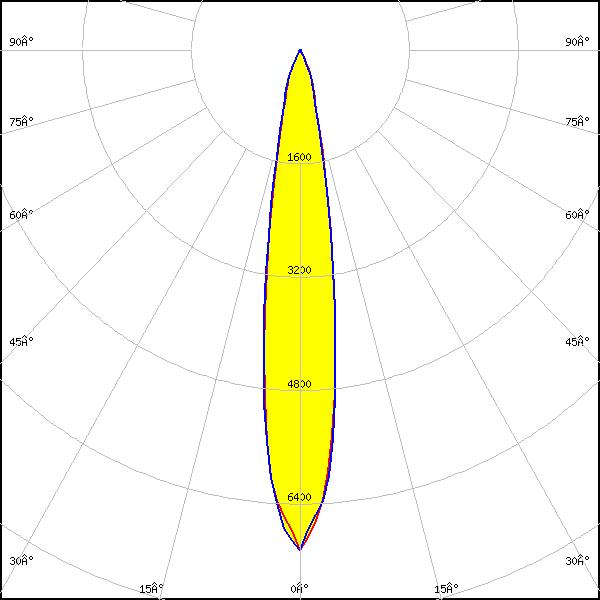

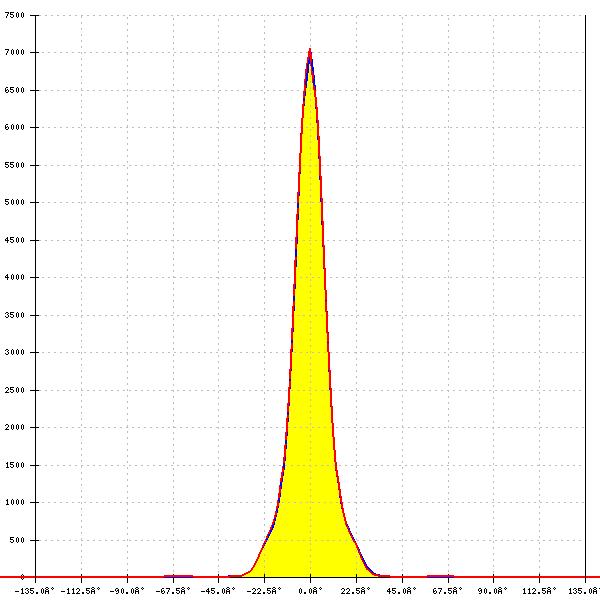

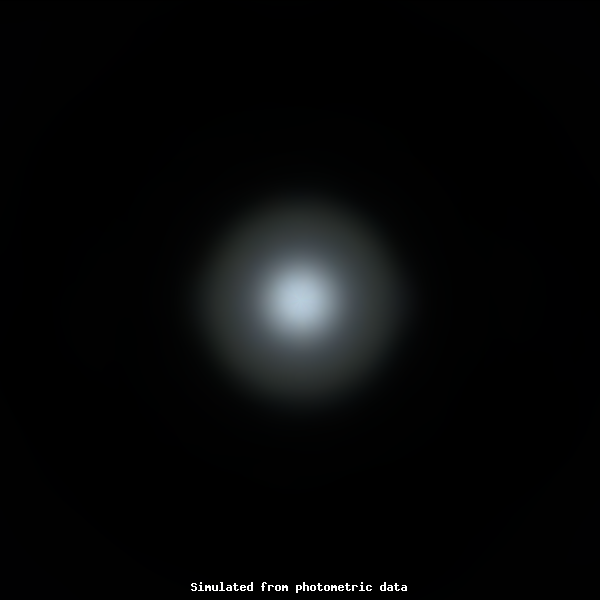

    LED: SST-12 Gen2
    FWHM: 16°
    FWTM: 36°
    Peak intensity: 7.054 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

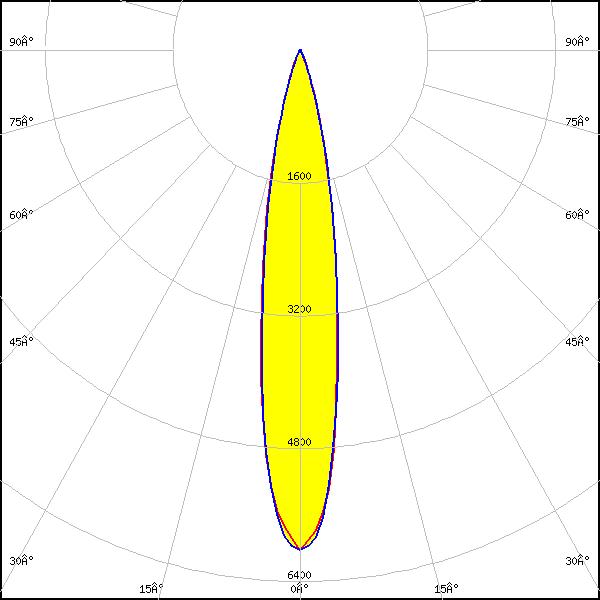

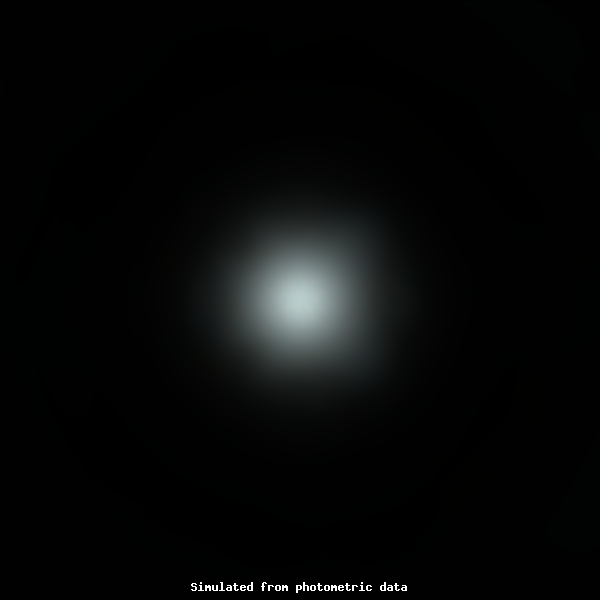

    LED: SST-20 Gen1
    FWHM: 18°
    FWTM: 36°
    Peak intensity: 6.159 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

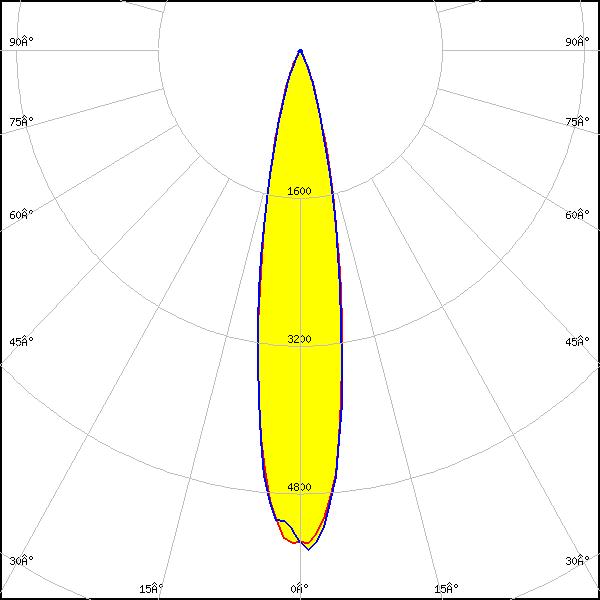

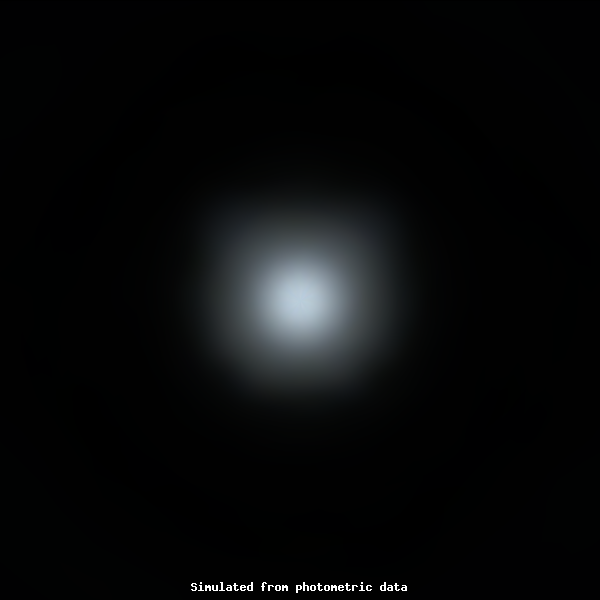

    LED: SST-20 Gen2
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 5.431 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

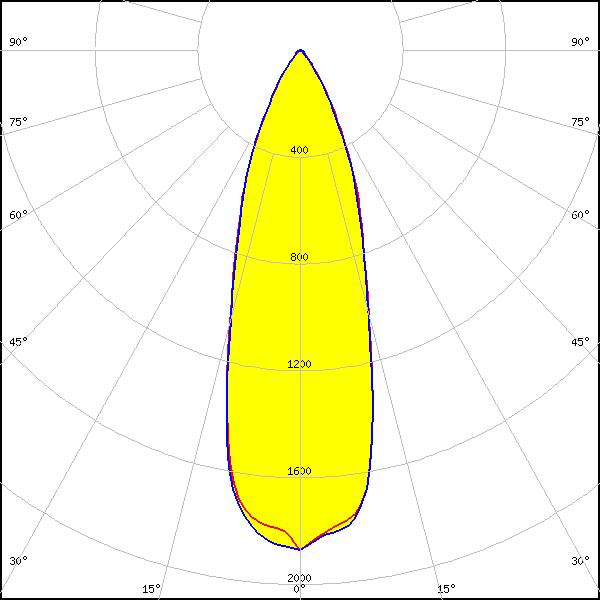

    LED: NV4WB35AM
    FWHM: 32°
    FWTM: 66°
    Peak intensity: 1.883 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

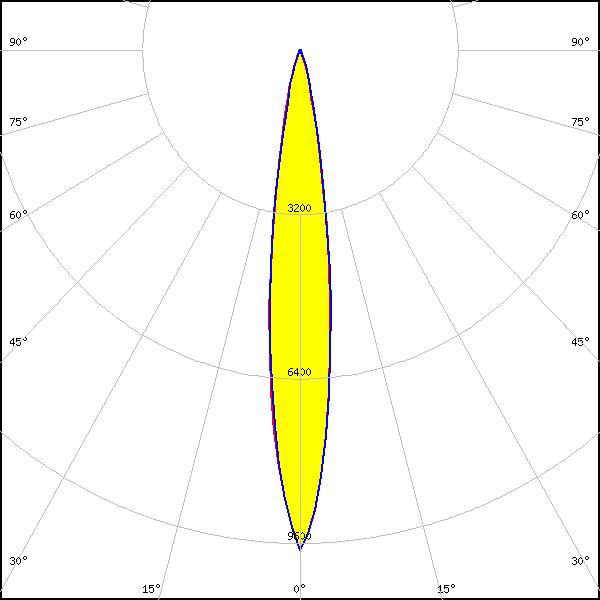

    LED: OSCONIQ P 3030
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 9.739 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

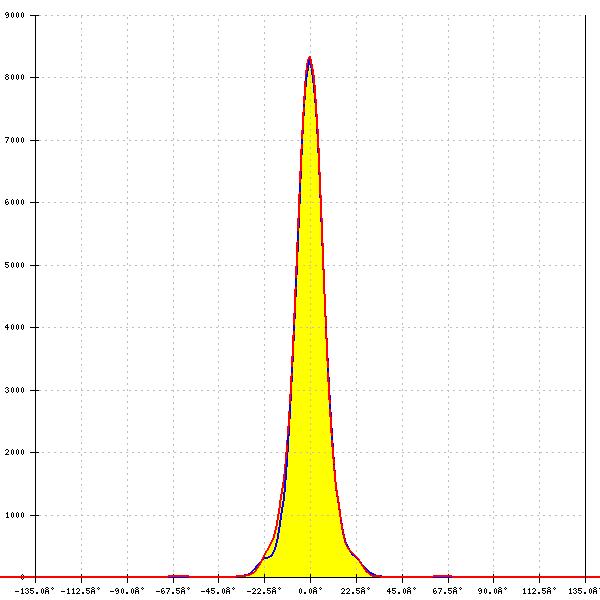

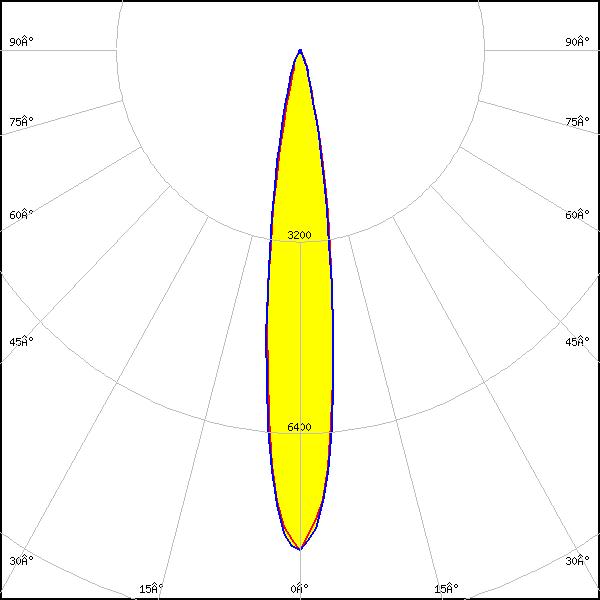

    LED: OSLON Signal
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 8.351 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Red

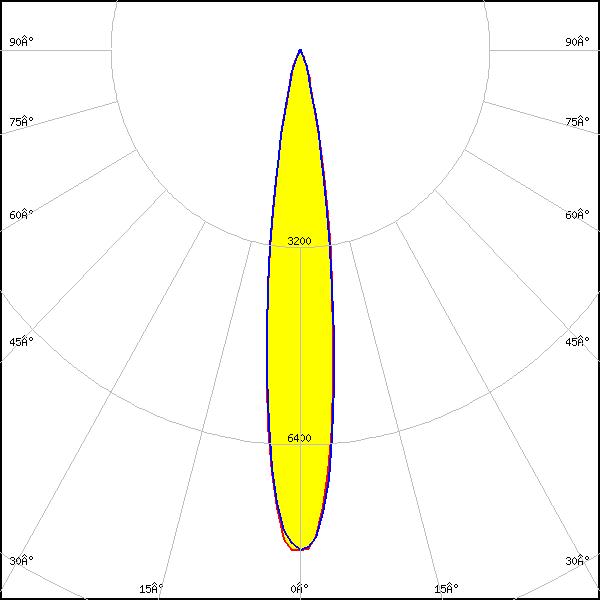

    LED: OSLON Signal
    FWHM: 16°
    FWTM: 31°
    Peak intensity: 8.162 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

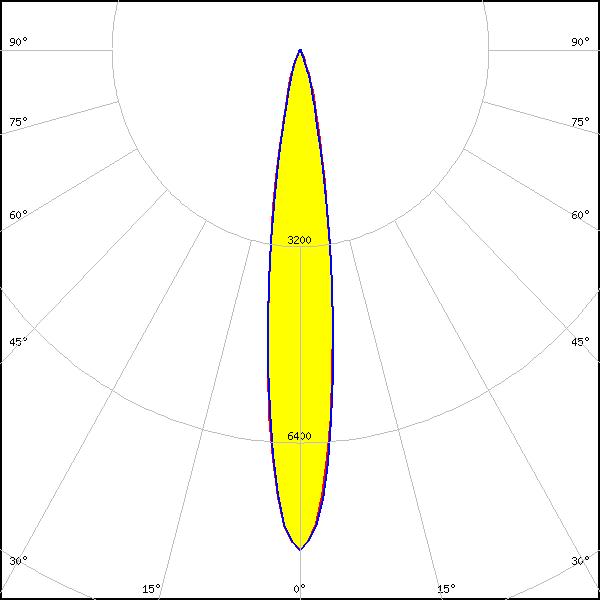

    LED: OSLON Square Flat
    FWHM: 16°
    FWTM: 32°
    Peak intensity: 8.152 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

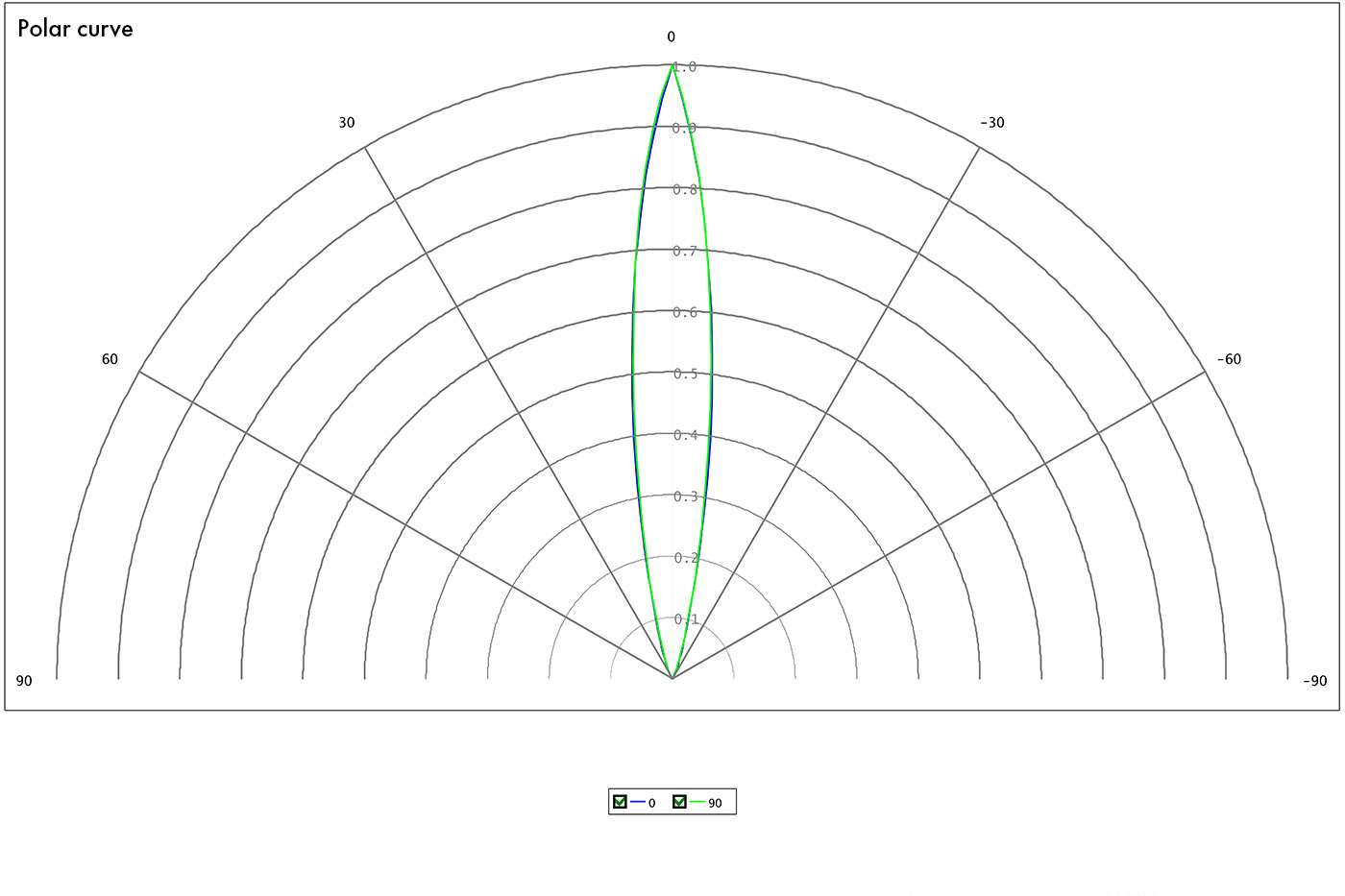

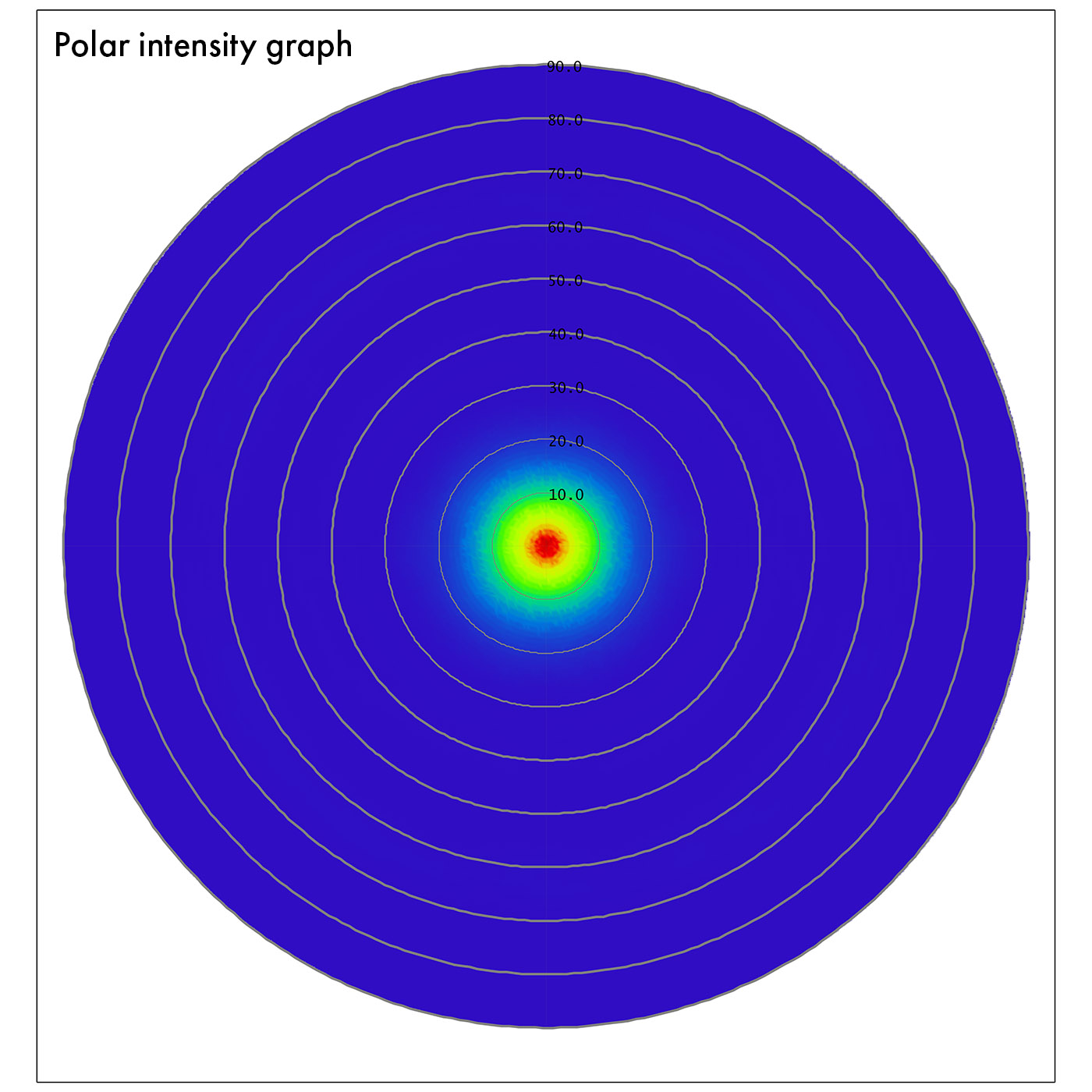

    LED: SFH 4716S
    FWHM: 15°
    FWTM: 31°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR

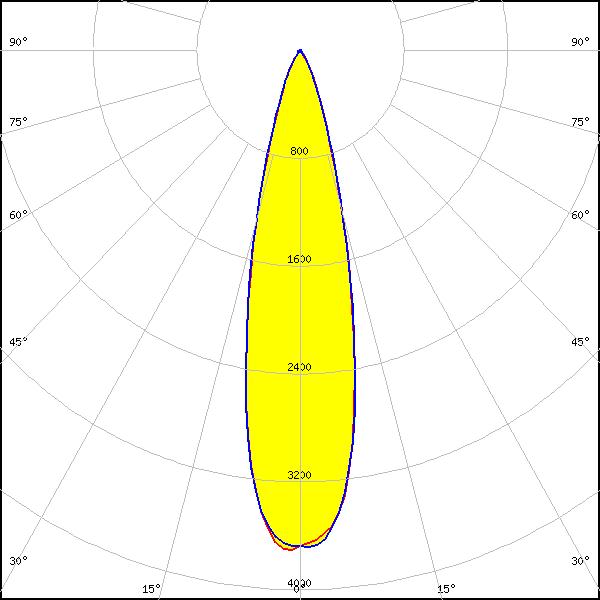

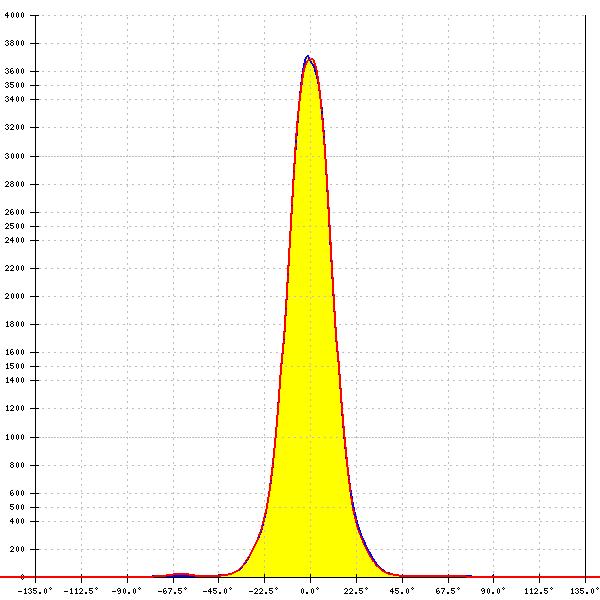

    LED: LH351B
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.716 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
