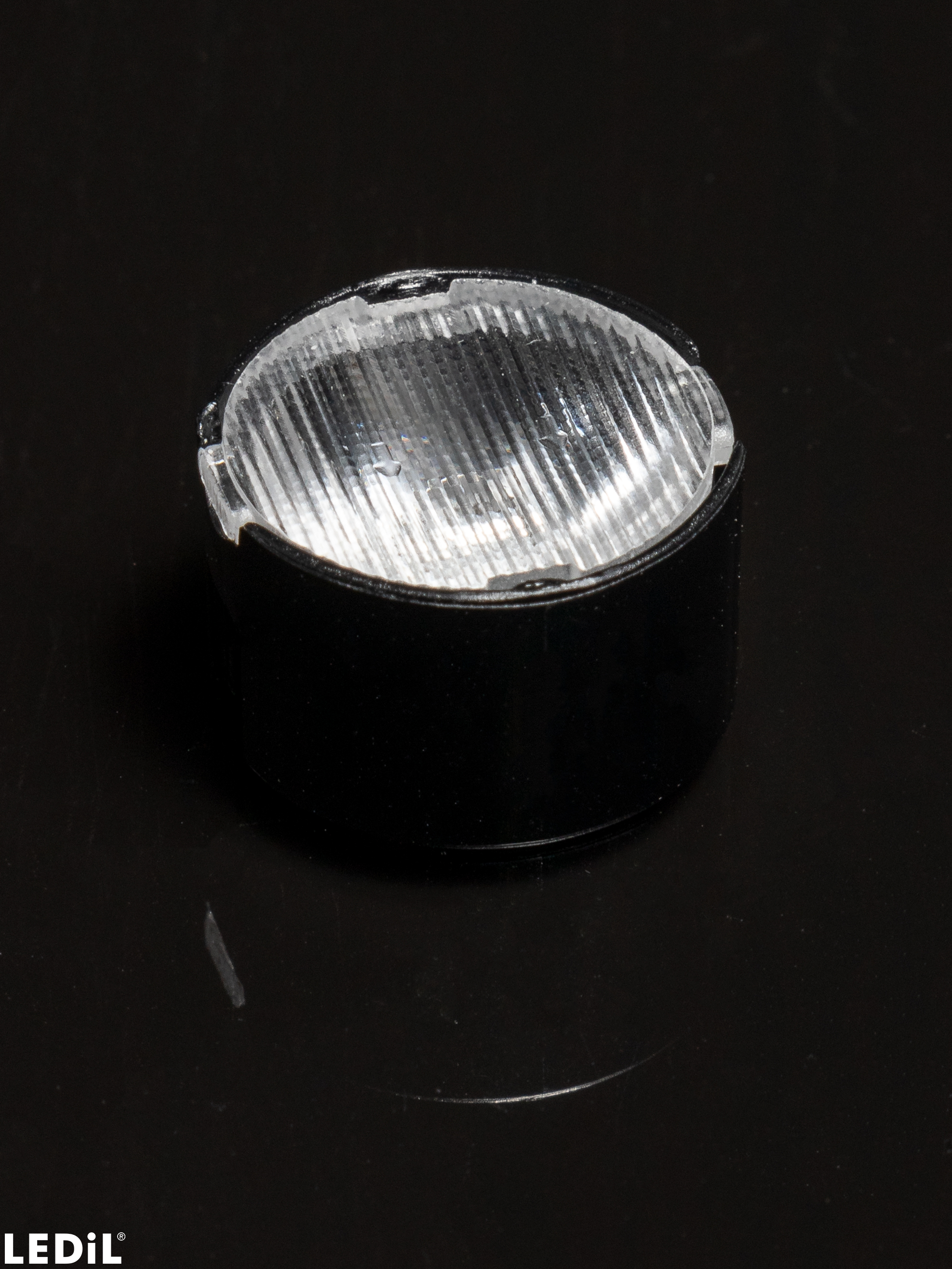

    CP17598_TINA-SC-O-WAS

    Print

    Asymmetric beam for wall-washing

    Specification
    • Dimensions:
      16 mm
    • Height:
      9.90 mm
    • Fastening:
      solder clip
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2400 pcs
    • Box size:
      300 x 250 x 250 mm
    • Box weight:
      4.7 kg
    • MPQ:
      240 pcs
    • MOQ:
      240 pcs
    • MOQ size:
      300 x 260 x 40 mm
    • MOQ weight:
      0.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      CP17598_TINA-SC-O-WAS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    SOLDER-CLIP - A new fast and easy lens mounting solution

    News

    SOLDER-CLIP – A new fast and easy lens mounting solution

    News

    NEW PRODUCTS – AUGUST 6, 2020

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    TriBeCa apartment building

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-A

    Reel with solder clips compatible with TINA-SC and LEILA-SC lenses

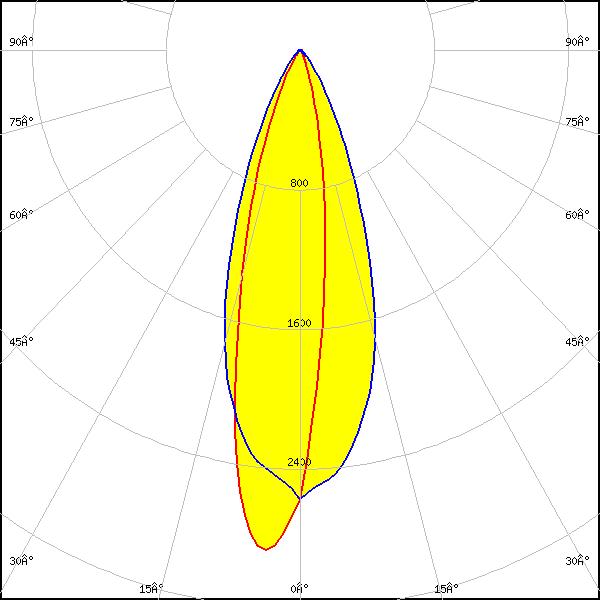

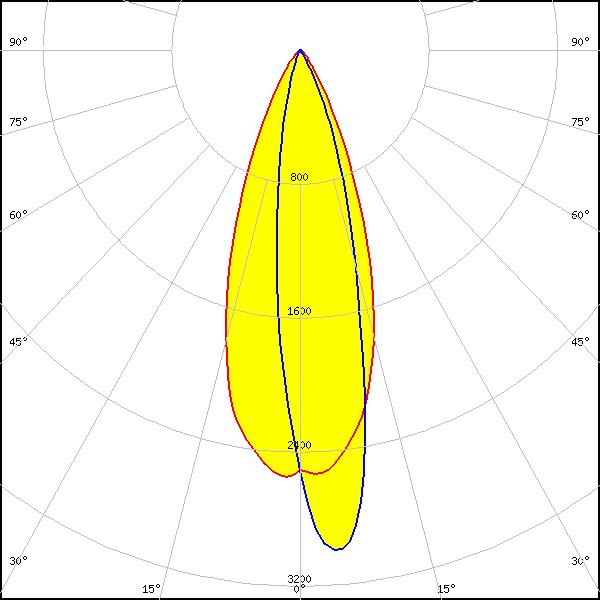

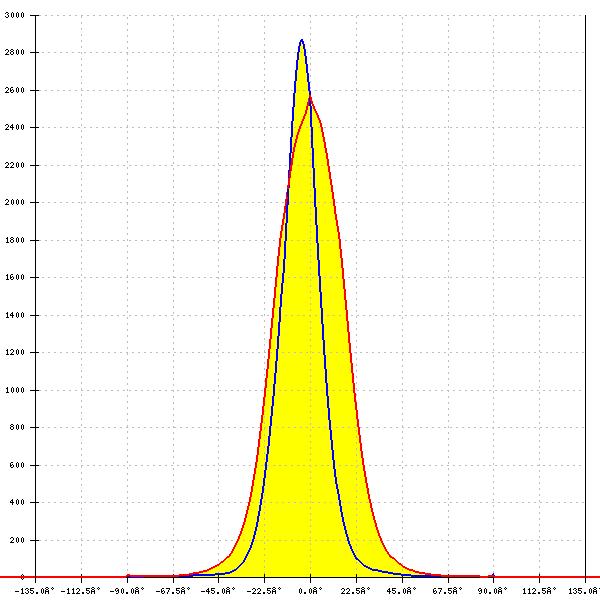

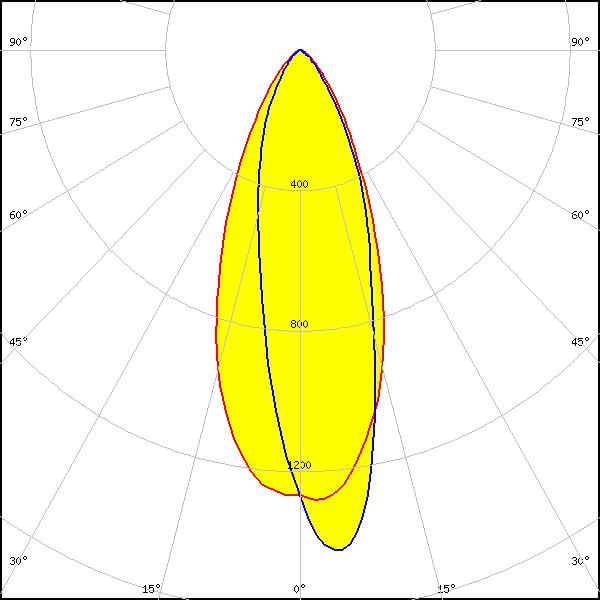

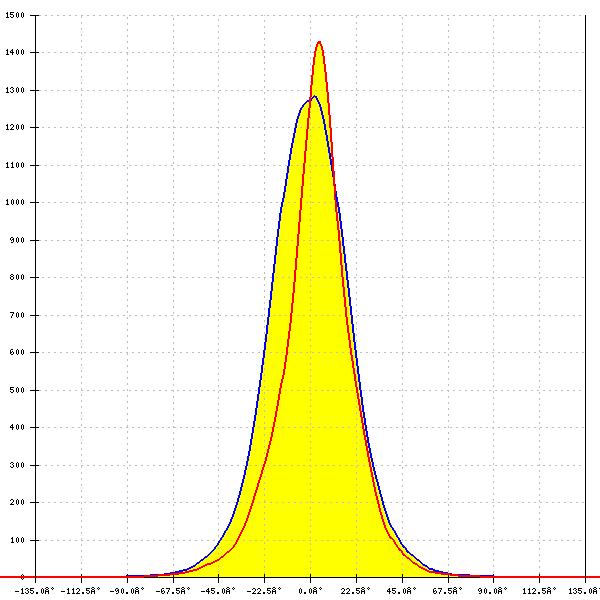

    Optical results

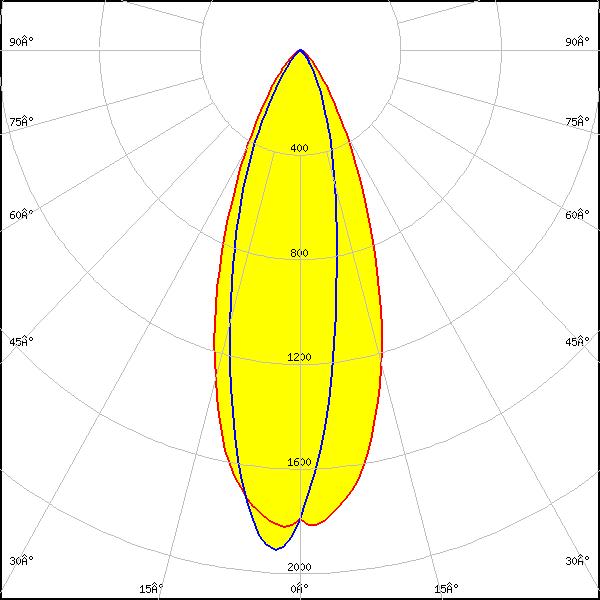

    LED: CLR6A-TKW
    FWHM: asymmetric
    Peak intensity: 1.918 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: RGBW
    LED: XP-L HI
    FWHM: asymmetric
    Peak intensity: 2.880 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

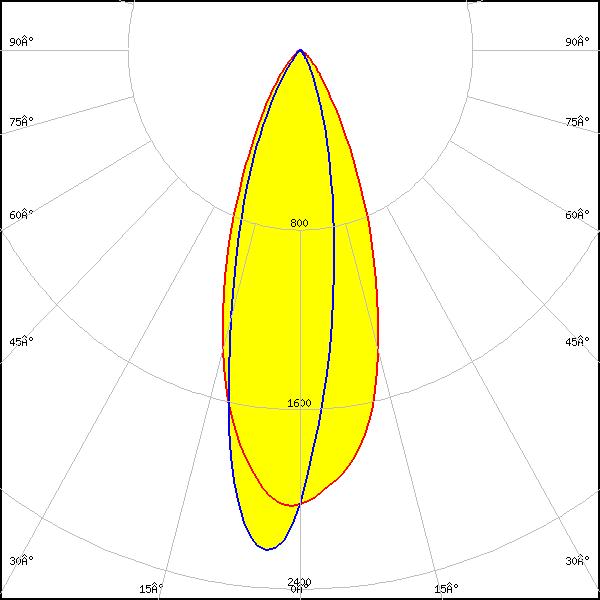

    LED: OSCONIQ P 3737 (3W version)
    FWHM: asymmetric
    Peak intensity: 2.233 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
