CP16938_CARMEN-M-C-WHT
Print

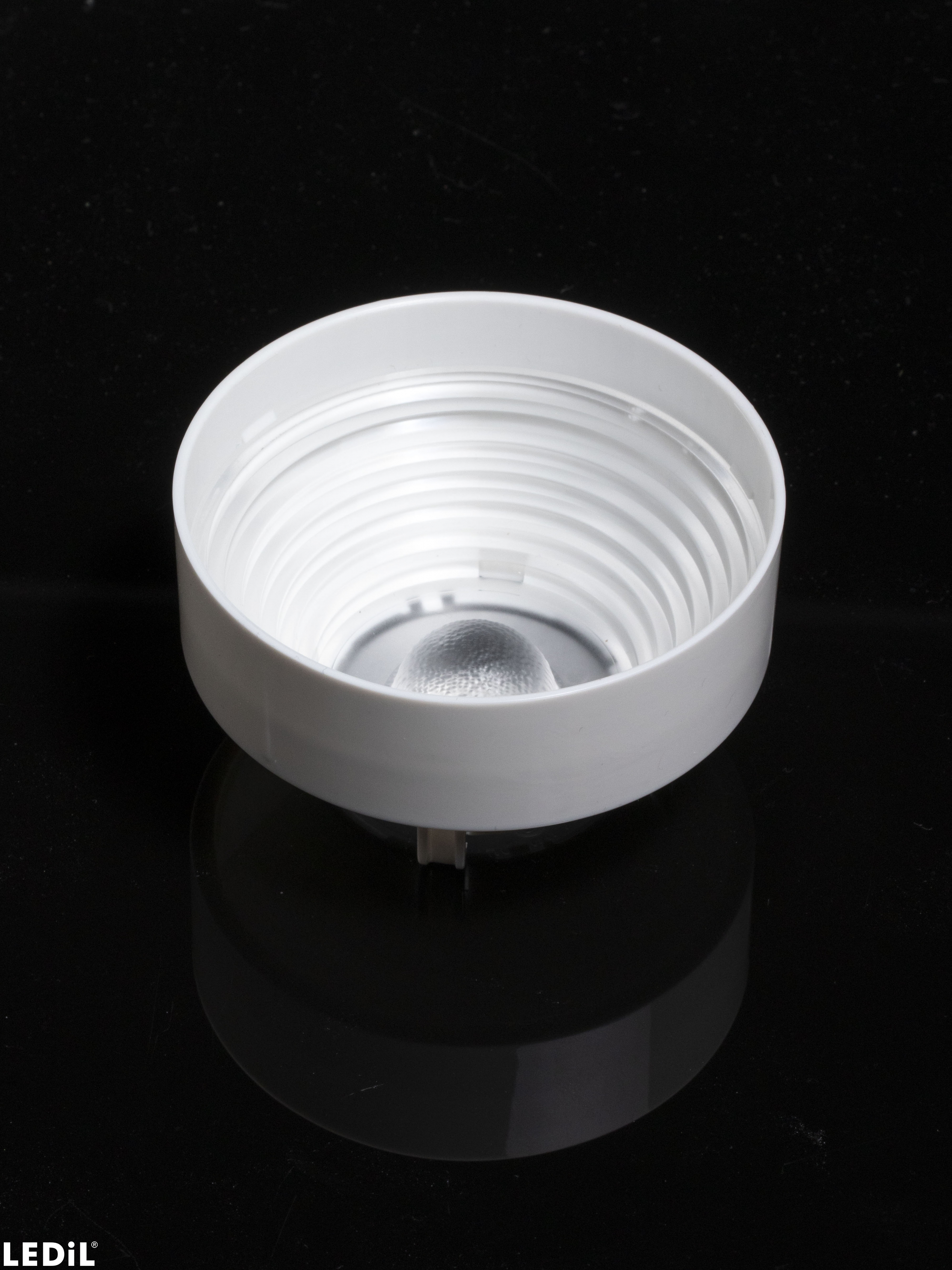

~35° wide beam. Assembly with holder C compatible with LEDiL HEKLA. White version.
Materials
- CARMEN-M, Single lens, PMMA
- CARMEN-HLD-C-WHT, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

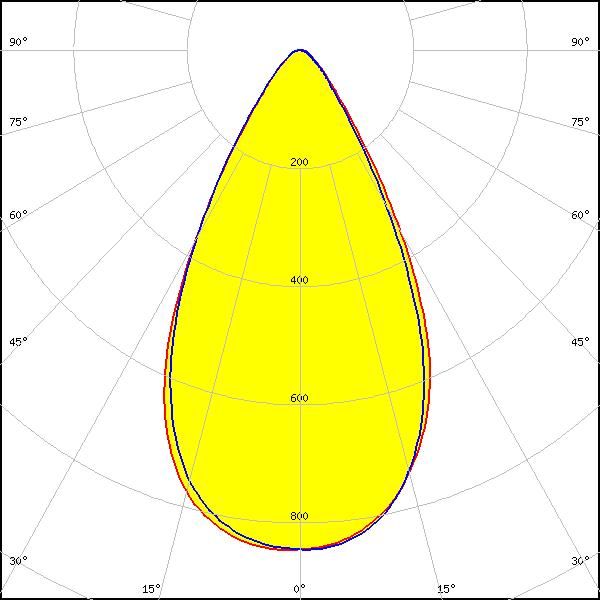

LED:

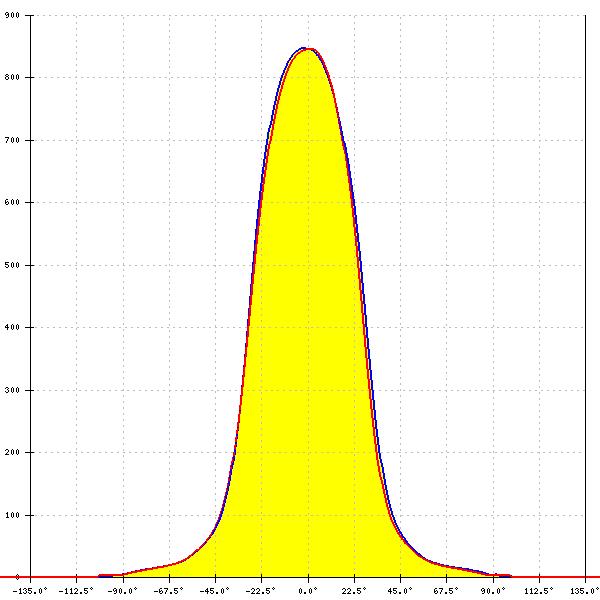

Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
FWHM:
56°
FWTM:
86°
Peak intensity:
0.847 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
FWHM:
37°
FWTM:
66°
Peak intensity:
1.711 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Vesta TW 9mm (9W) DP
LES size: 10.0 mm
Required components:
FWHM:
44°
FWTM:
73°
Peak intensity:
1.292 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

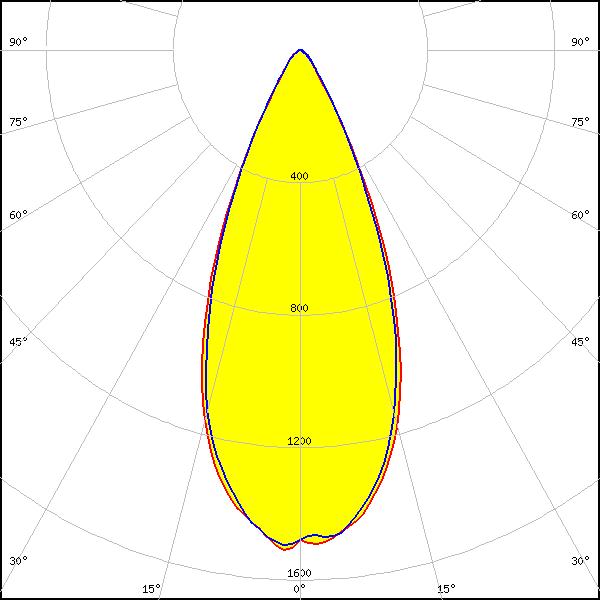

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM:
44°
FWTM:
69°
Peak intensity:
1.525 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

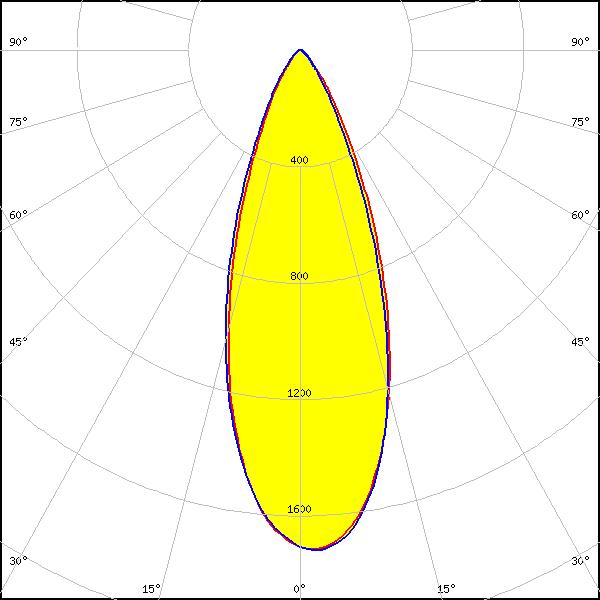

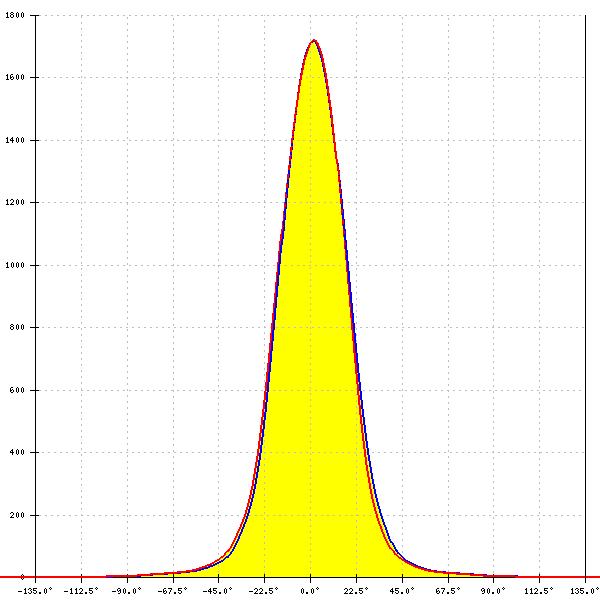

CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
37°
FWTM:
68°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

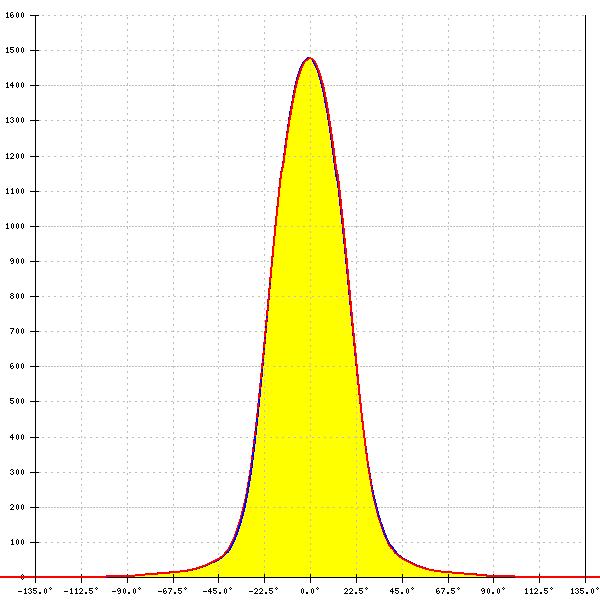

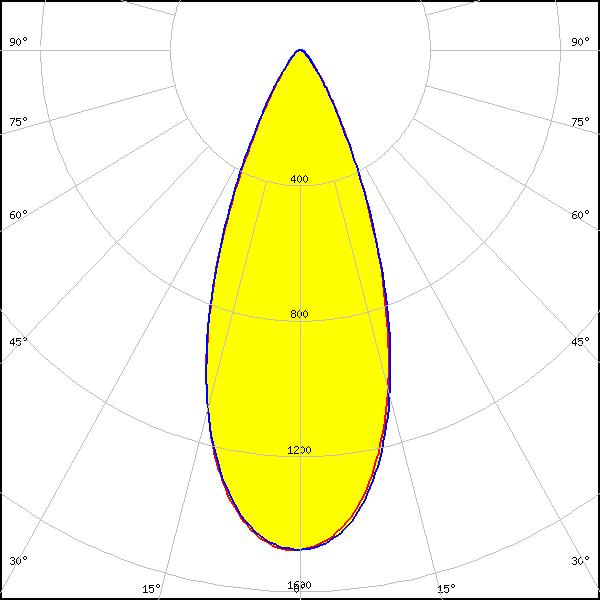

CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
42°
FWTM:
70°
Peak intensity:
1.480 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

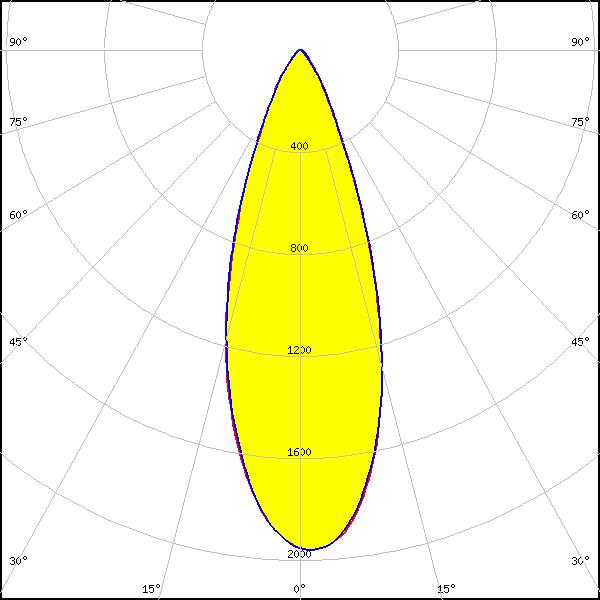

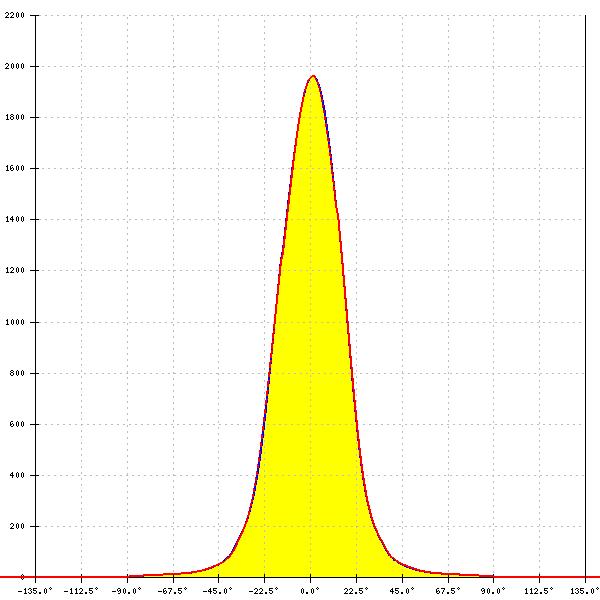

CLU7B2
LES size: 3.3 mm
Required components:
FWHM:
36°
FWTM:
64°
Peak intensity:
1.968 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

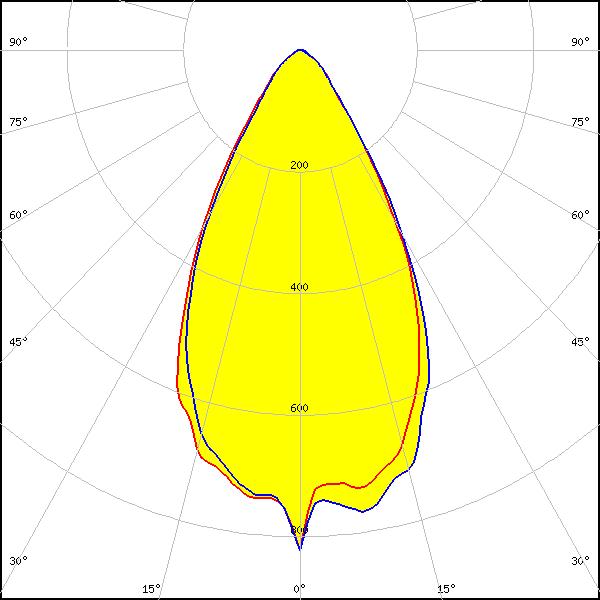

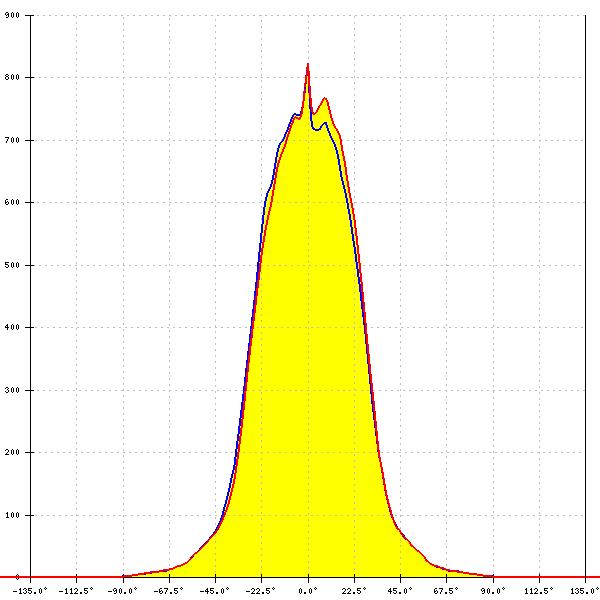

CMU15xx
LES size: 14.5 mm
Required components:
FWHM:
54°
FWTM:
86°
Peak intensity:
0.861 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

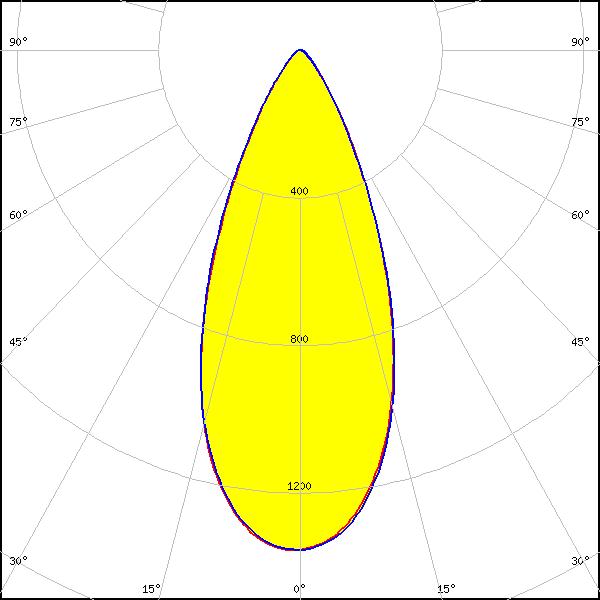

LED:

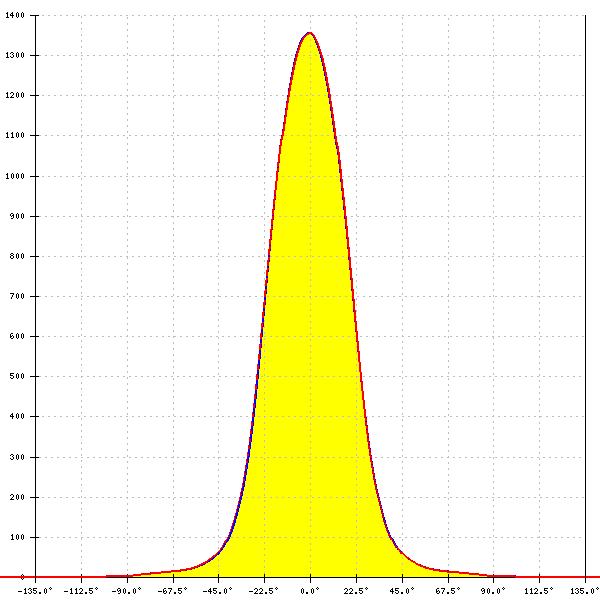

CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
44°
FWTM:
75°
Peak intensity:
1.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

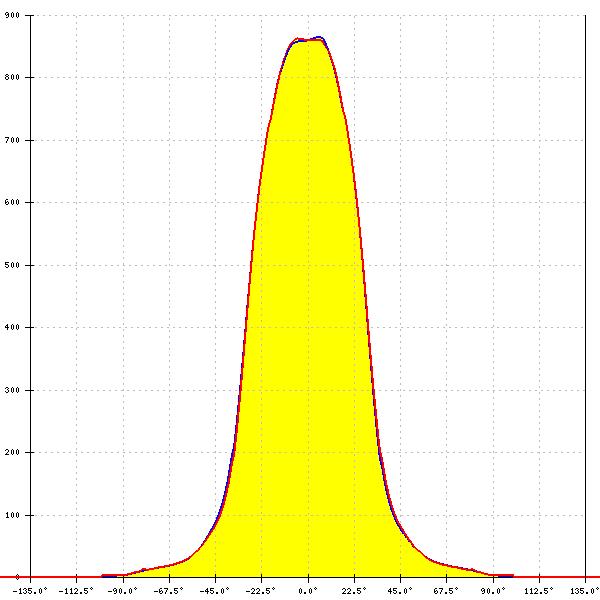

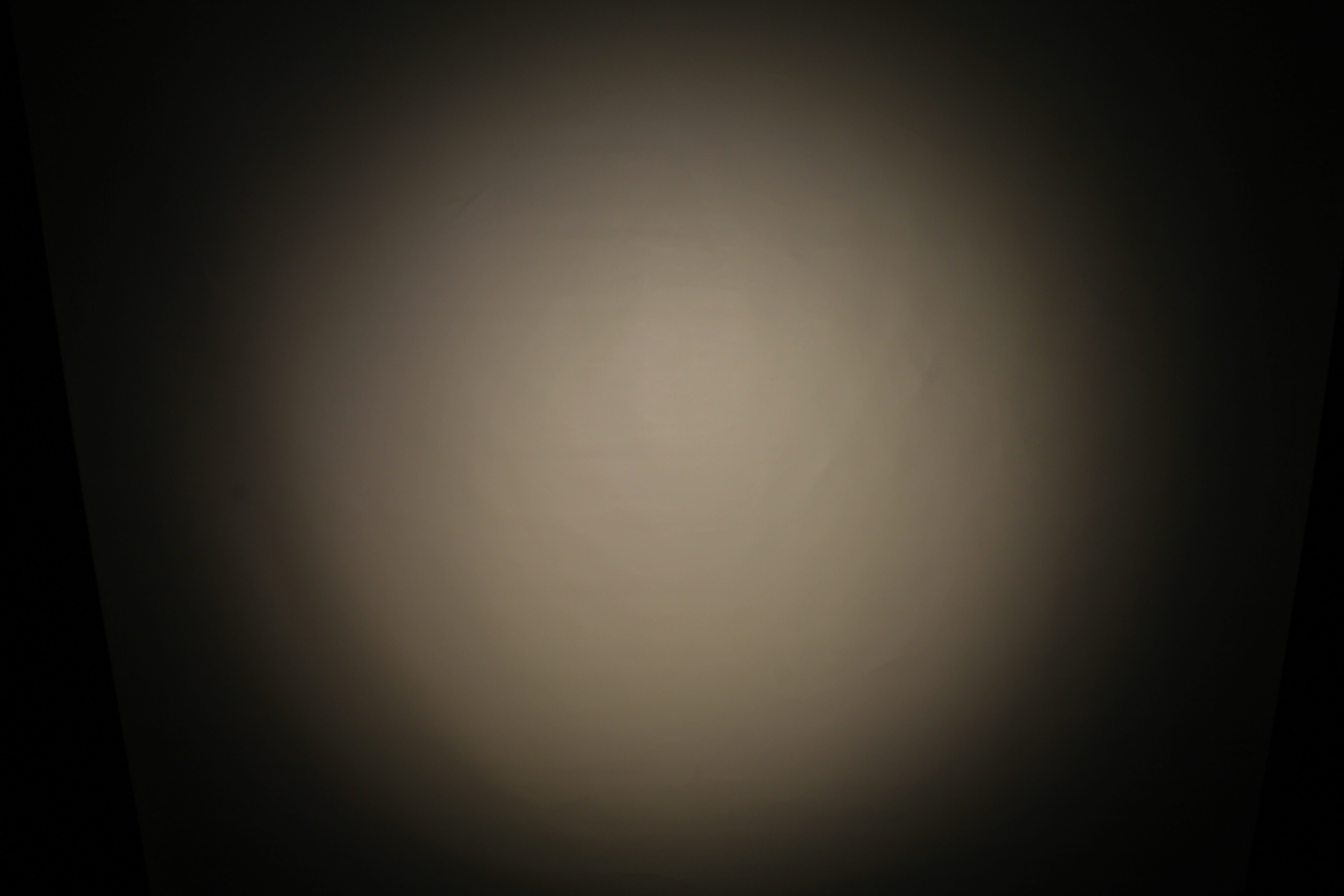

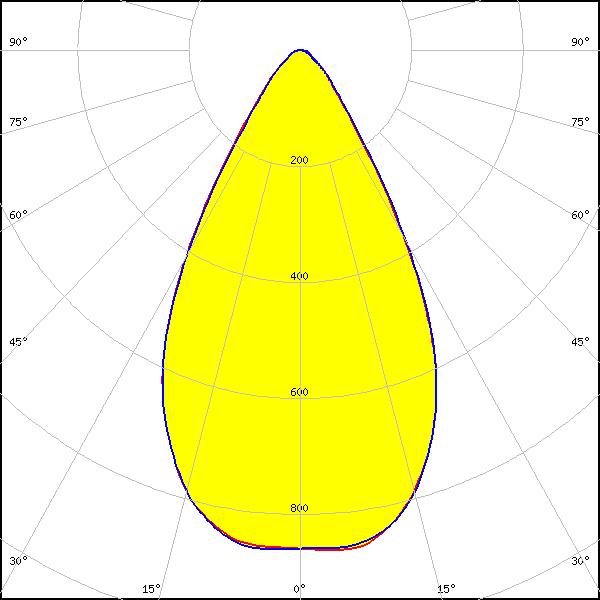

LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
58°
FWTM:
89°
Peak intensity:
0.865 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

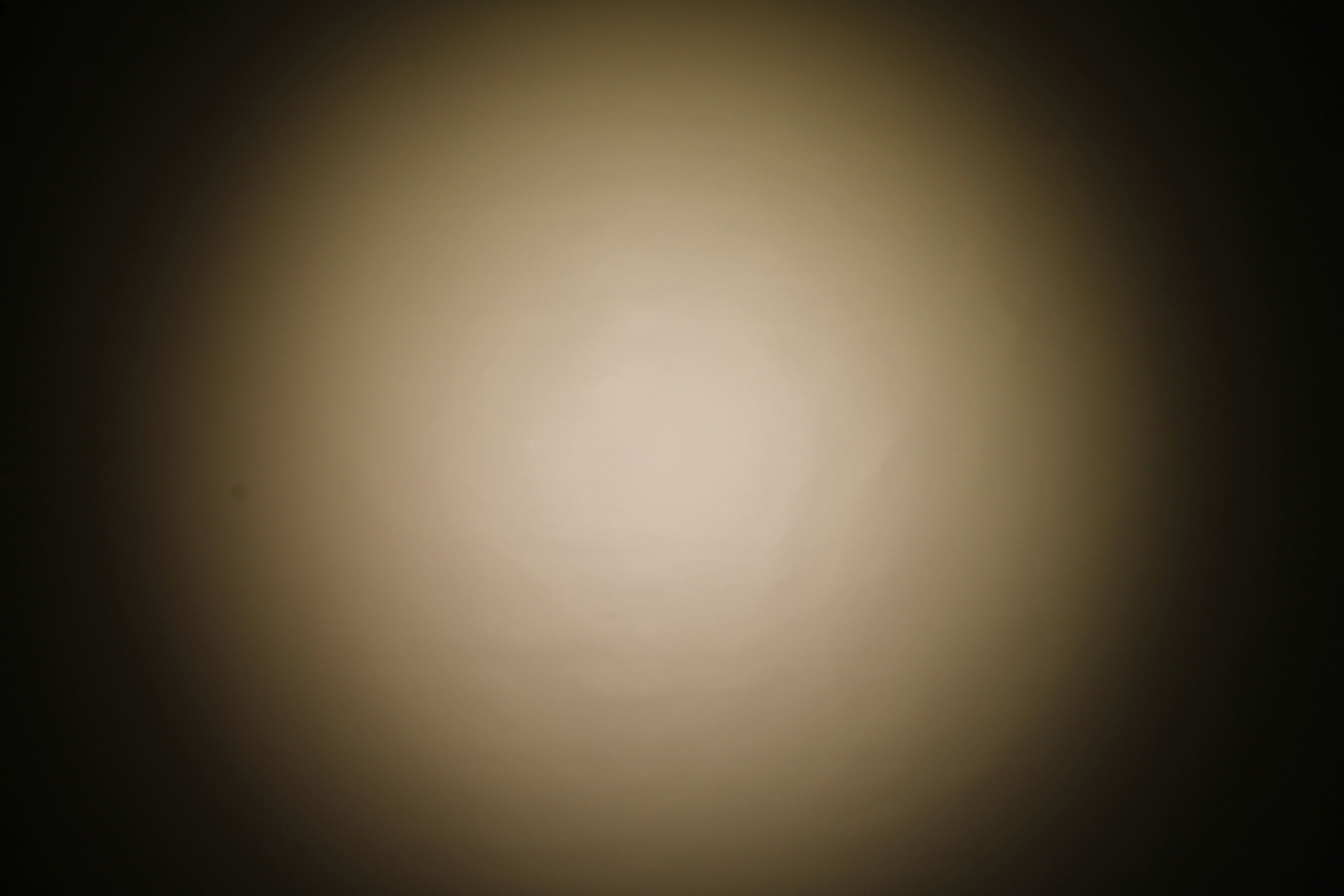

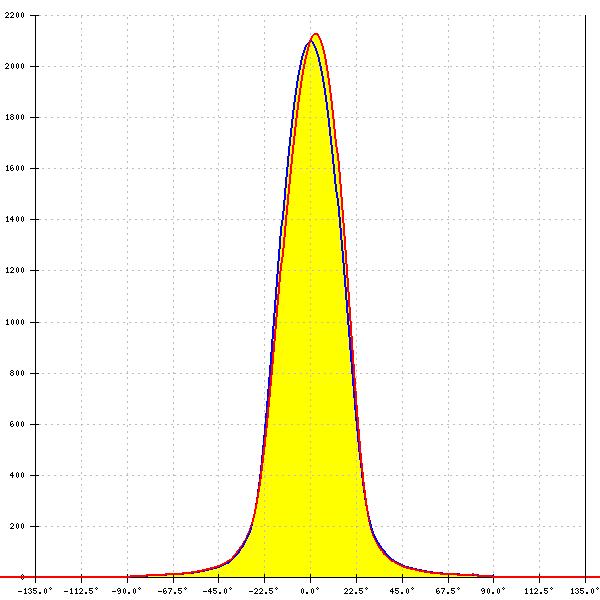

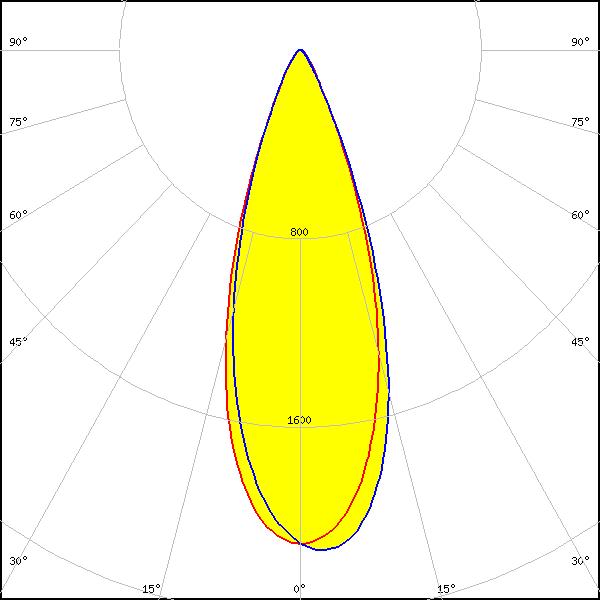

LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
35°
FWTM:
58°
Peak intensity:
2.126 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

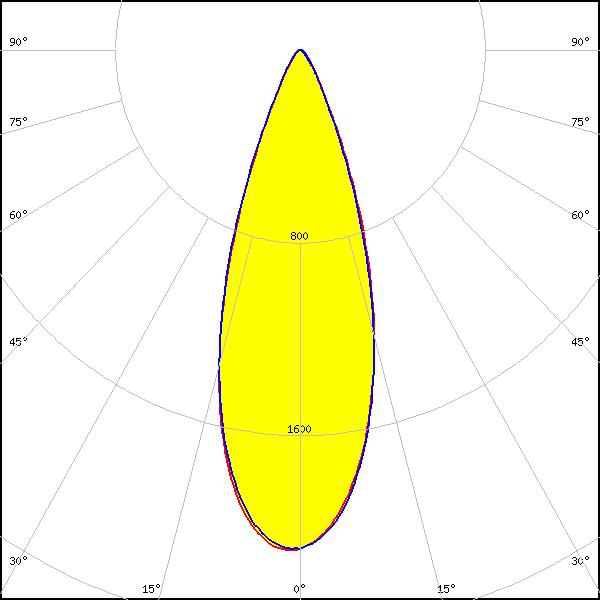

LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
35°
FWTM:
59°
Peak intensity:
2.077 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

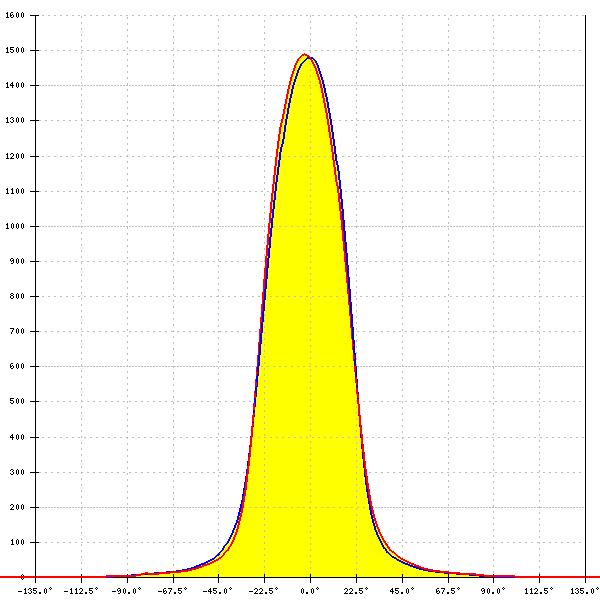

LED:

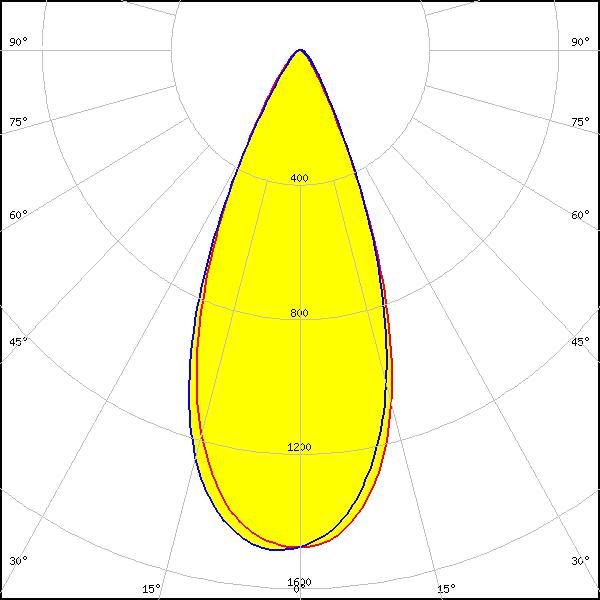

LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
43°
FWTM:
68°
Peak intensity:
1.488 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM:
50°
FWTM:
77°
Peak intensity:
1.133 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

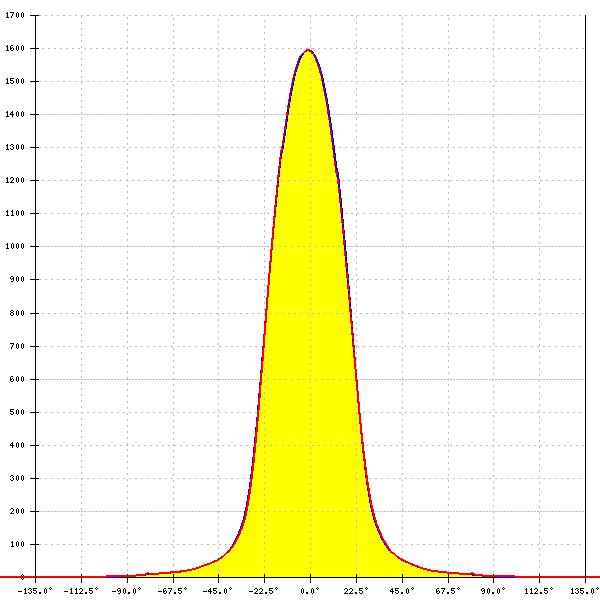

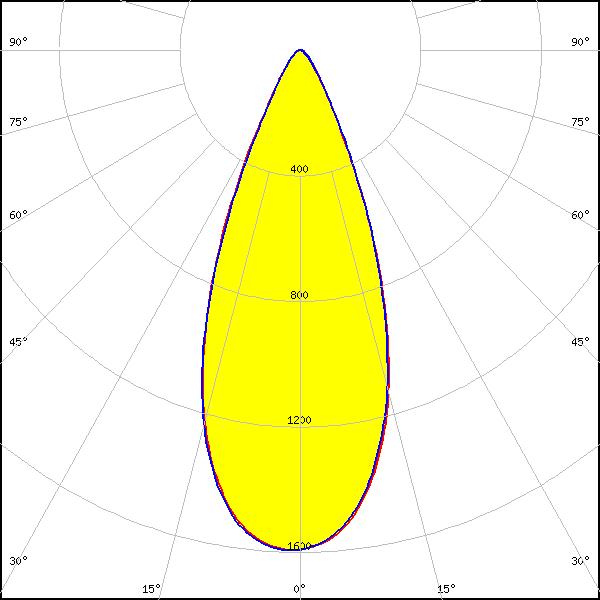

LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM:
42°
FWTM:
66°
Peak intensity:
1.595 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

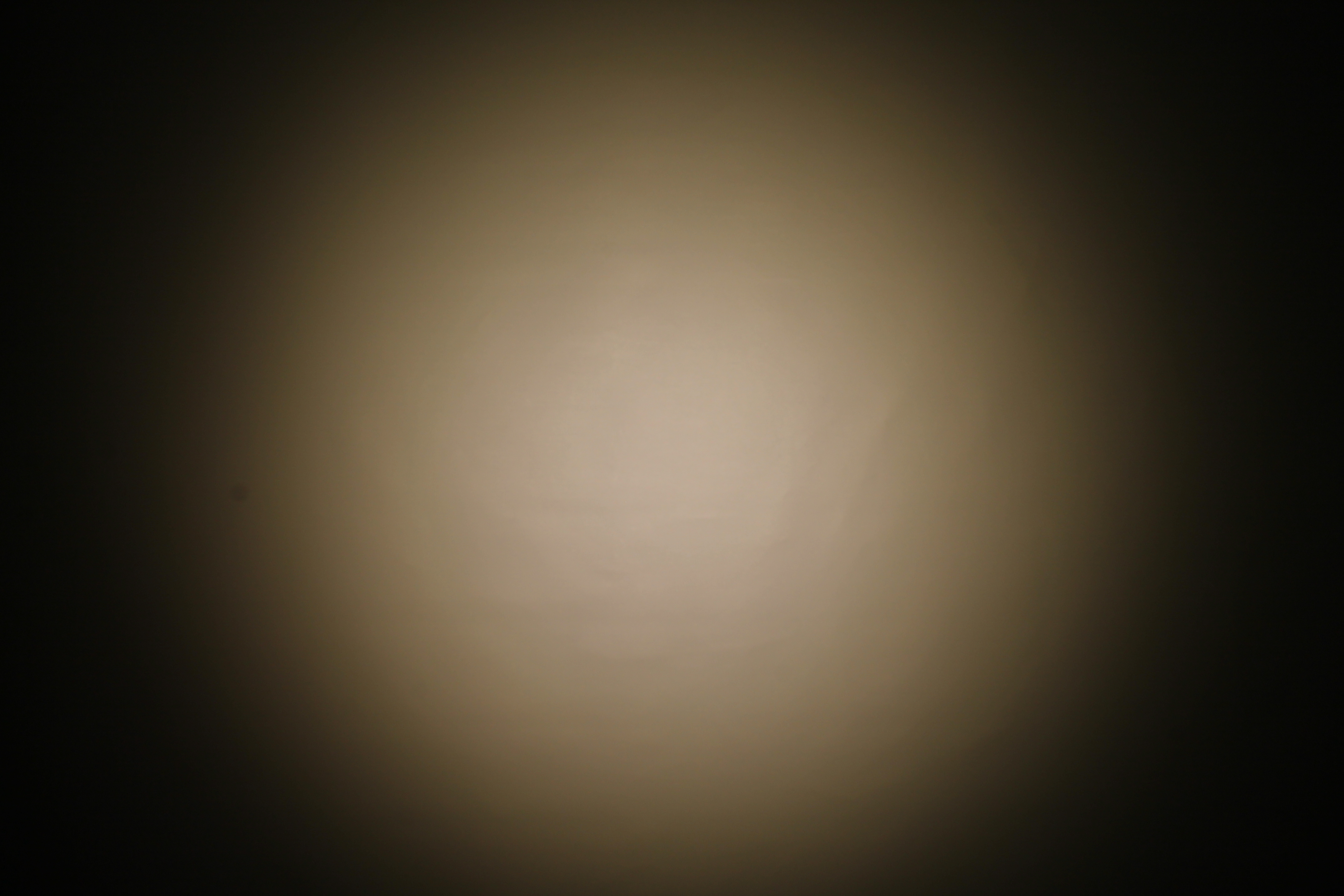

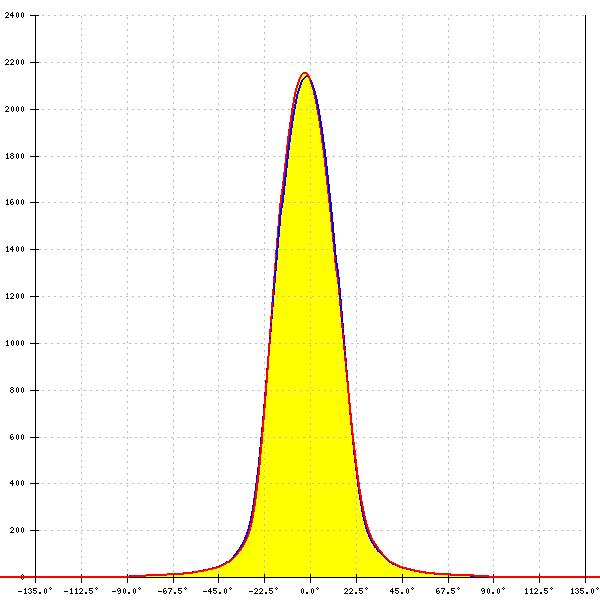

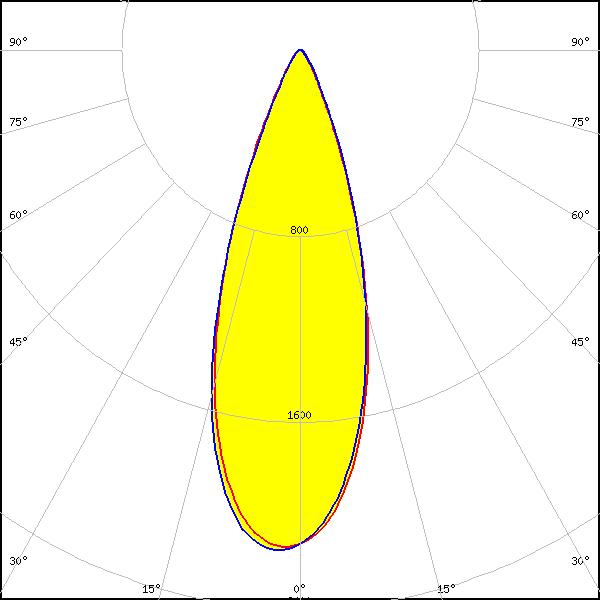

LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM:
35°
FWTM:
58°
Peak intensity:
2.167 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

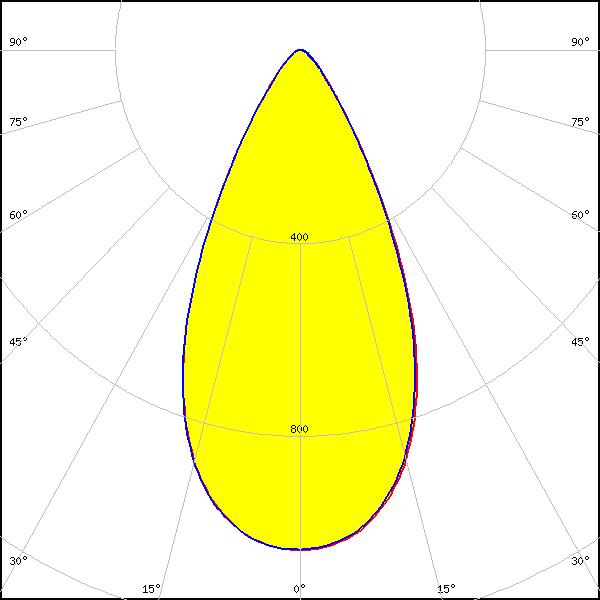

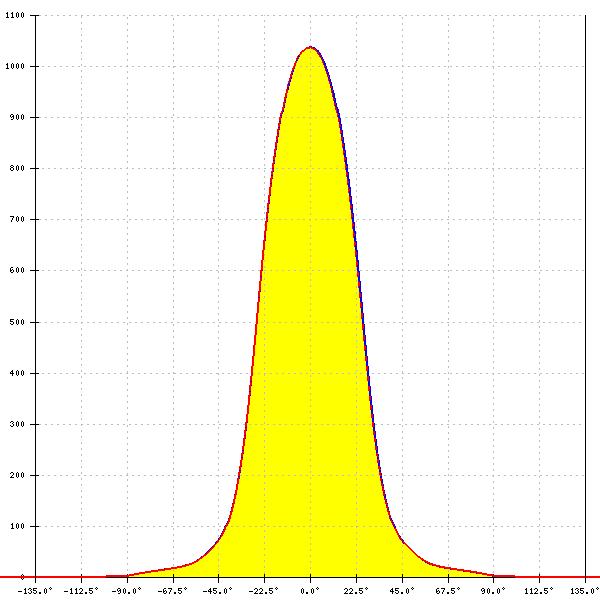

LED:
CxM-11 (19x19)
LES size: 11.7 mm
Required components:
FWHM:
51°
FWTM:
81°
Peak intensity:
1.038 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

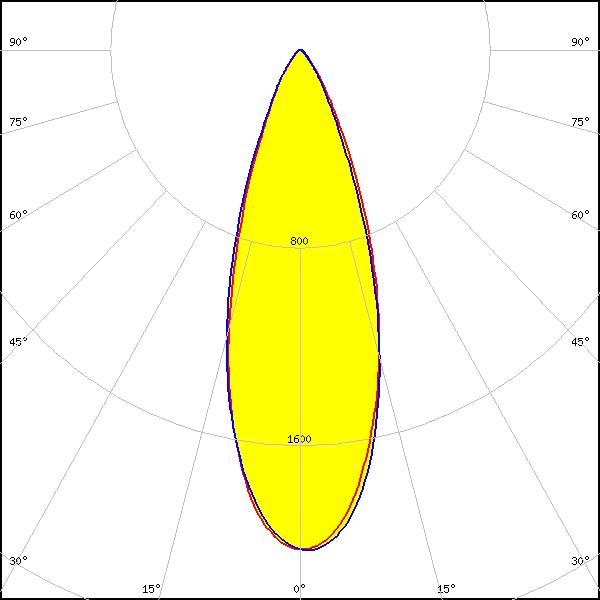

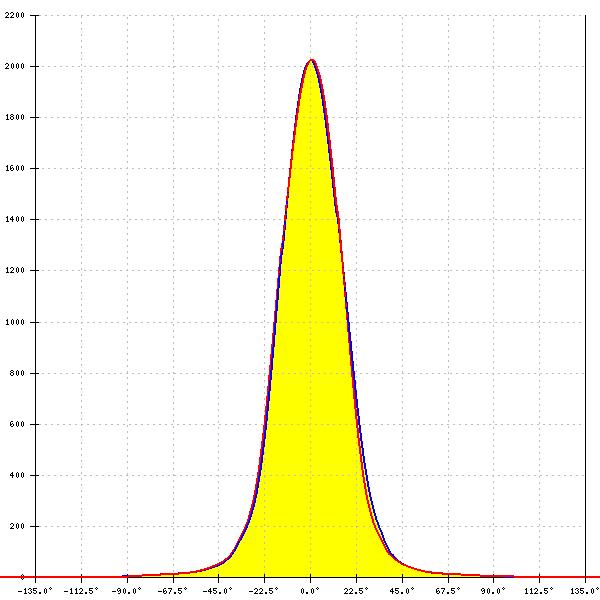

CXM-3
LES size: 3.5 mm
Required components:
FWHM:
35°
FWTM:
64°
Peak intensity:
2.026 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

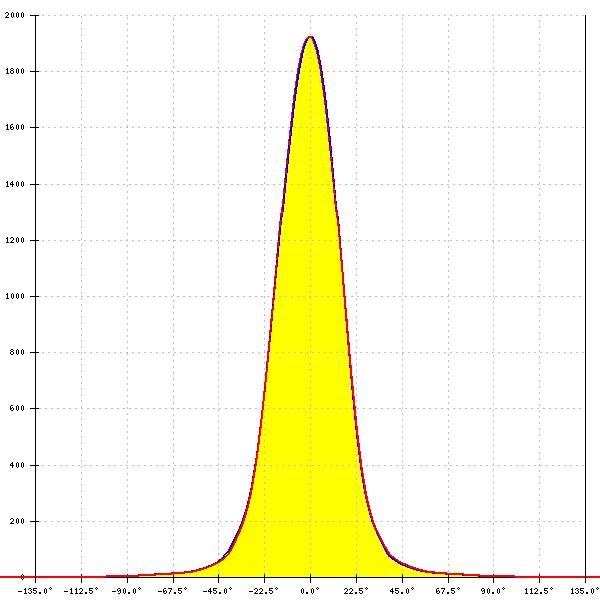

LED:

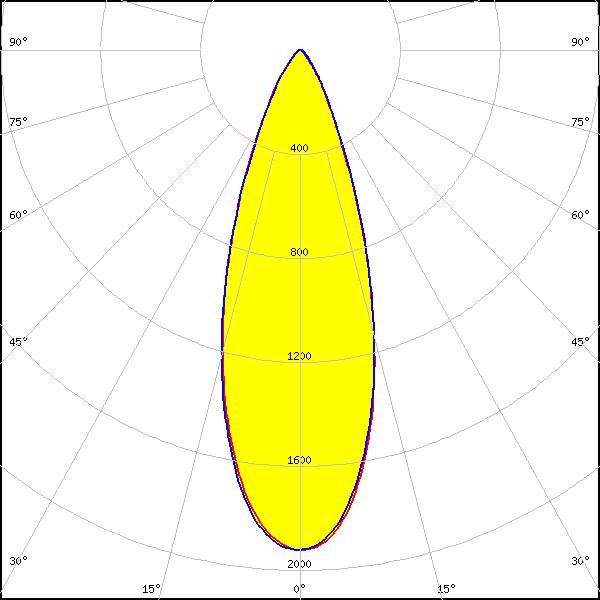

CXM-4
LES size: 4.5 mm
Required components:
FWHM:
35°
FWTM:
65°
Peak intensity:
1.923 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
38°
FWTM:
60°
Peak intensity:
1.938 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

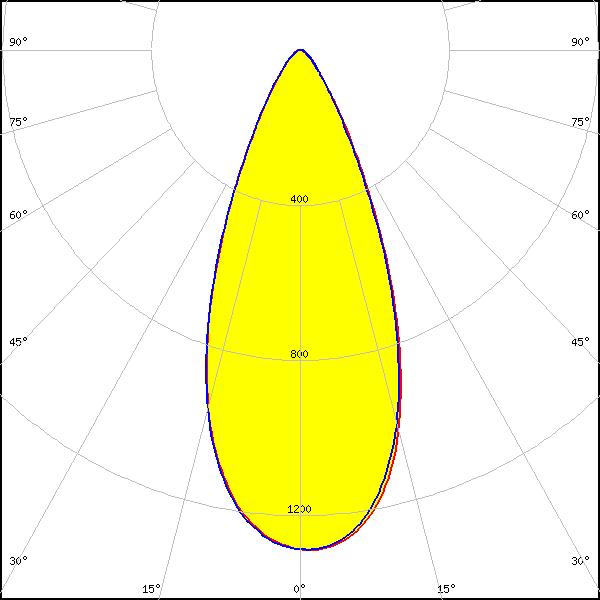

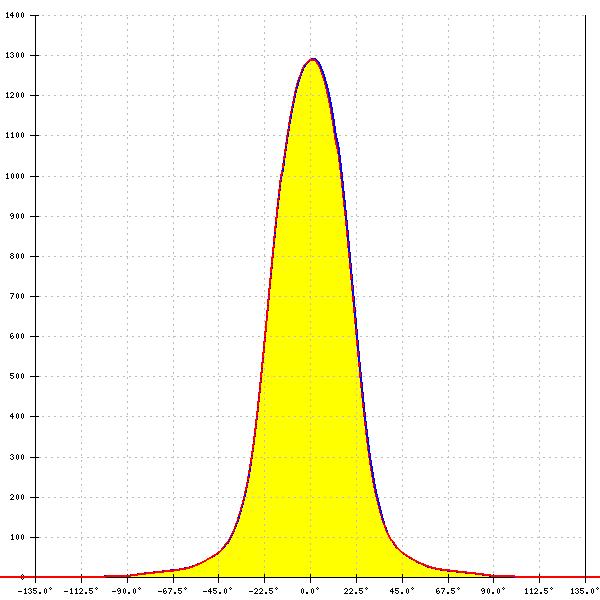

LC010T (Tunable White)
LES size: 9.8 mm
Required components:
FWHM:
43°
FWTM:
74°
Peak intensity:
1.290 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White

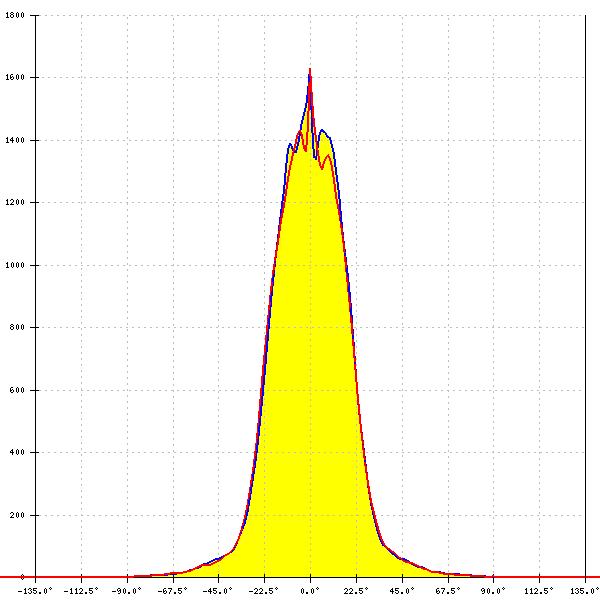

LED:

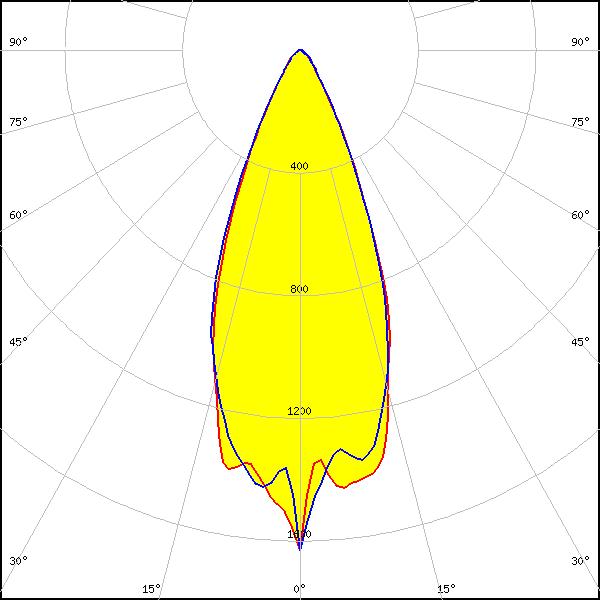

SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM:
41°
FWTM:
66°
Peak intensity:
1.636 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

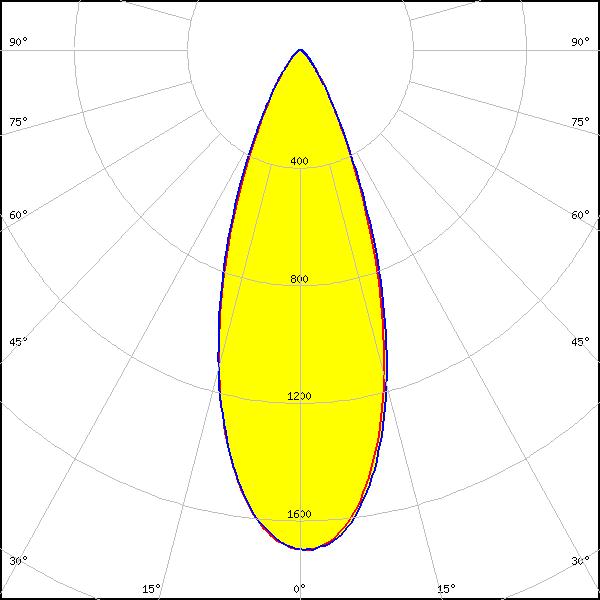

LED:

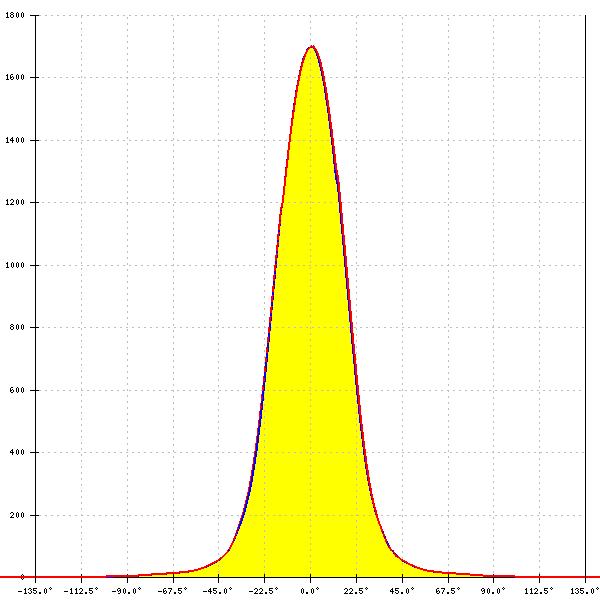

XOB 6 mm
LES size: 6.0 mm
Required components:
FWHM:
39°
FWTM:
69°
Peak intensity:
1.701 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

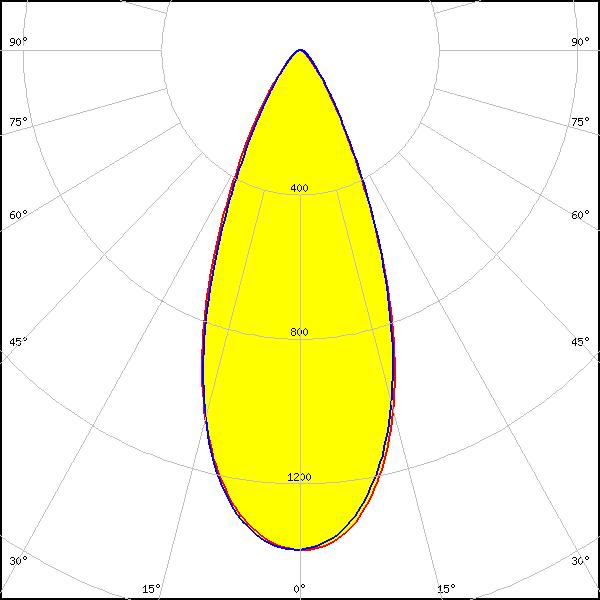

LED:

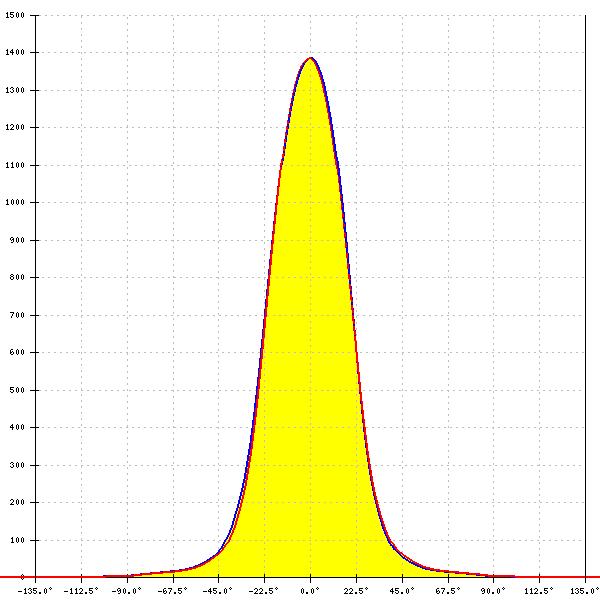

XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM:
43°
FWTM:
74°
Peak intensity:
1.385 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
