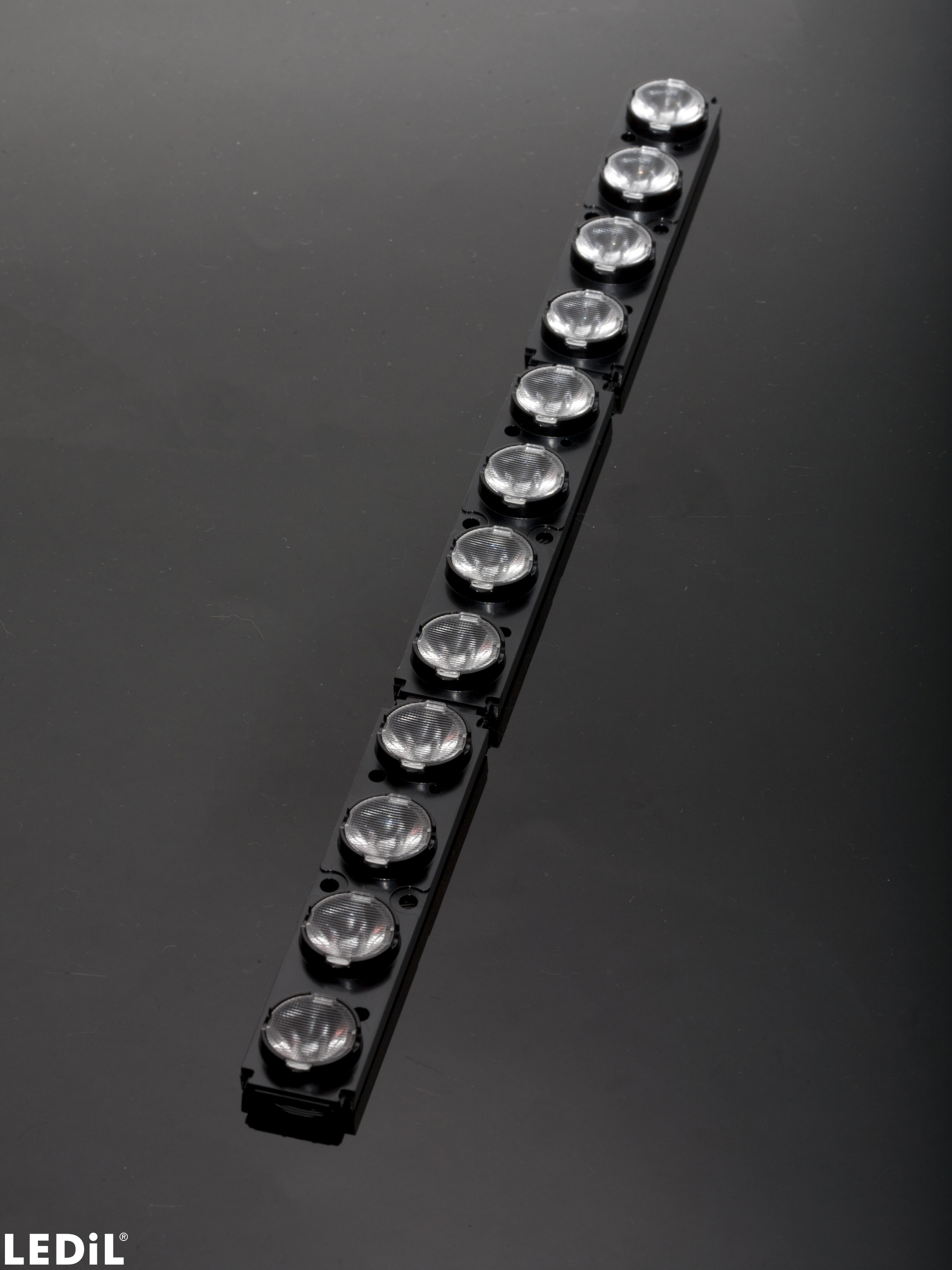

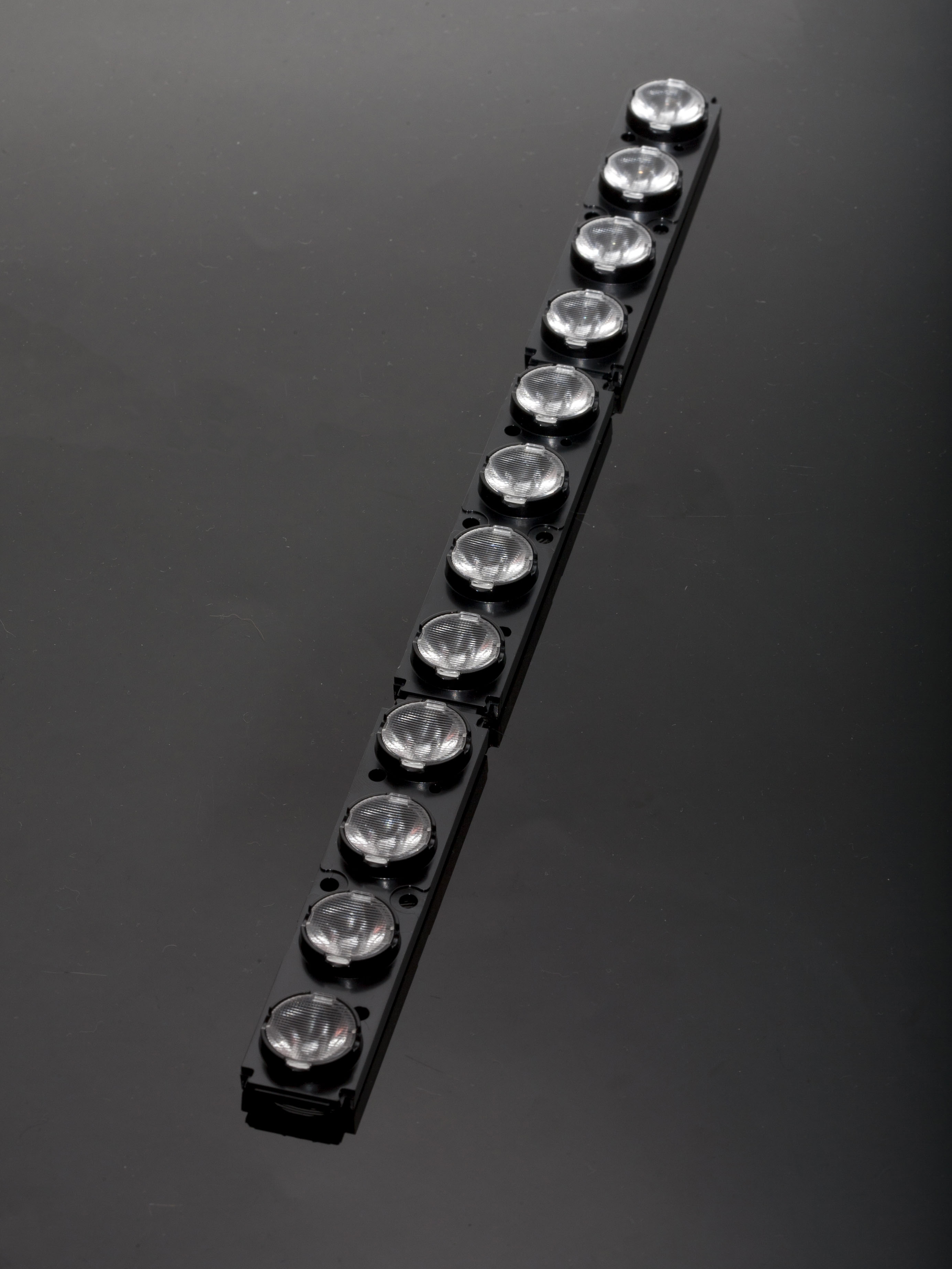

CP15678_FLORENTINA-HLD-O-90
Print
~35° + 15° oval beam. Variant with beam direction rotated 90°.
Materials
- TINA2-XP-O, Single lens, PMMA
- FLORENTINA-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:

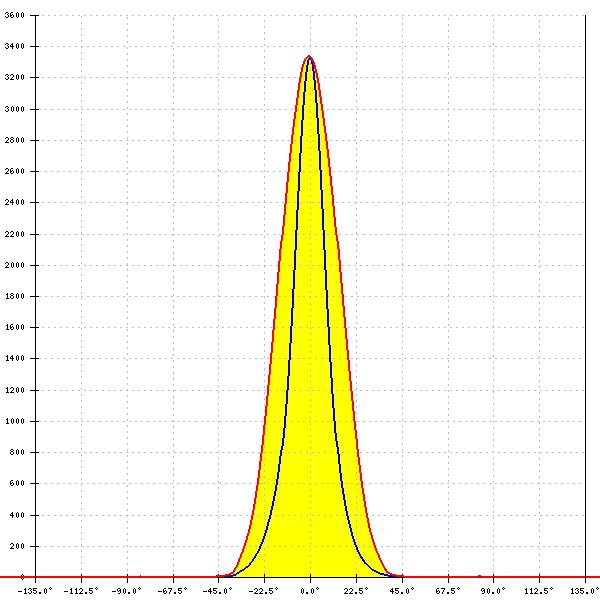

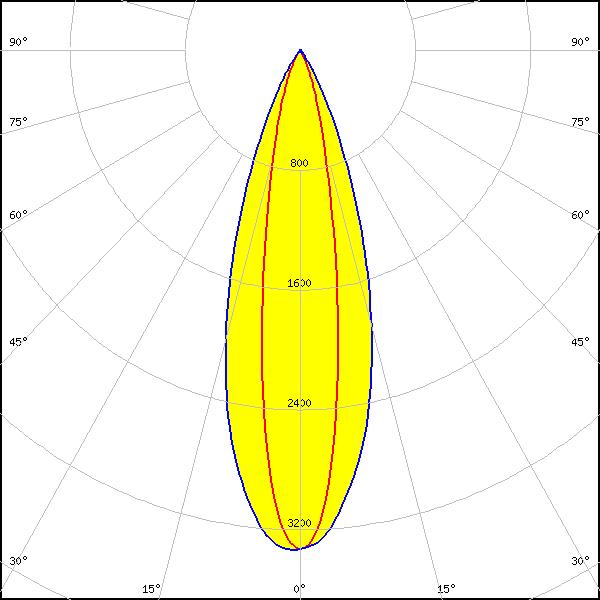

QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
18° + 34°
FWTM:
40° + 58°
Peak intensity:
3.300 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

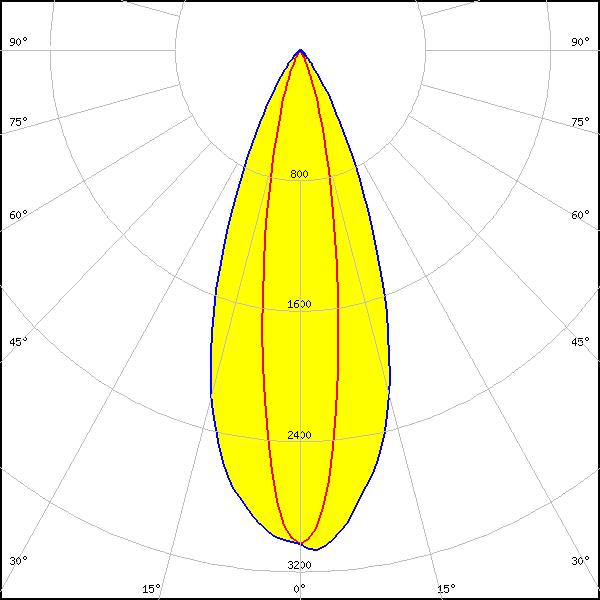

J Series 3030
FWHM:
18° + 40°
FWTM:
40° + 68°
Peak intensity:
3.080 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E2
Required components:
FWHM:
35° + 12°
FWTM:
83° + 83°
Peak intensity:
5.050 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
Required components:
FWHM:
34° + 15°
FWTM:
91° + 91°
Peak intensity:
4.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

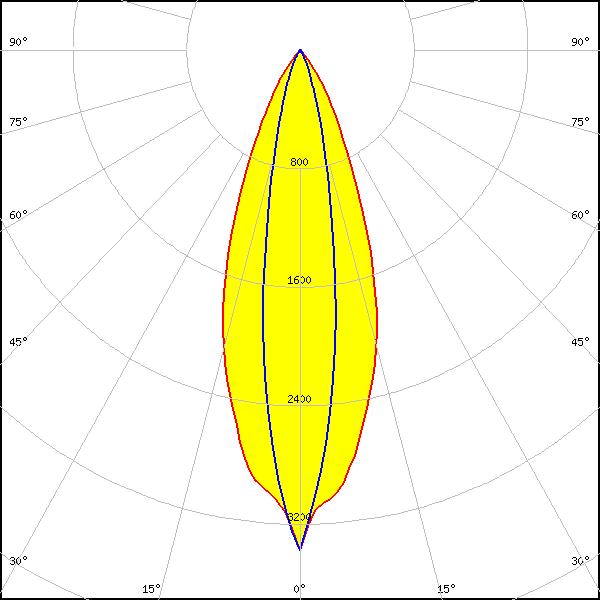

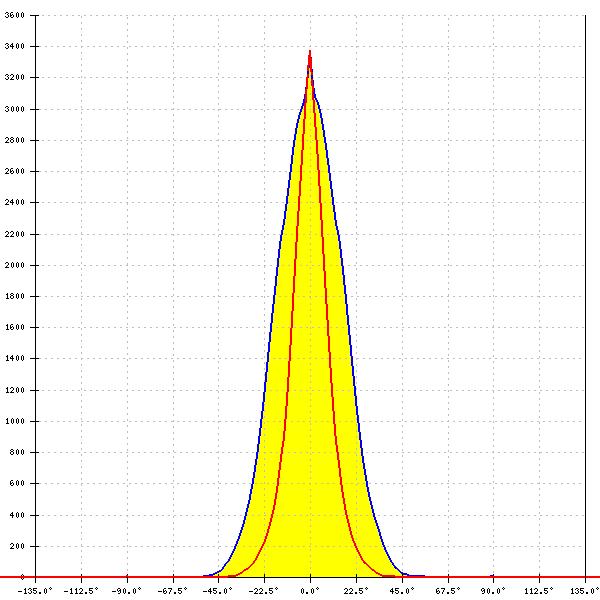

XP-G2 HE
Required components:
FWHM:
36° + 18°
FWTM:
66° + 39°
Peak intensity:
3.376 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
Required components:
FWHM:
33° + 17°
FWTM:
94° + 94°
Peak intensity:
3.600 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel Plus
Required components:
FWHM:
33° + 15°
FWTM:
88° + 88°
Peak intensity:
4.300 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
Required components:
FWHM:
34° + 16°
FWTM:
93° + 93°
Peak intensity:
3.800 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z ES
Required components:
FWHM:
34° + 13°
FWTM:
81° + 81°
Peak intensity:
5.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxx19B
Required components:
FWHM:
34° + 14°
FWTM:
88° + 88°
Peak intensity:
4.200 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
Required components:
FWHM:
34° + 17°
FWTM:
97° + 97°
Peak intensity:
3.430 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:

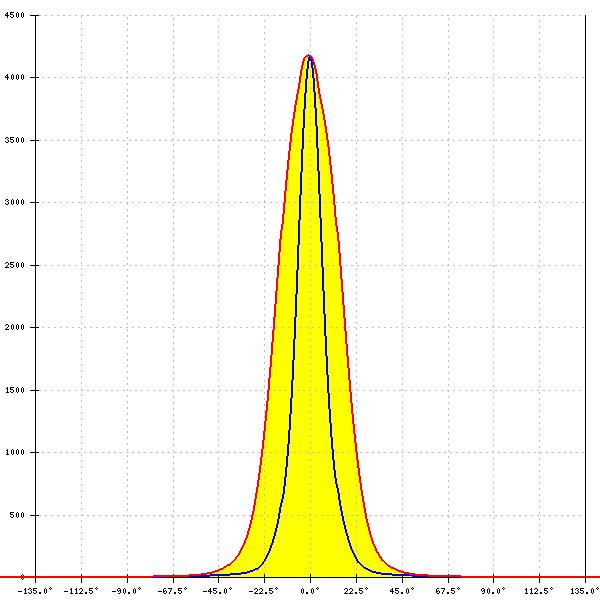

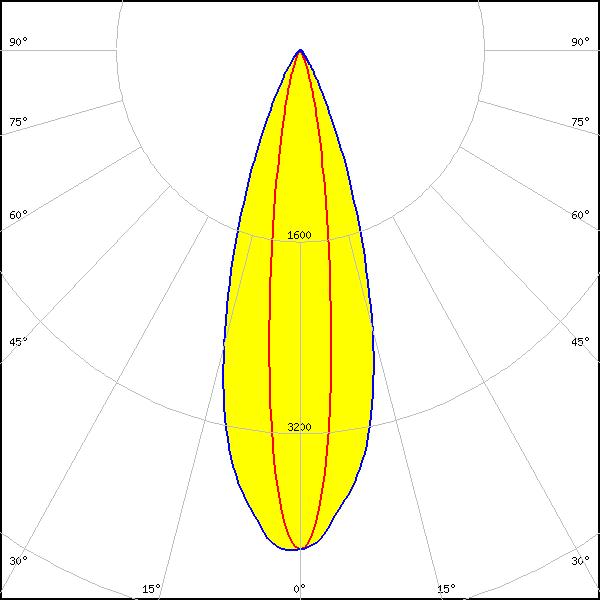

OSLON Square EC
Required components:
FWHM:
15° + 34°
FWTM:
92° + 92°
Peak intensity:
4.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
Required components:
FWHM:
33° + 15°
FWTM:
91° + 91°
Peak intensity:
4.080 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
Required components:
FWHM:
34° + 18°
FWTM:
100° + 100°
Peak intensity:
3.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
TL1L4
Required components:
FWHM:
34° + 17°
FWTM:
95° + 95°
Peak intensity:
3.590 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
