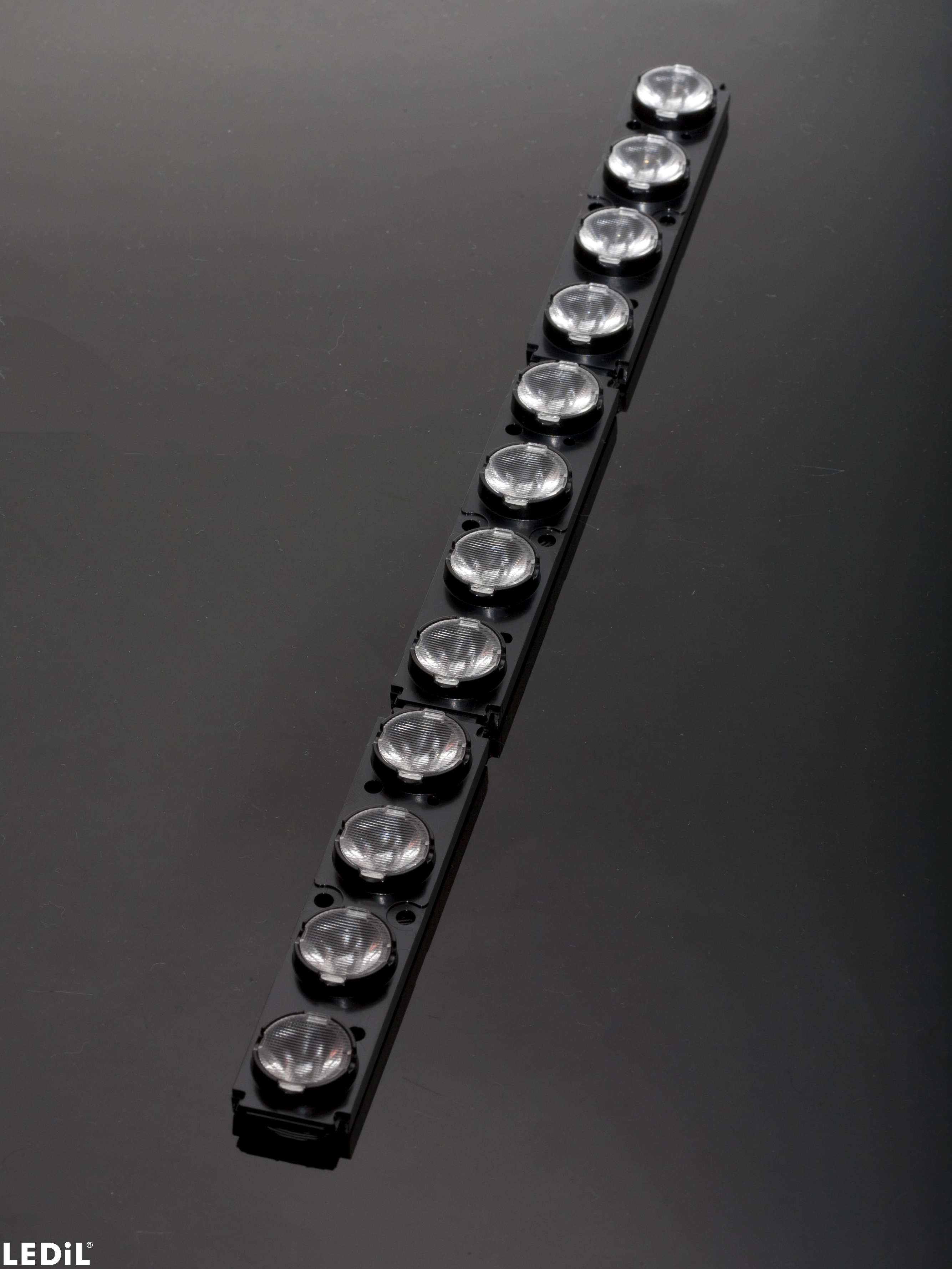

    CP15341_FLORENTINA-HLD-O-WAS

    Print

    Oval beam for wall-washing

    Specification
    • Dimensions:
      19 x  287 mm
    • Height:
      9.70 mm
    • Fastening:
      screw
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      160 pcs
    • Box size:
      398 x 298 x 140 mm
    • Box weight:
      3.0 kg
    • MPQ:
      16 pcs
    • MOQ:
      32 pcs
    • MOQ size:
      400 x 300 x 50 mm
    • MOQ weight:
      1.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP15341_FLORENTINA-HLD-O-WAS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR146 - Change of Florentina holder designs

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Compatibility guide

    FLORENTINA Assemblies

    Application guide

    LEDiL guide for office lighting optics

    News

    Effective fashion retail lighting

    Article

    Understanding the standards but aiming higher

    Article

    Stylish yet functional LED office lighting

    News

    PRODUCT NEWS - FLORENTINA-OPEN

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    AVAILABLE LEDiL ACCESSORIES

    FLORENCE-1R-CLIP-A

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 40 mm wide PCB

    FLORENCE-1R-CLIP-B

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD to extrusion profiles

    FLORENTINA-SHD

    Black shade for FLORENTINA (12X1) assemblies

    FLORENCE-1R-CLIP-C

    Installation clip for fastening FLORENCE-1R optics or FLORENTINA-HLD with a 24 mm wide PCB

    FLORENTINA-SHD-WHT

    White shade for FLORENTINA (12X1) assemblies

    Optical results

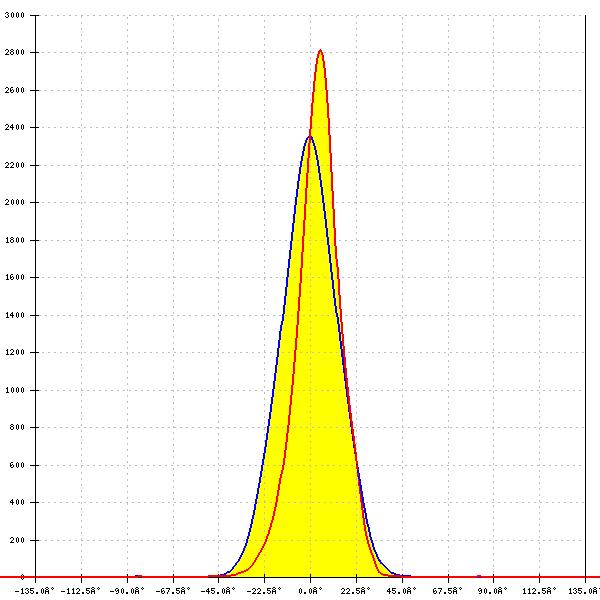

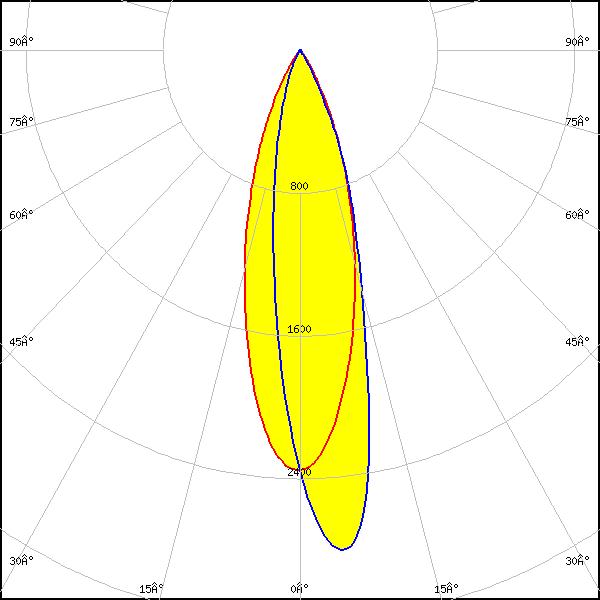

    LED: QUICK FLUX LED FL-XG 1x12 xxx
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 2.800 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

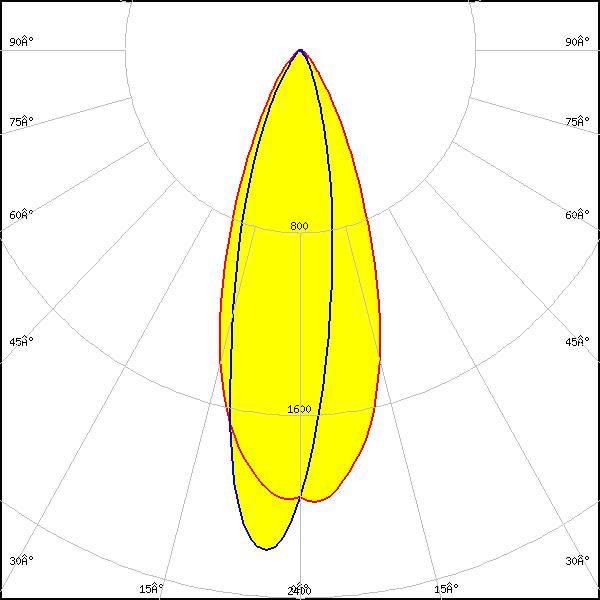

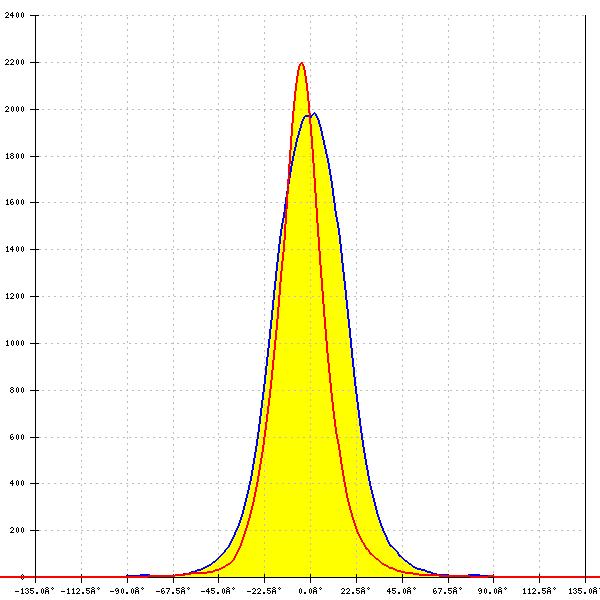

    LED: J Series 3030
    FWHM: asymmetric
    Peak intensity: 2.217 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

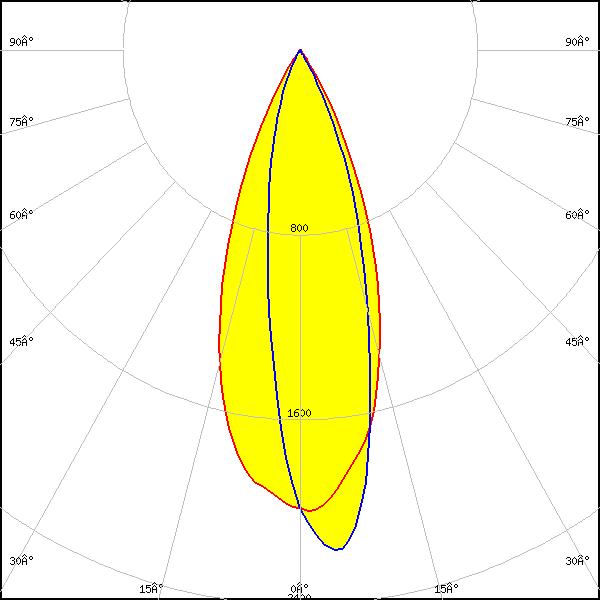

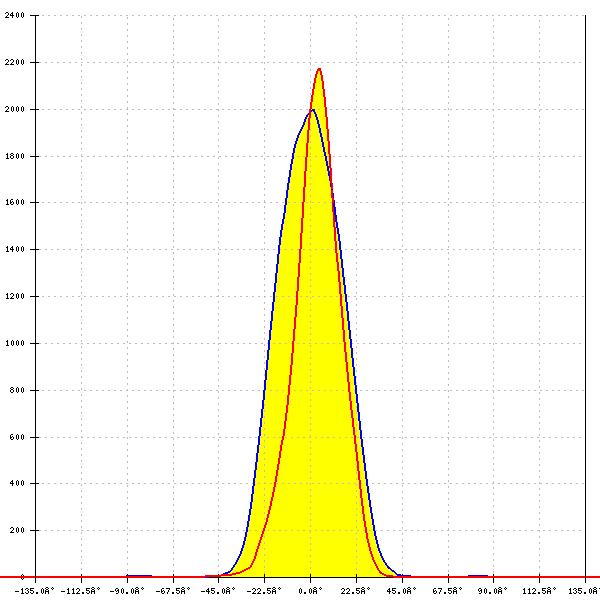

    LED: J Series 3030
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 2.201 cd/lm
    Efficiency: 72 %
    LEDs/each optic: 1
    Light colour/type: White

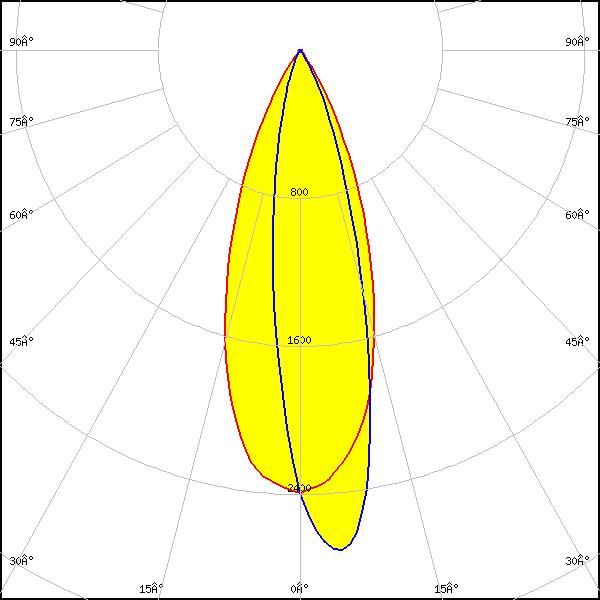

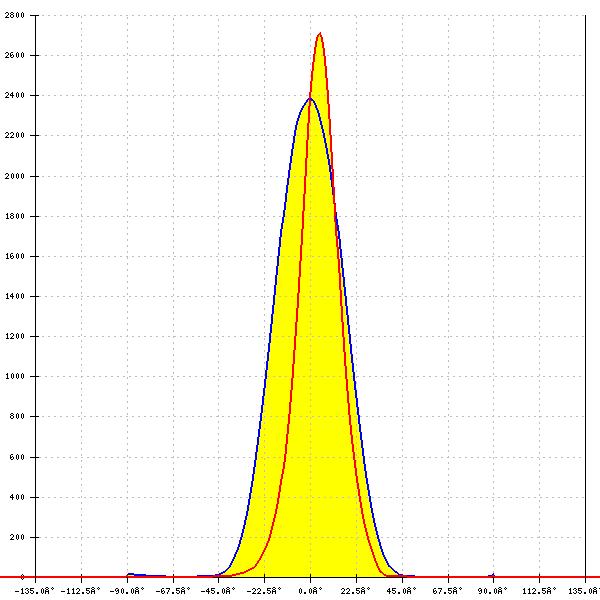

    LED: XP-G3
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 2.720 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

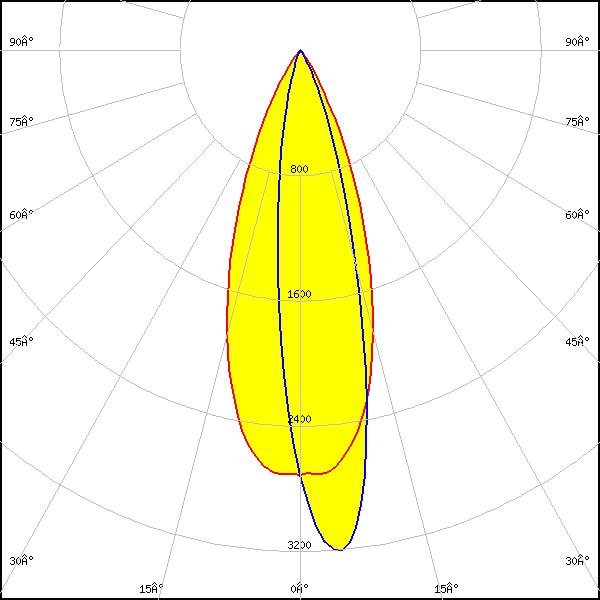

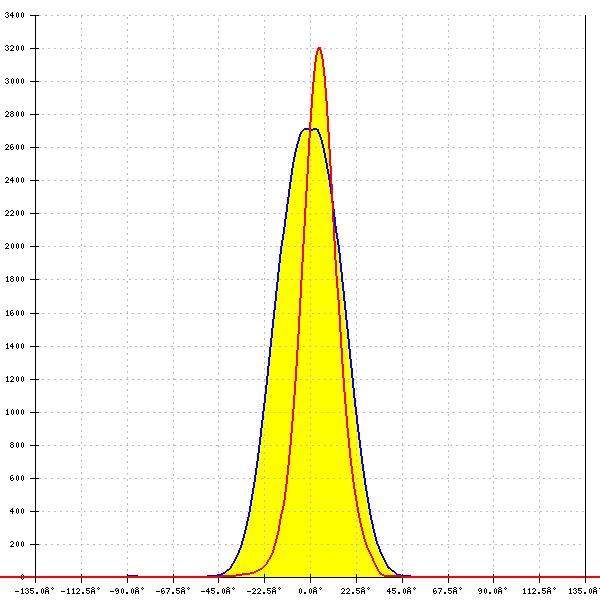

    LED: XP-G4
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 3.216 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

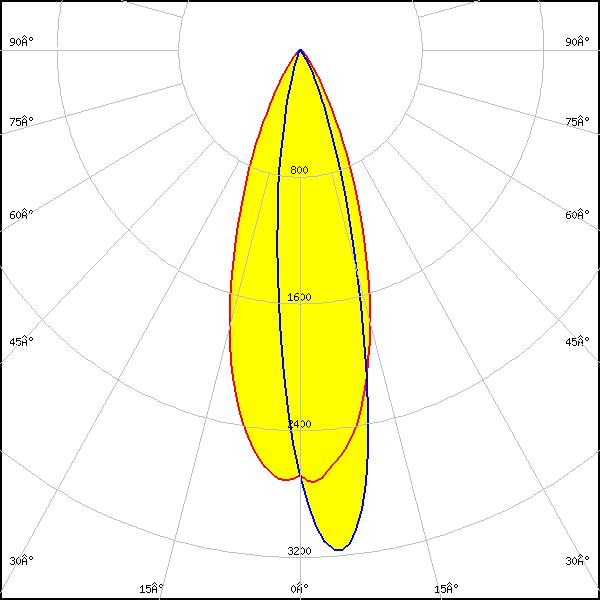

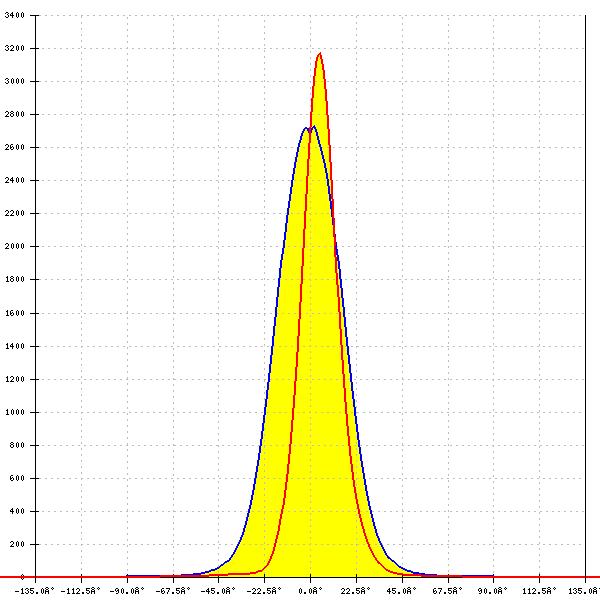

    LED: LUXEON HL2X
    FWHM: asymmetric
    Peak intensity: 3.170 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

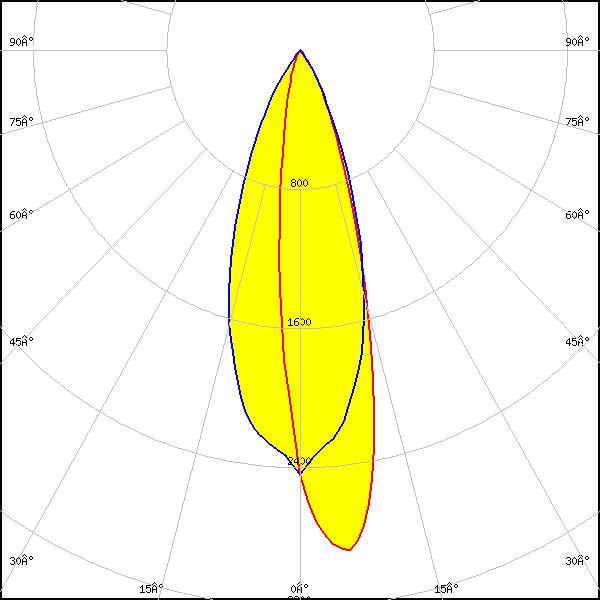

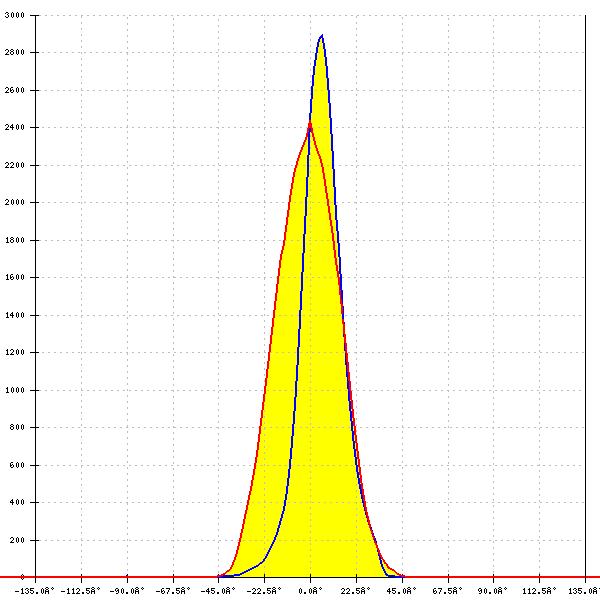

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 2.906 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

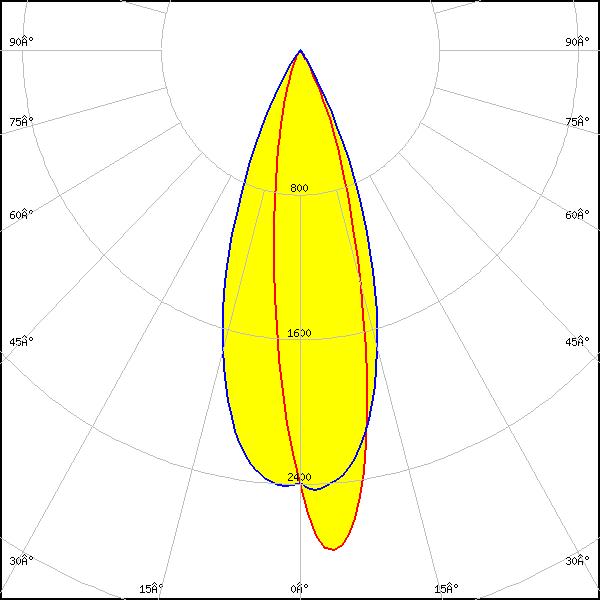

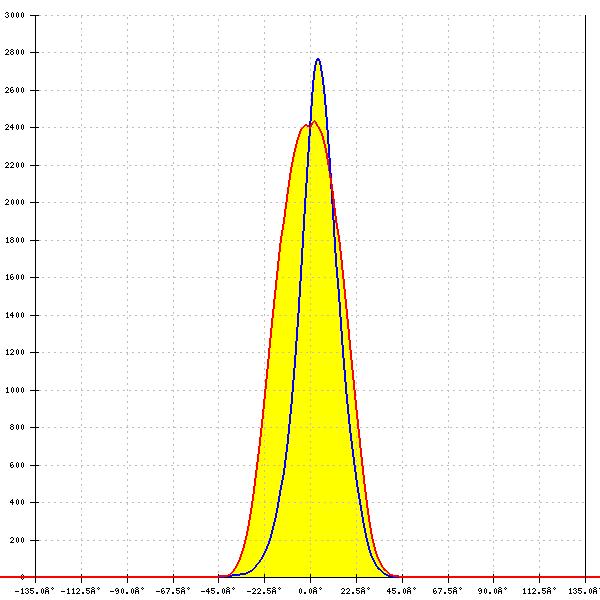

    LED: Duris E 2835
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 2.788 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

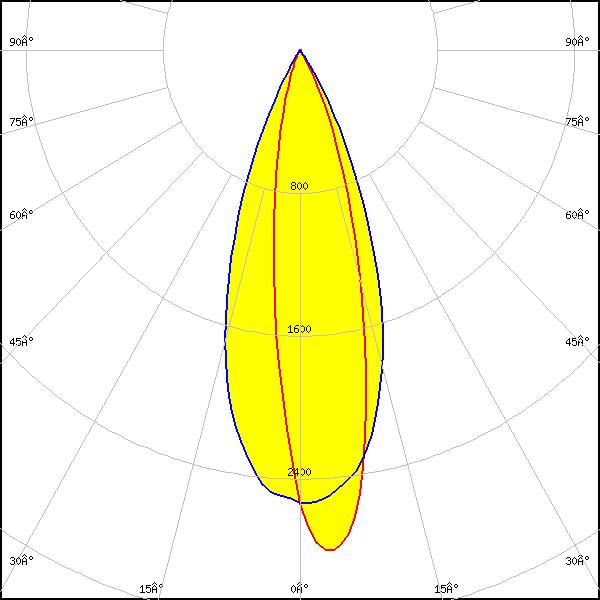

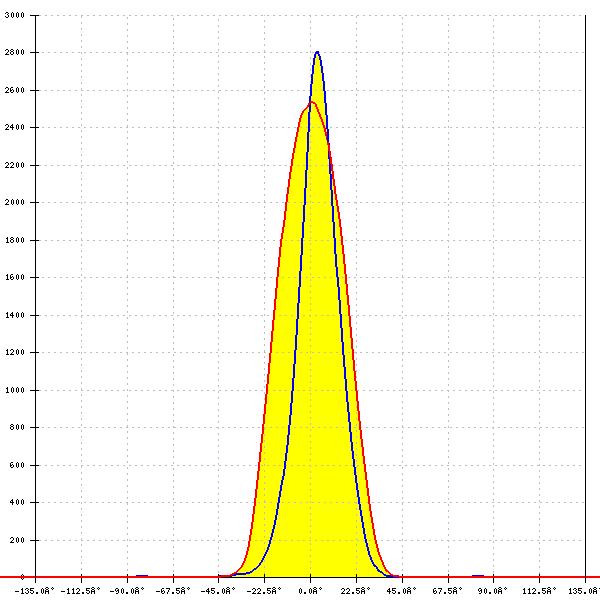

    LED: Duris S5 (2 chip)
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 2.815 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

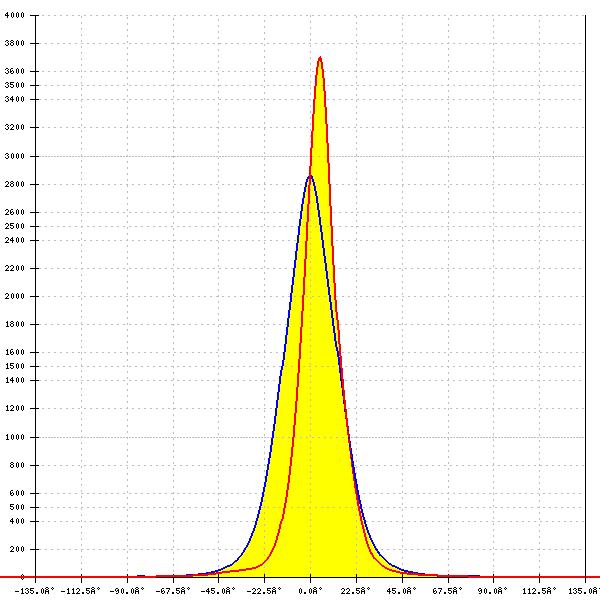

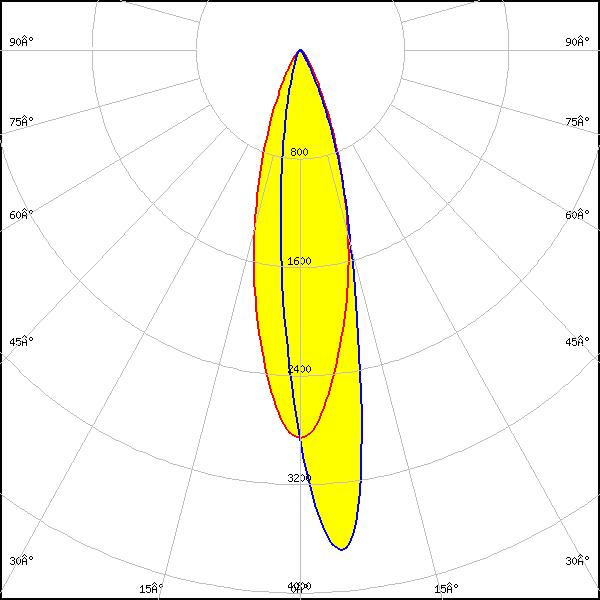

    LED: OSLON Square EC
    Required components:
    C14446_FLORENTINA-SHD
    FWHM: asymmetric
    Peak intensity: 3.700 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
