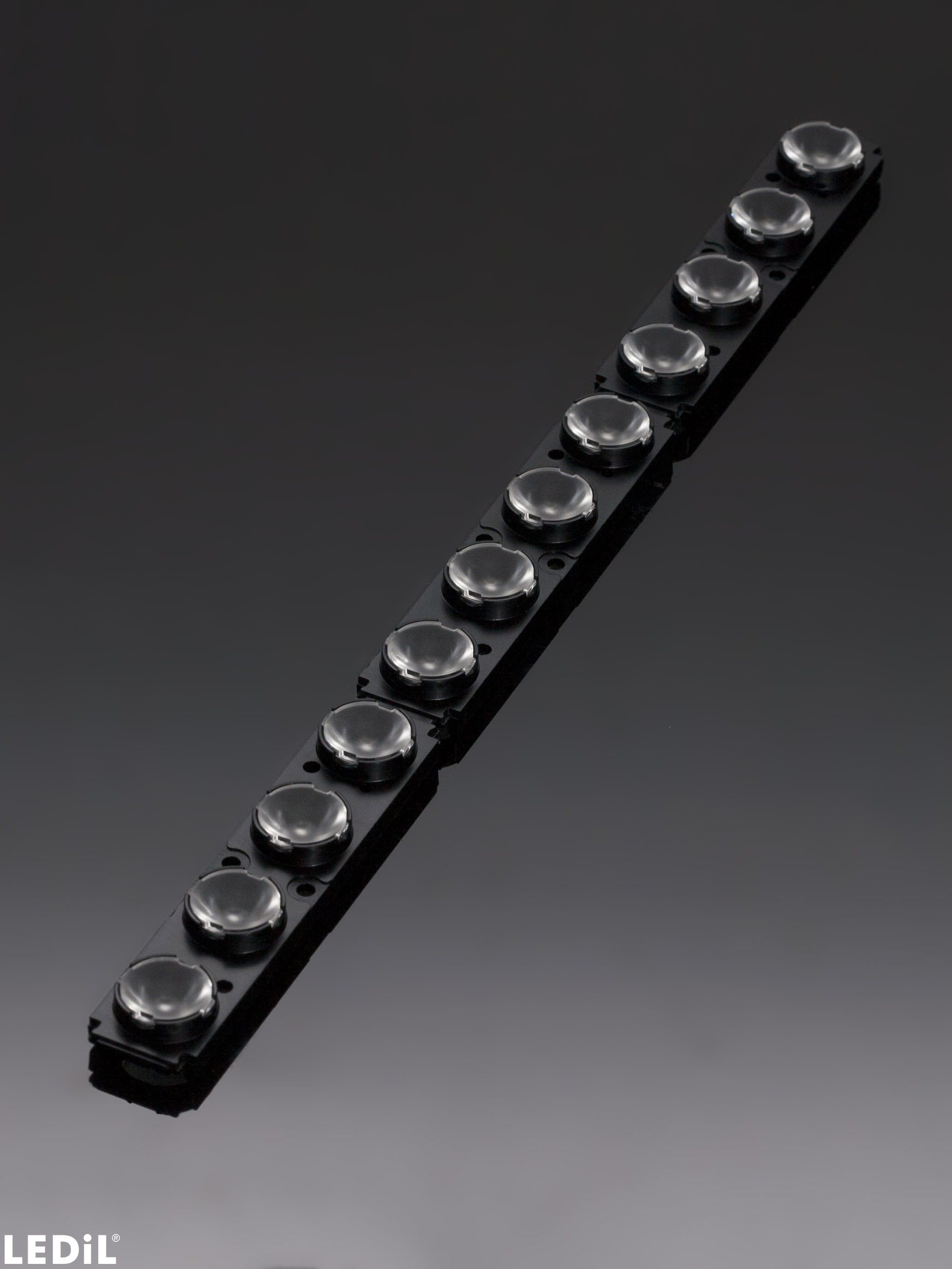

CP14996_FLORENTINA-HLD-D
Print
~18° diffused spot beam
Materials
- TINA2-XP-D, Single lens, PMMA
- FLORENTINA-HLD, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

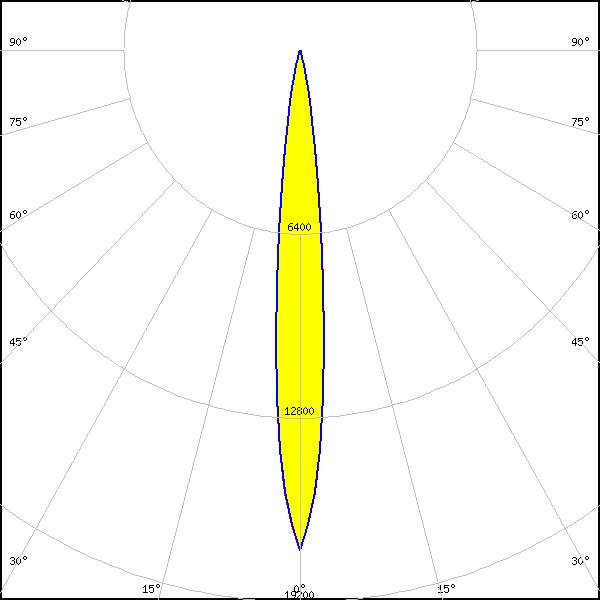

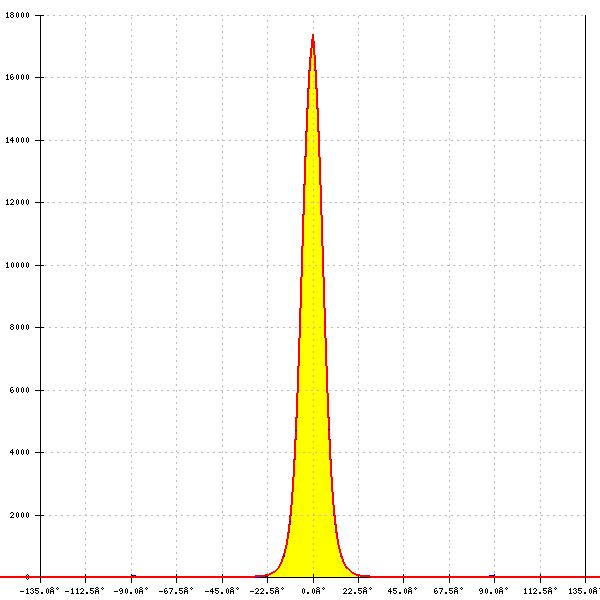

Optical results

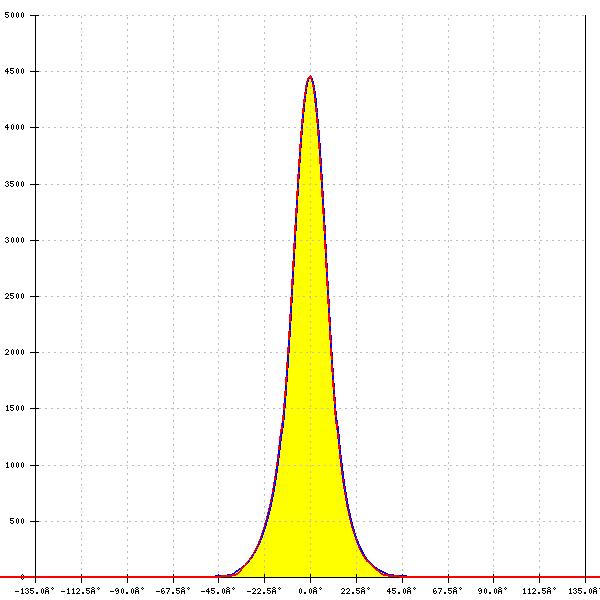

LED:

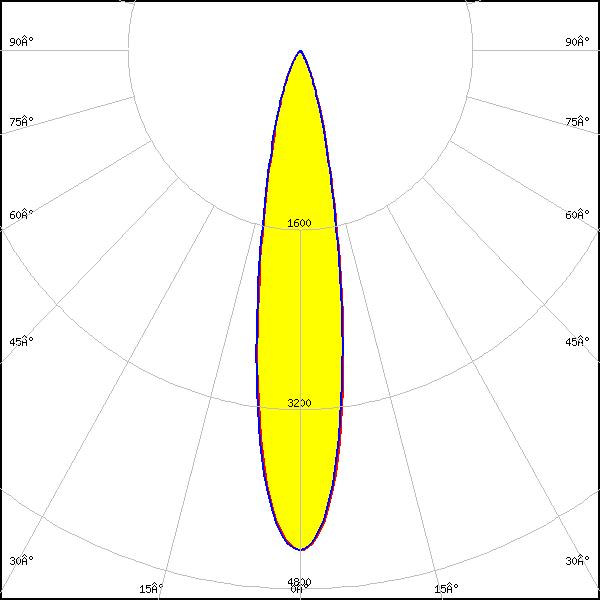

QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM:
20°
FWTM:
43°
Peak intensity:
4.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

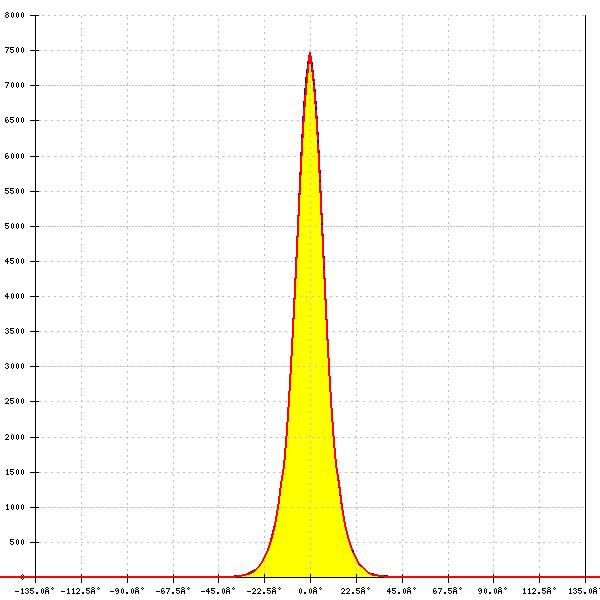

LED:

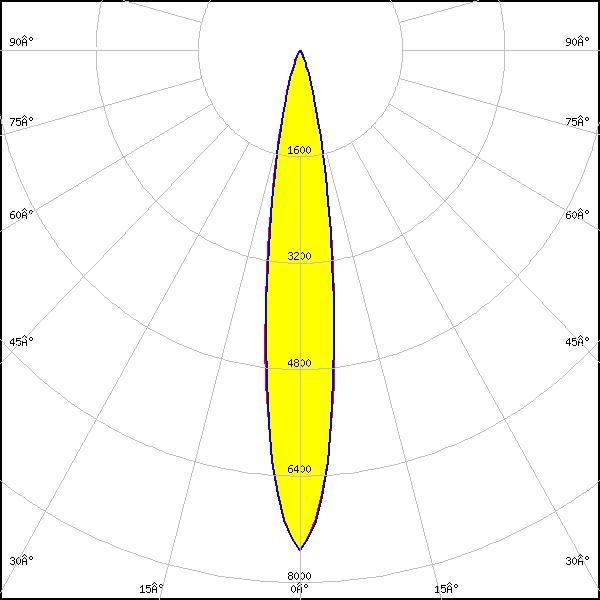

J Series 3030
FWHM:
16°
FWTM:
34°
Peak intensity:
7.517 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

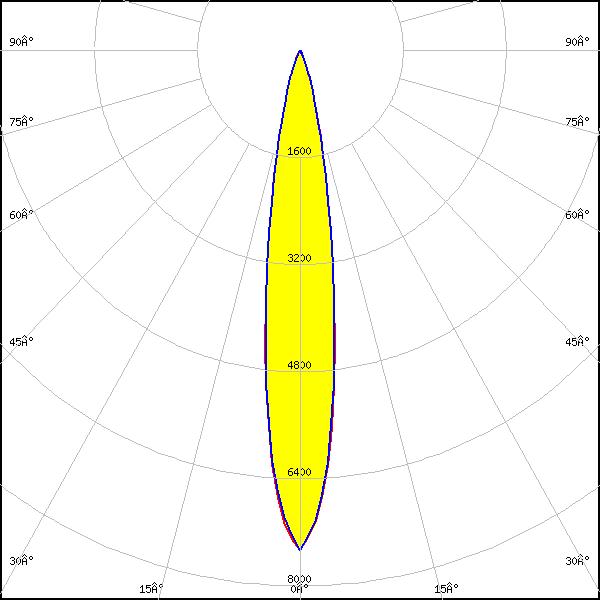

LED:
J Series 3030
Required components:
FWHM:
16°
FWTM:
34°
Peak intensity:
7.469 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

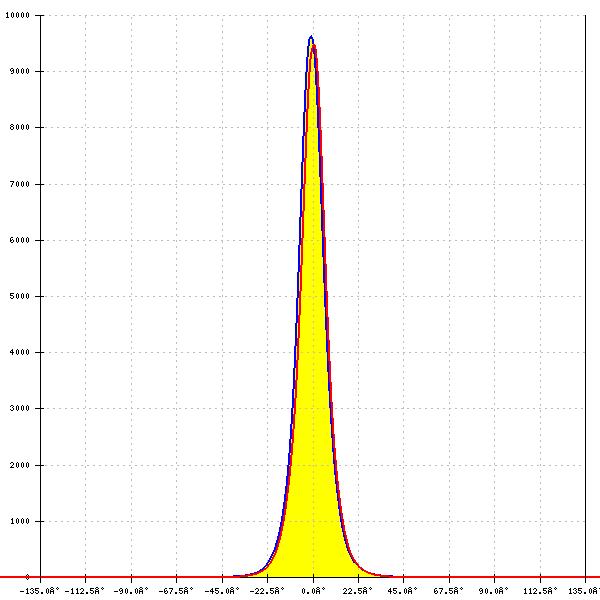

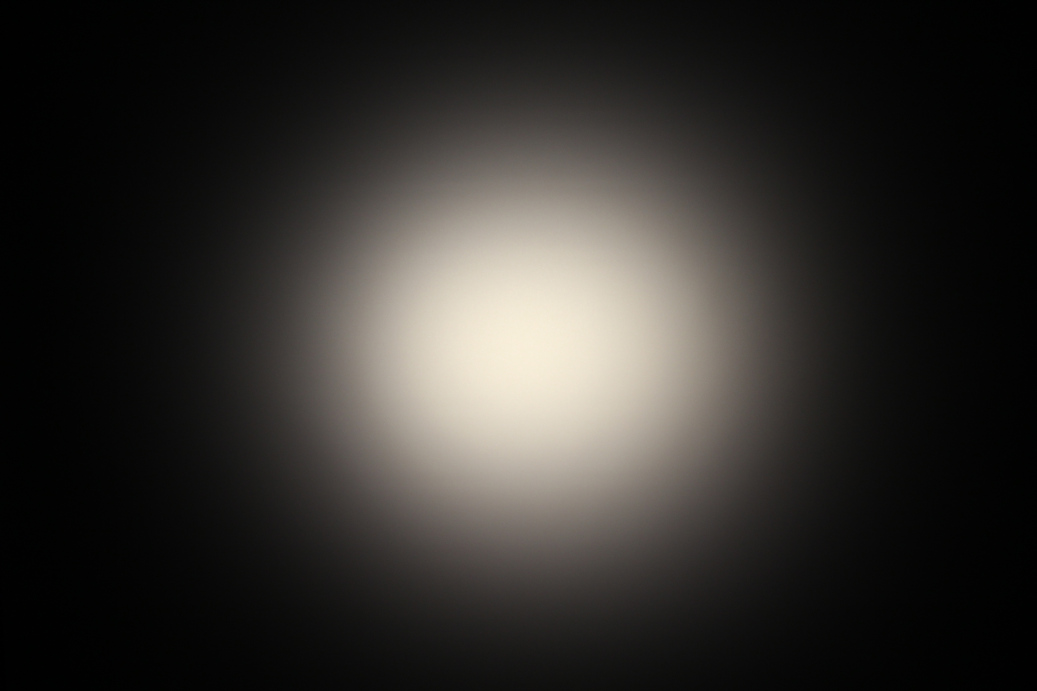

LED:

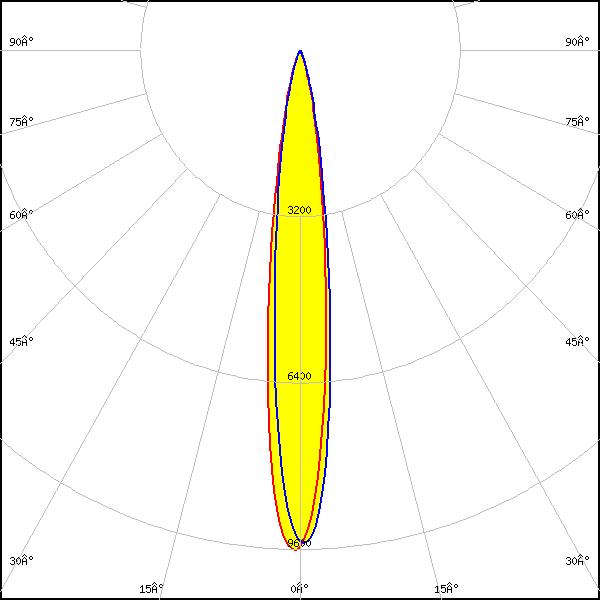

XP-E2
Required components:
FWHM:
13°
FWTM:
30°
Peak intensity:
9.620 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

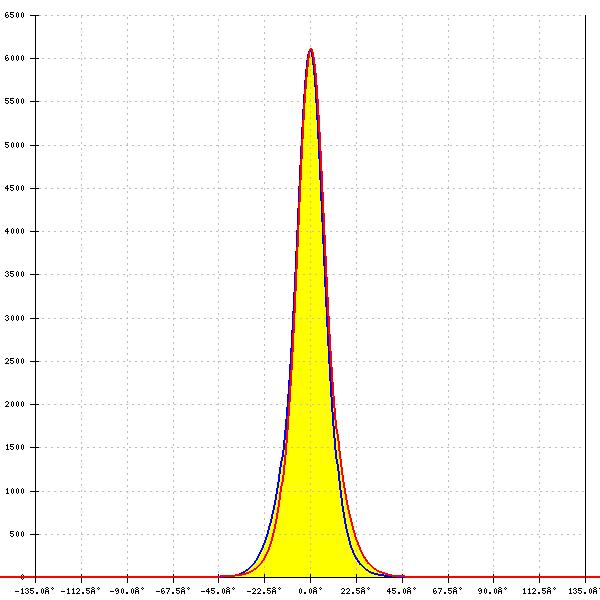

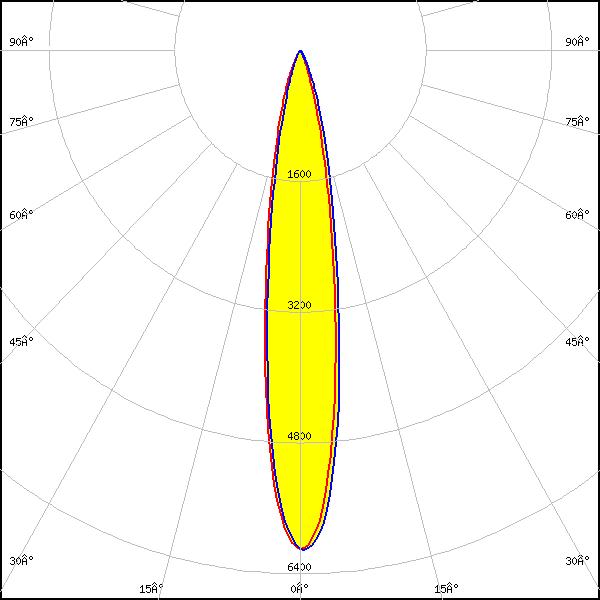

XP-G2
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

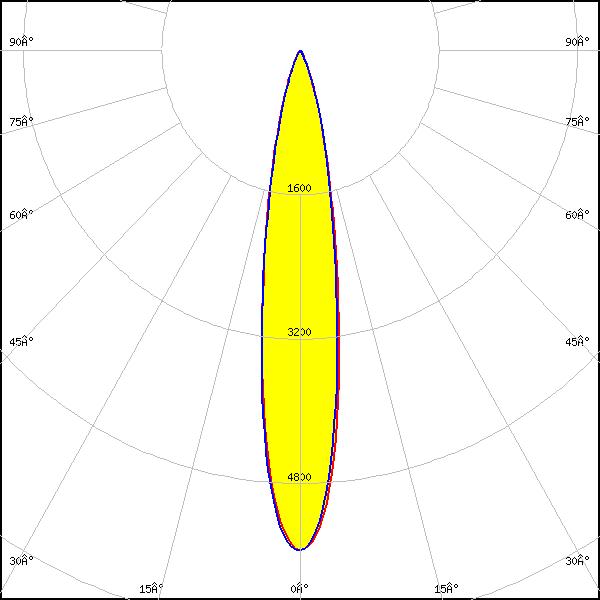

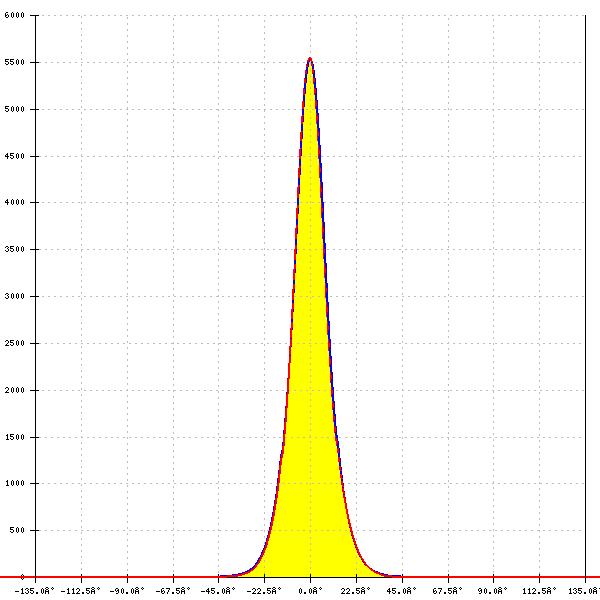

LED:
LUXEON Rebel ES
Required components:
FWHM:
18°
FWTM:
39°
Peak intensity:
5.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

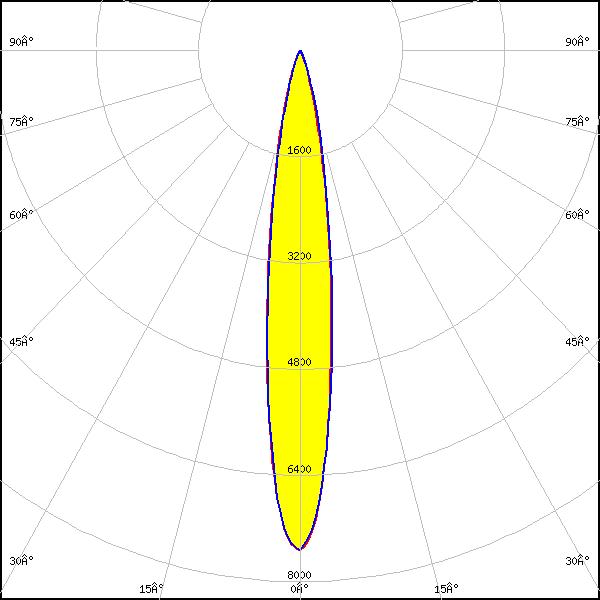

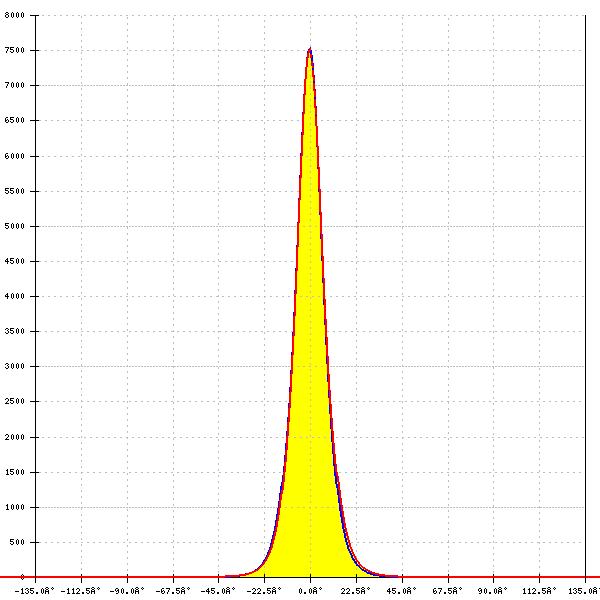

LUXEON Rebel Plus
Required components:
FWHM:
15°
FWTM:
33°
Peak intensity:
7.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

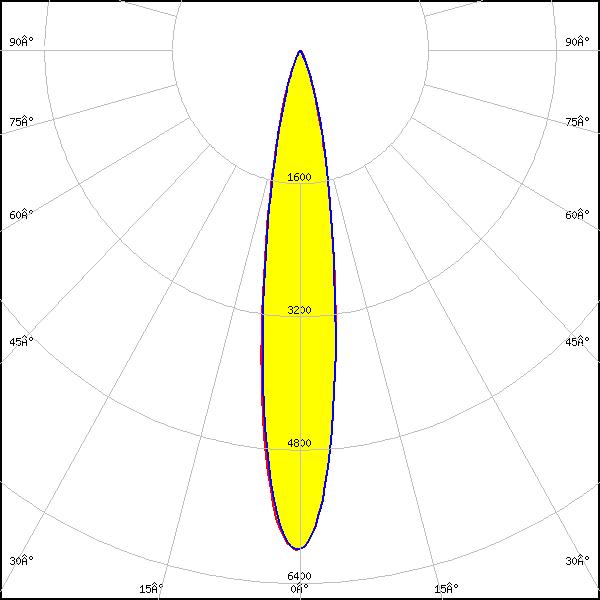

LED:
LUXEON TX
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

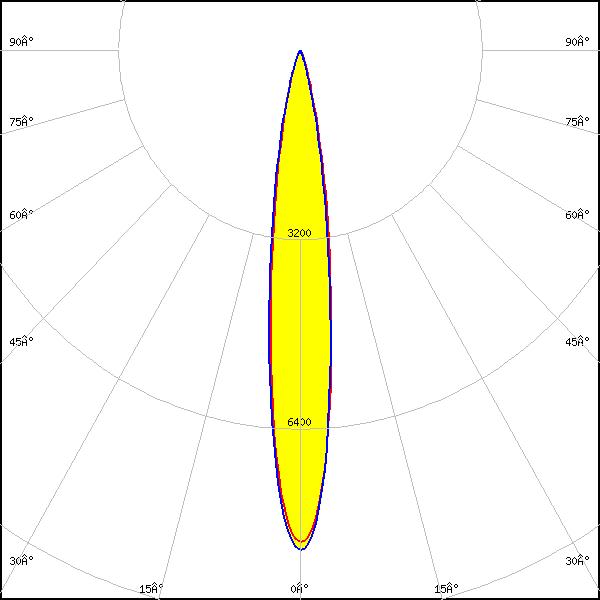

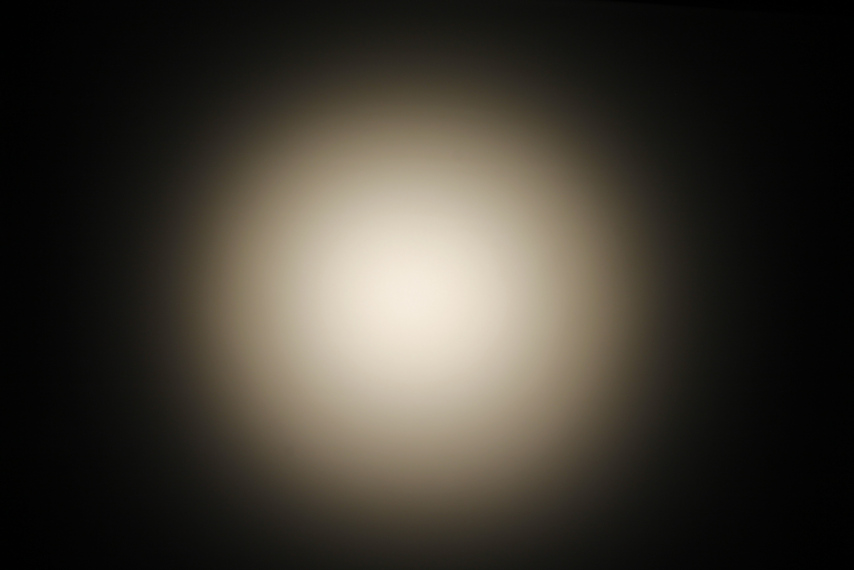

LED:
LUXEON Z ES
Required components:
FWHM:
15°
FWTM:
31°
Peak intensity:
8.530 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

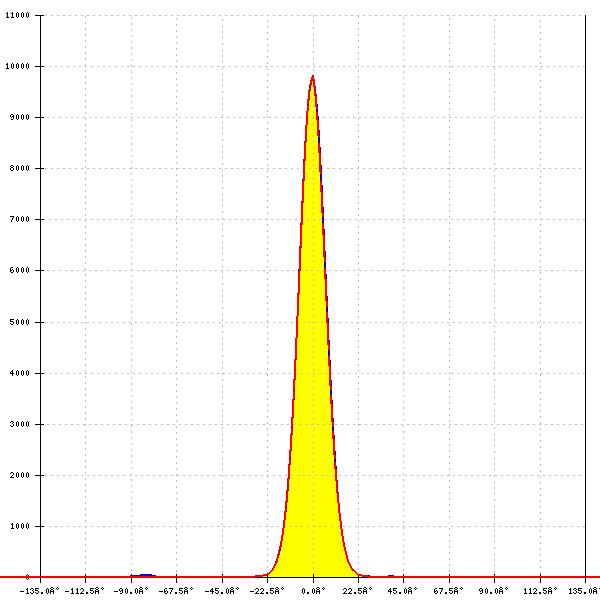

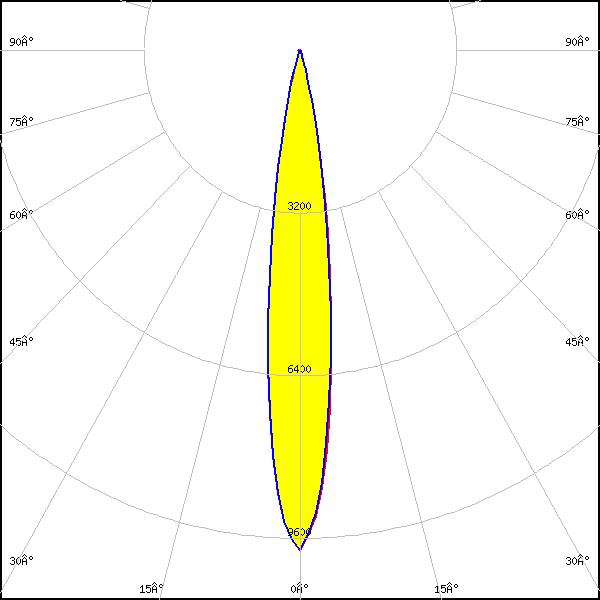

NCSxE17A
Required components:
FWHM:
15°
FWTM:
29°
Peak intensity:
12.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

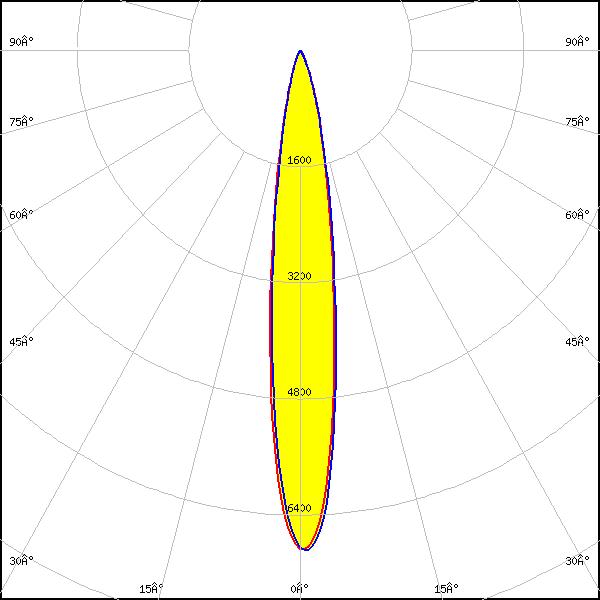

NCSxx19B
Required components:
FWHM:
15°
FWTM:
34°
Peak intensity:
6.900 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:

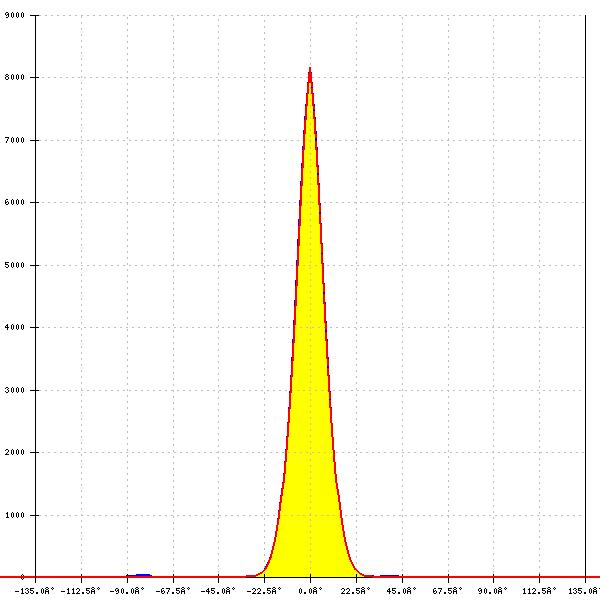

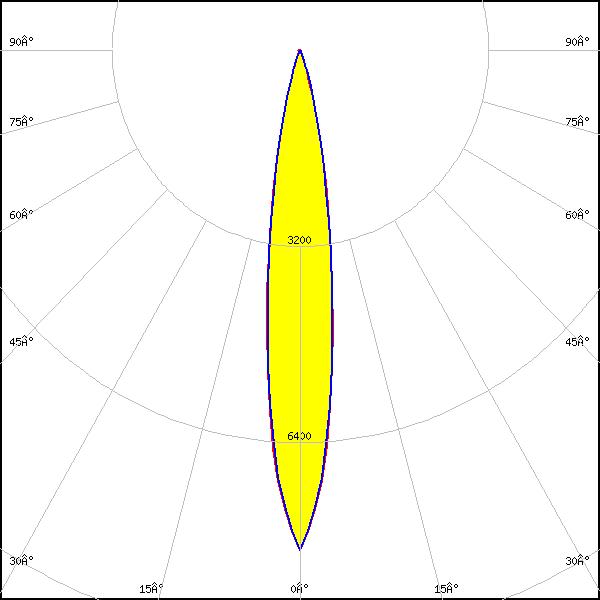

NVSxE21A
Required components:
FWHM:
16°
FWTM:
32°
Peak intensity:
9.950 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

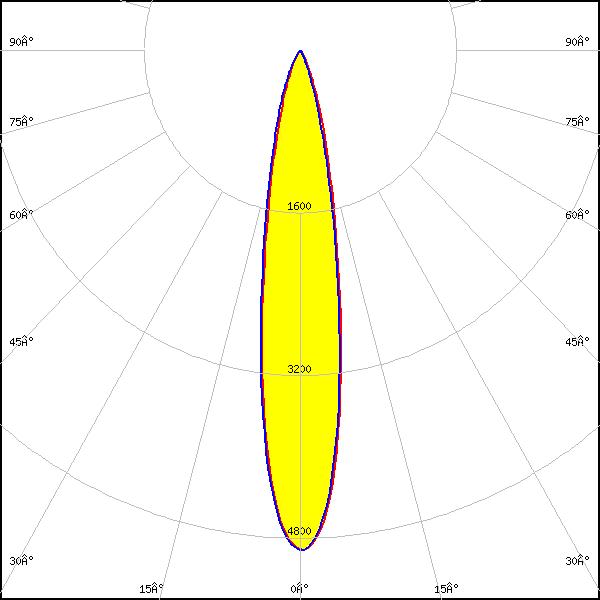

NVSxx19B/NVSxx19C
Required components:
FWHM:
19°
FWTM:
40°
Peak intensity:
4.920 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

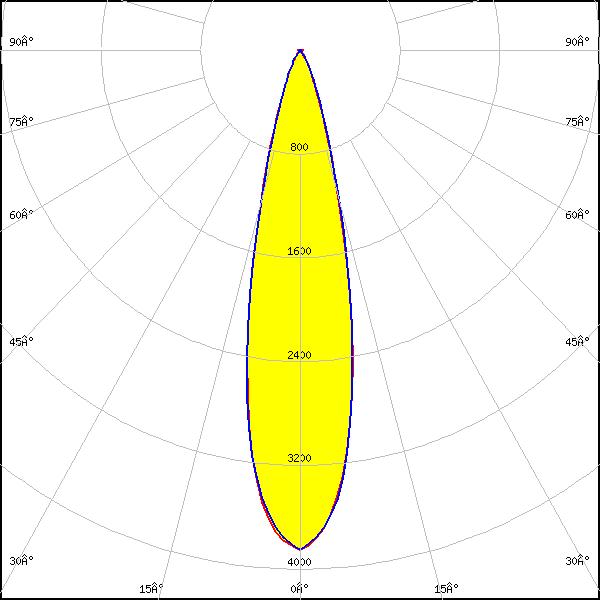

LED:

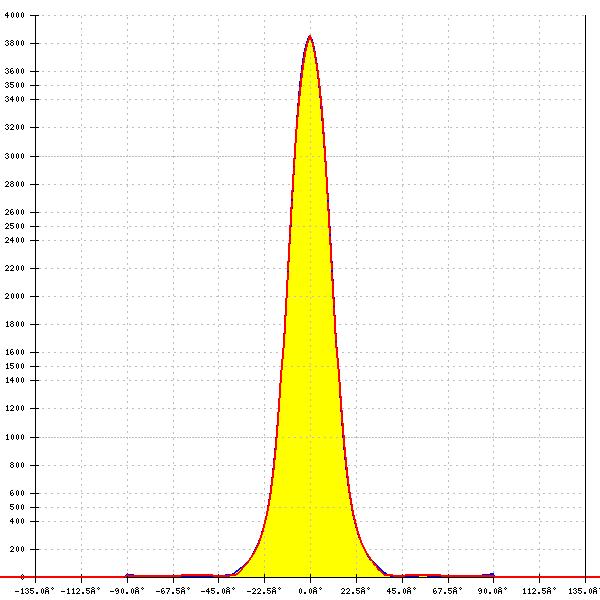

NWSx229A
Required components:
FWHM:
24°
FWTM:
44°
Peak intensity:
3.870 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

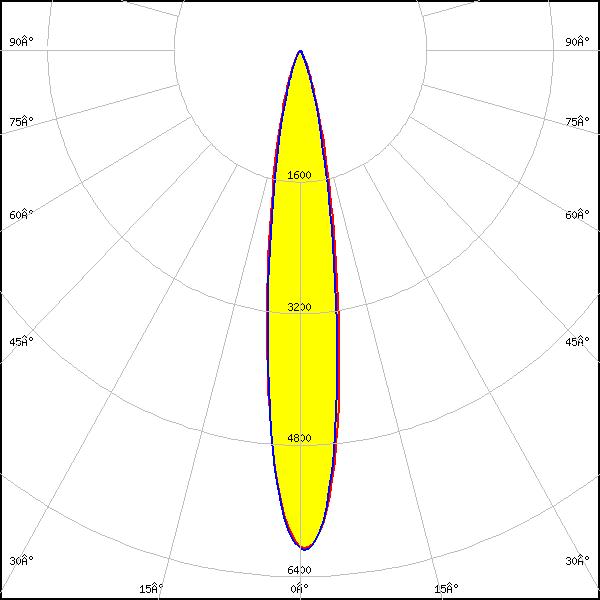

OSLON Square EC
Required components:
FWHM:
17°
FWTM:
37°
Peak intensity:
6.080 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

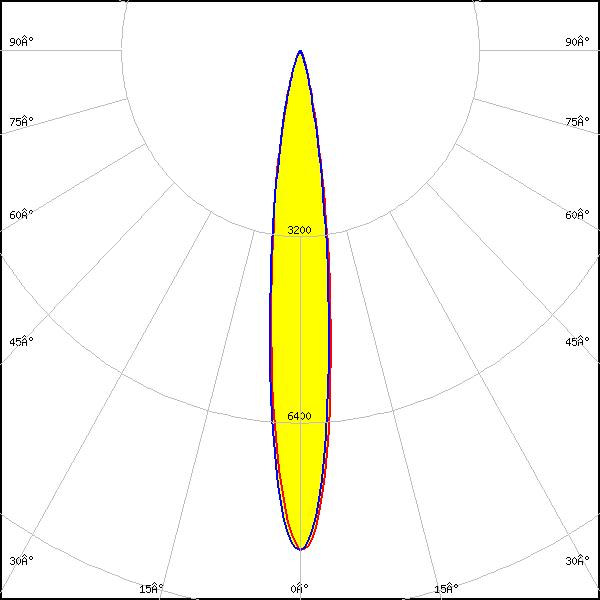

LED:

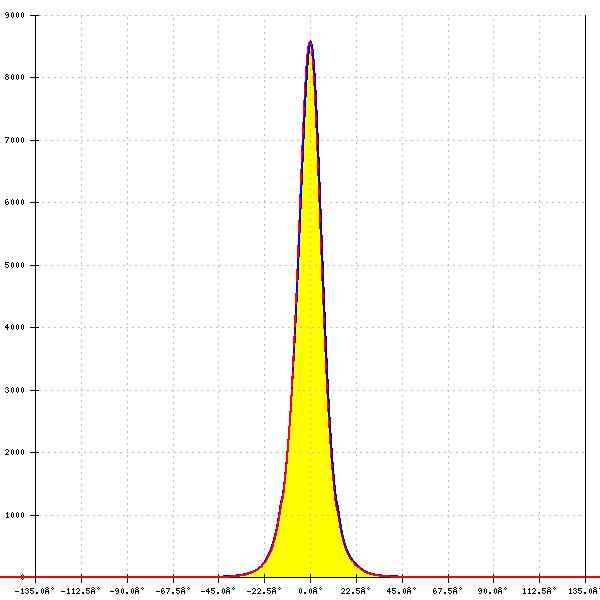

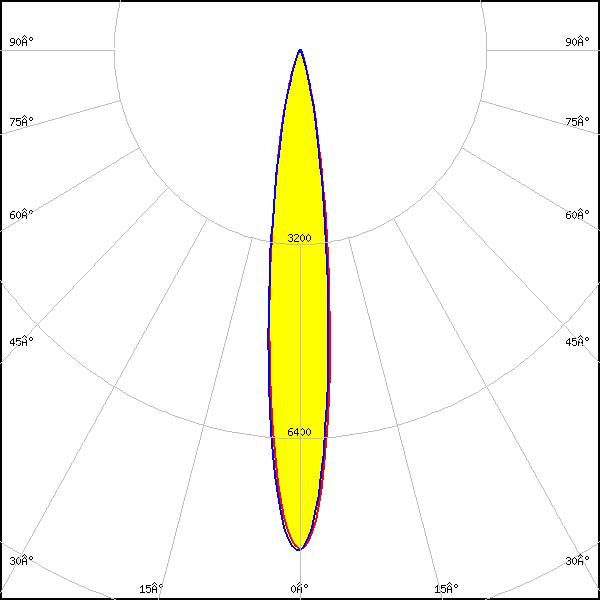

OSLON SSL 150
Required components:
FWHM:
14°
FWTM:
30°
Peak intensity:
8.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
14°
FWTM:
31°
Peak intensity:
8.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

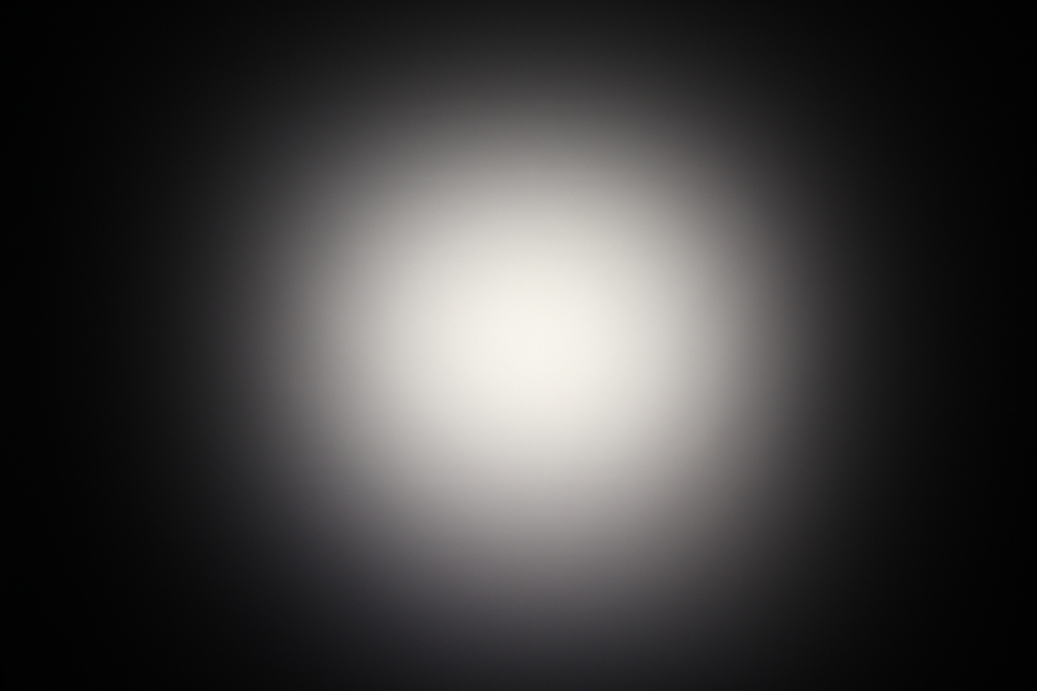

LED:

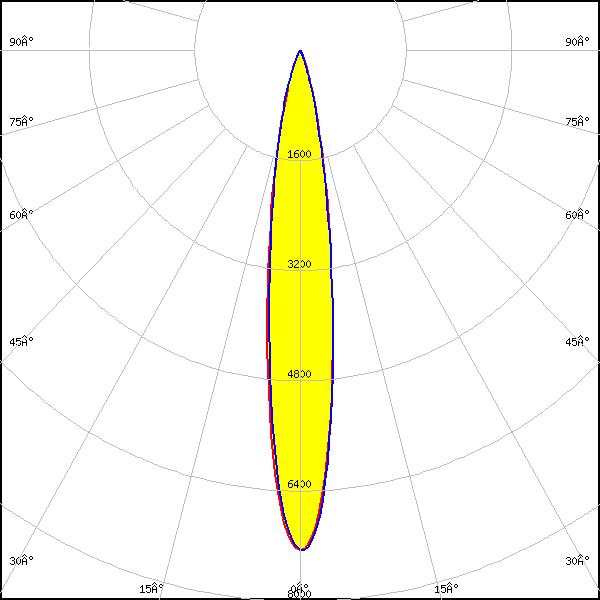

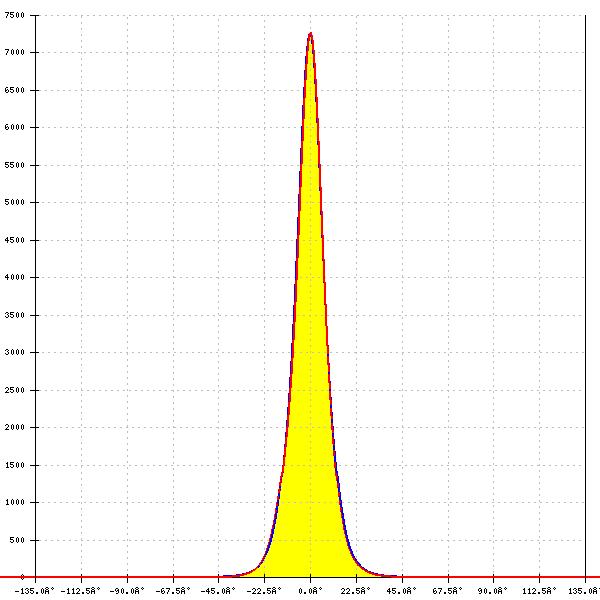

OSLON SSL 80
Required components:
FWHM:
15°
FWTM:
34°
Peak intensity:
7.270 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

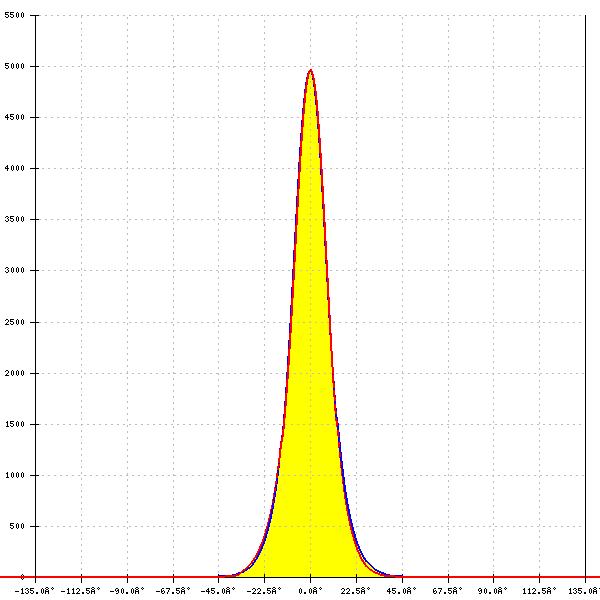

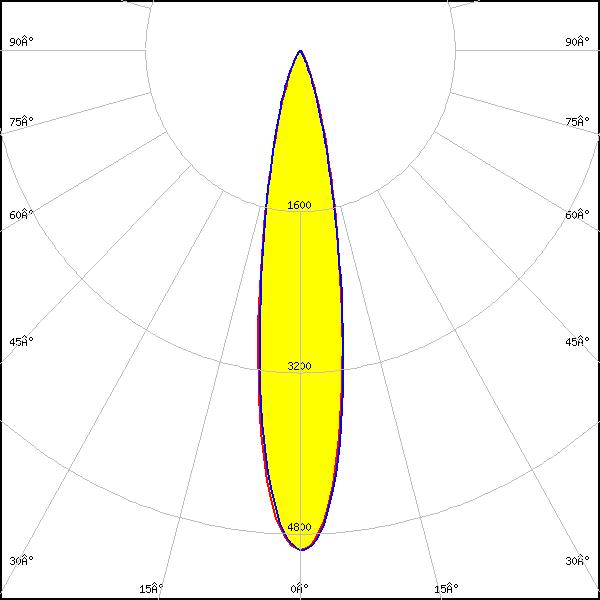

LED:
LH351B
Required components:
FWHM:
20°
FWTM:
41°
Peak intensity:
4.970 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

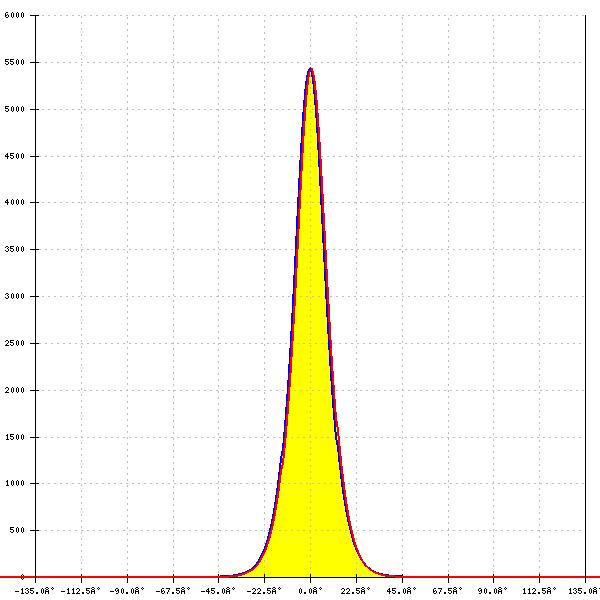

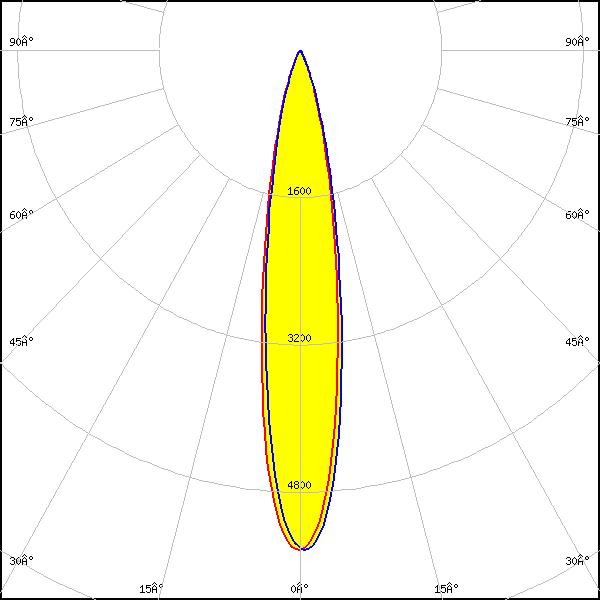

TL1L4
Required components:
FWHM:
18°
FWTM:
39°
Peak intensity:
5.430 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
