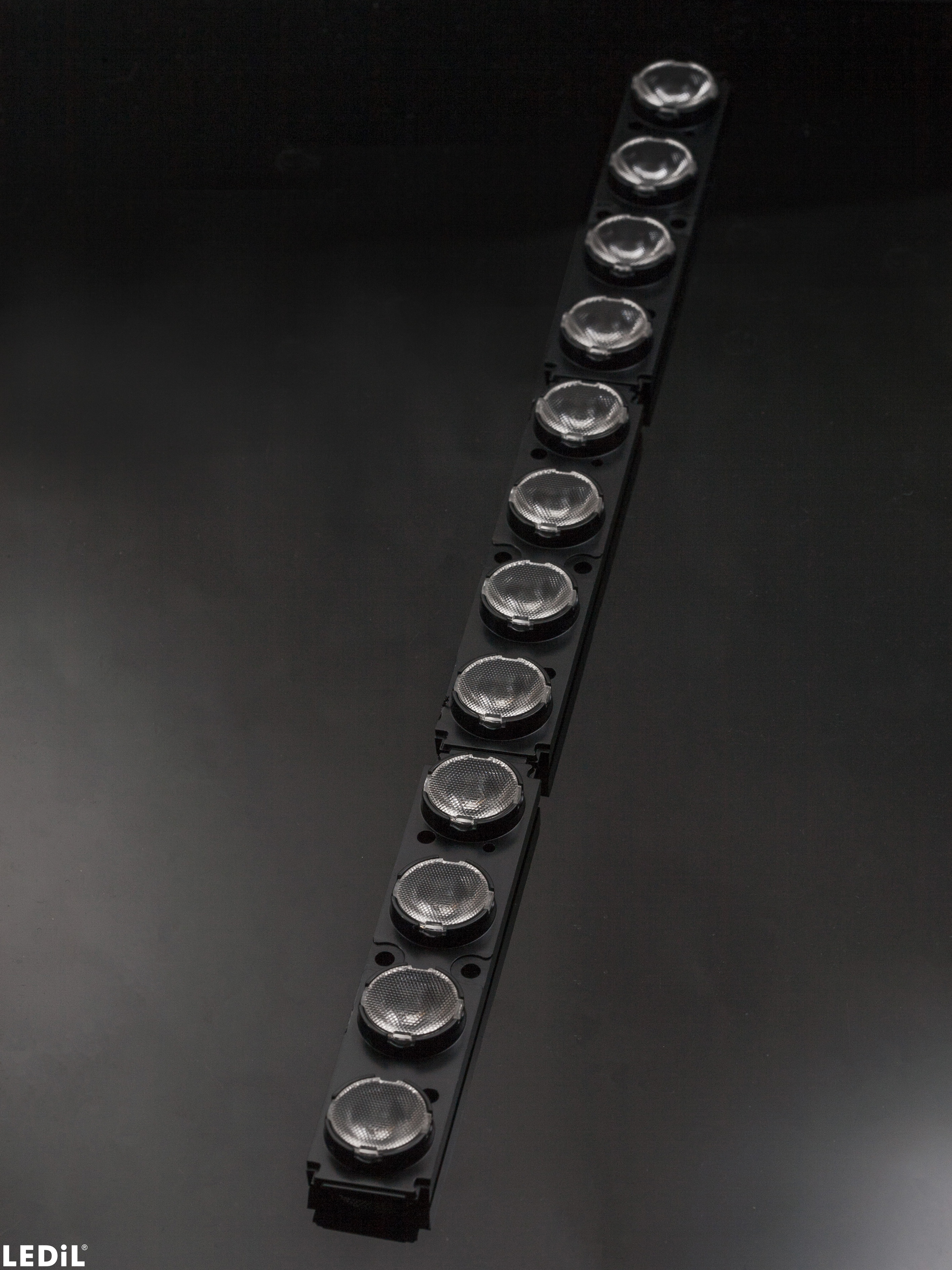

CP14993_FLORENTINA-HLD-SS

Print

~16° smooth spot beam

Specification
  • Dimensions:
    286 x  20 mm
  • Height:
    9.46 mm
  • Fastening:
    screw
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    160 pcs
  • Box size:
    398 x 298 x 140 mm
  • Box weight:
    3.3 kg
  • MPQ:
    16 pcs
  • MOQ:
    32 pcs
  • MOQ size:
    400 x 300 x 50 mm
  • MOQ weight:
    1.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CP14993_FLORENTINA-HLD-SS

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

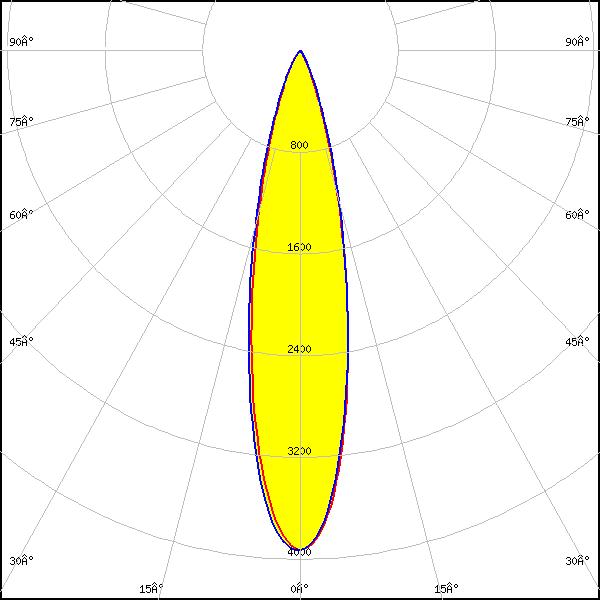

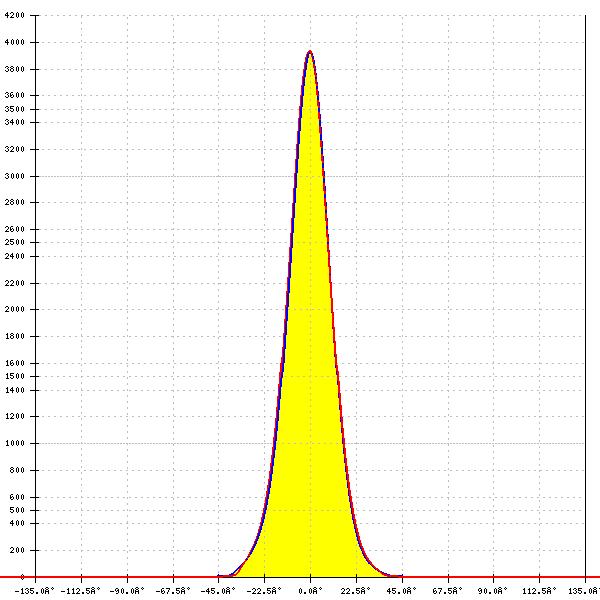

LED: QUICK FLUX LED FL-XG 1x12 xxx
Required components:
FWHM: 23°
FWTM: 46°
Peak intensity: 3.900 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

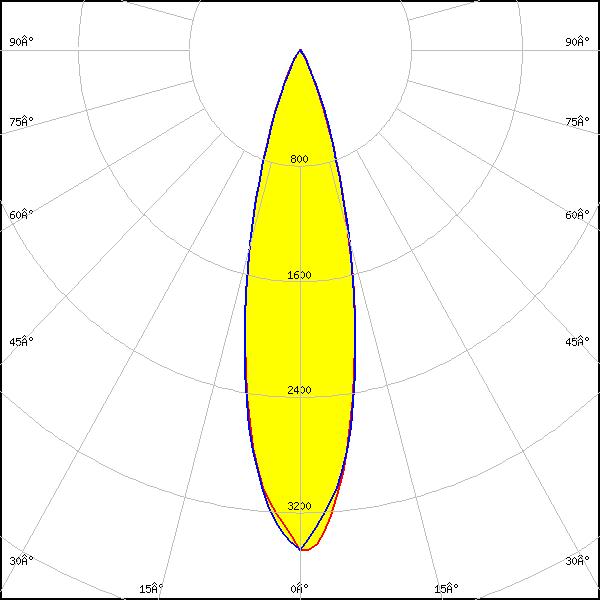

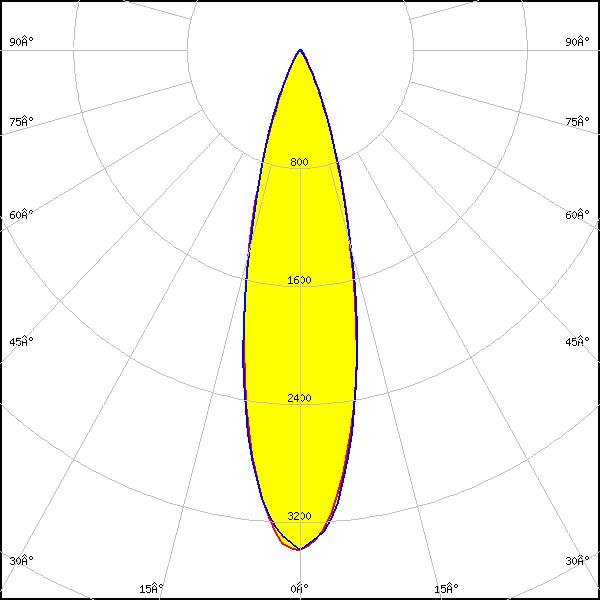

LED: J Series 3030
FWHM: 26°
FWTM: 50°
Peak intensity: 3.415 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

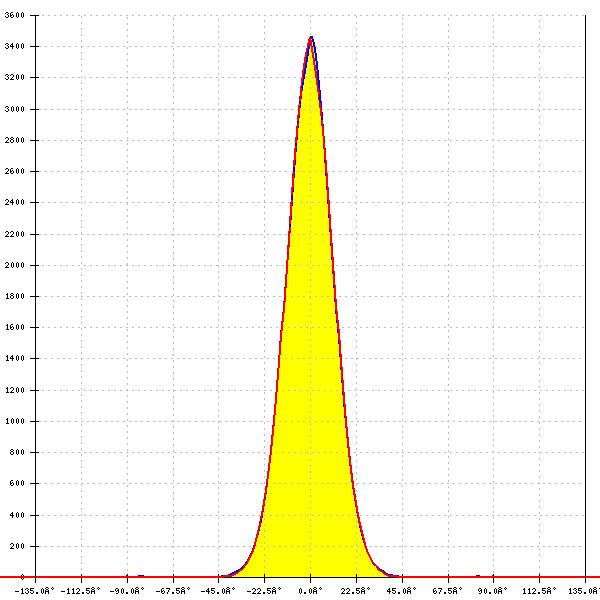

LED: J Series 3030
Required components:
FWHM: 26°
FWTM: 48°
Peak intensity: 3.459 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

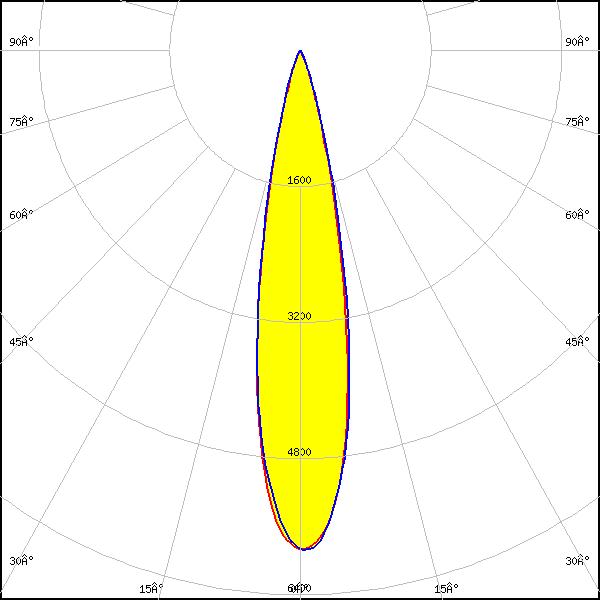

LED: XP-E2
Required components:
FWHM: 21°
FWTM: 36°
Peak intensity: 5.880 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G
LEDs/each optic: 1
Light colour/type: White

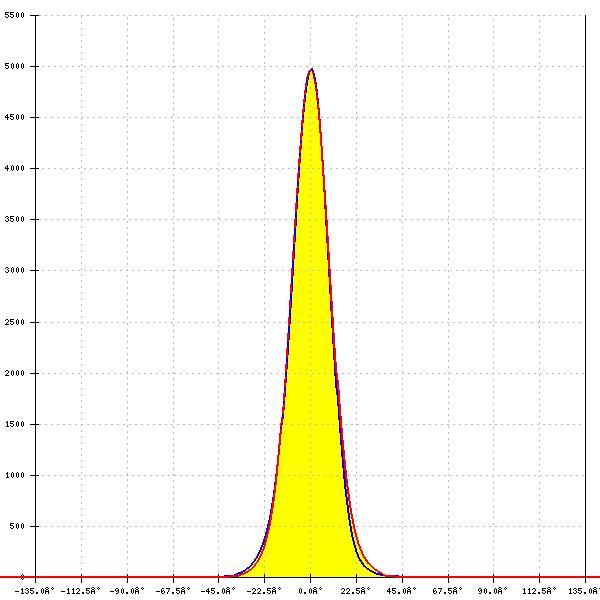

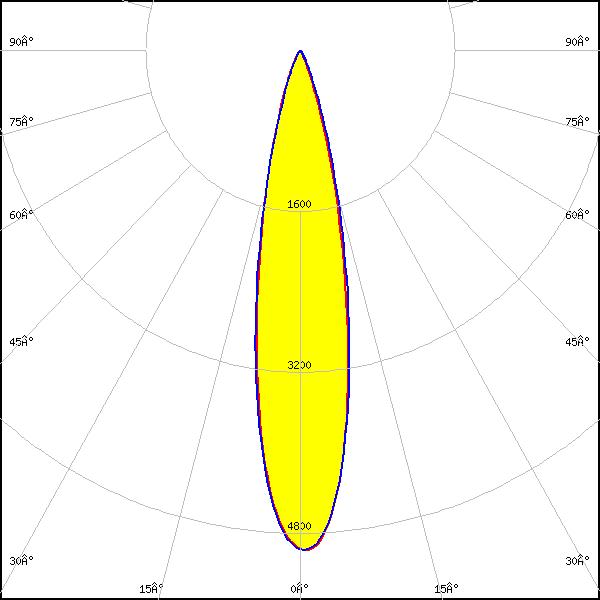

LED: XP-G2
Required components:
FWHM: 22°
FWTM: 41°
Peak intensity: 5.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

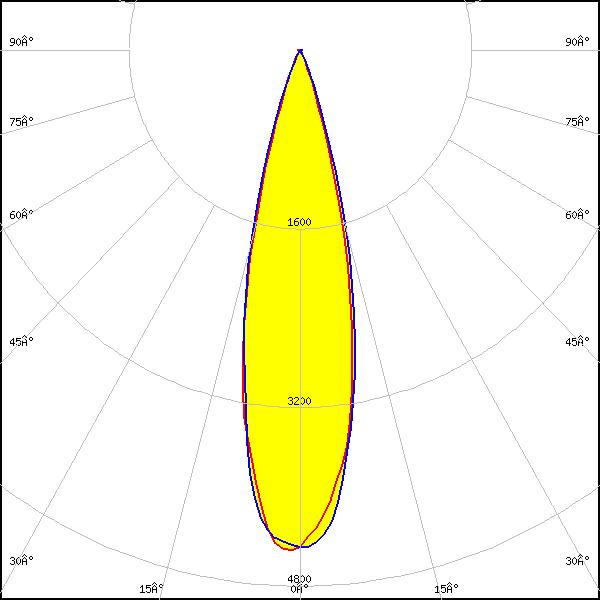

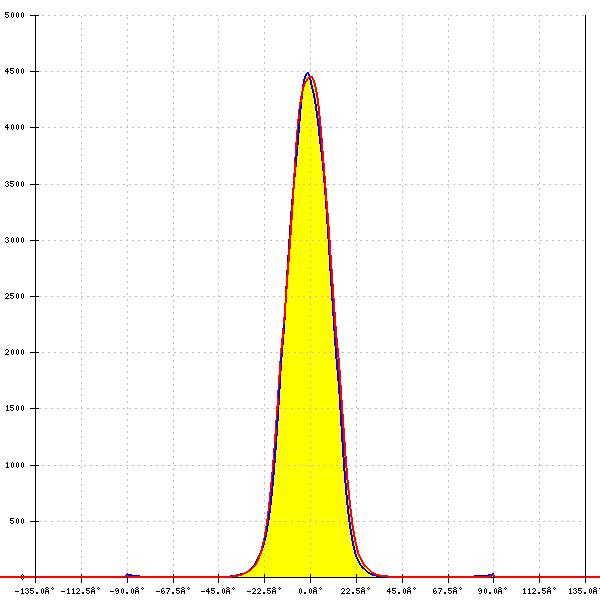

LED: XQ-E HD
Required components:
FWHM: 25°
FWTM: 41°
Peak intensity: 4.600 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

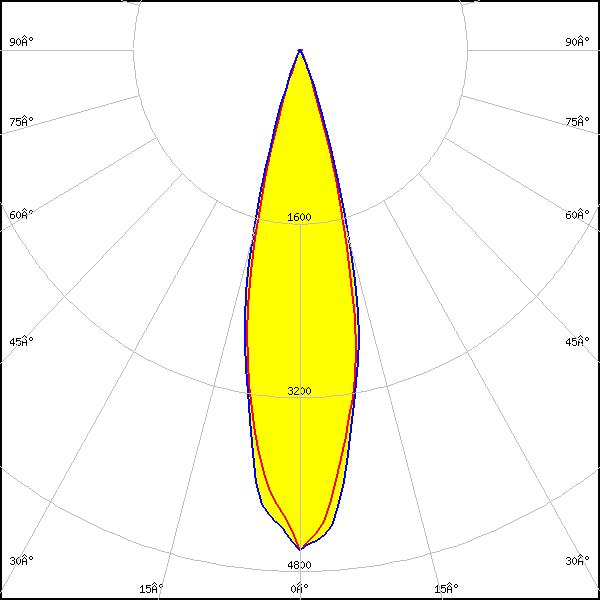

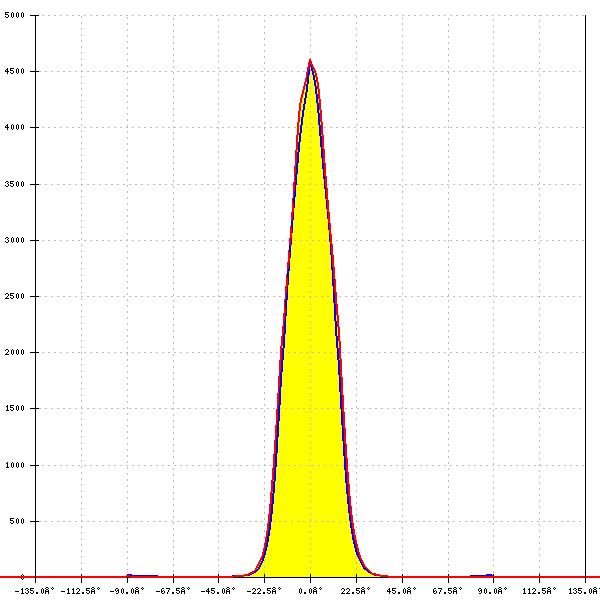

LED: XQ-E HI
Required components:
FWHM: 26°
FWTM: 40°
Peak intensity: 4.700 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

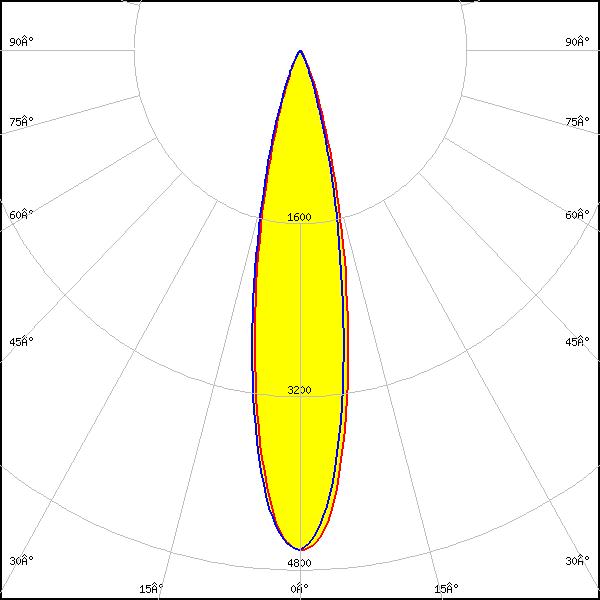

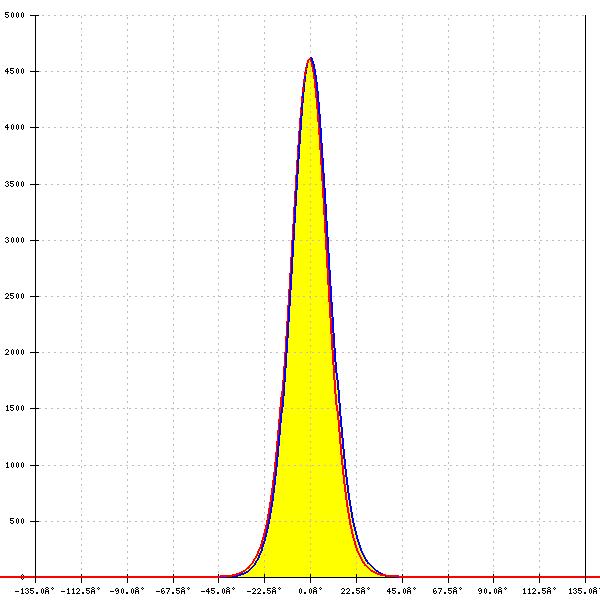

LED: LUXEON Rebel ES
Required components:
FWHM: 22°
FWTM: 42°
Peak intensity: 4.600 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

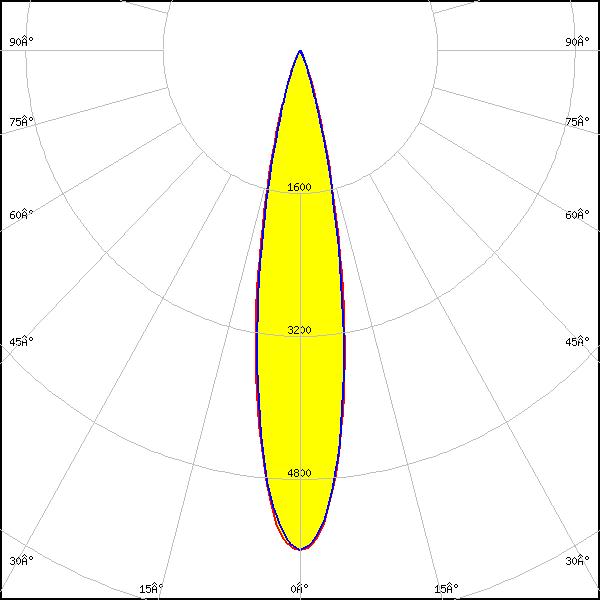

LED: LUXEON Rebel Plus
Required components:
FWHM: 20°
FWTM: 38°
Peak intensity: 5.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

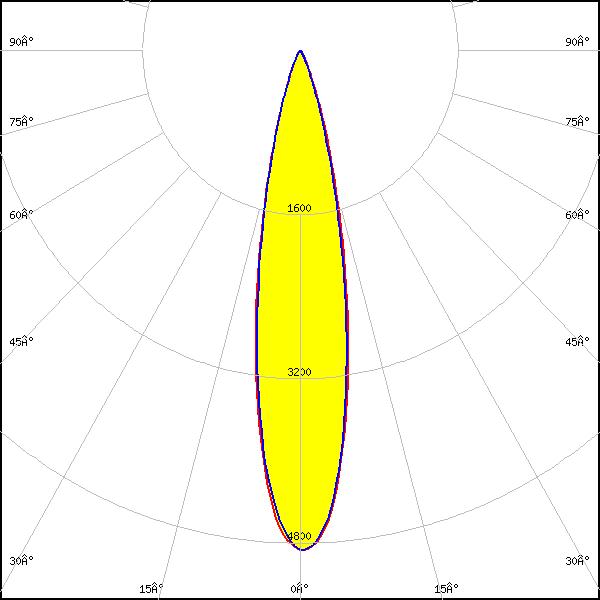

LED: LUXEON TX
Required components:
FWHM: 21°
FWTM: 41°
Peak intensity: 4.900 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

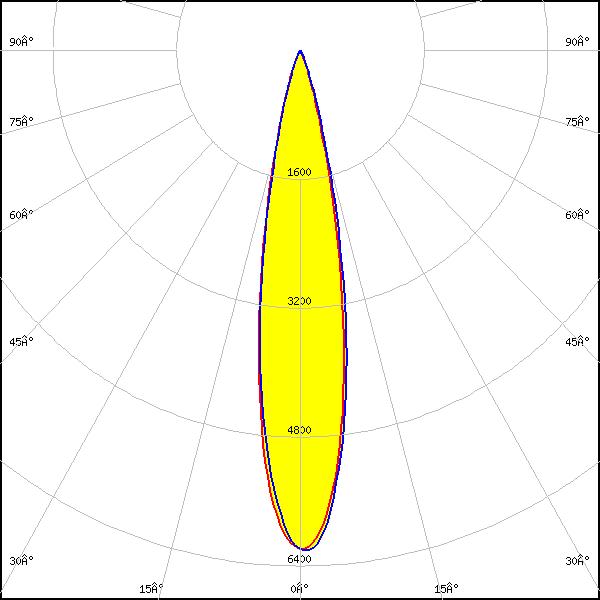

LED: LUXEON Z ES
Required components:
FWHM: 20°
FWTM: 36°
Peak intensity: 6.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

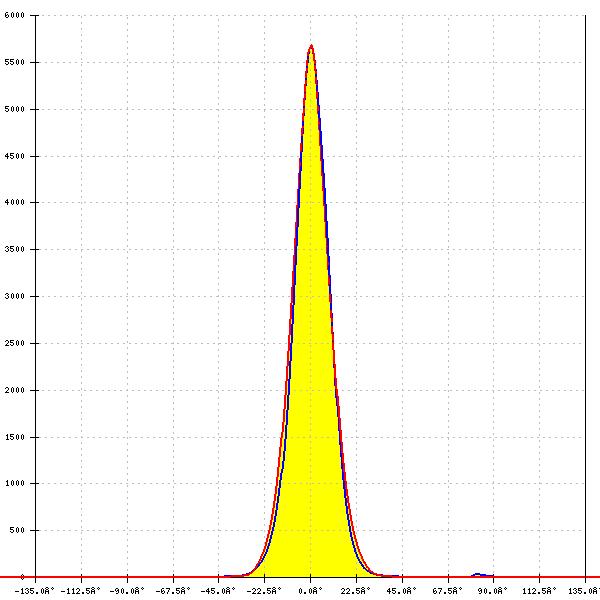

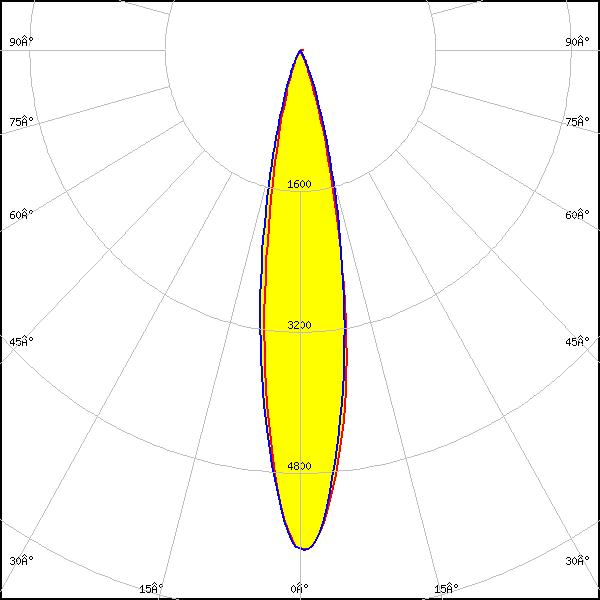

LED: NCSxE17A
Required components:
FWHM: 20°
FWTM: 38°
Peak intensity: 5.700 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

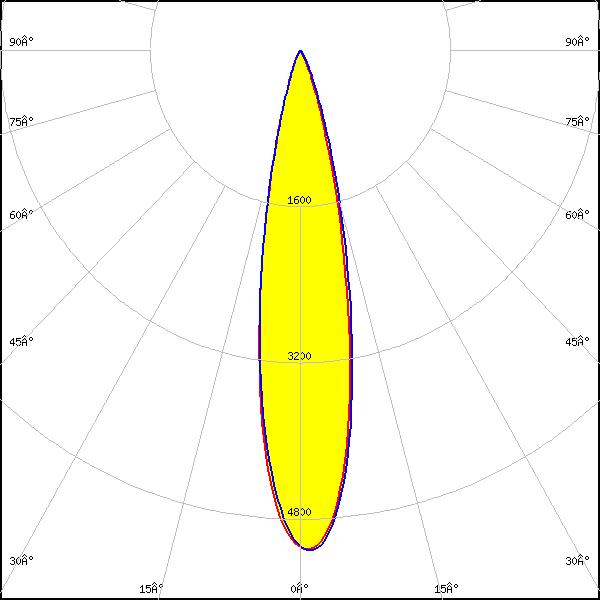

LED: NCSxx19B
Required components:
FWHM: 21°
FWTM: 39°
Peak intensity: 5.100 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2x757G
Required components:
FWHM: 22°
FWTM: 44°
Peak intensity: 4.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

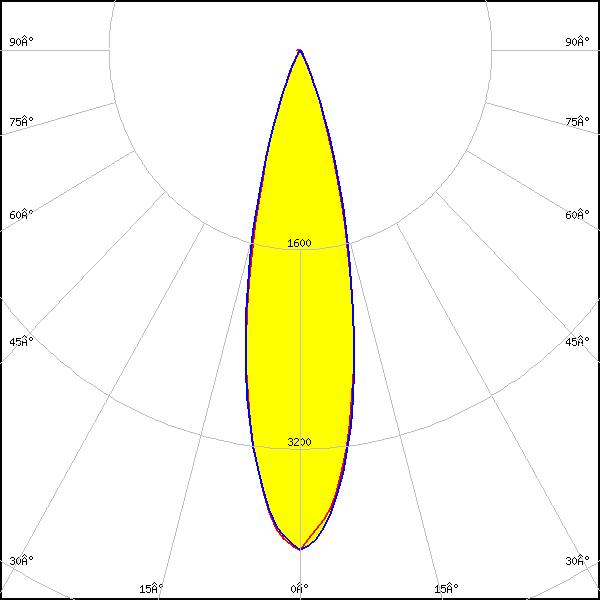

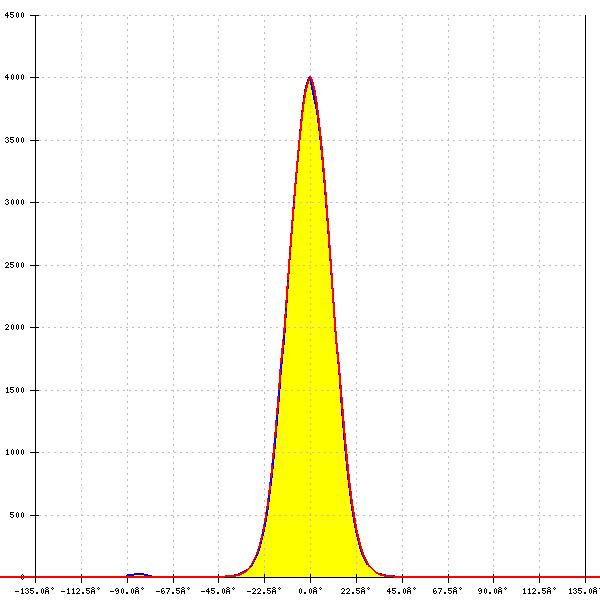

LED: NVSxE21A
Required components:
FWHM: 25°
FWTM: 45°
Peak intensity: 4.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

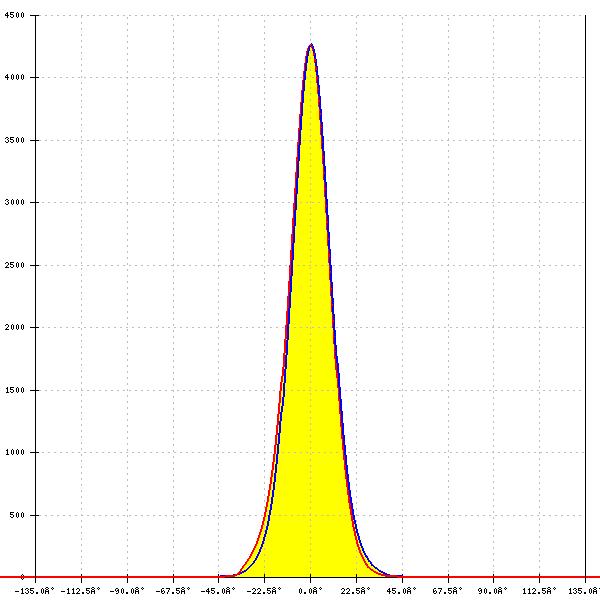

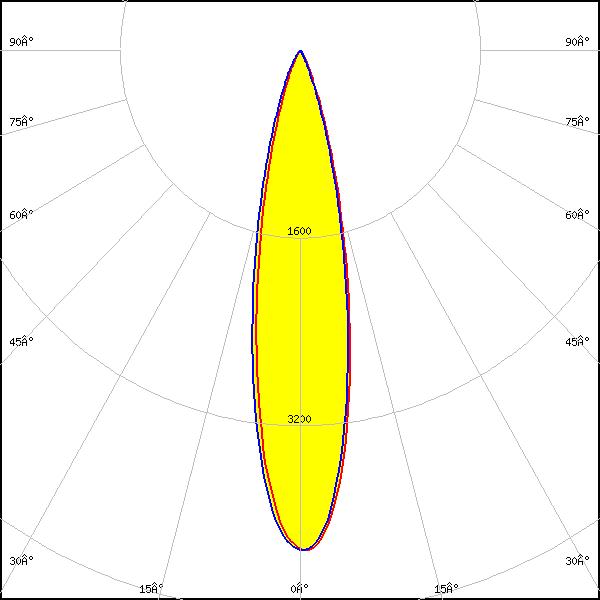

LED: NVSxx19B/NVSxx19C
Required components:
FWHM: 22°
FWTM: 43°
Peak intensity: 4.270 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

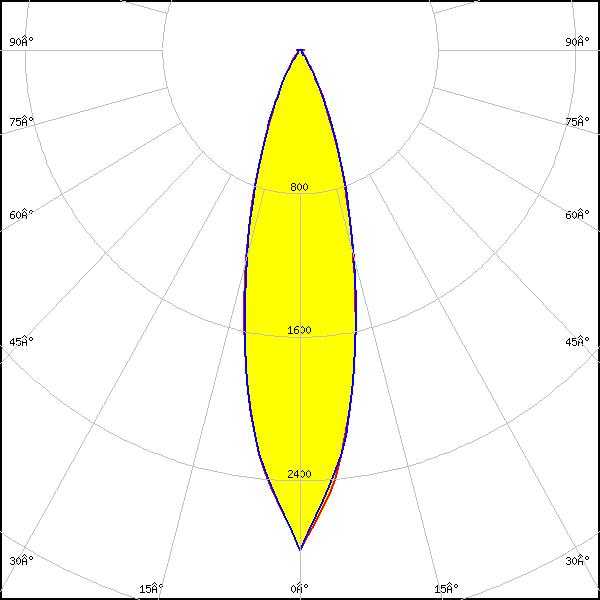

LED: NWSx229A
Required components:
FWHM: 27°
FWTM: 54°
Peak intensity: 2.790 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

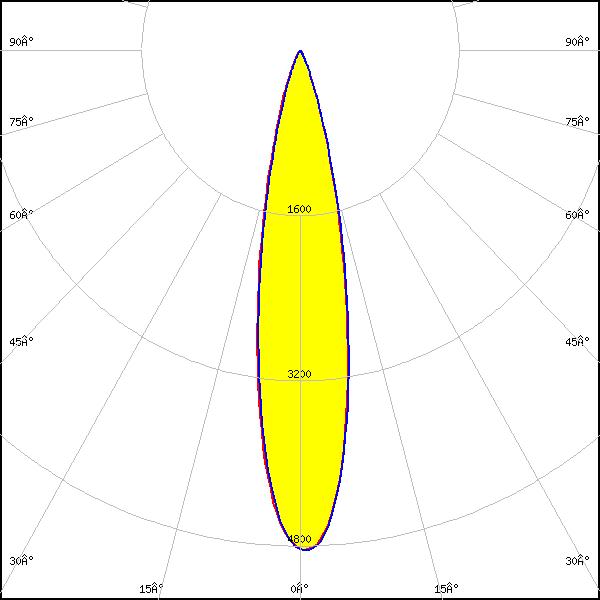

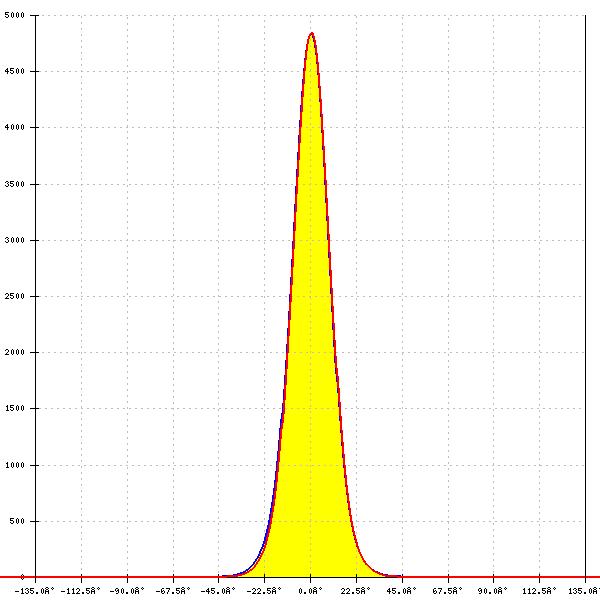

LED: OSLON Square EC
Required components:
FWHM: 21°
FWTM: 40°
Peak intensity: 4.850 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

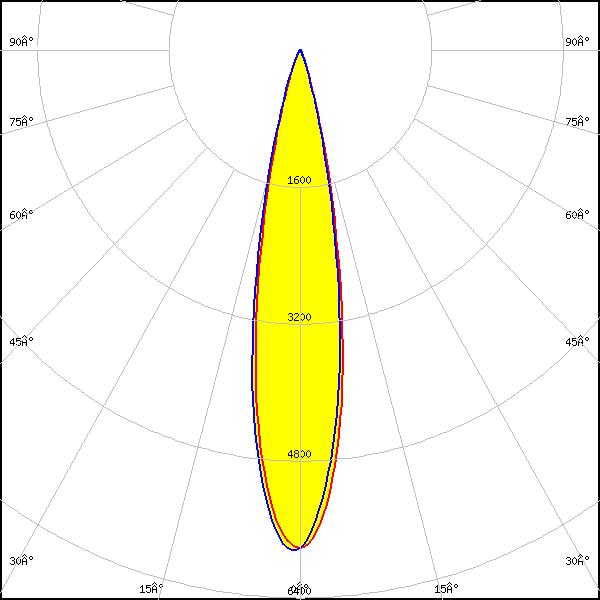

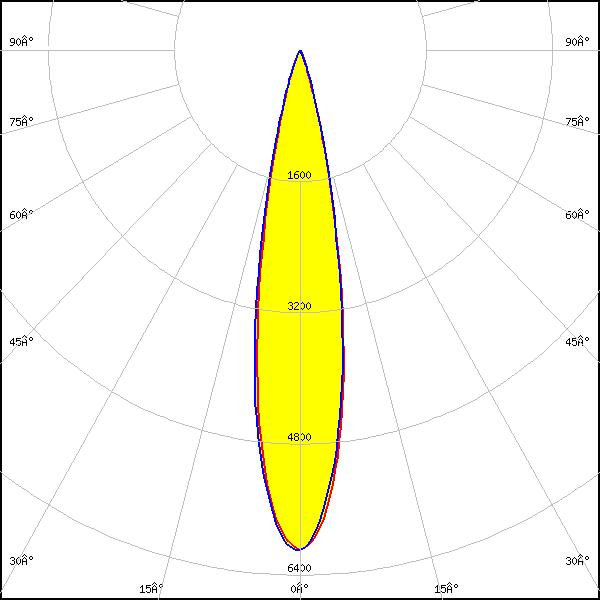

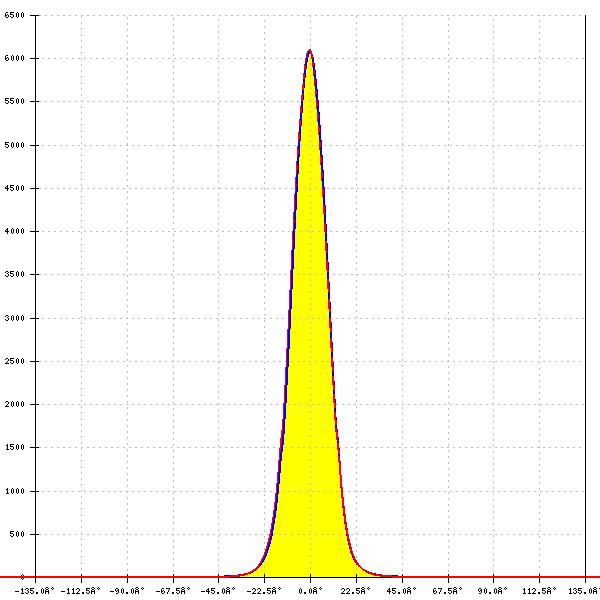

LED: OSLON SSL 150
Required components:
FWHM: 20°
FWTM: 35°
Peak intensity: 6.100 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: OSLON SSL 150
FWHM: 20°
FWTM: 36°
Peak intensity: 5.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

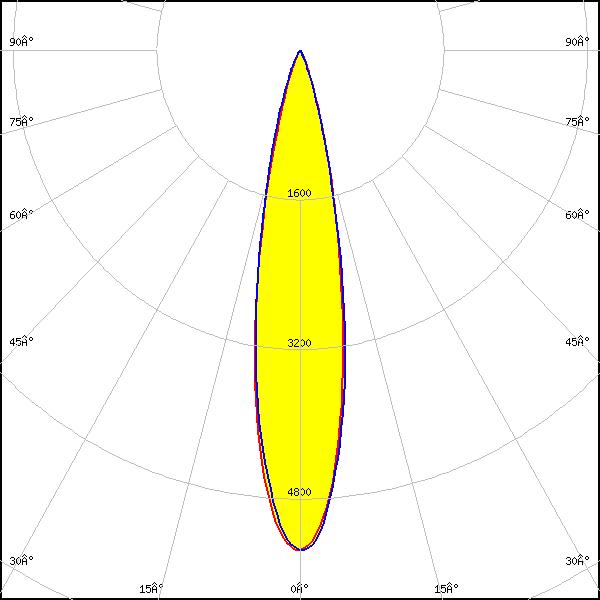

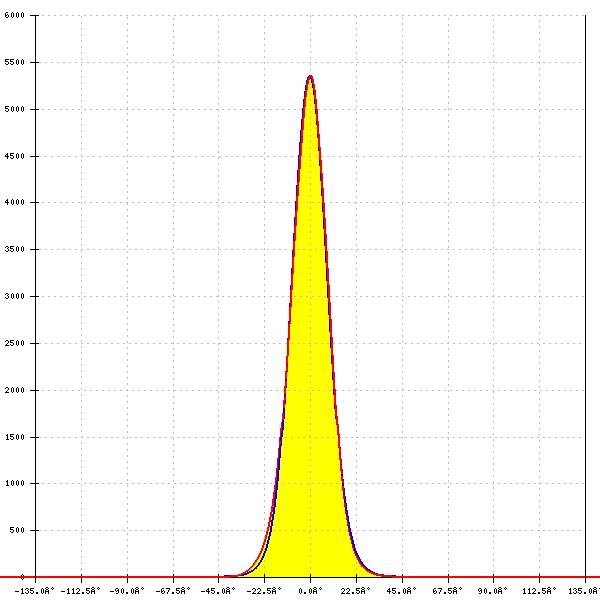

LED: OSLON SSL 80
Required components:
FWHM: 20°
FWTM: 38°
Peak intensity: 5.360 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

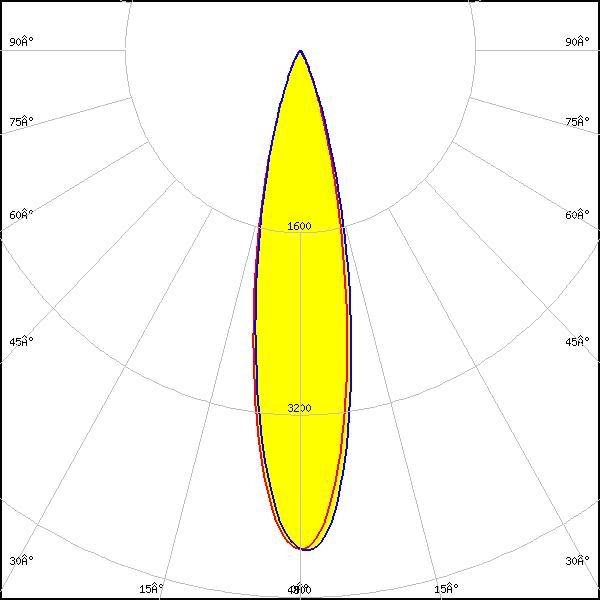

LED: LH351B
Required components:
FWHM: 22°
FWTM: 43°
Peak intensity: 4.390 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

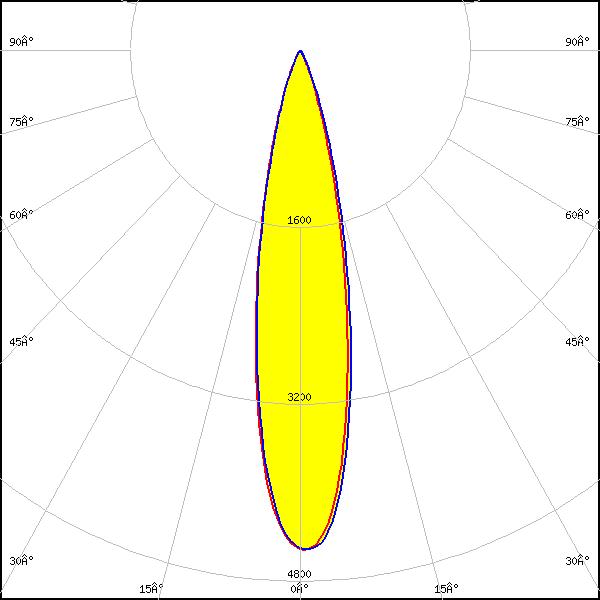

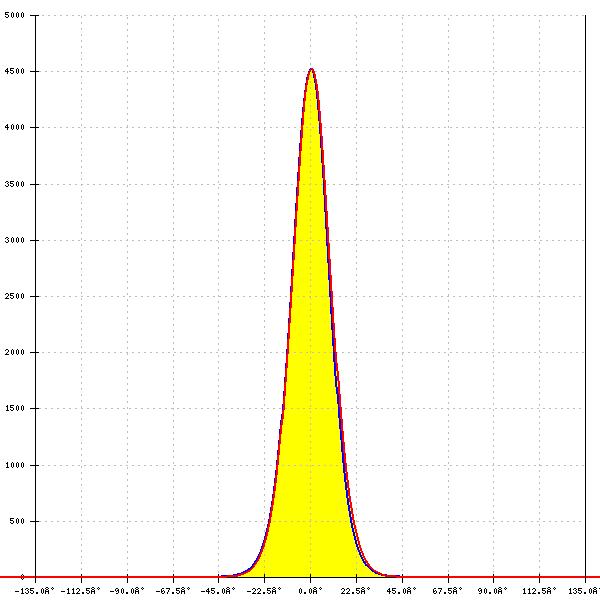

LED: TL1L4
Required components:
FWHM: 22°
FWTM: 42°
Peak intensity: 4.520 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
