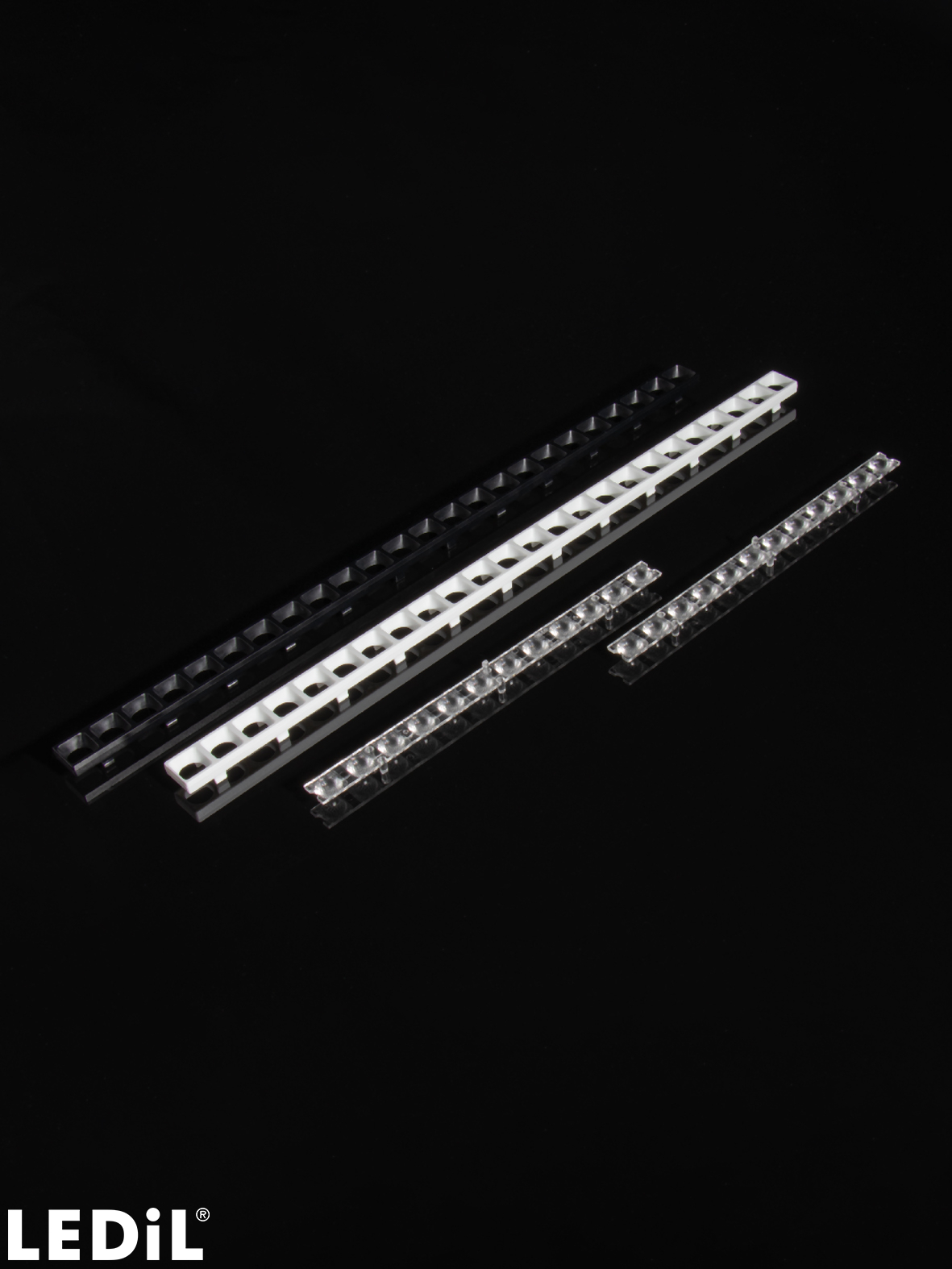

DALINE-10-W
Print
~40° wide beam
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Linear lens
- C19329_DALINE-10-WPMMA
- Request material files from Tech Support
- Shade
- C19333_DALINE-10-SHD1-MATTPC
- C19509_DALINE-10-SHD1-WHT-MATTPC
- C19618_DALINE-10-SHD2-MATTPC
- C19620_DALINE-10-SHD2-WHT-MATTPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

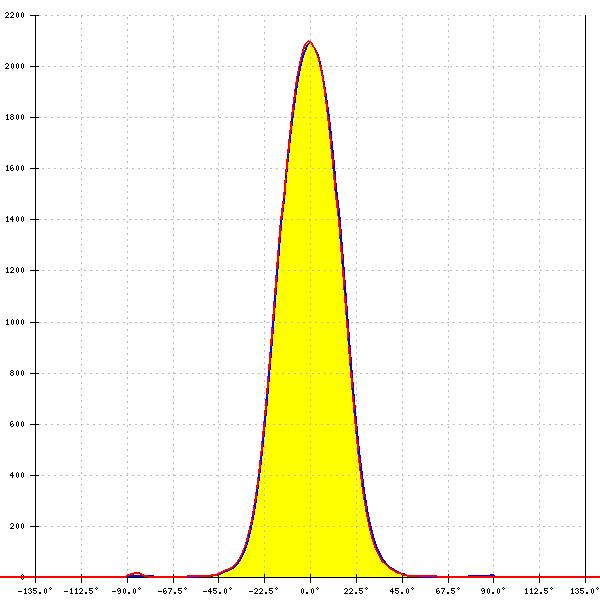

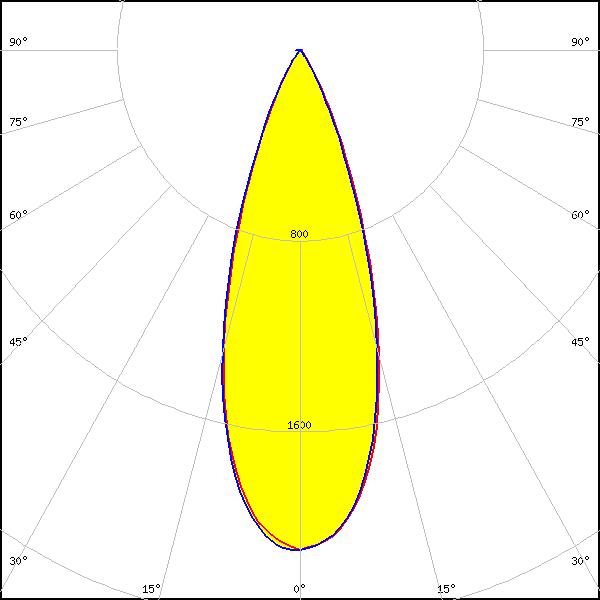

LED:
XQ-E HI
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
35°
FWTM:
58°
Peak intensity:
2.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

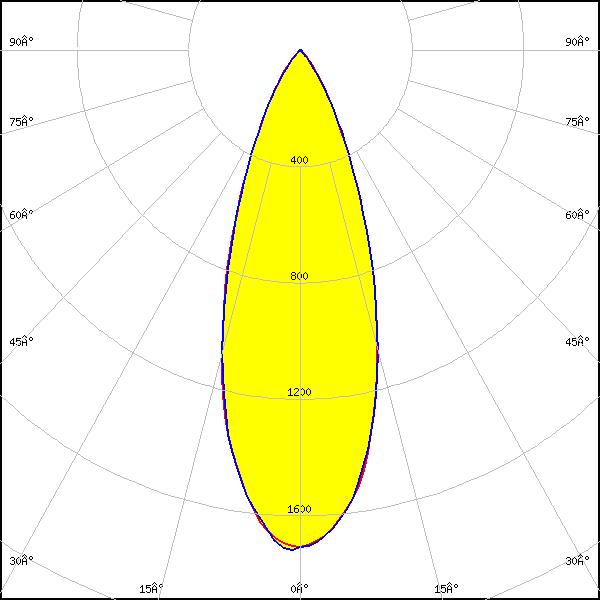

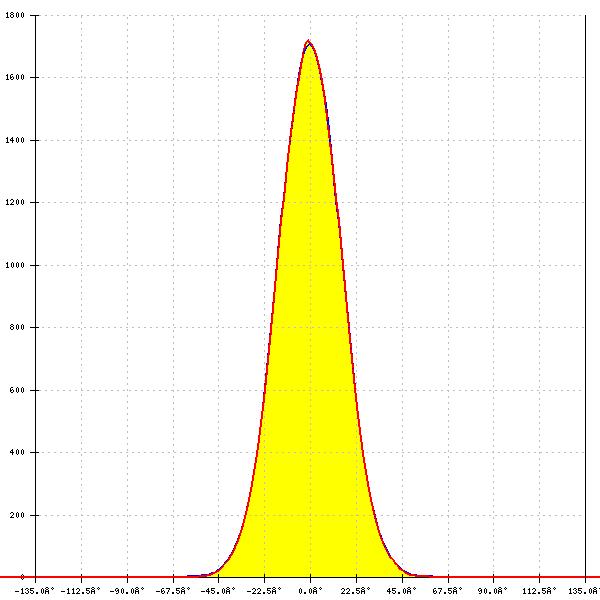

LED:
LUXEON 2835 Line
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
36°
FWTM:
66°
Peak intensity:
1.722 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

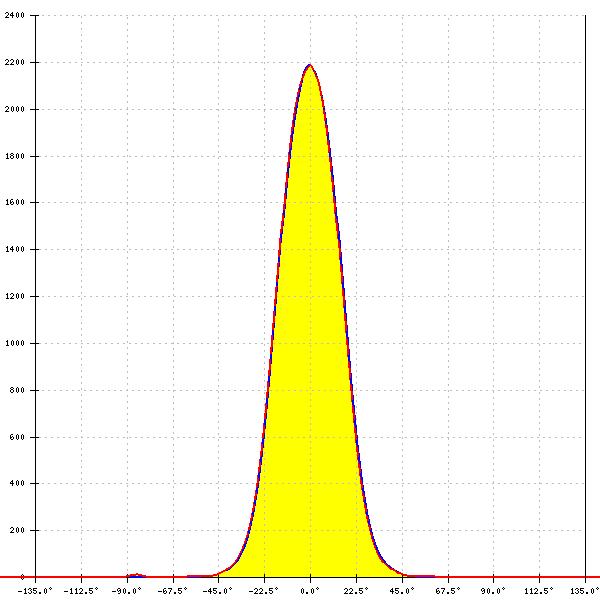

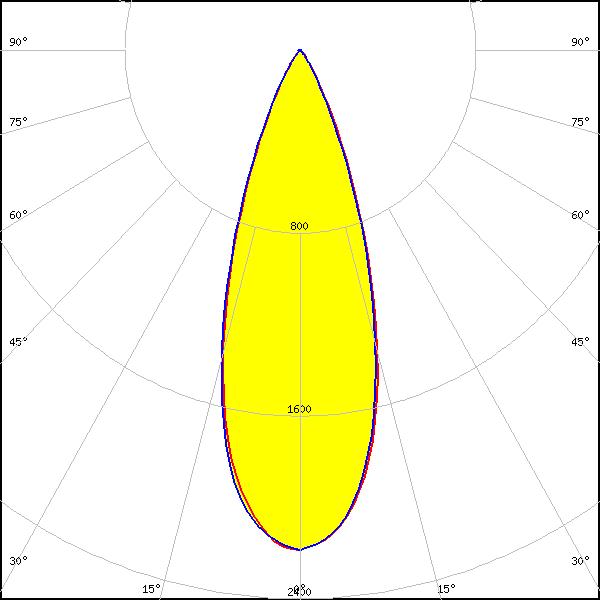

LED:
LUXEON CSP HL1
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
59°
Peak intensity:
2.190 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

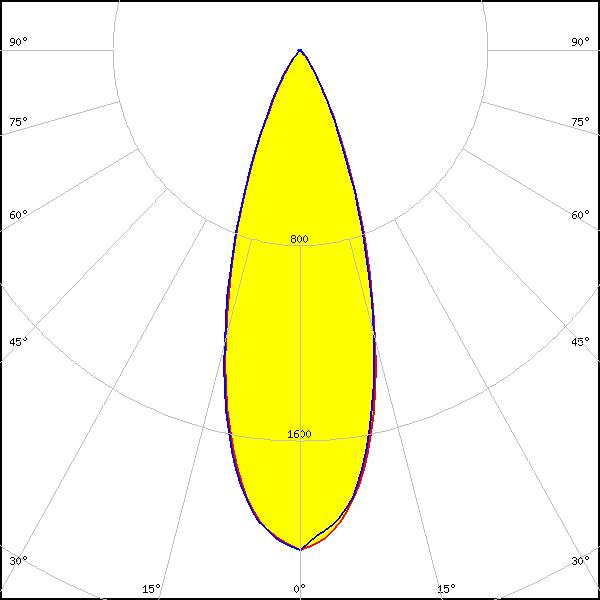

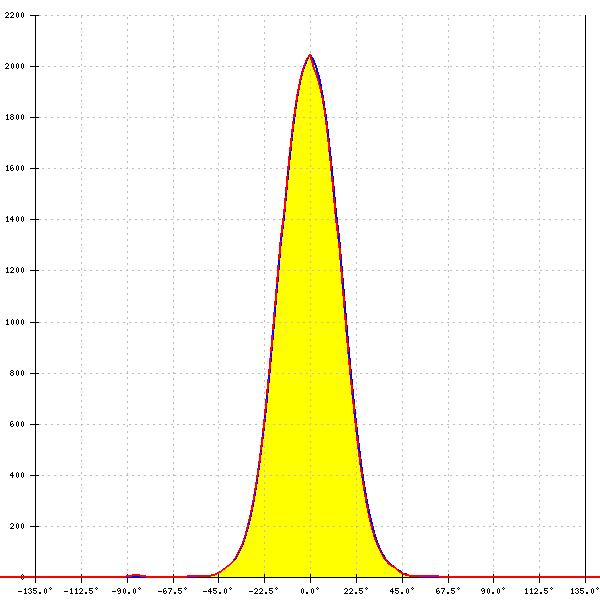

LED:
LUXEON Z ES
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
35°
FWTM:
60°
Peak intensity:
2.050 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

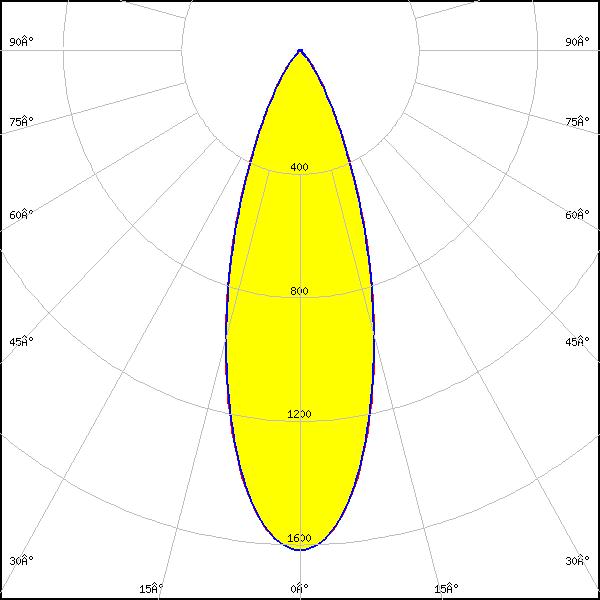

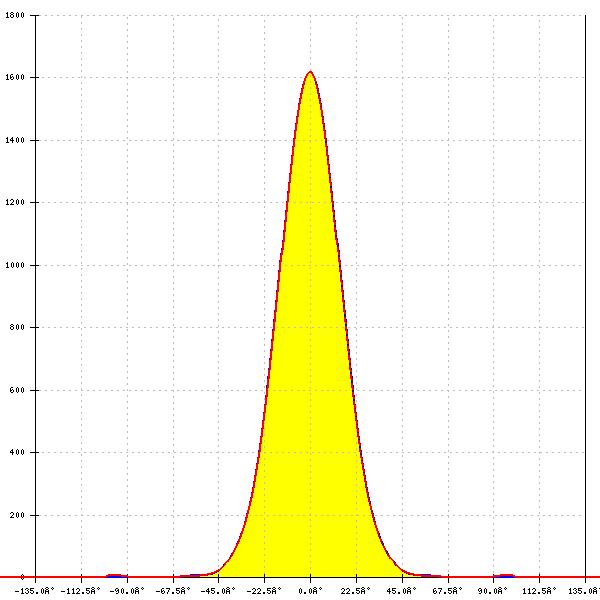

LED:
LinLED 279x10.5mm 1100lm 4C 36V DALINE-10 G1
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
35°
FWTM:
65°
Peak intensity:
1.618 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

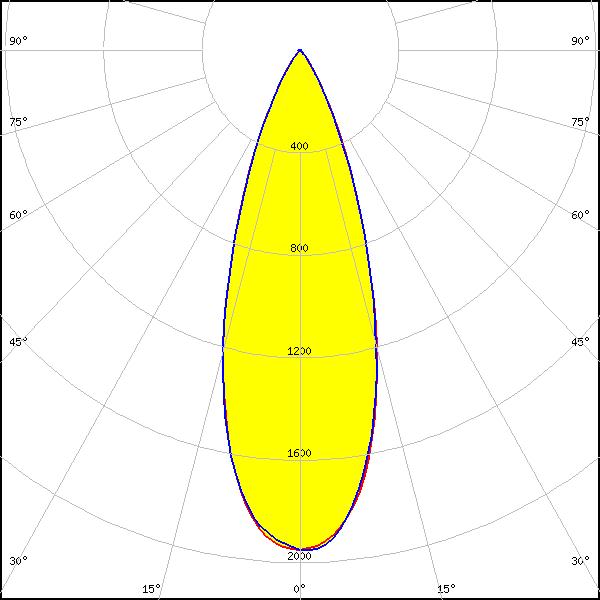

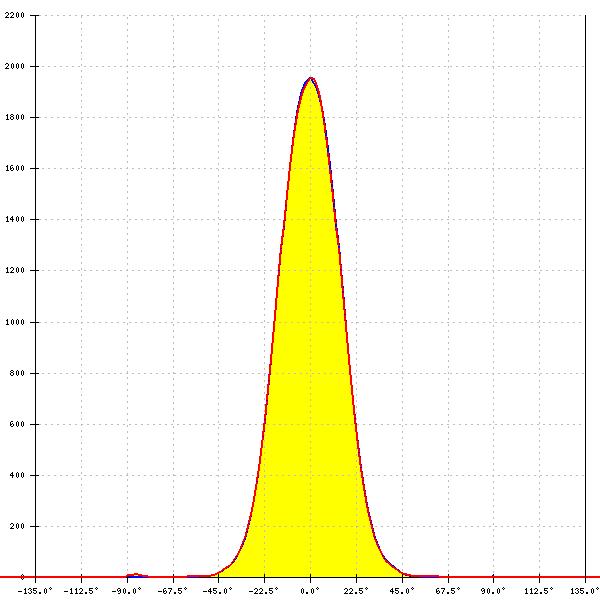

LED:
NCSxE17A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
61°
Peak intensity:
1.950 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

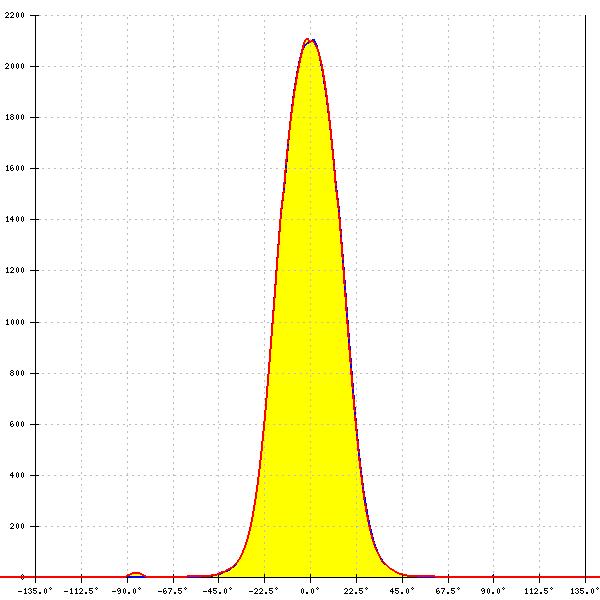

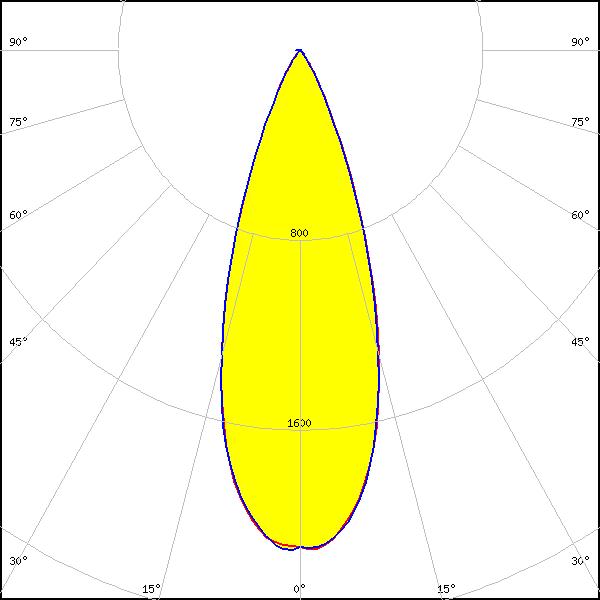

LED:
NFSWE11A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
58°
Peak intensity:
2.110 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

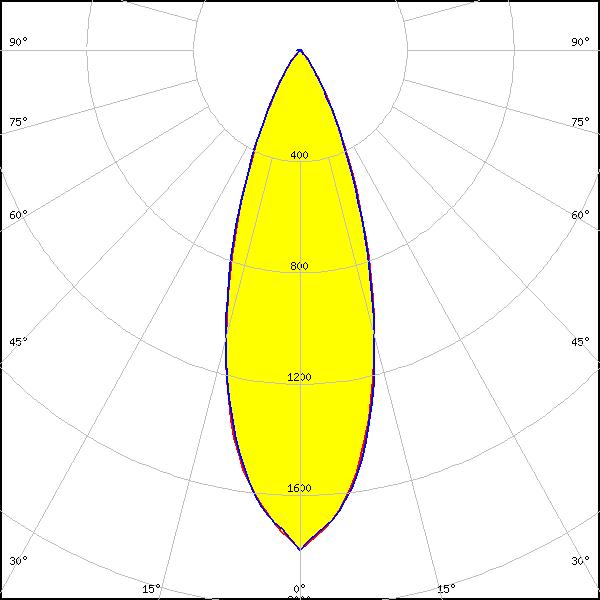

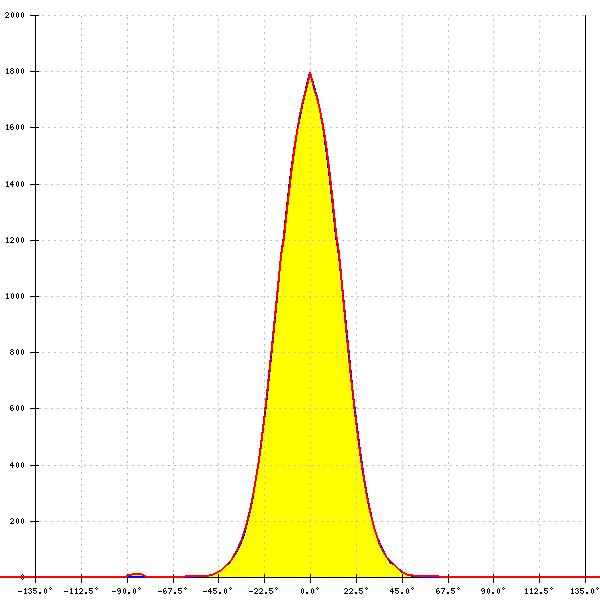

LED:
NVSxE21A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
63°
Peak intensity:
1.800 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

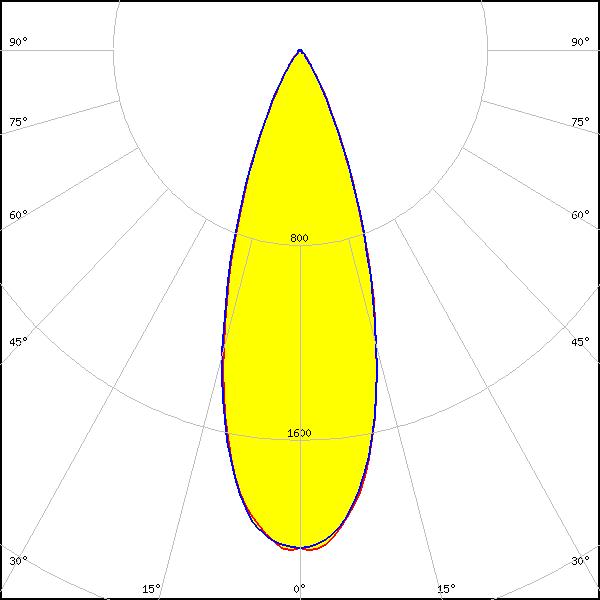

LED:

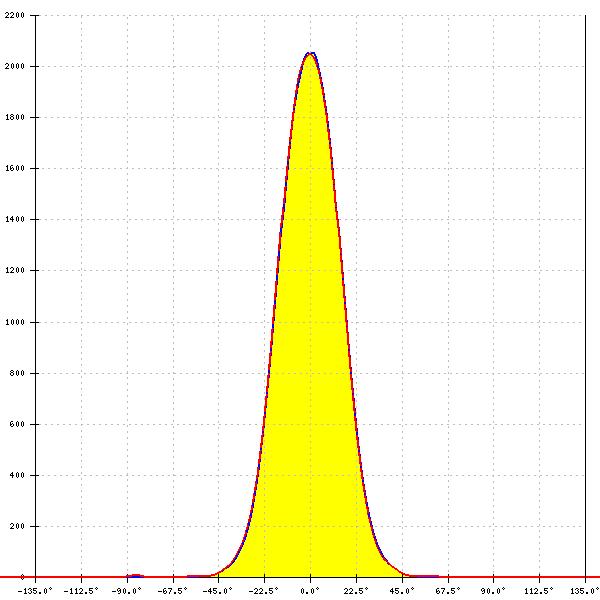

LH151B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
61°
Peak intensity:
2.020 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

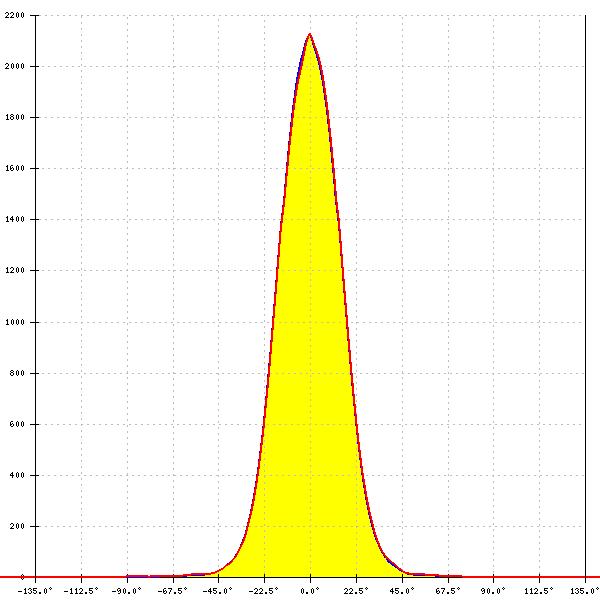

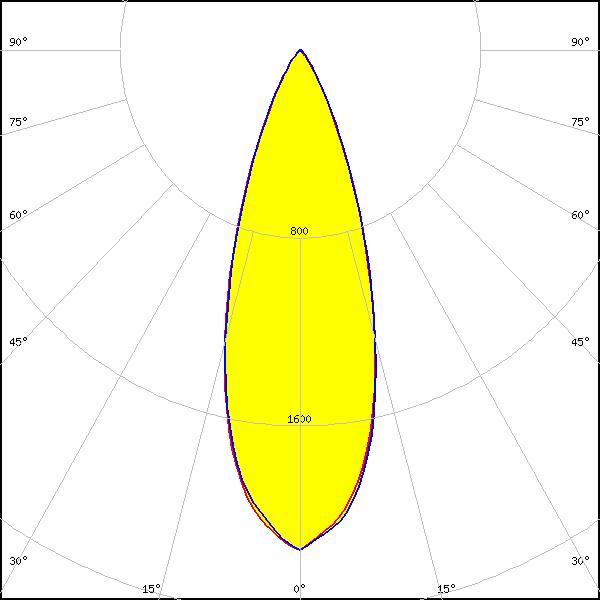

LED:
LH151B
Required components:
C19509_DALINE-10-SHD1-WHT-MATT
FWHM:
35°
FWTM:
60°
Peak intensity:
2.130 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

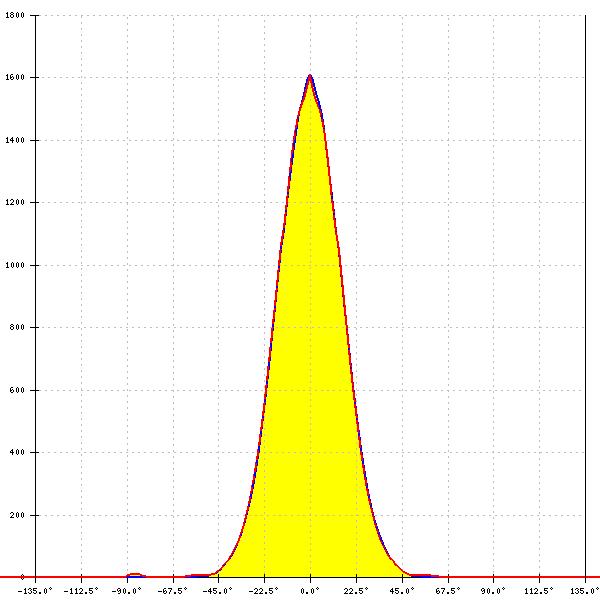

LED:

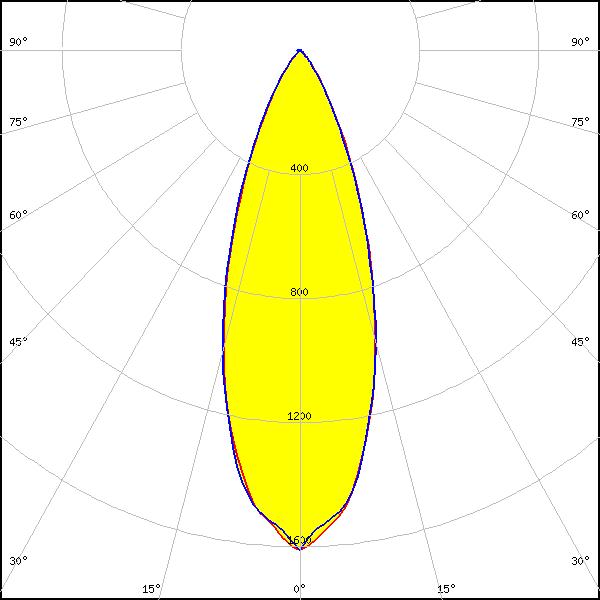

LH181B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
36°
FWTM:
66°
Peak intensity:
1.740 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

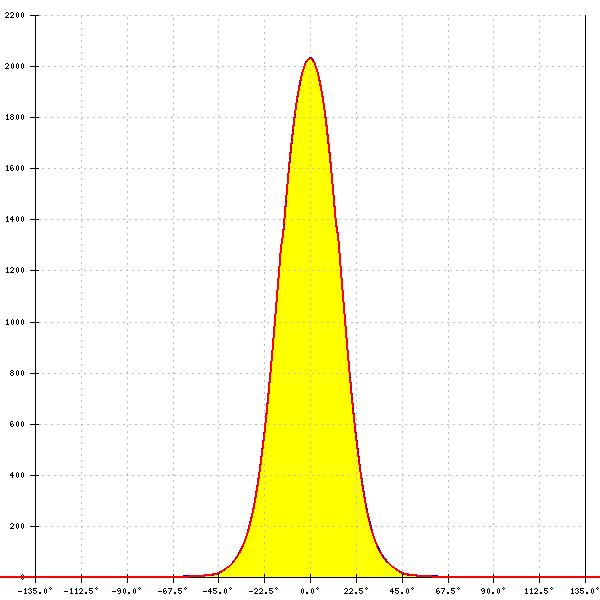

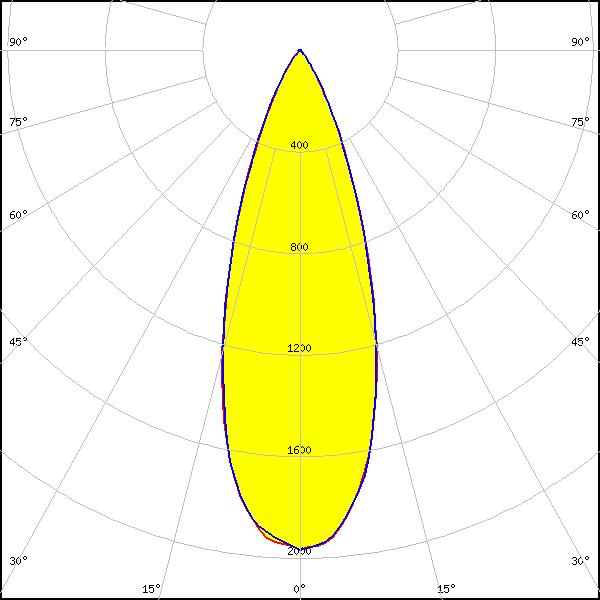

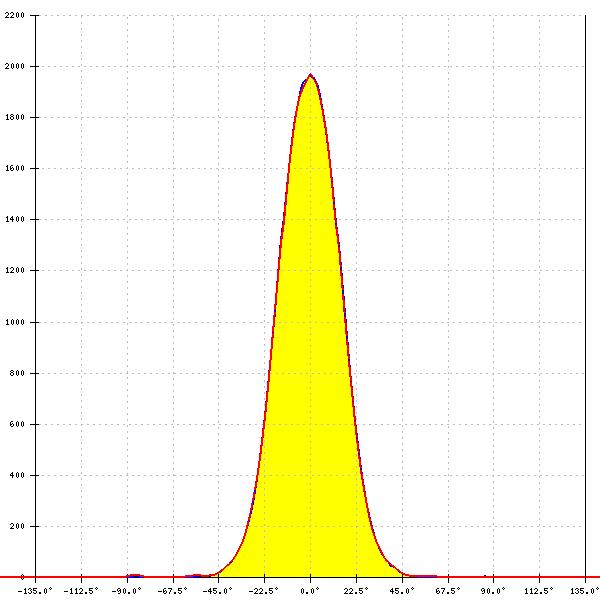

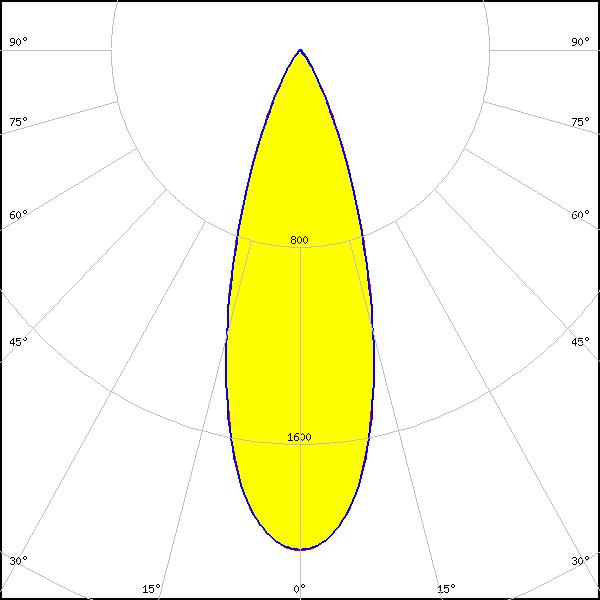

LED:
LM101B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
62°
Peak intensity:
1.950 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM101B
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
34°
FWTM:
60°
Peak intensity:
2.032 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

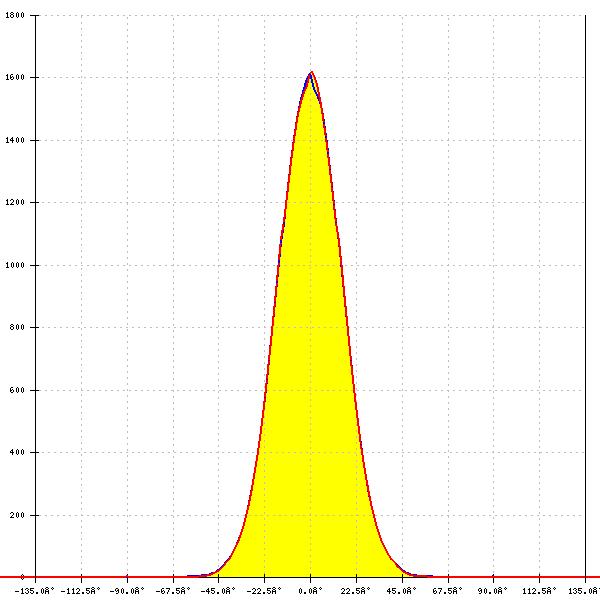

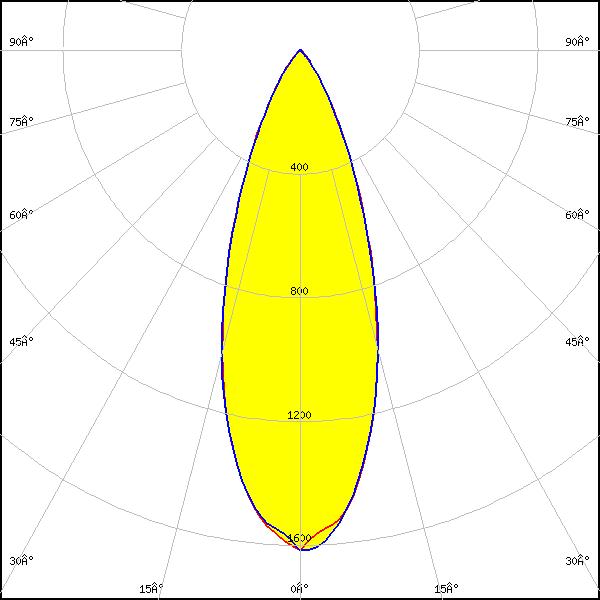

LED:
LM28xB Series
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
36°
FWTM:
66°
Peak intensity:
1.619 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

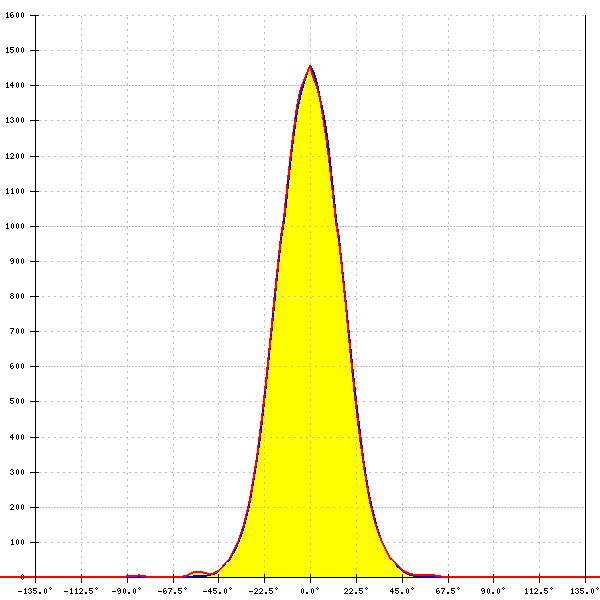

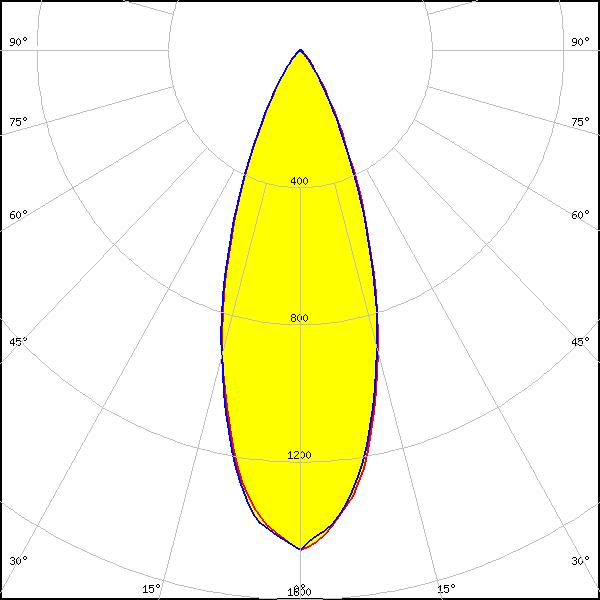

LED:
LM301B
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
36°
FWTM:
65°
Peak intensity:
1.460 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

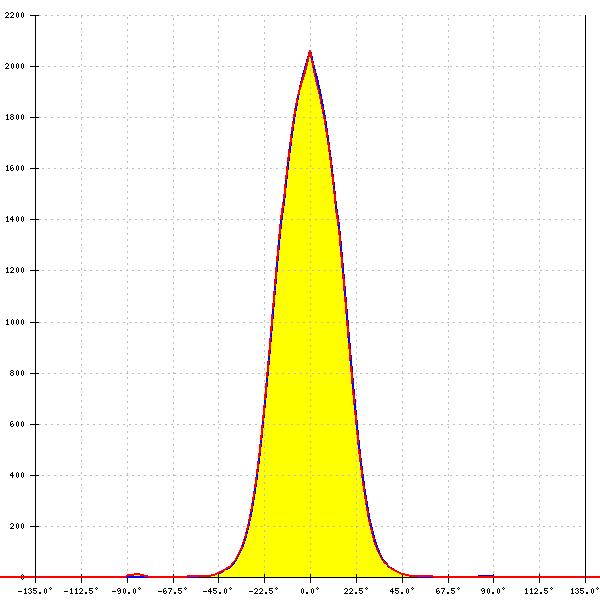

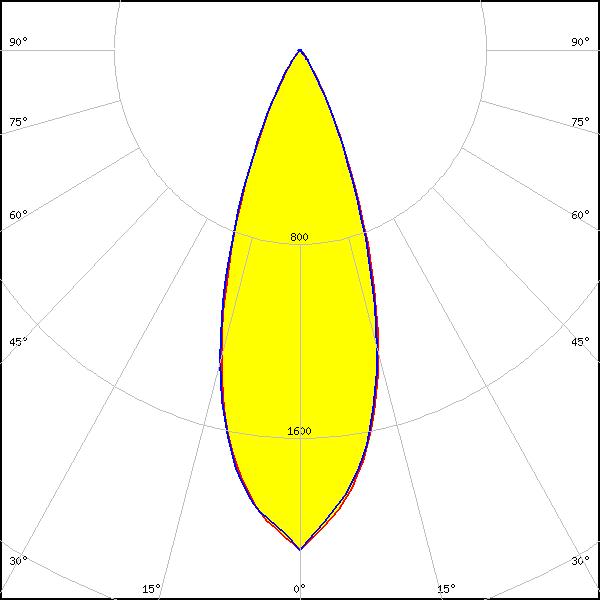

LED:
CSP1111
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
36°
FWTM:
60°
Peak intensity:
2.090 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

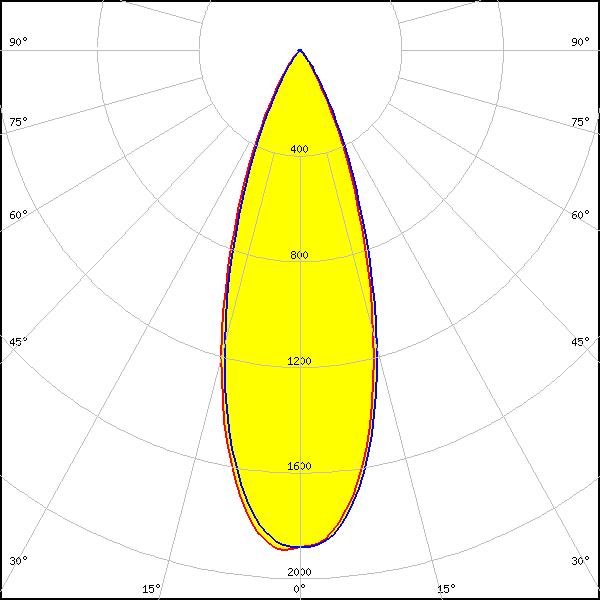

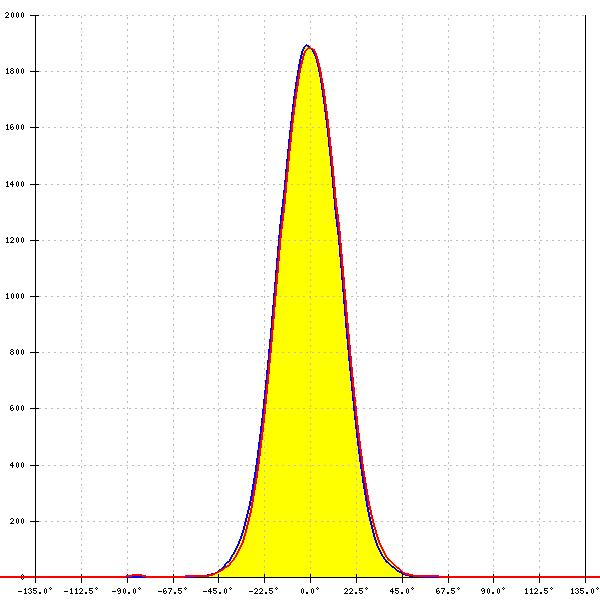

LED:
CSP1919
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
35°
FWTM:
64°
Peak intensity:
1.890 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
