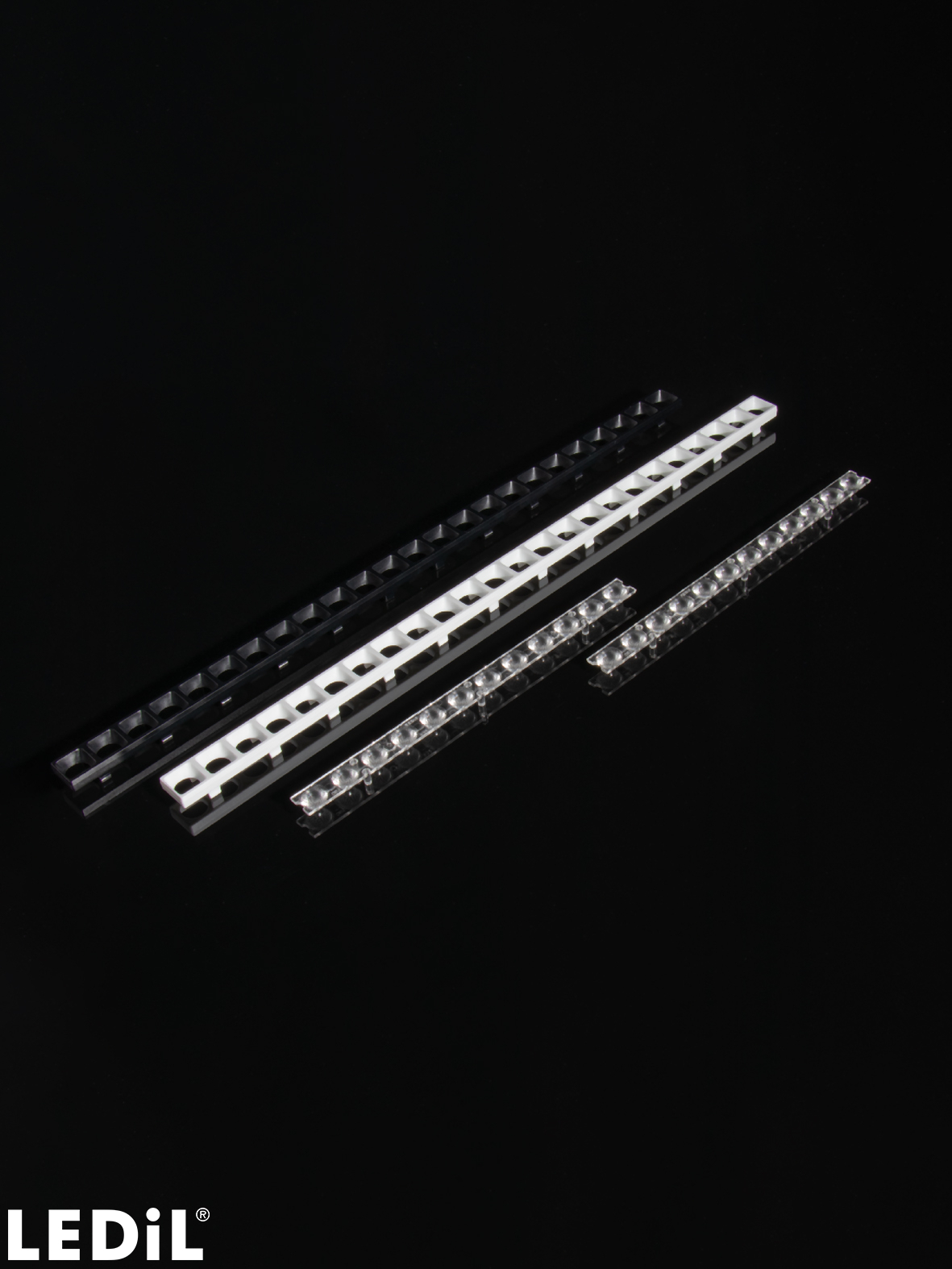

DALINE-10-M
Print
~30° medium beam
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Linear lens
- C19328_DALINE-10-MPMMA
- Request material files from Tech Support
- Shade
- C19333_DALINE-10-SHD1-MATTPC
- C19509_DALINE-10-SHD1-WHT-MATTPC
- C19618_DALINE-10-SHD2-MATTPC
- C19620_DALINE-10-SHD2-WHT-MATTPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

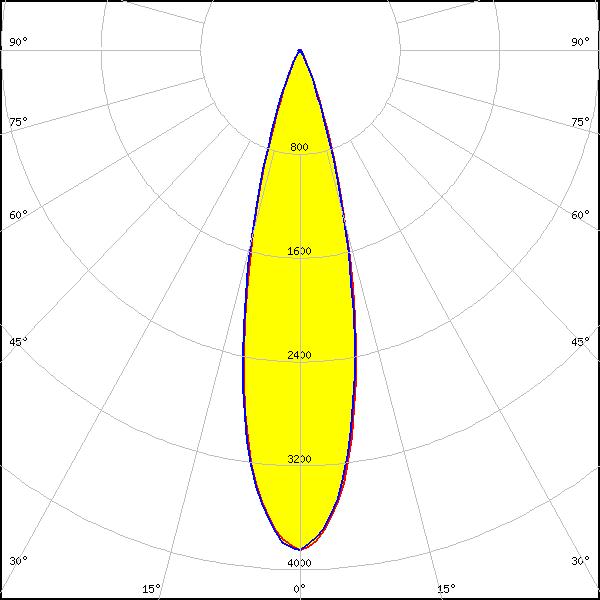

LED:
CSP 1111 (BXCP)
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
26°
FWTM:
45°
Peak intensity:
3.850 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

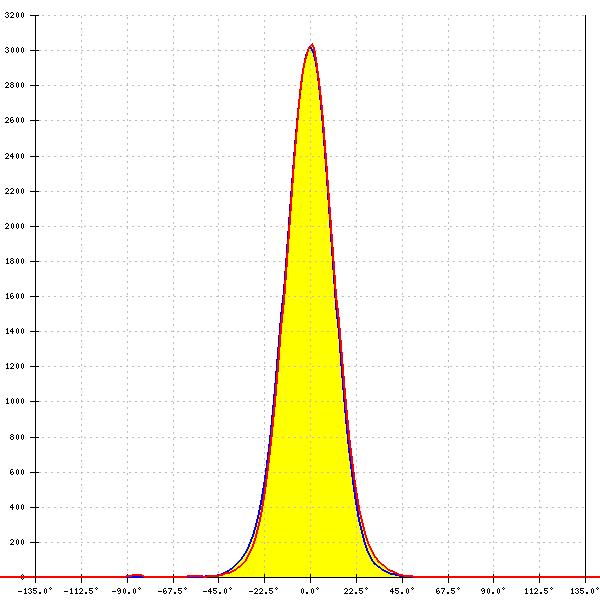

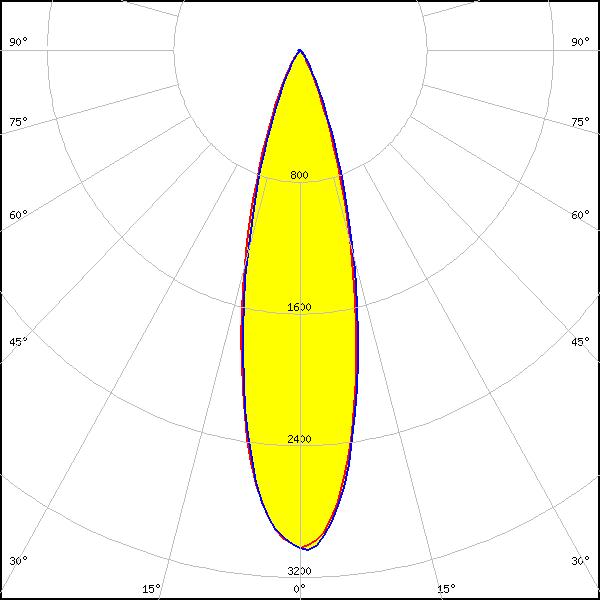

LED:
CSP 1919 (BXCP)
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
26°
FWTM:
52°
Peak intensity:
3.040 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

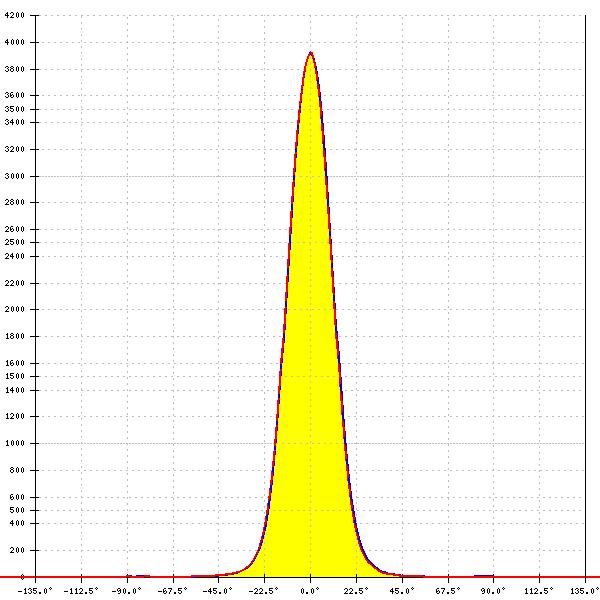

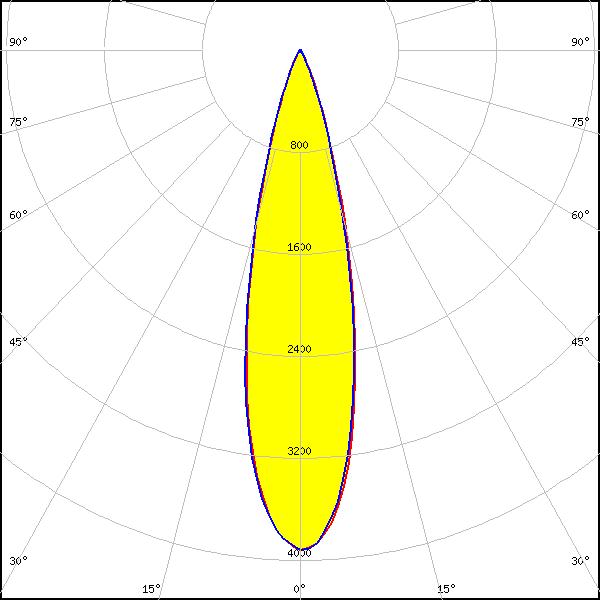

LED:
XQ-E HI
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
25°
FWTM:
45°
Peak intensity:
3.920 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

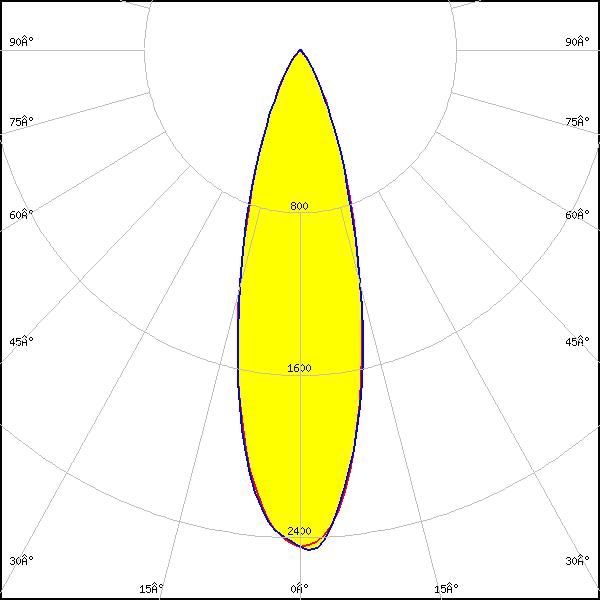

LED:
LUXEON 2835 Line
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
30°
FWTM:
58°
Peak intensity:
2.463 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

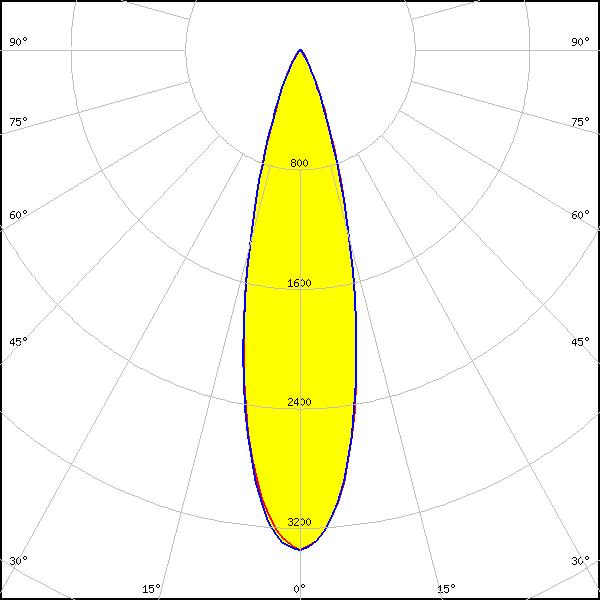

LED:
LUXEON 3014
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
26°
FWTM:
50°
Peak intensity:
3.347 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

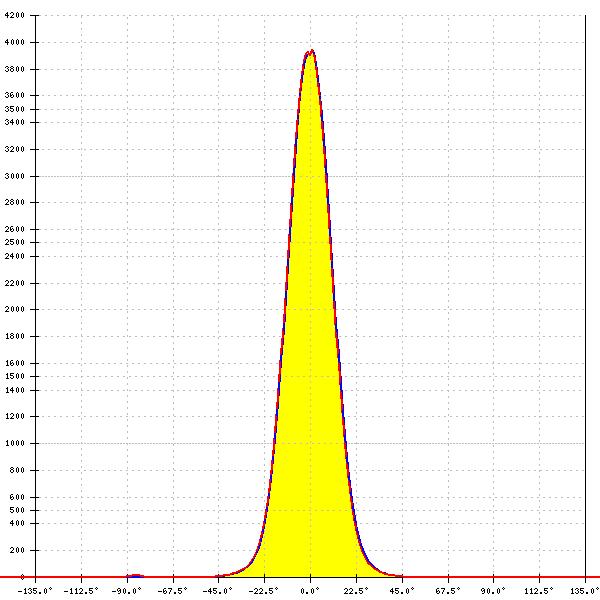

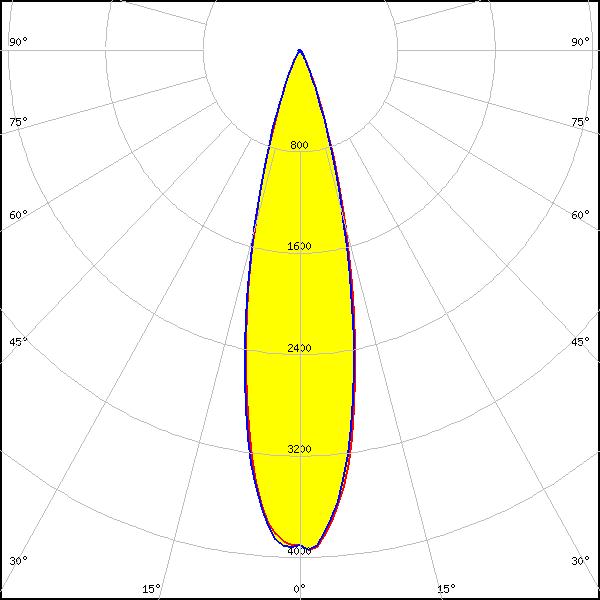

LED:
LUXEON CSP HL1
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
25°
FWTM:
45°
Peak intensity:
3.940 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

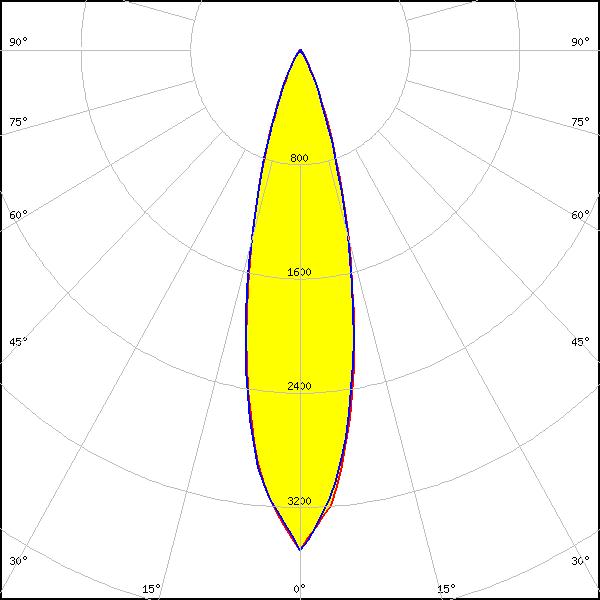

LED:
LUXEON Z ES
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
25°
FWTM:
48°
Peak intensity:
3.480 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

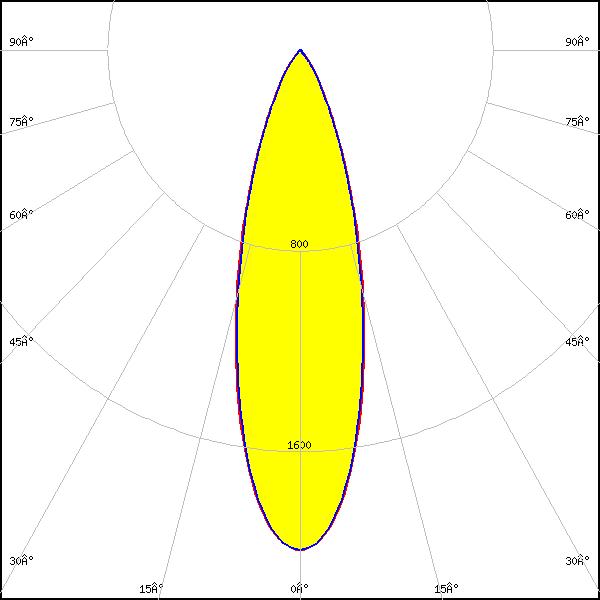

LED:
LinLED 279x10.5mm 1100lm 4C 36V DALINE-10 G1
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
30°
FWTM:
60°
Peak intensity:
1.994 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

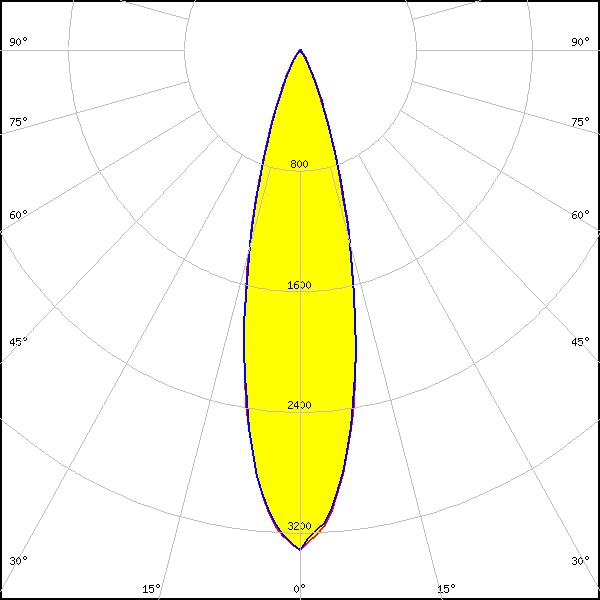

LED:
NCSxE17A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
26°
FWTM:
49°
Peak intensity:
3.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

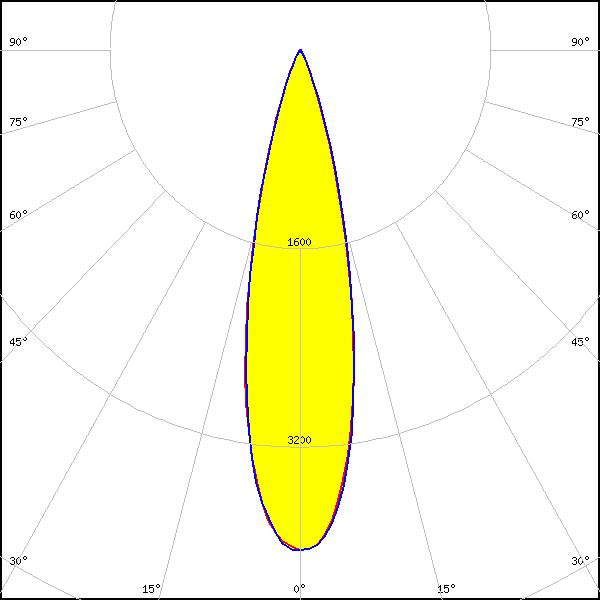

LED:
NFSWE11A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
25°
FWTM:
43°
Peak intensity:
4.020 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

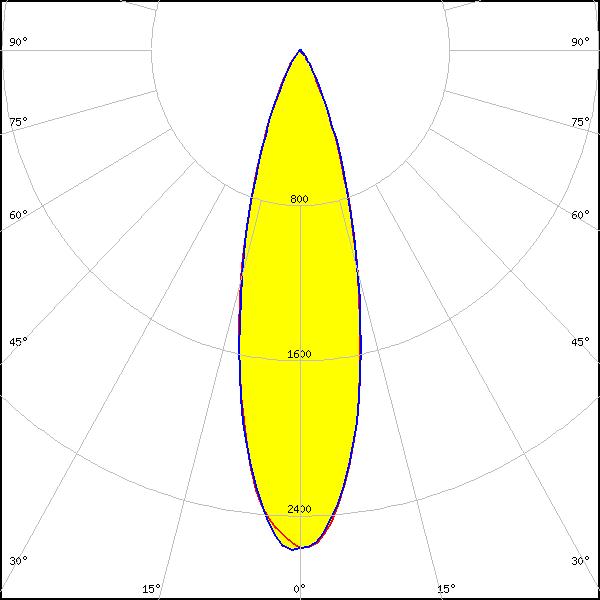

LED:
NVSxE21A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
29°
FWTM:
55°
Peak intensity:
2.570 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

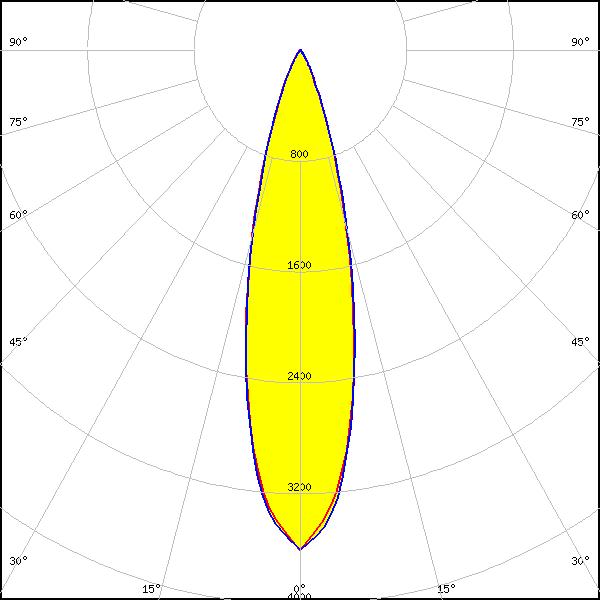

LED:
LH151B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
25°
FWTM:
48°
Peak intensity:
3.610 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

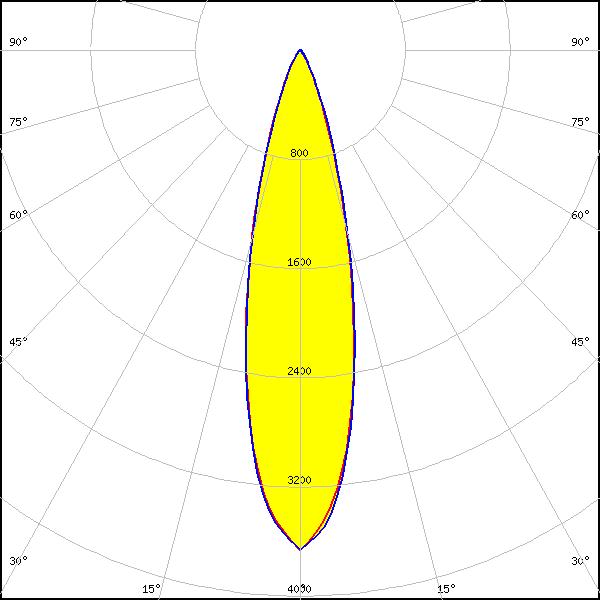

LED:
LH151B
Required components:
C19509_DALINE-10-SHD1-WHT-MATT
FWHM:
25°
FWTM:
48°
Peak intensity:
3.660 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

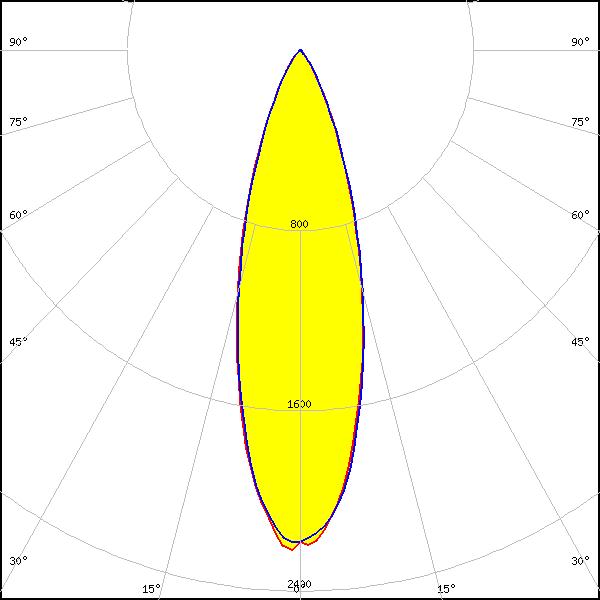

LED:
LH181B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
30°
FWTM:
58°
Peak intensity:
2.220 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

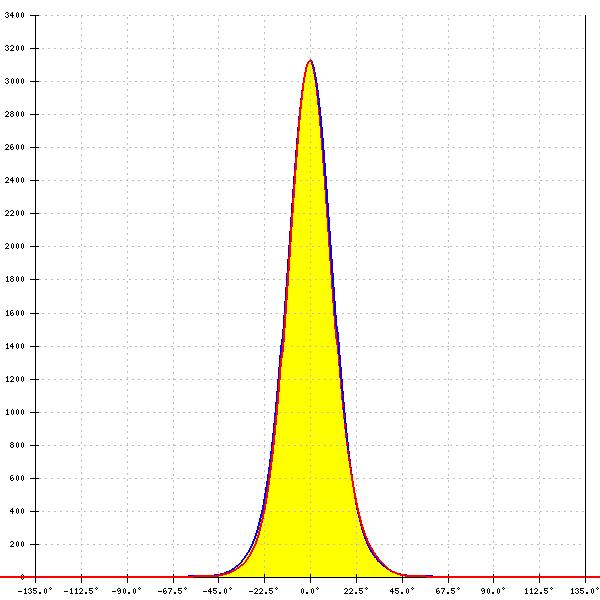

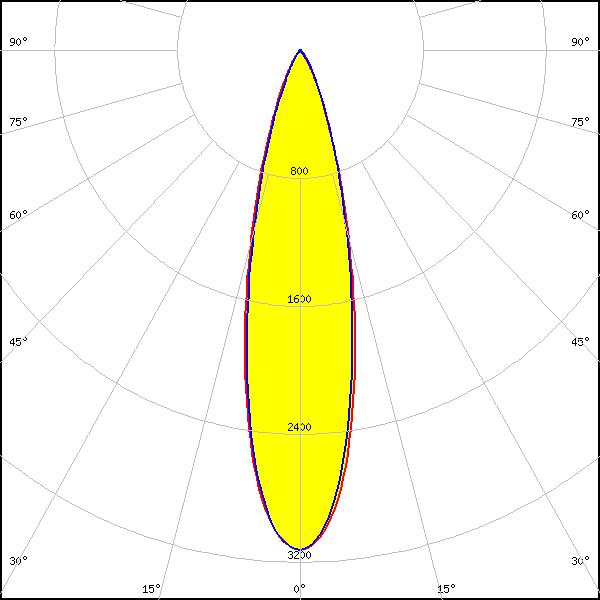

LED:
LM101B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
25°
FWTM:
50°
Peak intensity:
3.127 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

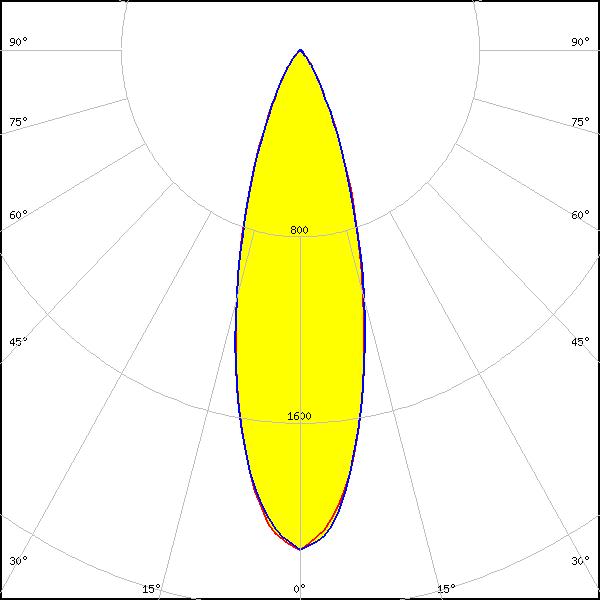

LED:
LM28xB Series
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM:
30°
FWTM:
60°
Peak intensity:
2.146 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White

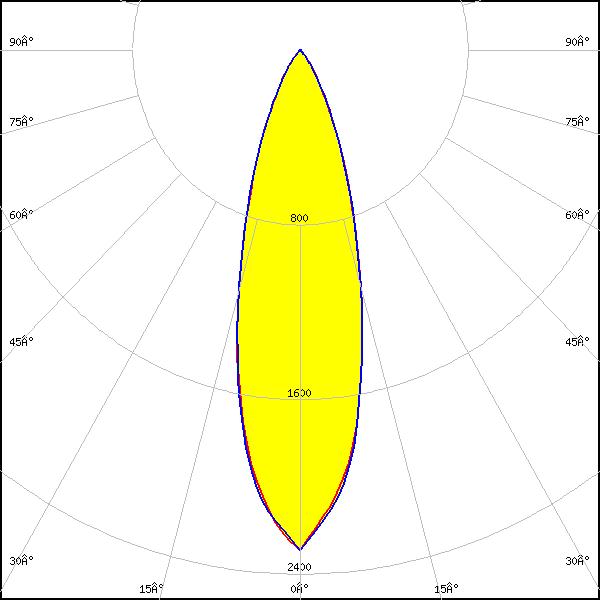

LED:
LM28xB Series
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
30°
FWTM:
58°
Peak intensity:
2.291 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

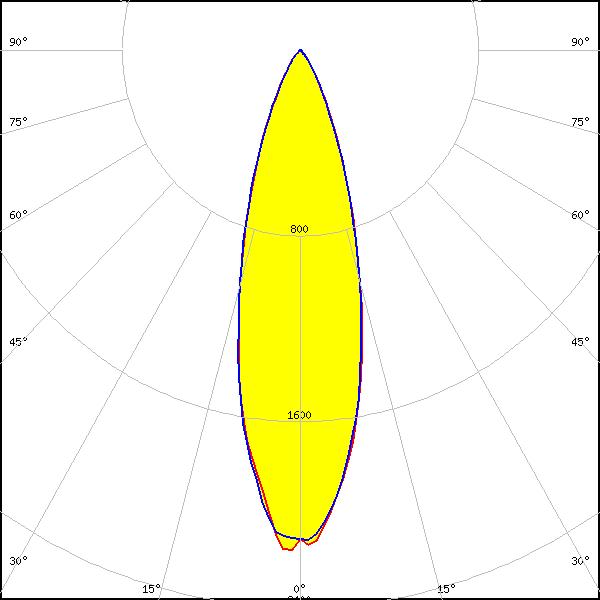

LED:
LM301B
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM:
30°
FWTM:
58°
Peak intensity:
2.110 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White
