    DAISY-7X1-CRV-WW-D

    Print

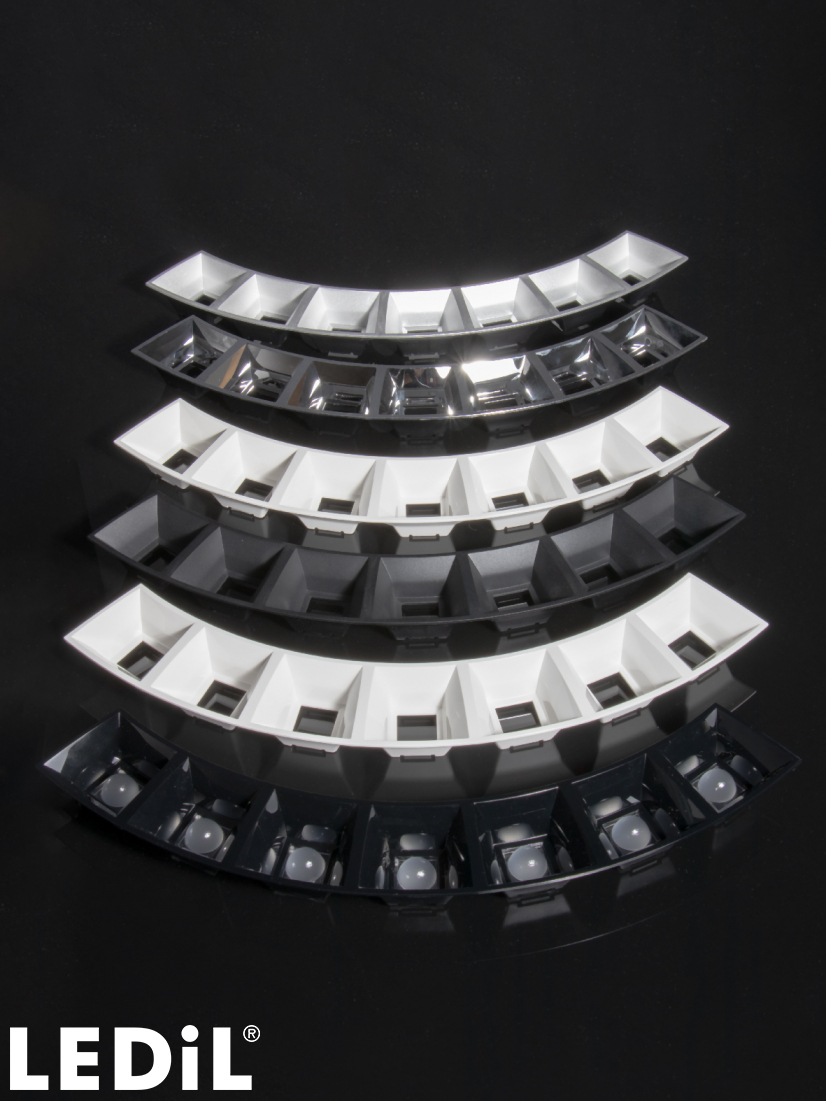

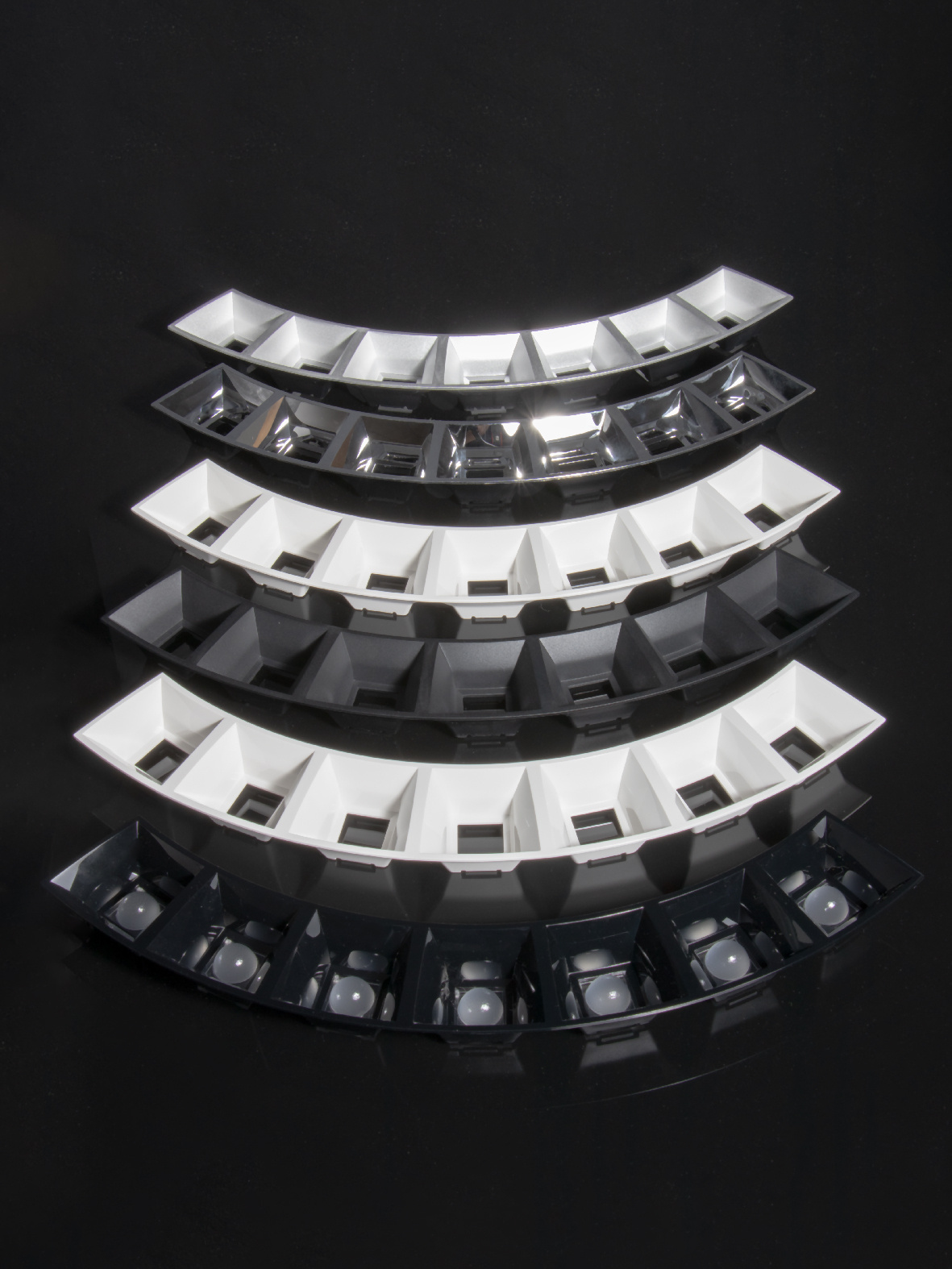

    ~80° wide beam. Variant with diffused lenses.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      200 x  200 mm
    • Height:
      20.40 mm
    • Fastening:
      clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Shade
      1 pcs
    • Assembly
      7 pcs
    • Shade
    • C19053_DAISY-7X1-SHD-CRV
      black,gloss
    • C19054_DAISY-7X1-SHD-CRV-WHT
      white,gloss
    • C19055_DAISY-7X1-SHD-CRV-MATT
      black,matt
    • C19056_DAISY-7X1-SHD-CRV-MET
      metal,gloss
    • C19057_DAISY-7X1-SHD-CRV-MET-MATT
      metal,matt
    • C19503_DAISY-7X1-SHD-CRV-WHT-MATT
      white,matt
    • Quantity in box:
      72 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      3.80 kg
    • MPQ:
      72 pcs
    • MOQ:
      288 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      3.80 kg
    • Assembly
    • CA19072_DAISY-1X1-WW-D
    • Quantity in box:
      2016 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      3.70 kg
    • MPQ:
      112 pcs
    • MOQ:
      112 pcs
    • MOQ Size:
      400 x 300 x 50 mm
    • MOQ Weight:
      0.50 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19053_DAISY-7X1-SHD-CRV
      CA19072_DAISY-1X1-WW-D
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – September, 2023

    News

    Unleash your creativity with new DAISY modules

    Luminaire, example

    Downlight luminaires with DAISY-7X1-CRV

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Retail Lighting Optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

    Optical results

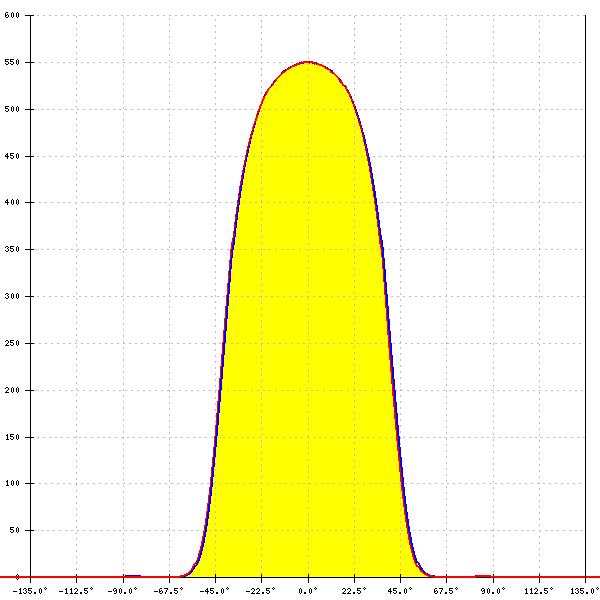

    LED: RdLED 1/4 RING 1100lm 4C 42V DAISY-7X1-CRV G1
    Required components:
    C19053_DAISY-7X1-SHD-CRV
    FWHM: 79°
    FWTM: 99°
    Peak intensity: 0.550 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White

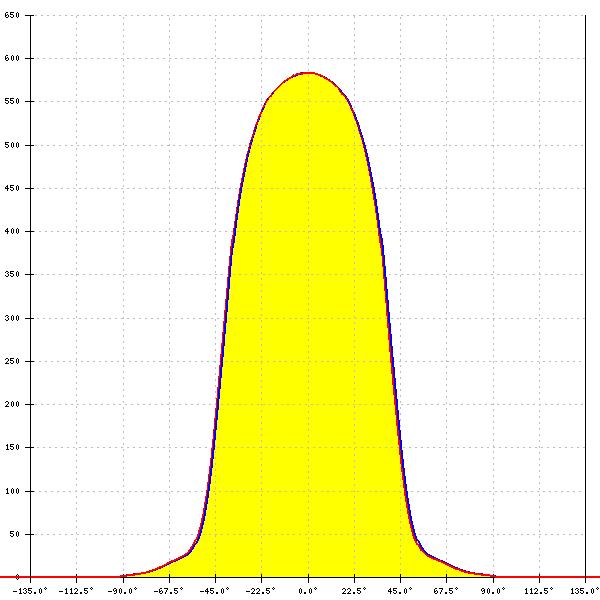

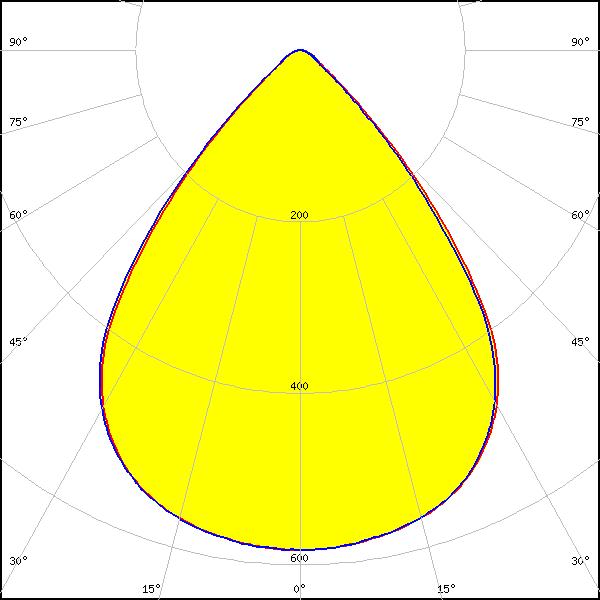

    LED: RdLED 1/4 RING 1100lm 4C 42V DAISY-7X1-CRV G1
    Required components:
    C19054_DAISY-7X1-SHD-CRV-WHT
    FWHM: 80°
    FWTM: 103°
    Peak intensity: 0.584 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White

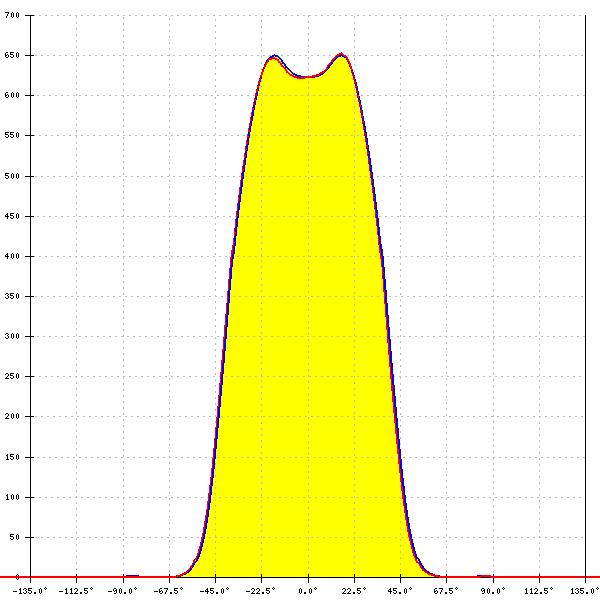

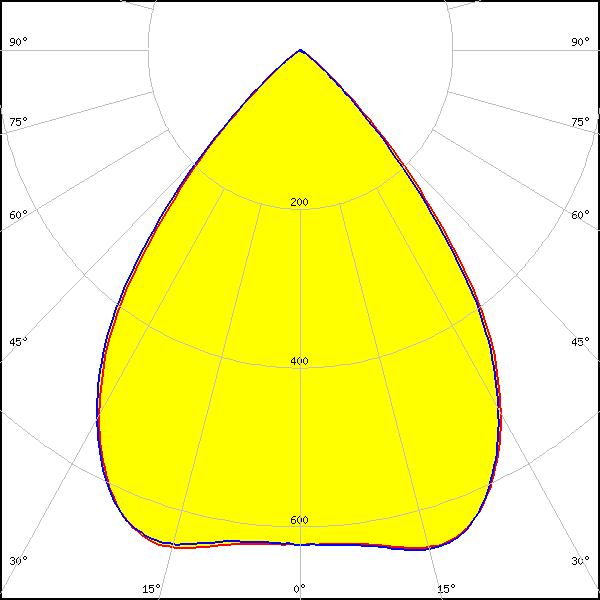

    LED: RdLED 1/4 RING 1100lm 4C 42V DAISY-7X1-CRV G1
    Required components:
    C19056_DAISY-7X1-SHD-CRV-MET
    FWHM: 78°
    FWTM: 99°
    Peak intensity: 0.655 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

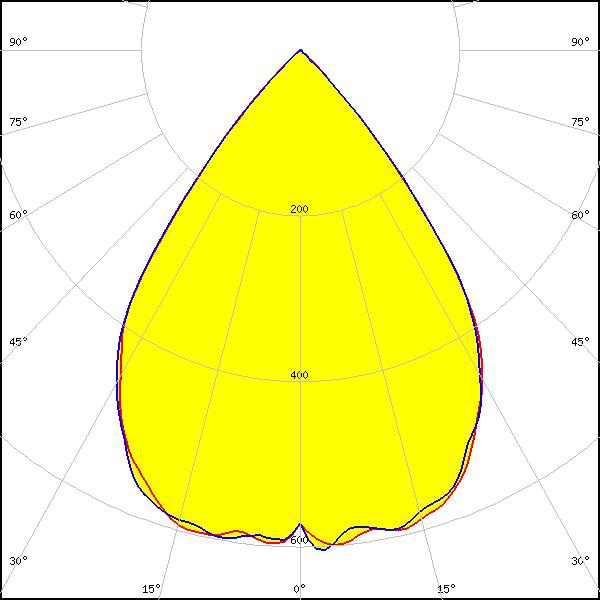

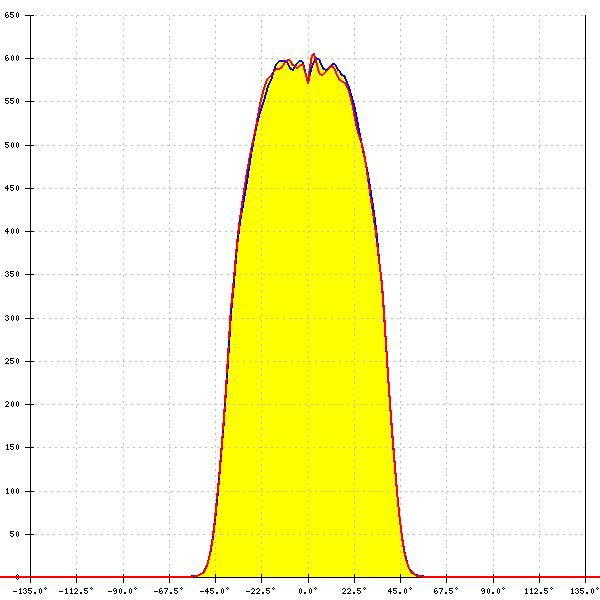

    LED: LM28xB Series
    Required components:
    C19055_DAISY-7X1-SHD-CRV-MATT
    FWHM: 74°
    FWTM: 90°
    Peak intensity: 0.613 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour/type: White
