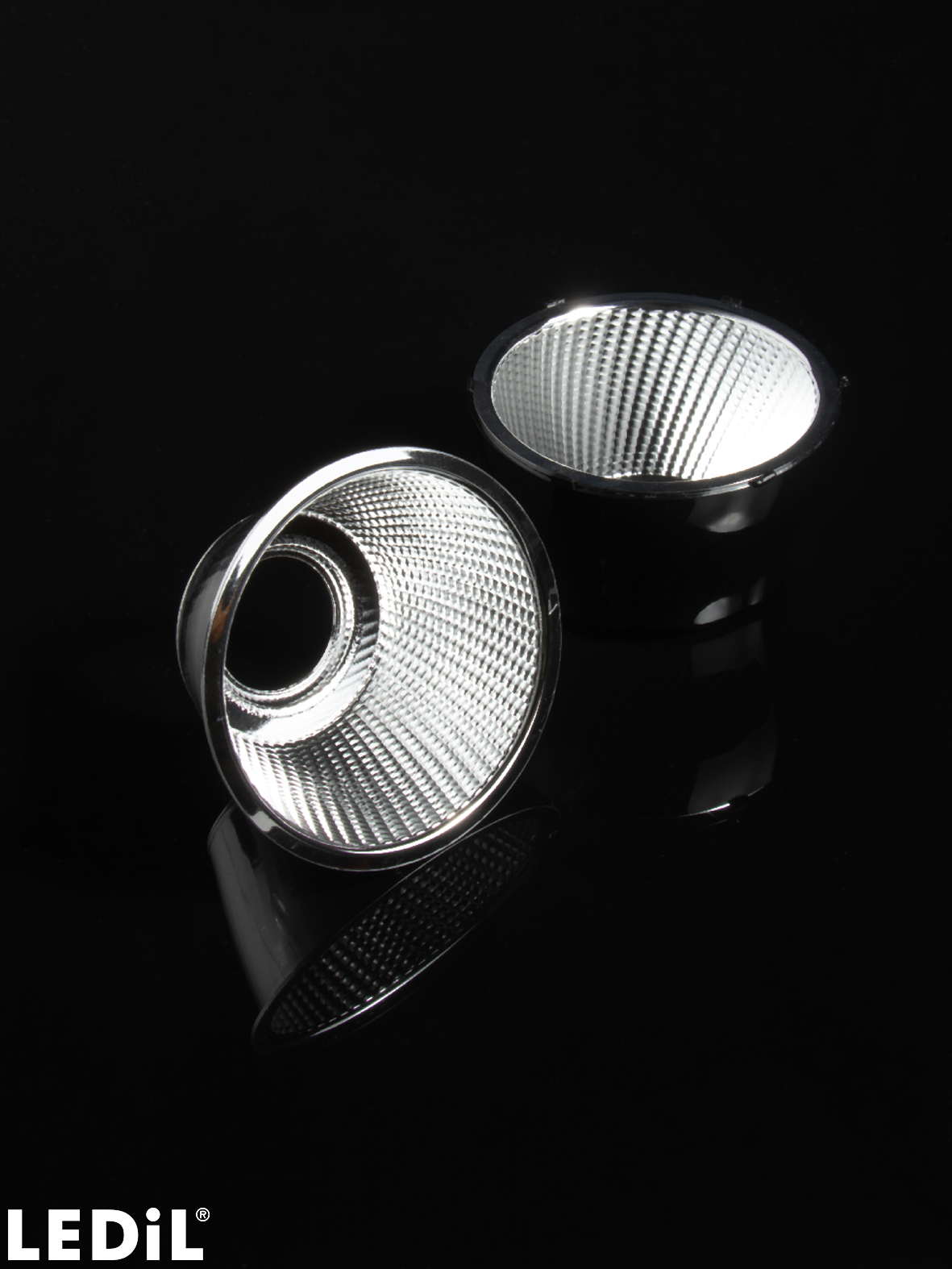

ADELY-70-WW
Print~55° wide beam
Parts may have different packaging information. Contact us for details.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:70 mm
-
Height:39.90 mm
-
Fastening:clips, socket
-
RoHS and REACH compliant:Yes
Materials
- Holder
- C19427_ADELY-70-HLD2-CPC
- C19428_ADELY-70-HLD2-BPC
- Request material files from Tech Support
- Reflector
- C18919_ADELY-70-WWAluminium
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Reflector1 pcs
- Holder1 pcs
- Reflector
- C18919_ADELY-70-WWmetal
- Quantity in box:720 pcs
- Box size:370 x 300 x 310 mm
- Box weight:13.50 kg
- MPQ:60 pcs
- MOQ:60 pcs
- MOQ Size:310 x 230 x 100 mm
- MOQ Weight:1.20 kg
- Holder
- C19427_ADELY-70-HLD2-Cblack
- C19428_ADELY-70-HLD2-Bblack
- Quantity in box:400 pcs
- Box size:400 x 300 x 300 mm
- Box weight:6.00 kg
- MPQ:10 pcs
- MOQ:60 pcs
- MOQ Size:310 x 230 x 100 mm
- MOQ Weight:1.30 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

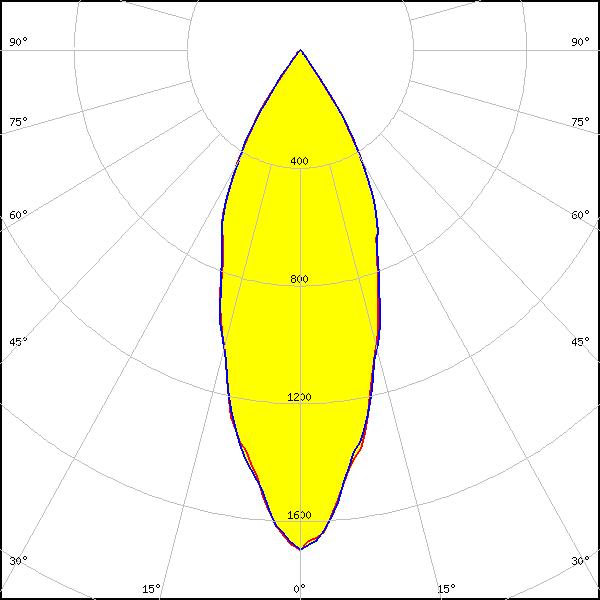

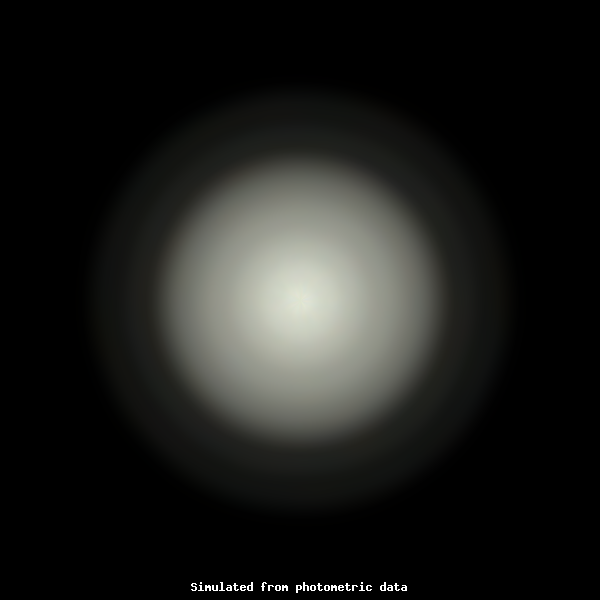

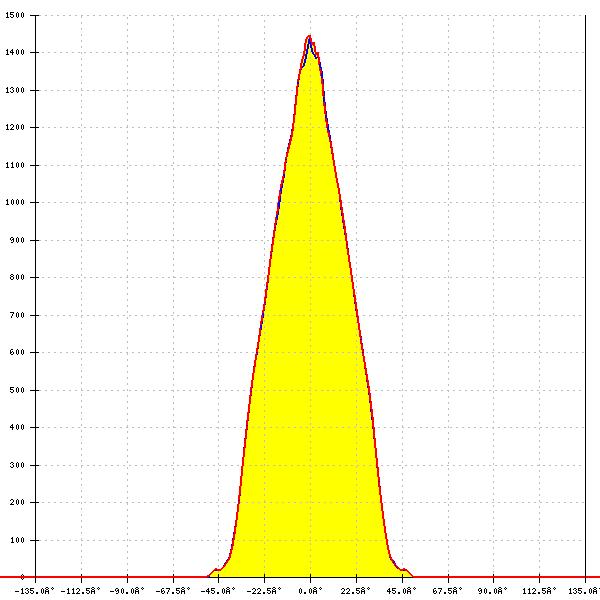

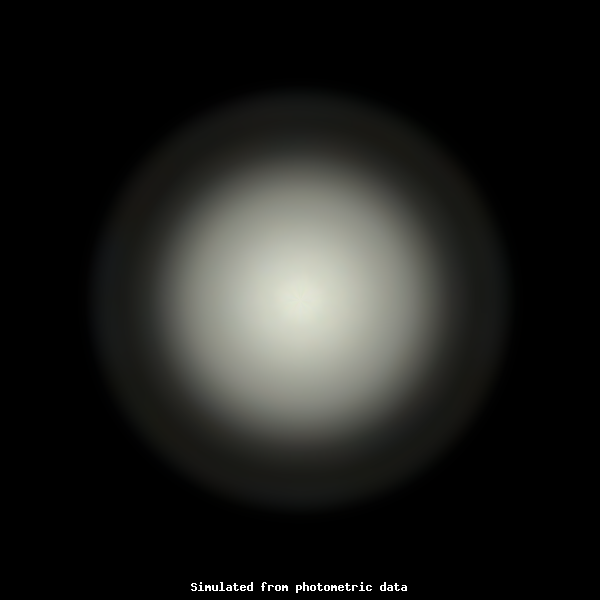

Optical results

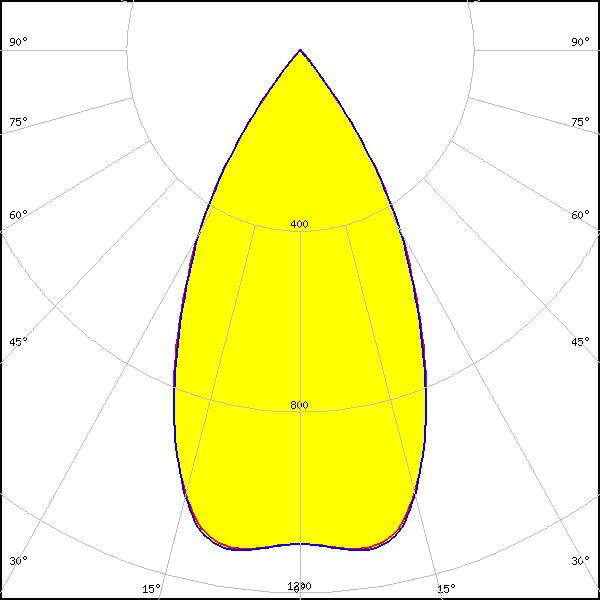

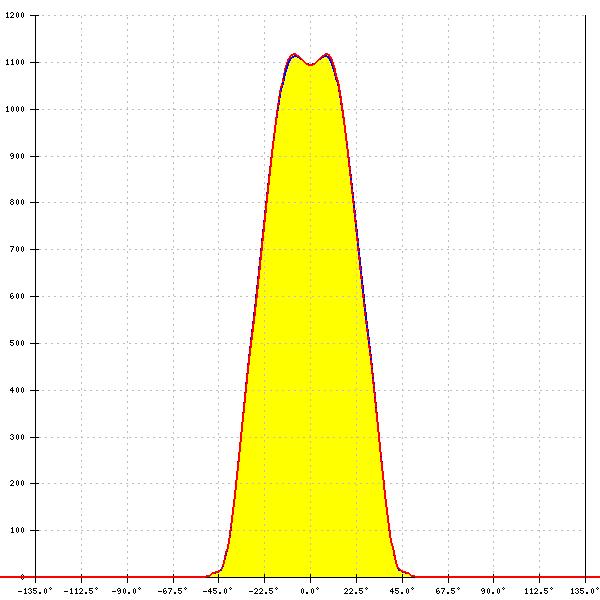

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
55°
FWTM:
78°
Peak intensity:
1.125 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

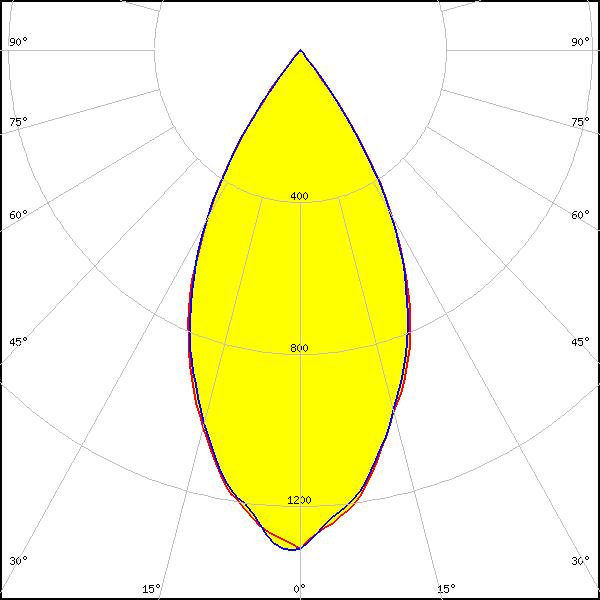

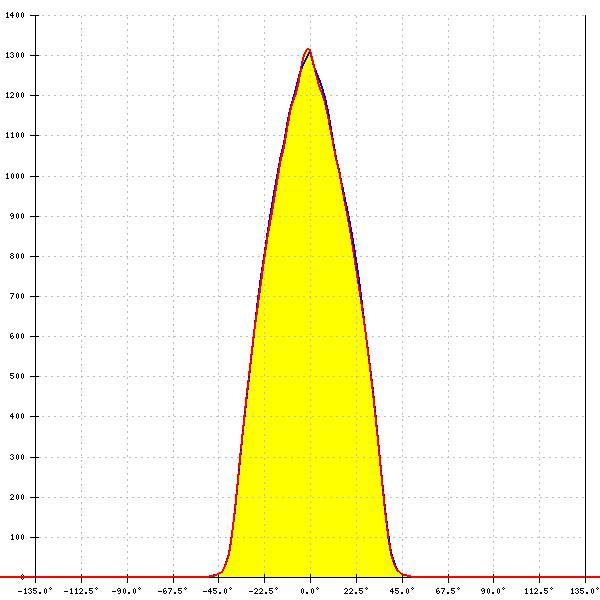

LED:
LC030C/040C G2
LES size: 11.5 mm
FWHM:
52°
FWTM:
76°
Peak intensity:
1.317 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
