Product card

HEKLA-SOCKET-E

Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

HEKLA-SOCKET-A

Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

HEKLA-SOCKET-B

Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

HEKLA-SOCKET-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-SOCKET-F

Version compatible with Bridgelux VERO10

HEKLA-SOCKET-G

Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

HEKLA-SOCKET-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-SOCKET-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-SOCKET-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-K

Version compatible with Bender+Wirth Typ L8

HEKLA-G2-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-G2-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-G2-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-G2-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-G2-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-RZ-LENS

Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

HEKLA-SOCKET-VERO18

Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

Show less

LED: LC016D / LC019D / LC026D / LC033D

LES size: 14.5 mm

Required components:

F17438_HEKLA-G2-I

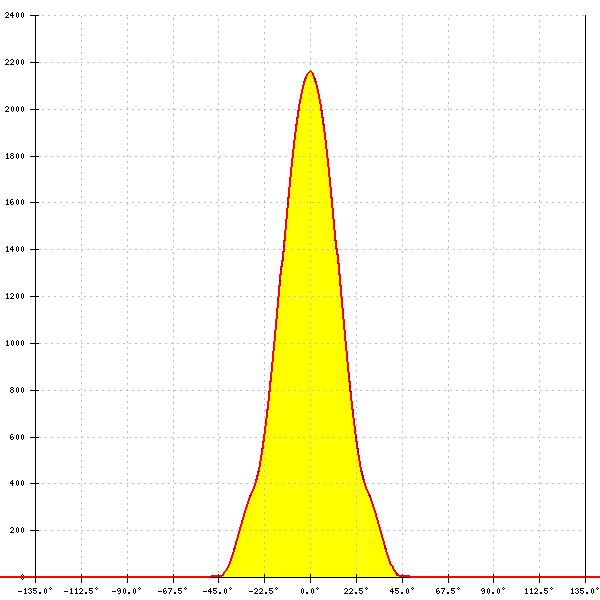

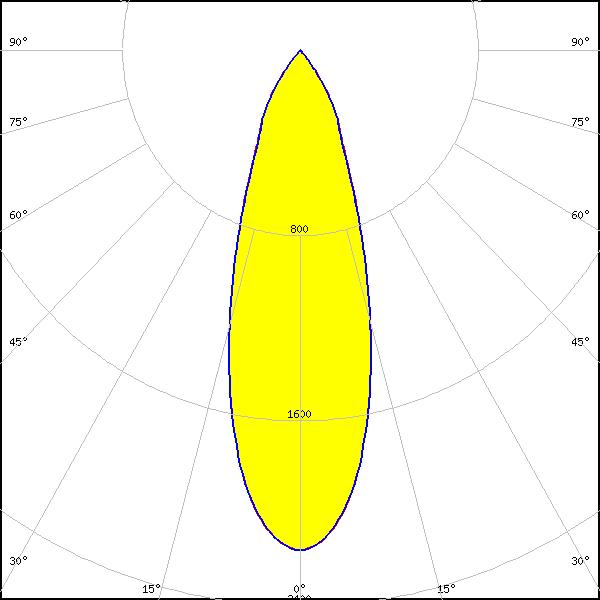

FWHM: 33°

FWTM: 68°

Peak intensity: 2.160 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

MEASURED

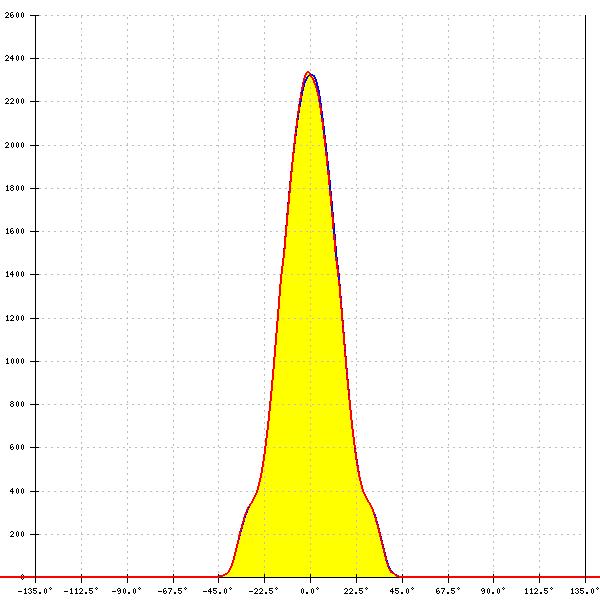

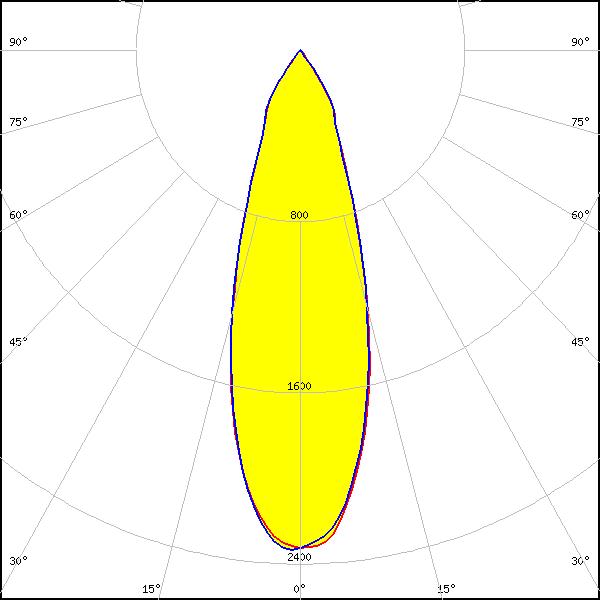

LED: LC030C/040C G2

LES size: 11.5 mm

FWHM: 32°
