Product card

HEKLA-SOCKET-E

Version compatible with COBs of 15.8 x 15.8 mm packages and max 14.3 mm LES size

HEKLA-SOCKET-A

Version compatible with COBs of 12.5 x 12.5 mm packages and max 9 mm LES size

HEKLA-SOCKET-B

Version compatible with COBs of 17.85 x 17.85 mm packages and max 14.2 mm LES size

HEKLA-SOCKET-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-SOCKET-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-SOCKET-F

Version compatible with Bridgelux VERO10

HEKLA-SOCKET-G

Version compatible with COBs of 12 x 15 mm packages and max 10 mm LES size

HEKLA-SOCKET-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-SOCKET-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-SOCKET-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-SOCKET-K

Version compatible with Bender+Wirth Typ L8

HEKLA-G2-C

Version compatible with COBs of 13.5 x 13.5 mm packages and max 11.6 mm LES size

HEKLA-G2-D

Version compatible with COBs of 15.85 x 15.85 mm packages and max 10.7 mm LES size

HEKLA-G2-H

Version compatible with COBs of 16 x 19 mm packages and max 14 mm LES size

HEKLA-G2-I

Version compatible with COBs of 19 x 19 mm packages and max 17 mm LES size

HEKLA-G2-J

Version compatible with COBs of 13.35 x 13.35 mm packages and max 7.5 mm LES size

HEKLA-RZ-LENS

Colour mixing sublens for HEKLA-SOCKETS and HEKLA-G2 connectors

HEKLA-SOCKET-VERO18

Version compatible with Bridgelux VERO18, VERO13 and Bender & Wirth 4xx Typ L1.

Show less

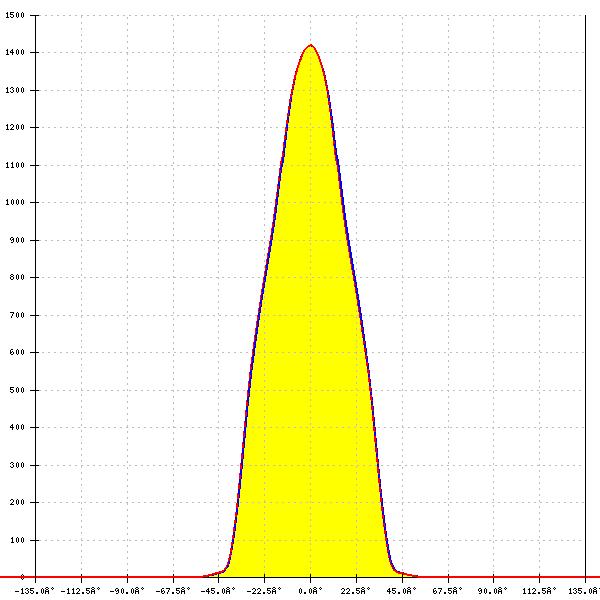

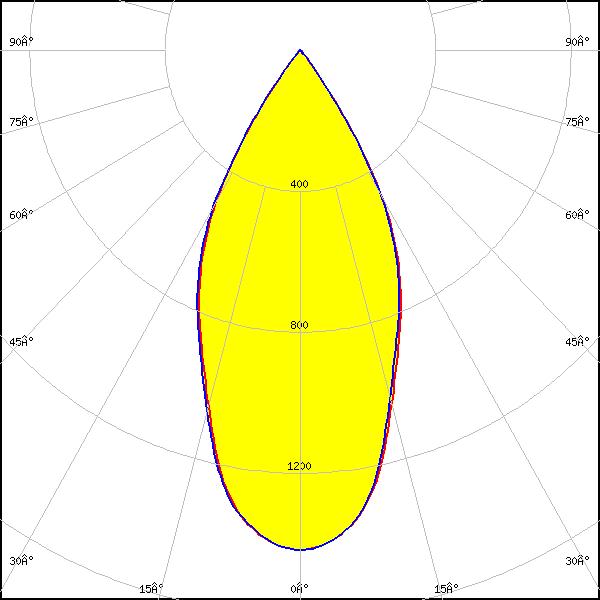

LED: V10 Gen 8-9

LES size: 10.0 mm

Required components:

F19857_HEKLA-G2B-C2

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

MECH. OK

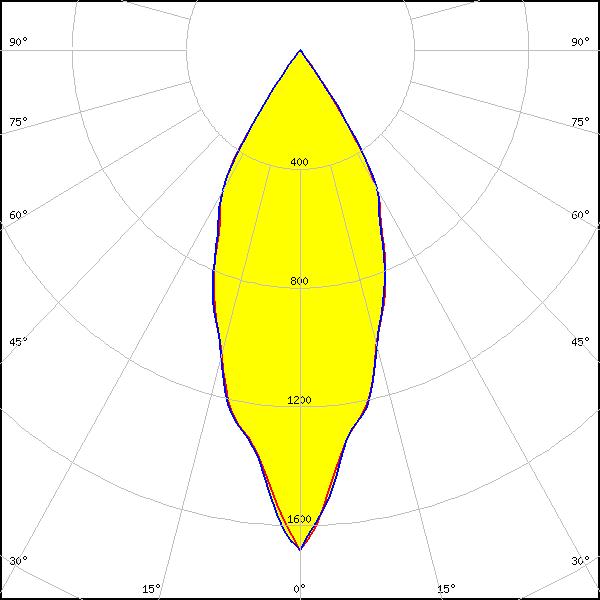

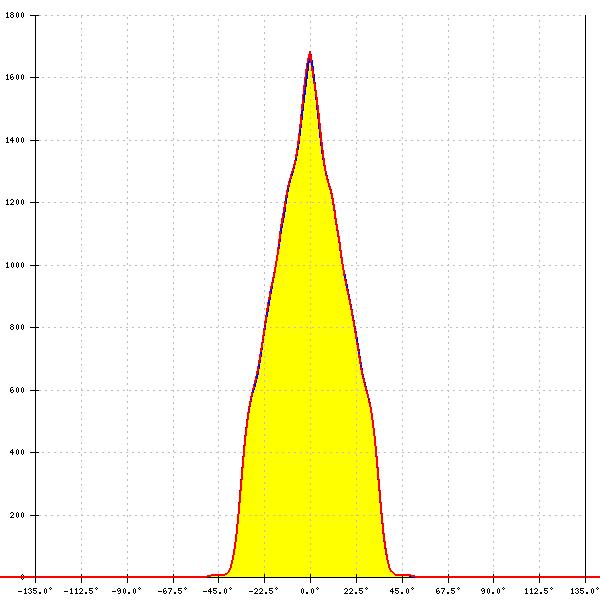

LED: CLU700/701/702/703

LES size: 6.0 mm

Required components:

F17435_HEKLA-G2-C

FWHM: 42°

FWTM: 72°

Peak intensity: 1.683 cd/lm

Efficiency: 89 %
