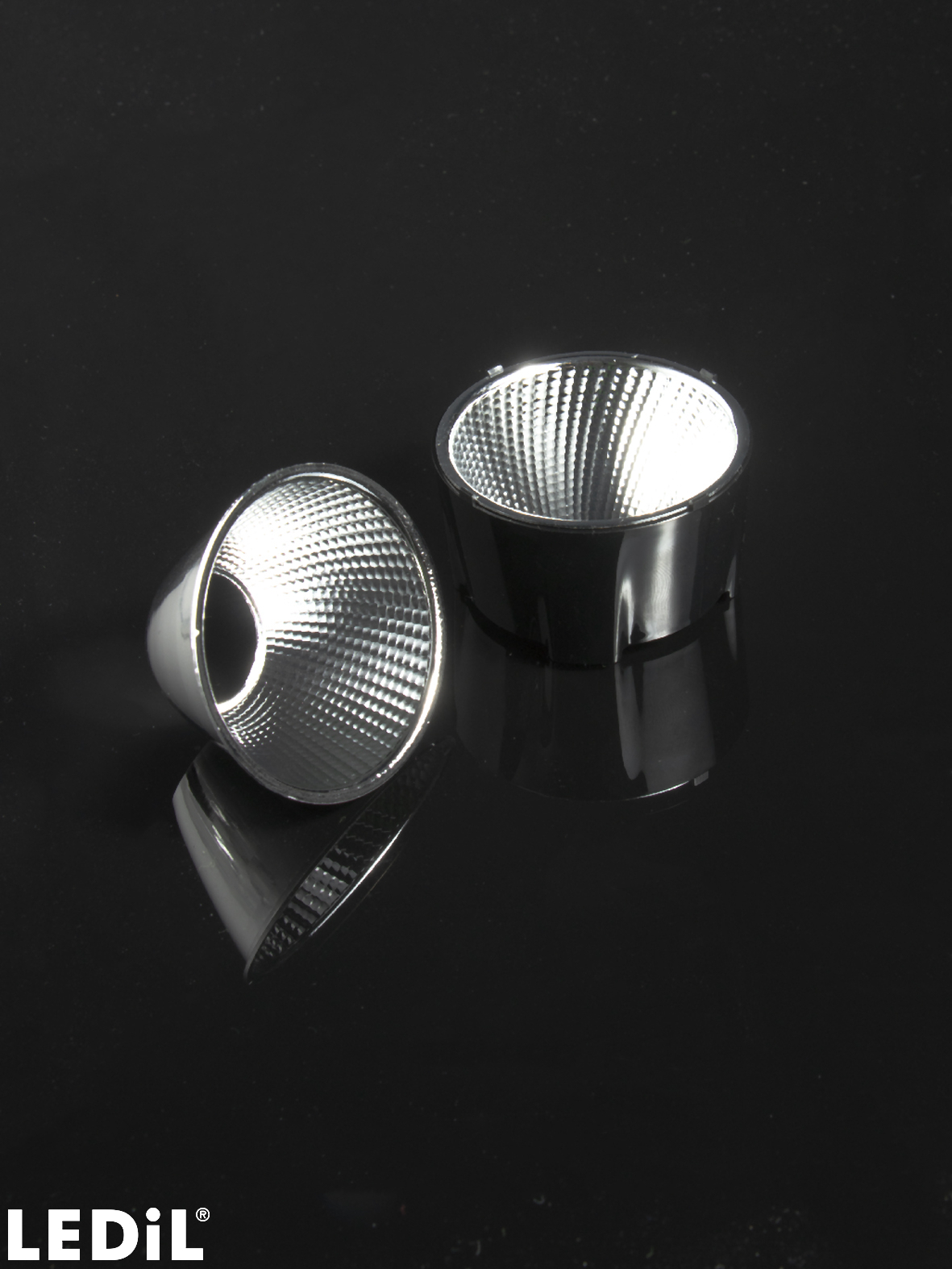

ADELY-50-M
Print~24° medium beam
Parts may have different packaging information. Contact us for details.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:50 mm
-
Height:28.10 mm
-
Fastening:clips, socket
-
RoHS and REACH compliant:Yes
Materials
- Holder
- C18691_YASMEEN-50-HLD2-CPC
- C18694_YASMEEN-50-HLD2-BPC
- Request material files from Tech Support
- Reflector
- C18892_ADELY-50-MAluminium
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
- Quantities for one set:
- Reflector1 pcs
- Holder1 pcs
- Reflector
- C18892_ADELY-50-Mmetal
- Quantity in box:1600 pcs
- Box size:370 x 300 x 310 mm
- Box weight:12.90 kg
- MPQ:80 pcs
- MOQ:80 pcs
- MOQ Size:310 x 230 x 100 mm
- MOQ Weight:0.80 kg
- Holder
- C18691_YASMEEN-50-HLD2-Cblack
- C18694_YASMEEN-50-HLD2-Bblack
- Quantity in box:500 pcs
- Box size:400 x 300 x 300 mm
- Box weight:3.70 kg
- MPQ:10 pcs
- MOQ:60 pcs
- MOQ Size:320 x 230 x 70 mm
- MOQ Weight:0.70 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

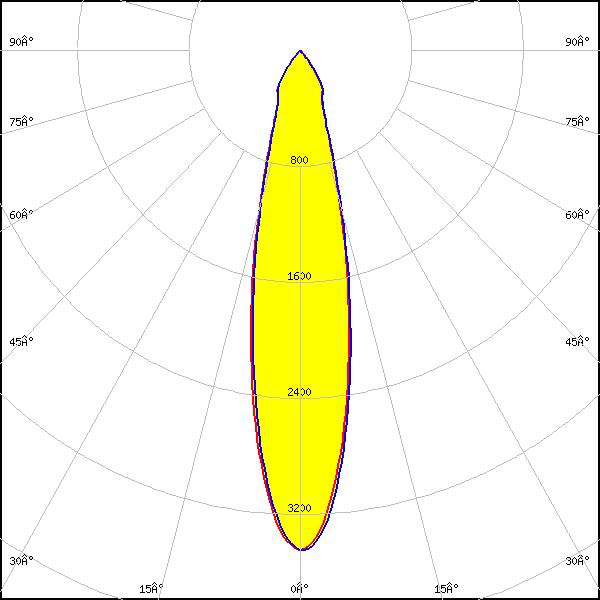

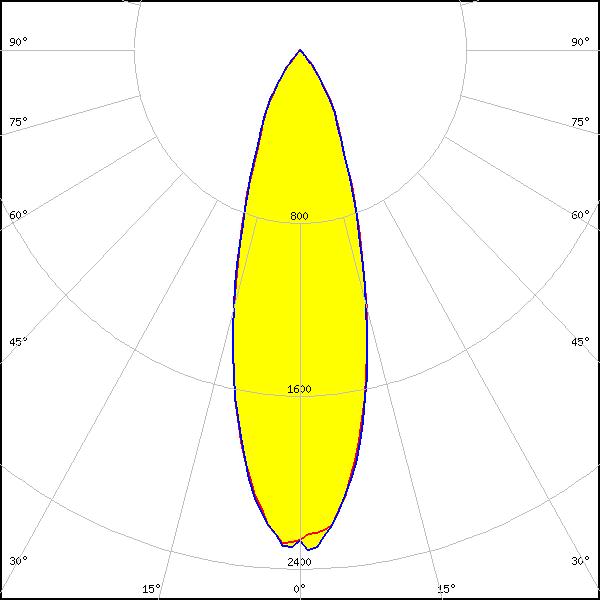

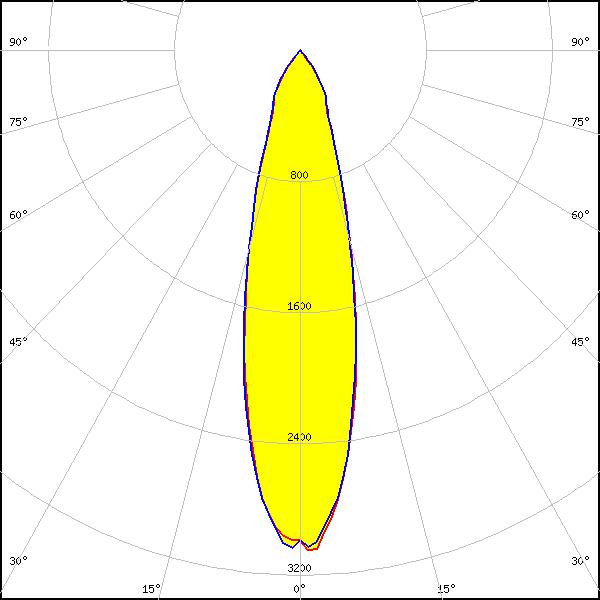

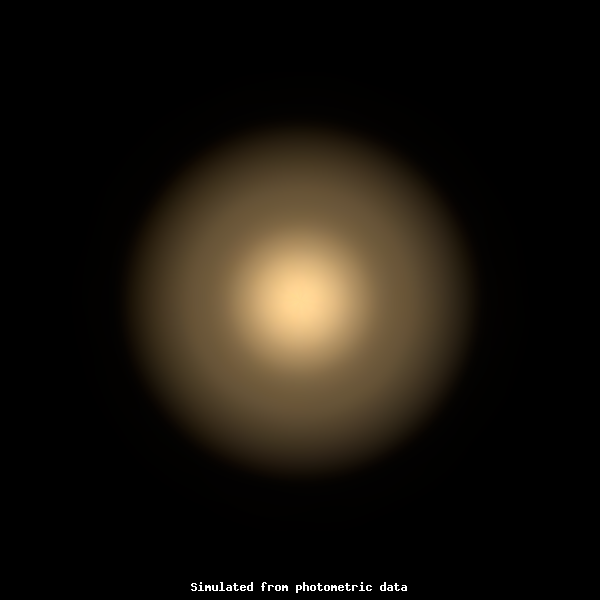

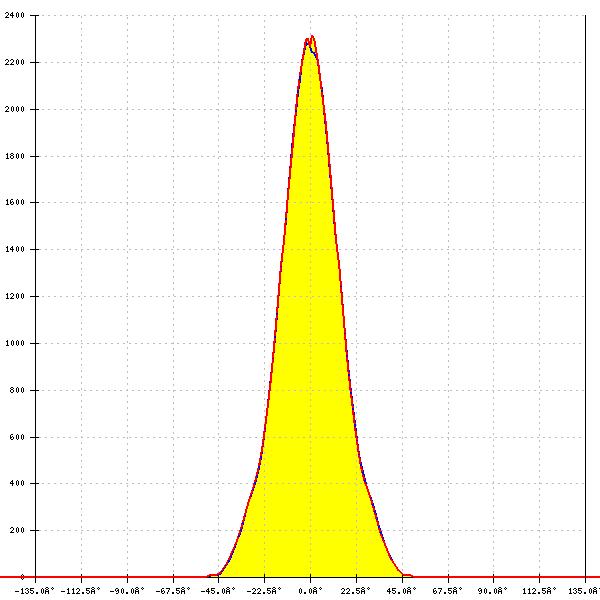

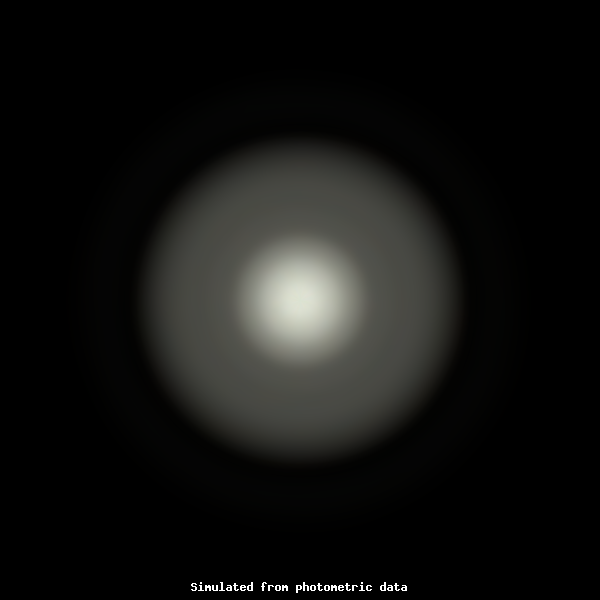

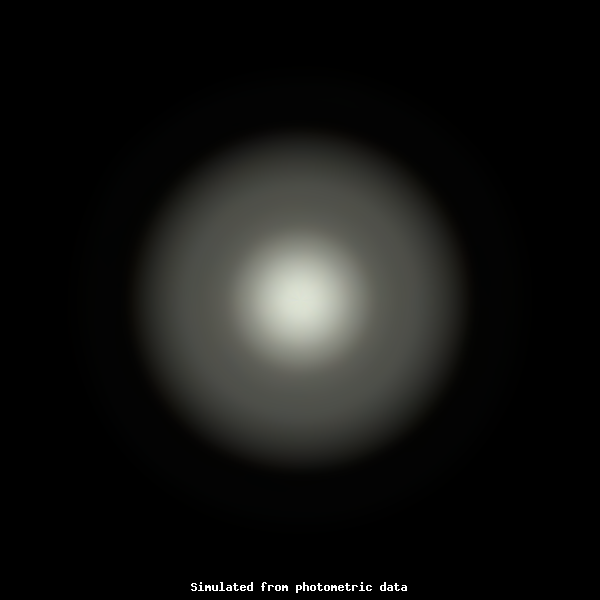

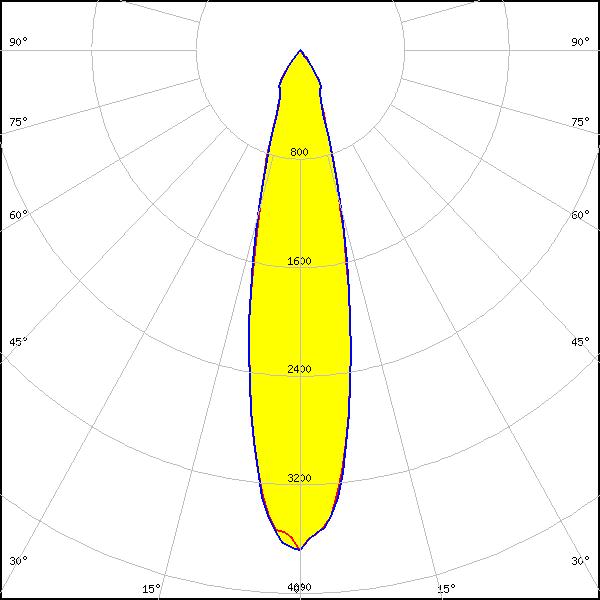

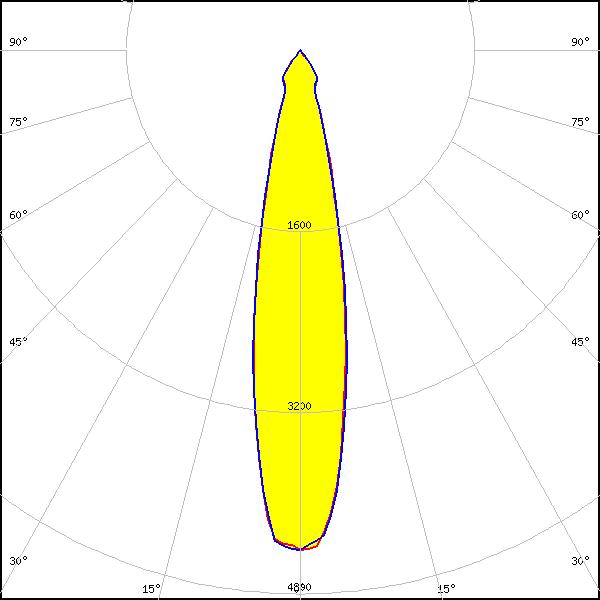

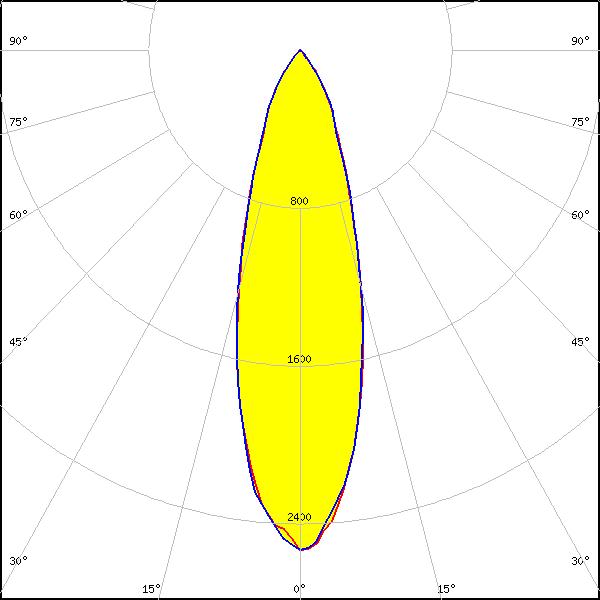

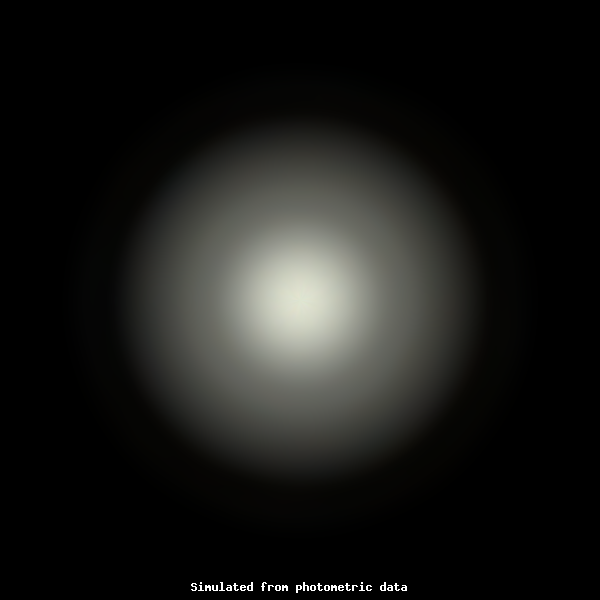

Optical results
LED:
V10 Gen 8-9
LES size: 10.0 mm
Required components:
FWHM:
23°
FWTM:
56°
Peak intensity:
3.449 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

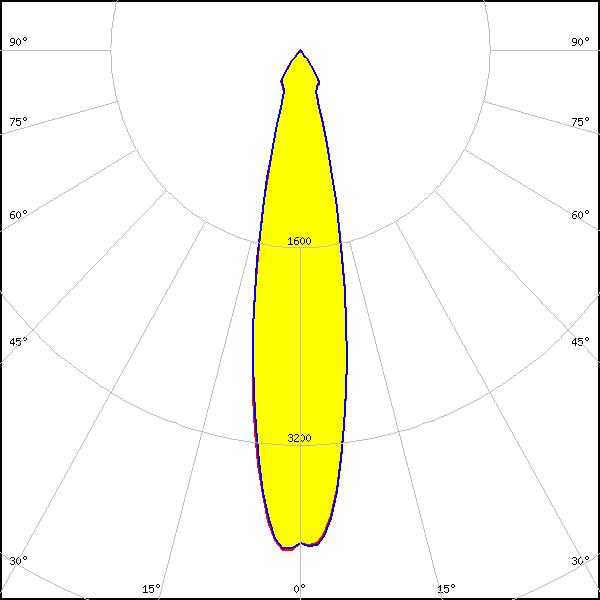

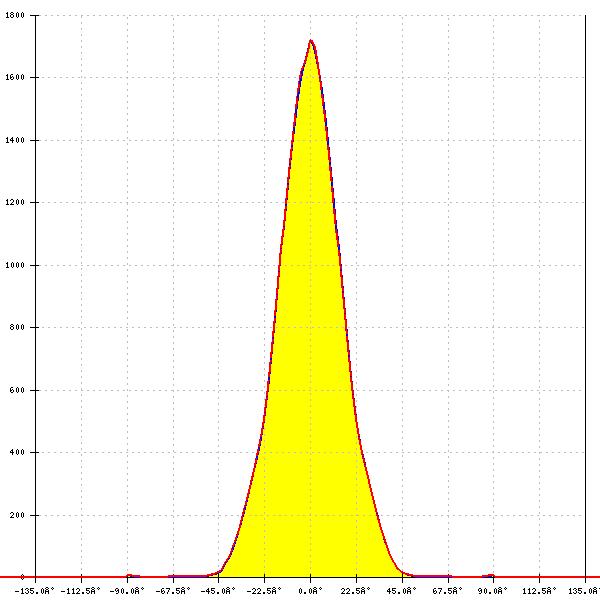

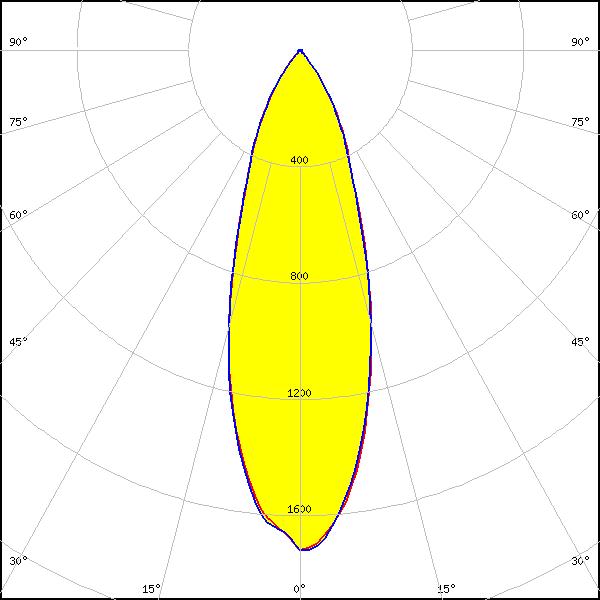

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
22°
FWTM:
42°
Peak intensity:
4.077 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
