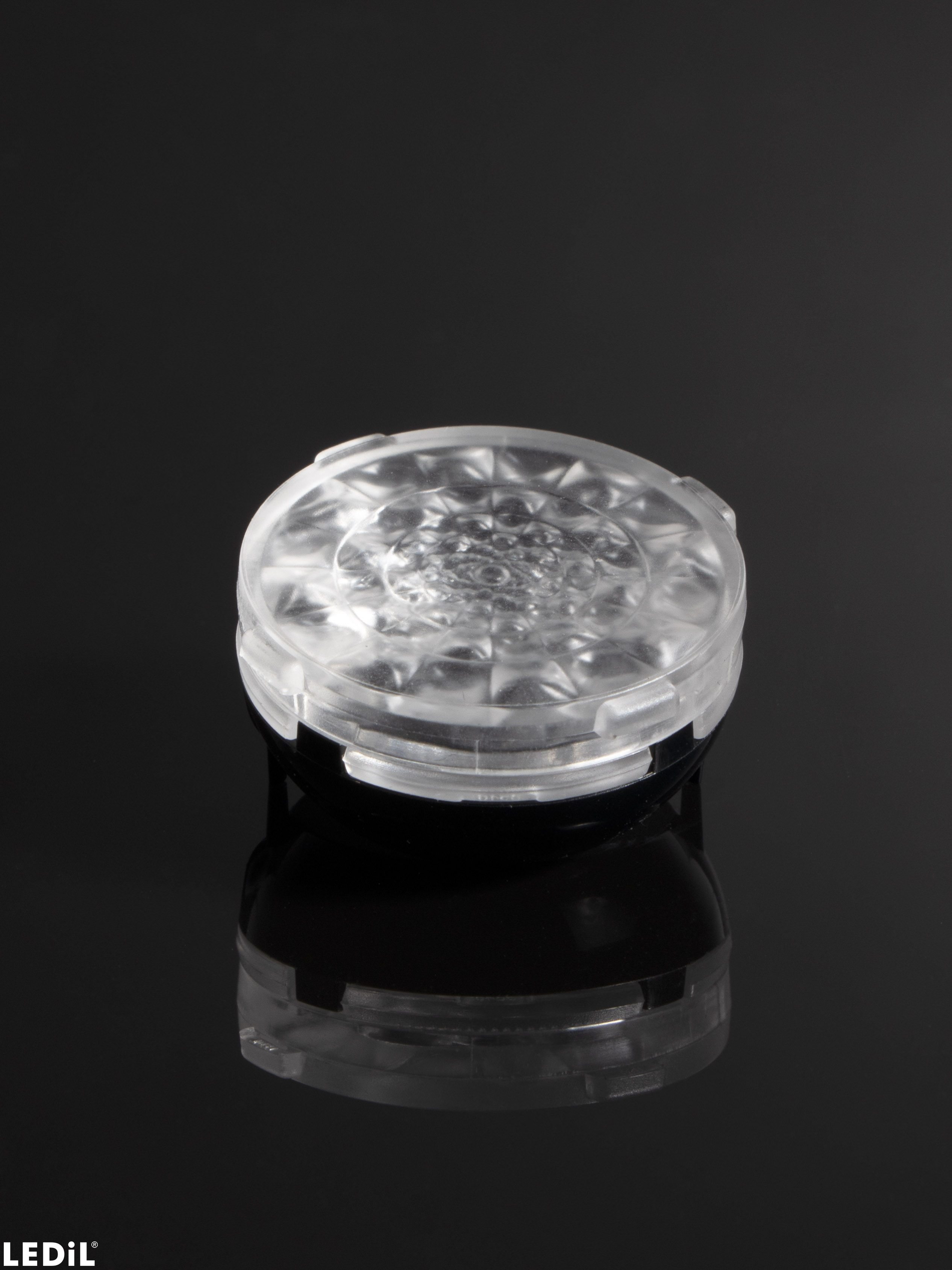

∅25 mm zoomable lens with infinitely adjustable beam from 20 to 50 degrees
This product consists of multiple parts that need to be ordered separately. See ordering information.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

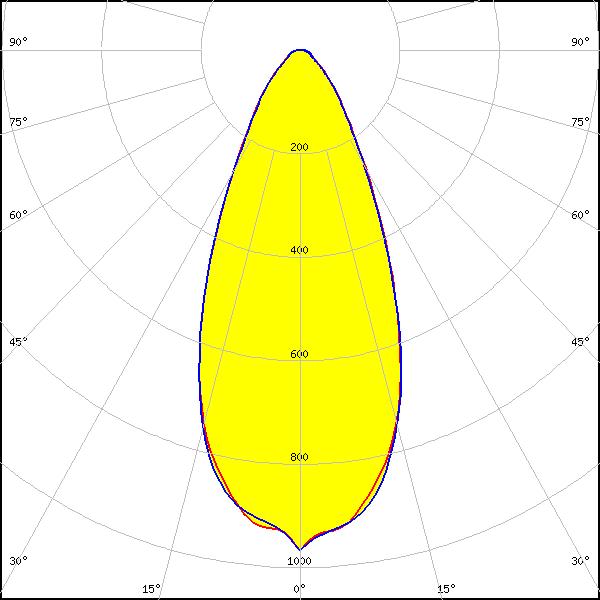

LED:

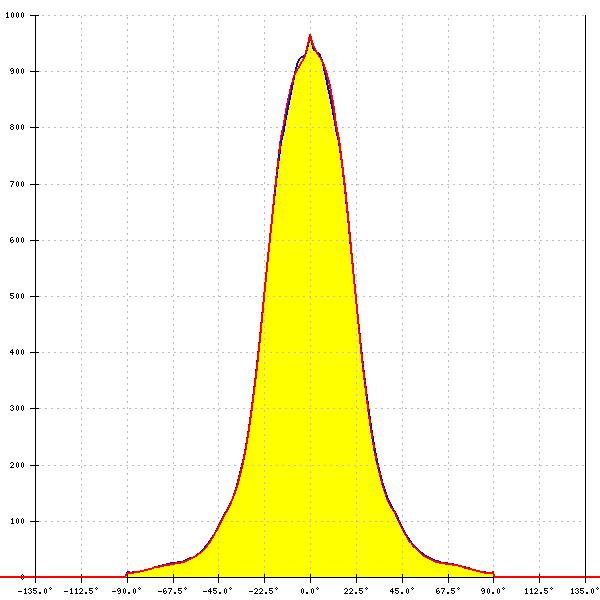

CSP 2727 (BXCP)
FWHM:
36° - 57°
FWTM:
72° - 97°
Peak intensity:
1.375 cd/lm
Efficiency:
75 %
LEDs/each optic:
4
Light colour/type:
White

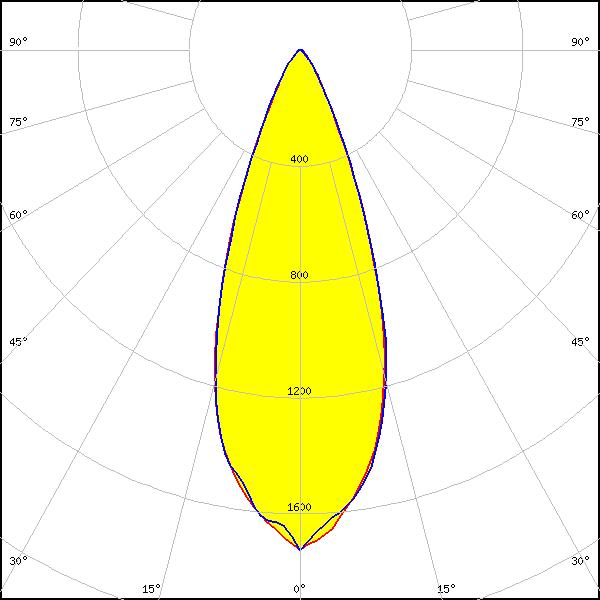

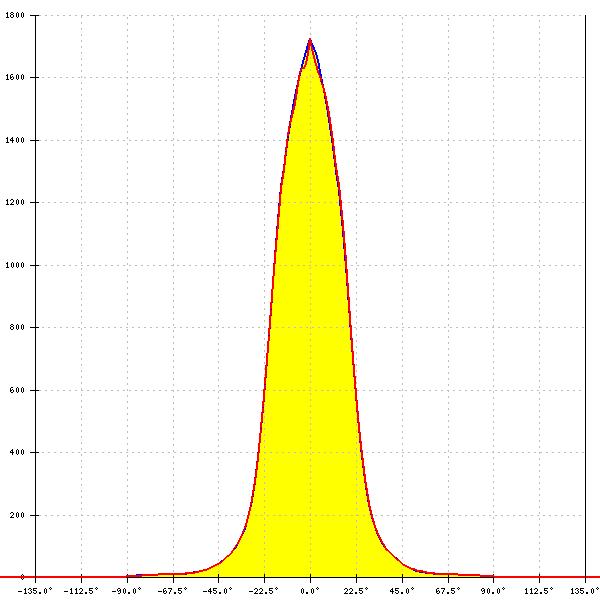

LED:
CLU7B2
FWHM:
18° - 52°
FWTM:
40° - 77°
Peak intensity:
4.752 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

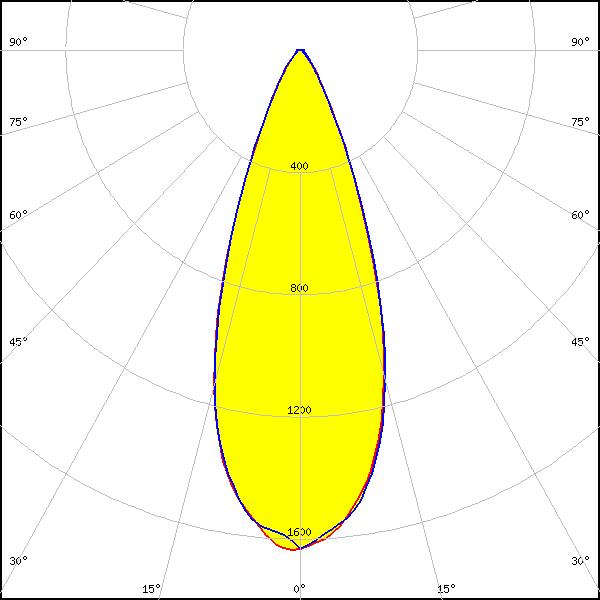

LED:

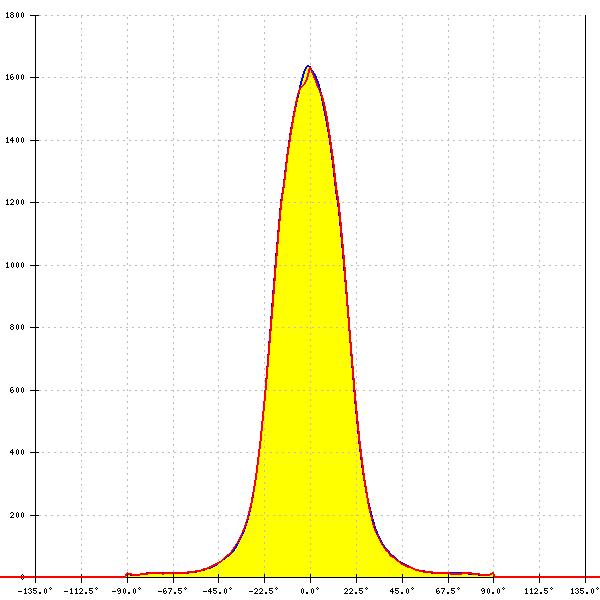

XHP35.2 HI
FWHM:
18° - 51°
FWTM:
38° - 78°
Peak intensity:
4.831 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

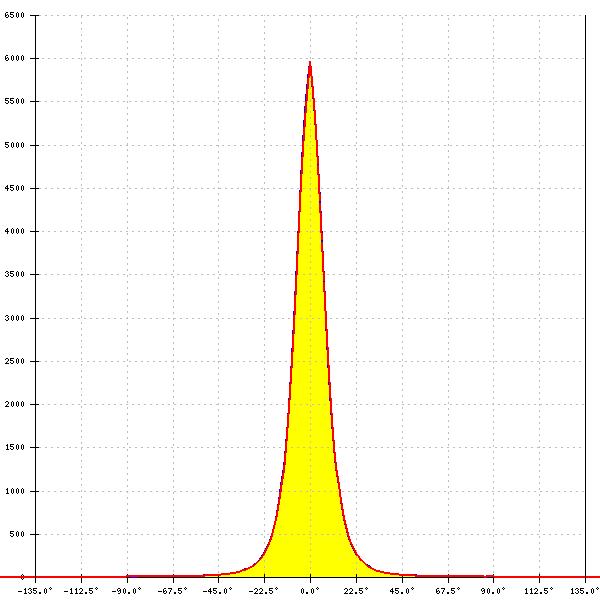

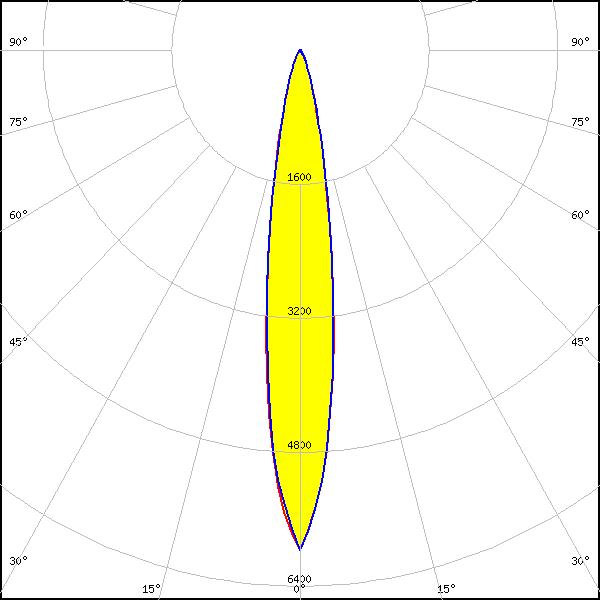

LED:
XP-G3
FWHM:
16° - 49°
FWTM:
34° - 80°
Peak intensity:
5.974 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

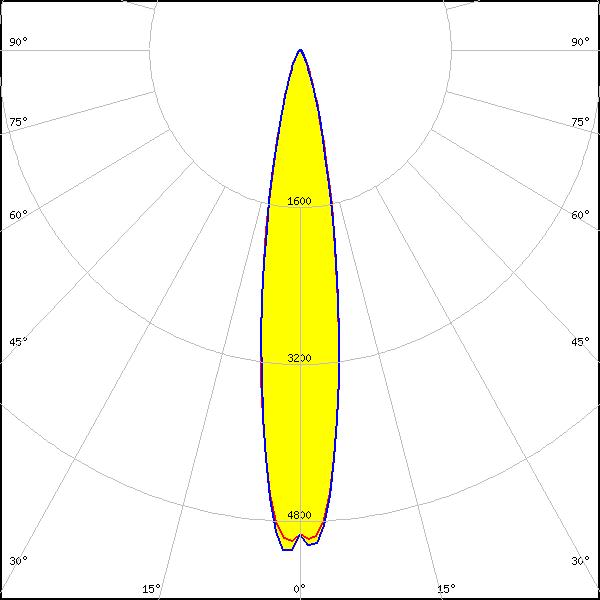

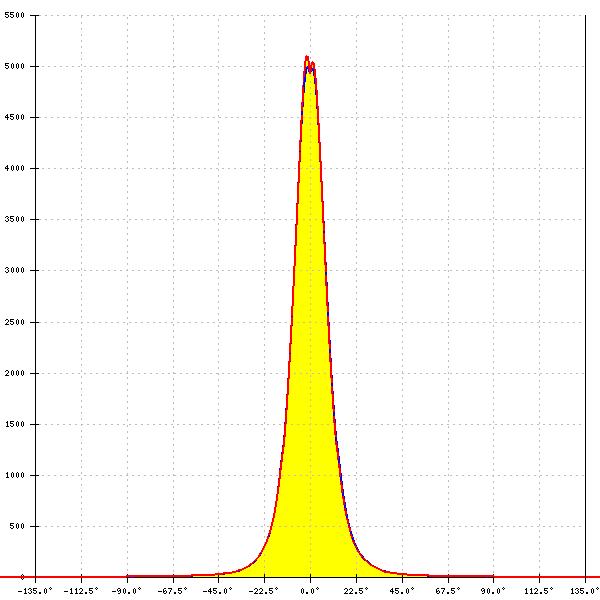

LED:
XP-L HD
FWHM:
18° - 50°
FWTM:
38° - 82°
Peak intensity:
5.101 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

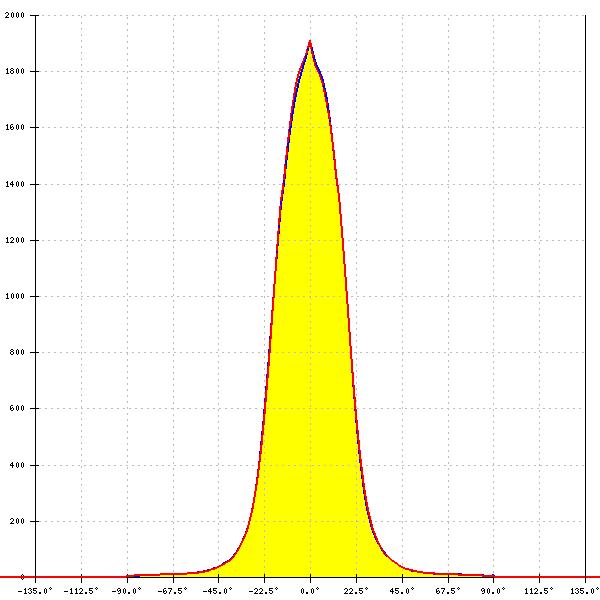

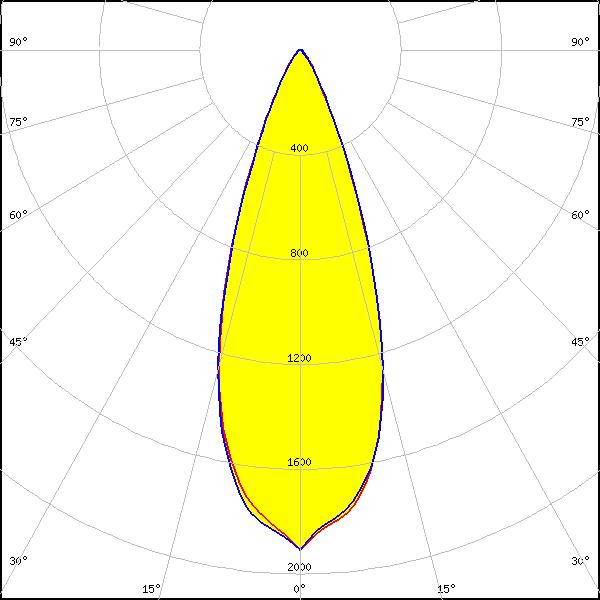

LUXEON HL2X
FWHM:
16° - 50°
FWTM:
34° - 70°
Peak intensity:
6.335 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

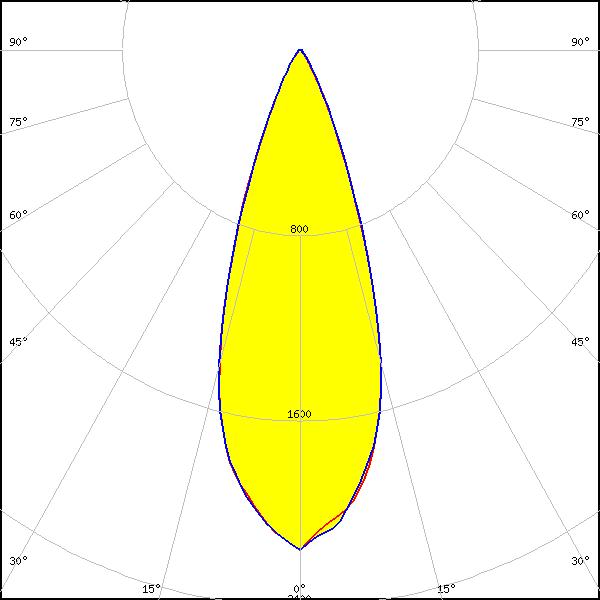

LED:

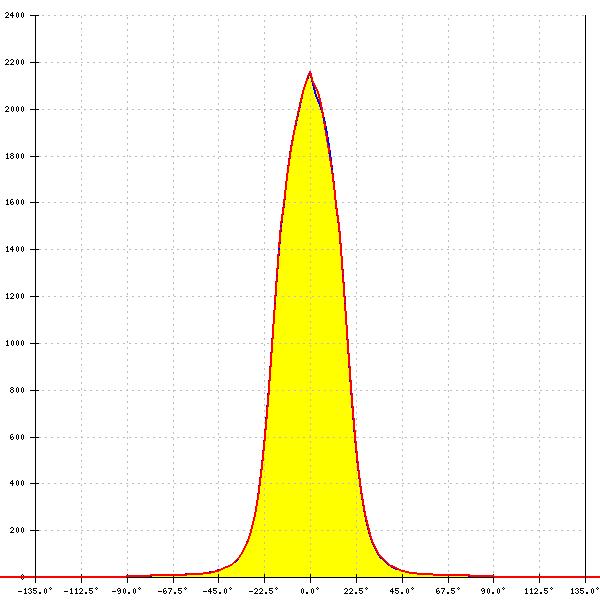

SFT-40-WCS
FWHM:
14° - 48°
FWTM:
28° - 71°
Peak intensity:
9.293 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

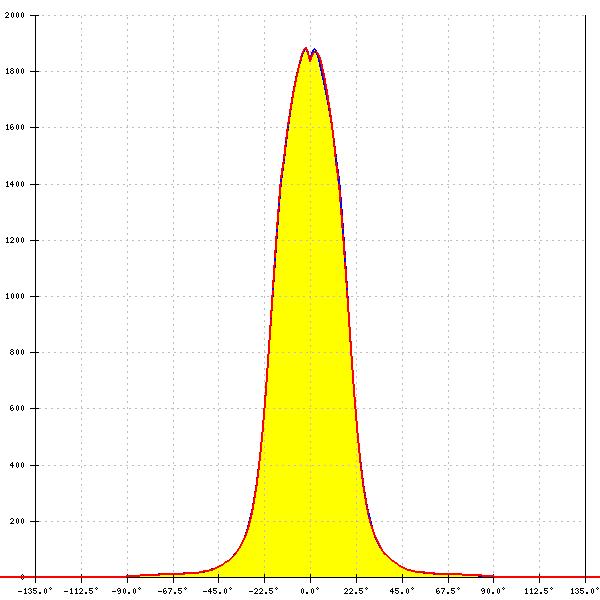

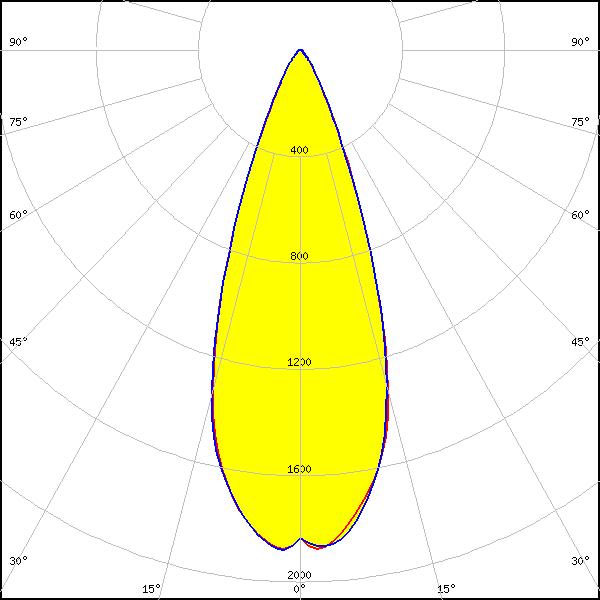

SFT-70X-WCS
FWHM:
16° - 51°
FWTM:
32° - 74°
Peak intensity:
7.008 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

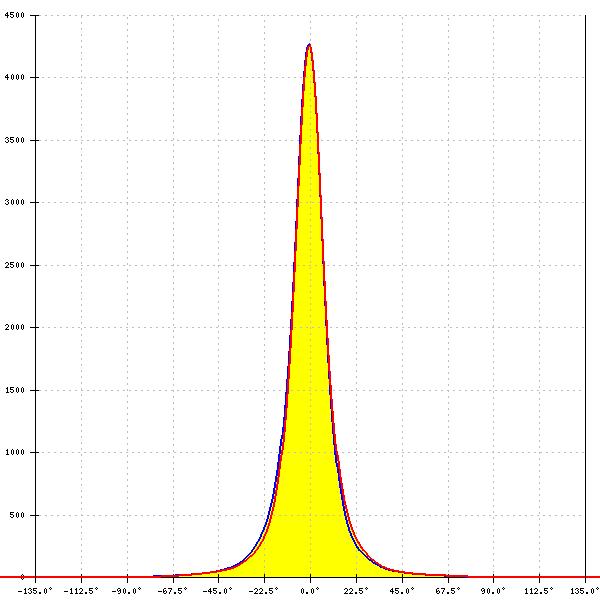

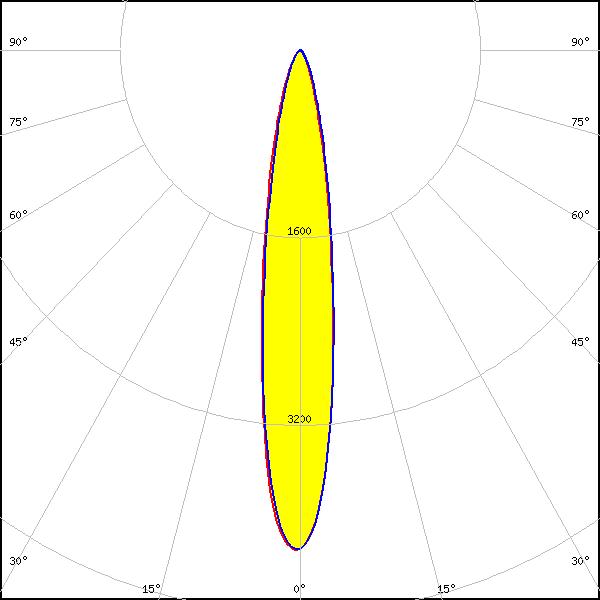

SST-40
FWHM:
17° - 49°
FWTM:
40° - 76°
Peak intensity:
4.267 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

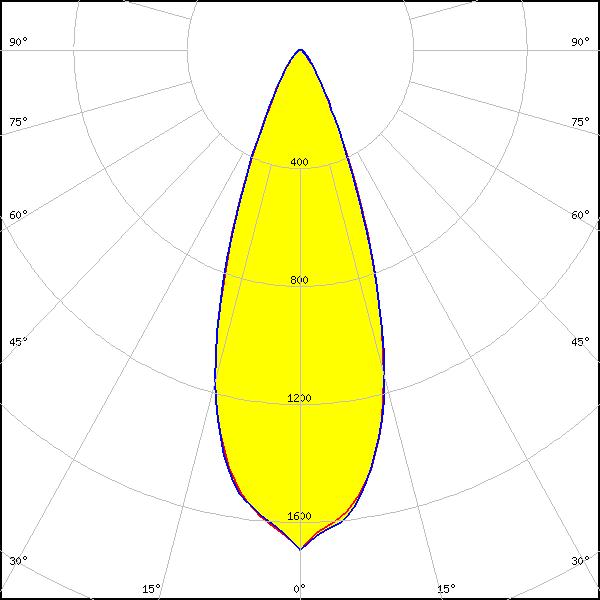

LED:

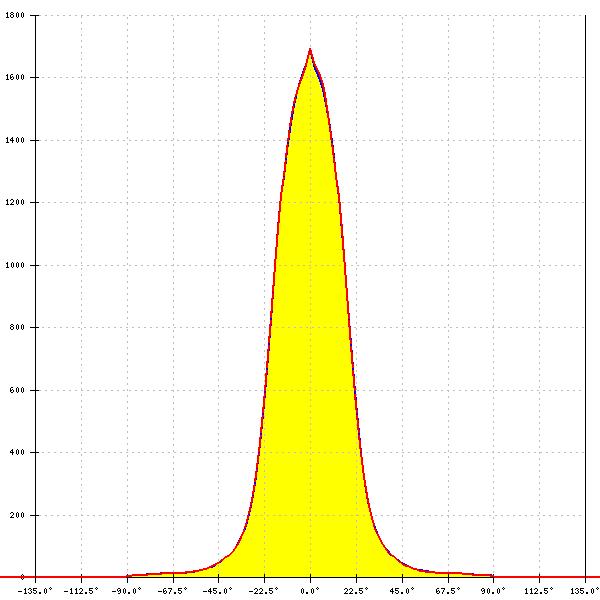

NV4WB35AM
FWHM:
18° - 52°
FWTM:
38° - 78°
Peak intensity:
4.968 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

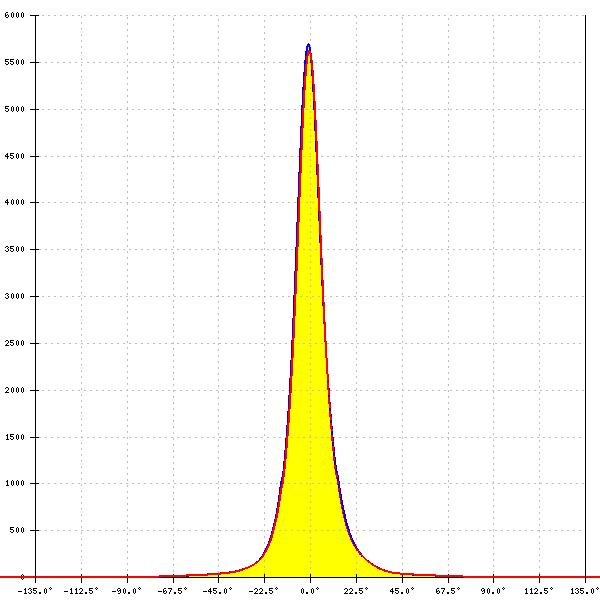

LED:

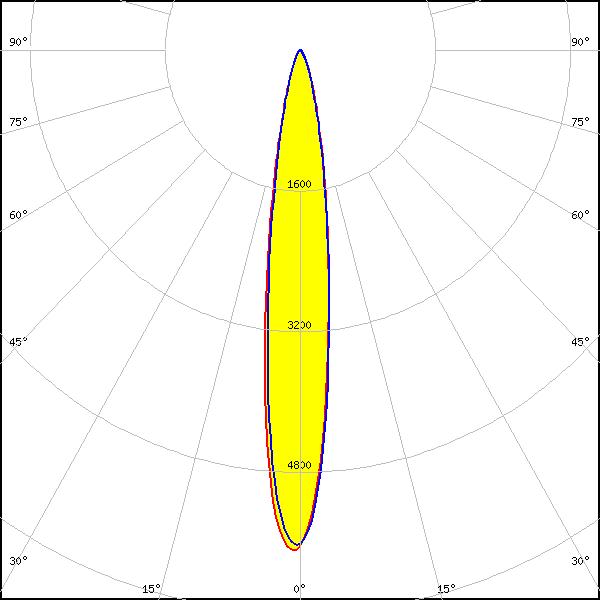

NVSW719AC
FWHM:
15° - 46°
FWTM:
35° - 71°
Peak intensity:
5.701 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

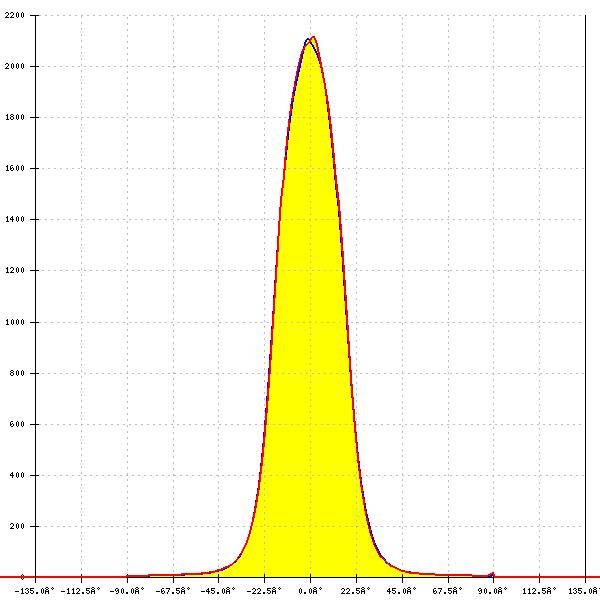

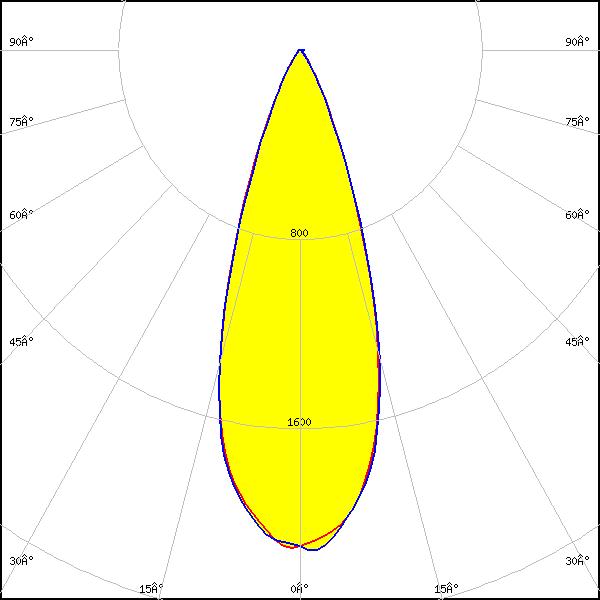

NVSxx19B/NVSxx19C
FWHM:
14° - 48°
FWTM:
28° - 70°
Peak intensity:
9.425 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

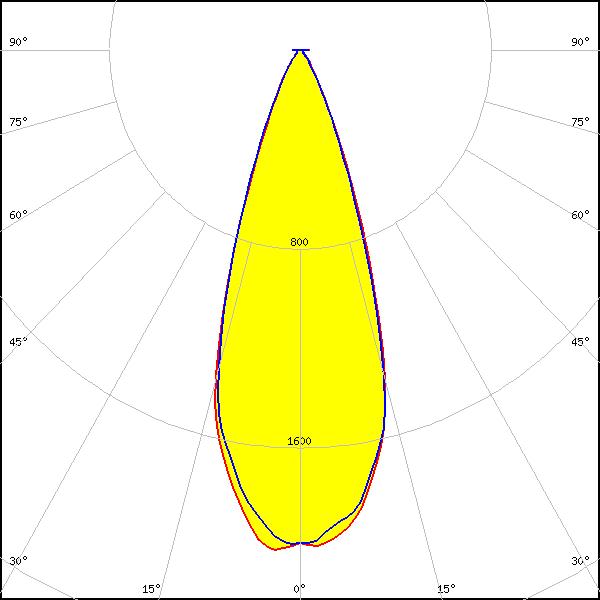

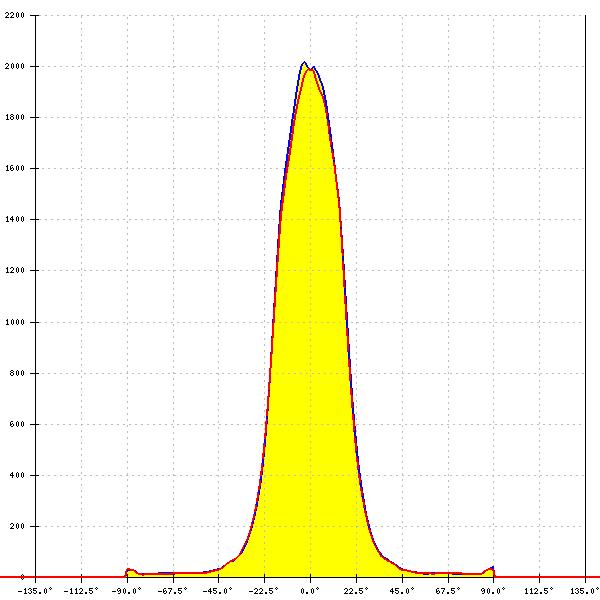

OSCONIQ P 3737 (2W version)
FWHM:
12° - 49°
FWTM:
28° - 72°
Peak intensity:
9.259 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

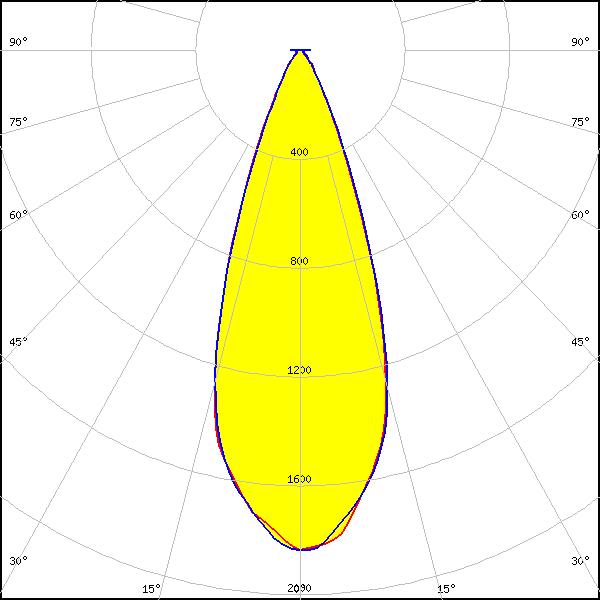

LED:

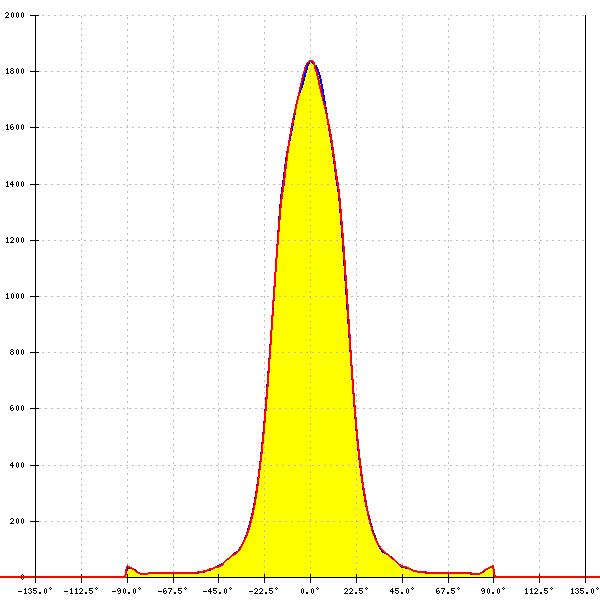

OSCONIQ P 3737 (3W version)
FWHM:
16° - 51°
FWTM:
34° - 75°
Peak intensity:
6.319 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

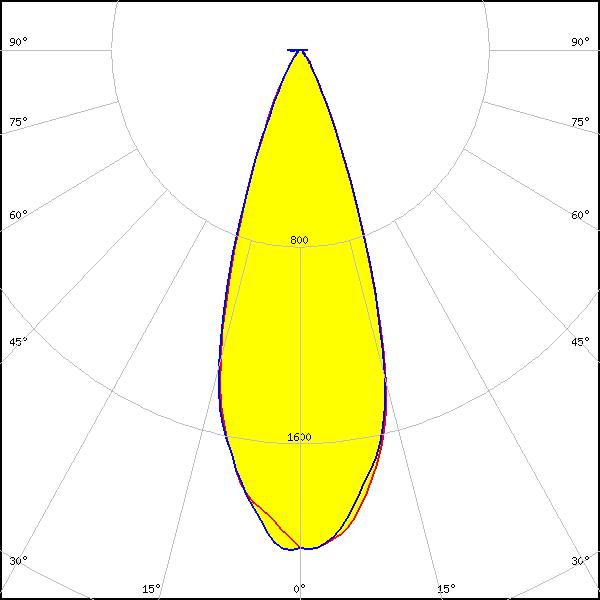

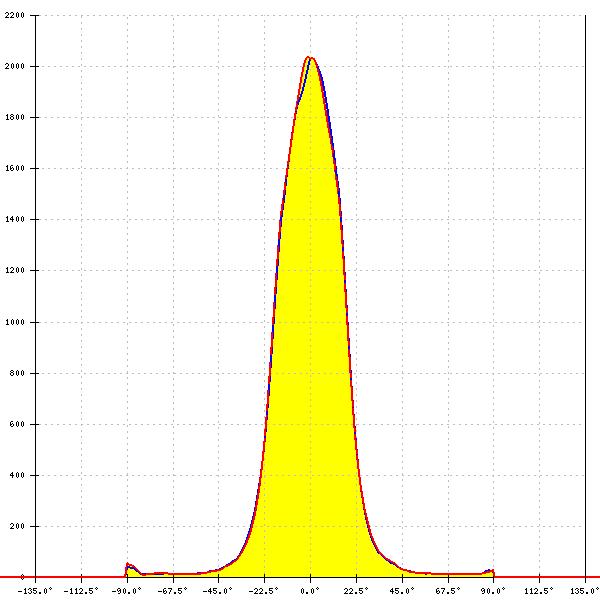

OSLON Square CSSRM2/CSSRM3
FWHM:
12° - 49°
FWTM:
28° - 71°
Peak intensity:
9.015 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

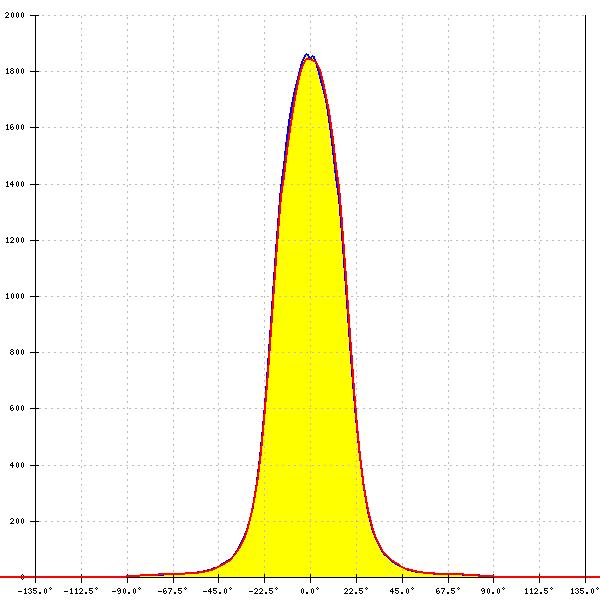

LED:

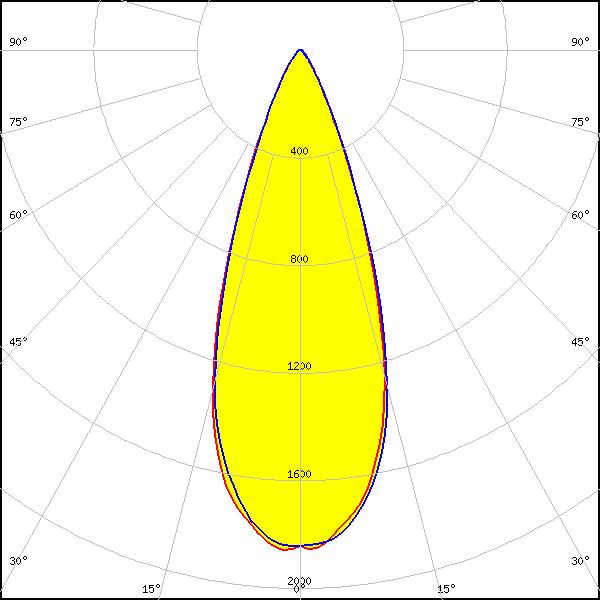

LH351C
FWHM:
16° - 50°
FWTM:
34° - 74°
Peak intensity:
6.444 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

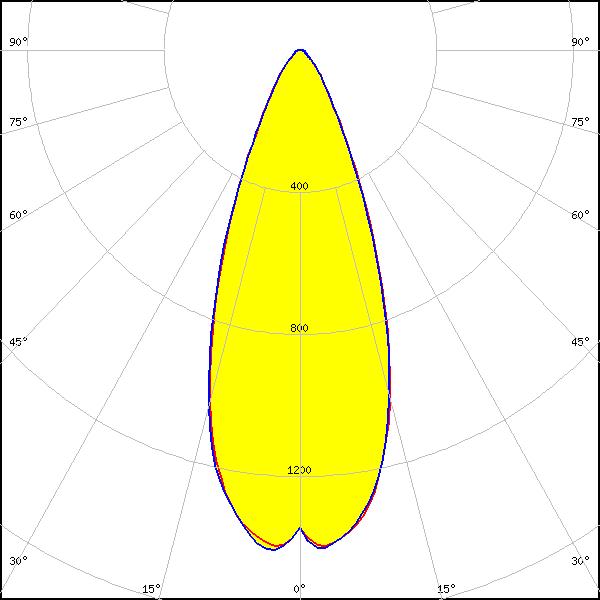

LED:

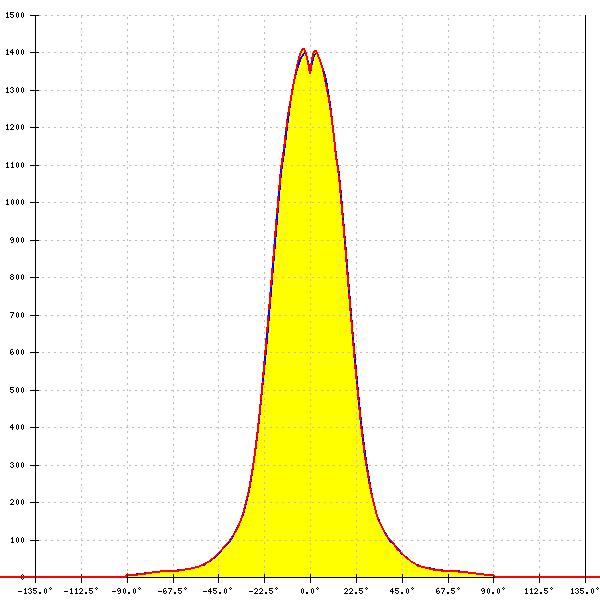

LH502D
FWHM:
22° - 52°
FWTM:
46° - 85°
Peak intensity:
3.374 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

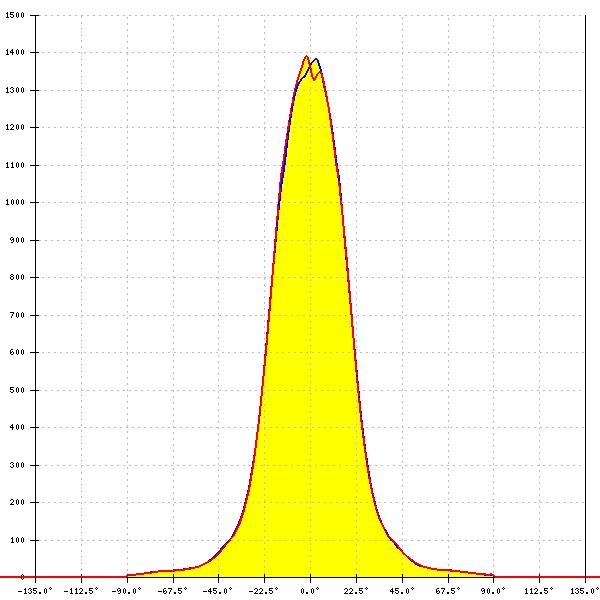

LED:

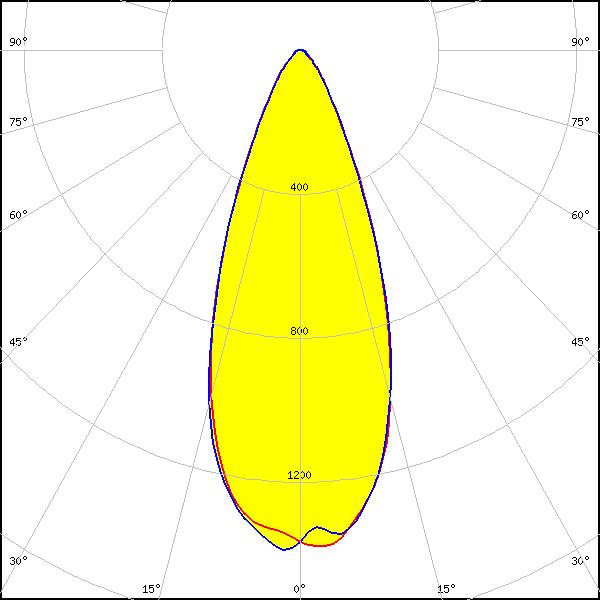

SEOUL DC 5050 6V
FWHM:
22° - 54°
FWTM:
48° - 86°
Peak intensity:
3.028 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

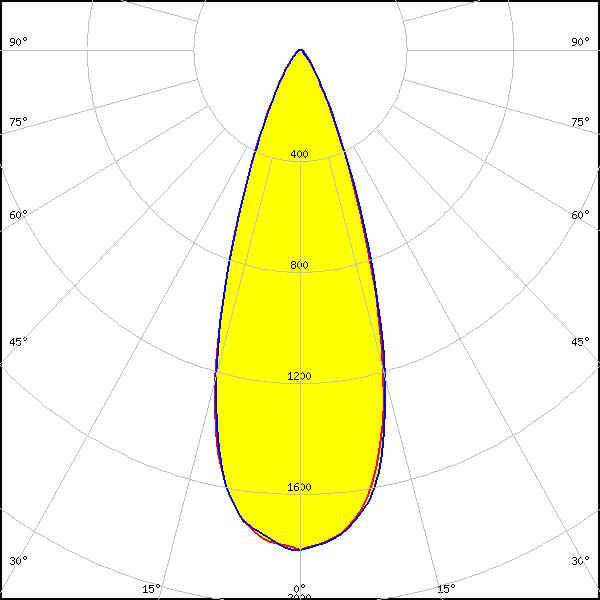

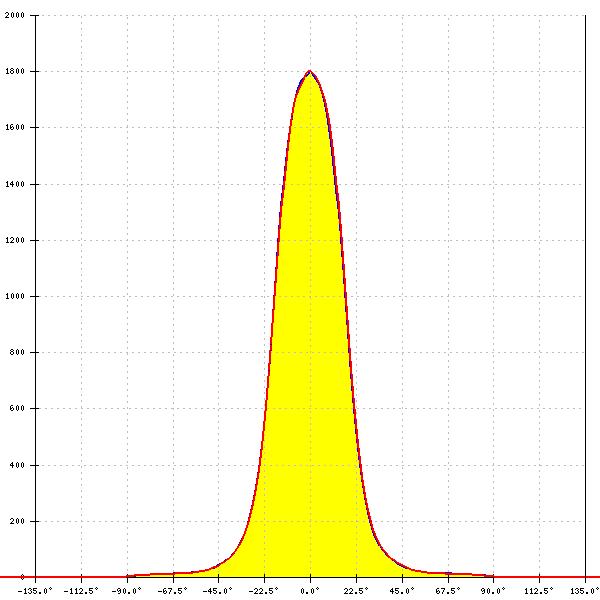

Z5M4
FWHM:
18° - 50°
FWTM:
36° - 76°
Peak intensity:
5.678 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
