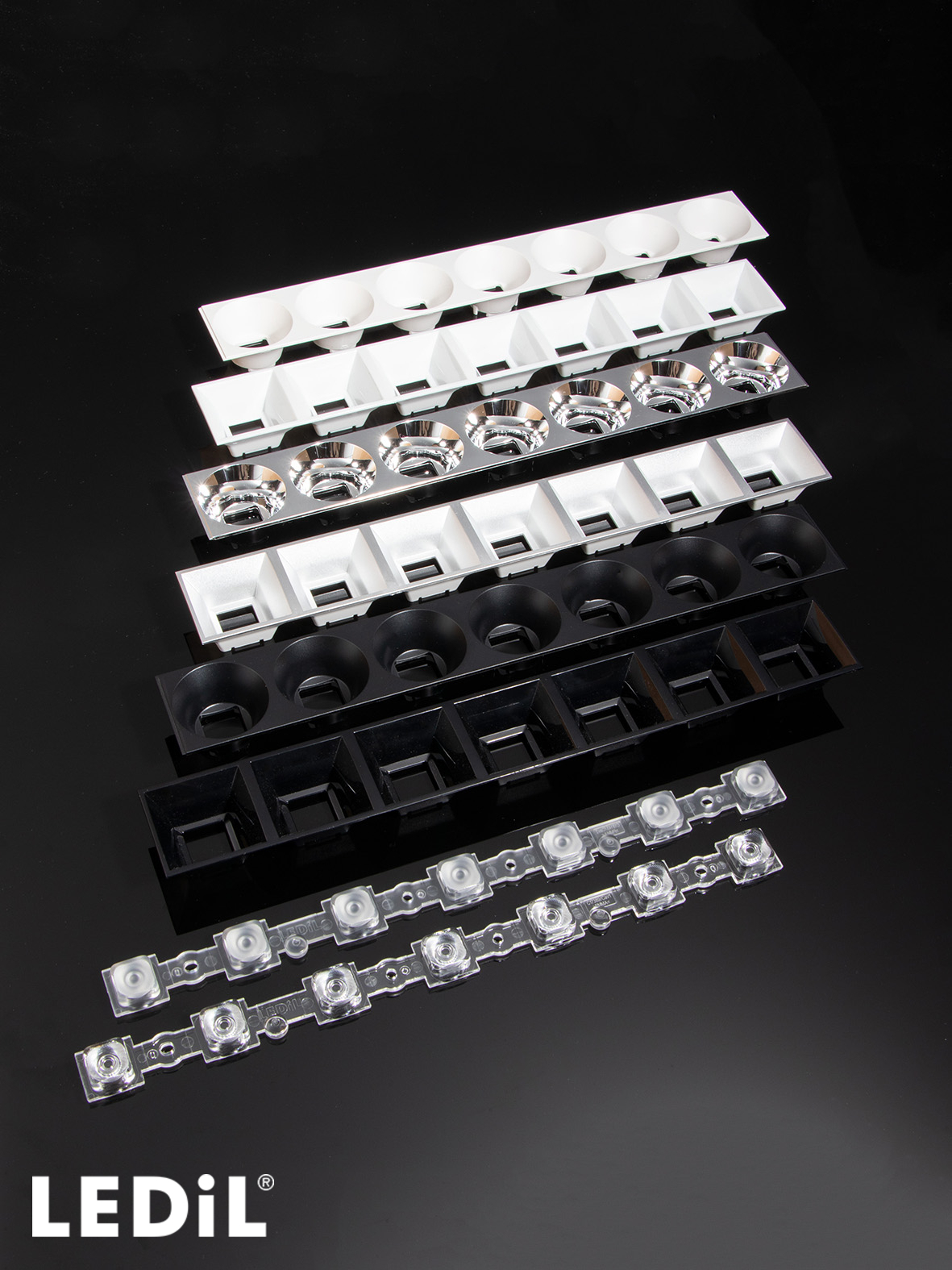

DAISY-7X1-M-D
Print~35° wide beam. Variant with diffused lenses.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
-
Dimensions:280 x 40 mm
-
Height:20.30 mm
-
Fastening:pin, screw, clips
-
Colour:white
-
RoHS and REACH compliant:Yes

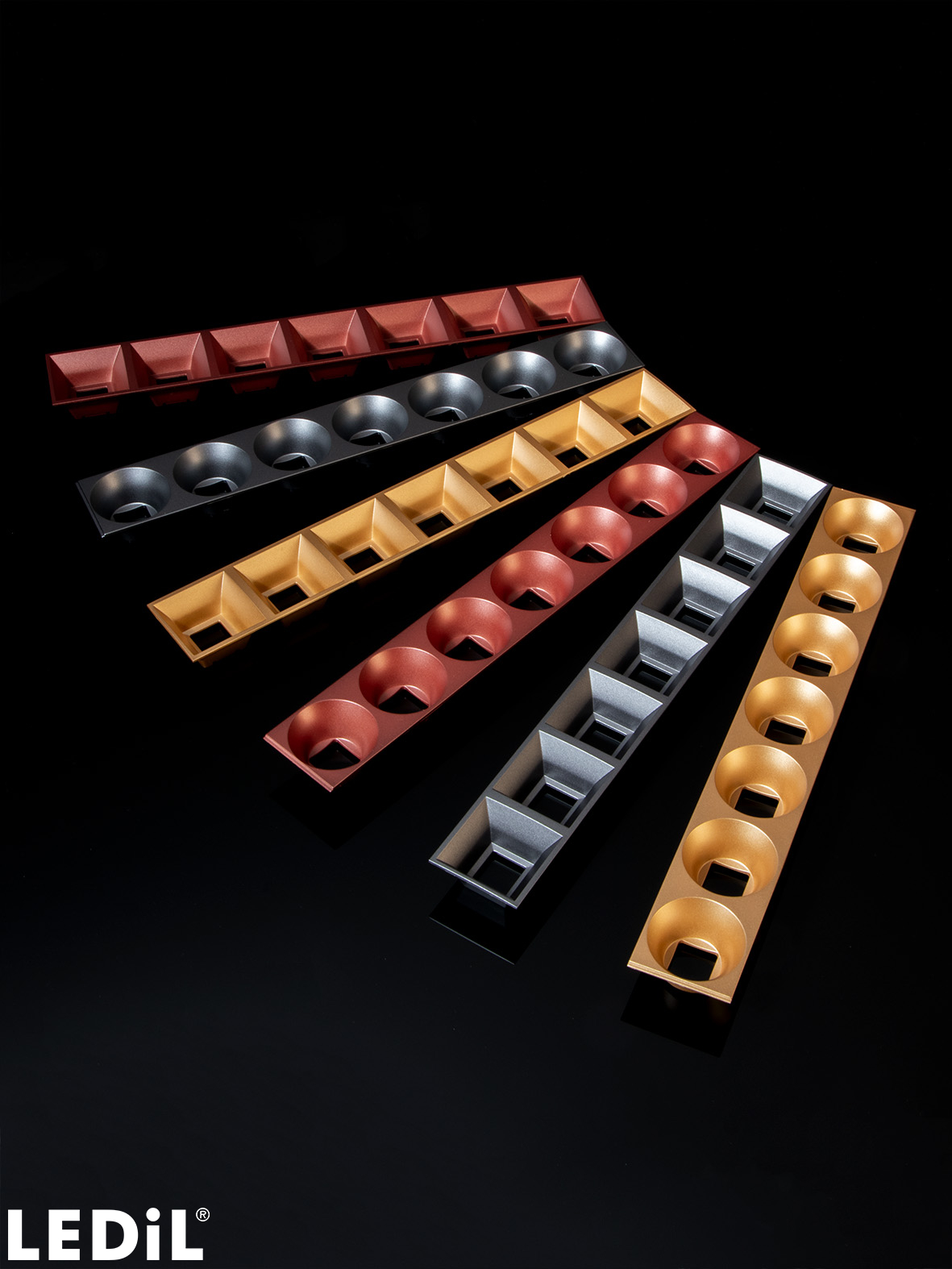

Materials
- DAISY-7X1-M-D, Linear lens, PMMA

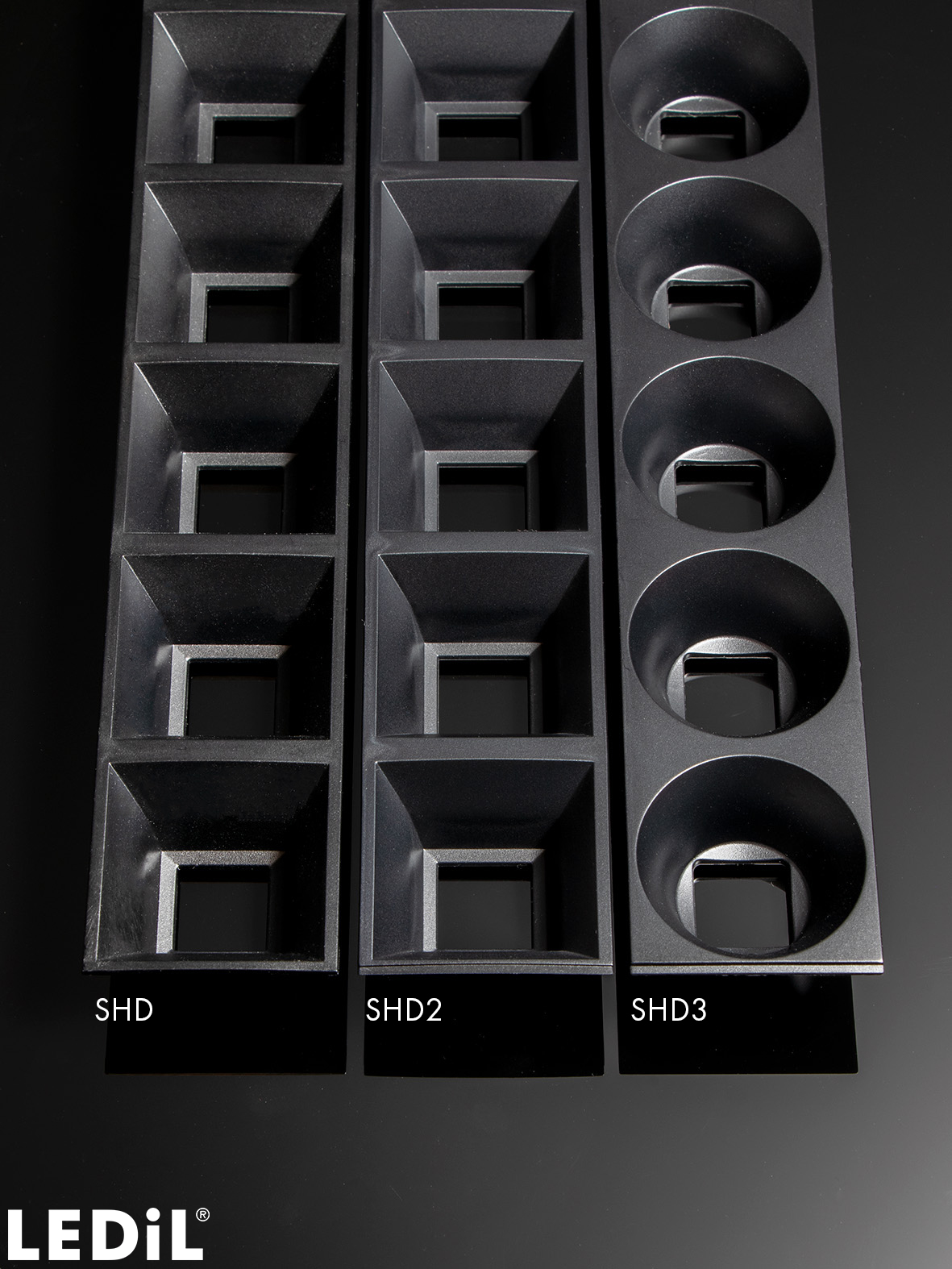

- DAISY-7X1-SHD3-MATT-GLD, Shade, PC, Paint
- DAISY-7X1-SHD3-MATT-RED, Shade, PC, Paint
- DAISY-7X1-SHD3-MATT-GR, Shade, PC, Paint
- DAISY-7X1-SHD-MATT-GLD, Shade, PC, Paint
- DAISY-7X1-SHD-MATT-GR, Shade, PC, Paint
- DAISY-7X1-SHD-MATT-RED, Shade, PC, Paint
- DAISY-7X1-SHD3-MET-MATT, Shade, PC, HMDS
- DAISY-7X1-SHD3-MET, Shade, PC, HMDS
- DAISY-7X1-SHD3-WHT-MATT, Shade, PC
- DAISY-7X1-SHD3-WHT, Shade, PC
- DAISY-7X1-SHD3-MATT, Shade, PC
- DAISY-7X1-SHD3, Shade, PC
- DAISY-7X1-SHD-MET-MATT, Shade, PC, HMDS
- DAISY-7X1-SHD-MET, Shade, PC, HMDS
- DAISY-7X1-SHD-WHT-MATT, Shade, PC
- DAISY-7X1-SHD-MATT, Shade, PC
- DAISY-7X1-SHD-WHT, Shade, PC
- DAISY-7X1-SHD, Shade, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
- PCB drawing
Related Content
Optical results

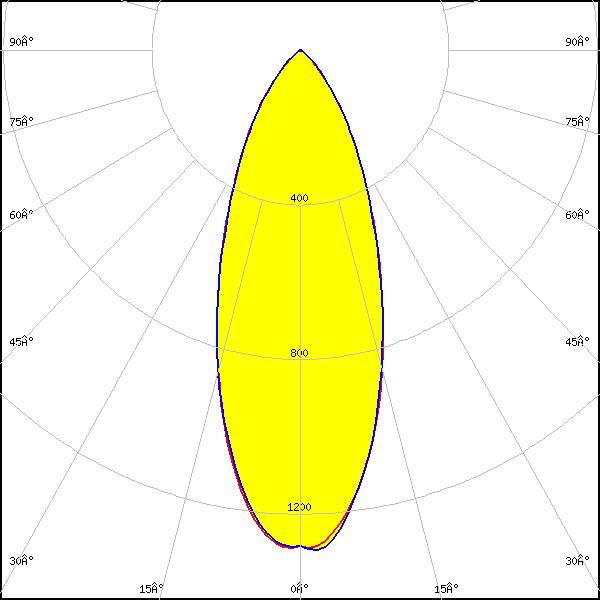

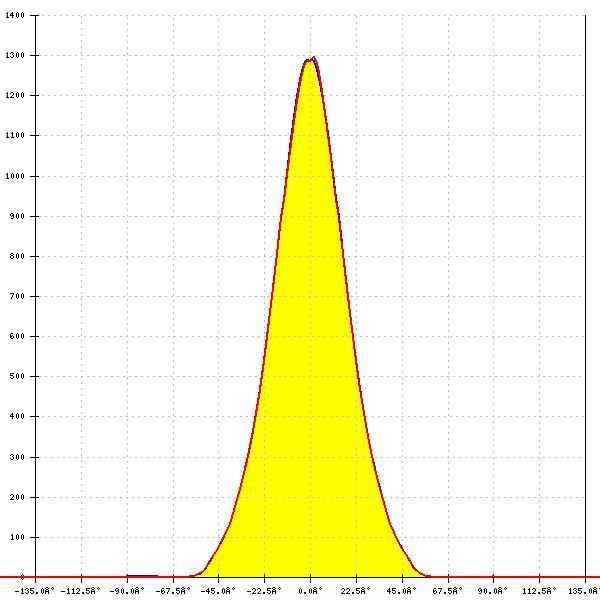

LED:
LUXEON 2835 Line
Required components:
FWHM:
40°
FWTM:
80°
Peak intensity:
1.297 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

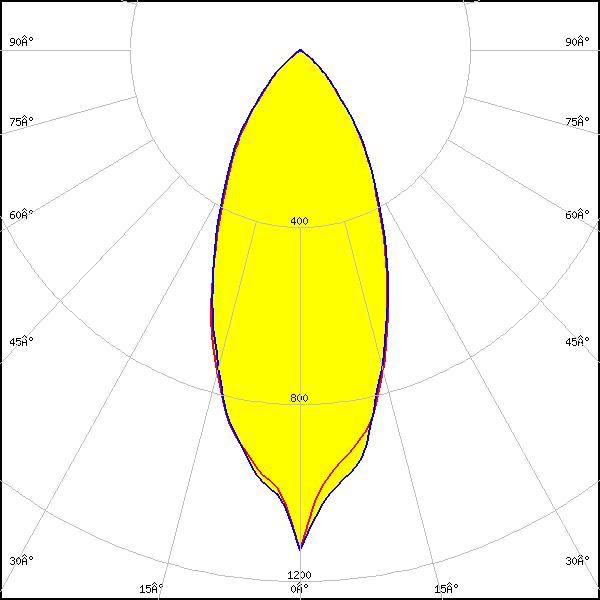

LED:
LUXEON 2835 Line
Required components:
FWHM:
43°
FWTM:
88°
Peak intensity:
1.130 cd/lm
Efficiency:
79 %
LEDs/each optic:
2
Light colour/type:
White

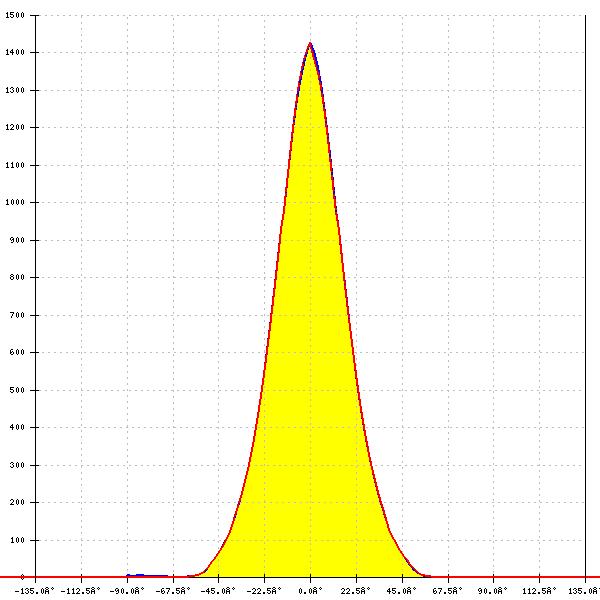

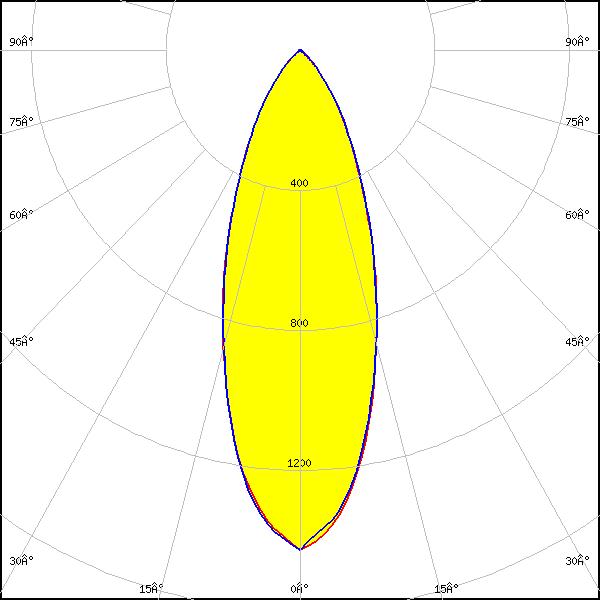

LED:
LUXEON 3020
Required components:
FWHM:
37°
FWTM:
76°
Peak intensity:
1.429 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White

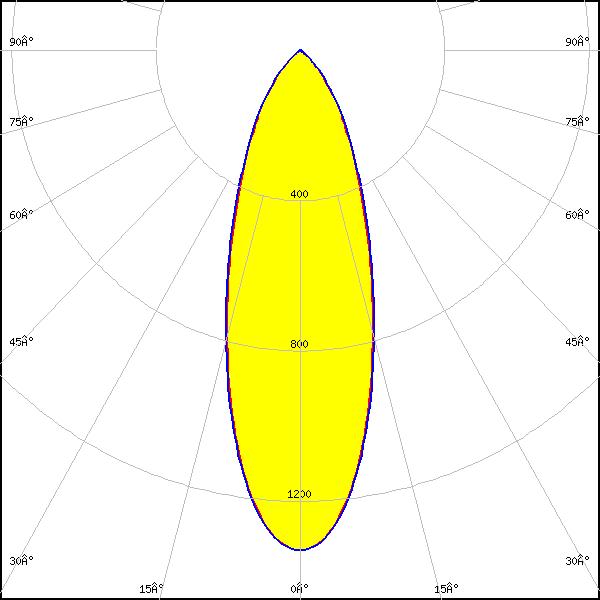

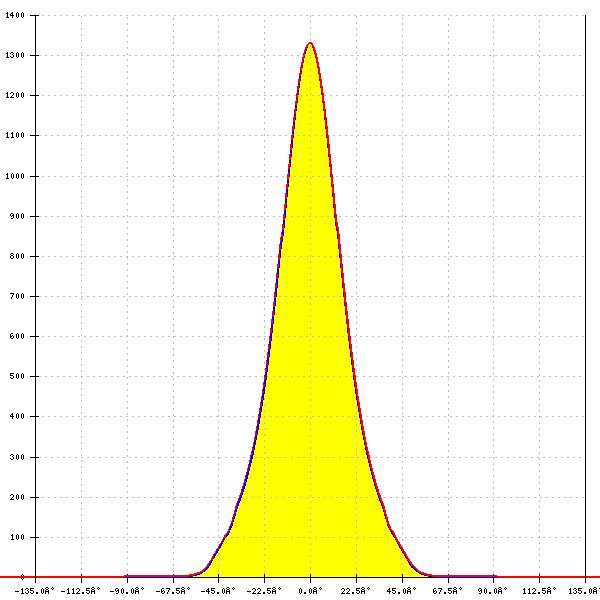

LED:
LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
Required components:
FWHM:
35°
FWTM:
77°
Peak intensity:
1.331 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

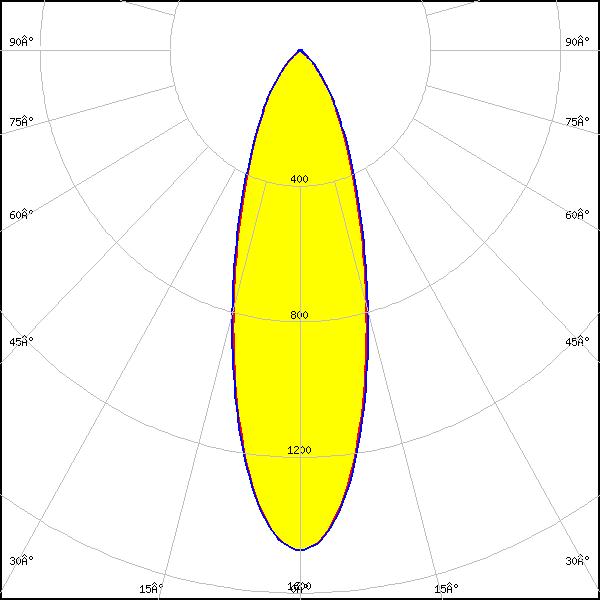

LED:
NCSxE17A
Required components:
FWHM:
32°
FWTM:
74°
Peak intensity:
1.474 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White

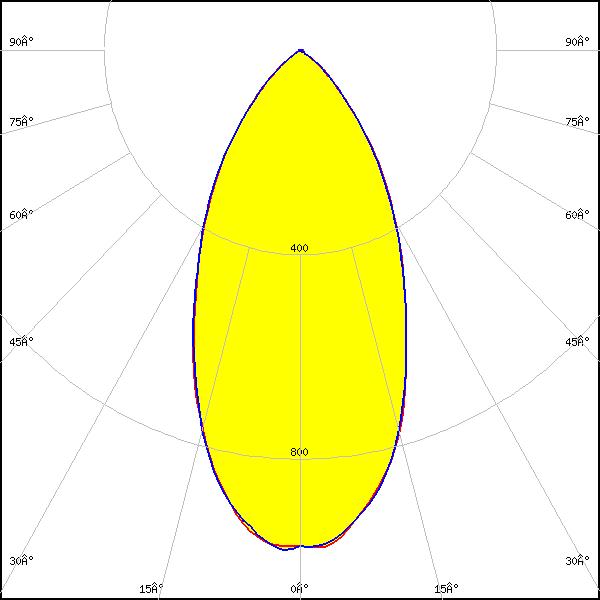

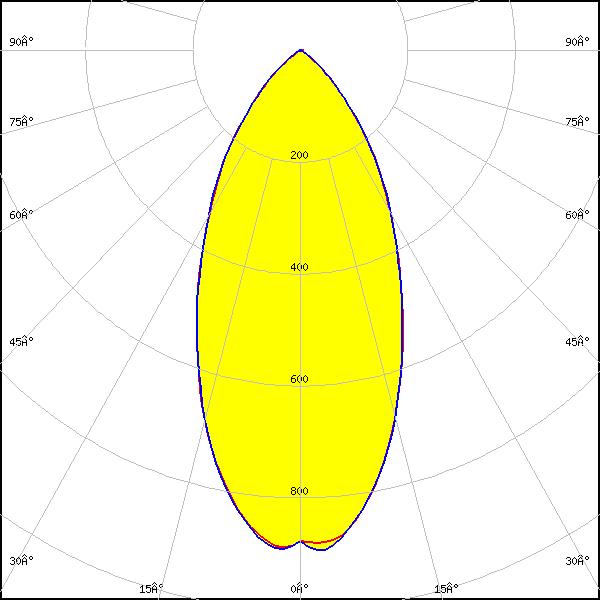

LED:

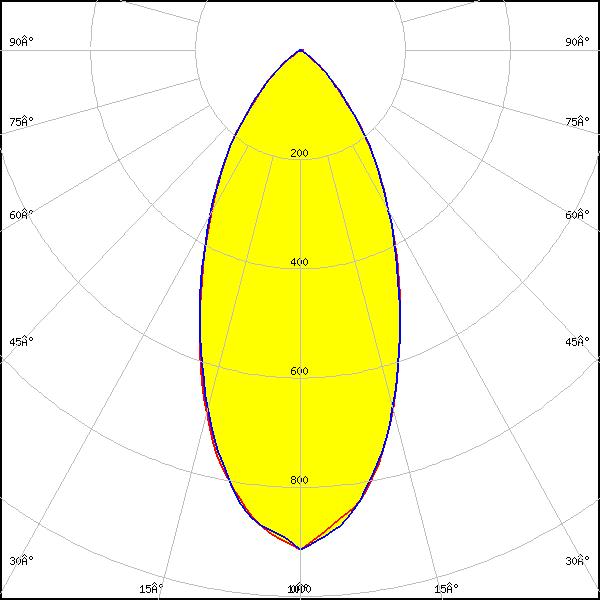

NF2W757G-MT (Tunable White)
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
0.909 cd/lm
Efficiency:
76 %
LEDs/each optic:
2
Light colour/type:
Tunable White

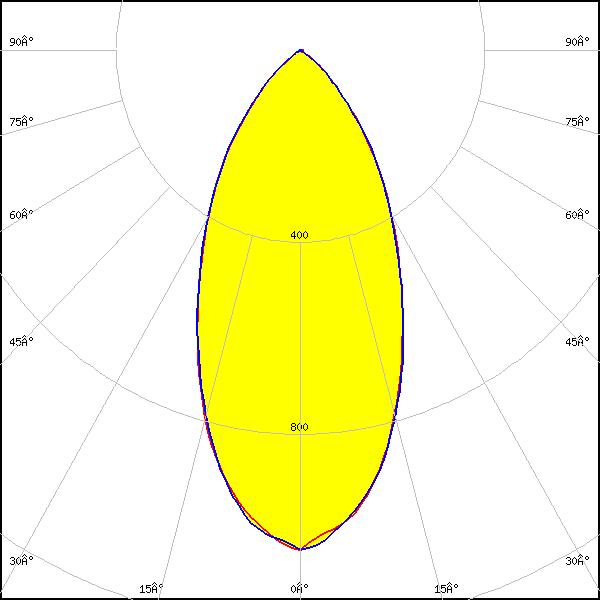

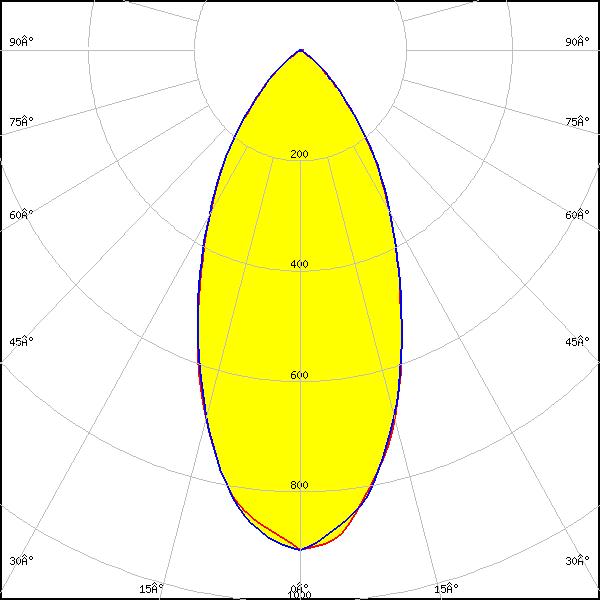

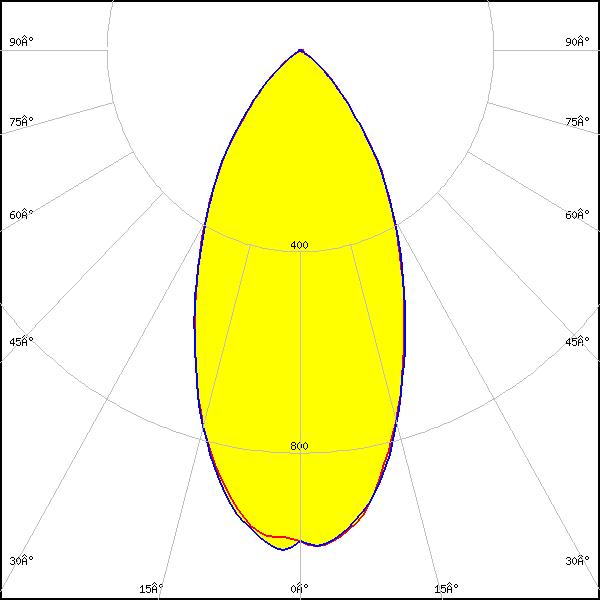

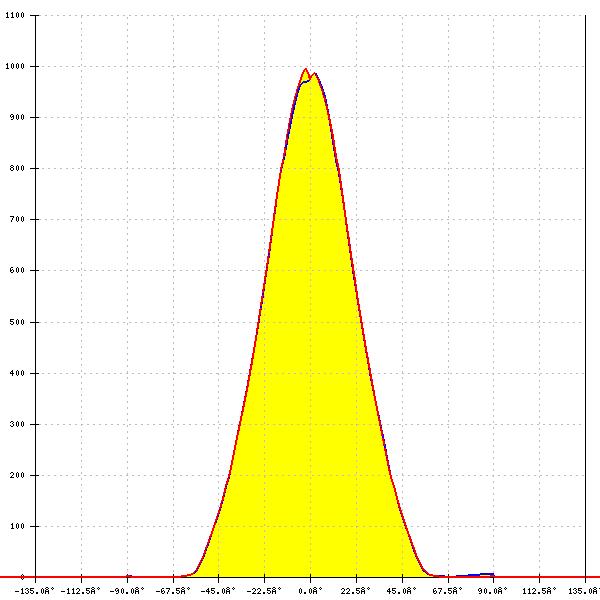

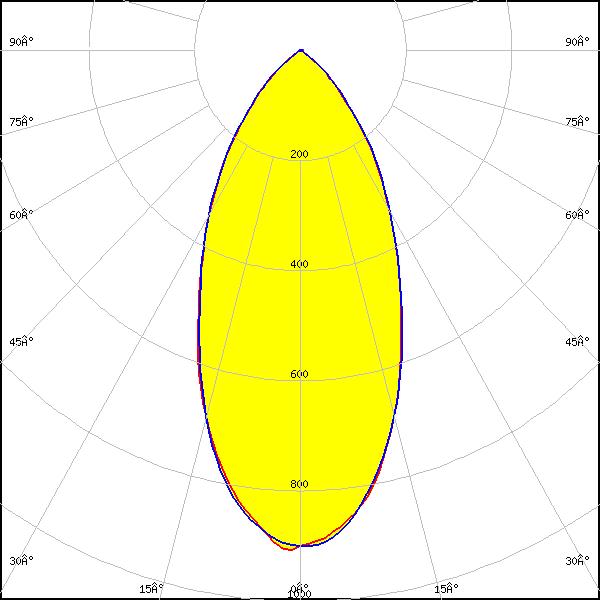

LED:
NF2W757G-MT (Tunable White)
Required components:
FWHM:
51°
FWTM:
94°
Peak intensity:
0.989 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
Tunable White

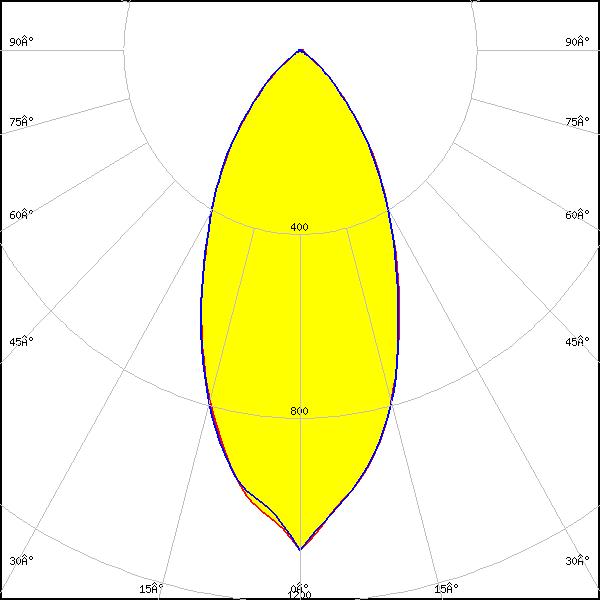

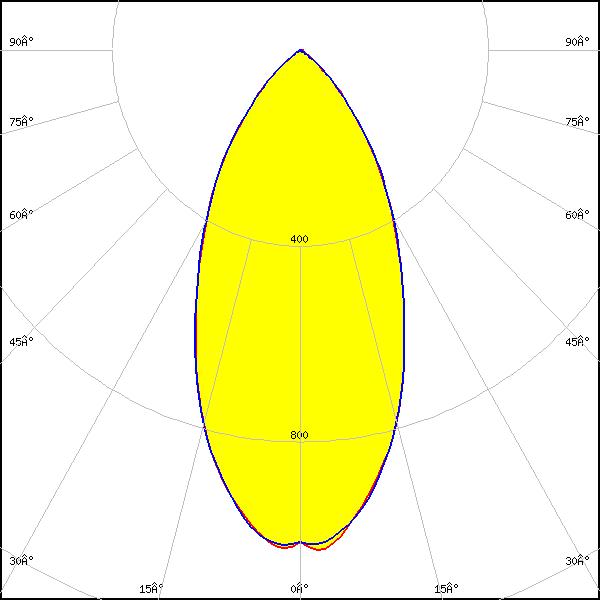

LED:
NF2W757G-MT (Tunable White)
Required components:
FWHM:
48°
FWTM:
94°
Peak intensity:
0.916 cd/lm
Efficiency:
75 %
LEDs/each optic:
2
Light colour/type:
Tunable White
LED:
NF2W757G-MT (Tunable White)
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
0.996 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
Tunable White

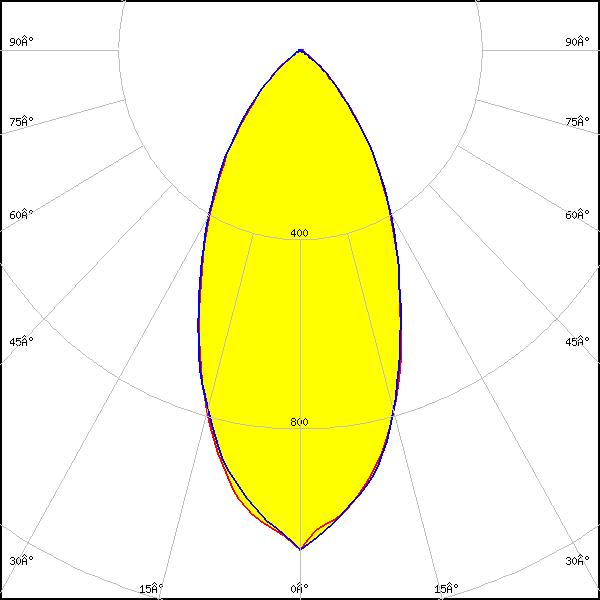

LED:
NF2W757G-MT (Tunable White)
Required components:
FWHM:
48°
FWTM:
94°
Peak intensity:
1.057 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
Tunable White

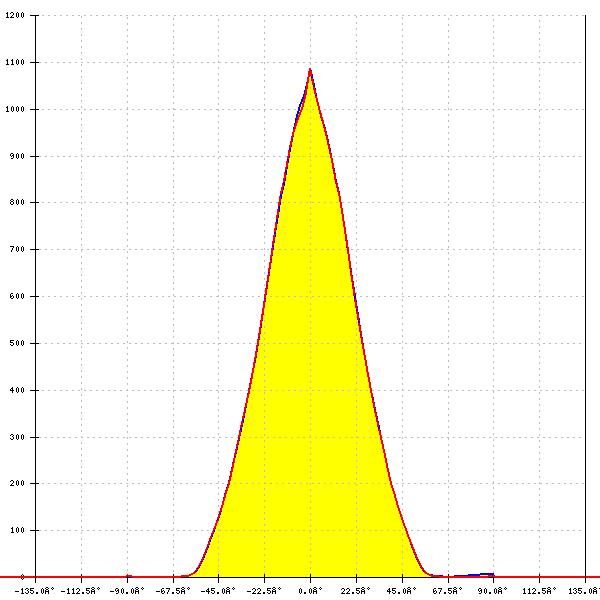

LED:
NF2W757G-MT (Tunable White)
Required components:
FWHM:
48°
FWTM:
92°
Peak intensity:
1.088 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
Tunable White

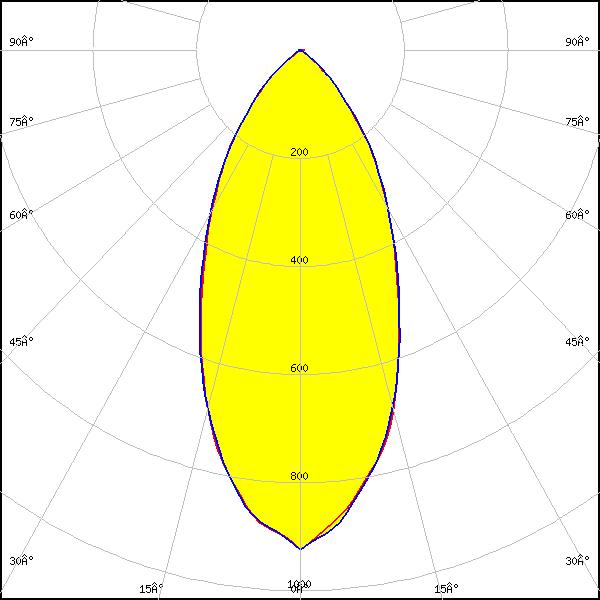

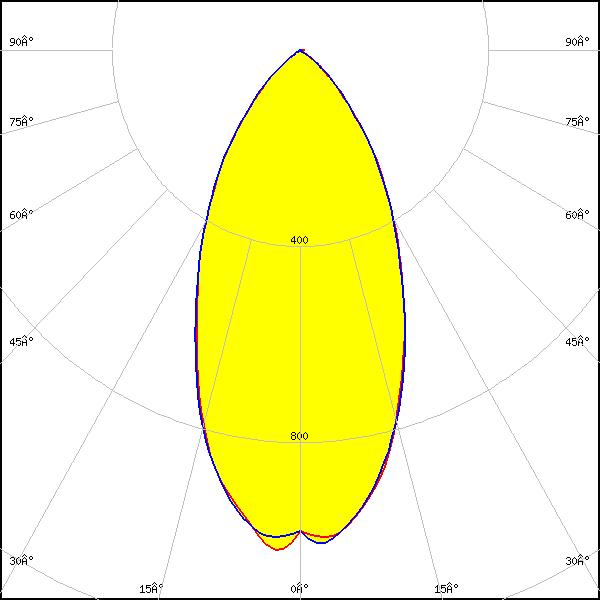

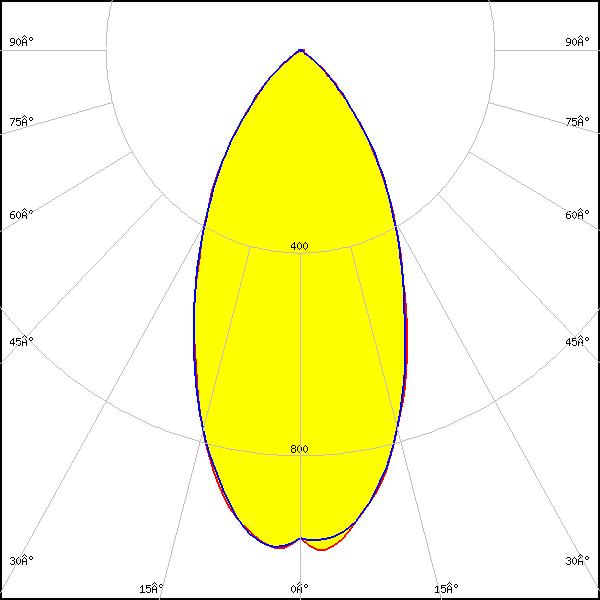

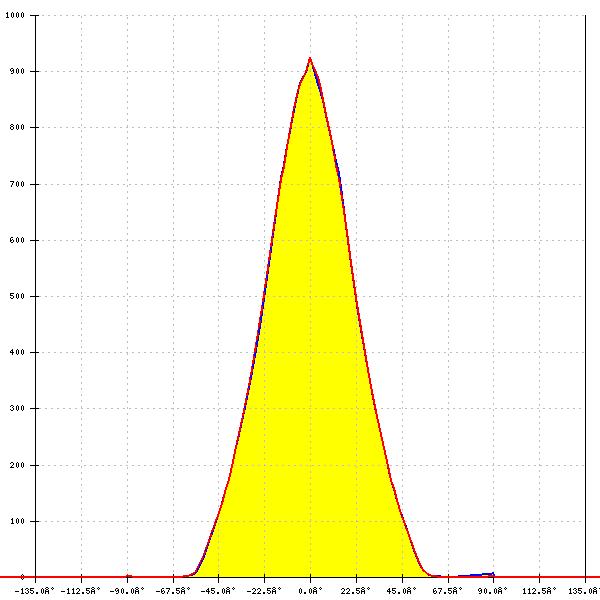

LED:

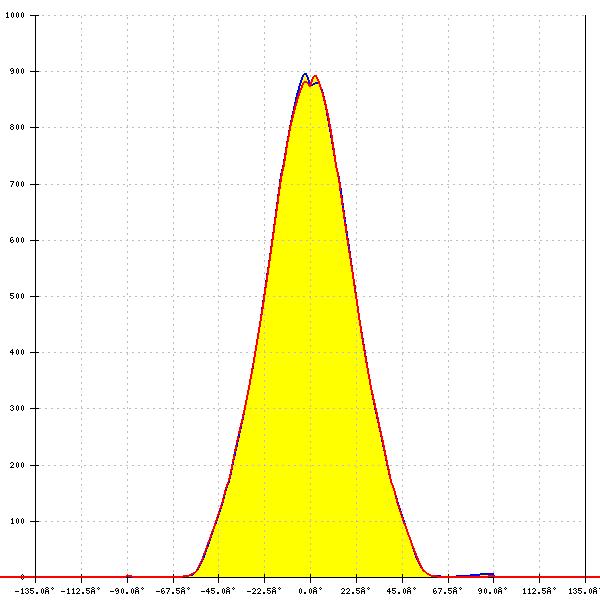

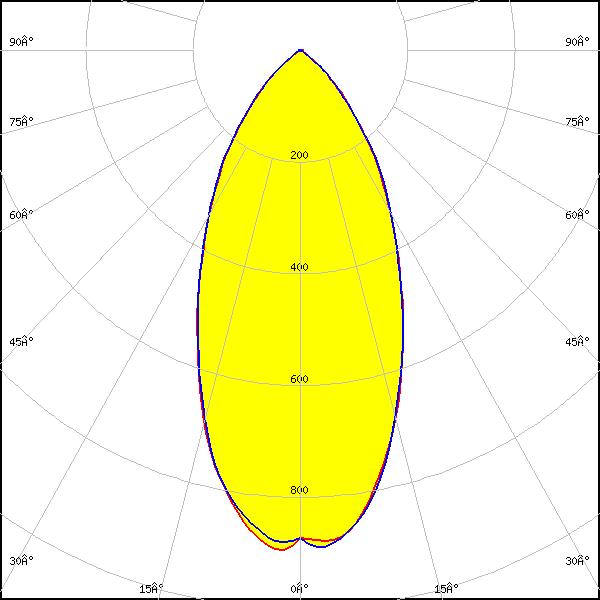

NF2W757H
Required components:
FWHM:
48°
FWTM:
94°
Peak intensity:
0.925 cd/lm
Efficiency:
76 %
LEDs/each optic:
2
Light colour/type:
White

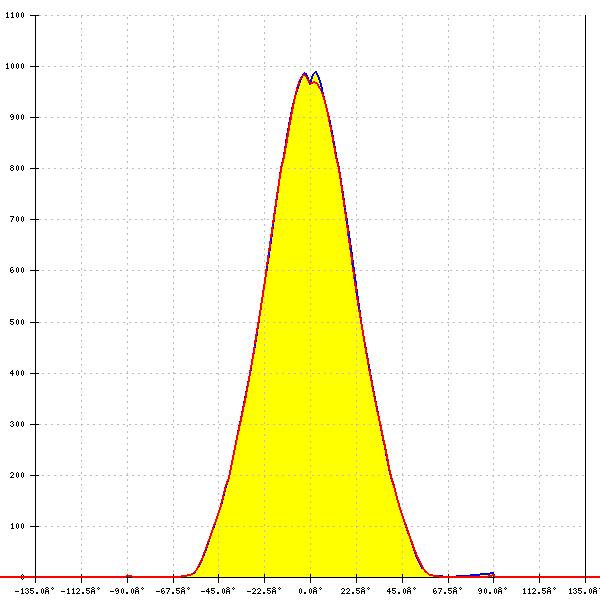

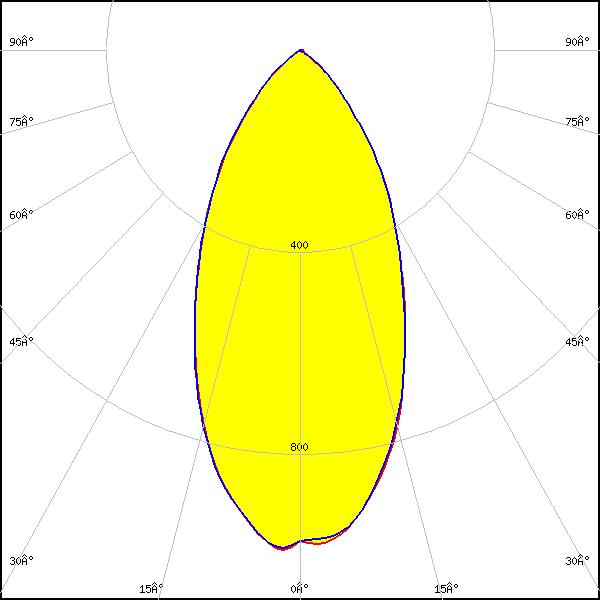

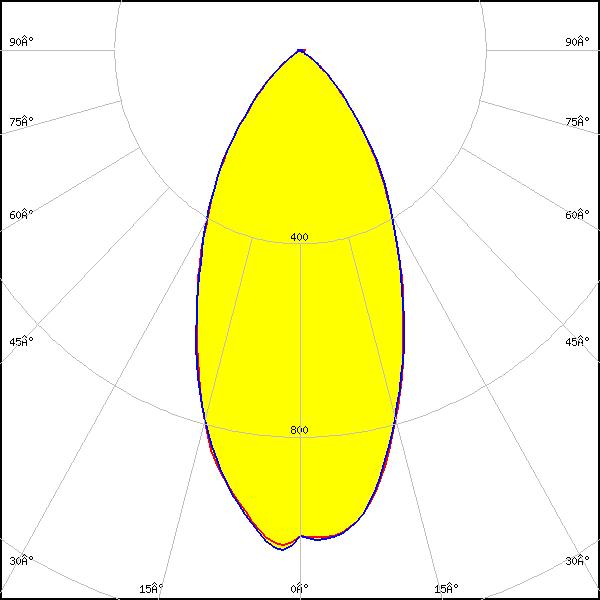

LED:
NF2W757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
0.991 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2W757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
0.897 cd/lm
Efficiency:
75 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2W757H
Required components:
FWHM:
51°
FWTM:
94°
Peak intensity:
0.991 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2W757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.033 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2W757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.038 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White

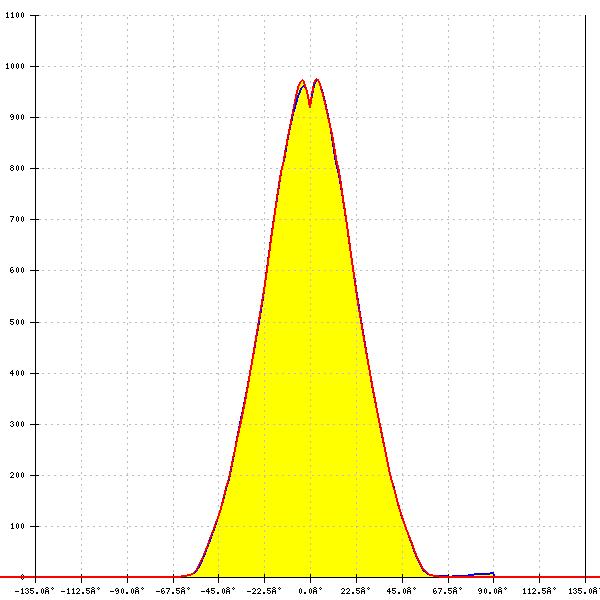

LED:
NF2x757G
Required components:
FWHM:
48°
FWTM:
93°
Peak intensity:
0.908 cd/lm
Efficiency:
75 %
LEDs/each optic:
2
Light colour/type:
White

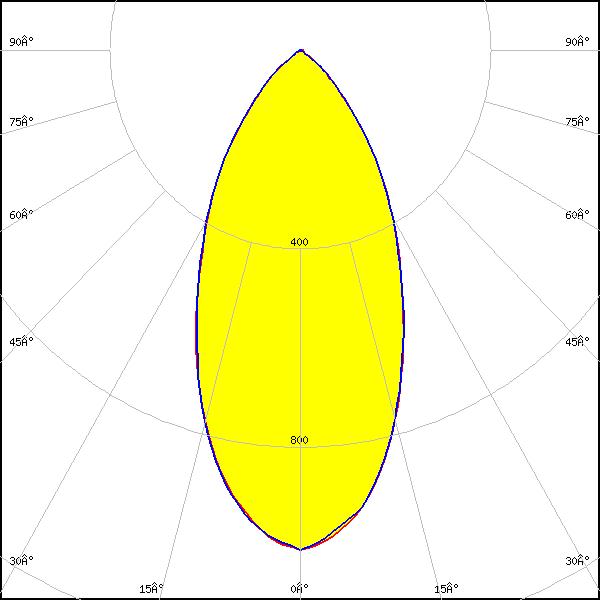

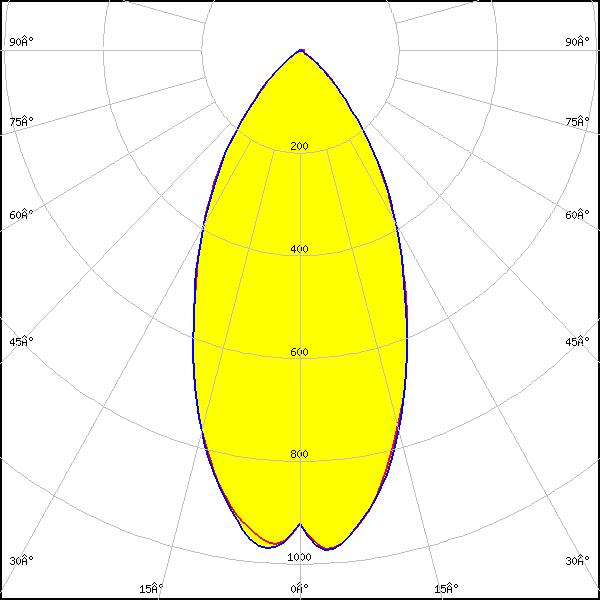

LED:
NF2x757G
Required components:
FWHM:
52°
FWTM:
94°
Peak intensity:
0.990 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2x757G
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
0.903 cd/lm
Efficiency:
75 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2x757G
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.012 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NF2x757G
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.028 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White

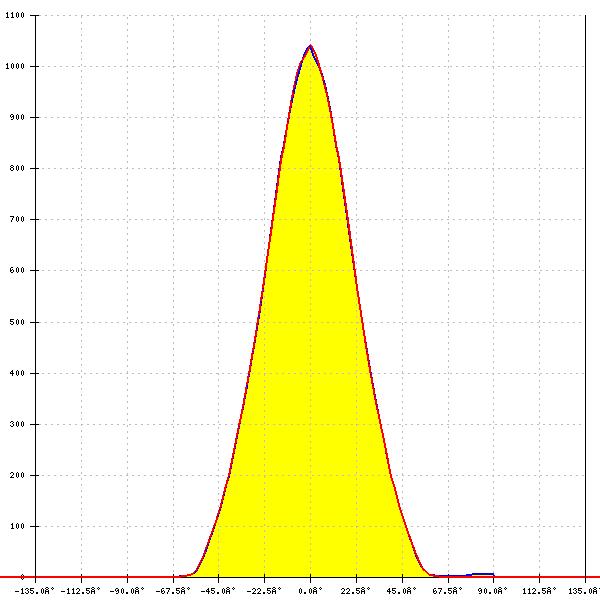

LED:
NF2x757G
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.044 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White

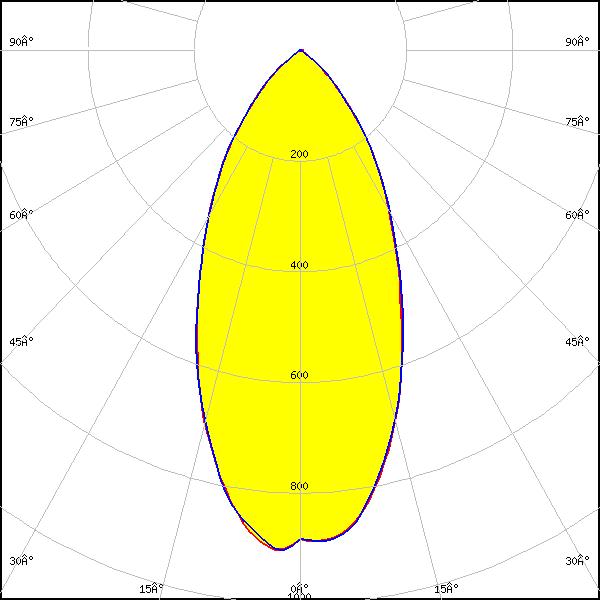

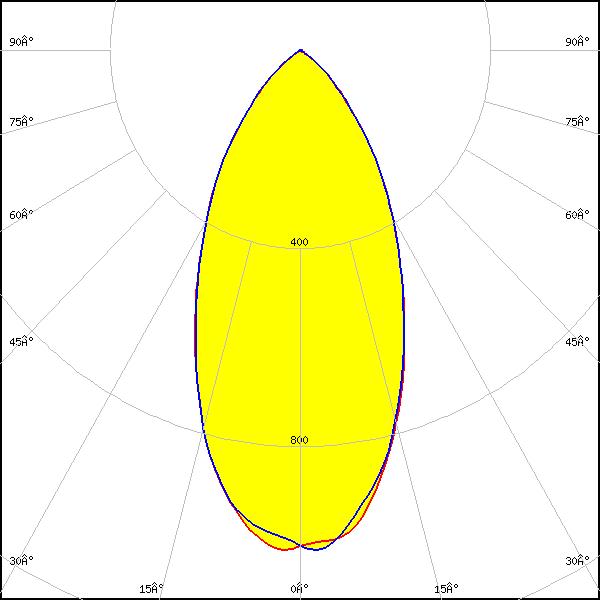

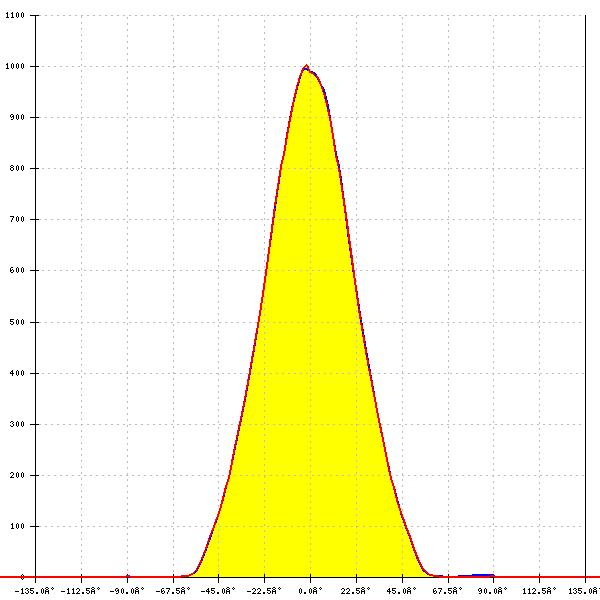

LED:

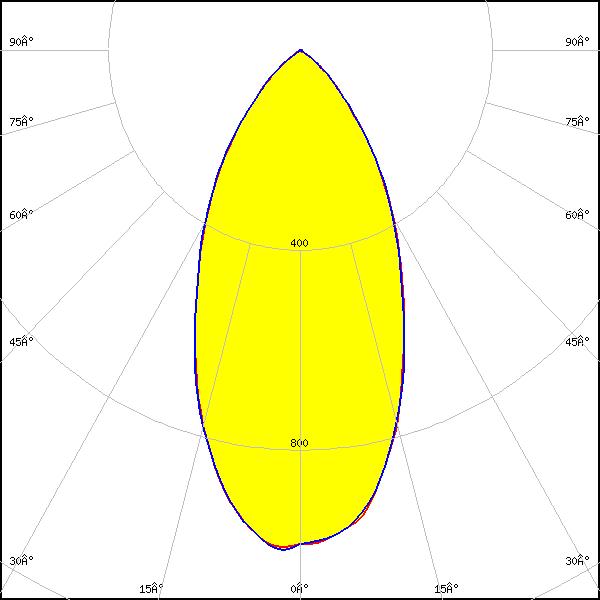

NFSW757H
Required components:
FWHM:
48°
FWTM:
93°
Peak intensity:
0.941 cd/lm
Efficiency:
76 %
LEDs/each optic:
2
Light colour/type:
White

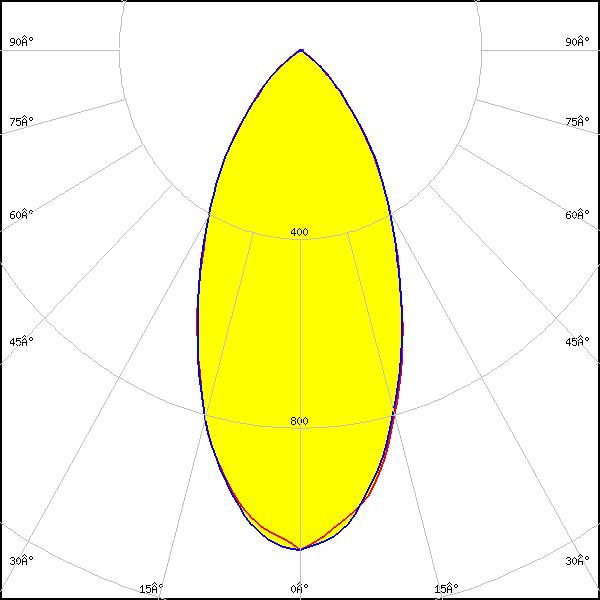

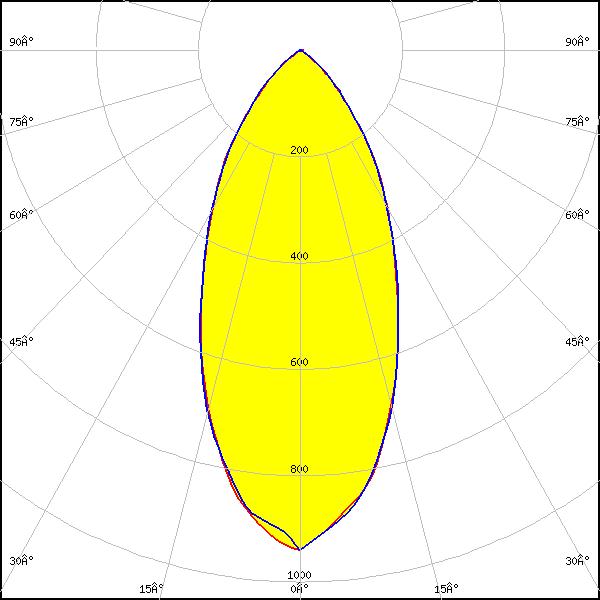

LED:
NFSW757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.007 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White

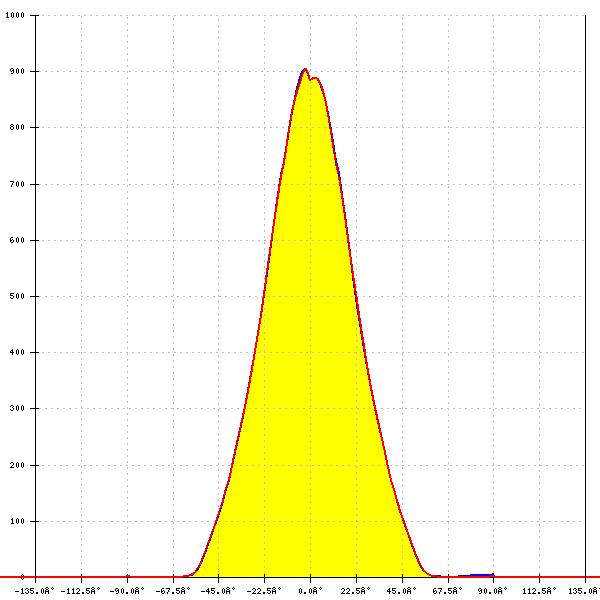

LED:
NFSW757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
0.917 cd/lm
Efficiency:
76 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NFSW757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.023 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White

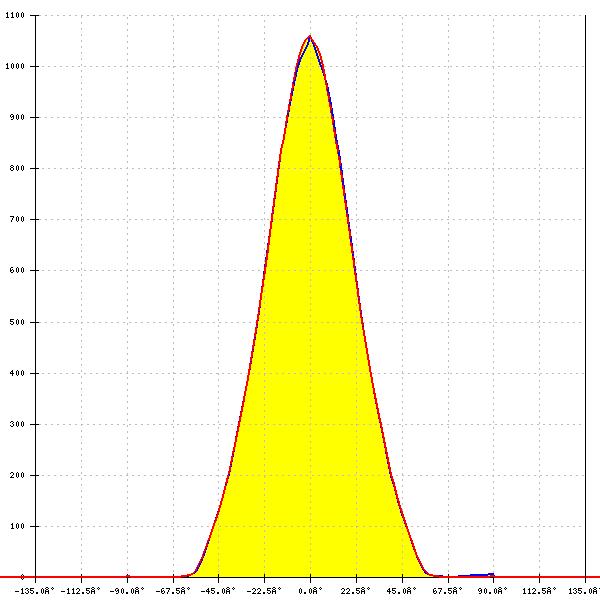

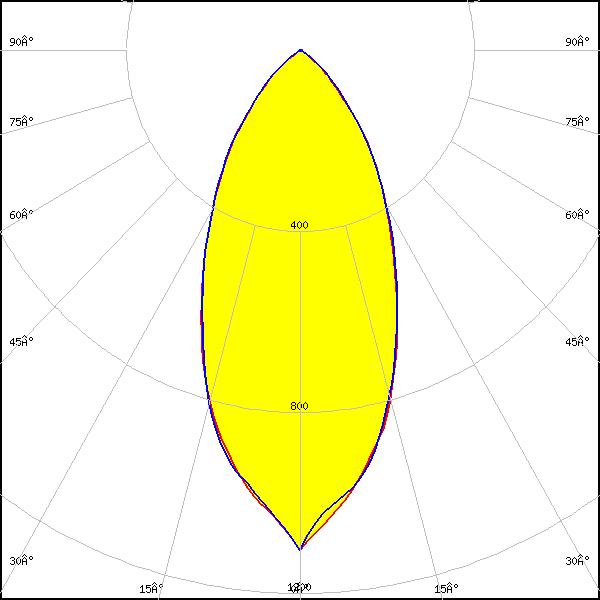

LED:
NFSW757H
Required components:
FWHM:
48°
FWTM:
92°
Peak intensity:
1.105 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White
LED:
NFSW757H
Required components:
FWHM:
50°
FWTM:
94°
Peak intensity:
1.060 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White

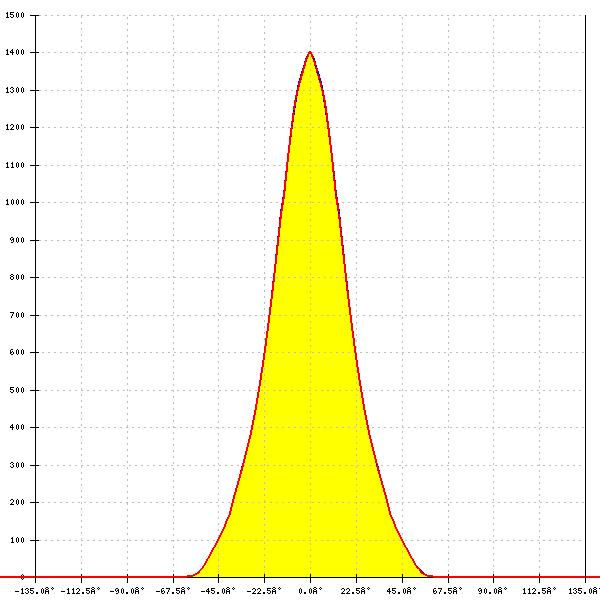

LED:

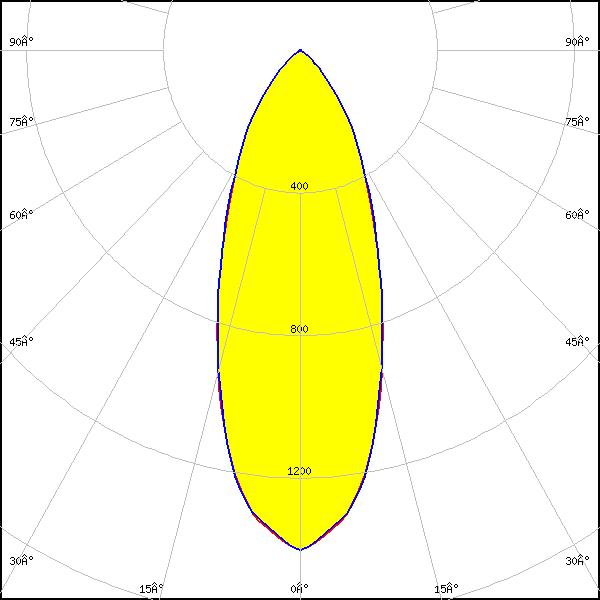

LM28xB Series
Required components:
FWHM:
40°
FWTM:
82°
Peak intensity:
1.403 cd/lm
Efficiency:
87 %
LEDs/each optic:
2
Light colour/type:
White

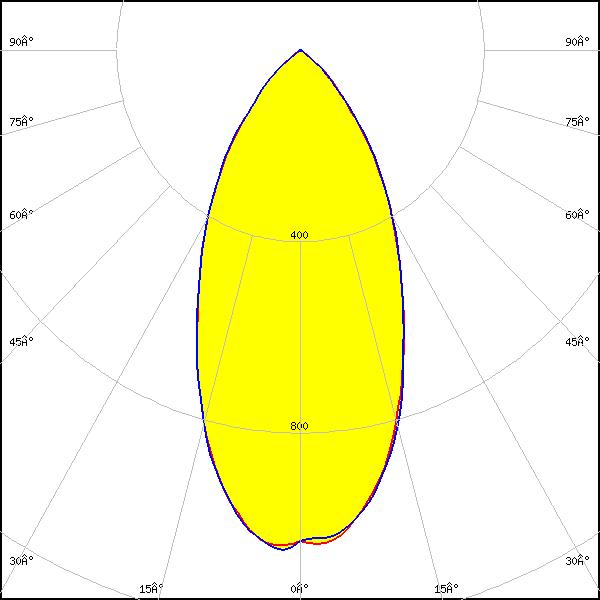

LED:

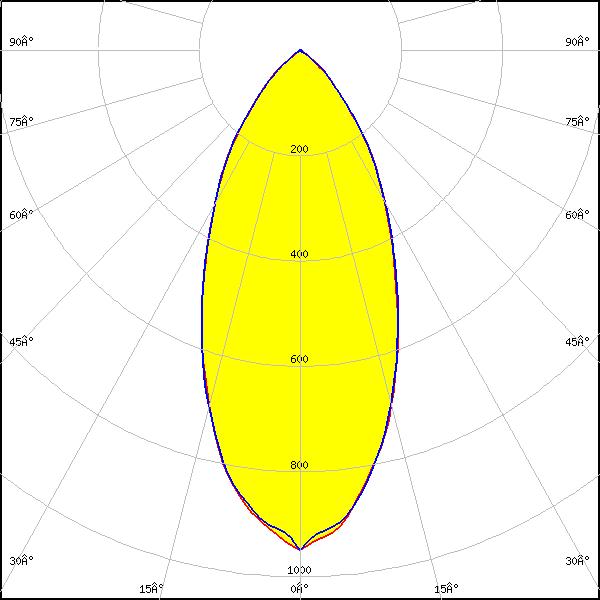

LM301Z Plus
Required components:
FWHM:
48°
FWTM:
92°
Peak intensity:
0.950 cd/lm
Efficiency:
75 %
LEDs/each optic:
2
Light colour/type:
White

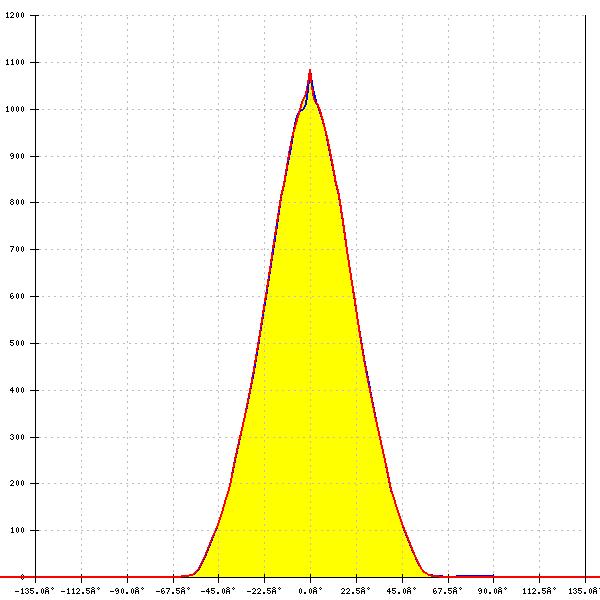

LED:

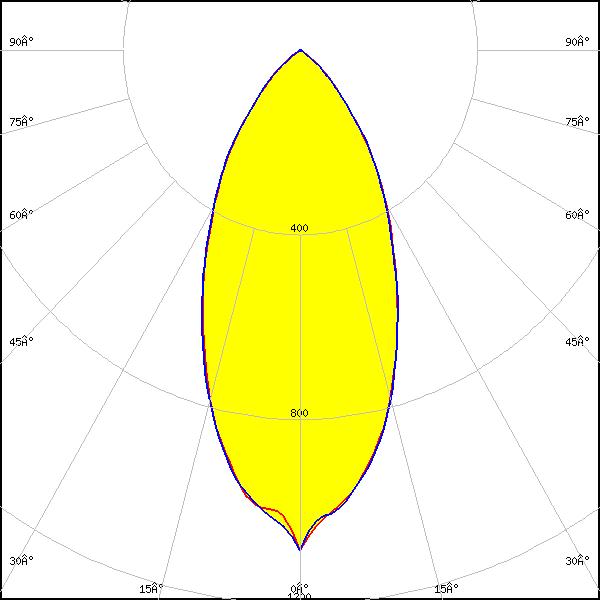

LM301Z Plus
Required components:
FWHM:
48°
FWTM:
92°
Peak intensity:
1.084 cd/lm
Efficiency:
86 %
LEDs/each optic:
2
Light colour/type:
White

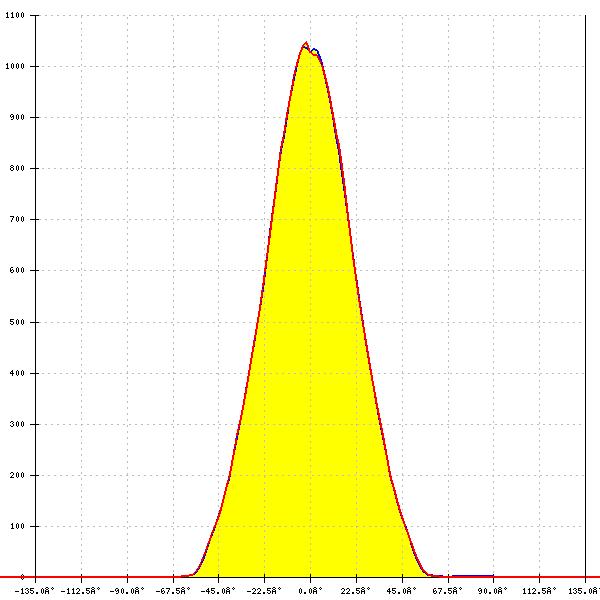

LED:
LM301Z Plus
Required components:
FWHM:
50°
FWTM:
92°
Peak intensity:
1.070 cd/lm
Efficiency:
88 %
LEDs/each optic:
2
Light colour/type:
White
