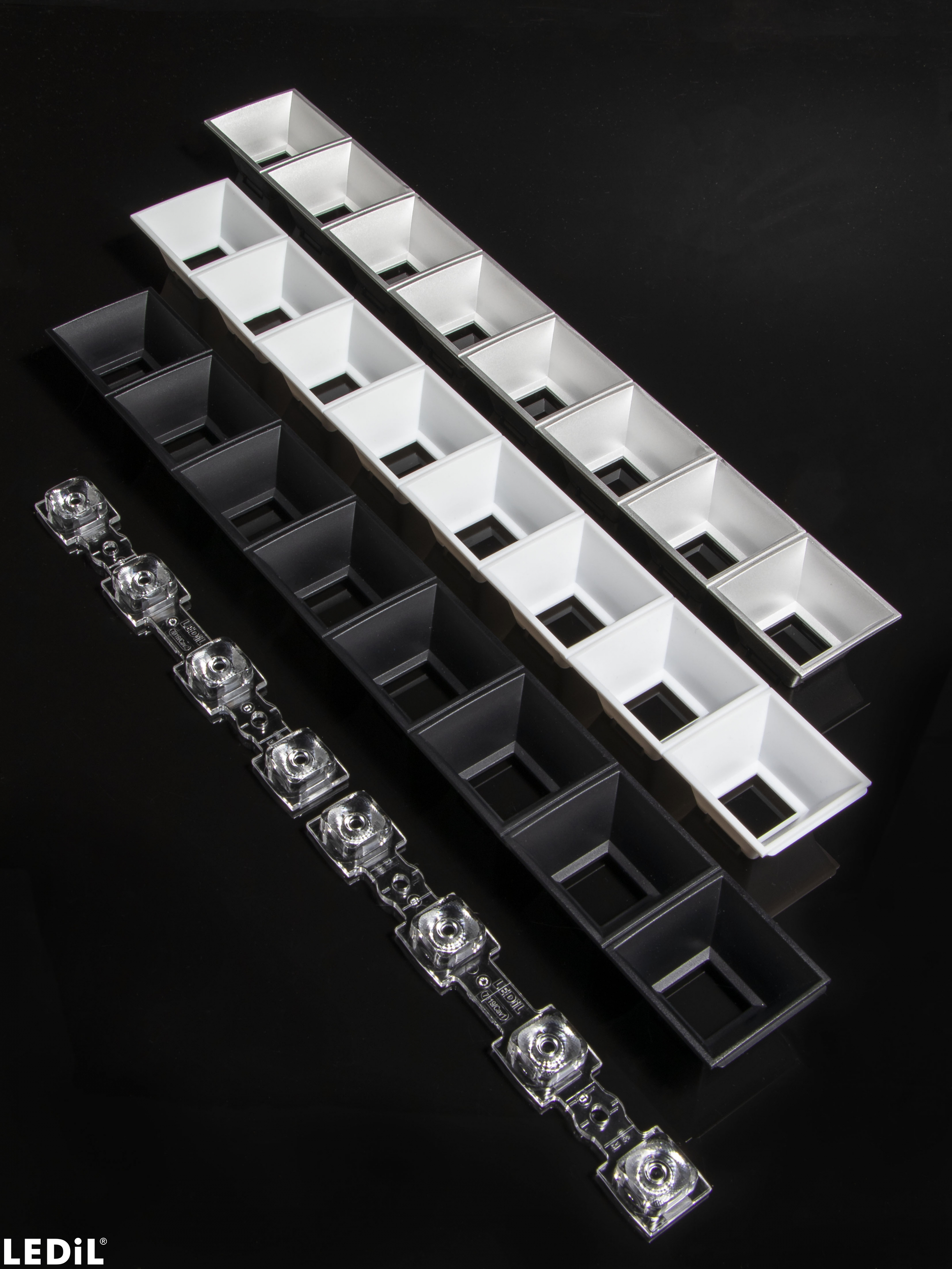

DAISY-8X1-M

Print

~35° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    305 x  38 mm
  • Height:
    20.25 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    2 pcs
  • Shade
    1 pcs
  • Linear lens
  • C17819_DAISY-4X1-M-US
    clear
  • Quantity in box:
    504 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.20 kg
  • MPQ:
    84 pcs
  • MOQ:
    84 pcs
  • MOQ Size:
    480 x 280 x 70 mm
  • MOQ Weight:
    1.10 kg
  • Shade
  • C17171_DAISY-8X1-SHD-MATT
    black,matt
  • C17172_DAISY-8X1-SHD-MATT-WHT
    white,matt
  • Quantity in box:
    84 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.00 kg
  • MPQ:
    42 pcs
  • MOQ:
    42 pcs
  • MOQ Size:
    400 x 300 x 160 mm
  • MOQ Weight:
    2.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17819_DAISY-4X1-M-US
    C17171_DAISY-8X1-SHD-MATT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Related Content

Optical results

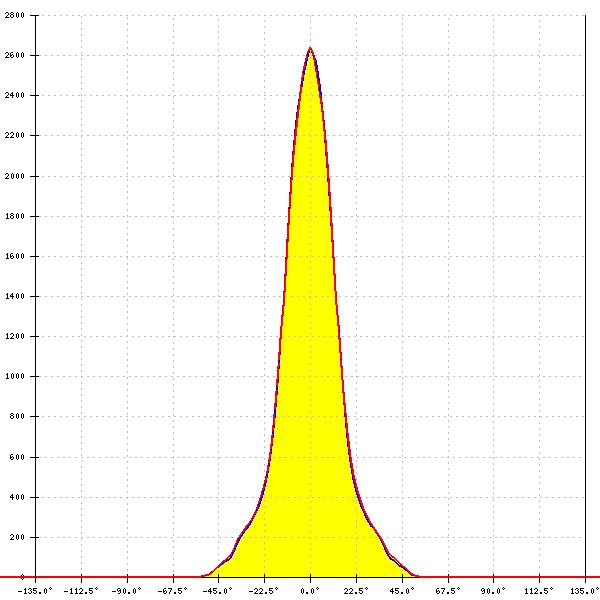

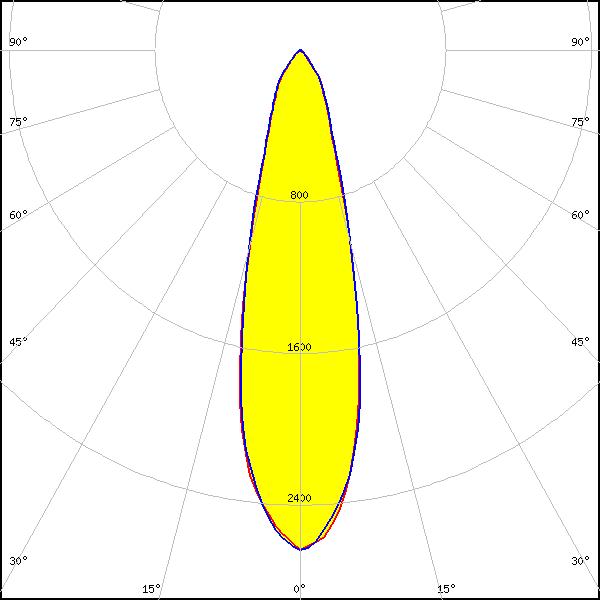

LED: J Series 5050 Round LES
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 26°
FWTM: 59°
Peak intensity: 2.652 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 28°
FWTM: 64°
Peak intensity: 2.538 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

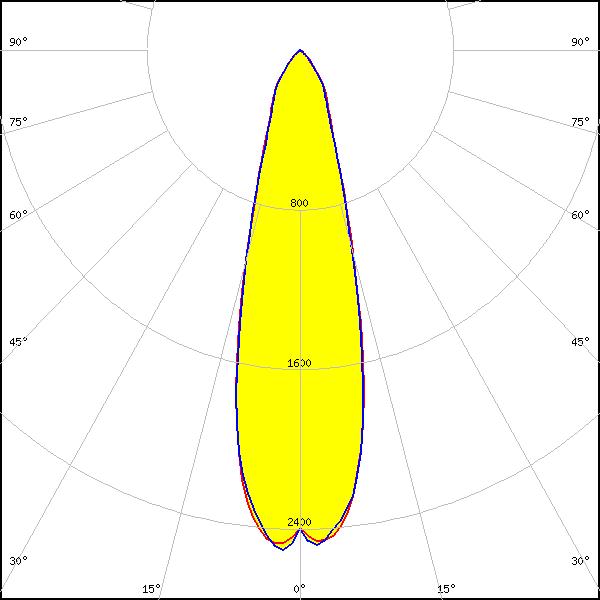

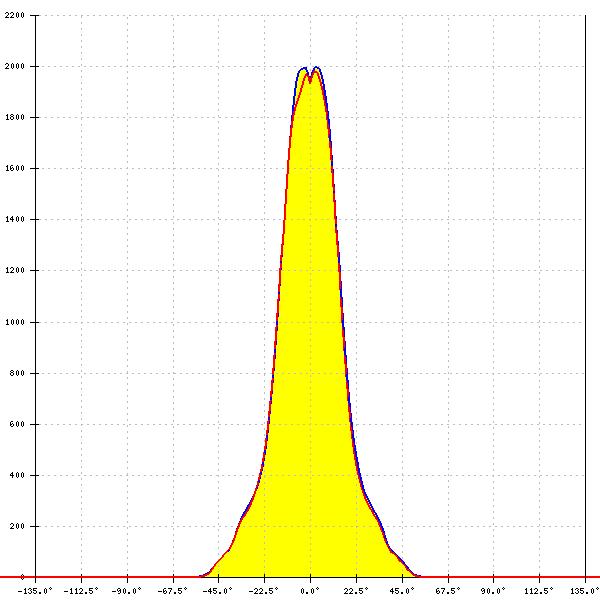

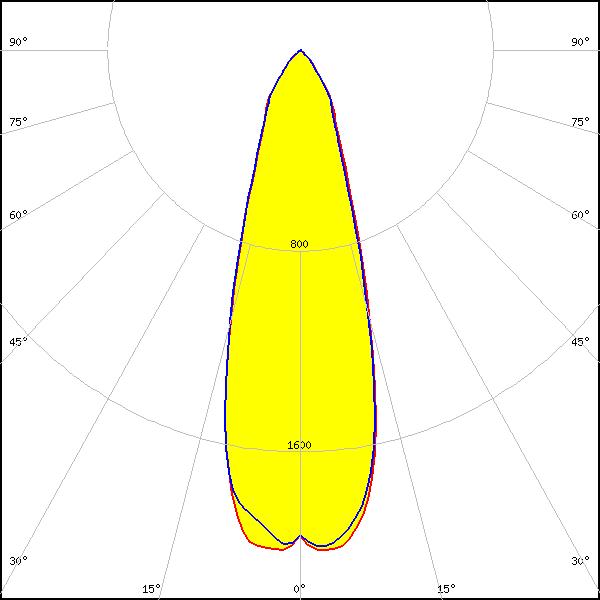

LED: LUXEON 5050 Square LES
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 32°
FWTM: 70°
Peak intensity: 2.029 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

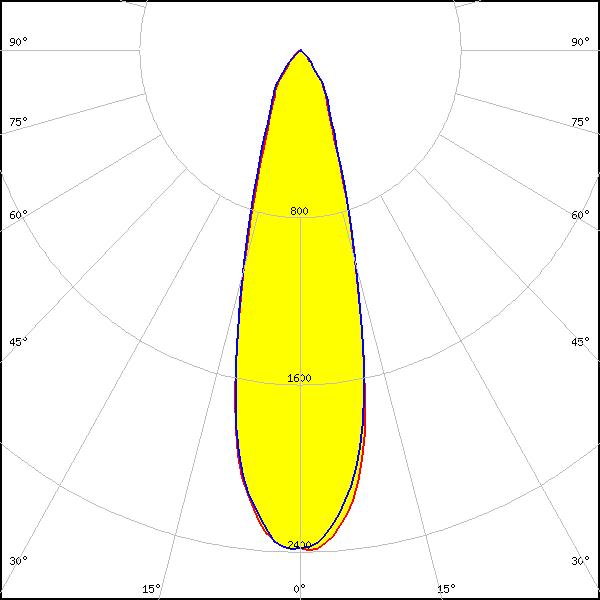

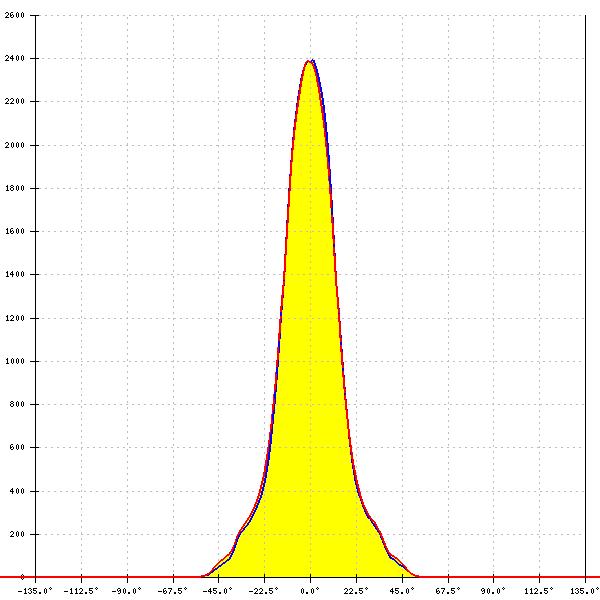

LED: LUXEON 5050 Square LES
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 28°
FWTM: 63°
Peak intensity: 2.440 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

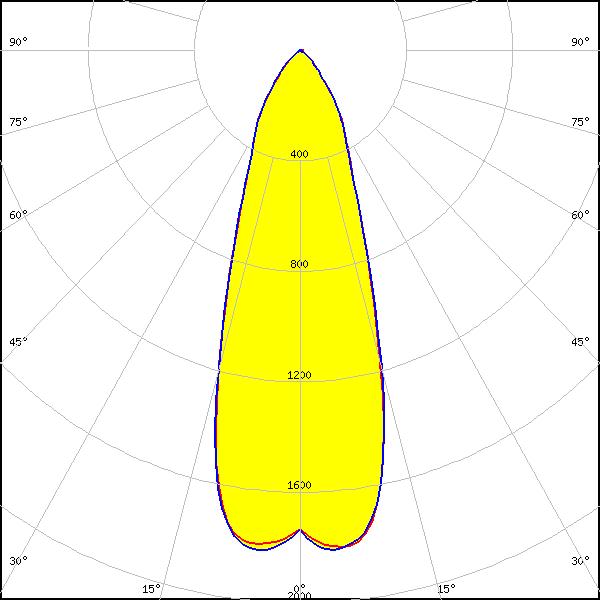

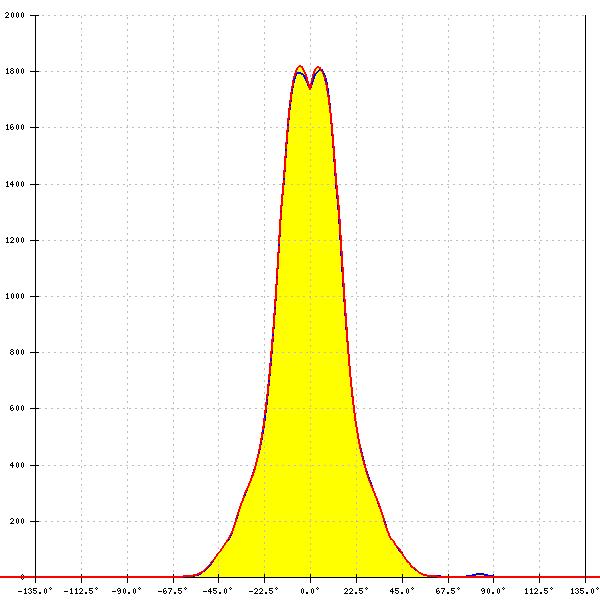

LED: Duris E 2835
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 36°
FWTM: 76°
Peak intensity: 1.842 cd/lm
Efficiency: 93 %
LEDs/each optic: 2
Light colour/type: White

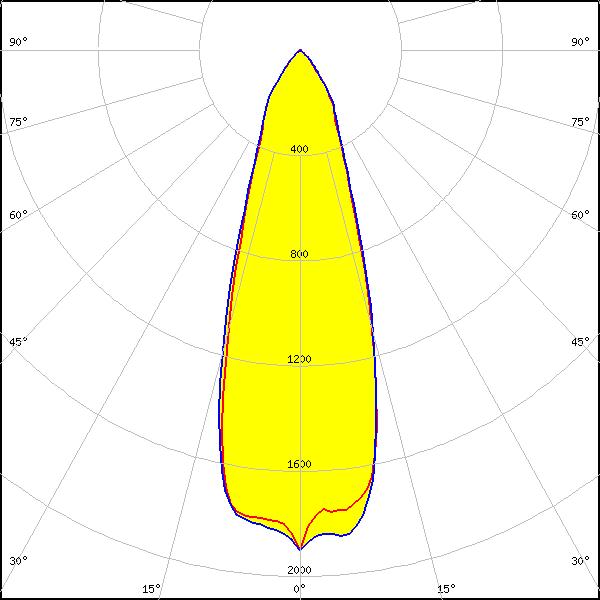

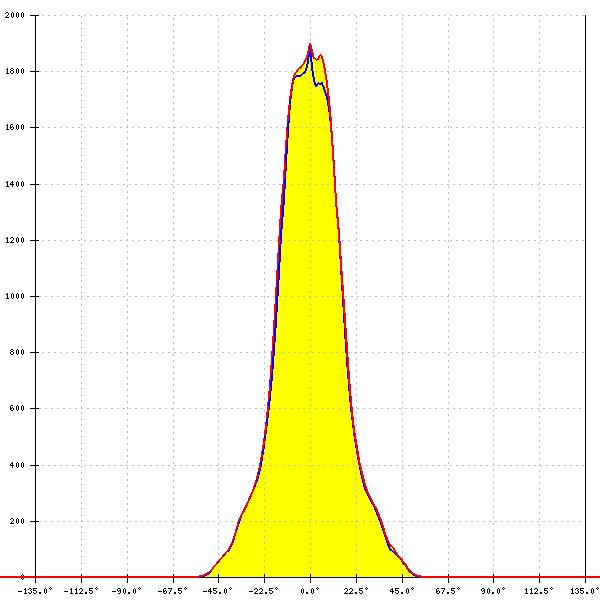

LED: Duris S8
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 32° + 34°
FWTM: 70° + 72°
Peak intensity: 1.901 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

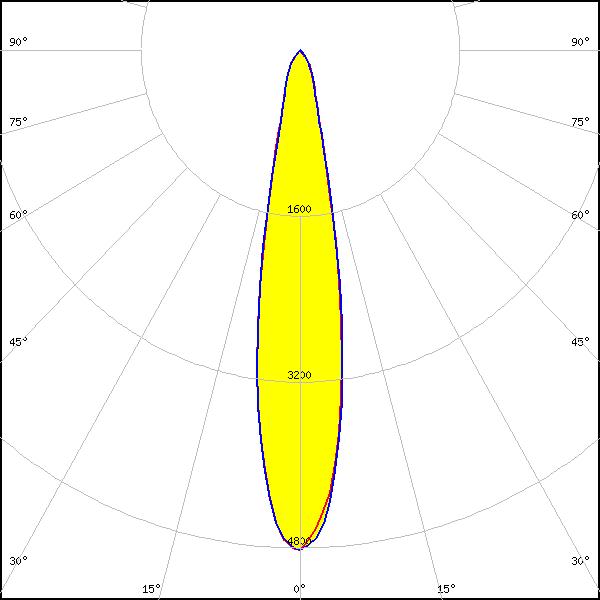

LED: LH231B
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 20°
FWTM: 39°
Peak intensity: 4.832 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

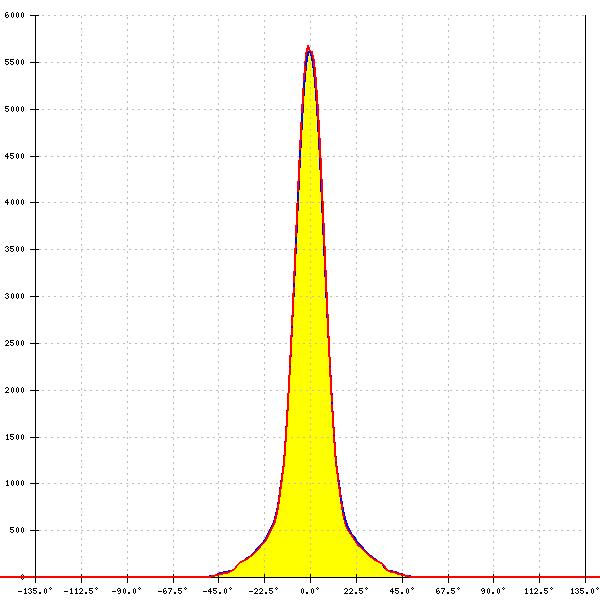

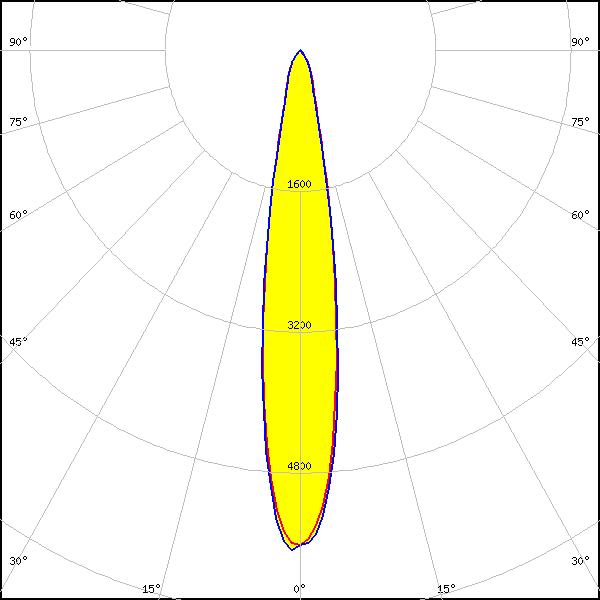

LED: LM28xB Series
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 18°
FWTM: 36°
Peak intensity: 5.686 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

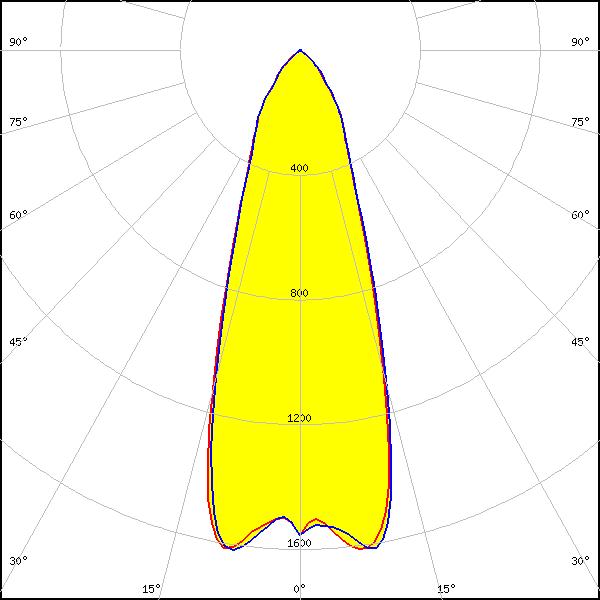

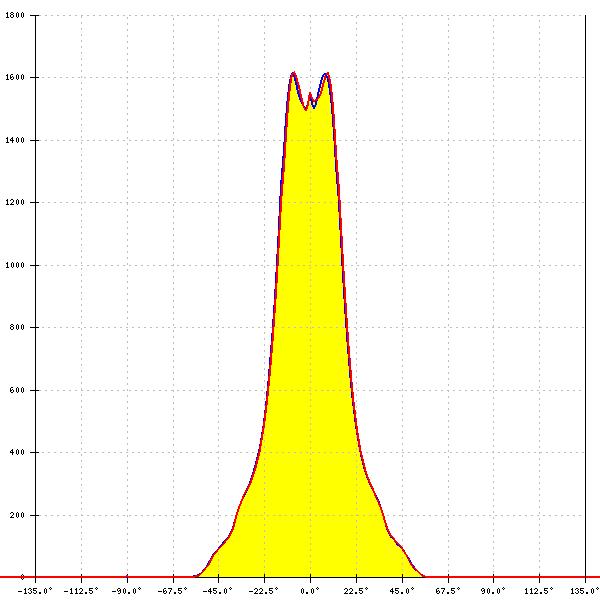

LED: LM28xB Series
Required components:
C17171_DAISY-8X1-SHD-MATT
FWHM: 36°
FWTM: 76°
Peak intensity: 1.619 cd/lm
Efficiency: 83 %
LEDs/each optic: 2
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
