    DAISY-7X1-W2-D

    Print

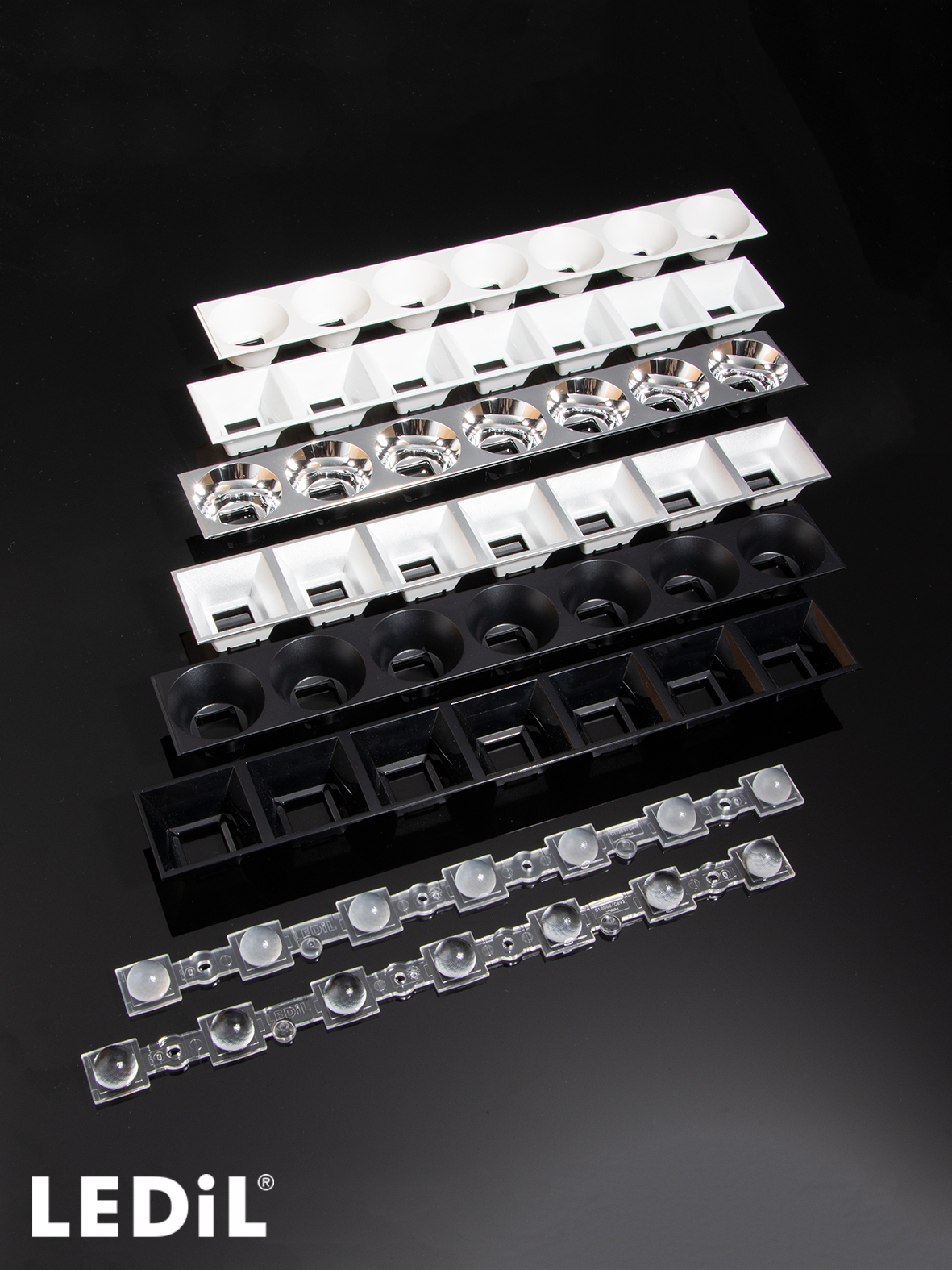

    ~50° wide beam with tighter cutoff. Variant with diffused lenses.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    • Linear lens
    • C17363_DAISY-7X1-W2-D
      PMMA
    • Request material files from Tech Support

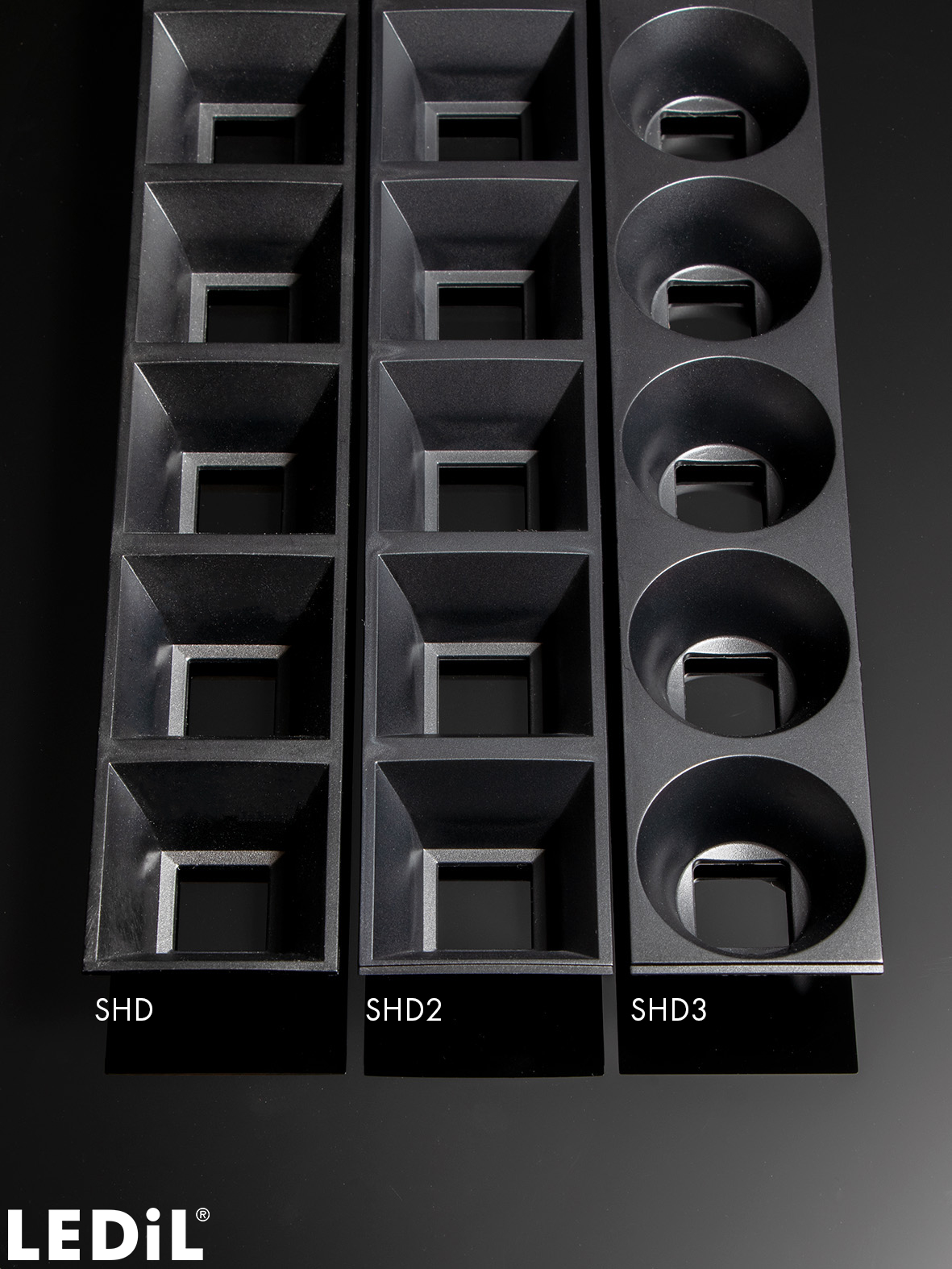

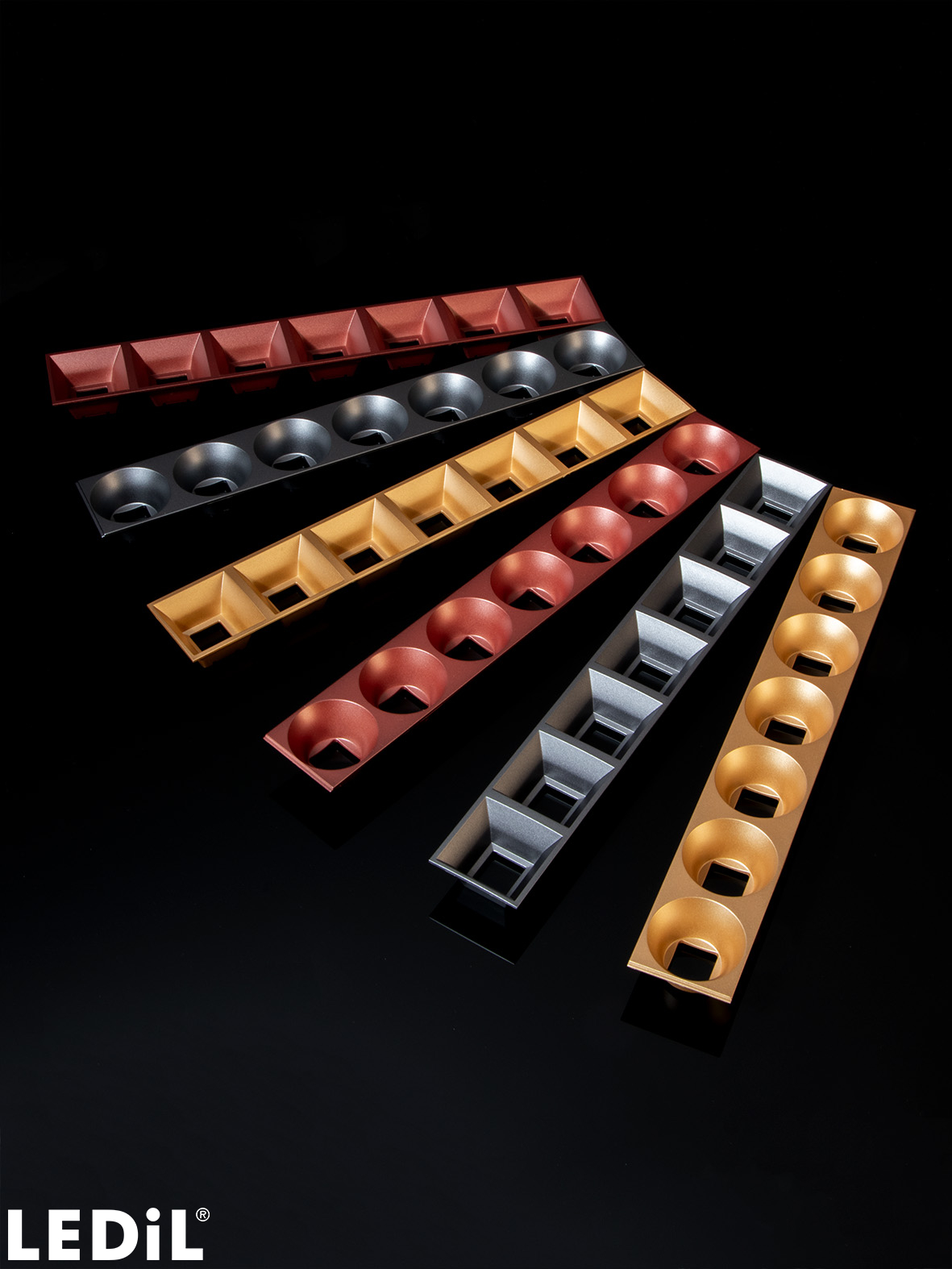

    • Shade
    • C16872_DAISY-7X1-SHD
      PC
    • C16876_DAISY-7X1-SHD-WHT
      PC
    • C17051_DAISY-7X1-SHD-MATT
      PC
    • C17225_DAISY-7X1-SHD-WHT-MATT
      PC
    • C18167_DAISY-7X1-SHD-MET
      PC
    • C18409_DAISY-7X1-SHD-MET-MATT
      PC
    • C19312_DAISY-7X1-SHD3
      PC
    • C19313_DAISY-7X1-SHD3-MATT
      PC
    • C19314_DAISY-7X1-SHD3-WHT
      PC
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      PC
    • C19641_DAISY-7X1-SHD3-MET
      PC
    • C19642_DAISY-7X1-SHD3-MET-MATT
      PC
    • C19763_DAISY-7X1-SHD-MATT-RED
      PC
    • C19764_DAISY-7X1-SHD-MATT-GR
      PC
    • C19852_DAISY-7X1-SHD-MATT-GLD
      PC
    • C19853_DAISY-7X1-SHD3-MATT-GR
      PC
    • C19854_DAISY-7X1-SHD3-MATT-RED
      PC
    • C19855_DAISY-7X1-SHD3-MATT-GLD
      PC
    • Request material files from Tech Support

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C17363_DAISY-7X1-W2-D
      milky
    • Quantity in box:
      312 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      7.00 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      400 x 300 x 300 mm
    • MOQ Weight:
      7.00 kg
    • Shade
    • C16872_DAISY-7X1-SHD
      black,gloss
    • C16876_DAISY-7X1-SHD-WHT
      white,gloss
    • C17051_DAISY-7X1-SHD-MATT
      black,matt
    • C17225_DAISY-7X1-SHD-WHT-MATT
      white,matt
    • C18167_DAISY-7X1-SHD-MET
      metal,gloss
    • C18409_DAISY-7X1-SHD-MET-MATT
      metal,matt
    • C19312_DAISY-7X1-SHD3
      black,gloss
    • C19313_DAISY-7X1-SHD3-MATT
      black,matt
    • C19314_DAISY-7X1-SHD3-WHT
      white,gloss
    • C19315_DAISY-7X1-SHD3-WHT-MATT
      white,matt
    • C19641_DAISY-7X1-SHD3-MET
      metal,gloss
    • C19642_DAISY-7X1-SHD3-MET-MATT
      metal,matt
    • C19763_DAISY-7X1-SHD-MATT-RED
      red,matt
    • C19764_DAISY-7X1-SHD-MATT-GR
      grey,matt
    • C19852_DAISY-7X1-SHD-MATT-GLD
      gold,matt
    • C19853_DAISY-7X1-SHD3-MATT-GR
      grey,matt
    • C19854_DAISY-7X1-SHD3-MATT-RED
      red,matt
    • C19855_DAISY-7X1-SHD3-MATT-GLD
      gold,matt
    • Quantity in box:
      156 pcs
    • Box size:
      595 x 360 x 230 mm
    • Box weight:
      7.10 kg
    • MPQ:
      24 pcs
    • MOQ:
      312 pcs
    • MOQ Size:
      595 x 360 x 230 mm
    • MOQ Weight:
      7.10 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C17363_DAISY-7X1-W2-D
      C16872_DAISY-7X1-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    News

    New products – August 12, 2021

    PCN

    Product change notification NR173 - Change of product coating method and ordering code

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    News

    New Products 2019-09-24

    News

    New beams and products – August 2024

    News

    New beams and products – May 2024

    News

    Square or round, it’s all about your preference

    Reference product

    SG Armaturen Yggdrasil luminaire

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR 195 - Change of Minimum order quantity in DAISY-7X1 family

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Wall-washing with DAISY-7X1-WAS

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    News

    New Products 2019-11-07

    News

    New Products - 2019-08-27

    News

    New Products 2019-06-13

    News

    DAISY the linear solution for premium class office lighting

    Luminaire, example

    Troffer luminaires with DAISY-7X1

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    Guide for Retail Lighting Optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

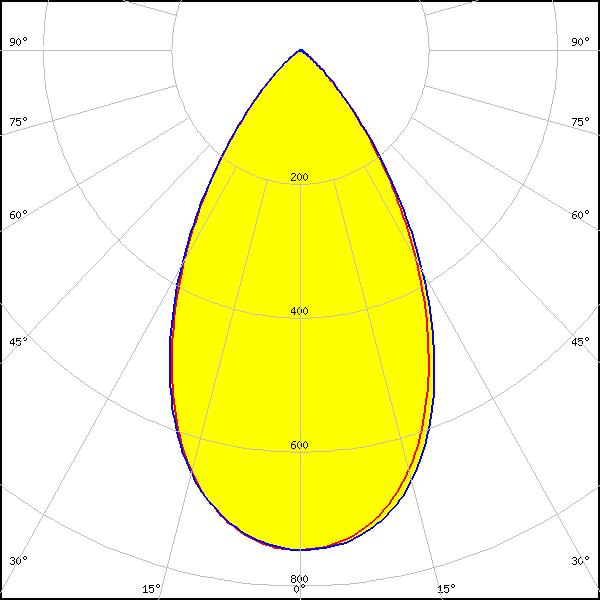

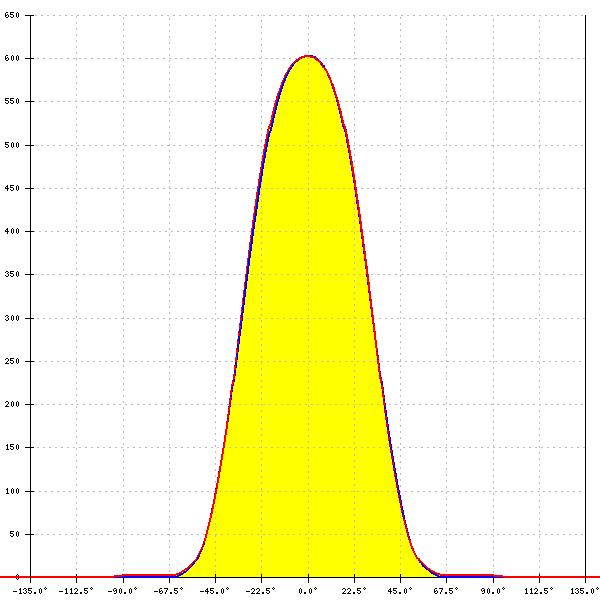

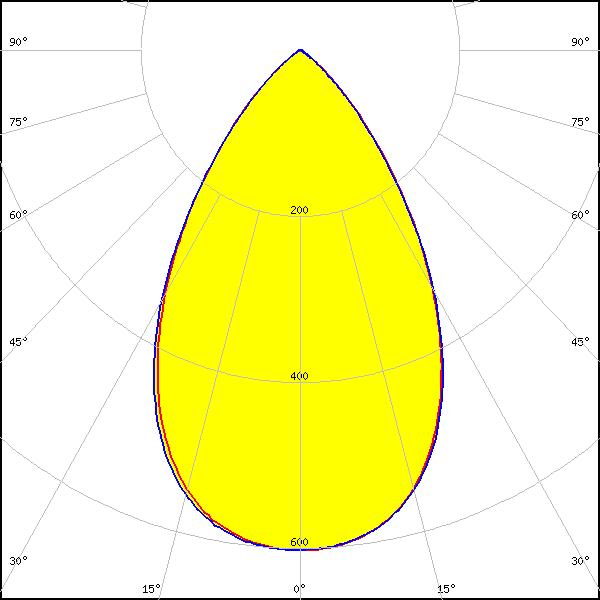

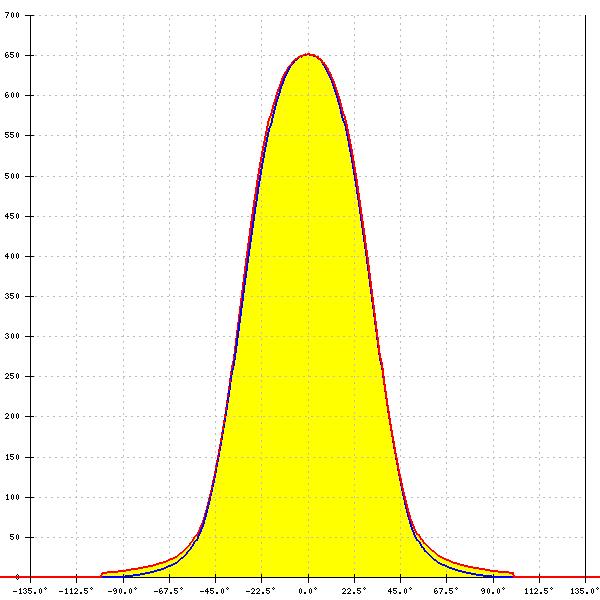

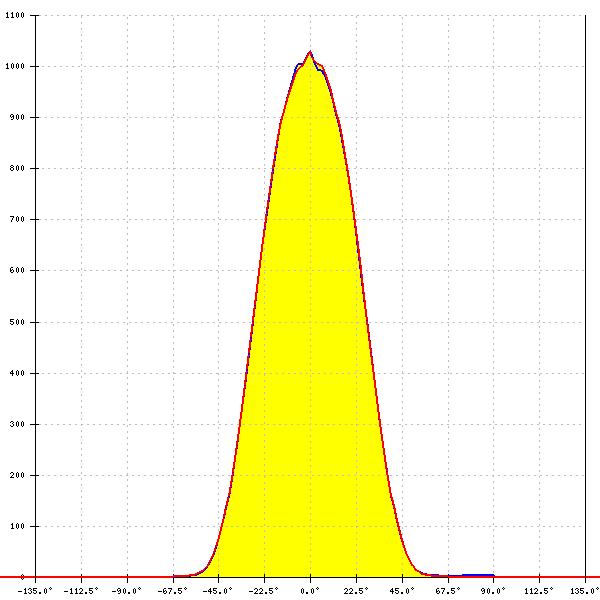

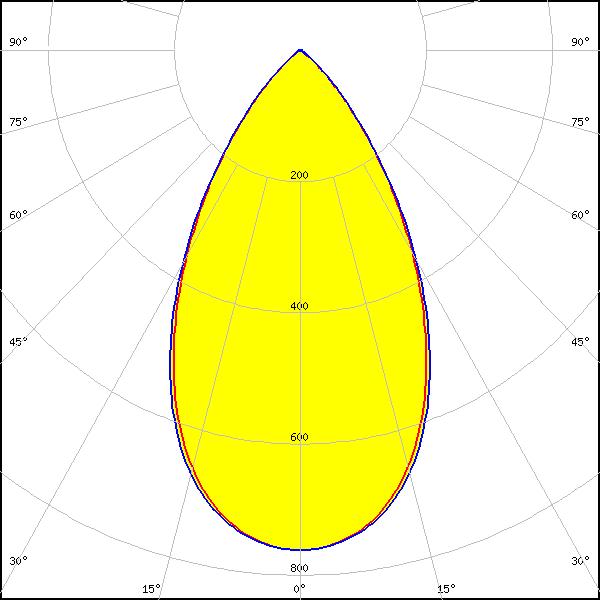

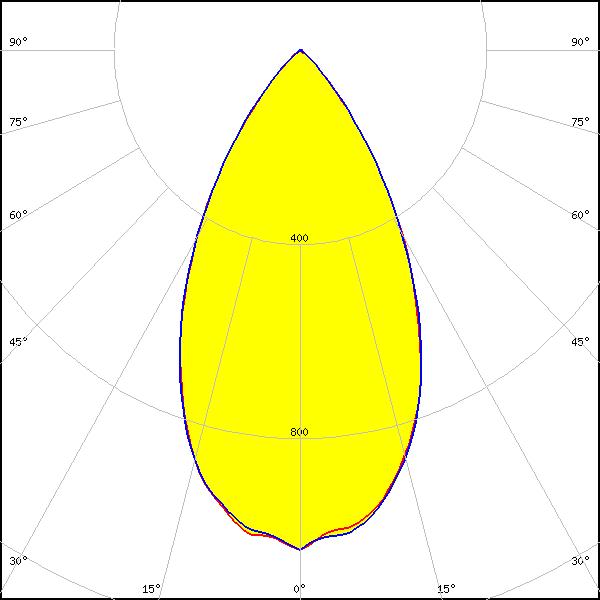

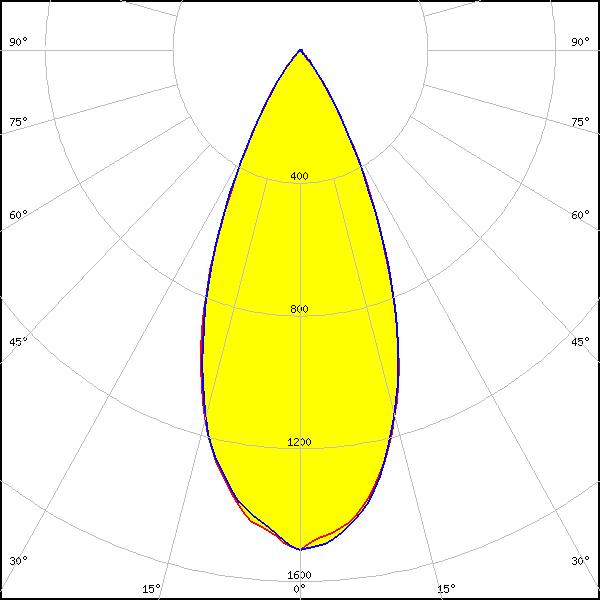

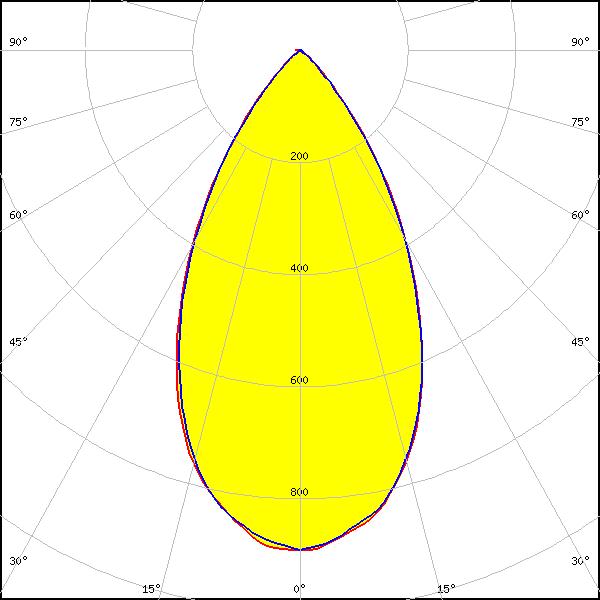

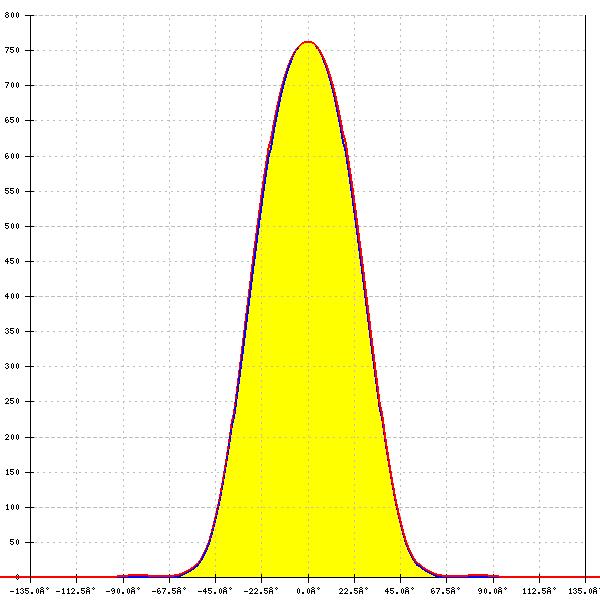

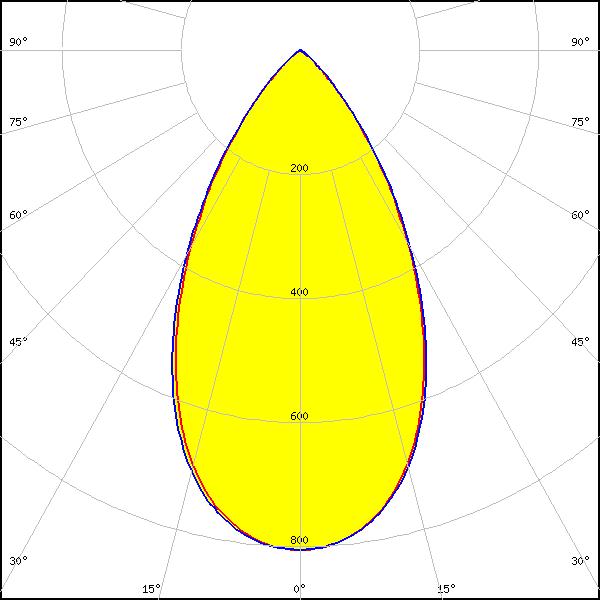

    Optical results

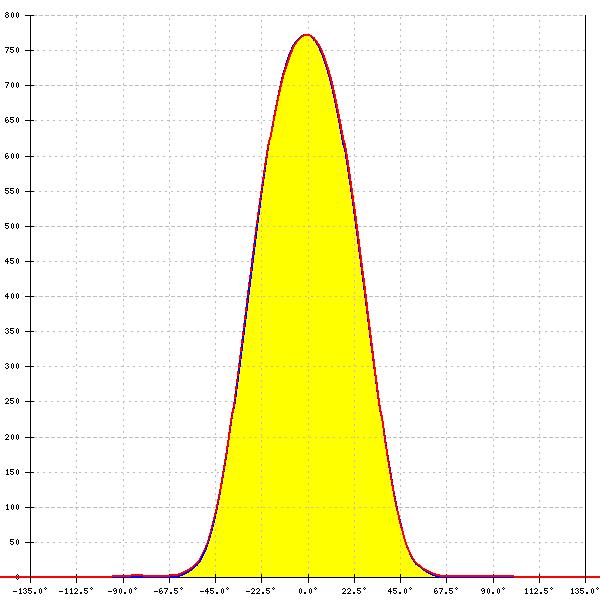

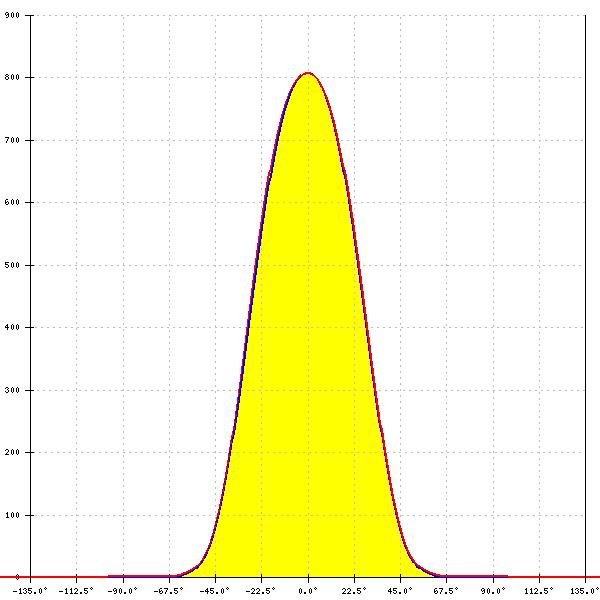

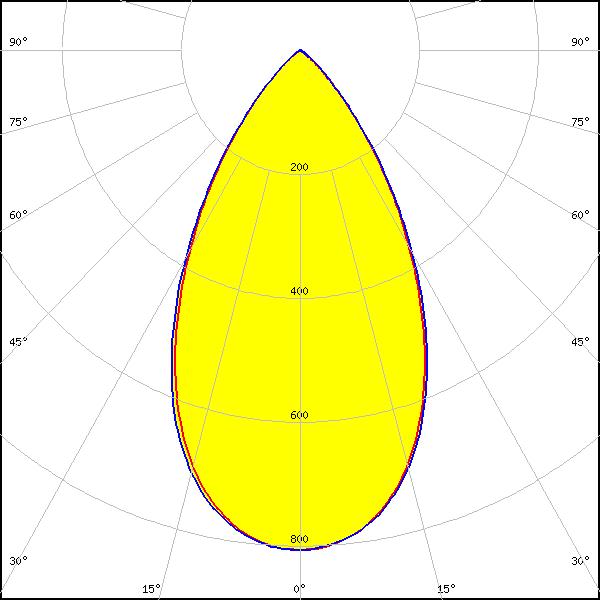

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 59°
    FWTM: 91°
    Peak intensity: 0.772 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White

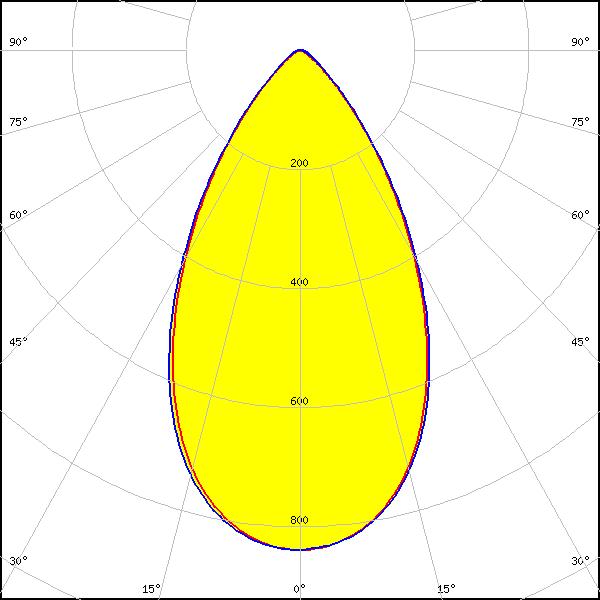

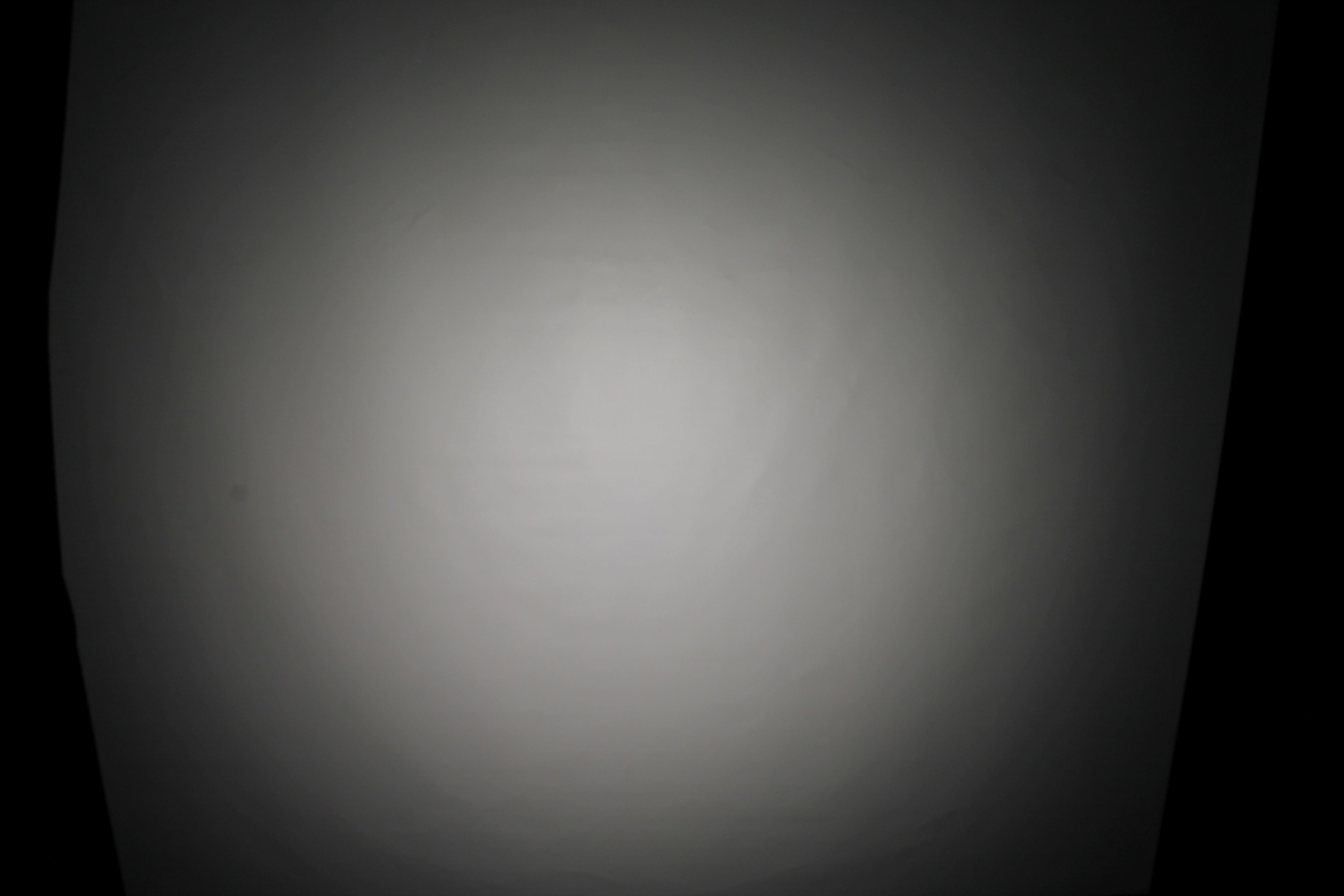

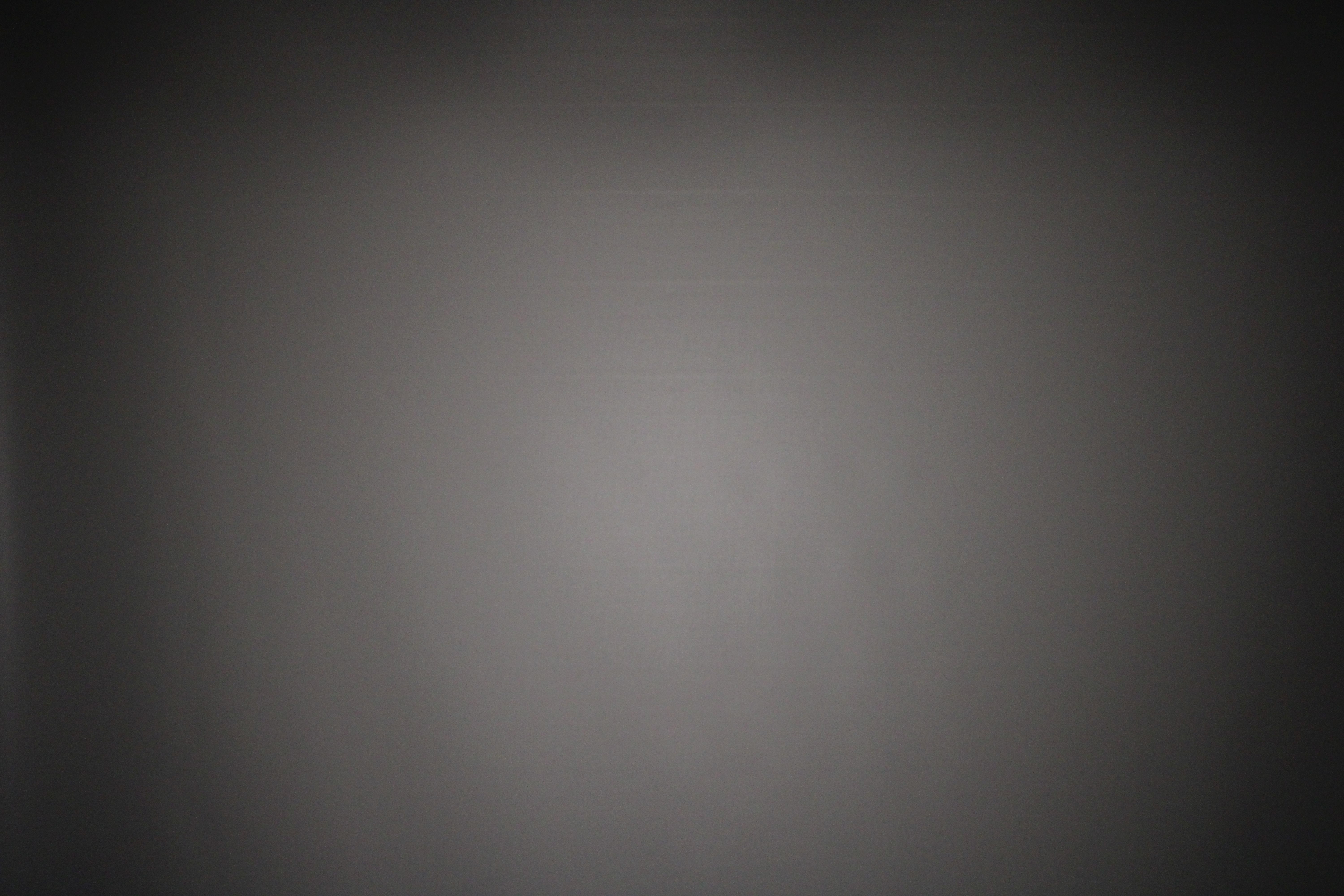

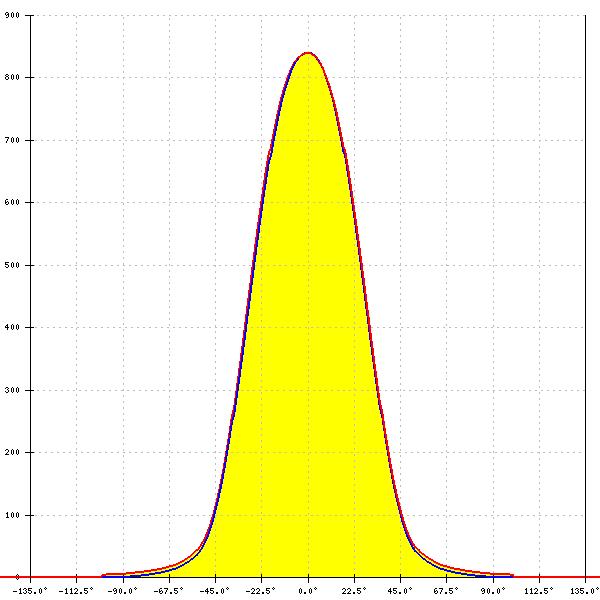

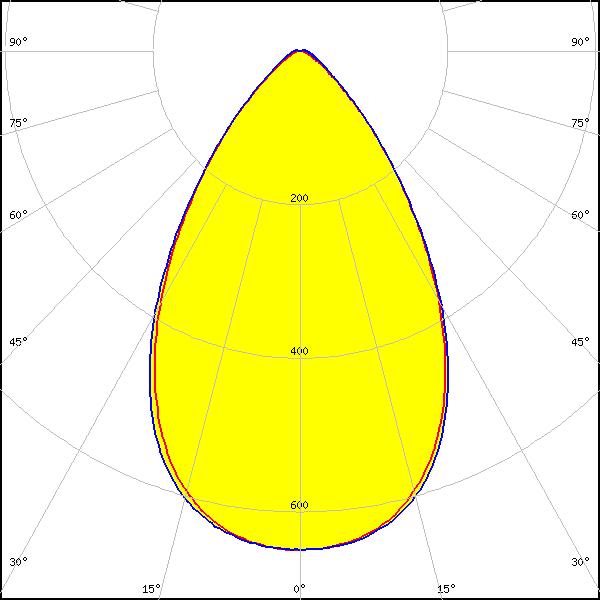

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 60°
    FWTM: 95°
    Peak intensity: 0.807 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 91°
    Peak intensity: 0.772 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White

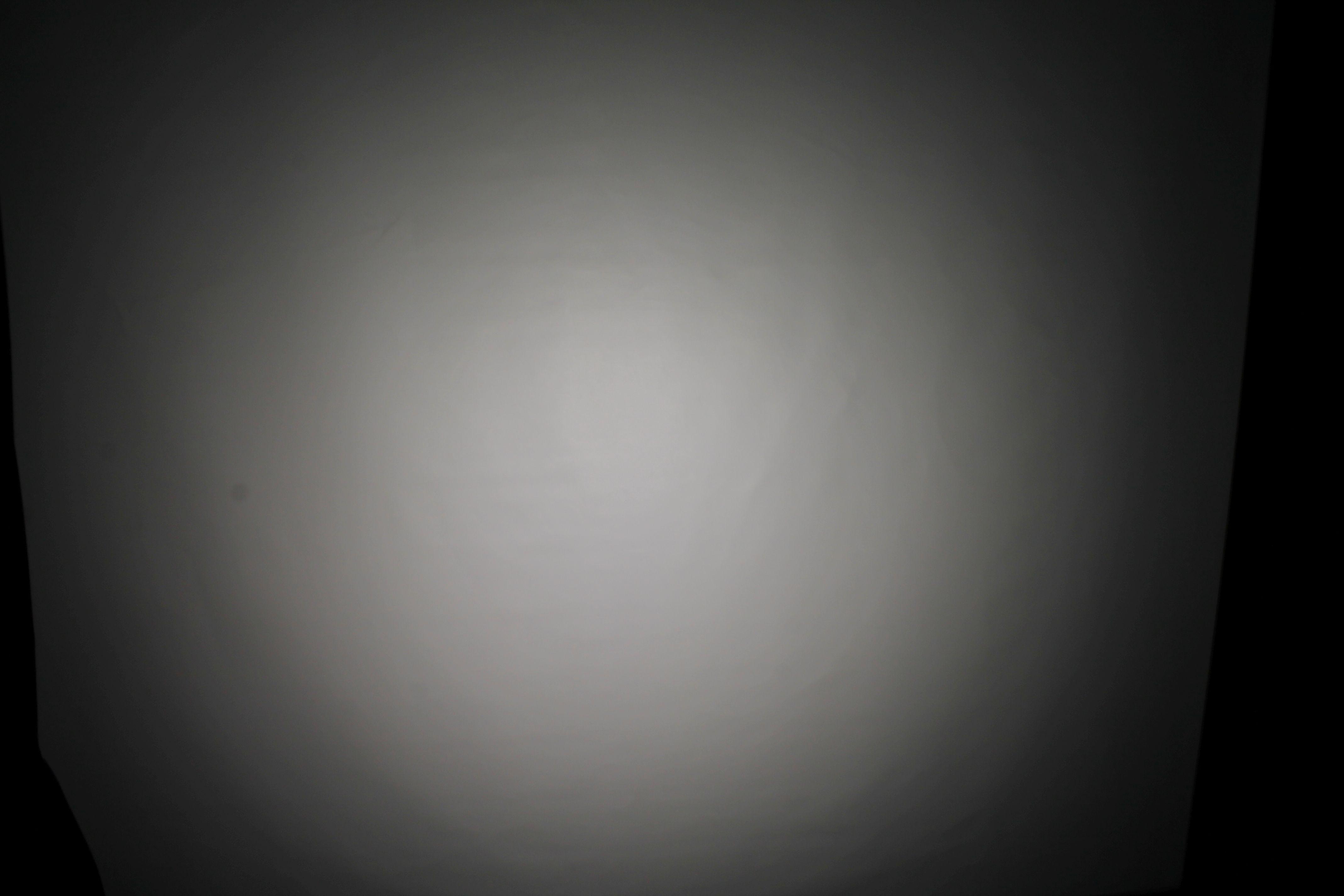

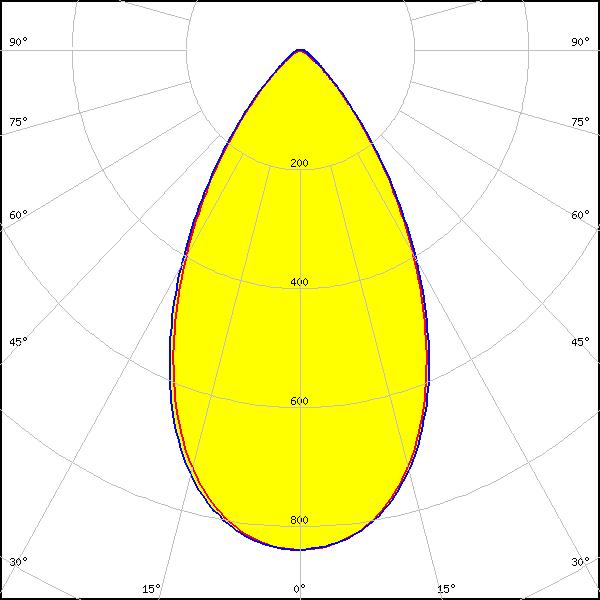

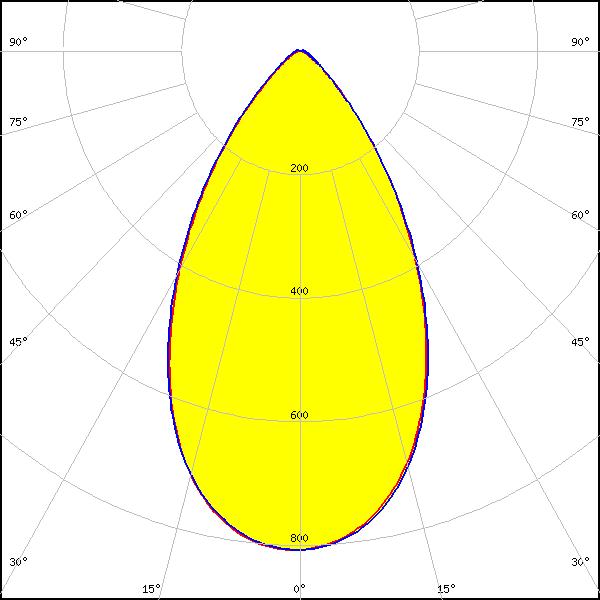

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 60°
    FWTM: 95°
    Peak intensity: 0.808 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

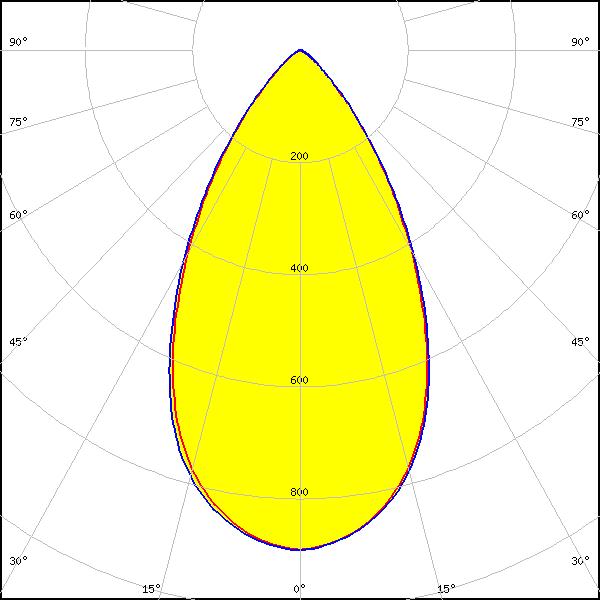

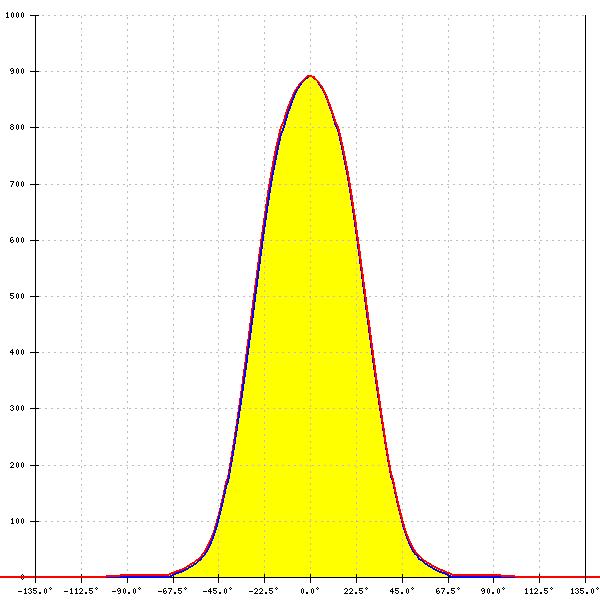

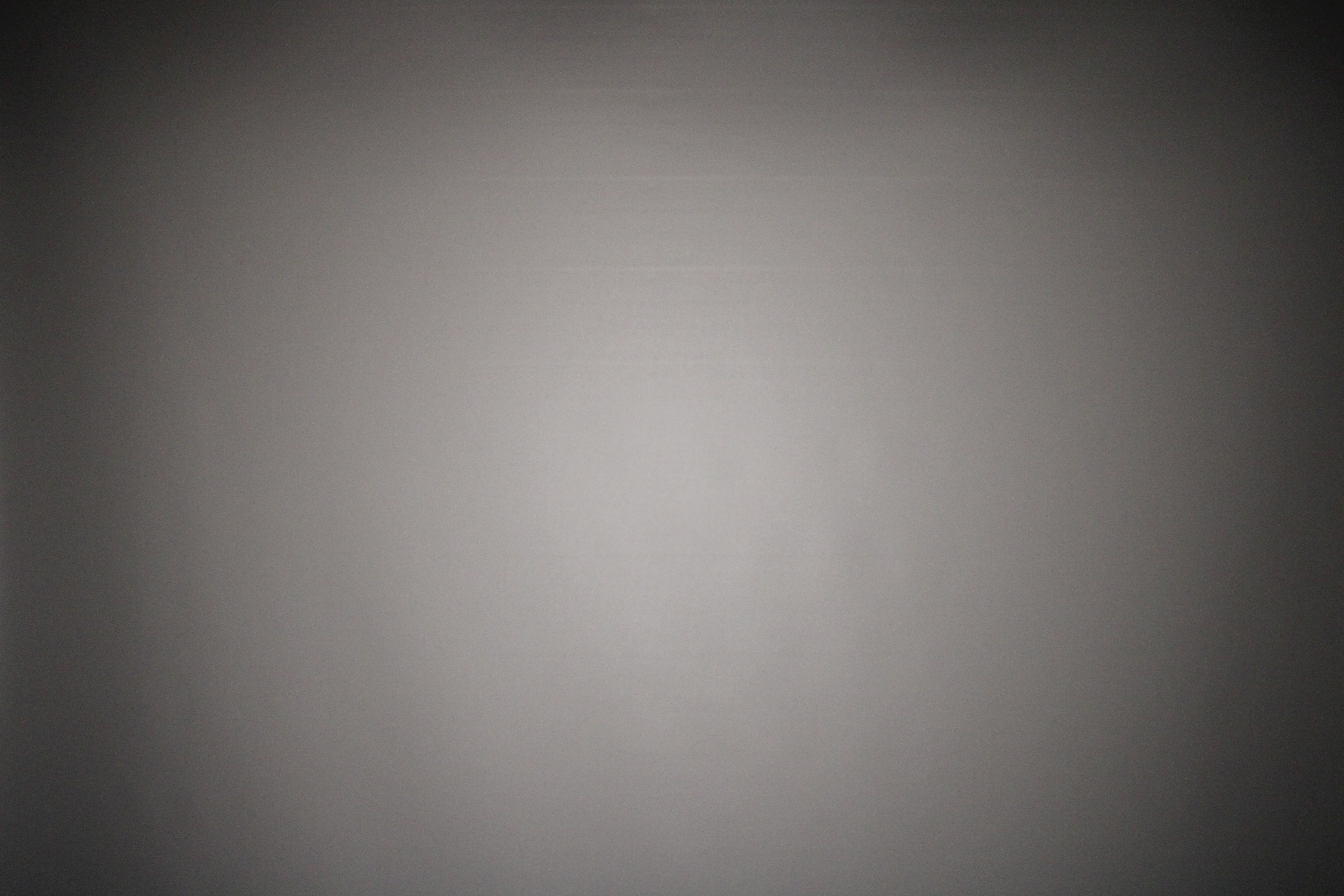

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.859 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

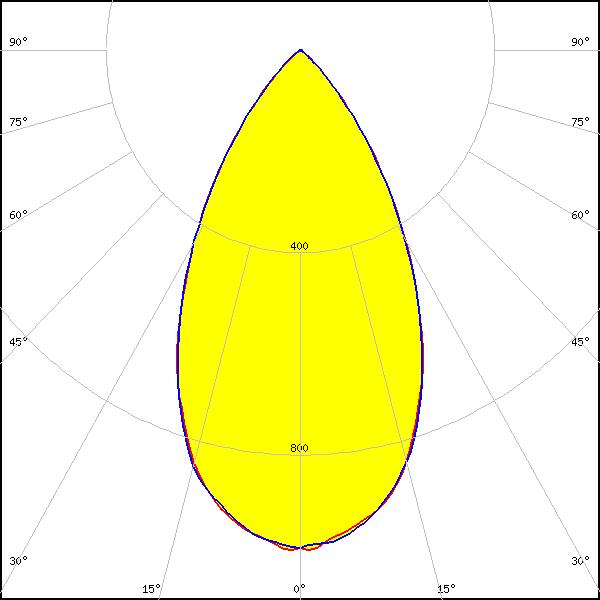

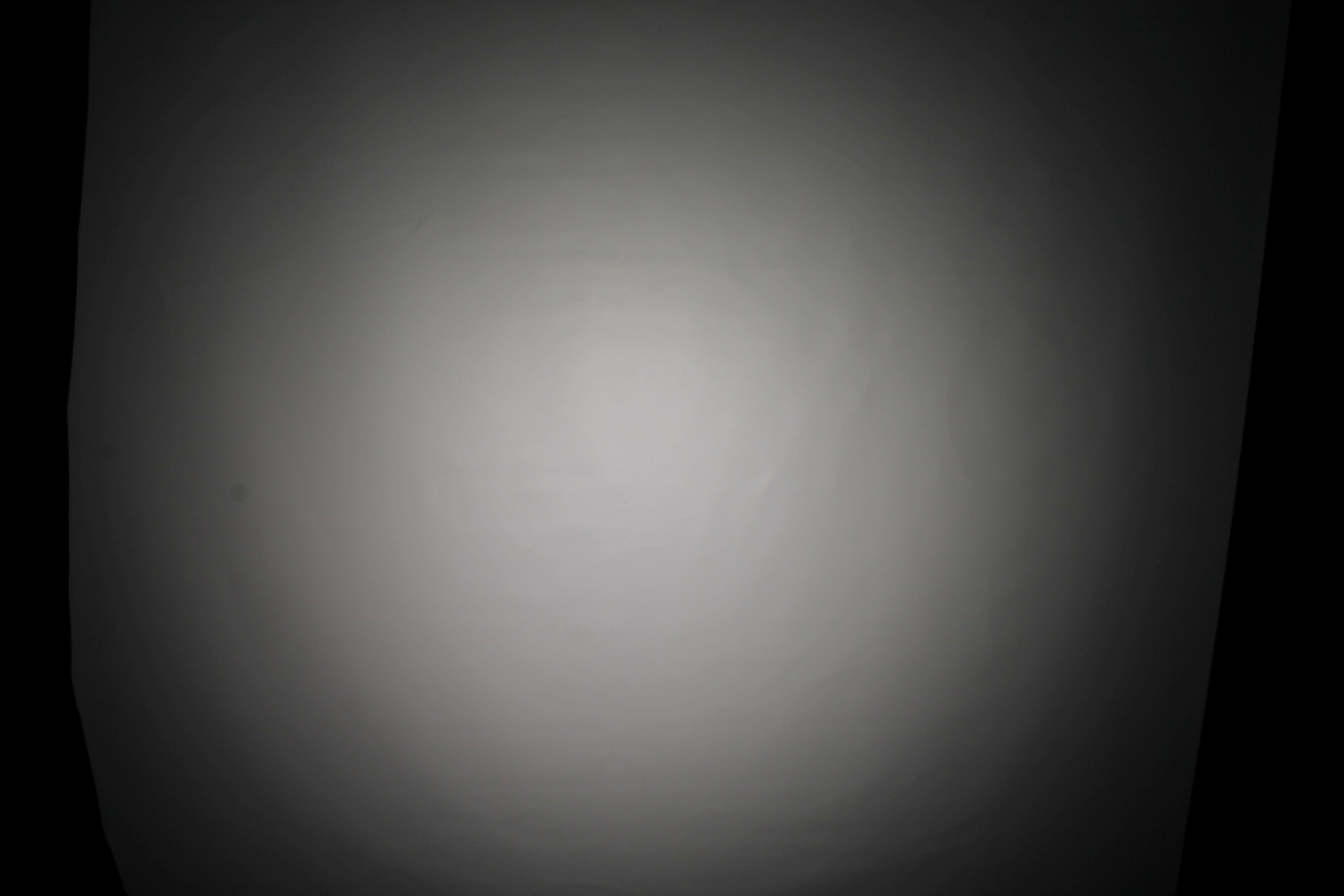

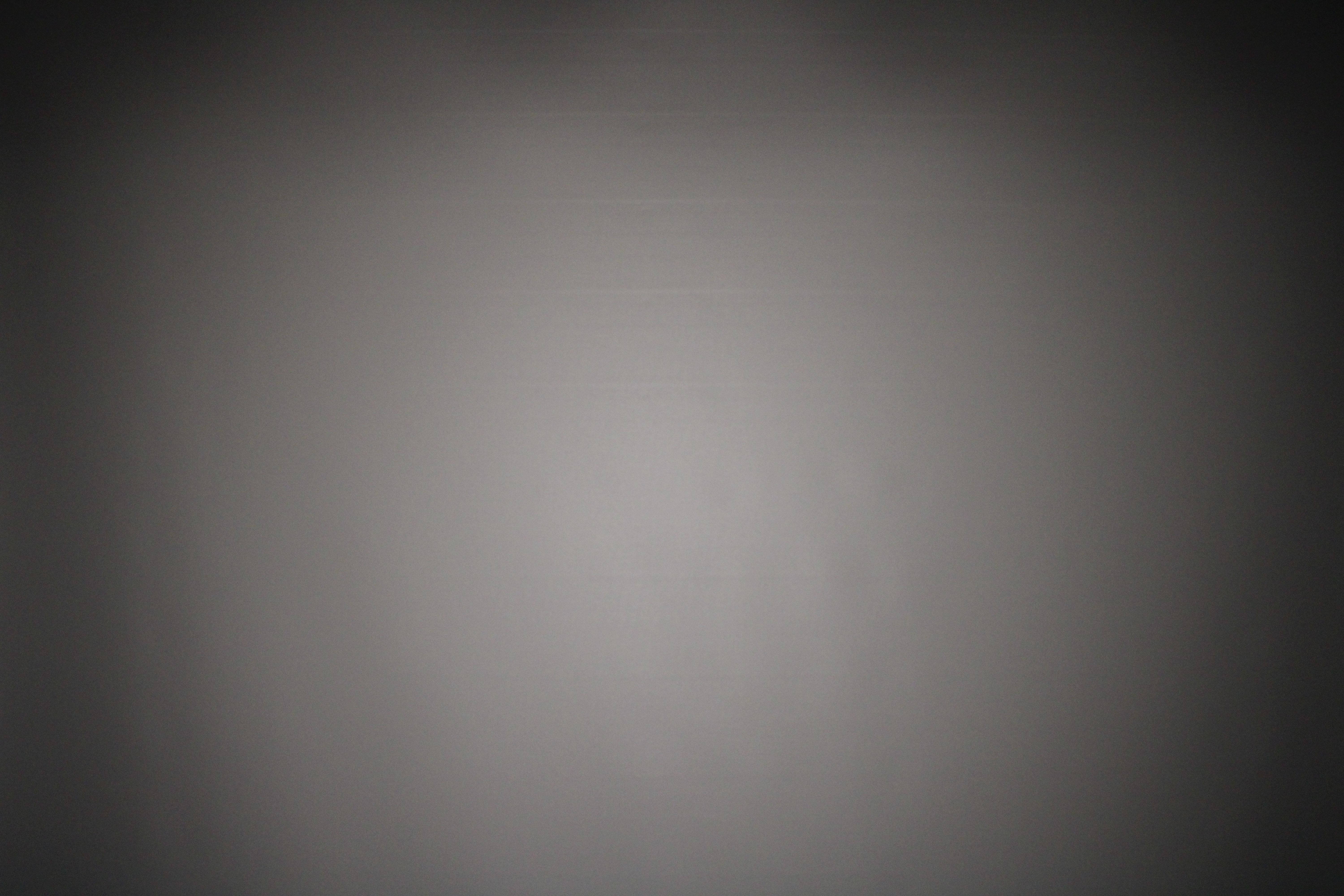

    LED: LIGHT ENGINE DAISY 28 LEDs 277.5mm x 20mm
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.843 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

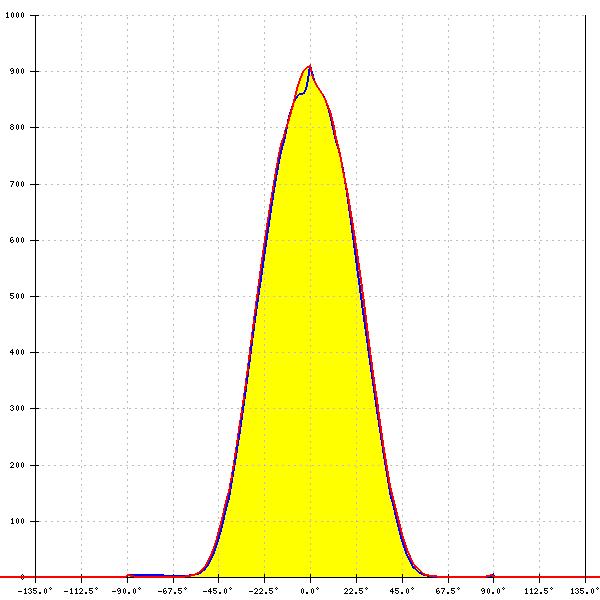

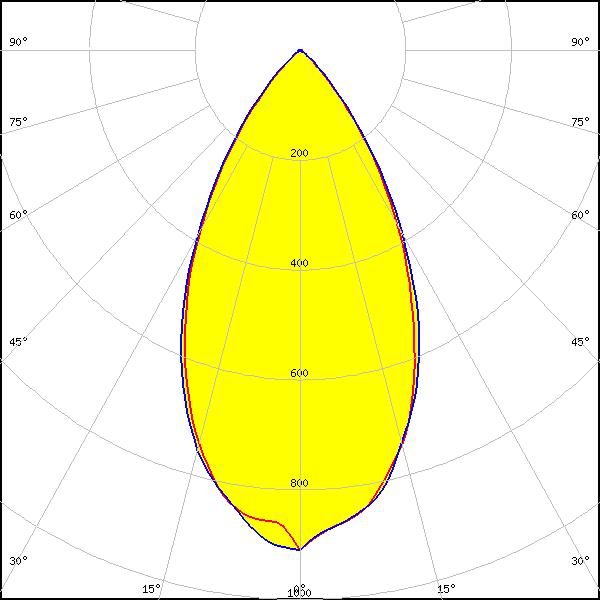

    LED: J Series 2835
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 56°
    FWTM: 88°
    Peak intensity: 0.910 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White

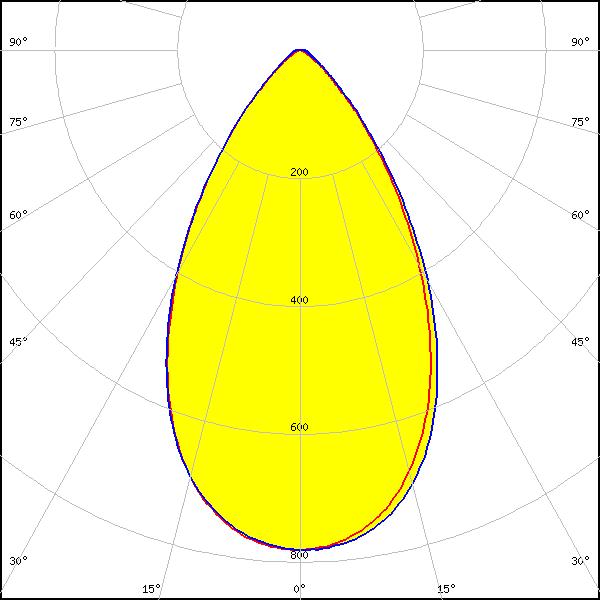

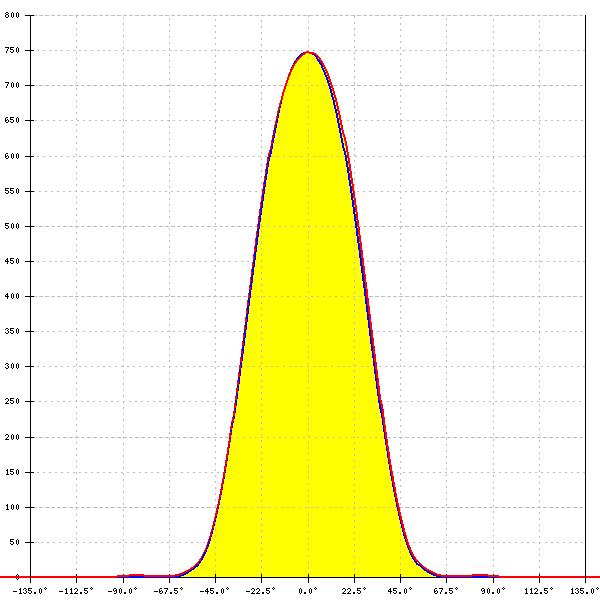

    LED: PL-LIN-2000 280x24mm
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 59°
    FWTM: 91°
    Peak intensity: 0.748 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 4
    Light colour/type: White

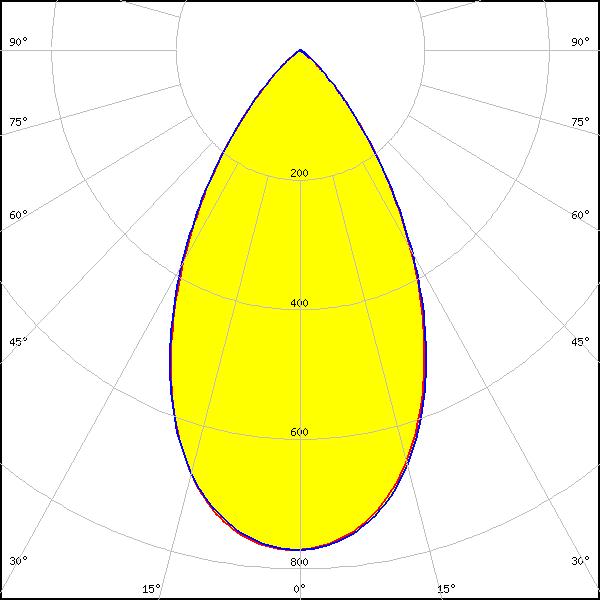

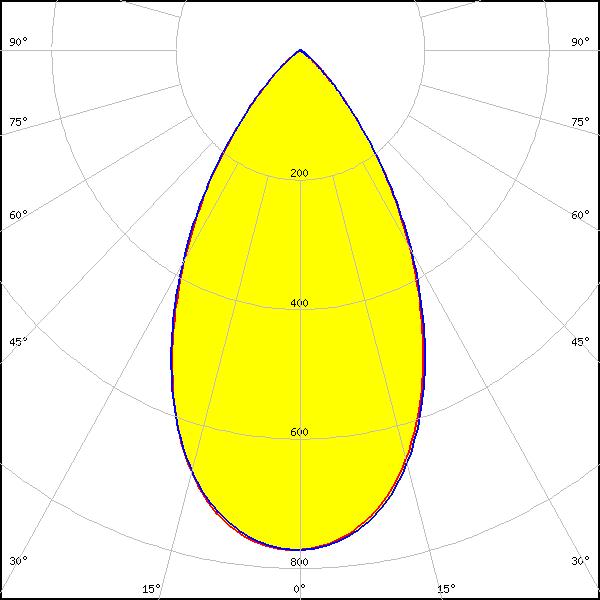

    LED: LUXEON 2835 Line
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 59°
    FWTM: 91°
    Peak intensity: 0.772 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White

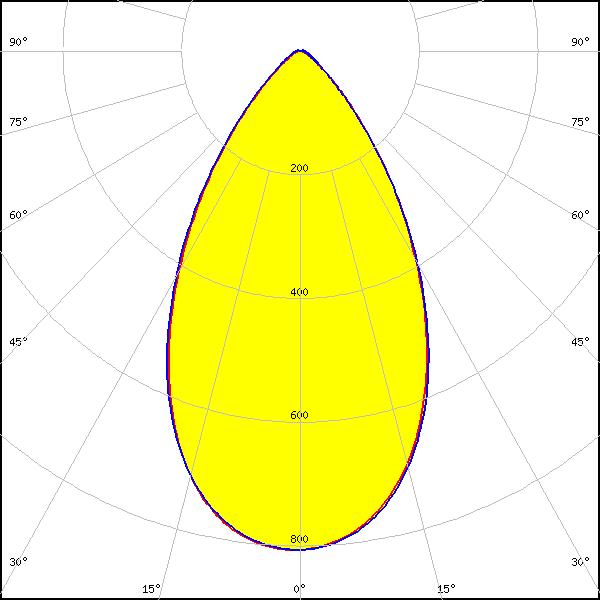

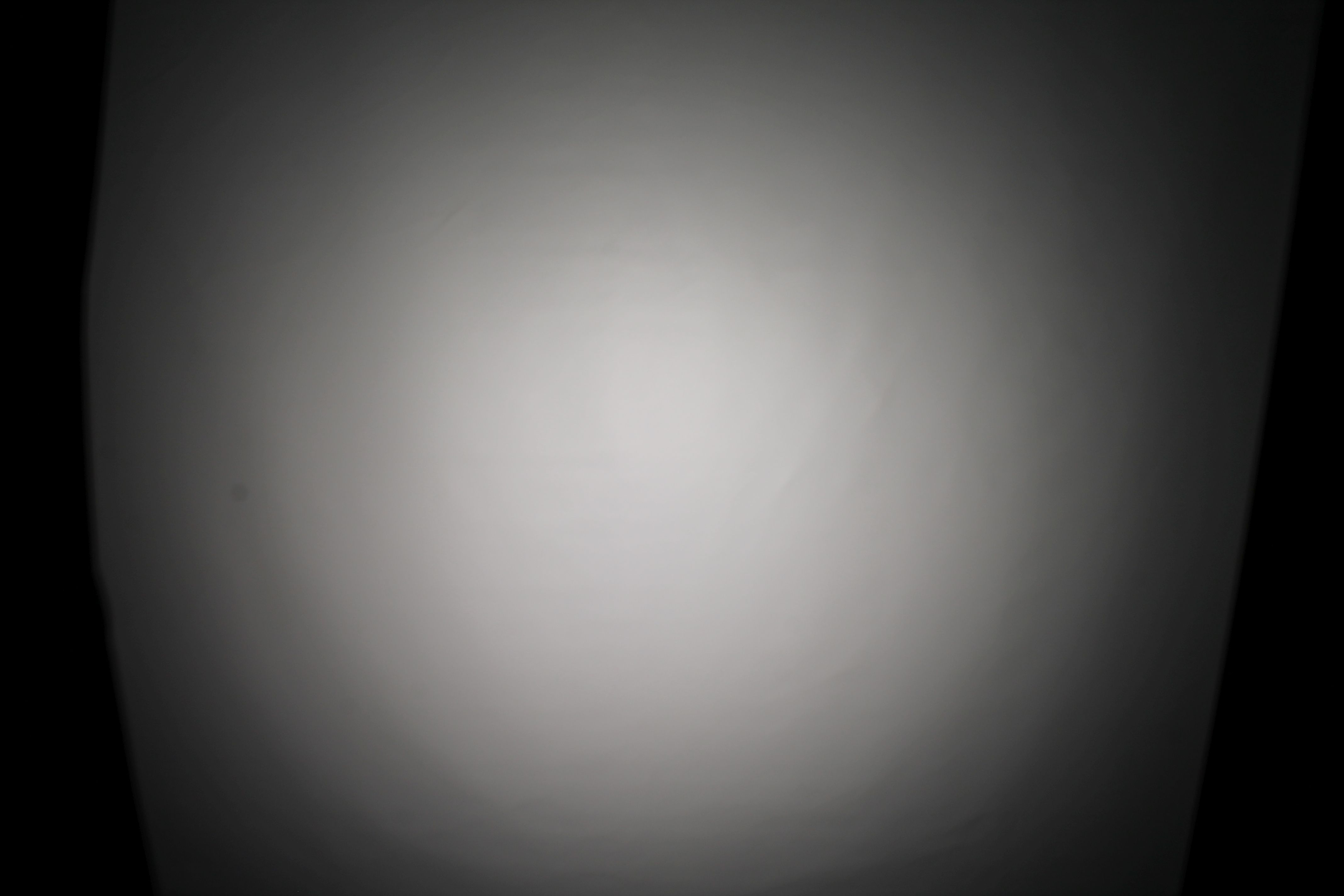

    LED: LUXEON 2835 Line
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 60°
    FWTM: 96°
    Peak intensity: 0.807 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LUXEON 2835 Line
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 91°
    Peak intensity: 0.772 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White

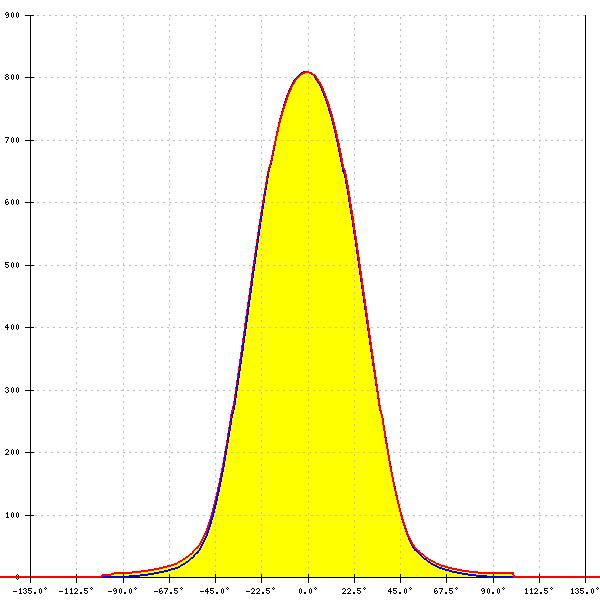

    LED: LUXEON 2835 Line
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 60°
    FWTM: 96°
    Peak intensity: 0.808 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

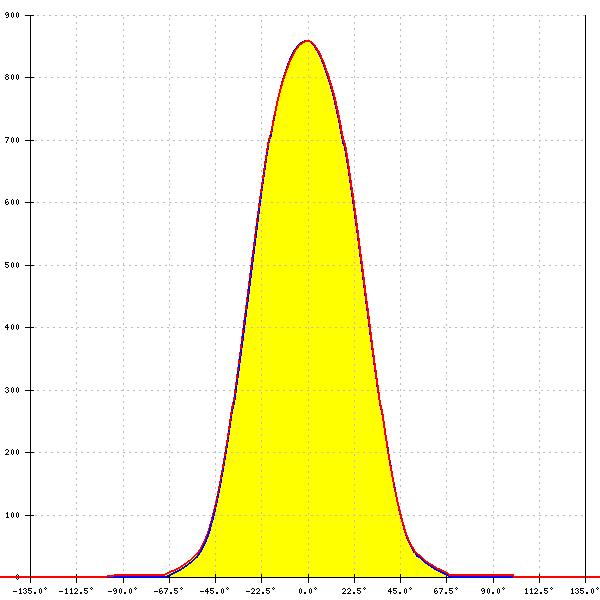

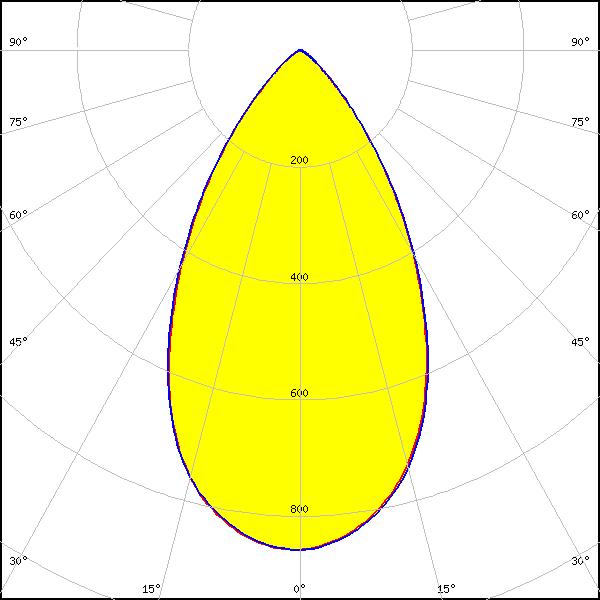

    LED: LUXEON 2835 Line
    Required components:
    C17532_DAISY-7X1-SHD-MET
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.859 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

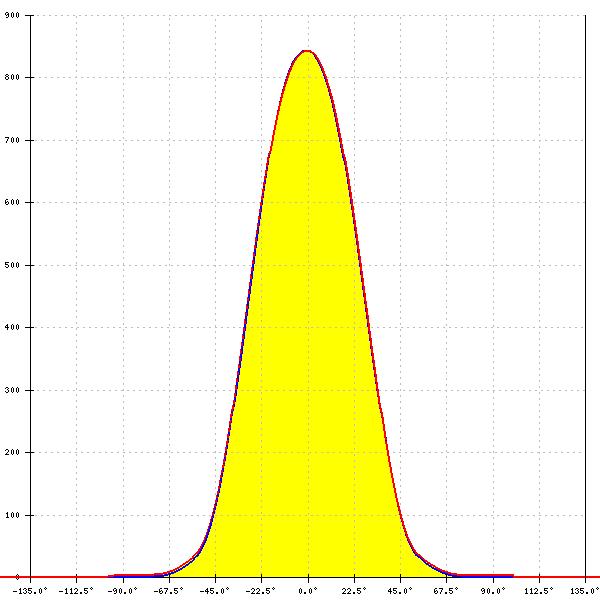

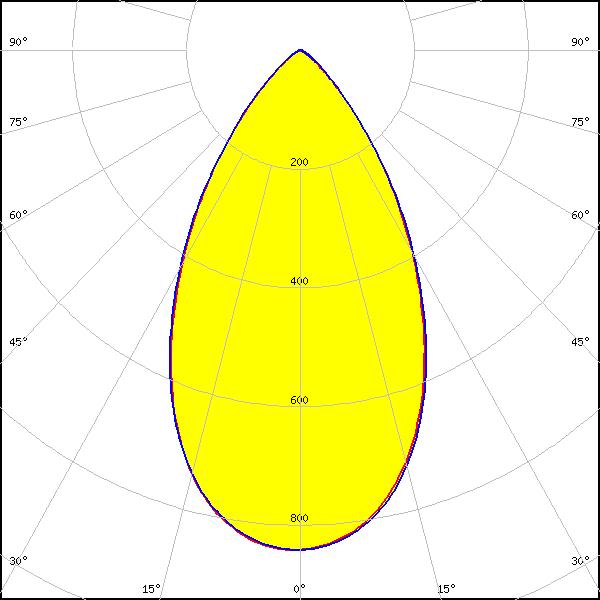

    LED: LUXEON 2835 Line
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.843 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 59°
    FWTM: 92°
    Peak intensity: 0.753 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 61°
    FWTM: 97°
    Peak intensity: 0.785 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 59°
    FWTM: 92°
    Peak intensity: 0.746 cd/lm
    Efficiency: 73 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 60°
    FWTM: 97°
    Peak intensity: 0.783 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 60°
    FWTM: 94°
    Peak intensity: 0.835 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 280x28mm 1100lm 8x0 2C 42V DAISY-7X1 G1
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 59°
    FWTM: 95°
    Peak intensity: 0.822 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 4
    Light colour/type: White

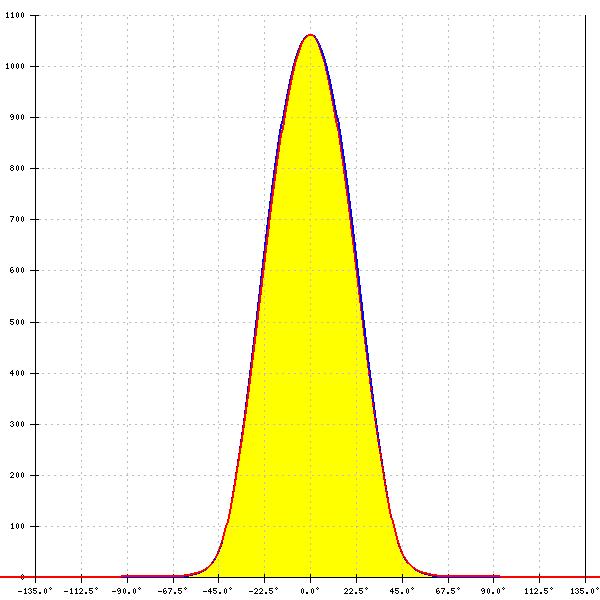

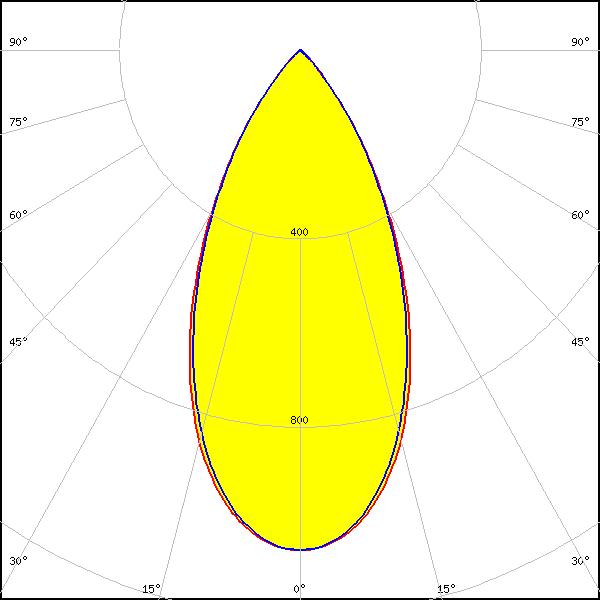

    LED: LinLED 280x28mm 1600lm 840 4C 21V DAISY 7x1(ZT25)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 51°
    FWTM: 81°
    Peak intensity: 1.062 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

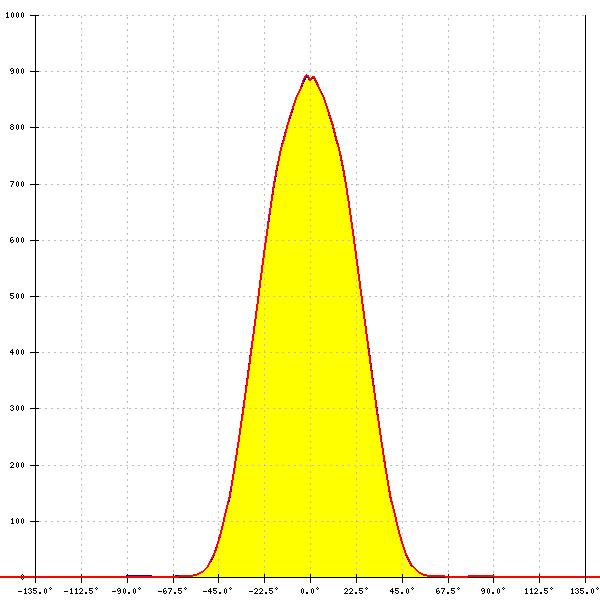

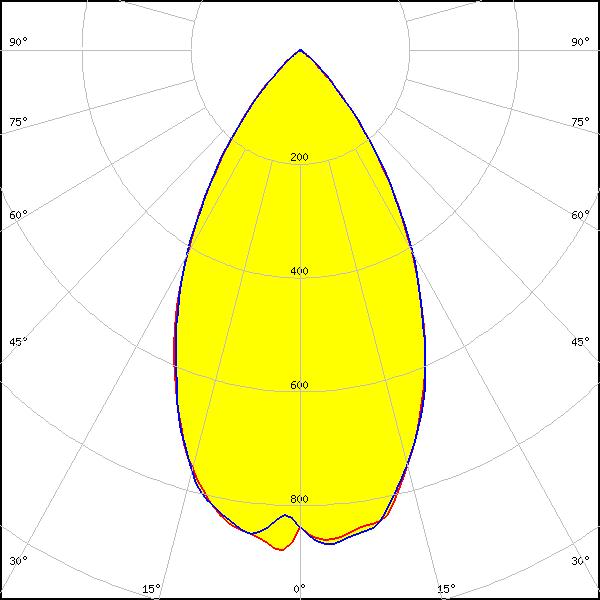

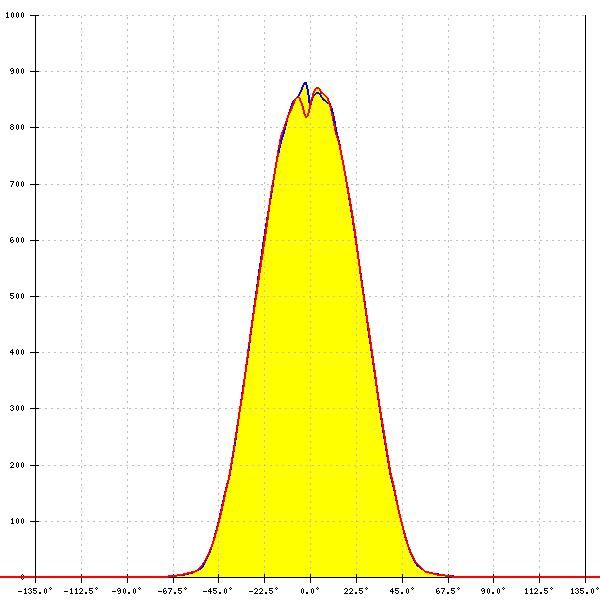

    LED: Duris E 2835
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 91°
    Peak intensity: 0.893 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 4
    Light colour/type: White

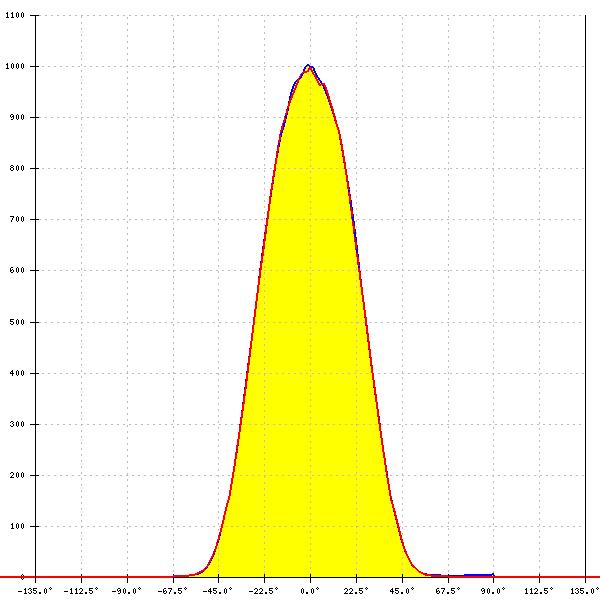

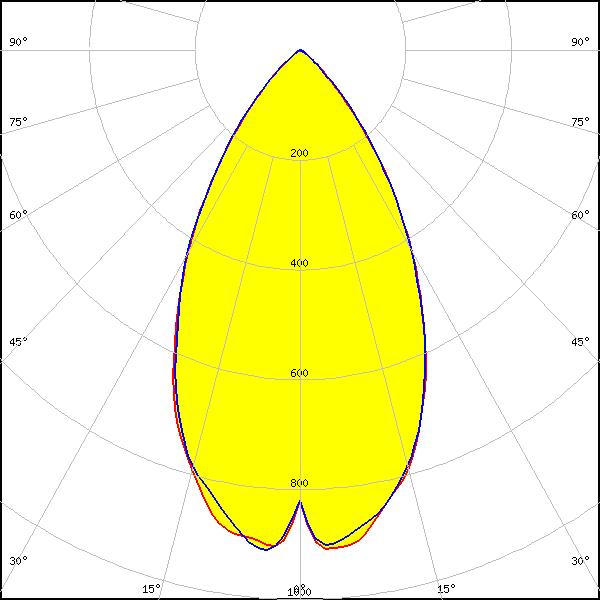

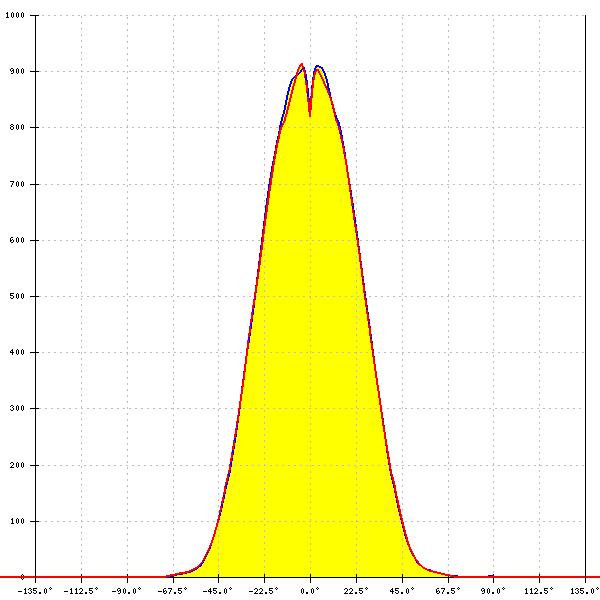

    LED: Duris E 2835
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 58°
    FWTM: 92°
    Peak intensity: 0.922 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 4
    Light colour/type: White

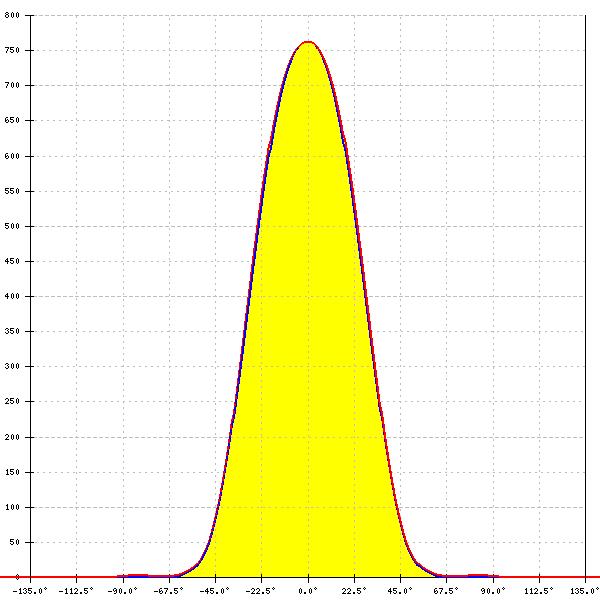

    LED: OSCONIQ E 2835
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 91°
    Peak intensity: 0.762 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White

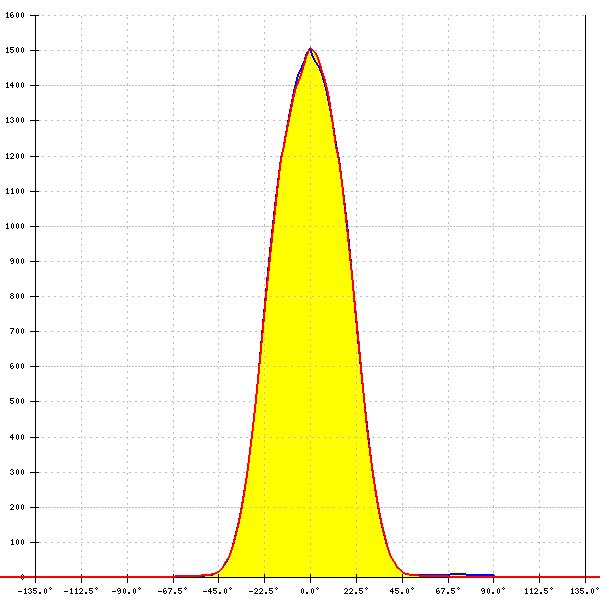

    LED: OSLON PURE 1010
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 44°
    FWTM: 70°
    Peak intensity: 1.515 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White

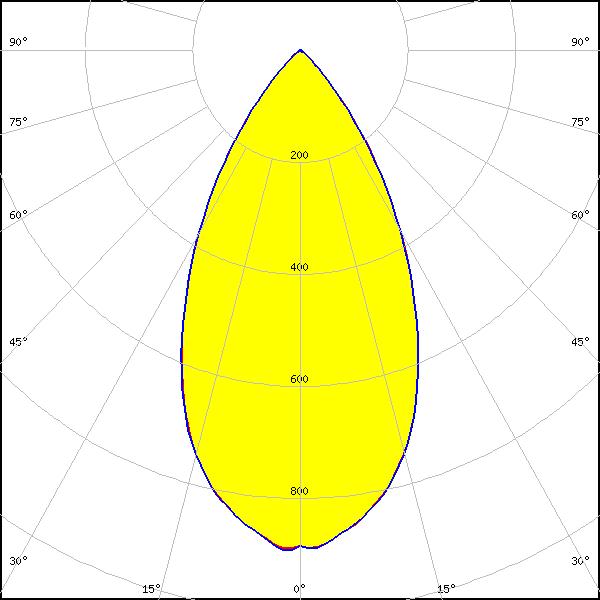

    LED: LM301Z Plus
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 54°
    FWTM: 86°
    Peak intensity: 0.896 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White

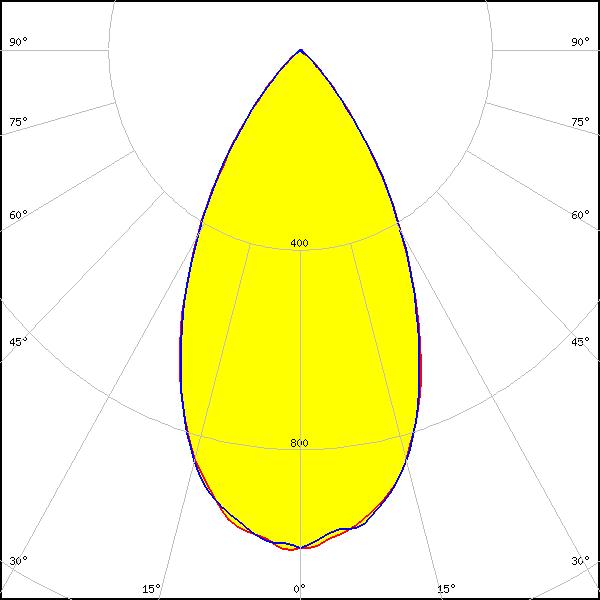

    LED: LM301Z Plus
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 55°
    FWTM: 86°
    Peak intensity: 1.008 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LM301Z Plus
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 56°
    FWTM: 86°
    Peak intensity: 1.041 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 3
    Light colour/type: White

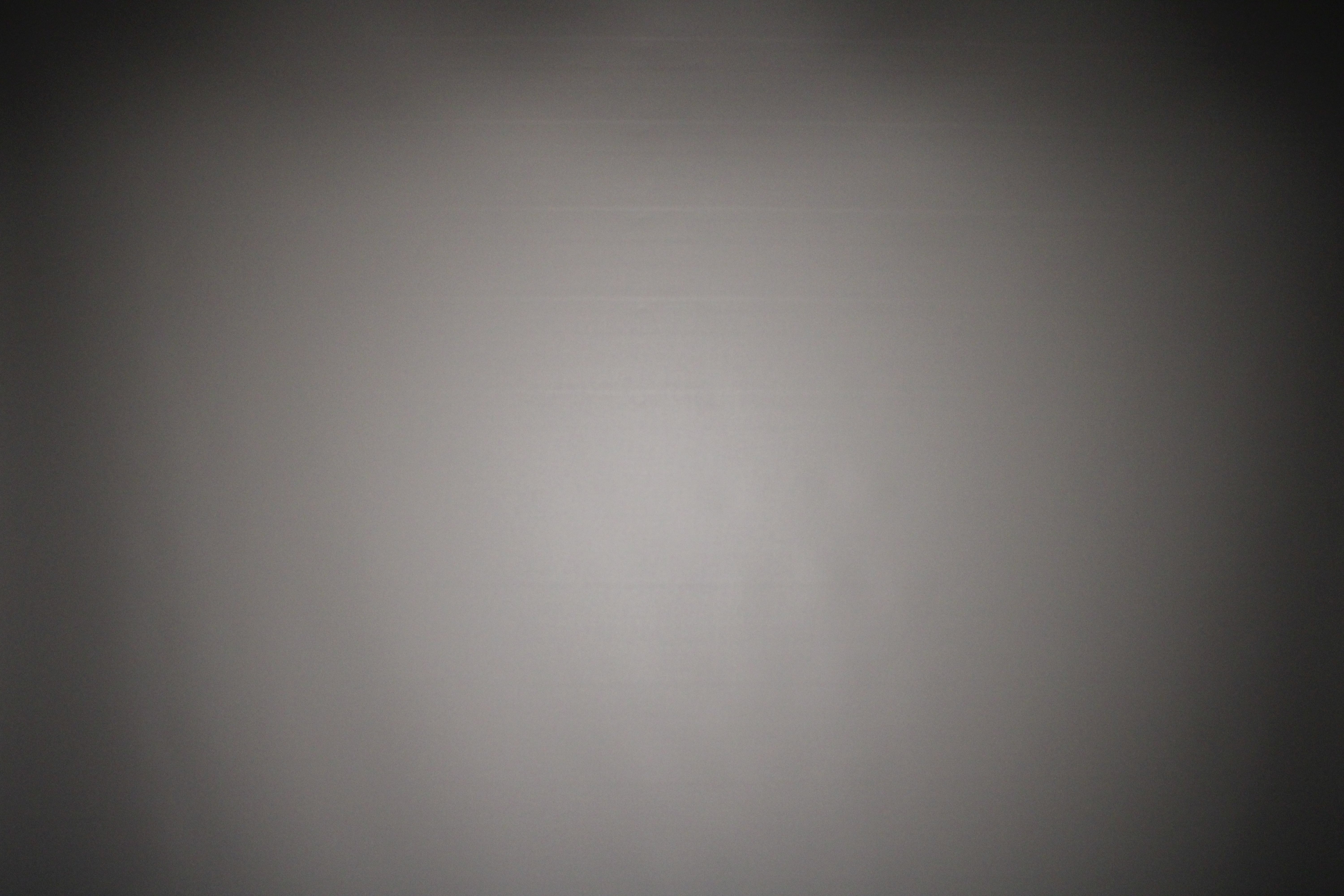

    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 58°
    FWTM: 90°
    Peak intensity: 0.807 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 59°
    FWTM: 94°
    Peak intensity: 0.841 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 58°
    FWTM: 90°
    Peak intensity: 0.807 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White

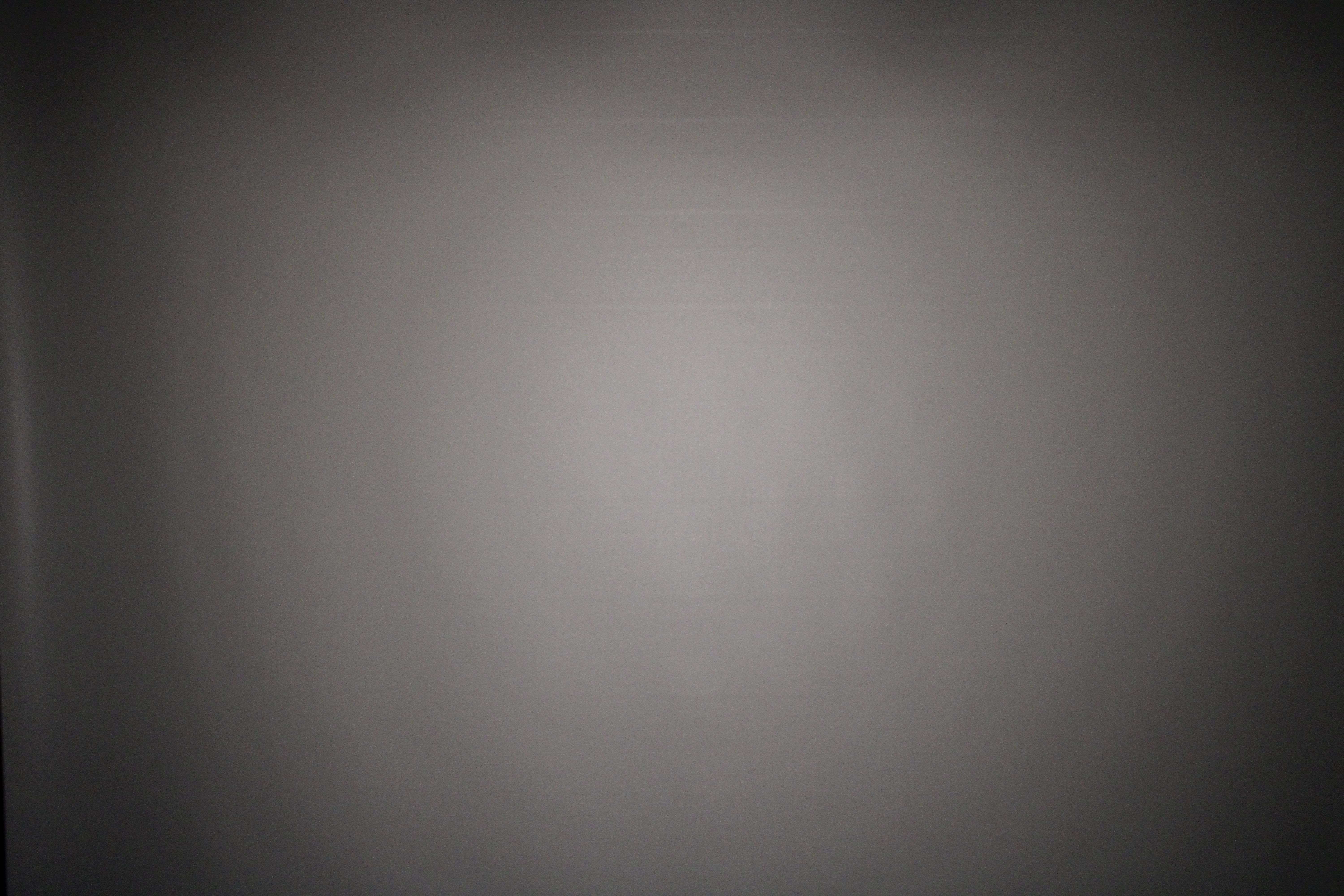

    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 59°
    FWTM: 95°
    Peak intensity: 0.841 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C18167_DAISY-7X1-SHD-MET
    FWHM: 58°
    FWTM: 92°
    Peak intensity: 0.892 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 4
    Light colour/type: White

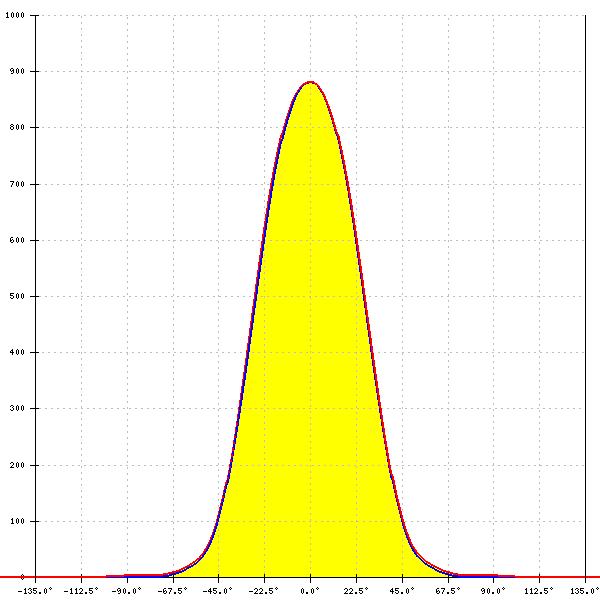

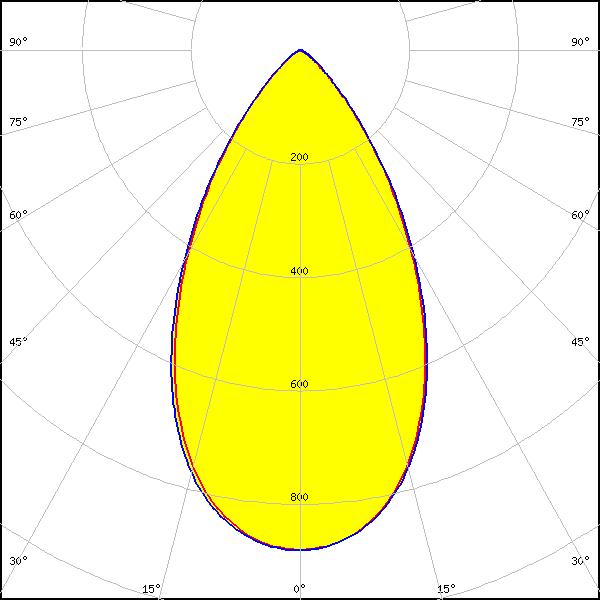

    LED: LED-St-L28W2c4-xxx-C015-55 (DAISY-7x1)
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 58°
    FWTM: 93°
    Peak intensity: 0.882 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

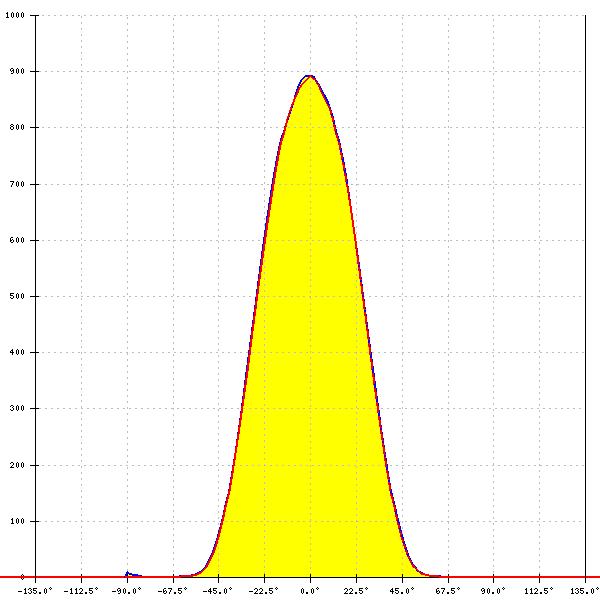

    LED: SEOUL DC 3030C
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 56°
    FWTM: 88°
    Peak intensity: 0.901 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour/type: White

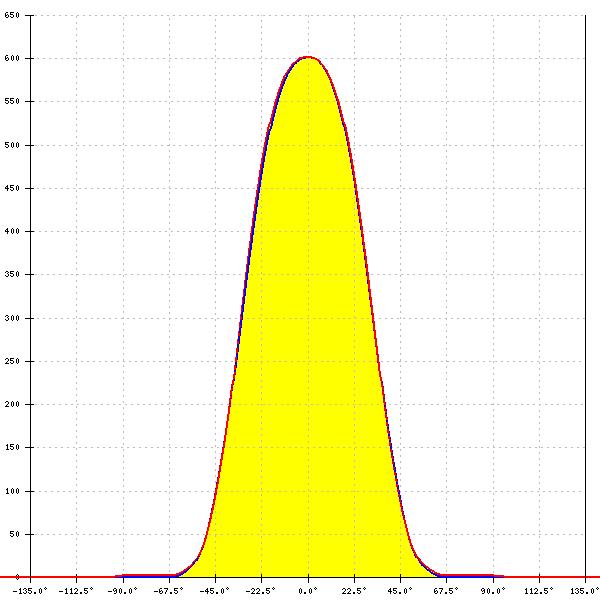

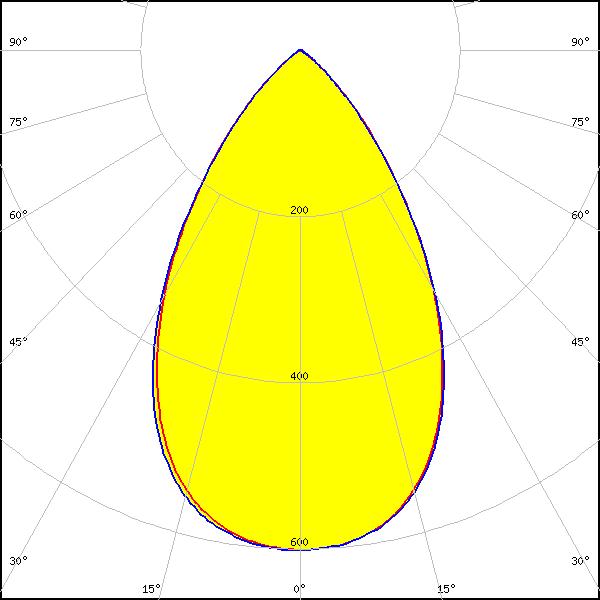

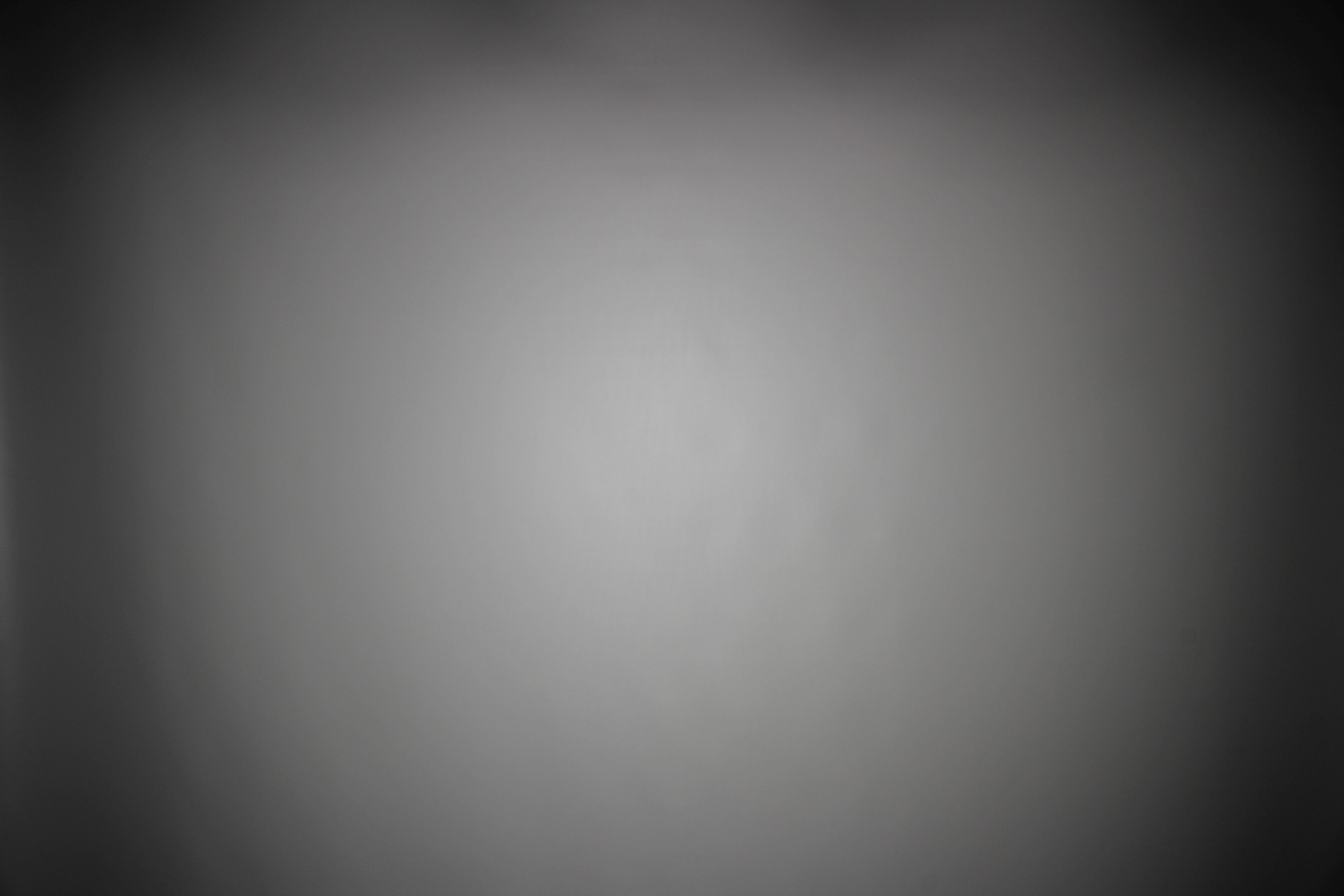

    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.602 cd/lm
    Efficiency: 70 %
    LEDs/each optic: 1
    Light colour/type: White

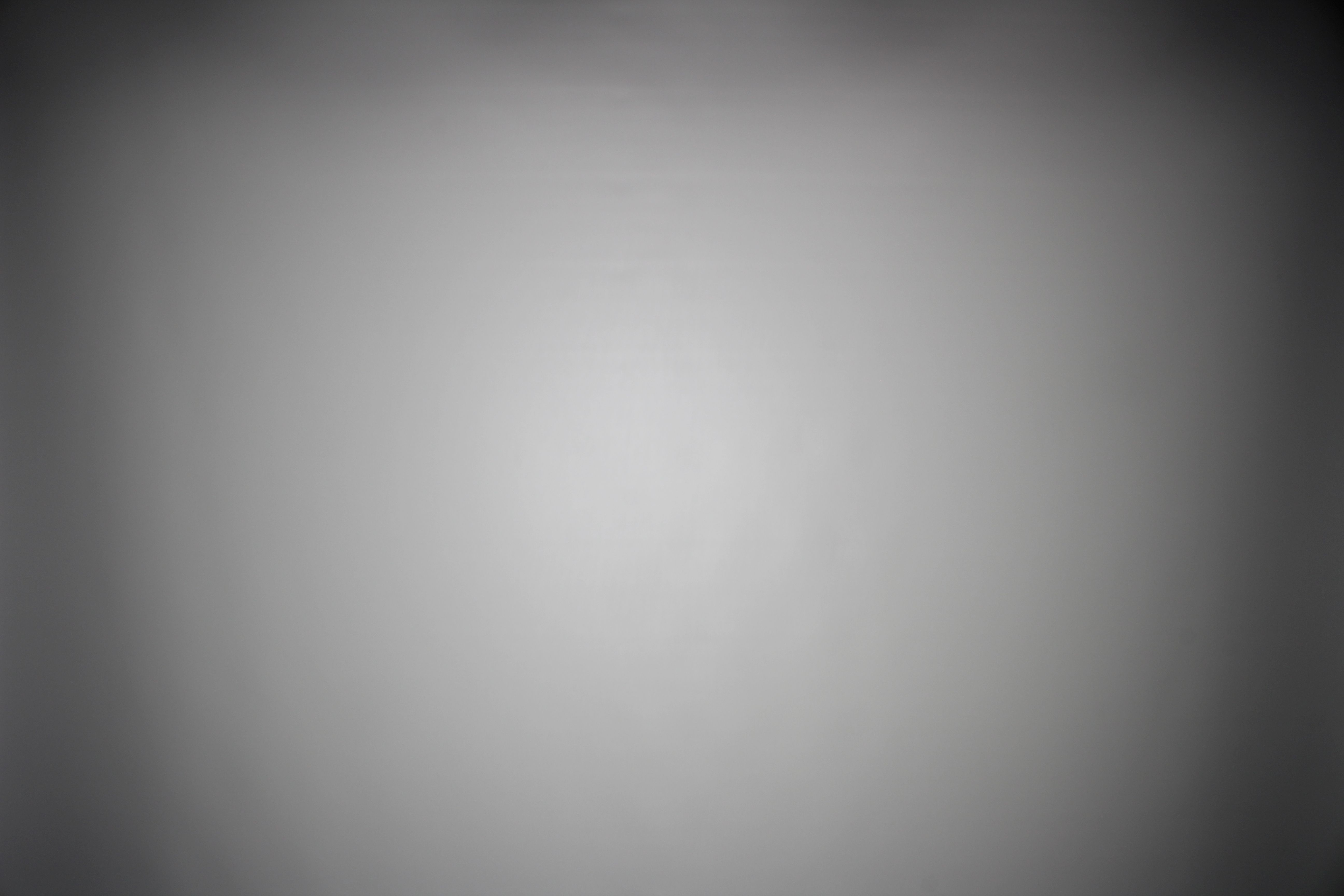

    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 66°
    FWTM: 103°
    Peak intensity: 0.650 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 64°
    FWTM: 96°
    Peak intensity: 0.603 cd/lm
    Efficiency: 69 %
    LEDs/each optic: 1
    Light colour/type: White

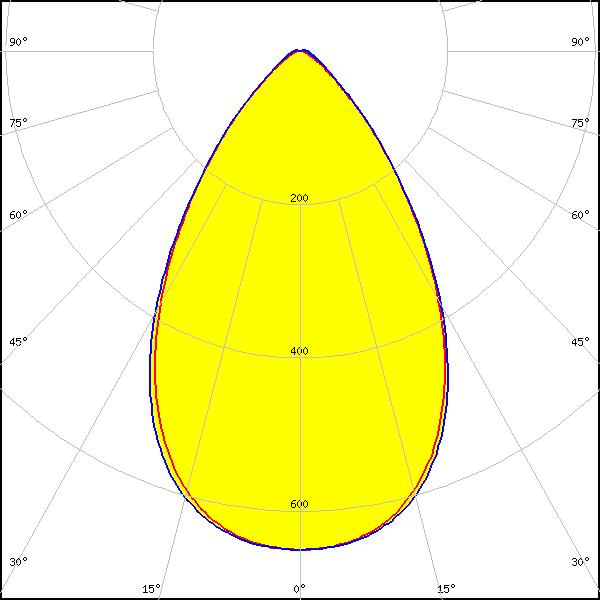

    LED: PassivePAQ-L-1F35-SSA3-2.7K-840-3-DC
    Required components:
    C17225_DAISY-7X1-SHD-WHT-MATT
    FWHM: 66°
    FWTM: 103°
    Peak intensity: 0.651 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C17533_DAISY-7X1-SHD-MET-MATT
    FWHM: 56°
    FWTM: 88°
    Peak intensity: 0.992 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C16872_DAISY-7X1-SHD
    FWHM: 60°
    FWTM: 92°
    Peak intensity: 0.745 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 4
    Light colour/type: White

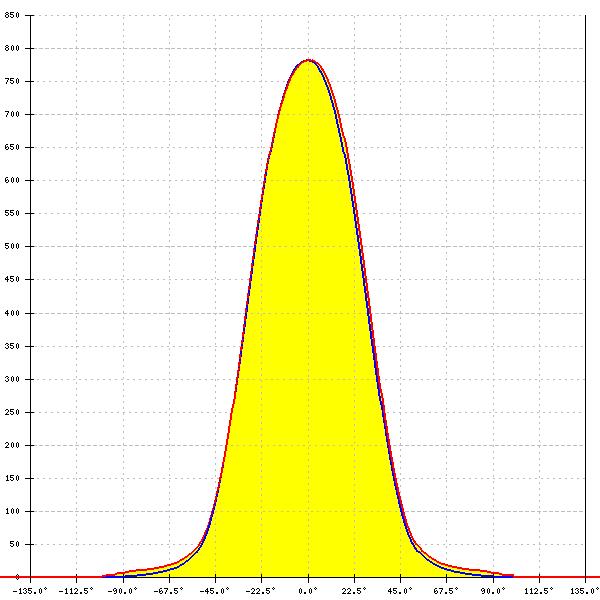

    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C16876_DAISY-7X1-SHD-WHT
    FWHM: 61°
    FWTM: 96°
    Peak intensity: 0.782 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LLE 24x280mm 750lm 8x0 LVD ADV1
    Required components:
    C17051_DAISY-7X1-SHD-MATT
    FWHM: 60°
    FWTM: 92°
    Peak intensity: 0.747 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 4
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
