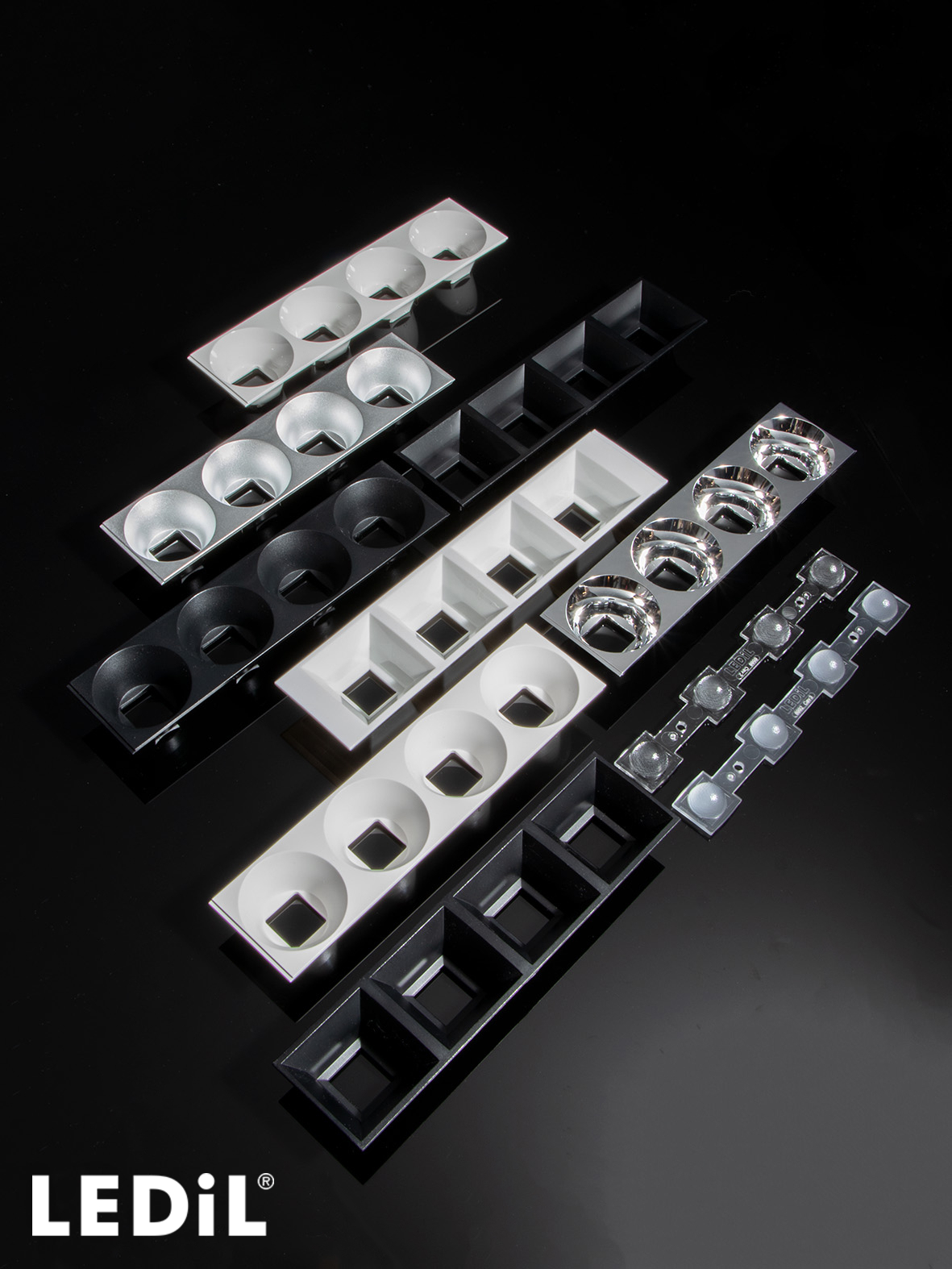

    DAISY-4X1-WW-D

    Print

    ~80° wide beam. Variant with diffused lenses.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      182 x  40 mm
    • Height:
      20.20 mm
    • Fastening:
      pin, screw, clips
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Linear lens
      1 pcs
    • Shade
      1 pcs
    • Linear lens
    • C16993_DAISY-4X1-WW-D
      milky
    • Quantity in box:
      504 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.60 kg
    • MPQ:
      21 pcs
    • MOQ:
      336 pcs
    • MOQ Size:
      480 x 280 x 220 mm
    • MOQ Weight:
      3.90 kg
    • Shade
    • C16590_DAISY-4X1-SHD
      black,gloss
    • C16784_DAISY-4X1-SHD-WHT
      white,gloss
    • C17422_DAISY-4X1-SHD2-MATT
      black,matt
    • C17423_DAISY-4X1-SHD2-WHT-MATT
      white,matt
    • C18407_DAISY-4X1-SHD-MET
      metal,gloss
    • C18411_DAISY-4X1-SHD2-MET-MATT
      metal,matt
    • C18412_DAISY-4X1-SHD2-MET
      metal,gloss
    • C18414_DAISY-4X1-SHD-MET-MATT
      metal,matt
    • C19075_DAISY-4X1-SHD2
      black,gloss
    • Quantity in box:
      168 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      4.90 kg
    • MPQ:
      42 pcs
    • MOQ:
      336 pcs
    • MOQ Size:
      480 x 280 x 300 mm
    • MOQ Weight:
      9.80 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C16993_DAISY-4X1-WW-D
      C16590_DAISY-4X1-SHD
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    NOTE! See 2D mechanical drawings for SHD and SHD2 differences.

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    LEDiL’s elegant Dark Light optic DAISY is a perfect solution for premium class office lighting

    Luminaire, example

    Troffer luminaire with DAISY-4X1

    PCN

    Product change notification NR159 - Change of product ordering method in Daisy family

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    News

    New products – May, 2023

    PCN

    Product change notification NR191 - Additional PC material approved

    News

    New products – January, 2023

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Reference product

    serio-HITOS pendant luminaire

    News

    New Products 2020-1-9

    Reference product

    Dazzle light office lighting

    Article

    Office luminaire examples from LEDiL

    Catalogue

    LEDiL Latest products catalogue

    Application guide

    LEDiL guide for retail lighting optics

    Application guide

    LEDiL guide for office lighting optics

    News

    The perfect office worker just got smaller, DAISY-MINI-FT-D

    News

    DAISY-MINI-3X1 – where modularity and flexibility meet

    News

    Meet the perfect office worker, DAISY-7X1-FT-D

    News

    The future of light is dark – LEDiL DAISY

    Application example

    Surface uniformity with DAISY-MINI-WWW-D

    Application example

    Wall-washing with DAISY-7X1-WAS

    News

    DAISY – the definitive LEDiL Dark Light family for indoor lighting

    Reference product

    BEA luminaire

    News

    DAISY diffused lenses

    News

    Effective fashion retail lighting

    News

    DAISY optics deliver elegant, human centric lighting

    Application example

    Retail lighting with DAISY and ILONA

    Article

    Understanding the standards but aiming higher

    News

    NEW PRODUCTS - 2018-11-23

    Article

    Invest in people invest in office lighting

    Article

    Stylish yet functional LED office lighting

    News

    DAISY – Brilliance without the glare

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

    Application area

    Retail Lighting

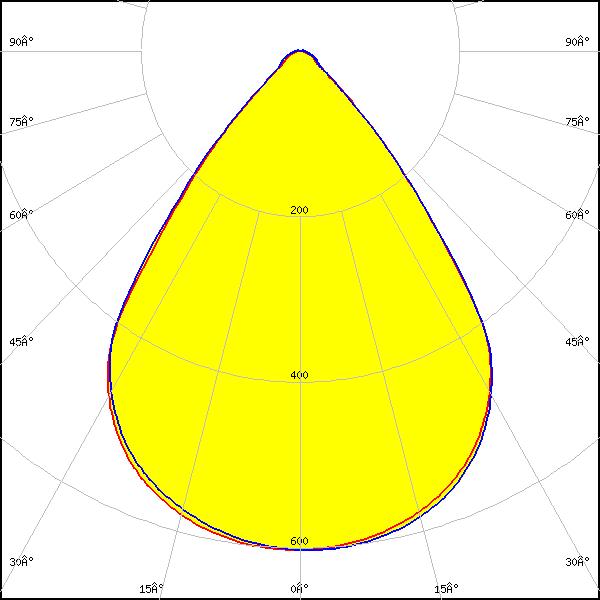

    Optical results

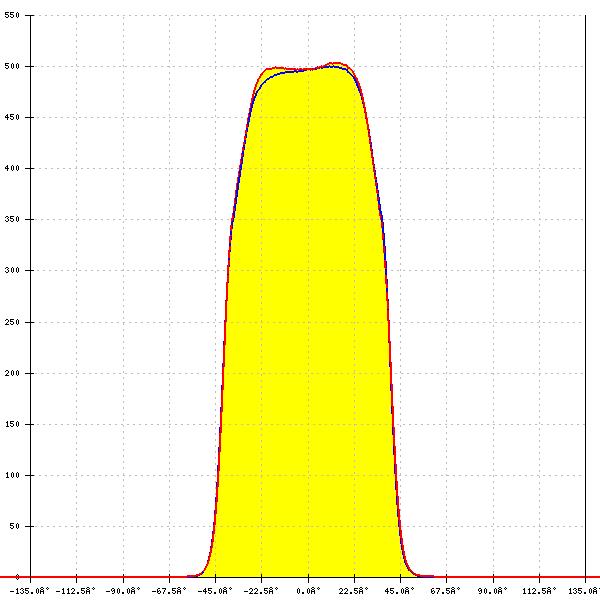

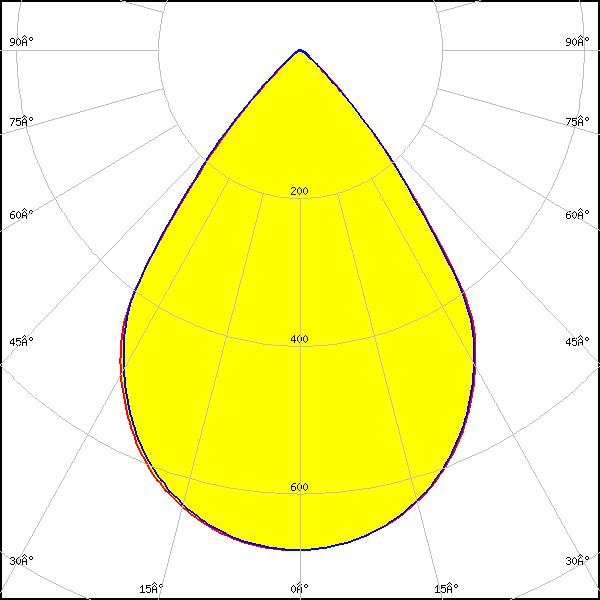

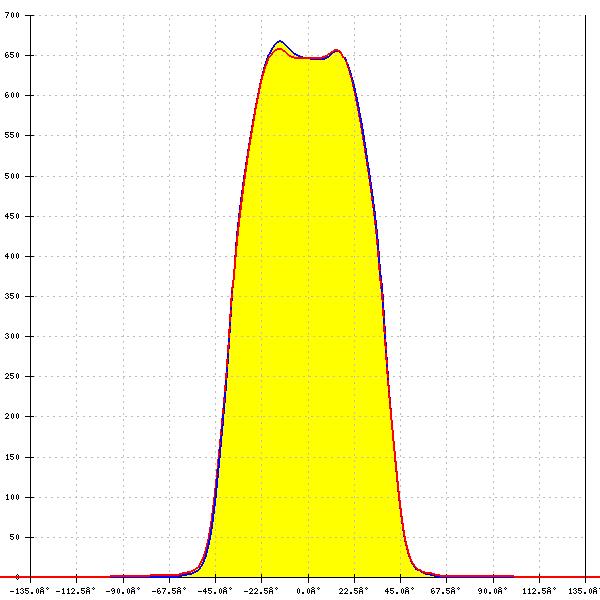

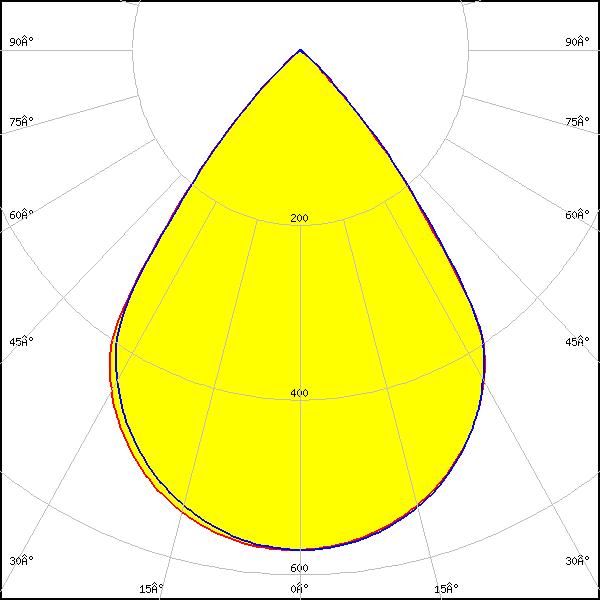

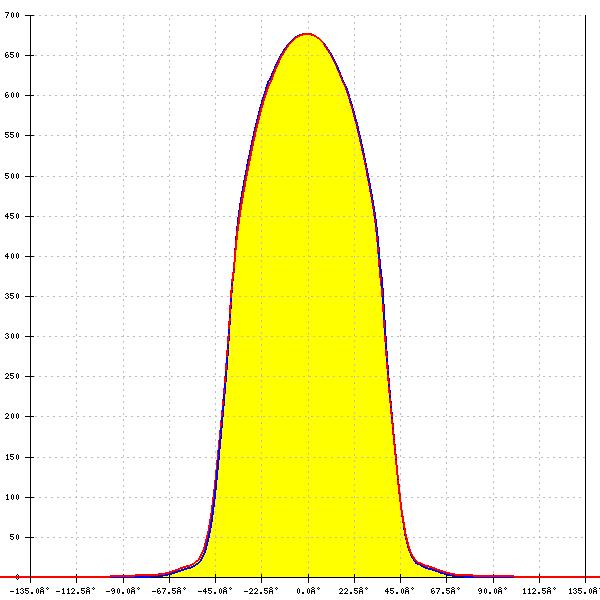

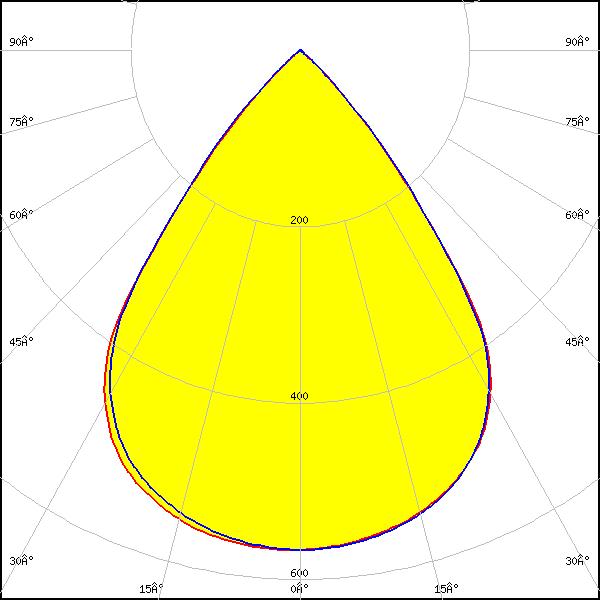

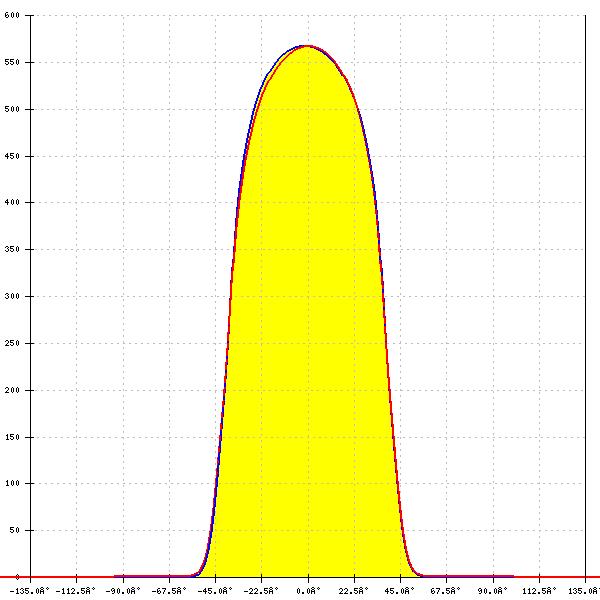

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 75°
    FWTM: 93°
    Peak intensity: 0.567 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 4
    Light colour/type: White

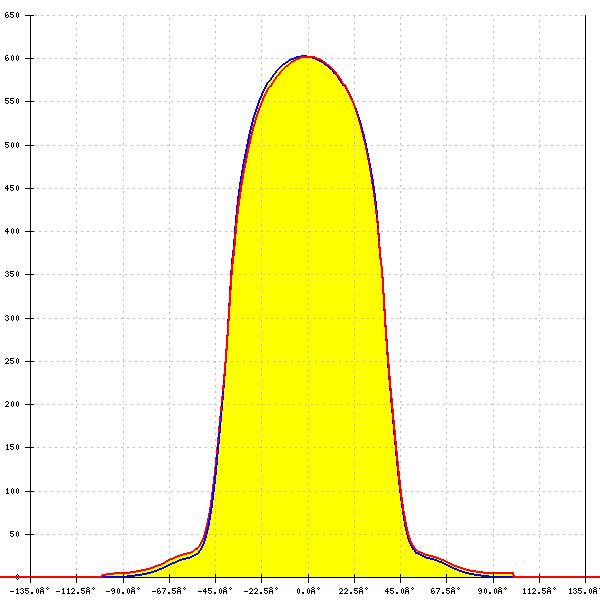

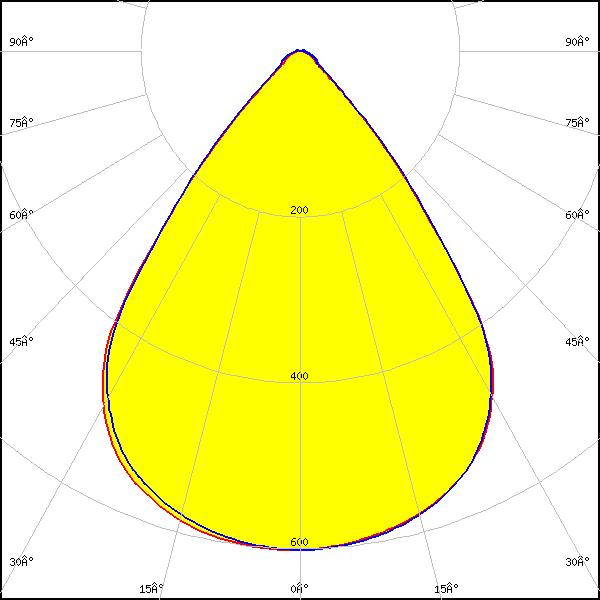

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 76°
    FWTM: 96°
    Peak intensity: 0.602 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White

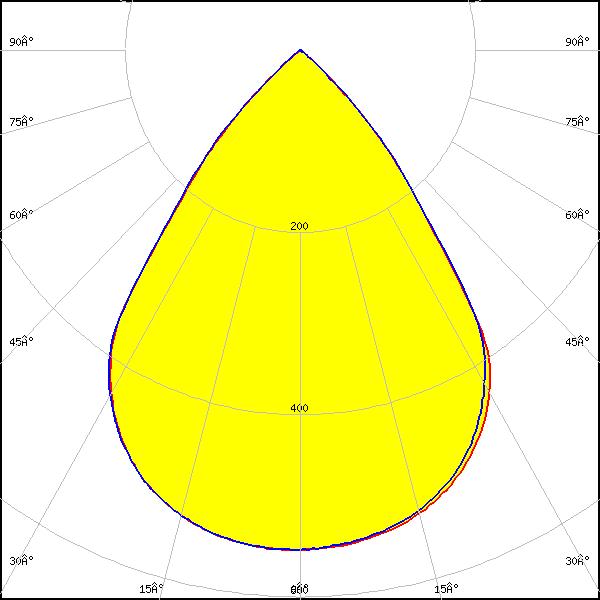

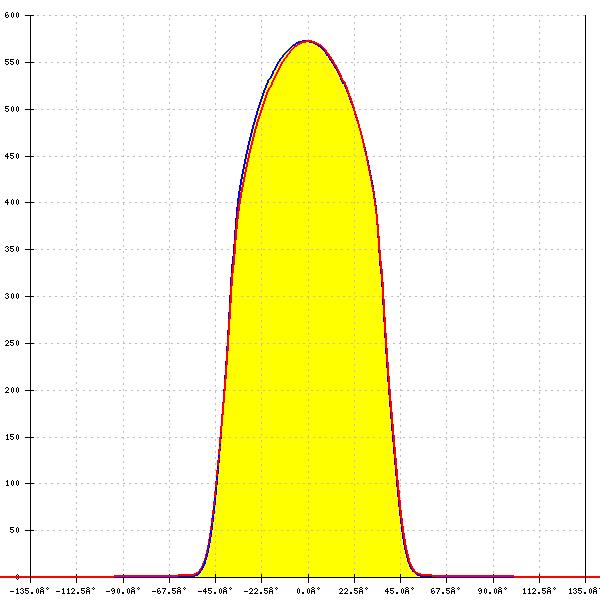

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 75°
    FWTM: 92°
    Peak intensity: 0.572 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour/type: White

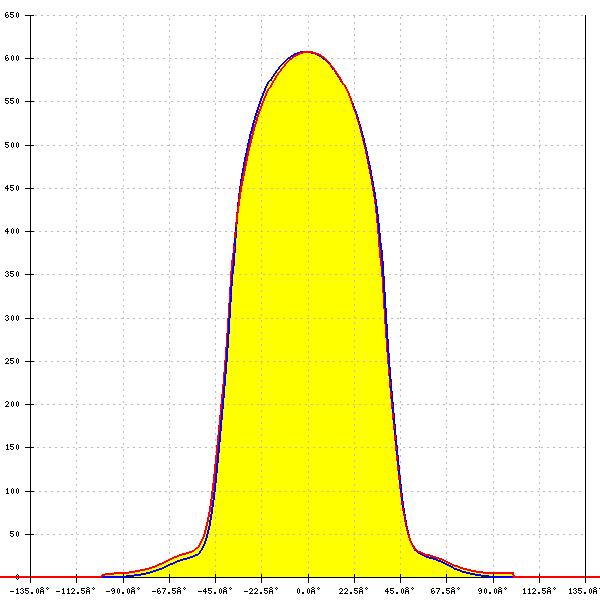

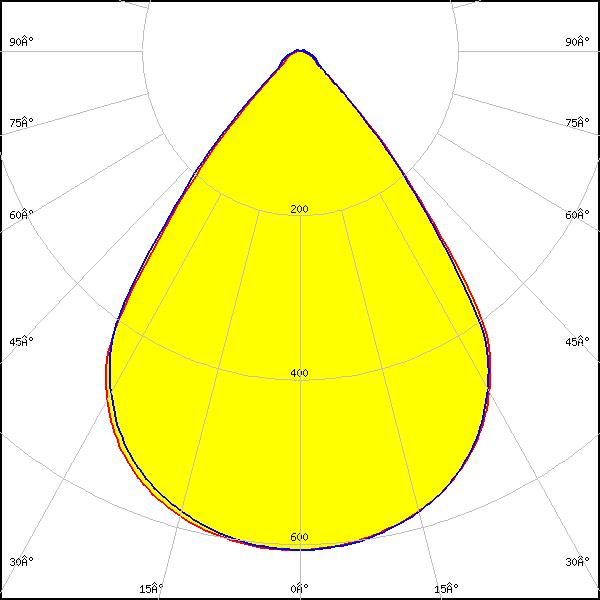

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 76°
    FWTM: 96°
    Peak intensity: 0.607 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White

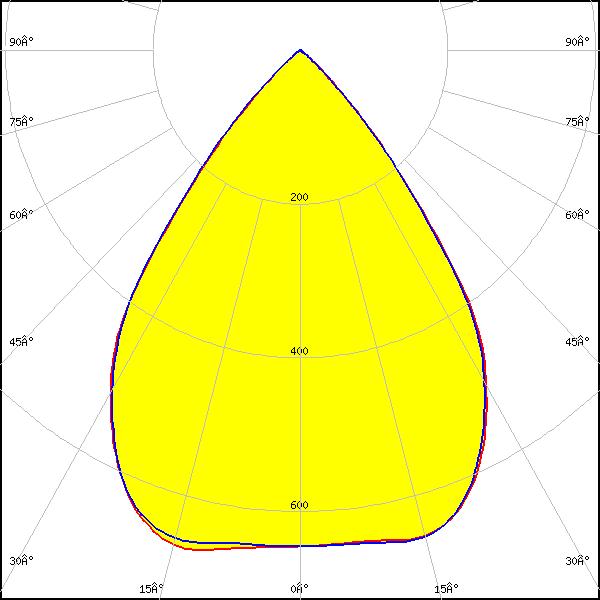

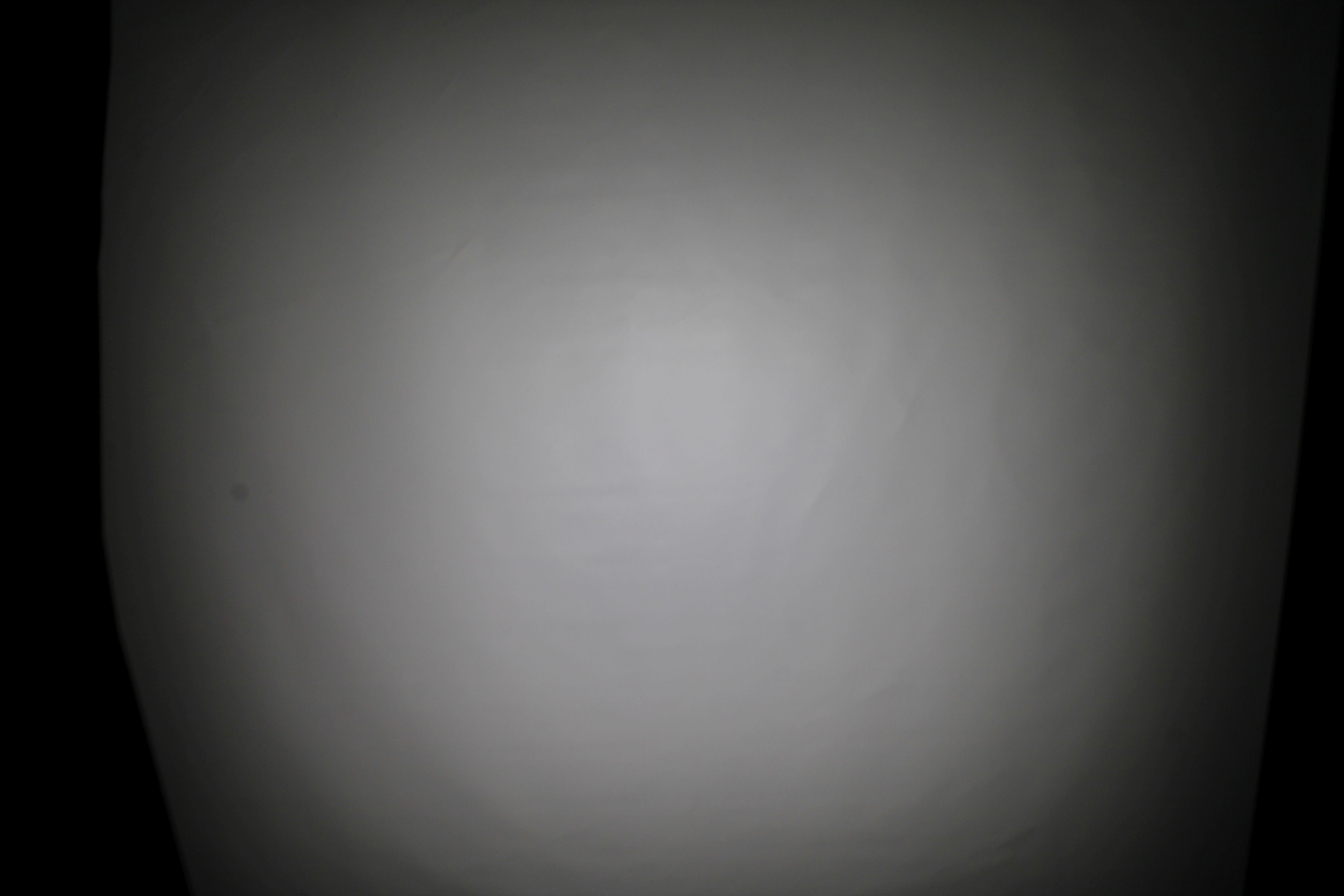

    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17528_DAISY-4X1-SHD-MET
    FWHM: 74°
    FWTM: 93°
    Peak intensity: 0.669 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
    Required components:
    C17535_DAISY-4X1-SHD2-MET-MATT
    FWHM: 74°
    FWTM: 94°
    Peak intensity: 0.676 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

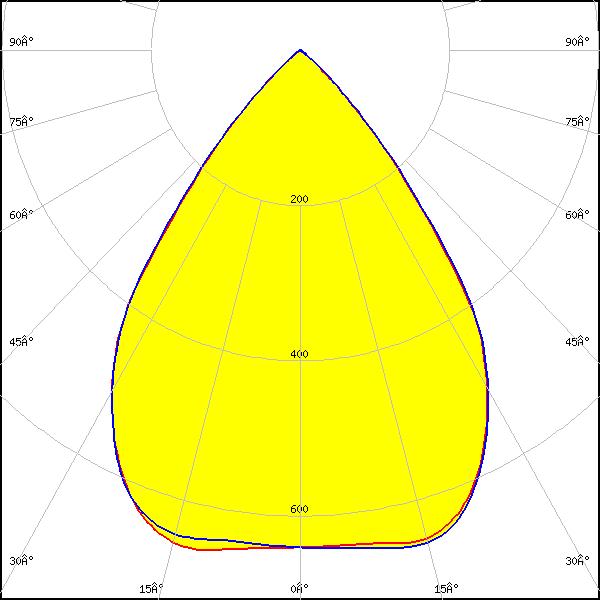

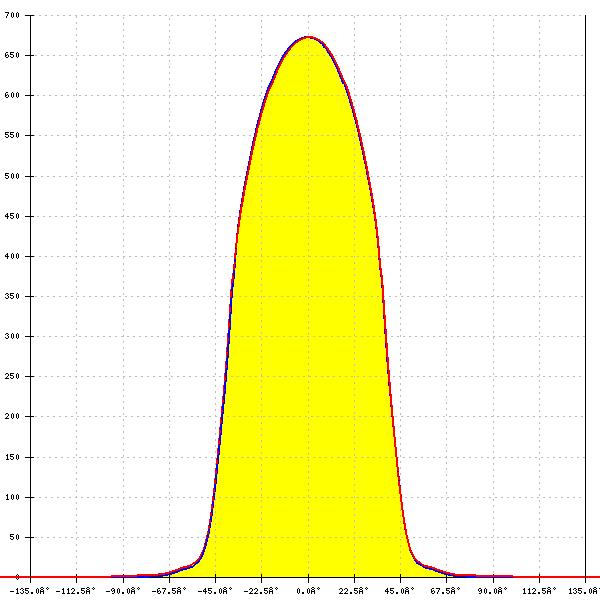

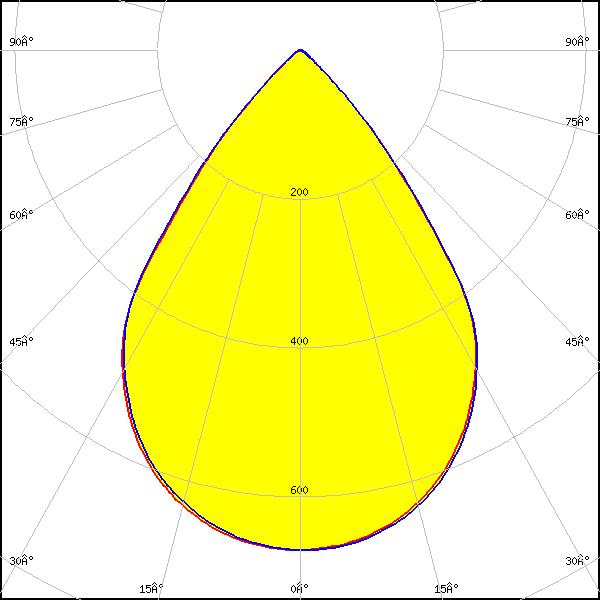

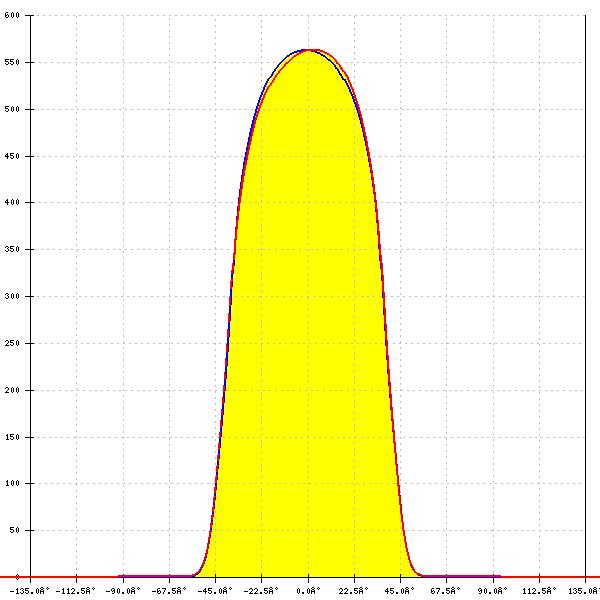

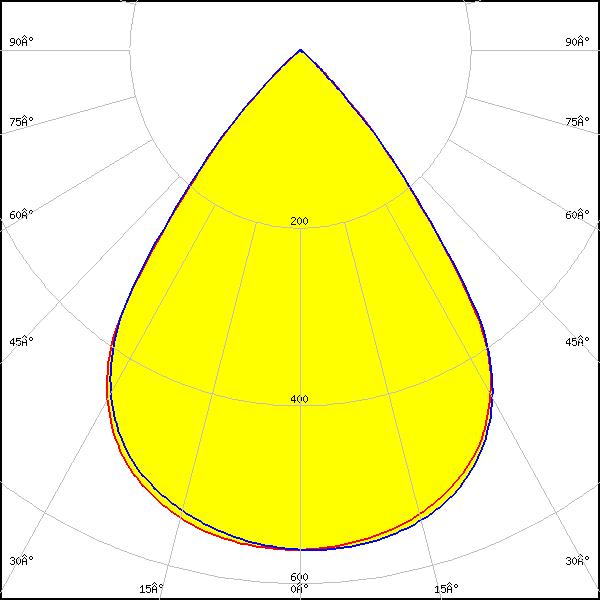

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 75° + 76°
    FWTM: 93° + 94°
    Peak intensity: 0.563 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

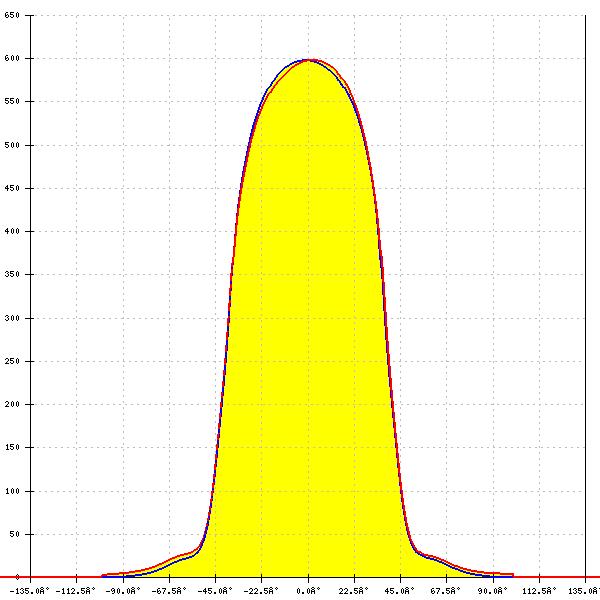

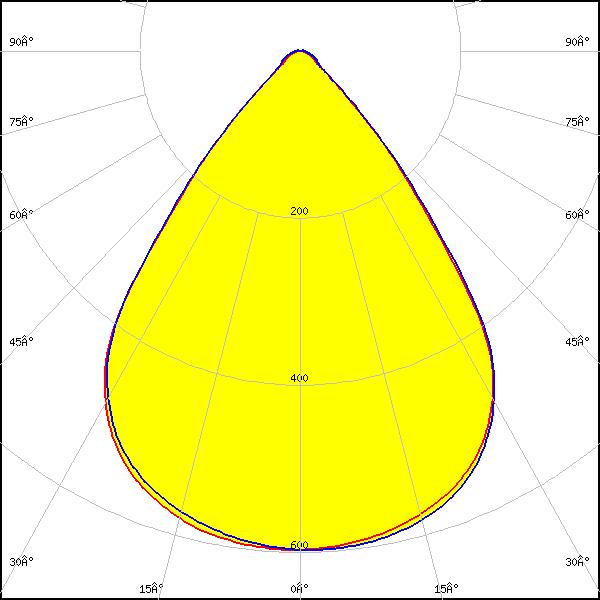

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 76° + 77°
    FWTM: 97° + 98°
    Peak intensity: 0.598 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

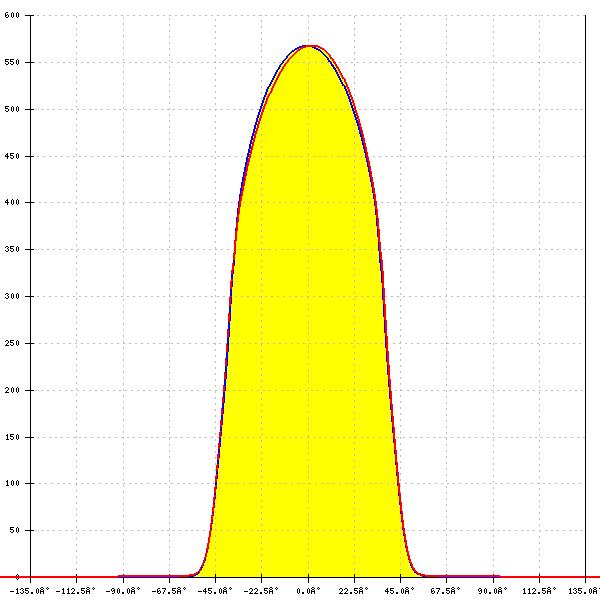

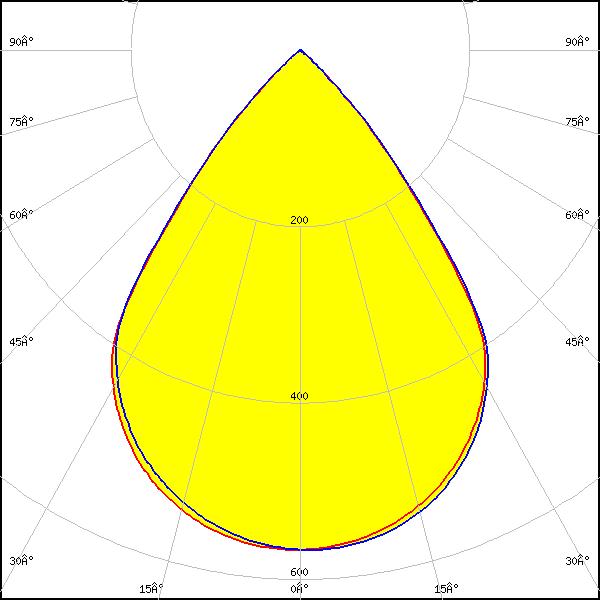

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 75° + 75°
    FWTM: 94° + 94°
    Peak intensity: 0.567 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

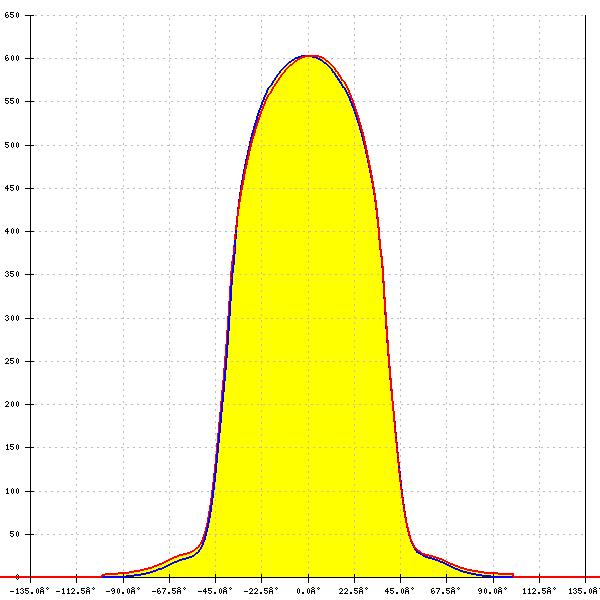

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 76° + 77°
    FWTM: 97° + 98°
    Peak intensity: 0.603 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: Tunable White

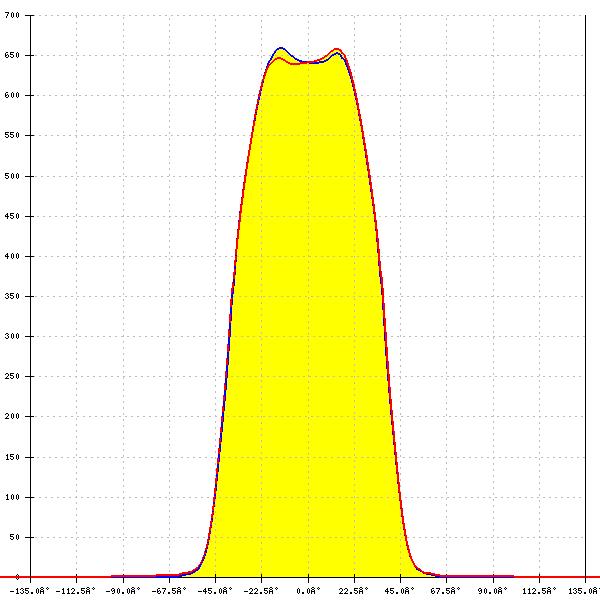

    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17528_DAISY-4X1-SHD-MET
    FWHM: 74°
    FWTM: 94°
    Peak intensity: 0.666 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
    Required components:
    C17535_DAISY-4X1-SHD2-MET-MATT
    FWHM: 74° + 75°
    FWTM: 95° + 95°
    Peak intensity: 0.672 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: Tunable White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 74° + 75°
    FWTM: 93° + 93°
    Peak intensity: 0.563 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 76°
    FWTM: 97°
    Peak intensity: 0.596 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 75°
    FWTM: 93°
    Peak intensity: 0.566 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 75° + 76°
    FWTM: 96° + 97°
    Peak intensity: 0.601 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17528_DAISY-4X1-SHD-MET
    FWHM: 74°
    FWTM: 93°
    Peak intensity: 0.660 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 4
    Light colour/type: White
    LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
    Required components:
    C17535_DAISY-4X1-SHD2-MET-MATT
    FWHM: 74°
    FWTM: 94°
    Peak intensity: 0.676 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 4
    Light colour/type: White

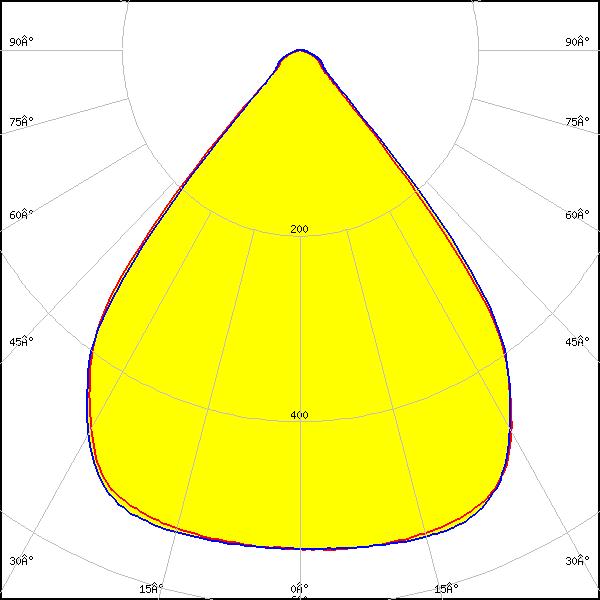

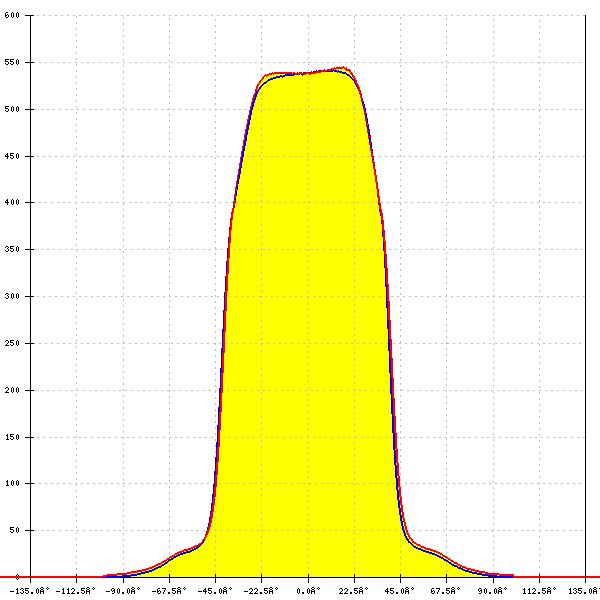

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 80°
    FWTM: 95°
    Peak intensity: 0.544 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

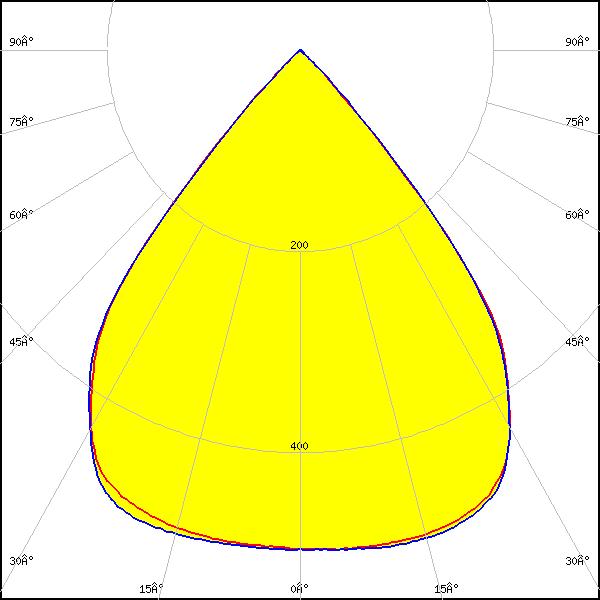

    LED: NF2W757G-MT (Tunable White)
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 79°
    FWTM: 90°
    Peak intensity: 0.503 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: Tunable White

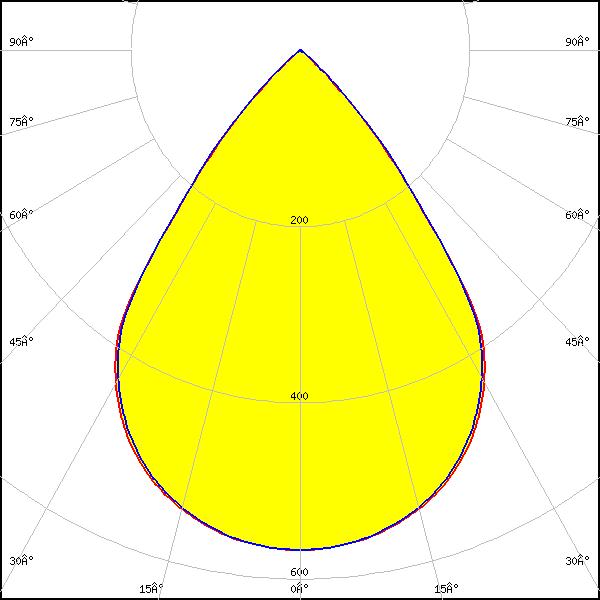

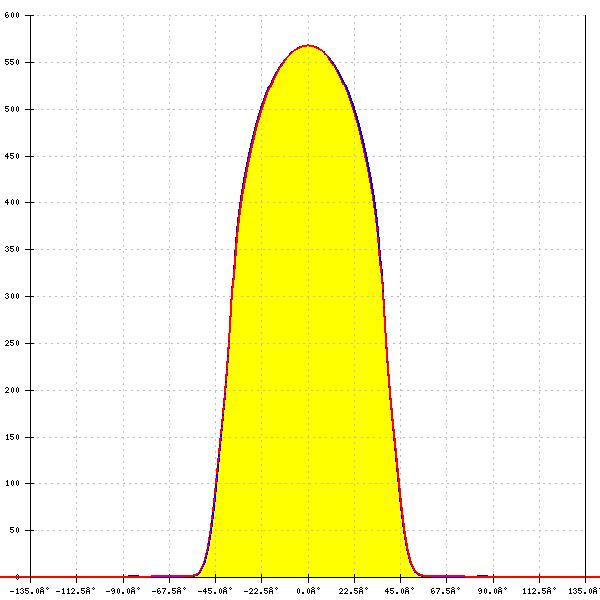

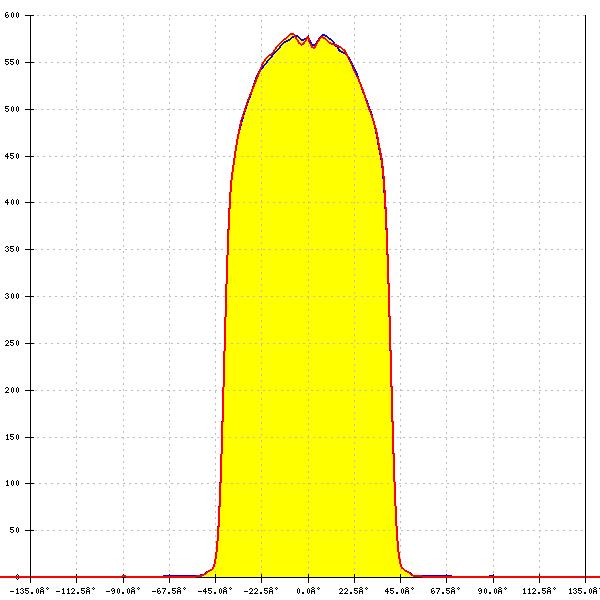

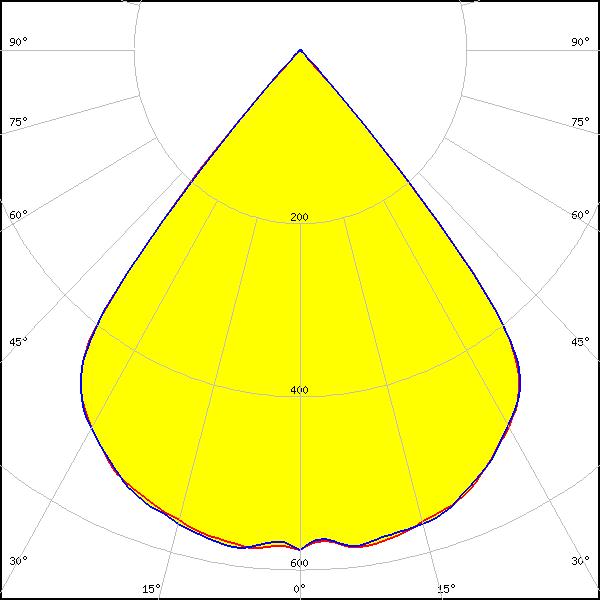

    LED: PL-LIN-1000 140x24mm
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 74°
    FWTM: 94°
    Peak intensity: 0.568 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White

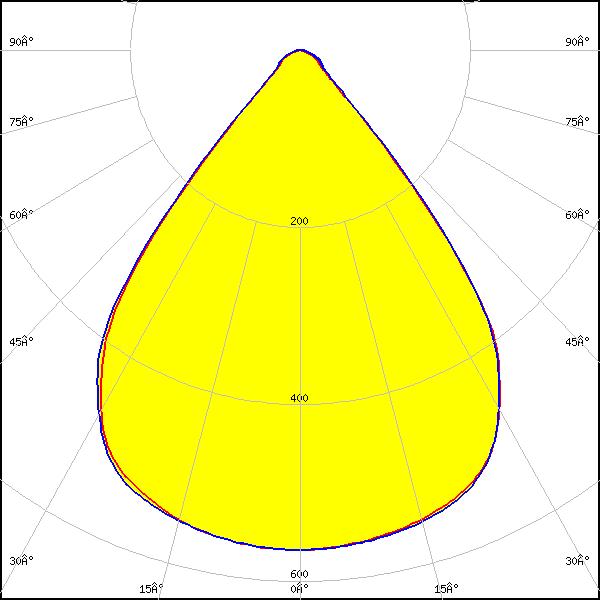

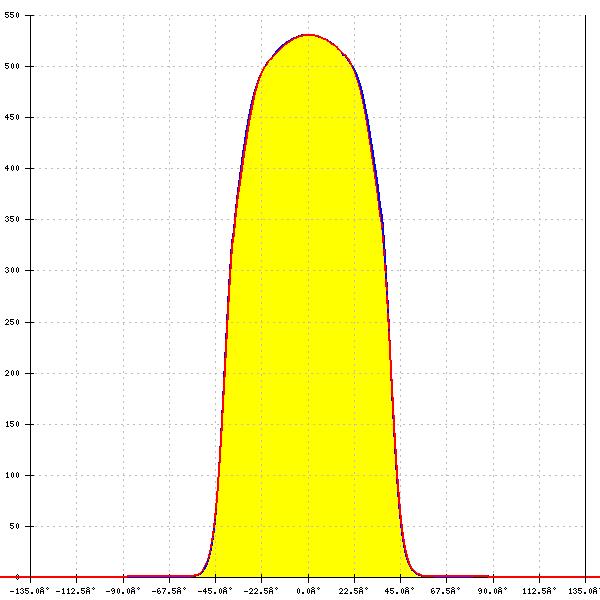

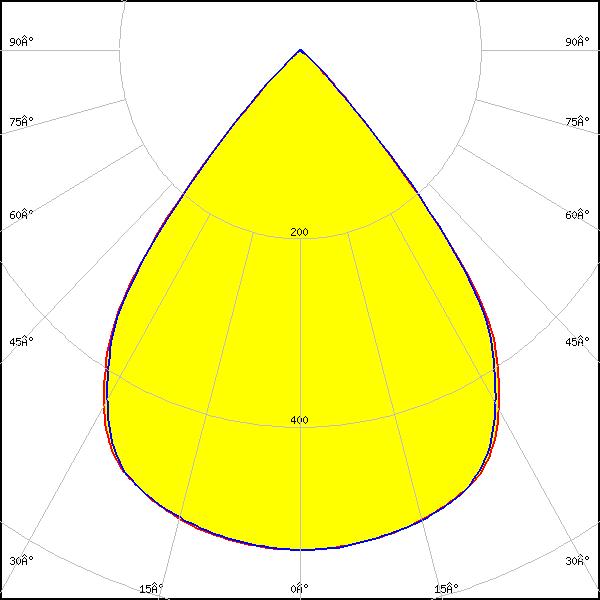

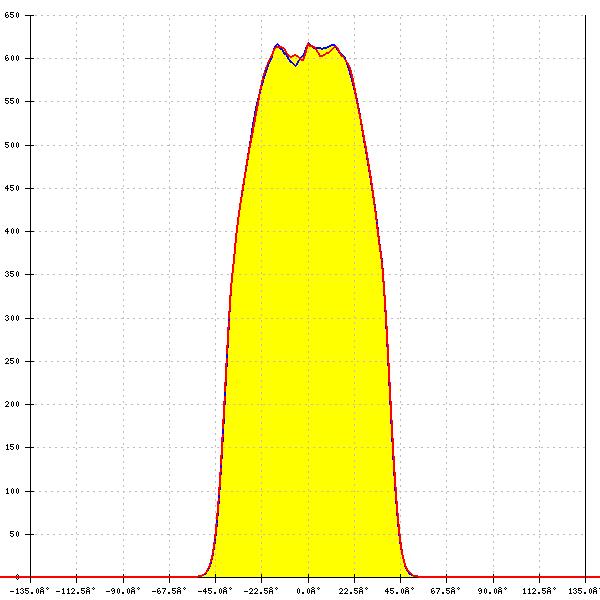

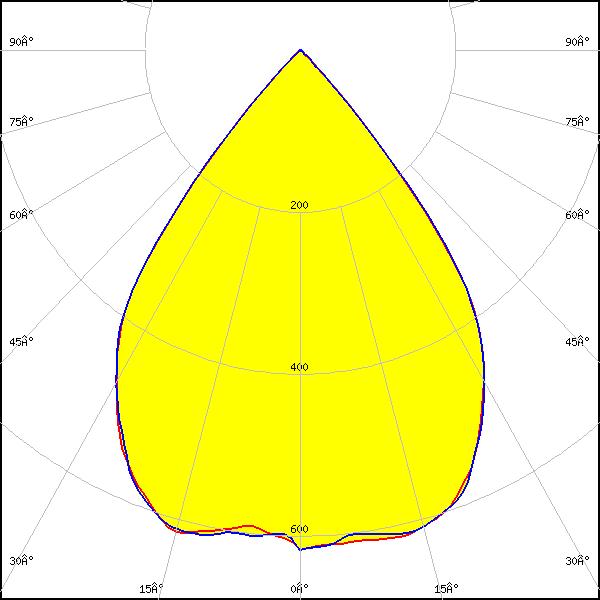

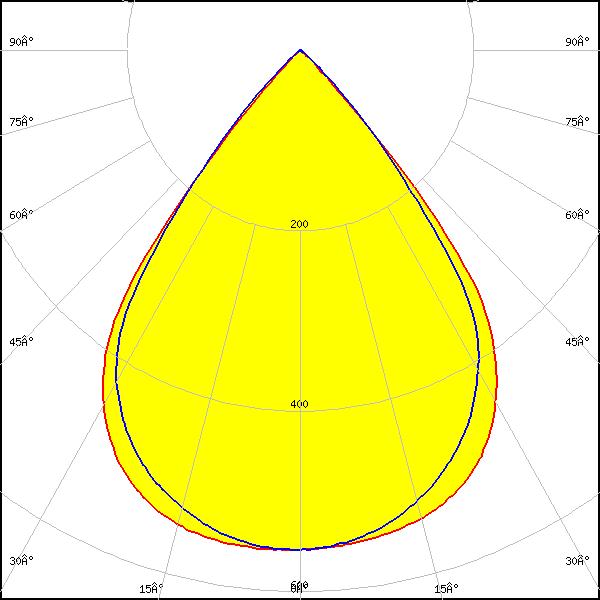

    LED: LM28xB Series
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 76°
    FWTM: 88°
    Peak intensity: 0.622 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 2
    Light colour/type: White

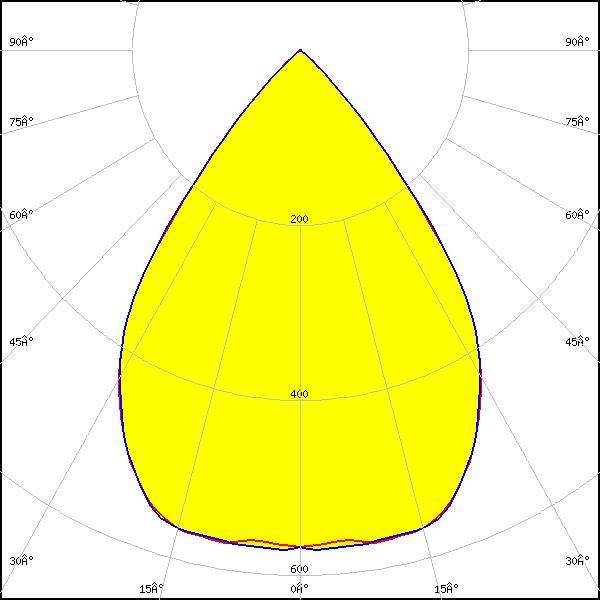

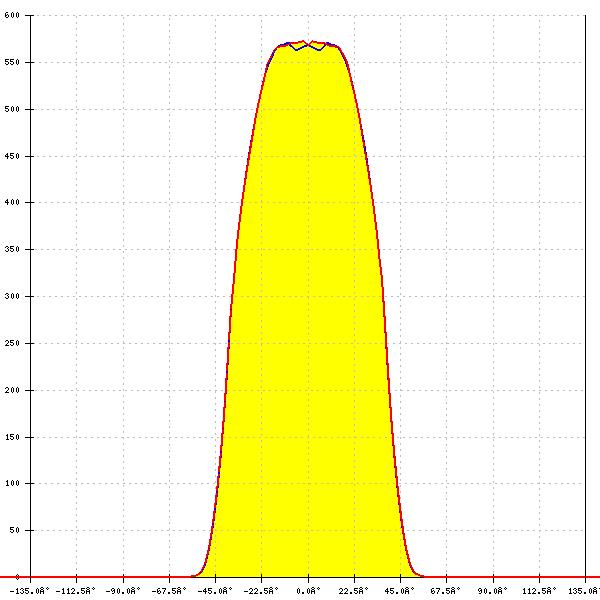

    LED: LM28xB Series
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 74°
    FWTM: 92°
    Peak intensity: 0.574 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White

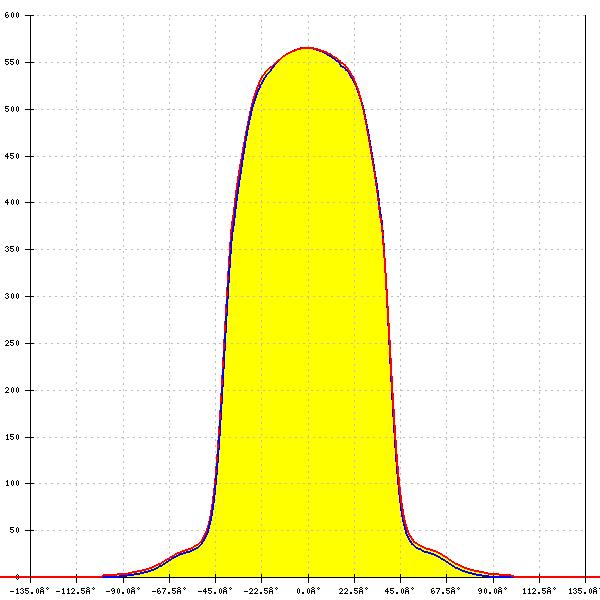

    LED: LM28xB Series
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 78°
    FWTM: 95°
    Peak intensity: 0.600 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

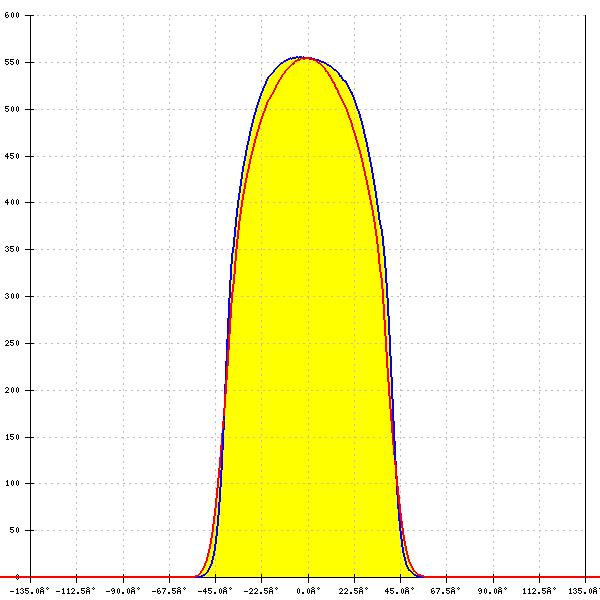

    LED: LM28xB Series
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 76°
    FWTM: 90°
    Peak intensity: 0.555 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM28xB Series
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 78°
    FWTM: 91°
    Peak intensity: 0.531 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 2
    Light colour/type: White

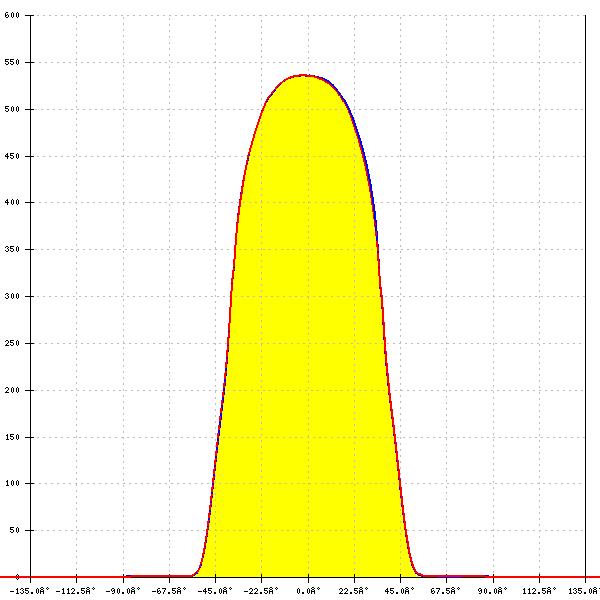

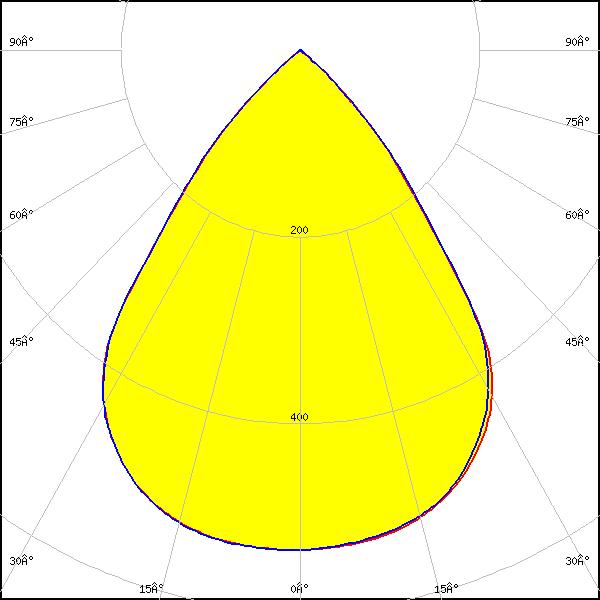

    LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
    Required components:
    C16590_DAISY-4X1-SHD
    FWHM: 75°
    FWTM: 96°
    Peak intensity: 0.536 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 4
    Light colour/type: White

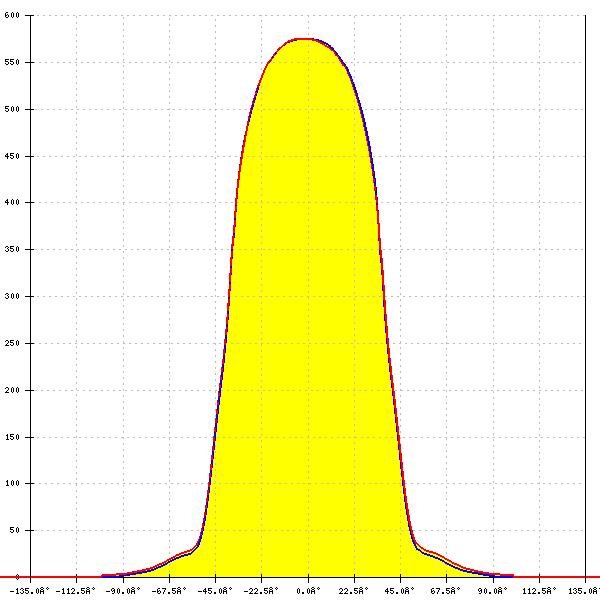

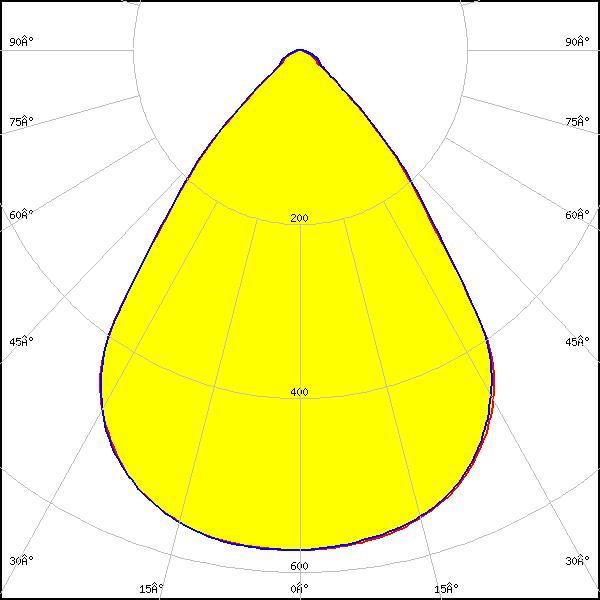

    LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
    Required components:
    C16784_DAISY-4X1-SHD-WHT
    FWHM: 76°
    FWTM: 101°
    Peak intensity: 0.575 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 4
    Light colour/type: White

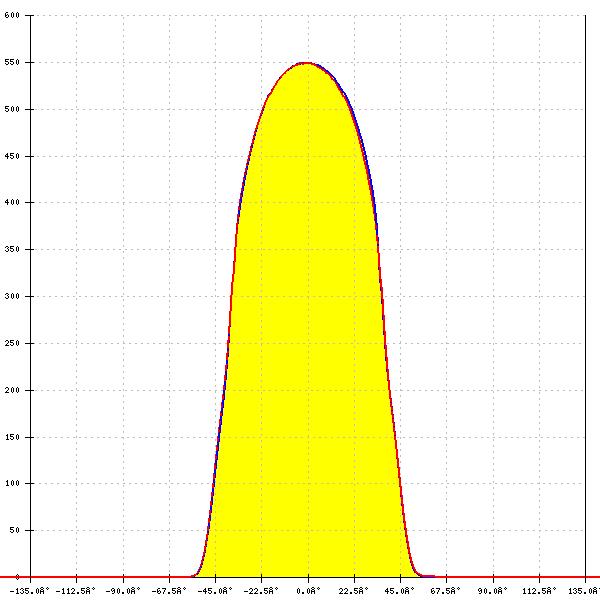

    LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
    Required components:
    C17422_DAISY-4X1-SHD2-MATT
    FWHM: 74°
    FWTM: 96°
    Peak intensity: 0.549 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 4
    Light colour/type: White

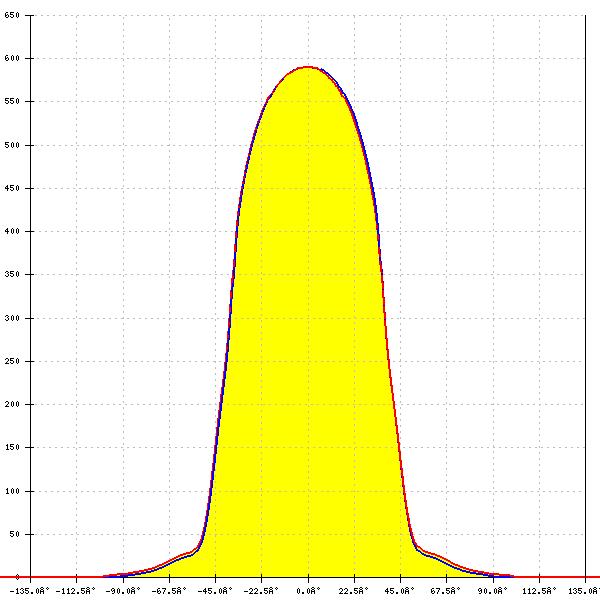

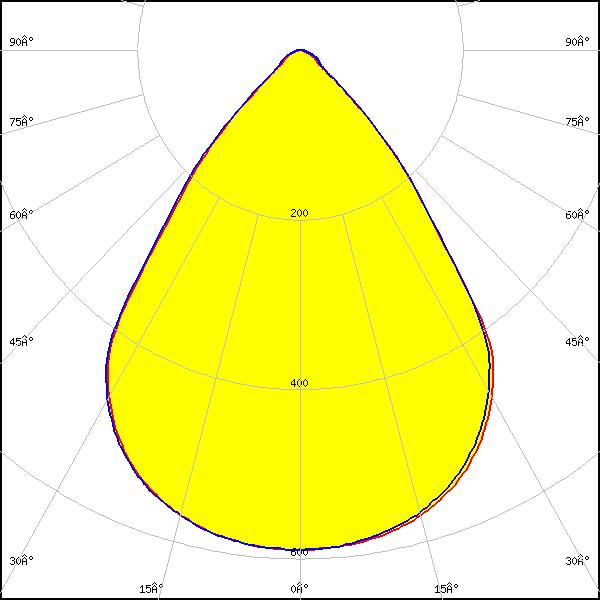

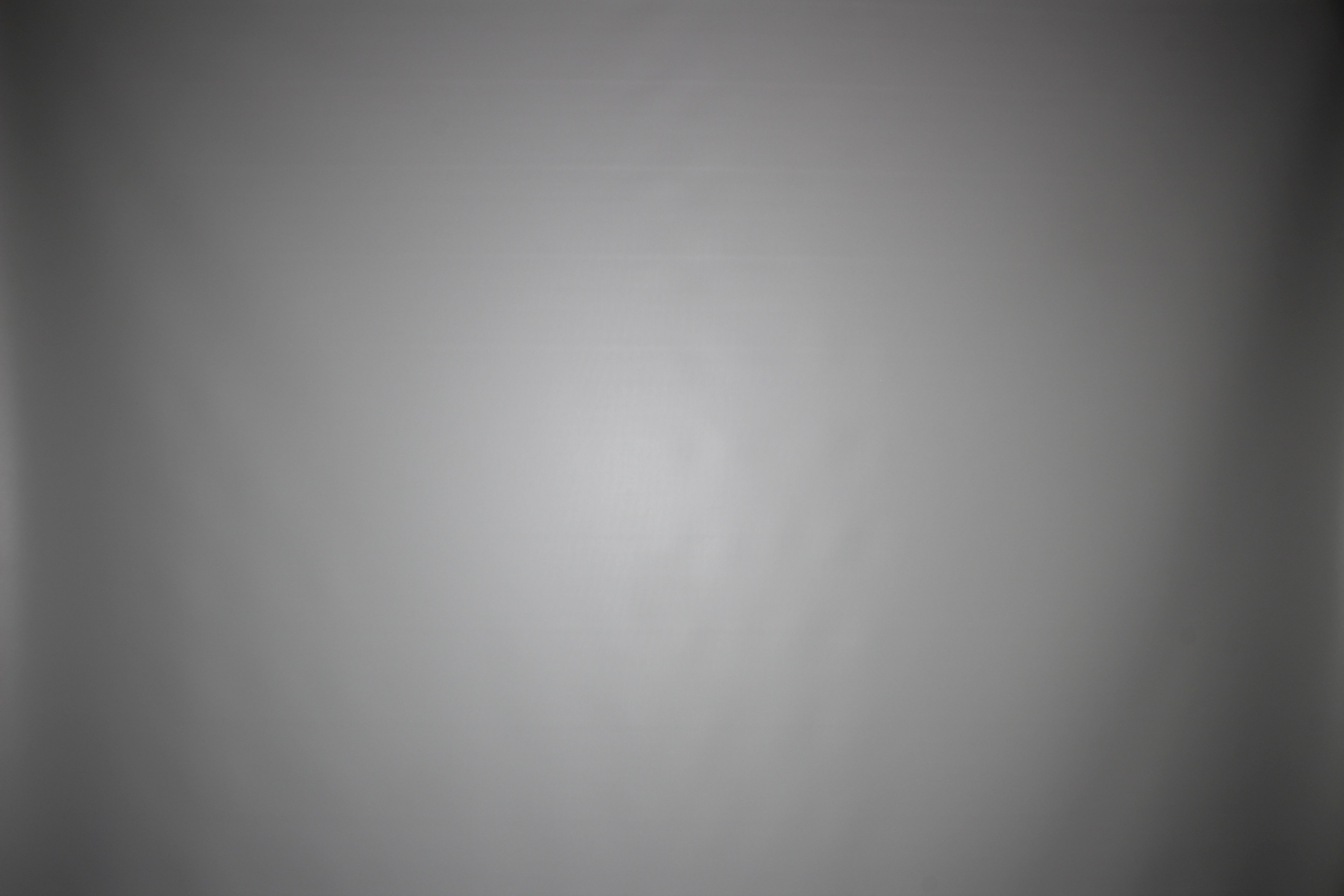

    LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
    Required components:
    C17423_DAISY-4X1-SHD2-WHT-MATT
    FWHM: 75°
    FWTM: 100°
    Peak intensity: 0.591 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 4
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
