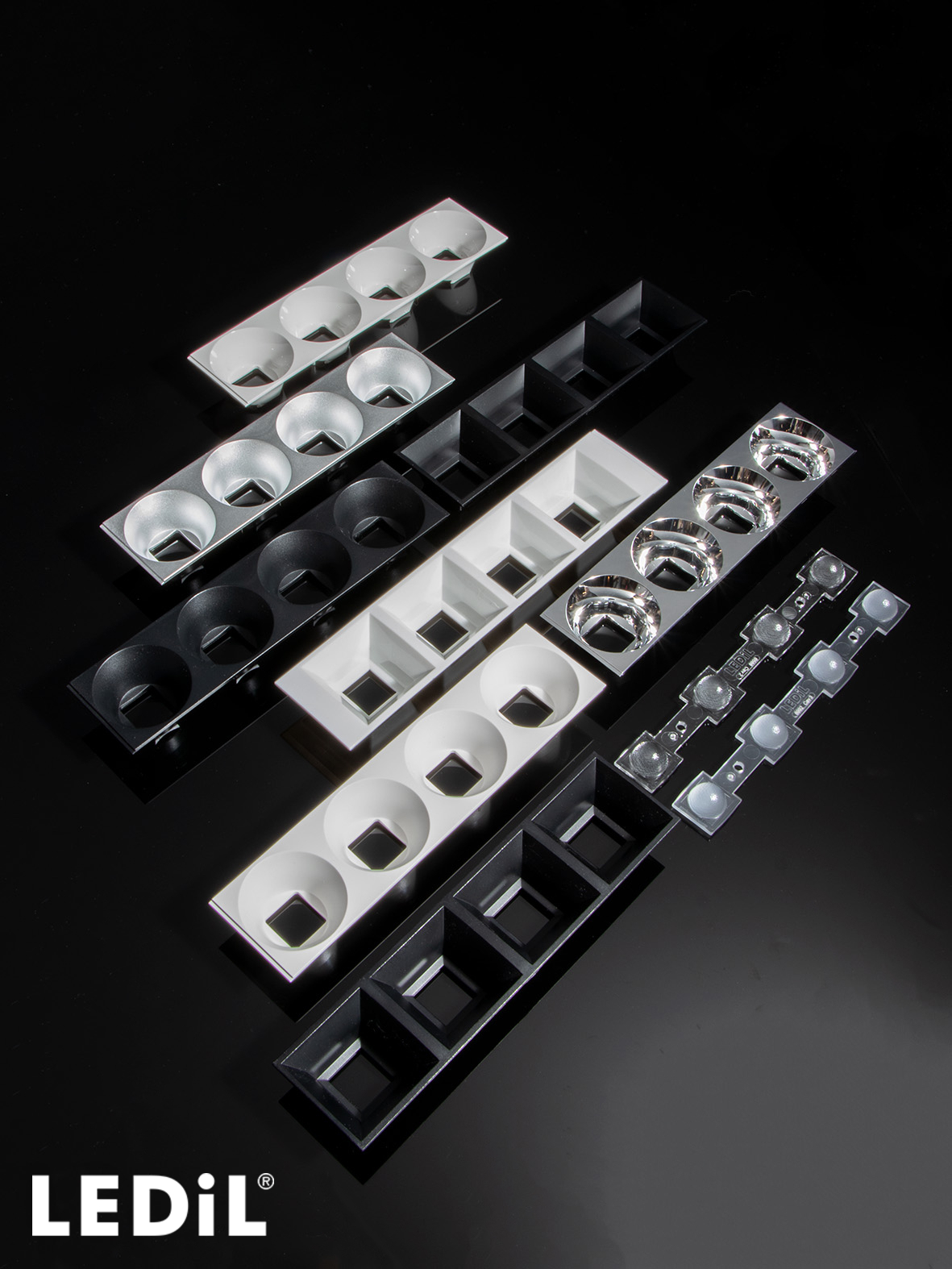

DAISY-4X1-W

Print

~50° wide beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    182 x  40 mm
  • Height:
    20.20 mm
  • Fastening:
    pin, screw, clips
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    1 pcs
  • Shade
    1 pcs
  • Linear lens
  • C16588_DAISY-4X1-W
    clear
  • Quantity in box:
    504 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.30 kg
  • MPQ:
    21 pcs
  • MOQ:
    336 pcs
  • MOQ Size:
    480 x 280 x 220 mm
  • MOQ Weight:
    4.40 kg
  • Shade
  • C16590_DAISY-4X1-SHD
    black,gloss
  • C16784_DAISY-4X1-SHD-WHT
    white,gloss
  • C17422_DAISY-4X1-SHD2-MATT
    black,matt
  • C17423_DAISY-4X1-SHD2-WHT-MATT
    white,matt
  • C18407_DAISY-4X1-SHD-MET
    metal,gloss
  • C18411_DAISY-4X1-SHD2-MET-MATT
    metal,matt
  • C18412_DAISY-4X1-SHD2-MET
    metal,gloss
  • C18414_DAISY-4X1-SHD-MET-MATT
    metal,matt
  • C19075_DAISY-4X1-SHD2
    black,gloss
  • Quantity in box:
    168 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.90 kg
  • MPQ:
    42 pcs
  • MOQ:
    336 pcs
  • MOQ Size:
    480 x 280 x 300 mm
  • MOQ Weight:
    9.80 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16588_DAISY-4X1-W
    C16590_DAISY-4X1-SHD

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

NOTE! See 2D mechanical drawings for SHD and SHD2 differences.

Related Content

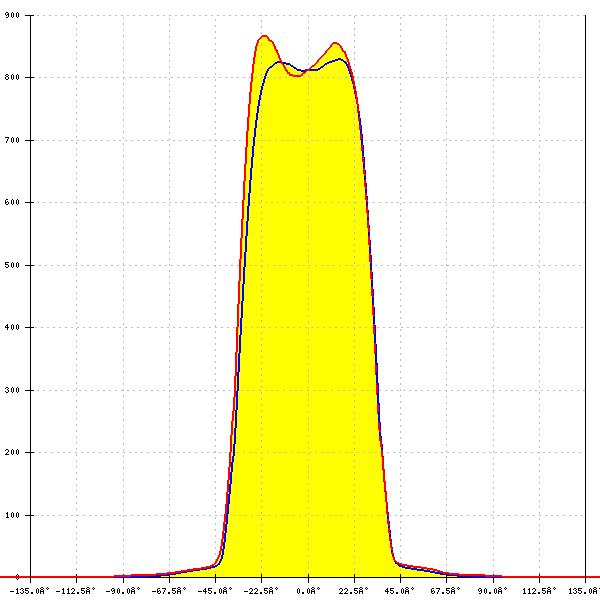

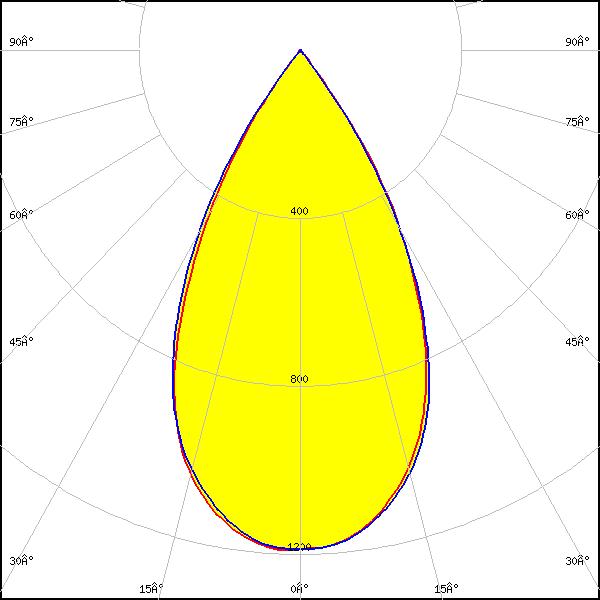

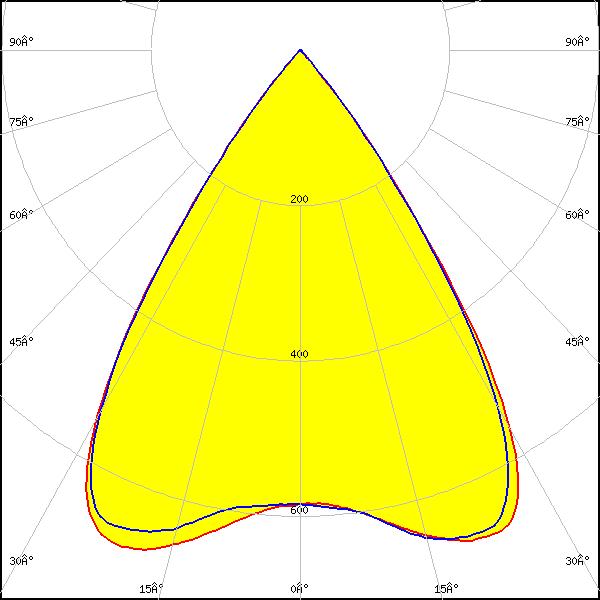

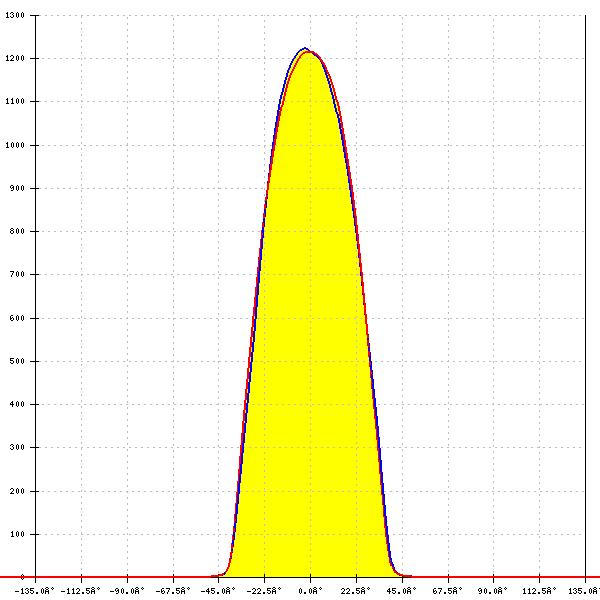

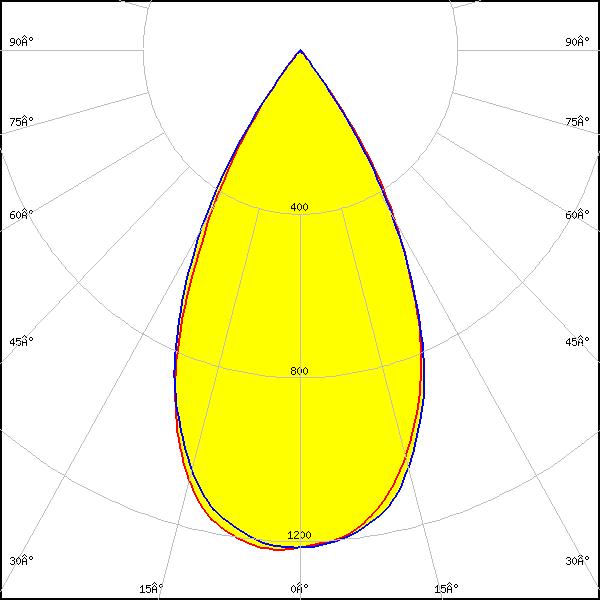

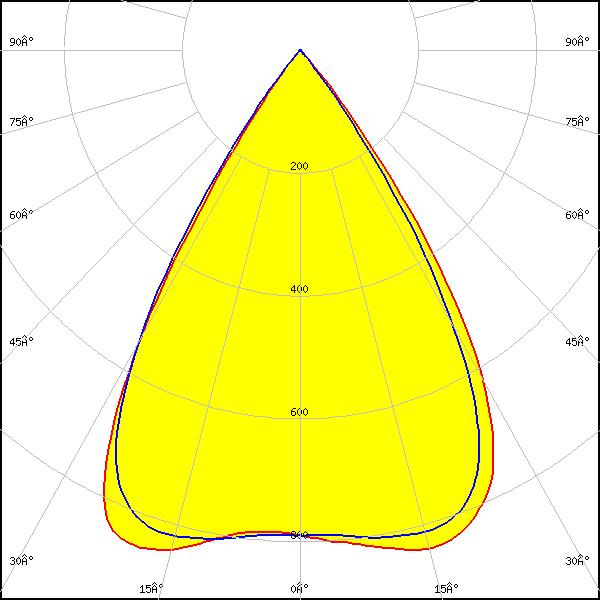

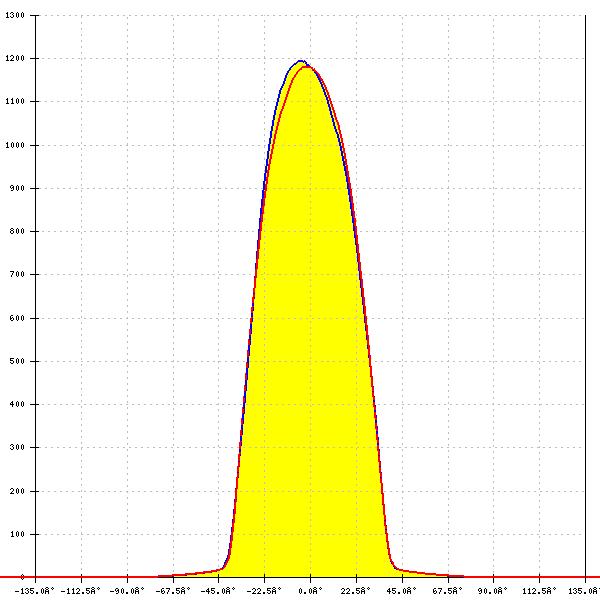

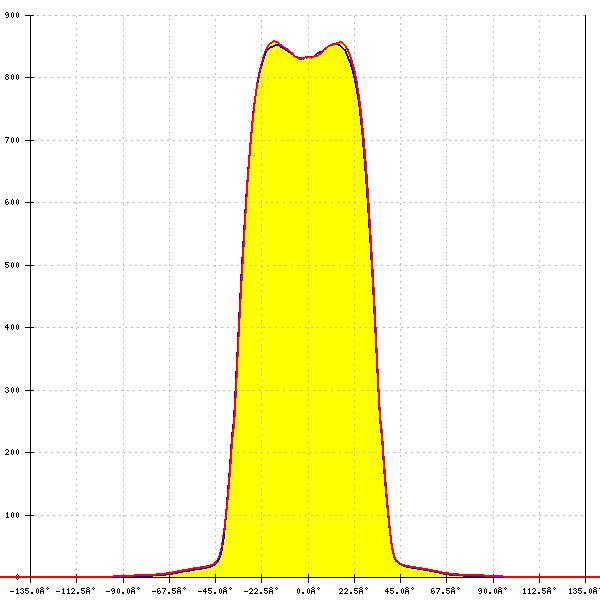

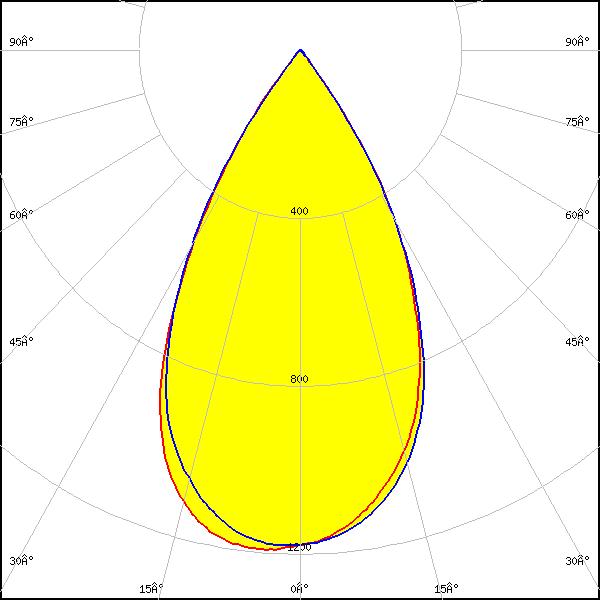

Optical results

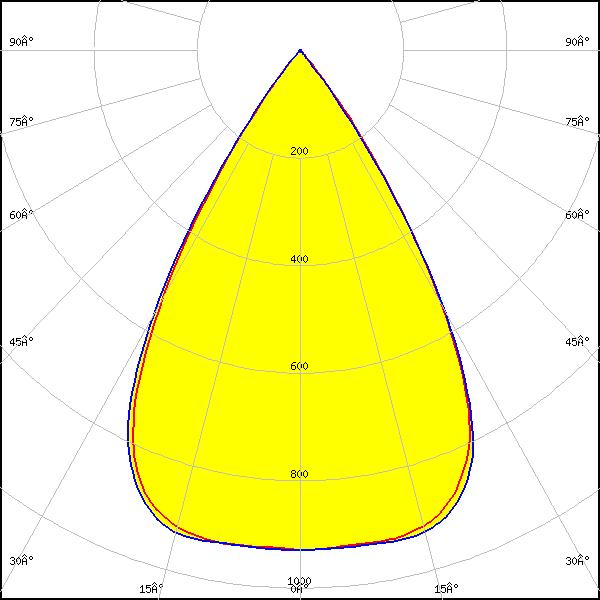

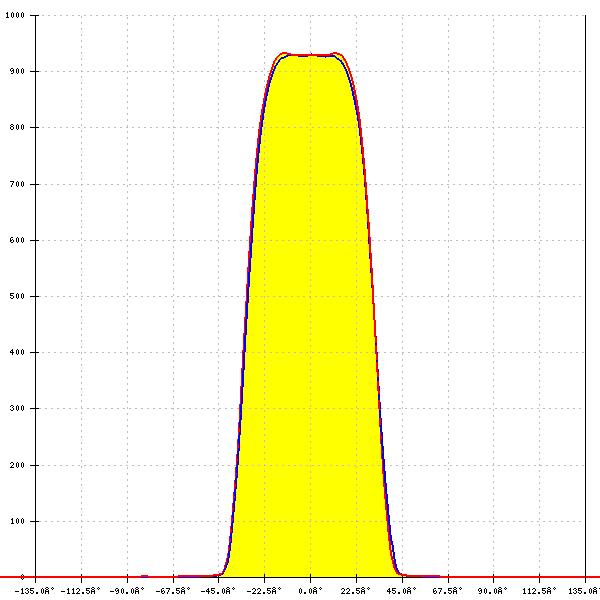

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16590_DAISY-4X1-SHD
FWHM: 63°
FWTM: 77°
Peak intensity: 0.933 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

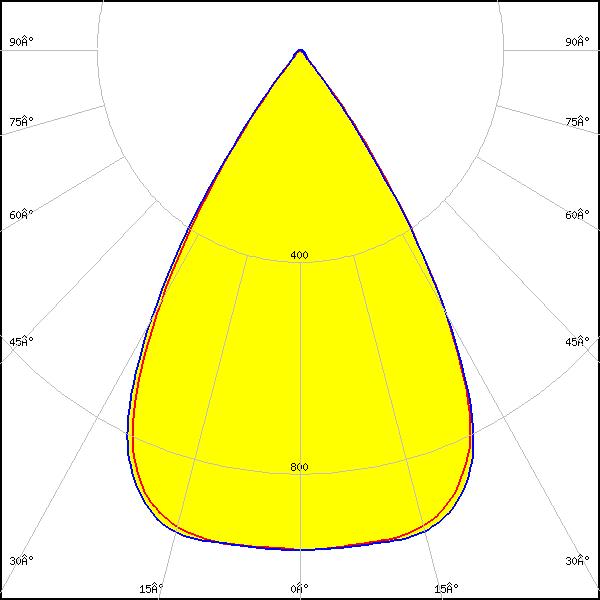

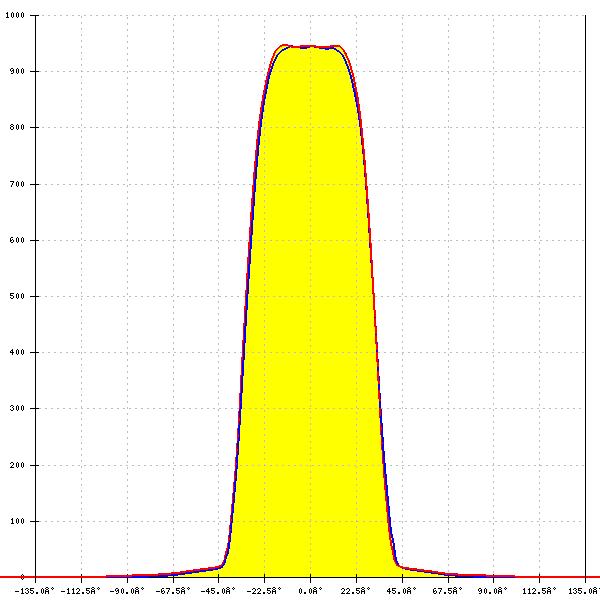

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.948 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

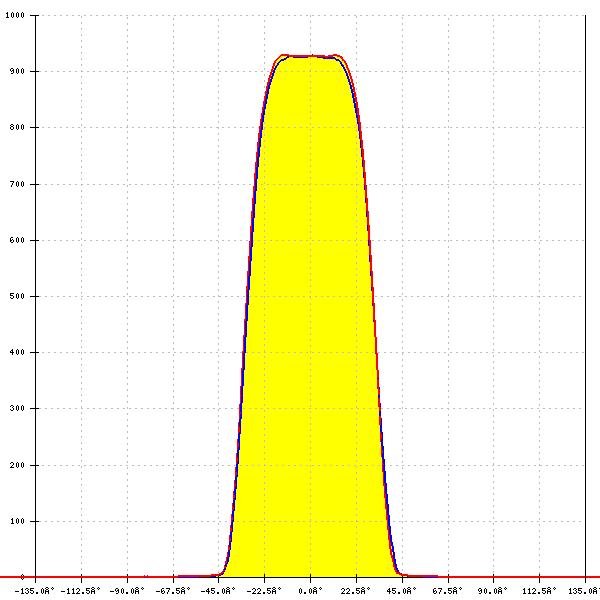

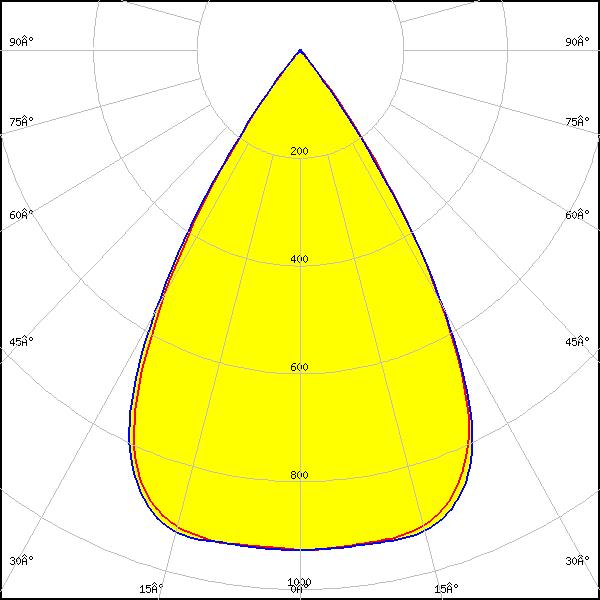

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 63°
FWTM: 78°
Peak intensity: 0.930 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

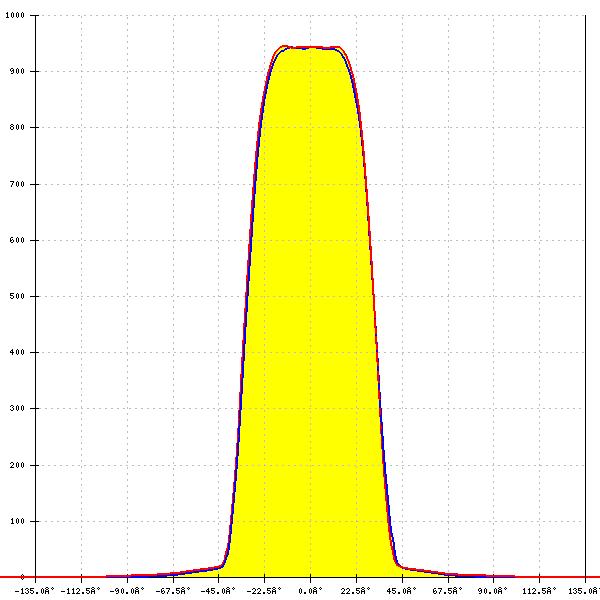

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.946 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

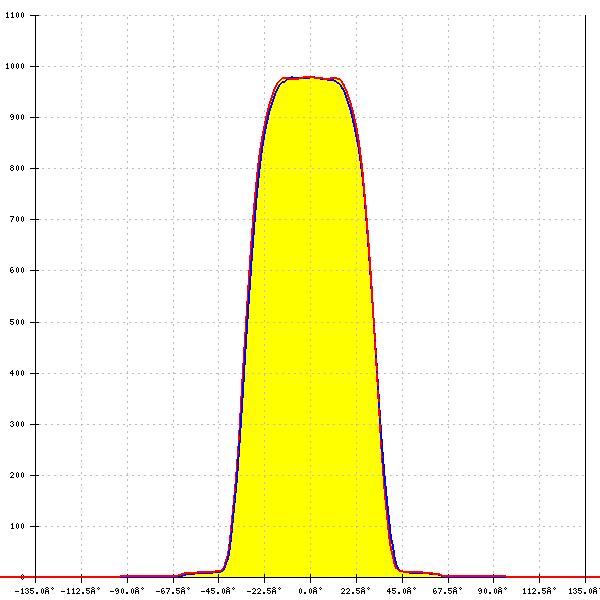

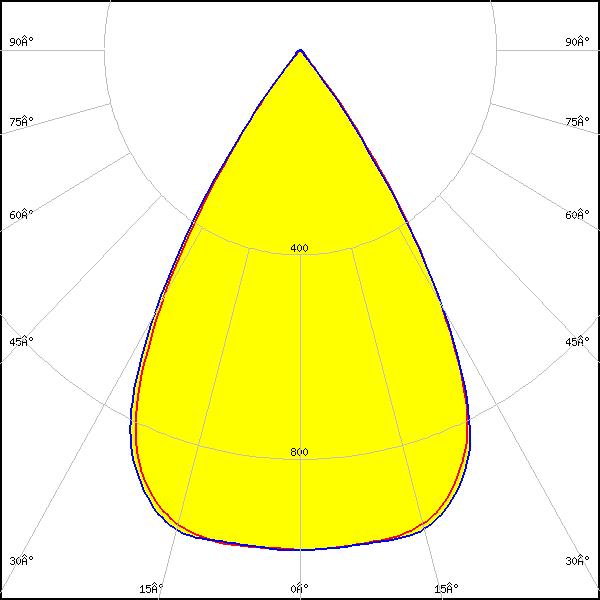

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM: 63°
FWTM: 78°
Peak intensity: 0.980 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

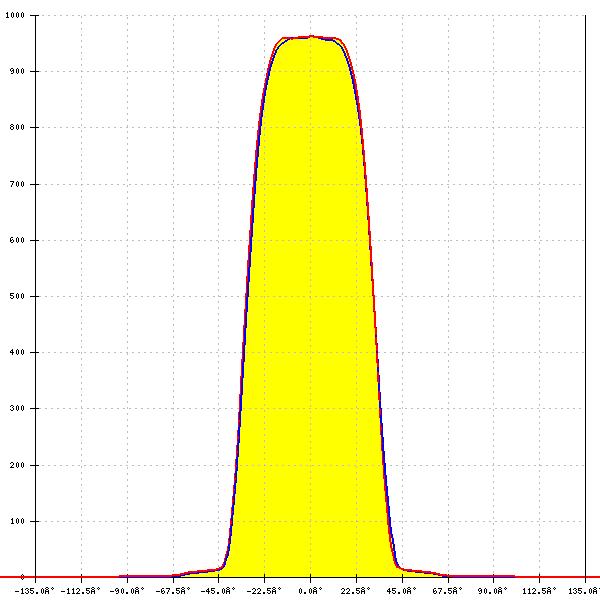

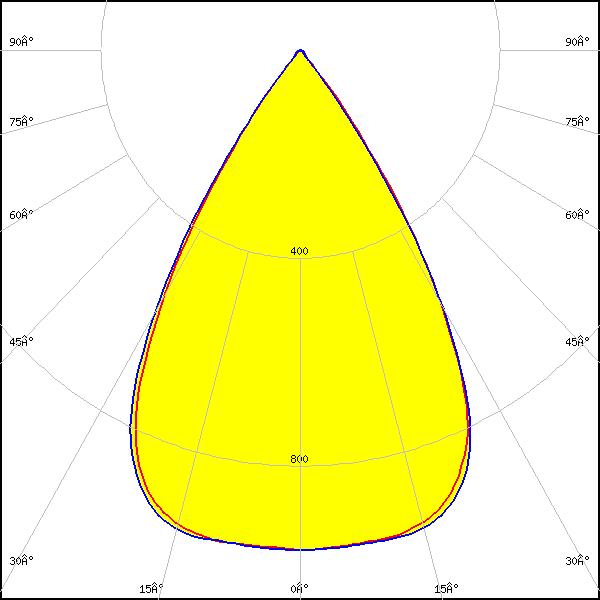

LED: LIGHT ENGINE DAISY 16 LEDs 156mm x 20mm
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM: 63°
FWTM: 78°
Peak intensity: 0.962 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White

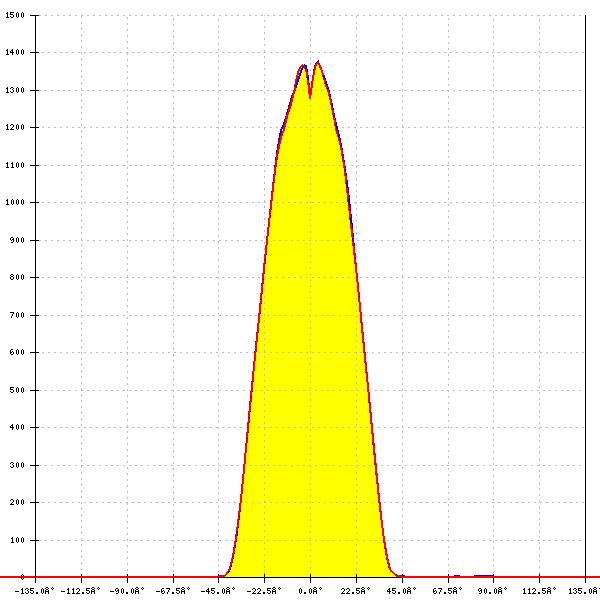

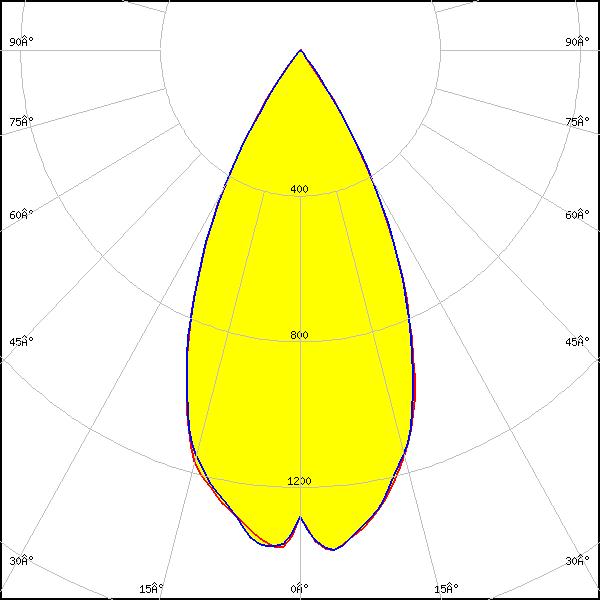

LED: J Series 2835
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 50°
FWTM: 72°
Peak intensity: 1.393 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

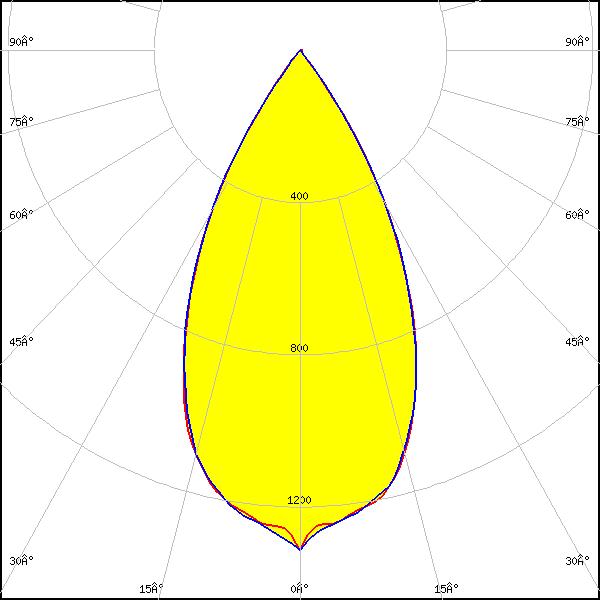

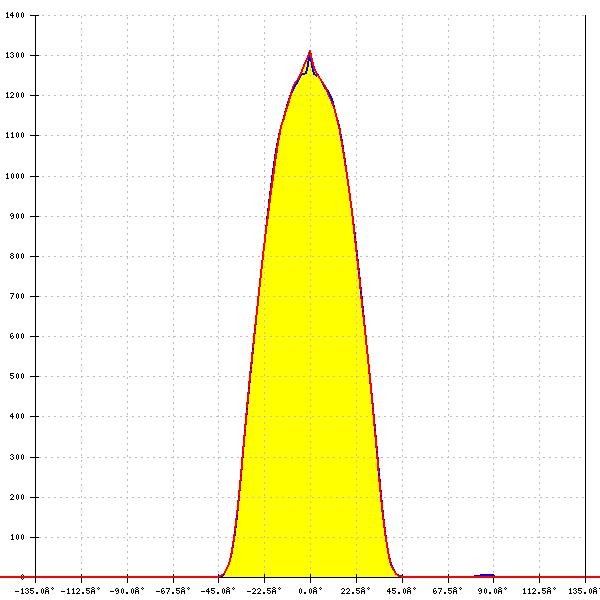

LED: J Series 5050 Round LES
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 52°
FWTM: 74°
Peak intensity: 1.314 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

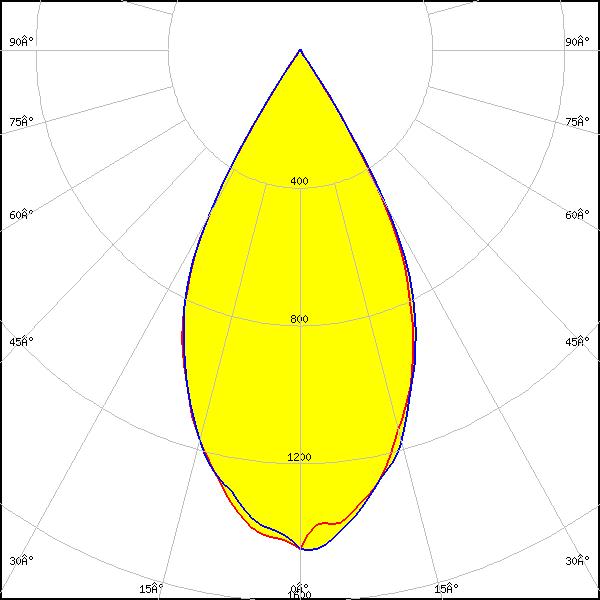

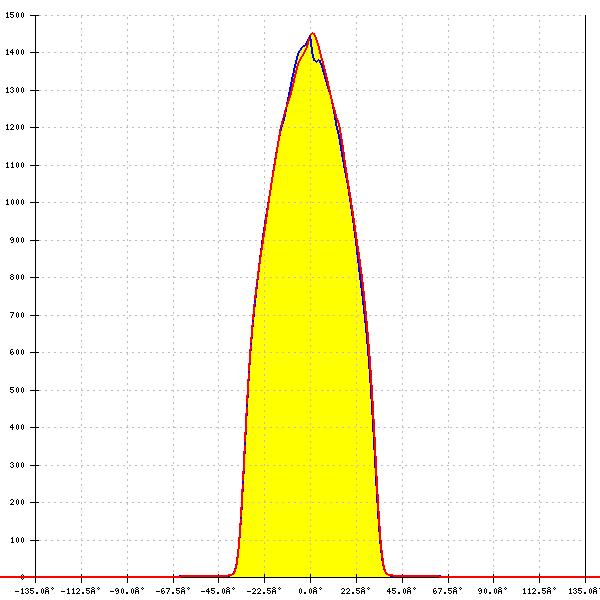

LED: LUXEON 5050 Round LES
Required components:
C16590_DAISY-4X1-SHD
FWHM: 54°
FWTM: 69°
Peak intensity: 1.460 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

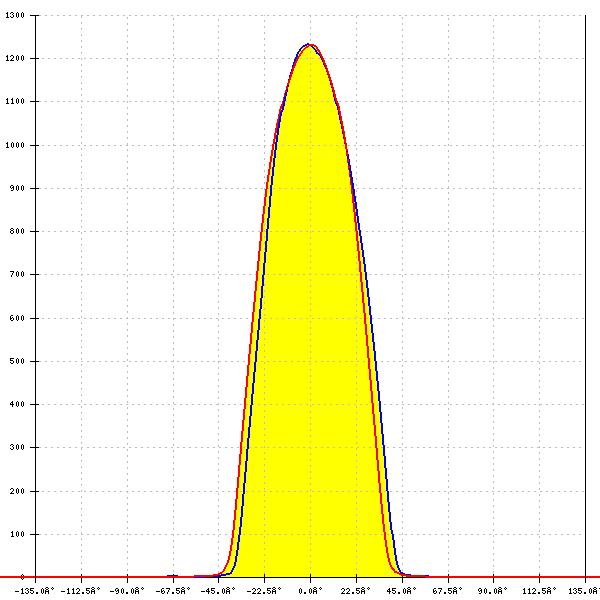

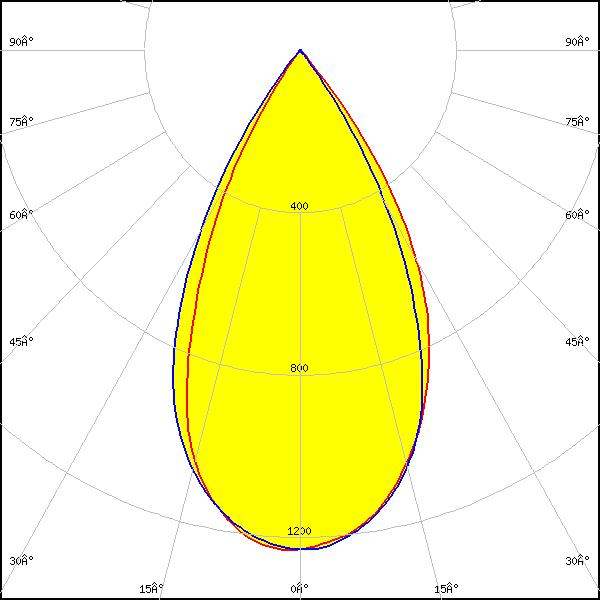

LED: LinLED 156x28mm 2x200lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 54°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: Tunable White

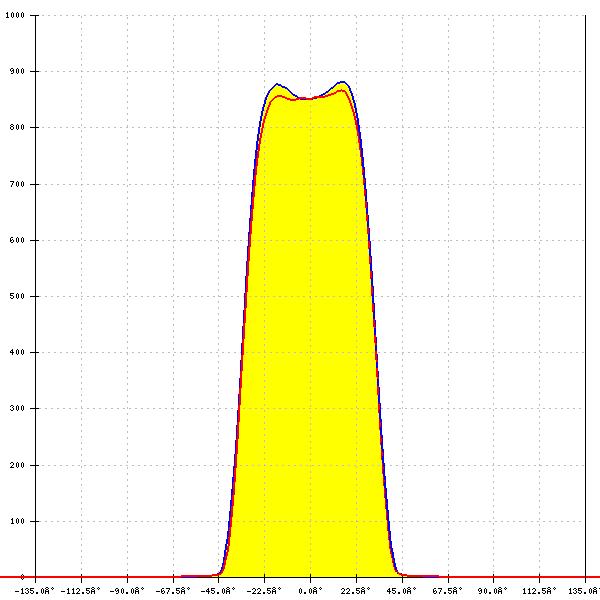

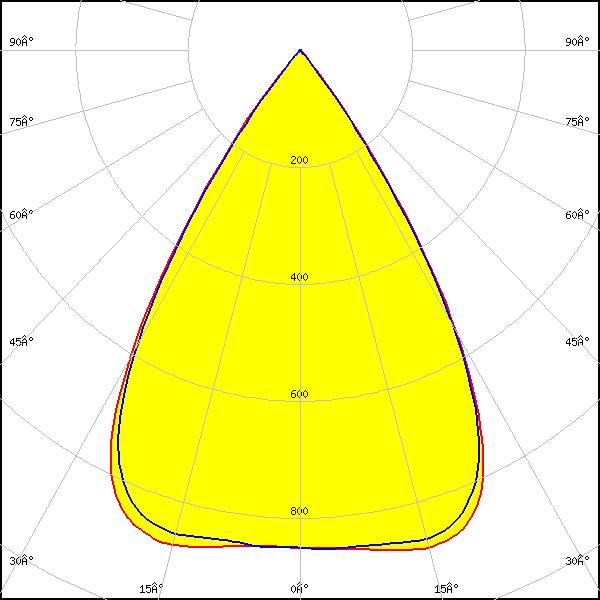

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 65° + 65°
FWTM: 79° + 78°
Peak intensity: 0.881 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: Tunable White

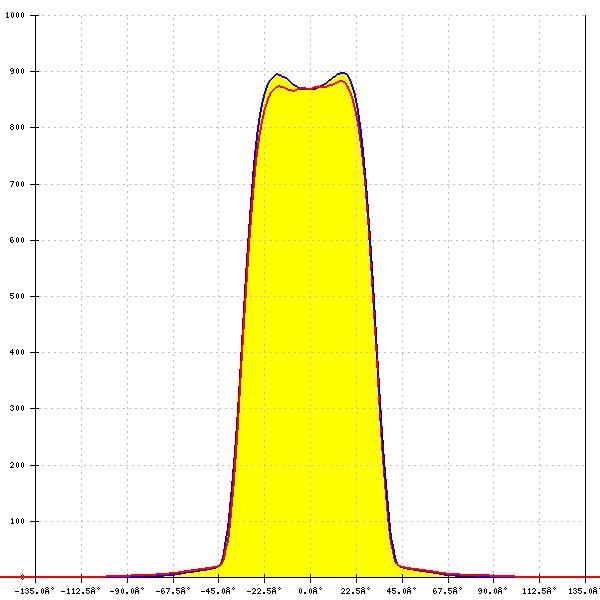

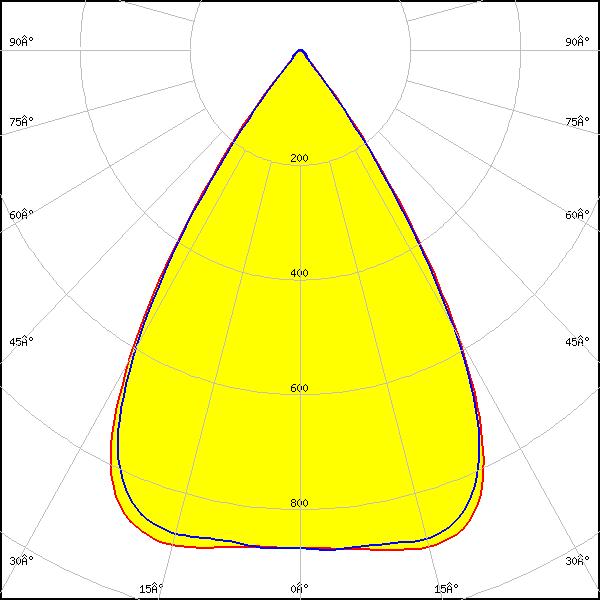

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 65° + 65°
FWTM: 80° + 79°
Peak intensity: 0.898 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: Tunable White

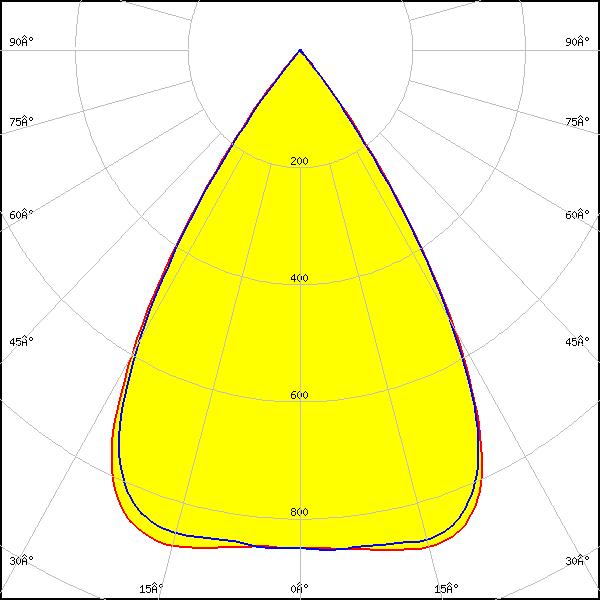

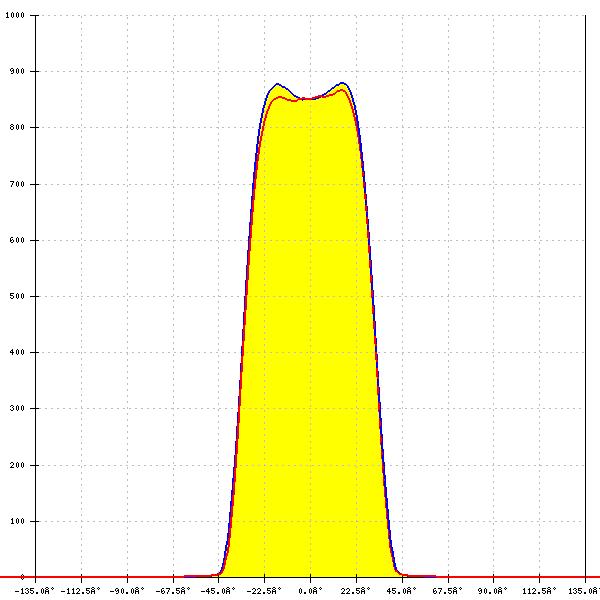

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 65° + 65°
FWTM: 79° + 78°
Peak intensity: 0.879 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: Tunable White

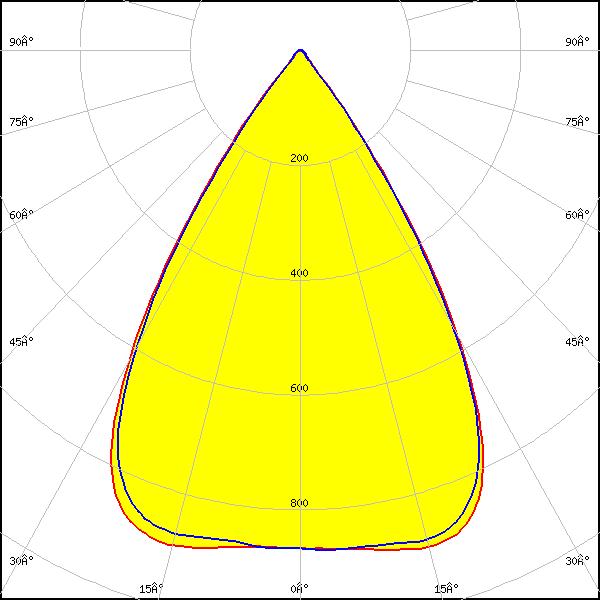

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 65° + 65°
FWTM: 80° + 79°
Peak intensity: 0.897 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: Tunable White

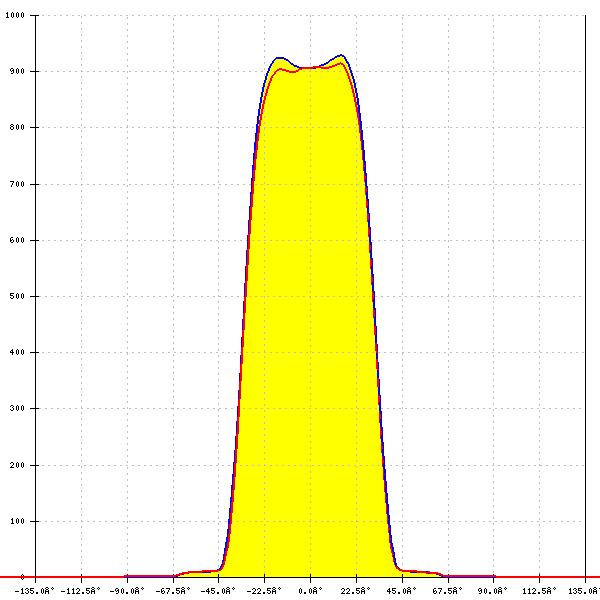

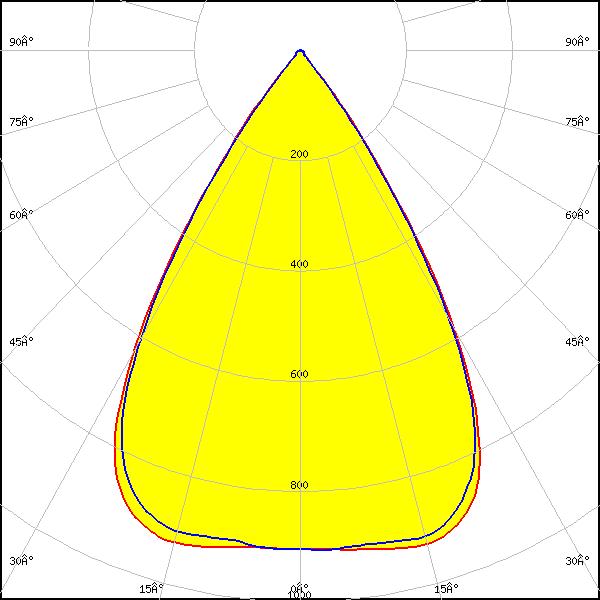

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM: 65°
FWTM: 79°
Peak intensity: 0.928 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: Tunable White

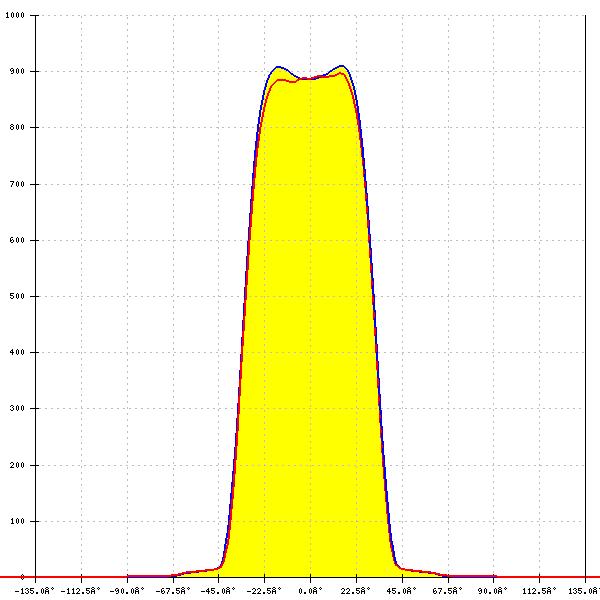

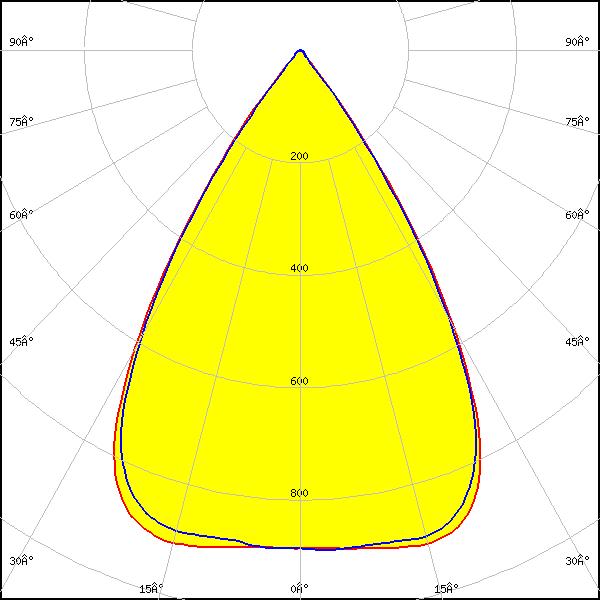

LED: LinLED 156x28mm 2x400lm 827-865 2x2C 12V Opt G1
Required components:
C17535_DAISY-4X1-SHD2-MET-MATT
FWHM: 65° + 65°
FWTM: 80° + 79°
Peak intensity: 0.910 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: Tunable White
LED: LinLED 156x28mm 400lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 56°
FWTM: 75°
Peak intensity: 1.180 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 65°
FWTM: 79°
Peak intensity: 0.892 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 64°
FWTM: 79°
Peak intensity: 0.890 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 65° + 65°
FWTM: 80° + 79°
Peak intensity: 0.905 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 65° + 65°
FWTM: 80° + 79°
Peak intensity: 0.907 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17528_DAISY-4X1-SHD-MET
FWHM: 64° + 64°
FWTM: 79° + 78°
Peak intensity: 0.935 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White
LED: LinLED 156x28mm 800lm 8x0 2C 12V Opt G1
Required components:
C17537_DAISY-28X1-SHD-MET-MATT
FWHM: 65° + 64°
FWTM: 79° + 79°
Peak intensity: 0.919 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

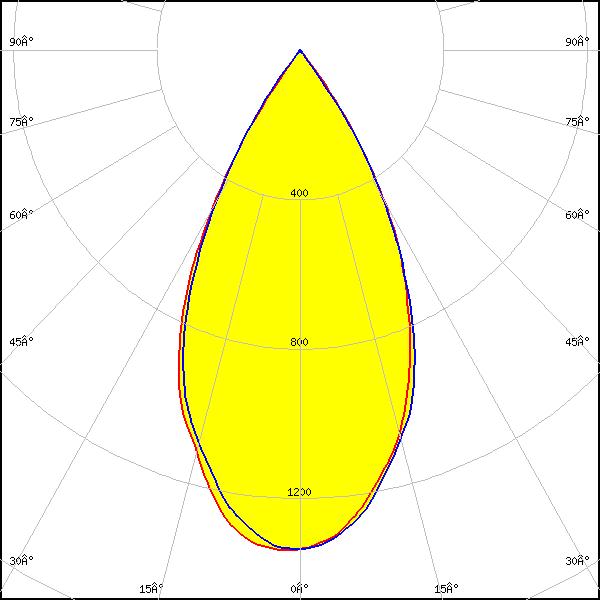

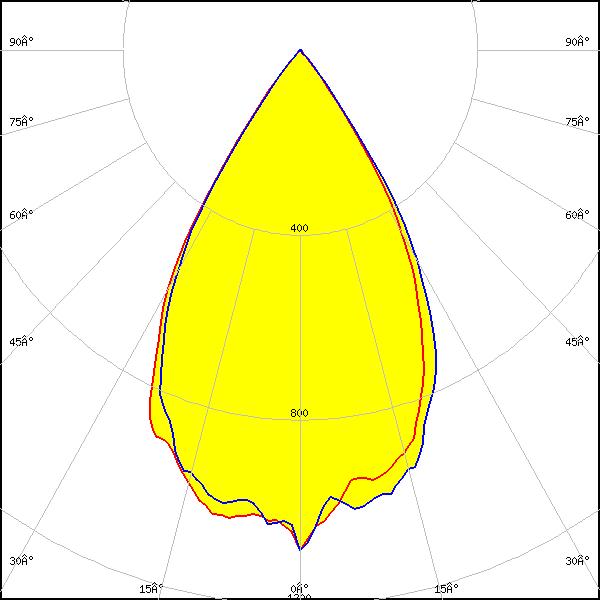

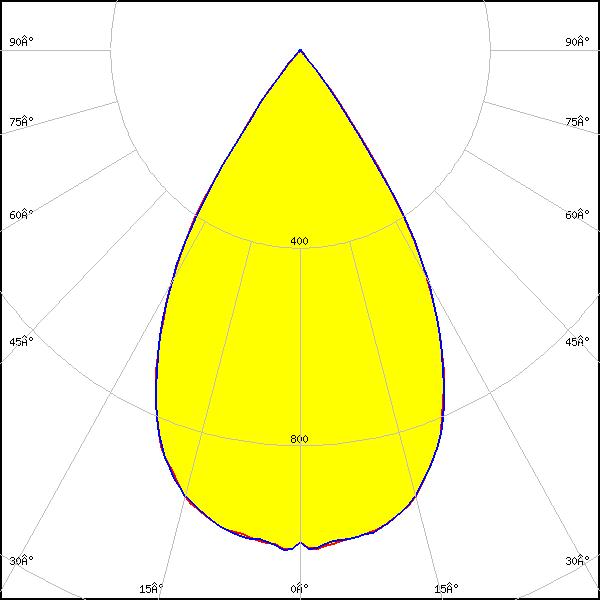

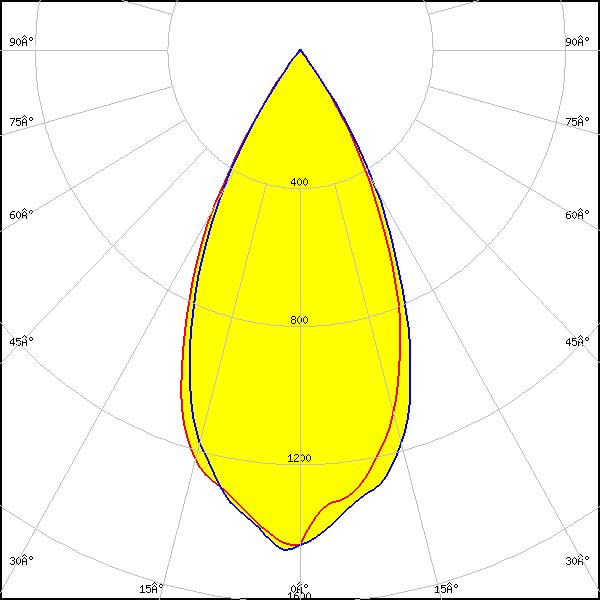

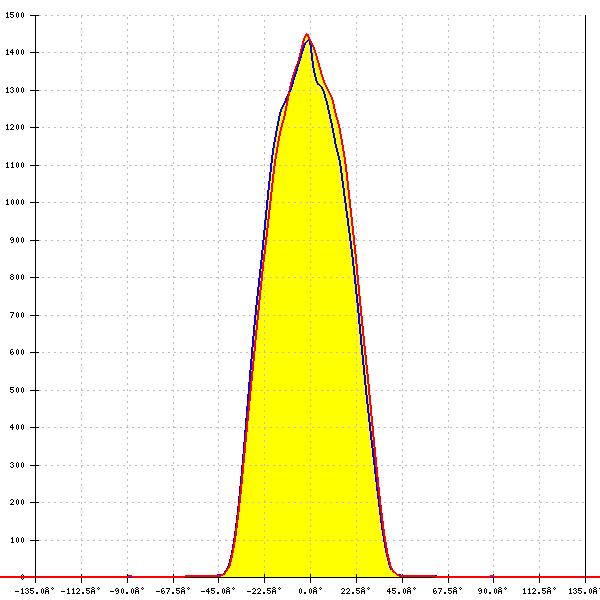

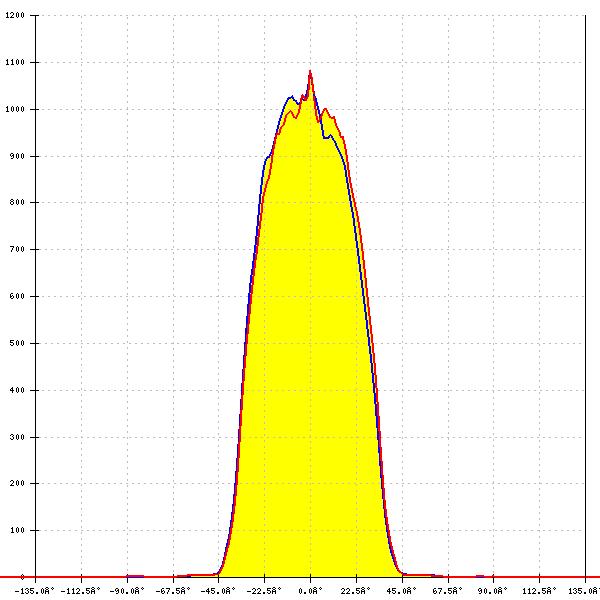

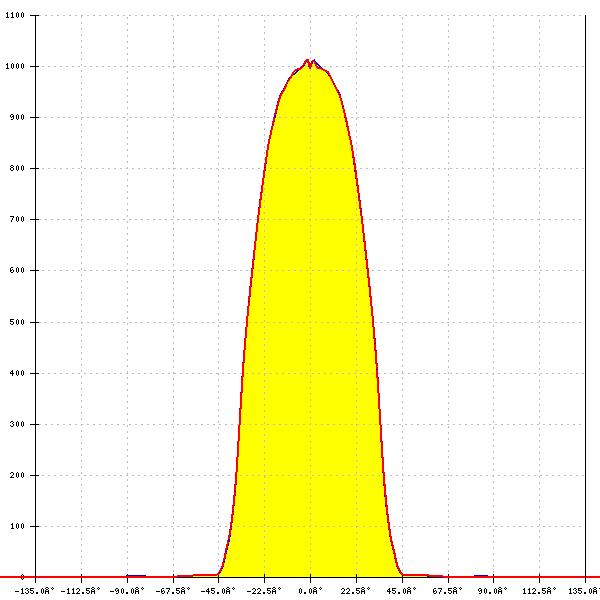

LED: NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM: 62°
FWTM: 78°
Peak intensity: 1.019 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: Tunable White

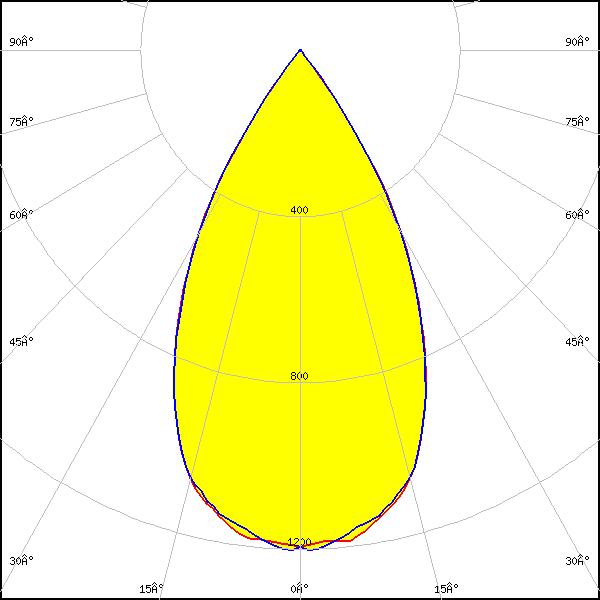

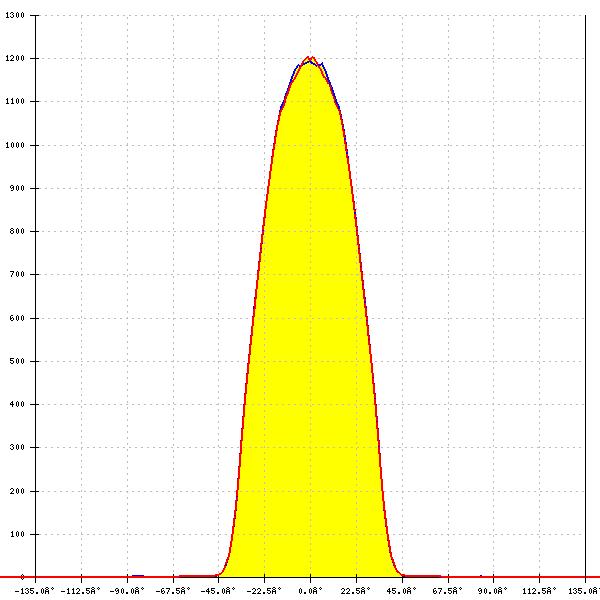

LED: NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM: 56°
FWTM: 76°
Peak intensity: 1.212 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour/type: Tunable White

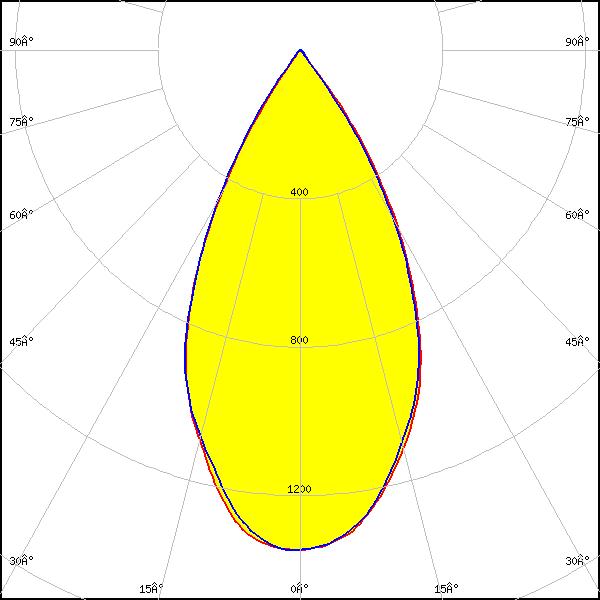

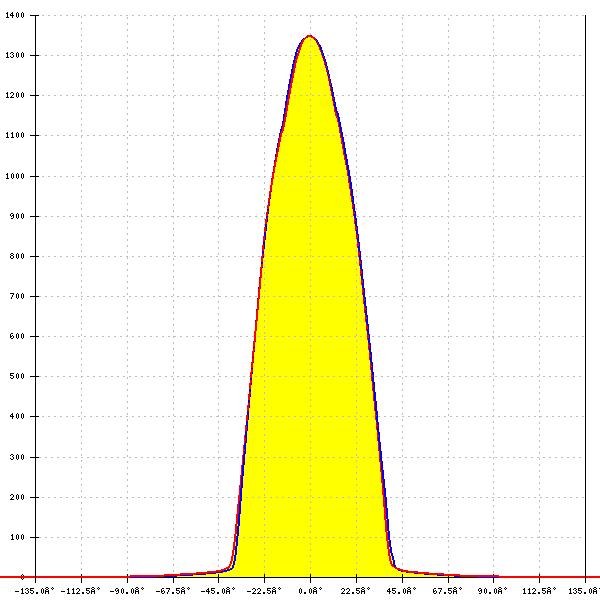

LED: NF2W757G-MT (Tunable White)
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 53°
FWTM: 74°
Peak intensity: 1.349 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: Tunable White

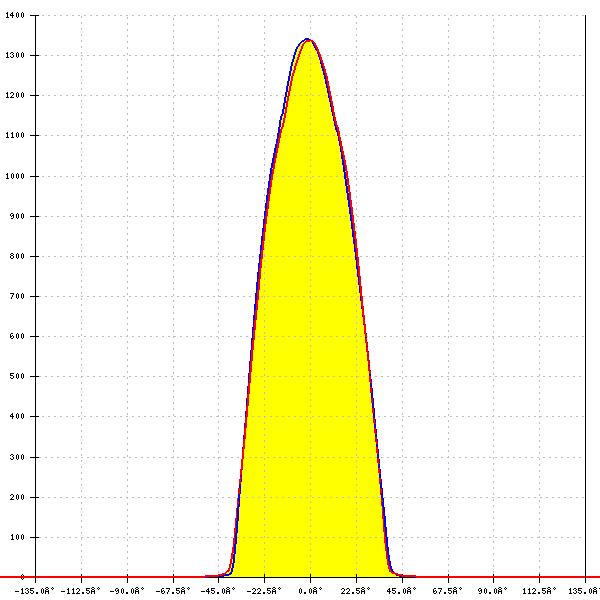

LED: NF2W757G-MT (Tunable White)
Required components:
C16590_DAISY-4X1-SHD
FWHM: 53°
FWTM: 73°
Peak intensity: 1.339 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: NF2x757G
Required components:
C16590_DAISY-4X1-SHD
FWHM: 50°
FWTM: 72°
Peak intensity: 1.464 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: NF2x757G
Required components:
C16590_DAISY-4X1-SHD
FWHM: 60°
FWTM: 77°
Peak intensity: 1.117 cd/lm
Efficiency: 90 %
LEDs/each optic: 4
Light colour/type: White

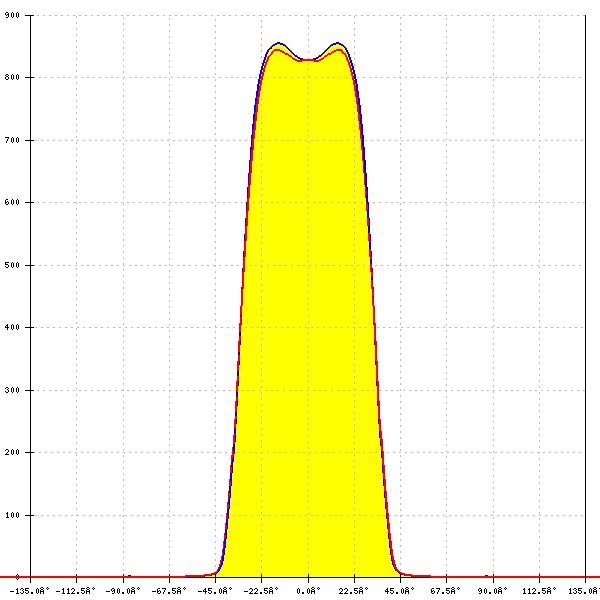

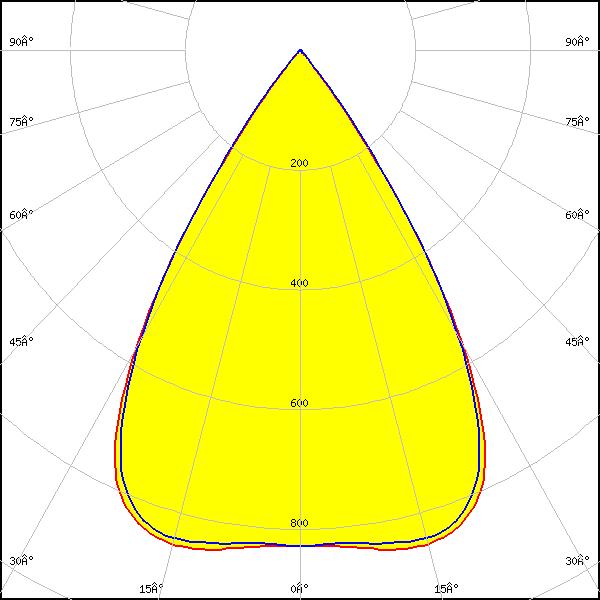

LED: PL-LIN-1000 140x24mm
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 65°
FWTM: 78°
Peak intensity: 0.863 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: White

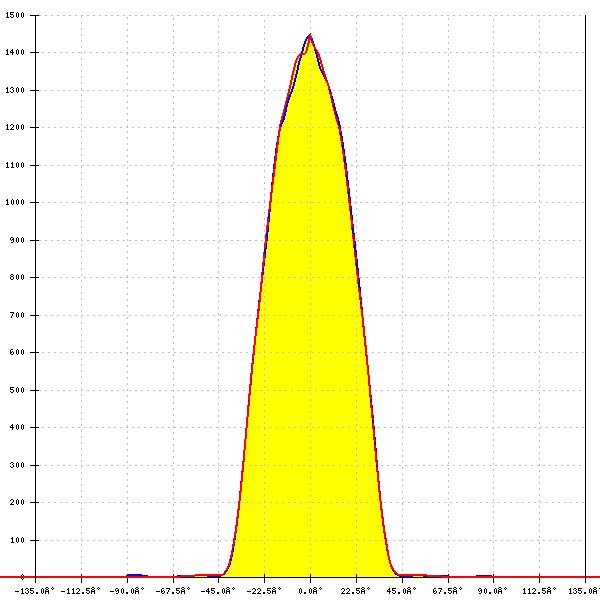

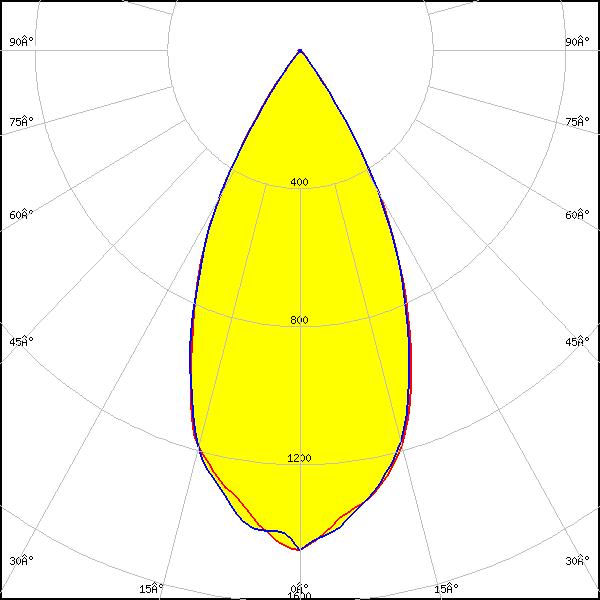

LED: Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM: 50°
FWTM: 72°
Peak intensity: 1.453 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

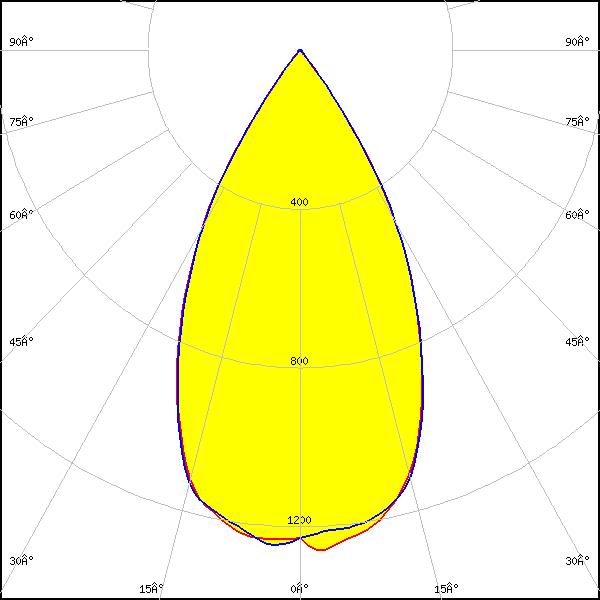

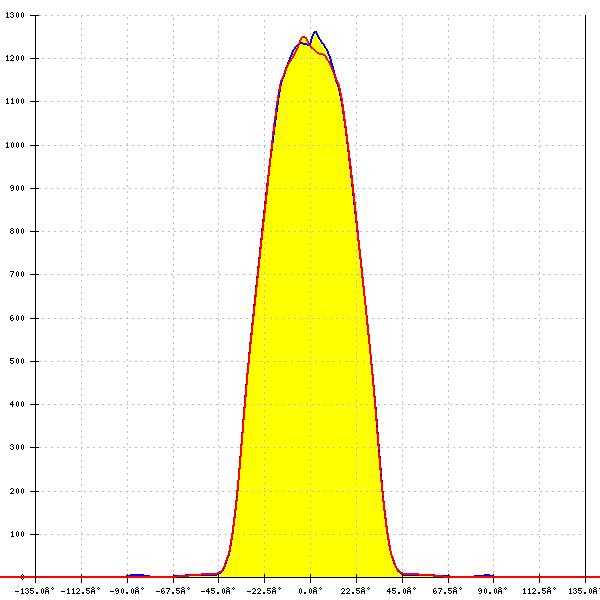

LED: Duris E 2835
Required components:
C16590_DAISY-4X1-SHD
FWHM: 54°
FWTM: 76°
Peak intensity: 1.274 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour/type: White

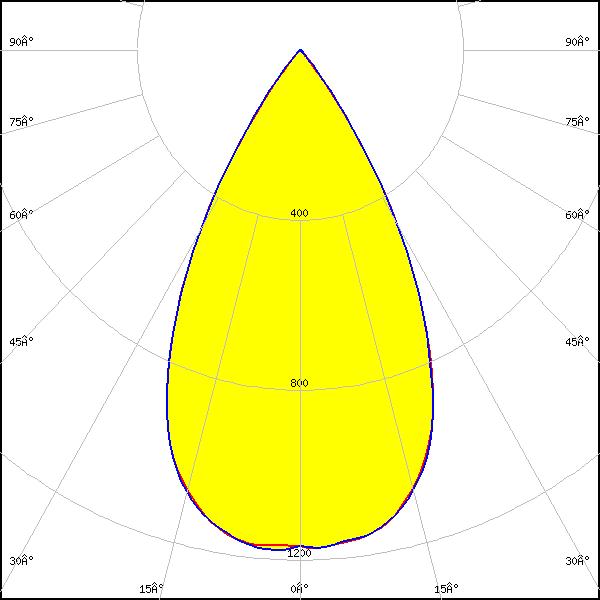

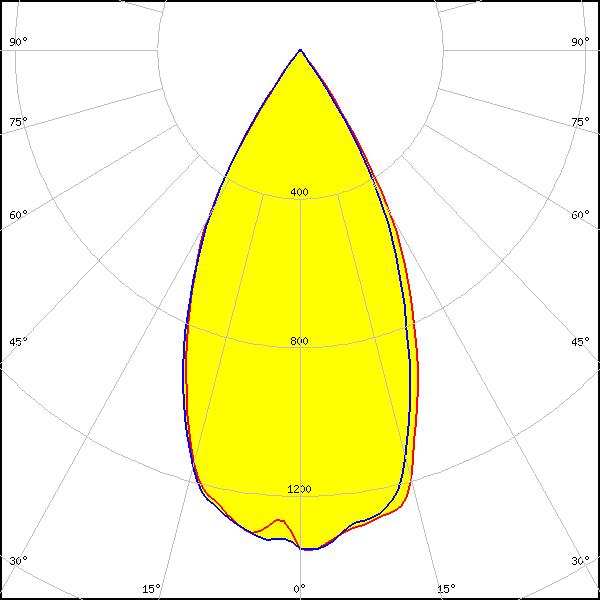

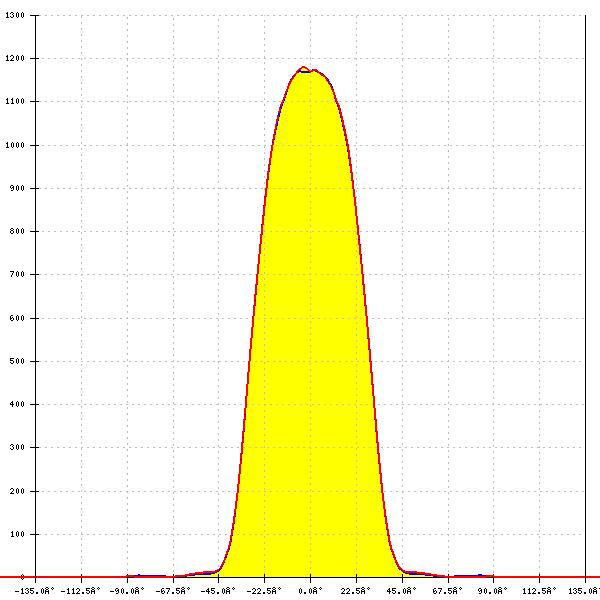

LED: Duris S8
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 56°
FWTM: 76°
Peak intensity: 1.189 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
Required components:
C16590_DAISY-4X1-SHD
FWHM: 52°
FWTM: 73°
Peak intensity: 1.390 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

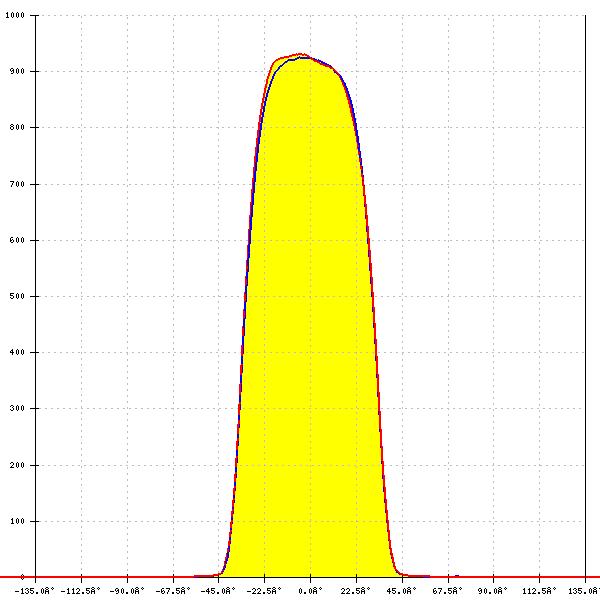

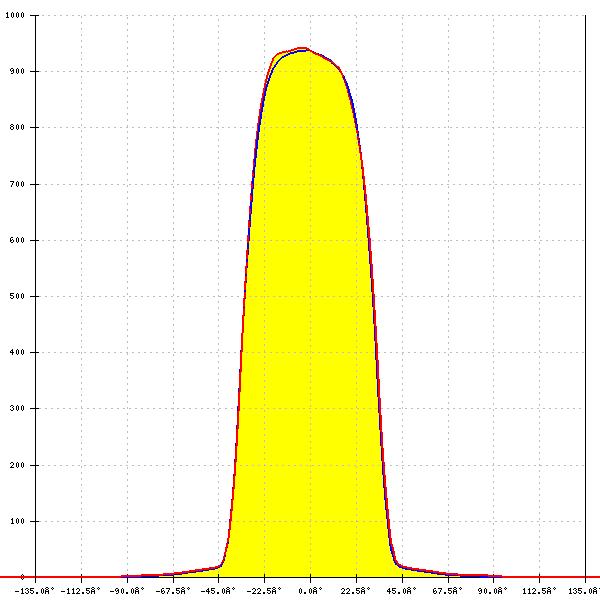

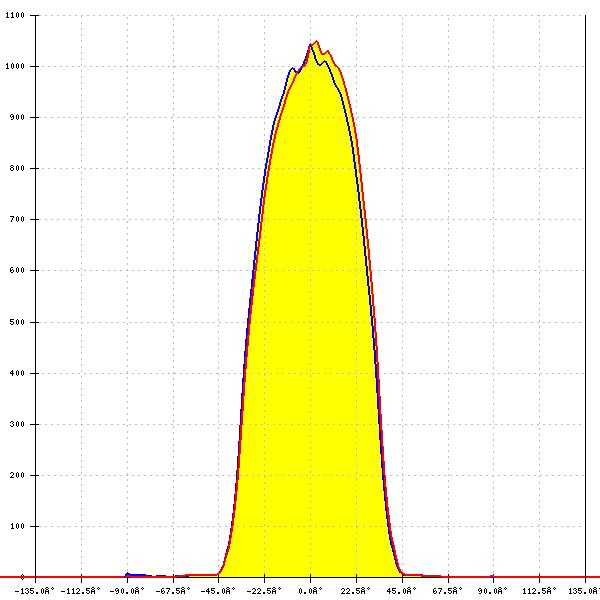

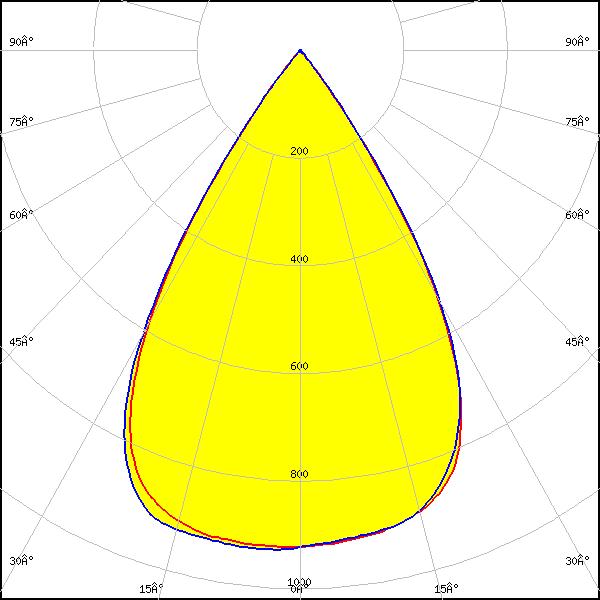

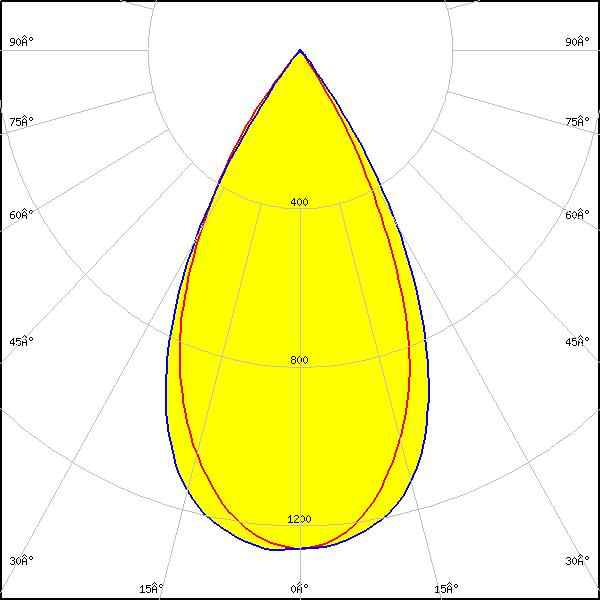

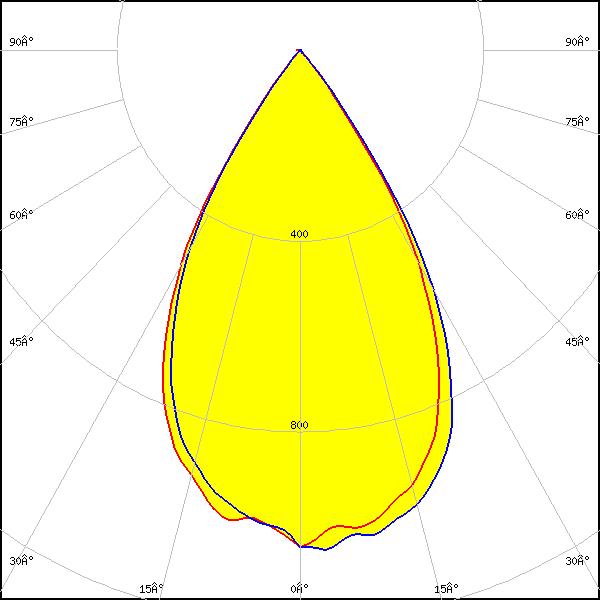

LED: LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 60°
FWTM: 77°
Peak intensity: 1.050 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

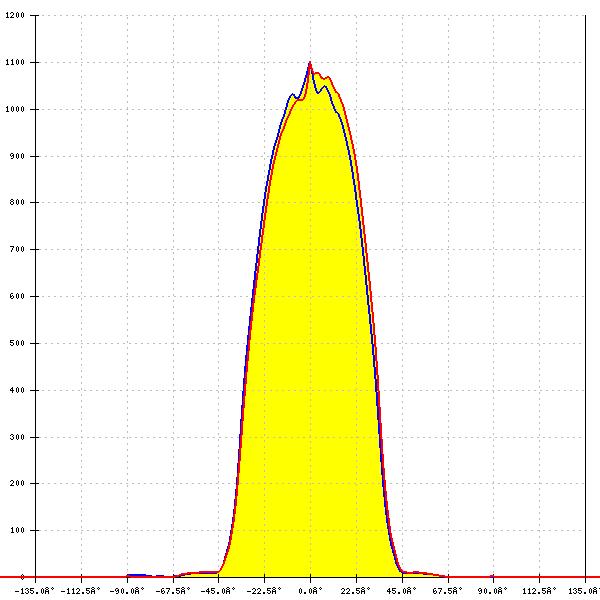

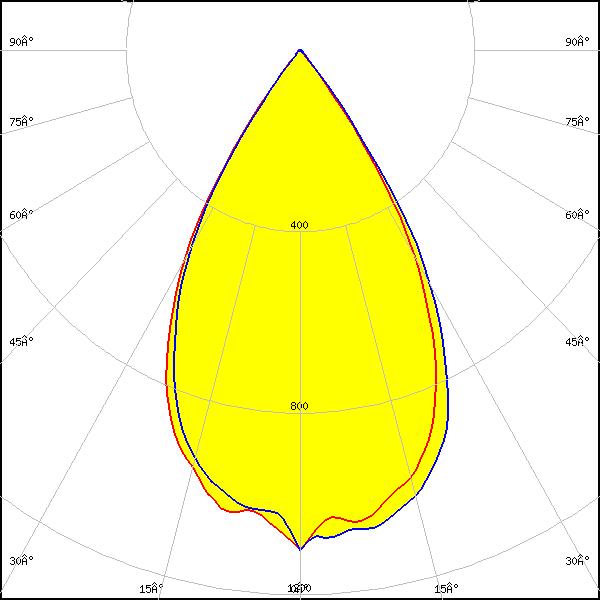

LED: LM28xB Series
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 60°
FWTM: 77°
Peak intensity: 1.102 cd/lm
Efficiency: 93 %
LEDs/each optic: 4
Light colour/type: White

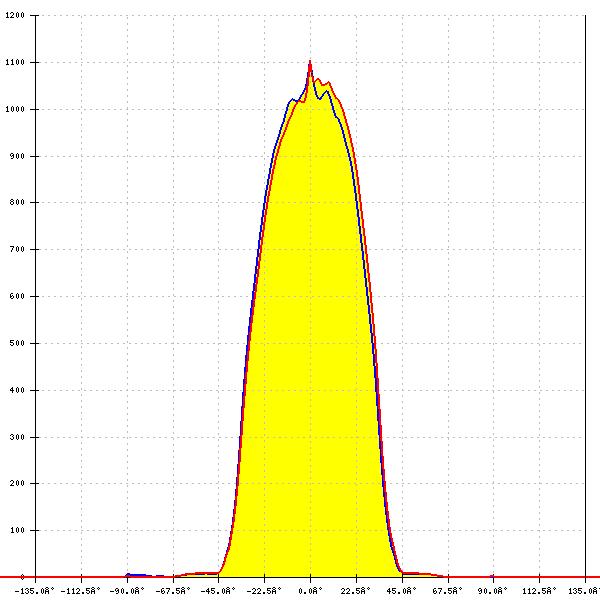

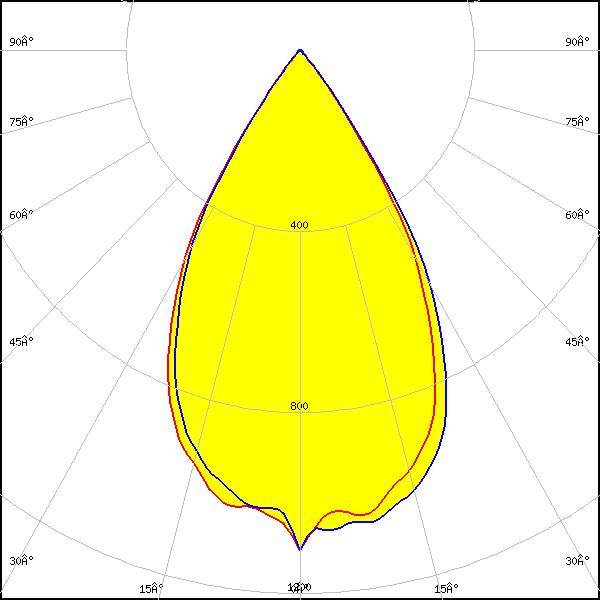

LED: LM28xB Series
Required components:
C18411_DAISY-4X1-SHD2-MET-MATT
FWHM: 59°
FWTM: 77°
Peak intensity: 1.105 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

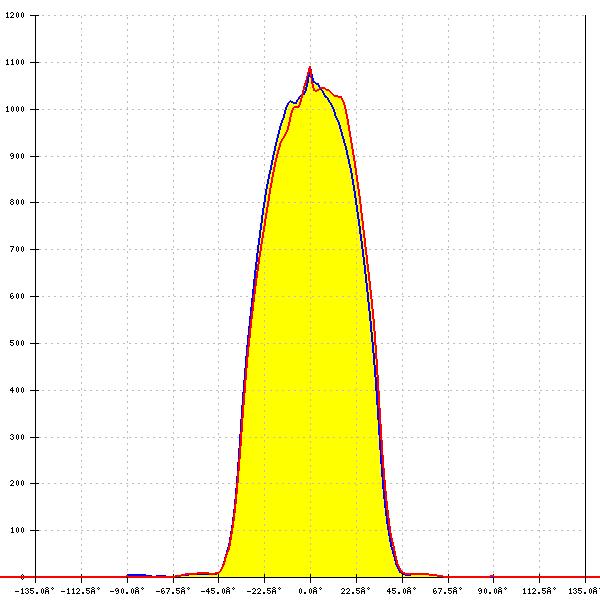

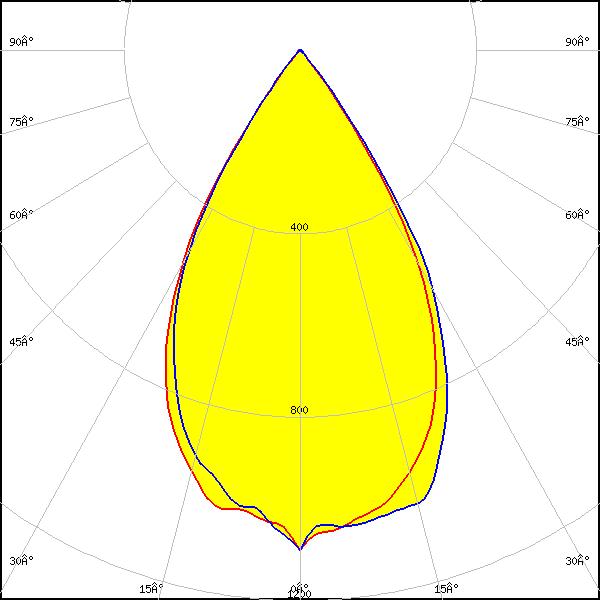

LED: LM28xB Series
Required components:
C18412_DAISY-4X1-SHD2-MET
FWHM: 60°
FWTM: 77°
Peak intensity: 1.093 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

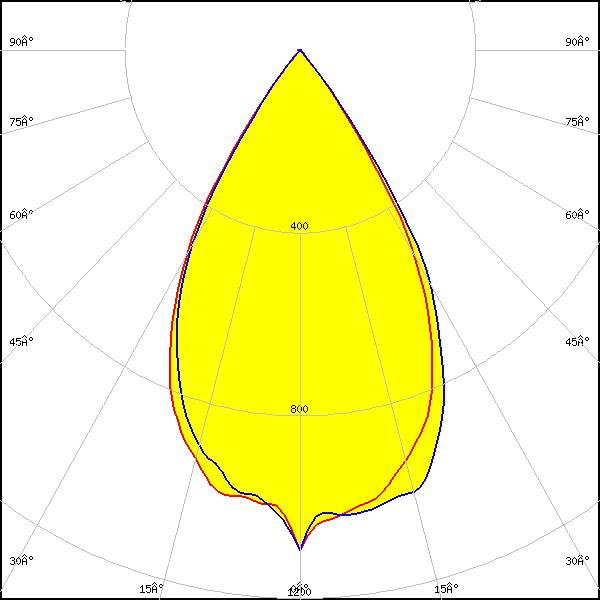

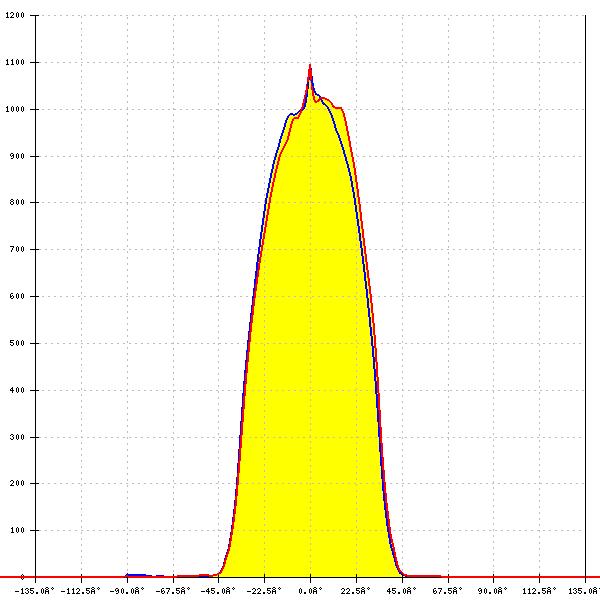

LED: LM28xB Series
Required components:
C19075_DAISY-4X1-SHD2
FWHM: 59°
FWTM: 77°
Peak intensity: 1.095 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

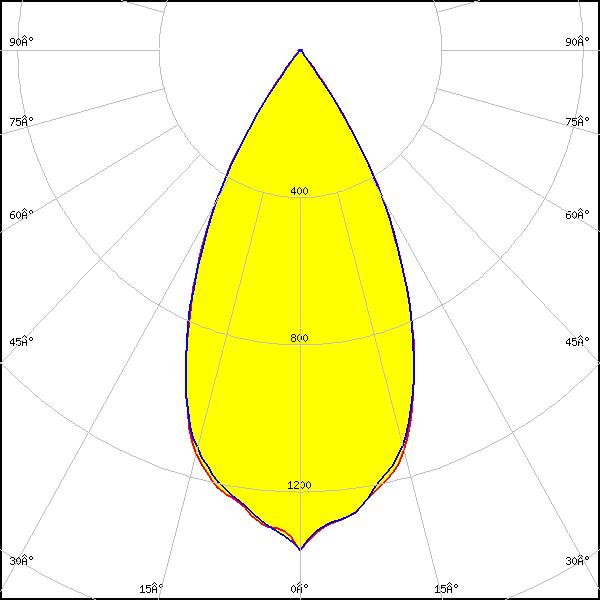

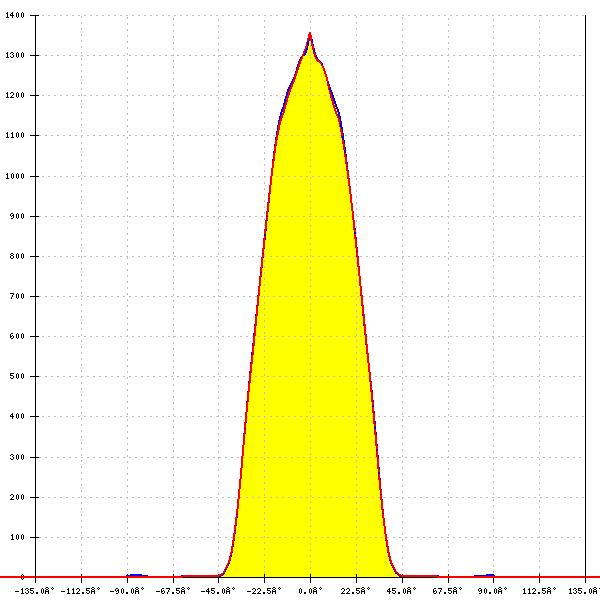

LED: LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 52°
FWTM: 74°
Peak intensity: 1.359 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour/type: White

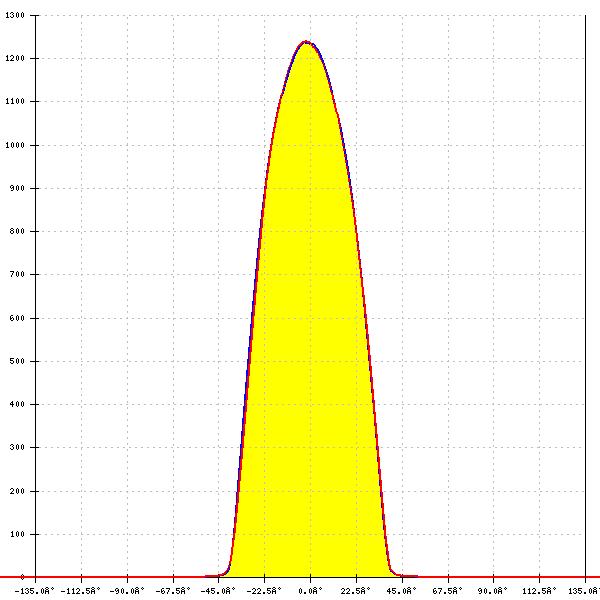

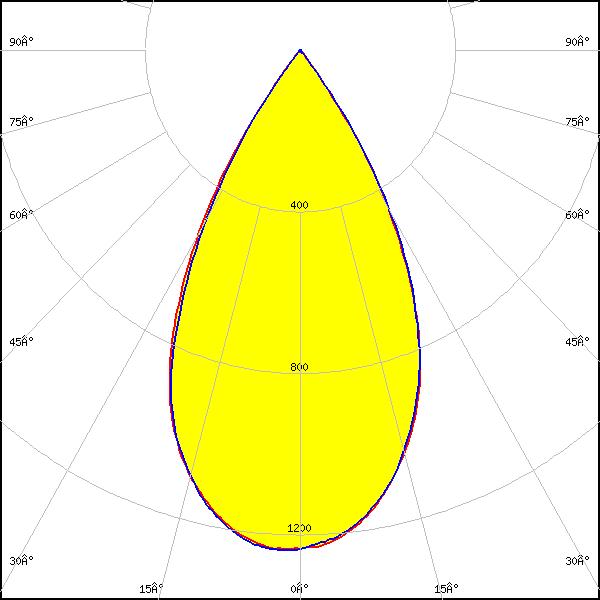

LED: LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM: 55°
FWTM: 73°
Peak intensity: 1.200 cd/lm
Efficiency: 91 %
LEDs/each optic: 2
Light colour/type: White

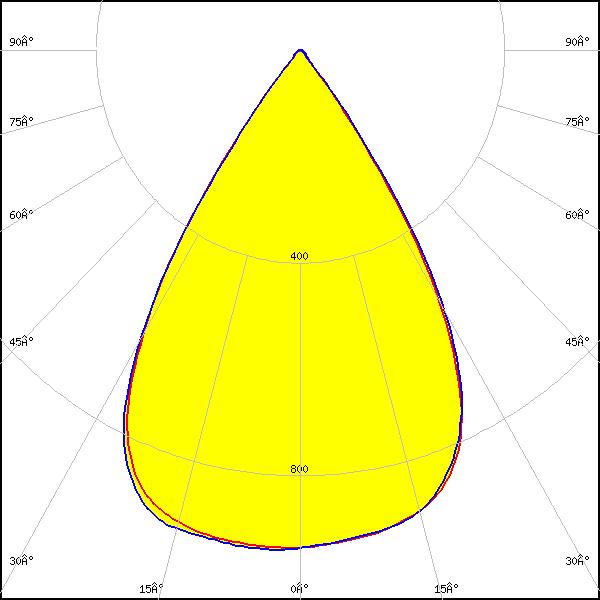

LED: LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 56°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 94 %
LEDs/each optic: 2
Light colour/type: White
LED: LM28xB Series
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 64°
FWTM: 78°
Peak intensity: 0.940 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

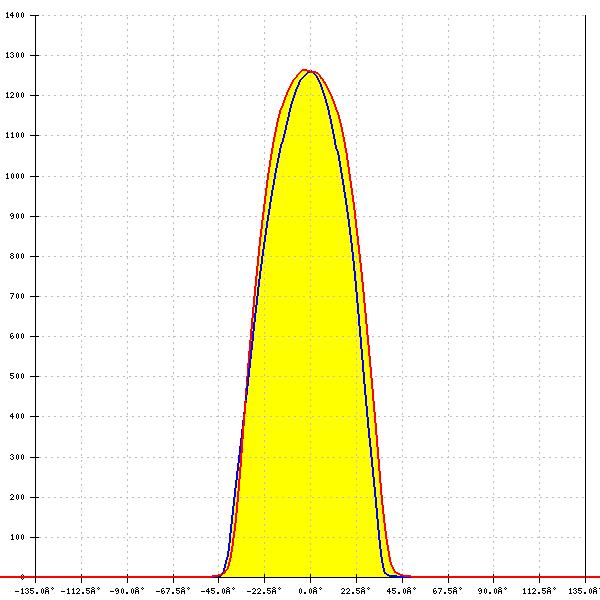

LED: LM28xB Series
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 54°
FWTM: 73°
Peak intensity: 1.264 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LM28xB Series
Required components:
C16590_DAISY-4X1-SHD
FWHM: 64°
FWTM: 77°
Peak intensity: 0.930 cd/lm
Efficiency: 89 %
LEDs/each optic: 4
Light colour/type: White

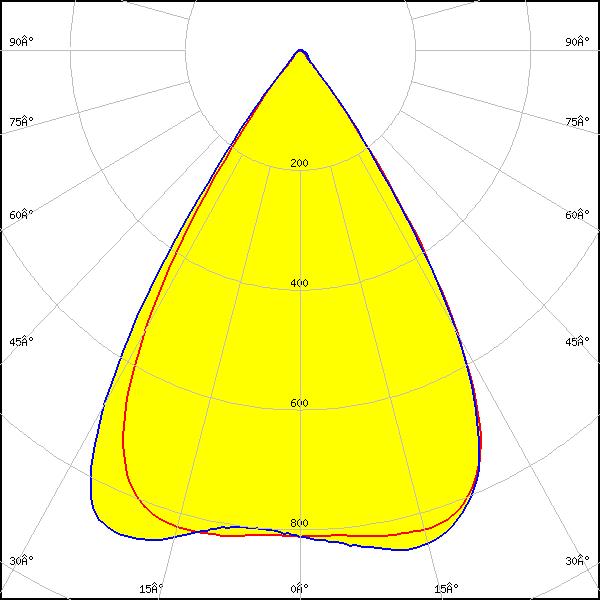

LED: SEOUL DC 3030
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 66°
FWTM: 79°
Peak intensity: 0.886 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: Tunable White

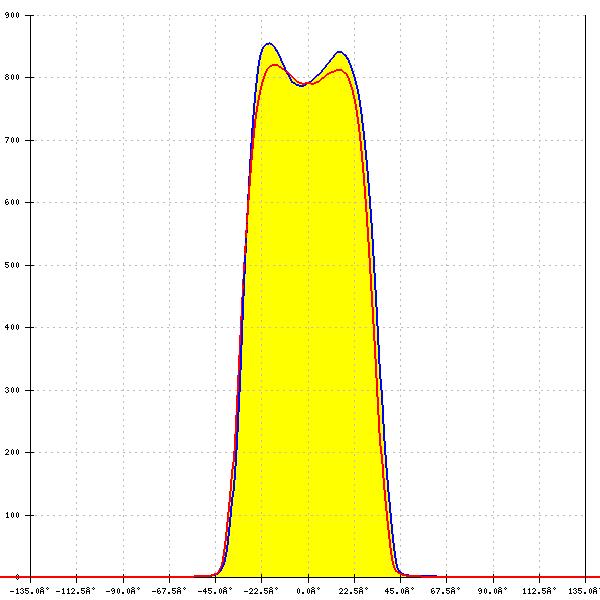

LED: SEOUL DC 3030
Required components:
C16590_DAISY-4X1-SHD
FWHM: 65°
FWTM: 78°
Peak intensity: 0.873 cd/lm
Efficiency: 86 %
LEDs/each optic: 4
Light colour/type: Tunable White

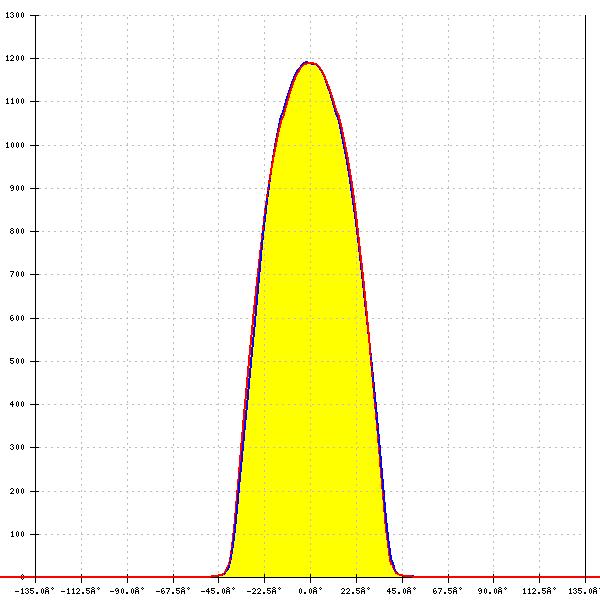

LED: SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM: 54°
FWTM: 74°
Peak intensity: 1.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White
LED: SEOUL DC 3528
Required components:
C16590_DAISY-4X1-SHD
FWHM: 56°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 90 %
LEDs/each optic: 2
Light colour/type: White

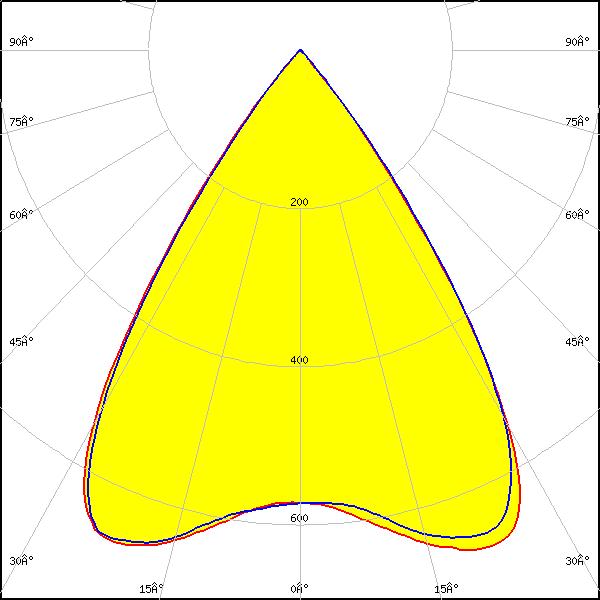

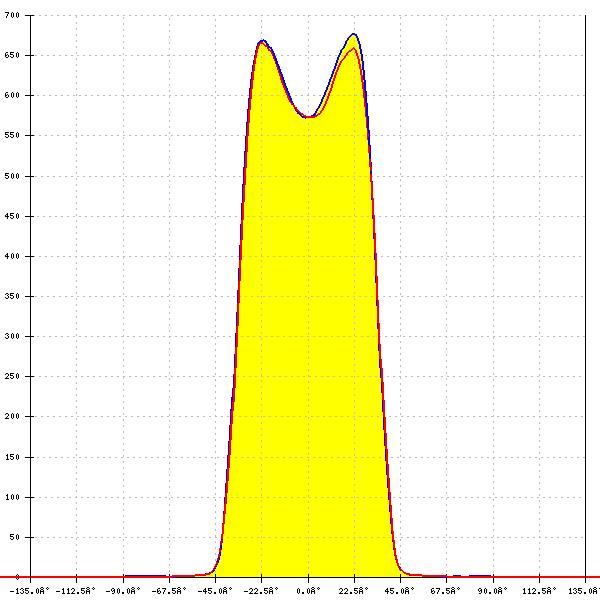

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16590_DAISY-4X1-SHD
FWHM: 69°
FWTM: 81°
Peak intensity: 0.762 cd/lm
Efficiency: 82 %
LEDs/each optic: 4
Light colour/type: White

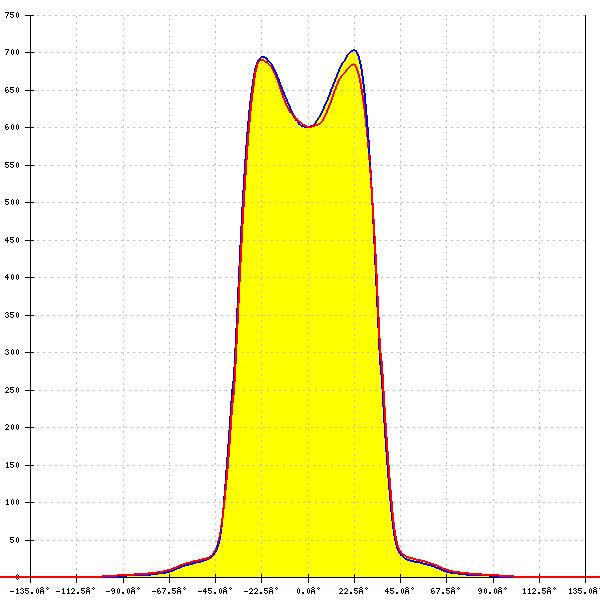

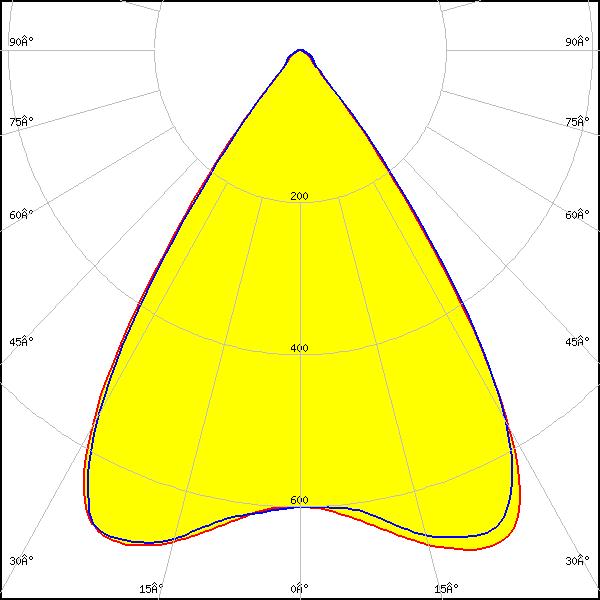

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 69°
FWTM: 83°
Peak intensity: 0.787 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

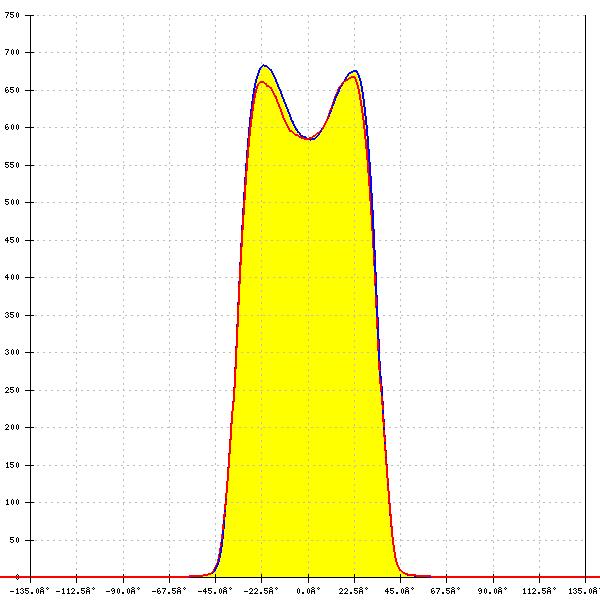

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17422_DAISY-4X1-SHD2-MATT
FWHM: 69°
FWTM: 81°
Peak intensity: 0.768 cd/lm
Efficiency: 83 %
LEDs/each optic: 4
Light colour/type: White

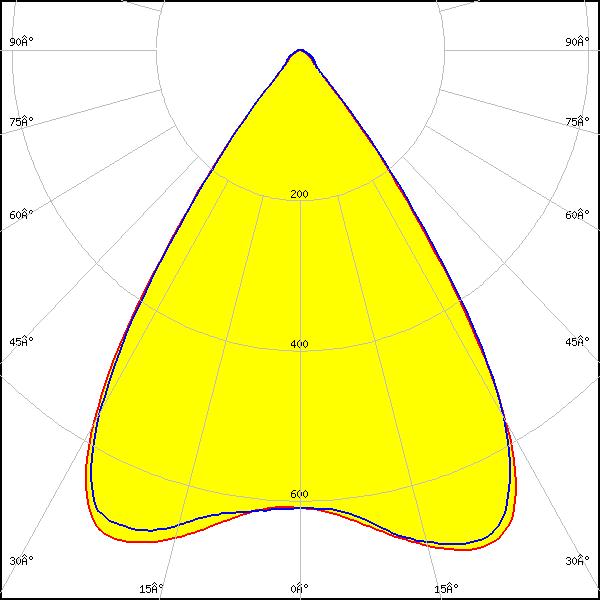

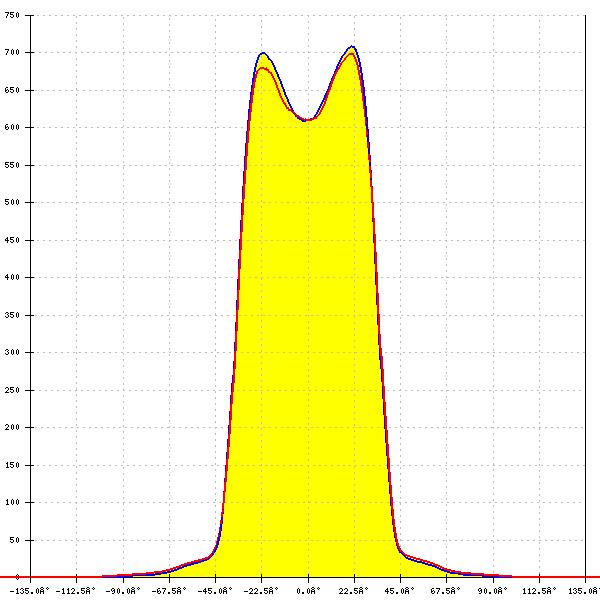

LED: PassivePAQ-L-0.5F35-SSA3-1.6K-840-3-DC
Required components:
C17423_DAISY-4X1-SHD2-WHT-MATT
FWHM: 69°
FWTM: 84°
Peak intensity: 0.785 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White

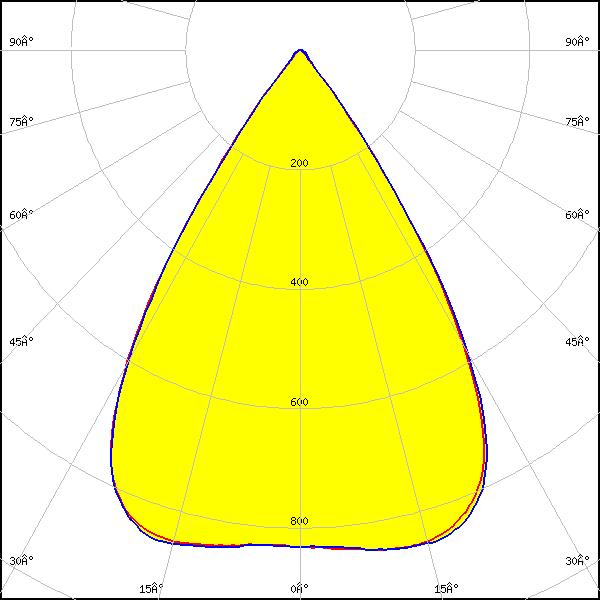

LED: LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 66°
FWTM: 80°
Peak intensity: 0.870 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White

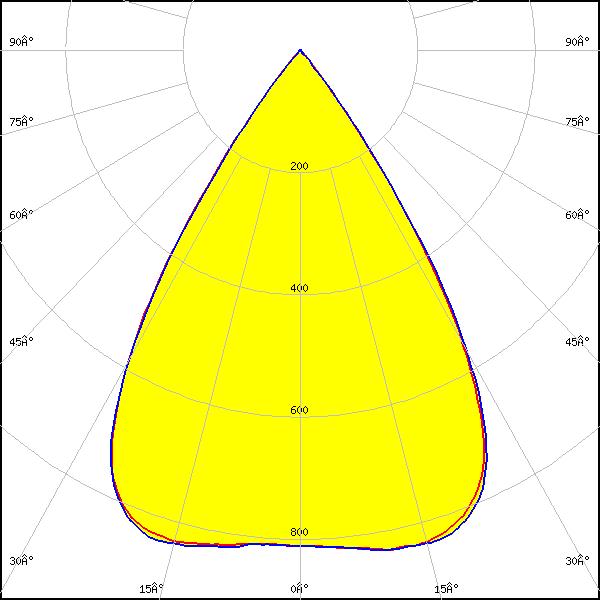

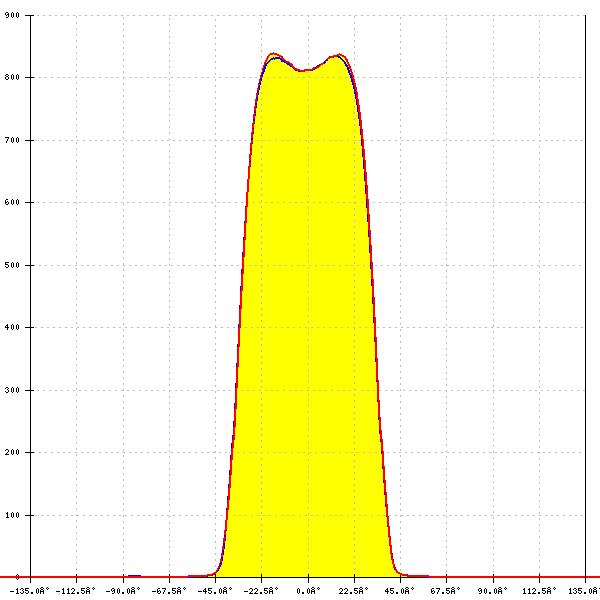

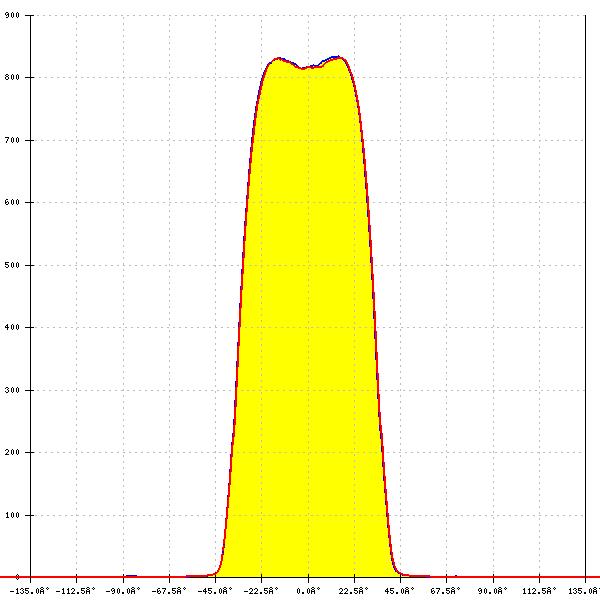

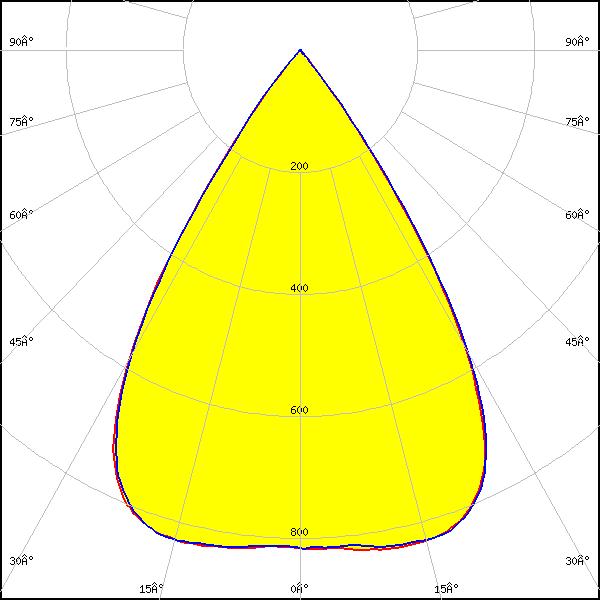

LED: LLE 24x140mm 400lm 827-865 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 66°
FWTM: 79°
Peak intensity: 0.850 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

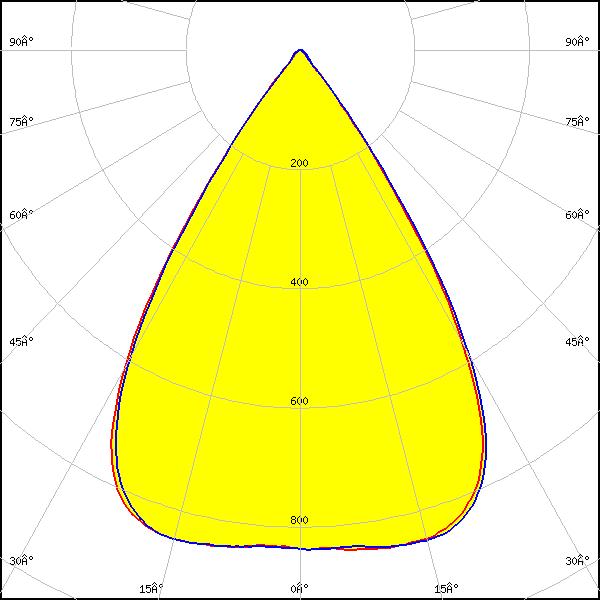

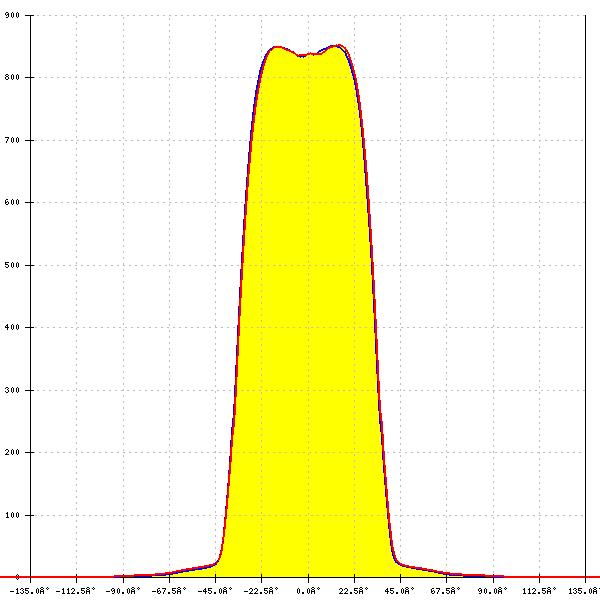

LED: LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16784_DAISY-4X1-SHD-WHT
FWHM: 66°
FWTM: 80°
Peak intensity: 0.866 cd/lm
Efficiency: 94 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x140mm 400lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 66°
FWTM: 79°
Peak intensity: 0.849 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
LED: LLE 24x280mm 750lm 8x0 LVD ADV1
Required components:
C16590_DAISY-4X1-SHD
FWHM: 66°
FWTM: 79°
Peak intensity: 0.850 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
