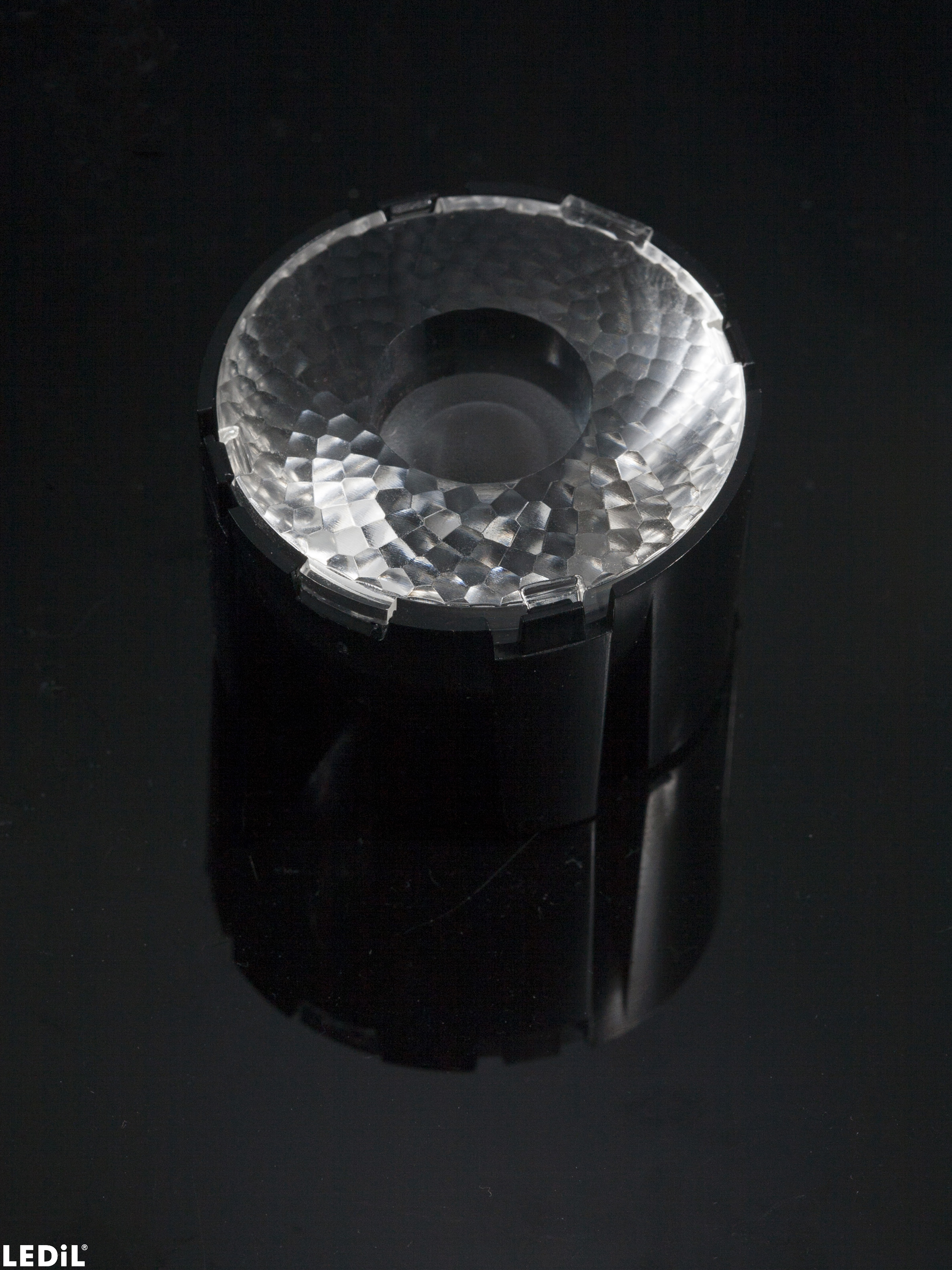

GABRIELLA-45-S
Print
~9° spot beam with holder
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- C15528_GABRIELLA-45-HLDPC
- Request material files from Tech Support
- Single lens
- C15927_GABRIELLA-45-SPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

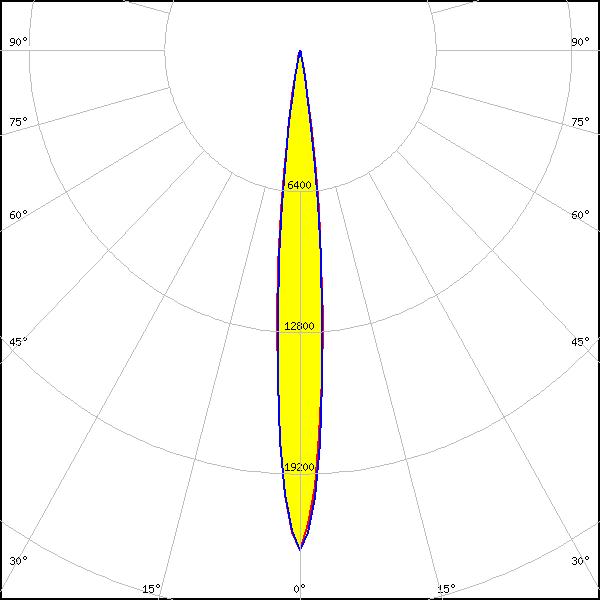

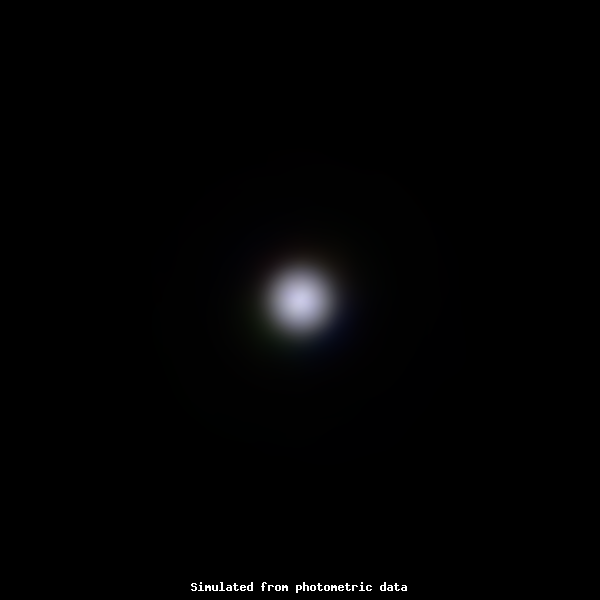

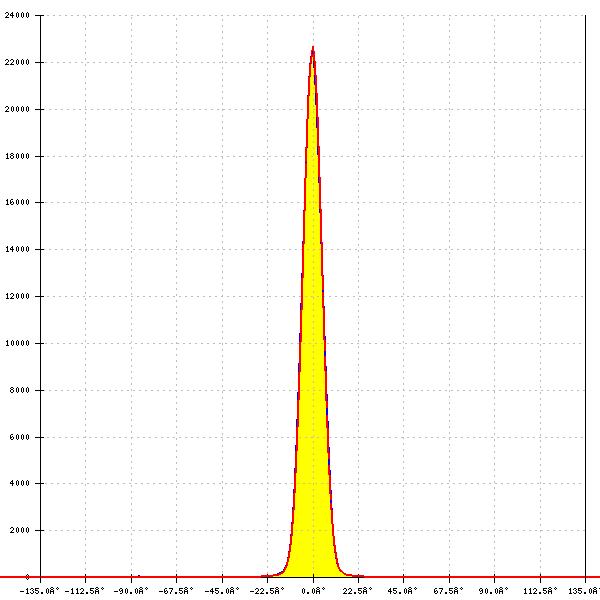

LED:
SMD 3838 RGBW 3V
FWHM:
12°
FWTM:
22°
Peak intensity:
18.978 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW

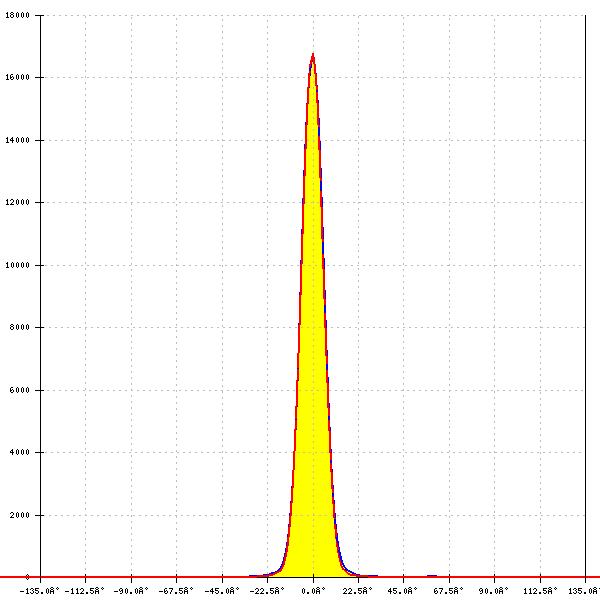

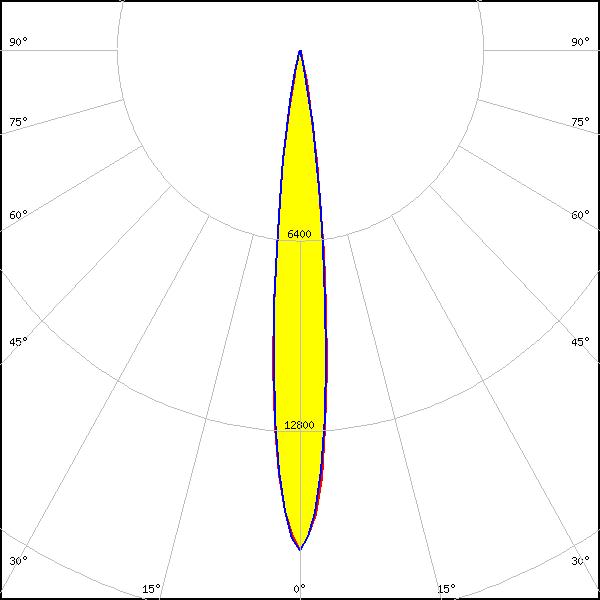

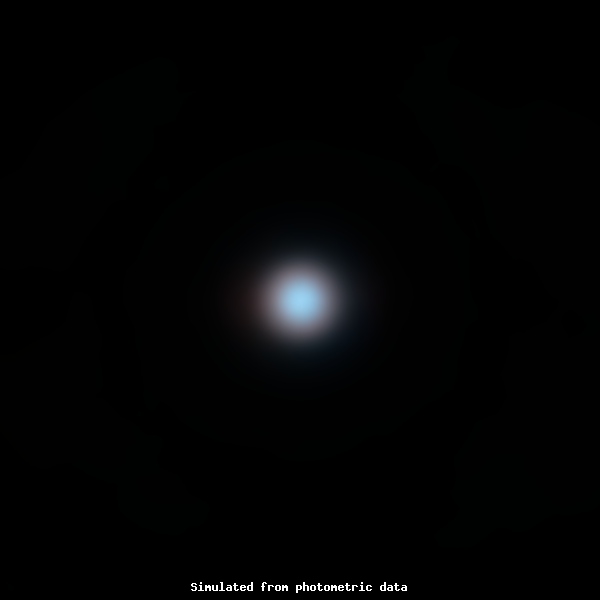

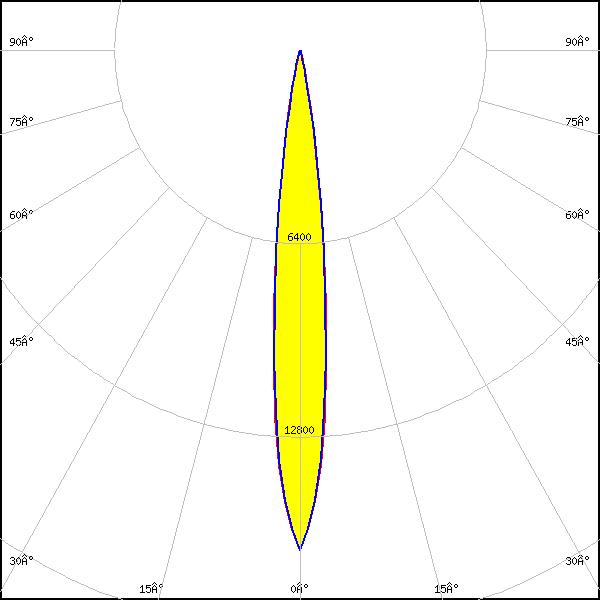

LED:
CLQ6A-TKW
FWHM:
12°
FWTM:
23°
Peak intensity:
16.550 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
CLQ6A-TKW
FWHM:
13° + 12°
FWTM:
24° + 24°
Peak intensity:
14.523 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW

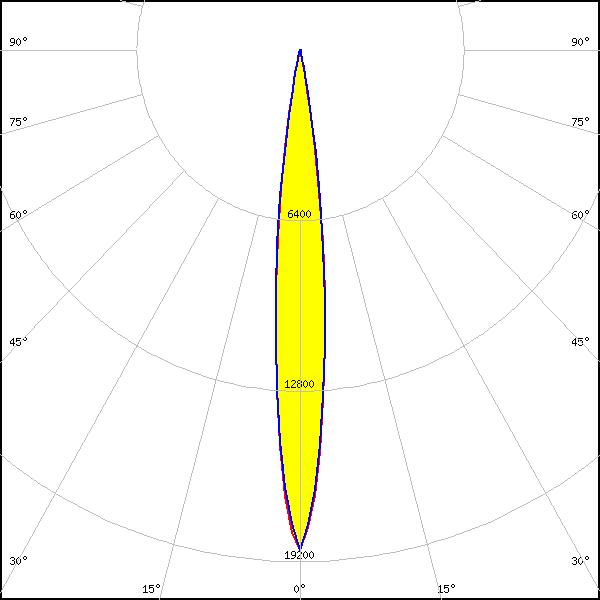

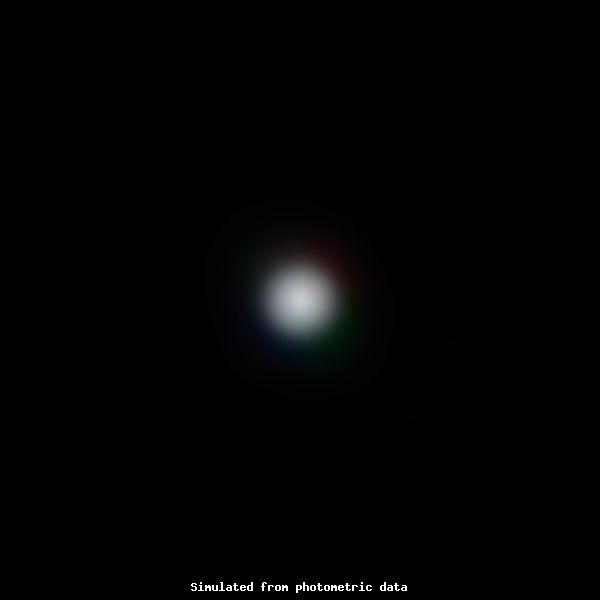

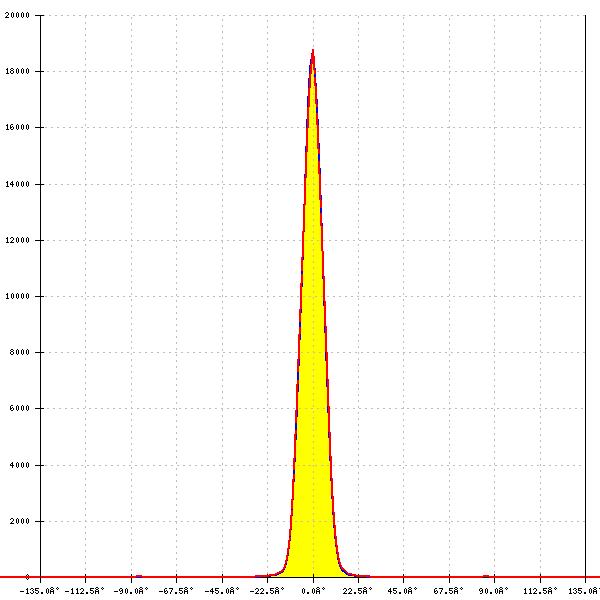

LED:
XE-G
FWHM:
12°
FWTM:
23°
Peak intensity:
15.925 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
RGBW

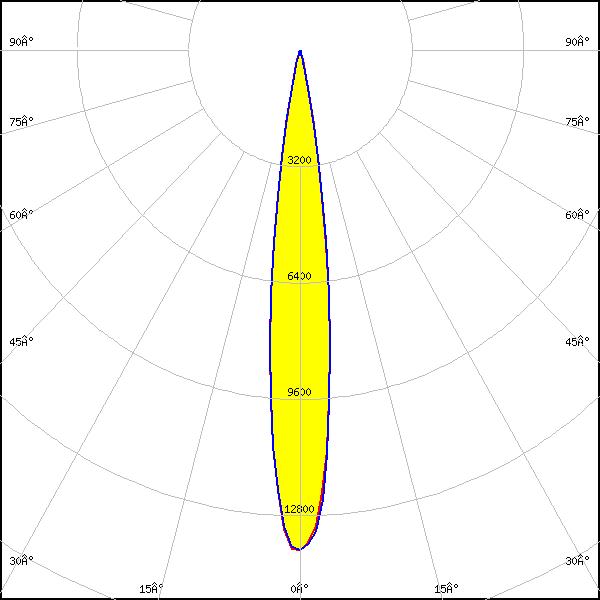

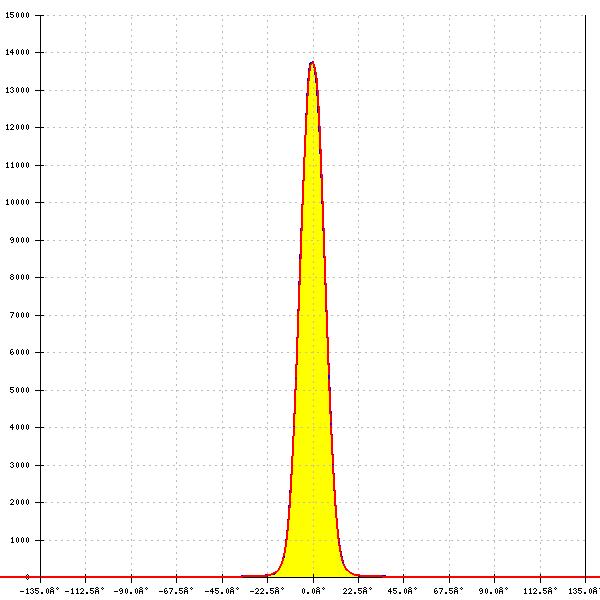

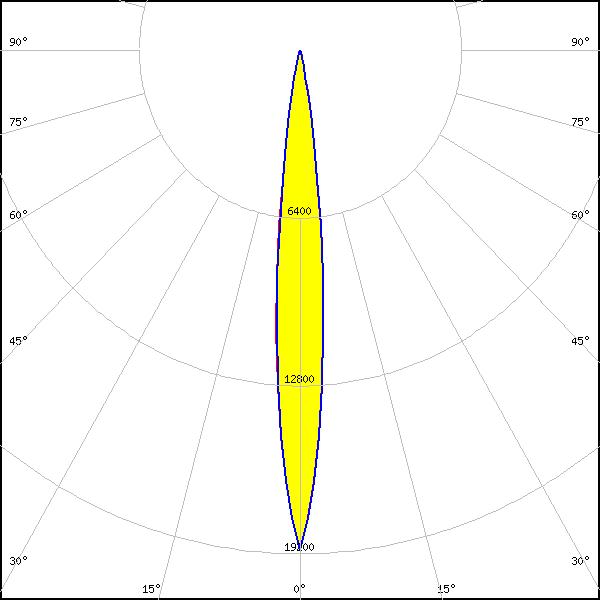

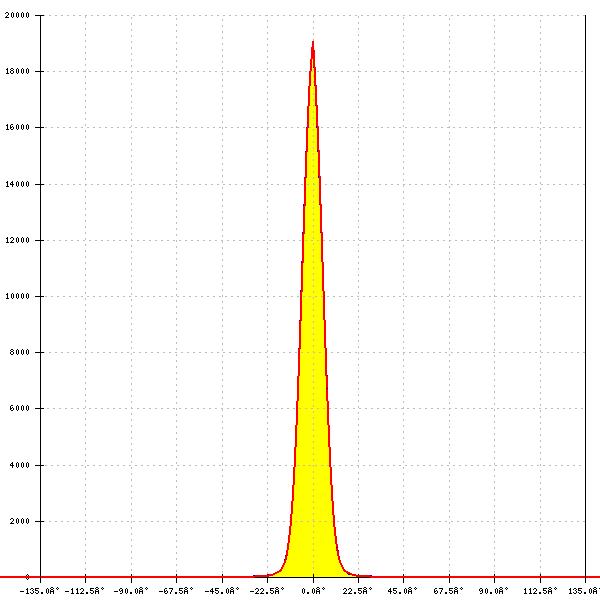

LED:
XHP50
FWHM:
14°
FWTM:
24°
Peak intensity:
13.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

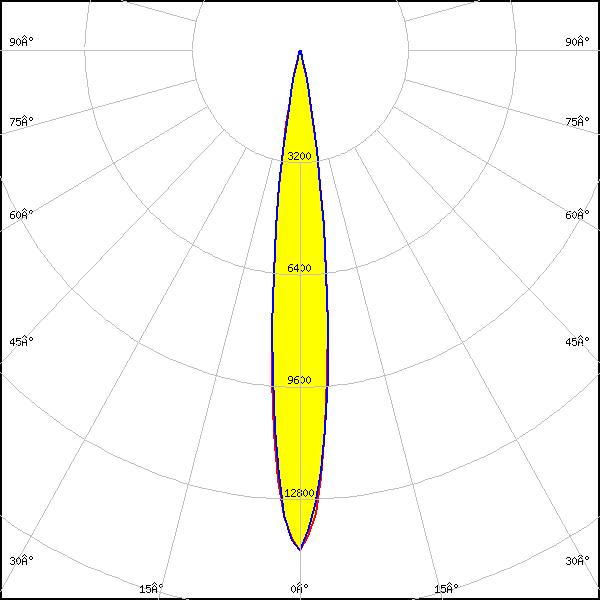

LED:
XHP50.2
FWHM:
13°
FWTM:
25°
Peak intensity:
14.250 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

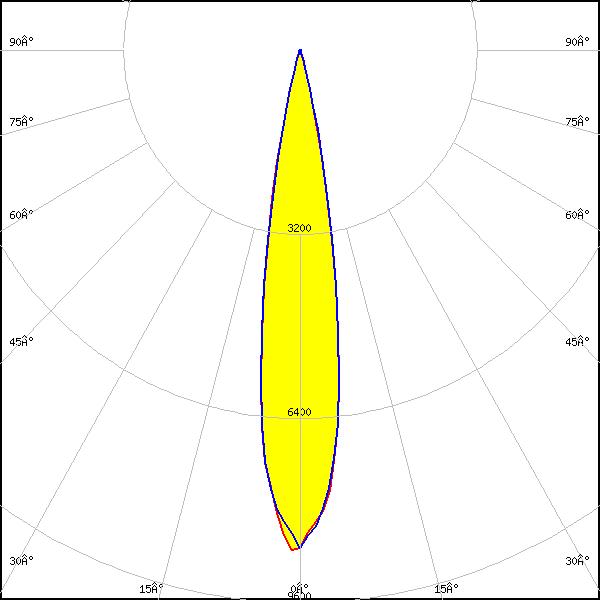

LED:
XHP70
FWHM:
18°
FWTM:
29°
Peak intensity:
8.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

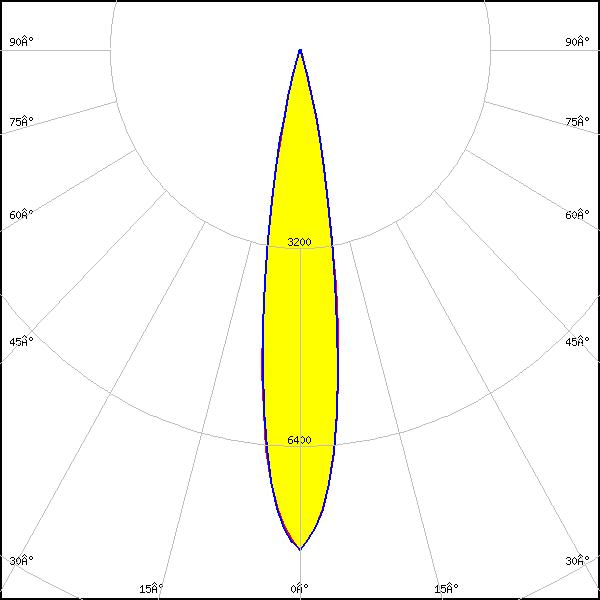

LED:
XHP70.2
FWHM:
17°
FWTM:
30°
Peak intensity:
8.080 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

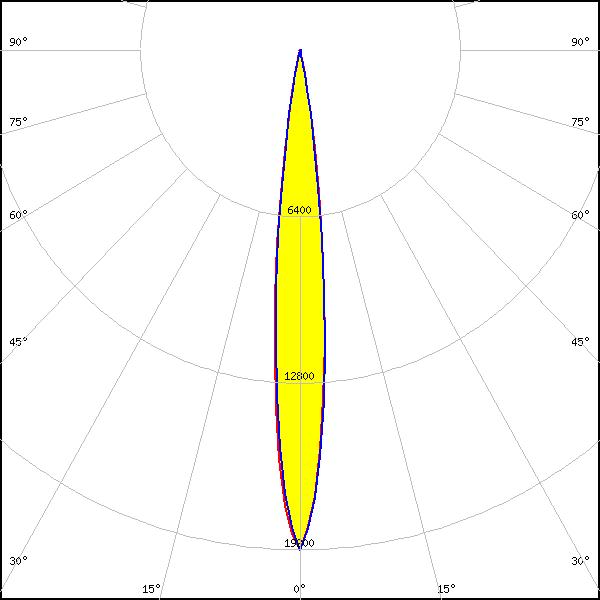

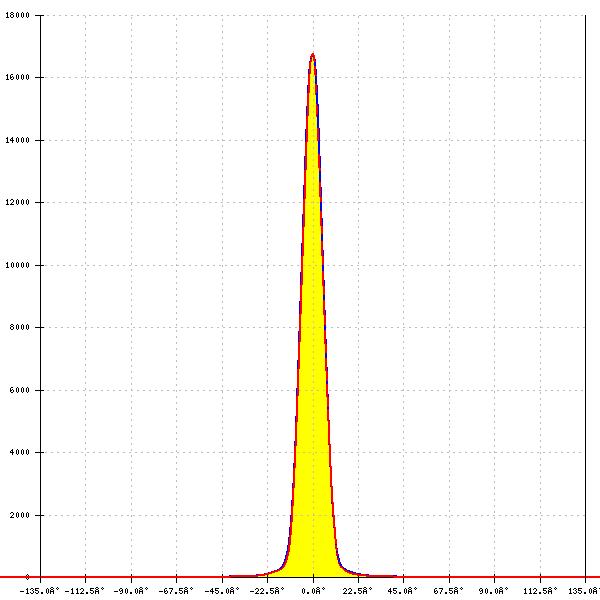

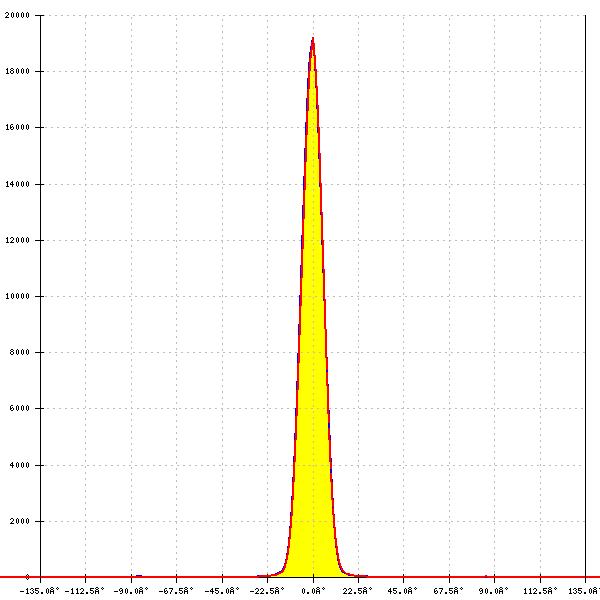

LED:
XM-L RGBW (XMLCTW)
FWHM:
12°
FWTM:
21°
Peak intensity:
17.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L RGBW (XMLDCL HD)
FWHM:
13° + 14°
FWTM:
26° + 26°
Peak intensity:
13.434 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XM-L RGBW (XMLDCL HI)
FWHM:
12°
FWTM:
22°
Peak intensity:
17.971 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW

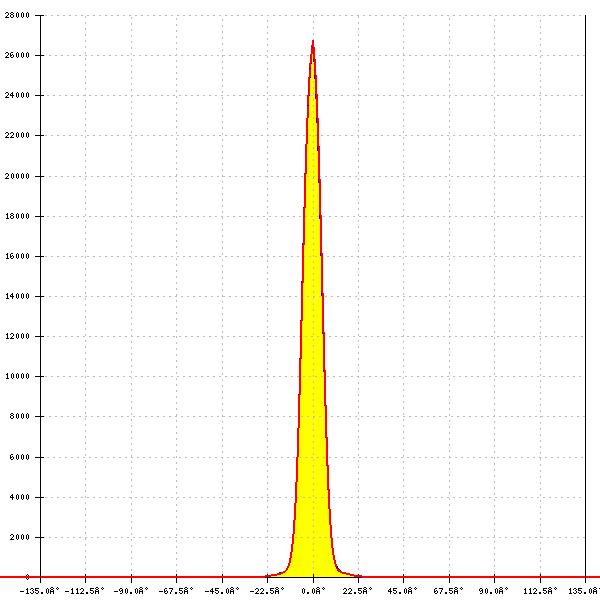

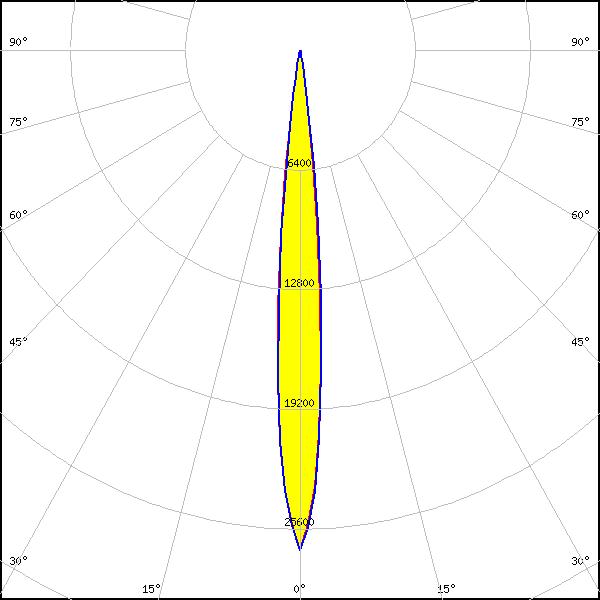

LED:
XP-E2
FWHM:
10°
FWTM:
18°
Peak intensity:
26.741 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Amber

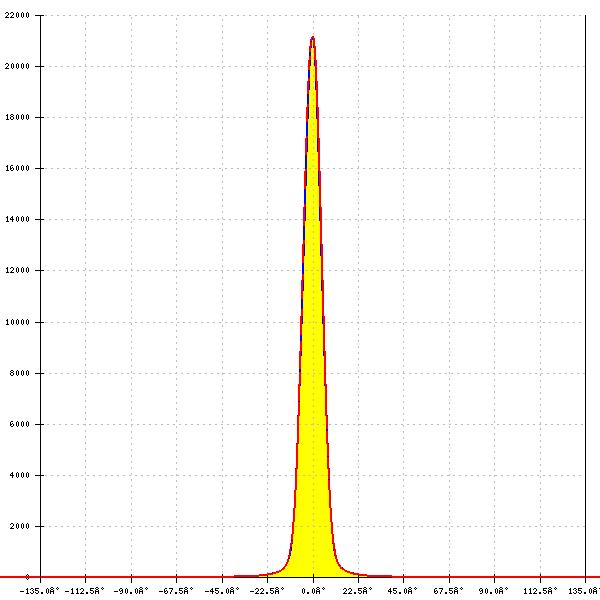

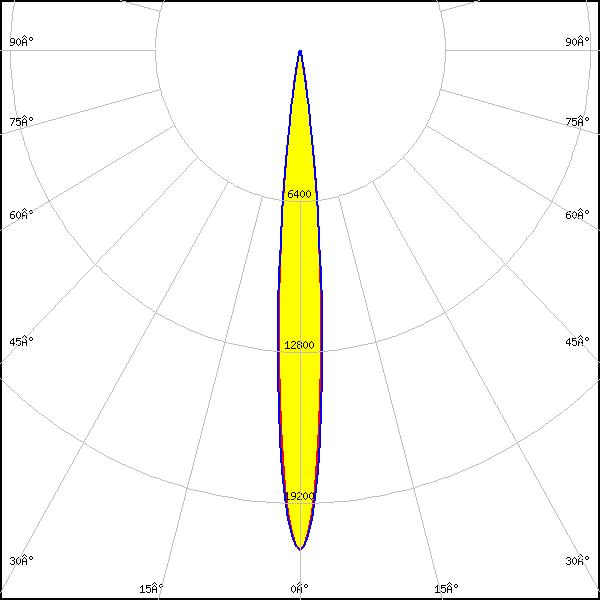

LED:
XP-L RGBW HD
FWHM:
12°
FWTM:
22°
Peak intensity:
16.999 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XP-L RGBW HD
FWHM:
10°
FWTM:
19°
Peak intensity:
22.174 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
RGBW

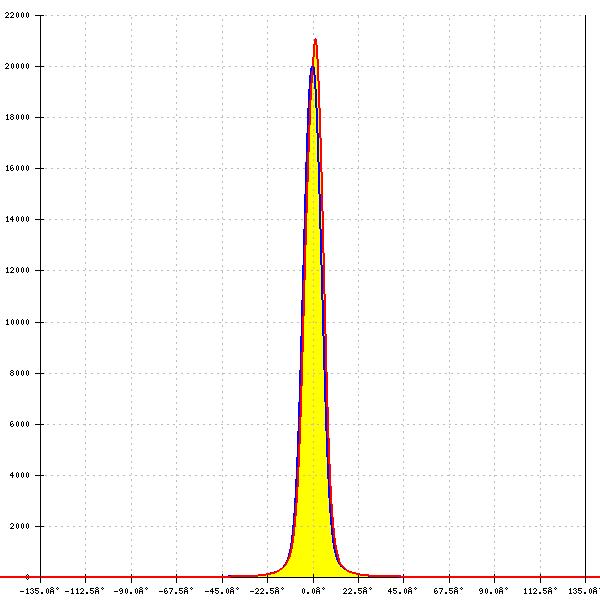

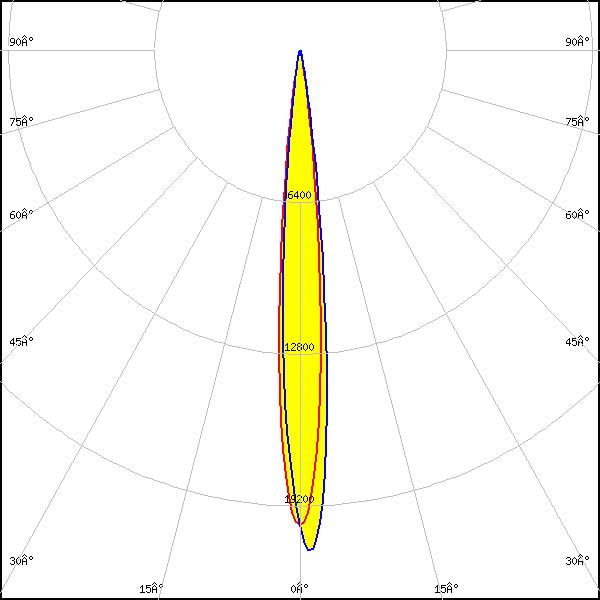

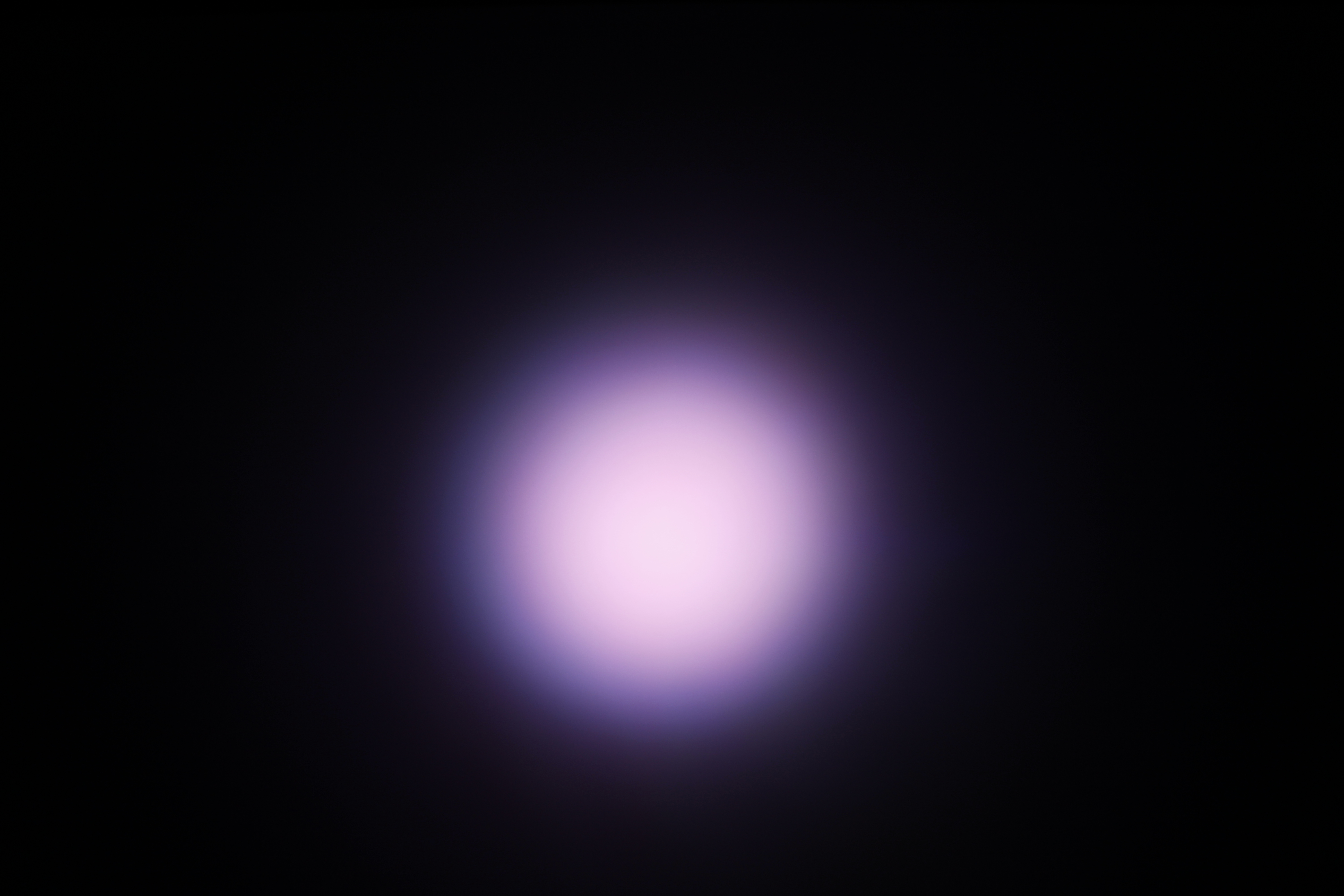

LED:
XP-L RGBW HI
FWHM:
12°
FWTM:
22°
Peak intensity:
18.637 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
XP-L RGBW HI
FWHM:
10°
FWTM:
19°
Peak intensity:
21.066 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

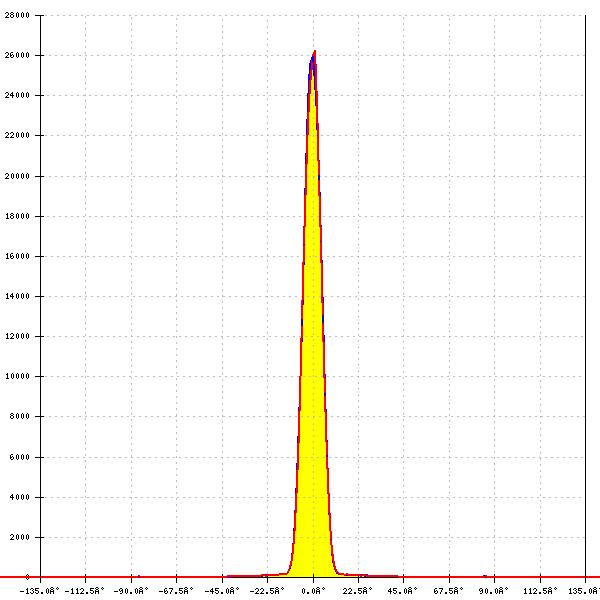

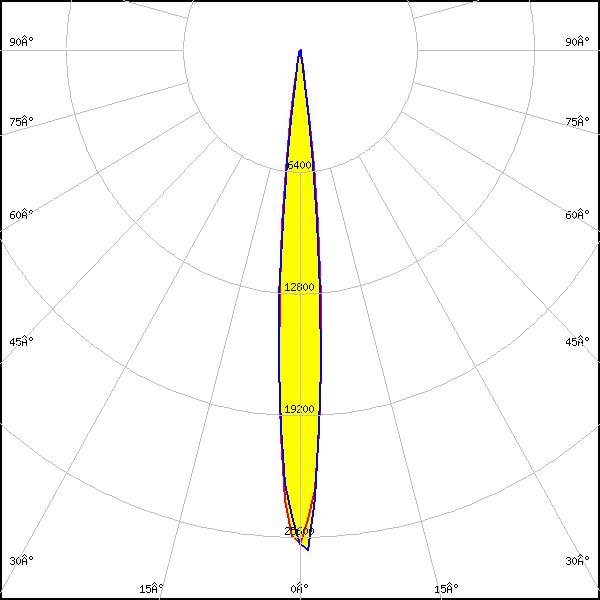

LED:
LZ4-04MDPB
FWHM:
10°
FWTM:
18°
Peak intensity:
28.410 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

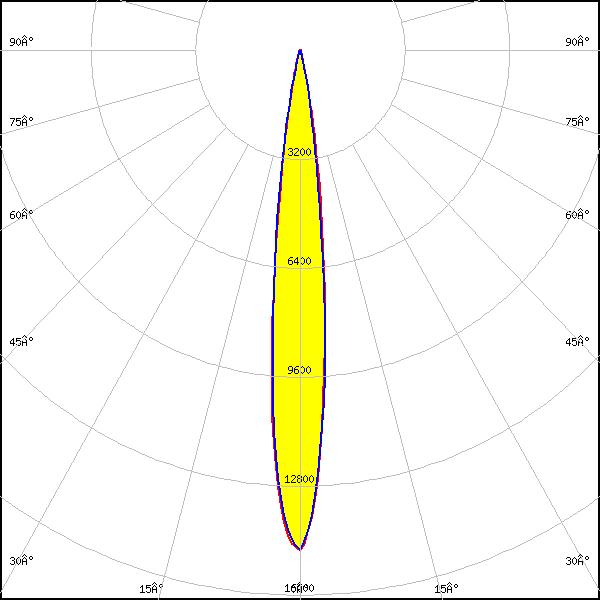

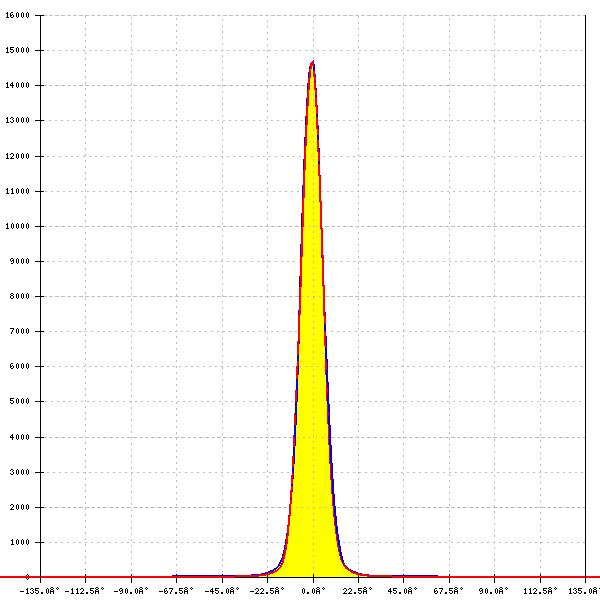

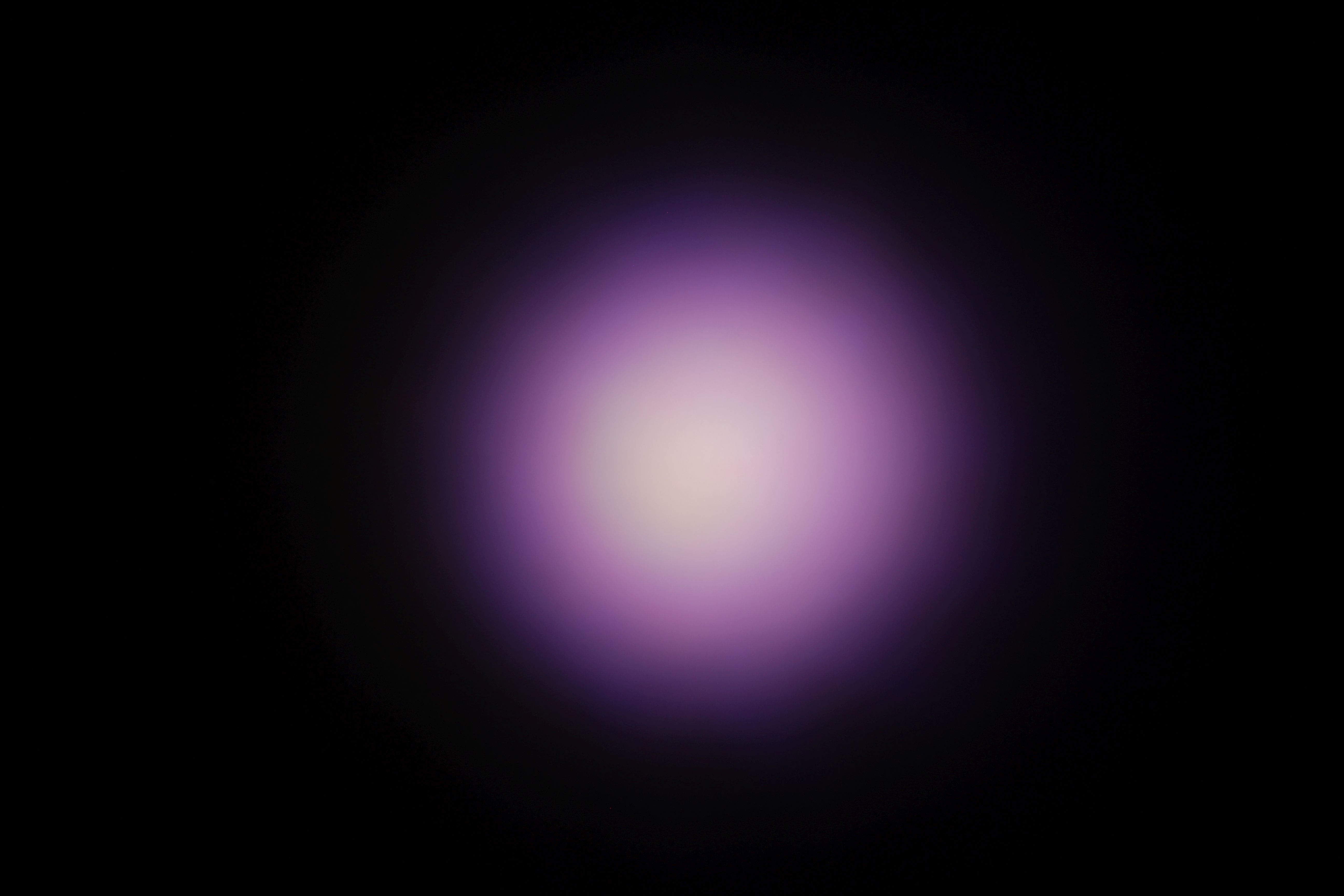

LED:
LUXEON 5052 RGBW
FWHM:
12°
FWTM:
23°
Peak intensity:
14.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
RGBW

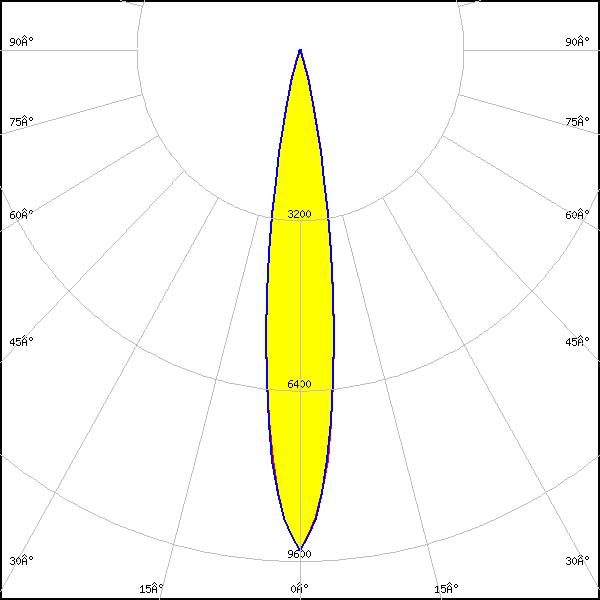

LED:
LUXEON 7070
FWHM:
16°
FWTM:
30°
Peak intensity:
9.395 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

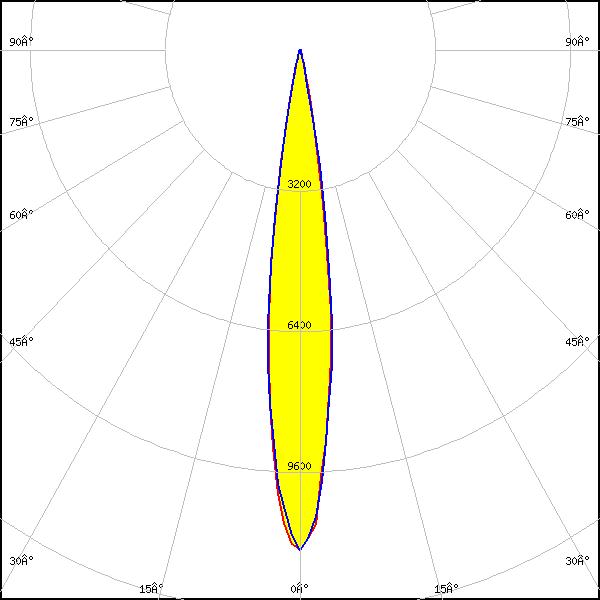

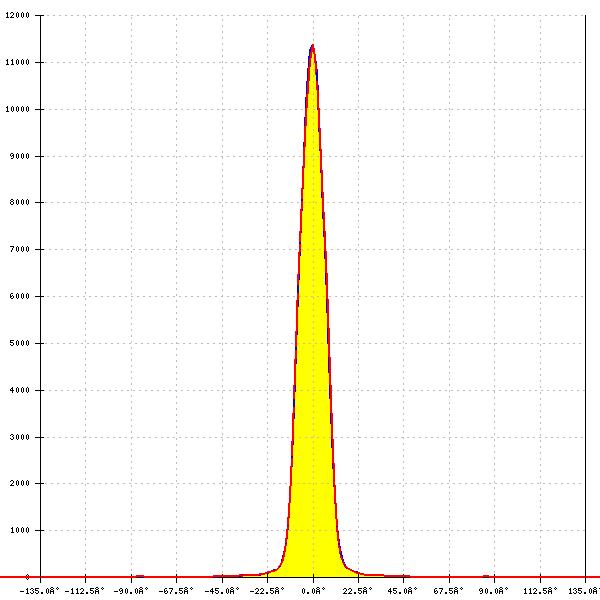

LED:
LUXEON C
FWHM:
14°
FWTM:
24°
Peak intensity:
11.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
4
Light colour/type:
RGBW

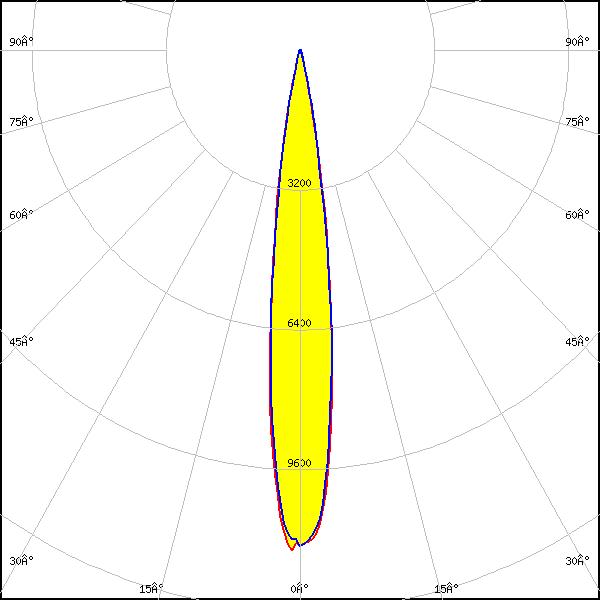

LED:
LUXEON CZ
FWHM:
14°
FWTM:
25°
Peak intensity:
11.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
4
Light colour/type:
RGBW

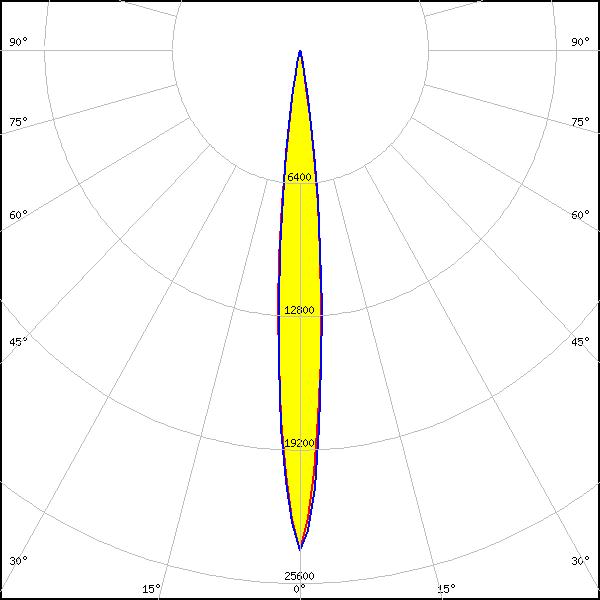

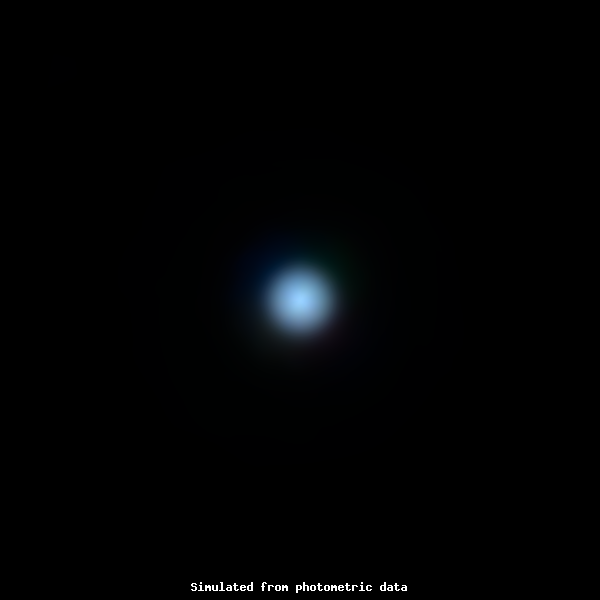

LED:
LUXEON Rubix
FWHM:
12°
FWTM:
22°
Peak intensity:
17.803 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
RGBW

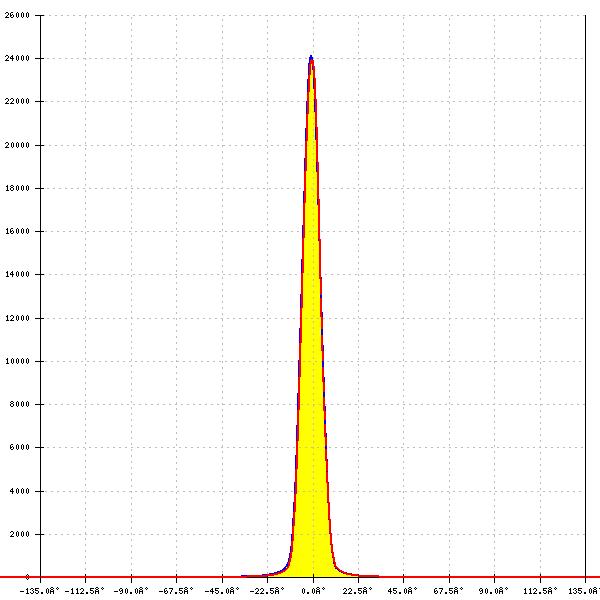

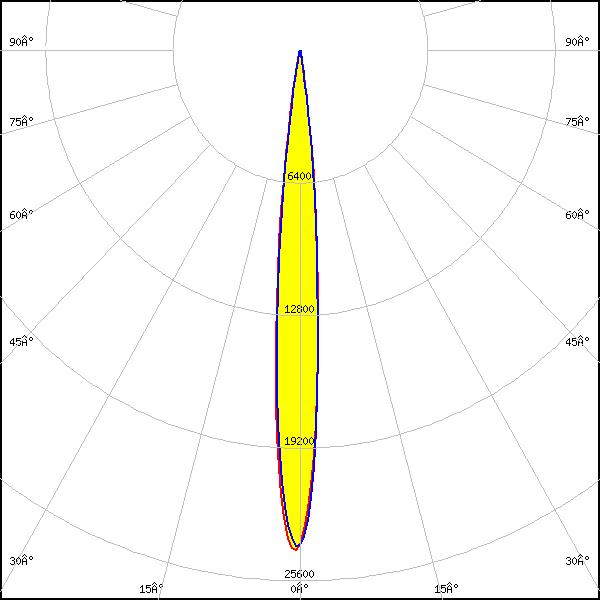

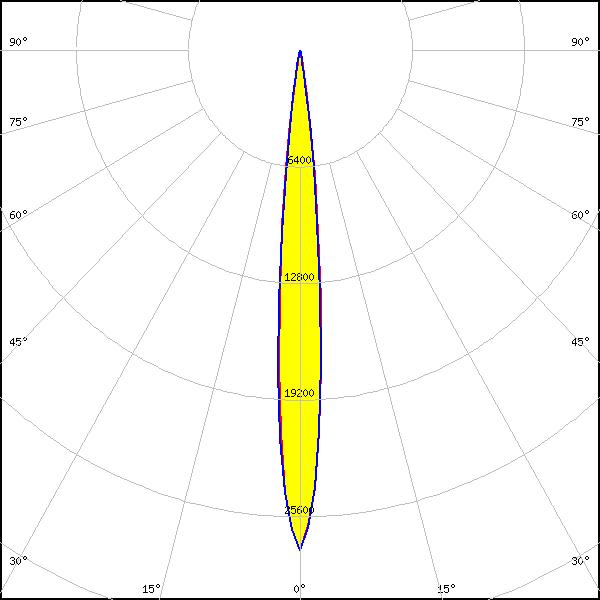

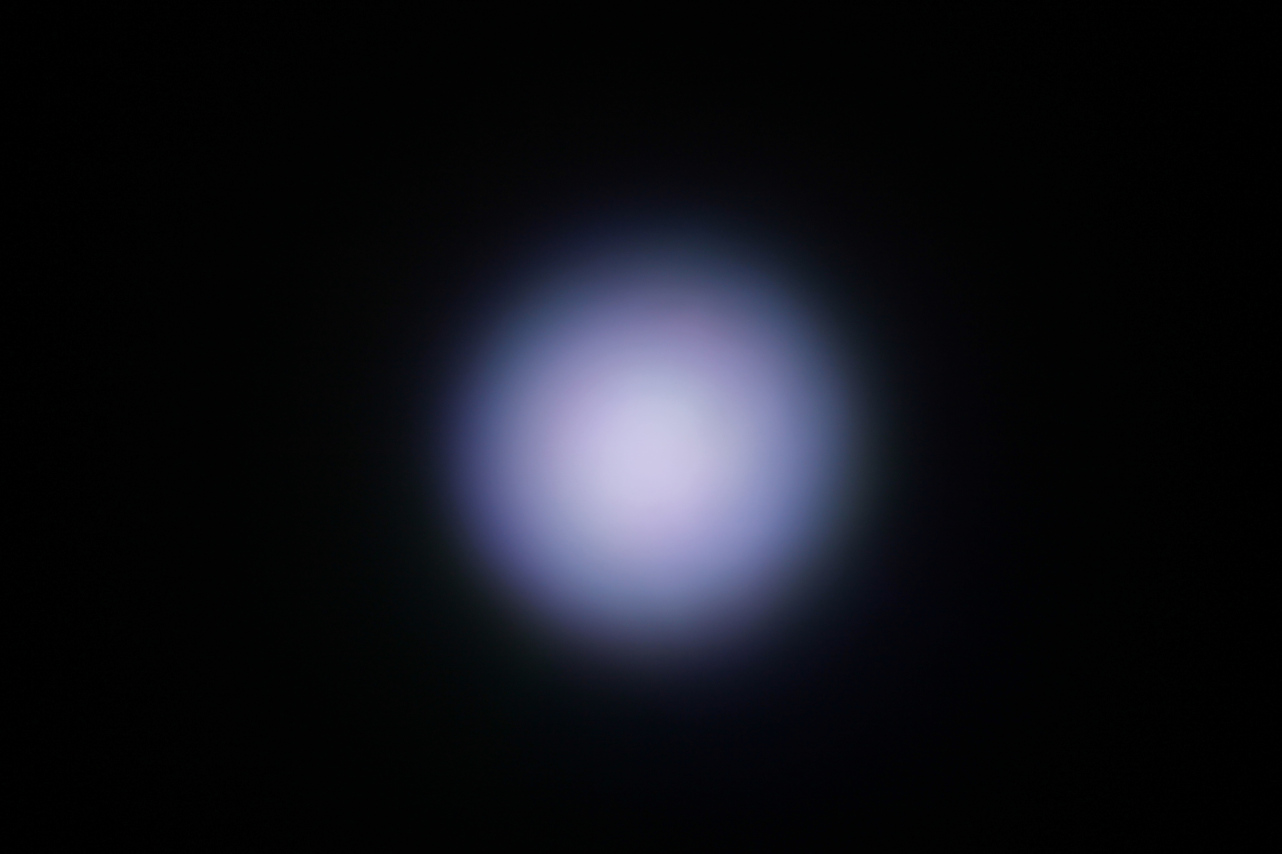

LED:
SBM-40-RGBW
FWHM:
10°
FWTM:
18°
Peak intensity:
24.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

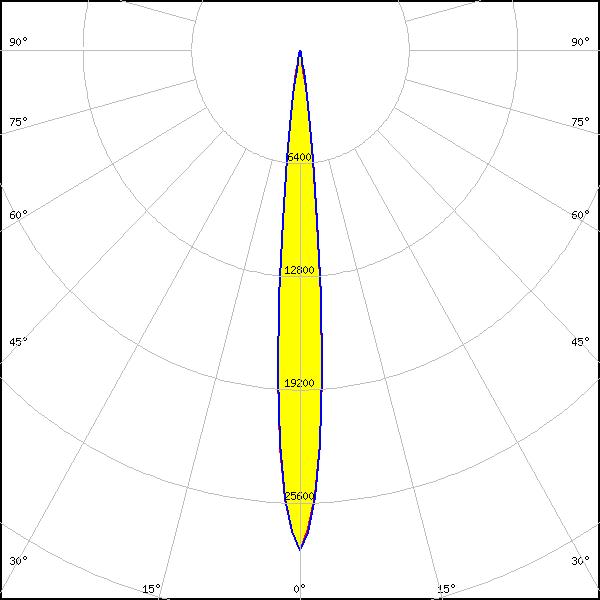

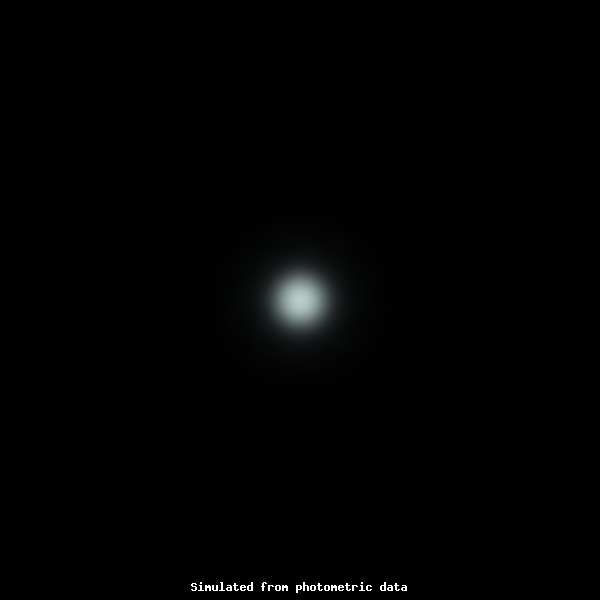

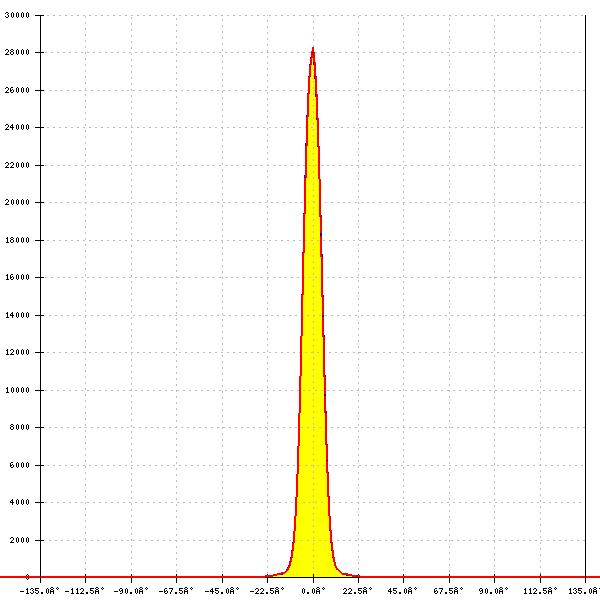

LED:
SFT-40 Gen2
FWHM:
12°
FWTM:
22°
Peak intensity:
19.183 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

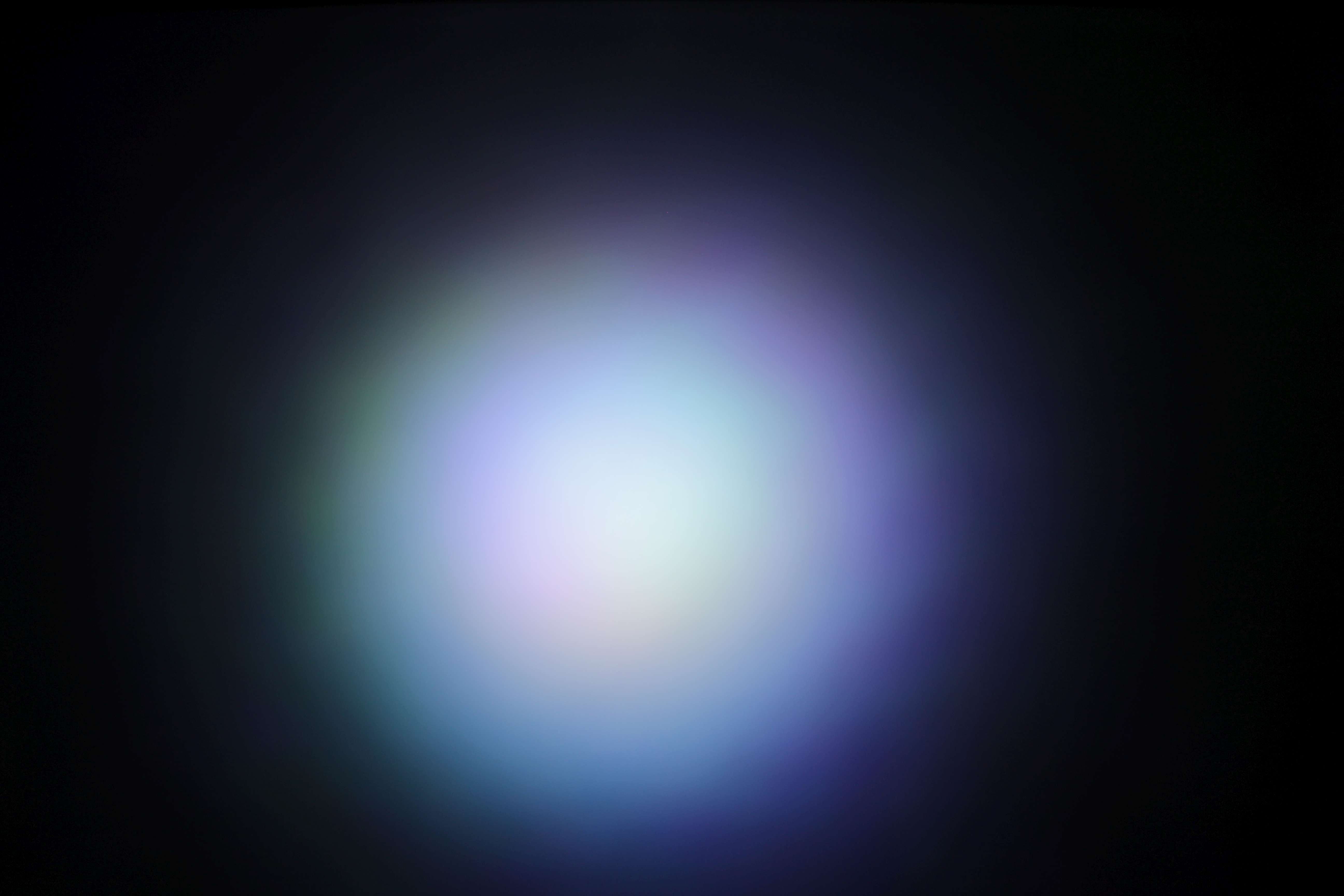

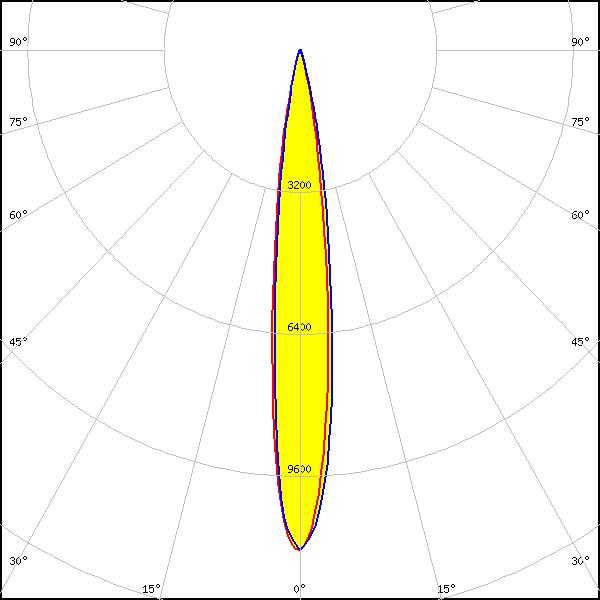

LED:
NCSxE17A
FWHM:
13°
FWTM:
27°
Peak intensity:
11.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
4
Light colour/type:
RGBW

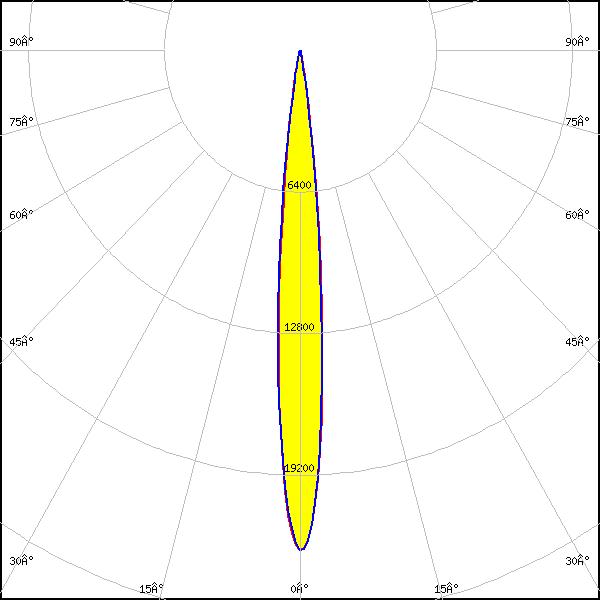

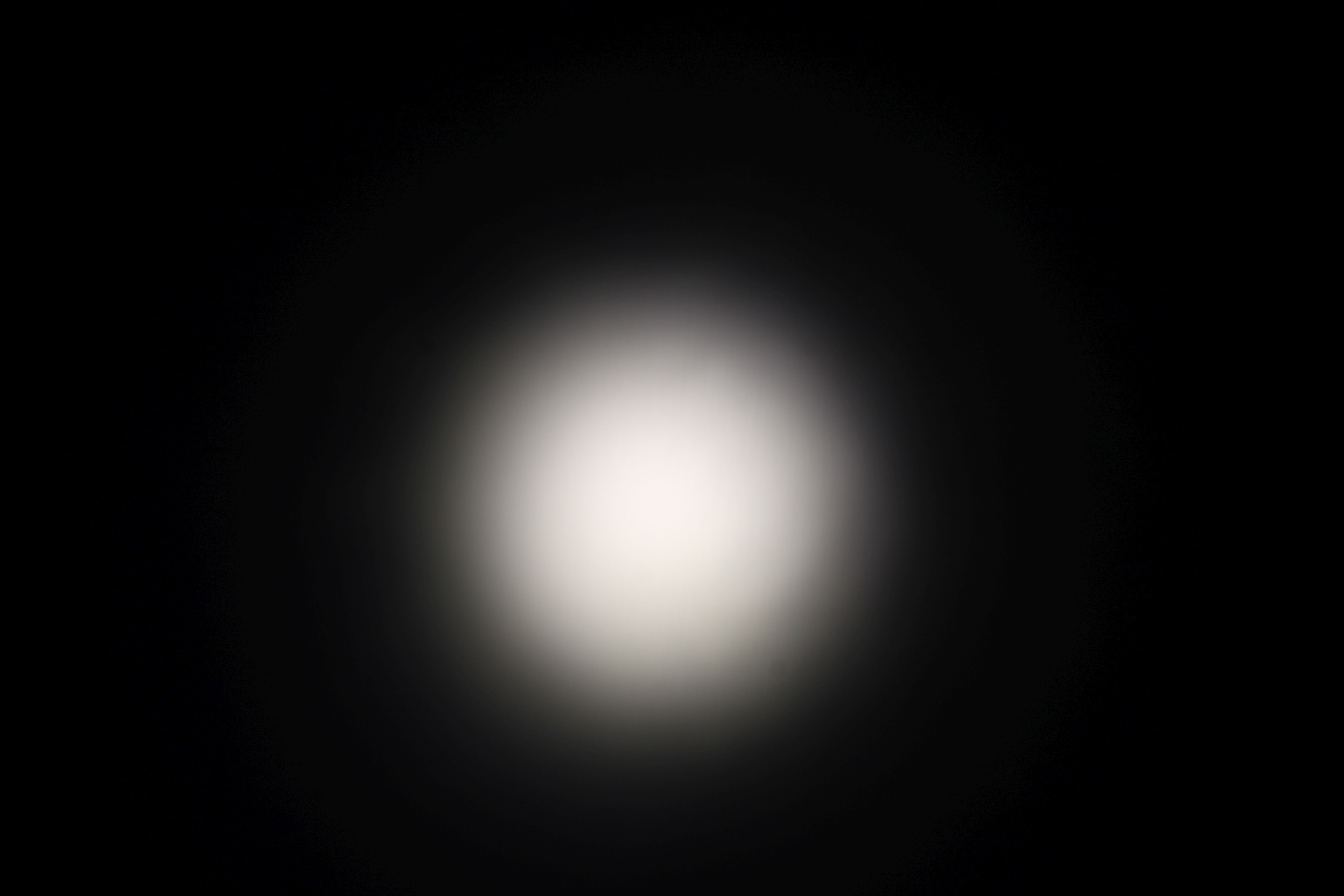

LED:
NVSW219F
FWHM:
10°
FWTM:
18°
Peak intensity:
22.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

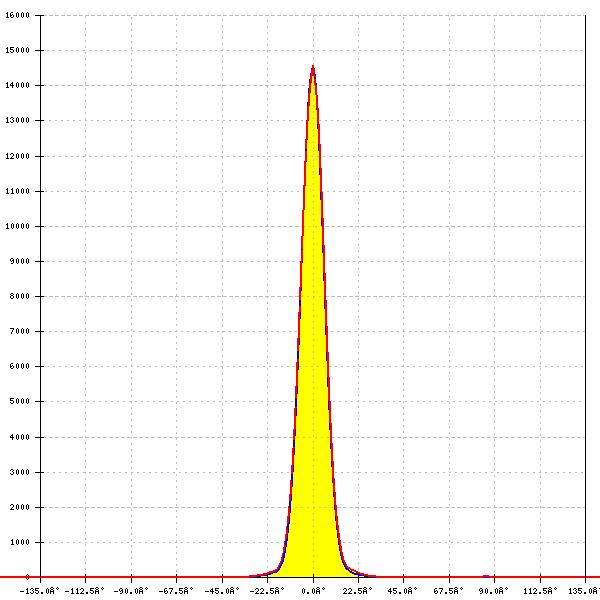

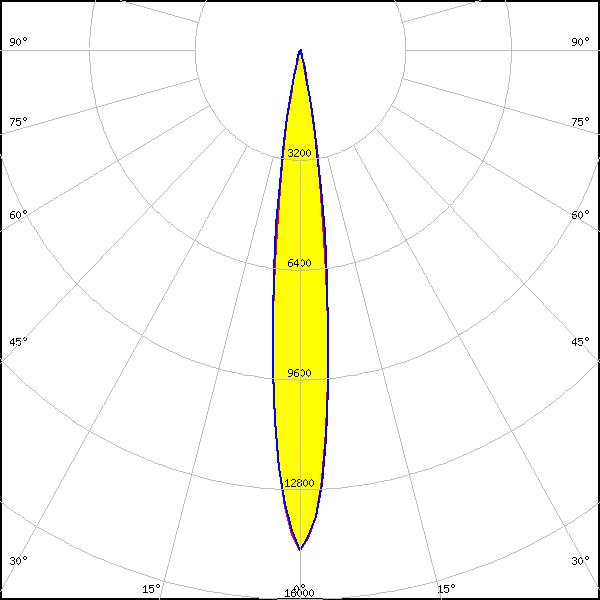

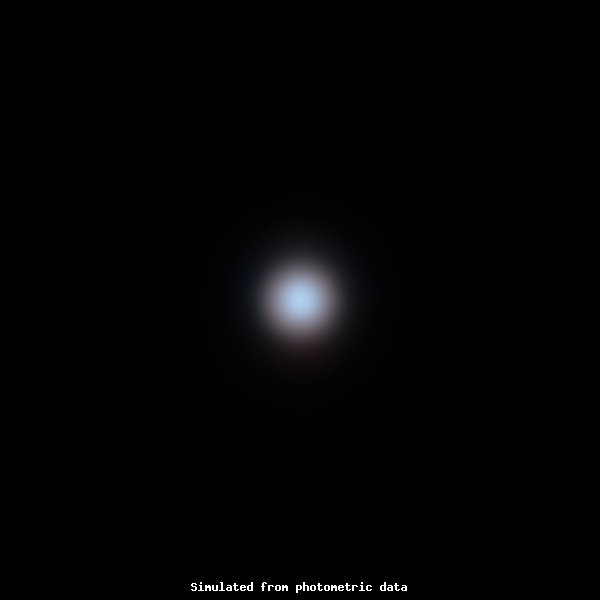

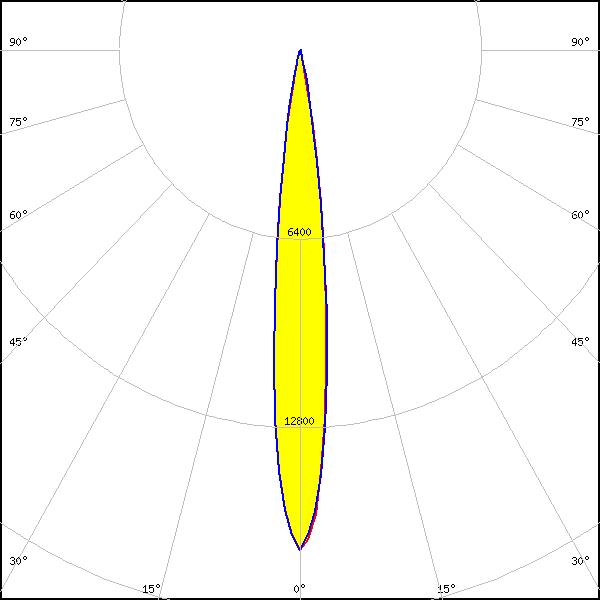

LED:
DURIS E 5050 (GW J9LHS1.4M)
FWHM:
13° + 14°
FWTM:
24° + 24°
Peak intensity:
14.791 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
DURIS E 5050 (GW J9LHS1.4M)
FWHM:
12° + 13°
FWTM:
24° + 24°
Peak intensity:
14.566 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
DURIS E 5050 (GW J9LHS2.4M)
FWHM:
12° + 13°
FWTM:
24° + 25°
Peak intensity:
14.340 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
RGBW
LED:
OSLON Pure 1414
FWHM:
12° + 11°
FWTM:
22° + 21°
Peak intensity:
19.085 cd/lm
Efficiency:
94 %
LEDs/each optic:
4
Light colour/type:
RGBW

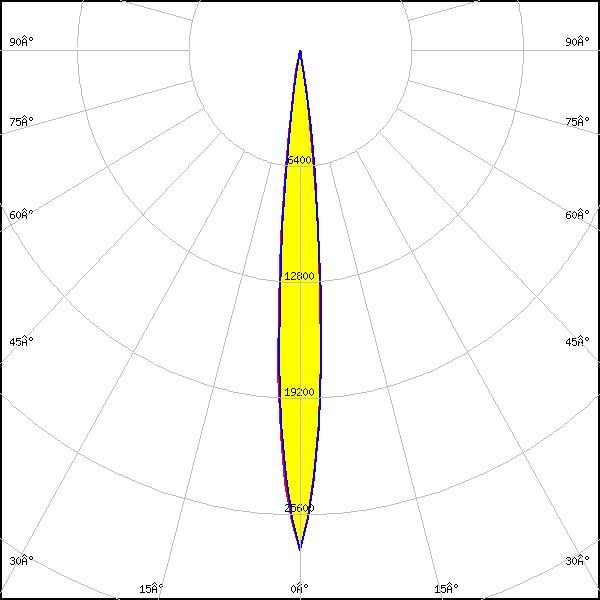

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
10°
FWTM:
18°
Peak intensity:
27.569 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

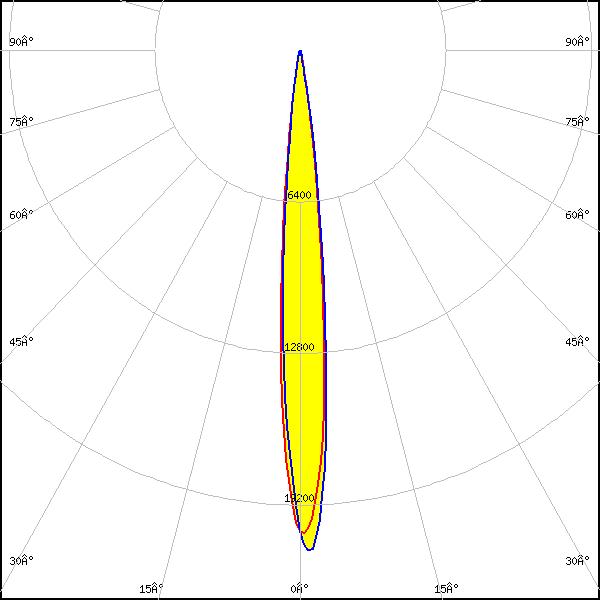

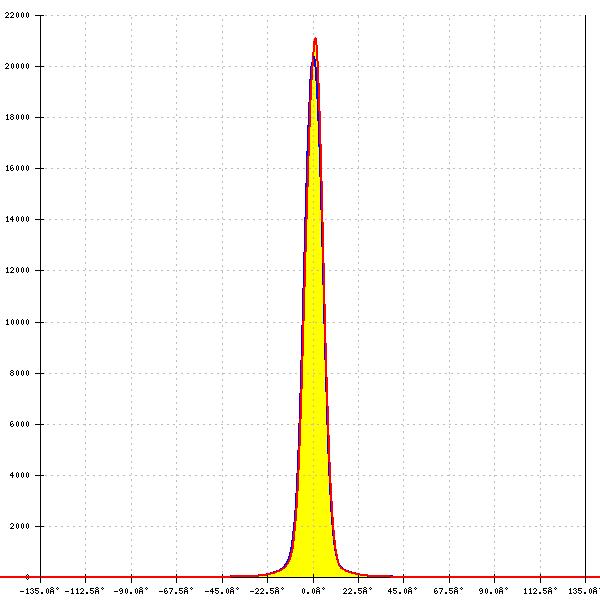

LED:
OSLON Square EC
FWHM:
10°
FWTM:
19°
Peak intensity:
21.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

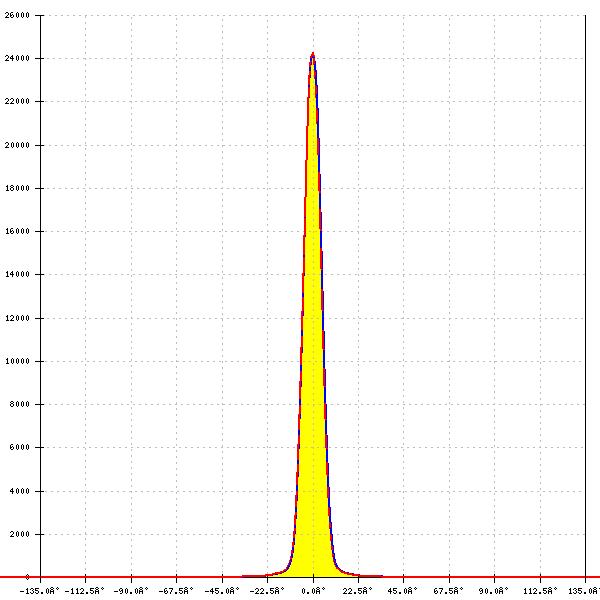

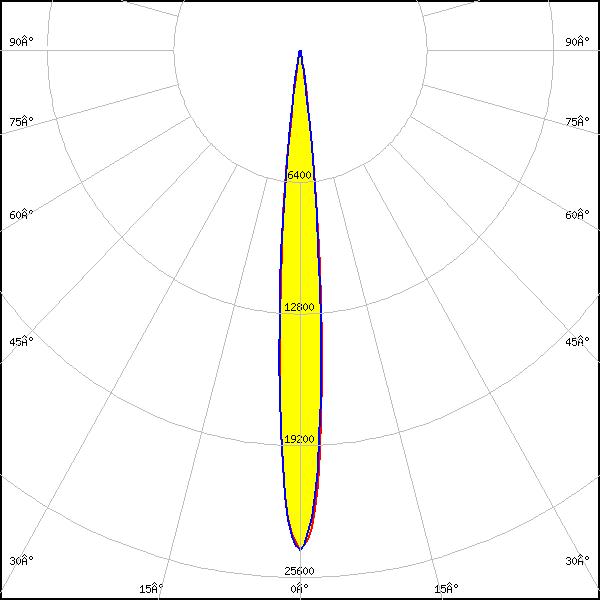

LED:
OSTAR Stage (S2WN)
FWHM:
10°
FWTM:
17°
Peak intensity:
24.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
FWHM:
11°
FWTM:
19°
Peak intensity:
22.794 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Ostar-SMT RGB
FWHM:
10°
FWTM:
17°
Peak intensity:
31.649 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

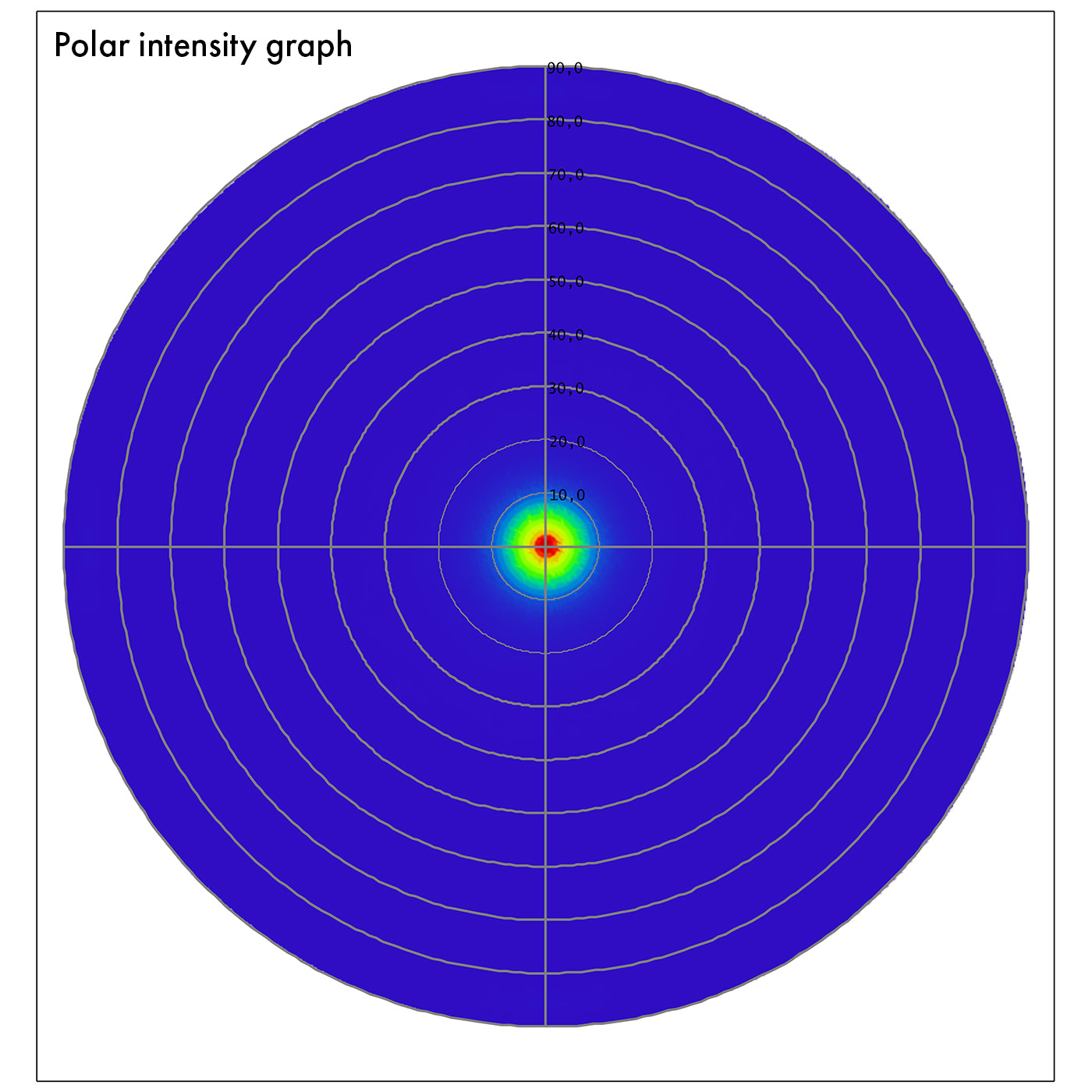

LED:
SFH 4717AS
FWHM:
10°
FWTM:
20°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
IR

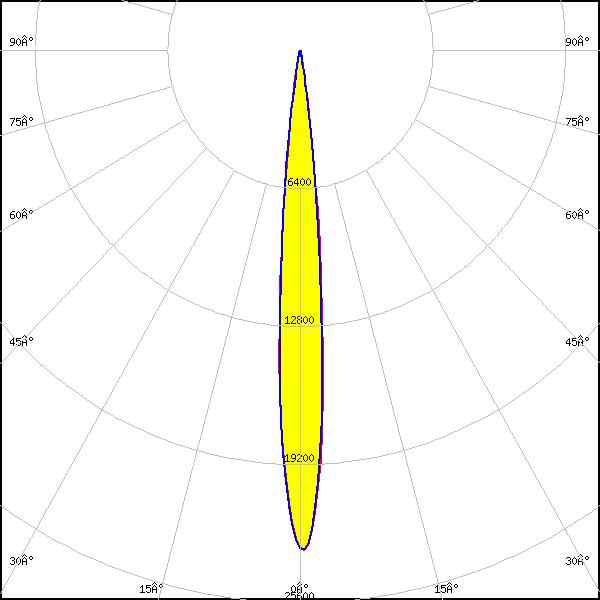

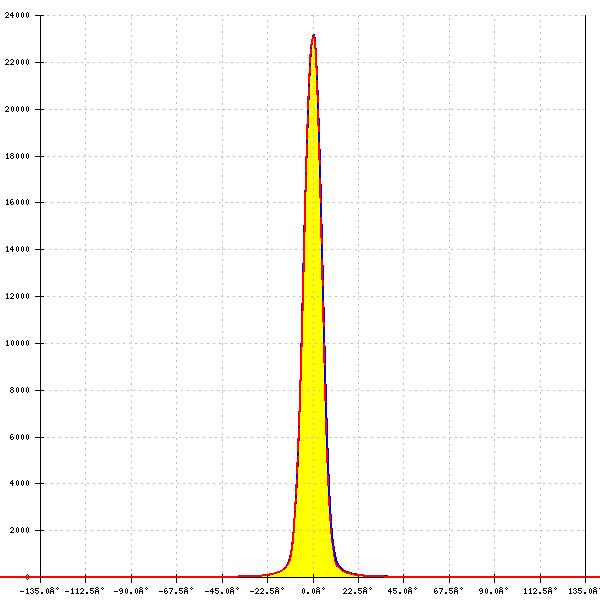

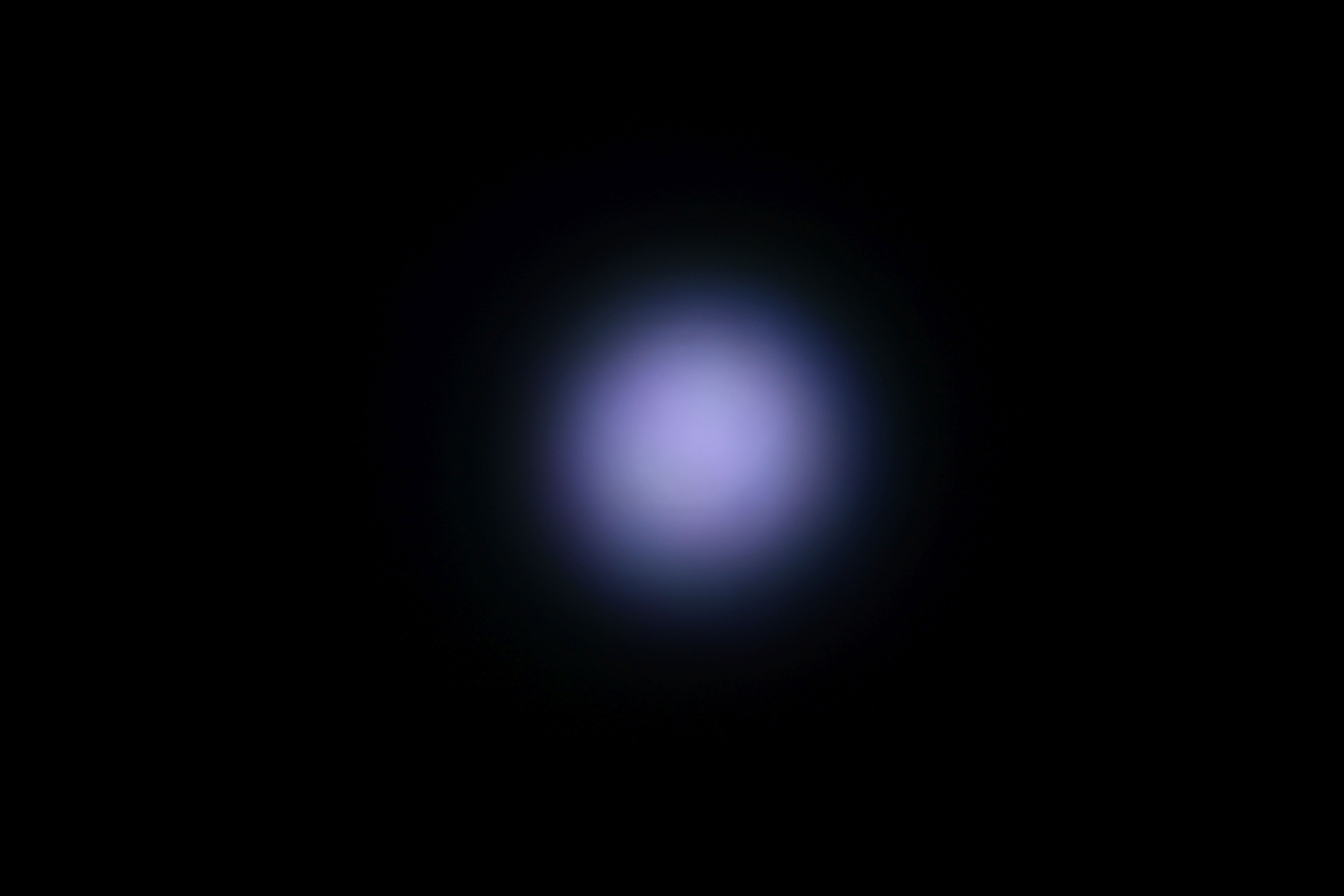

LED:
SPF05F0A
FWHM:
10°
FWTM:
18°
Peak intensity:
23.388 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
RGBW

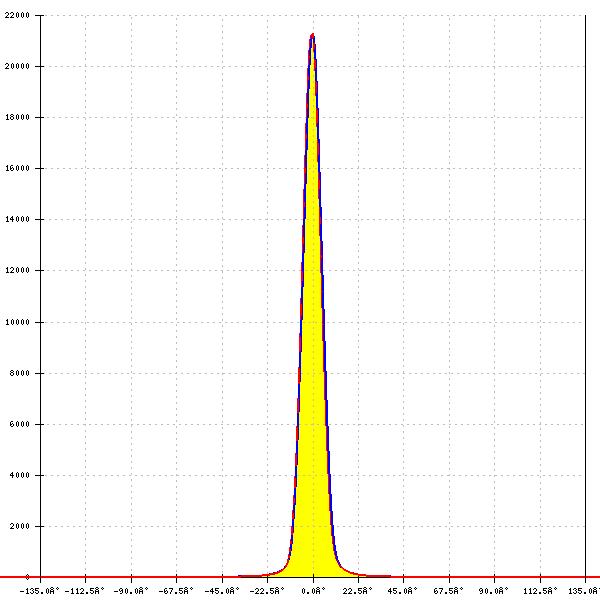

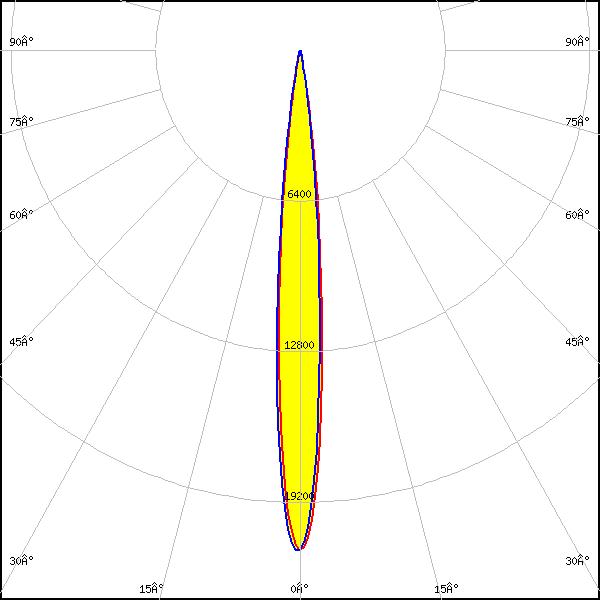

LED:
SPF05F0B
FWHM:
10°
FWTM:
19°
Peak intensity:
21.288 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
RGBW

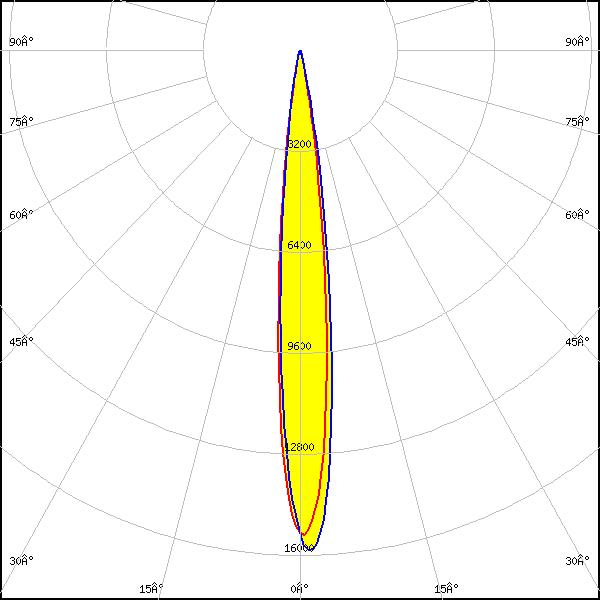

LED:
SPF05F0C
FWHM:
12°
FWTM:
22°
Peak intensity:
15.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
RGBW
