WINNIE-O
Print

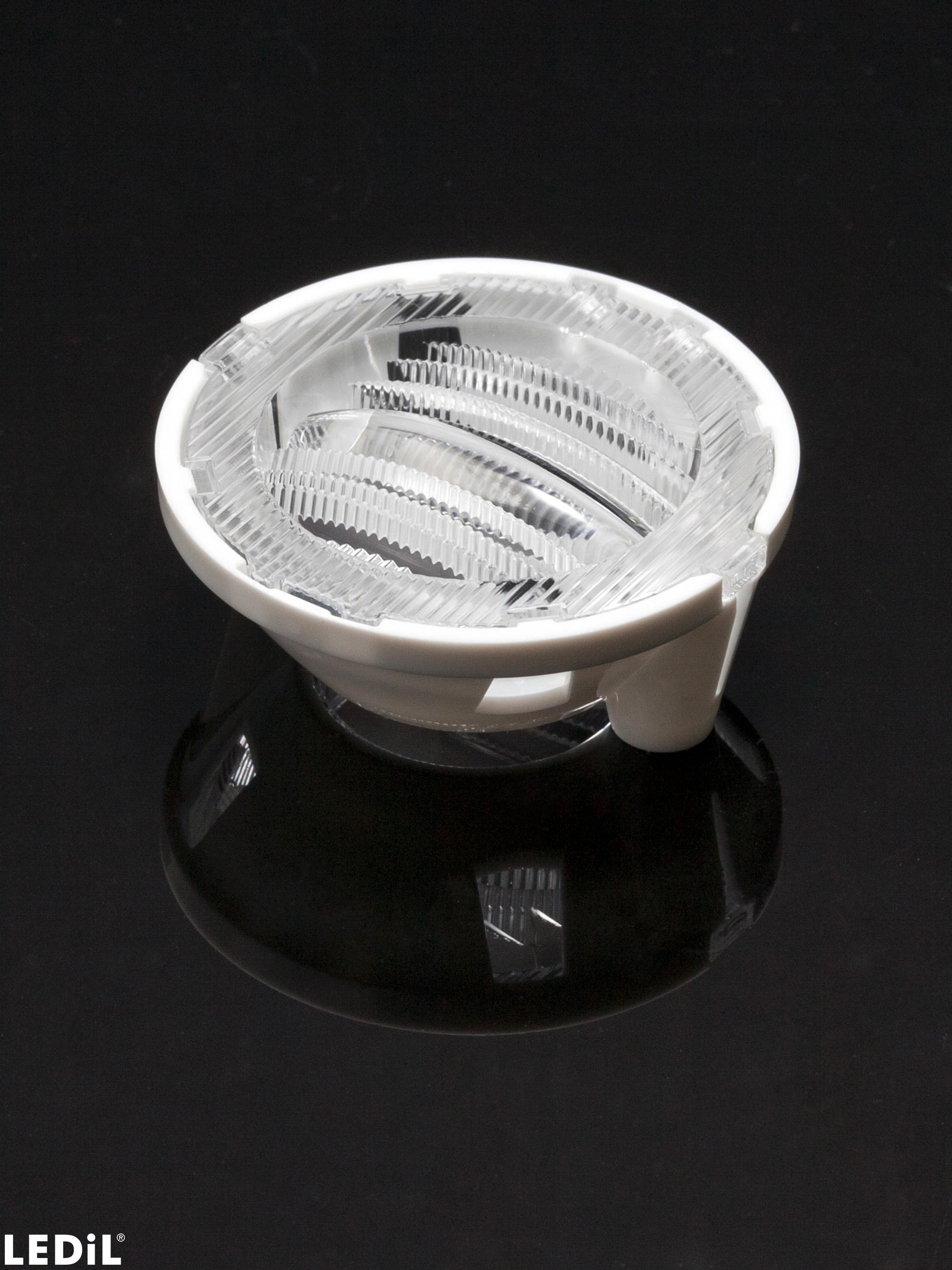

~60° + 20° oval beam. Holder with 35 mm screw hole distance according to Zhaga standard. Compatible with Bender+Wirth 4xx Typ L5 connector.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- C14235_WINNIE-HOLDERPC
- Request material files from Tech Support
- Single lens
- C14760_WINNIE-OPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

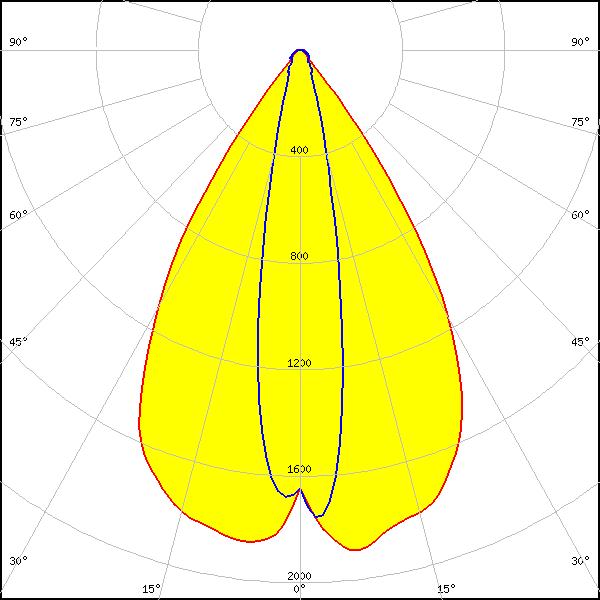

Optical results

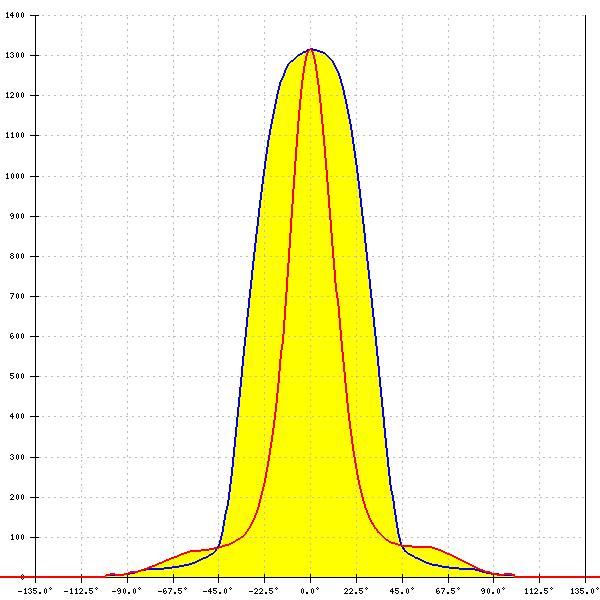

LED:
V13 Gen6
LES size: 13.4 mm
FWHM:
62° + 27°
FWTM:
85° + 60°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

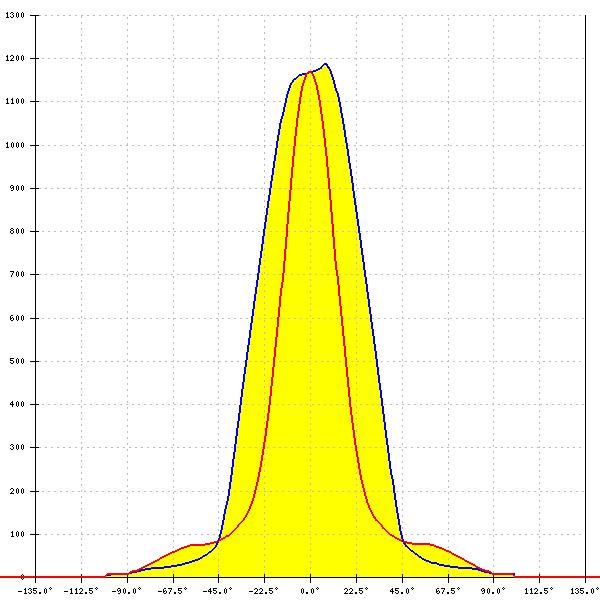

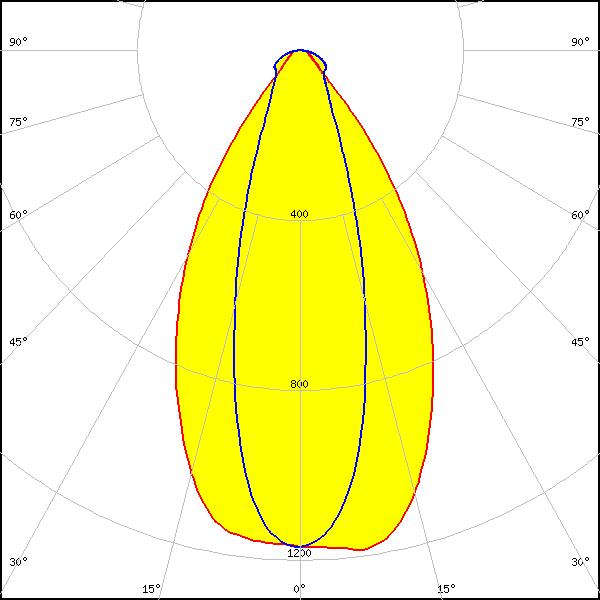

LED:
V15 Gen6
LES size: 15.2 mm
FWHM:
59° + 31°
FWTM:
87° + 71°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

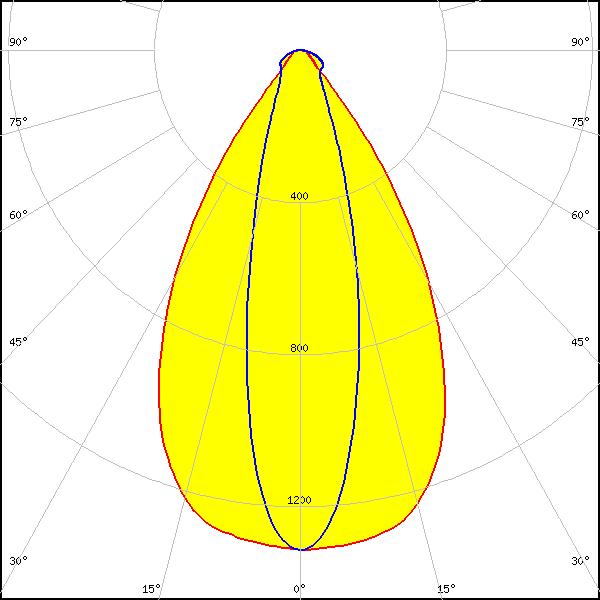

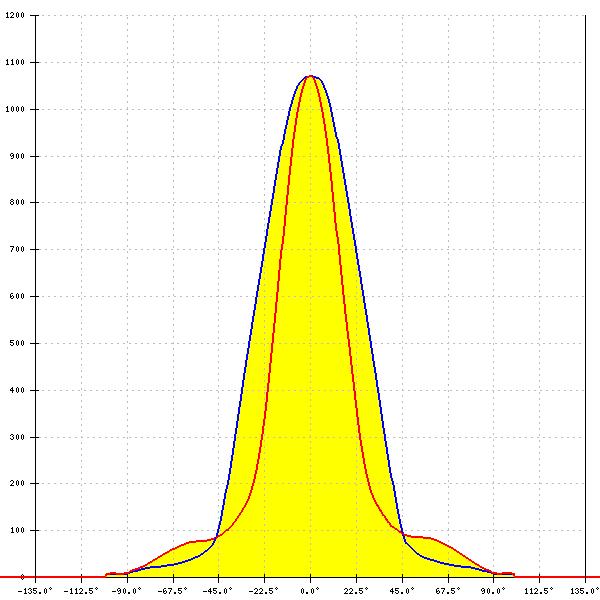

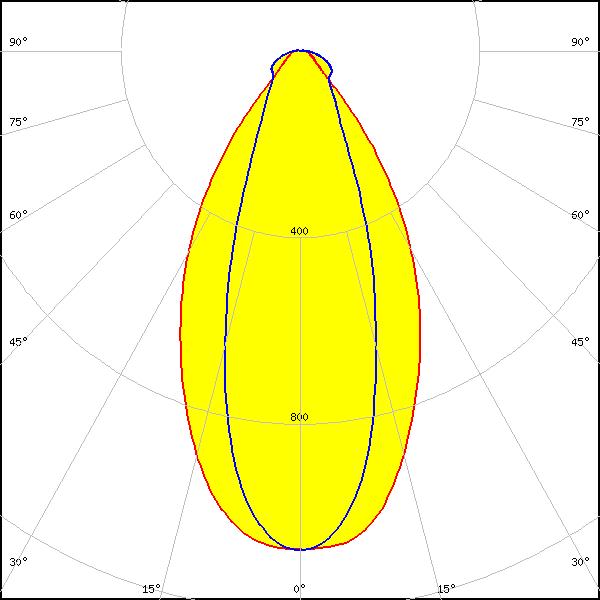

LED:
V18 Gen6
LES size: 18.6 mm
FWHM:
57° + 35°
FWTM:
89° + 80°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

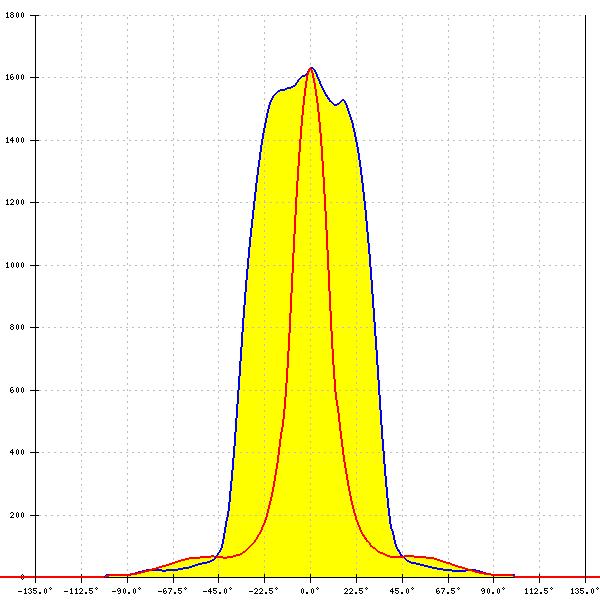

LED:

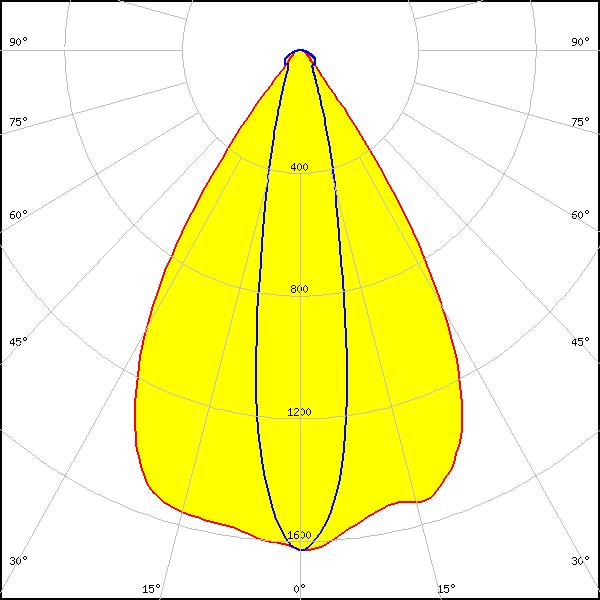

V8 Gen6
LES size: 8.1 mm
FWHM:
65° + 21°
FWTM:
81° + 47°
Peak intensity:
1.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

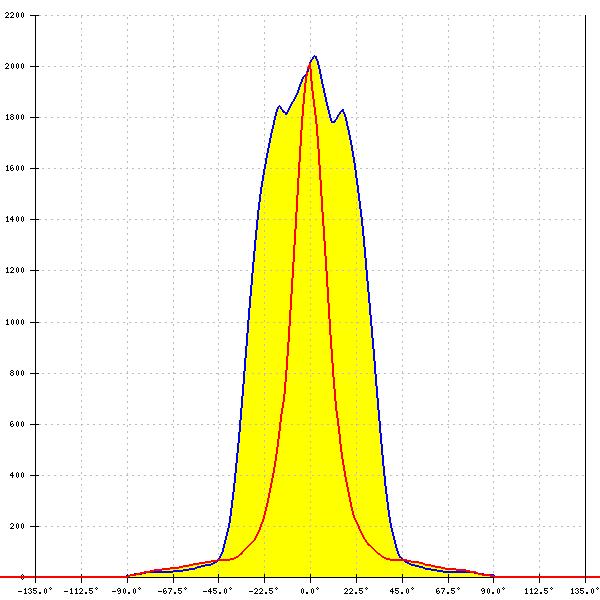

LED:

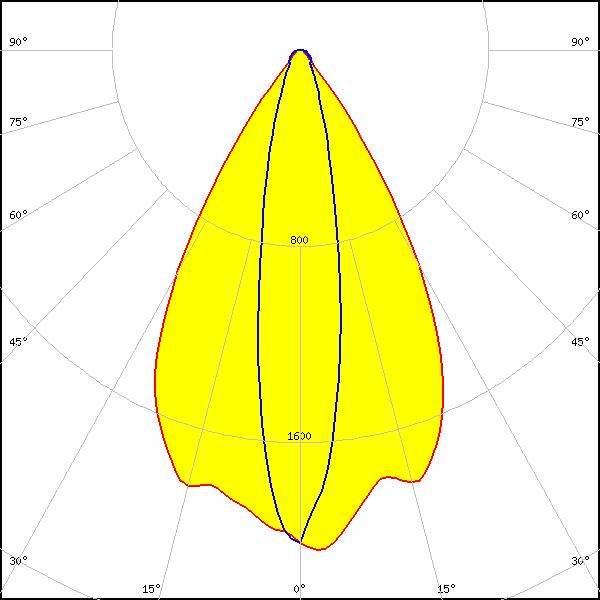

VERO10
LES size: 9.9 mm
FWHM:
60° + 20°
FWTM:
80° + 48°
Peak intensity:
2.050 cd/lm
Efficiency:
100 %
LEDs/each optic:
1
Light colour/type:
White

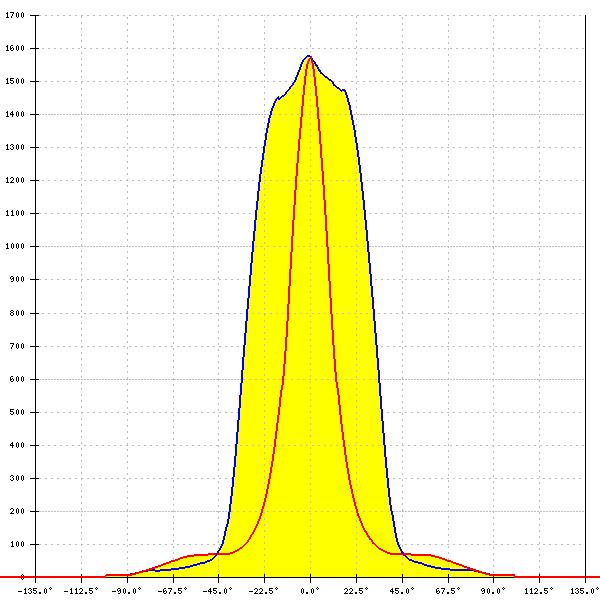

LED:

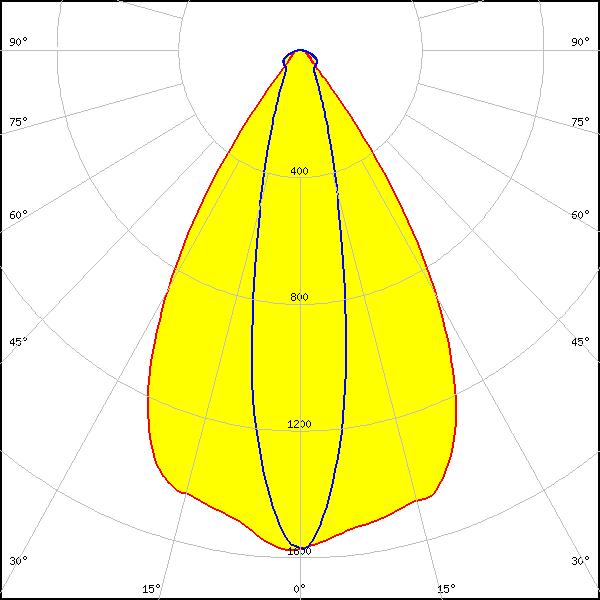

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:

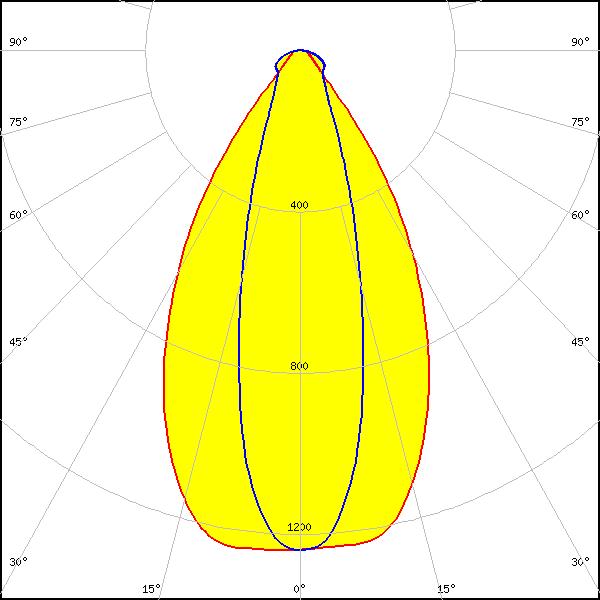

Bender Wirth: 434 Typ L5
FWHM:
63° + 22°
FWTM:
82° + 52°
Peak intensity:
1.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

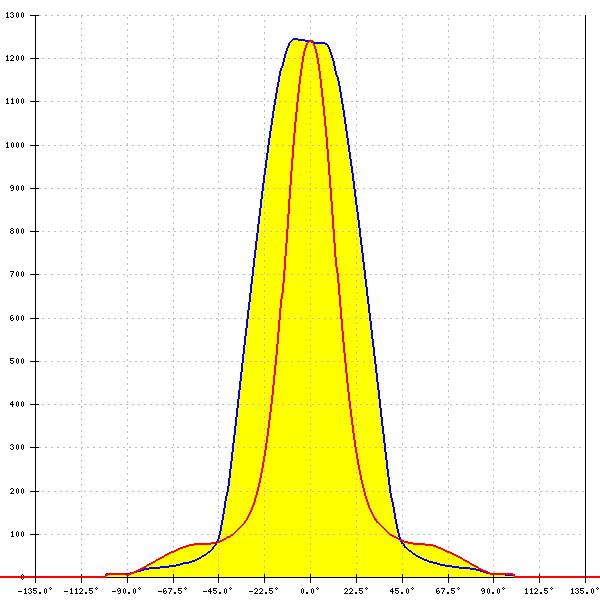

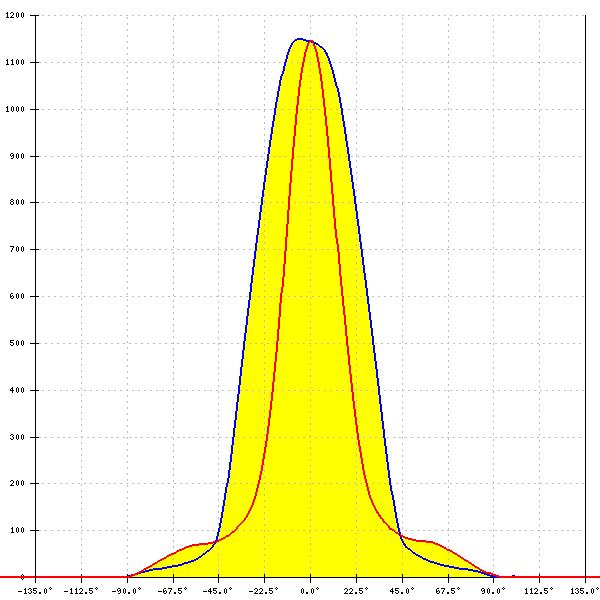

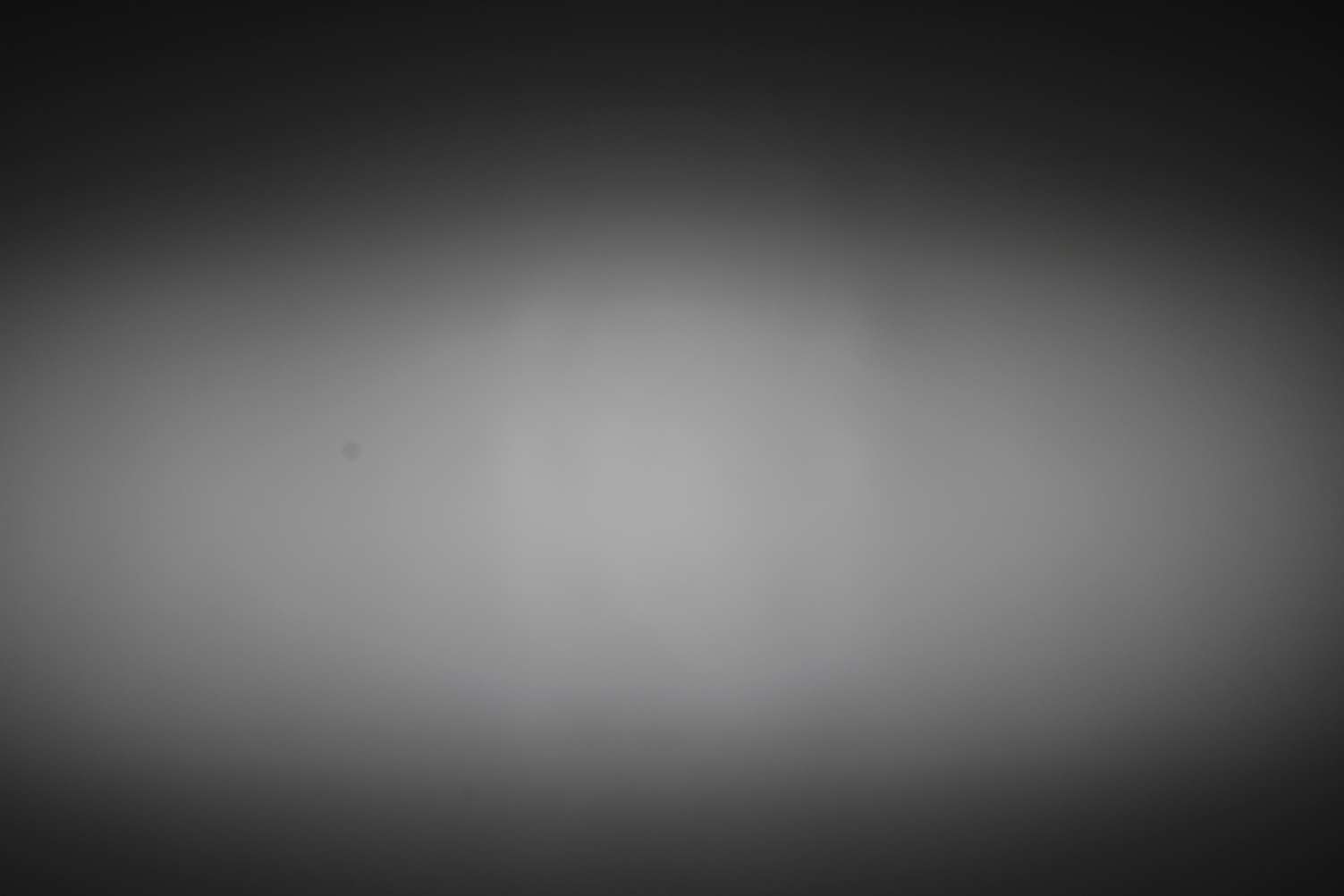

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
59° + 29°
FWTM:
85° + 66°
Peak intensity:
1.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

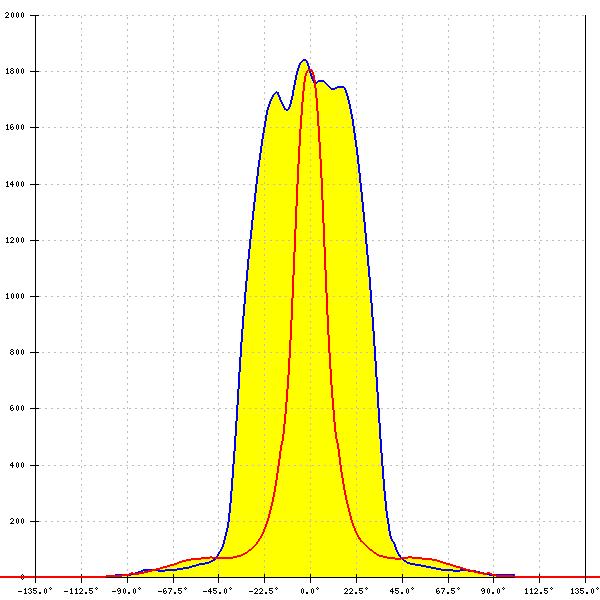

LED:

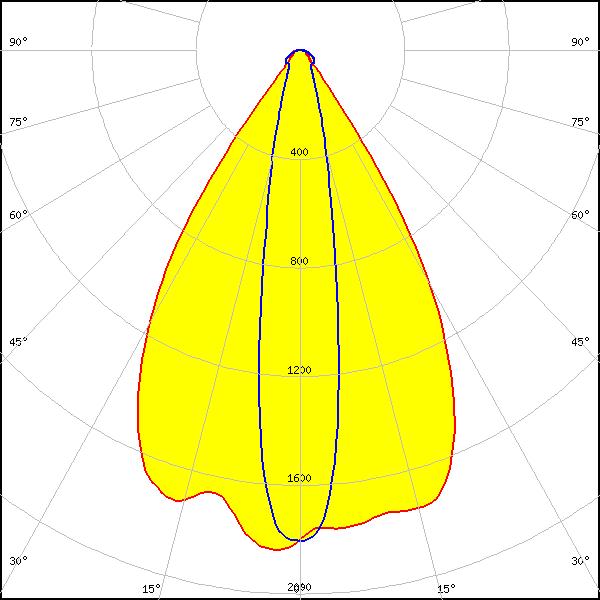

CLU700/701/702/703
LES size: 6.0 mm
FWHM:
64° + 18°
FWTM:
79° + 43°
Peak intensity:
1.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

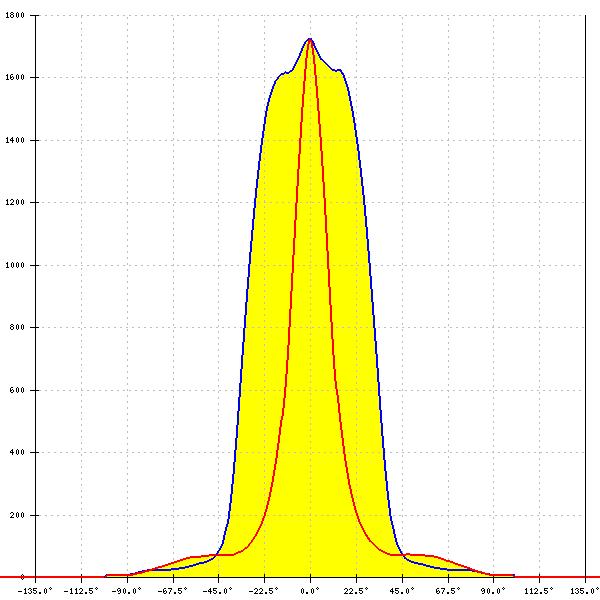

LED:

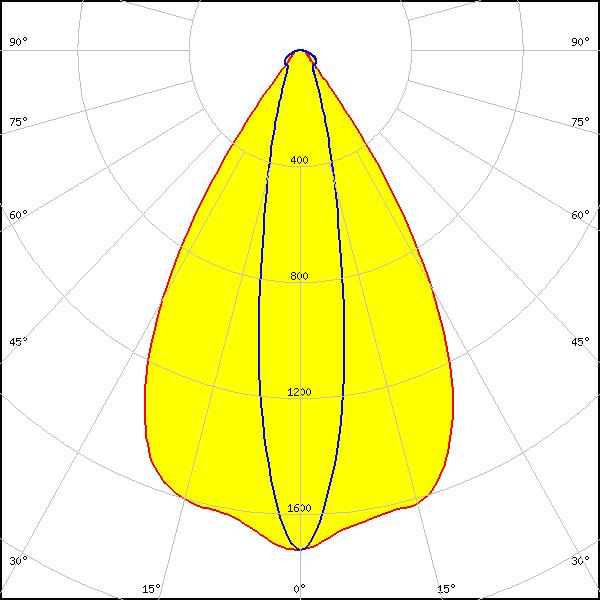

CLU710/711
LES size: 8.5 mm
Required components:
Bender Wirth: 470 Typ L5
FWHM:
63° + 20°
FWTM:
81° + 48°
Peak intensity:
1.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

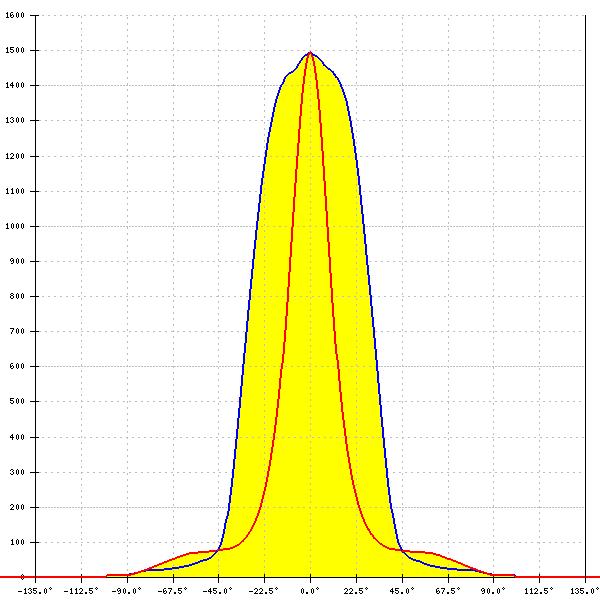

LED:

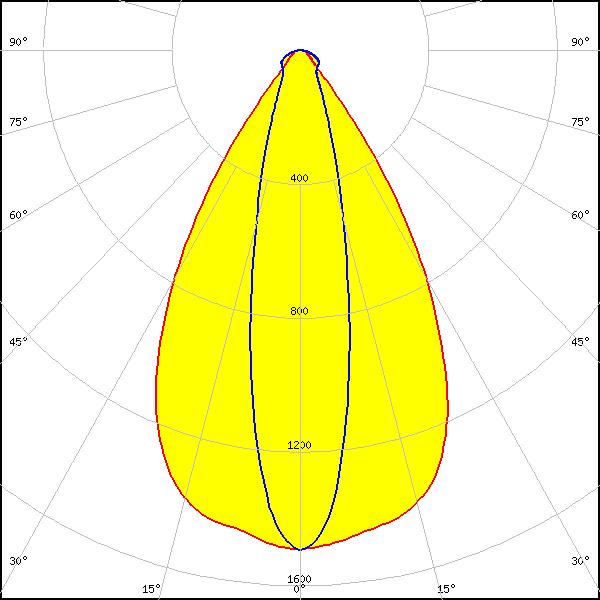

CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
61° + 23°
FWTM:
83° + 55°
Peak intensity:
1.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

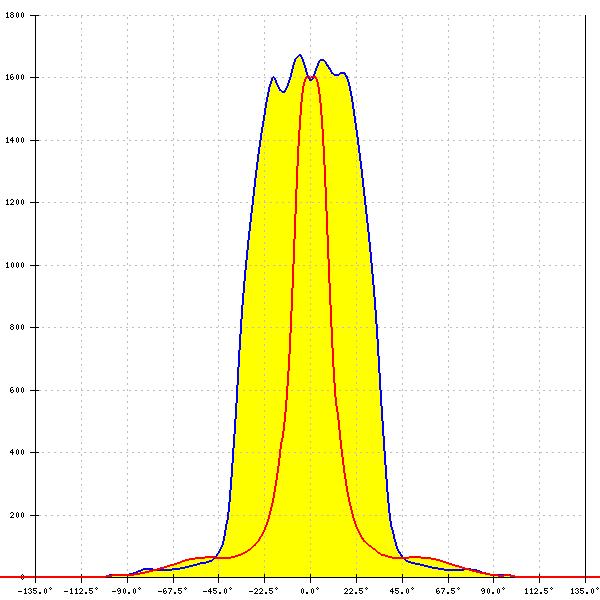

LED:

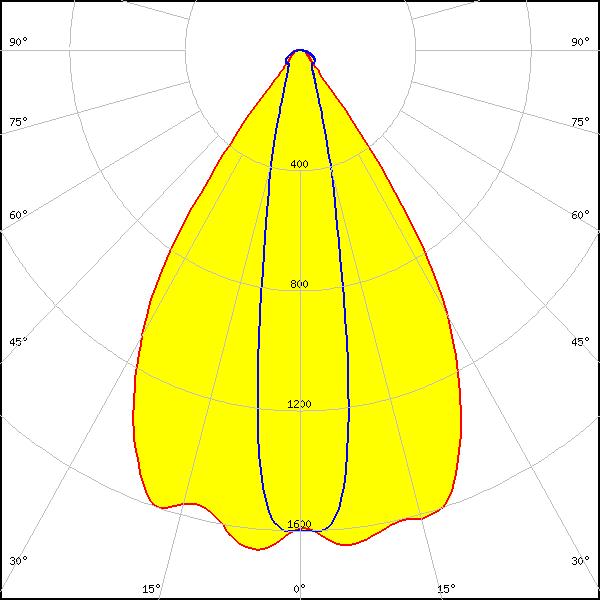

CXA/B 13xx
LES size: 6.0 mm
FWHM:
66° + 20°
FWTM:
81° + 45°
Peak intensity:
1.700 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

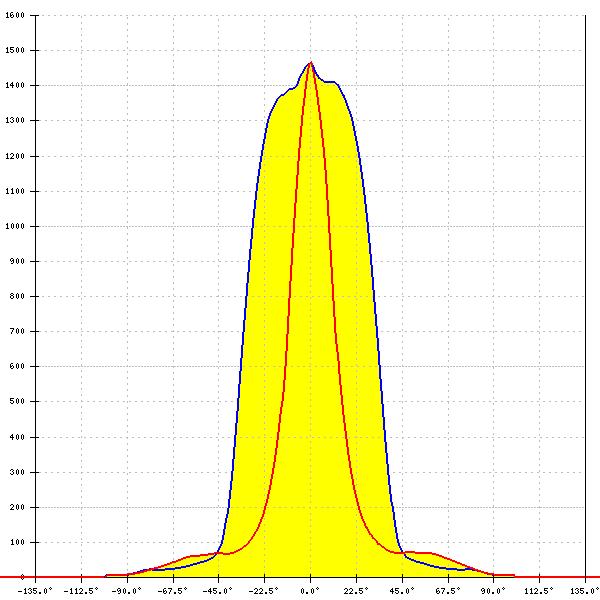

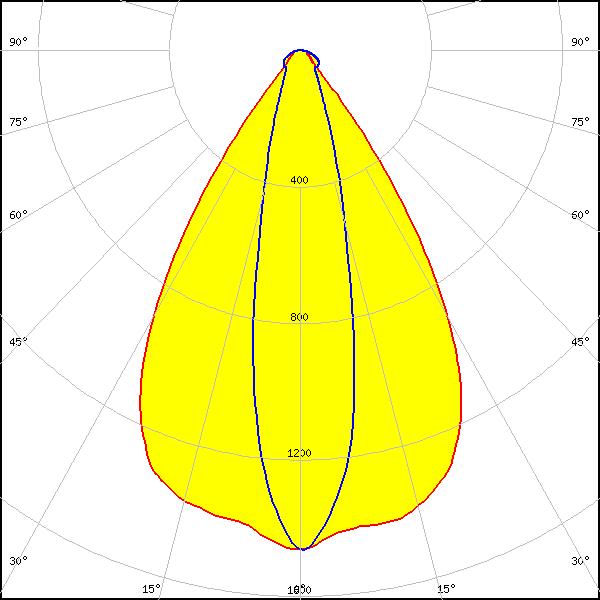

LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
65° + 23°
FWTM:
83° + 52°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

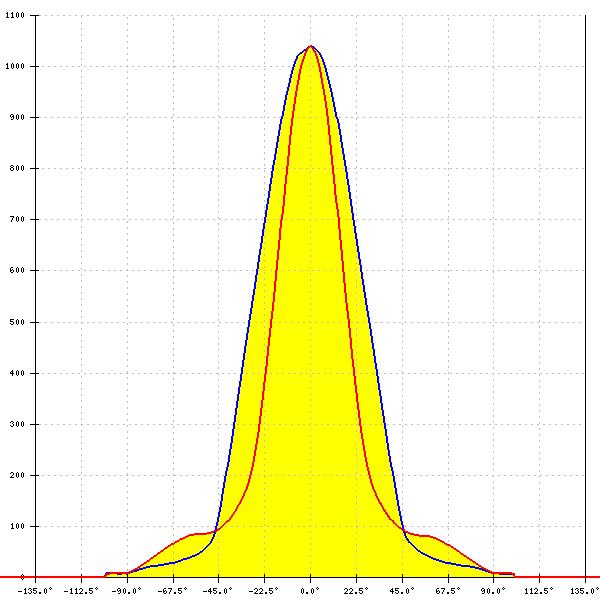

LED:

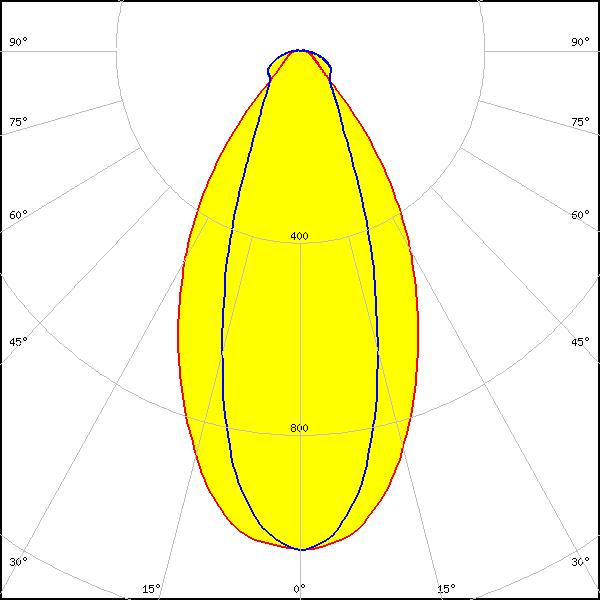

CXA/B 25xx
LES size: 19.0 mm
FWHM:
57° + 37°
FWTM:
91° + 83°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

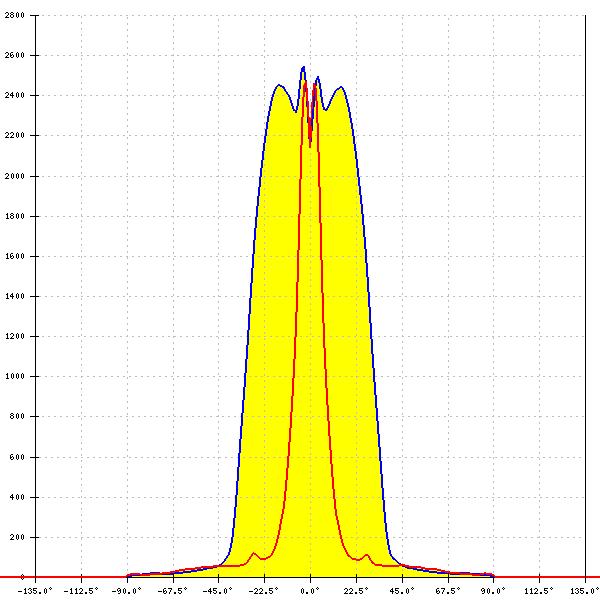

LED:

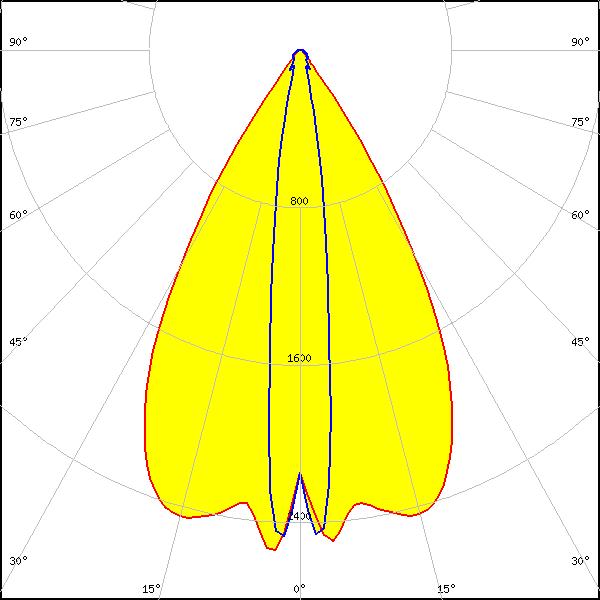

XP-E2
LES size: 0.0 mm
FWHM:
60° + 14°
FWTM:
75° + 29°
Peak intensity:
2.870 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

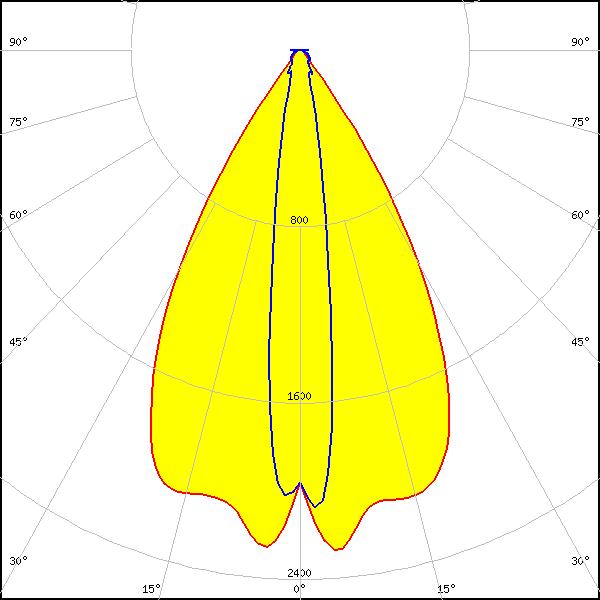

LED:

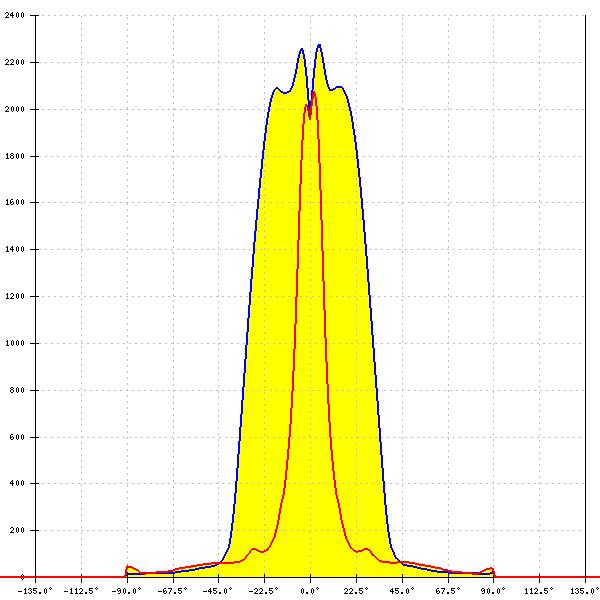

XP-G3
LES size: 0.0 mm
FWHM:
60° + 15°
FWTM:
76° + 32°
Peak intensity:
2.325 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

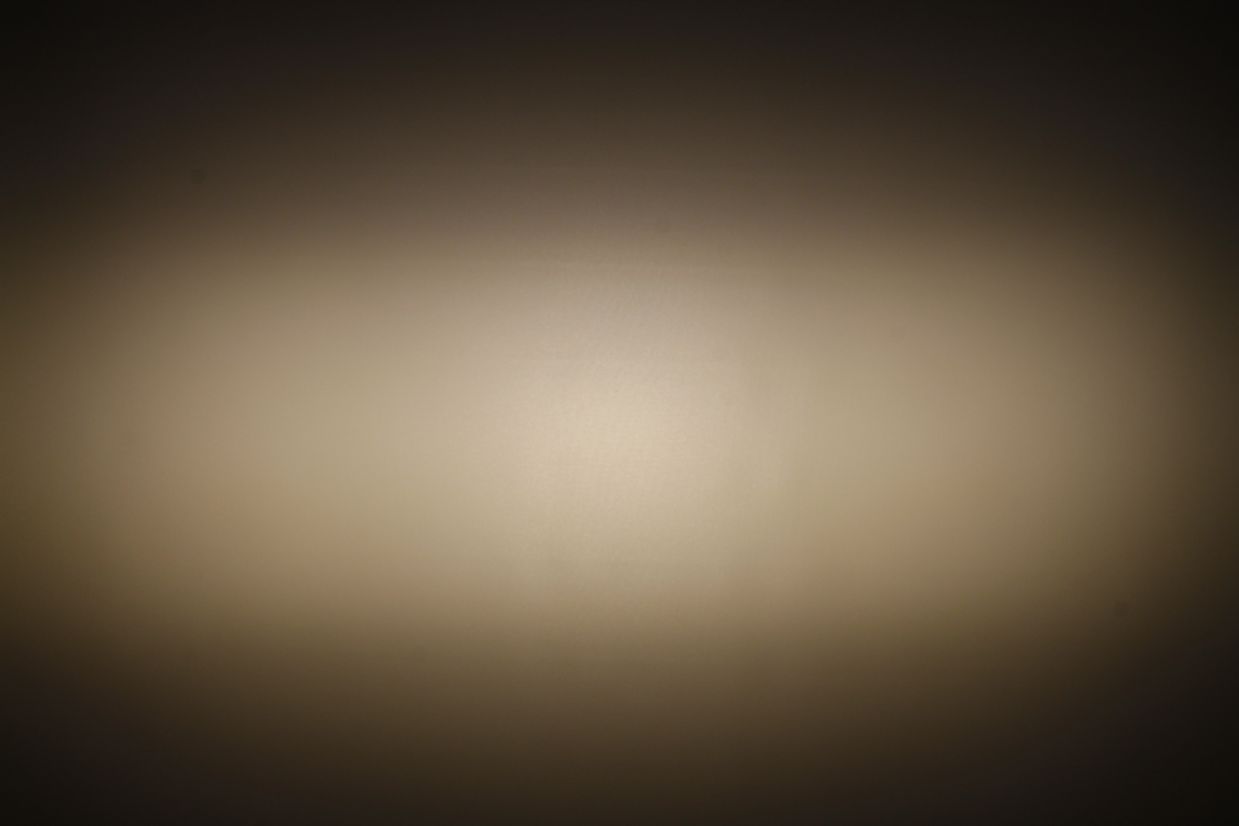

LED:

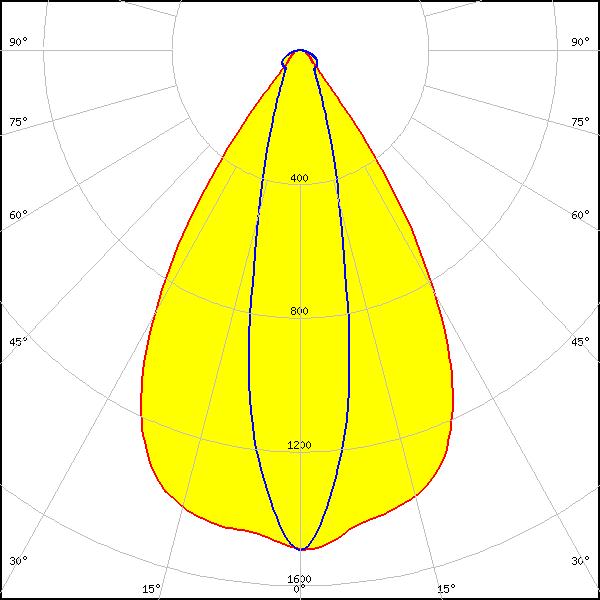

LUXEON CoB 1202/1203
LES size: 9.0 mm
FWHM:
64° + 23°
FWTM:
82° + 53°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

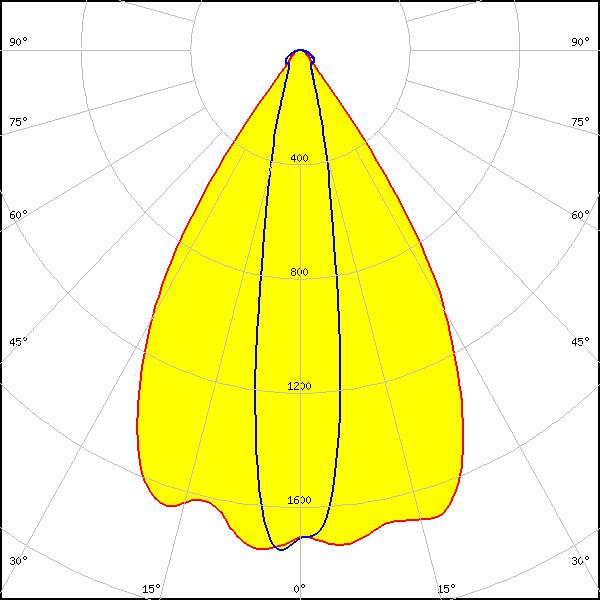

LUXEON CoB 1202s
LES size: 6.5 mm
FWHM:
65° + 19°
FWTM:
80° + 43°
Peak intensity:
1800.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

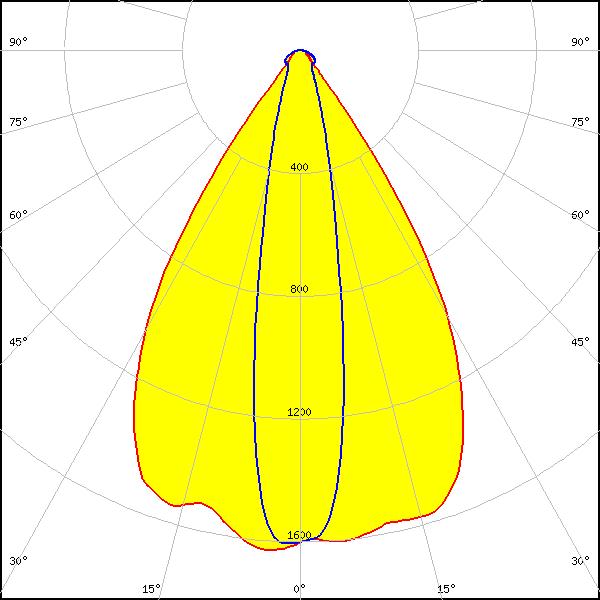

LUXEON CoB Compact
LES size: 6.5 mm
FWHM:
65° + 20°
FWTM:
81° + 46°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

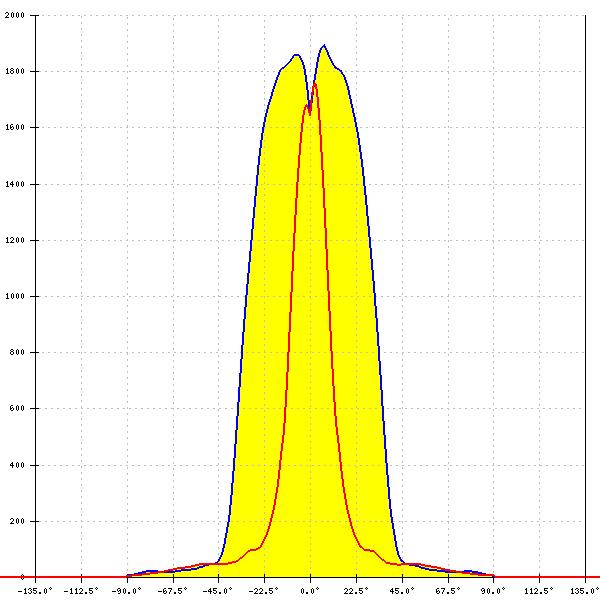

LUXEON M/MX
LES size: 0.0 mm
FWHM:
20° + 64°
FWTM:
41° + 81°
Peak intensity:
1.894 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

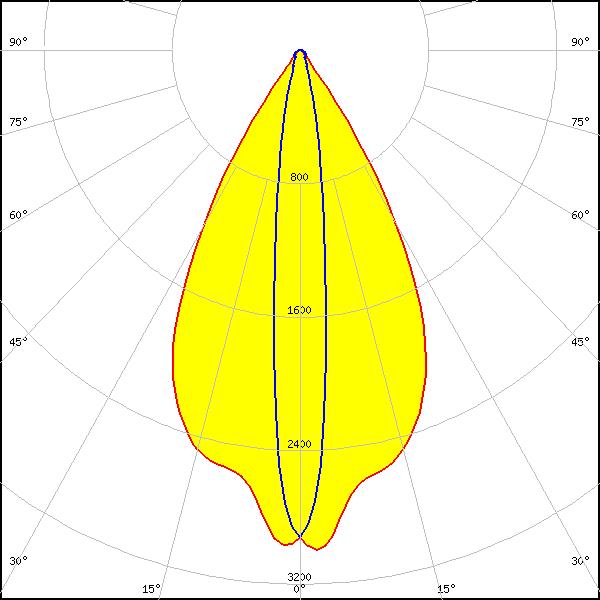

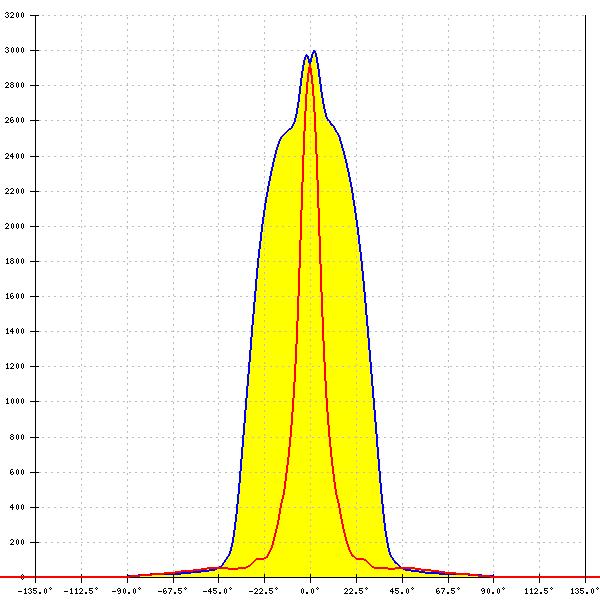

LED:
SBT-90
LES size: 0.0 mm
FWHM:
56° + 12°
FWTM:
74° + 32°
Peak intensity:
3.004 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Red
LED:

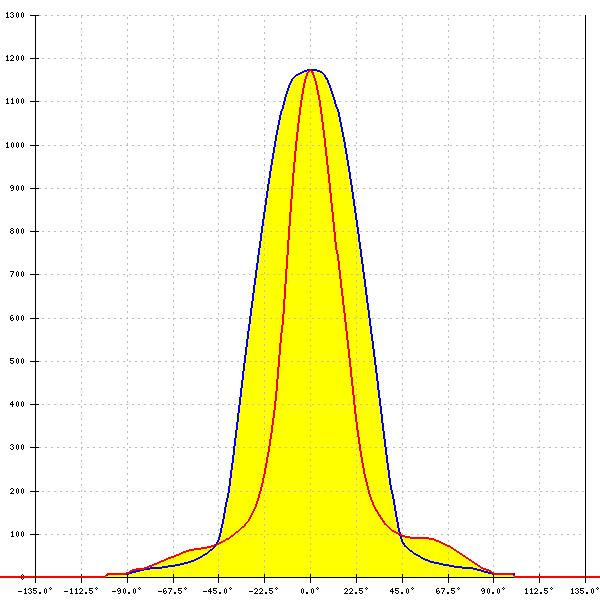

COB J-Type
LES size: 14.6 mm
FWHM:
59° + 31°
FWTM:
86° + 71°
Peak intensity:
1.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

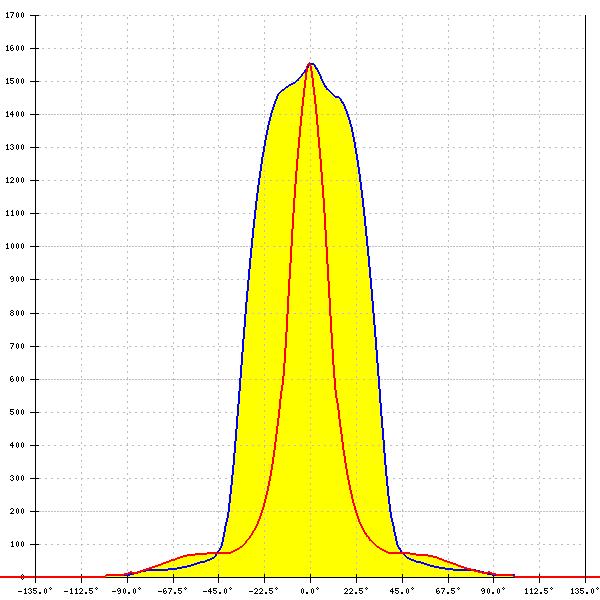

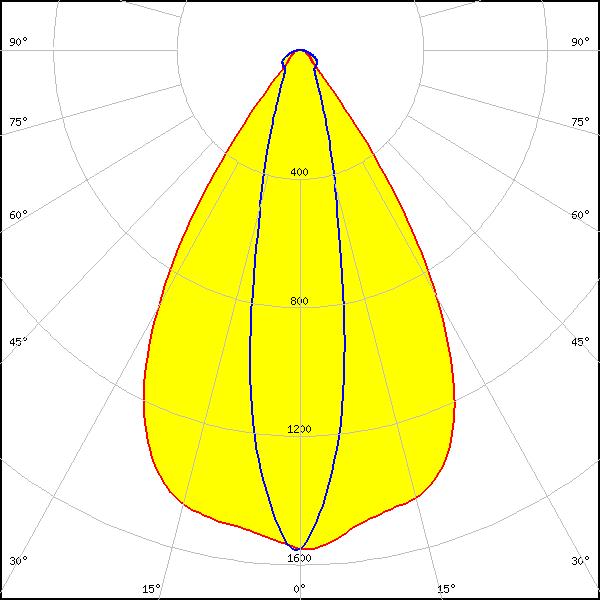

LED:
COB L-Type (LES 11)
LES size: 11.5 mm
FWHM:
64° + 22°
FWTM:
82° + 51°
Peak intensity:
1.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

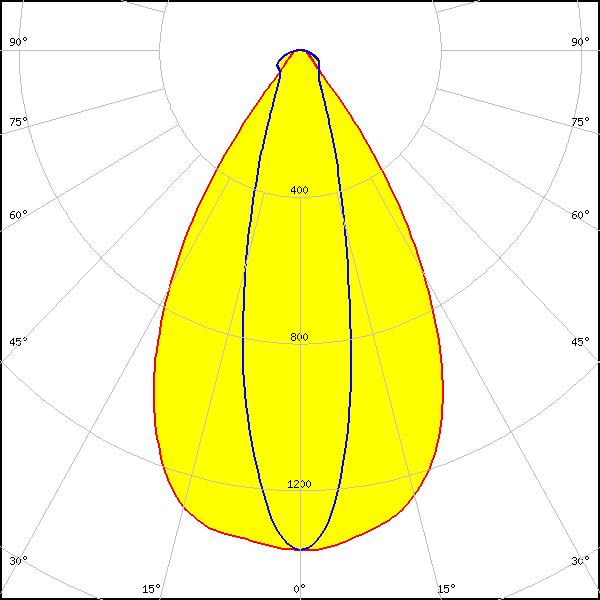

LED:
COB L-Type (LES 11)
LES size: 11.5 mm
FWHM:
62° + 25°
FWTM:
83° + 59°
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

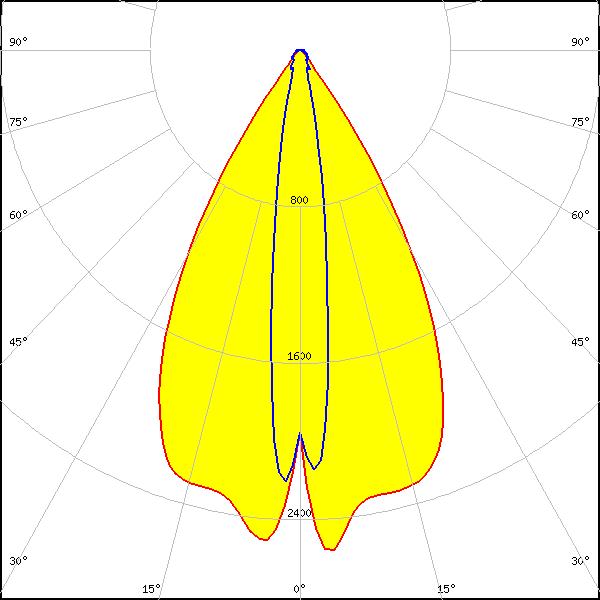

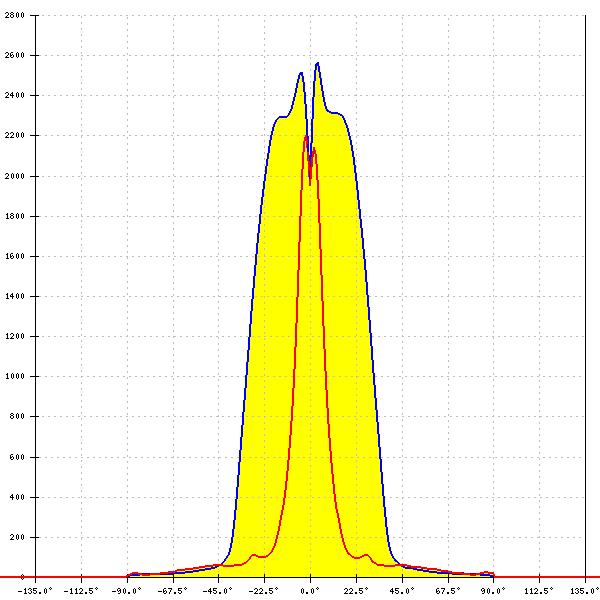

OSLON Square CSSRM2/CSSRM3
LES size: 0.0 mm
FWHM:
58° + 14°
FWTM:
76° + 30°
Peak intensity:
2.606 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

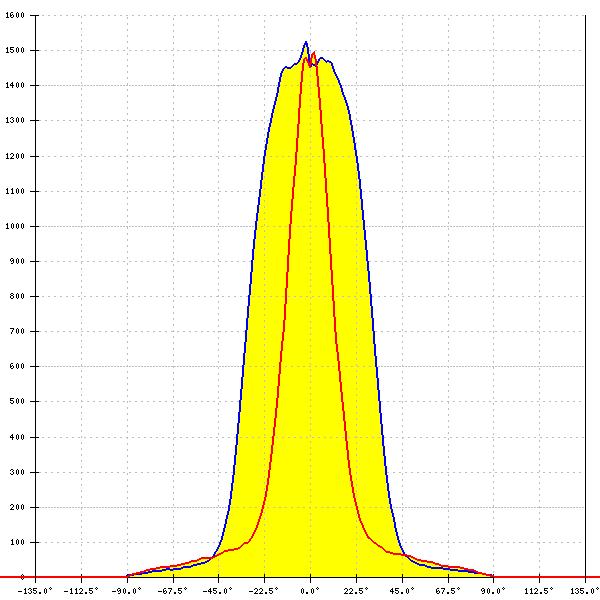

LED:

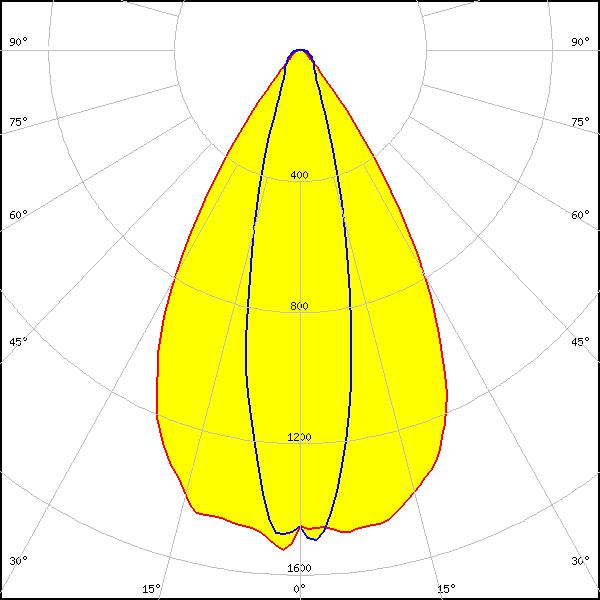

Soleriq S9
LES size: 9.8 mm
FWHM:
61° + 24°
FWTM:
83° + 51°
Peak intensity:
1.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

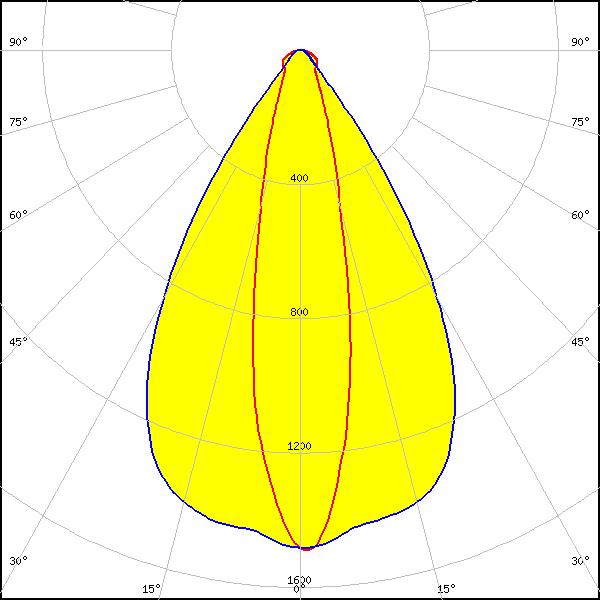

LED:

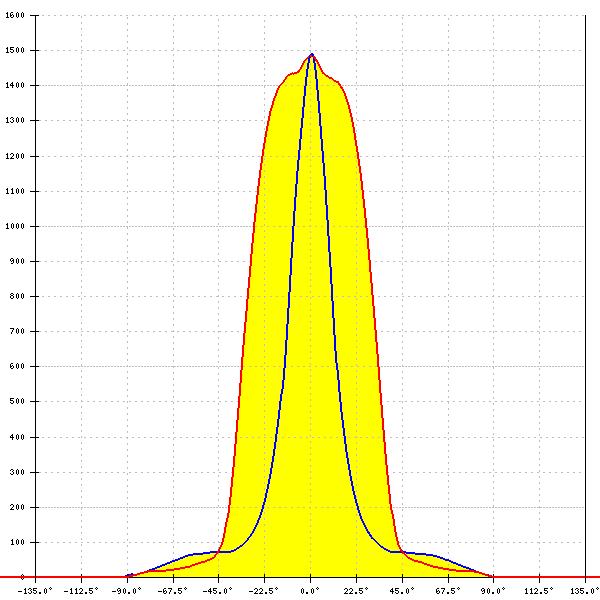

LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
FWHM:
63° + 23°
FWTM:
82° + 53°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
56° + 16°
FWTM:
78° + 40°
Peak intensity:
2.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

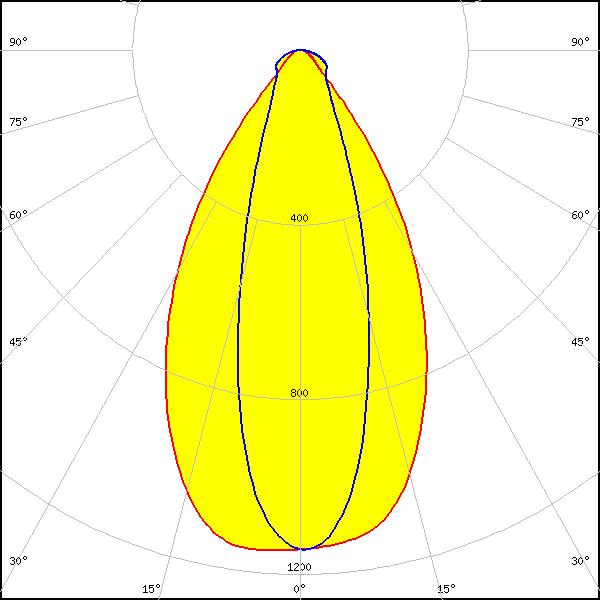

LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM:
59° + 31°
FWTM:
87° + 71°
Peak intensity:
1.150 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
60° + 18°
FWTM:
79° + 44°
Peak intensity:
1.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
60° + 24°
FWTM:
82° + 55°
Peak intensity:
1.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
58° + 32°
FWTM:
86° + 73°
Peak intensity:
1.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

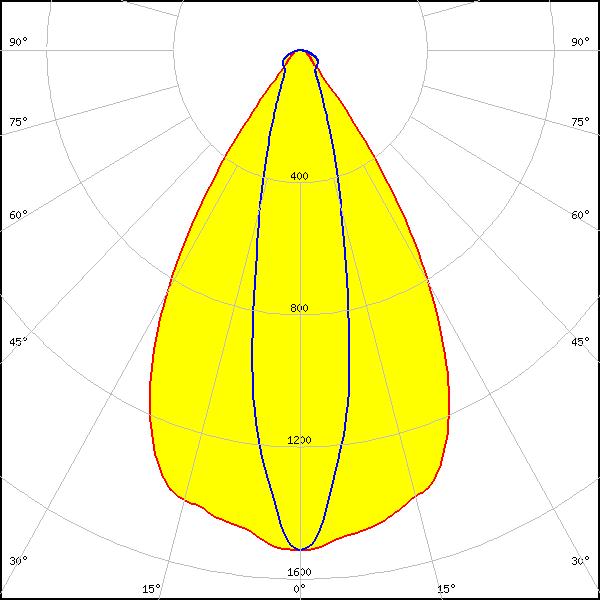

LED:
MJT COB LES 9.8
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
62° + 23°
FWTM:
82° + 53°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
