WINNIE-M
Print

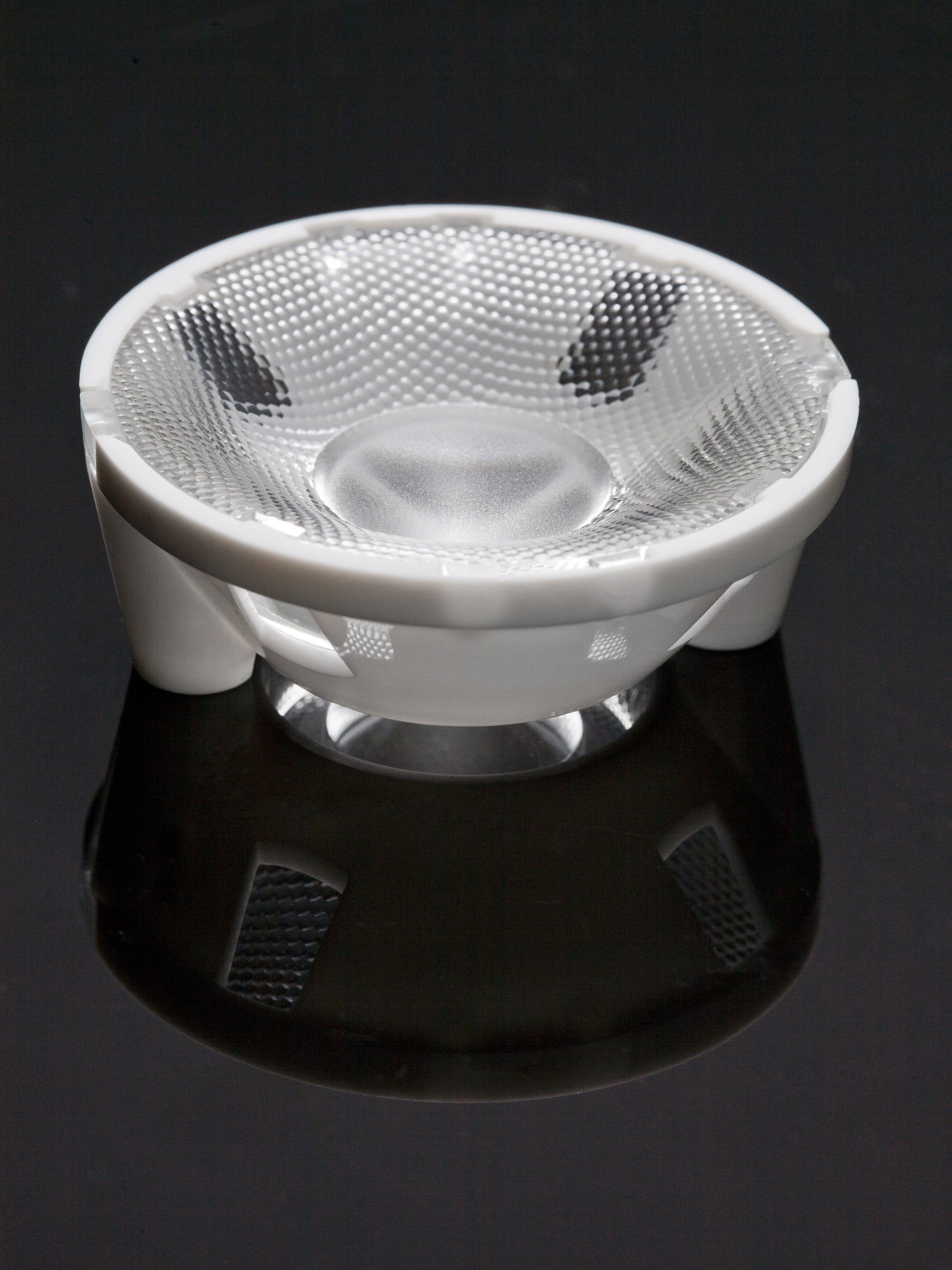

~35° medium beam. Holder with 35 mm screw hole distance according to Zhaga standard. Compatible with Bender+Wirth 4xx Typ L5 connector.
This product consists of multiple parts that need to be ordered separately. See ordering information.
Materials
- Holder
- C14235_WINNIE-HOLDERPC
- Request material files from Tech Support
- Single lens
- C14233_WINNIE-MPMMA
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

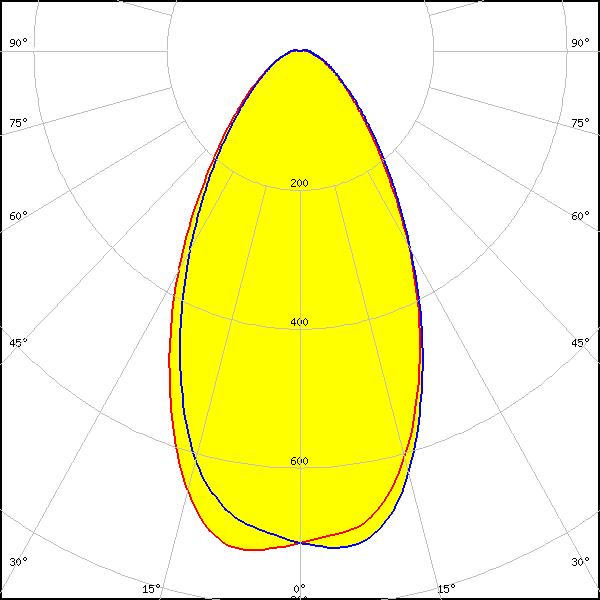

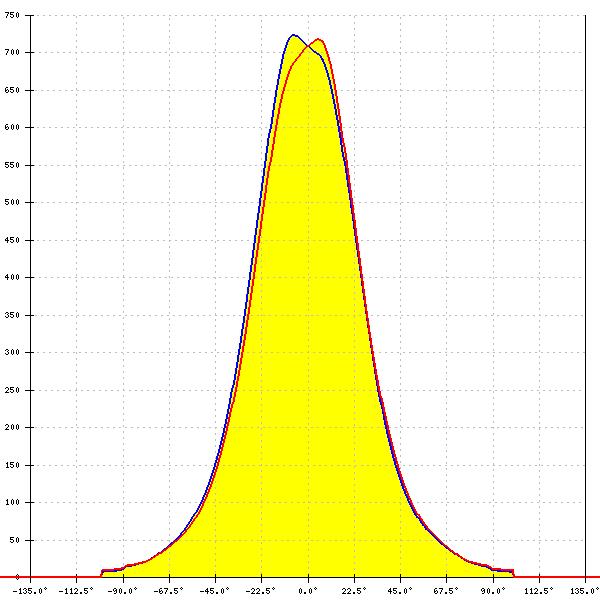

LED:
V18 Gen6
LES size: 18.6 mm
FWHM:
58°
FWTM:
113°
Peak intensity:
0.720 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
FWHM:
27°
FWTM:
58°
Peak intensity:
2.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
FWHM:
31°
FWTM:
70°
Peak intensity:
1.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

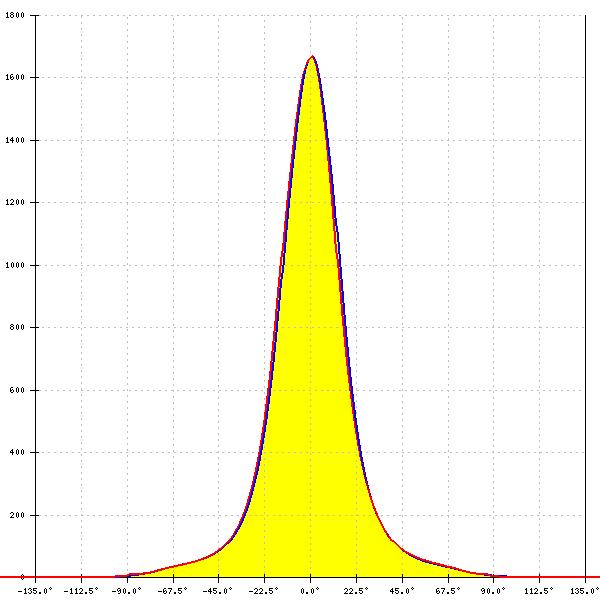

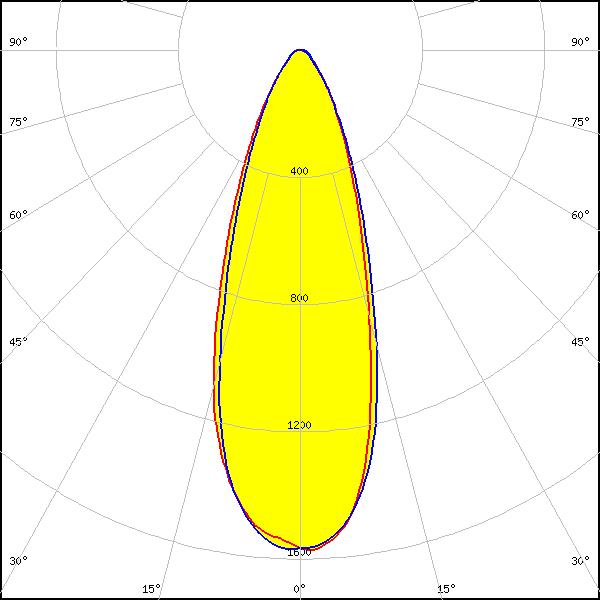

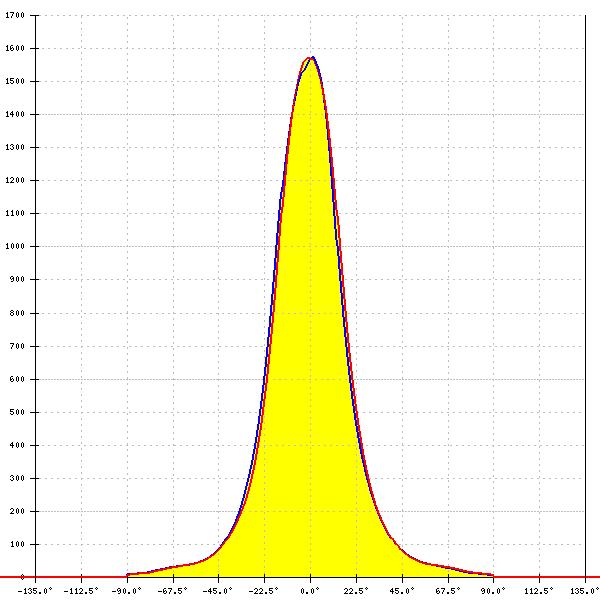

LED:
VERO10
LES size: 9.9 mm
FWHM:
36°
FWTM:
74°
Peak intensity:
1.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
FWHM:
27°
FWTM:
60°
Peak intensity:
2.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

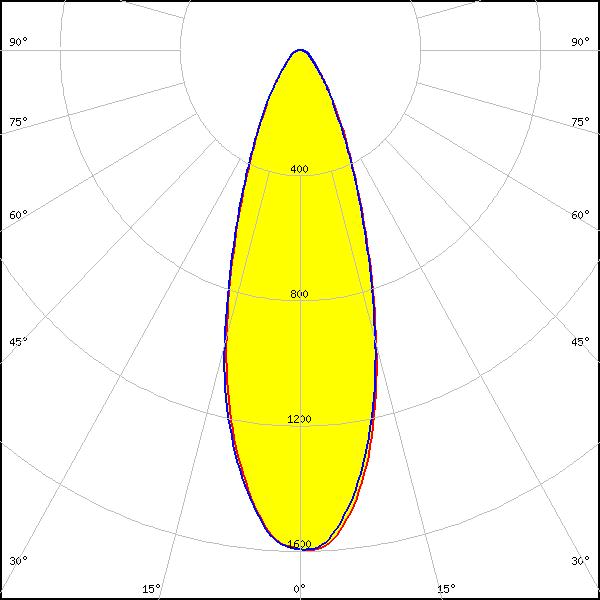

CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
35°
FWTM:
72°
Peak intensity:
1.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
FWHM:
35°
FWTM:
72°
Peak intensity:
2.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

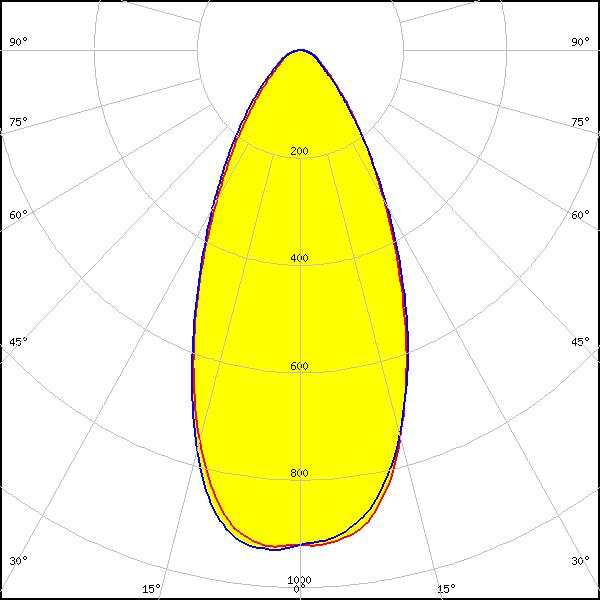

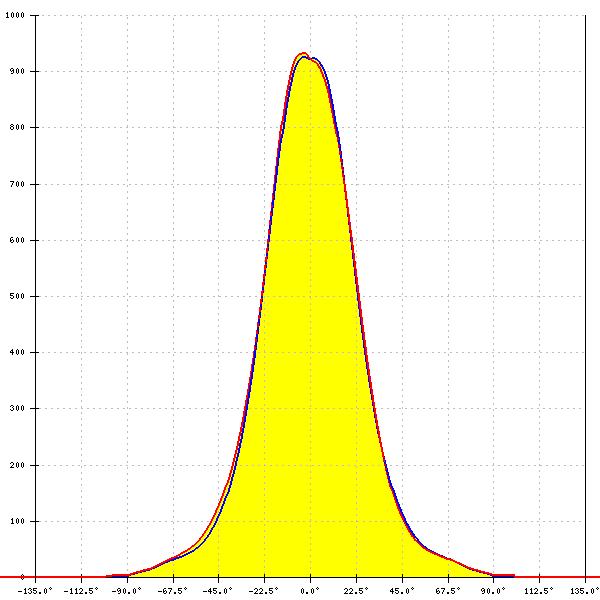

LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
49°
FWTM:
95°
Peak intensity:
0.930 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
28°
FWTM:
58°
Peak intensity:
2.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

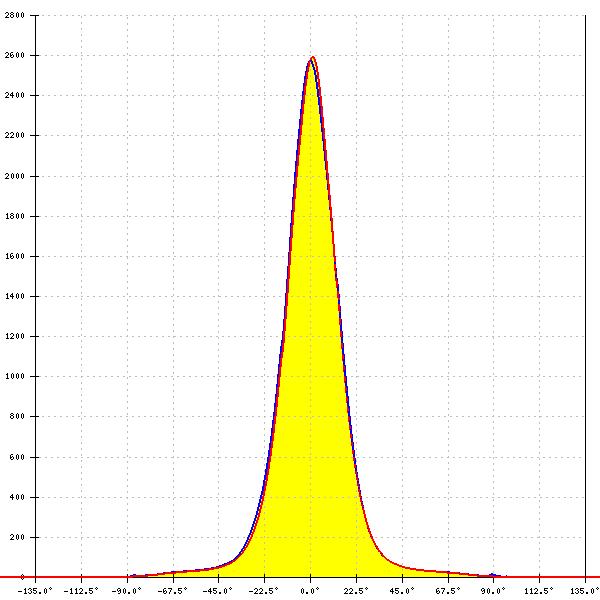

LED:

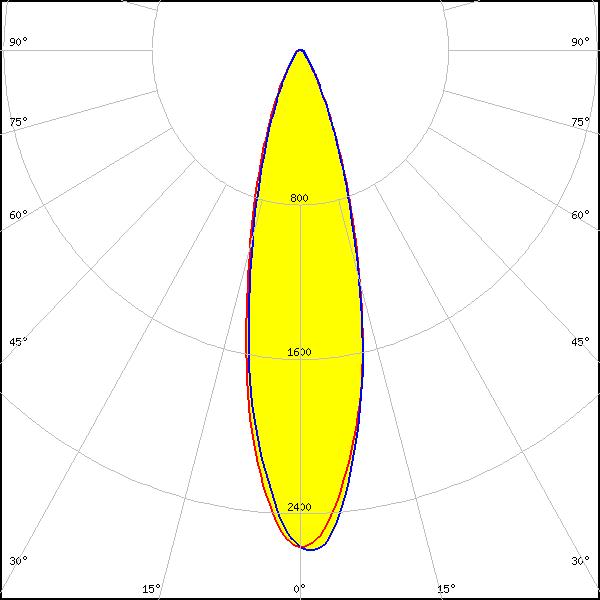

CLU700/701/702/703
LES size: 6.0 mm
FWHM:
27°
FWTM:
56°
Peak intensity:
2.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

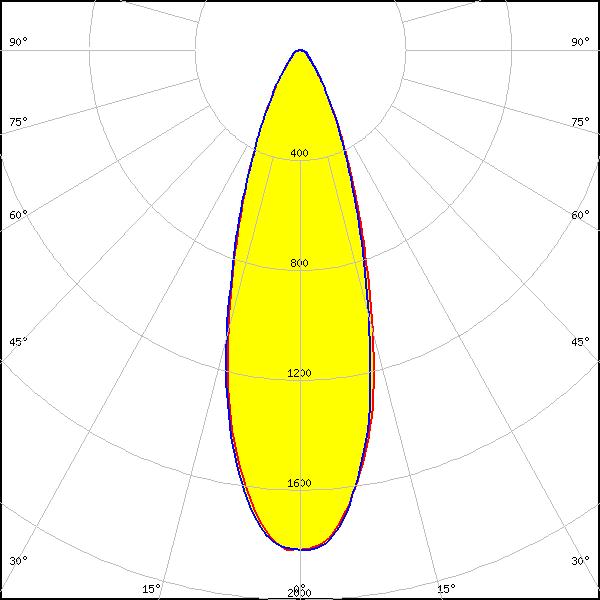

LED:

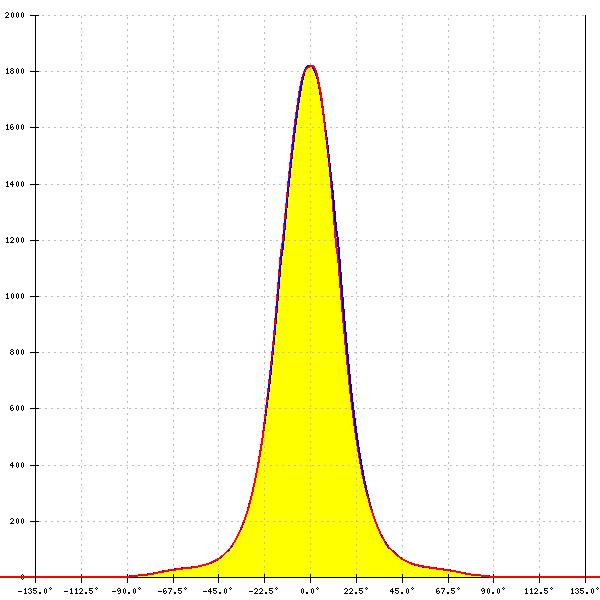

CLU710/711
LES size: 8.5 mm
Required components:
Bender Wirth: 470 Typ L5
FWHM:
33°
FWTM:
67°
Peak intensity:
1.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

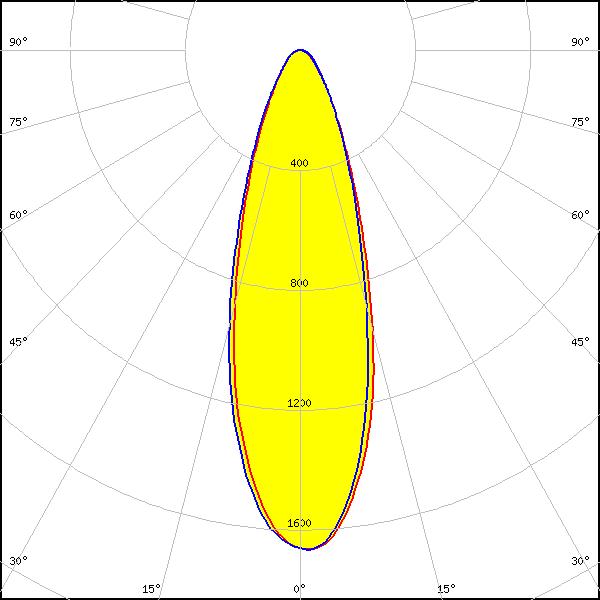

LED:
CLU710/711
LES size: 8.5 mm
FWHM:
32°
FWTM:
70°
Peak intensity:
1.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

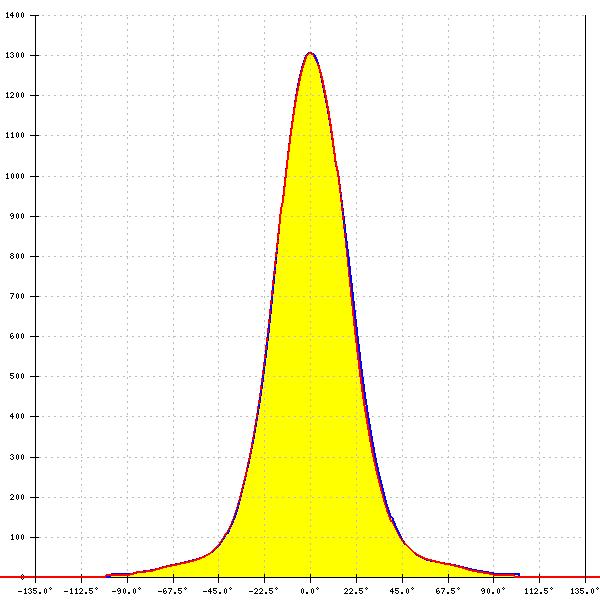

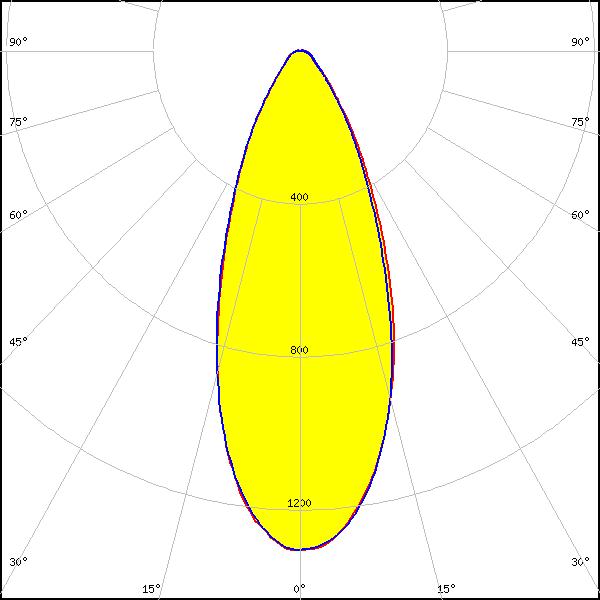

CLU720/721/723
LES size: 11.0 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
41°
FWTM:
80°
Peak intensity:
1.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

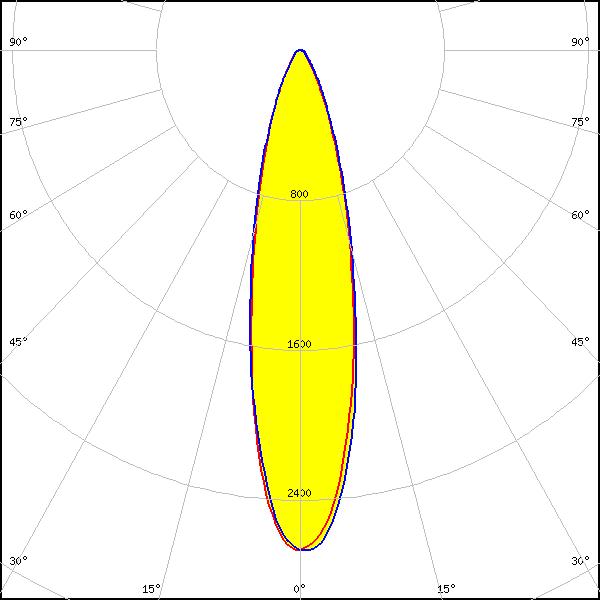

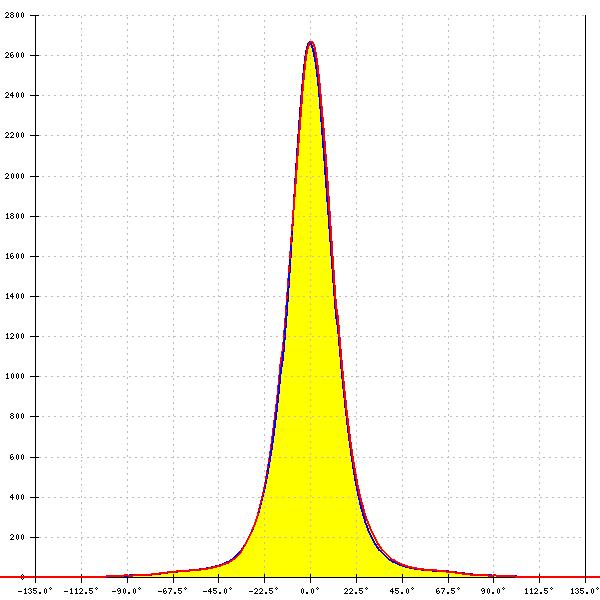

LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
26°
FWTM:
58°
Peak intensity:
2.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
FWHM:
25°
FWTM:
55°
Peak intensity:
2.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

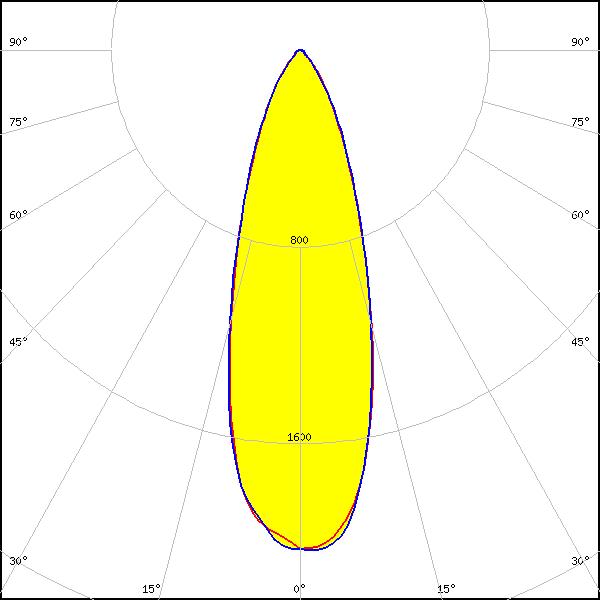

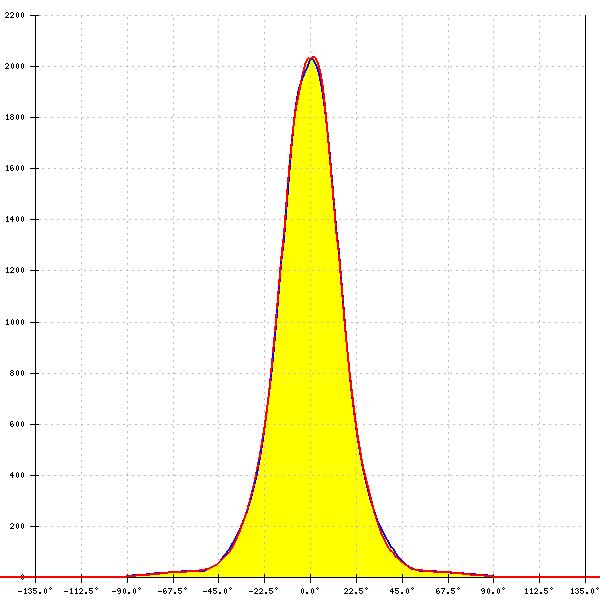

LED:
CXA/B 15xx
LES size: 8.9 mm
FWHM:
33°
FWTM:
68°
Peak intensity:
2.047 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

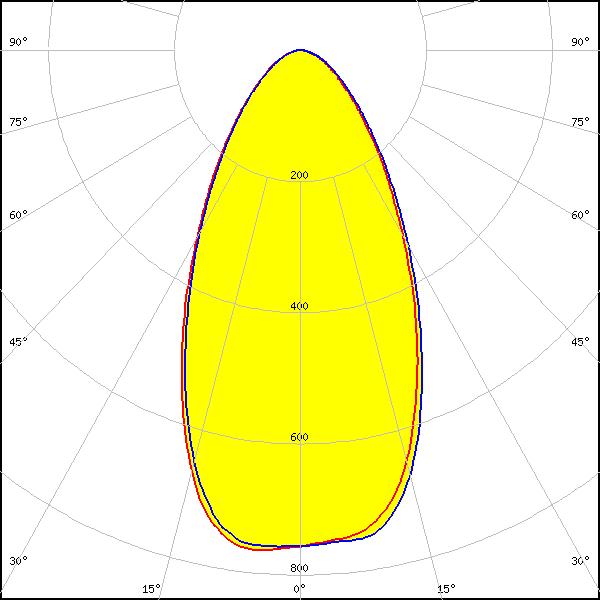

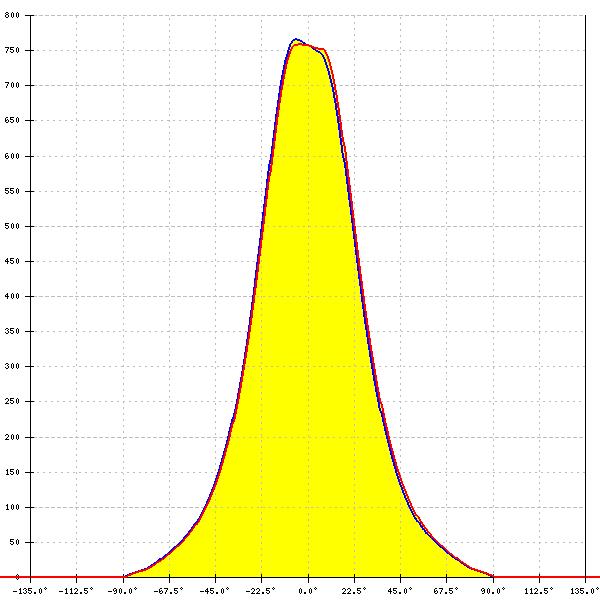

LED:
CXA/B 25xx
LES size: 19.0 mm
FWHM:
55°
FWTM:
109°
Peak intensity:
0.770 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

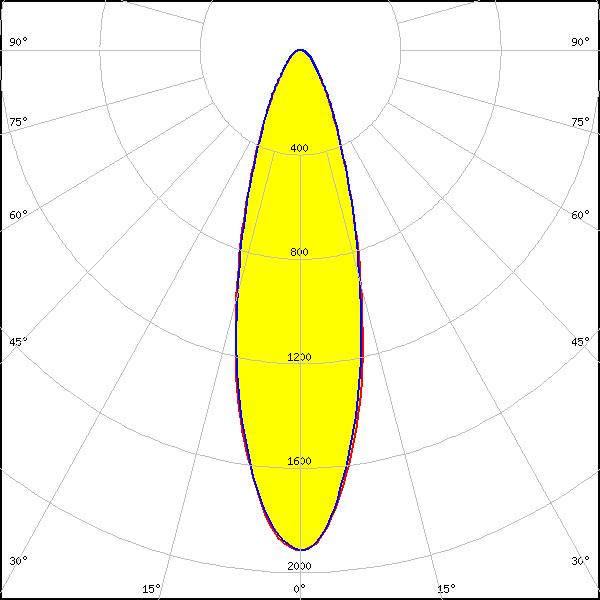

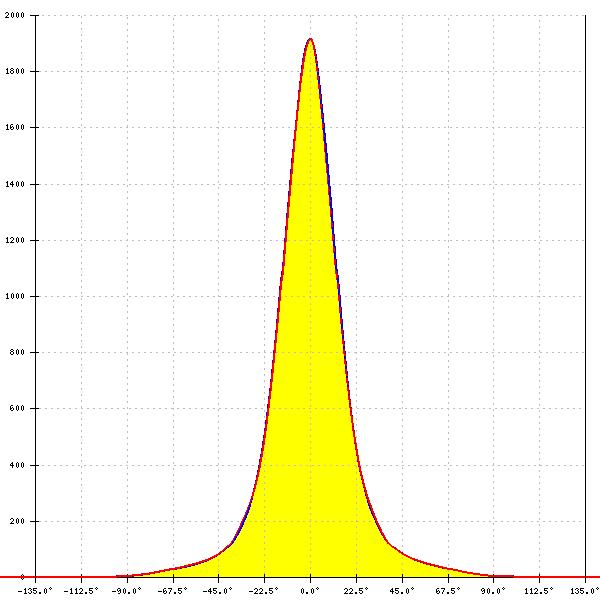

LED:
MHD-E/G
LES size: 0.0 mm
FWHM:
30°
FWTM:
67°
Peak intensity:
1.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

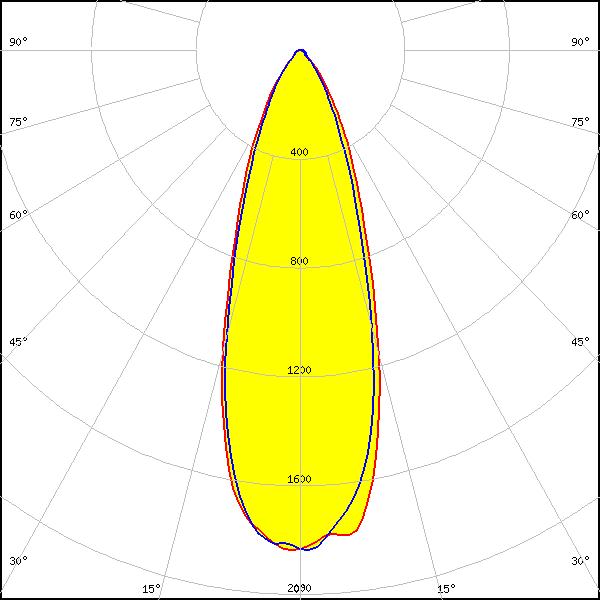

LED:

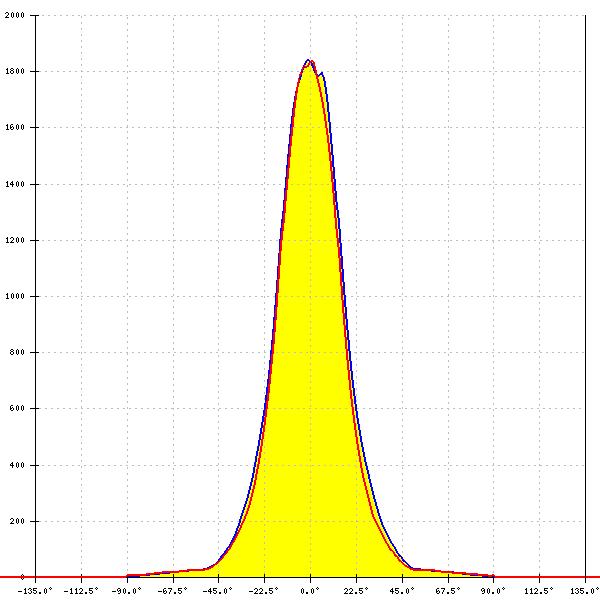

LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
Bender Wirth: 441 Typ L5
FWHM:
34°
FWTM:
69°
Peak intensity:
1.873 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
FWHM:
34°
FWTM:
74°
Peak intensity:
1.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
FWHM:
27°
FWTM:
60°
Peak intensity:
2.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
FWHM:
27°
FWTM:
60°
Peak intensity:
2.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
49°
FWTM:
95°
Peak intensity:
0.930 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
FWHM:
45°
FWTM:
94°
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
35°
FWTM:
72°
Peak intensity:
1.600 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
FWHM:
36°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

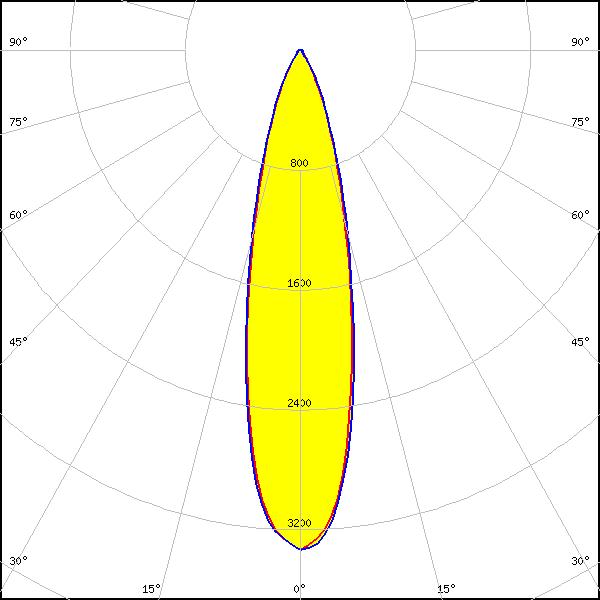

LED:
COB S-Type (LES 6)
LES size: 5.9 mm
FWHM:
25°
FWTM:
53°
Peak intensity:
3.337 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
FWHM:
24°
FWTM:
58°
Peak intensity:
3.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
FWHM:
41°
FWTM:
88°
Peak intensity:
1.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
FWHM:
55°
FWTM:
104°
Peak intensity:
0.800 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

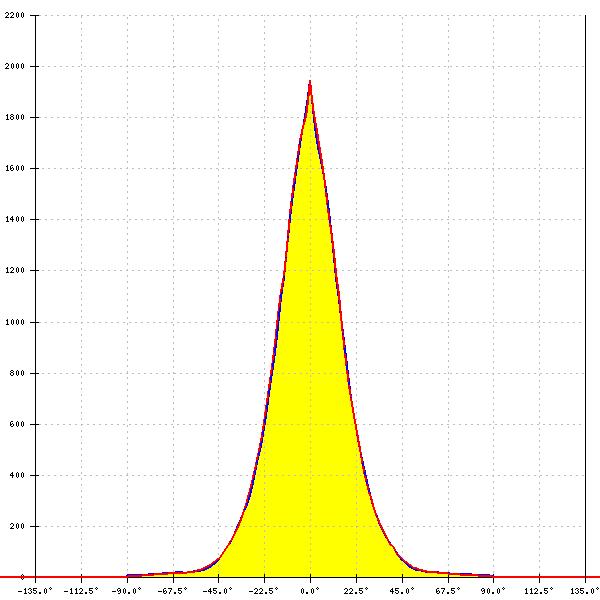

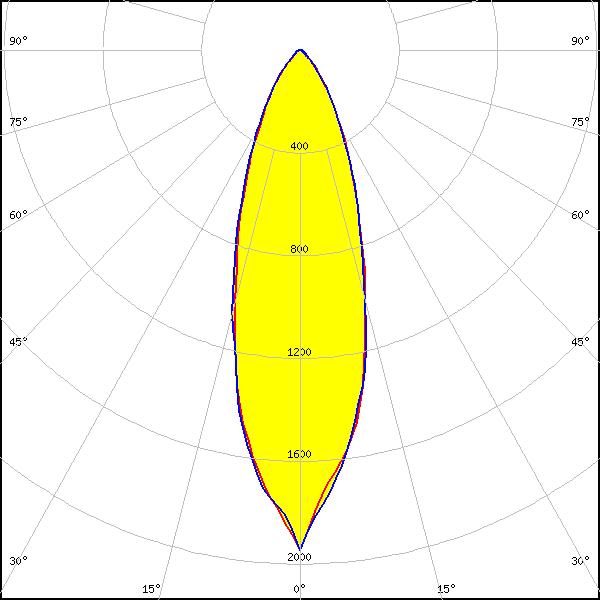

LED:
Soleriq S9
LES size: 9.8 mm
FWHM:
32°
FWTM:
71°
Peak intensity:
1.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

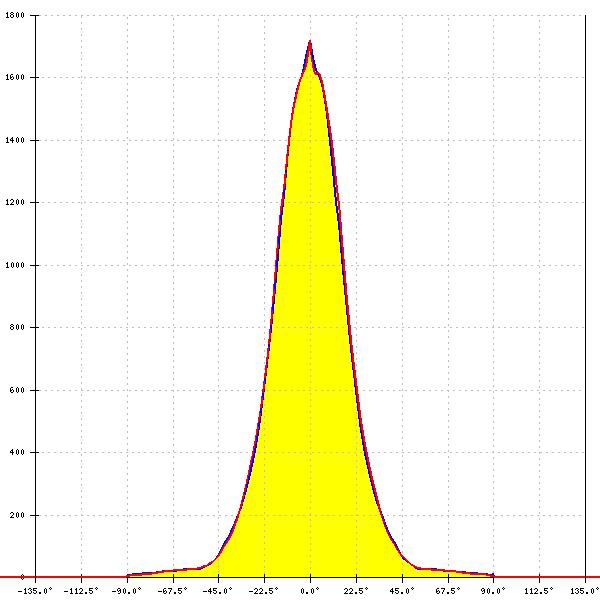

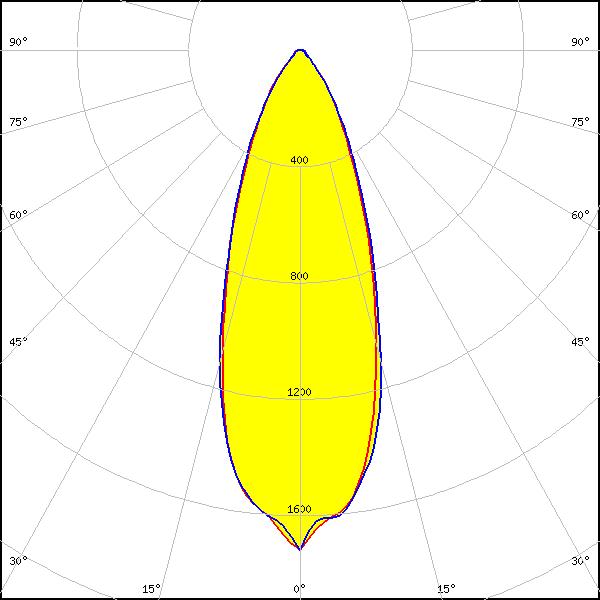

LED:
LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
FWHM:
36°
FWTM:
74°
Peak intensity:
1.720 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
27°
FWTM:
56°
Peak intensity:
3.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

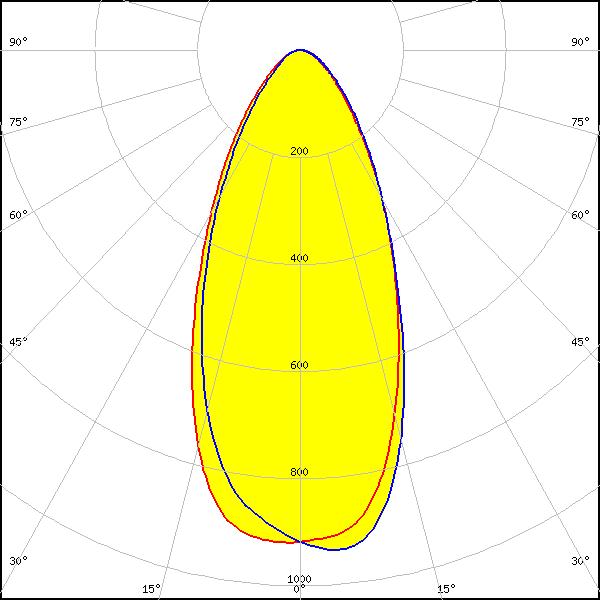

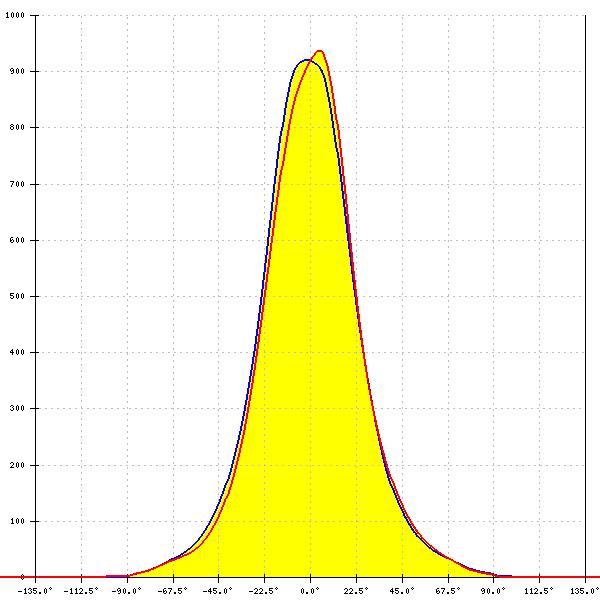

LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
FWHM:
48°
FWTM:
98°
Peak intensity:
0.940 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
32°
FWTM:
66°
Peak intensity:
2.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
Bender Wirth: 479 Typ L5
FWHM:
40°
FWTM:
82°
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MJT COB LES 14.5
LES size: 14.5 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
51°
FWTM:
101°
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

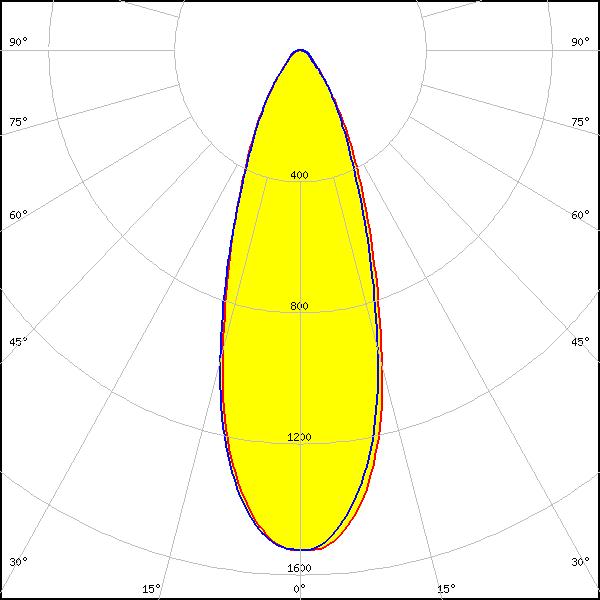

LED:

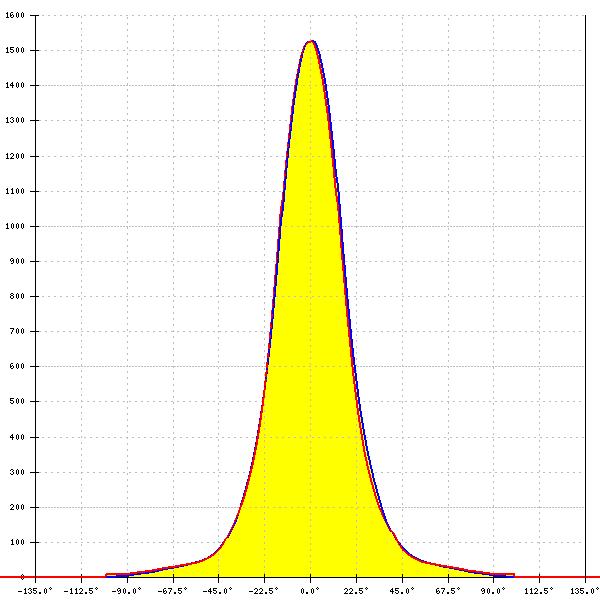

MJT COB LES 9.8
LES size: 9.8 mm
Required components:
Bender Wirth: 434 Typ L5
FWHM:
36°
FWTM:
75°
Peak intensity:
1.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

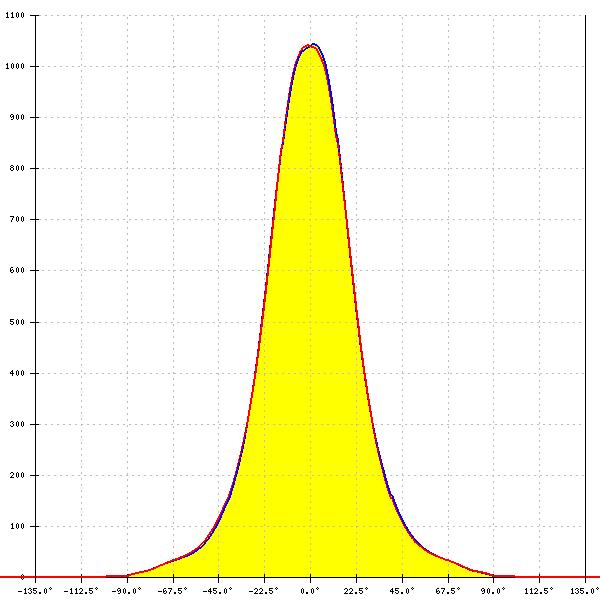

ZC12/18
LES size: 14.6 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
46°
FWTM:
91°
Peak intensity:
1.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

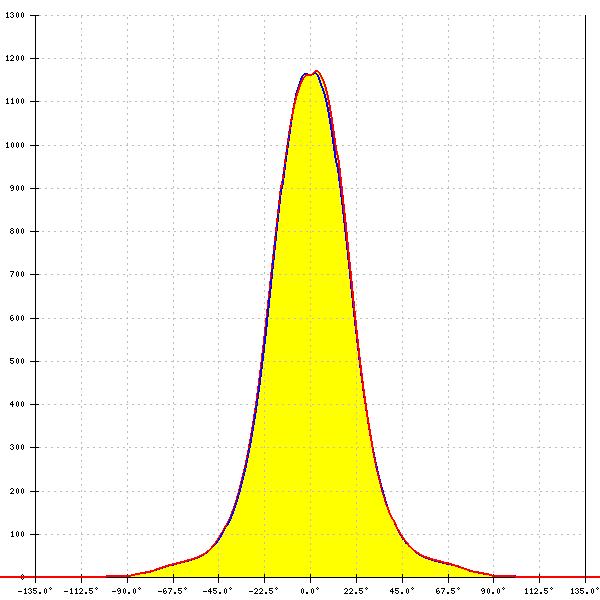

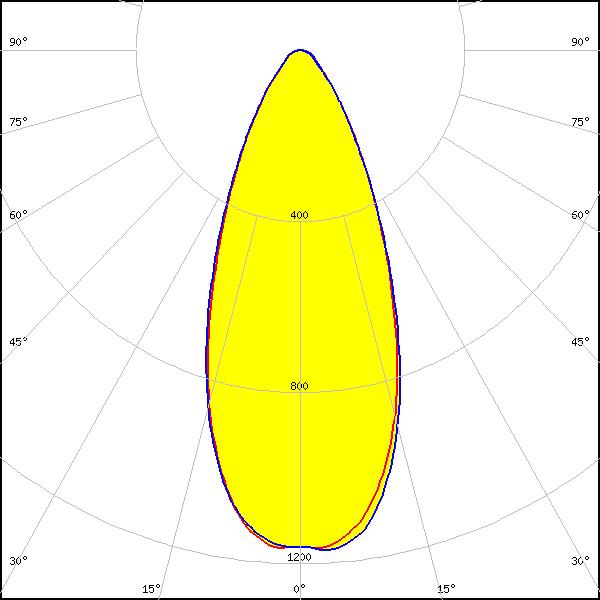

LED:
DMC 124 / 125
LES size: 11.1 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
44°
FWTM:
84°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

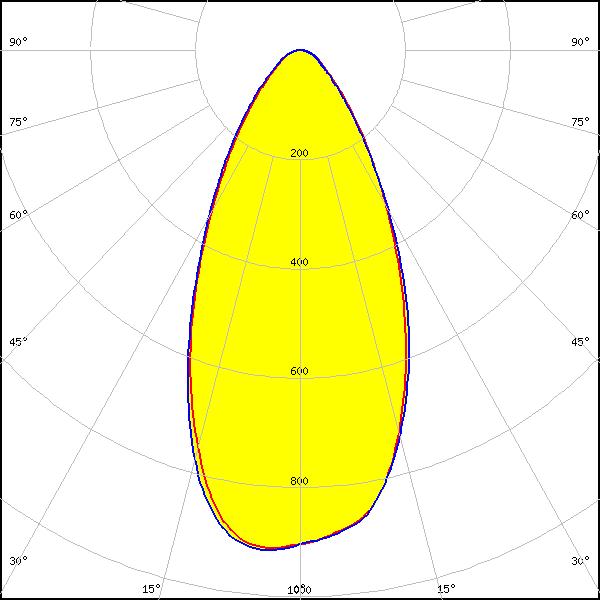

LED:

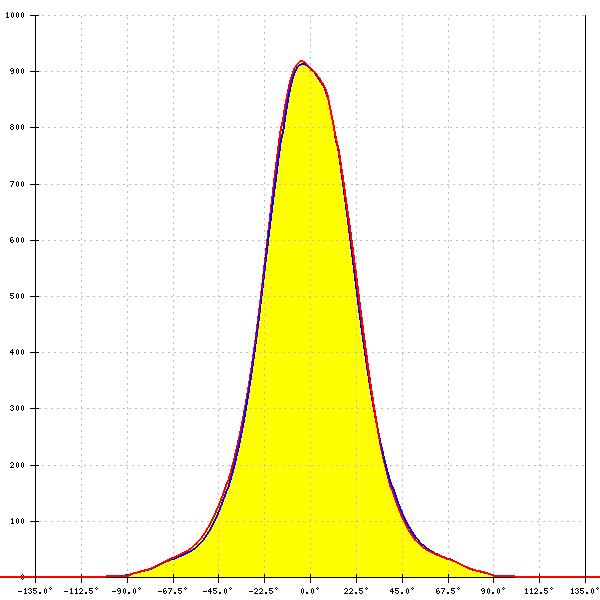

DMC 128
LES size: 13.8 mm
Required components:
Bender Wirth: 433 Typ L5
FWHM:
50°
FWTM:
96°
Peak intensity:
0.920 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
