    CA19406_ROSE-UV-G3-S

    Print

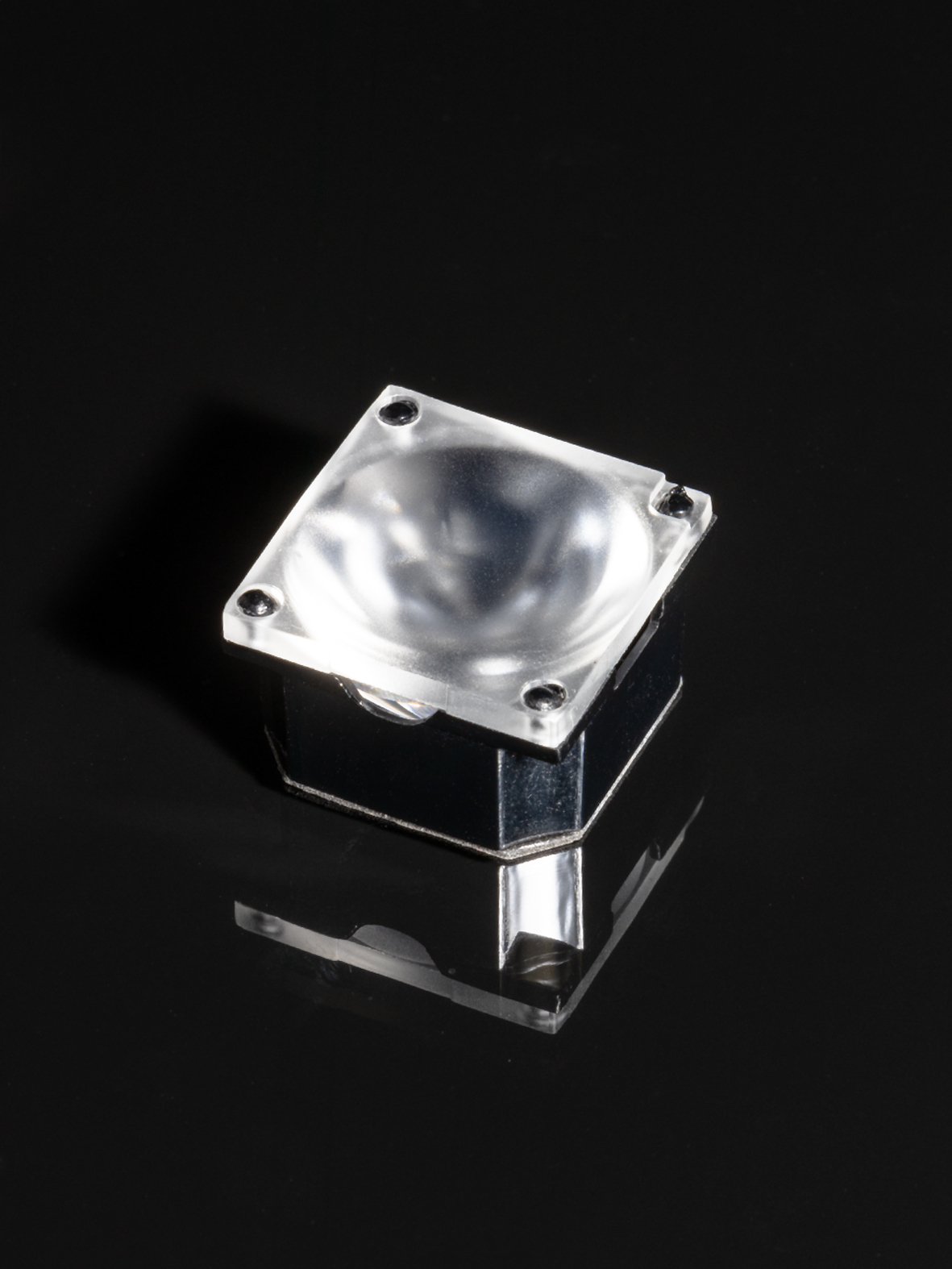

    ~14° spot beam optimized for up to 3535 (with dome) and 7575 (flat) LED packages. Assembly with black holder and installation tape.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      12.86 mm
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1620 pcs
    • Box size:
      480 x 280 x 165 mm
    • Box weight:
      6.9 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA19406_ROSE-UV-G3-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New products – December, 2023

    News

    ROSE keeps performing – 3rd generation now available

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application area

    Architectural Outdoor Lighting

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: LZ1-00UV00
    LEDs/each optic: 1
    Light colour/type: UV-A

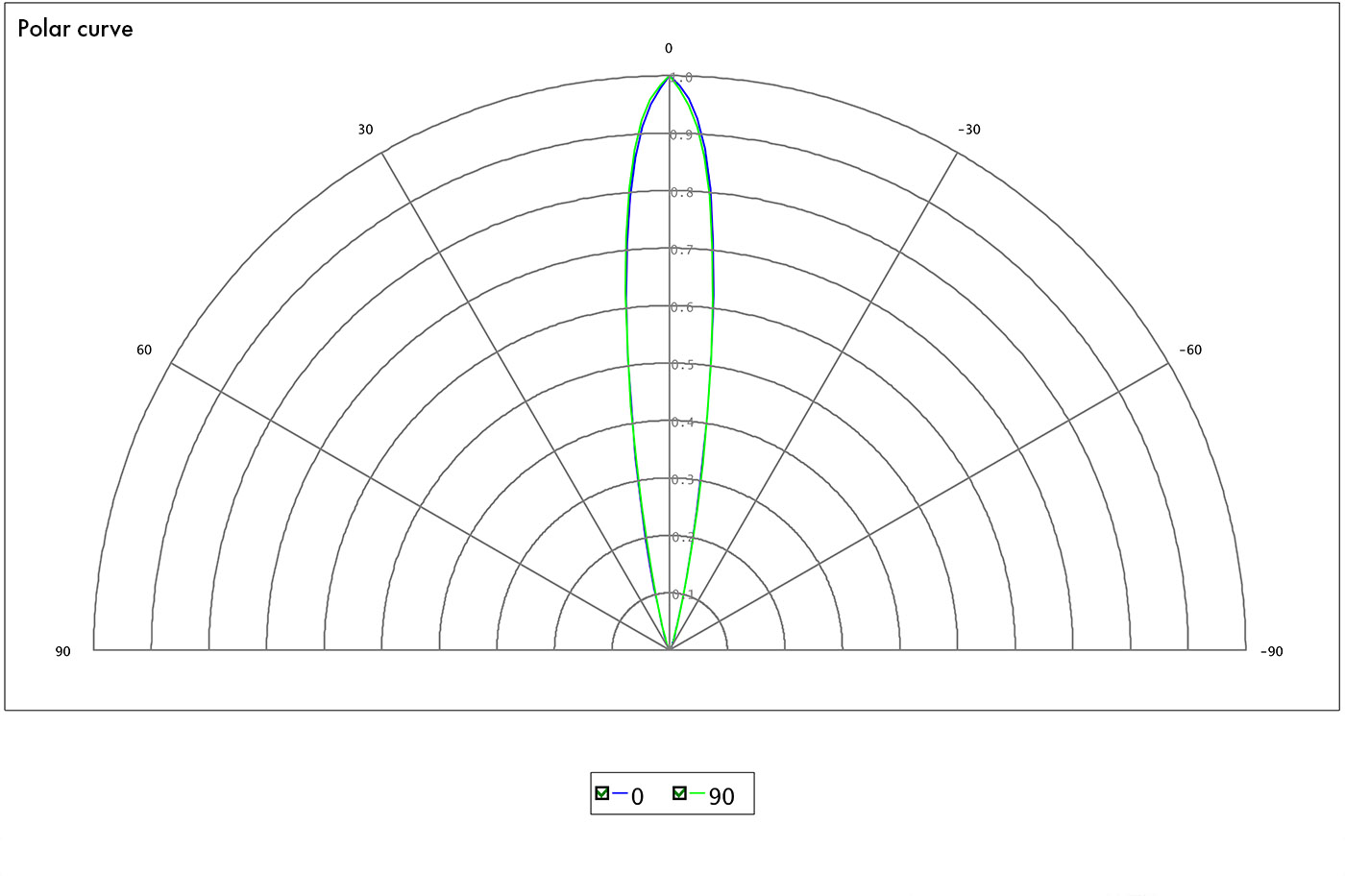

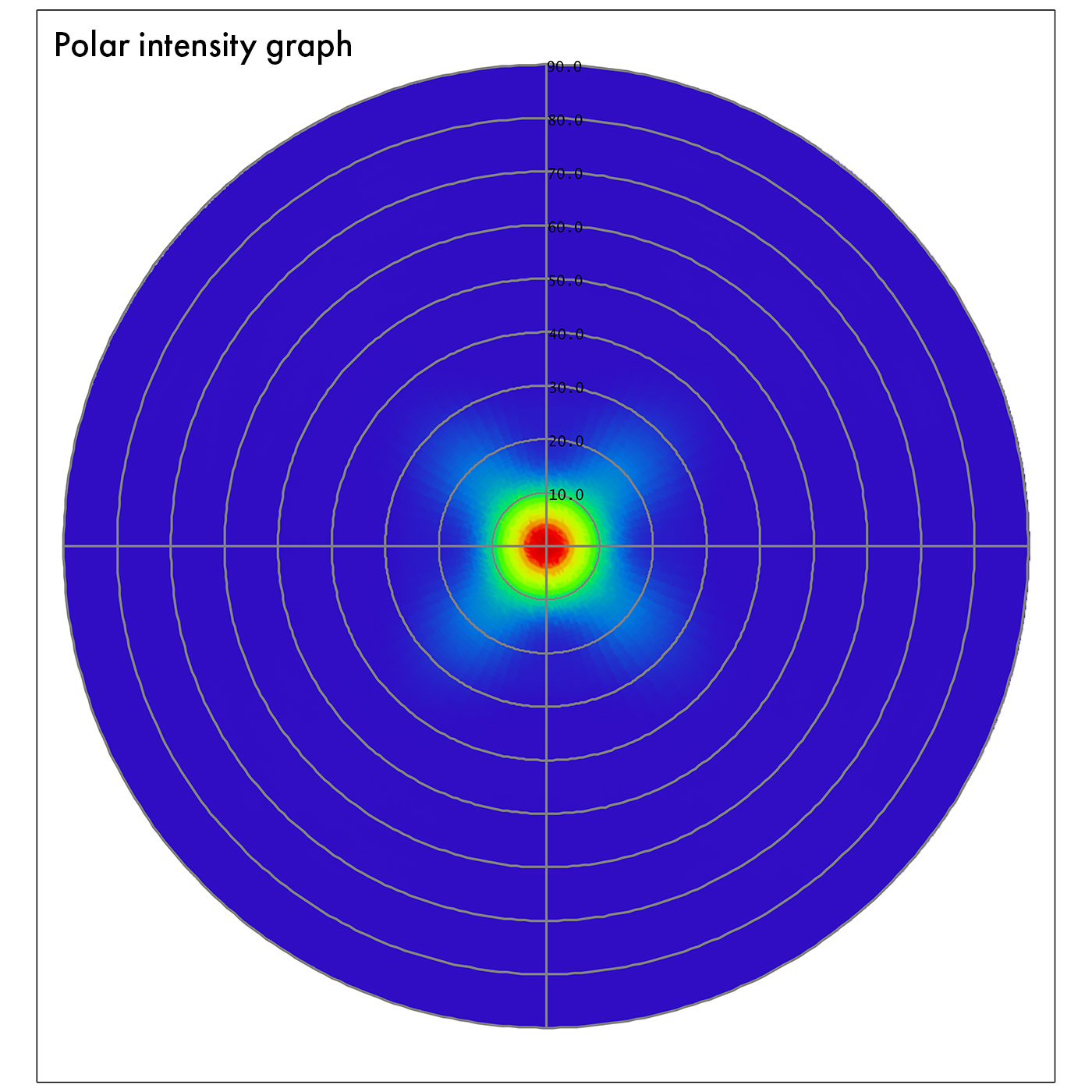

    LED: NC4U133A
    FWHM: 16°
    FWTM: 28°
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: NCSU033B
    LEDs/each optic: 1
    Light colour/type: UV-A

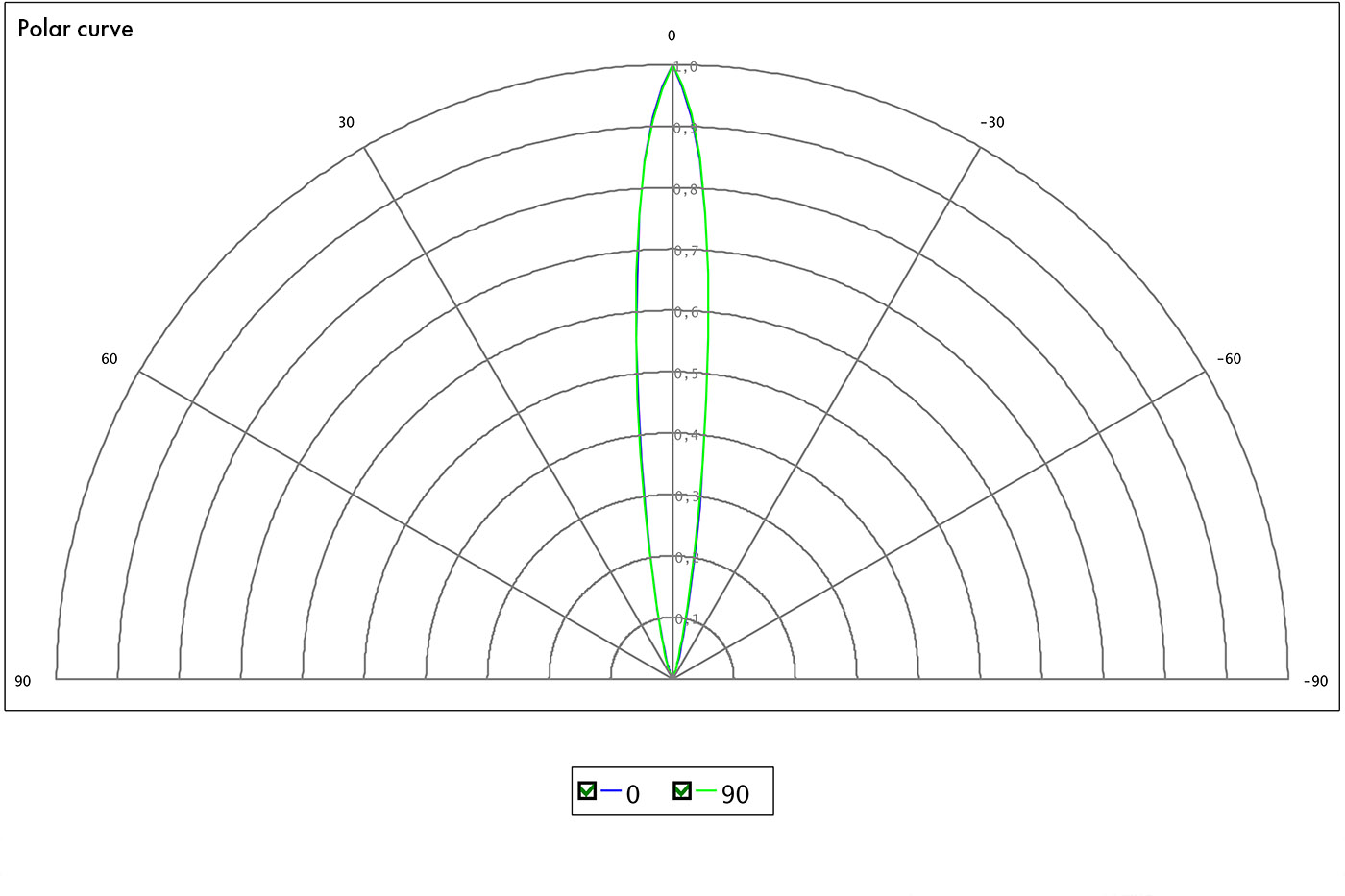

    LED: NVSU119C
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: NVSU233B
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: NVSU233B-D4
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: NWSU333B
    LEDs/each optic: 1
    Light colour/type: UV-A

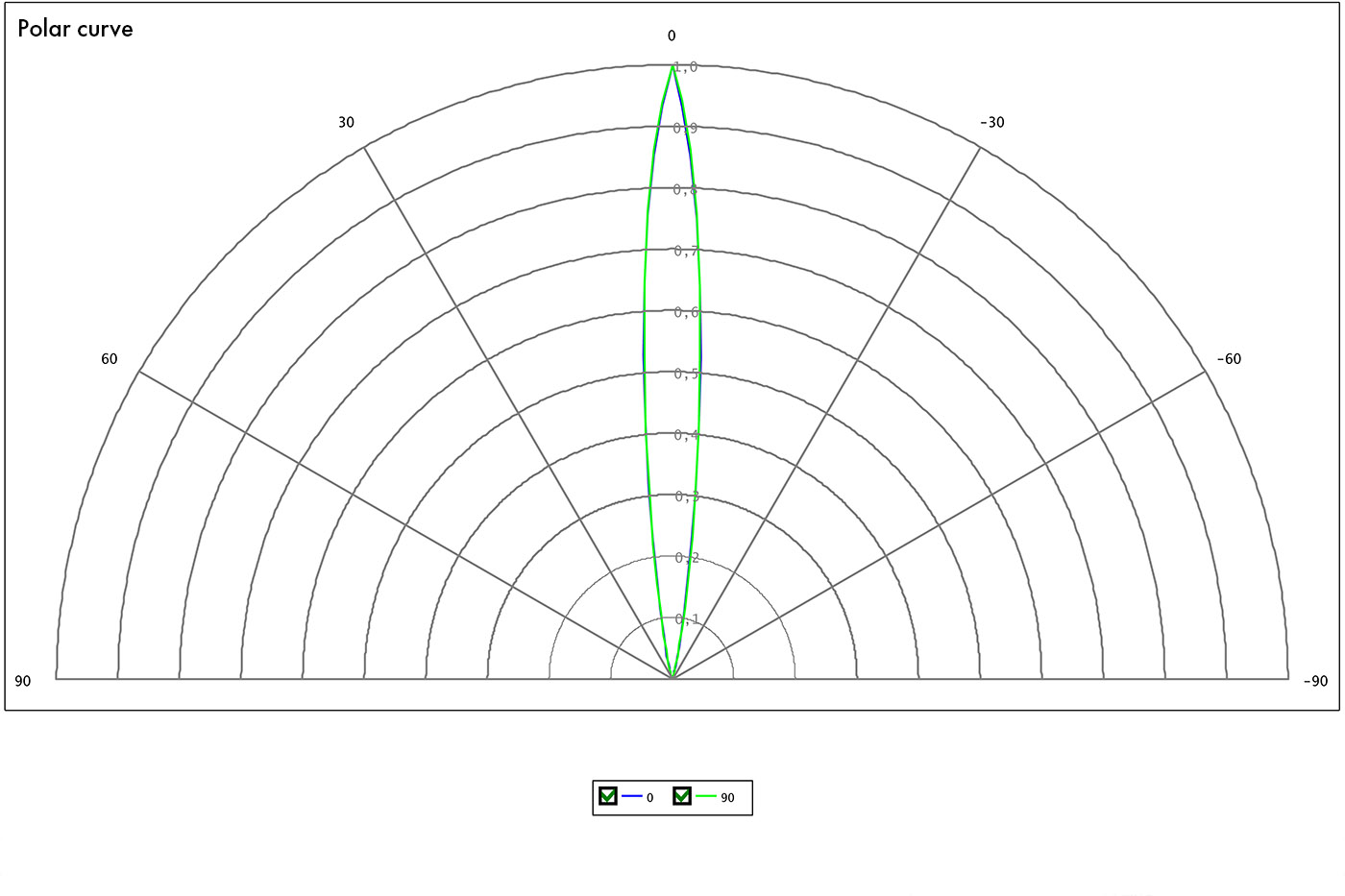

    LED: CUN6GF1A
    LEDs/each optic: 1
    Light colour/type: UV-A

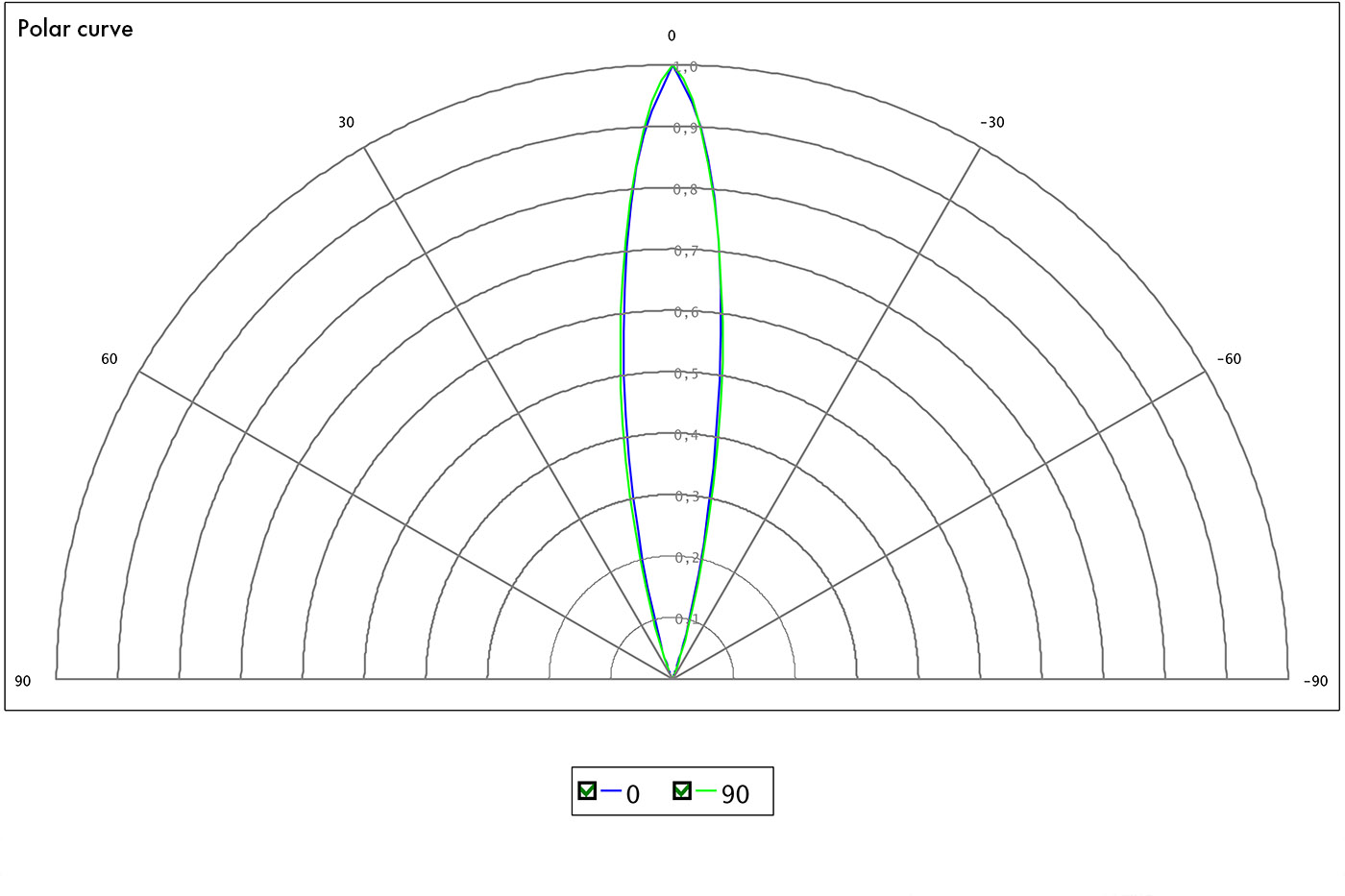

    LED: CUN6UB1A
    LEDs/each optic: 1
    Light colour/type: UV-A
    LED: LZU4E
    LEDs/each optic: 1
    Light colour/type: UV-A
