    CA19366_ROSE-UV-G3-S-PIN

    Print

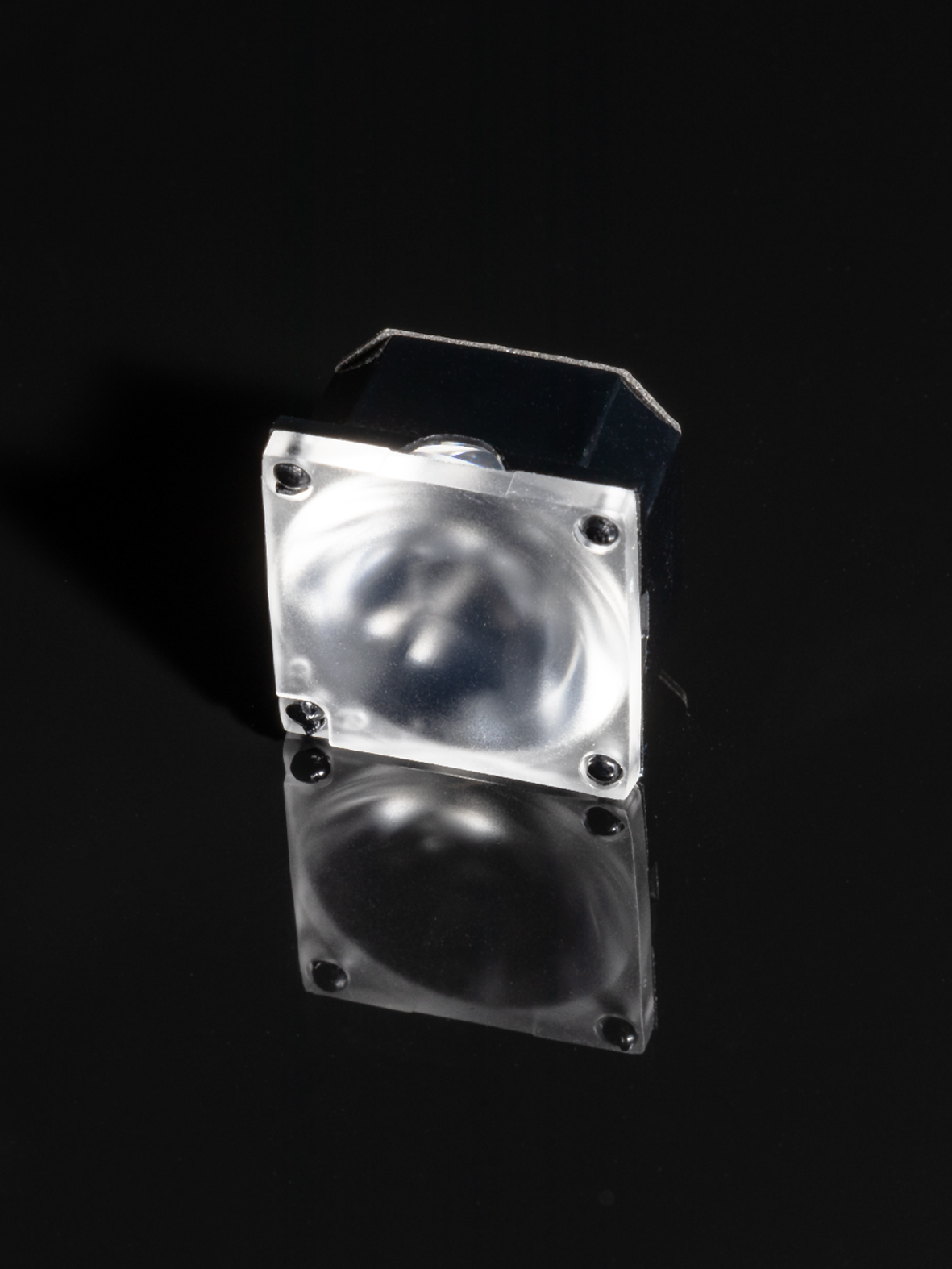

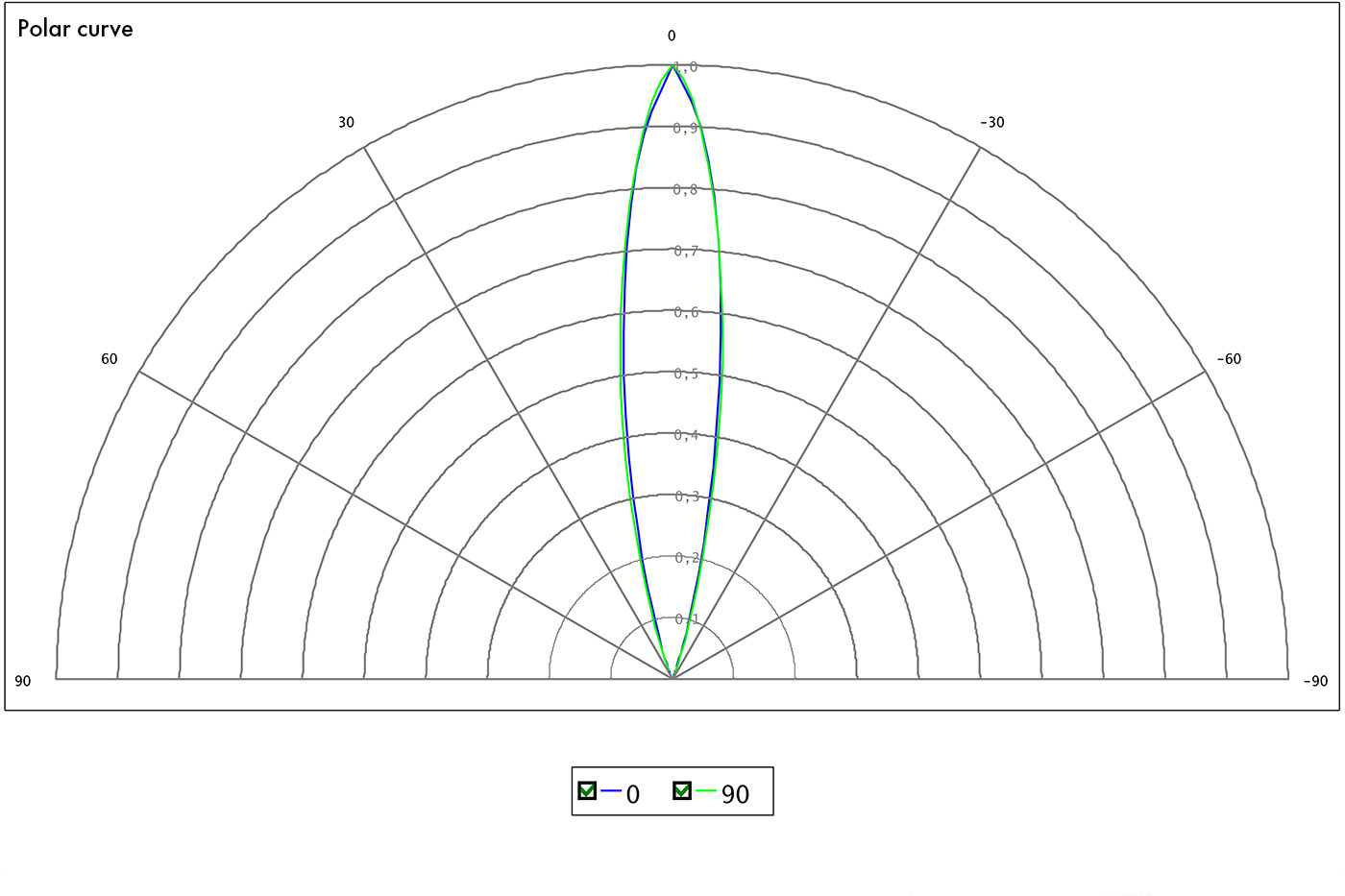

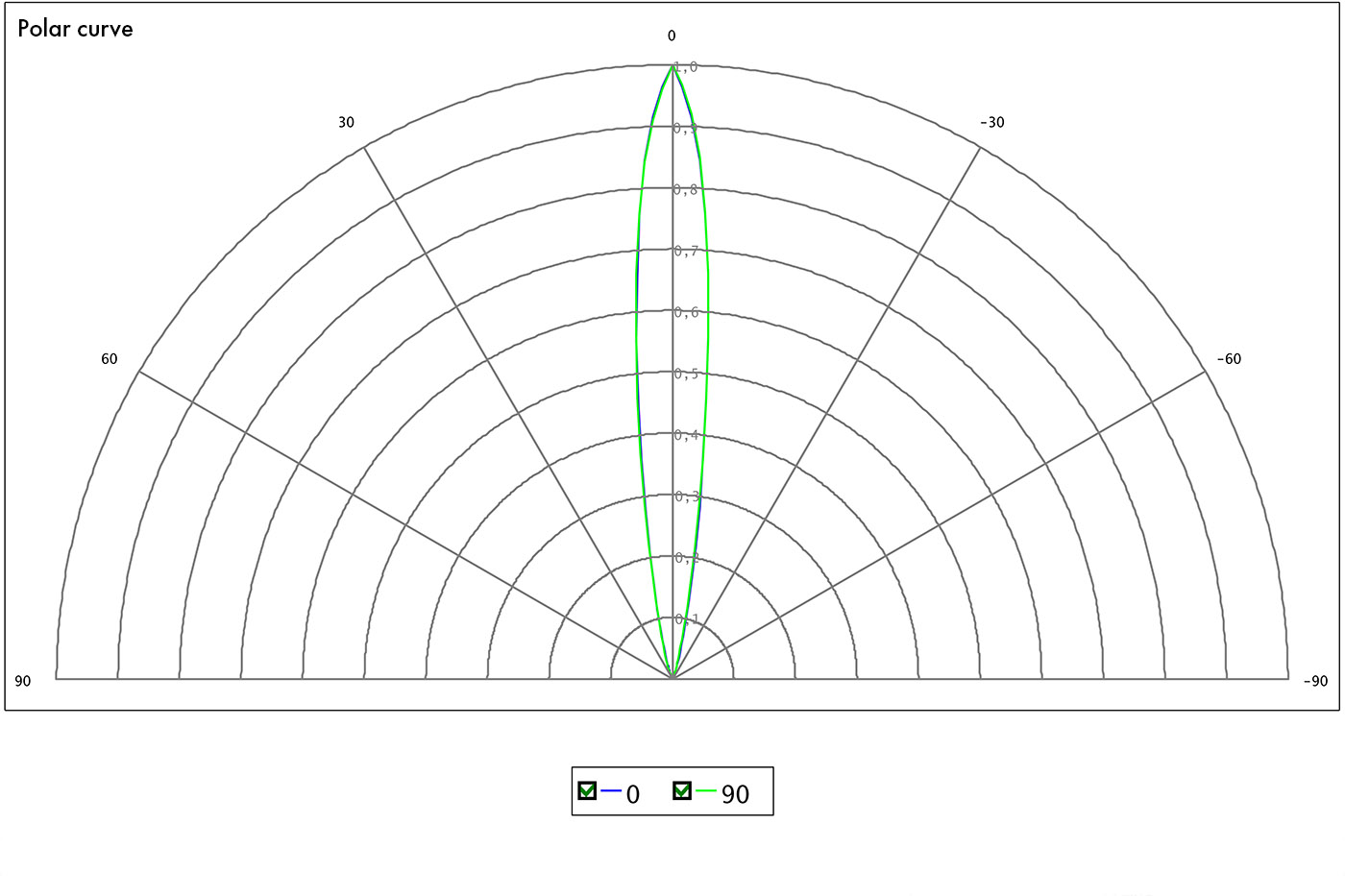

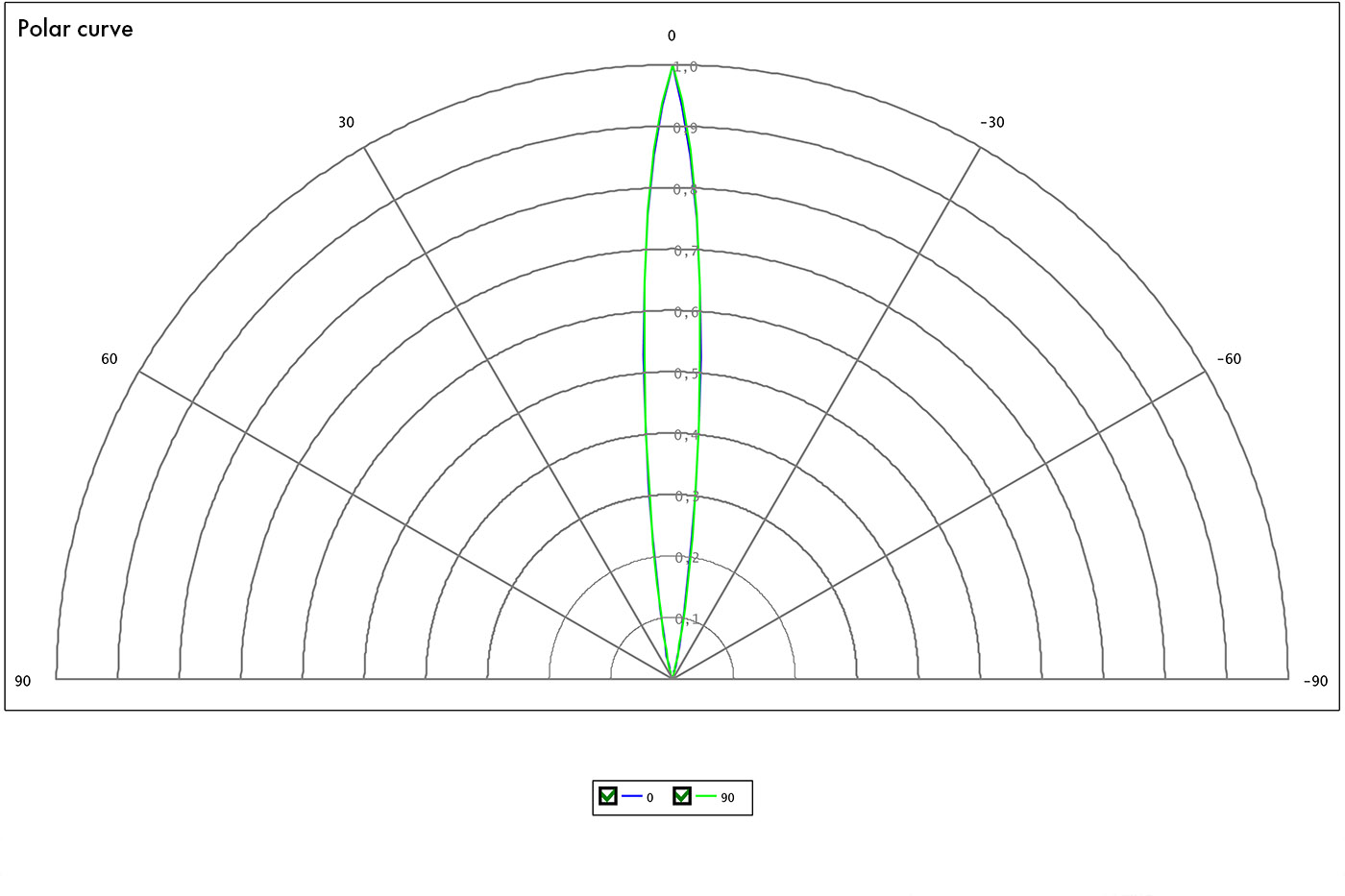

    ~14° spot beam optimized for up to 3535 (with dome) and 7575 (flat) LED packages. Assembly with black holder, installation tape and location pins.

    Specification
    • Dimensions:
      22 x  22 mm
    • Height:
      12.86 mm
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      1620 pcs
    • Box size:
      480 x 280 x 165 mm
    • Box weight:
      6.7 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
