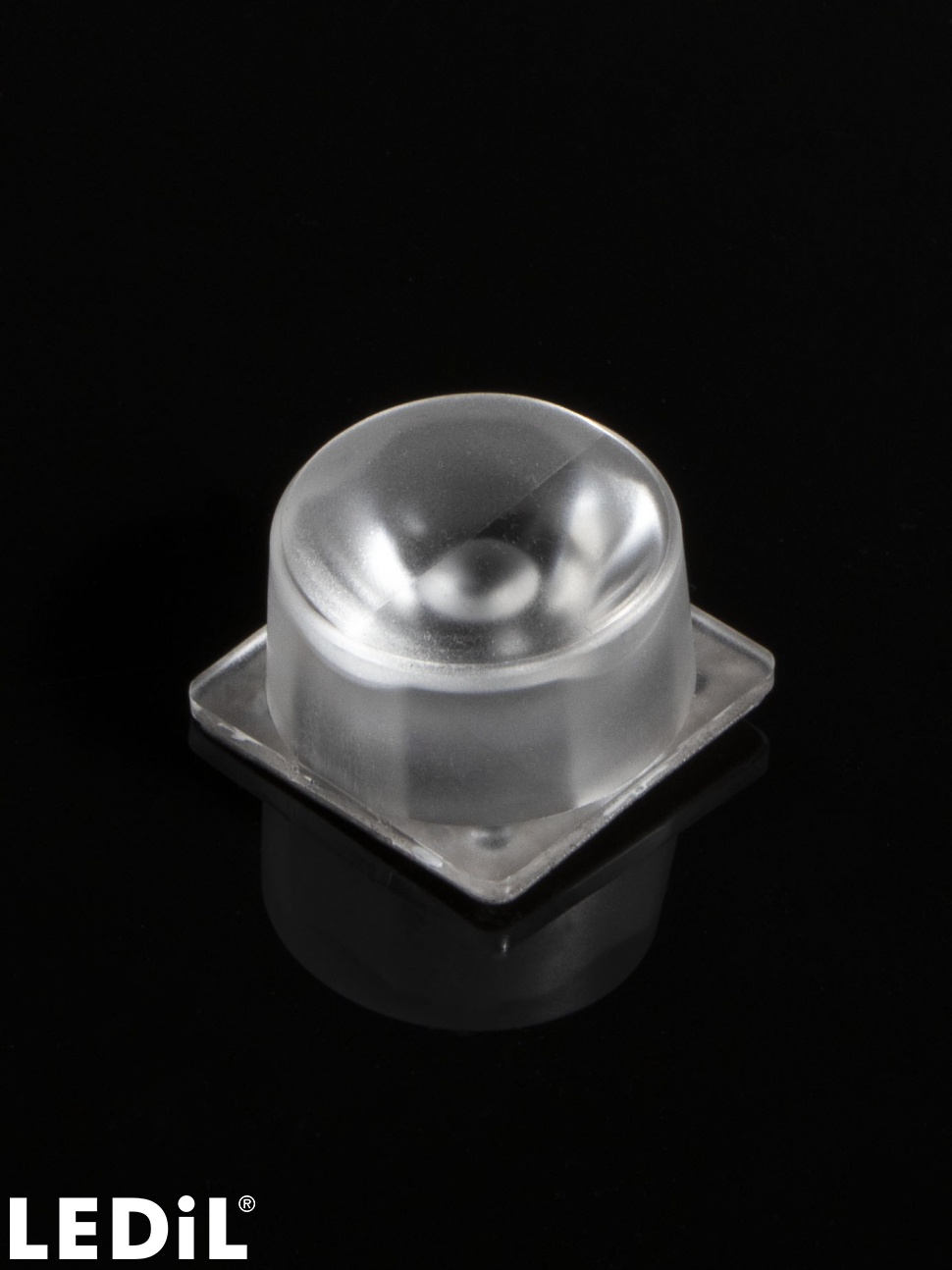

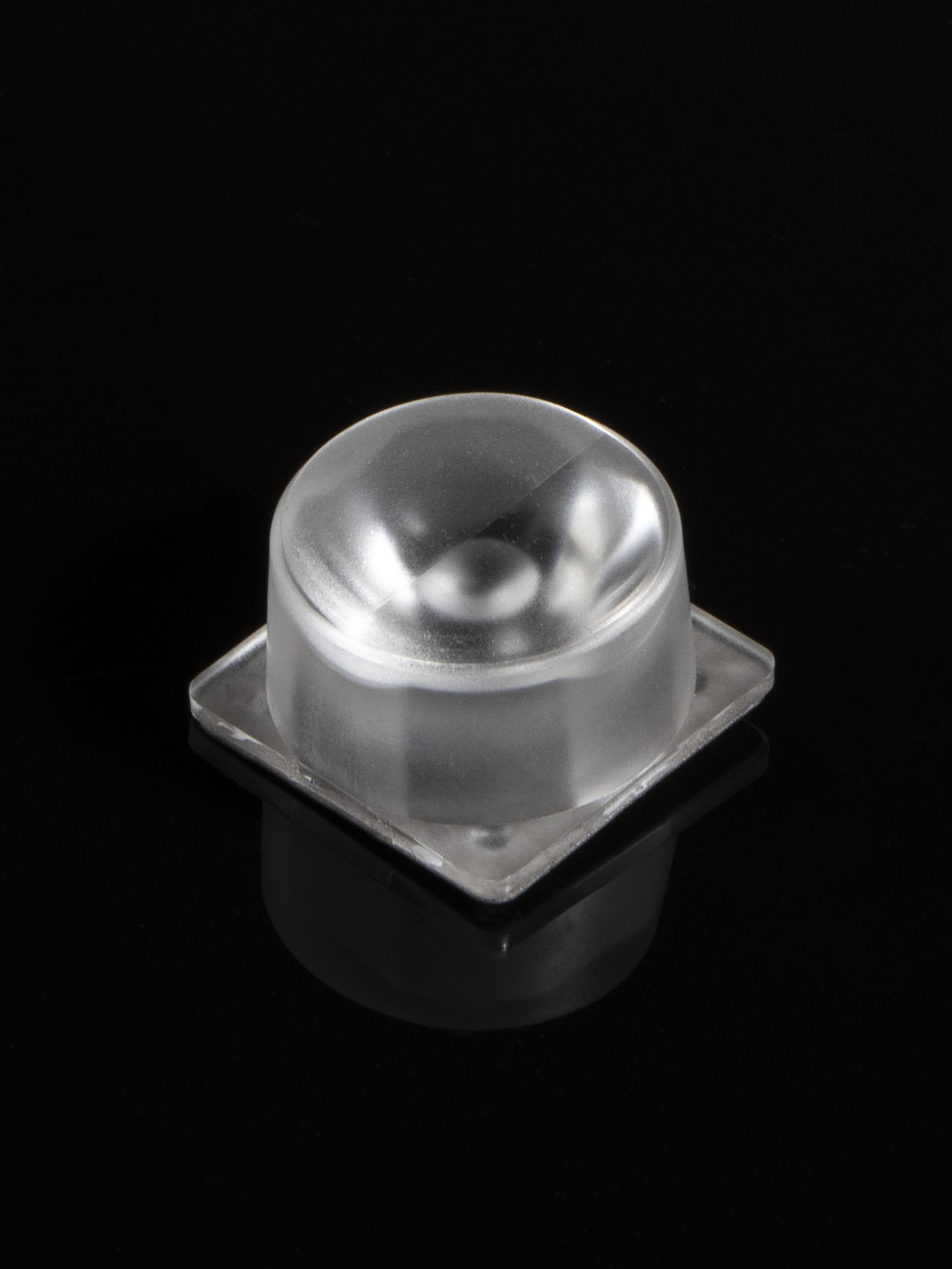

    CA18277_VERONICA-SQ-WG

    Print

    Narrow asymmetric spot beam for wall grazing

    Specification
    • Dimensions:
      23 mm
    • Height:
      13.60 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      1980 pcs
    • Box size:
      476 x 273 x 197 mm
    • Box weight:
      8.4 kg
    • MPQ:
      180 pcs
    • MOQ:
      360 pcs
    • MOQ size:
      480 x 280 x 40 mm
    • MOQ weight:
      1.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA18277_VERONICA-SQ-WG
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    VERONICA-SQ-WG Façade beauty accentuated

    Luminaire, example

    Linear luminaire with VERONICA-SQ-WG

    Application area

    Indoor Architectural Lighting

    Application guide

    Guide for Architectural lighting optics

    Application example

    Urban lighting with LEDiL optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Optical results

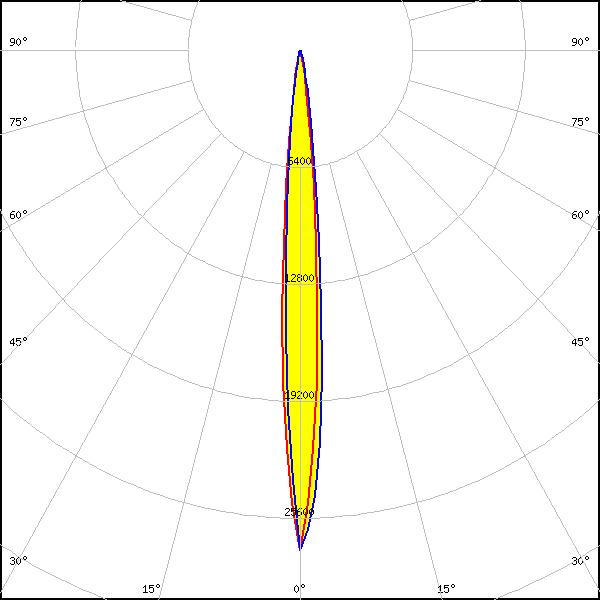

    LED: XP-P
    FWHM: asymmetric
    Peak intensity: 27.348 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

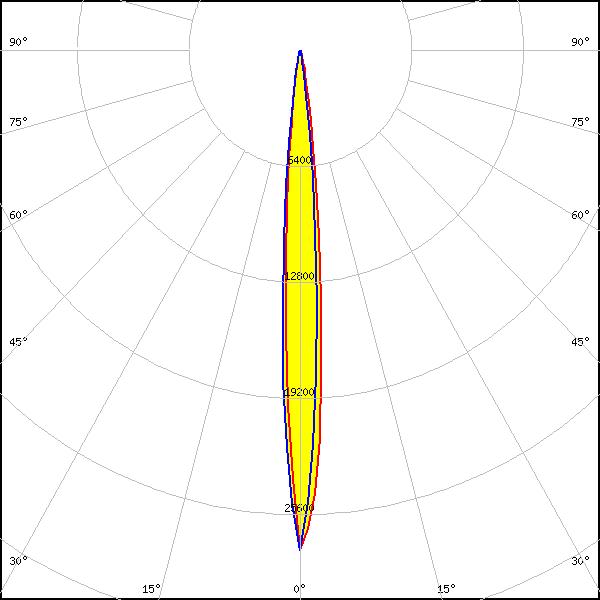

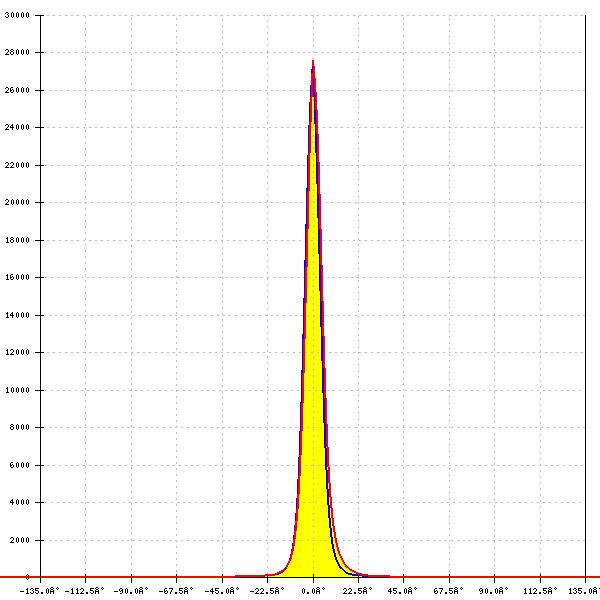

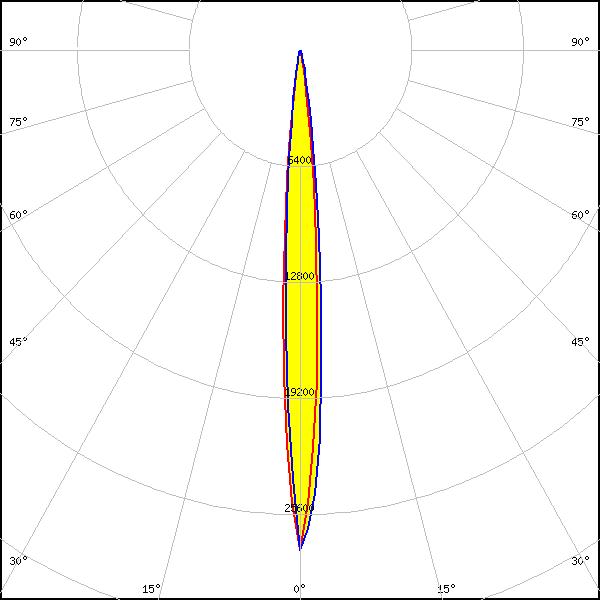

    LED: XQ-E HI
    FWHM: asymmetric
    Peak intensity: 27.574 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

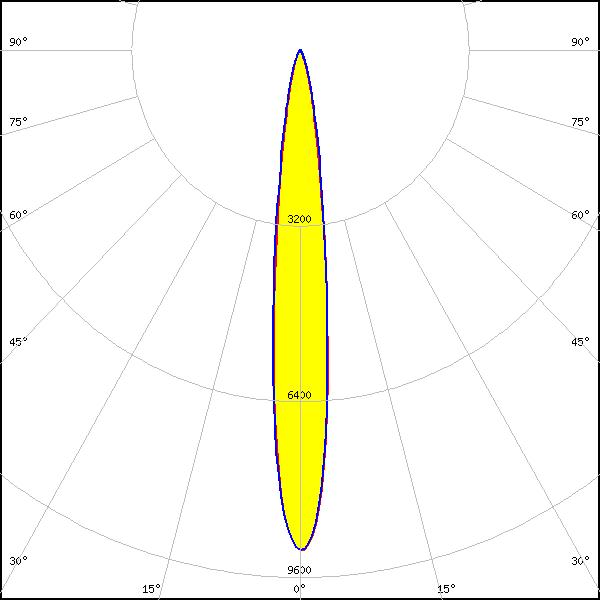

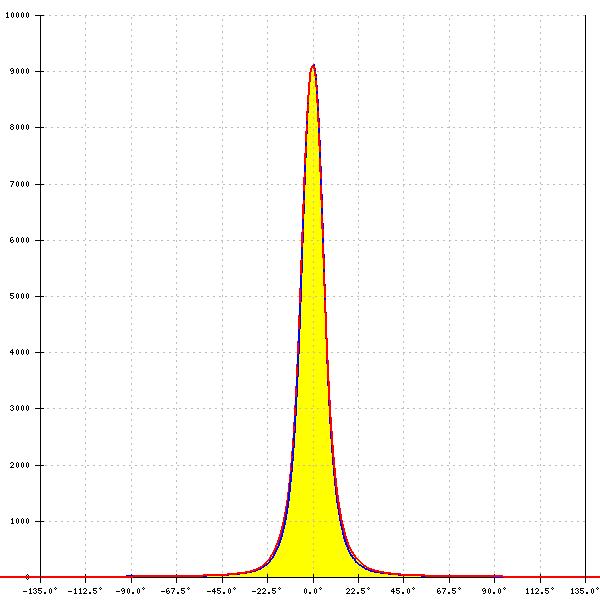

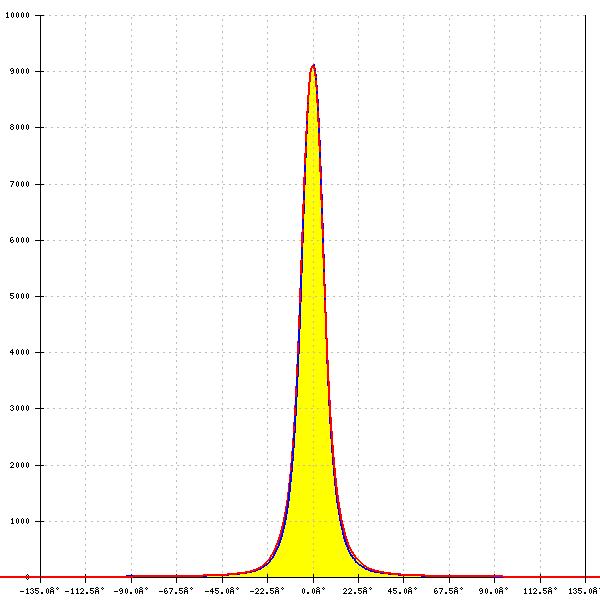

    LED: XT-E
    FWHM: asymmetric
    Peak intensity: 9.120 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

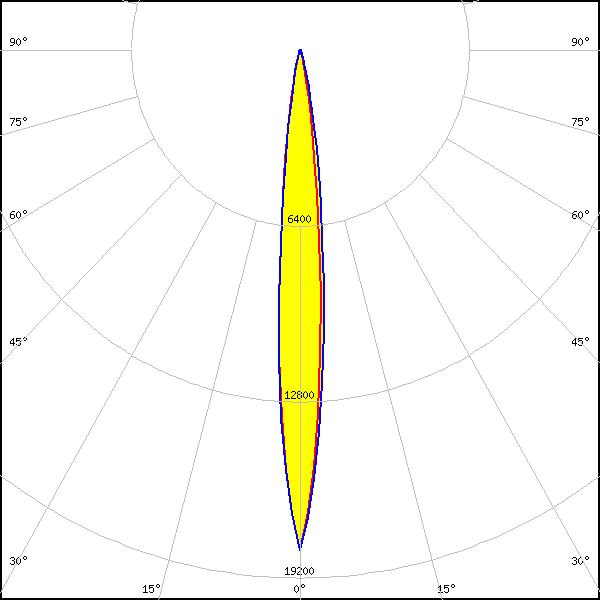

    LED: NCSxE17A
    FWHM: asymmetric
    Peak intensity: 18.198 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

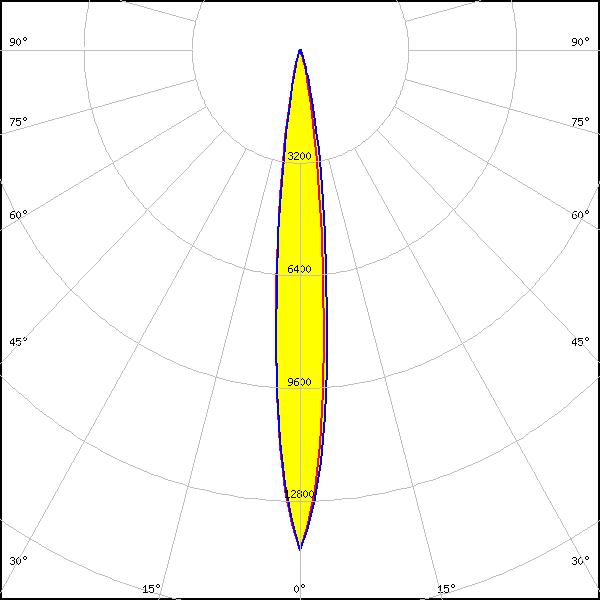

    LED: NVSxE21A
    FWHM: asymmetric
    Peak intensity: 14.192 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

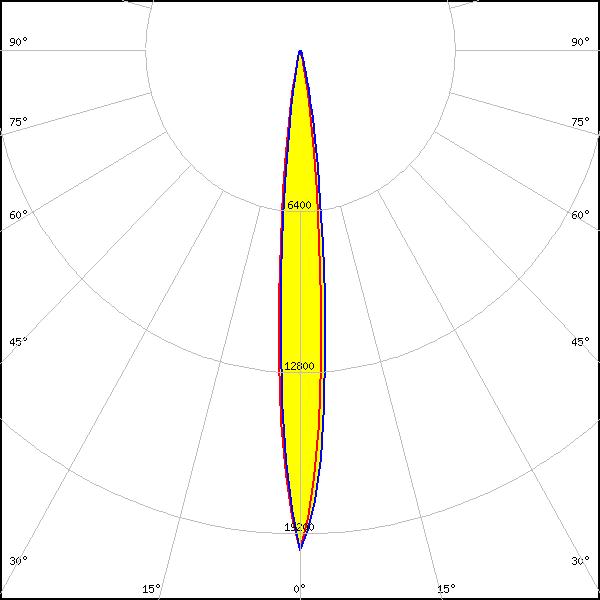

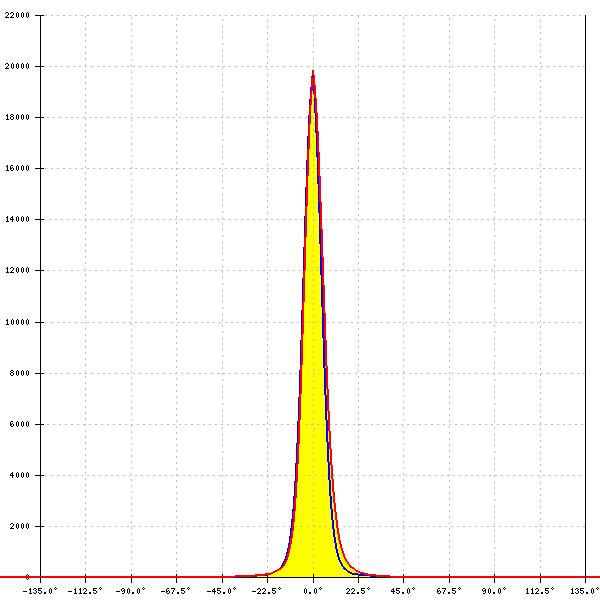

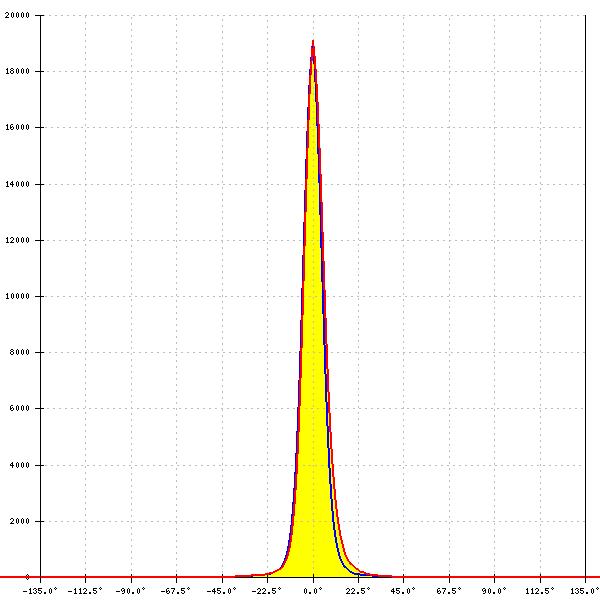

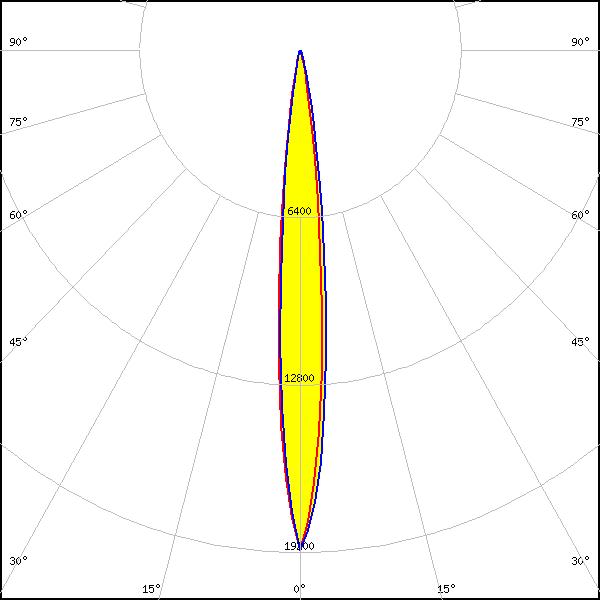

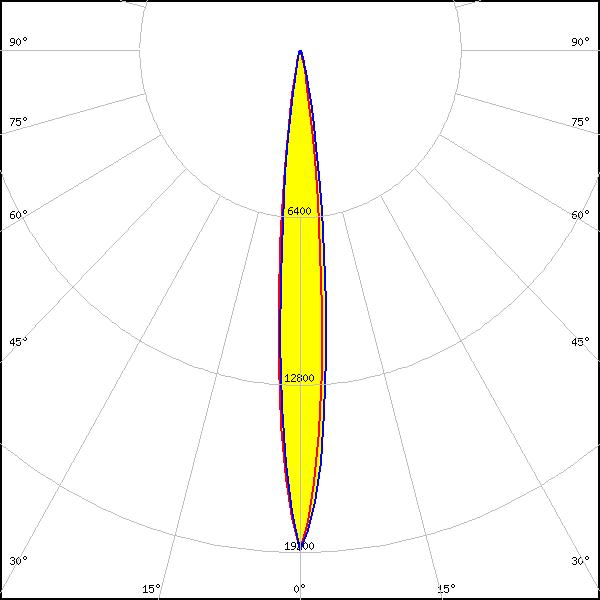

    LED: SYNIOS S2222
    FWHM: asymmetric
    Peak intensity: 19.856 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Blue

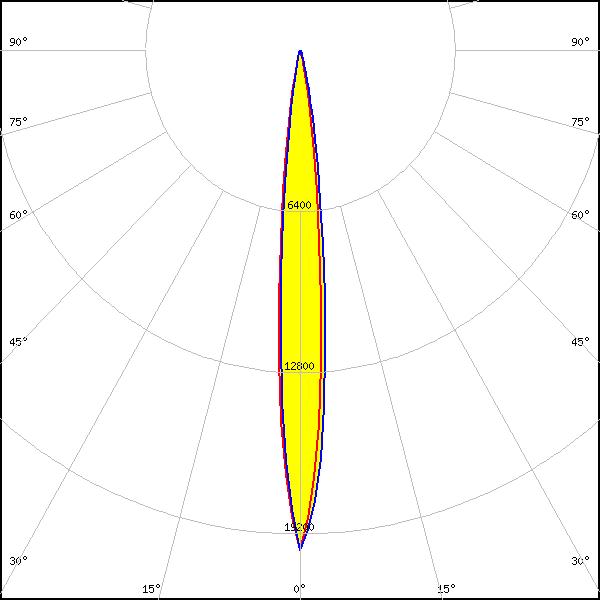

    LED: SYNIOS S2222
    FWHM: asymmetric
    Peak intensity: 19.117 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Blue

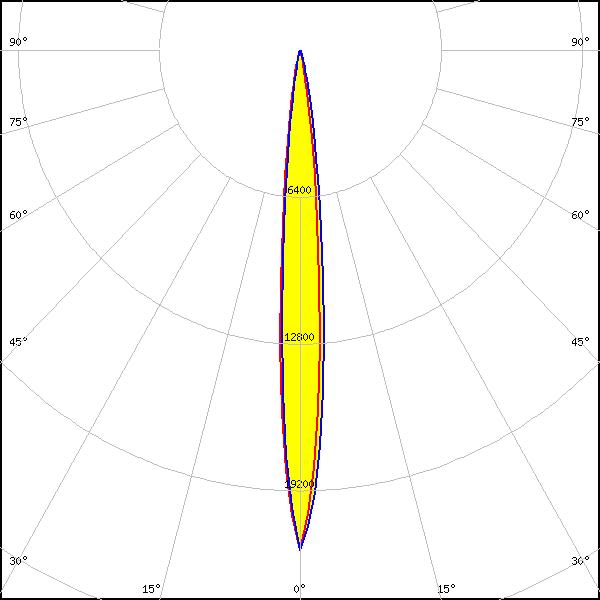

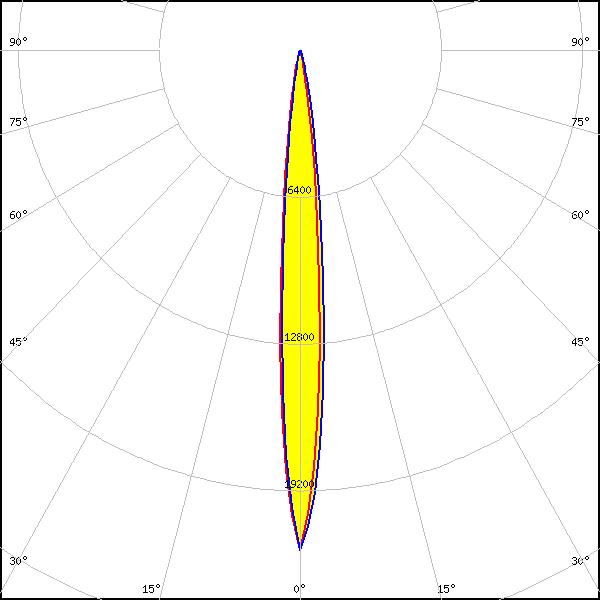

    LED: SYNIOS S2222
    FWHM: asymmetric
    Peak intensity: 21.790 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Red

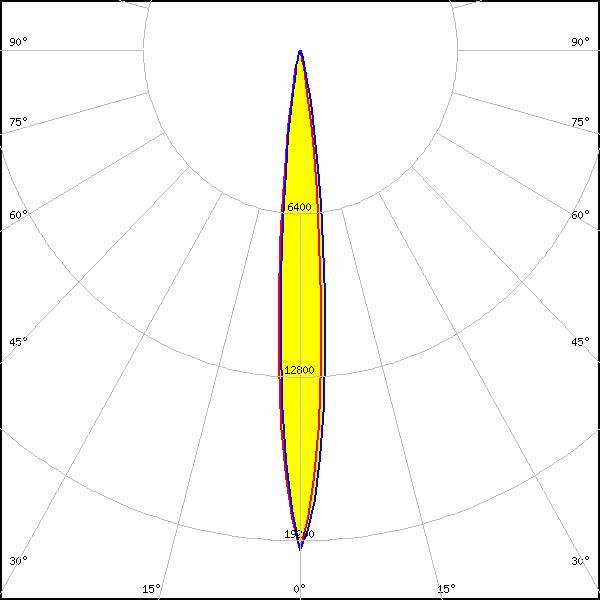

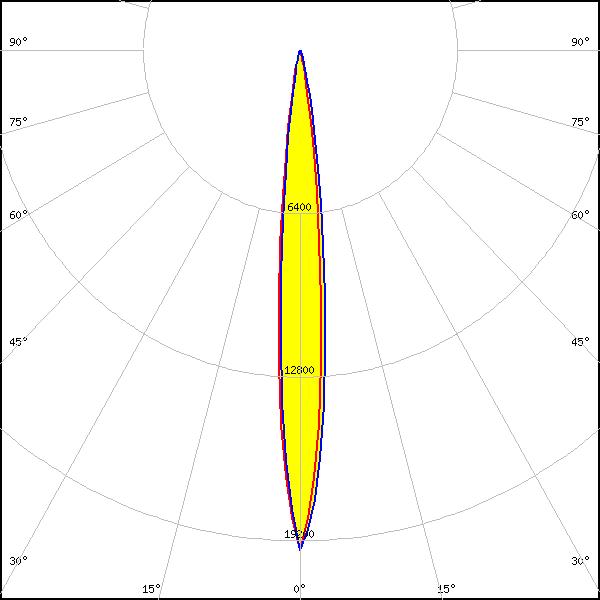

    LED: SYNIOS S2222
    FWHM: asymmetric
    Peak intensity: 19.579 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Green

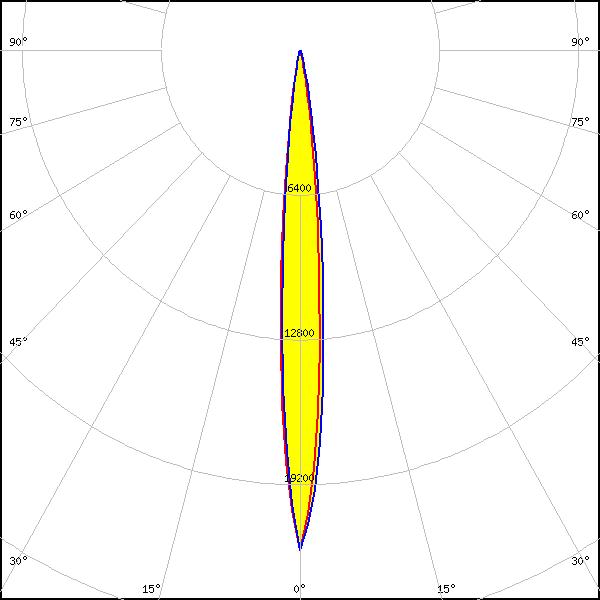

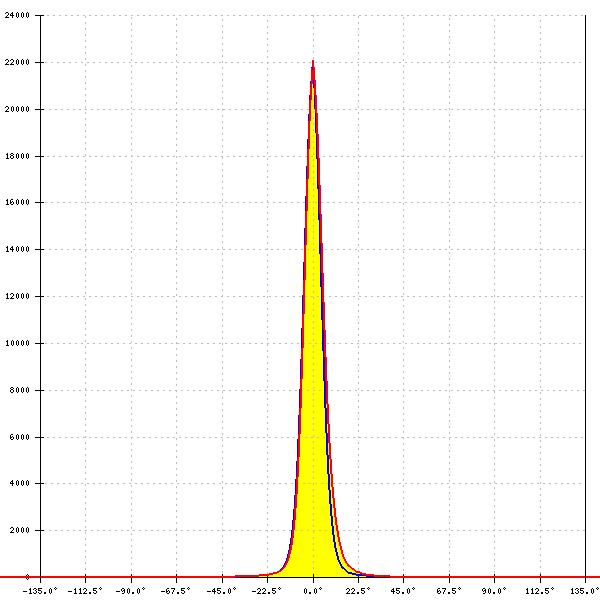

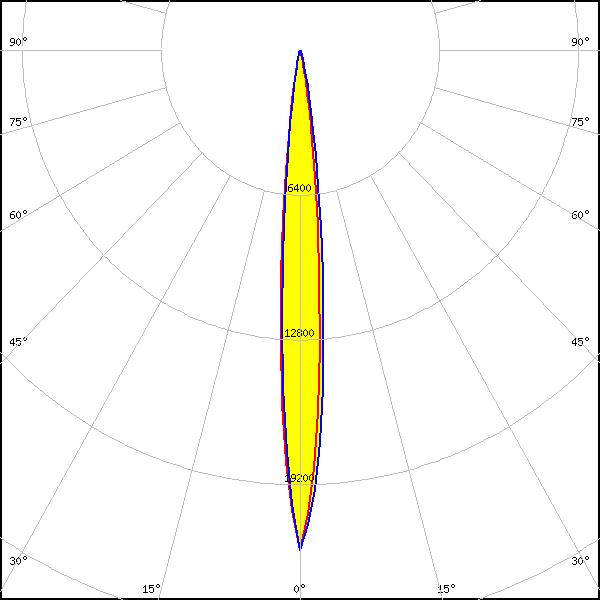

    LED: SYNIOS S2222
    FWHM: asymmetric
    Peak intensity: 22.099 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: Yellow
