    CA17280_ELLA-30-S

    Print

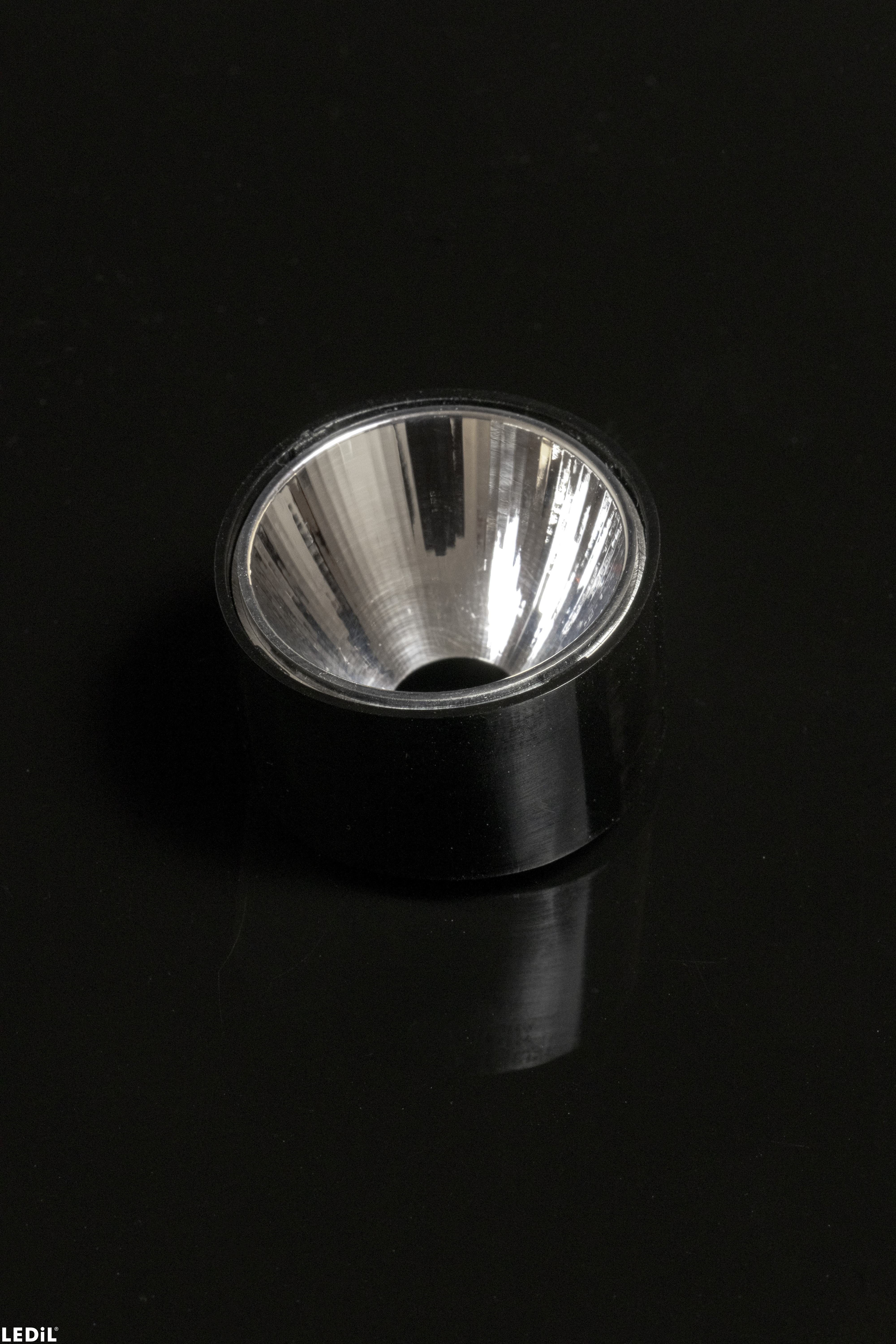

    ~15° spot beam. Assembly with black holder.

    Specification
    • Dimensions:
      32 mm
    • Height:
      20.00 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.8 kg
    • MPQ:
      66 pcs
    • MOQ:
      264 pcs
    • MOQ size:
      480 x 280 x 110 mm
    • MOQ weight:
      2.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA17280_ELLA-30-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products 2019-12-16

    News

    ELLA – a new family of compact reflectors for miniature luminaires

    Luminaire, example

    Track light luminaire with ELLA-30

    Application guide

    LEDiL guide for retail lighting optics

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

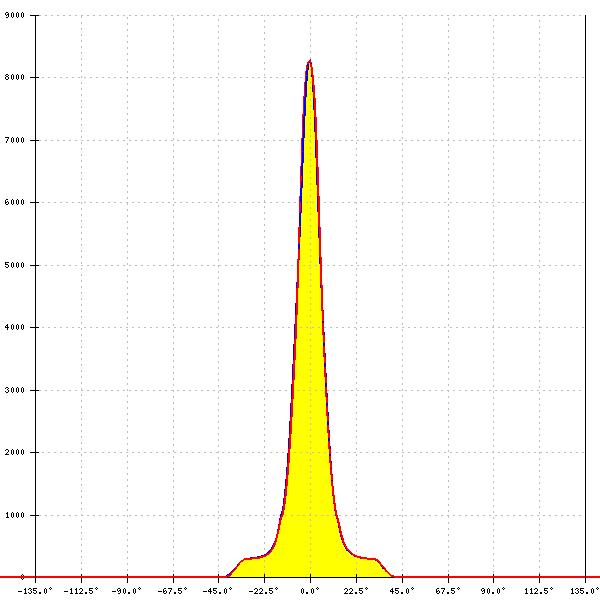

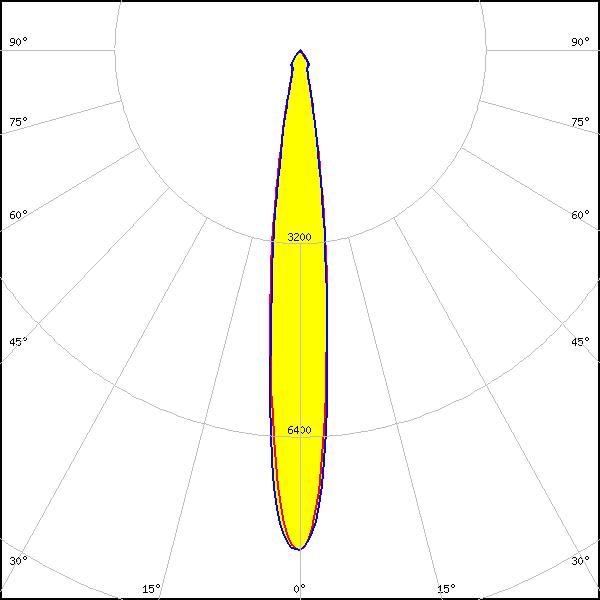

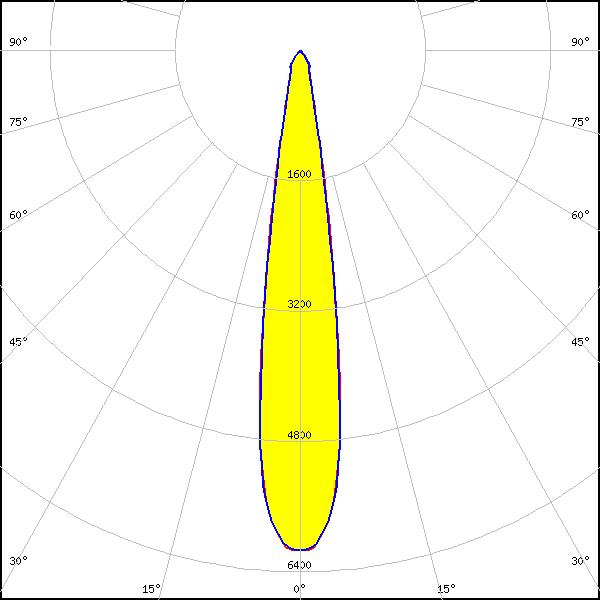

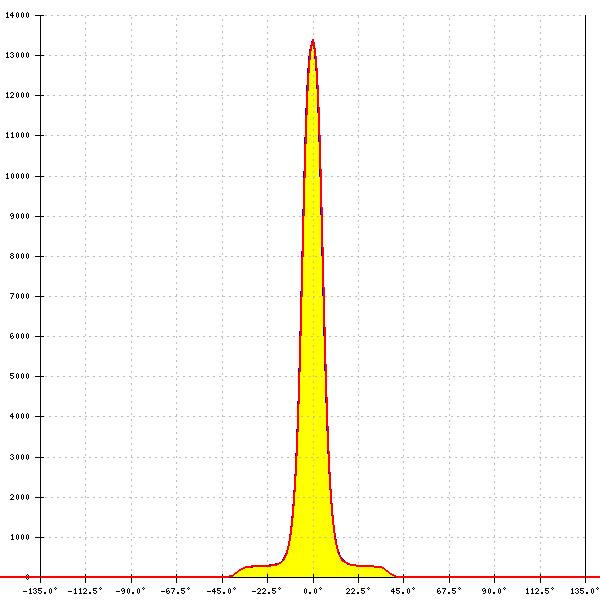

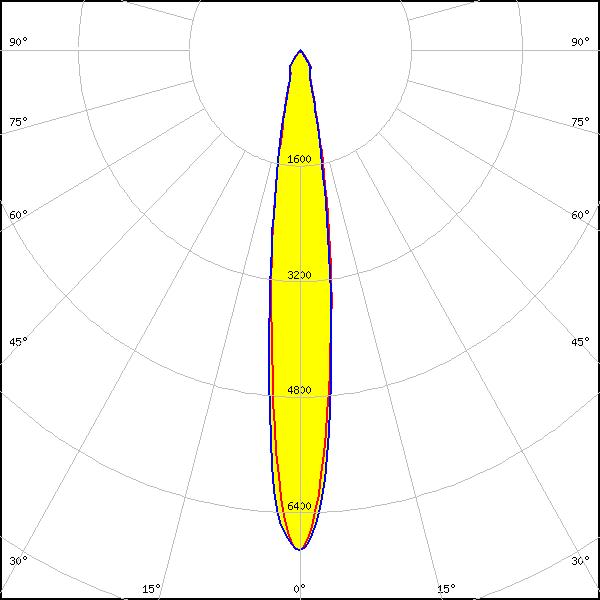

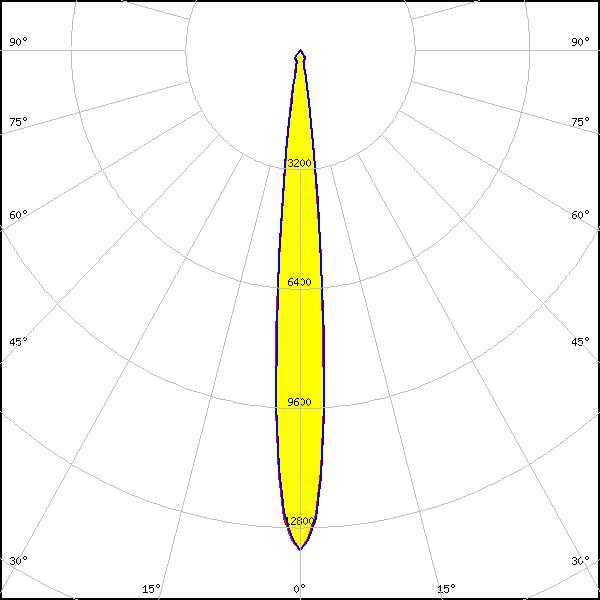

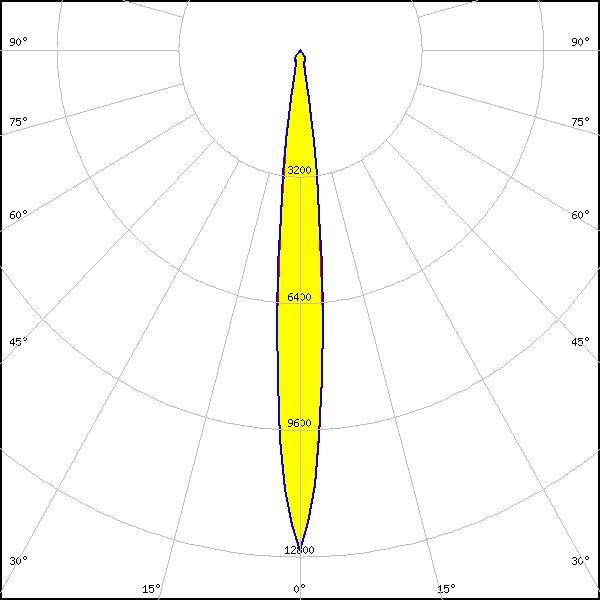

    Optical results

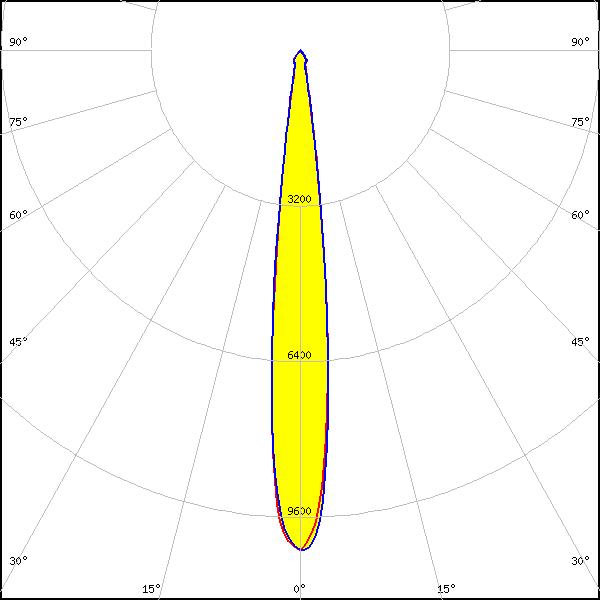

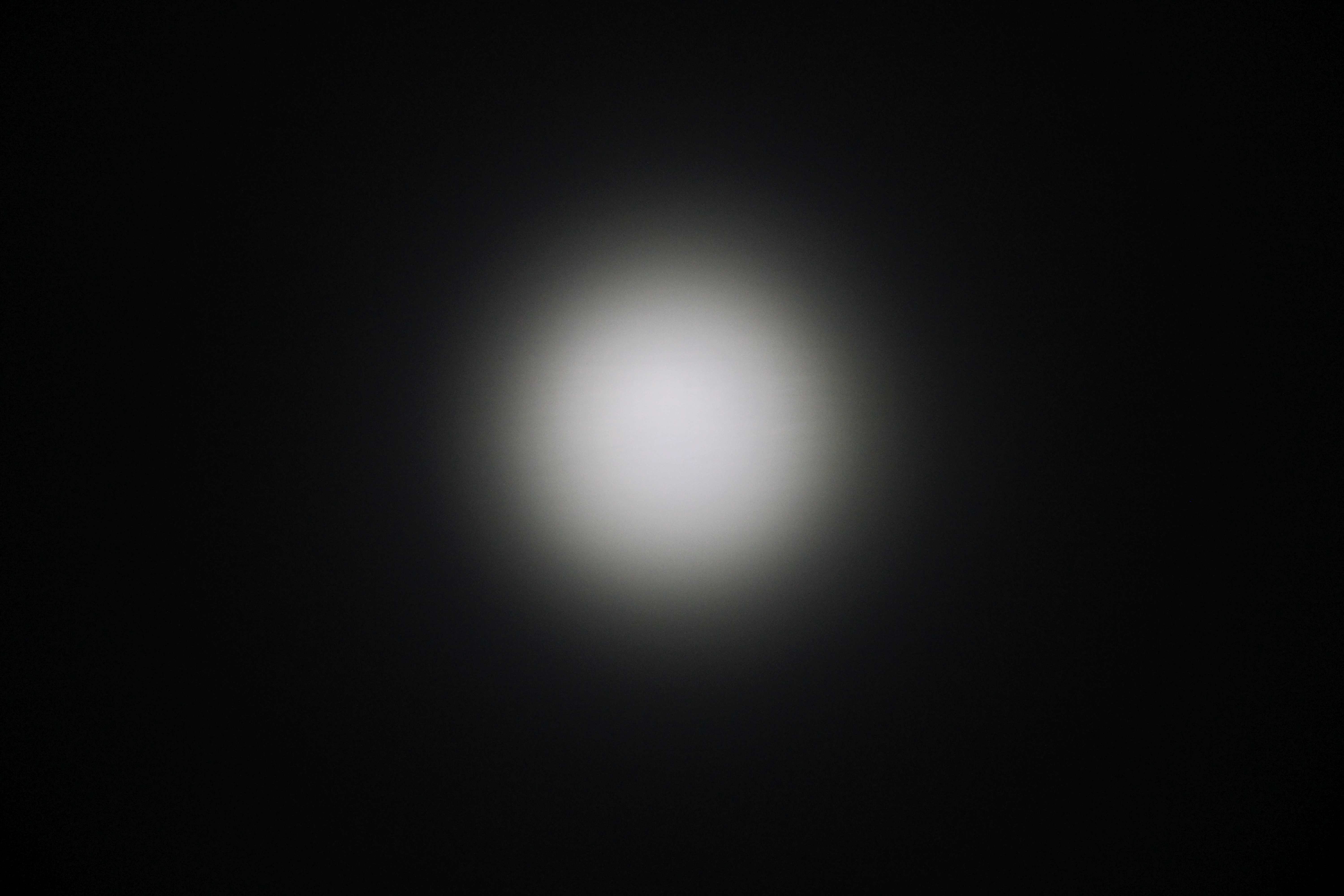

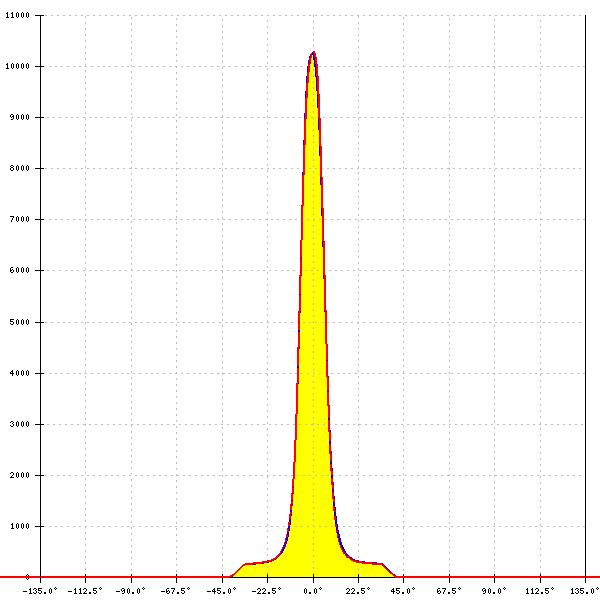

    LED: XHP35 HD
    FWHM: 13°
    FWTM: 23°
    Peak intensity: 10.277 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

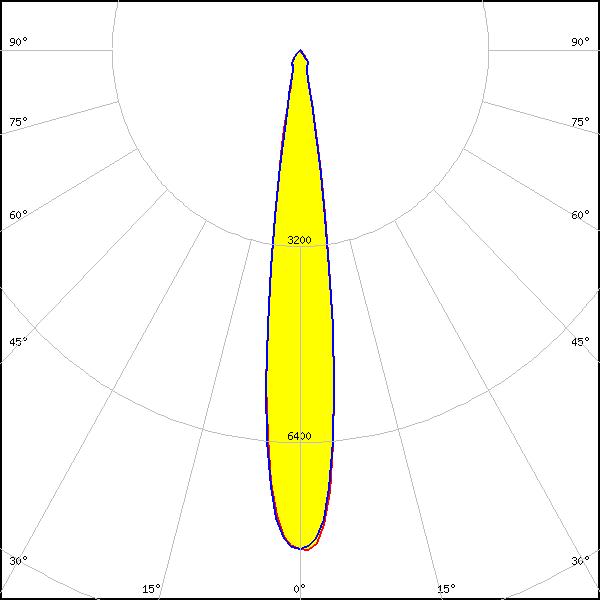

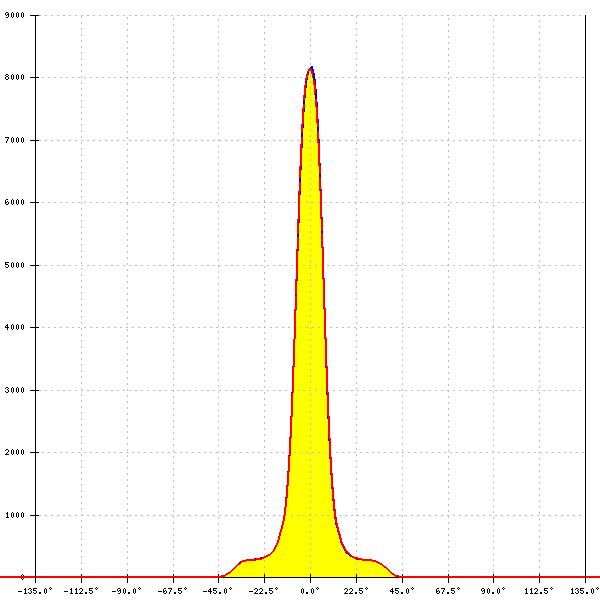

    LED: XHP50.3 HD
    FWHM: 14°
    FWTM: 27°
    Peak intensity: 8.164 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

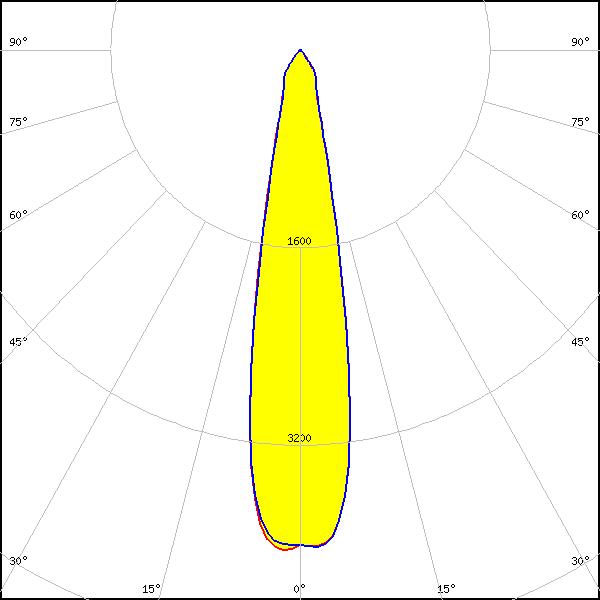

    LED: XHP70.3 HD
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.093 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

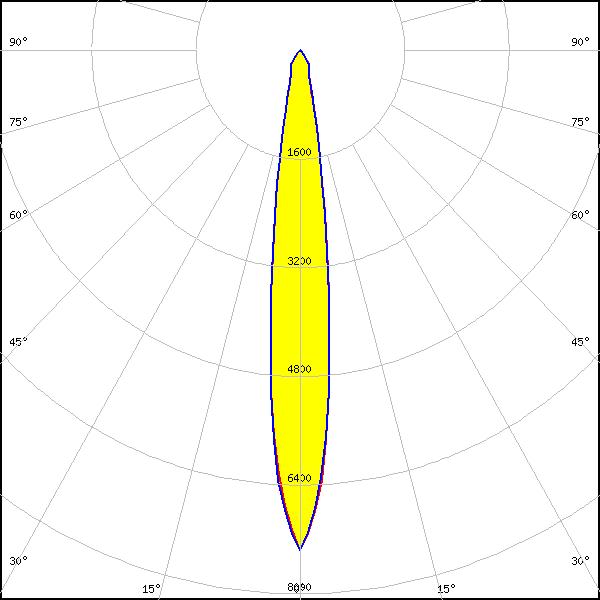

    LED: XHP70.3 HI
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 7.363 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

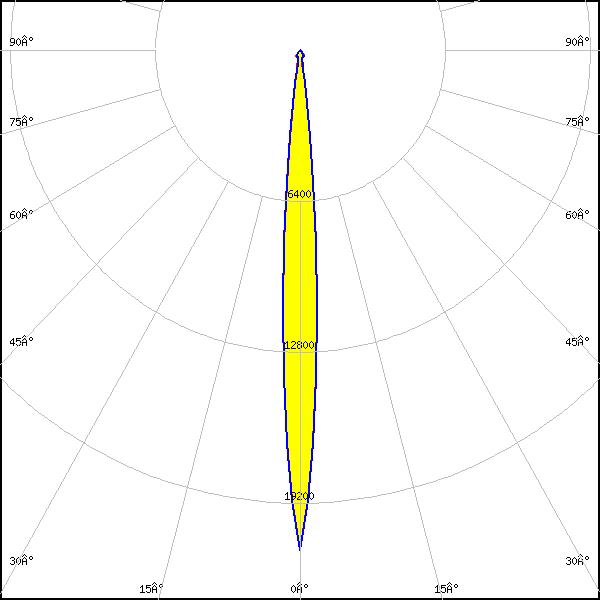

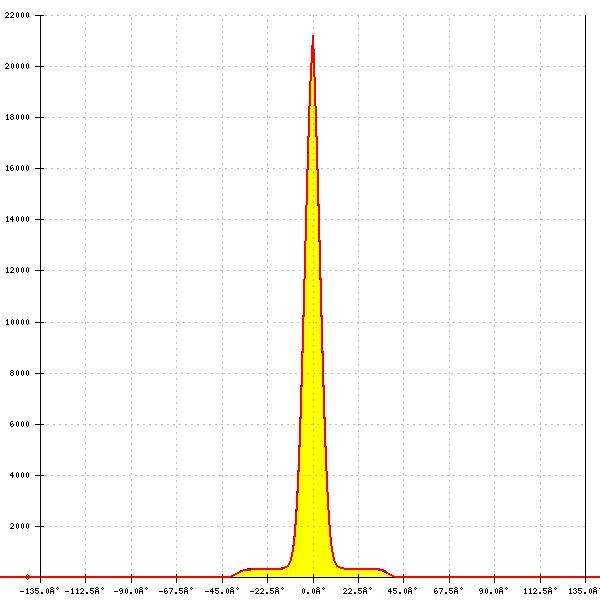

    LED: XP-G4
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 21.201 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

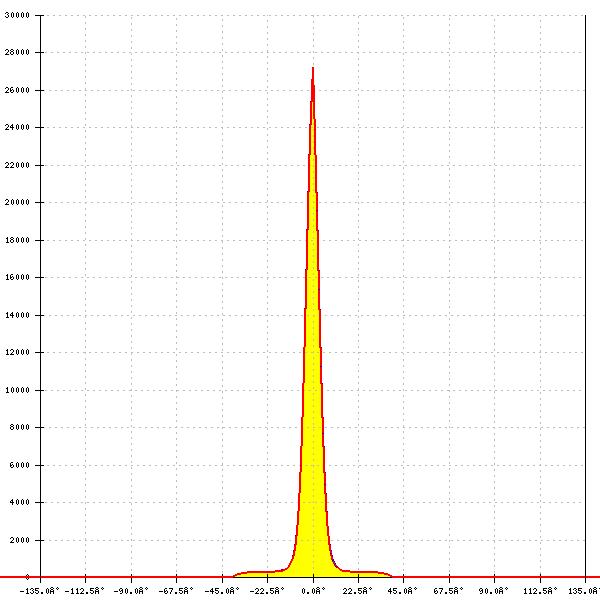

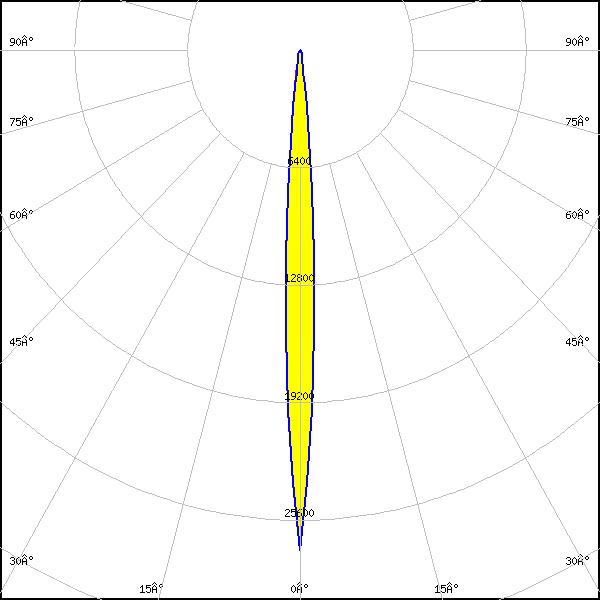

    LED: XP-G4 HI
    FWHM: 6°
    FWTM: 14°
    Peak intensity: 27.241 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

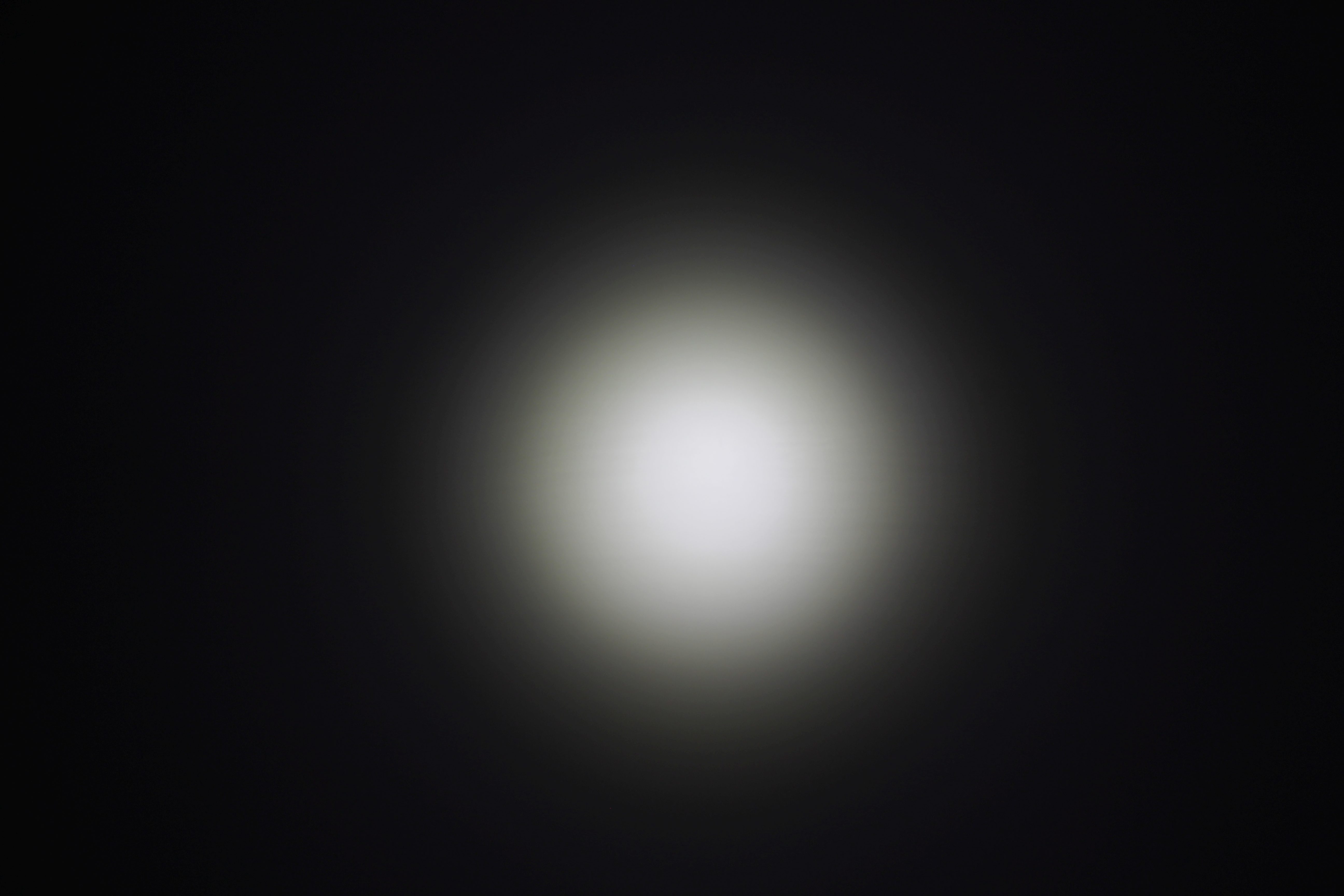

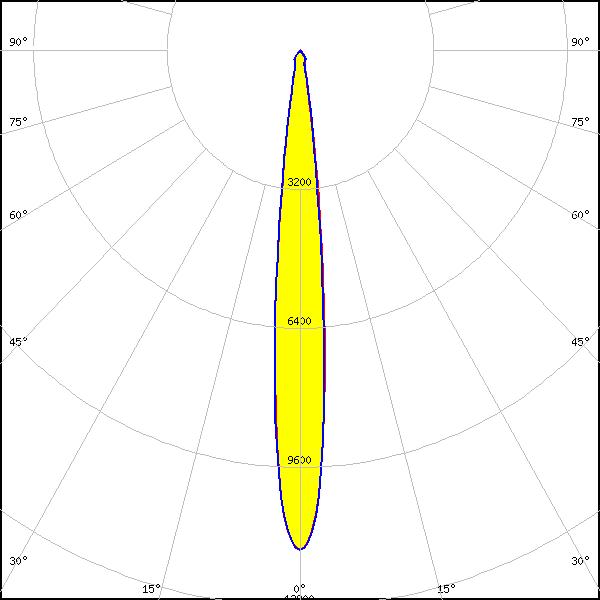

    LED: XP-L2
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 11.515 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

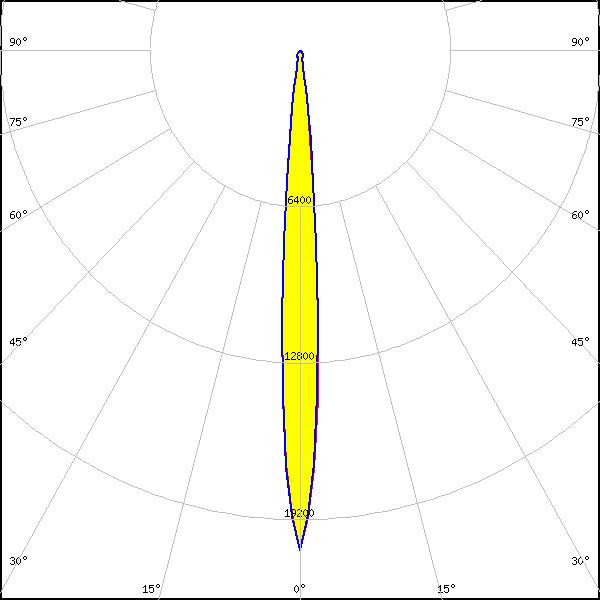

    LED: LUXEON 5050 Round LES
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 8.276 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

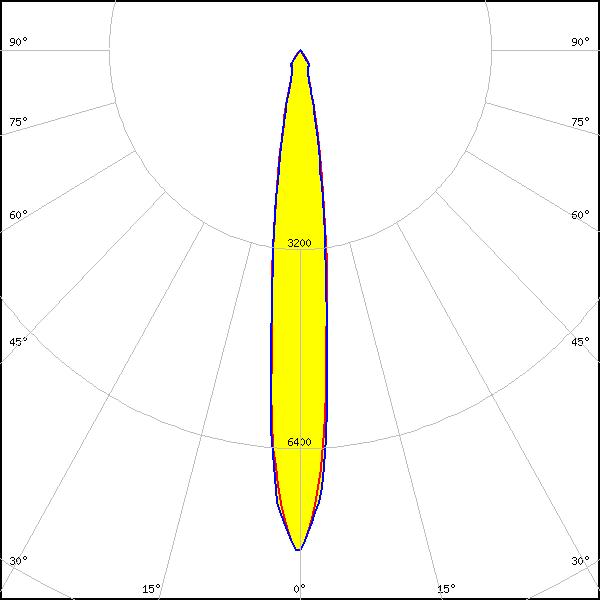

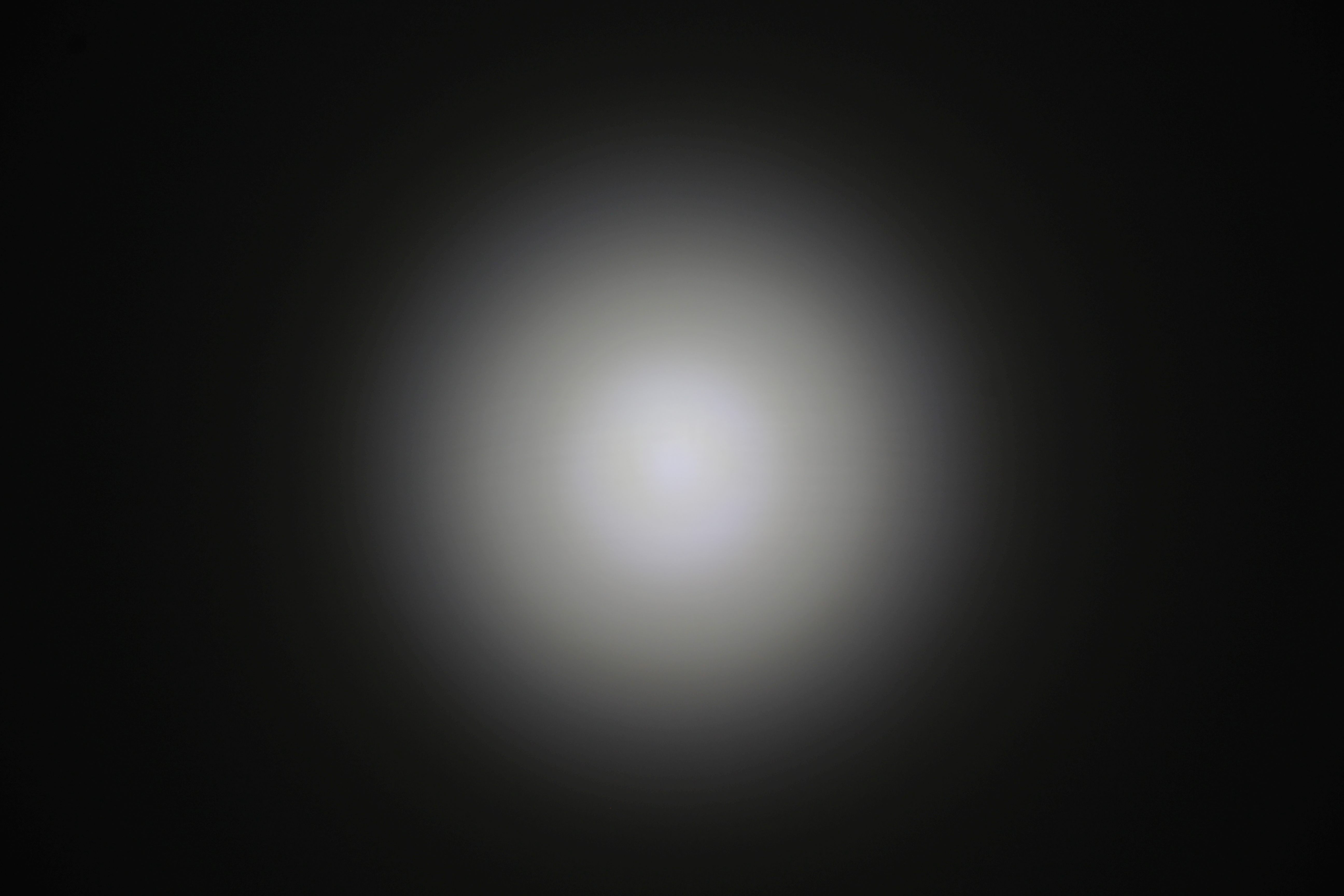

    LED: NFMW48xA
    FWHM: 13° + 14°
    FWTM: 30° + 30°
    Peak intensity: 8.038 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

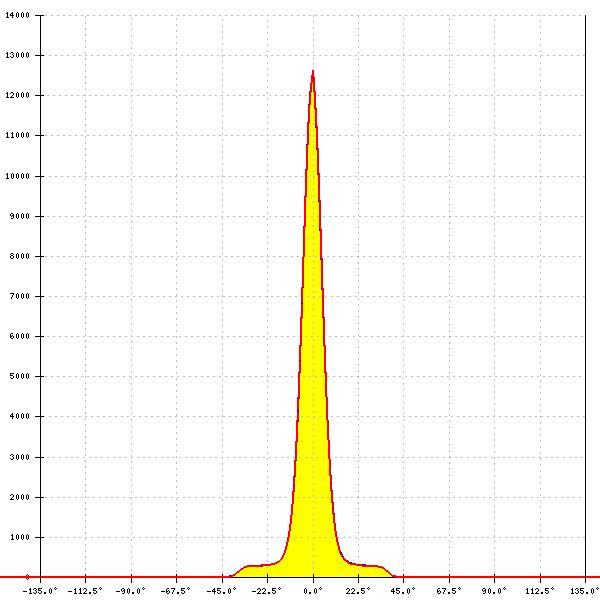

    LED: NV4WB35AM
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 12.634 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

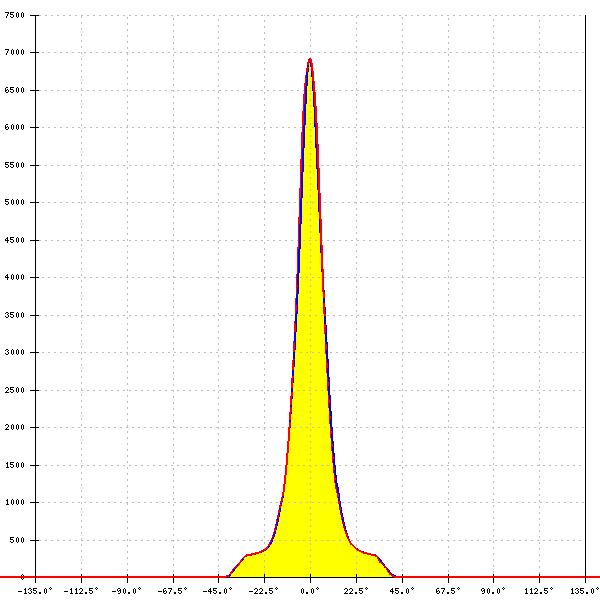

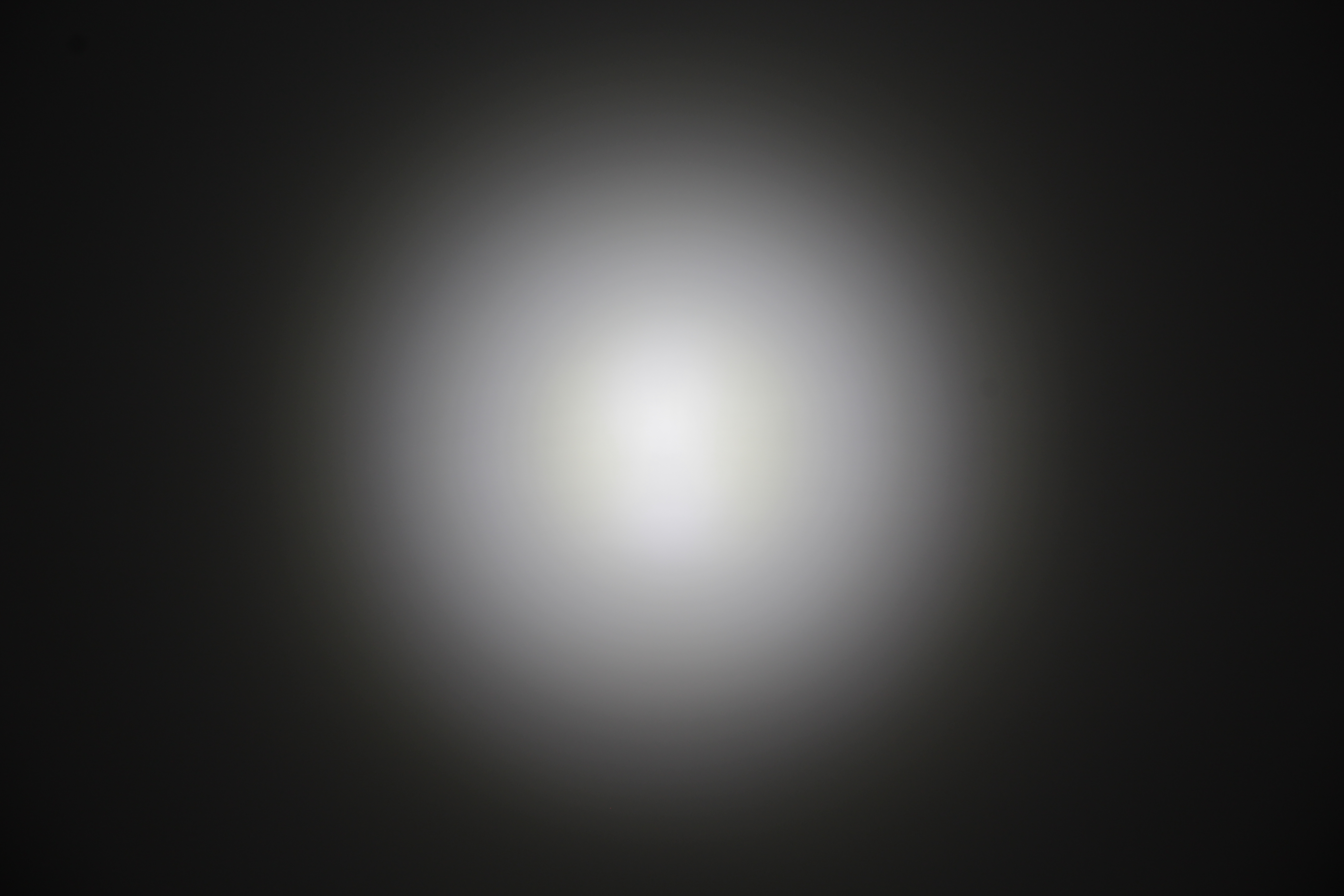

    LED: Duris S8
    FWHM: 15°
    FWTM: 33°
    Peak intensity: 6.920 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

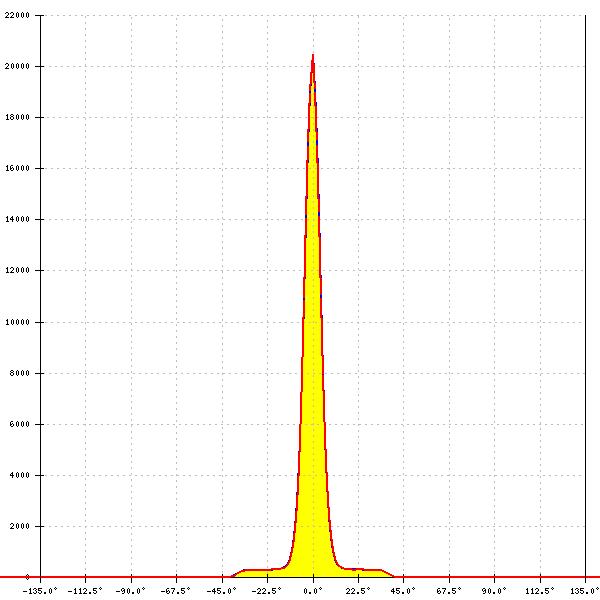

    LED: LH351C
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 20.460 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH351D
    FWHM: 11°
    FWTM: 20°
    Peak intensity: 13.402 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

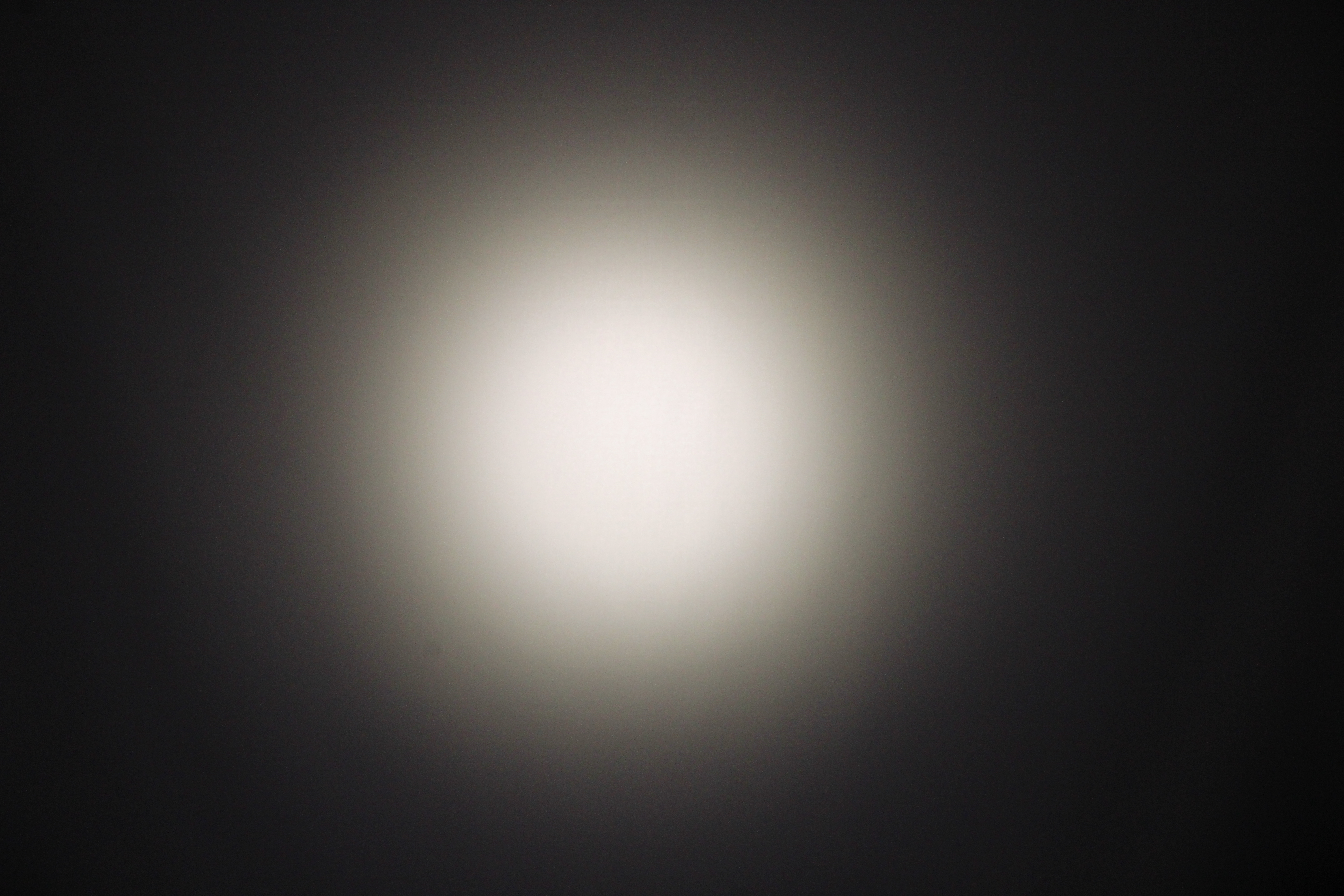

    LED: WICOP 5050
