    CA16755_IRIE-A

    Print

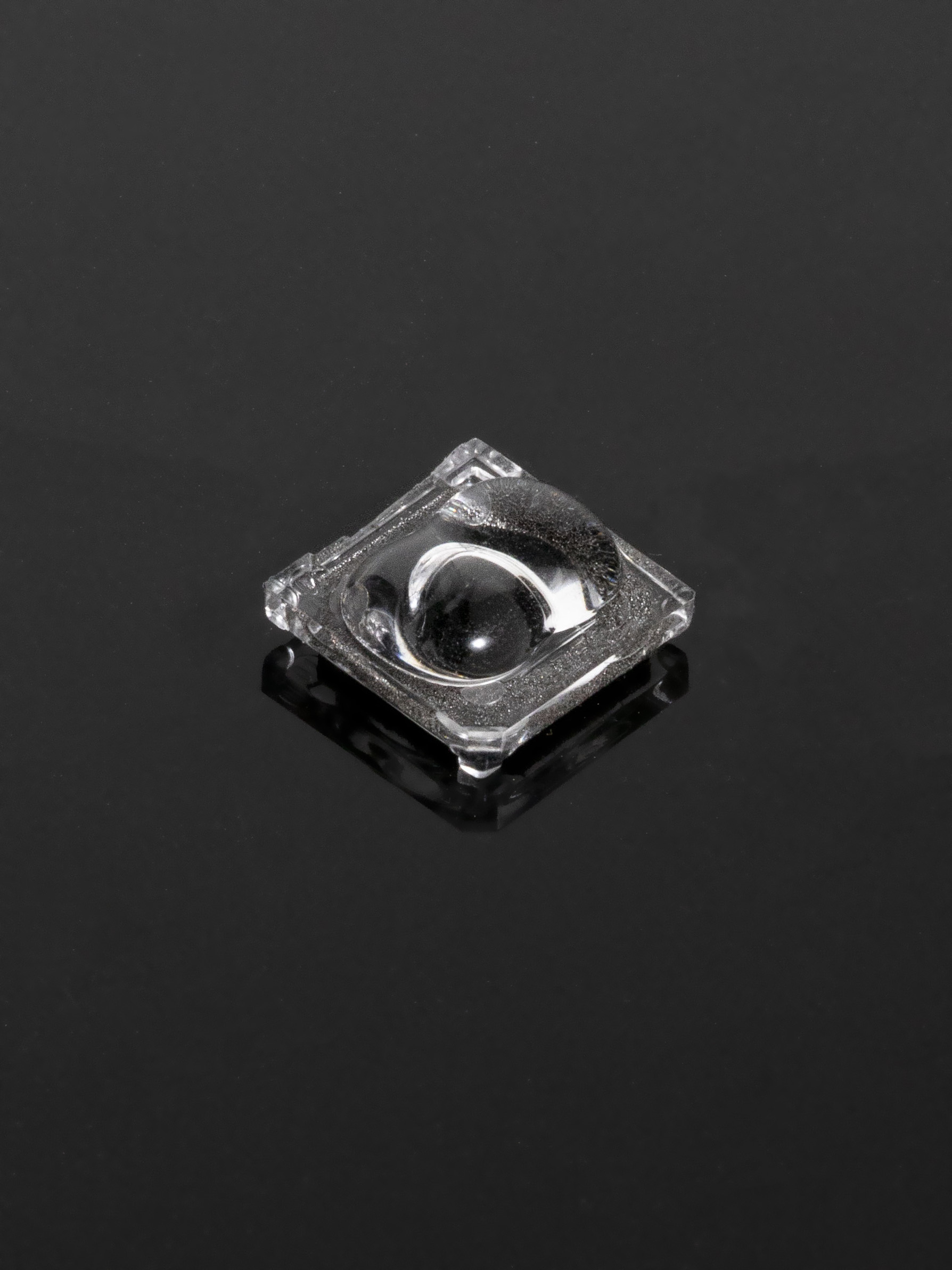

    ~120° x 90° rectangle beam for 4:3 aspect ratio cameras. Assembly with tape.

    Specification
    • Dimensions:
      14 x  14 mm
    • Height:
      5.10 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      5544 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      5.5 kg
    • MPQ:
      252 pcs
    • MOQ:
      252 pcs
    • MOQ size:
      480 x 280 x 20 mm
    • MOQ weight:
      0.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA16755_IRIE-A
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    NEW PRODUCTS - 2018-11-13

    News

    IRIE The low profile IR lens for near field applications

    Application area

    Outdoor Special Applications

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

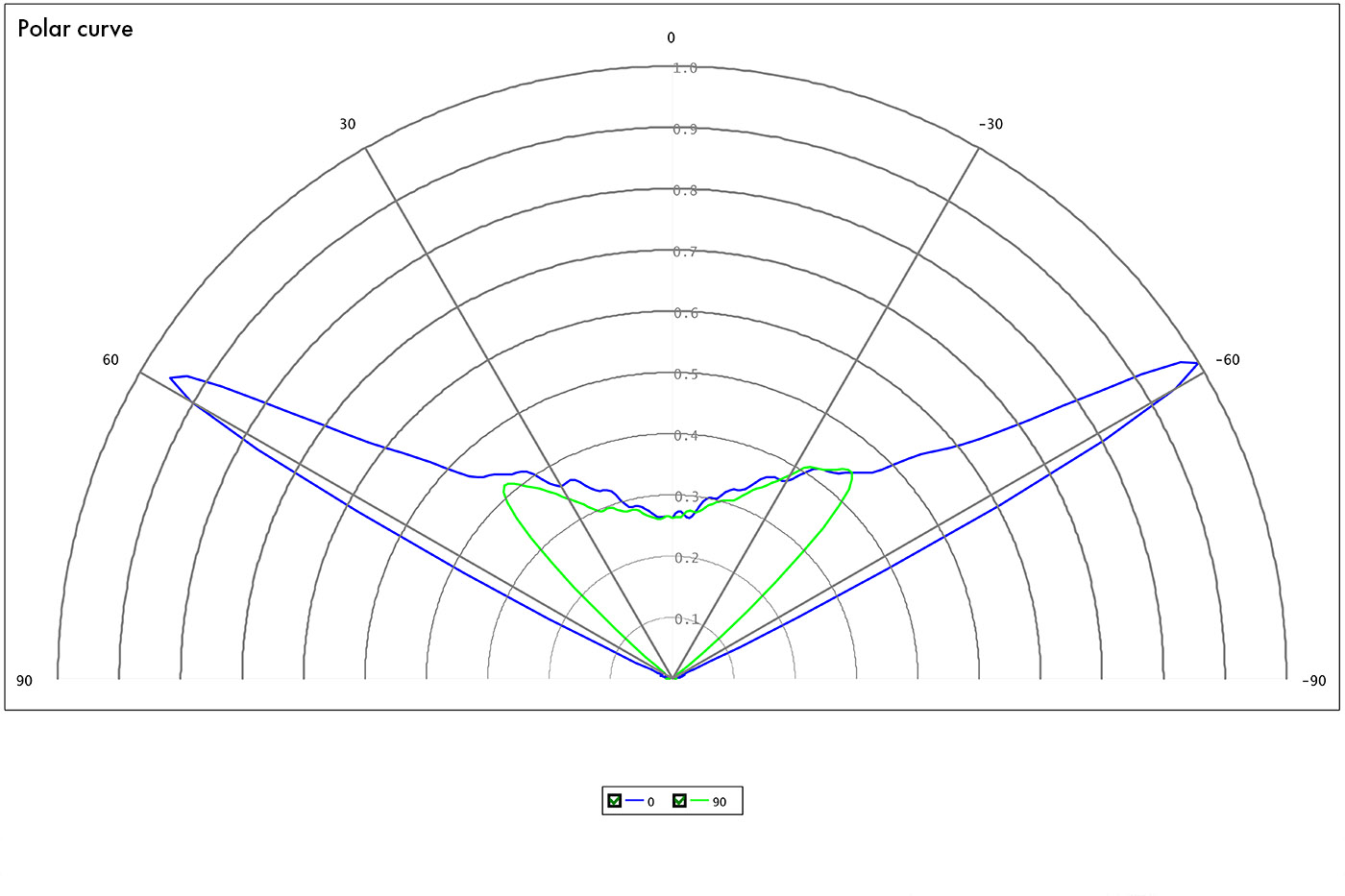

    Optical results

    LED: LUXEON IR 2720
    FWHM: asymmetric
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LUXEON IR 2720
    FWHM: asymmetric
    LEDs/each optic: 1
    Light colour/type: IR

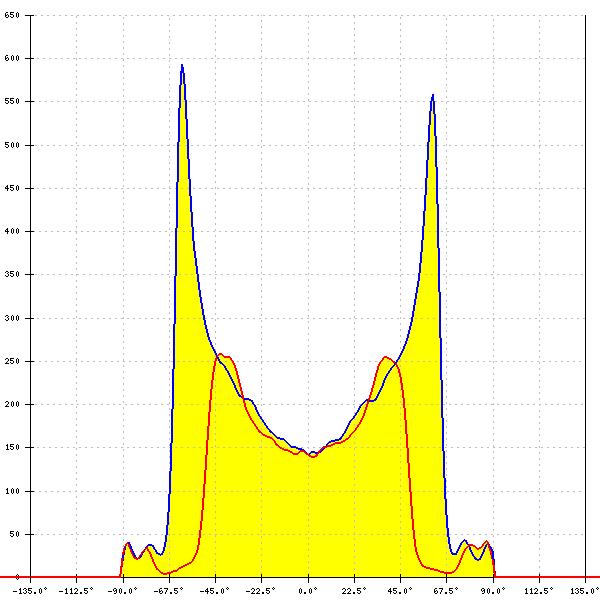

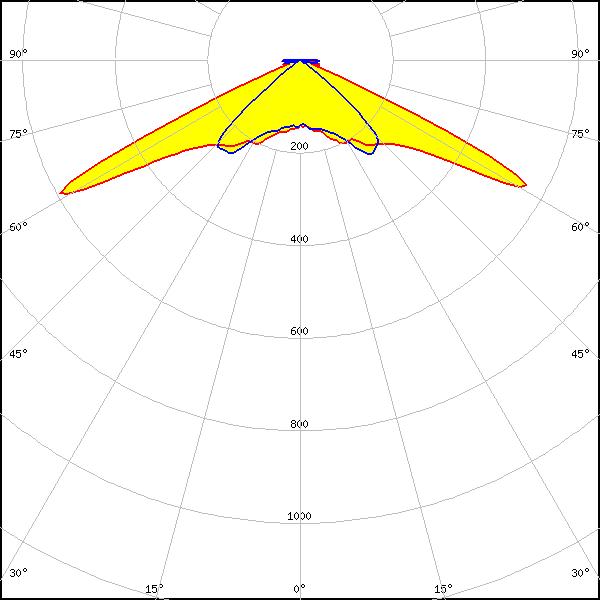

    LED: LUXEON IR Compact
    FWHM: asymmetric
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

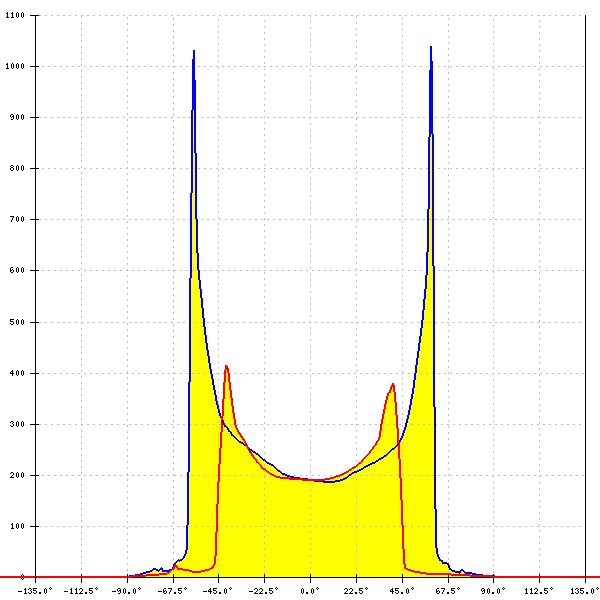

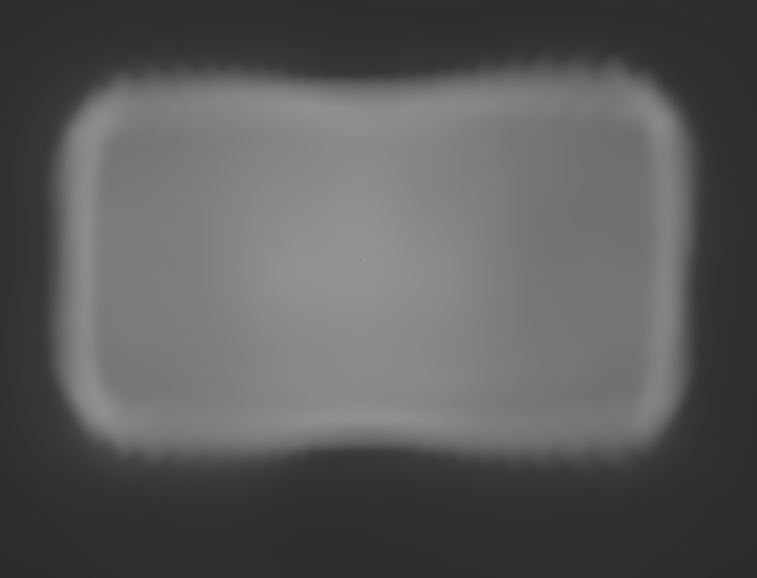

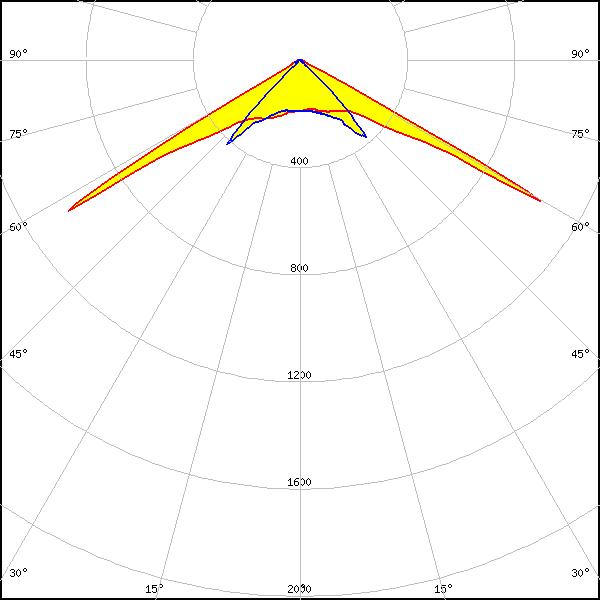

    LED: LUXEON Z
    FWHM: asymmetric
    Peak intensity: 1.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

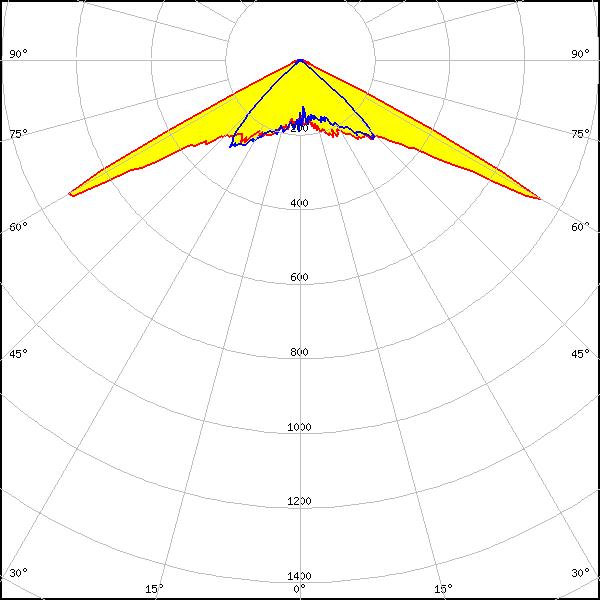

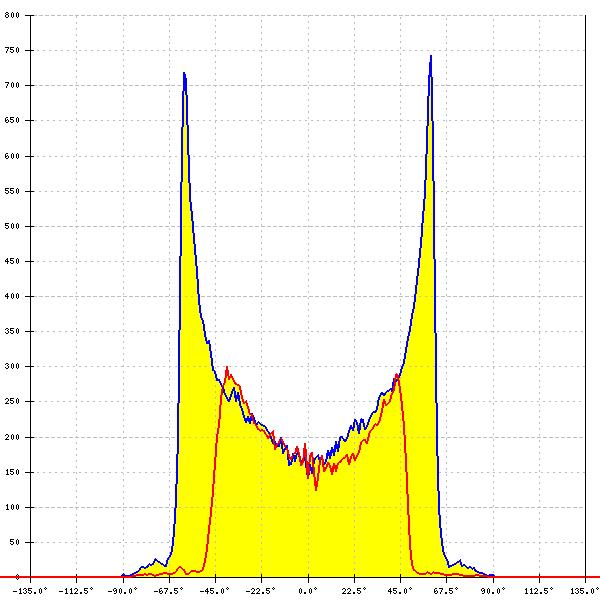

    LED: SFH 4770S
    FWHM: asymmetric
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
