    CA14941_MINNIE-LT-M-PIN

    Print

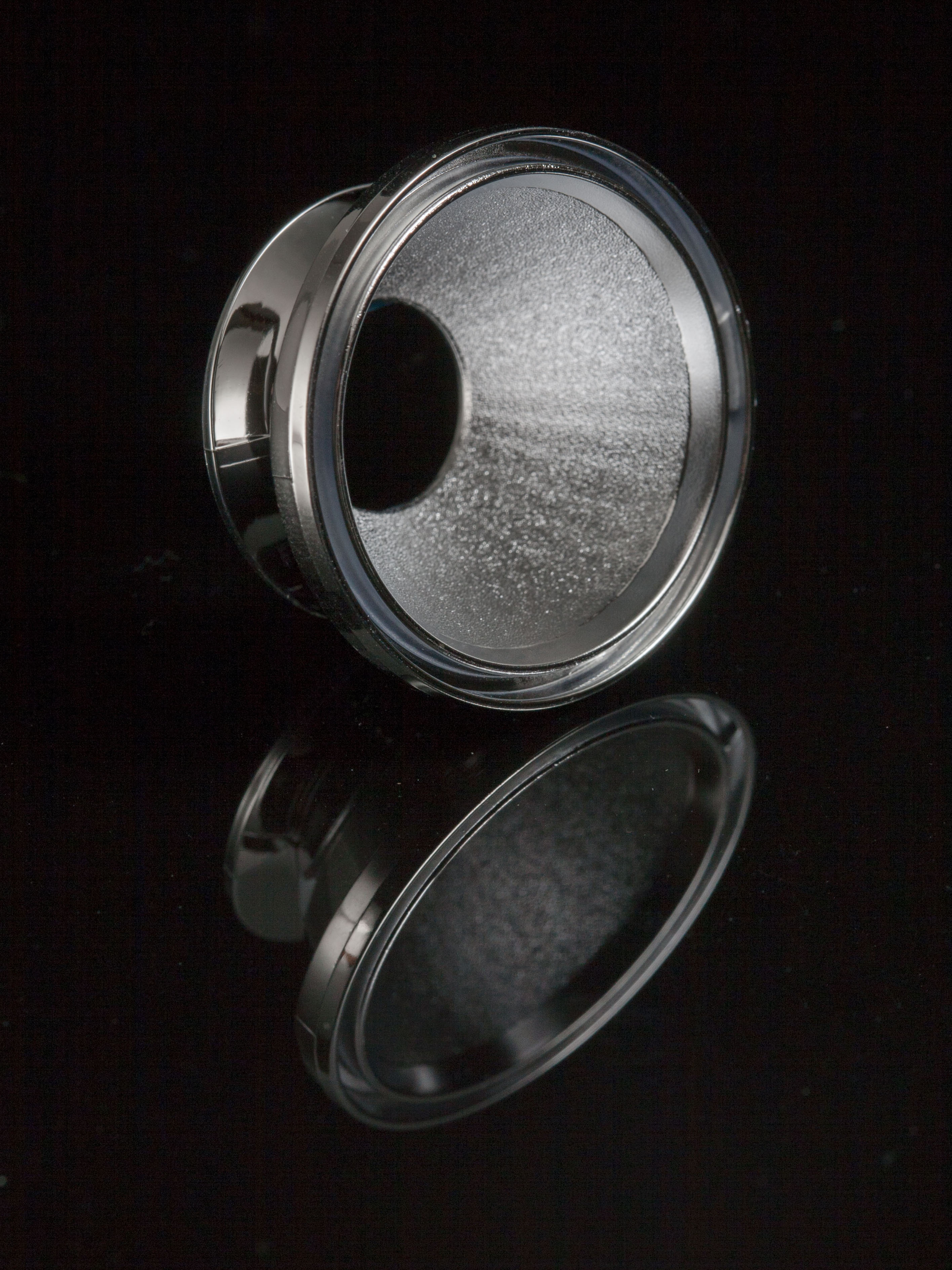

    ~25° medium beam. Assembly with location pins and installation tape.

    Specification
    • Dimensions:
      35 mm
    • Height:
      15.60 mm
    • Fastening:
      tape, pin
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      720 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      3.9 kg
    • MPQ:
      45 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      0.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA14941_MINNIE-LT-M-PIN
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - MINNIE-LT

    PCN

    Product change notification NR126.b - Change of packaging quantities 190916

    News

    PRODUCT NEWS - MINNIE FOR CREE MT-G LED

    Application area

    Indoor Architectural Lighting

    Optical results

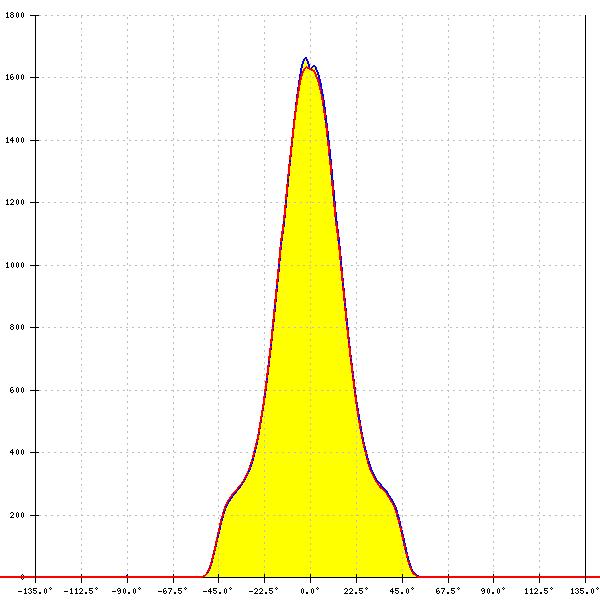

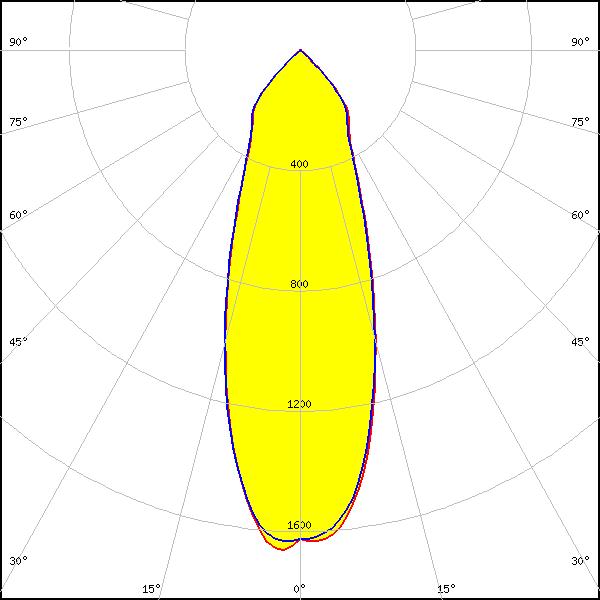

    LED: MK-R
    FWHM: 35°
    FWTM: 88°
    Peak intensity: 1.680 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

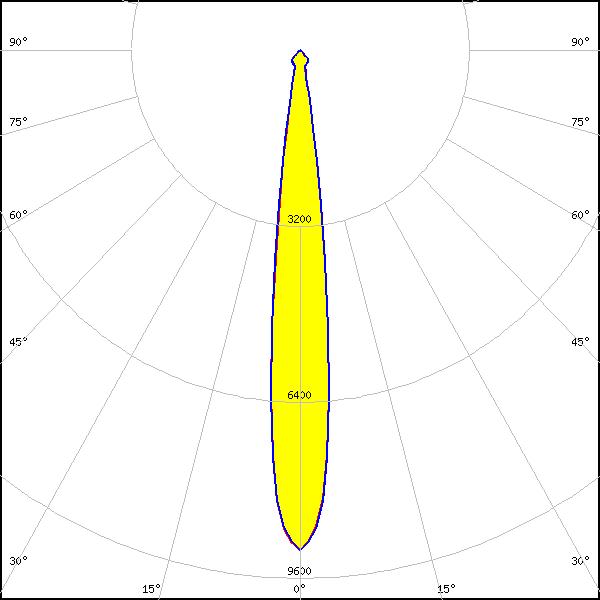

    LED: XHP50.3 HD
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 9.094 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

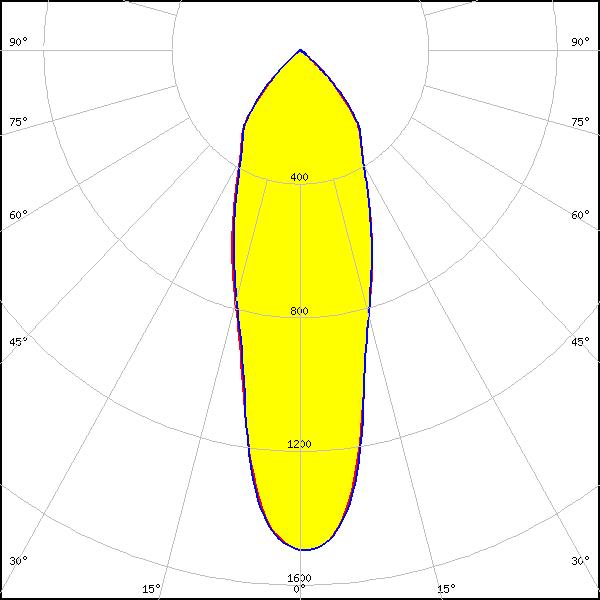

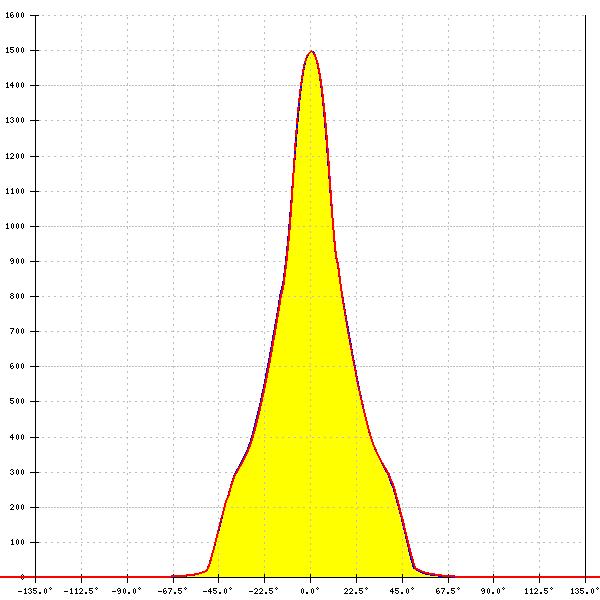

    LED: XHP70.2
    FWHM: 33°
    FWTM: 90°
    Peak intensity: 1.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

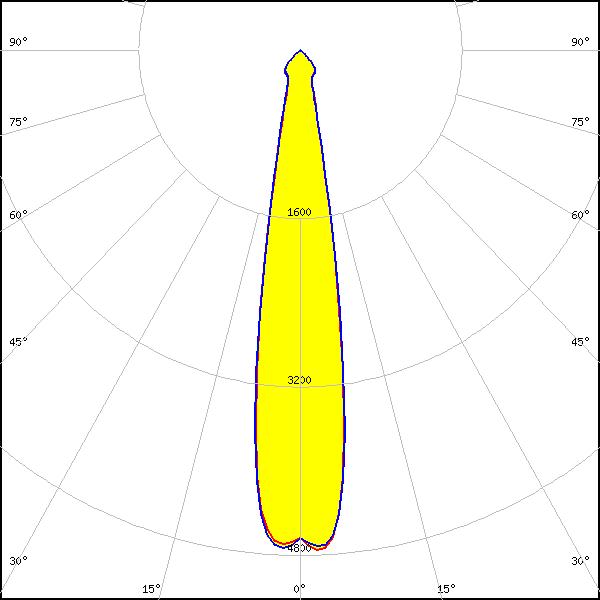

    LED: XHP70.3 HD
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 4.758 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

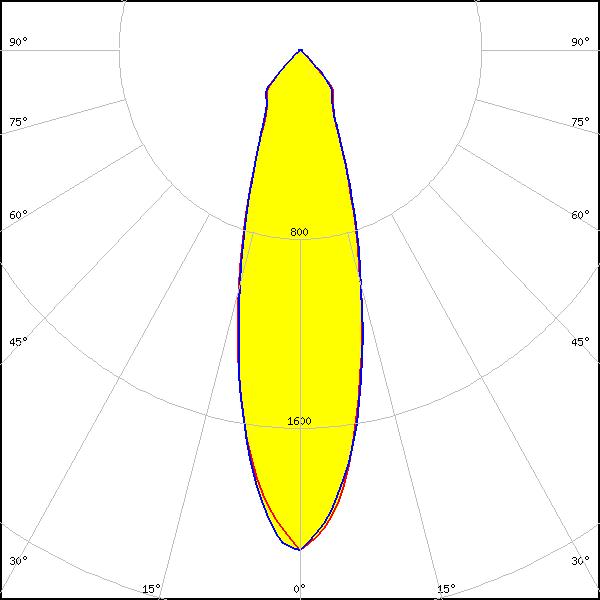

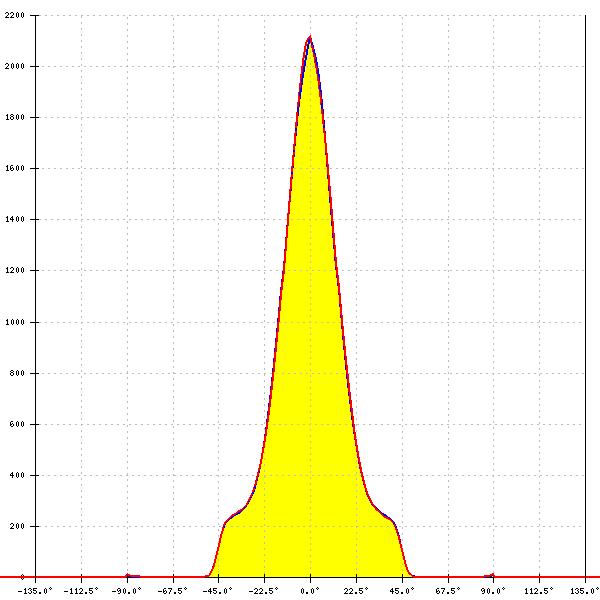

    LED: XP-G3
    FWHM: 30°
    FWTM: 82°
    Peak intensity: 2.120 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

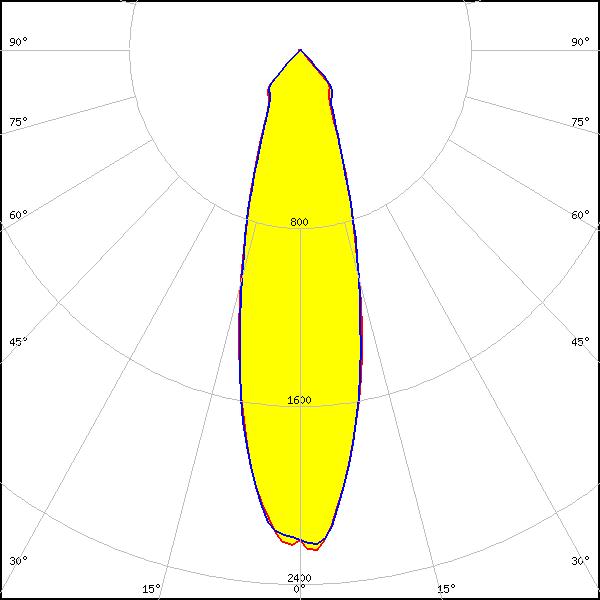

    LED: XT-E
    FWHM: 29°
    FWTM: 79°
    Peak intensity: 2.260 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

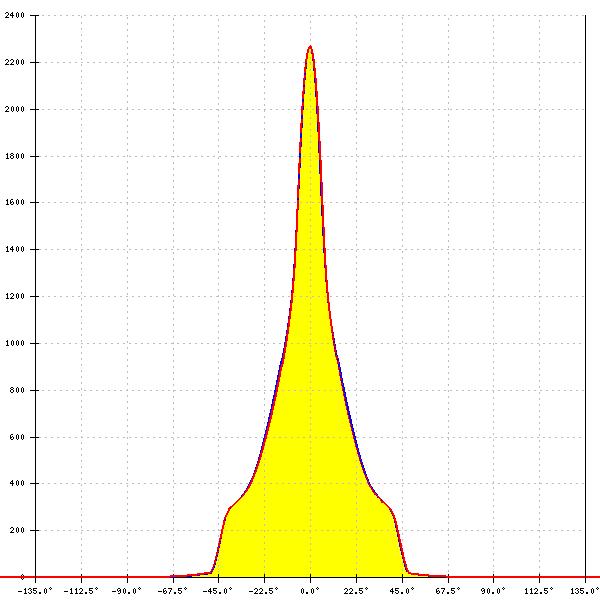

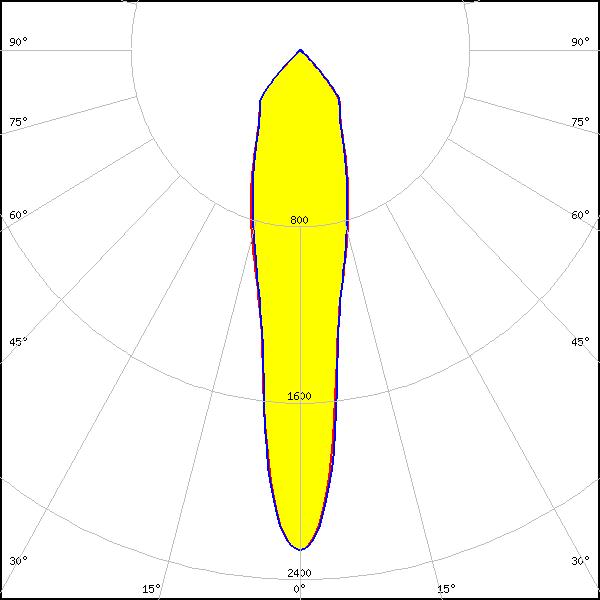

    LED: LUXEON 5050 Round LES
    FWHM: 20°
    FWTM: 84°
    Peak intensity: 2.300 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

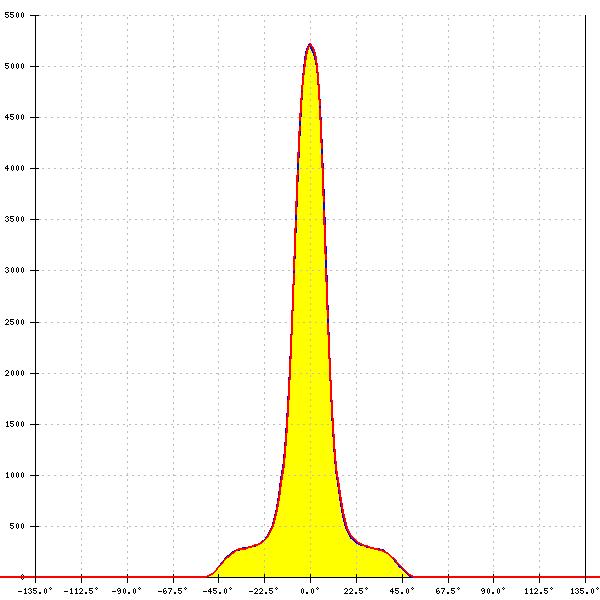

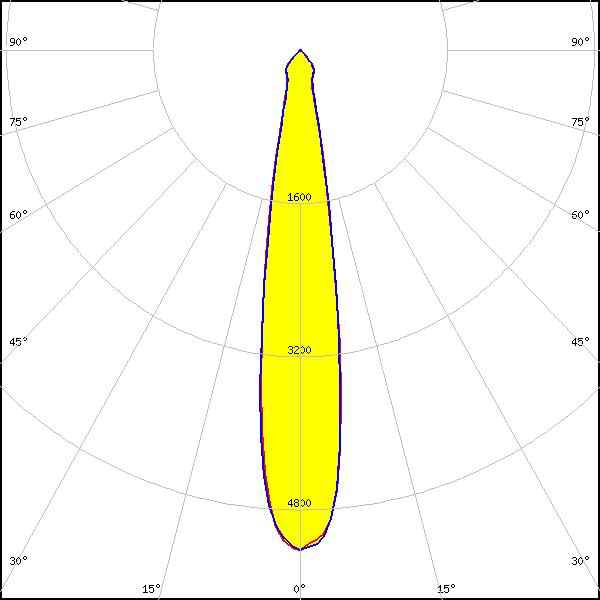

    LED: LUXEON 7070
    FWHM: 18°
    FWTM: 35°
    Peak intensity: 5.248 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: 23°
    FWTM: 90°
    Peak intensity: 2.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

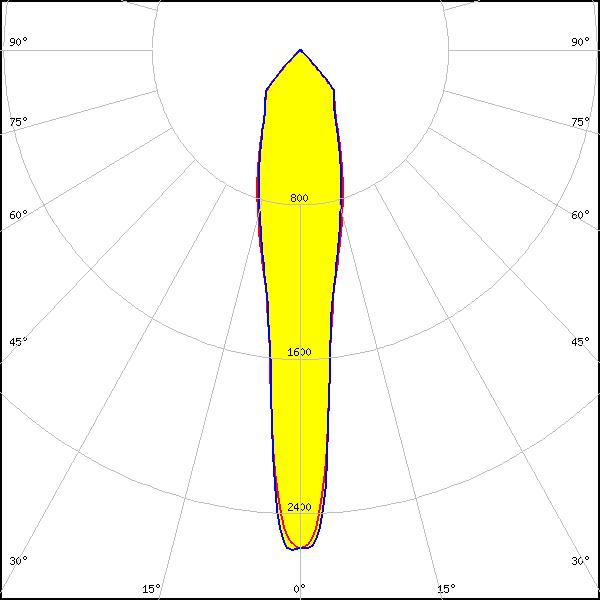

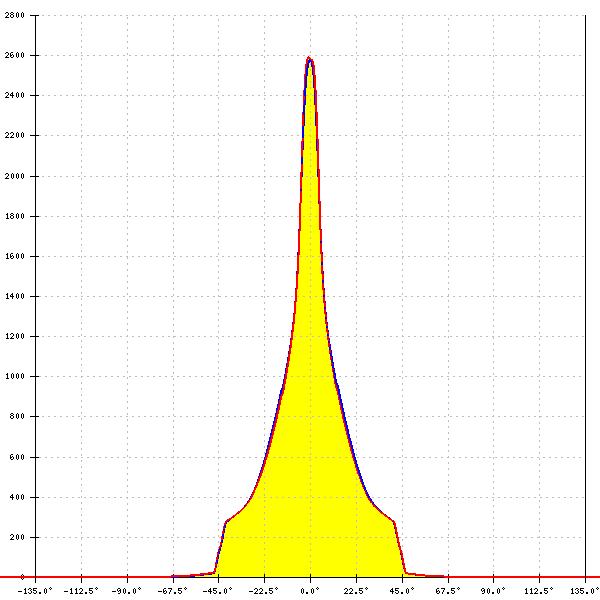

    LED: LUXEON MZ
    FWHM: 16°
    FWTM: 83°
    Peak intensity: 2.600 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

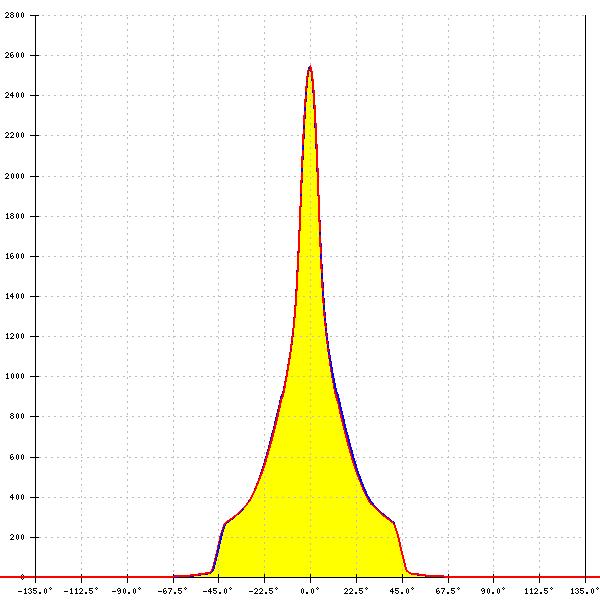

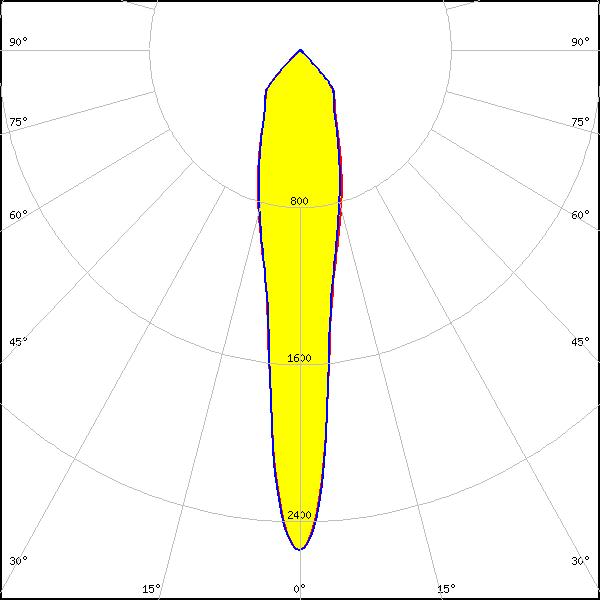

    LED: LUXEON V
    FWHM: 16°
    FWTM: 84°
    Peak intensity: 2.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

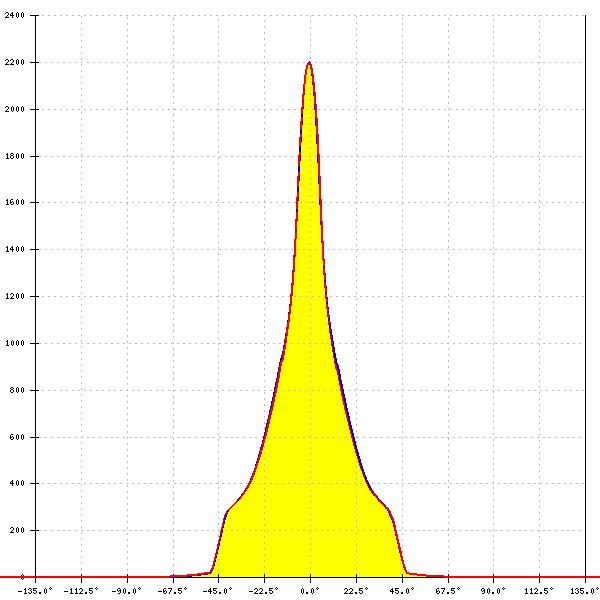

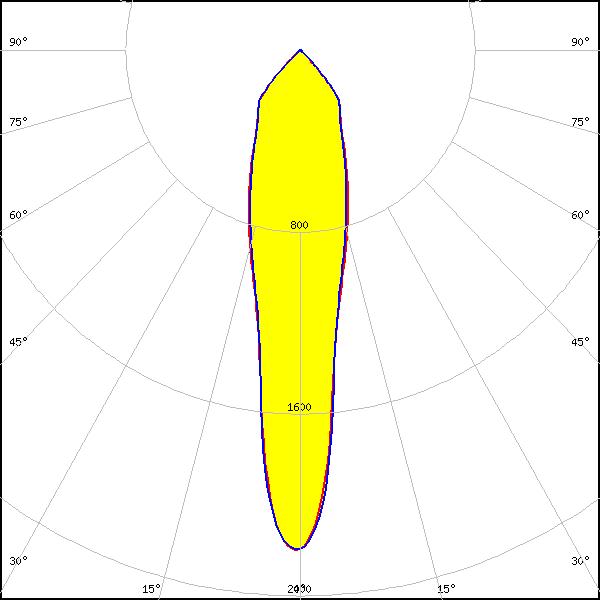

    LED: NFMW48xA
    FWHM: 20°
    FWTM: 84°
    Peak intensity: 2.200 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

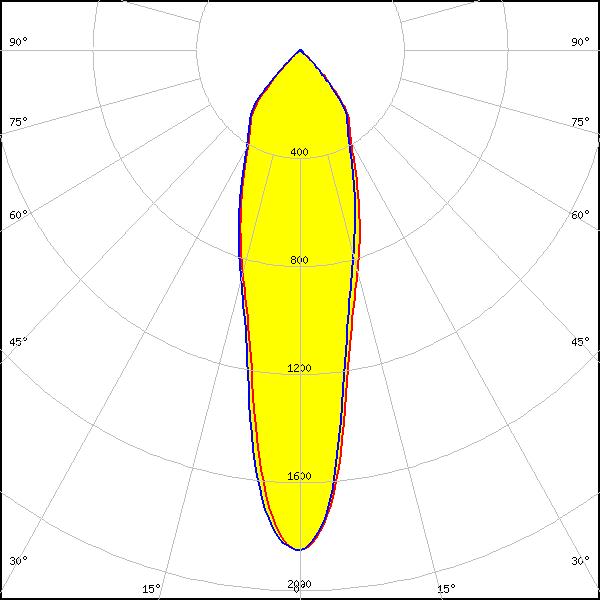

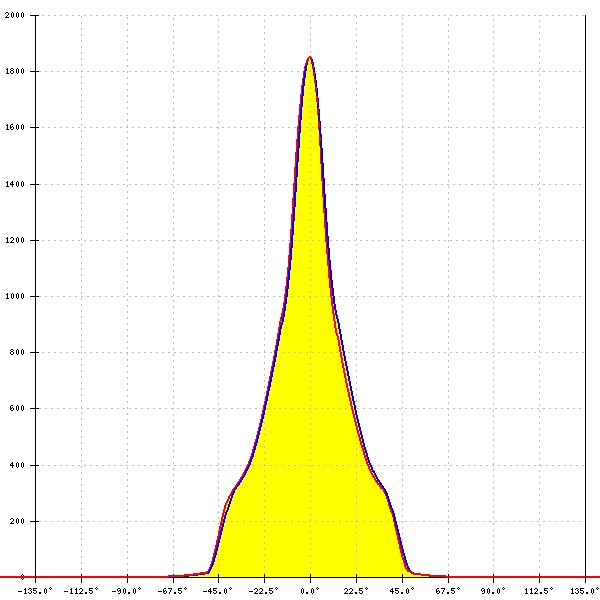

    LED: Duris S10
    FWHM: 26°
    FWTM: 85°
    Peak intensity: 1.900 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

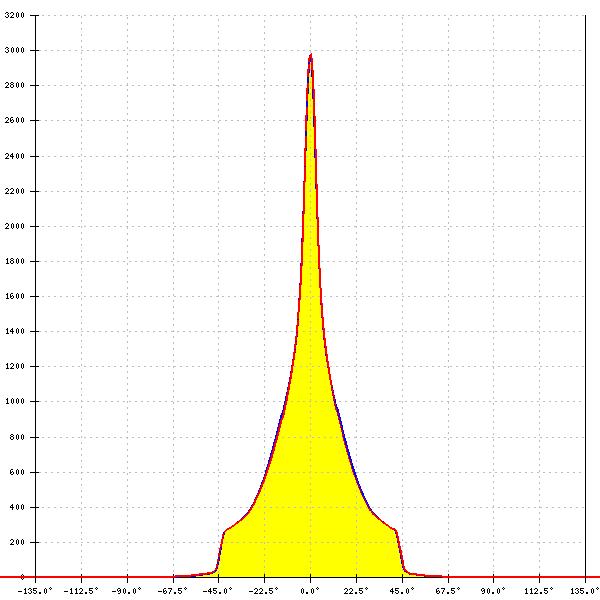

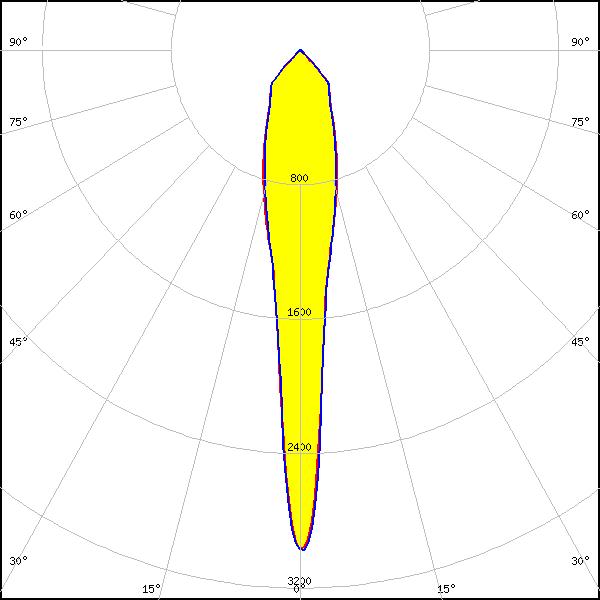

    LED: OSCONIQ P 3737 (2W version)
    FWHM: 12°
    FWTM: 75°
    Peak intensity: 3.000 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: 23°
    FWTM: 85°
    Peak intensity: 2.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

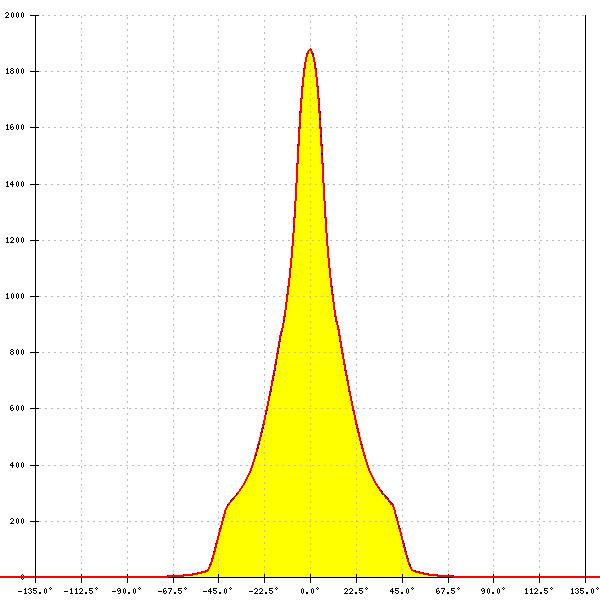

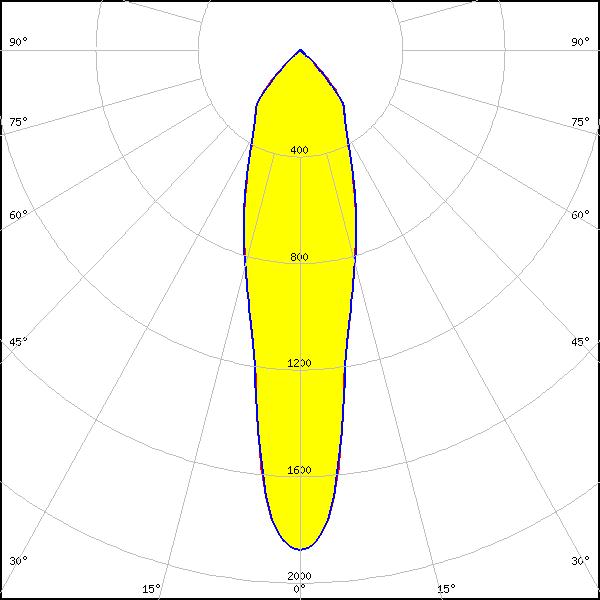

    LED: WICOP 5050
    FWHM: 25°
    FWTM: 87°
    Peak intensity: 1.880 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
