    CA14433_MINNIE-LT-W

    Print

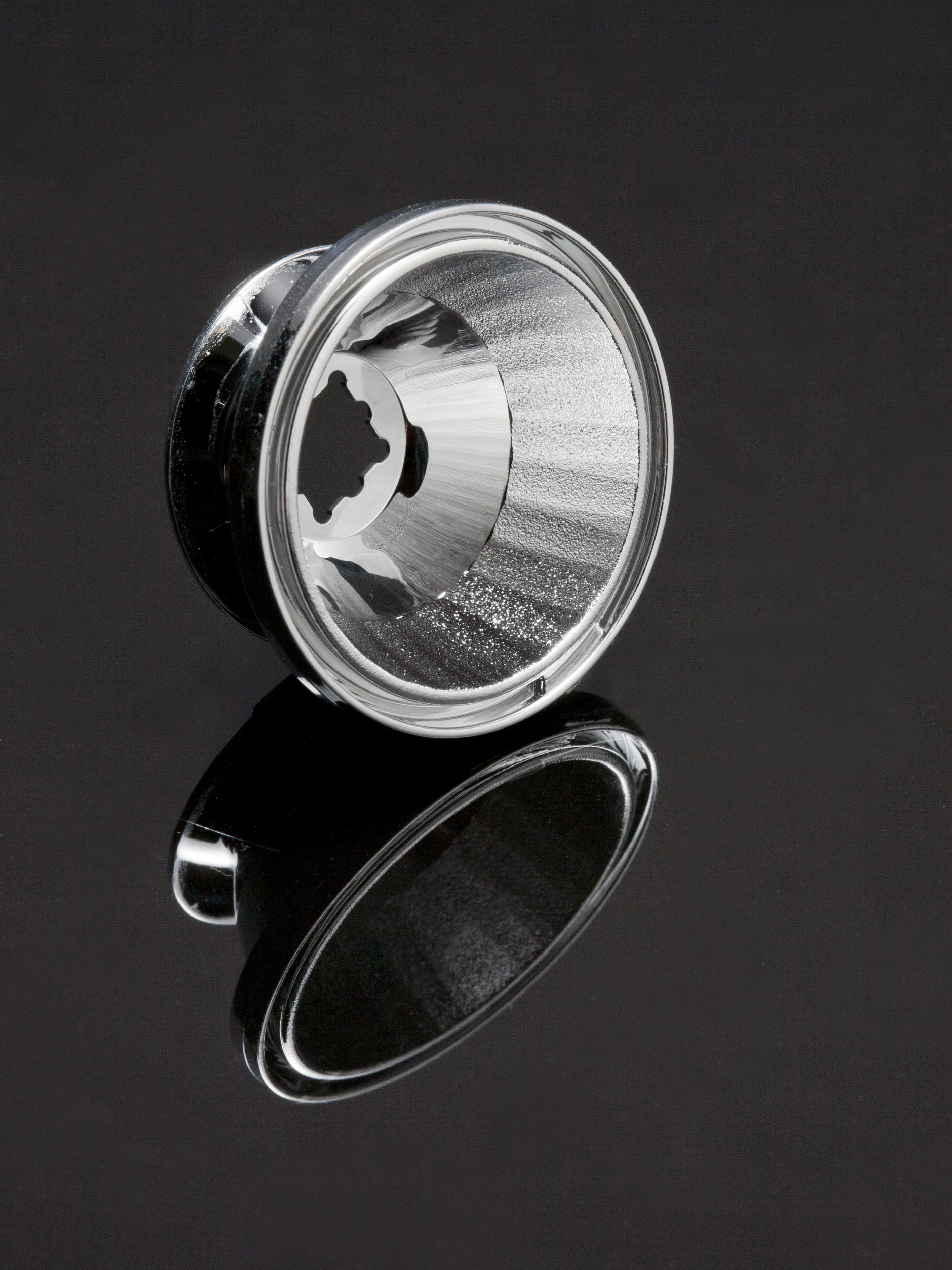

    ~35° wide beam. Assembly with installation tape.

    Specification
    • Dimensions:
      35 mm
    • Height:
      15.60 mm
    • Fastening:
      tape
    • Colour:
      metal
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      720 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      3.6 kg
    • MPQ:
      45 pcs
    • MOQ:
      90 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      0.7 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA14433_MINNIE-LT-W
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - MINNIE-LT

    PCN

    Product change notification NR128.d - Change of product specification 241016

    PCN

    Product change notification NR128.c - Change of product compatibility 241016

    PCN

    Product change notification NR126.b - Change of packaging quantities 190916

    News

    PRODUCT NEWS - MINNIE FOR CREE MT-G LED

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: MK-R
    FWHM: 30°
    FWTM: 88°
    Peak intensity: 1.980 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

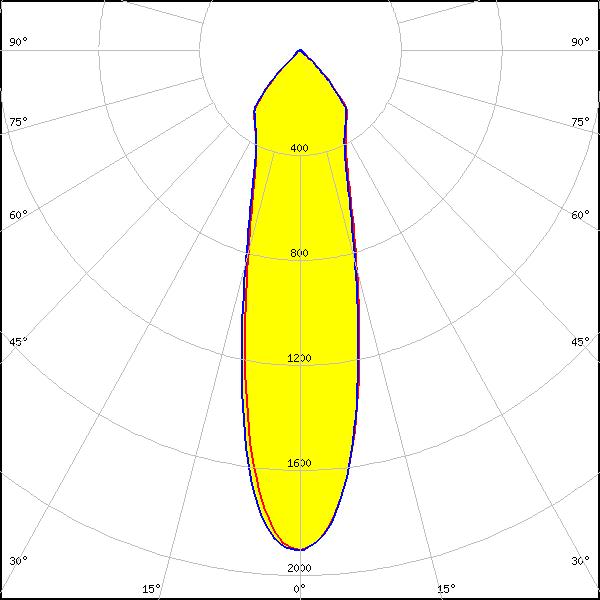

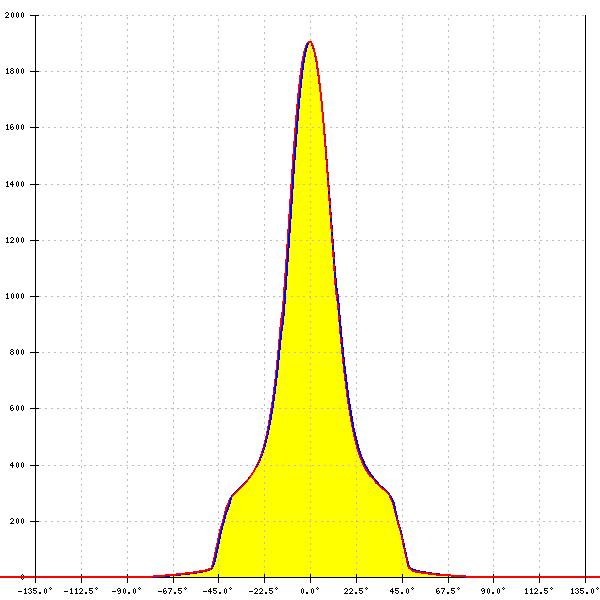

    LED: XHP50
    FWHM: 27°
    FWTM: 86°
    Peak intensity: 1.900 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

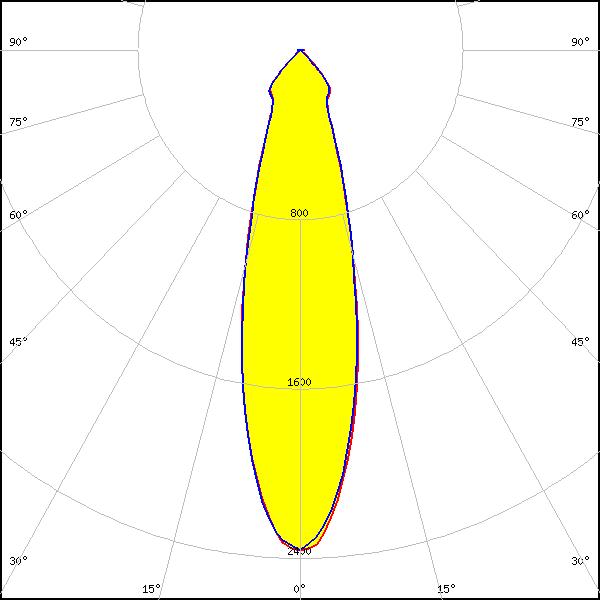

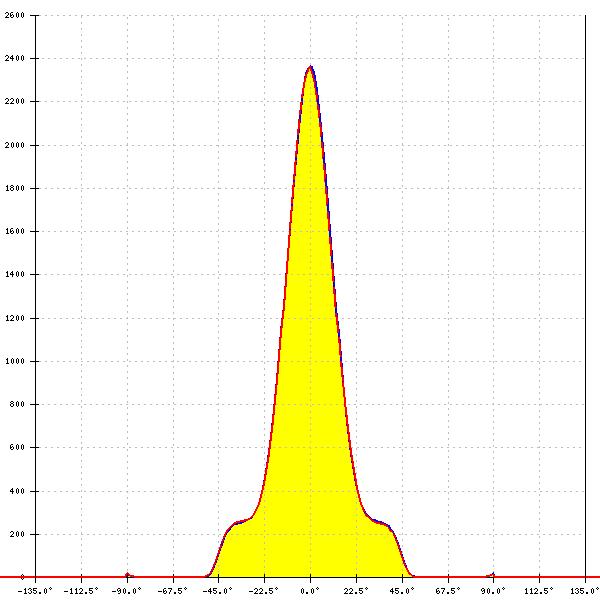

    LED: XHP50.2
    FWHM: 27°
    FWTM: 76°
    Peak intensity: 2.370 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

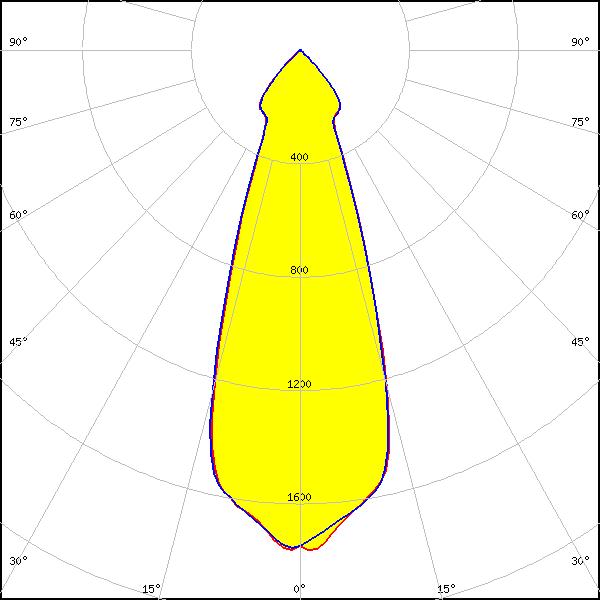

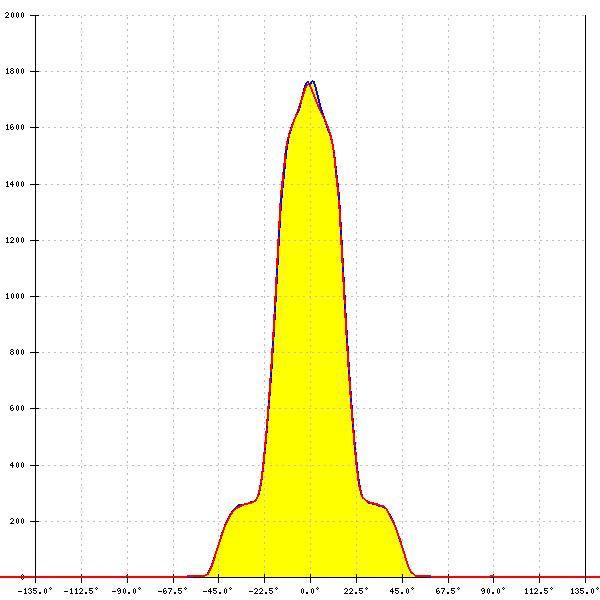

    LED: XHP70.3 HD
    FWHM: 36°
    FWTM: 84°
    Peak intensity: 1.792 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON M/MX
    FWHM: 30°
    FWTM: 84°
    Peak intensity: 2.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

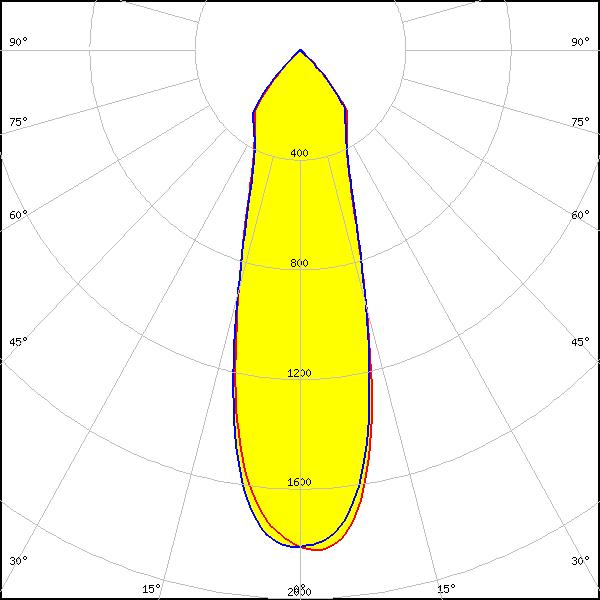

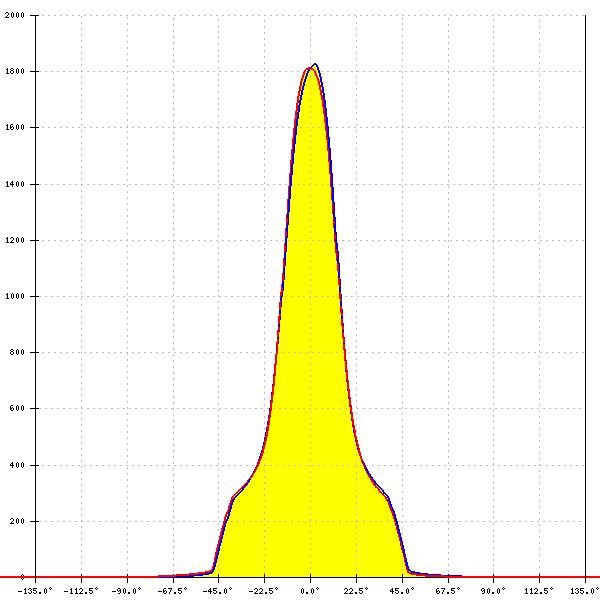

    LED: PLW7070
    FWHM: 31°
    FWTM: 85°
    Peak intensity: 1.800 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
