CA14392_LXP2-O-WAS

Print

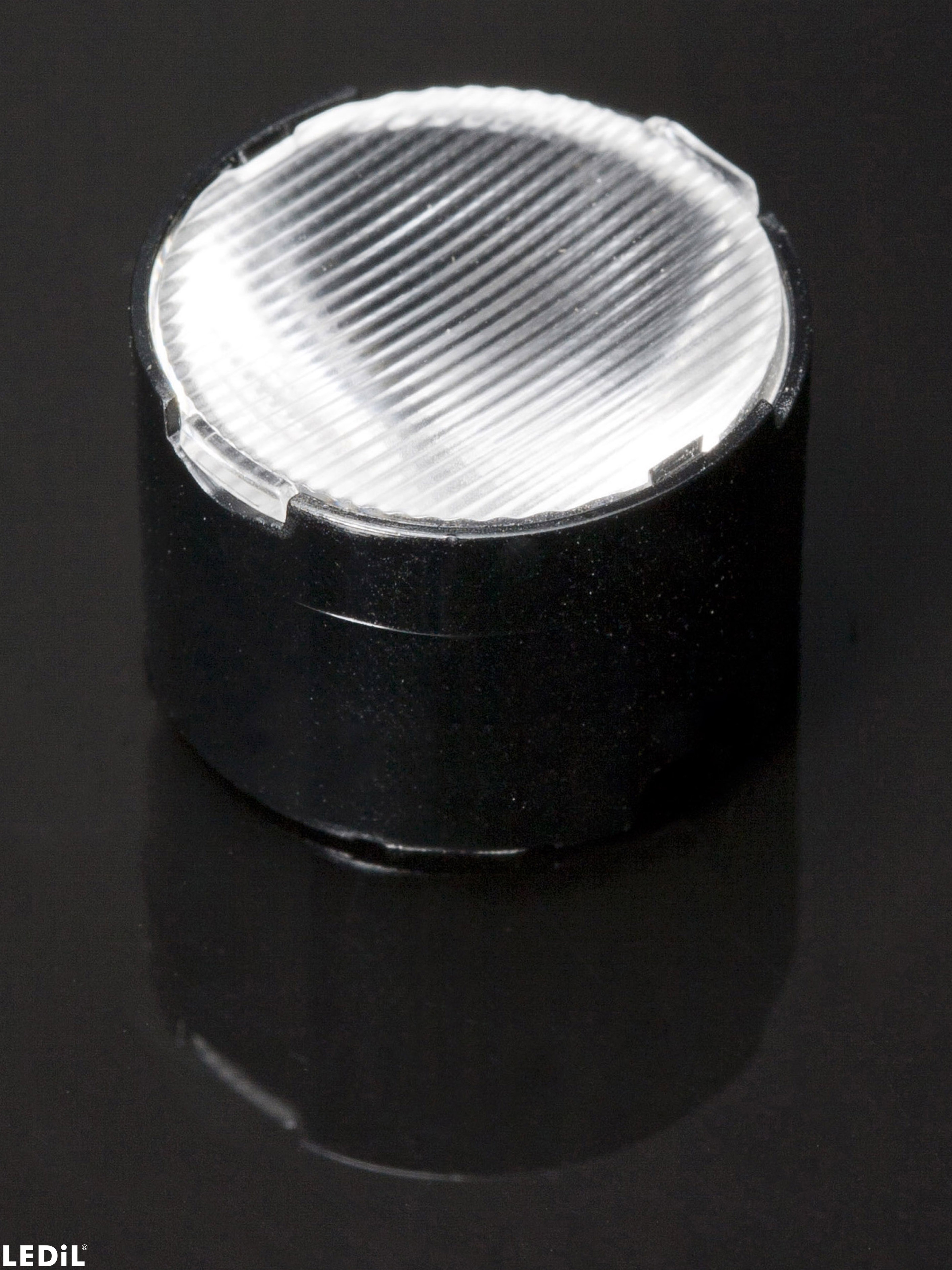

Asymmetric beam for wall-washing and optimized for CREE XP-E. 14.6 mm high assembly with installation tape.

Specification
  • Dimensions:
    22 mm
  • Height:
    14.60 mm
  • Fastening:
    tape
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    1680 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.2 kg
  • MPQ:
    112 pcs
  • MOQ:
    336 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    2.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA14392_LXP2-O-WAS
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

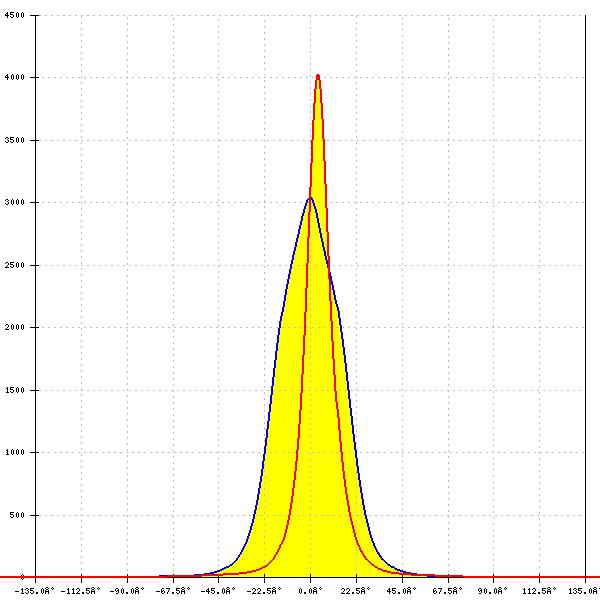

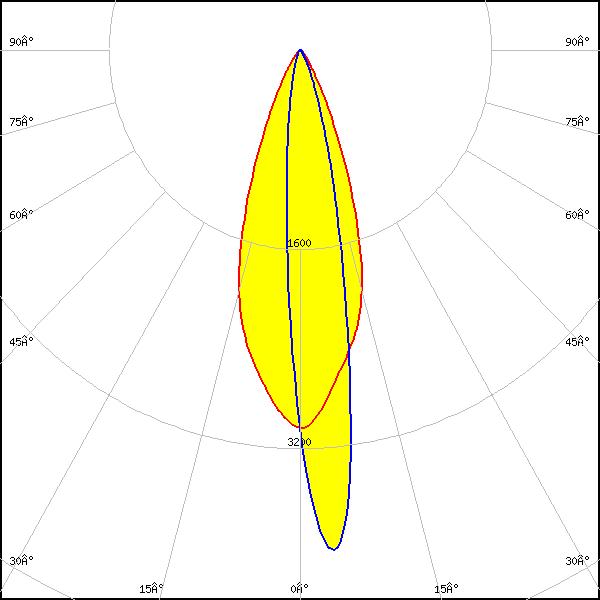

LED: XP-E2
FWHM: asymmetric
Peak intensity: 4.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

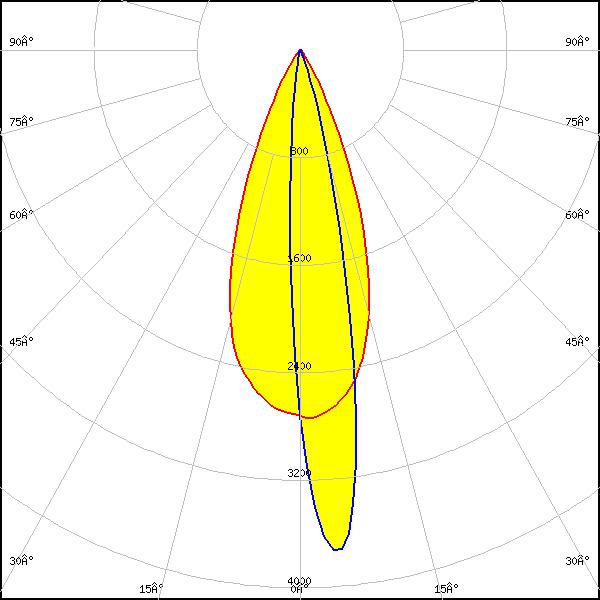

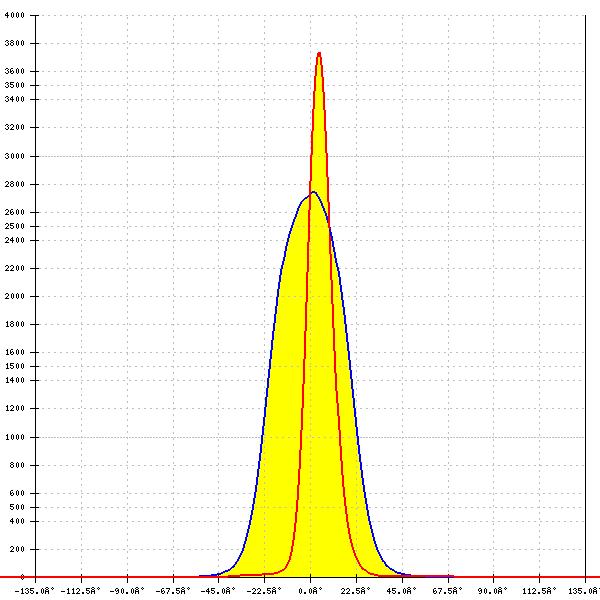

LED: XP-G2
FWHM: asymmetric
Peak intensity: 3.830 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

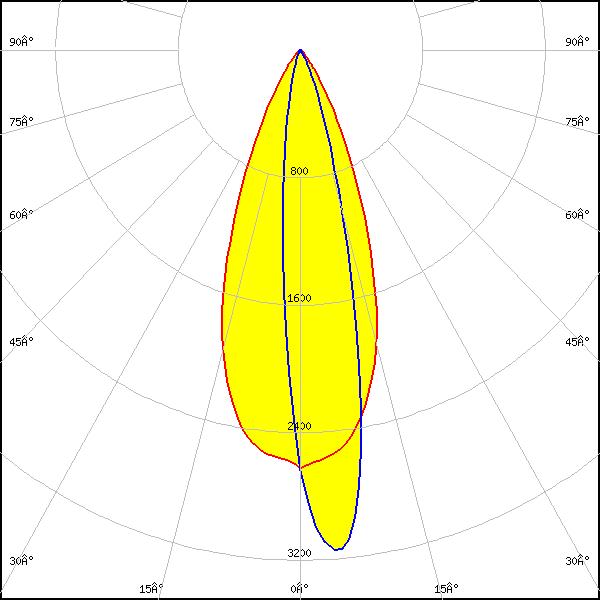

LED: XP-G3
FWHM: asymmetric
Peak intensity: 3.165 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

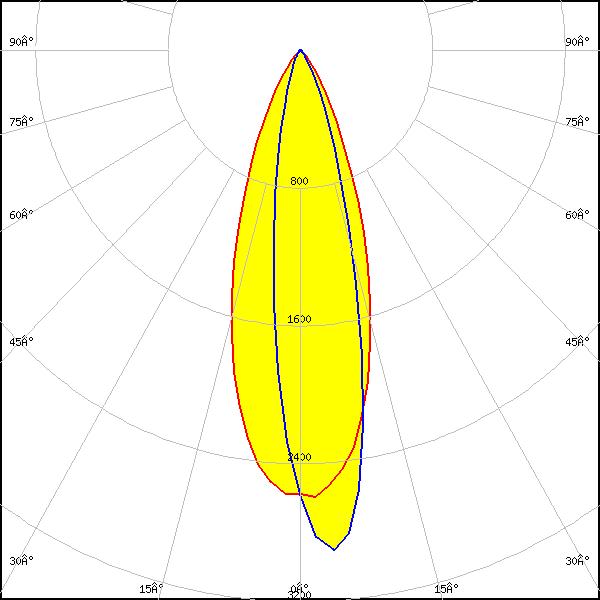

LED: XP-L HD
FWHM: asymmetric
Peak intensity: 2.910 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

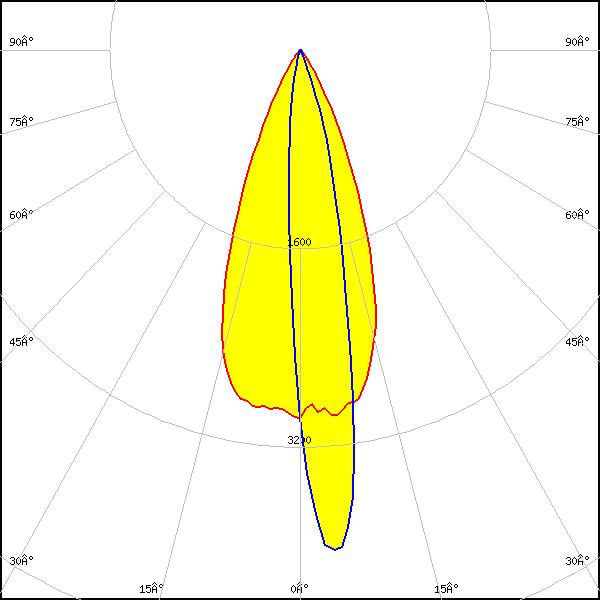

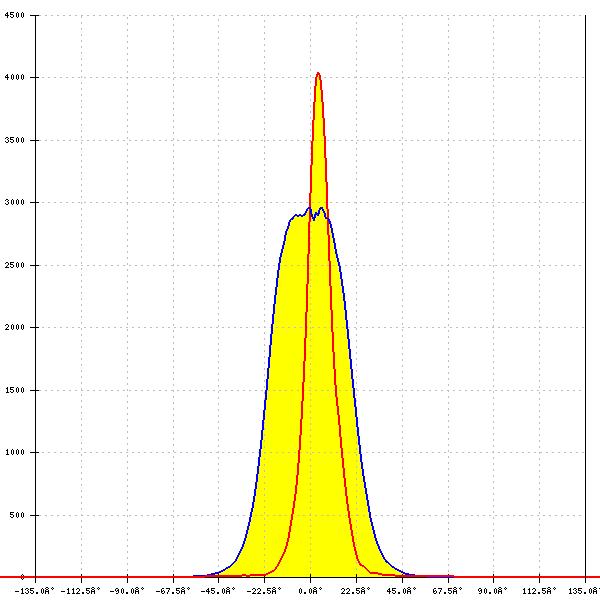

LED: SST-20 Gen2
FWHM: 42° + 13°
FWTM: 65° + 30°
Peak intensity: 4.143 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: NVSW219F
FWHM: asymmetric
Peak intensity: 3.710 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

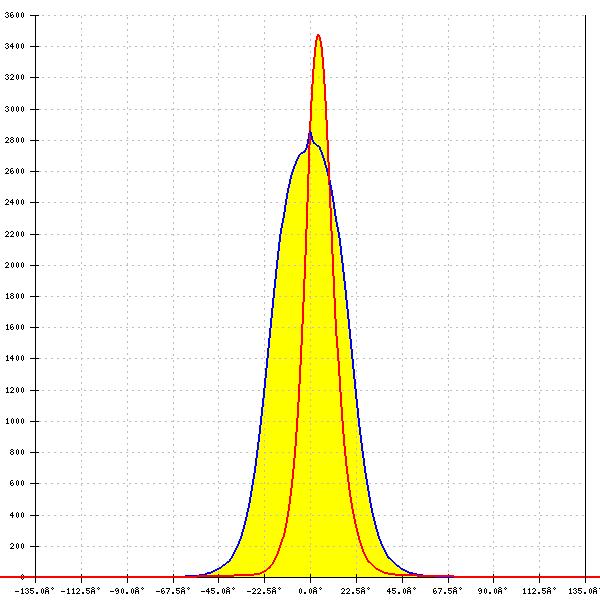

LED: NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity: 3.478 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

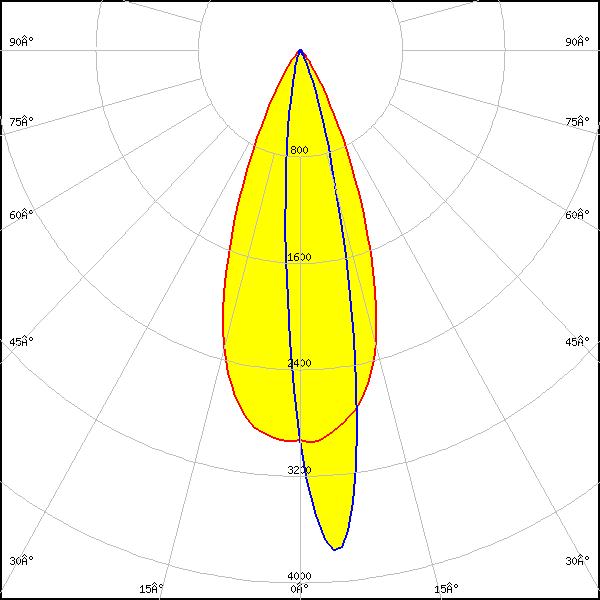

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 3.788 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LM301B
FWHM: asymmetric
Peak intensity: 3.800 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

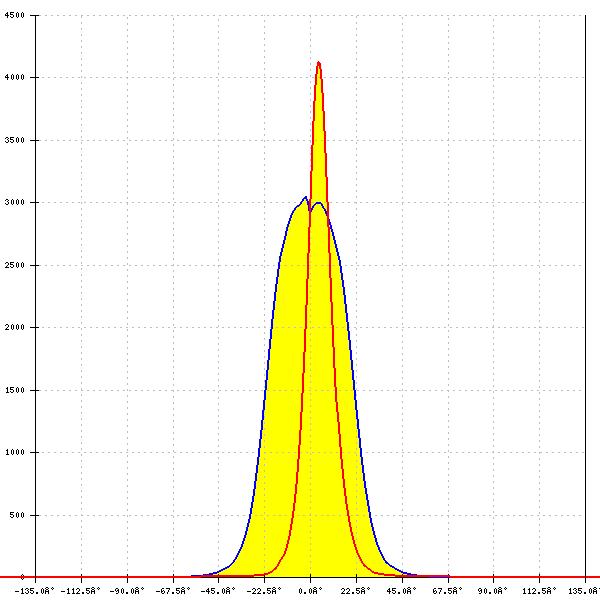

LED: Z5
FWHM: asymmetric
Peak intensity: 4.176 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
