    CA14129_TATIANA-1X4-B

    Print

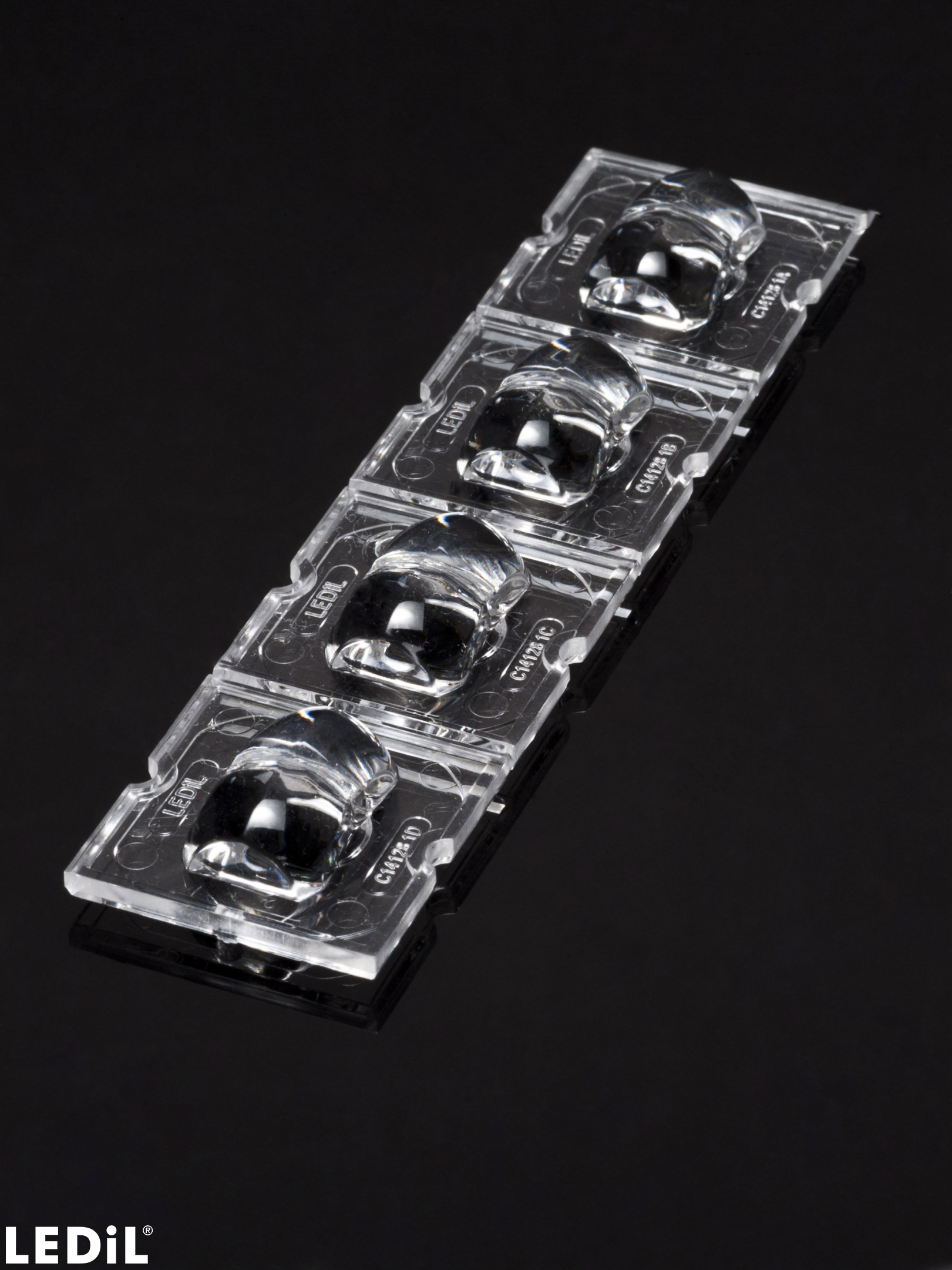

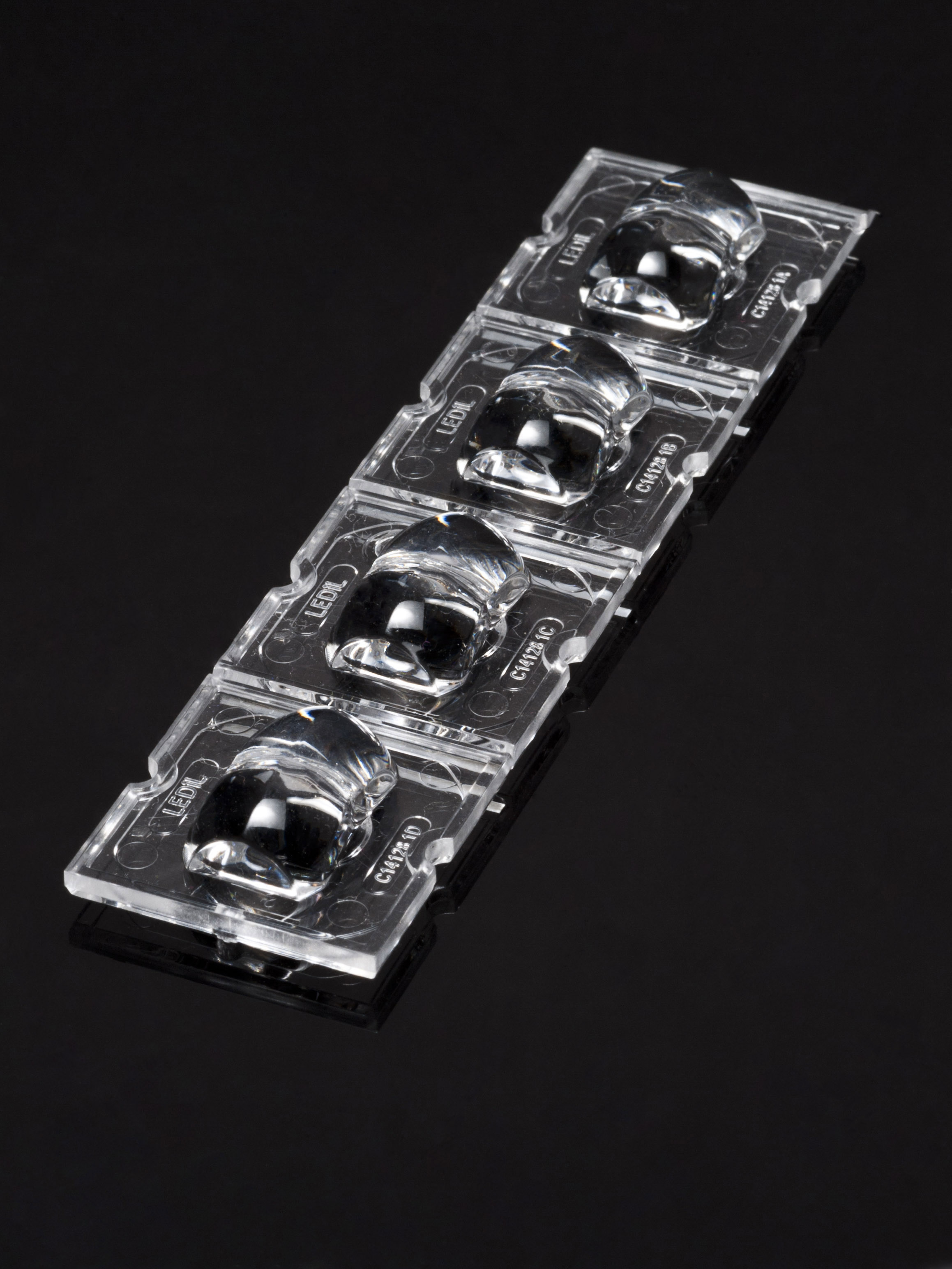

    Oval beam for area lighting. Assembly with installation tape.

    Specification
    • Dimensions:
      102 x  25 mm
    • Height:
      7.80 mm
    • Fastening:
      tape, pin
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      672 pcs
    • Box weight:
      6.7 kg
    • MPQ:
      28 pcs
    • MOQ:
      56 pcs
    • MOQ size:
      480 x 280 x 50 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA14129_TATIANA-1X4-B
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - TATIANA

    PCN

    Product change notification NR106.a - Change of packaging quantities 260815

    PCN

    Product change notification NR105.a - Change of packaging quantities 250615

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Street Lighting

    Optical results

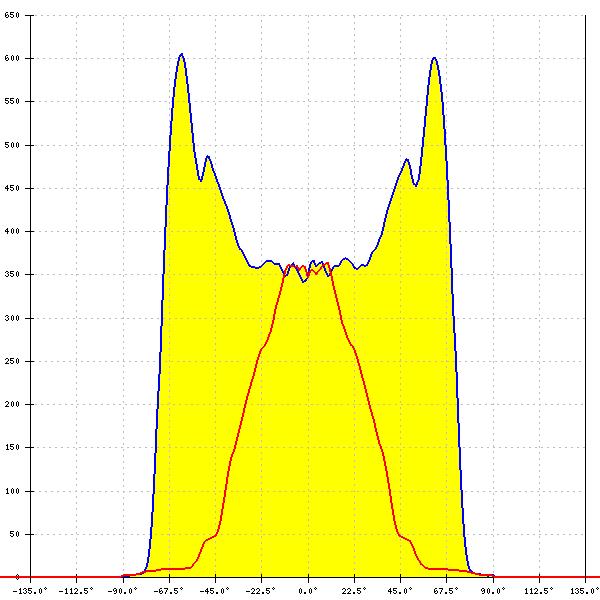

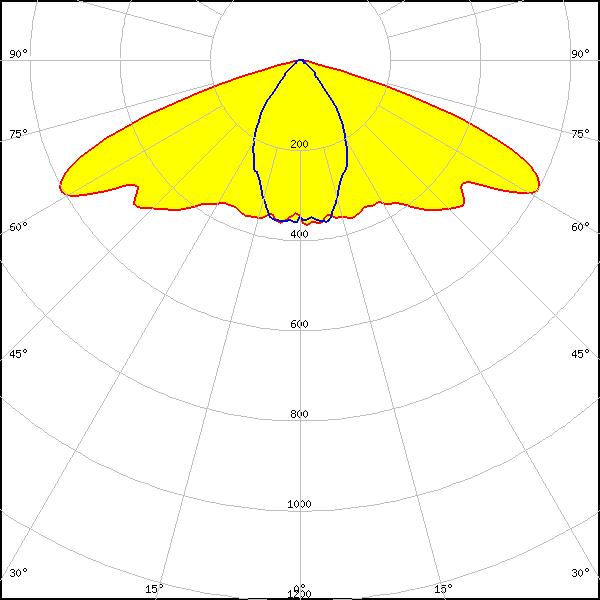

    LED: XM-L
    FWHM: 142° + 64°
    FWTM: 152° + 102°
    Peak intensity: 0.605 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

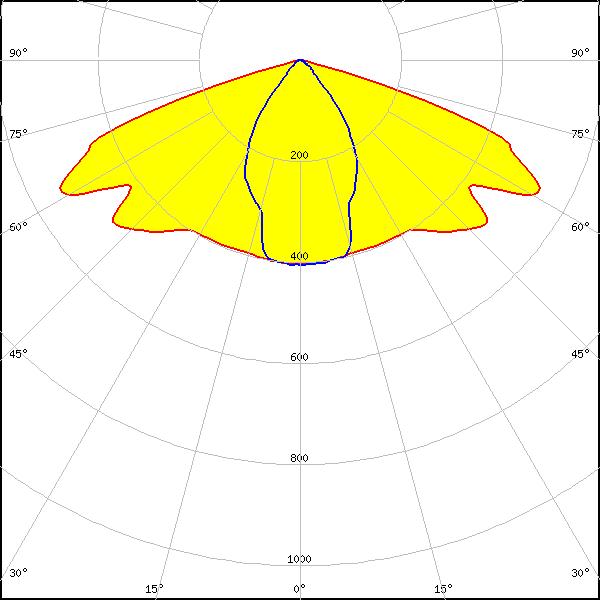

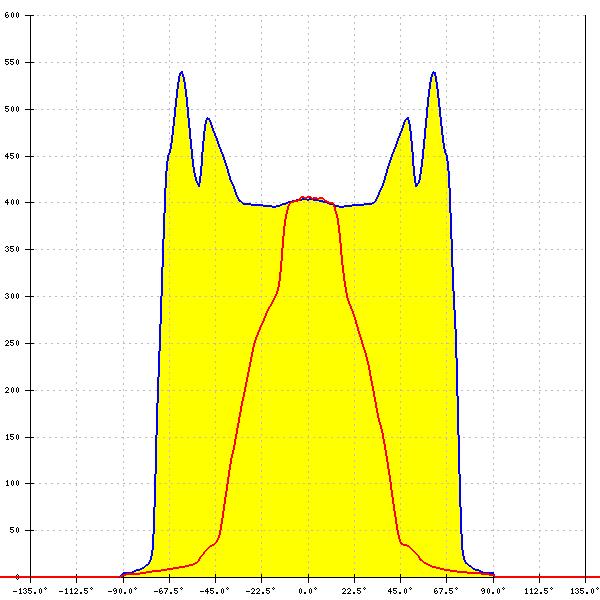

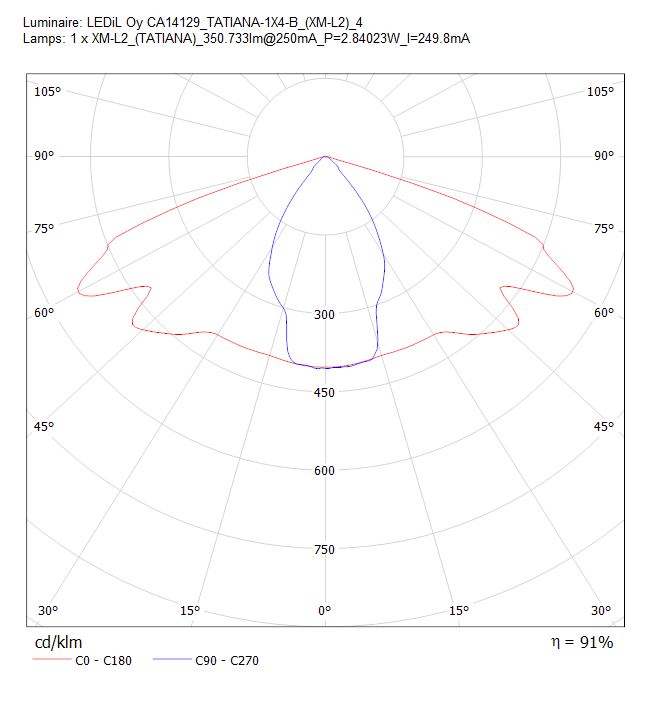

    LED: XM-L2
    FWHM: 144° + 62°
    FWTM: 148° + 89°
    Peak intensity: 0.540 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
