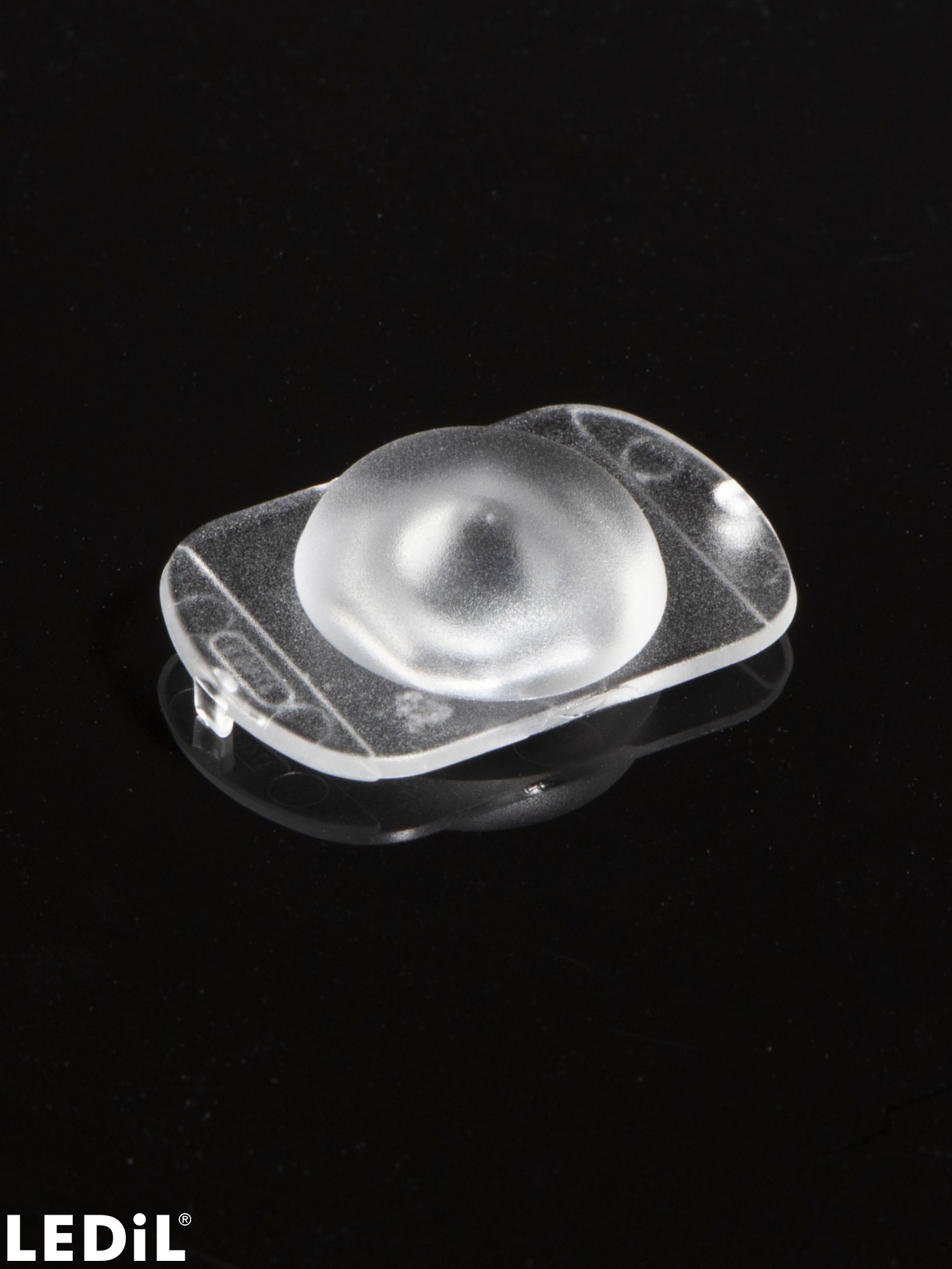

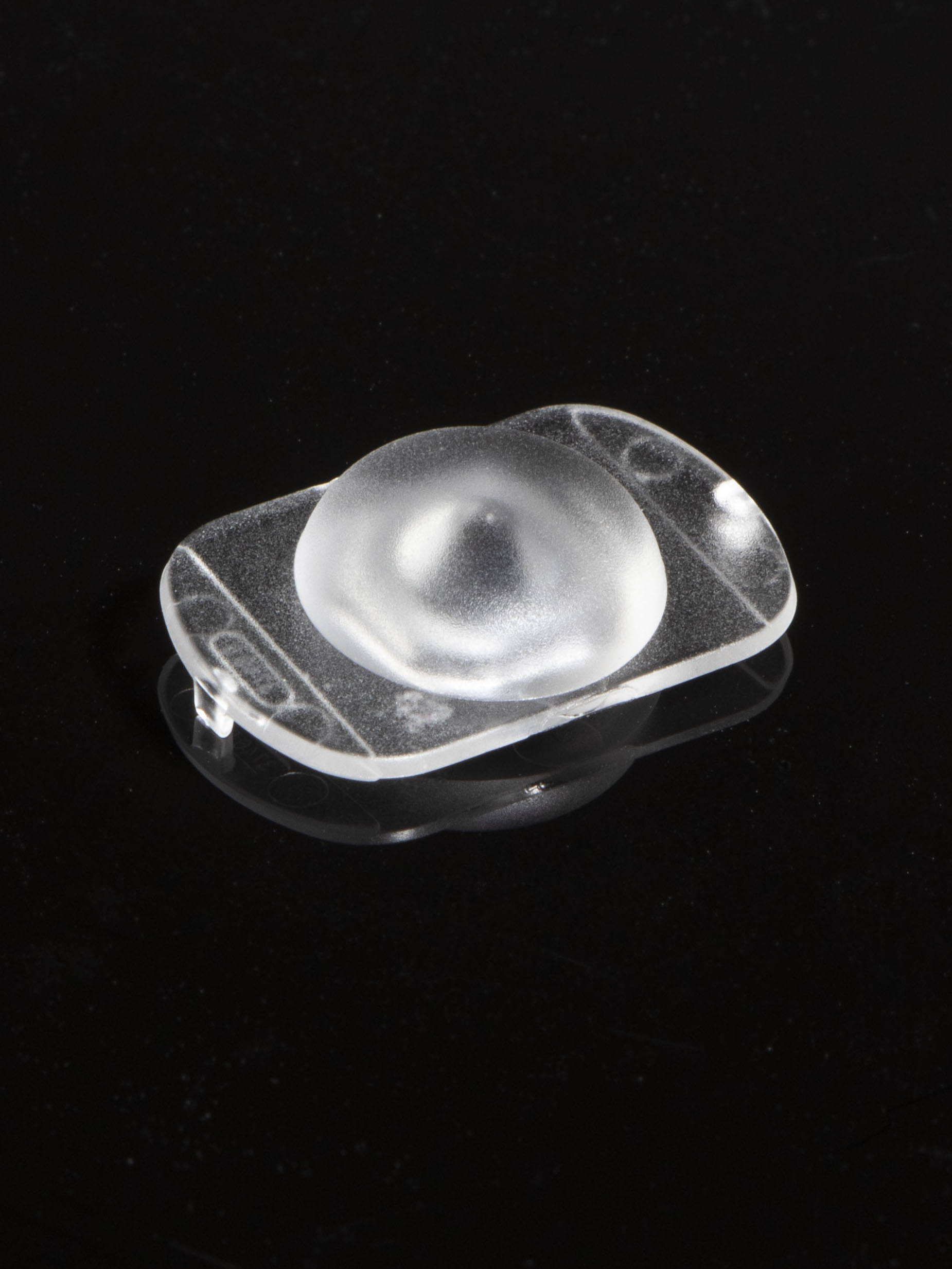

CA13747_KIKI-A

Print

~165° wide beam. Assembly with installation tape.

Specification
  • Dimensions:
    22 x  14 mm
  • Height:
    5.90 mm
  • Fastening:
    tape, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    4032 pcs
  • Box size:
    451 x 254 x 152 mm
  • Box weight:
    3.5 kg
  • MPQ:
    126 pcs
  • MOQ:
    378 pcs
  • MOQ size:
    480 x 280 x 30 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA13747_KIKI-A

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

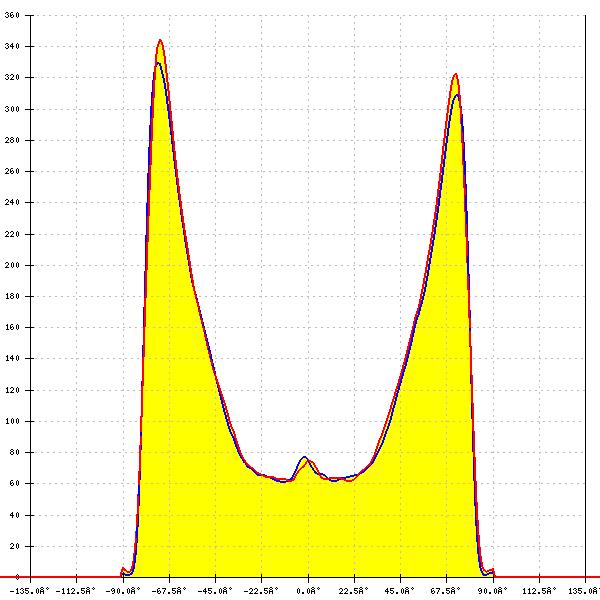

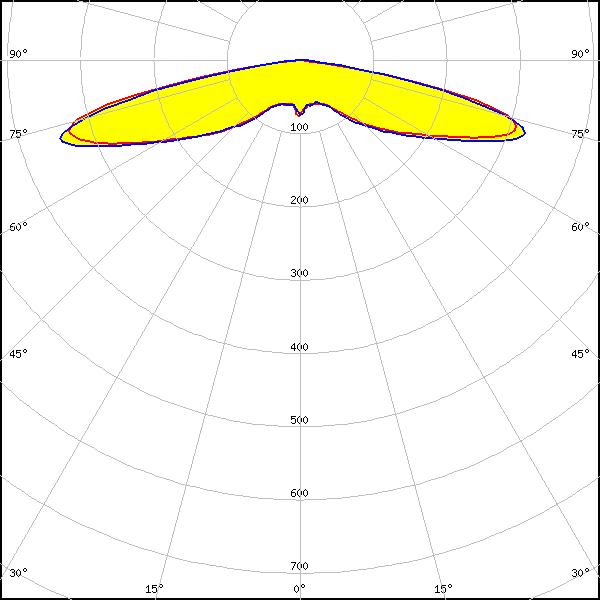

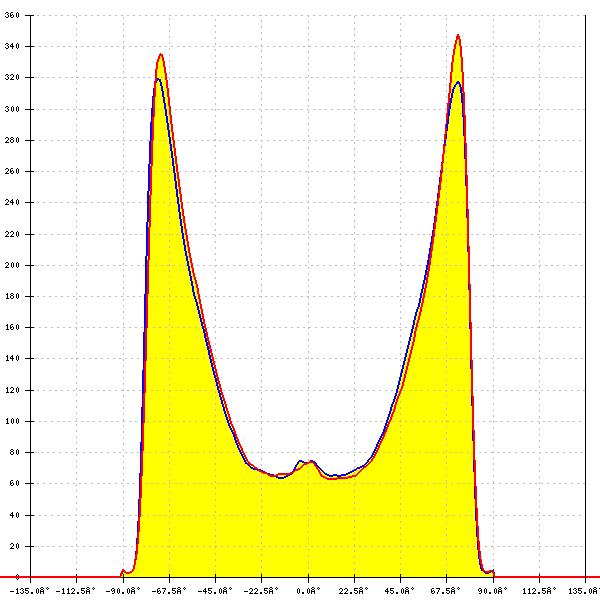

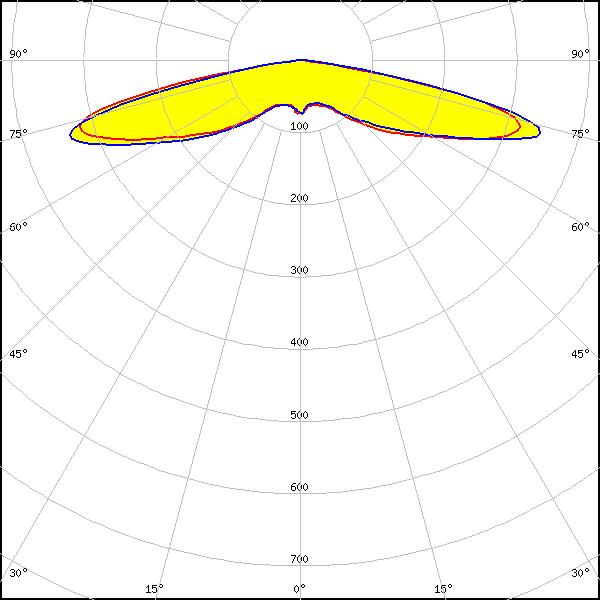

Optical results

LED: J Series 2835
FWHM: 158°
FWTM: 171°
Peak intensity: 0.303 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

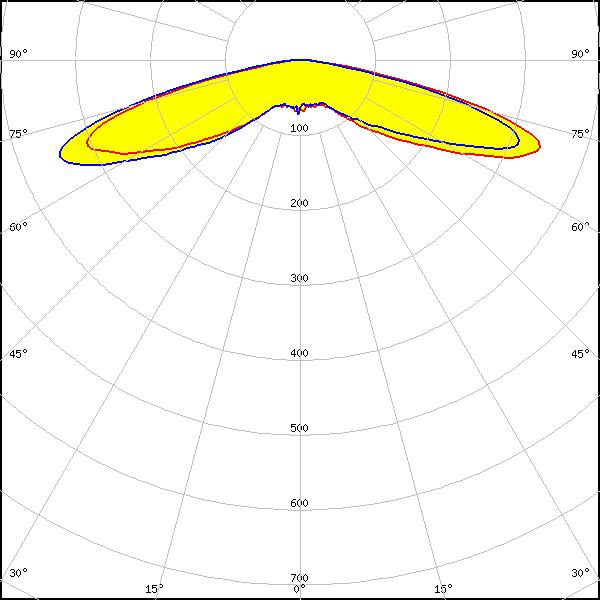

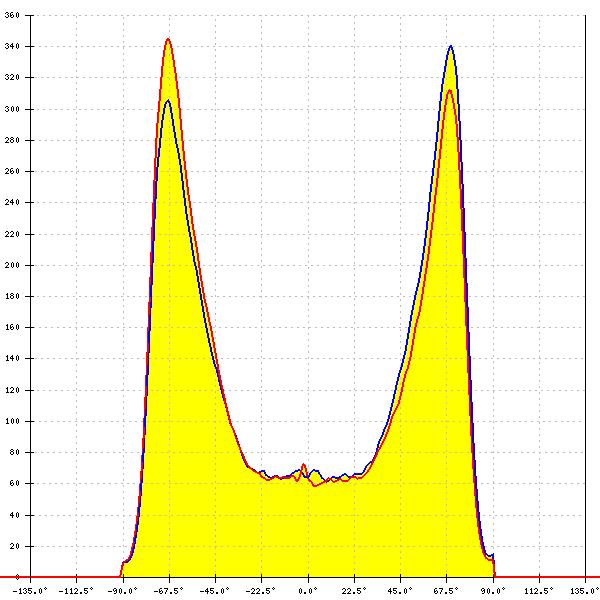

LED: J Series 3030
FWHM: 155°
FWTM: 167°
Peak intensity: 0.350 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

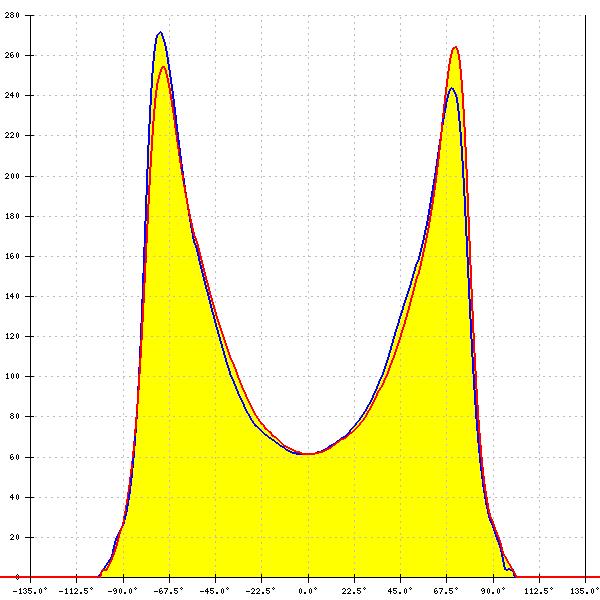

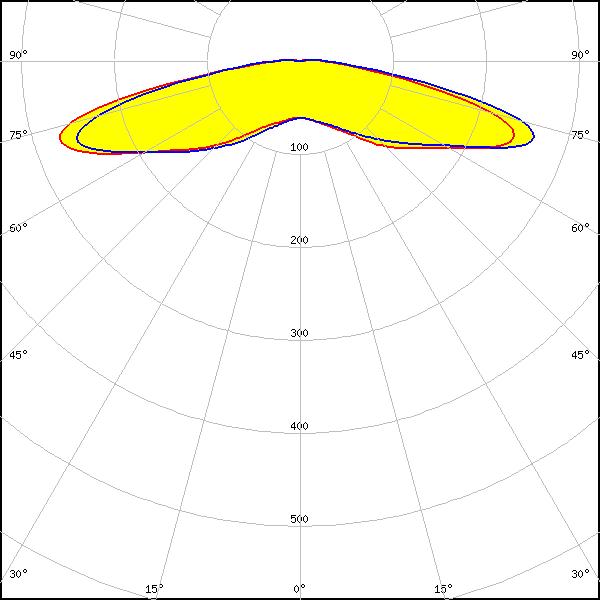

LED: LUXEON T
FWHM: 162°
FWTM: 183°
Peak intensity: 0.280 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

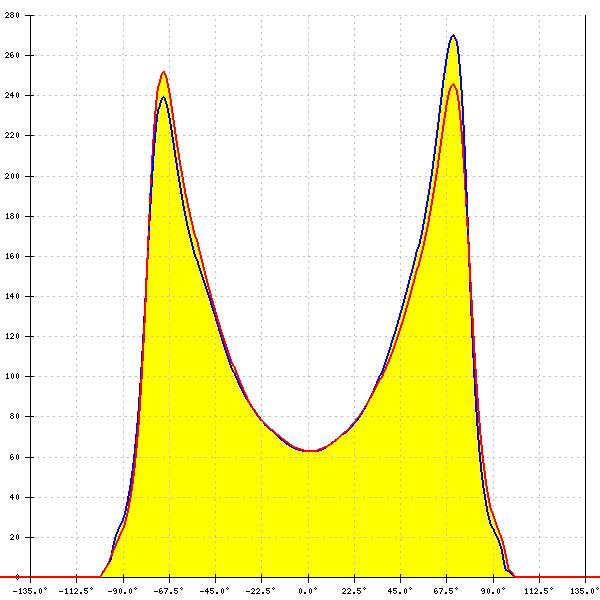

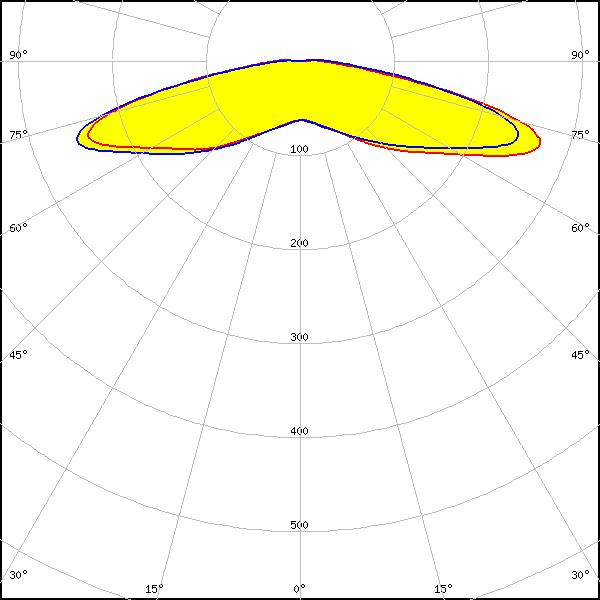

LED: LUXEON TX
FWHM: 162°
FWTM: 185°
Peak intensity: 0.270 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

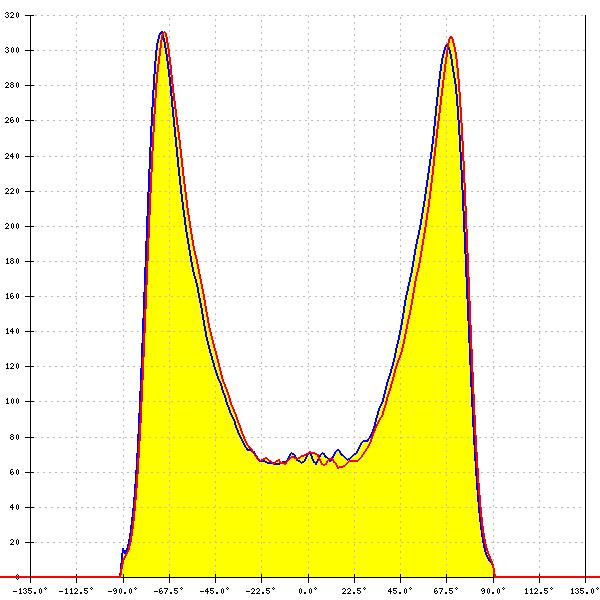

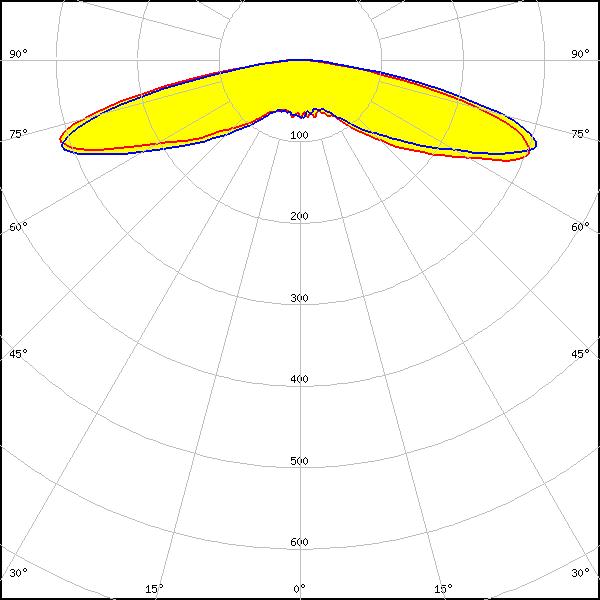

LED: NFSx757G
FWHM: 158°
FWTM: 170°
Peak intensity: 0.311 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

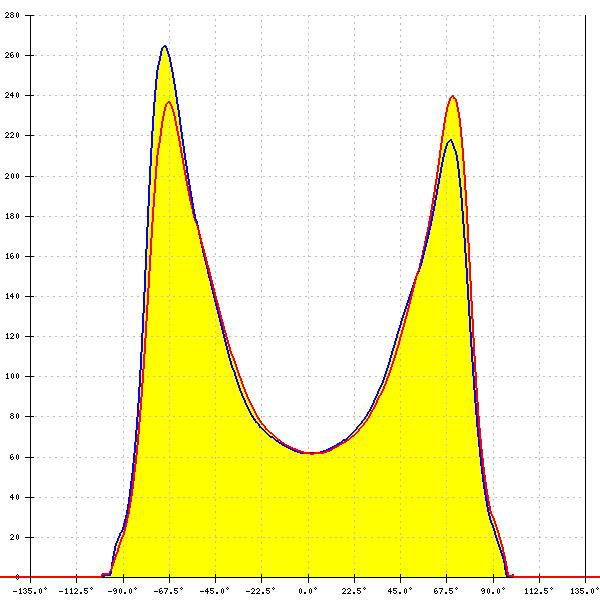

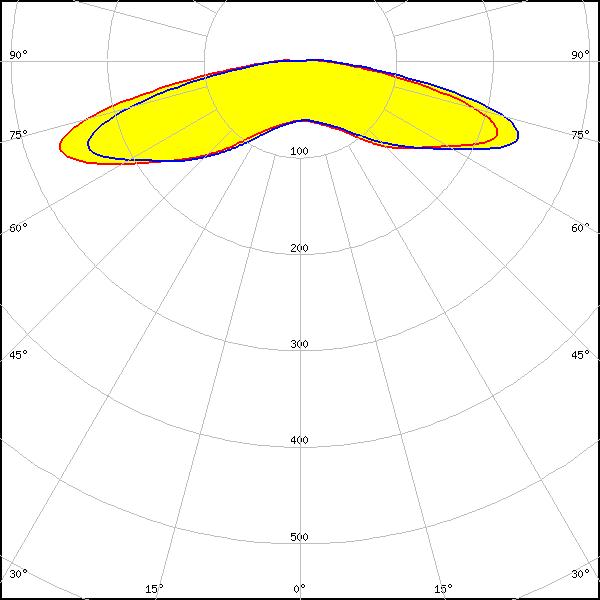

LED: NVSxx19B/NVSxx19C
FWHM: 161°
FWTM: 181°
Peak intensity: 0.260 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

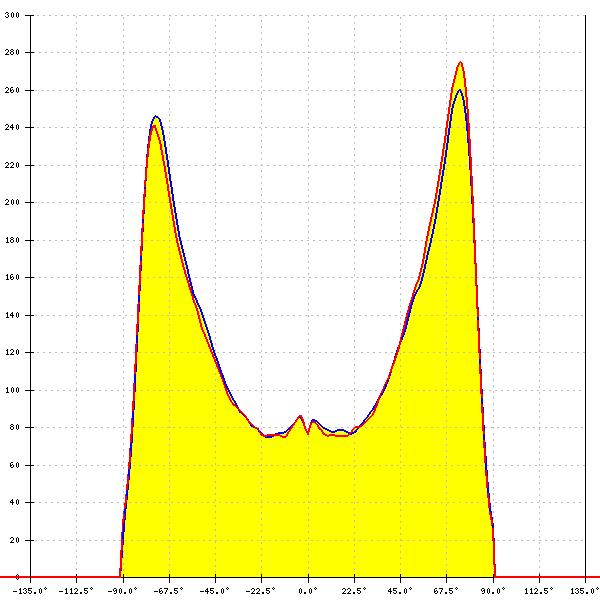

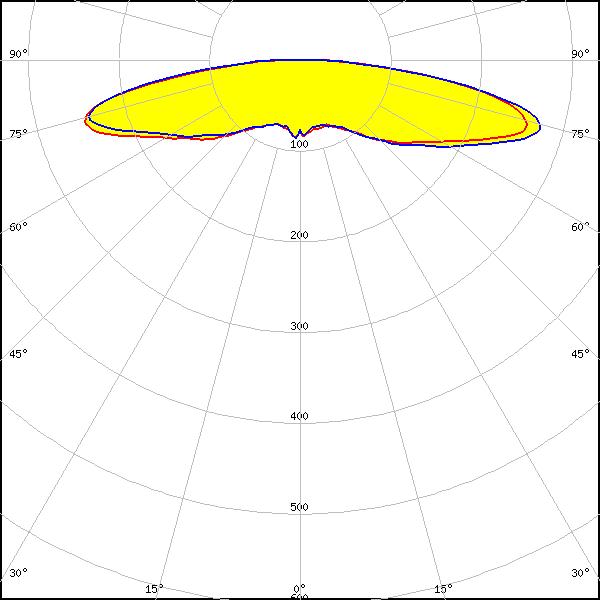

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 166°
FWTM: 180°
Peak intensity: 0.275 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

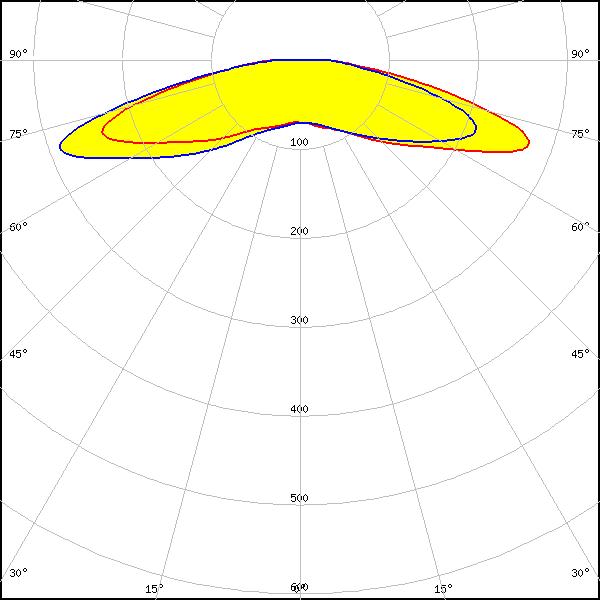

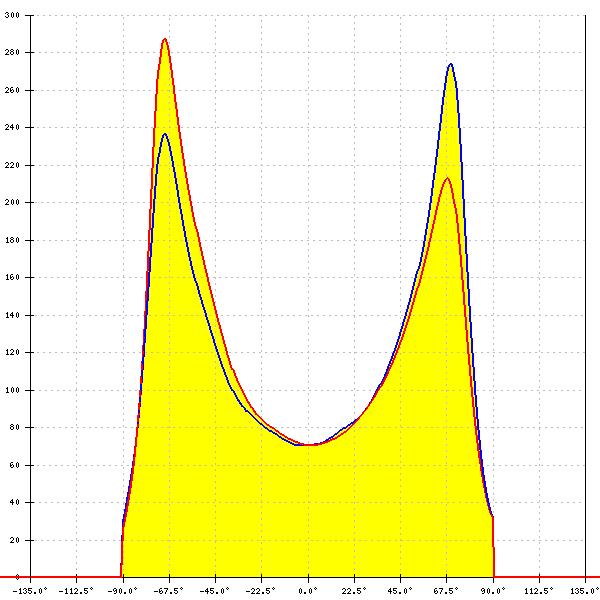

LED: OSLON Square PC
FWHM: 161°
FWTM: 180°
Peak intensity: 0.290 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

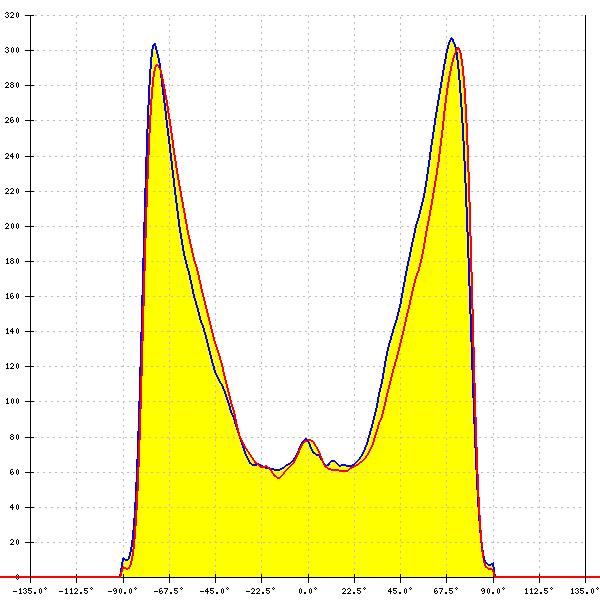

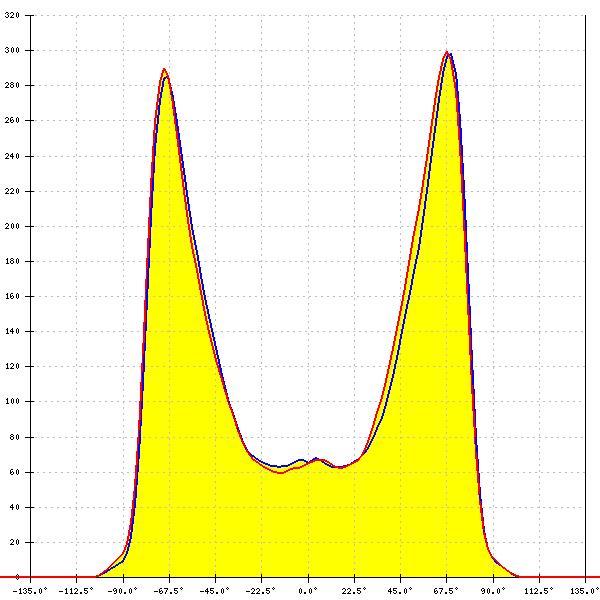

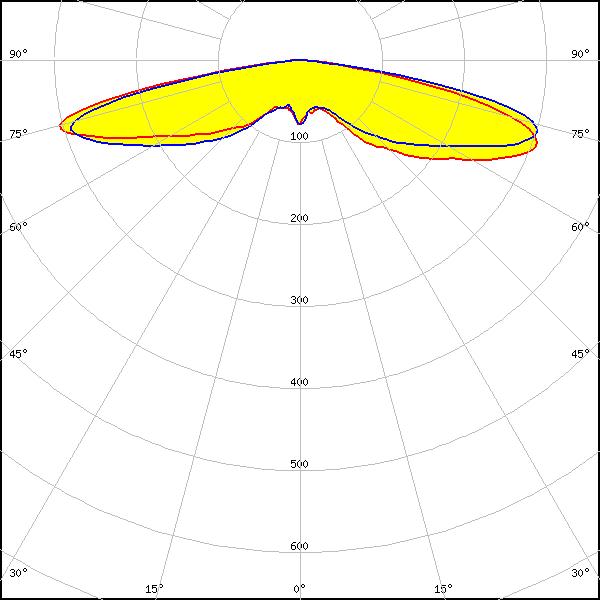

LED: LM28xB Series
FWHM: 159°
FWTM: 168°
Peak intensity: 0.310 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

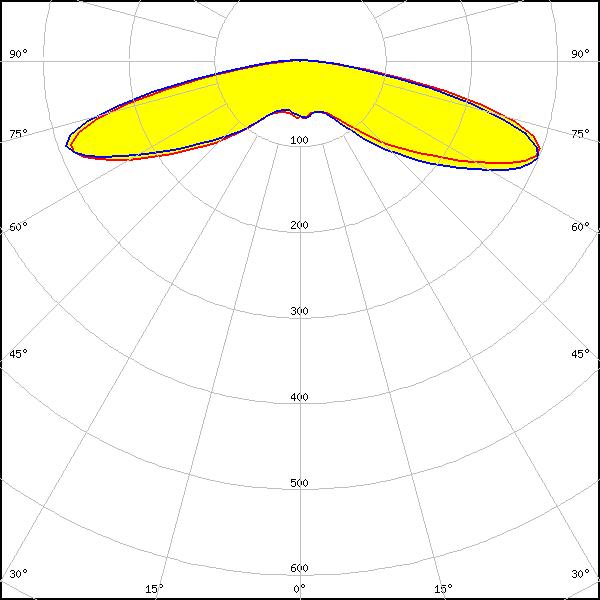

LED: LM28xB Series
FWHM: 157°
FWTM: 172°
Peak intensity: 0.301 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

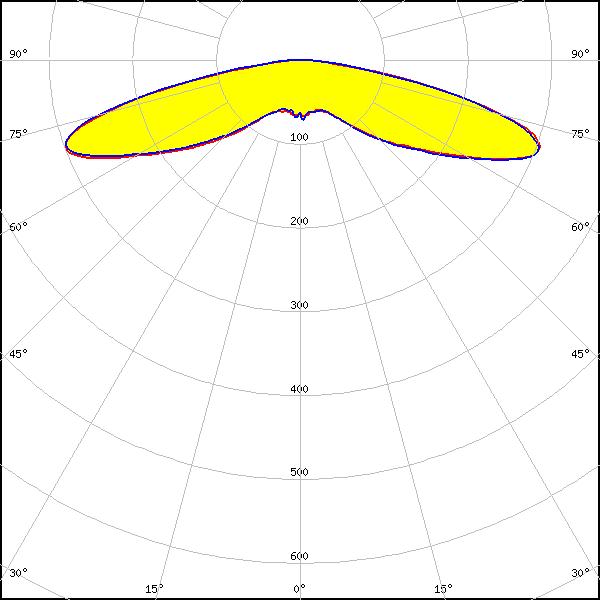

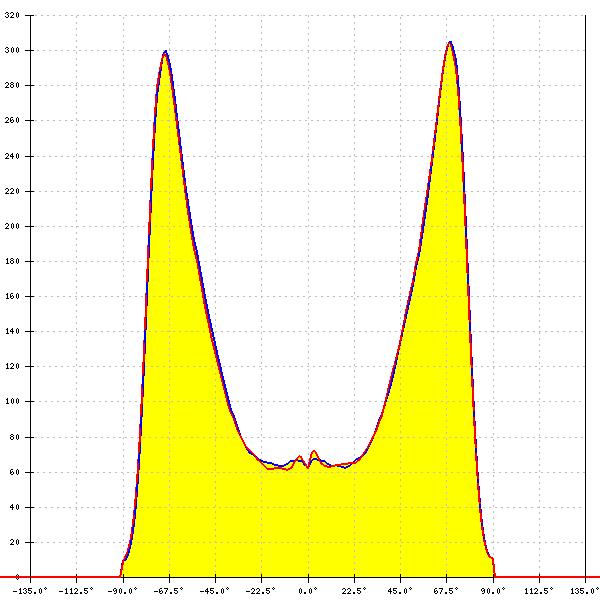

LED: LM301B
FWHM: 158°
FWTM: 170°
Peak intensity: 0.308 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

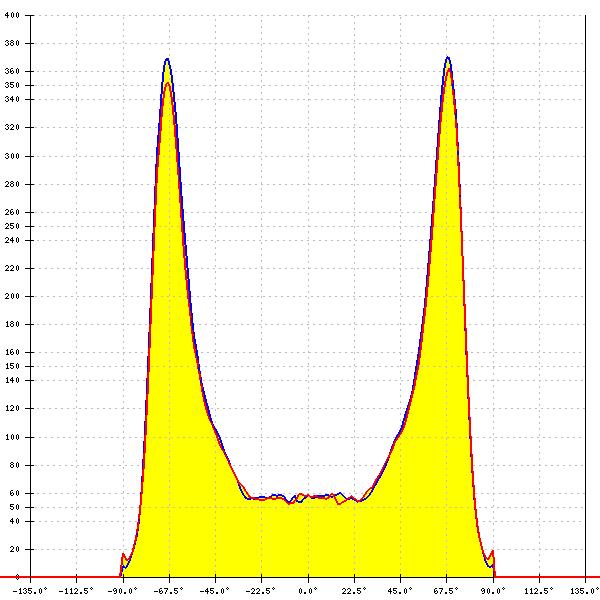

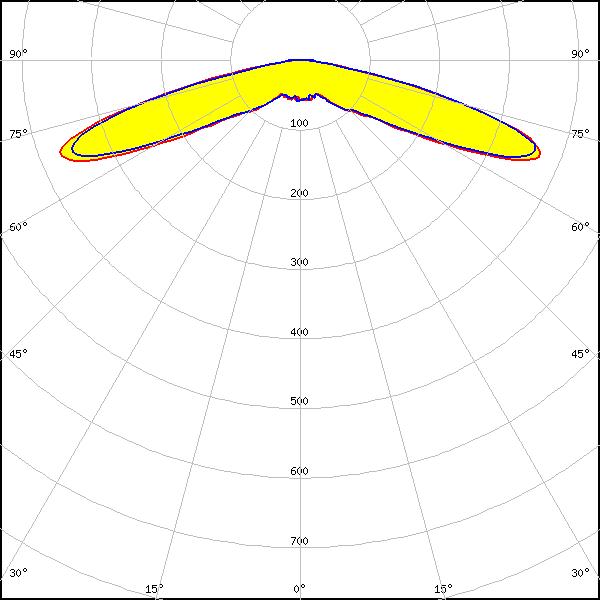

LED: Z8Y11
FWHM: 152°
FWTM: 165°
Peak intensity: 0.397 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
