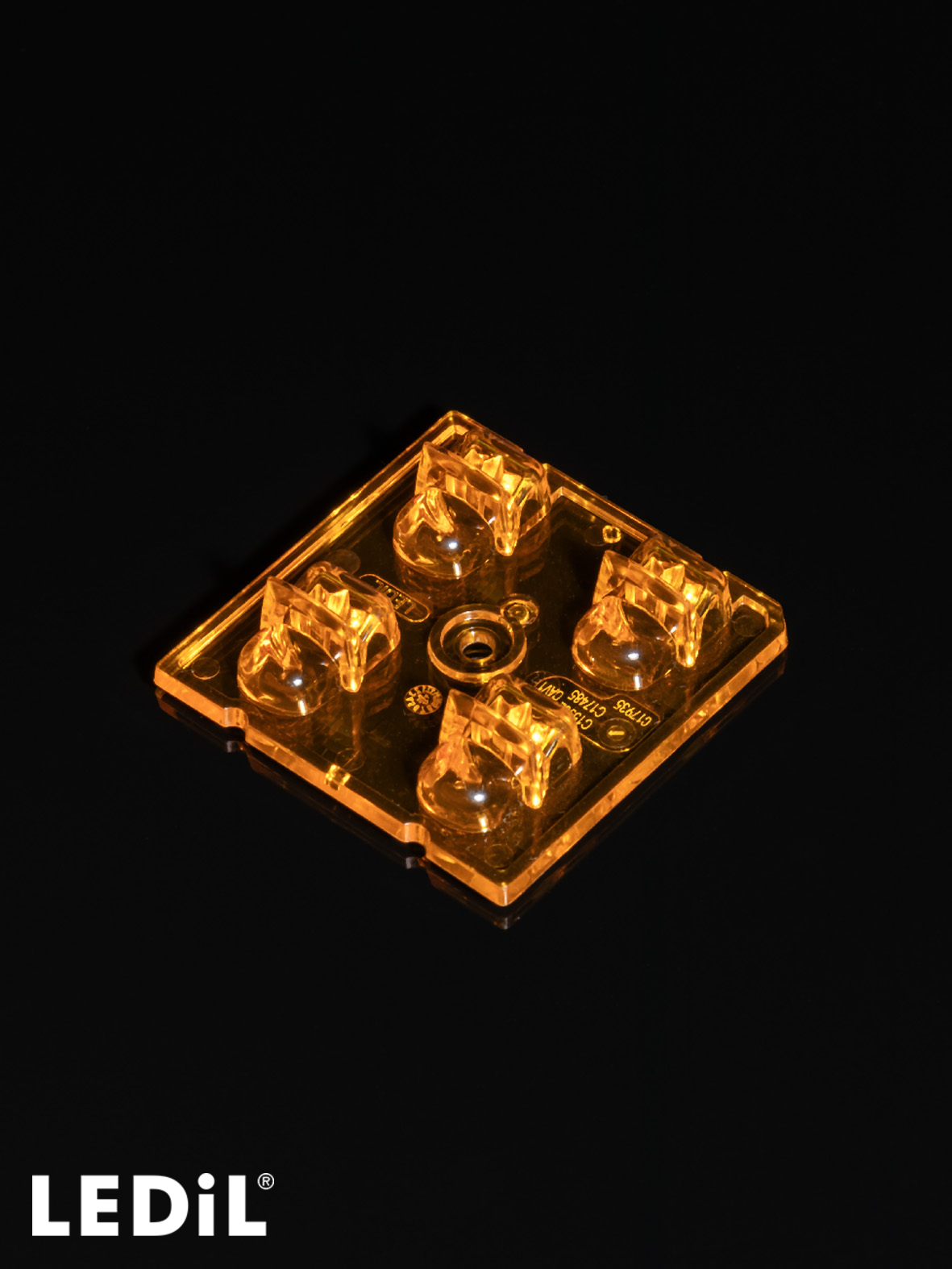

C19970_AMBER-2X2-FS3
PrintForward throw beam optimized for European tunnels, resulting in extremely efficient lighting with counter-beam method.
Specification
-
Dimensions:50 x 50 mm
-
Height:12.00 mm
-
Colour:amber
-
RoHS and REACH compliant:Yes
Materials
Ordering information
-
Quantity in box:800 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.2 kg
-
MPQ:160 pcs
-
MOQ:160 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.7 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
AVAILABLE LEDiL ACCESSORIES

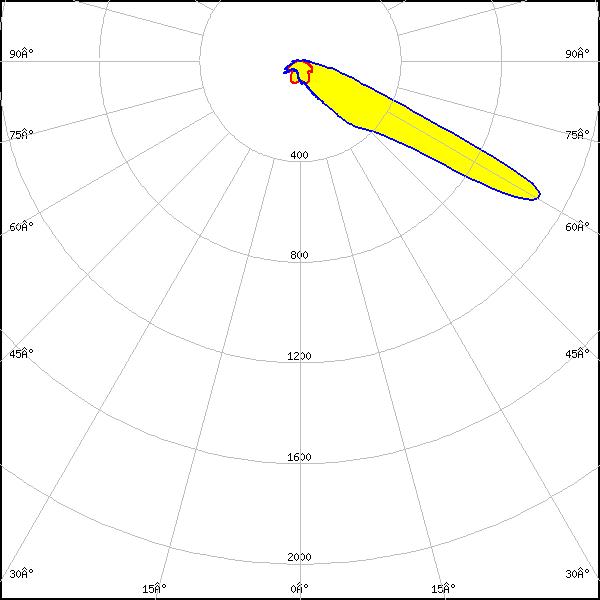

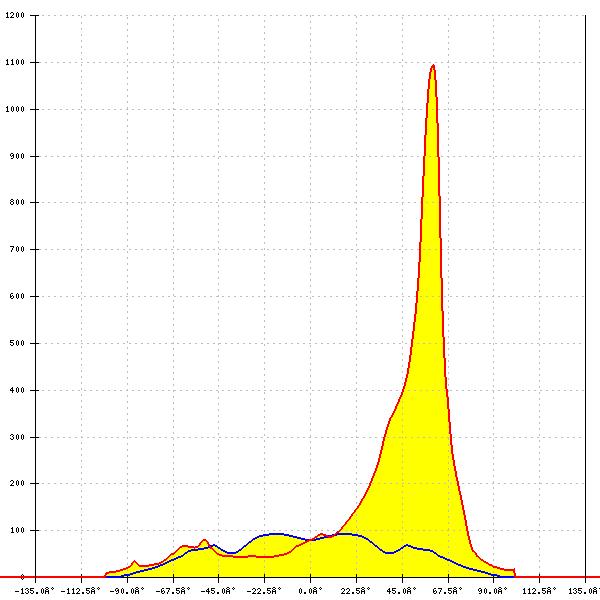

Optical results
LED:
XP-G3
FWHM: asymmetric
Peak intensity:
1.229 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
