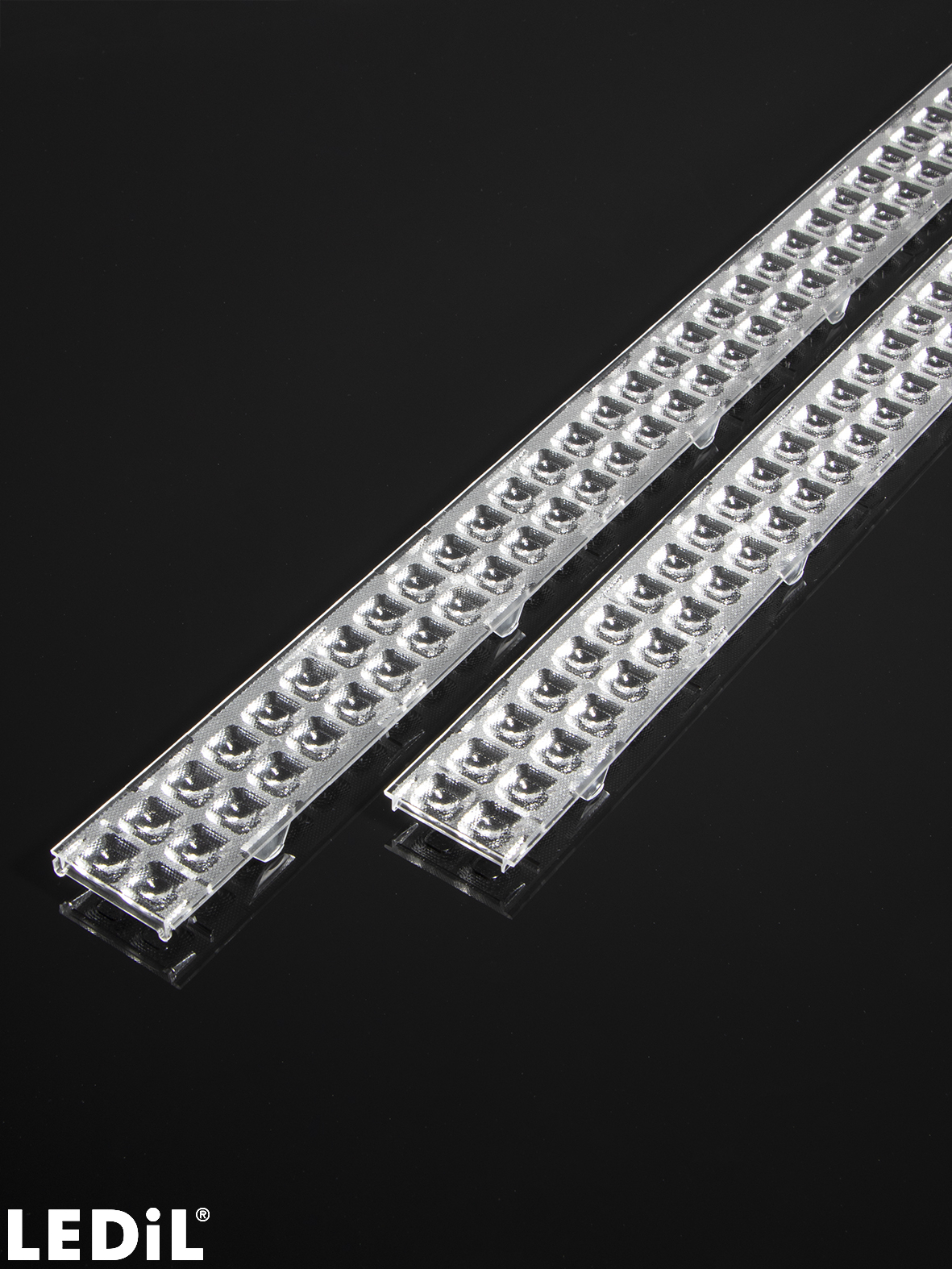

    C19843_LIANNA-2R-60-L2C

    Print

    ~60° wide beam, chainable with LIANNA-2R-60 variants

    Specification
    • Dimensions:
      40 x  561 mm
    • Height:
      10.65 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials
    Ordering information
    • Quantity in box:
      50 pcs
    • Box size:
      630 x 260 x 210 mm
    • Box weight:
      5.0 kg
    • MPQ:
      50 pcs
    • MOQ:
      500 pcs
    • MOQ size:
      630 x 260 x 210 mm
    • MOQ weight:
      5.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting>
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19843_LIANNA-2R-60-L2C
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    LIANNA ‒ redefining linear lighting excellence

    News

    New beams and products - September 2024

    Catalogue

    LEDiL Latest products catalogue

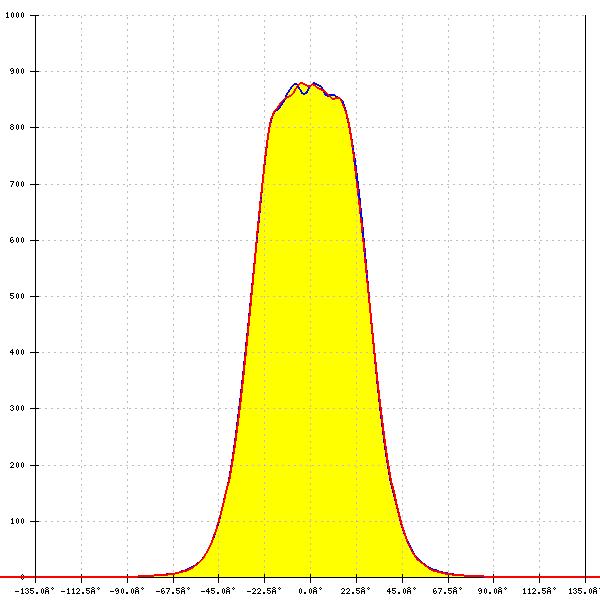

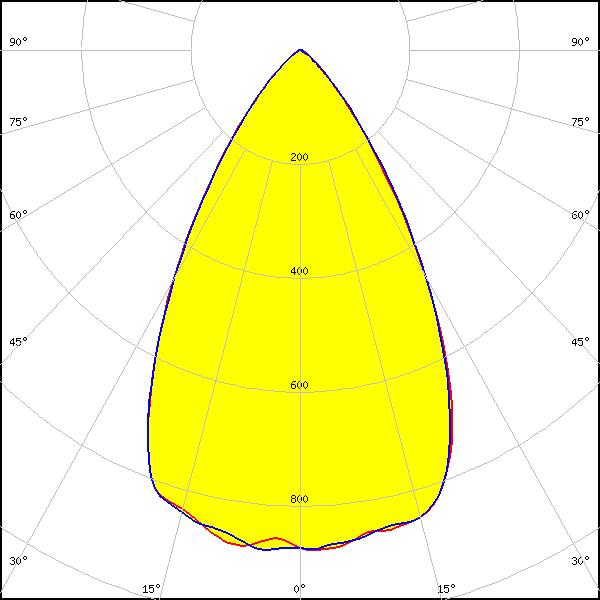

    Optical results

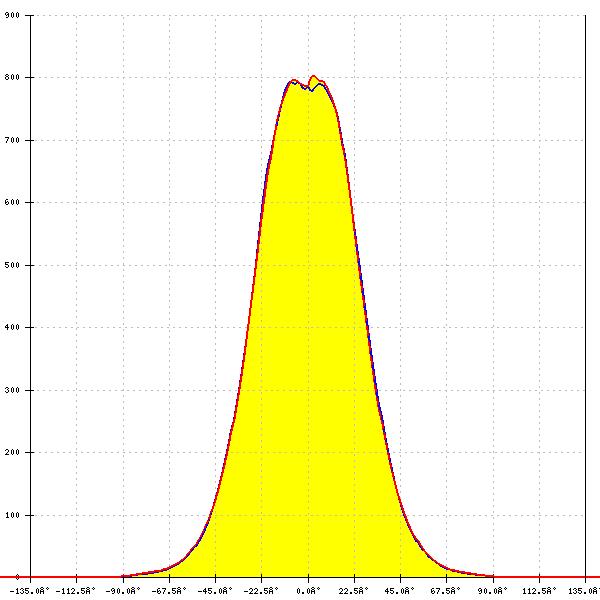

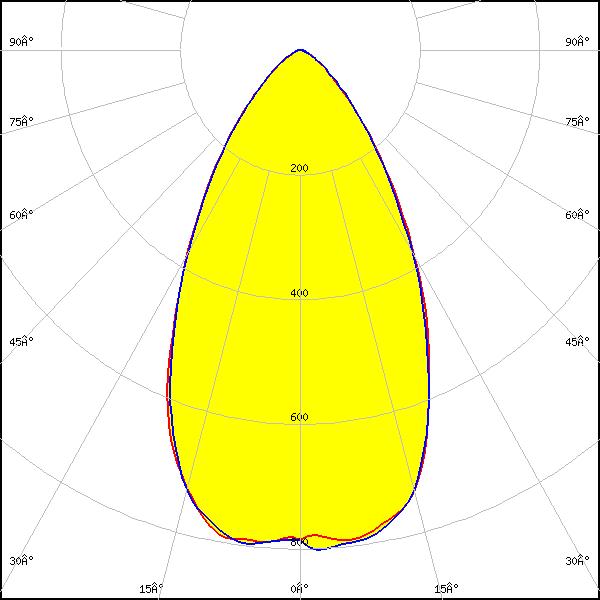

    LED: LH502D
    FWHM: 59°
    FWTM: 100°
    Peak intensity: 0.804 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

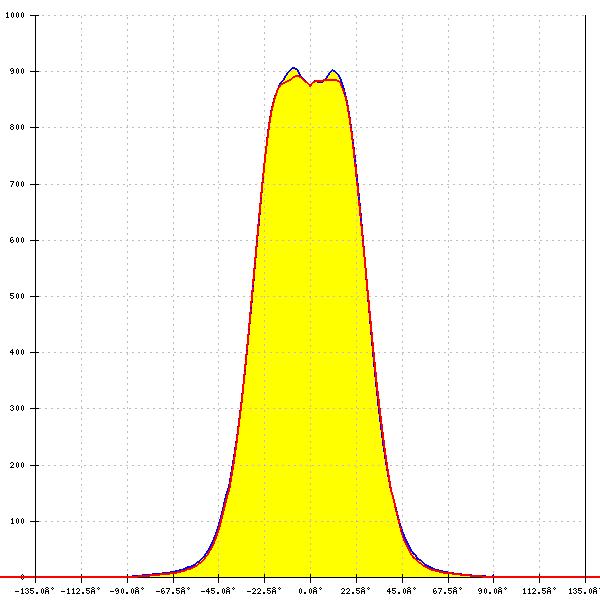

    LED: LM28xB Series
    FWHM: 60°
    FWTM: 89°
    Peak intensity: 0.913 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

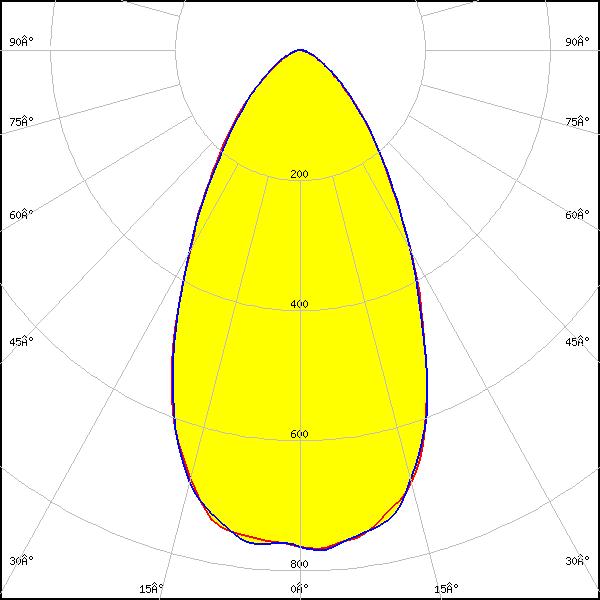

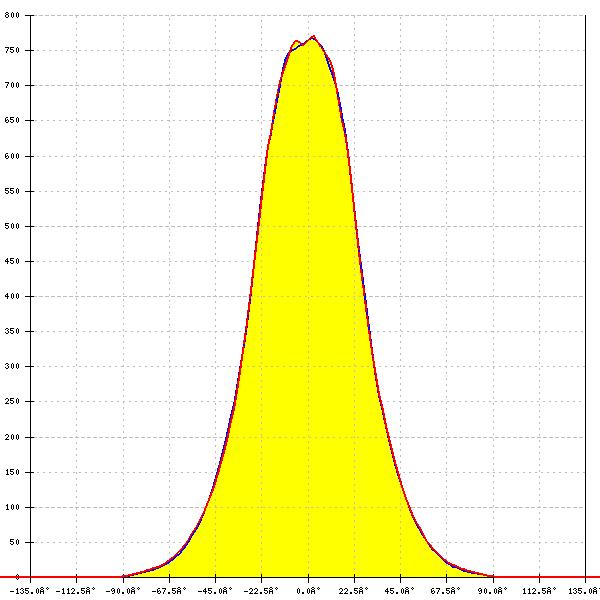

    LED: LM301B
    FWHM: 57°
    FWTM: 106°
    Peak intensity: 0.777 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 2
    Light colour/type: White

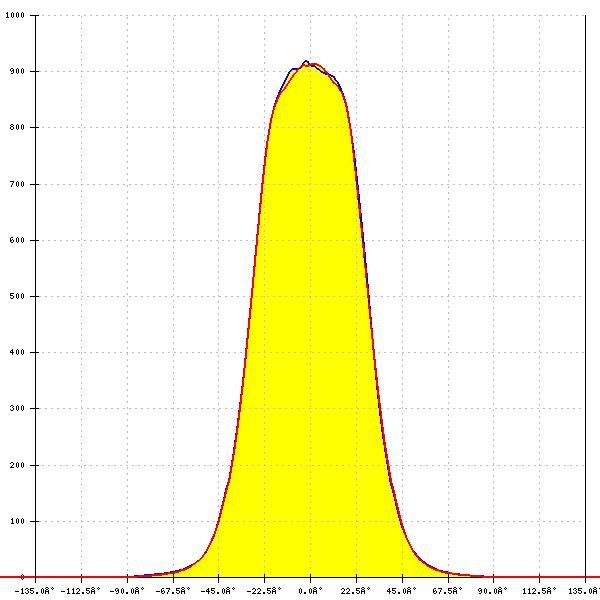

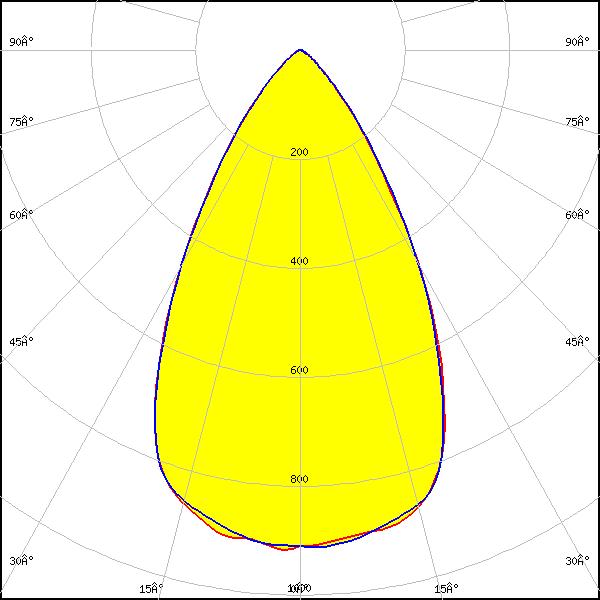

    LED: LM301B EVO
    FWHM: 60°
    FWTM: 90°
    Peak intensity: 0.921 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
